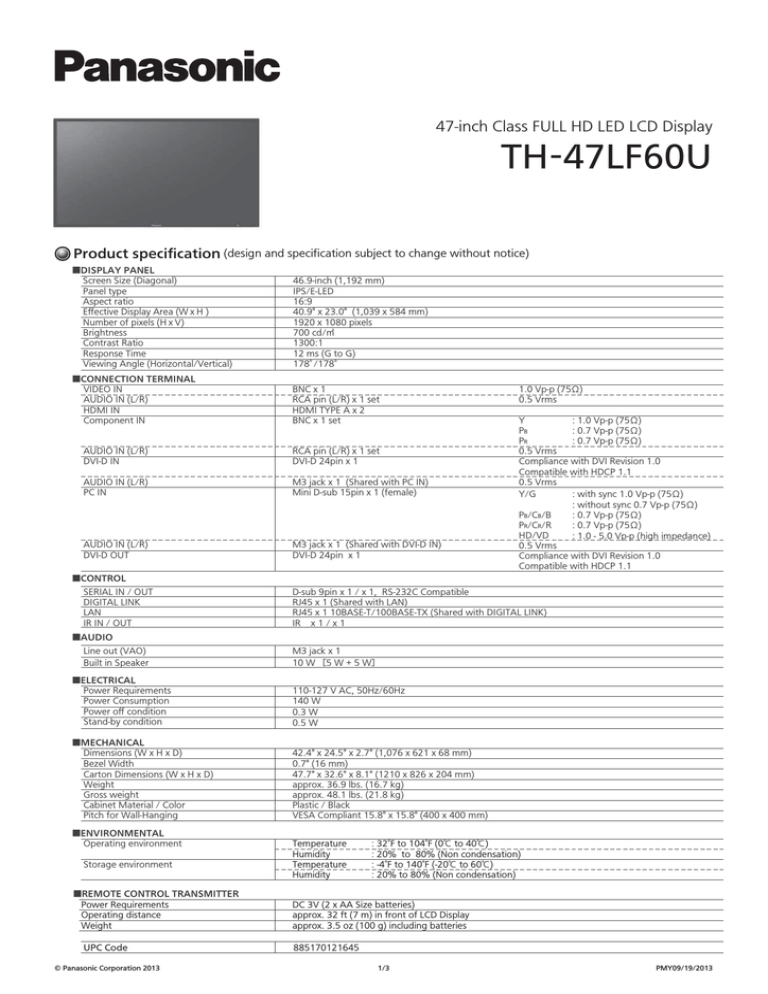

47-inch Class FULL HD LED LCD Display
TH-47LF60U
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Panel type
Aspect ratio
Effective Display Area (WxH )
Number of pixels (HxV)
Brightness
Contrast Ratio
Response Time
Viewing Angle (Horizontal/Vertical)
46.9-inch (1,192 mm)
IPS/E-LED
16:9
40.9" x 23.0" (1,039 x 584 mm)
1920 x 1080 pixels
700 cd/㎡
1300:1
12 ms (G to G)
178°
/178°
■CONNECTION TERMINAL
VIDEO IN
AUDIO IN (L/R)
HDMI IN
Component IN
BNC x 1
RCA pin (L/R) x 1 set
HDMI TYPE A x 2
BNC x 1 set
AUDIO IN (L/R)
DVI-D IN
RCA pin (L/R) x 1 set
DVI-D 24pin x 1
AUDIO IN (L/R)
PC IN
M3 jack x 1 (Shared with PC IN)
Mini D-sub 15pin x 1 (female)
AUDIO IN (L/R)
DVI-D OUT
M3 jack x 1 (Shared with DVI-D IN)
DVI-D 24pin x 1
1.0 Vp-p (75Ω)
0.5 Vrms
: 1.0 Vp-p (75Ω)
Y
: 0.7 Vp-p (75Ω)
PB
: 0.7 Vp-p (75Ω)
PR
0.5 Vrms
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
0.5 Vrms
Y/G
:
:
:
:
:
with sync 1.0 Vp-p (75Ω)
without sync 0.7 Vp-p (75Ω)
0.7 Vp-p (75Ω)
0.7 Vp-p (75Ω)
1.0 - 5.0 Vp-p (high impedance)
PB/CB/B
PR/CR/R
HD/VD
0.5 Vrms
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
■CONTROL
SERIAL IN / OUT
DIGITAL LINK
LAN
IR IN / OUT
D-sub 9pin x 1 / x 1, RS-232C Compatible
RJ45 x 1 (Shared with LAN)
RJ45 x 1 10BASE-T/100BASE-TX (Shared with DIGITAL LINK)
IR x 1 / x 1
■AUDIO
Line out (VAO)
M3 jack x 1
Built in Speaker
10 W [5 W + 5 W]
■ELECTRICAL
Power Requirements
Power Consumption
Power off condition
Stand-by condition
110-127 V AC, 50Hz/60Hz
140 W
0.3 W
0.5 W
■MECHANICAL
Dimensions (W x H x D)
Bezel Width
Carton Dimensions (W x H x D)
Weight
Gross weight
Cabinet Material / Color
Pitch for Wall-Hanging
42.4" x 24.5" x 2.7" (1,076 x 621 x 68 mm)
0.7" (16 mm)
47.7" x 32.6" x 8.1" (1210 x 826 x 204 mm)
approx. 36.9 lbs. (16.7 kg)
approx. 48.1 lbs. (21.8 kg)
Plastic / Black
VESA Compliant 15.8" x 15.8" (400 x 400 mm)
■ENVIRONMENTAL
Operating environment
Storage environment
■REMOTE CONTROL TRANSMITTER
Power Requirements
Operating distance
Weight
UPC Code
© Panasonic Corporation 2013
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 104°
F (0℃ to 40℃)
20% to 80% (Non condensation)
-4°
F to 140°
F (-20℃ to 60℃)
20% to 80% (Non condensation)
DC 3V (2 x AA Size batteries)
approx. 32 ft (7 m) in front of LCD Display
approx. 3.5 oz (100 g) including batteries
885170121645
1/3
PMY09/19/2013
TH-47LF60U
47-inch Class FULL HD LED LCD Display
MAIN FEATURE
OPTIONAL ACCESSORIES
Digital Zoom
Video Wall
Daisy Chain
1:1 Pixel mode
Automatic Picture Position
Screen Saver
PC/DVI Power Management
ECO mode
Button / Input lock
Orientation Landscape / Portrait
Remote-control User Level
Power-on Screen Delay
Seam Hides Video Off Mode
DVI-D Power Management
Input Search
Ceiling-Suspension
Operating Time
Pedestal
Yes (x1∼x4)
Yes (N x M, up to 5 x 5)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
24h/7d
TY-ST42P50
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
UL60065,
CAN/CSA-22.2 No60065-03
FCC Part 15 Subpart B Class-B,
ICES-003
INCLUDED ACCESSORIES
- Operating instruction book - CD-ROM (Operating instruction)
- Remoto control transmitter - Batteries (AA x 2) - Cramper x 3
- AC power cord
In case of running for a long time, the moving image is recommended
to be displayed. If you display a still picture for an extended period,
the image retention might remain on the screen. However, image
retention can gradually disappear by displaying a moving images.
DIMENSIONS
Cautions: This drawing is not a scale
2.7
(68)
Units : inches (mm)
15.8 (400)
7.9 (200)
15.8 (400)
0.7 (16)
24.5 (621)
0.7 (16)
0.7 (16)
0.7 (16)
42.4 (1076)
CONNECTION TERMINAL
SIDE
BOTTOM
© Panasonic Corporation 2013
2/3
PMY09/19/2013
TH-47LF60U
47-inch Class FULL HD LED LCD Display
APPLICABLE INPUT SIGNALS
Signal name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
NTSC
PAL
PAL60
SECAM
NTSC 4.43
PAL M
PAL N
525 (480) / 60i
525 (480) / 60p
625 (575) / 50i
625 (576) / 50i
625 (575) / 50p
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60p
1,125 (1,080) / 60i
1,125 (1,080) / 50p
1,125 (1,080) / 50i
1,125 (1,080) / 24sF
1,125 (1,080) / 30p
1,125 (1,080) / 25p
1,125 (1,080) / 24p
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @72 Hz
640 × 480 @75 Hz
640 × 480 @85 Hz
800 × 600 @56 Hz
800 × 600 @60 Hz
800 × 600 @72 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @50 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,066 × 600 @60 Hz
1,152 × 864 @60 Hz
1,152 × 864 @75 Hz
1,280 × 768 @60 Hz
1,280 × 960 @60 Hz
1,280 × 960 @85 Hz
1,280 × 1,024 @60 Hz
1,280 × 1,024 @75 Hz
1,280 × 1,024 @85 Hz
1,366 × 768 @50 Hz
1,366 × 768 @60 Hz
1,400 × 1,050 @60 Hz
1,600 × 1,200 @60 Hz
1,920 × 1,080 @60 Hz
1,920 × 1,200 @60 Hz
Horizontal
frequency (kHz)
15.73
15.63
15.73
15.63
15.73
15.73
15.63
15.73
31.47
15.63
15.63
31.25
31.25
45.00
37.50
67.50
33.75
56.26
28.13
27.00
33.75
28.13
27.00
31.46
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
31.47
39.55
48.36
56.48
60.02
68.68
37.64
53.70
67.50
47.70
60.00
85.94
63.98
79.98
91.15
39.55
48.36
65.22
75.00
67.50
74.04
35.00
49.72
68.68
Vertical
frequency (Hz)
59.94
50.00
59.94
50.00
59.94
59.94
50.00
59.94
59.94
50.00
50.00
50.00
50.00
60.00
50.00
60.00
60.00
50.00
50.00
48.00
30.00
25.00
24.00
70.07
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
59.94
50.00
60.00
70.07
75.03
85.00
59.94
60.00
75.00
60.00
60.00
85.00
60.02
75.03
85.02
50.00
60.00
60.00
60.00
60.00
59.95
66.67
74.54
75.06
VIDEO IN
COMPONENT IN
RGB IN/PC IN
(Dot clock (MHz))
DVI-D IN
(Dot clock
(MHz))
HDMI 1
HDMI 2
Y
Y
Y
Y
Y
Y
Y
* (13.5)
* (27.0)
* (13.5)
* (27.0)
* (27.0)
*
*
* (27.0)
*
* (27.0)
* (74.25)
* (74.25)
* (148.5)
* (74.25)
* (148.5)
* (74.25)
*
*
*
*
*
*
*
* (74.25)
* (74.25)
* (74.25)
*
* (25.18)
*
* (40.0)
*
* (34.24)
* (51.89)
* (65.0)
*
*
*
* (53.0)
* (81.62)
*
*
* (108.0)
*
* (69.92)
* (87.44)
* (122.61)
* (162.0)
* (148.5)
* (154.0)
*
*
*
*
*
*
* (27.0)
* (74.25)
* (74.25)
* (148.5) *1
* (74.25) *1
* (148.5) *1
* (74.25) *1
* (74.25) *2
* (74.25) *1
* (74.25) *1
* (74.25) *1
* (25.17)
* (25.18)
* (31.5)
* (31.5)
* (36.0)
* (36.0)
* (40.0)
* (50.0)
* (49.5)
* (56.25)
* (33.54)
* (65.0)
* (75.0)
* (78.75)
* (94.5)
* (53.0)
* (108.0)
* (80.14)
* (108.0)
* (148.5)
* (108.0)
* (135.0)
* (157.5) *3
* (86.71)
* (162.0)
* (148.5)
* (30.24)
* (57.28)
* (100.0)
*1:Based on SMPTE 274M standard.
*2:Based on SMPTE RP211 standard.
*3:Not compatible with SYNC ON G.
・ The signal format automatically detected may differ from the actual input signal in display.
© Panasonic Corporation 2013
3/3
PMY09/19/2013
