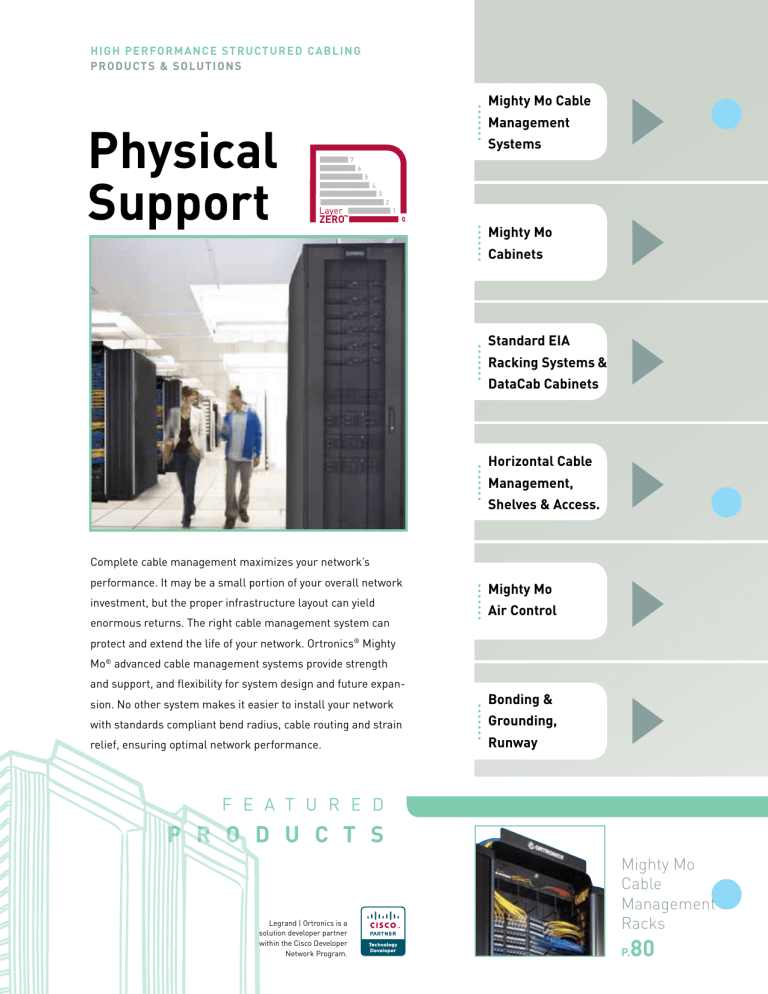

Physical Support
HIG H P E R FO R M A N CE S TR U CTU R E D CABLING
PR O D U CT S & S O LU TI O N S
Mighty Mo Cable
Physical
Support
Management
Systems
Mighty Mo
Cabinets
Standard EIA
Racking Systems &
DataCab Cabinets
Horizontal Cable
Management,
Shelves & Access.
Complete cable management maximizes your network’s
performance. It may be a small portion of your overall network
investment, but the proper infrastructure layout can yield
enormous returns. The right cable management system can
Mighty Mo
Air Control
protect and extend the life of your network. Ortronics® Mighty
Mo® advanced cable management systems provide strength
and support, and flexibility for system design and future expansion. No other system makes it easier to install your network
Bonding &
with standards compliant bend radius, cable routing and strain
Grounding,
relief, ensuring optimal network performance.
Runway
F E A T U R E D
P R O D U C T S
Legrand | Ortronics is a
solution developer partner
within the Cisco Developer
Network Program.
Mighty Mo
Cable
Management
Racks
p.
80
P.80
Mighty Mo 10
Cable Management Racks &
Accessories
P.82
Mighty Mo 6
Cable Management Racks &
Accessories
P.87
Mighty Mo 6
Horizontal
Management
and Equipment
Shelves
P.92
Mighty Mo
Pre-Configured
Cabinets
P.94
Mighty Mo
Cabinet
Accessories
P.102
Mighty Mo Wall
Mount Cabinets
& Accessories
P.104
Adjustable Dual
Equipment
Racks and
Accessories
P.117
DataCab
Server
Cabinets &
Accessories
P.118
DataCab Wall
Mount Cabinets
& Accessories
P.119
Cable
Management
Panels
P.124
Equipment
Shelves
P.128
Rack and Cabinet
Accessories
P.134
Air Curtain
System
P.137
Air Plugs
P.138
Air Disrupters
P.141
Bonding &
Grounding
P.147
Tubular Runway
& Accessories
Mighty Mo
Cabinets
p.
91
Mighty Mo
Air Control
p.
133
Mighty Mo® Cable Management System
The patented Mighty Mo advanced racking system is specifically
designed for higher density cabling system applications such as
data centers, SANs, and main cross connect areas. It is easy to assemble and offers many configuration options, extra vertical cable
capacity, and other functional and aesthetic elements. The Mighty
Mo system features an innovative vertical management “cage”
with individual 1-rack unit fingers and a double-hinged door. Horizontal cable managers, available with covers, are
designed to match the layout of Ortronics® Clarity® patch panels.
Mighty Mo racks and accessories work together to mount, manage and organize virtually any structured cabling equipment and
provide a unified, streamlined look.
Choose from the new Mighty Mo 10 rack, specifically designed
to improve airflow in data centers, or the Mighty Mo 6
for standard LAN applications.
n Patented channel construction has built-in strain relief, bend
radius control, and cable routing with floor and ceiling
access to distribution cables
n Top trough with built-in waterfall provides bend radius control and efficient patch cable routing
n Vented double hinged front and rear doors are available for
additional security on Mighty Mo 6 and Mighty Mo 10 racks
n Can be assembled as a 19” or 23” rack. No additional hardware required; no need for two sizes of racks
n Unless otherwise noted, all Mighty Mo 6 and Mighty Mo 10
components are compatible with both racks
mighty mo cable management system
Mighty Mo 10 Cable Management Racks
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM10716
OR-MM107SVR
Mighty Mo 10 Cable
Management Racks
PART NO.
Mighty Mo 10 racks are designed
to maximize the airflow of network
equipment. Honeycomb side rails and
baffles combine to manage intake
and exhaust air, creating cold
aisle/hot aisle air distribution from
side vented equipment. The bottom
flange turns inward, allowing it to fit
on a 2’x2’ floor tile. Black.
OR-MM10816
Mighty Mo 10 Server Rack
The Mighty Mo 10 Server Rack works
with all of the Mighty Mo 6 and 10
racks and cable management. The
mounting rails adjust from 12.5” to
30”, independent of the structural
members allowing the rails to be
adjusted after the rack is installed.
Mighty Mo vertical managers can be
mounted front or rear. Black.
DESCRIPTION
16.25” channel depth, 7’, high, black,
45 rack units
16.25” channel depth, 8’, high, black,
51 rack units
OR-MM10716
NOTE: Static capacity 1,500 lbs. Assembly required. Patent pending
Mighty Mo Speednut
Faster Assembly!
Included with every Mighty Mo cable management rack! The Mighty Mo Speednut
increases the speed and ease of assembly
while adding extra strength to your racks.
Hold the Speednut behind the rack while
hand-tightening the bolts in front. Speednut
eliminates the need for a second wrench!
PART NO.
DESCRIPTION
OR-MM107SVR
Four-post aluminum frame,
supplied with 50 #12-24 cage nuts
and screws, 45 rack units, 7’H
OR-MM107SVRABR
Server rack baffle rail for mounting
16.25” airflow baffles to 7’ server
rack when rails are spaced at 30”
OR-MM108SVR
Four-post aluminum frame,
supplied with 50 #12-24 cage nuts
and screws, 51 rack units. 8’H
NOTE: Static capacity: 1,500 lbs. (evenly distributed)
Assembly required.
80
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo 10 Rack Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM10VMD712
Mighty Mo 10 Cable
Management Cage with Door
Cage design promotes efficient routing
of patch cords between racks. Hinged
doors allow easy access during moves,
adds, and changes. 16” wide cage creates a 12.25” gap between racks. 12”
wide cage creates a 8.25” gap between
racks for front-to-back routing of equipment cables and patch cords. Both are
supplied with four spools and 12 bendlimiting clips. Black.
OR-MM10AB71612
Mighty Mo 10
Airflow Baffles
Mighty Mo 10 airflow baffles mount
between racks and direct intake
and exhaust air on side flow
network equipment from cold
aisle to hot aisle. Black.
PART NO.
DESCRIPTION
OR-MM10VMD712 With door, 12.13” x 13” x 7’
OR-MM10VMD716 With door, 16.38” x 13” x 7’
OR-MM10VMD812 With door, 12.13” x 13” x 8’
OR-MM10VMD816 With door, 16.38” x 13” x 8’
NOTE: All cable managers include hardware necessary to mount
the cage on the face of two Mighty Mo 6 or 10 racks.
Patent Numbers 6,946,605, 6,968,647 and 7,026,553
PART NO.
DESCRIPTION
For use with 7’ x 16” Mighty Mo 10 rack
OR-MM10AB71612
and 12” wide Mighty Mo 10 cage
For use with 7’ x 16” Mighty Mo 10 rack
OR-MM10AB71616
and 16” wide Mighty Mo 10 cage
For use with 7’ Mighty Mo 10 Server
OR-MM10AB73012 Rack and 12” wide Mighty Mo 10 cage
when rails are spaced at 30” apart.
For use with 7’ Mighty Mo 10 Server
OR-MM10AB73016 Rack and 16” wide Mighty Mo 10 cage
when rails are spaced at 30” apart.
For use with 8’ x 16” Mighty Mo 10 rack
and 12” wide Mighty Mo 10 cage
For use with 8’ x 16” Mighty Mo 10 rack
OR-MM10AB81616
and 16” wide Mighty Mo 10 cage
OR-MM10AB81612
For use with 8’ Mighty Mo 10 Server
OR-MM10AB83012 Rack and 12” wide Mighty Mo 10 cage
when rails are spaced at 30” apart.
For use with 8’ Mighty Mo 10 Server
OR-MM10AB83016 Rack and 16” wide Mighty Mo 10 cage
when rails are spaced at 30” apart.
NOTE: Includes all hardware necessary to mount between two
Mighty Mo 10 racks. Not intended for use with Mighty Mo 6 racks.
Patent pending
OR-MM10VDA7248
Mighty Mo 10 Vented
Door Assemblies
Door design allows mounting to the
front or rear of any Mighty Mo 6 or
Mighty Mo 10 rack. The doublehinged door pivots to the right or
left and is easily removed. Black.
PART NO.
DESCRIPTION
OR-MM10VDA7248
7’ x 24” with 8.38” of clearance
behind door for use with VMD-style
vertical managers
OR-MM10VDA7244
7’ x 24” with 4.38” of clearance
behind door for use without vertical
managers
OR-MM10VDA8248
8’ x 24” with 8.38” of clearance
behind door for use with VMD-style
vertical managers
OR-MM10VDA8244
8’ x 24” with 4.38” of clearance
behind door for use without vertical
managers
NOTE: Door designed to work with Mighty Mo racks assembled in
the 19” configuration.
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
81
mighty mo® cable management system
Mighty Mo 10 Rack Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM1070206VCT
Vertical Cable Trays for
Mighty Mo 10 Server Rack
Vertical cable trays consist of a
pre-cut section of 2” x 6” Cablofil®
cable tray and mounting hardware
designed to mount on the rack and
manage distribution cables routing
from the patch panel and equipment
out of the rack. It mounts to the strut
on the rack and can be adjusted front
to back.
PART NO.
OR-MM1070206VCT
OR-MM1080206VCT
DESCRIPTION
Vertical cable tray 2” wide x 6”
deep for the Mighty Mo 10 7 foot
server rack
Vertical cable tray 2” wide x 6”
deep for the Mighty Mo 10 8 foot
server rack
mighty mo® cable management system
Mighty Mo 6 Cable Management Racks
OR-MM6710
Mighty Mo 6 Cable
Management Racks
Mighty Mo® 6 racks are available in
6.5”, 10.5” and 16.25” channel depths.
The 16.25” size is designed specifically for large and heavy network
equipment. The bottom flange on the
16.25” standard rack turns inward,
allowing it to fit on a 2’ x 2’ floor tile.
PART NO.
DESCRIPTION
OR-MM6706
6.5” channel depth, 7’ high, black,
45 rack units
OR-MM6710
10.5” channel depth, 7’, high, black,
45 rack units
OR-MM6716
16.25” channel depth, 7’, high,
black, 45 rack units
OR-MM6810
10.5”channel depth, 8’, high, black,
51 rack units
OR-MM6816
16.25” channel depth, 8’, high,
black, 51 rack units
NOTE: Static capacity 1,500 lbs. Assembly required.
Patent No. D360,189
OR-MM6716
Mighty Mo Speednut
Faster Assembly!
Included with every Mighty Mo 6!
The Mighty Mo Speednut increases the speed
and ease of assembly while adding extra
strength to your racks. Hold the Speednut
behind the rack while hand-tightening the
bolts in front. Speednut eliminates the need
for a second wrench! Finish tightening with
a wrench and your rack is ready to load.
82
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo 6 Vertical Management
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM6VMD710
Mighty Mo 6 Cable
Management Cage
with Door
Cage design promotes efficient routing of patch cords between racks.
Hinged doors allow easy access
during moves, adds, and changes.
10” wide cage creates a 6.5” gap
between racks. 6” wide cage creates
a 2.5” gap between racks for frontto-back routing of equipment cables
and patch cords. Both are supplied
with four spools and 12 bend-limiting
clips. Black.
OR-MM6VMS704
Mighty Mo 6 Vertical
Cable Management
Cage with Cover
Cage design promotes efficient
routing of patch cords between
racks. Dual snap on hinged covers
allow easy access during moves,
adds, and changes. 6” wide cage
creates a 2.5” gap between racks for
front-to-back routing of equipment
cables and patch cords. 6” wide cage
is supplied with four spools and 12
bend-limiting clips. Black.
OR-MM6VML706
Mighty Mo 6 Vertical
Cable Management
Cage with Latches
Patented design promotes efficient
routing of patch cords between
racks. Hinged latches allow easy
access during moves, adds, and
changes. 6” wide cage creates a
2.5” gap between racks for frontto-back routing of equipment
cables and patch cords. Black.
PART NO.
DESCRIPTION
OR-MM6VMD706
With door, 6” x 8” x 7’
OR-MM6VMD710
With door, 10” x 13” x 7’
OR-MM6VMD806
With door, 6” x 8” x 8’
OR-MM6VMD810
With door, 10” x 13” x 8’
NOTE: All cable managers include hardware necessary to mount
the cage on the face of two Mighty Mo 6 racks. The 6” wide model
contains gusset brackets and is recommended for a single rack or
end of a row.
Patent Numbers 6,946,605, 6,968,647 and 7,026,553
PART NO.
DESCRIPTION
OR-MM6VMS704
With cover, 4” x 7” x 7’
OR-MM6VMS706
With cover, 6” x 7” x 7’
OR-MM6VMS804
With cover, 4” x 7” x 8’
OR-MM6VMS806
With cover, 6” x 7” x 8’
NOTE: Includes all hardware necessary to mount cage on face of
two Mighty Mo 6 racks, single rack or end of row.
Patent Numbers 6,946,605 and 7,026, 553
PART NO.
DESCRIPTION
OR-MM6VML704
With latches, 4” x 6” x 7’
OR-MM6VML706
With latches, 6” x 6” x 7’
NOTE: Includes all hardware necessary to mount cage on face of
two Mighty Mo 6 racks, single rack or end of row.
Patent No. 6,365,834
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
83
mighty mo® cable management system
Mighty Mo Rack Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM10WFE
Mighty Mo 10
Waterfall Extension
PART NO.
DESCRIPTION
Increases the height of the front flange of
the Mighty Mo waterfall by 2.25” when
OR-MM10WFE
additional cable capacity is required.
Black
NOTE: Fits all Mighty Mo 10, 6 and 3 waterfalls
OR-60400614
Cable Management Rings
These black plastic rings flex at the
end for easy insertion or removal of
cross connect cables. They snap in
place on the front and back of the
Mighty Mo racks. Black.
PART NO.
DESCRIPTION
OR-60400614
Snap-type, 1.75” X 6”, package of 14
OR-60400542
Snap-type, 1.75” X 6”, package of 2
OR-60400314
Snap-type, 1.75” x 3”, package of 14
OR-60400302
Snap-type, 1.75” x 3”, package of 2
NOTE : No hardware needed.
OR-60400017
Cable Management Rings
These rings allow efficient routing of
patch or cross connect cables between
distribution racks. They can be mounted where needed on the front and back
of the Mighty Mo racks. Black.
OR-MM6CMS8
Mighty Mo Cable
Management Spools
Cable management spools effectively
manage excess copper or fiber cable
slack. They mount at rack unit intervals, providing flexibility and proper
bend radius for cables on the front of
the 6” wide cage with door or on the
front and rear of the 10” wide cage with
door. Set of four. Black.
OR-MM6BLC
84
PART NO.
DESCRIPTION
OR-60400017
2” x 6”, package of 14, Black
OR-60400062
2” x 6”, package of 2, Black
NOTE : Includes mounting hardware.
PART NO.
OR-MM6CMS10
OR-MM6CMS8
OR-MM6CMS6
Mighty Mo Bend Limiting Clip
PART NO.
Bend limiting clips snap on to any finger on
the vertical management cage to provide
bend limitation for fiber jumpers entering
and exiting the cage. Set of 12. Black.
OR-MM6BLC
DESCRIPTION
11” long for 10” vertical management
cage with door
8” long for 10” vertical management
cage with door
6” long for 6” vertical management cage
with door
DESCRIPTION
3.25” long for vertical management
cages with door or cover
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo Rack Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MM6CBL10
Mighty Mo Channel
Bend Limiters
Mighty Mo channel bend limiters
clip onto the top edge of Mighty Mo
channels providing the proper bend
radius for cables entering the
channel. Set of 2. Black.
Mighty Mo PDU
Mounting Bracket Kit
OR-MMPDUMBT
PART NO.
DESCRIPTION
OR-MM6CBL06
For use with Mighty Mo racks with
6.5” channels
OR-MM6CBL10
For use with Mighty Mo racks with
10.5” channels
OR-MM6CBL16
For use with Mighty Mo racks with
16.25” channels
PART NO.
DESCRIPTION
OR-MMPDUMBT
Mighty Mo PDU Mounting Bracket Kit
PART NO.
DESCRIPTION
OR-60400687
Kit consists of 4 brackets, 8 panel
mounting screws and 4 cage mounting
screws
Enables the mounting of toolless
(button mount) PDUs to the side of a
Mighty Mo rack.
Mighty Mo Vertical
Management Bracket Kit
OR-60400687
Vertical management bracket kit includes 4 brackets and all the hardware
needed to mount 2 Mighty Mo 6 vertical
managers to a standard EIA rack. Black.
OR-MM6CRB06
OR-MM6CRB16
OR-MM6BDC10
OR-MM6CRB10
OR-MM10CRBSVR
OR-MM6BDC16
Mighty Mo Cable Runway
Mounting Brackets
PART NO.
DESCRIPTION
OR-MM6CRB06
For rack with 6.5” channel depth
Mounts to top of either the
Mighty Mo 6 or Mighty Mo 10 racks.
Provides a mounting location for 6”
- 18” ladder racking.
OR-MM6CRB10
For rack with 10.5” channel depth
OR-MM6CRB16
For rack with 16.25” channel depth
OR-MM10CRBSVR
For MM10 server rack
OR-MM10CRBRSVR
For rear of MM10 server rack
Mighty Mo Rack
Base Dust Cover
PART NO.
DESCRIPTION
OR-MM6BDC06
For 6.5” channel standard rack
Prevents dust and debris from
accumulating in rack base. Scored
for bending to clear cables from
floor up to channel. Black.
OR-MM6BDC10
For 10.5” channel standard rack
OR-MM6BDC16
For 16.25” channel standard rack
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
85
mighty mo® cable management system
Mighty Mo Rack Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Mighty Mo Runway
Ceiling Extension Kit
OR-MM6CEK10
Mounts on the top of Mighty Mo 6
racks. The kit extends one channel
24” and is supplied with a cover to
hide the cables. Black.
PART NO.
OR-MM6CEK06
OR-MM6CEK10
OR-MM6CEK16
DESCRIPTION
For rack with 6.5” channel depth,
one per kit with cover
For rack with 10.5” channel depth,
one per kit with cover
For rack with 16.25” channel depth,
one per kit with cover
NOTE: Extension uses rack hardware for mounting
OR-MM6EP710
OR-MM6EP706
Mighty Mo End Panel
Standard
The end panel is used to finish the
end of a row of Mighty Mo racks.
It mounts flush and provides a
surface for the vertical cable
management channel while
concealing cables in the rack
channel. Black.
PART NO.
DESCRIPTION
OR-MM6EP706
For 7’ rack with 6.5” channel depth
OR-MM6EP710
For 7’ rack with 10.5” channel depth
OR-MM6EP716
For 7’ rack with 16.25” channel depth
OR-MM6EP810
For 8’ rack with 10.5” channel depth
OR-MM6EP816
For 8’ rack with 16.25” channel depth
For use with 6” Mighty Mo 6 vertical cable managers
NOTE: Includes mounting hardware
Narrow
For use with 4” Mighty Mo 6 vertical cable managers*
PART NO.
DESCRIPTION
OR-MM6EPN706
For 7’ rack with 6.5” channel
OR-MM6EPN710
For 7’ rack with 10.5” channel
OR-MM6EPN716
For 7’ rack with 16.25” channel
OR-MM10EPN730
For 7’ Mighty Mo 10 Server rack rails
set at 30”
OR-MM6EPN810
For 8’ rack with 10.5” channel
OR-MM6EPN816
For 8’ rack with 16.25” channel
NOTE: Includes mounting hardware
*To use the narrow end panels with 10” or 12” vertical managers,
the OR-MM10EPS end support bracket kit must be installed.
OR-MM6CT4RUK
Mighty Mo 6 Cable Trough
For supporting fiber cables at the
bottom of Mighty Mo racks. The kit
includes an extension that bridges
the space between racks. Black
OR-MMIPK
Mighty Mo Isolation Pad Kit
Isolates Mighty Mo racks from
concrete floors for effective bonding
& grounding.
86
PART NO.
DESCRIPTION
OR-MM10EPS
End panel support bracket kit
PART NO.
DESCRIPTION
OR-MM6CT4RU
Cable trough, 4 rack unit
OR-MM6CT4RUK
Cable trough kit, 4 rack unit
NOTE : Includes mounting hardware.
PART NO.
DESCRIPTION
OR-MMIPK
Isolation pad kit for Mighty Mo racks
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo Horizontal Management
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Ortronics® Mighty Mo cable management panels are optimized to organize patch cords vertically and horizontally on
Mighty Mo racks. They will also mount on any standard 19” rack. The finger design encourages defined and traceable
routing of individual patch cords.
Mighty Mo 6 Horizontal Management Panels
OR-MM6HMF1RU
OR-MM6HMF4RU
OR-MM6HM62RU
OR-MM6HM82RU
OR-MM6HMF2RU
OR-MM6HM61RU
PART NO.
DESCRIPTION
OR-MM6HMF1RU
Multiple fingers, cover, one rack unit
(1.75” x 19”), Black
OR-MM6HMF2RU
Multiple fingers, cover, two rack units
(3.5” x 19”), Black
OR-MM6HMF4RU
Multiple fingers, cover, four rack units
(7.0” x 19”), Black
OR-MM6HM61RU
Six-port finger spacing, cover, one
rack unit (1.75” x 19”), Black
OR-MM6HM62RU
Six-port finger spacing, cover, two
rack units (3.5” x 19”), Black
OR-MM6HM81RU
Eight-port finger spacing, cover, one
rack unit (1.75” x 19”), Black
OR-MM6HM82RU
Eight-port finger spacing, two rack
units (3.5” x 19”), Black
OR-MM6HM6D2RU
Six-port finger spacing, double-sided,
covers, two rack units (3.5” x 19”),
Black
OR-MM6HM81RU
OR-MM6HM6D2RU
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
87
mighty mo® cable management system
Equipment Shelves for Mighty Mo Racks
See pages 124-127 for
additional shelves for Mighty Mo
and standard 19” racks
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-60400355
OR-60400517
Double Equipment Shelves
for Mighty Mo Racks
PART NO.
DESCRIPTION
OR-60400355
19” x 5.25” x 24”, 150 lbs capacity
Ortronics double equipment shelf supports miscellaneous
equipment, test gear, etc. The double shelves work with
Mighty Mo racks with 6.5” deep channels. Shelf width is
17”. Black.
OR-60400517
23” x 5.25” x 24”, 150 lbs capacity
OR-60400655
19” x 5.25” x 24”, 150 lbs capacity
NOTE: Shelf is slotted to accept the Ortronics monitor strap kit
OR-70700126. Includes #12-24 mounting hardware.
Double Equipment Shelves
for Mighty Mo Racks
Ortronics double equipment shelf supports miscellaneous
equipment or test gear. The double shelf works with
Mighty Mo racks with 6.5” deep channels when assembled
in a 23” configuration. Shelf width is 21.37”. Black.
OR-60400655
Double Equipment Shelves
for Mighty Mo Racks
Ortronics extra width double equipment shelf is 18.75”
wide in front and back; usable width between mounting
flanges is 17.5”. This shelf works with Mighty Mo racks
with 6.5” deep channels. Black.
OR-604045681
OR-60400538
OR-70700126
Four Point Equipment Shelf
for Mighty Mo Racks and Cabinets
PART NO.
DESCRIPTION
OR-604045681
19” x 1.72” x 20”, 100 lbs capacity
Ortronics four point equipment shelf supports
miscellaneous equipment or test gear. The one unit
shelf works with Mighty Mo racks with all depth
channels and Mighty Mo cabinets 24” and deeper.
Shelf is 17.25” wide. Black.
NOTE: Shelf is slotted to accept the Ortronics monitor strap kit OR70700126. Includes #12-24 mounting hardware.
Mighty Mo Server Rack
Equipment Shelf
PART NO.
DESCRIPTION
OR-60400538
19” x 1.7” x 30”, 200 lbs capacity
The Mighty Mo server rack equipment shelf has a fixed
front flange with an infinitely adjustable rear flange that
allows for secure four point mounting as deep as 30”.
Shelf width is 17.25”. Black.
NOTE: Shelf is slotted to accept the Ortronics monitor strap kit OR70700126. Includes #12-24 mounting hardware.
Mighty Mo Monitor Strap Kit
The monitor strap kit consists of hook and loop straps
which can secure a monitor with a base of any size or
shape to all equipment shelves on this page. The
monitor screen remains fully adjustable. Black.
88
PART NO.
DESCRIPTION
OR-70700126
Hook and loop type strap kit
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo Overhead Cable Pathway Rack
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Mighty Mo overhead cable pathway racks provide cable management and an innovative mounting method for 19” rack mount
copper and fiber panels and cabinets. The pathway racks allow horizontal connectivity to be supported by the overhead pathway
freeing up valuable rack or cabinet space below.
OR-60401001
Mighty Mo Overhead
Cable Pathway Rack
The Mighty Mo overhead cable pathway
racks come with everything needed to
mount the bracket to the side of
Homaco runway with 1-1/2” stringers or
any Cablofil cable tray 2” or deeper. Black
PART NO.
OR-60401001
OR-60401015
OR-60401089
DESCRIPTION
2 rack units, 23.6”W x 7.4”H x 9”D,
90 lbs. capacity
5 rack units, 23.6”W x 12.6”H x 9”D,
90 lbs. capacity
8 rack units,23.6”W x 18.1”H x 9”D,
90 lbs. capacity
mighty mo cable management system
Mighty Mo Telecom Enclosure
The Mighty Mo telecom enclosure combines advanced cable management with security
and flexibility to change the way you bring high performance to the desktop. Based on
the foundation of Mighty Mo technology, the telecom enclosure provides capacity for
both active and passive equipment and can support up to 48 users.
OR-MMTECSG22
OR-MMTECFCBP
OR-MMTECFSP
OR-MMTEHMR2RU
Mighty Mo Ceiling Mount
Telecom Enclosure
The Mighty Mo ceiling mount telecom
enclosure has a unique patent pending swing gate design that allows for
easy access to patching and equipment by simply opening the front
cover. The swing-out access supports
easy re-termination and includes
dampening cylinders to control the
speed of opening. The attractive
exterior blends well with office decor
and a lockable front door provides security and protection in public areas.
Built-in cable management supports
and organizes cables, ensuring proper
bend radius.
Approved to UL-2043 for use in air
handling spaces.
Cable Management Panel
Double-sided cable management
panel with front rings to manage
patch cords and a rear trough
with slots to protect and route
terminated cables.
PART NO.
DESCRIPTION
OR-MMTECSG22
Mighty Mo telecom enclosure, ceiling
mount, 23.50” W x 23.50” H x 20.61” D,
10 rack units, 80 lbs. capacity, Beige
NOTE: Patent pending
Ceiling Mount Accessories
PART NO.
DESCRIPTION
OR-MMTECFCBP
Plate Kit - includes Fan Plate with
100 CFM fan, guard, 3 ft. cord with
plug, Cable Brush Plate, and mounting hardware, Black
OR-MMTECFSP
Fire Stop Cable Plate Kit - includes
intumescent foam and mounting
hardware. Set of 2, Beige
Cable Management Accessory
PART NO.
DESCRIPTION
OR-MMTEHMR2RU
Cable management panel for the
Mighty Mo telecom enclosure, 19.00”
W x 3.47” H x 6.75” D, 2 rack units.
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
89
Standard EIA Rack
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Ortronics® 19” self supporting EIA rack is used for mounting a variety of telecommunications and data equipment. It consists of
two U-channel type uprights 7’ high, two base and two top support angle cross members, and is constructed of aluminum.
OR-604004600*
OR-DVMS706
Self Supporting EIA Racks
PART NO.
DESCRIPTION
Ortronics standard EIA self
supporting rack with Mighty Mo
universal pattern uprights, extruded
base angles and top angles. Tapped
EIA pattern front and rear and
supplied with 50 #12-24 pilot point
mounting screws. Top flange is
pre-punched to accept 6”-18” ladder
racking. Assembly required. Black.
OR-604004600*
19”W x 7’H, 44 rack units
Standard Vertical Cable
Management Cage
with Cover
Mounts to the side of a standard EIA
rack. The fingers are spaced to line
up with rack units, promoting efficient
routing of patch cords to patch panels
and equipment from the vertical
manager. Dual snap on hinged covers
allow easy access during moves, add,
and changes. Available in singlesided and double-sided versions.
NOTE: Includes all hardware necessary to
mount to the side of a standard EIA rack.
90
* OR-604004600 standard rack is UL® listed.
NOTE: Ortronics standard EIA rack is pre-drilled to accept side
mounting of all Mighty Mo vertical managers.
Single-sided
PART NO.
DESCRIPTION
OR-SVMS704
3.75” x 6.58” x 7’, single-sided
OR-SVMS706
6.00” x 6.58” x 7’, single-sided
OR-SVMS804
3.75” x 6.58” x 8’, single-sided
OR-SVMS806
6.00” x 6.58” x 8’, single-sided
Double-sided
PART NO.
DESCRIPTION
OR-DVMS704
3.75” x 13.17” x 7’, double-sided
OR-DVMS706
6.00” x 13.17” x 7’, double-sided
OR-DVMS804
3.75” x 13.17” x 8’, double-sided
OR-DVMS806
6.00” x 13.17” x 8’, double-sided
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Enhanced Cable Management with Superior Airflow
A solid foundation is critical for superior network performance in high density applications. A poorly designed physical support system can have a devastating effect on the
performance of the network. Ortronics® engineers have strategically designed Mighty Mo
cabinets from the ground up to protect network integrity. Cable management is not just
an add-on accessory, it is the basis for our design.
Ortronics’ full line of free standing cabinets specifically addresses the cable management needs of today’s
high performance networks by:
n Purposefully repositioning the caster rails out of the cable pathway
n Properly routing the cables to minimize bends and turns, reducing the number of failure points
n Effectively managing entry and exit points from within the cabinet frame
n Offering advanced features such as bend limiting clips that snap on the rack unit spaced fingers where needed to protect
fiber jumpers
The Mighty Mo cabinet is also ideal for maintaining cold-aisle/hot aisle airflow, whether your network equipment is front-toback, bottom or side venting. Mighty Mo cabinet air flow baffles provide separation of hot and cold aisles and redirect air flow
from side vented equipment so it matches the front to back airflow of servers.
Features:
n HEAVY DUTY CONSTRUCTION: Heavy-duty 14 ga. construction offers
improved durability over conventional 16 ga. cabinets. Mighty Mo
doors are especially designed to eliminate the irritating flex found in
less well built cabinets.
n CABLE MANAGEMENT: Mighty Mo vertical and horizontal managers provide improved management for both servers and high density
switches. Available bend limiters provide standards compliant protection for fiber and 10G copper patch cords.
n PASSIVE THERMAL MANAGEMENT: Mighty Mo baffles redirect the airflow of side vented equipment from front to rear ensuring the proper
flow of air from cold aisle to hot aisle.
n THERMAL PROTECTION:A wide selection of top panels, fans and doors
are available to ensure adequate ventilation is provided to keep equipment at the optimal operating conditions.
n SECURITY: Doors include locking handles to prevent unauthorized access and tampering. Side panels also come equipped with locks.
n MOBILITY: Levelers come standard with frames. Swivel casters are
optional for added mobility.
n 180° DOOR SWING WITH SELF-CONTAINED HINGES: Self-contained
hinges used on our surface mount doors have no removable pins that
can be lost. These hinges eliminate aisle blockage when loading or
performing maintenance on equipment without removing the door.
n
FULLY CONFIGURABLE: Mighty Mo cabinets are built to your configuration and arrive fully assembled with all components installed
and accessories included, reducing equipment deployment time and
overall costs. Consult your local representative to configure a cabinet
to your unique requirements.
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
91
mighty mo® cabinets
Mighty Mo Pre-Configured Cabinets
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Legrand | Ortronics has assembled some of the most popular cabinet sizes and accessories together into
easy to order part numbers.
Pre-Configured
Server Cabinets
n
n
n
n
n
n
n
n
n
n
n
n
n
n
Frame configured with cable opening
at bottom rear
Frame levelers
Two pairs of RU labeled mounting
rails with 3/8” square holes
Full profile mesh front door
Split flat mesh rear door
Two “L” shaped finger managers on
rear rails
Vertical PDU mount and lacing bar
Divider or side panels as stated below
Solid top panel in front
Cable entry top panel in rear
Rack unit cage nuts #12-24 thread
(package of 50)
Two packages of 50 panel mounting
screws #12-24 (total of 100)
Additional adhesive rack unit labels
(mounted inside of rear set of rails)
Black powder coat paint
Pre-Configured
Network Cabinets
n
n
n
n
n
n
n
n
n
n
n
92
Frame configured with cable opening
at bottom front
Frame levelers
Two pairs of RU labeled mounting
rails with #12-24 tapped holes
Full profile plexiglas front door
Full flat solid rear door
Two “L” shaped finger managers on
front rails
Right and left locking side panels
Fan top panel in front
Cable entry top panel in rear
Package of 50 panel mounting screws
#12-24
Black powder coat paint
Pre-Configured Server Cabinets
PART NO.
Divider Version
PART NO.
Side Panels Version
DESCRIPTION
Server Cabinet Sizes
(Depth includes doors)
MMC422440-00005
MMC422440-00006
42 RU x 24” wide x 42” deep
MMC422446-00002
MMC422446-00003
42 RU x 24” wide x 48” deep
MMC472440-00003
MMC472440-00004
47 RU x 24” wide x 42” deep
MMC472446-00001
MMC472446-00002
47 RU x 24” wide x 48” deep
MMC423240-0000G
MMC423240-0000H
42 RU x 32” wide x 42” deep
MMC423246-00007
MMC423246-00008
42 RU x 32” wide x 48” deep
MMC473240-00003
MMC473240-00004
47 RU x 32” wide x 42” deep
MMC473246-00001
MMC473246-00002
47 RU x 32” wide x 48” deep
“Divider” versions have a right side divider panel and ganging hardware (for
within row)
“Side Panels” versions have a set of end panels (for stand alone or to create
ends of row)
Pre-Configured Network Cabinets
PART NO.
DESCRIPTION
MMC422434-00004
42 RU x 24” W x 36” D
MMC423234-0000A
42 RU x 32” W x 36” D
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
Mighty Mo Pre-Configured Cabinets
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
The Mighty Mo cabinets are designed around industry leading cable management systems that provide above the
standard performance and capabilities for handling and supporting Cisco Nexus 7010 Data Center Switches.
Pre-Configured Cabinets
for the Nexus 7010
n
n
n
n
n
n
n
n
*Right side
removed to
show interior
of cabinet
n
n
Frame configured with cable
opening at bottom front
Frame levelers
Two pairs of RU labeled mounting
rails with #12-24 tapped holes
Full profile perforated front door and
split flat mesh rear door
Two “L” shaped finger managers on
front rails with 12 bend limiters
Mighty Mo Cabinet Air Dam Kits for
the Nexus 7010
Right and left locking side panels
Cable entry top panel on front and
rear with brush guards on front
Package of 50 panel mounting
screws #12-24
Black powder coat paint
Pre-Configured Mighty Mo Cabinets with Air Dam Kit
PART NO.
DESCRIPTION
OR-MMC423240-0001J
42RU x 32” wide x 42” deep, black
OR-MMC423246-00016
42RU x 32” wide x 48” deep, black
OR-MMC473240-0000L
47RU x 32” wide x 42” deep, black
OR-MMC473246-0000H
47RU x 32” wide x 48” deep, black
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
93
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-mmc42vpmls,
OR-mmc42vpmld
PART NO.
DESCRIPTION
OR-MMC24VPMLS
Vertical PDU Mount and Lacing Bar Single
for 24U Frames
OR-MMC42VPMLS
Vertical PDU Mount and Lacing Bar Single
for 42U Frames
OR-MMC47VPMLS
Vertical PDU Mount and Lacing Bar Single
for 47U Frames
OR-MMC24VPMLD
Vertical PDU Mount and Lacing Bar Double
for 24U Frames
OR-MMC42VPMLD
Vertical PDU Mount and Lacing Bar Double
for 42U Frames
OR-MMC47VPMLD
Vertical PDU Mount and Lacing Bar Double
for 47U Frames
Vertical Cable Trays
PART NO.
DESCRIPTION
Vertical cable trays consist of a pre-cut
section of 2” x 6” Cablofil® tray and mounting hardware designed to mount inside the
cabinet and manage distribution cables
routing from the patch panels and equipment out of the cabinet. It mounts to the
strut inside the cabinet and can be adjusted
front to back.
OR-MMC420206VCT
Vertical Cable Tray 2” Wide X 6” Deep for
42U Frames
OR-MMC470206VCT
Vertical Cable Tray 2” Wide X 6” Deep for
47U Frames
Vertical PDU
Mount and Lacing Bars
Vertical PDU mount and lacing bars can be
used to mount PDUs or to manage distribution cables routing from patch panels and
equipment out of the cabinet.
OR-MMC420206VCT
Horizontal Cable Capacities for Vertical Cable Tray
94
Description
OR-MMC420206VCT
Vertical Cable Tray 2” Wide X 6” Deep for 42U Frames
OR-MMC470206VCT
Vertical Cable Tray 2” Wide X 6” Deep for 47U Frames
Vertical Cable Tray Capacity
Cat 5e
Cat 6
Cat 6a
1.125"
1.25"
1.625"
14
240
168
96
14
240
168
96
Usable Area
(sq. in.)
Part no.
24 CNT
Bundle
cable
O.D. (in.)
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MMCCTMB12-B
Cable tray mounting brackets
Cable tray mounting brackets mount
to the top of the cabinet and utilize the
Cablofil® FAS method to attach cable tray
without additional hardware. Cable tray
mounting brackets can be used alone
or with the cable troughs. The mounting
brackets are designed to maintain an
even height when using Mighty Mo racks
and cabinets together. The 42U cabinet
frame will line up with the 7’ rack and
the 47U cabinet frame will line up with
the 8’ rack.
Cable tray mounting brackets for 42U frames
PART NO.
DESCRIPTION
OR-MMCCTMB06-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 6” wide tray, Basic Black
OR-MMCCTMB12-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 12” wide tray, Basic Black
OR-MMCCTMB18-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 18” wide tray, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
Cable tray mounting brackets for 47U frames
PART NO.
DESCRIPTION
OR-MMCCTMB4706-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 6” wide tray, Basic Black
OR-MMCCTMB4712-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 12” wide tray, Basic Black
OR-MMCCTMB4718-B
Cable Tray Mounting Bracket with Cablofil FAS
style attachment for 18” wide tray, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
OR-MMC2412CTCE-B
Cable Troughs
Cable troughs mount on top of the
cabinet frame and provide integrated
overhead routing for cable. They are
sized and pre-punched to interface
with 6”, 12” and 18” Cablofil
cable tray directly, or can be used
with the cable tray mounting bracket.
Cable Troughs
PART NO.
DESCRIPTION
OR-MMC2406CTCE-B
Cable Trough, Center Exit, 6” Wide for 24”W
Frames, Basic Black
OR-MMC2412CTCE-B
Cable Trough, Center Exit, 12” Wide for 24”W
Frames, Basic Black
OR-MMC2418CTCE-B
Cable Trough, Center Exit, 18” Wide for 24”W
Frames, Basic Black
OR-MMC3206CTCE-B
Cable Trough, Center Exit, 6” Wide for 32”W
Frames, Basic Black
OR-MMC3212CTCE-B
Cable Trough, Center Exit, 12” Wide for 32”W
Frames, Basic Black
OR-MMC3218CTCE-B
Cable Trough, Center Exit, 18” Wide for 32”W
Frames, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
Cable Trough Panel Brackets
Cable trough panel brackets
Cable trough panel brackets mount to
the underside of the cable trough and
provide 3RU of 19” mounting space.
OR-MMC243UCTPB-B
PART NO.
OR-MMC323UCTPB-B
DESCRIPTION
Cable Trough Panel Bracket, 3U for use with
24” wide cabinets, Basic Black
Cable Trough Panel Bracket, 3U for use with
32” wide cabinets, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
95
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
MMCCRMB12-B
Cable Runway
Mounting Brackets
Cable runway mounting brackets mount
to the top of the cabinet and provide a
surface for attaching 6”, 12”, 18” or 24”
wide runway. The mounting brackets are
designed to maintain an even height
when using Mighty Mo racks and
cabinets together. The 42U frame will
line up with the 7’racks and
the 47U frame will line up with the
8’racks.
Cable runway mounting brackets for 42U frames
PART NO.
DESCRIPTION
OR-MMCCRMB06-B
Cable Runway Mounting Bracket for 6” wide
runway, Basic Black
OR-MMCCRMB12-B
Cable Runway Mounting Bracket for 12” wide
runway, Basic Black
OR-MMCCRMB18-B
Cable Runway Mounting Bracket for 18” wide
runway, Basic Black
OR-MMCCRMB24-B
Cable Runway Mounting Bracket for 24”
wide runway on 42U Frames, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
Cable runway mounting brackets for 47U frames
PART NO.
DESCRIPTION
OR-MMCCRMB4706-B
Cable Runway Mounting Bracket for 6” wide
runway, Basic Black
OR-MMCCTMB4712-B
Cable Runway Mounting Bracket for 12” wide
runway, Basic Black
OR-MMCCTMB4718-B
Cable Runway Mounting Bracket for 18” wide
runway, Basic Black
OR-MMCCTMB4724-B
Cable Runway Mounting Bracket for 24” wide
runway, Basic Black
NOTE: Replace ‘B’ with ‘G’ for Cool Gray.
OR-MMCMBK
Hardware
PART NO.
Description
The Ortronics® line of cabinet hardware
provides the products needed to complete your installation. Rack Unit Cage
Nuts enable easy and quick installation
of three cage nuts simultaneously.
OR-60400533
Panel Mounting Screw, #12-24 x .625", package of
50, Basic Black
OR-PS-M6X1-50
Panel Mounting Screw, M6X1 x .625" long, package of 50, Clear
OR-RU-1224CN
Rack Unit Cage Nuts, #12-24 thread, package
of 50, Clear
OR-RU-M6X1CN
Rack Unit Cage Nuts, M6X1 thread, package of
50, Clear
OR-PS-1224CN
Single Hole Cage Nuts, #12-24 thread, package
of 50, Clear
OR-PS-M6X1CN
Single Hole Cage Nuts, M6X1 thread, package
of 50, Clear
OR-MMCCNTOOL
Cage Nut Installation Tool
OR-MMCMBK
Multi-Bay Hardware Kit, 6 each 1/4-20 bolts
and nuts
OR-MMCUN-1420-10
Unistrut® Hardware Kit, 10 each 1/4-20 bolts and
Unistrut nuts
OR-MMCRULBL-60-A
Adhesive Rack Unit Label, 60 RU length
OR-MM6BLC
Mighty Mo Bend Limiting Clip, 3.25" long, snaps
onto fingers
OR-RU-1224CN
OR-MMCUN-1420-10
96
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MMCLVL-IP
Levelers/Isolation
Levelers come standard with the cabinet
frame; however, additional parts may be
ordered. Isolation bushings are used to
isolate the anchoring hardware from the
frame of the cabinet.
OR-MMCDR2-1915
OR-MMCFPS-2-B
Description
OR-MMCLVL-IP
Levelers, 1/2-13 thread with Isolation Pads,
Quantity: 4
OR-MMCISOB-38
Isolation Bushing for 3/8” Hardware, Quantity: 4
OR-MMCISOB-50
Isolation Bushing for 1/2” Hardware, Quantity: 4
Shelves & Drawers
PART NO.
Description
Legrand | Ortronics offers a full range of
sturdy equipment shelves and drawers
to protect and support valuable equipment. Mounting hardware is included.
Basic black
OR-MMCCSS1-1912
Cantilevered Shelf, 1U, Solid, Steel, 19" x 12"D
OR-MMCCSS2-1915
Cantilevered Shelf, 2U, Solid, Steel, 19" x 15"D
OR-MMCCSS3-1915
Cantilevered Shelf, 3U, Solid, Steel, 19" x 15"D
OR-MMCCSV1-1912
Cantilevered Shelf, 1U, Vented, Steel, 19" x 12"D
OR-MMCCSV2-1915
Cantilevered Shelf, 2U, Vented, Steel, 19" x 15"D
OR-MMCCSV3-1915
Cantilevered Shelf, 3U, Vented, Steel, 19" x 15"D
OR-MMCFSV-1926
19" x 26" Deep, 4-point rackmount vented
fixed shelf
OR-MMCSSVL-1924
Sliding Shelf, 19" EIA, 24"D Vented, 4 Point,
100lb load rated
OR-MMCSSVM-1924
Sliding Shelf, 19" EIA, 24"D Vented, 4 Point,
150lb load rated
OR-MMCSSVH-1930
Sliding Shelf, 19" EIA, 30"D Vented, 4 Point,
300lb load rated
OR-MMCDR2-1915
Drawer, 2U, 19" x 15"D
OR-MMCDR4-1915
Drawer, 4U, 19" x 15"D
Filler Panels
Improve network performance with
improved separation of the hot and
cold aisle utilizing filler panels to
control airflow
OR-MMCFANP19-4-2
PART NO.
Fan Panels
n
Use the 19” rack mount fan panel to
eliminate hot spots
Filler Panels
PART NO.
Description
OR-MMCFPS-1-B
1 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPS-2-B
2 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPS-3-B
3 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPS-4-B
4 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPS-5-B
5 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPS-6-B
6 Rack Unit, #12-24 Mtg. Hdware
OR-MMCFPT-1-B
Tool-less for square mtg. holes, 1 Rack Unit
OR-MMCFPT-2-B
Tool-less for square mtg. holes, 2 Rack Unit
OR-MMCFPT-3-B
Tool-less for square mtg. holes, 3 Rack Unit
OR-MMCFPT-4-B
Tool-less for square mtg. holes, 4 Rack Unit
OR-MMCFPT-8-B
Tool-less for square mtg. holes, 8 Rack Unit
Fan Panels
PART NO.
Description
OR-MMCFANP19-4-2
Fan Panel, 19”, (2) 4” 110 CFM ea., 120 Volt,
24” Cord
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
97
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MMCAB421612
Airflow Baffles
Airflow baffles ensure the proper flow of
air from cold aisle to hot aisle, even with
side ventilated equipment. Air dam kits
prevent hot air from recirculating and
mixing with the cool air when used with
equipment that breathes front to rear.
OR-MMCFAN-6
98
Airflow Baffles
PART NO.
Description
OR-MMCAB421612
Airflow Baffle, for 32” wide 42 RU frame when
mounting rails are set at 16-1/4” front to rear
and “U” shape vertical is installed
OR-MMCAB423012
Airflow Baffle, for 32” wide 42 RU frame when
mounting rails are set at 30” front to rear and
“U” shape vertical is installed
OR-MMCAB471612
Airflow Baffle, for 32” wide 47 RU frame when
mounting rails are set at 16-1/4” front to rear
and “U” shape vertical is installed
OR-MMCAB473012
Airflow Baffle, for 32” wide 47 RU frame when
mounting rails are set at 30” front to rear and
“U” shape vertical is installed
OR-MMCAB421632SA
Airflow Baffle, for 32” wide 42 RU frame when
mounting rails are set at 16-1/4” front to rear
and side panels are installed
OR-MMCAB471632SA
Airflow Baffle, for 32” wide 47 RU frame when
mounting rails are set at 16-1/4” front to rear
and side panels are installed
OR-MMC4232ADK
Air Dam Kit, for 32” wide 42RU frame
OR-MMC4732ADK
Air Dam Kit, for 32” wide 47RU frame
Fans & Blowers
Fans & Blowers
Replacement fans for the fan top plate.
Fans include the cord, finger guard and
mounting hardware.
OR-MMCFAN-6
Replacement fan for top panels, 6” diameter, 120
Volt, 235 CFM, 24” Cord, Basic Black
OR-MMCFAN-6-2
Replacement fan for top panels, 6” diameter, 208
Volt, 235 CFM, 24” Cord, Basic Black
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MMCPB11518-01
Basic PDU
PART NO.
Description
Increased processing speeds require
additional power distributed to each
cabinet. Managing the power while
minimizing the interference with the
rack equipment and airflow is critical.
The Ortronics® range includes 120V and
208V basic power distribution in 15, 20
and 30 amp sizes. Hardware is included
to mount to vertical PDU mounting bar.
OR-MMCPB11510-01
Basic 17.5" Horizontal PDU, 120V 15A, (10) NEMA
5-15 outlets, 5-15P input plug w/10' cord
OR-MMCPB11518-01
Basic 29.5" Vertical PDU, 120V 15A, (18) NEMA
5-15 outlets, 5-15P input plug w/10' cord
OR-MMCPB11524-01
Basic 66.5" Vertical PDU, 120V 15A, (24) NEMA
5-15 outlets, 5-15P input plug w/10' cord
OR-MMCPB12010-01
Basic 17.5" Horizontal PDU, 120V 20A, (10) NEMA
5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPB12018-01
Basic 29.5" Vertical PDU, 120V 20A, (18) NEMA
5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPB12024-01
Basic 66.5" Vertical PDU, 120V 20A, (24) NEMA
5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPB13016-01
Basic 29.5" Vertical PDU, 120V 30A, (16) NEMA
5-20 outlets, L5-30P input plug w/10' cord
OR-MMCPB13024-01
Basic 66.5" Vertical PDU, 120V 30A, (24) NEMA
5-20 outlets, L5-30P input plug w/10' cord
OR-MMCPB22012-01
Basic 17.5" Horizontal PDU, 208V 20A, (12) IEC
C13 outlets, L6-20P input plug w/10' cord
OR-MMCPB22018-01
Basic 29.5" Vertical PDU, 208V 20A, (18) IEC C13
outlets, L6-20P input plug w/10' cord
OR-MMCPB22024-01
Basic 66.5" Vertical PDU, 208V 20A, (24) IEC C13
outlets, L6-20P input plug w/10' cord
OR-MMCPB23016-01
Basic 29.5" Vertical PDU, 208V 30A, (16) IEC C13
outlets, L6-30P input plug w/10' cord
OR-MMCPB23024-01
Basic 66.5" Vertical PDU, 208V 30A, (24) IEC C13
outlets, L6-30P input plug w/10' cord
OR-MMCPB23024-02
Basic 66.5" Vertical PDU, 208V 30A, (20) IEC (4)
IEC C19 outlets, L6-30P input plug w/10' cord
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
99
mighty mo® cabinets
Mighty Mo Cabinet Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-MMCPM22018-01
100
Metered PDU
PART NO.
Description
Increased processing speeds require additional power distributed to each cabinet. Monitoring and managing the power
while minimizing the interference with
the rack equipment and airflow is critical. Ortronics® options include 120V and
208V metered power distribution in 20
and 30 amp sizes. Hardware is included
to mount to vertical PDU mounting bar.
OR-MMCPM12010-01
Metered 17.5" Horizontal PDU, 120V 20A, (10)
NEMA 5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPM12018-01
Metered 29.5" Vertical PDU, 120V 20A, (18) NEMA
5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPM12024-01
Metered 66.5" Vertical PDU, 120V 20A, (24) NEMA
5-20 outlets, L5-20P input plug w/10' cord
OR-MMCPM13016-01
Metered 29.5" Vertical PDU, 120V 30A, (16) NEMA
5-20 outlets, L5-30P input plug w/10' cord
OR-MMCPM13024-01
Metered 66.5" Vertical PDU, 120V 30A, (24) NEMA
5-20 outlets, L5-30P input plug w/10' cord
OR-MMCPM22012-01
Metered 17.5" Horizontal PDU, 208V 20A, (12) IEC
C13 outlets, L6-20P input plug w/10' cord
OR-MMCPM22018-01
Metered 29.5" Vertical PDU, 208V 20A, (18) IEC
C13 outlets, L6-20P input plug w/10' cord
OR-MMCPM22024-01
Metered 66.5" Vertical PDU, 208V 20A, (24) IEC
C13 outlets, L6-20P input plug w/10' cord
OR-MMCPM23016-01
Metered 29.5" Vertical PDU, 208V 30A, (16) IEC
C13 outlets, L6-30P input plug w/10' cord
OR-MMCPM23024-01
Metered 66.5" Vertical PDU, 208V 30A, (24) IEC
C13 outlets, L6-30P input plug w/10' cord
OR-MMCPM23024-02
Metered 66.5" Vertical PDU, 208V 30A, (20) IEC
(4) IEC C19 outlets, L6-30P input plug w/10' cord
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cable management system
Mighty Mo Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-BCGSM6X7
OR-BCGFM3X9
OR-BCGFMC3X9
OR-BCGFME5X7
Air Guard® Brush
Cable Grommets
PART NO.
DESCRIPTION
Features:
n P
rovides an exceptional seal
around cables for an effective and
economical solution towards eliminating bypass air through cable
cutouts.
n P
rovides an energy savings benefit
by reducing cool air loss while
improving the static pressure to
cool data center equipment.
n H
elps prevent network equipment
from overheating.
n S
eals cable openings with an
overlapping brush and/or EPDM
gaskets to help prevent under-floor
contamination.
n F
loor tiles can be removed without
disconnecting equipment.
n F
lame retardant ABS polycarbonate
material provides a finished look.
OR-BCGSM6X7*
Surface mount two piece assembly
designed to retrofit around existing
cables without the need to disconnect cables. Covers any shape or
size up to 10” x 10”.
OR-BCGFM3X9
Flush mount two piece assembly
designed for new installations in
data centers to maximize energy
efficiency. Designed with a removable back brush that allows for
great versatility when floor tiles
need to be removed.
OR-BCGFMC3X9
Cover fits over the flush mount
brush cable grommet to provide a
solid surface for increased durability and safety when cables are not
going through the floor.
OR-BCGFME5X7
Flush mount Extreme is a heavy
duty unit with a two stage, integrated sealing system, EPDM gasket material (UL94 HF-1 rated) and
standard Air Guard brush technology, to provide the most effective
air seal.
A heavy duty, integrated safety
cover comes as a standard component. OSHA jobsite statutes require
open holes in floor panels to be
covered. The cover may remain
in place until cabling systems are
installed and may be saved for
future use.
*The OR-BCGSM6X7 can mount to any standard Mighty Mo Cabinet
cable entry top panel to provide a layer of protection from dust and
debris. One two piece grommet will cover both openings in a cable
entry top panel.
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
101
mighty mo® cabinets
Mighty Mo Wall Mount Cabinets
The Mighty Mo wall mount cabinets utilize advanced cable management to help
secure, support and organize your network where floor space is limited.
Providing capacity for both active and passive equipment, the cabinets feature one-rack
unit finger style vertical managers to ensure proper cable management for maximum
network performance. An optional rear horizontal mount bracket kit is designed to
provide 2 additional fixed rack units on the rear wall for mounting fiber, equipment
or power distribution units. In addition, the cabinet center section swings out from the wall to provide easy access to the
equipment.
The front lockable wing turn latch allows you to secure the front door without having to lock the cabinet. This feature
allows for easy access into the front of the cabinet when you are in a secure environment.
The Mighty Mo wall mount cabinets are also an ideal choice for mounting in an open office environment. The cabinet’s
heavy duty construction minimizes sagging under heavy loads and the optional 50cfm fan is 50% quieter than most other
leading cabinets.
Features & Benefits
n
102
Cable management to support and organize cables, ensuring proper cable management for minimum
distortion and maximum network performance
n
Choice of solid or plexiglass door
n
The cabinet can be mounted to open left or right
n
Locking center section swings out to provide easy access to the equipment
n
Front and center sections are keyed alike
n
Includes one pair of fully adjustable 12-24 EIA mounting rails
n
Brush cable entry plates standard on top rear
n
Cable knockout plates standard on bottom rear
n
3” hole with cap standard on top and bottom rear
n
Vented sides for passive cooling of active equipment
n
Optional 50cfm cooling fans are available to further protect active equipment
n
Heavy duty 14 GA (.075”) steel construction
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
mighty mo® cabinets
Mighty Mo Wall Mount Cabinets
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
Mighty Mo® Wall Mount Cabinets
OR-MMW122420P-B
Mighty Mo wall mount cabinets
PART NO.
Description
WEIGHT
CAPACITY
OR-MMW122420S-B
12U x 24”W x 20”D, Solid door,
height is 23.50”, Basic Black
150 lbs
OR-MMW122420P-B
12U x 24”W x 20”D, Plexiglass
door, height is 23.50”, Basic Black
150 lbs
OR-MMW192420S-B
19U x 24”W x 20”D, Solid door,
height is 35.75”, Basic Black
200 lbs
OR-MMW192420P-B
19U x 24”W x 20”D, Plexiglass
door, height is 35.75”, Basic Black
200 lbs
OR-MMW262420S-B
26U x 24”W x 20”D, Solid door,
height is 48.00”, Basic Black
300 lbs
OR-MMW262420P-B
26U x 24”W x 20”D, Plexiglass
door, height is 48.00”, Basic Black
300 lbs
OR-MMW122426S-B
12U x 24”W x 26”D, Solid door,
height is 23.50”, Basic Black
150 lbs
OR-MMW122426P-B
12U x 24”W x 26”D, Plexiglass
door, height is 23.50”, Basic Black
150 lbs
OR-MMW192426S-B
19U x 24”W x 26”D, Solid door,
height is 35.75”, Basic Black
200 lbs
OR-MMW192426P-B
19U x 24”W x 26”D, Plexiglass
door, height is 35.75”, Basic Black
200 lbs
OR-MMW262426S-B
26U x 24”W x 26”D, Solid door,
height is 48.00”, Basic Black
300 lbs
OR-MMW262426P-B
26U x 24”W x 26”D, Plexiglass
door, height is 48.00”, Basic Black
300 lbs
Mighty Mo wall mount cabinet accessories
PART NO.
DESCRIPTION
OR-MMCFAN-4-50
Fan Kit, 4”, 50cfm
OR-MMWHMBM12-B
Rear Horizontal Mount Bracket Kit
OR-MMWBPK
Brush Plate Kit
OR-MMW12M12-B
12U Mounting Rail, 12-24, 1-pair
OR-MMW19M12-B
19U Mounting Rail, 12-24, 1-pair
OR-MMW26M12-B
26U Mounting Rail, 12-24, 1-pair
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
103
standard eia FLOOR & wall mount racking systems
4-Post Racks & Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
19-84-T4SDA2132
Adjustable Dual
Equipment Racks
The patented adjustable dual equipment rack
provides an affordable, innovative solution for
housing network equipment. Unlike cabinets,
its open design allows for expansion, so it is
ready to adapt to future needs. The design also
expands installation opportunities by enabling
cross-connects, facilitating cable management, and eliminating heat build-up. Available
with three adjustable depths, the rack provides
a solid foundation for mounting hubs, routers,
and other heavy equipment. Black finish.
Features:
n
n
n
n
n
n
n
n
n
n
n
n
19-84-SSDA2132
Features self-supporting and self-squaring base
Assembles quickly and easily
Top angles and patented reinforced base are
standard
Depth adjusts in 1/2-inch increments
Mounting holes are roll threaded for
12-24 hardware
Allows excellent cable management
opportunities
Mounts 19” equipment and includes crossrecessed black panel mounting screws
5/8”, 5/8”, 1/2” universal mounting hole pattern
Equipped with standard 1/2” junctioning
holes for securing multiple-rack lineups
Constructed of 6061-T6 structural
grade aluminum
Meets EIA-310 standards
Listed to the UL 1863 Standard for
Communication Circuit Accessories
M6 Adjustable Dual
Equipment Rack
Features:
n Self-squares to assemble quickly and easily
n Depth adjusts in 1/2” increments
n Open ventilation reduces the need for fans
n 5/8”, 5/8”, 1/2” square hole mounting
pattern
n Notched markers beside hole pattern
facilitate counting of rack spaces
n Base mounts to rack with the angles facing
inward or outward; mount inward to use
minimal floor space
n Universal L-shaped uprights allow for
mounting of sliding server rails
n Steel construction allows 1000 lb.
load rating
n Equipped with 1/2” junctioning holes for
securing multiple-rack lineups
n Mounting hardware not included
n Black finish
104
PART NO.
DESCRIPTION
84.00”H x 20.19”W x 15.0020.00”D,
OR-19-84-T4SDA1520
rack spaces: (1.75”) 45,
load rating: 1,000 lbs
84.00”H x 20.19”W x 21.0032.00”D,
OR-19-84-T4SDA2132
rack spaces: (1.75”) 45,
load rating: 1,000 lbs
96.00”H x 20.19”W x 21.0032.00”D,
OR-19-96-T4SDA2132
rack spaces: (1.75”) 51,
load rating: 1,000 lbs
Equipment rack options self-support bases are 3-1/2” x 6”
extruded aluminum angles mounted at the bottom of all
standard Homaco equipment racks.
A 1520 = 15.00–20.00”
2132 = 21.00–32.00”
B 1520 = 24.14–29.14”
2132 = 30.14–41.14”
C 1520 = 26.00–31.00”
2132 = 32.00–43.00”
PART NO.
DESCRIPTION
OR-19-84-SSDA2132
84.00”H x 20.19”W x 21–32”D,
load rating: 1,000 lbs
*Depth does not include top angle. For full depth, add 3”.
Black finish
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
standard eia FLOOR & wall mount racking systems
4-Post Racks & Accessories
NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.
OR-ES-19-FDR2126
Adjustable
Equipment Shelves
Vented Equipment Shelf
PART NO.
DESCRIPTION
Features:
n Mounts to all adjustable dual racks
n 12-24 cage nuts and screws included
n Adjust in the same 1/2-inch
increments as the rack
n Shelves do not include a front or
back 90° bend
n Easy to add and remove deep
equipment
n Mounted to all four uprights for
maximum stability
n Black finish
OR-ESV-19-FDR1520
3.34”H x 17.50”W x 15.–20”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ESV-19-FDR2126
3.34”H x 17.50”W x 21– 26”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ESV-19-FDR2732
3.34”H x 17.50”W x 27– 32”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
Load rating determined at .25” deflection.
Equipment Shelf
PART NO.
DESCRIPTION
OR-ES-19-FDR1520
3.34”H x 17.50”W x 15– 20”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ES-19-FDR2126
3.34”H x 17.50”W x 21– 26”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ES-19-FDR2732
3.34”H x 17.50”W x 27– 32”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
Load rating determined at .25” deflection.
OR-ESV-19-SDR2126F
Fixed Dual Shelves
Features:
n Mounts to all adjustable dual racks
n Heavy-duty for high load bearing
capacity
n Bottom brackets adjust to rack depth
n Easy to add and remove deep
equipment
n Fully usable surface area to
accommodate servers
n Air flow slots ensure equipment is
kept cool
n 12-24 cage nuts and screws
hardware included
n Steel construction with black finish
n Black finish
Fixed Dual Shelves
PART NO.
DESCRIPTION
OR-ES-19-SDR1520F
1.94”H x 19.00”W x 20.50”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ES-19-SDR2126F
1.94”H x 19.00”W x 26.50”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
OR-ES-19-SDR2732F
1.94”H x 19.00”W x 32.50”D,
center load rating: 125 lbs,
distributed load rating: 300 lbs
Vented Equipment Shelf
PART NO.
DESCRIPTION
1.94”H x 19. 00”W x 20.50”D,
OR-ESV-19-SDR1520F center load rating: 125 lbs,
distributed load rating: 300 lbs
1.94”H x 19.00”W x 26.50”D,
OR-ESV-19-SDR2126F center load rating: 125 lbs,
distributed load rating: 300 lbs
1.94”H x 19.00”W x 32.50”D,
OR-ESV-19-SDR2732F center load rating: 125 lbs,
distributed load rating: 300 lbs
Load rating determined at .25” deflection
For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432
105
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
