Panasonic recommends Windows 8.

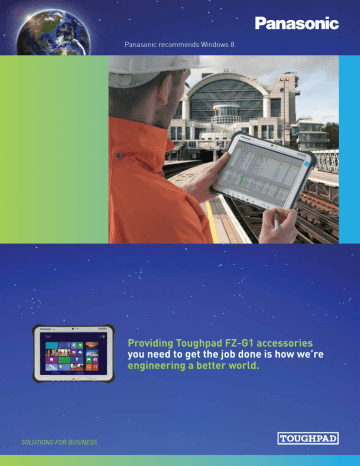

Providing Toughpad FZ-G1 accessories
you need to get the job done is how we’re
engineering a better world.
SOLUTIONS FOR BUSINESS
Panasonic recommends Windows 8.
Toughpad FZ-G1
Fully-rugged Windows® 8 tablet.
Expand and enhance tablet capabilities across a broad spectrum of
n
Intel® Core™ i5 vPro™ processor
enterprise solutions with Toughpad™ FZ-G1 accessories from Panasonic
n
10.1" daylight-readable 10-point multi touch + digitizer
and its partners. As the world’s thinnest and lightest fully-rugged
HDMI ports, optional dedicated GPS, serial, Ethernet, MicroSD
or 2nd USB port
10.1" Windows® 8 tablet with an array of available accessories, the
Toughpad FZ-G1 is the essential tool for mobile workers. Panasonic
tests all third party accessories to ensure they meet the same quality
n
Wi-Fi, Bluetooth® and optional 4G LTE multi carrier mobile broadband
with satellite GPS
n
n
3-year warranty with business class support
and reliability standards our customers expect.
SOLUTIONS FOR BUSINESS
2
Panasonic recommends Windows 8.
Toughpad FZ-G1 Accessories from Panasonic
Accessories
CF-AA6413CM
AC adapter
FZ-VZSU84U
Standard battery pack
FZ-VNPG11U
Digitizer pen; order in quantities of 10
FZ-VZSU88U
Long life battery pack
FZ-WCGG111
Tall corner guards (for optional SmartCard
reader, long life battery and/or rotating
hand strap). Set includes 4 corner guards
FZ-VEBG11U
Desktop cradle (DC-IN, Ethernet, USB 3.0
[2], HDMI, VGA, serial, Kensington cable
lock slot) compatible with hand strap
and attachments
FZ-VPFG11U
10.1" protective film
Toughpad FZ-G1 Available Bundles
FZ-BNDLG1ST1CG4
Panasonic hand strap and tall corner
guard bundle. Bundle includes 1 rotating
hand strap and 4 tall corner guards.
Compatible with desktop cradle and
vehicle docks
FZ-BNDLG1LL1ST1CG
Panasonic long life battery bundle.
Bundle includes 1 long life battery pack
(FZ-VZSU88U), 1 rotating hand strap and
4 tall corner guards
FZ-BNDLG1BATCHRG
Panasonic single battery charger
bundle. Bundle includes 1 battery
charger (CF-VCBTB3W) and 1 FZ-G1
battery adapter
SOLUTIONS FOR BUSINESS
3
Panasonic recommends Windows 8.
Productivity and Protection Solutions by InfoCase
n
ToughMate cases are ideal for workers in the field
n
Convenient hand and shoulder straps keep cases secure
n
Accessories
Cases also fold to easel position for easy tablet display
TBCG1AONL-P
ToughMate always-on case accommodates
standard and long life battery, SmartCard
reader, large and small corner guards.
Not compatible with desktop cradle or
vehicle docks
TBCG1MBBDL-P
ToughMate mobility bundle accommodates
standard and long life battery, SmartCard reader
and rotating hand strap. Large corner guards
(FZ-WCGG111) are required. Compatible with desktop
cradle and Gamber-Johnson vehicle docks
TBCG1PFLIO-BLK-P
ToughMate professional portfolio in black
vinyl accommodates basic FZ-G1 with no
external options. Small corner guards
are required. Not compatible with desktop
cradle or vehicle docks
TBCG1KVBDL-P
ToughMate DuraStrap bundle’s matte finish
provides a slip-resistant grip and is impermeable
to liquids, and has high chemical resistance.
Accommodates standard and long life battery and
SmartCard reader. Large corner guards (FZ-WCGG111)
are required. Compatible with desktop cradle and
Gamber-Johnson vehicle docks
TBCG1XSTP-P
ToughMate X-strap elastic straps ensure a
secure grip. Accommodates basic FZ-G1
with no external options. Small corner guards
are required. Not compatible with desktop
cradle or vehicle docks
TBCSHSTRP-P
ToughMate replacement shoulder strap for
always-on cases
Not all ToughMate accessories are interoperable with docking accessories.
Please consult your Panasonic representative before purchasing.
SOLUTIONS FOR BUSINESS
4
Panasonic recommends Windows 8.
Accessories
Vehicle and Desktop Solutions by Havis
n
Industrial-grade construction for rugged environments
n
Tilt-swivel device easily changes from portrait to landscape
n
Supports charging and connection to peripherals
n
Built with theft deterrence, longevity and stability in mind
CF-H-PAN-703
Havis vehicle cradle (no electronics)
Havis vehicle dock; power supply not included.
Connectivity includes: USB 3.0 (2), Ethernet,
serial, VGA, HDMI and power in:
CF-H-PAN-701-2-P
Dual pass-through
DS-DA-218-P
Desktop stand
CF-H-PAN-701-P
No pass-through
Havis vehicle dock and LIND power supply bundle.
Connectivity includes: USB 3.0 (2), Ethernet,
serial, VGA, HDMI and power in:
CF-H-PAN-702-2-P
Dual pass-through
CF-H-PAN-702-P
No pass-through
Havis vehicle docks are compatible with select Toughpad FZ-G1
accessories and ToughMate solutions. Please consult your Panasonic
representative before purchasing.
Vehicle Solutions by Gamber-Johnson
n
Docking stations are lightweight, tough and durable
n
High strength-to-weight ratio
Gamber-Johnson vehicle dock; power supply not included.
Gamber-Johnson 2 x 4 mounting hole pattern.
Ports: USB 3.0 [2], Ethernet, serial, VGA, HDMI and
power in:
7160-0486-00-P
No pass-through, keyed alike lock
7160-0486-02-P
Dual pass-through, keyed alike lock
7160-0486-03-P
No pass-through, keyed differently lock
7160-0486-04-P
Dual pass-through, keyed differently lock
7160-0489-00
Gamber-Johnson vehicle cradle. No electronics,
keyed alike
SOLUTIONS FOR BUSINESS
n
Rugged docking stations fit your unique in-vehicle requirements
Gamber-Johnson vehicle dock; power supply not included.
VESA 75 mount pattern.
Ports: USB 3.0 [2], Ethernet, serial, VGA, HDMI and power in:
7160-0487-00-P
No pass-through, keyed alike lock
7160-0487-02-P
Dual pass-through, keyed alike lock
7160-0487-03-P
No pass-through, keyed differently lock
7160-0487-04-P
Dual pass-through, keyed differently lock
Gamber-Johnson vehicle docks are compatible with select Toughpad FZ-G1
accessories and ToughMate solutions. Please consult your Panasonic
representative before purchasing.
5
Panasonic recommends Windows 8.
Accessories
Bluetooth Keyboards by iKey
®
n
Rugged input devices are easy to clean and maintain
n
Built to endure rigors of extreme working conditions
iKey magnesium detachable folding keyboard
with touchpad and integrated backlighting,
custom snap connector
IK-PAN-FZG1-CO1
Base model
SL-86-911-USB
iKey NEMA 4X (IP67) keyboard, backlit,
integrated touchpad, USB cable, black
IK-PAN-FZG1-CO2
With integrated fingerprint scanner
IK-PAN-FZG1-M1
With integrated CAC card reader
IK-PAN-FZG1-M2
With integrated CAC card reader and fingerprint scanner
Power Solutions by LIND
n
Rugged mobile adapter with highest degree of circuit protection
n
Robust design enables use in harsh mobile environments
n
CF-LNDDC80
LIND 80 watt, 12- to 32-volt input car adapter
for FZ-G1
Rugged aluminum case protects against shock and vibration
FZ-LND3BAYG1
LIND 3-bay battery charger for FZ-G1. Includes
110W AC adapter. Do NOT use with AC adapter
supplied with FZ-G1
CF-LNDACDC90
LIND car/AC adapter 90W (with USB port)
CF-LNDMLDC90
LIND car/AC adapter 90W MIL-STD 801G
Barcode Scanning Solutions
n
Ideal for POS/retail, field services, healthcare and public safety
n
Compact, lightweight and rugged
BDF-LP
Baracoda D-Fly 1D barcode
scanner—Bluetooth®. IP43 rating
n
Superior imager reading quality
BRR-LBP
Baracoda roadrunner, 1D barcode
scanner—Bluetooth®. IP5x rating
BRR-FSBP
Baracoda roadrunner, full imager, 1D and 2D
barcode scanner—Bluetooth®. IP5x rating
SOLUTIONS FOR BUSINESS
6
Panasonic recommends Windows 8.
Accessories
Rugged Mobile Printers by Zebra
n
Rugged/lightweight receipt and mobile thermal printers
Ideal for law enforcement (e-citation), delivery of goods,
field services
n
n
n
LCD for reading battery/network status
n
Vehicle cradles for convenient, on-the-road operation
n
Quick and easy in-the-field payment processing
IP54-rated for harsh environments
PZ420BT
Zebra 4" rugged printer RW 420, Bluetooth®,
includes belt clip
PZ220BT
Zebra 2" rugged printer RW 220, Bluetooth®,
includes belt clip
PZ420BTMC
Zebra 4" rugged printer RW 420 with mag
stripe reader, Bluetooth®, includes belt clip
PZ220BTMC
Zebra 2" rugged printer RW 220 with mag stripe
reader, Bluetooth®, includes belt clip
PocketJet® 6 Series Mobile Printers by Brother
n
Full-page, high-resolution text, graphics and pictures
n
Small footprint—easily adaptable to a variety of vehicles
n
No inks or toners to clog or replace
n
Designed for mobile use in vehicles or as true battery-powered devices
n
Prints reliably even in extreme heat or cold
PocketJet6 printer. 203 DPI, 6' USB cable,
14' vehicle wiring adapter, no battery
PJ622-SK-506
No Bluetooth® engine
PJ662-SK-507
With Bluetooth® engine
PocketJet6 Plus with Bluetooth® engine.
NiMH battery, fanfold case with handle and clip,
AC adapter and cable
PJ662-SK-504
203 DPI
PJ662-SK-505
300 DPI
PocketJet6 Plus printer. 300 DPI, 6' USB cable,
14' vehicle wiring adapter, no battery
PJ662-SK-508
No Bluetooth® engine
PJ662-SK-509
With Bluetooth® engine
SOLUTIONS FOR BUSINESS
7
Panasonic recommends Windows 8.
Accessories
RuggedJet 6 Series Mobile Printers by Brother
™
n
Print 2" to 4" documents and labels
n
n
IP54 rated—can handle the bumps, drops, dust and moisture on the job
n
n
6-foot drop protection
USB 2.0, serial
L ightweight 1.87 lbs.—can be carried comfortably on a belt
or shoulder strap
Mobile 4" printer. 203 DPI, 6' USB cable,
14' vehicle wiring adapter, belt clip
RJ4030-SK-510
Bluetooth®, no battery
RJ4040-SK-512
Wi-Fi, no battery
RJ4030-SK-511
Bluetooth®, Li-Ion battery
RJ4040-SK-513
Wi-Fi, Li-Ion battery
Services
Managed IT Services
Tier-1 Help-desk Services, providing tablet
hardware and operating system support
Monday-Friday, 9 am to 5 pm. In-depth
troubleshooting or access is coordinated
through local deskside support resources.
SOLUTIONS FOR BUSINESS
Tier-2 Services, providing tablet hardware
and operating system support Monday-Friday,
9 am to 5 pm. Remote troubleshooting tools
are utilized. This service provides resources
to assist Level-1 support in resolving
technical problems and investigating elevated
problems by confirming problem validity and
seeking known solutions for more complex
issues. This is suitable for locations where
there are no local deskside technicians
available for advanced troubleshooting.
Network Monitoring and Management
Services include alert/alarm monitoring,
device operating system patch management
and performance reporting. These functions
provide effective problem diagnostics and
statistical gathering of traffic to enable more
efficient administration and network tuning.
8
Panasonic recommends Windows 8.
Services
Frontline Consulting
Frontline consulting service is a project management-driven service that assigns Panasonic technology consultants to ensure a successful product
deployment. The consultants specialize in every phase of your deployment, including:
n
IT Management Technologies
n
Software Development
n
Network and Wireless Technologies
n
Field Engineering
The Panasonic Consultant Service team will follow your deployment through every phase of the information technology life cycle, which includes planning,
engineering, validation, deployment and post deployment wrap up.
Deployment, Maintenance and Support
Panasonic offers a comprehensive suite of solutions to help roll out, install, support and monitor your technology.
Deployment Services
Frontline deployment service
Frontline deployment service
(less than 150 units)
Project Management Services
Project/logistics management (per day)
Project/logistics management (per unit)
CF-S09TFMFDSVC
CF-S09TFMDSVC
CF-SVCFLDPROJ
CF-SVCPROJMGMT
Extended Warranty and Protection Plus Service Programs
Extended Warranty*
This warranty enables your organization to extend the 3-year standard
warranty coverage that comes with every Panasonic Toughpad™ computer
to either 4 or 5 years depending on budget needs. A separate battery
warranty program is available under the Extended Warranty Battery
Replacement program.
Protection Plus*
This warranty adds an additional layer of protection that enhances the
standard warranty coverage by protecting against accidental physical
damage that occurs during regular use of a Toughpad computer. This
warranty program may be purchased for the 3-year warranty period or
for 1 or 2 additional years beyond the standard warranty period.
1 Additional Year FZ-SVCTPEXT1Y
2 Additional Years FZ-SVCTPEXT2Y
3 Years FZ-SVCTPNF3Y
4 Years FZ-SVCTPNF4Y
5 Years FZ-SVCTPNF5Y
Extended Battery Warranty
This warranty enables your organization to extend the 1-year standard
battery warranty coverage that comes with every Panasonic Toughpad
computer to either 2, 3, 4 or 5 years depending on budget needs.
1 Additional Year
2 Additional Years
3 Additional Years 4 Additional Years FZ-SVCTPBXW1Y
FZ-SVCTPBXW2Y
FZ-SVCTPBXW3Y
FZ-SVCTPBXW4Y
*Does not include battery replacement beyond the tablet 1-year battery warranty. If battery XW is not purchased,
all battery replacements after 1 year from purchase are considered out of warranty and chargeable.
**Customer purchases the swap pool units. Spare unit quantity based on user hours and environment and should be
minimum of 4% of installed units. Drive imaging included in SKU pricing. Replacement unit is shipped the same day if
the call is received before 3 PM ET.
Hot Swap Program**
This service minimizes user downtime by shipping customer-owned
Toughpad devices for next-business-day delivery directly to your
organization’s users from our National Service Center to replace the
Toughpad that needs to be sent in for repair. This program may be
purchased for the 3-year warranty period or for 1 or 2 additional years
beyond the standard warranty period.
3 Years FZ-SVCTPHS3Y
4 Years FZ-SVCTPHS4Y
5 Years FZ-SVCTPHS5Y
SOLUTIONS FOR BUSINESS
©2014 Panasonic Corporation of North America. All rights reserved. Toughpad FZ-G1 Accessories Catalog_03/14
9
Download PDF

advertising
