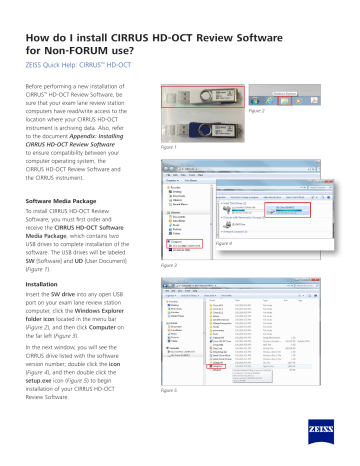

How do I install CIRRUS HD-OCT Review Software
for Non-FORUM use?
ZEISS Quick Help: CIRRUS™ HD-OCT
Before performing a new installation of
CIRRUS™ HD-OCT Review Software, be
sure that your exam lane review station
computers have read/write access to the
location where your CIRRUS HD-OCT
instrument is archiving data. Also, refer
to the document Appendix: Installing
CIRRUS HD-OCT Review Software
to ensure compatibility between your
computer operating system, the
CIRRUS HD-OCT Review Software and
the CIRRUS instrument.
Figure 2
Figure 1
Software Media Package
To install CIRRUS HD-OCT Review
Software, you must first order and
receive the CIRRUS HD-OCT Software
Media Package, which contains two
USB drives to complete installation of the
software. The USB drives will be labeled
SW [Software] and UD [User Document]
(Figure 1).
Figure 4
Figure 3
Installation
Insert the SW drive into any open USB
port on your exam lane review station
computer, click the Windows Explorer
folder icon located in the menu bar
(Figure 2), and then click Computer on
the far left (Figure 3).
In the next window, you will see the
CIRRUS drive listed with the software
version number; double click the icon
(Figure 4), and then double click the
setup.exe icon (Figure 5) to begin
installation of your CIRRUS HD-OCT
Review Software.
Figure 5
How do I install CIRRUS HD-OCT Review Software for Non-FORUM use? | ZEISS Quick Help: CIRRUS™ HD-OCT
When the Welcome Screen appears, click Next (Figure 6), accept the terms of the agreement (Figure 7)
and click Next.
If you are NOT using FORUM® Data Management software from ZEISS:
Select CIRRUS Review – Instrument Mode (Figure 8). When the installation is complete, click Finish
(Figure 9). Your computer will automatically reboot.
Figure 6
Figure 7
Figure 8
Figure 9
Page 2 of 5
How do I install CIRRUS HD-OCT Review Software for Non-FORUM use? | ZEISS Quick Help: CIRRUS™ HD-OCT
Connecting the CIRRUS HD-OCT Review Software to your CIRRUS HD-OCT instrument
After your computer reboots, begin connecting the CIRRUS HD-OCT Review Software to your CIRRUS HD-OCT
instrument by logging back into your Exam Lane Review Station using your Windows login.
Double click the CIRRUS HD-OCT Review Software icon to launch the program. The CIRRUS HD-OCT Review
Software will show a database connection failure message, asking if you want to specify a database with which to
connect your CIRRUS HD-OCT Review Software (Figure 10). Click Yes; a browse window will open.
Find your CIRRUS instrument’s database to connect your Review Software using the CIRRUS instrument's computer
name. Walk over to the CIRRUS instrument screen and find its computer name. To do this, select the Logout
command in the top right corner of the CIRRUS instrument to access the desktop. An archive prompt will appear.
Click Close to return to the desktop; do not click Archive. Click the Explorer folder icon from the menu bar
(Figure 2), then right click Computer (Figure 3) and select Properties. Find and make note of the computer name
listed, e.g., SAMPLE CIRRUS (Figure 11).
Return to the exam lane review station computer and using the same opened browse window, click Network on
the far left side of the screen window. Locate the name of the CIRRUS HD-OCT instrument computer noted earlier
and double click the corresponding icon, e.g., SAMPLE CIRRUS. (Figure 12).
Figure 10
Figure 12
Figure 11
Page 3 of 5
How do I install CIRRUS HD-OCT Review Software for Non-FORUM use? | ZEISS Quick Help: CIRRUS™ HD-OCT
You may or may not see a prompt for a username and password (Figure 13). If prompted, enter the
username and password noted below (all letters are case sensitive), check the box Remember my
credentials and click OK. Did you know: The password is the date Carl Zeiss first went into business.
User name: Zeiss
Password: November171846
Note: If the "Zeiss" username has been changed or removed, it may be necessary to consult with your local
IT professional for additional assistance.
Figure 13
Double click first on the sdoct folder (Figure 14), and then on the Database folder (Figure 15).
Figure 14
Figure 15
Page 4 of 5
How do I install my CIRRUS HD-OCT review software for Non-FORUM use? | ZEISS Quick Help: CIRRUS™ HD-OCT
Note: If you receive the error message Unlicensed CIRRUS instrument (Figure 17), it means that the
license on the CIRRUS HD-OCT instrument has not been activated. Contact ZEISS technical support at
1-800-341-6968 further assistance.
Figure 16
Figure 17
Using your CIRRUS HD-OCT Review Software
To begin, using your CIRRUS HD-OCT Review Software, log in with the drop down username: Cirrus
operator. A password is not required; you may leave that field blank.
Recommended: To ensure the CIRRUS HD-OCT Review Software is correctly installed, conduct a simple
test. Open any existing patient record, select the Find Existing Patient tab, type in the patient name and
verify that the record can be seen.
Refer to the CIRRUS HD-OCT User Manual Instructions for Use for safe and effective operation of the instrument.
Carl Zeiss Meditec AG
Goeschwitzer Strasse 51–52
07745 Jena
Germany
www.zeiss.com/med
Carl Zeiss Meditec, Inc.
5160 Hacienda Drive
Dublin, CA 94568
USA
www.zeiss.com/med
SER.8990 Printed in the USA CZ-V/2017
The contents of this reference guide may differ from the current status of the product in your country. Please contact your regional representative for more information. Subject to change in design and scope of delivery and as
a result of ongoing technical development. CIRRUS and FORUM are either trademarks or registered trademarks of Carl Zeiss Meditec, Inc. or other companies of the ZEISS Group in the United States and/or other countries.
© 2017 Carl Zeiss Meditec, Inc. All copyrights reserved.
Locate and double click the ZDB.ib file within the Database folder (Figure 16), and when prompted, re-launch
the CIRRUS HD-OCT Review Software by double clicking the CIRRUS HD-OCT icon on the desktop.
Page 5 of 5
