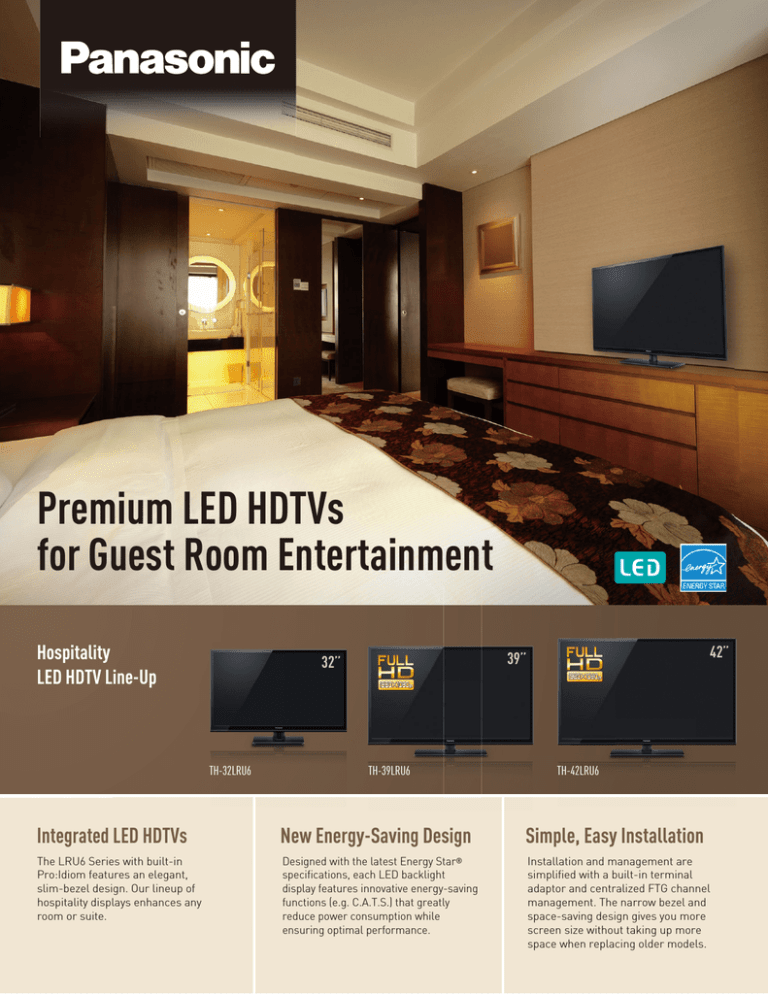

Panasonic | TH-32LRU6 | Datasheet | Panasonic TH-32LRU6 31.5" Full HD Black LED TV

Premium LED HDTVs
for Guest Room Entertainment
Hospitality
LED HDTV Line-Up
TH-32LRU6
42’’
39’’
32’’
TH-39LRU6
TH-42LRU6
Integrated LED HDTVs
New Energy-Saving Design
Simple, Easy Installation
The LRU6 Series with built-in
Pro:Idiom features an elegant,
slim-bezel design. Our lineup of
hospitality displays enhances any
room or suite.
Designed with the latest Energy Star®
specifications, each LED backlight
display features innovative energy-saving
functions (e.g. C.A.T.S.) that greatly
reduce power consumption while
ensuring optimal performance.
Installation and management are
simplified with a built-in terminal
adaptor and centralized FTG channel
management. The narrow bezel and
space-saving design gives you more
screen size without taking up more
space when replacing older models.
Specifications
TH-42LRU6
TH-39LRU6
TH-32LRU6
DISPLAY
Screen Size
Panel
Number of Pixels (H x V)
Panel Life
Intelligent Scene Controller
41.9 -inch
38.5 -inch
31.5 -inch
1080p (WSXGA) LED
1080p (WSXGA) LED
720p (WXGA) LED
1,920 x 1,080 pixel
1,920 x 1,080 pixel
1,366 x 768 pixel
Approx. 60,000 hours
Approx. 60,000 hours
Approx. 60,000 hours
Yes
Yes
Yes
RECEIVING SYSTEM
ATSC/NTSC/QAM
FTG Pro: Idiom HD Support
VHF/ UHF: 2 - 69, CATV: 1 - 135
VHF/ UHF: 2 - 69, CATV: 1 - 135
VHF/ UHF: 2 - 69, CATV: 1 - 135
Local Authentication by USB Memory
Local Authentication by USB Memory
Local Authentication by USB Memory
CONNECTION TERMINAL
Video In
Audio In (L/R)
RCA x 1 (Rear), RCA x 1 (Side)
RCA x 1 (Rear), RCA x 1 (Side)
RCA x 1 (Rear), RCA x 1 (Side)
RCA x 1 (Rear [Share with Component] ), x 1 (Side)
RCA x 1 (Rear [Share with Component] ), x 1 (Side)
RCA x 1 (Rear [Share with Component] ), x 1 (Side)
RCA x 1 (Y PB PR) (Rear)
RCA x 1 (Y PB PR) (Rear)
RCA x 1 (Y PB PR) (Rear [Share with Video] )
RCA x 1 (Rear)
RCA x 1 (Rear)
RCA x 1 (Rear)
HDMI Type A Connector x 2 (Rear), x 1 (side)
HDMI Type A Connector x 2 (Rear), x 1 (side)
HDMI Type A Connector x 2 (Rear), x 1 (side)
Component Video In
Audio In (L/R)
HDMI In
PC In
Mini D-Sub 15-pin x 1 (Female, Rear)
Mini D-Sub 15-pin x 1 (Female, Rear)
Mini D-Sub 15-pin x 1 (Female, Rear)
Audio In (L/R)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
Audio Out (Digital / SPDIF)
Optical x 1 (Rear)
––
––
Audio Out (Analog L/R)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
M3 jack x 1 (Rear)
1
1
1
USB Memory Slot
CONTROL TERMINAL
DATA / MTI
RJ-11(6-pin) x 1 (Rear)
RJ-11(6-pin) x 1 (Rear)
RJ-11(6-pin) x 1 (Rear)
Serial Port
M3 jack x 1 (Rear), RS232C
M3 jack x 1 (Rear), RS232C
M3 jack x 1 (Rear), RS232C
Power Requirements
110-127 V AC, 60 Hz
110-127 V AC, 60 Hz
110-127 V AC, 60 Hz
Power Consumption
105 W
80 W
60 W
41.3 W (Energy star 6.0, CEC)
34.3 W (Energy star 6.0, CEC)
25.4 W (Energy star 6.0, CEC)
Under 1.0 W
Under 1.0 W
Under 1.0 W
ELECTRICAL
On Mode Average Power Consumption*
Stand-by Power
AUDIO
Audio Output Power
10 W + 10 W (10 % THD)
10 W + 10 W (10 % THD)
5 W + 5 W (10 % THD)
1 Way 2 Bottom Speakers
1 Way 2 Bottom Speakers
1 Way 2 Bottom Speakers
TV with Stand (W x H x D)
38.3" x 26.1" × 9.0"
35.3" x 24.4" × 9.0"
29.2" x 21.3" × 7.3"
TV without Stand (W x H x D)
38.3" x 22.9" × 3.5"
35.3" x 21.2" × 3.3"
29.2" x 17.8" × 3.0"
TV with Stand Weight
27.8 lbs.
23.4 lbs.
19.9 lbs.
TV without Stand Weight
24.3 lbs.
19.9 lbs.
15.5 lbs.
Invisible Speaker System Details
DIMENSIONS & WEIGHT
STANDARD (CERTIFICATIONS)
Safety Regulations
Radiation Regulations
UL6500 Ver.2, cUL, BETS-7
UL6500 Ver.2, cUL, BETS-7
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003
FCC Part 15 Class-B, ICES-003
FCC Part 15 Class-B, ICES-003
*Based on IEC 62087Ed.2 section 11.6.1 measurement method.
in s
Features
•VIERA Link™, HDAVI Control™
•Integrated Pro: Idiom
•USB Slot (Image Viewer
(JPEG, Playback), Cloning)
•Hotel Mode
•Welcome Image
•Local Authentication
•Remote Stand (30/ 60/ 90 degree)
Ambient
Light Sensor
TCO
Automatically adjusts the image quality for each room
based on room lighting, while saving energy.
The LRU6 Series' built-in ambient light sensor
(C.A.T.S.) automatically adjusts the television's
screen brightness, color and contrast to suit
the lighting of the room. This not only
optimizes picture performance, but it also
helps keep power consumption low –– so you
can maximize your guests’ experience while
saving on energy costs.
Reduction
Power
Consumption
DOWN
Bright Environmentt
Dark Environment
LRU6 C.A.T.S.
C.A.T.S. [Contrast Automatic Tracking System] maintains
brightness levels and optimizes image quality while reducing
power consumption.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of August 20, 2013.
Printed in Japan. CT13-U02PF-LRU
