Chapter 4 - TVC Communications
Section 4: Hardware

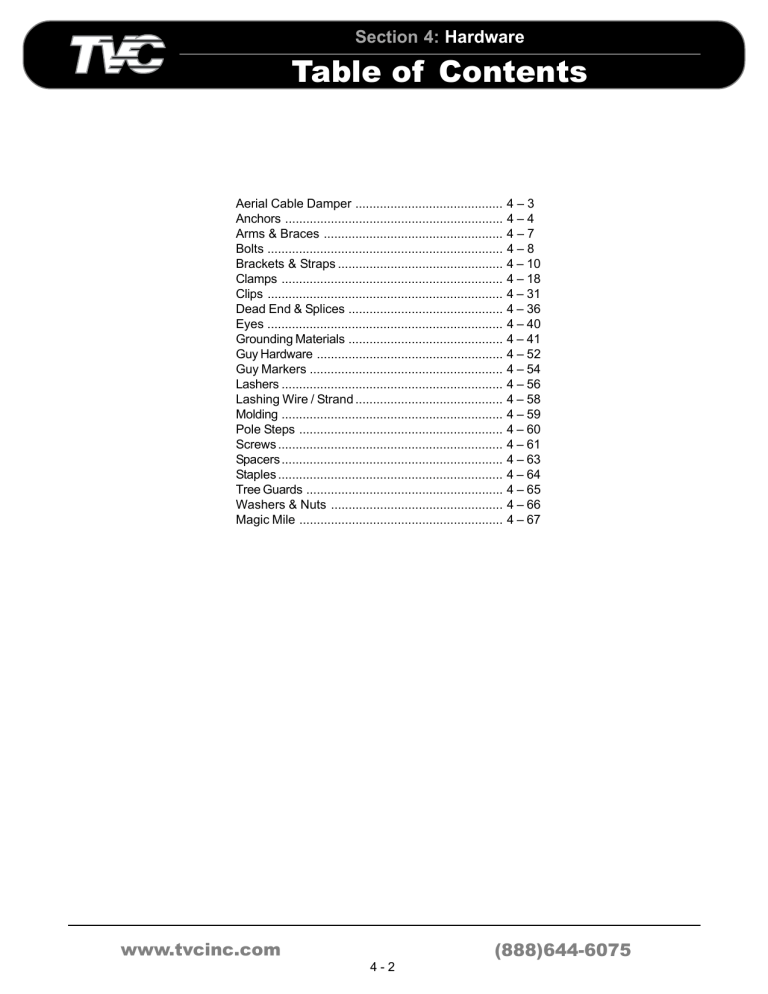

Table of Contents
Aerial Cable Damper ..........................................
Anchors ..............................................................
Arms & Braces ...................................................
Bolts ...................................................................
Brackets & Straps ...............................................
Clamps ...............................................................
Clips ...................................................................
Dead End & Splices ............................................
Eyes ...................................................................
Grounding Materials ............................................
Guy Hardware .....................................................
Guy Markers .......................................................
Lashers ...............................................................
Lashing Wire / Strand ..........................................
Molding ...............................................................
Pole Steps ..........................................................
Screws ................................................................
Spacers ...............................................................
Staples ................................................................
Tree Guards ........................................................
Washers & Nuts .................................................
Magic Mile ..........................................................
www.tvcinc.com
4–3
4–4
4–7
4–8
4 – 10
4 – 18
4 – 31
4 – 36
4 – 40
4 – 41
4 – 52
4 – 54
4 – 56
4 – 58
4 – 59
4 – 60
4 – 61
4 – 63
4 – 64
4 – 65
4 – 66
4 – 67
(888)644-6075
4-2
Section 4: Hardware
Aerial Cable Damper
Diamond’s Aerial Cable Damper is designed to use the force of the wind to aerodynamically reduce the
movement and oscillation of aerial cable. Intended for use on aerial cables of 18 to 150 pairs.
•
A.C. Damper plate is made of high-grade aluminum alloy with 25,000 psi tensile strength.
•
Lashed cable supports are made of corrosion resistant stainless steel with 80,000 psi tensile strength.
•
“D” lashing clamps are made of high quality steel mechanically galvanized to meet ASTM specification
B695.
Diamond’s A.C. Damper Kit Consists of the Following:
1 pc. A.C. Damper Plate.
2 pc. Stainless Steel lashed cable supports, 16" lg. (34–08922)
3 pc. “D” Lashing clamps (26–09010) Installation sheet enclosed.
Cable Guards are not included due to variable cable sizes which can be accommodated.
Installation
1. Select proper size cable guard for application.
2. Place guard on cable over horizontal slots in A.C. Damper.
3. Insert lashed cable supports through horizontal slots. Use two wraps and secure by bending end over top
of buckle. Allow 1/4" clearance between cable and top of A.C. Damper. *A.C.D. must be allowed to swing
free with the wind.
4. Position lashing clamps inside lashed cable supports and secure. Lashing clamps will restrict longitudinal
movement to cable area protected by cable guards.
5. Placement – The number of A.C.D’s varies with length of cable span and terrain. The following is
recommended as a guide for maximum effectiveness.
Level Ground – Locate at span’s center for 125–170' Spans (Fig. 1). On spans 170–300' Locate two
A.C.D.’s each one fourth the total span length from either pole. (Fig. 2)
Steep Grade – Locate one tenth total span length from pole at lower level on 125–170'
spans. (Fig. 3)
On spans 170–300' two A.C.D.’s are required. Locate one at one fourth the total span
length from lower pole. Locate second A.C.D. halfway between first A.C.D. and uphill
pole. (Fig. 4)
*Note – When installing on Fig. 8 cable A.C.D. should be secured to exposed strand.
Ordering Information
Part No.
Carton Qty.
Wt ea (lbs)
•
28-80001 ................................ 5 ............................ 1.6
www.tvcinc.com
(888)644-6075
4-3
Section 4: Hardware
Anchors
PowerShaft CAM ACTION® Anchors
No–Wrench Cam Action® Screw Anchors
These anchors can be installed either manually or with power driven equipment. Manual installation is
accomplished by inserting a bar through the eye and screwing the anchor down. Installations with portable or
vehicle mounted installing equipment is accomplished by means of adapters. The eye dimensions are the same as
shown on the Threaded Forged–Eye.
Ordering Information
Tripleye® Helix–Shaft® Assemblies Hot Dip Galvanized
Approx. Wt. (lbs.
Ea)
J6524WCA
4" Helix, 3/4" x 54" Shaft
8.1
J6526WCA (E)*
6" Helix, 3/4" x 66" Shaft
10.9
J6528WCA*
8" Helix, 1" x 66" Shaft
19.1
J653OWCA
10" Helix, 1–1/4" x 66" Shaft
30.3
J655OWCA
10" Helix, 1–1/4" x 8' Shaft
41.1
J6585WCA
16" Helix, 1–1/4" x 8' Shaft
52.0
*Thimbleye® shaft add suffix "-1+ (E) REA Accepted
Part No.
Description
Expanding Anchors*
Black Painted (Less Rods)
The multi-blade, one-piece top plate expands upon impact into undisturbed earth to form a cone shaped square,
which distributes the anchor’s holding power over a wide area, building up compression against an inverted
pyramid of earth. The expanding anchor retains its shape under extremely heavy loads because the base plate
supports the blades in the middle and distributes the load uniformly over the blades. Reinforcing ribs provide
additional strength.
Ordering Information
Part No.
J0870 (E)
J8115 (E)
J8135 (E)
J8135-1
J8200-1 (E)
J8200-3/4
J0283
J0283-1
(in.)
Area
(Sq. in)
6
8
8
8
10
10
12
12
70
115
135
135
200
200
300
300
Rod Size (in)
(Order
Separately)
1/2 or 5/8
5/8 or 3/4
5/8 or 3/4
1
1
5/8 or 3/4
1-1/4
1
Approx.
Wt (lbs. Ea)
5
9
10
10
19
19
33
33
Add Suffix G for hot dip galvanized anchors (E) REA Accepted
*Expanding anchors are furnished with 8 blades except catalog Nos J0283 / J0283-1 which come with 6
blades
www.tvcinc.com
(888)644-6075
4-4
Section 4: Hardware
Anchors
Threaded Forged-Eye Anchor Rods
Hot Dip Galvanized
Joslyn forged Thimbleye, Twineye and Tripleye anchor rods are used for guying with expanding, cross plate and
cone anchor as well as “Deadman” log anchor assemblies. All rods are threaded 3-1/2" and are assembled with a
heavy square nut.
Ordering Information
Rod
Dia (in)
5/8
Min
Ultimage
Strength
Rating
(lbs)
16,000
3/4
Thimbleye®
Length
(ft)
5
6
7
8
7
8
9
10
23,000
Twineeye®
Part
No.
Approx.
Wt. (lbs ea)
J7415
J7416*(E)
J7417*(E)
J7418*(E)
J7427
J7428*(E)
J7429 (E)
J7430 (E)
5.4
6.4
7.5
8.0
11.0
12.5
14.0
15.0
Tipleeye®
Part
No.
Approx.
Wt. (lbs
ea)
Part
No.
Approx.
Wt. (lbs
ea)
J7516*
J7517*(E)
J7518*+(E)
J7527*
J7528*(E)
J7529+(E)
J7530 (E)
J7538 (E)
J7540*+(E)
6.5
8.0
8.4
11.0
12.4
14.0
15.7
22.9
28.4
J7327*
J7328*
J7329*+
11.2
12.5
14.3
J7338*
J7340*+
J7350+
22.0
27.0
44.0
1-1/4
58,000
10
* ANSI Standard +Bell Standard (E) REA Accepted
Eye Dimensions
y
Dimensions (In.)
Rod
Dia (in)
A
1/2
5/8
3/4
1
1-1/4
B
C
D
Dimensions (In.)
R
A
B
C
D
Dimensions (In.)
R
A
B
C
D
R
RR
9/16
1/2 1-1/16 1-7/16 9/16
11/16 9/16 1-1/2 1-11/16 11/16 15/16 1/4 1-13/16 1-23/64 11/16
13/16 11/16 1-5/8
1-7/8
3/4
1
1/4 1-31/32 1-5/8 11/16 1-9/16 1/4 2-5/8 1-7/16 19/32 5/8
1-1/8 15/16
2
2-1/16 13/16 1-1/4 5/16 2-3/8
1-3/4 11/16 1-9/16 1/4 2-23/32 1-5/8 11/16 21/32
1-9/16 1/4 2-15/16 1-7/8 27/32 13/16
www.tvcinc.com
(888)644-6075
4-5
Section 4: Hardware
Anchors
Rock Anchors
Hot Dip Galvanized (Complete with Rods)
The malleable iron expanding rock anchor fits into a hole 1-7/8" or 2-3/8" in diameter, expands and wedges firmly
against solid rock. When the anchor is expanded, the greater the pull on the rod, the harder the anchor becomes
wedged. No lead, concrete or grouting equipment is necessary. Furnished complete with 3/4" and 1" rods, 15" to 8'
in length. Anchors are painted black and the rods are hot dip galvanized.
Ordering Information
Part No.
Rod
Dia. (in)
J3436(E)
J3437(E)
J3438(E)
JR360
JR372
JR384
JR396
JR115L
JR130L
JR153L
JR172L
JR184L
JR196L
3/4
3/4
3/4
3/4
3/4
3/4
3/4
1
1
1
1
1
1
Rod
Length
(in)
15
30
53
60
72
84
96
15
30
53
72
84
96
Anchor Size
Closed (in)
Anchor Size
Exposed (in)
Hole
Size 9in)
Approx.
Wt. (lbs ea)
1-3/4
1-3/4
1-3/4
1-3/4
1-3/4
1-3/4
1-3/4
2-1/4
2-1/4
2-1/4
2-1/4
2-1/4
2-1/4
2-3/8
2-3/8
2-3/8
2-3/8
2-3/8
2-3/8
2-3/8
3-1/8
3-1/8
3-1/8
3-1/8
3-1/8
3-1/8
1-7/8
1-7/8
1-7/8
1-7/8
1-7/8
1-7/8
1-7/8
2-3/8
2-3/8
2-3/8
2-3/8
2-3/8
2-3/8
5
7
10
11
12
13
15
10
14
18
24
26
29
www.tvcinc.com
(888)644-6075
4-6
Section 4: Hardware
Arms & Braces
Cable Extension Arm
These Cable Extension Arms are used to support a cable at a distance from the pole.
The messenger cable is held by a standard J1096 suspension clamp which is bolted up
against the underside of the two angles by a 5/8" machine bolt. This machine bolt is fitted
between the legs of the two angles and can be adjusted for proper extension from the
pole. Mounting is accomplished by a 5/8" or 3/4" machine bolt at the upper position and
two 1/2" lag screws at the lower. Mounting bolts and suspension clamp must be ordered
separately.
Ordering Information
Part
No.
Angle Size
(In.)
J7920+
J7921+
3 x 2-1/2 x 1/4
3-1/2 x 2-1/2 x 5/16
Extension From
Center of Pole
(in.)
17-1/2 - 26
26-1/2 - 44-1/2
Approx.
Shipping Weight
(lbs. per 100 pcs.)
2,900
6,000
Extension Arm
The all steel model 1175 extension arm is zinc plated to prevent corrosion. Eight inches of vertical pole clearance
are required for installation. It can be installed on all type of poles. Slots are provided for banding to cement, steel,
or fiberglass poles. For mounting to wood poles, standard bolt holes are available for use of 5/8" thrubolt and two
1/2" x 4" drive type lag bolts, not supplied.
Ordering Information
Part
No.
Length
Max. Load (lbs.)
Vert. and Horiz
Std.
Pkg.
Wt. Ea.
(lbs.)
1175-12
1175-18
1175-24
1175-36
12"
18"
24"
36"
350
250
200
300
2/ctn.
2/ctn.
2/ctn.
2/ctn.
5.5
6.6
9.3
14
Fiberglass Cable Extension Brackets
Cable Extension Brackets that provide adequate support for communication cables placed some distance from
the pole to provide the desired clearance. The cable is attached by a standard PA268 or PA273 suspension clamp
which is secured to the bolt in the end casting by a 5/8" nut. Fiberglass rods used in the brackets with our
castings are also manufactured under stringent specifications. All rods are coated with a polyurethane enamel for
ultra violet protection. Brackets of the 7562-5 Series are available in any length required.
Ordering Information
Par t
No.
EB-512
EB-518
EB-524
EB-530
EB-536
Pole M ounting M ounting Bolt Fibe rglas s Pole to Clam p
Shipping W
Std. Pk g.
Bolts
Spacing
Rod Dia.
Cle ar ance
Pe r 100 Pie ce s
Qty.
5/8"
5/8"
5/8"
5/8"
5/8"
6"
6"
6"
6"
6"
&
&
&
&
&
8"
8"
8"
8"
8"
1-1/2"
1-1/2"
1-1/2"
1-1/2"
1-1/2"
www.tvcinc.com
12"
18"
24"
30"
36"
738 lbs.
812 lbs.
886 lbs.
960 lbs.
1034 lbs.
5
5
5
5
5
(888)644-6075
4-7
Section 4: Hardware
Bolts
Bolts, Carriage
Hot Dip Galvanized
Joslyn carriage bolts are roll threaded with square shoulder and square nut. Manufactured in accordance with
ANSI standards.
Ordering Information
3/8" Diameter–Minimum Tensile Strength 4,250 lbs.
Part
No.
J8634*+(E)
J8634–1/2*+(E)
J8635*(E)
J8635–1/2(E)
J8636*+(E)
J8637
J8638+
J8640
Bolt
Length
(in.)
4
4–1/2
5
5–1/2
6
7
8
10
Thread
Length
(in.)
3
3
3
3
3
3
3
3
Approx.
Shipping Wt.
(lbs per 100 pcs)
16.2
16.4
1 7.6
20.0
21.6
24.0
26.4
32.0
1/2" Diameter–Minimum Tensile Strength 7,800 lbs.
Bolt
Thread
Approx.
Length
Length
Shipping Wt.
(in.)
(in.)
(lbs per 100 pcs)
J8644–1/2*(E)
4–1/2
3
34.3
J8645*(E)
5
3
35.3
J8646+*(E)
6
3
40.5
J8647
7
4
44.0
J8648
8
4
51.0
*ANSI Standard, + Bell Standard, (E) REA Accepted
Part
No.
Bolts, Double Arming
Hot Dip Galvanized
Joslyn Double Arming Bolts are roll threaded, with cone points at both ends for easy driving and removal without
damage to threads. Manufactured in accordance with ANSI standards. “D.A.” bolts are furnished with four square
nuts and are available with static-proof washer nuts. Other lengths are also available. Length dimensions do not
include the points.
Ordering Information
5/8" Diameter–Minimum Tensile Strength 12,400 lbs.
Part No.
w/4 Sq. Nuts
Bolt Length
(in.)
J8860
10
J8862*(E)
12
J8864*(E)
14
J8866*(E)
16
J8868*(E)
18
J8870*(E)
20
J8872*(E)
22
J8874*(E)
24
J8876
26
J8877
28
J8878
30
J8879
32
*ANSI Standard, (E) REA Accepted
3/4" Diameter–Minimum Tensile Strength 18,350 lbs.
Approx.
Shipping Wt.
(lbs. per 100 pcs.)
118
136
142
158
187
192
208
224
240
256
264
284
Part No.
w/4 Sq. Nuts
Bolt Length
(in.)
J8882*
12
J8884*
14
J8886*
16
J8888*
18
J8890*(E)
20
J8892*(E)
22
J8894*(E)
24
J8896
26
J8897
28
J8898
30
*ANSI Standard, (E) REA Accepted
www.tvcinc.com
Approx.
Shipping Wt.
(lbs. per 100 pcs.)
196
220
240
260
284
304
336
345
365
386
(888)644-6075
4-8
Section 4: Hardware
Bolts
Bolts, Machine
Hot Dip Galvanized Square Head and Square Nut
Joslyn machine bolts are roll threaded. Bolts 1/2" and larger in diameter and 7" and longer in length also have cone
points which permit driving without damage to the threads. Manufactured in accordance with ANSI standards.
Other lengths and 1" diameter machine bolts available on special order in production quantities.
Ordering Information
5/8" Diameter–Minimum Tensile Strength 12,400 lbs.
3/4" Diameter–Minimum Tensile Strength 18,350 lbs.
Approx.
Thread
Bolt
Shipping Wt
Part
Length
Length
(lbs. per 100
No.
(in.)
(in.)
pcs.)
J8806*+(E)
6
3
62.0
J8807 (E)
7
4
72.0
J8808* (E)
8
4
82.0
J8809 (E)
9
4
88
J8810* (E)
10
6
94.1
J8812* (E)
12
6
108.0
J8814* (E)
14
6
125.0
J8816* (E)
16
6
136.0
J8818* (E)
18
6
152.0
J8820* (E)
20
6
170.0
J8822 (E)
22
6
184.0
J8824 (E)
24
6
200.0
*ANSI Standard + Bell Standard (E)REA Accepted
Part
No.
J8908* (E)
J8910* (E)
J8912* (E)
J8914* (E)
J8916* (E)
J8918* (E)
J8920 (E)
J8922 (E)
J8924 (E)
J8926 (E)
Bolt
Length
(in.)
8
10
12
14
16
18
20
22
24
26
Thread
Length
(in.)
4
6
6
6
6
6
6
6
6
6
Approx.
Shipping Wt
(lbs. per 100 pcs.)
118.0
142.0
162.0
188.0
212.0
228.0
252.0
268.0
296.0
316.0
Bolts, Thimbleye®
Hot Dip Galvanized
Joslyn Thimbleye® bolts are forged in two styles, straight and bent at a 45° angle. They are used for attaching
guys and deadends to poles and crossarms, eliminating the need for thimbles, strain plates, guy
hooks and extra strand.
Eye Dimensions are the same as for Thimbleye® anchor rod. Bolt length is measured from
below the eye to the last thread. All Thimbleye® bolts have cone points and are roll threaded,
except for the J22551 which has a gimlet point. 5/8" diameter bolts have a minimum ultimate
strength of 12,400 lbs; 3/4" bolts have a minimum ultimate strength of 18,350 lbs.
Ordering Information
Approx.
Angle Type
Shipping Wt.
Part No.
(lbs. per 100 pcs.)
J8050 (E)+
124
J8150*(E)+
J8051*(E)+
142
J8151*(E)+
J8052*(E)+
160
J8152*(E)+
J8053+
172
J8153*+
J8054*+
186
J8154+
J8055+
204
—
—
—
J8161 (E)+
J8062 (E)+
228
J8162 (E)+
J8063+
256
J8163+
*ANSI Standard, + Bell Standard, (E) REA Accepted
Straight Type
Part No.
Approx.
Shipping Wt.
(lbs. per 100 pcs.)
130
144
162
184
206
—
216
240
264
www.tvcinc.com
Bolt
Dia. (in.)
5/8
5/8
5/8
5/8
5/8
5/8
3/4
3/4
3/4
Bolt
Length
(in.)
8
10
12
14
16
18
10
12
14
Thread
Length
(in.)
4
4
6
6
6
6
4
6
6
(888)644-6075
4-9
Section 4: Hardware
Brackets & Straps
Trap Sleeve Bracket
DIAMOND’s CATV Trap Sleeve Bracket is designed to mount up to eight (8) trap sleeves to the strand.
•
•
•
•
•
•
•
•
•
Made of high quality steel and aluminum.
Steel parts are galvanized to meet ASTM specifications A153 and B695.
“W” Bracket and Adapter Plate supplied with captive mounting hardware. Both can be mounted
to Slotted Tap Bracket (optional) or Standard 1020A Tap Bracket. (29-19943).
Nuts supplied with external tooth lock washers to prevent loosening.
Windowed flanges on “W” Bracket permit Trap identification from ground if clear trap sleeves
are used.
Adapter Plate can be supplied with a longer captive bolt and nut to permit the addition of a
second level adapter plate and two additional “W” Brackets for an eight sleeve version.
Adapter Plate and “W” Bracket have anti-rotational features.
Spring Steel “W” Brackets include snap-in feature suitable for most trap security sleeves
(7/8' to 1- 1/8' diameter).
Trap sleeves are balanced on strand whether 2, 4 or 8 sleeve versions are used.
Ordering Information
Carton
(Qty)
Weight Per
(100 pcs. lbs.)
Large “W” Bracket
25
14
Small “W” Bracket
25
13
Tap/Trap Bracket
25
14
Catalog #
Description
29-90900
29-90910
29-90920
Drop Wire Mast Bracket
DIAMOND’s D.W. Mast Bracket provides a means of securing drop wire to service mast.
•
•
•
•
•
•
“U” Bolt clamp range is 2-1/2" to 3" DIA.
Bracket strap made of high quality 80,000 psi steel.
“U”- Bolt (5/16" - 18 x 3-1/2") plated and chromated per ASTM B633.
Drop wire hook’s load capacity exceeds 700 lbs. Formed from high quality 80,000 psi steel.
Drop wire hook riveted to bracket strap.
Hook and strap mechanically galvanized to meet ASTM specifications A153 and B695.
Ordering Information
Catalog
No.
40-00540
Carton
(Qty)
50
Weight
(100 pcs. lbs.)
43.5
Corner Wall Bracket
Corner wall bracket used to dead-end a messenger drop cable or a steel strand at the building.
Ordering Information
Catalog
No.
SC53-1
SC53-2
Specifications
For steel strand MDU riser
For messengered drop cable
with .051" to .073" steel messenger wire
50
Approx.
wt./pkg
(lbs.)
14
Approx.
wt./pkg
(kg)
6.4
50
17
7.7
Standard
Pkg Qty
www.tvcinc.com
(888)644-6075
4 - 10
Section 4: Hardware
Brackets & Straps
Service Mast Bracket
Hot Dip Galvanized
The J0590 Service Mast Bracket is used with a service wedge clamp to attach the neutral wire of drop cable to the
service mast. The front strap is rounded to prevent damaging the bail of the service wedge clamp. This bracket
clamps to 1-1/4" to 3" pipe. A specially designed slot on the end of the front strap permits installation of the bracket
without removing the bolts, then captures the square carriage bolt shoulder to prevent it from turning or slipping out
after installation. The J26158 Service Mast Bracket provides the same application as the J0590, but the J26158 can
also be used with a telecommunications drop wire clamp. This bracket will also clamp to 1-1/4" to 3" pipe.
Ordering Information
•
Part No.
(App. Ship Wt. Lbs per 100 pcs)
J0590 .............................................. 105
Cable Support Bracket
Hot Dip Galvanized
The J8236 Cable Support Bracket is for use with self-supporting rural telephone cable. It is attached to the pole with
two 3/8 x 4" lag screws on straight runs and angles of less than 35°. For corner pulls and on angles of more than
35°, a 3/8" carriage bolt is substituted in the lower hole.
Ordering Information
•
Part No.
(App. Ship Wt. Lbs per 100 pcs)
J8236+ ............................................ 220
+ Bell Standard
www.tvcinc.com
(888)644-6075
4 - 11
Section 4: Hardware
Brackets & Straps
House Bracket
•
•
•
•
•
•
•
Made of 3/16" thick high quality steel.
Mechanically galvanized to meet ASTM specification B695.
Drop attachment mounting hole is 7/16" diameter.
Bracket has three (3) 9/32" diameter mounting holes which will accommodate #12
wood screws or 1/4" diameter machine screws for a secure mounting in various
surfaces.
Suitable for multi-dwelling residential drops or for commercial applications.
May be used for attachments or as a standoff.
Bracket’s legs measure 3-7/16" (house side) by 2-7/8". Width is 1-3/4".
The DIAMOND House Bracket is a sturdy, secure customer premise drop cable bracket. It is recommended for
applications where standard drop attachments are inadequate.
Ordering Information
Catalog
No.
40-00200
Carton
Qty
50
Weight Per
100 pcs. (lbs.)
90
Tap Bracket
DIAMOND’s Aluminum Tap Bracket is used in CATV drop installation to secure a tap to messenger strand when it
cannot be attached directly. The unit is offset below the strand preventing cable abrasion on the equipment
housing.
Features
• 2-1/2" size (distance between strap and tap).
• Bracket and clamping plates are made of high grade aluminum alloy with 45,000 psi tensile strength.
• Bolt and nut are made of high tensile strength steel. Mechanically galvanized to meet ASTM specifications
A153 and B695.
• Square hole in bracket prevents bolt rotation when the nut is tightened.
• Tap mounting hole accepts up to a 5/16" bolt (max.).
• Designed for 1/4" (6.6M) and 5/16" (6M) messenger strand.
• Bent top edge of bracket prevents bolt rotation when the nut is tightened.
• Interlocking clamping plate assures a positive and secure grip on the messenger strand.
Ordering Information
Catalog
No.
29-19941
29-19943
29-19944
29-19945
Length
2-1/2"
2-1/2"
9"
Carton
Qty
25
25
25
25
Weight Per
100 pcs. (lbs.)
33
20
24
www.tvcinc.com
Clamp
Type
One Piece
Two Piece
Two Piece
Two Piece
(888)644-6075
4 - 12
Section 4: Hardware
Brackets & Straps
Two Hole Straps
DIAMOND Two Hole Straps are used in telephone, CATV and other utility installations to support and secure cable,
wire, conduit and pipe to telephone poles, wood, masonry, or various types of walls.
•
•
•
•
•
•
Made of high quality steel.
Galvanized to resist corrosion.
Clamps available in a full range of sizes to accommodate diameters of 9/16" to
4".
Clamp feet are offset 5° to facilitate mounting on round poles.
REA accepted.
Used as standard by all major telephone companies and throughout
the telecommunications industry.
Ordering Information
Catalog
No.
Nearest
Pipe Sizes
(in.)
25-80902
1/4
25-81102
3/8
25-81302
–
25-81602
–
25-82002
1
25-82402
–
25-83002
1-1/4
25-83602
–
25-84202
2
25-85602
3
25-86402
3-1/2
*Same As Cable Size
Dimensions
A
13/32
9/16
11/16
7/8
1-1/16
1-5/16
1-5/8
2
2-3/8
1-1/4
3-1/2
B
5/8
3/4
3/4
7/8
1
1
1-1/8
1-1/8
1-1/8
1
1-1/4
C*
9/16
11/16
13/16
1
1-1/4
1-1/2
1-7/8
2-1/4
2-5/8
3-1/2
4
E
5/8
5/8
3/4
3/4
3/4
3/4
7/8
7/8
7/8
1
1
Carton
(Qty)
Weight
Per 100
pcs. (lbs.)
500
250
250
300
100
50
50
75
50
50
50
1.6
2
2.8
5.2
6
7.2
10
13.6
15.6
22.4
24.8
Dead-end Strap
Dead end strap made of high quality G90 pre-galvanized steel used to dead-end a drop cable at the house service
mast.
Ordering Information
Catalog
No.
SC11
SC11T
Specifications
From 1" to 4" diameter mast
Telephone application, adjustable from 1" to 4" mast
www.tvcinc.com
Standard
Pkg Qty
200
200
Approx.
wt./pkg (lbs.)
40
36
Approx.
wt./pkg (kg.)
18.1
16.3
(888)644-6075
4 - 13
Section 4: Hardware
Brackets & Straps
Bands
Bands in Type 201 stainless steel have been the industry standard for over 54 years. Type 201 stainless steel has
superior yield and tensile strength properties to provide maximum clamping strength. All bands sizes feature fully
rounded smooth edges for safety and easy installation. For clamps of even greater strength, use a double wrap,
threading the Ear-Lokt Buckle each time around.
Ordering Information
Type 201 Stainless Steel (100' Per Roli - 30.5mm)
Marathon
Part No.
Band-It
Part No.
UIC
No.
MAR204
MAR205
MAR206
C204
C205
C206
13204
13205
13206
Width
inches
1/2"
5/8"
3/4"
Thickness
mm inches
12.70 .030"
15.88 .030"
19.05 .030"
mm
.76
.76
.76
Weight
lbs.
5.1
6.4
7.7
kg
2.4
3.0
3.6
Giant Bands
Giant Bands are available in Type 201 stainless steel or galvanized carbon steel. It is used for heavy-duty clamping
applications. Giant 1-1/4" band in 201 stainless steel has a breaking strength of 5,500 lbs. Double wrapped clamps
are recommended for maximum strength.
Ordering Information
Type 201 Stainless Steel - 100' Per Roll - (30.5mm)
Marathon
Part No.
Band-It
Part No.
MAR430
MAR431
MAR432
G430
G431
G432
UIC
No.
Width
UIC
No.
Width
Thickness
inches mm inches
17430
3/4"
19.05 .044"
17431
1"
25.40 .044"
17432 1-1/4" 31.75 .044"
mm
1.12
1.12
1.12
Weight
lbs.
11.6
13.7
17.2
kg
5.4
6.4
8.0
Galvanized Carbon Steel
Marathon
Part No.
Band-It
Part No.
MAR434
MAR435
G434
G435
Thickness
inches mm inches
17434
1"
25.40 .048"
17435 1-1/4" 31.75 .048"
Weight
mm lbs. kg
1.14 15.3 6.9
1.14 19.1 8.6
Type 316 Bands
Type 316 is specified for use in situations where corrosion is the major problem. Type 316 stainless steel is an
austenitic chromium-nickel stainless with excellent corrosion resistant properties. It is used extensively in moist
atmospheres and environments where it is subject to chemicals, salts, acids, and high temperatures. Inquire about
the availability of Bands in other materials - Inconel, Titanium, and Hastalloy.
Ordering Information
Type 316 Stainless Steel - 100' Per Roll (30.5mm)
Marathon
Part No.
Band-It
Part No.
UIC
No.
Width
Thickness
inches mm inches
MAR404
C404
13404
1/2"
12.70 .030"
MAR405
C405
13405
5/8"
15.88 .030"
MAR406
C406
13406
3/4"
19.05 .030"
Available in mill coil lengths.
www.tvcinc.com
Weight
mm lbs. kg
.76 5.1 2.4
.76 6.4 3.0
.76 7.7 3.6
(888)644-6075
4 - 14
Section 4: Hardware
Brackets & Straps
Buckles
Ear-Lokt Buckles in Type 201 stainless steel are designed to accommodate both single and double wrap clamps.
The unique teeth and ears provide for maximum clamping strength.
Ordering Information
Type 201 Stainless Steel - Pkg Qty 100
Width
Part
Band-It
UIC
No.
Part No.
No.
inches mm
MAR254
MAR255
MAR256
C254
C255
C256
13254
13255
13256
1/2"
5/8"
3/4"
Weight
lbs.
12.70 2.1
15.88 2.4
19.05 3.7
kg
1.0
1.1
1.7
Giant Buckles
Giant Buckles, Ear-Lokt, are offered in widths and metals to correspond to Giant Band. Giant clamps may be double
wrapped for extra strength.
Ordering Information
Type 20/301Stainless Steel - Pkg Qty 25
Width
Part
Band-It
Uic
No.
Part No.
No.
inches mm
MAR440
MAR441
MAR442
G440
G441
G442
17740
17441
17442
3/4"
1"
1-1/4"
Weight
lbs.
19.05 1.8
25.40 2.4
31.75 3.2
kg
.8
1.1
1.4
Type 316 Buckles
Type 316 Ear-Lokt Buckles are designed to accommodate both single and double wrap clamps to correspond with
the use of Type 316 or 317L Bands.
Ordering Information
Type 316 Stainless Steel - Pkg Qty 100
Width
Part
Band-It
Uic
No.
Part No.
No.
inches mm
MAR454
MAR455
MAR456
C454
C455
C456
13454
13455
13456
1/2"
5/8"
3/4"
Weight
lbs.
12.70 2.1
15.88 2.4
19.05 3.7
kg
1.0
1.1
1.7
Giant Tool
The Giant Tool must be used to apply heavy duty Giant clamps. Measuring 16-1/2" in length, it is designed to pull
up to 6,000 lbs.
Ordering Information
Part
No.
MAR402
Band-It
No.
G402
MAR414
G414
UIC
Description
No.
17402 Giant Tool. Pkg Qty 1, Weight 11.7 lbs., 5.3 kg
Giant Close Quarter Tension Nut, Replaces tool
17414
tension handle when space is limited Pkg Qty 1.
www.tvcinc.com
(888)644-6075
4 - 15
Section 4: Hardware
Brackets & Straps
Strap Tool
A drop forged tool with tensioning capability of over 2,400 lbs. and a built-in cutter.
•
•
•
•
•
Spring loaded gripper lever for improved band tensioning
Friction held cutoff lever with plastic grip for easier operation
Permanent lubrication on the tension screw to extend tool life and
speed clamping
Zinc plated black chromate finish to provide superior corrosion resistance
Spin handle retaining ring to keep parts intact. The BAND-IT Tool is used to apply BAND-IT Bands and
Buckles, strapping and Free-End clamps.
Ordering Information
Part
UIC
Description
No.
No.
MAR001 13001 The BAND-IT Tool, Pkg Qty1, Weight 4.4 lbs., 2.0 kg
Close Quarter Tension Nut Replaces tool tension handle
C043
13043
when space is limited. Pkg Qty 1
C006
13006 Tension Screw/Handle Kit. Pkg Qty 1
Bantam Tool
The Bantam Tool C075 is designed for use in light duty banding applications such as
insulation, cable bundling, and sign hanging.
With the unique 3-way handle, the Bantam Tool can be used in the pistol grip position for
one-handed tensioning, or in the other positions for two-handed tensioning. It is especially
useful in tight areas with minimal access such as in cable bundling aboard ships.
The Bantam Tool is a compact, lightweight, ratchet action tool with a built-in cutter. It has been designed for easy
loading and removing of material, and is zinc plated for corrosion resistance. Tension release levers have been
incorporated into the tool design for situations requiring repositioning of the band after tensioning has begun.
Ordering Information
Part
No.
UIC
No.
C075 13075
Description
3-way handle version for one-hand pistol grip
or two-hand tensioning. 2.6 lbs., 1.2 kg.
Bantam Strapping Tool
The Bantam Strapping Tool C085 is a less expensive version designed for light duty
strapping applications on flat surfaces with minimal access. It has been designed for
quick take-up and tensioning, and is self-contained, requiring no extra tools to complete the clamp.
Ordering Information
Part
No.
UIC
No.
C085 13085
Description
Strapping version for two-hand quick takeup
and tensioning. 2.3 lbs., 1.0 kg.
www.tvcinc.com
BAND-IT®
(888)644-6075
4 - 16
Section 4: Hardware
Brackets & Straps
Strap, Aerial Support
The DIAMOND Lashed Cable Support is used to strap CATV and telephone cable to the messenger strand in
aerial construction.
•
•
•
•
•
•
•
•
•
•
•
•
Zinc straps are made of flexible, highly polished zinc alloy.
Tensile strength of zinc strap is 25,000 P.S.I.
Thickness of zinc strap is .012".
Stainless steel straps are made of corrosion resistant type (430) steel.
Tensile strength of stainless steel is 80,000 P.S.I.
Thickness of stainless steel is .010".
Unique buckle design, together with tapered end of strap, facilitates easy threading.
Width of all straps is 3/4".
Edges are processed to remove all raised and projecting metal. All edges are smooth and free from burrs.
Free from kinks.
Meets Bell specifications and packaging requirements.
R.E.A. accepted.
DIAMOND Lashed Cable Supports are made of flexible zinc alloy for easy application. They are also available in
highly polished corrosion resistant stainless steel. Lashed Cable Supports are made in lengths varying from 10" to
78" to accommodate cables of different diameters.
Ordering Information
Part No.
Zinc
Part No.
Stainless
Length
of Strap
3408911
3408921
3408931
3408941
3408951
3408955
3408961
3408971
3408981
3408912
3408922
3408932
3408942
3408952
3408956
3408962
3408972
3408982
10"
16"
22"
28"
34"
45"
50"
66"
78"
Max. Cable
or Bundle
Diameter
3/4"
1–3/16"
2"
2–5/8"
3–1/8"
4"
5"
6–1/2"
7–1/2"
Circum
2–5/16"
3–5/8"
6–5/16"
8–5/16"
10"
12–1/2"
15-13/16"
20–1/2"
23"
Ctn.
Aty.
Wt. per 100
pcs. (lbs)
Zinc
Wt. per 100
pcs. (lbs)
Stainless
500
500
300
300
300
200
200
200
200
2.9
4.0
5.3
7.0
7.9
10.3
11.3
14.5
16.9
3.7
5.7
7.2
9.4
11.1
15.0
16.9
22.4
26.6
Wall Straps
Joslyn Wall Straps are used for guying and deadending messenger strand to building walls. The J7695 and J7696
terminate strand at building corners as illustrated. Both are made of 1-3/8 x 11/32" steel with a forged thimbleye.
The J7695 has two and the J7696 has three 9/16" diameter holes spaced 8" from center-to-center. The J7692,
formed from 1-7/32 x 15/64" steel, is used similarly to terminate strand at a right angle to the building wall. A wire
rope thimble is recommended to protect the strand.
Ordering Information
Part
No.
J7695
J7696
J7692
Overall
Length (in)
16-7/8
24-3/8
8
Approx. Ship Wt.
(lbs. Per 100)
251
325
78
www.tvcinc.com
(888)644-6075
4 - 17
Section 4: Hardware
Clamps
Stainless Steel Drop Wire Clamp
DIAMOND’s Stainless Steel Drop Wire Clamp is used to support both ends of an aerial service drop span, at the
messenger strand and at the building. The clamp is ideally suited for installations within five (5) miles of the
seacoast and near oil refineries, chemical plants, steel mills or any areas subject to a corrosive environment.
•
•
•
•
•
•
•
•
Entire clamp made of corrosion resistant stainless steel.
Bail wire made of 85,000 psi stainless steel.
Shell, wedge and shim made of 90,000 psi stainless steel.
Clamp exceeds breaking strength of most drop wires - 555 lbs. tensile strength.
Design meets specifications of all major telephone companies and the telecommunications industry.
Packaging available to Bell and other specifications, assembled or unassembled.
Suitable for usage with most one and two pair aerial service wires (.200" max. height and .300" max. width).
Manufactured in the USA.
Ordering Information
Catalog
No.
23-88881
23-88888
23-88885
Bag
Qty.
–
–
2
Box
Qty.
25
25
1
Carton
Qty.
500
500
250
Weight
Per 100 (lbs)
13
13
13
Dual Cable Clamp
The DIAMOND Dual Cable Clamp is used in CATV installations to secure dual drop wire to wood, metal siding or
masonry surfaces. It can also be used to secure 6 pair telephone aerial service wire.
•
•
•
•
•
•
•
Made of high quality steel, rather than plastic, for strength and durability.
Mechanically galvanized to meet ASTM specification B695.
Designed to accommodate both RG7 and RG6 coaxial cable.
Also 6 pair Telco drop wire.
Special “non-pinch” lip to prevent damage to jacket.
One hole design to reduce installation cost and provide attractive
installation along base of shingles and siding.
Secure with DIAMOND Drive pins, using a DIAMOND Hammer Drive Tool.
Manufactured in the USA.
Ordering Information
Catalog
No.
Box
Qty.
Carton
Qty.
22-12121
22-12127
500
500
5000
5000
Weight Per
100 pcs.
(lbs.)
1.0
1.3
www.tvcinc.com
Dual
Cable Size
Telco
6 Pr.
6
7
YES
NO
(888)644-6075
4 - 18
Section 4: Hardware
Clamps
SC48 Messenger Bonding Clamp
Bonding clamp used to bond a fig. 8 integrated steel messenger cable to a #6 AWG copper ground wire.
Ordering Information
Catalog
No.
SC48.1
Specifications
For 1/4" or .109" steel messenger cable fitted
withthree hardened steel pins .104" diameter.
Std.
Pkg
Qty
Approx.
wt./pkg
(lbs.)
Approx.
wt./pkg
(kg)
100
18.5
8.4
6 Pair Drop Wire Clamp
DIAMOND’s 6 Pair Drop Wire Clamp is used to support both ends of aerial service wire (2 pair or 6 pair) on the
messenger strand and at the building.
Specifications
• Shell, shim and wedge made of high grade aluminum alloy.
• Tail Wire made of high grade stainless steel wire.
• DIMPLED SHIM - dimples are positioned along edges of shim to avoid
compression of 6 pair cables with centrally located copper pairs.
• Mechanical (tensile) strength exceeds 750 lbs. without cable slippage,
wedge pulling out of shell or cable damage.
• Tensile tests conducted to Bell and cable manufacturer’s standards.
• Accepts drop wire cable up to .300" high x.500" wide.
• Packaging available to Bell specifications or bulk.
• Made in the USA.
Ordering Information
Catalog
No.
23-82350
23-82351
Shim
Dimpled
Dimpled
Box
Qty.
2 Per Bag
25
www.tvcinc.com
Carton
Qty.
500
500
Weight Per
100 pcs. (lbs)
11
11
(888)644-6075
4 - 19
Section 4: Hardware
Clamps
Drop Wire Clamp
The DIAMOND Drop Wire Clamp is used to support both ends of an aerial service drop span at the messenger
strand and building.
•
•
•
•
•
•
•
•
Shell, shim and wedge made of high grade aluminum alloy.
Tail wire made of high grade stainless steel.
Used as a standard by major telephone companies and throughout the
Telecommunications Industry.
Mechanical strength of 555 lbs. exceeds break strength of drop wire.
Suitable for most one and two pair aerial service wires. (.200" max. height and .410" max. width.)
Available with standard Bell type shim (perforated with projections) or a new flat shim with holes only. (No
projections.)
Packaging available to Bell specifications.
R. E. A. accepted.
Ordering Information
Catalog
No.
Bag
Qty.
Box
Qty.
Ctn.
Qty.
23-44441
23-44444
23-44445
23-44454
23-44455
–
–
2
–
2
–
25
25
–
500
500
250
500
250
Wgt. Per
100 pcs.
(lbs.)
6
6
6
6
6
Shim
Type
Perforated
w/projections
Flat Shim
with holes
SC41 Tap Bonding Clamp
Tap bonding clamp used to bond a fig. 8 integrated steel messenger cable to a tap.
Ordering Information
Catalog
No.
SC41-1
Specifications
For 1/4" or .109" steel messenger cable fitted
withthree hardened steel pins .104" diameter.
Stnd
Pkg
Qty
Approx.
wt./pkg
(lbs.)
Approx.
wt./pkg
(kg)
100
19
8.6
“E” Span Clamp
The DIAMOND “E” Span Clamp is recognized in the telephone industry for its quality and
dependability. The clamping plates are made of 1/4" thick, high tensile strength steel.
The 3/8" pigtail hook is shaped for absolute retention of the wire loop of the drop wire
clamp. This feature eliminates the problem of an attached wire being loosened by wind
whip. All parts are corrosion resistant due to DIAMOND’s quality galvanizing process.
Ordering Information
Catalog
Carton
Weight Per
Number
Quantity
100 pcs. (lbs.)
•
27-00865 ................................ 100 .......................................... 42.5
www.tvcinc.com
(888)644-6075
4 - 20
Section 4: Hardware
Clamps
“F” Span Clamp
Thread the drop wire or distribution cable through the hook. A tree pruner handle is attached to the “F” Span
Clamp by means of a special wrench. The clamp is then raised to strand height with the tree
pruner handle and placed on the strand. Turn the pruner handle from the ground. This will
activate a mechanical clamping action which will secure the clamp to the messenger strand.
Once clamp is secured, remove pruning handle by rotating counter-clockwise.
Ordering Information
Catalog
Carton
Weight Per
Number
Quantity
100 pcs. (lbs.)
•
27-00870 ................................ 50 ........................................... 60.3
TVC “O” Span Clamp
The “O” Clamp is used to support “take-off” at mid span. It includes a two piece aluminum
strand clamp and galvanized hook.
Ordering Information
Catalog
Carton/Case
Weight Per
Number
Quantity
100 pcs. (lbs.)
•
A-1 .......................................... 50/250 .................................... 9.7
“O” Span Clamps
The DIAMOND “O” Span Clamp is used in CATV installations to provide drop wire take-offs along the span and
relieve tension on the drop wire at this point. The DIAMOND “O” Span Clamp was recently developed for CATV
with the only true “O” configuration in the industry. The clamping plates are made of 4" thick, high grade aluminum
alloy to prevent distortion of the plates while being fastened on the messenger strand. The true “O” configuration
provides a stronger curl than the hook design used in other “O” clamps on the market. The “O” design
provides better retention of the drop wire and eliminates the problem of an attached wire being
loosened by wind whip. All of the steel parts are corrosion resistant due to DIAMOND’s quality
galvanizing process.
Ordering Information
Catalog
Carton
Weight Per
Number
Quantity
100 pcs. (lbs.)
•
27-00860 ................................ 100 ......................................... 21.5
“C” Span Clamps
The DIAMOND “C” Span Clamp is used in CATV and telephone drop installations to provide drop wire take-offs
along the span and relieve tension on the drop wire at this point. The “C” is also used as a pull off to hold cable
away from obstacles in the line of aerial construction. This application eliminates the use of tree guards.
Ordering Information
Catalog
Carton
Weight Per
Number
Quantity
100 pcs. (lbs.)
•
27-00869 ................................ 50 ........................................... 24.3
www.tvcinc.com
(888)644-6075
4 - 21
Section 4: Hardware
Clamps
“Q” Span Clamps
The DIAMOND “Q” Span Clamp was developed primarily for drop installations in the CATV industry. All
components are manufactured from high quality steel and are corrosion resistant due to DIAMOND’s quality
galvanizing process. The 1/4" pigtail hook has a deep bend for better retention of the drop wire clamp or wire grip.
The positive clamping action insures against slippage on the messenger strand, usually caused by vibration or
wind dance.
Ordering Information
Part No.
Ctn, Qty.
Wt Per 100 pcs. (lbs.)
•
27-00185 ................................ 100 .......................................... 18.3
SC03E “Econospan” Span Clamp
Multi-directional clamp for messengered and non-messengered drop cable used for dead-end or mid-span
application.
Ordering Information
Catalog
No.
Specifications
SC03E Clamp will accept 1/4" (6.6 mm) steel strand
S003ET Clamp will accept 7/16" (16 mm) steel strand
Std
Pkg
Qty
100
100
Approx.
wt./pkg
(lbs.)
16
16
Approx.
wt./pkg
(kg)
7.3
7.3
SC03EK Stacker Kit
Stacker to SC03E series span clamps for adding more drops.
Ordering Information
Catalog
No.
SC03EK
Specifications
Formed to take a 1" dia. wrap of a steel
messengerwire .051" to .073"
Std
Pkg
Qty
Approx.
wt./pkg
(lbs.)
Approx.
wt./pkg
(kg)
100
7
3.2
SC03E-2G Span Clamp
Span clamp for steel messengered drop cable bonding applications. Unique locking design prevents any part
rotation on steel strand.
Ordering Information
Catalog
No.
SC03E-2G
SC03ET-2G
SC03E-3GW
Specifications
For two steel messenger wires .051" to .073"
diameter used on 1/4" (6.6 mm) steel strand
Same as above used on 7/16" (16 mm) steel strand
For bonding up to three steel messenger wires .051"
to .073" diameter used for 1/4" (6.6 mm) steel strand
SC03ET-3GW Same as above used on 7/16" (16 mm) steel strand
www.tvcinc.com
Std
Pkg
Qty.
Apx.
wt./pkg
(lbs.)
Apx.
wt./pkg
(kg)
75
14
6.4
75
14
6.4
75
14
6.4
75
14
6.4
(888)644-6075
4 - 22
Section 4: Hardware
Clamps
SC23GE Span Ground Clamp
Span ground clamp used to dead end at the tap and to bond messenger steel wires.
Ordering Information
Catalog
No.
Specifications
Common ground for two .051" to .073" messenger
steelwires used for 1/4" (6.6 mm) steel strand
SC23GET-2 Same as above used for 7/16" (16 mm) steel strand
Common ground for four .051" to .073" messenger
SC23GE-4
steelwires used for 1/4" (6.6 mm) steel strand
SC23GET-4 Same as above used for 7/16" (16 mm) steel strand
SC23GE-2
Std
Pkg
Qty
Apx.
wt./pkg
(lbs.)
Apx.
wt./pkg
(kg)
32
9
4.1
32
9
4.1
32
10
4.5
32
10
4.5
One Hole Offset Clamp
Ordering Information
Cable Inch
Max.
Pipe
Size
(in.)
Size
Stock
(in.)
A
B
C
D
E
F
G
5/32
7/32
–
5/16 x .048
1/4
1/4
5/32
1-1/16
9/64
3/16
23-80405
1/4
5/16
–
5/16 x .048
11/32
3/8
5/32
1-3/16
9/64
23-80406
5/16
3/8
–
1/2 x .048
7/16
7/16
1/4
1-1/16
23-80407
3/8
1/2
1/8
1/2 x .048
17/32 17/32
1/4
23-80408
1/2
9/16
1/4
1/2 x .048
5/8
9/16
1/4
23-80409
5/32
7/32
–
5/16 x .048
1/4
1/4
5/32
11/16
Catalog
No.
Min.
23-80403
Box
Qty
Cart.
Qty
Wt. Per
100 pcs.
(lbs.)
1/4
500
5000
.4
1/4
9/32
500
7500
.5
7/32
1/4
5/16
500
5000
.9
1-1/8
7/32
5/16
3/8
500
5000
1.0
1-3/16
7/32
5/16
3/8
500
5000
1.0
3/16
5/16
1/4
500
5000
.3
Dimensions (in.)
www.tvcinc.com
(888)644-6075
4 - 23
Section 4: Hardware
Clamps
One and Two Hole Clamps
These clamps are used in CATV, telephone, LAN, and other utility installations to support and secure cable,
wire, conduit and pipe. All clamps are made of high quality steel and are galvanized to resist corrosion. One
hole clamps are available in a full range of sizes to accommodate 3/16" to 1-1/4" cable. Two hole clamps
are available in a full range of sizes to accommodate 7/16" to 3-1/2" cable, R.E.A. accepted. Manufactured
in the USA.
Ordering Information
Catalog
No.
Cable
Size
(in)
Nearest
Pipe
Size
(in.)
Nearest
E.M.T*
(in.)
Size
Stock
(in.)
A
B
C
D
E
F
24-80003
3/16
–
–
1/2 x .035
11/64
3/16
11/32
7/8
7/32
24-80004
1/4
–
–
1/2 x .035
15/16
1/4
11/32
15/16
24-80005
5/16
–
–
1/2 x .035
19/64
5/16
11/32
24-80006
3/8
1/8
–
1/2 x .048
11/32
3/8
24-80007
7/16
–
–
1/2 x .048
13/32
24-80008
1/2
1/4
3/8
1/2 x .048
15/32
24-80009
9/16
–
–
1/2 x .048
24-80010
5/8
–
–
24-80011
11/16
3/8
1/2
24-80012
3/4
1/2
–
11/16 x .062 45/64
24-80014
7/8
–
3/4
11/16 x .062 53/64
24-80016
1
3/4
–
3/4 x .080
15/16
24-80018
1-1/8
–
1
3/4 x .080
1-1/16 1-1/8
24-80020
1-1/4
1
–
7/8 x .115
1-3/16 1-1/4
Catalog
No.
Cable
Size
(in.)
Nearest
Pipe
Size (in.)
Size
Stock
(in.)
C
D
E
25-80100
–
1/4
1/2 x .048
7/32
2
25-80120
3/4
–
1/16 x .062
3/8
25-80140
7/6
1/2
11/16 x .062
25-80160
1
–
3/4 x .080
25-80200
1-1/4
1
25-80260
1-5/8
25-80400
2-1/2
Box
Qty
Carto
n
Qty
Wt. Per
100 pcs
(lbs.)
1/16
500
7500
.5
7/32
1/16
500
5500
.6
1
7/32
1/16
500
5500
.6
1/4
1-1/8
7/32
3/32
500
5000
1.0
7/16
9/32
1-3/16
7/32
1/8
500
5000
1.0
1/2
1/4
1-1/4
7/32
1/8
500
5000
1.2
17/32
9/16
1/4
1-3/8
7/32
3/16
500
500
1.4
1/2 x .048
19/32
5/8
9/32
1-3/8
7/32
3/16
500
500
1.4
5/8 x .062
41/64
11/16
3/8
1-5/8
9/32
5/32
500
500
2.4
3/4
3/4
2-1/8
9/32
1/4
500
500
2.9
7/8
3/4
2-1/4
9/32
5/16
500
500
3.2
1
9/16
2-3/8
9/32
1/4
250
250
5.5
9/16
2-3/8
9/32
11/32
250
250
6.1
3/4
2-15/16
9/32
1/2
100
100
11.8
Dimensions (in.)
Dimensions (in.)
Wt. Per
100 pcs.
(lbs.)
Box
Qty.
Cart.
Qty.
7/32
500
1000
2.0
2-1/2
9/32
250
250
4.0
3/8
2-5/8
9/32
250
250
4.4
3/8
2-7/8
9/32
300
300
7.4
7/8 x 1/8
3/8
3-1/8
9/32
100
100
14.0
1-1/4
1/8 x 1/2
3/8
3-5/8
9/32
50
50
17.4
2
1 x 1/8
1/2
5-1/2
11/32
50
50
31.8
www.tvcinc.com
(888)644-6075
4 - 24
Section 4: Hardware
Clamps
Cable Suspension
Hot Dip Galvanized
Joslyn Cable Suspension Clamps are used with through bolts, which serve as a clamping member, and are shaped
to securely grip messenger wire to the pole. A nut and square washer is used between the clamp and the pole to
provide proper spacing. The J1095 is used for light cables and consists of the clamping members only. A 5/8"
through bolt tightens the clamp on the wire as well as to the pole. The J1096 and J25088.1 three–bolt clamps are
used for heavier cables and are furnished with a 5/8" through bolt hole. The J25088.1 keeper plate is flat.
The J26049 three–bolt clamp is also used for heavier cables and is furnished with a 3/4" through bolt hole.
Ordering information
Part
No.
No
Bolts
Clamp Bolt
Dia (in.)
Clamp
Length (in)
Mounting
Hole Dia. (in)
Strand
Dia (in)
Appr. Ship Wt
(obs per 100 pcs
–
1/2
1/2
2–1/2
5–3/4
5–3/4
11/16
11/16 x 15/16
11/16 x 15/16
1/4 to 7/16
1/4 to 7/16
1/4 to 7/16
67
180
175
J1095
1
J1096+
3
J25088.1
3
+ Bell Standard
Angle Suspension Clamp
Hot Dip Galvanized
Angle Suspension Clamps have curved ends to prevent damage to the messenger strand when turning small angles.
All clamps firmly grip 1/4" to 7/16" diameter strand. They are furnished with two track bolts and a center mounting
hole.
Ordering Information
Part
No.
Clamp
Width (in)
J7901
1–11/16
J7901A
1–11/16
+ Bell Standard
Clamp Bolt
Dia (in.)
Mounting
Hole Dia. (in)
Appr. Ship Wt
(obs per 100 pcs
1/2
1/2
13/16
11/16
208
210
Crossover Clamp
Hot Dip Galvanized
Joslyn Crossover Clamps for CATV or Telephone Cables are used to clamp two messengers where they cross at
right angles. The J7930 Drop Forged Clamp sections are 1-1/2" wide and 3-1/4" long. Two 1/2" diameter bolts have
oval shoulders to prevent turning when tightening. The J25564 Clamps are 1-1/2" wide and 3-1/2" long. Two 3/8"
diameter carriage bolts and nuts are installed in the square holes of the clamp providing a “locking action.” Unique
cable grooves with a center “dimple” provide superior clamping action.
Ordering Information
Part No.
For Strand Dia (in.)
Approx. Ship Wt. (lbs per 100 pcs)
•
J7930 .............................................. 5/16 to 3/8 ............................................. 154
•
J25564 ............................................ 3/16 to ½ ............................................... 71
www.tvcinc.com
(888)644-6075
4 - 25
Section 4: Hardware
Clamps
Figure–8 Three Bolt Suspension Clamp
The DIAMOND Figure–8 Three Bolt Suspension Clamp is used in CATV and telephone aerial
construction to secure figure–8 aerial cable and multi–pair distribution wire to the pole. This Clamp has a patented
jaw designed to grip the figure–8 messenger through the jacket. This feature eliminates the need to pre–strip the
wire, and reduces the possibility of the cable separating from the messenger.
The bolts, nuts and lock washers are finished with DIAMOND’s quality galvanizing process for long, rust free life.
•
•
•
•
•
Bolts, nuts and lock washers are made of high tensile strength steel, mechanically galvanized to meet
ASTM specifications A153 and B695.
Plates are made of high grade aluminum alloy, with a tensile strength of 45,000 P.S.I.
Clamp will accommodate a 1/2" or 5/8" thru bolt (not furnished).
Patented design allows clamp jaws to penetrate the messenger jacket and grip the bare wire, eliminating
the need to pre–strip the messenger.
R.E.A. accepted.
Ordering Information
Part
No.
28–09610
28–09615
Messenger
Size Range
.109" – .134"
.148" – .250"
Carton
Qty.
20
20
Weight Per
100 pcs. (lbs.)
78.8
71
Figure–8 Tangent Support Clamps
The DIAMOND Figure–8 Tangent Support Clamp is used in CATV and telephone aerial construction to secure figure–
8 aerial cable and multi–pair distribution wire to the pole where cable spans are straight line or around curves.
•
•
•
•
•
•
•
Plates and hook are made of high grade aluminum alloy, with a tensile strength of 45,000 P.S.I.
Unique clamping configuration guarantees a positive grip on the messenger without damaging the jacket.
J hook has a smooth, convex inner surface to minimize friction while tensioning the cable.
Eliminates the need to pre–strip messenger.
Reduces the number of rollers required during tensioning.
J hook is designed to dig into pole when tightened, to prevent rotation during tensioning of cable.
R.E.A. accepted.
Ordering Information
Part
No.
28-09500
28-09600
28-19651
Thru Bolt
Hole Size
5/8"
1/2"
5/8"
Part
No.
45-80013
45-90003
Angle of
Tangent
0-15°
0-35°
0-35°
Thru Bolt
Hole Size
1/2"
5/8"
Messenger
Size Range
.148-.250"
.109-.134"
.109-.134"
Descrip.
J Hook Only
J Hook Only
Carton
Qty.
25
25
25
Carton
Qty.
50
50
Weight Per
100 Pcs (lbs)
37.5
23.0
22.5
Weight Per
100 Pcs (lbs)
11.0
14.0
www.tvcinc.com
(888)644-6075
4 - 26
Section 4: Hardware
Clamps
Figure–8 Span Clamp
The DIAMOND Figure–8 Span Clamp is used in CATV and telephone drop installations to provide drop wire take–offs
along a span of figure–8 aerial cable or multi–pair distribution wire, relieving tension on the drop wire at this point. It
is also used as a pull off to hold figure–8 aerial cable or multi–pair distribution wire away from obstacles in the line of
aerial construction. This application eliminates the use of tree guards. This Clamp is a multi–purpose clamp. The 3/
8" hook has a deep bend and extended shank to retain a drop wire clamp or wire grip so it cannot slip off. And it has
the strength required to withstand the stress of pulling the cable or wire away from an obstruction along the cable
run. This multi–purpose design eliminates the need to carry two separate clamps in inventory.
•
•
•
•
•
•
•
Hook and nut are made of high quality steel. Mechanically galvanized to meet ASTM specifications A153 and B695.
Through controlled galvanizing, threads are sharp and clean, allowing nut to turn easily.
Plates are made of high grade aluminum alloy, with a tensile strength of 45,000 P.S.I.
Full 3/8" body and thread diameter of hook insures against nut stripping and snapping of bolt.
Tensile strength of steel hook is 75,000 P.S.I.
Clamp will accommodate multiple drops.
R.E.A. accepted.
Ordering Information
Part
No.
Messenger
Sizes
Carton
Qty.
Weight Per
100 pcs. (lbs.)
28–09800
28–09850
.109" – .134"
.148" – .250"
50
50
29.0
38.5
Crossover Clamp
The DIAMOND Crossover Clamp is used in telephone and CATV aerial construction to clamp two 1/4" diameter
stranded messengers at right angle crossings. This Clamp is designed with a greater clamping area than
conventional crossover clamps to provide more positive clamping action and prevent frictional wear on the messenger
cables. The symmetrical top and bottom plates are precisely contoured to accept and lock the crossing messenger
cables.
The DIAMOND Crossover Clamp is partially assembled, with both the top and bottom plates held together by one of
the bolts. The 3/8" diameter hex head bolts are threaded into tapped holes in the plates, eliminating the handling of
loose nuts. These features minimize the number of components the installer must handle and allow faster
installation.
DIAMOND’s quality controlled galvanizing allows bolts to be easily turned into the tapped holes and provides
maximum corrosion resistance.
•
•
•
•
•
•
•
•
Made of high quality, heavy duty steel.
Mechanically galvanized to meet ASTM specifications A153 and B695.
Accommodates 1/4" (6.6M) messenger strand.
Tapped holes in plates eliminate handling of loose nuts.
Partially assembled for time–saving installation.
Through controlled galvanizing, threads are sharp and clean, allowing the hex
bolts to turn freely during tightening.
Increased clamping area to maximize holding power.
R.E.A. accepted.
Ordering Information
Part No.
Box Qty.
Wt. Per 100 pcs (lbs)
•
29-09970 ............... 25 ........................... 70.0
www.tvcinc.com
(888)644-6075
4 - 27
Section 4: Hardware
Clamps
Clamps, Cable Suspension, Corner Attachment
Corner attachment clamps are used for angles of 35° to 60°. Accommodates 5/8" diameter pole mounting bolt. The
inner surface is curved with integral spurs for contact stability with the pole. The integral thimble eyes will accept
deadending devices up to 1/2" diameter.
Ordering Information
Part No.
Clamp Length (in)
App. Ship. Wt. (lbs. Per 100 pcs.)
•
P294 ................................................... 6 ........................................................ 209
Cable Lashing Clamp
The DIAMOND “D” & “E” Cable Lashing Clamp is used in CATV and telephone aerial construction to secure lashing
wire terminations at any interruption to cable span continuity, or end of lashing wire coil.
The many unique features of the DIAMOND “D” Cable Lashing Clamp have made it the standard of the
communications industry. The 13/64" clamping plates are made of specially rolled high tensile strength steel. The
“E” Cable Lashing Clamp is essentially the same as the “D” clamp except the clamping plates are of one piece
design for fast clamping.
The 1/4" diameter stud bolt, also made of high tensile strength steel, is staked at both ends to prevent loss of nuts
while positioning the clamp prior to tensioning. The stud has a square shoulder at midpoint which mates with a
square hole in the clamping plate. This prevents rotation of the bolt during final tightening of the clamp to the
messenger strand prior to retaining the tension of the lashing wire.
Two large diameter, heavy duty steel washers are provided to assure permanent attachment of the terminated lashing
wire. All parts are corrosion resistant due to DIAMOND’s quality galvanizing process.
•
•
•
•
•
•
•
•
•
Made of high quality steel.
Galvanized to meet ASTM specifications A153 and B695.
Minimum tensile strength of the clamping plate is 80,000 P.S.I.
Tensile strength of the stud is 3,000 lbs.
Clamping range from 1/4" (6.6M) to 7/16" (16M) messenger strand.
Large diameter, heavy duty steel washers assure permanent attachment of the
lashing wire.
Clamp is manufactured so the square shank on the stud fits a square hole in the clamping
plates to prevent rotation when the nut is tightened.
Used as a standard by all major telephone companies and throughout the telecommunications industry.
R.E.A. accepted.
Ordering Information
Part
Box
Type
No.
Qty.
26–09010 100
D
26–09020 100
E
Weight Per
100 pcs. (lbs.)
15.3
10.8
www.tvcinc.com
(888)644-6075
4 - 28
Section 4: Hardware
Clamps
Split Bolt Connectors
• For copper to copper connections
• Bolt and nut of high strength corrosion resistant bronze alloy
• Pressure bar is copper through 40H; copper alloy is used for 350
kcmil and above
• Bolt and nut of hex design up to 350 kcmil
• Tested adn listed to U.L 486A requirements
Ordering Information
Part Range of Equal
No.
Main and Tap
S-4
8 Sol. - 4 Sol.
S-6
10 Sol. - 6 Sol.
S-8
16 Str. - 8 Str.
UL listed
Ctn.
Qty.
100
100
100
Approx.
lbs./ctn.
7
5
3
Guy Clamp
Hot Dip Galvanized
Joslyn Guy Clamps are rolled from carbon steel with straight parallel grooves that will not damage guy strand. Offset
guy clamps are designed to give increased holding strength. The clamping bolts have special shoulders to prevent
turning when the nuts are tightened.
Ordering Information
Part
No.
J1061 +
J1030
J929
J930* (E)
J931* (E) +
No.
Bolt
of Bolts Dia (in)
1
2
3
3
3
1/2
1/2
1/2
1/2
5/8
J926 (E)
2
1/2
J927 (E)
2
5/8
+Bell standard, (E)REA Accepted
Clamp
Length (in)
Clamp
Width (in)
Regular Style
1–1/2
1–9/16
3–3/8
1–9/16
4
1–9/16
6
1–9/16
6
1–21/32
Offset Style
3–1/4
1–9/16
3–15/16
1–21/32
For Strand
Dia. (in)
Approx.
Ship. Wt.
Lbs per 100 pcs)
3/16 to 3/8
3/16 to 3/8
3/16 to 7/16
3/16 to 7/16
5/16 to 1/2
63
126
160
224
256
3/16 to 5/1 6
5/16 to 1/2
128
174
B-Beam Clamp
Hot Dip Galvanized
The Joslyn J25911 B Beam Clamp is used in conjunction with a 5/8" thimbleye bolt in the application of deadending
strand to I beams. A clamping screw allows the clamp to be positioned on the beam flange.
Ordering Information
Part No.
App. Ship. Wt. (lbs.per 100 pcs/)
• J25911+ ...................................................... 75
www.tvcinc.com
(888)644-6075
4 - 29
Section 4: Hardware
Clamps
B–Strand, Ground Clamp
Joslyn J7956 Clamps are used to bond the cable sheath to the messenger strand. The Clamp body
is made of 1-1/2" x 3/16" steel with an inside keeper riding on the end of the bolt. The 1/2" bolt can
be removed to place the clamp over the messenger wire.
Ordering Information
Part No.
App. Ship. Wt. (lbs. per 100 pcs.)
•
J7956+ ............................................................ 52
Bronze, Bonding Clamps
Bonding Clamps are available cadmium plated, semi–cadmium plated and plain bronze for a wide variety of jumper
applications. The assembly consists of 2 clamp sections and a 5/16" x 7/8" bronze hex washer head bolt. One
clamp section is tapped to allow installation with a single wrench.
Ordering Information
Part
No.
Description
Plated bronze clamp with one
bare bronze groove
K-2 Bronze clamp completely plated
K-3 Bronze clamp – Unplated
KUL Universal bronze clamp UL listed
K-1
Wire
Range
Wt.
(per 100 Pcs.)
#6 – 1/0
16
#6 – 1/0
#6 – 1/0
#6 – 1/0
16
16
16
Bonding & Grounding Hardware
Bonding Connector for Meter Pan
• Meter pan connector designed to provide a bonding connection between the metallic frame of a meter pan
and a copper ground wire.
• Its unique design allows a fixed and positive mechanical contact without interfering with the opening of the
meter pan front cover.
Ordering Information
Part No.
SC51-1
SC51-1SS
SC51-2
SC51-2SS
SC51-TG
SC51-CF
SC51-1BE
SC51CF-81
SC51CF-85
Application
CATV
CATV
Tel.
Tel.
Tel.
CATV
Tel.*
CATV
Tel.
Specifications
For #10/12/14 AWG copper ground wire made of mech. galv. steel B695 yellow chromate
Same as above but made of stainless steel
For #6 AWG copper ground wire made of mech. galv. steel B695 yellow chromate
For #6 AWG copper ground wire made of stainless steel
For #6 AWG #14 AWG copper ground wire
For #10/12/14 AWG copper ground wire made of stainless steel
For #6-10 AWG copper ground wire
For #10-14 AWG copper ground wire
For #6-10 AWG copper ground wire
www.tvcinc.com
(888)644-6075
4 - 30
Section 4: Hardware
Clips
CATV - Aluminum Drop Wire Clip
The DIAMOND CATV Drop Wire Clip is used in drop installations to secure drop wire and common
ground wires to either wood or masonry surfaces.
Specifications
•
Aluminum thickness is .025"
•
Hole diameter is .209"
•
Fastening is accomplished by passing a screw through the holes and securing the clip to
the structural surface.
•
The particular grade of aluminum chosen allows for both excellent strength as well as formability around
the cable.
•
Excellent corrosion resistance.
•
Made in the USA.
Ordering Information
Catalog No.
Carton Quantity
Weight Per 100 Pcs. (lbs.)
•
40-80365 ...................... 500 .................. .3
“E”,”A”, 2 Pair “E”, Drop Wire Clips
The DIAMOND “E”, “A”, and 2 Pair “E” Drop Wire Clips are used in telephone and CATV
drop installations to secure drop wire runs to either wood or masonry surfaces.
Specifications
•
Made of high quality steel.
•
Mechanically galvanized to meet ASTM specifications A153 and B695.
•
Hole diameter is .209" for all clamps.
•
Tabs of clamps are spread 3/4" apart to facilitate easy insertion of drop wire.
•
Three transverse ribs in the radius of the clamp provide a positive hold on the drop wire to prevent wear
from friction.
•
The 2 Pair Drop Wire Clamp is an enlarged version of the “E” drop wire clamp designed for use on 2 Pair
Drop Cable.
•
Clamping is accomplished by passing a screw through the pierced tabs and securing the clamp to the
fastening surface.
•
A DIAMOND Plastic Screw Anchor may be used to secure the clamp to masonry surfaces.
•
The “E” Drop Wire Clamp is used as a standard by all major telephone companies for standard one pair
Drop Cable.
•
R.E.A. accepted.
Ordering Information
Catalog
No.
23-80361
23-80362
23-80370
Style
Max
Cable Size
“E”
.175" x .310"
“A”
.130" x .240"
2 PR. “B” .200" x .400"
www.tvcinc.com
Box
Qty.
Carton
Qty.
50
50
50
2,000
2,000
2,000
Weight
Per 100 Pcs.
(lbs.)
1.2
1
1.4
(888)644-6075
4 - 31
Section 4: Hardware
Clips
6 Pair “E” Drop Wire Clip
DIAMOND’s 6 Pair “E” Drop Wire Clip is used in telephone drop installations to secure drop wire runs to wood or
masonry surfaces.
Specifications
• Made in the USA of high quality steel.
• Galvanized to meet ASTM specifications A153 and B695.
• Hole diameter is .209".
• Clamping action occurs as No. 10 screw is secured to
mounting surface.
• A DIAMOND Plastic Screw Anchor is recommended to
secure to masonry surfaces.
Ordering Information
Catalog
No.
Max
Cable Size
Box
Qty.
Carton
Qty.
23-83361
.300" x .500"
50
2000
Weight
Per100 Pcs.
(lbs.)
1.4
“SAXXIT”™ Cable Clip
“Galvalume” steel cable clip used on concrete, mortar, stucco or wood with a Pre-Inserted Self-Tapping Screw or a
Drive Pin.
Ordering Information
Part
Number
Specifications
For 6 mm RG59 cable with no. 8" x 1"
1/4" hex head indented “Phillips”
SC16P-19
Same as above, painted*
For 7 mm RG6 cable with no. 8" x 1" screw
SC16-26
1/4" hex head indented "Phillips"
SC16P-26
Same as above, painted*
For 8 mm QUAD cable with no. 8" x 1" screw
SC16-3Q
1/4" hex head indented “Phillips”
SC16P-3Q
Same as above, painted*
For 10 mm RG11 cable with no. 8" x 1" screw
SC16-411
1/4" hex head indented “Phillips”
SC16P-411
Same as above, painted*
SC16DP-19
For 6 mm RG59 cable with a 1" drive pin
SC16DPP-19 Same as above, painted*
SC16DP-26
For 7 mm RG6 cable with a 1" drive pin
SC16DPP-26 Same as above, painted*
SC16DP-3Q
For 8 mm QUAD cable with a 1" drive pin
SC16DPP-3Q Same as above, painted*
SC16DP-411 For 10 mm RG11 cable with a 1" drive pin
SC16DPP-411 Same as above, painted*
Colors available specify: black, white, beige or grey.
SC16-19
Std
Pkg.
Aty.
Apx.
Wt/pkg
(lbs)
Apx.
Wt/pkg
(kg)
250
2
1
250
2
1
250
2
1
250
2
1
250
2
1
250
2
1
250
2
1
250
2
250
2
250
2
250
2
250
2
250
2
250
2
250
2
250
2
*25 per polybag
1
1
1
1
1
1
1
1
1
www.tvcinc.com
(888)644-6075
4 - 32
Section 4: Hardware
Clips
“SAXXON”™ Cable Clip
“Galvalume” steel cable clip used on wood, stucco or mortar with a hardened Pre-Inserted Nail.
Ordering Information
Part
Number
Apx
Apx
Std
Pkg wt/pkg wt/pkg
(kg)
(lbs)
Qty
500
2.5
1.1
500
2.5
1.1
500
2.5
1.1
500
2.5
1.1
500
2.5
1.1
500
2.5
1.1
500
3
1.4
500
3
1.4
500
3
1.4
500
3
1.4
500
3
1.4
500
3
1.4
*50 per polybag
Specifications
SC18-19
For 6 mm RG59 cable
SCI18P-19
Same as above, painted*
SC18-26
For 7 mm RG6 cable
SC18P-26
Same as above, painted*
SC18-3Q
For 8 mm QUAD cable
SC18P-3Q
Same as above, painted*
SC18L-19
For 6 mm RG59 cable with 1.625" hardened nail
SC18LP-19
Same as above, painted*
SC18L-26
For 7 mm RG6 cable with 1.625" hardened nail
SC18LP-26
Same as above, painted*
SC18L-3Q
For 8 mm QUAD cable with 1.625" hardened nail
SC18LP-3Q Same as above, painted*
Colors available specify: black, white, beige or grey.
“U” Cable Clip
Preformed aluminum cable clip used to secure drop cables and ground wires to either wood or
masonry surfaces using SC25 screws.
Ordering Information
Part
Number
SC19
SC20
SC21-1
SC21-2
SC22
Std.
Pkg.
Qty.
500
500
500
500
400
Specifications
For RG59 cable
For RG6 cable
For #12 or #14 AWG ground wire
For #10 or #6 AWG ground Wire
For RG11 cable
Apx.
Wt/pkg
(lbs)
1
1
1
1
1
Apx.
Wt/pkg
(kg)
0.5
0.5
0.5
0.5
0.5
Siding Clips
DIAMOND’s Siding Clips are designed to attach coaxial cable (RG 59/U, RG 6/U) to aluminum, vinyl or steel sided
customer premises.
•
•
•
•
Made of high quality, weather-resistant, high density, outdoor polypropylene.
Contains inhibitors to retard ultraviolet degradation.
Contoured surfaces facilitate installation.
Available in black and white colors.
Ordering Information
Catalog
Number
12-01501
12-01401
12-01502
12-01402
Description
TVCG-1 Horizontal/Black
TVCG-1 Horizontal/White
TVCG-2 Vertical/Black
TVCG-2 Vertical/White
Box
Qty
Cart
Qty
100
100
100
100
1,000
1,000
1,000
1,000
www.tvcinc.com
Weight Per
1000 Pcs.
(lbs.)
2.2
2.2
5.2
5.2
(888)644-6075
4 - 33
Section 4: Hardware
Clips
D-SC Clip
Fastened with ordinary pliers, the S shaped clip is used to secure the loop in the drop cable at the point of the drop
wire clamp or porcelain knob attachment.
•
•
•
Made of soft aluminum for easy forming.
Corrugated to provide a positive grip on the drop wire.
Clips are free of burrs and sharp edges.
Ordering Information
Par t
Num be r
23-80366
23-80261
23-80262
M ax.
Cable Size
.160" x .300"
.225" x .375"
.300" x .500"
Spe cifications
1-2 pr. “S” clip
2-3 pr. “S” clip
6 pr. “S” clip
“S” Cable Clip
Cable clip used to prevent separation of two cables or a messenger steel wire from a drop cable
Ordering Information
Part
Number
SC10
SC10T
Specifications
Made of soft aluminum for easy finger forming
Made of corrugated aluminum to provide a
positivegrip on telephone cable
Std
Pkg.
Qty.
500
Apx.
Wt/pkg
(lbs)
4
Apx.
Wt/pkg
(kg)
1.8
500
4
1.8
One-Nail Straps for Coaxial Cable
•
•
Hardened nails made from high carbon steel drive into plaster, mortar and concrete block.
The black color of these straps and the addition of a UV stabilizer provide maximum resistance to the
effects of sunlight.
Ordering Information
Catalog
Number
CC-1005
CC-1010
CC-1020
CC-1030
CC-2010
CC-2020
Max
Cable Size
#12 Ground Wire (.140" Dia.)
59/U (.242" Dia.)
6/U (.275" Dia.)
6U Quad Shield (.300" Dia.)
59/U Dual (.250" x .500")
6/U Dual (.305" x .594")
Color
Box
Qty.
Cart.
Qty
Weight
per Cart.
Black
Black
Black
Black
Black
Black
100
100
100
100
100
100
1000
1000
1000
1000
1000
1000
3 lbs.
3 lbs.
3 lbs.
4 lbs.
5 lbs.
5 lbs.
www.tvcinc.com
(888)644-6075
4 - 34
Section 4: Hardware
Clips
Nail Clips
Tyton Nail Clips are easy to use and highly reliable. The tough, precision engineered plastic clips hold wire and cable
securely in place. The nail is hardened for driving into wood, masonry joints, cinder block and mortar. The nails are also
perpendicular to the work surface and are driven straight in, greatly reducing cracking. The Nail Clips do not have sharp
edges. This reduces the chance of cutting cable jackets or sheaths and causing signal loss.
Ordering Information
Cat
No.
NC2*
NC3.5*
NC6*
NC7*
NC8*
NC9*
NC11*
FC14*
Clip Range
Inches
(mm)
.08-.10 (2-2.5)
.14-.16 (3.5-4)
.24-.28 (6-7)
.28-.32 (7-8)
.32-.35 (8-9)
.35-.43 (9- 11)
.43-.47 (11-12)
0.54 (13.8)
Nail
Length
Color
Coaxial Cable
1"
1"
1"
1"
1"
1"
1"
1"
B&W
B&W
B&W
B&W
B&W
B&W
B&W
B&W
14 AWG Ground wire
12 AWG Ground wire
RG59
RG6 and RG59 double
RG7 and RG6
RG 7
RG 11
Flat twin and ground
NC-2
NC-5
NC-3.5
NC-7
NC-14
Masonry Clips
Masonry Clips are a low cost, easy method for mounting station wire and PBX cable to cinder block, masonry and other forms
of concrete. They are made from high impact, flame retardant Lexan with two steel pins molded into them. The M63-3 is
specially designed with only one pin for routing near corners. Standard Color: clear.
Ordering Information
Part
No.
M63-1
M63-2
M63-3
Unit of
Measure
in.
mm
in.
mm
in.
mm
Dimensions
0.25
6.35
0.5
12.7
0.5
12.7
0.625
15.88
1.25
31.75
0.875
22.2
0.25
6.35
0.5
12.7
0.5
12.7
Max
Cable Dia.
0.188
4.75
0.5
12.7
0.5
12.7
M63-2
M63-1
M63-3
TVC Nylon Cable Clips
TVC Brand Nail Clips are easy to use and highly reliable. The unique clip-on design allows for fast and simple installation.
The nail is hardened for driving into wood, masonry joints, cinder block and mortar. The nails are also perpendicular to the
work surface and are driven straight in, greatly reducing cracking. The Nail Clips
do not have sharp edges. This reduces the chance of cutting cable jackets or
sheaths and causing signal loss.
Ordering Information
Catalog
No.
TNC-7B
TNC-7W
Description
Color
RG-6
RG-6
Black
White
Pkg
Qty
1000
1000
www.tvcinc.com
(888)644-6075
4 - 35
Section 4: Hardware
Dead Ends & Splices
Guy-Grip® Dead-ends
Preformed
Ordering Information
Part
No.
Strand
Size
GDE-1102
3/16"
GDE-1104
1/4"
GDE-1104LA
1/4"
GDE-1106
5/16"
GDE-1107
3/8"
GDE-1108
7/16"
GDE-2102
3/16"
GDE-2104
1/4"
GDE-2106
5/16"
GDE-2107
3/8"
GDE-2108
7/16"
Const.
7W
7W
3W
7W
3W
7W
7W
7W
3W
7W
7W
7W
7W
3W
7W
3W
7W
7W
3W
7W
7W
Mean
Dia.
.186"
.195"
.259"
.240"
.312"
.240"
.312"
.356"
.356"
.360"
.435"
.186"
.195"
.259"
.240"
.312"
.312"
.327"
.356"
.360"
.435"
Units Wt./lbs.
Length
Color
Code
20"
Red
100
30
B Coated
25"
Yellow
50
24
B Coated
23"
Yellow
100
36
A Coated
31"
Black
50
39
B Coated
35"
Orange
50
51
B Coated
38"
Green
25
40
B Coated
20"
Red
100
30
C Coated
25"
Yellow
50
24
C Coated
31"
Black
50
39
C Coated
35"
Orange
50
51
C Coated
38"
Green
25
40
C Coated
Per Carton
Coating
PREFORMED – False Dead-ends
PREFORMED False Dead-ends are a fast, safe, and economical method for false dead-ending strand. They are
easily applied without any special tools, and because False Dead-ends are made from the same material as the
strand, they will hold the same published rated breaking strength.
Ordering Information
Galvanized Steel Strand C-Coat
Part
No.
GFDE-2121
GFDE-2123
GFDE-2124
GFDE-2125
GFDE-2126
Strand
7-Wire
1/4"
5/16"
3/8"
7/16"
1/2"
Mean
(dia)
.240"
.327"
.360"
.435"
.495"
Length
36"
39"
42"
48"
50"
Color
Units
Code
Yellow
25
Black
25
Orange
25
Green
25
Blue
25
www.tvcinc.com
Wt./lbs.
Per Carton
17
24
30
52
71
(888)644-6075
4 - 36
Section 4: Hardware
Dead Ends & Splices
Dead-Ends (Galvanized Steel)
There is no quicker, easier way to support Figure-8 wire or cable than with PREFORMED dead-ends. Merely strip
the messenger and wrap on the dead-end for permanent installation. The helical shape will insure low distribution of
holding stresses to prevent premature fatigue. False or double dead-ending can be accomplished without cutting the
messenger, a feature exclusive with all PREFORMED dead-ends.
Ordering Information
Description
•
•
•
•
•
For
For
For
For
For
Use
Use
Use
Use
Use
on
on
on
on
on
Galvanized
Galvanized
Galvanized
Galvanized
Galvanized
Steel
Steel
Steel
Steel
Steel
Messenger ..............
Messenger ..............
Messenger ..............
Messenger ..............
Messenger ..............
Cable
Catalog
Diameter
Number
.051" ...................... DE-2525
.063" - .072" .......... DE-2505
.083" ...................... DE-2506
.109" ...................... GDE-2501
.134" ...................... GDE-2503
www.tvcinc.com
(888)644-6075
4 - 37
Section 4: Hardware
Dead Ends & Splices
PREFORMED – Strand Splices
PREFORMED Strand Splices are used to repair strand or messenger simply and economically. All applications can be
checked visually-no guesswork involved. Because of its superior design, the Strand Splice provides maximum strength and
excellent fatigue characteristics resulting in longer life for both strand and messenger.
Ordering Information
Part
No.
GLS-2102
GLS-2104
GLS-1104*
GLS-2106
GLS-2107
GLS-2108
GLS-2109
Size
Extra High Strength Strand C-Coat
Strand
No.
Color
of
Mean Length
Code
Constr.
Subsets
(dia.)
3/16"
1/4"
1/4"
5/16"
3/8"
7/16"
1/2"
7W
7W
7W
7W
7W
7W
7W
.186"
.240"
.240"
.312"
.360"
.435"
.495"
27"
35"
35"
42"
50"
56"
63"
2
2
2
3
3
3
3
Units Wt./lbs.
Per Carton
Red
Yellow
Yellow
Black
Orange
Green
Blue
100
50
50
50
25
25
10
30
34
32
46
38
57
34
Strandvise & Strandlink
A mechanical holding device for wire, strand and rod that is used primarily by telephone and electric utilities to hold strand or
rod for guying purposes to deadend at the pole top and at the ground. The strandlink is a splice and is used to make a
connection between two pieces of strand or rod, generally used when a guy is broken or when moving guys.
•
•
•
•
•
•
•
•
•
•
•
•
Simple, fast and foolproof installation.
Cartridge made of a sturdy, corrosion resistant 6061-T6 Aluminum Alloy.
Jaws are cold forged 1010-1015 low carbon steel case hardened and zinc chromated.
The jaw washer is a 1010-1015 low carbon steel.
The spring is a hard drawn tinned steel.
Yoke is a 6061-T6 extruded aluminum.
The bails are a 300 series stainless steel with the lobes being cold headed.
Each strandlink fitting is sealed with a pilot cup on each end.
The strandvise uses one pilot cup and an end cap.
All strandvises are equipped with release slots.
A lubricant coats the internal portion of the tube and jaws.
A variety of bail configurations and sizes are available to handle virtually all requirements.
Ordering Information
Standvise
Strandlink
Short bails
for eyes
and hooks
For strain
insulator
types 502, 504
X-long to place
multiple Guys on
Triple Eye Rods
Wire Range
(in)
(mm)
All grades
incl. EHS,
Bell Syst.
Ultimate
Load
N/A
R5099
N/A
N/A
.185" -. 193", 3/16"
4.70 - 4.95
2.2M
4,200 lbs
1,905 kg.
R5000
R5100
R5150
R5100-L
.240" - .253", 1/4"
6.10 - 6.43
6.6 M
7,000 obs
3,175 kg.
R5001
R5101
N/A
N/A
.310" - .335", 5/16"
7.87 - 8.51
6M
11,500 lbs
5,216 kg.
N/A
N/A
.360" - .405", 3/8"
9.14 - 10.29
10M
15,500 lbs.
7,031
R5002
•
Specifications
Long Bail Types
Reducter Type Universal Strandlink..........R5087 (End A - 5/16”, .270, .315) (End B - 1/4” .215-.270)
www.tvcinc.com
(888)644-6075
4 - 38
Section 4: Hardware
Dead Ends & Splices
Wirevise & Wirelink
MacLean Power Systems’ Mechanical Holding Device for small gauge wire and strand is used for splicing and deadending
aluminum covered steel copper or copper covered steel or steel strand when used as a messenger for telephone or electric
utility applications. Used wherever a holding device is required for terminating or splicing solid wire or strand.
Features
•
The wirelink and wirevise for use with steel and aluminum covered steel are made of heat treated aluminum tubing
with case-hardened plated steel jaws.
•
This wirevise has a stainless steel bail and an aluminum alloy yoke.
•
Wirelink and wirevise for use on copper covered steel wire are made of copper tubing and have bronze jaws.
•
The wirevise has a stainless steel bail and a bronze yoke.
•
Both types are lubricated with inhibitor lubricants and individually packaged in plastic containers.
•
The wirelink is available with a polyolefin coating for use in continuing the insulation when splicing insulated or
jacketed support wires.
Ordering Information
For steel wire and aluminum covered steel wire
Wirelink
Part
No.
Wireverse
A
in.
B
mm
in.
mm
Part
No.
R5057
*R5057N
2-15/16
75.6
.454
11.5
R5056
R5059
*R5059N
2-15/16
75.6
.479
12.2
R5058
R5063
*R5063N
4-1/16
103.2
.546
13.9
R5062
R5073
*R5073N
4-5/32
105.6
.575
14.6
R5072
R5039
*R5039N+
R5079
9
2-15/16
228.6 1.026 26.1 R5199A
75.6
*Polyolefin-covered wirelink
.479
12.2
R5078
A
in.
B
mm
in.
Wire Range
mm
165.1
5
Inches .062 - .100 (mm 1.4 - 2.6)
16 U.S.S.W.G. (.0625) 16 BWG (.065)
1 27.0 15 U.S.S.W.G. (.0720) 15 BWG (.072)
14 U.S.S.W.G. (.0800) 14 BWG (.083)
13 U.S.S.W.G. (.0915) 13 BWG (.095)
6-13/16 173.0
5
Inches .091 - .114 (mm 2.3 - 2.9)
127.0 13 U.S.S.W.G. (.0915) 13 BWG (.095)
12 U.S.S.W.G. (.1055) 12 BWG (.109)
6-1/2
9-13/32 238.9 6-31/32
9-1/4
8-1/2
6-1/2
235.0
215.9
165.1
Inches .120 - .135 (mm 3.1 - 3.5)
11 U.S.S.W.G. (.1205) 11 BWG (.120)
177.0 10 U.S.S.W.G. (.1350) 10 BWG (.134)
(Except Gcl 90)
2,500 lbs. Max.
6-1/2
Inches .120 - .135 (mm 3.1 - 3.5)
165.1 11 U.S.S.W.G. (.1205) 11 BWG (.120)
10 U.S.S.W.G. (.1350) 10 BWG (.134)
4-7/8
Inches .140 - .215 (mm 3.7 - 5.5)
9 U.S.S.W.G. (.1483) 9 BWG (.148)
8 U.S.S.W.G. (.1520) 8 BWG (.165)
123.8
7 U.S.S.W.G. (.1770) 7 BWG (.180)
6 U.S.S.W.G. (.1920) 6 BWG (.203)
5 U.S.S.W.G. (.2070)
5
Inches .091 - .114 (mm 2.3 - 2.9)
11 AWG (.091) 12 S.W.G. (.104)
127.0
10 AWG (.102)
9 AWG (.114)
+Universal strandlink and strandvise
www.tvcinc.com
(888)644-6075
4 - 39
Section 4: Hardware
Eyes
Auxiliary Eyes PA155
Designed to fulfill the need for an economical attachment of an additional guy to an existing anchor rod. Long in
use by many power and telephone companies. Where anchor capacity is available, Auxiliary Eyes offer the most
economical method of adding one or even two additional guys to any type of existing anchor rod. Can also be used
for temporary guying or as a come-along to tension guys. Easy installation, generous thimble diameter.
•
•
Malleable Iron, Hot Dip Galvanized Body & Plates
Hi-Strength Steel & Hot Dip Galvanized “U” Bolts & Nuts
Ordering Information
Part
No.
Type
Rod
Dia
Sq.
Hex
Sq.
Hex
5/8-3/4"
5/8-3/4"
7/8-1"
7/8-1"
PA155
PA155H
PA155A
PA155AH
Max.
Strand Thimble
Size
1/2"
1/2"
1/2"
1/2"
Dia.
Material
1-1/2"
1-1/2"
1-1/2"
1-1/2"
Malleable
Malleable
Malleable
Malleable
Eyelets
Designed to meet E.E.I. dimensional and strength specifications. Will exceed the rating of the bolt with which each
is used. Hole design permits thru bolt to be inserted from the eye side. More economical than a steel forging.
Ordering Information
Bolt Strand
Shipping Wt.
Part
Type
Dia. Max.
Per 100 Pieces
No.
P127A* Std. Long 5/8"
1/2"
96 lbs.
P127B* Std. Long 3/4"
1/2"
99 lbs.
P126B* Thimble 5/8"
1/2"
105 lbs.
P126A* Thimble 3/4"
1/2"
151 lbs.
*Equals or exceeds EEI requirments
Std. Pkg.
Qty.
50
50
50
50
Forged Eyenuts
Joslyn hot dipped galvanized Forged Eyenuts are tapped to fit hot dip galvanized bolts made to ANSI Specifications
and are designed to develop strength ratings consistent with the bolts with which they are used.
Thimbleyenuts® are used for span, head and stub guying; Twineyenuts® accommodate double guys. Oval eyenuts
are used for deadending with suspension or strain insulators.
Ordering Information
Thimbleynuts
Part
No.
J6510
J6511*
For Bolt
Dia (in)
Max. Strand
Size 9in)
Appro. Ship WT
(lbs. per 100 pcs.)
5/8
3/4
1/2
1/2
91
91
Oval Eyenuts
Part
For Bolt Max. Strand
No.
Dia (in)
Size 9in)
J1092* (E)
5/8
—
J1093
3/4
—
*ANSI Standard (E) REA Accepted
www.tvcinc.com
Appro. Ship WT
(lbs. per 100 pcs.)
54
53
(888)644-6075
4 - 40
Section 4: Hardware
Grounding Materials
TVC Brand Ground Block and F-81 Splice
TVC has developed a line of true 1 GHz splice and ground block devices capable of providing high return loss
characteristics at frequencies over 1 GHz. The models G-F81L and G-G2B2 have been constructed using
traditional high frequency design techniques coupled with the required physical durability of CATV products to
provide return losses over 25 dB at 1 GHz. The mechanical design techniques
provide a minimum of 100% more cable center conductor-to-connecter contact
area resulting in higher reliability and transmission performance.
Ordering Information
Catalog
No.
G2B2
G-G2B2
F-81
G-F81L
Std.
Pkg.
500
500
100
100
MHz
750
1000
750
1000
Weight
Std. Pkg.
36 lbs.
36 lbs.
1.06 lbs.
1.60 lbs.
Ground Blocks
GB-81 LRC
Ground blocks made from high-quality,
extruded aluminum alloy are available for
use with environmentally sealed products
(i.e. thread protectors). All supplied
screws have #2 Phillips -1/4" Hex
Combination Head
GB-81 LRC
GRB-1 TVC Brand
Grounding block with F81 zinc
GRB-1
GRB-2 TVC Brand
Dual grounding block with F81 zinc
GRB-2
High Pass Filter, Ground Blocks
Features
The ground block with built-in high pass filter prevents low frequencies from entering the system at the drop. This
product should be used on all active two-way systems. In addition, the unit eliminates the need for multiple
matching transformers with high pass filters. The GHP-50 features zinc diecast housing and is completely weather
proof. Each port is machine threaded for a perfect connector fit.
www.tvcinc.com
(888)644-6075
4 - 41
Section 4: Hardware
Grounding Materials
SC12DNS Grounding Block
Grounding block used for CATV subscriber grounding application. Unique Locking Tab designed to facilitate the
installation of the F81 connector. New Oval Slot permits upgrading with various brands of 2, 3 or 4 way splitters,
simply by using the SCO9 splitter ring nut for mounting. Quick insert-and-wrap locking hole to accept up to #10
AWG ground wire. Made of G90 galvanized steel with a yellow-chromate overcoat. Supplied with stainless steel
green grounding screw.
Ordering Information
Part
Number
Std
Pkg
Qty
100
100
Specifications
SC12DNS-81
SC12DNS-81 L
Apx.
wt./pkg
(kg)
4.5
5
Apx.
wt./pkg
(lbs)
10
11
Complete with regular F81 connector
Complete with long barrel F81 connector
As SC12DNS-81 with two SC25-3
SC12DNS81-25
100
12.5
5.7
mounting screws
As SC12DNS-81 L with two SC25-3
SC12DNS81L-25
100
13.5
6.1
mounting screws
SC12D and SC12DN series can also be available with two F81 type connectors to specify short or long barrel.
SC12DNMS Grounding Block
Grounding block used for CATV subscriber grounding application. Unique Locking Tab designed to facilitate the
installation of the F81 connector. New oval slot permits upgrading with various brands of 2, 3 or 4 way splitters,
simply by using the SCO9 splitter ring nut for mounting. Quick insert and wrap locking hole to accept up to #10
AWG ground wire. Made of G90 galvanized steel with a yellow-chromate overcoat. Supplied with stainless steel
green grounding screw and a stainless steel screw to bond steel messenger wire.
Ordering Information
Std
Apx.
Apx.
Pkg
wt./pkg
wt./pkg
Qty
(lbs)
(kg)
SC12DNMS-81
Complete with regular F81 connector
100
11
5
SC12DNMS-81 L
Complete with long barrel F81 connector
100
12
5.4
SC12DNMS81-25 As SC12DNMS-81 with two SC25-3 screws
100
13.5
6.1
SC12DNMS81L-25 As SC12DNMS-81 L with two SC25-3 screws
100
14.5
6.6
SC12D and SC12DN series can also be available with two F81 type connectors to specify short or long barrel.
Part
Number
Specifications
SC12DS Grounding Block
Grounding block used for CATV subscriber grounding application. Quick insert-and wrap locking hole to accept up to
#10AWG ground wire. Made of G90 galvanized steel with a yellow-chromate overcoat. Supplied with stainless steel
green grounding screw.
Ordering Information
Part
Number
SC12DS-81
SC12DS-81L
SC12DS81-25
SC12DS81L-25
Specifications
Complete with regular F81 connector
Complete with long barrel F81 connector
As SC12DS-81 with two SC25-3 mounting screws
As SC12DS-81L with two SC25-3 mounting screws
www.tvcinc.com
Std
Pkg
Qty
100
100
100
100
Apx.
wt./pkg
(lbs)
10
11
12.5
13.5
Apx.
wt./pkg
(kg)
4.5
5
5.7
6.1
(888)644-6075
4 - 42
Section 4: Hardware
Grounding Materials
SC12DMS Grounding Block
Grounding block used for CATV subscriber grounding application. Quick insert and wrap locking hole to accept up to
#10AWG ground wire. Made of G90 galvanized steel with a yellow chromate overcoat. Supplied with stainless steel
green grounding screw and a stainless steel screw to bond steel messenger wire.
Ordering Information
Std
Apx.
Apx.
Pkg wt./pkg wt./pkg
Qty
(lbs)
(kg)
SC12DMS-81
Complete with regular F81 connector
100
11
5
SC12DMS-81L
Complete with long barrel F81 connector
100
12
5.4
SC12DMS81-25 As SC12DMS-81 with two SC25-3 mounting screws
100
13.5
6.1
SC12DMS81L-25 As SC12DMS-81 L with two SC25-3 mounting screws
100
14.5
6.6
SC12D and SC12DN series can also be available with two F81 type connectors to specify short or long barrel.
Part
Number
Specifications
SC12N Grounding Block
Grounding block used for CATV subscriber grounding application. Unique locking tab designed to facilitate the
installation of the F81 connector.
Ordering Information
Std
Apx.
Apx.
Pkg wt./pkg wt./pkg
Qty
(lbs)
(kg)
SC12N-81
Complete with regular F81 connector
150
9
4.1
SC12N-81L
Complete with long barrel F81 connector
150
10
4.5
SC12N81-25
As SC12N-81 with two SC25-3 mounting screws
150
12
5.4
SC12N81L-25 As SC12N-81 L with two SC25-3 mounting screws
150
13
5.9
SC12D and SC12DN series can also be available with two F81 type connectors to specify short or long barrel.
Part
Number
Specifications
SC12-4W Four Way Grounding Block
Four way grounding block used for CATV subscriber grounding application. Provides up to four drop connections with
a #6 AWG ground connection.
Ordering Information
Std
Apx.
Apx.
Pkg wt./pkg wt./pkg
Qty
(lbs)
(kg)
SC12-4W
Complete with four regular F81 connectors
50
13
.9
SC124W-25
Same as above but with two mounting SC25-3 screws
50
15
6.8
SC12-4WL
Complete with four long barrel F81 connectors
50
17
7.7
SC124WL-25 Same as above but with two SC25-3 mounting screws
50
18
8.2
SC12D and SC12DN series can also be available with two F81 type connectors to specify short or long ba
Part
Number
Specifications
www.tvcinc.com
(888)644-6075
4 - 43
Section 4: Hardware
Grounding Materials
SC12NED “ED” Grounding Block
“ED” grounding block used for CATV subscriber grounding application. Permits upgrading by replacing the initial F-81
connectors with 2, 3 or 4 way splitters, limiting the use of only two F-81 connectors with up to a #10 AWG ground
wire.
Ordering Information
Part
Number
Std
Pkg
Qty
50
50
50
50
Specifications
SC12NED-81
SC12NED81-25
SC12NED81L
SC12NED81L-25
Complete with two F81 connectors
Same as above with two SC25-3 mounting screws
Complete with two F81 connectors long barrel
Same as above with two SC25-3 mounting screws
Apx.
wt./pkg
(lbs)
10
11
11
12
Apx.
wt./pkg
(kg)
4.5
5
5
5.4
SC23G Grounding Bracket
Grounding bracket provides a means to bond up to eight steel messenger wires to steel strand. Firm and positive
grip with no rotation or sliding on strand.
Ordering Information
Part
Number
Specifications
SC23G-2 For 2 steel messenger wires
SC23G-4 For 4 steel messenger wires
SC23G-8 For 8 steel messenger wires
Std
Pkg
Qty
100
50
32
Apx.
wt./pkg
(lbs)
28
14
11
Apx.
wt./pkg
(kg)
12.7
6.4
5
SC46DN Grounding Bracket
Grounding bracket permits upgrading number of drops by mounting 2, 3 or 4 way splitters simply by using the SC09
splitter ring nut for mounting.
Ordering Information
Part
Number
Specifications
SC46DN
Accepts up to #10 AWG ground wire
SC46DN-25 Same as above with two SC25-3 mounting screws
Std
Pkg
Qty
100
100
Apx.
wt./pkg
(lbs)
8
10
Apx.
wt./pkg
(kg)
3.6
4.5
SC46DNM Grounding Bracket
Grounding bracket with a steel messenger wire connection permits upgrading number of drops
by mounting 2, 3 or 4 way splitters simply by using the SC09 splitter ring for mounting.
Ordering Information
Part
Number
SC46ONM
SC46ONM-25
Specifications
Accepts up to #10 AWG ground wire
Same as above with two SC25-3 mounting screws
www.tvcinc.com
Std
Pkg
Qty
100
100
Apx.
wt./pkg
(lbs)
9
11
Apx.
wt./pkg
(kg)
4.1
6
(888)644-6075
4 - 44
Section 4: Hardware
Grounding Materials
SC46N-4W Four Way Grounding Bracket
Four way grounding bracket used for CATV subscriber grounding application. Accepts up to four F81 connectors
with a #6 AWG ground connection.
Ordering Information
Part
Number
SC46N-4W
SC46N-4W-25
Specifications
Accepts up to #6 AWG ground wire
Same as above with two SC25-3 mounting screws
Std
Pkg
Qty
50
50
Apx.
wt./pkg
(lbs)
8
9
Apx.
wt./pkg
(kg)
3.6
4.1
SC46N-ED “ED” Grounding Bracket
“ED” ground bracket used for CATV subscriber grounding application. Accepts upgrading with 2, 3 or 4 way
splitters, limiting the use of only two F-81 connectors with up to a #10 AWG ground wire.
Ordering Information
Part
Number
Specifications
SC46N-ED
Accepts up to #10 AWG ground wire
SG46NED-25 Same as above with two SC25-3 mounting screws
Std
Pkg
Qty
50
50
Apx.
wt./pkg
(lbs)
8
9
Apx.
wt./pkg
(kg)
3.6
4.1
SC03E-2G Span Clamp
Span clamp for single steel messengered drop cable bonding applications. Unique locking design prevents any
part rotation on steel strand.
Ordering Information
Part
Number
SC03E-2G
SC03ET-2G
SC03E-3GW
Specifications
For single steel messenger wire .051" to .073"
diameter used on 1/4" (6.6 mm) steel strand
Same as above used on 7/16" (16 mm.) steel strand
For bonding up to three steel messenger wires .051"
to .073" diameter used for 1/4" (6.6 mm) steel strand
SC03ET-3GWI Same as above used on 7/16" (16 mm) steel strand
Std
Pkg
Qty
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(kg)
75
14
6.4
75
14
6.4
75
14
6.4
75
14
6.4
SC55 Universal Ground Clamp
Ground clamp used for connecting a copper ground wire to water pipe, ground rods and steel
strand to steel strand.
Ordering Information
Part
Number
Specifications
Std
Pkg
Qty
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(kg)
SC55
Connects #6 AWG and #10 AWG to galvanized pipe1/2" to 1", ground rod up to
5/8" diameter, strand tostrand 1/4", 5/16", 7/16" and #2/0 AWG copper ground
wire
50
28
12.7
www.tvcinc.com
(888)644-6075
4 - 45
Section 4: Hardware
Grounding Materials
SC07GG “I” Beam Grounding Clamp
Grounding clamp used to bond a solid or strand copper wire to steel structure.
Ordering information
Part
Number
Specifications
SC07GG
Up to #10 AWG copper ground wire
SC07GG-142 Up to #6 AWG copper ground wire
Std
Pkg
Qty
100
100
Apx.
wt./pkg
(lbs)
16
19
Apx.
wt./pkg
(kg)
7.3
8.6
SC23GE Span Ground Clamp
Span ground clamp used to dead-end at the tap and to bond messenger steel wires.
Ordering Information
Part
Number
Specifications
Common ground for two .051" to .073" messenger
steel wires used for 1/4" (6.6 mm) steel strand
SC23GET2 Same as above used for 1/16" (16 mm) steel strand
Common ground for four .051" to .079" messenger
SC23GE4
steel wires used for 1/4" (6.6 mm) steel strand
SC23GET4 Same as above used for 1/16" (16 mm) steel strand
SC23SE2
Std
Pkg
Qty
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(kg)
50
15
6.8
50
15
6.8
50
16
7.3
50
16
7.3
“B” Ground Wire Clamp
The DIAMOND “B” Ground Wire Clamp is used in telephone and CATV drop installations to secure wire for
grounding.
Specifications
• Made of high quality steel.
• Mechanically galvanized to meet ASTM specifications A153 and B695.
• Clamp dimensions are 9/16" long by 3/8" wide.
• Clamp has a 1/8" curve to accommodate the wire to be grounded.
• Hole diameter is 7/32".
• R.E.A. accepted.
• Manufactured in the USA.
Ordering Information
Catalog
No.
23-80002
Max. Wire
or cable size
(in)
1/8
Box Cart.
Qty Qty
500 5000
Weight Per
100 Pcs.
(lbs)
0.3
www.tvcinc.com
(888)644-6075
4 - 46
Section 4: Hardware
Grounding Materials
Meter Box Ground Clamp
Ordering Information
Part
Clamp
No.
Range
40-20000
7" - 10-1/4"
40-20001
11-1/2" - 15-1/4"
40-20002 11-1/2" - 15-1/4
40-20003 11-1/2" - 15-1/4"
Specifications
Meter box ground clamp (S), #12-16 AGW
Meter box ground clamp (L), #12-16 AGW
Meter box ground clamp (S), #6 AGW
Meter box ground clamp (L), #6 AGW
SC51 Bonding Connector for Meter Pan
Meter pan connector designed to provide a bonding connection between the metallic frame of a meter pan and a
copper ground wire. Its unique design allows a fixed and positive mechanical contact without interfering with the
opening of the meter pan front cover.
Ordering Information
Part
Number
Specifications
SC51-1
For #10/12/14 AWG copper ground wire
SC51-2
For #6 AWG copper ground wire
SC51-1BE For #6 AWG meets Telco specs
Std
Pkg
Qty
100
100
100
Apx.
wt./pkg
(lbs)
9.5
13
26
Apx.
wt./pkg
(lbs)
4.3
5.9
12
L Ground Strap
DIAMOND’s L Ground Clamp is used to secure ground wires to power conduit, power mast or water pipes.
Specifications
• Tin plated copper strap is suitable for mounting on any materials commonly used in grounding including
galvanized steel, copper water pipes, aluminum or die cast fittings.
• Clamp range is between 1.800" and 3.580" diameters.
• Small opening accepts No. 6 (.162" dia.) ground wire.
• Secure smaller ground wires No. 14 (.064" dia.) thru No. 8
(.128" dia.) between first and second nut.
• Conforms to Bell specifications.
• Strap tensile strength is 33,000 psi min.
• Bolt, washer and nuts are mechanically galvanized to ASTM B695 specifications.
Ordering Information
Part
Number
29-09972
Hole
Spacing
2.50" to 11.25"
Clamp
Range
1.800" to 3.580" dia.
www.tvcinc.com
Cart.
Qty
100
Weight Per
100Pcs (lbs)
16
(888)644-6075
4 - 47
Section 4: Hardware
Grounding Materials
Ground Strap
DIAMOND’S Ground Straps (available in copper and galvanized steel) are used for securing ground wires to water
pipes or conduits to provide a low resistance connection for grounding telephone and CATV service drops.
DIAMOND’S Ground Straps are available in either 6", 9" or 12" lengths. Accommodates Solid Copper Ground
Wires from #48 to #8 AWG. The 6", 9" and 12" straps are designed to fit pipe or tubing having outside diameters
ranging from 5/8" through 1-3/4" and 5/8" through 3-1/2".
•
•
•
•
•
•
•
•
Adjustable copper strap (per ASTM B152).
Adjustable galvanized steel strap (per ASTM A153).
One piece construction for easy installation
Weldless construction reduces possible breakage.
Brass nickel plated nut, screw and washer (per ASTM B134).
Slotted, hex head screw to accommodate a screwdriver, wrench or pliers.
Designed so the copper wire is in direct contact with the ground strap to assure a positive, low resistance
ground.
Underflap protects pipe from screw puncture.
Ordering Information
Catalog
Number
Strap
Length
Carton
Qty
40-09806
40-09812
40-09807
40-09809
40-09813
6"
12"
6"
9"
12"
100
100
100
100
100
Weight Per
100 Pcs.
(lbs.)
4
6
3.5
4.4
5.3
Material
Copper
Copper
Galv. Steel
Galv. Steel
Galv. Steel
Ground Strap
Function: Connects ground wire to water pipe.
Ordering Information
Catalog
No.
A-24-6
A-24-12
Pipe
Size (in)
3/8 - 1"
3/8 - 3"
Wire Std
Size Pkg
14
150
10-6 150
SC13B Ground Strap
Ground strap used to provide a fixed and permanent connection between a
copper water pipe to a copper ground wire.
Ordering Information
Part
Number
Specifications
Std
Pkg
Qty
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(lbs)
6-1/2" strap, fits 1/2" to 1" dia. pipe to
150
7
3.2
#10/12/14 AWGcopper ground wire
9" strap, fits 1/2" to 2-1/4" dia. Pipe to
200
12
5.4
SC13B-2
#10/12/14 AWGcopper ground wire
12" strap, fits 1/2" to 3" dia. pipe to
SC13B-3
150
10
4.5
#10/12/14 AWGcopper ground wire
Made of pure copper (ASTM B152-110). Brass fasteners (ASTM B16-360 and B134-260).
SC13B-1
www.tvcinc.com
(888)644-6075
4 - 48
Section 4: Hardware
Grounding Materials
SC13BZ Galvanized Ground Strap
Ground strap used to provide a fixed and permanent connection between a galvanized water pipe or a service
mast to a copper ground wire.
Ordering Information
Part
Number
Std
Pkg
Qty
Specifications
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(lbs)
12
5.4
10
4.5
9" strap, fits 1/2" to 2-1/4" dia. pipe to
200
#10/12/14 copper ground wire
12" strap, fits 1/2" to 3" dia. pipe to
150
SC13BZ-3
#10/12/14 copper ground wire
Made of G90 galvanized steel that meets salt test ASTM B117.
SC13BZ-2
SC11TG “T” Grounding Strap
The new “T” grounding strap is designed to provide a fixed and permanent connection between a water pipe to a
copper ground wire.
Ordering Information
Part
Number
Apx.
wt./pkg
(lbs)
Std
Pkg
Qty
Specifications
Apx.
wt./pkg
(lbs)
Copper strap to #6 AWG copper
200
28
12.7
ground wireaccepts from 1/2" to 3" pipe
G90 galvanized steel to #6 AWG copper
SC11TGS
200
28
12.7
ground wireaccepts from 1/2" to 3" pipe
Made of G90 galvanized steel that meets salt test ASTM B117.
Fasteners are made of brass, nickel plated (ASTM B16-360 and 6134-260).
SC11TGC
SC42 Ground Connector
Ground connector used to connect various size copper ground conductors with a firm mechanical contact. Made of
pure copper (ASTM B152-110) with brass fasteners (ASTM B16-360 and B134-260).
Ordering Information
Part
Number
Specifications
SC42-4
Connects #4 AWG to #10 AWG copper ground wire
SC42-6
Connects #6 AWG to #10 AWG copper ground wire
SC42G-4
For use in conjunction with SC13B series
SC42G-6
For use in conjunction with SC13B series
SC42ZG-4 Nickel plated for use in conjunction with SC13BZ
SC42ZG-6 Nickel plated for use in conjunction with SC13BZ
Parts nickel plated for compatibility with aluminum cable sheath.
www.tvcinc.com
Std
Pkg
Qty
150
150
150
150
150
150
Apx.
wt./pkg
(lbs)
5
5
5
5
5
5
Apx.
wt./pkg
(lbs)
2.3
2.3
2.3
2.3
2.3
2.3
(888)644-6075
4 - 49
Section 4: Hardware
Grounding Materials
SC47-500 Feeder Grounding Connector
Grounding connector used to provide a bonding connection between a feeder cable and
a copper ground wire. Made of pure copper (ASTM B152-110) with brass fasteners
(ASTM B16-360 and B134-260).
Ordering Information
Part
Number
Std
Pkg
Qty
100
Specifications
SC47-500 For .500" feeder cable to a #6 AWG copper ground wire
Parts nickel plated for compatibility with aluminum cable sheath.
Apx.
wt./pkg
(lbs)
6
Apx.
wt./pkg
(lbs)
2.7
SC49 Ground Extension Bracket
Extension bracket used to provide a bonding connection between a tap and a copper ground wire in pedestal or lock
box.
Ordering Information
Part
Number
SC49-1
SC49-2
Specifications
Various tap brand to a #6 AWG copper ground wire
JERROLD tap to a #6 AWG copper ground wire
Std
Pkg
Qty
75
75
Apx.
wt./pkg
(lbs)
13
13
Apx.
wt./pkg
(lbs)
5.9
5.9
SC27 Messenger Grounder
Messenger grounder used in conjunction with various SACHS hard wire to bond a steel messenger wire.
Ordering Information
Part
Number
SC27
Specifications
Accepts .051" to .073" steel messenger wire
suppliedwith a stainless steel green screw
Std
Pkg
Qty
Apx.
wt./pkg
(lbs)
Apx.
wt./pkg
(lbs)
100
1.8
0.8
Ground Clamp
Ordering Information
Catalog
No.
GC-1
GC-2
GC-5
Size
1/2" x 1"
1-1/4" x 2"
1/2" x 1"
Cart. Std.
Wt
Qty. Pkg.
Bronze
25
250 52
Bronze
25
250 11
Die-Cast Zinc
25
250 44
Material
www.tvcinc.com
(888)644-6075
4 - 50
Section 4: Hardware
Grounding Materials
Grounding Connectors
Fargo bronze vise type connectors are one piece, side loading, for easy
installation on unbroken run conductors. The vise like construction provide
interlocking components for a vibration proof connection.The GC5006SH is used for
general purpose applications while the GC167P is used for Figure-8 or IM Cable.
Ordering Information
Catalog
No.
GC167PMAR
GC5006SHMAR
Std.
Pkg.
1"
250
3/4" 500
Dia.
Weight
22.00
8.00
Ground Clamps
Ground Rods
Ordering Information
Part
Rod Std.
Manufacturer
No.
Dia. Pkg.
WB38
3/8" 100 Thomas & Betts
WB12
1/2" 100 Thomas & Betts
WB58*
5/8" 100 Thomas & Betts
MARG5 5/8" 100
Marathon
*UL Listed
Ordering Information
Part
No.
A21-4
TV38
W125
W588
Description
3/8" x 4' ground rod w/clamp
3/8" x 4' ground rod w/clamp
1/2" x 5' ground rod
5/8" x 8' ground rod UL Listed
Solid Copper Wire
Part No.
4AWG
6AWG
8AWG
6 Solid-J
10TW
12TW
14TW
10THHN
12THHN
14THHN
Made to the specifications of the
American Society for Testing Materials.
Size(AWG)
4
6
8
6
10
12
14
10
12
14
Dia. (in) Wt. 1000'
.20
123
.162
79
.13
49
.220
100
.23
40
.15
27
.13
18
.16
39
.13
25
.11
17
Size (ft)
250
315
500
500
500
500
500
500
500
500
Type TW Grounding Wire
Solid Copper Conductor - 600 Volts
Size (AWG)
Color
14TW-B
14TW-W
14TW-G
12TW-B
12TW-W
12TW-G
10TW-B
10TW-W
10TW-G
Black
White
Green
Black
White
Green
Black
White
Green
www.tvcinc.com
Insul. Thickness
64ths
2
2
2
2
2
2
2
2
2
O.D.
.13"
.13"
.13"
.15"
.15"
.15"
.17"
.17"
.17"
Net Wt.
lbs./mft.
18
18
18
27
27
27
40
40
40
(888)644-6075
4 - 51
Cart. Size
500 ft
500 ft
500 ft
500 ft
500 ft
500 ft
500 ft
500 ft
500 ft
Section 4: Hardware
Guy Hardware
Guy Attachments
Hot Dip Galvanized
Joslyn Guy Attachments provide an economical and efficient means of fastening guys to poles. Well rounded wire
grooves protect the strand from damage.
The formed steel style guy attachments feature a closed strand loop when mounted. The J6505 two-bolt type is
mounted with a 3/4" through-bolt and a 1/2" lag screw to give additional strength and keep the attachment in line.
The ears of the malleable guy attachments will accommodate any type of guy loop or clamp bail. The lower
mounting hole is for a 1/2" lag screw.
Wherever possible, installation should be made under the head of a machine bolt; when used under the nut, the
threaded portion of the bolt is subjected to stress, thus reducing strength.
Ordering Information
One-Bolt Formed Steel Type
Part
No.
Steel Size
(in)
Hole
Dia. (in)
J25164 (E)
2 x 3/16
J6506
2 x 1/4
(E) REA Accepted
11/16
13/16
Approx.
Shipping Wt.
(lbs. per 100 pcs.)
113
156
Guy Wire Serving Sleeves
Designed to secure and prevent flaring of loose end of strand projecting beyond guy clamp. Hot dip galvanized.
Ordering Information
Part No.
J5600
J5601
J5602
Strand Size
1/4"
5-16"
3/8"
Hooks
Hot Dip Galvanized
Joslyn produces a complete line of hooks for supporting bailtype drop wire and deadend clamps from poles and
crossarms. The J3316P and J3318 drive hooks have rolled fetter drive threads and a pilot point for easy starting.
Ordering Information
Part
No.
Size
(in)
Approx
Ship Wt.
(lbs per 100 pcs.)
J3316P
J3318
7/16 x 4-3/4 FD.
5/16 x 3-1/2 FD.
27.0
11.6
www.tvcinc.com
(888)644-6075
4 - 52
Section 4: Hardware
Guy Hardware
Sidewalk Guy Fittings
Hot Dip Galvanized
These cast iron fittings are used with standard pipe near sidewalks and buildings where there is insufficient space
for standard guying and where head clearance must be maintained.
• The J1501 pole plate is mounted with one 5/8" bolt and two 1/2" lag screws.
• The J1502 end fitting clamps the strand.
• The J0521 pole plate has four 9/16" holes for mounting with lag screws.
• The J0522 end fitting requires a J931 guy clamp which must be ordered separately.
• The 5/8 x 2-1/4" track bolt replaces one of the guy clamp bolts.
Ordering Information
Part
No.
Pipe
Size (in)
Description
J1501GEN (E) Pole Plate
J1502 (E)
Clamp End Fitting
J0521+
Pole Plate
J0522+
Clamp Bolt End Fitting
(E) REA Accepted
2
2
2 & 2-1/2
2 & 2-1/2
Approx.
Ship Wt.
(lbs per 100 pcs.)
380
521
495
350
Ram Head Guy Hook
Ordering Information
Dimensions (in.)
C
Thim.
Mounting
Material
Dia
Bolt
P133AX
3
3-15/16 1/2
3/4
1-3/8 Malleable
P135AX*
4
3-1/8 7/8
5/8
1-3/8 Malleable
P151X*
1
2-7/8 1/2
7/8
1-1/4 Malleable
Material Specifications: Malleable Iron ASTM A-197-47 / Hot-Dipped Galvanized ASTM A-153
*REA accepted
Part
No.
Fig.
A
B
Hooks, Guy
Two J1019 guy hooks are normally mounted on opposite sides of a pole under two turns of guy
strand to prevent the strand from slipping on the pole. The rounded side of the 1-3/4" x 3/8" half
oval steel prevents damage to the guy strand and its galvanized coating.
Ordering Information
• J1019*(E) (Approx. Ship. Wt. per 100 pcs. - 80)
*ANSI Standard
www.tvcinc.com
(E) REA Accepted
(888)644-6075
4 - 53
Section 4: Hardware
Guy Markers
Steel Cable Guard
Hot Dip Galvanized
Cable Guards are used to protect power and telephone cable at riser installations. They offer maximum protection
to cable against collisions and vandalism.
Cable Guards are available either in inexpensive strap-mounted style or in one-piece type with integral mounting
holes for ease of installation. Lag screws are used to secure to the pole.
Guards without frustum can be used as extensions to attain any desired height on the pole. A carriage bolt
assembly is furnished on most styles to fasten extensions and to serve as a ground lead attachment.
Ordering Information
Strap Mounted Guards
Part
No.
J985
J984
J986
J987
J989
Steel
Gauge
B.W.
14
14
14
14
14
Length
(ft)
Depth
(in)
Width
(in)
5
8
5
8
8
1-1/8
1-1/8
2-3/16
2-3/16
3-3/16
1-1/8
1-1/8
2-3/16
2-3/16
3-3/16
Rqd.
Mounting
Straps
J995
J995
J996
J996
J997
Approx.
Ship Wt.
(lbs. Per 100 pcs)
470
700
840
1,340
2,000
Straps
Part
No.
J995
J994
J996
J997
Steel
Size
(in)
1/8 x 3/4
1/8 x 3/4
1/8 x 3/4
3/16 x 1
For Guard
Width
(in)
1-1/8
1-1/4
2-3/16
3-3/16
Mounting
Hole Dia.
(in)
9/32
9/32
9/32
11/32
Approx.
Ship Wt.
(lbs. Per 100 pcs)
19.1
20.4
31.0
69.3
Plastic Cable Guard
Joslyn plastic U cable guards offer a strong, lightweight, maintenance-free means of cable protection. The nonconducting plastic guards are designed to nest over Joslyn one-piece galvanized guards as required by many
construction standards which calls for galvanized guard at the base and a plastic guard up the balance of the pole.
The plastic guard may be cut to length in the field.
Ordering Information
Part No.
PGU-210
Dimensions
2" x 10'
Weight Ea. (lbs.)
6.0
www.tvcinc.com
(888)644-6075
4 - 54
Section 4: Hardware
Guy Markers
Guy Markers
PREFORMED™ Guy Markers can be used where anchor guys are exposed to pedestrian or vehicular traffic.
Guy Markers offer several advantages: the O.D. of applied dead-ends is not a factor in product selection; wide
combination of strands (range 3/16" -1/2") can be accommodated by one size Guy Marker; and it can be installed
quickly without bolts or metal parts. The guy can be covered all the way around.
Made from a high impact polyvinylchloride plastic, Guy Markers retain good physical characteristics, within a range
of extreme temperatures that are self-extinguishing when exposed to fire.
PREFORMED Reflective Plastic Guy Markers offer all the exclusive features of Guy Markers, plus the addition of a
treated area which projects a bright reflection of any light that touches its surface.
Ordering Information
Reflective (1,2)
Standard
Part
No.
PG-5516
PG-5517
PG-5518
Length
Code
6'
7'
8'
Color
Yellow
Yellow
Yellow
Units
Per Ctn.
25
25
25
Wt./lbs.
27
30
35
Part
Length
No.
Code
RPG-5616
6'
RPG-5617
7'
RPG-5618
8'
Color
Yellow
Yellow
Yellow
Units
Per Ctn.
25
25
25
Wt./lbs.
27
30
35
(1) Special yellow tape is added which will reflect headlights
approaching from front, back or side
(2) Otherwise, the Guy Marker has the same design as standard
Plastic Guy Markers
Two-Thirds Round Marker
The 2-1/2" diameter, two-thirds round design provides excellent visibility and permits installation over anchor rods up
to 1-1/4" diameter. The markers are produced from high impact resistant PVC with ultraviolet stabilizers added for
retention of color under U.V. conditions. Four sets of holes are located along the guard to permit flexibility of
mounting positions. Two different attachment methods are available-bolted clamp assemblies or wire ties. The bolted
clamp markers are supplied with three galvanized clamp assemblies which enable tamper resistant attachment to
guy wire diameters 3/16" through 1/2" and to anchor rods up to 1-1/4" diameter. The wire tie markers are supplied
with three wire ties for a fast, low cost method of marker attachment.
Ordering Information
Part
No.
J1490G
J1490Y
J1491G
J1491Y
J1497G
J1497Y
J1498G
J1498Y
Description
7' Grey
7' Yellow
8' Grey
8' Yellow
7' Grey
7' Yellow
8' Grey
8' Yellow
Attachment
Method
3 Bolted Clamps
3 Bolted Clamps
3 Bolted Clamps
3 Bolted Clamps
3 Wire Ties
3 Wire Ties
3 Wire Ties
3 Wire Ties
Weight Each
(lbs.)
2.5
2.5
2.7
2.7
1.7
1.7
1.9
1.9
www.tvcinc.com
(888)644-6075
4 - 55
Section 4: Hardware
Lashers
J2 Cable Lasher
The J2 Cable Lasher is used to lash an aerial cable or numerous cables to supporting strand or to an existing
lashed cable with stainless steel lashing wire. The J2 Lasher’s design also gives it maximum service life. The
body is cylindrical to help it slip more easily through branches and obstructions. There is a built-in mechanical
brake to prevent unintended reversal, an automatic drum lock for easy span transfers, an all-range tensioning
device for optimum strand traction and high strength front and rear gates for tighter lashing.
Features
•
Will lash any single or multiple aerial cables up to 3" (76 mm) diameter
across on any suspension strand from 1/4" (6 mm) to 7/16" (11 mm). A
factory modification will allow the lasher to accommodate 1/2" (13 mm)
strand if necessary.
•
Consists of a rotating drum supported on a carriage that provides the
mounting for a driving mechanism, cable lifters, cable and strand
rollers.
•
Each of two recessed magazines will hold a 1200' coil of .045" (365 m
of 1.1 mm wire) lashing wire (or 450' of .065".). The lashing Wire is fully
recessed and covered by a gate.
•
Features a fast setup procedure, quick coil loading, and automatic
drum lock for easy span transfers and smooth forward travel.
•
J2 Lashers make overlashing easy. Just push down on the strand roller
knob, rotate it a quarter turn and you can lash additional cables together
on previously lashed cable.
•
Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break.
•
Constructed with heat-treated, plated steel, stainless steel, brass and aluminum components. Contains
sealed and oil-less bearings to minimize maintenance and assure durability.
•
Pre-drilled and tapped at the factory for mounting of the lasher guard or “halo”. For use when lashing on
overgrown areas.
•
The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware,
recessed latches and a moisture-proof, tongue-in-groove for maximum protection when not in use.
•
Supplied with a 6' bridle rope assembly and snap hooks, and an information and operation manual.
Ordering Information
Part No.
86070
86071
03165
08189
Description
J2 Cable Lasher
Standard w/ chest
J2 Cable Lasher w/ Chest
Modified fro 450" of .065" wire
Weight of lasher only
Bridle Rope Assembly only
Chest only
www.tvcinc.com
Wire Dia.
Weight
.045
65 Ibs.(30 kgs)
.065
65 Ibs.(30 kgs)
46 lbs.(22 kgs)
3 lbs.(1.5 kg)
19 lbs.(8.9 kgs)
(888)644-6075
4 - 56
Section 4: Hardware
Lashers
C Cable Lasher
The C Cable Lasher is used to lash small diameter aerial cables to supporting strand with stainless steel lashing
wire. It is used primarily for new installations.
Features
•
Will lash any single or multiple cables up to 1 5/8" (40 mm) dia. onto
bare 1/4" to 3/8" strand.
•
All the same high quality features as the J2 Cable Lasher; those
features include dual magazines allowing you to load two 1200' coils of
.045" lashing wire, (365 m of 1.1 mm wire), the ability to mount a lasher
guard of “halo” into pre-drilled holed, and a built in brake to prevent
backroll.
•
This unit is built to last; the parts are all made from plated steel, stainless steel,
brass or aluminum. Contains sealed and self-lubricating bearings to maximize
maintenance and assure durability.
•
The Lasher is furnished with a 6' bridle rope assembly and snap hooks, an information and operation
manual and a rugged lightweight storage chest.
Ordering Information
Part No.
71420
71421
03165
07143
Description
C Cable Lasher
Standard w/ chest
C Cable Lasher w/ Chest
Modified for 450' of .065" wire
Weight of lasher only
Bridle Rope Assembly only
Chest only
www.tvcinc.com
Wire Dia.
Weight
.045
49 Ibs.(23 kgs)
.065
49 Ibs.(23 kgs)
33 lbs.(15.4 kgs)
3 lbs.(1.5 kg)
16 lbs.(7.5 kgs)
(888)644-6075
4 - 57
Section 4: Hardware
Lashing Wire / Strand
Stainless Steel Lashing Wire
Strength - For equivalent sizes of lashing wire, Grade 430 stainless has a lower strength (breaking load) than either
the 302 or 316 Grades. If increased strength is required, either a larger diameter
Grade 430 wire should be used or Grades 302 or 316 should be used because
of their higher breaking strength. In extreme strength applications, double
lashings of Grades 302 or 316 should be considered for highest possible
load bearing capabilities.
Corrosion - In order of increasing corrosion resistance, the materials are
ranked 430, 302, and 316. For general service conditions where the
material is exposed to non-salt environments, Grade 430 is adequate.
Where acid rain, heavy industrial pollution, and/or salt environments are
encountered, Grade 316 should be used. Grade 302 has corrosion resistance
which falls between the 430 and 316 and is suitable for mildly corrosive environments.
Ordering Information
Used to attach cable to strand.
Part
No.
045430 LG
045302 LG
045316 LG
038302 LG
MAR045430
MAR045302
MAR045316
MAR038302
Description
Tensile
Strength
Zapp Stainless Steel Lashing Wire
Zapp Stainless Steel Lashing Wire
Zapp Stainless Steel Lashing Wire
Zapp Stainless Steel Lashing Wire
Marathon Stainless Steel Lashing Wire
Marathon Stainless Steel Lashing Wire
Marathon Stainless Steel Lashing Wire
Marathon Stainless Steel Lashing Wire
70-95,000 psi
80-120,000 psi
80-120,000 psi
80-120,000 psi
70-95,000 psi
80-120,000 psi
80-120,000 psi
80-120,000 psi
Wire
Grade
Dia.
.045
.045
.045
.038
.045
.045
.045
.038
430
302
316
302
430
302
316
302
Approx.
Break Load
(lbs)
111-151
127-191
127-191
91-136
111-151
127-191
127-191
91-136
Std.
Pkg.
Coil
Length
6
6
6
6
6
6
6
6
1200'
1200'
1200'
1600'
1200'
1200'
1200'
1600'
Strand Wire
Guy And Messenger Strand
Galvanized Steel Strand
• Finish coatings: Class A, B, or C galvanized
• Applications Include: Messenger Wrie, Overhead Ground or Static Wire, Guy Wire
Ordering Information
Part No.
Description
EHS1/4US
1/4" EHS Strand
EHS1/4IMP
1/4" EHS Strand
EHS1/4IMP-2500 1/4" EHS Strand
EHS1/4US-2500
1/4" EHS Strand
EHS 3/8
3/8" EHS Strand
EHS 5/16
5/16" EHS Strand
EHS 7/16
7/16" EHS Strand
Manufacturer
Domestic
Imported
Imported
Domestic
Domestic
Domestic
Domestic
Reel Length
5000'
5000'
2500'
2500'
5000'
5000'
5000'
Also available in Bezinal Corrosive coating of 5% aluminum and 95% zinc. (Contact your TVC Representative for details)
www.tvcinc.com
(888)644-6075
4 - 58
Section 4: Hardware
Molding
Ground Wire Molding
Rigid Plastic (Polyvinyl Chloride) Black
Ordering Information
Part No.
1109
1115
1116
1118
1119
1120
Size
A
1/2
3/8
3/4
1
1-1/2
2
Size
B
1/2
3/8
3/4
1
1-1/2
2
Feet per
Bundle
1000
1000
600
504
200
200
pcs. Per
Bundle
125
125
75
63
25
25
Weight per
Bundle
52
32
68
66
39
64
Wood Molding
Ordering Information
Part No.
1/2X8WM
Description Std. Pkg.
1/2" x 8'
200’
Wood Molding
Weight/Std. Pkg.
33
www.tvcinc.com
(888)644-6075
4 - 59
Section 4: Hardware
Pole Steps
Pole Steps
Hot Dip Galvanized
Joslyn Pole Steps have rolled fetter drive threads and a wide, flat driving surface make installation fast and easy. A
knurled ring indicates the proper driving depth.
Ordering Information
Part No.
Size (in)
Approx. Ship Wt. (lbs per 100 pcs)
•
J1118 ...................................... 5/8 x 10 ................................... 98
Detachable Pole Steps
Hot Dip Galvanized
detachable Pole Steps are used to prevent unauthorized climbing to the point on a pole where permanent steps
are installed. A special 9/16" x 4" fetter drive lag screw permanently attaches the
mounting plate to the pole. Twisting is prevented by a punched projection. A nail hole is
also provided. The detachable steps can be hung from the lineman’s belt. When
attached to the pole, they extend 5-1/2". Steps are turned up at the outside edge to give
linemen a steady foothold.
Ordering Information
Part No.
Size (in)
Approx. Ship Wt. (lbs per 100 pcs)
•
J6235 ...................................... Pole Plate / Lag Screw .......................... 64
•
J6236 ...................................... Step ........................................................ 59
www.tvcinc.com
(888)644-6075
4 - 60
Section 4: Hardware
Screws
Lag Screws
Hot Dip Galvanized
Gimlet Point lag screws are installed with a wrench. Fetter Drive and Twist Drive Lag Screws can either be
wrenched or driven like a nail for speedier installation without sacrificing any of the holding strength of regular
gimlet point lag threads. Twist Drive Lags are furnished with a drive point for additional starting ease and accuracy.
This feature is also available on most sizes of Fetter Drive lags.
All Joslyn lag screws have rolled threads. Below the head is an upset
shoulder with the same outside diameter as the threads to provide a snug
fit in hardware mounting holes.
Ordering Information
Part Number
Gimlet
Point
Fetter Drive
Reg. Point
J8721–1/2
J8722*
J8652
J8722–1/2’ J8652–1/2*
J8723*
J8732
J8732–1/2
J8733*
J8733–1/2
J8742–1/2*
J8773
J8743*
J8744
J8753
Fetter Drive
Drive Point
Twist Drive
Drive Point
Gimlet Drive
Drive Point
J8732HH
J8732–1/2HH
J8733–1/2HH
J8743P*
J8744P
J8753P
J8784
J8754*
J8754P*
J8754–1/2*
J8754–1/2P*
J8755
J8755P
J8765
*NEMA Standard (E) REA Accepted
J8773HH
J8774HH
J8753TP
J8754TP
Size
(in)
Min
Thread
Length (in)
Approx.
Shipping Wt
(lbs per 100 pcs)
1/4 x 1–1 12
1/4 x 2
1/4 x 2–1/2
1/4 x 3
5/16 x 2
5/16 x 2–1/2
1–1/4
1–1/2
1–3/4
2
1–1/2
1–5/8
2.2
2.9
3.5
4.1
4.7
5.9
5/16 x 3–1/2
3/8 x 2–1/2
3/8 x 3
3/8 x 4
1/2 x 3
2–1/2
1–3/4
2
2–1/2
2–1/4
8.2
8.5
9.9
12.8
19.6
1/2 x 4 (E)
1/2 x 4–1/2
1/2 x 5 (E)
5/8 x 5 (E)
2–5/8
2–5/8
3
3–1/2
24.0
26.2
28.0
44.2
Washer Head Lag Studs
Hot Dip Galvanized
Washer Head Lag Studs are used for light-duty mounting of cable hangers. The stud end is manufactured with a
forged square washer head and a roll threaded stud with assembled square nut. The lag end has sharp rolled
gimlet threads and a cone point.
Ordering Information
Part
No.
Lag Size
J9754
9/16 x 4
J26315 11/16 x 5-1/2
Stud Size
(in)
1/2 x 1-3/8
5/8 x 1-1/2
Approx.
Shipping Weight
(lbs per 100 pcs)
45
114
www.tvcinc.com
(888)644-6075
4 - 61
Section 4: Hardware
Screws
Ordering Information
Size
Length
Type
6
6
6
6
6
6
6
0.5"
0.75"
0.75"
1"
1"
1"
1"
Pan Head Slotted
Pan Head Phillips
Hex Washer Head
Hex Washer Head
Hex Head Phillips
Pan Head Phillips
Pan Head Slotted
Std.
Pkg
100
100
100
100
100
100
100
8X1/2 PHS
8X3/4 HWH
8X3/4 HWHS
8X3/4 PHS
8X1 HWH
8X1-1/4 HWH
8X1-1/2 HWH
8
8
8
8
8
8
8
0.5"
0.75"
0.75"
0.75"
1"
1.25"
1.5"
Pan Head Slotted
Hex Washer Head
Hex Washer Head Slotted
Pan Head Slotted
Hex Washer Head
Hex Washer Head
Hex Washer Head
100
100
100
100
100
100
100
10X1 PHP
10X1 PHS
10X1 HWH
10X1-1/2 PHP
10X1-1/2 PHS
10
10
10
10
10
1"
1"
1"
1.5"
1.5"
Pan Head Phillips
Pan Head Slotted
Hex Washer Head
Pan Head Phillips
Pan Head Slotted
100
100
100
100
100
14X1 HWH
14X1-1/2 HWH
14
14
1"
1.5"
Hex Washer Head
Hex Washer Head
100
100
Catalog
No.
6X1/2 PHS
6X3/4 PHP
6X3/4 HWH
6X1 HWH
6X1 HHP
6X1 PHP
6X1 PHS
www.tvcinc.com
(888)644-6075
4 - 62
Section 4: Hardware
Spacers
Cable Spacers
The Plastic Cable Spacers are used in lashed cable construction to provide a separation between aerial cable and
messenger when necessary. Used with Lashed Cable Supports, the upper surface of the spacers bears against
the messenger while the lower surface rests on the aerial cable.
Specifications
• Made of quality, weather resistant, high density outdoor Polyethylene.
• Contains inhibitor to retard ultra violet degradation
Ordering Information
Kinsel Type
Part No.
P-14
P-12
P-34
P-10
P-15
P-20
Size (In.)
1/4"
1/2"
3/4"
1"
1-1/2"
2"
Std. Pkg.
50
50
25
25
25
25
Qty./Ctn
500
500
250
250
250
250
Spacer Ties
Aerial Support Spacer Ties
Aerial Support Spacer Ties are molded from special high impact nylon and the spacers in a high density outdoor
black polypropylene to resist the harsh effects of sunlight, saltwater and harsh chemical environments. The onepiece ties are pre-grouped in handy multiples of 5 to save installation time.
Place the spacer between
the cable and strand.
Wrap the tie strap around
the cable and through the
backside loop.
Pull the spacer snug to the
cable and wrap the tie strap
around the strand. Pass
the tie strap through the
locking buckle.
Electrician pliers may be
Tyton Aerial Support Spacer
used to snug* the
Ties may be released by
installation and snip the tail. inserting a screwdriver under
the locking ratchet of the
* As the cable and strand expand at
buckle.
different rates, the installation
should not be tight but just snug.
Part
No.
TAS100R
TAS100M
TAS100L
Minimum Tensile
Unlocking Strength
100 lbs.
100 lbs.
100 lbs.
Approx.
Length
7.50"
10.00"
16.00"
www.tvcinc.com
Approx.
Width
.50"
.50"
.50"
Approx.
Max. Dia.
1.75"
2.75"
4.50"
(888)644-6075
4 - 63
Section 4: Hardware
Staples
Coppercoated, hot dip galvanized, electro-galvanized, mill galvanized and aluminum clad staples are used to
secure ground wire and ground wire molding to wood poles.
Ordering Information
Rolled (Diamond) Point
Part
No.
Finish
J127
*
J128
*
J142
J156
*
J172
*
J173
*
J7487HDG
*
J7493HDG
*
J6490
*
J6491
J6492
*
J6493
*
J6494
*
J6495
*
J6496
*
J6497
*(E)
J6498
*
J6499
J6521
J6522
*
J6523
J6524-C
J7482
*
J7483
J7484
J7486
*
J7487
*
J7488
J7490
J7491
J7492
*
J7493
*
J7487AL
*
J7493AL
*(E)
(E) REA Accepted
Hot Dip Galvanized
Hot Dip Galvanized
Hot Dip Galvanized
Hot Dip GaIvanized
Hot Dip Galvanized
Hot Dip Galvanized
Hot Dip Galvanized
Hot Dip Galvanized
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Coppercoated
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Electro-Galvanized
Aluminum Clad
Aluminum Clad
*ANSI Standard
Dimensions (in)
(L x Inside Width x Wire Dai.)
Approx Wt.
(lbs per 100 pcs)
2 x 1-1/16 x 3/16
3 x 1-1/16 x 1/4
3 x 1-1/2 x 1/4
2 x 1/2 x .162
1-1/2 x 3/8 x .148
1-3/4 x 3/8 x .148
2 x 5/8 x .162
3 x 1-1/16 x 1/4
2 x 5/8 x .162
2-1/2 x 1 x 1/4
1 x 1/4 x .114
1-1/4 x 5/16 x .114
1-1/2 x 5/16 x .144
1-3/4 x 3/8 x .144
2 x 1/2 x .162
3 x 1-1/16 x 1/4
2-1/2 x 1-1 /1 6 x 3/16
3-1/2 x 1-1/2 x 1/4
2 x 1-1/16 x 3/16
3 x 1 x 1/4
3 x 3/4 x 1/4
3 x 1-1/2 x 1/4
1-1/2 x 1/4 x .120
1-1/2 x 3/8 x .148
1-3/4 x 3/8 x .148
2 x 1/2 x .162
2 x 5/8 x .162
2 x 5/8 x 3/16
2-1/4 x 25/32 x 3/16
2-1/2 x 29/32 x 3/16
3 x 3/4 x 1/4
3 x 1-1/16 x 1/4
2 x 5/8 x .187
3 x 1-1/16 x 1/4
3.3
7.9
8.3
2.5
1.5
1.6
2.3
5.7
3.6
6.5
.5
.6
1.2
1.5
2.2
8.0
3.9
9.8
3.1
7.9
7.7
8.3
1.2
1.4
1.5
2.2
2.3
3.2
3.6
3.7
7.0
7.5
2.6
6.6
www.tvcinc.com
(888)644-6075
4 - 64
Section 4: Hardware
Tree Guards
PREFORMED Tree Guards are designed to protect bare conductors and fabriccovered or plastic-covered cables against mechanical abrasion caused by tree limbs or
other obstructions. Tree Guards provide fast, easy application without disconnecting
the wire. Helical strips are matched, then wrapped over and around the wire, and taped
at each end. High-impact polyvinyl chloride has a strong abrasion resistance, strong
weathering endurance, and high dielectric properties.
Ordering Information
6' Length
Part
No.
Dia. Min.
Range
Max.
Length
Wall
Thickness
Units
Wt./lbs
Per Ctn.
PTG-0125
.479"
.511"
6'
1/16"
75
32
PTG-0128
.512"
.542"
6'
1/16"
75
32
PTG-0137
.599"
.641"
6'
5/64"
75
48
PTG-0140
.642"
.706"
6'
5/64"
75
52
PTG-0143
.707"
.762"
6'
3/32"
50
46
PTG-0146
.763"
.820"
6'
3/32"
50
48
PTG-0149
.821"
.882"
6'
3/32"
50
52
PTG-0152
.883"
.947"
6'
3/32"
50
56
PTG-0155
.948"
1.010"
6'
3/32"
50
58
Other sizes available. Please Contact your TVC Customer Service Representative.
Split Tube Cable Protector
Features
•
Semi-rigid U.V. stabilized exterior poly tube
•
Wraps around and protects cable
Colors
Standard color is black
Ordering Information
Part No.
Size
•
3423TG ................................... 1/2" x 6'
•
3433TG ................................... 1" x 6'
•
3435TG ................................... 1-1/2" x 6'
•
3437TG ................................... 2" x 6'
www.tvcinc.com
(888)644-6075
4 - 65
Section 4: Hardware
Washers & Nuts
Square Washers
Hot Dip Galvanized
Ordering Information
Square Washers
Part
Hole
For Bolt
No.
Size (in)
Dia (in)
J1073*
2 x 2 x 1/8
9/16
J1074*
2 x 2 x 1/8
11/16
J1075*
2-1/4 x 2-1/4 x 3/16
11/16
J1076 (E) 2-1/4 x 2-1/4 x 3/16
13/16
J1078*
3 x 3 x 3/16
7/8
J1079
3 x 3 x 1/4
7/8
J1080 (E)
4 x 4 x 3/16
7/8
J1082
4 x 4 x 1/4
7/8
J1081
4 x 4 x 1/2
1-1/8
Square Curved Washers
Part
Hole
For Bolt
No.
Size (in)
Dia (in)
J6821*
2-1/4 x 2-1/4 x 3/16
11/16
J6822
2-1/2 x 2-1/2 x 3/16
11/16
J113*
3 x 3 x 1/4
11/16
J6823*
3 x 3 x 1/4
13/16
J133
3-1/4 x 3-1/4 x 1/4
13/16
J6828
3-1/2 x 3-1/2 x 3/8
15/16
J6829*
4 x 4 x 1/4
15/16
*ANSI Standard (E) REA Accecpted
Approx.
Dia. (in)
1/2
5/8
5/8
3/4
3/4
3/4
3/4
3/4
1
Ship Wt.
(lbs per 100 pcs)
13.0
13.8
26.0
26.8
48.0
64.0
87.0
114.0
21.6
Approx.
Dia. (in)
5/8
5/8
5/8
3/4
3/4
7/8
7/8
Ship Wt.
(lbs per 100 pcs)
26.0
33.0
65.0
56.5
76.0
130.0
117.0
Square Nuts
Hot Dip Galvanized
Square nuts have always been considered safest to use by utility linemen because of their large wrenching
surface. Regular nuts are used on all types of threaded bolts and insulator pins, while
heavy nuts are used exclusively on anchor rods.
Joslyn square nuts are manufactured in accordance with American National Standards
Institute Specifications B18.2.2 and tapped Unified National Coarse Thread Series Class
2B after centrifugal hot dip galvanizing, oversize for galvanized bolts and rods.
Ordering Information
Regular
Nominal Size Bolt
Part
and
No.
Threads per Inch
J8561*
3/8"–16
J8562*
1/2"–13
J8563*
5/8"–11
J8564*
3/4"–10
J8564–1/2*
7/8"–9
*ANSI Standard
Heavy
Approx.
Ship Wt.
(lbs. Per 100 pcs.)
2.2
5.4
10.2
13.8
24.3
www.tvcinc.com
Part
No.
J8563–1
J8564–1
J8565–1
J8566
Nominal
Anchor
Rod Dia. (in)
5/8
3/4
1
1–1/4
Approx.
Ship Wt.
(lbs. Per 100 pcs.)
12.2
20.8
50.0
100.0
(888)644-6075
4 - 66
Section 4: Hardware
Magic Mile
Suggested Pole Line Construction Material Based On 100 Miles/40 Poles Per Mile
Ordering Information
TVC
Part No.
Description
Avg./
U/M
Mile
1/4" EHS Strand - Class A Domestic
EHS1/4US
6000
FT.
Type 302 Lashing Wire Lifetime Guarantee
045-302LG
6
EA.
6" Screw Anchors
J6526WCA
6
EA.
5/8" x 10" Machine Bolt
J8810
12
EA.
5/8" x 12" Machine Bolt
J8812
5
EA.
5/8" x 14" Machine Bolt
J8814
15
EA.
5/8" x 16" Machine Bolt
J8816
10
EA.
5/8" x 10" Straight T.E. Bolt
J8051
3
EA.
5/8" x 12" Straight T.E. Bolt
J8052
2
EA.
5/8" x 14" Straight T.E. Bolt
J8053
4
EA.
5/8" x 16" Straight T.E. Bolt
J8054
2
EA.
2" x 2" sq. Washer 11/16" Hole
J1074
100
EA.
5/8" Square Nut
J8563
50
EA.
3 Bolt Suspension Clamp
J1096
40
EA.
3 Bolt Curved Suspension Clamp
J7901A
5
EA.
Crossover Clamp
2909970
1
EA.
Guy Attachment Strap
J25164
12
EA.
Guy Marker - Yellow - 8 Ft.
PG5718
6
EA.
2 PC. Lashing Wire Clamp “D”
2609010
100
EA.
10" Zinc Strap
3408911
100
EA.
16" Zinc Strap
3408921
50
EA.
K - UL Universal Bonding Clamp UL Listed
MARKUL
20
EA.
1/4" Preformed Splice
GLS1104
5
EA.
GDE1104LA
15
EA.
EA.
1/4" Guy Grip Deadends
1/2" Plastic Spacer
100-0016-02
100
5/8" x 8' Copper Ground Rod
UL Listed
W588
10
EA.
5/8" Ground Rod Clamp
UL Listed
MARG5
10
EA.
6 Ga. Copper Wire Bare
#6AWG
250
FT.
1 1/4" x 1/4" Copper Coated Staples
J6493
70
EA.
2" x 5/8" Galvanized Staples
J7487
20
EA.
1/2" x 8' Ground Wire Molding
1109
200
FT.
The above list is only a approximation of items typically required for aerial construction. Consult strand maps for actual bill of materials.
Available in Excel spreadsheet. Call your local TVC representative for details
www.tvcinc.com
(888)644-6075
4 - 67
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
