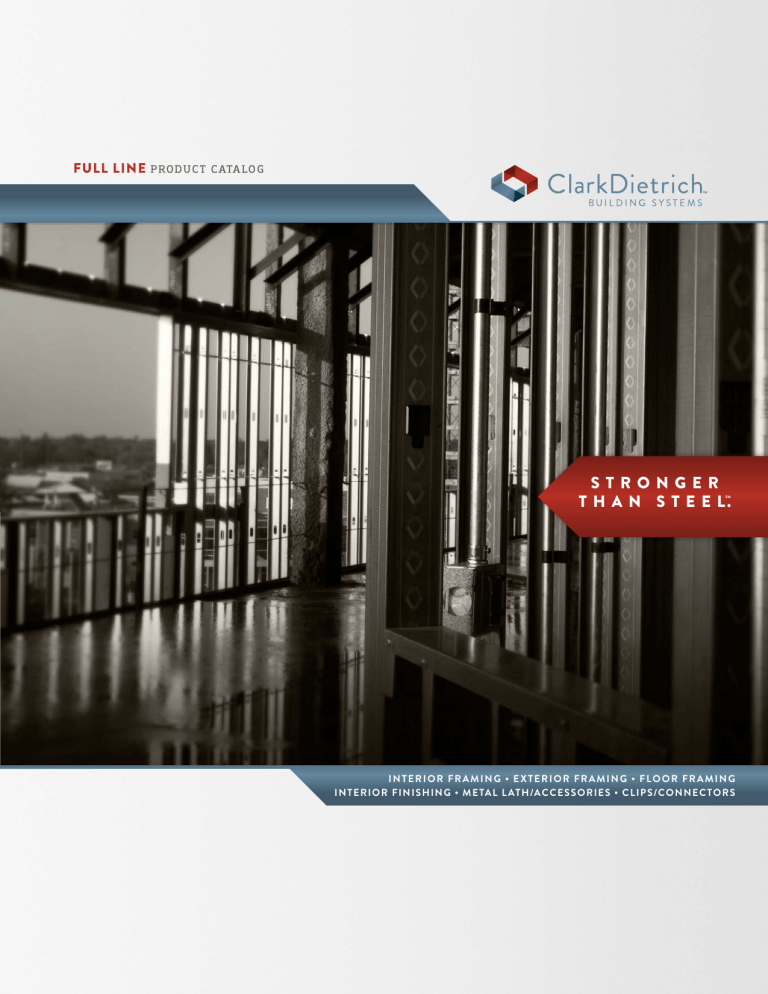

Full line product catalog
stronger
t h a n s t e e l.
SM
I N T E R I O R F R A M I N G • E X T E R I O R F R A M I N G • F l oor F raming
INT E R IO R F INIS H ING • M E TA L L AT H/ACC E S S O R IE S • C L IPS/CO N N EC TO R S
F u ll L i n e
T h e i n d u s t r y ’ s mo s t
c omp l e t e
p r o d u c t l i n e u p.
A i m e d at c h a n g i n g t he
b u i l d i n g l a n d s c a pe .
Comprehensive is the word. On the following
pages, you’ll find all things ClarkDietrich. Framing
for drywall, curtain wall, doors, windows and
floors. Connectors, lath, beads and trim.
Bridging, bracing and backing. The list of our
products goes on, but there’s much more to
it than that.
We refer to ourselves as ClarkDietrich Building
Systems for a reason. The future of building will
be shaped by the inter-relationships of various
products and the thinking behind them. Because
of this, we create cold-formed steel building
products that compose systems—systems backed
by intelligent design tools and fully capable
engineering services.
We can reinforce your efforts to design
and build more intelligently with a versatile
engineering services team and smarter
installation and design techniques. Furthermore,
we offer the efficiencies of a single supplier
with unmatched reach through 14 plants and
5 engineering offices—as well as nationwide
product availability. This availability includes the
expansive product lineup of accessory leader,
Vinyl Corp., a wholly owned subsidiary and
forward-thinking ally of ClarkDietrich.
Regardless of your project’s size or complexity,
ClarkDietrich has the resources to help you
achieve your vision. And this comprehensive,
full line catalog is a great start. Here you’ll
find select details about every product in our
portfolio, including key advantages and technical
information, to guide your specifications.
This systems approach means our products work
better together in achieving strength, fire and
sound ratings. It’s also an approach that leads
to enhanced performance on the job—during
installation and long after.
At the end of the day, a full product line is
only as strong as the company that stands
behind it. You can count on the expertise,
service and full support of ClarkDietrich now,
and far into the future.
Need help with product selection, ordering, scheduling, delivery, or anything else?
Call us at 800-543-7140, or on the West Coast at 800-365-5284.
Need Product Submittals? Use SubmittalPro at clarkdietrich.com.
®
Full Line
Overview1-8
Engineering Services
4
SM
Clip Express 4
Contact Information & Locations
5
How To Use This Catalog
6-7
8
Leed ® and Sustainability
Interior Framing9-33
Drywall Framing
Sound-Rated Systems
Head-of-Wall Deflection Systems
Door and Window Framing
Bridging, Bracing and Backing
Shaftwall
Area Separation Wall
10-14
15-18
19-20
21-23
24-27
28-31
32-33
Exterior Framing34-49
Curtain Wall Framing
35-37
Door and Window Framing
38-41
Head-of-Wall Deflection Systems
42-45
Bridging and Bracing
46-48
Load-Bearing
49
Floor Framing50-55
Interior Finishing56-70
Table of Contents
Paper-Faced Beads and Trims
Metal Beads and Trims
Vinyl Beads and Trims
57-59
60-64
65-70
Metal Lath and Accessories71-86
Metal Lath
Corner and Casing Beads
Control and Expansion Joints
Weep and Sill Screeds
Veneer Plastic Beads and Trims
Vinyl Corner and Casing Beads Vinyl Expansion Control Joints
Vinyl Weep and Sill Screeds
72-75
76-77
78-79
80-81
82-83
84
85
86
Clips and Connectors87-104
Curtain Wall and Bypass Connections 88-89
Head-of-Wall Deflection Connections
90
Rigid Connections
91-94
Bridging, Bracing and Backing 95-97
Gusset Plates
98
Floor Joist Framing Connections
99-100
Roof and Truss Connections
101-102
Specialty Clips and Connectors
103-104
Index105-107
Tradmarks and Warranty108
Code Approvals109
4
Overview
Support and Services
CLARKDIETRICH ENGINEERING SERVICES
CLIP EXPRESS
Smarter engineering and technical expertise.
It’s support that extends beyond the structure itself.
Connections you can count on.
From the initial design phase to jobsite installation, we
are all about providing inventive, yet practical and handson know-how to help you think outside the box—or to
help you just get it done.
ClarkDietrich Engineering Services is a full-service
consulting firm that believes strongly in value
engineering and customer input. Our engineering fees
and lead times are competitive, and our customer service
exceeds the industry standard with consistent point-ofcontact through our regional project managers.
We offer Building Information Modeling (BIM) services
that include specialty engineering collaborative design.
We support the BIM movement by offering add-on tools
that allow our products, and the rich data attached to
them, to quickly be imported into digital designs. Our
team is also comprised of LEED-certified professionals
to consult on sustainable building design.
®
•
•
•
•
Electronically sealed shop drawings and calculations
Preliminary sizing and pre-bid engineering pricing
Reference plan on large projects
Detailed wall sections, full elevation opening
design and C-stud truss design
Our technical services team provides immediate
response to questions ranging from general installation to
detailed specification requirements, and can deliver oneday turnaround on technical sizing. We are experts on
industry standards such as AISI and ASTM, and a proud
member of SFIA. Our team also supports our online
product submittal system, SubmittalPro, and our design/
engineering software is available as a free download from
www.clarkdietrich.com.
SM
We know that having the right products, at the right
time, and at the right price, is absolutely essential to
getting the job done. ClarkDietrich Clip Express is your
single source for the widest and most cost-effective
array of rigid, deflection, bridging and general-purpose
clips, connectors, supports and framing hardware for
commercial and residential light-gauge steel framing.
With Clip Express, you get fully engineered, rigorously
tested and precision-formed connectors each and
every time. Many of our connectors were developed
by, or in conjunction with, framing installers in order
to deliver high-performance products for significant
installed savings.
While you may find a cheaper price than ClarkDietrich,
you won’t find a lower overall cost or better value. We
offer unmatched reach through numerous plants and
engineering offices—and nationwide product availability.
And because staying on schedule is crucial, we ship
most orders the same day they are received. We’ll get it
there when, how and where you need it. Our nationwide
manufacturing and service facilities see to that.
• Industry’s widest product selection available from one source
• Fast delivery options meet your deadlines
• Backed by the largest light-gauge framing and
engineering company in the world
• Expert field representatives for comprehensive
product, installation and sales training
®
•
•
•
•
•
Product support and typical member sizing
Framing detail recommendations
Compliance and industry standards, such as AISI, ASTM and SFIA
Engineering software and product submittal support
LEED requirements support
Pub. No. CD-Full Line 5/12
Throughout this catalog, when you see this icon next
to a product entry, you know the product is part of our
Clip Express program.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Overview
5
Contact Information and Locations
Our nationwide presence means we’re there for you.
On any project.
O V E R V IE W
With 14 manufacturing plants and 5 engineering offices
strategically located throughout the U.S., ClarkDietrich
is always nearby. You can be assured that your product
will be delivered on time, and that you can call on us for
support any and every step of the way.
ClarkDietrich Building Systems
Manufacturing and Sales Locations:
CALIFORNIA Riverside
kansas Lenexa
CALIFORNIA Sacramento
Maryland Baltimore
CONNECTICUT Bristol
ohio Warren-East
FLORIDA Dade City
ohio Warren-West
GEORGIA McDonough
TEXAS Baytown
hawaii Kapolei
TEXAS Dallas
ILLINOIS Rochelle
Florida Miami
Vinyl Corp.
P 951.360.3500
F 951.360.3333
••
•
•
••
••
•

P 951.360.3500
F 951.360.3333
P
F
P
F
••
•
•
•• •
•
P
F
352.518.4400
352.518.4450
678.304.5500
678.304.5555
P 951.360.3500
F 951.360.3333
•

P
F
Carlsbad, CA
Riverside, CA
Sacramento, CA
Bristol, CT
Dade City, FL
McDonough, GA
Roswell, GA
Kapolei, HI
866.921.0023
860.584.6899
Rochelle, IL
Crown Point, IN
Lenexa, KS
Baltimore, MD
Warren, OH
Baytown, TX
Dallas, TX
West Chester, OH
800.659.0745
513.645.0750
P
F
P
F
P
F
P
F
P
F
P
F
P
F
800.659.0745
513.645.0750
410.477.4000
410.477.1550
330.372.5564
330.372.4055
330.372.4014
330.372.1945
281.383.1617
281.573.1679
214.350.1716
214.350.7252
800.648.4695
305.477.4108
ClarkDietrich Engineering Services
Toll-Free Phone: 877.832.3206
Toll-Free Fax: 877.832.3208
Email: [email protected]
Technical Services: 888.437.3244
Central Crown Point, IN
southEAST Roswell, GA
NORTHEAST Bristol, CT
WEST Carlsbad, CA
Southeast McDonough, GA
• Manufacturing, engineering and technical services
 Corporate office
 Vinyl Corp.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
6
Overview
How To Use This Catalog
This catalog is designed to help you select the right
products or systems for your construction applications.
Divided into six major sections, it is the most
comprehensive manual in the industry.
For your convenience, a comprehensive index containing
our complete product and system offering is also located
at the back of the catalog. Search by common names and
product names to help you quickly find exactly what you’re
looking for.
Structural properties and load tables are available on our
website at clarkdietrich.com.
How to identif y our product s
ClarkDietrich has adopted standard nomenclature
established by the American Iron and Steel Institute
(AISI) for identifying each of its products. Coding of each
member consists of four parts, in this order:
• A number which identifies the web depth of the
member to two decimal places: 600 = 6.00," 1000
= 10.00," 550 = 5.50," 362 = 3.625," etc.
• A letter that identifies the type of member, such as S = Stud/
Joist, T = Track, U = U-channel, and F = Furring channel.
• A number that defines the flange dimension in inches to two
decimal places: 162 = 1.625," 200 = 2.00," 125 = 1.25," etc.
• A number following a hyphen that denotes the minimum delivered
thickness in mils (33mils = 33/1000 inches which is approximately
0.0329"). Minimum delivered thickness is 95% of design thickness.
Note reg arding product subs titution
Care should be taken when substituting materials in
place of ClarkDietrich building materials. There is a
misconception within the construction industry regarding
the substitution of one manufacturer’s products or
materials for those of another manufacturer. The
assumption is that all studs of a given size and steel
thickness are interchangeable. It may be possible that the
substitution can safely be made, but the decision should
not be made until the structural properties of the products
or materials involved are compared by a qualified engineer.
Pub. No. CD-Full Line 5/12
Yield s treng th (F y/p si or ksi)
ClarkDietrich products are manufactured with steel having
a yield point of 33ksi for 18 and 20 gauge material. A yield
point of 50ksi is standard for 16 gauge and heavier material.
KSI = kips/square inch; kip = 1,000 lbs.
Protective coating s
ClarkDietrich offers a wide variety of protective coatings
to meet the specific requirements of a project.
Non-structural products are coated to meet the minimum
requirements of ASTM C645, with a G40 or a protective
coating with an equivalent corrosion resistance including
coatings listed in Table 1 of ASTM A1003. Performance
coatings meet the metallic equivalency requirement of
C645 by satisfying section 9.1.3 of ASTM A1003 (75
hours in an ASTM B117 salt spray test). Non-structural
products may also be ordered with enhanced coatings for
special applications.
Structural framing products are available with a variety
of protective coatings that meet the CP60 coating
protection level requirements of AISI S200 and ASTM
C955. These coatings may include G60, A60, AZ50 or
GF30, all of which satisfy the above referenced standards.
G90 coatings are an enhanced option that can be
requested for highly corrosive environments. ClarkDietrich
can supply a specific or enhanced coating to meet specific
project requirements when requested. The buyer is solely
responsible to assure that product is ordered to properly
satisfy the applicable code or specification.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Overview
Steel thickness
Standards & specific ations
The steel thickness of a product or component is
referenced in terms of gauge or mils. The mil thickness
measures the uncoated base metal material, and is a key
contributor to the strength of the product.
All structural properties are developed in accordance with
the American Iron and Steel Institute’s “Specification for
the Design of Cold-Formed Steel Structural Members.”
Note: All products comply with ASTM standards and federal
specifications as shown in the Code Approvals and Performance
Standards in the back of this catalog. Minimum thickness is 95% of
the design thickness, per AISI code. One mil is equivalent to 1/1000
(0.001) of an inch. So, a 20 gauge stud measuring the minimum
uncoated base metal at 0.030 inches is 30mils thick.
The data contained in this catalog is intended to be
used as a general guideline only and does not replace
the judgments and designs of a qualified architect and/
or engineer. This catalog does not provide load data
necessary for building design. Load capacities, limiting
heights, physical and structural properties and span
data for ClarkDietrich structural framing can be found
at www.clarkdietrich.com.
ClarkDietrich thickness identification by color coding
MemberThickness Design Min. Color
mils
gauge
thickness thicknesscode
18
27
30
33
43
54
68
97
118
25
22
DW20
20
18
16
14
12
10
0.0188"
0.0283"
0.0312"
0.0346"
0.0451"
0.0566"
0.0713"
0.1017"
0.1242"
0.0179"
0.0269"
0.0296"
0.0329"
0.0428"
0.0538"
0.0677"
0.0966"
0.1180"
None
Black
Pink
White
Yellow
Green
Orange
Red
Blue
ClarkDietrich ProSTUD
Drywall framing system thickness
®
Member DesignMin. Color
gauge
Milsksi thickness thickness code
ProSTUD 25
ProSTUD 20
ProSTUD 30
ProSTUD 33MIL
15
19
30
33
70
65
33
33
0.0158
0.0200
0.0312
0.0346
ProTRAK 25 and 20 = 50ksi ProTRAK 30mil and 33mil = 33ksi
0.0150
0.0190
0.0300
0.0329
None
Pink
White
White
Product l abeling
Skids are easily identified with master skid labels that
display product, gauge, size, length, piece count, yield
strength and any special skid markings specified at the
time of order. Individual inkjet labeling (including company
name, product, size, length, gauge, coating and yield
strength) or embossing is also provided on many of our
structural framing members. UPC bar coding is also
available for certain products.
Product, application renderings and photographs are
provided as a tool to show the general intent of the
framing or finishing application only. These renderings or
photographs may or may not be applicable to a specific
project. They do not replace or supersede the architect
or engineer of record, ASTM guidelines, national or local
building codes or approved industry standards.
ClarkDietrich Building Systems reserves the right to
change or modify the information contained in this catalog
without prior notice or obligation. The information in this
catalog supersedes all previously published data. Products
and systems may be improved and/or changed after this
catalog is printed.
Product avail abilit y
Most products manufactured by ClarkDietrich are readily
available in all markets, but there can be exceptions. Please
contact your ClarkDietrich Sales Representative to make
sure the product you need is available in your market area.
clarkdietrich.com
ClarkDietrich is a proud member of the Steel Framing
Industry Association (SFIA).
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
O V E R V IE W
G ener al notes
Me tric specific ations
At your request, ClarkDietrich will provide “soft” metric
conversions on its products and systems to help specifiers
match metric design sizes. In addition, some products
are available with hard metric dimensions from selected
manufacturing facilities.
7
8
Overview
Cl ar kD i e t r ich LEED I n f o r m a ti o n a n d R e q u i r e m e n t s
®
The future of building is all about the future of the environment.
ClarkDietrich products are manufactured from 100% recyclable cold-formed
steel and contain both pre- and post-consumer recycled content. Steel is
infinitely durable, providing strength throughout the lifetime of the structure.
Due to our nationwide manufacturing locations, our products are often within
a 500 mile radius of your project. But most importantly, our LEED-certified
professionals offer advanced knowledge of sustainable building practices.
Which can help sustain your business.
®
ClarkDietrich
LEED Request Form
online at clarkdietrich.com
LEED Credit MR 2 (Construction Waste Management)
ClarkDietrich products are manufactured from cold-formed steel. Steel is 100% recyclable. This attribute can
help when diverting construction debris from the waste stream. Recycling construction waste contributes
to LEED Credits MR 2.1 and 2.2. The specific contribution will vary by project and must be determined
by the contractor. (Up to 2 pts.)
LEED Credit MR 4 (Recycled Content)
ClarkDietrich’s steel products have a minimum of 25.5% for post-consumer recycled content, and 6.8%
pre-consumer. Recycled content of materials contributes to LEED Credits MR 4.1 and 4.2, and possibly
an Innovation in Design Credit if the project’s overall recycled content exceeds 30%. While ClarkDietrich,
nationwide, has an average recycled content of 48%, we recommend using the default number of 25.5%
post-consumer and 6.8% pre-consumer for your project calculations. If a higher content is desired,
ClarkDietrich can provide this information if mill certifications are requested at time of order. (Up to 3 pts.)
LEED Credit MR 5 (Regional Materials)
LEED Credit MR 5 requires the jobsite to be within a 500 mile radius of the manufacturing plant and from the
point of extraction of raw materials. With nationwide manufacturing locations, ClarkDietrich plants, as well as
our steel sources, often fall within the required 500 mile radius. Each product must be tracked from the mill
to the project location and then these values must be weighted by recycled content percentages. If you wish
to report MR 5 Credits, please submit a LEED request through clarkdietrich.com or contact ClarkDietrich
Technical Services at 888-437-3244 for procedures. (Up to 2 pts.)
ClarkDietrich Building Systems
ClarkDietrich Building Systems, Inc. is an active member of the U.S. Green Building
Council with LEED Accredited Professionals on staff. ClarkDietrich is committed
to supplying quality products and continually looking for new ways to develop
greener building products and sustainable business practices. In total, ClarkDietrich
products can help your project qualify for up to 7 LEED Credits under LEED for New
Construction and Major Renovations (LEED-NC Ver. 2.2 and 3.0).
ClarkDietrich plant locations: Riverside, CA
Sacramento, CA
Bristol, CT
Dade City, FL
Pub. No. CD-Full Line 5/12
McDonough, GA
Kapolei, HI
Rochelle, IL
Lenexa, KS
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Baltimore, MD
Warren, OH
Baytown, TX
Dallas, TX
clarkdietrich.com
9
Interior Framing
The inherent properties of steel make it a superior
alternative to wood for interior framing: it’s light, strong,
versatile and noncombustible. With corrosion-resistant
coatings, steel also adds durability and sustainability to
your buildings. All of which means that steel is a perfect
solution for a variety of nonload-bearing applications,
such as partition walls, ceilings and column fireproofing
in all types of low- to high-rise commercial structures—as
well as residential dwellings.
clarkdietrich.com
At the heart of our interior framing line is our ProSTUD
Drywall Framing System. It’s not only been extensively
field-tested for quality and ease of installation, but it also
features a number of technological advances to enhance
strength and versatility.
®
ClarkDietrich truly stands alone as a single source for a
full range of interior framing products.
•
•
•
•
•
•
•
Cost-effective, labor-saving solutions
Drywall, shaftwall, and area separation wall
Door and window framing solutions
Sound-rated systems
Head-of-wall deflection systems
Bridging, bracing and backing
Absolute code compliance
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
interior framing
Interior framing that stands up to any test.
Including yours.
Pub. No. CD-Full Line 5/12
10
dry wall fra ming
ProSTUD Drywall Framing System
®
Developed, tested, and approved by pros—in the field.
The ProSTUD Drywall Framing System can be called
many things. Strong. Versatile. Fast. And without a
doubt—revolutionary. But it was also developed, tested
and approved by pros in the field who demanded nothing
less than achieving absolute ease of use. Its performance
has also been proven by the most extensive laboratory
evaluations available.
®
The Indus try ’ s Produc t of Choice
Gauge equivalent (EQ) drywall framing must meet the
minimum performance requirements of conventional
drywall framing as defined by the Steel Framing
Industry Association (SFIA) and the Steel Stud
Manufacturers Association (SSMA). For interior
drywall framing members, bending strength (or
allowable moment) is the criteria most important to
the strength of a wall or ceiling. ProSTUD employs
modern roll-forming and steel-making technology
that enhances the shape and strength with greater
efficiency. ProSTUD—the product of choice—exceeds
the performance of conventional drywall framing for
allowable moment and screw connection strength.
Sound Perform ance
ProSTUD also has exceptional sound performance in
over 50 tested sound assemblies—more testing than any
other manufacturer in the industry.
ProSTUD Drywall Framing and ProTRAK Drywall Track
were created specifically to work as a system. This means
they work better together for you in achieving strength,
fire and sound ratings. It’s also an approach that leads to
enhanced performance on the job—during installation
and long after.
®
• High-strength steel combined with low-profile flange stiffening
grooves and double offset web planking increases strength and
provides greater limiting heights
• Diamond embossed web creates stiffness, reducing flange
fade and screw spinout during drywall installation
• Strong, lightweight stud and track cuts and handles easier
than conventional flat steel studs
• Flange grooves provide sight line for drywall alignment
and aid in positioning screws at drywall joints to maintain the
3/8"edge requirement
• Web and leg enhancements in ProTRAK provide straight
and rigid legs, making it the best choice for framing walls,
headers, soffits, and bulkheads
• Nationwide availability
Life S afe t y
Life Safety is the primary concern and duty of all
construction and design professionals. ProSTUD
features a number of technological advances to enhance
its stiffness and strength, contributing to its allowable
moment performance. When it comes to fire-rated
systems, ProSTUD is UL-approved for the most common
UL design assemblies including V450, U419, V438 and
chase wall assemblies.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
dry wall fra ming
ProSTUD
®
Thickness
Product code
Product name
PROS
ProSTUD 25
ProSTUD 20
ProSTUD 30MIL
ProSTUD 33MIL
Gauge
Mils
25
20
20 DW
20 STR
15
19
30
33
Design
thickness (in)
0.0158
0.0200
0.0312
0.0346
ksi
Web width
(in)
Flange
(in)
50
65
33
33
1-5/8,
2-1/2,
3-5/8, 4, 6
1-1/4
ksi
Web
width
(in)
Leg
(in)
1-5/8,
2-1/2,
3-5/8,
4, 6
1-1/4,
1-1/2,
2,
2-1/2,
3
11
ProTRAK
®
Thickness
Product code
PROT
Product name
Gauge
Mils
Design
thickness (in)
ProTRAK 25
25
15
0.0158
50
ProTRAK 20
20
19
0.0200
50
ProTRAK 30MIL
20 DW
30
0.0312
33
ProTRAK 33MIL
20 STR
33
0.0346
33
All material G40 EQ (CP60 available as special order).
Allowable Bending Capacity, 3-5/8" Stud
#6 Screw Pullout Values
60
52
45
40
ProSTUD 20XD
20 Gauge (Drywall)
ProSTUD 20
0
24
25 Gauge
15
31
ProSTUD 25
30
40
20 Gauge (Drywall)
51
3.08
Allowable Pullout (lbs)
ProSTUD 20XD
0
1.48
ProSTUD 20
1
1.75
25 Gauge
2
3.25
20 Gauge (Drywall)
3
20 Gauge (Drywall)
3.17 3.08
ProSTUD 25
Allowable Moment (Ma, in-k)
4
#6 Screw Shear (Bearing) Values
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
105
95
20 Gauge (Drywall)
0
44
25 Gauge
30
52
ProSTUD 25
60
20 Gauge (Drywall)
90
ProSTUD 20
96 95
ProSTUD 20XD
120
Allowable Shear (lbs)
iProSTUD.com
Going mobile? With your smartphone
in hand, you can perform a fast, easy
search, view ProSTUD limiting heights
and even email submittal documents.
Pub. No. CD-Full Line 5/12
interior framing
All material G40 EQ (CP60 available as special order).
See other ProSTUD product options at clarkdietrich.com.
12
dry wall fra ming
Interior Contour Track
®
A high-performance solution for
intricate, dramatic architecture.
ClarkDietrich Interior Contour Track flexible
framing products are low-cost, high-performance
framing solutions for nonload-bearing curves, bends,
variable radii and arches for dramatic and distinctive
ceilings, walls and bulkheads.
®
• Easily hand bends or forms to the desired
curve, bend, radius or arch
• One product for both curves and arches
• Use with wood or steel studs
Hing ed Supp ort Leg
The other leg of the ClarkDietrich Contour
Track features prepunched, easy-to-cut guide
holes when contour track is used in arches or
extreme radius conditions like column framing. In
these conditions, the ribbons are quickly removed
with snips and the trim holes are partially cut to
provide maximum flexibility and versatility.
Interlo cking Tr ack
Contour Track answers the demands of today’s
customers wanting more elaborate and complex
contoured architecture including dramatic sweeping
soffits and bulkheads, curved or rounded walls,
wavy ceilings, barrel vaults, arched and contoured
openings, round or oval columns, and elliptical and
eyebrow curves.
Contour Track flexible framing members bend
both ways and easily form challenging compound
curves. S-curves are easily made by overlapping
and interlocking one 2" web section. Screw
attach, then hand-bend to the desired effect.
It all adds up to:
Faster, Easier and Safer Installation
C o n t o u r T r ac k 1 -1/4 " L e g
®
Thickness
Product
code
Gauge
Mils
Design
thickness (in)
CNTB
25
18
0.0188
CETB
20
26
0.0273
Size (in)
2-1/2
3-5/8
6
2-1/2
3-5/8
6
Use only in nonload-bearing applications.
Punched Webs
Contour Track is permanently locked into place by
securing it to the primary supporting structure using
the prepunched holes conveniently placed throughout
the web.
E xpandable Ribbon Technolo gy
Contour Track flexible framing products feature
expandable ribbon technology that expands and
contours to your desired curve, bend or radius. The
ribbon technology offers curving flexibility, while
maintaining or holding its shape during installation.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
dry wall fra ming
13
Grommets
2-Piece Grommet
Grommets snap easily into stud
knockouts and are used to protect
electrical wiring and plumbing lines
from contacting metal. Grommets
are commonly used in construction
when metal conduit is not required
by building code.
Product code
Size (in)
Description
Pcs./Carton
GROM
3/4
1-1/2
For 1-5/8" and 2-1/2" studs
For 3-1/2" and wider studs
100
Snap-In Bushing
Corner Angle (90º)
Corner angle is a multipurpose
90˚ or 120˚/135˚ galvanized
angle used in dozens of framing
applications. Some of the most
common applications include lapped
framing conditions, soffit framing,
floor and ceiling runner, chase wall
construction and laminated gypsum
drywall partitions. Custom sizes,
beads, and lengths are available.
Thickness
Product code
Gauge
CAN 90˚
25
Mils
Design
thickness (in)
18
0.0188
CANW 135˚
25
18
0.0188
HCN (Hemmed) 90˚
25
18
0.0188
CAE 90˚
20
30
0.0312
CAEW 135˚
20
30
0.0312
Size (in)
5/8 x 2
7/8 x 1-3/8
1-1/2 x 1-1/2
2x2
3x3
1-1/2 x 1-1/2
2x2
2x2
5/8 x 2
7/8 x 1-3/8
1-1/2 x 1-1/2
2x2
3x3
1-1/2 x 1-1/2
2x2
Length
(ft)
10
10
10
10
10
Splayed Corner Angle
(120º/135º)
F u r r i n g C h a n n e l Clip
In a ceiling assembly, furring
channel clips can be used to
suspend U-channel from the
overhead structure. Drywall furring
channel is commonly clipped or
wire-tied perpendicular to the
underside of the U-channel at
appropriate intervals for screwattaching drywall.
clarkdietrich.com
Product code
MFCC
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pcs./Bucket
500
Pub. No. CD-Full Line 5/12
interior framing
Corner Angle
14
dry wall fra ming
Z- F u r r i n g
ClarkDietrich Z-furring is used
to furr out interior masonry or
poured concrete wall substrates
and to support rigid polystyrene,
mineral, or fiberglass batt insulation
while providing a uniform plane for
gypsum panel attachment. Z-furring
should be installed vertically with
the 3/4" flange against the substrate.
The type of fastener and spacing
will vary based on application.
Install gypsum wallboard parallel or
perpendicular to z-furring.
Product
code
ZFN1
ZFN2
ZFN3
ZFN4
ZFE1
ZFE2
ZFE3
ZFE4
Thickness
Gauge
Mils
Design
thickness
(in)
25
18
0.0188
20
30
0.0312
Size
(in)
Length
(ft)
1
1-1/2
2
2-1/2
1
1-1/2
2
2-1/2
8'- 6," 10', 12'
8'- 6," 10', 12'
Heavier gauges available on request.
Furring Channel
7/8" Furring Channel*
ClarkDietrich furring channel is
a hat-shaped corrosion-resistant
framing component used to furr
out masonry walls and ceiling
assemblies. In concrete wall
applications, furring channel is
installed vertically to the wall
surface using concrete nails or
powder-driven fasteners. Gypsum
panels are then screw-attached
to the furring channels. In ceiling
applications, furring channels
can be attached directly to the
underside of the building structure
using tie wire, screws or powderdriven fasteners.
Thickness
Product
code
Gauge
Mils
Design thickness
(in)
FCN
FCE
FCM
FCM
FCND
FCED
FCMD
FCMD
25
20
18
16
25
20
18
16
18
30
43
54
18
30
43
54
0.0188
0.0312
0.0451
0.0566
0.0188
0.0312
0.0451
0.0566
Size
(in)
Length
(ft)
7/8
10', 12'
1-1/2
10', 12'
*Hemmed leg furring channel (as shown) is only available in 25 gauge.
1-1/2" Furring Channel*
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
SOUND-R ATED SYSTEMS
15
P roS T U D 3 - 5 / 8 " S O U N D A ss e m b l i e s
®
Side A
Side B
Insulation type
Stud spacing
(in)
STC Rating
ProSTUD 25
ProSTUD 20
Partition type
5/8" Type X
1 layer
1 layer
—
24
43
40
1
5/8" Type X
1 layer
1 layer
R-13 unfaced**
24
48
45
2
5/8" Type X
2 layers
2 layers
R-13 unfaced**
24
54
*
5 Similar
5/8" Type X
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
24
52
50
3
5/8" Type X
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
24
59
56
4
5/8" Type X
2 layers
1 layer on RC-Deluxe
R-13 unfaced**
24
57
56
5 Similar
5/8" Type X
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
24
62
61
5
5/8" Type X
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
16
51
*
3
5/8" Type X
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
16
58
*
4
5/8" Type X
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
16
62
*
5
5/8" Type X
1 layer
1 layer on RC-1 PRO
R-13 unfaced**
24
51
50
3
5/8" Type X
1 layer
2 layers on RC-1 PRO
R-13 unfaced**
24
58
56
4
5/8" Type X
2 layers
2 layers on RC-1 PRO
R-13 unfaced**
24
61
60
5
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
16
55
*
3
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
16
62
*
4
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
16
65
*
5
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
24
50
*
3
5/8" Hi-impact XP
Fire Shield
1/2" Regular
1/2" Regular
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
24
54
*
4
1/2" Regular
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
24
59
*
5
P roS T U D 2 - 1 / 2 " S O U N D A ss e m b l i e s
STC Rating
Insulation type
Stud spacing
(in)
ProSTUD 25
ProSTUD 20
1 layer
-
24
38
*
1
1 layer
R-13 unfaced**
24
45
*
2
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
24
51
49
3
5/8" Type X
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
24
58
56
4
5/8" Type X
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
24
62
59
5
Side B
Insulation type
Stud spacing
(in)
ProSTUD 25
ProSTUD 20
Gypsum type
Side A
Side B
5/8" Type X
1 layer
5/8" Type X
1 layer
5/8" Type X
Partition type
P roS T U D 6 " S O U N D A ss e m b l i e s
STC Rating
Gypsum type
Side A
5/8" Type X
1 layer
1 layer on RC-Deluxe
R-13 unfaced**
24
52
*
3
5/8" Type X
1 layer
2 layers on RC-Deluxe
R-13 unfaced**
24
58
*
4
5/8" Type X
2 layers
2 layers on RC-Deluxe
R-13 unfaced**
24
63
*
5
Partition
Type 1
Partition
Type 2
*Additional test reports available through ClarkDietrich Technical Services.
**Values are the same for R-11 insulation. Contact Technical Services at
888-437-3244 for additional support information.
clarkdietrich.com
Partition
Type 3
Partition
Type 4
Partition type
Partition
Type 5
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E143, ISO Certified.
See STC test reports for detailed requirements of construction of wall assembly.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
Gypsum type
SOUND-R ATED SYSTEMS
16
Resilient Channels for Walls and Ceilings
ClarkDietrich resilient channel is one of the most efficient lowcost methods developed to reduce transmission of airborne sound
through partition and ceiling assemblies. The resilient channel
dampens sound waves effectively, dissipating the energy and
reducing sound transmission by suspending gypsum wallboard
1/2" from the stud or joist. Sound absorption can be maximized by
utilizing sound attenuation blankets within the wall or floor cavity.
• Lab-certified STC-rated up to 61
• Single- and double-leg channels
• Choose from five channels; RC Deluxe™ has extrawide screw surface for easy attachment
• Available in 12' lengths
• Possible LEED® benefits under IEQ9 due to increased
STC values. For more information on our STC
assemblies, visit our website at clarkdietrich.com
R C D e l u x e ™ R e s i l i e nt C h ann e l
Made of 21mil steel, RC Deluxe is one of the most
effective, low-cost methods of improving sound
transmission loss through wood and steel frame
partitions. It is the preferred resilient channel in
many applications because of its extra-wide 1-1/2"
screw flange.
Thickness
Product
code
Gauge
RCSD
25
Mils
Design
thickness
(in)
Size
(in)
Length
(ft)
21
0.0221
1-1/2
12
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E413, ISO Certified.
Additional test reports available through ClarkDietrich Technical Services.
*Values are the same for R-11 insulation.
Gypsum
type
5/8"
Type X
5/8"
Type X
5/8"
Type X
Side A
1 layer
1 layer
2 layers
Resilient channel should be installed perpendicular
to the framing members with the attachment flange
of the RC Deluxe installed along the bottom edge.
Channel is prepunched for screw attachments
to wood or steel framing members. Nails are not
recommended.
Side B
Insulation
type
1 layer on
RC-Deluxe
2 layers on
RC-Deluxe
2 layers on
RC-Deluxe
R-13
unfaced*
R-13
unfaced*
R-13
unfaced*
STC Rating
ProSTUD WEAL
25
test no.
STC Rating
ProSTUD WEAL
20
test no.
Stud
depth
(in)
Stud
spacing
(in)
3-5/8
24
52
TL09-542
50
TL09-559
3-5/8
24
59
TL09-543
56
TL09-560
3-5/8
24
62
TL09-544
61
TL09-561
R C - 1 P ro r e s i l i e nt c h ann e l
Made of 25 gauge steel, RC-1 Pro is used as a crossfurring member for resilient attachment of gypsum.
Knurled face makes wallboard application easier.
Thickness
Product
code
Gauge
RCUR
25
Mils
Design
thickness
(in)
Size (in)
Length
(ft)
18
0.0188
1-1/4
12
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E413, ISO Certified.
Additional test reports available through ClarkDietrich Technical Services.
*Values are the same for R-11 insulation.
Pub. No. CD-Full Line 5/12
Gypsum
type
5/8"
Type X
5/8"
Type X
5/8"
Type X
Side A
1 layer
1 layer
2 layers
Resilient channel should be installed perpendicular
to the framing members with the attachment flange
of the RC-1 Pro installed along the bottom edge.
Channel is prepunched for screw attachments
to wood or steel framing members. Nails are not
recommended.
Side B
Insulation
type
1 layer on
RC-1 Pro
2 layers on
RC-1 Pro
2 layers on
RC-1 Pro
R-13
unfaced*
R-13
unfaced*
R-13
unfaced*
STC Rating
ProSTUD WEAL
25
test no.
STC Rating
ProSTUD WEAL
20
test no.
Stud
depth
(in)
Stud
spacing
(in)
3-5/8
24
51
TL09-555
50
TL09-564
3-5/8
24
58
TL09-556
56
TL09-563
3-5/8
24
61
TL09-598
60
TL09-562
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
SOUND-R ATED SYSTEMS
17
R C - 1 P r o P l u s h e a v y - dut y r e s i l i e nt c h ann e l
Made of 22mil steel, RC-1 ProPlus is used as a crossfurring member for resilient attachment of gypsum.
Knurled face makes wallboard application easier.
RC-1 ProPlus single-leg resilient channel is typically
used for applications with multiple layers of
Thickness
Product
code
Gauge
Mils
RCUR
23
22
Design
thickness (in)
Size (in)
Length
(ft)
0.0232
1-1/4
12
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E413, ISO Certified.
Additional test reports available through ClarkDietrich Technical Services.
*Values are the same for R-11 insulation.
Gypsum
type
5/8"
Type X
5/8"
Type X
5/8"
Type X
Side A
1 layer
1 layer
2 layers
gypsum board. Resilient channel should be installed
perpendicular to the framing members with the
attachment flange of the RC-1 ProPlus installed
along the bottom edge. Channel is prepunched
for screw attachments to wood or steel framing
members. Nails are not recommended.
Side B
Insulation
type
1 layer on
RC-1 Pro Plus
2 layers on
RC-1 Pro Plus
2 layers on
RC-1 Pro Plus
R-13
unfaced*
R-13
unfaced*
R-13
unfaced*
STC Rating
Stud depth
(in)
Stud
spacing
(in)
ProSTUD
25
3-5/8
24
53
TL10-504
3-5/8
24
58
TL10-505
3-5/8
24
63
TL10-506
®
WEAL test no.
Made of 25 gauge steel, RC-2 Pro double-leg
resilient channel is typically used for ceiling
applications. It is used as a cross-furring member
for resilient attachment of gypsum. Knurled
face makes wallboard application easier.
Thickness
Product
code
Gauge
Mils
Design
thickness (in)
RCDN
25
18
0.0188
Size
(in)
Length
(ft)
1-1/4
12
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E413, ISO Certified.
Additional test reports available through ClarkDietrich Technical Services.
*Values are the same for R-11 insulation.
interior framing
R C -2 P ro D ou b l e - L e g R e s i l i e nt C h ann e l
Resilient channel should be installed
perpendicular to the framing members.
Channel is prepunched for screw attachments
to wood or steel framing members.
STC Rating
ProSTUD
WEAL test no.
25
Gypsum
type
Side A
Side B
Insulation
type
Stud
depth
(in)
Stud
spacing
(in)
5/8"
Type X
1 layer
1 layer on
RC-2 Pro
R-13
unfaced*
3-5/8
24
52
TL10-513
2 layers on
RC-2 Pro
2 layers on
RC-2 Pro
R-13
unfaced*
R-13
unfaced*
3-5/8
24
58
TL10-514
3-5/8
24
62
TL10-515
5/8"
Type X
5/8"
Type X
1 layer
2 layers
R C -2 P r o P l u s H e a v y - D ut y D ou b l e - L e g R e s i l i e nt C h ann e l
Made of 30mil steel to provide a stiffer resilient
channel, RC-2 ProPlus heavy-duty doubleleg resilient channel is typically used for ceiling
applications with multiple layers of gypsum board.
It is used as a cross-furring member for resilient
attachment of gypsum. Knurled face makes wallboard
application easier.
Thickness
Product
code
Gauge
Mils
Design
thickness (in)
RCDE
23
22
0.0232
Size
(in)
Length
(ft)
1-1/4
12
Sound assemblies are certified by Western Electro-Acoustic Laboratories.
NVLAP accredited for ASTM E90 & E413, ISO Certified.
Additional test reports available through ClarkDietrich Technical Services.
*Values are the same for R-11 insulation.
clarkdietrich.com
Gypsum
type
5/8"
Type X
5/8"
Type X
5/8"
Type X
Side A
1 layer
1 layer
2 layers
Resilient channel should be installed perpendicular
to the framing members. Channel is prepunched for
screw attachments to wood or steel framing members.
Side B
Insulation
type
1 layer on
RC-2 Pro Plus
2 layers on
RC-2 Pro Plus
2 layers on
RC-2 Pro Plus
R-13
unfaced*
R-13
unfaced*
R-13
unfaced*
STC Rating
ProSTUD
WEAL test no.
25
Stud
depth
(in)
Stud
spacing
(in)
3-5/8
24
53
TL10-518
3-5/8
24
58
TL10-517
3-5/8
24
62
TL10-516
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
18
SOUND-R ATED SYSTEMS
R E S ILIE N T S O U N D I S O L A T I O N C LI P
The RSIC-1 resilient sound isolation
clip is used in conjunction with
drywall furring channel to fasten
gypsum wallboard to various wall and
floor-ceiling designs and applications,
while simultaneously providing
acoustical separation (decoupling).
This significantly reduces the amount
of impact and sound that filters from
surrounding rooms—reducing the
noise transfer by 75 to 100%.
®
Product code
RSIC-1
• UL Classified R16638
U.S. Patent No. 6,267,347 of MTEC, LLC.
The RSIC-1 clip is a registered trademark of MTEC, LLC.
UL and UL Classified are registered trademarks of Underwriters Laboratories, Inc.
Installation of Resilient Furring Channel
to Steel or Wood Framing Members
Note: These guidelines are for ClarkDietrich Building System’s single
leg RC Deluxe™ and RC-1 Pro, and double leg RC-2 Pro. Details of
construction for a specific assembly to achieve the required fire or sound
or acoustic rating shall be obtained from fire test reports, sound, or
acoustic tests, engineering evaluations, or listings from recognized sound
or acoustic laboratories.
Install resilient furring channels at right angles (perpendicular) to the
framing members. The resilient furring channel shall be positioned with
the slotted hole(s) directly over the framing member. The resilient furring
channel shall be attached to the framing member using the screw hole
provided in the mounting flange. If no screw hole is provided or located at
the framing member, attach through the mounting flange.
No more than two layers of up to 5/8 in. (16mm) gypsum panel products
should be installed to resilient furring channel.
Resilient furring channels should not be spaced greater than 24 in.
(610mm) on-center when installed on wall framing members. For ceiling
framing members spaced 24 in. (610mm) on-center, install resilient
furring channels at 16 in. on-center maximum. For ceiling framing
members spaced 16 in. (406mm) on-center, install resilient furring
channels at 24 in. (610mm) on-center maximum.
In the case of wall framing members, resilient furring channels should be
installed with the mounting flange of the resilient furring channel down,
except at the floor or starter row where the mounting flange may be
installed with the flange up, to accommodate fastening to the framing
members. In the case of two-legged resilient furring channel, attach only
the lower mounting flange to the wall framing members, except as noted.
Pub. No. CD-Full Line 5/12
Pcs./Bucket
200
Note 1: By keeping the mounting flange down, the weight of the gypsum
panel products will pull the resilient channel away from the stud improving
the sound rating.
Note 2: Two-legged resilient furring channels may be attached to the wall
and ceiling framing members using both legs. Alternately attach the legs
of the resilient furring channel to the framing members. This method of
attachment may reduce the sound rating performance of the assembly.
Verify acceptability with the approving authority prior to installation.
For walls, install the first (lowest) row of resilient furring channel no more
than 2 in. (51mm) off of the floor and the last (highest) row of resilient
furring channel not more than 6 in. (152mm) from the ceiling. For ceilings,
the first row and last row of resilient furring channel shall be located not
more than 6 in. (152mm) from the adjacent wall. (Measurements are to
the center of the face of the resilient furring channel.)
Attach resilient furring channel to framing members with screws only. For
steel framing, Type-S x 3/8 in. (9.5mm) pan-head framing screws may be
used. For wood framing members, Type-W or Type-S screws (minimum
1-1/4 in. (32mm) long) may be used. It is not recommended that nails
be used. Install the screws in the holes provided in the mounting flange
(whenever possible).
Splicing of resilient furring channel members shall be done by “nesting”
the ends of the resilient furring channel members directly over the
framing member and screwing through the mounting flanges into the
framing member. (An acceptable alternative would be to butt the resilient
furring channel members over the framing member leaving a minimum
1/16 in. (1.6mm) gap between resilient furring channels.)
Gypsum panel products shall be attached to the resilient furring channel
using a screw length to ensure that the screw point does not make
contact with the framing member. (This will minimize the potential of the
screws hitting the wall studs and “short-circuiting” the sound resistance
effectiveness of the resilient furring channels.)
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
he ad-of-Wall Deflec tion systems
19
H e a d - o f - w a l l ( H - O - W ) D e f l e c t i o n S y st e ms
It’s a real challenge these days meeting head-of-wall codes for fire stop and
life safety issues while maintaining the ability to absorb vertical movement
in low-, mid- and high-rise buildings. ClarkDietrich has the head-of-wall
deflection products and systems you need for interior wall assemblies
subjected to movement—including seismic disturbances.
M a xT r a k S l o tt e d D e f l e c t i o n T r a c k
MaxTrak is a head-of-wall
deflection track that is used for
framing exterior curtain walls and
nonload-bearing interior walls
where vertical deflection occurs—
and serves as a connecting member
that isolates the cold-formed steel
framing system from the movement
of the primary structure.
®
Product
code
•
•
•
•
Thickness
Gauge
Mils
Design
thickness
(in)
MAX
20
33
0.0346
MAX
18
43
0.0451
Web
width
(in)
2-1/2
3-5/8
4
6
8
2-1/2
3-5/8
4
6
8
Leg
length
(in)
Standard
length
(ft)
2-1/2
10
2-1/2
10
Positive attachment with total allowable vertical movement of 1-1/2" (±3/4")
One-piece system reduces cost of materials and labor
UL Classified R26034
IAPMO #0145
S L P - T RK S l o tt e d T r a c k
®
SLP-TRK slotted track provides a
positive attachment for wall strength
and allows for vertical movement.
Movement caused by normal
head-of-wall and floor extension or
compression is absorbed by SLPTRK slotted track to prevent damage
to the wall assembly. SLP-TRK
slotted track systems comply with
the toughest code requirements in
North America.
®
SLP-TRK is a registered trademark of
Brady Construction Innovations.
Product
code
Thickness
Gauge
Mils
Design
thickness
(in)
BDTK
20
33
0.0346
BDTK
18
43
0.0451
®
•
•
•
•
Web
width
(in)
2-1/2
3-5/8
4
6
8
2-1/2
3-5/8
4
6
8
Leg
length
(in)
Standard
length
(ft)
2-1/2
10
2-1/2
10
Positive attachment that allows up to 1" of vertical movement
Single-track assembly
UL Classified R19236
ICC-ES ESR1042
UL and UL Classified are registered trademarks of Underwriters Laboratories, Inc.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
®
20
he ad-of-Wall Deflec tion systems
Deep Leg Deflec tion Track
This traditional assembly allows for
the deflection of floor beams or
floor decks above interior partitions.
The single, long leg track assembly
requires 1-1/2" cold-rolled channel
(CHN2) and 1-1/2" x 1-1/2" 16 gauge
EasyClip™ Clip Angles (U-Series™),
installed continuously throughout
the upper-most punchouts (must
be a maximum of 12" from the top
track), to align the studs vertically
within the plane of the wall.
Product
code
TSC
TSE
Thickness
Gauge
Mils
20
20
18
18
16
16
14
14
12
12
20
20
18
18
16
16
14
14
12
12
33
33
43
43
54
54
68
68
97
97
33
33
43
43
54
54
68
68
97
97
Design
thickness (in)
.0346
.0346
.0451
.0451
.0566
.0566
.0713
.0713
.1017
.1017
.0346
.0346
.0451
.0451
.0566
.0566
.0713
.0713
.1017
.1017
Web
width
(in)
Leg
length
(in)
Standard
length
(ft)
2
10
3
10
Leg
length
(in)
Standard
length
(ft)
1-1/4
10
2
10
3
10
Leg
length
(in)
Standard
length
(ft)
Packaging
Pcs./Carton
1-1/2
1-1/2
3-1/4
4-3/4
25
30
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
Custom sizes available upon request.
D o ub l eTr a ck™ (Ov e r t r ac k ) S y st e m
ClarkDietrich DoubleTrack™
system is a two-piece top track
assembly that allows for the
deflection of floor beams or floor
decks along interior partitions. A
custom-made long leg outer track
is installed to the underside of
the floor deck. A wall assembly is
constructed on the floor then slid
into place. The wall assembly is
designed to allow a “gap” at the top
for deflection.
Thickness
Product
code
Gauge
Mils
Design
thickness
(in)
OTSB
20
30
0.0312
OTSC
20
30
0.0312
OTSE
20
30
0.0312
Web
width
(in)
3-3/4
6-1/8
3-3/4
6-1/8
3-3/4
6-1/8
Custom sizes available on request.
F a s t T o p™ C l i p
FTC3
FTC5
Pub. No. CD-Full Line 5/12
ClarkDietrich Fast Top™ clips are
Thickness
Web
Product
used in head-of-wall deflection
Design
width
code
Gauge
Mils
thickness
(in)
conditions for in-fill curtain wall
(in)
assemblies to provide for vertical
FTC3
14
68
0.0713
4
FTC5
14
68
0.0713
4
movement. These clips are used
in place of, or in combination
FTC3 includes 55 FastClip™ deflection screws per box.
with, deflection track. They also
FTC5 includes 110 FastClip deflection screws per box.
make a positive attachment and
U.S. Patent No. 6,688,069
eliminate the need to install bridging
continuously throughout the uppermost punchouts. Attach to the
underside of structural members,
concrete decks or floor assemblies.
Studs must be cut less than full
height to enable vertical movement
up to 2-1/2" (1-1/4" up and down).
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Door and Window Framing
21
RedHeader RO™
Rough openings made easy.
Interior door and window framing is a whole lot easier with RedHeader RO.™
RedHeader RO can cut your labor time in half. It’s designed to replace conventional
boxed or lay-in headers and built-up jambs and provide better results in half the
time. One-piece headers and jambs eliminate the additional studs, tracks, and screws
required to frame conventional rough openings. Headers and jambs are also pre-cut to
specified lengths to eliminate field cutting. The adjustable Drop ’N Lock™ clip makes
field adjustments a snap and provides a flat surface for a smooth drywall finish.
Headers are prepunched, and
pre-cut to the length specified
on your order. Header depth is
1/8" narrower than jamb depth to
accommodate fit into Drop ’N
Lock Clip. Header lengths should
be ordered 1/2" shorter to fit inside
our Drop ’N Lock clips.
Thickness
Product code
Gauge
Mils
Design
thickness
(in)
ksi
20
33
0.0346
33
18
43
0.0451
33
HEAD
Depth
(in)
3-1/2
3-7/8
5-7/8
3-1/2
3-7/8
5-7/8
7-7/8
Flange
(in)
Return
(in)
3
1
3
1
Flange (in)
Return
(in)
3
7/8
3
7/8
All material CP60.
R e d H e a d e r ro j a m b
As part of the RedHeader RO
system, the jamb eliminates capped
members, allowing drywall screws to
drive through only one thickness of
material. Plus, the open jamb does
not require pre-insulating.
Thickness
Product code
Gauge
Mils
Design
thickness
(in)
ksi
20
33
0.0346
33
18
43
0.0451
33
JAMB
Depth (in)
3-5/8
4
6
3-5/8
4
6
8
All material CP60.
R e d H e a d e r ro Drop ' N L ock™ c l i p
Prepunched slots allow for
vertical field adjustments before
fully attaching the clip, through
the prepunched holes, to the
RedHeader RO jamb stud. The
“box-style” clip design makes it easy
to drop the header into place and
allows for one-man installation, even
on large header spans. The clip is the
same width as the jamb stud, reducing
material buildup at this connection
eliminating additional corner bead
and taping costs.
clarkdietrich.com
Thickness
Product code
DNLC333
DNLC334
DNLC336
DNLC338
Gauge
Mils
Design
thickness
(in)
ksi
Depth
(in)
Height
(in)
Pcs./Box
20
33
0.0346
50
3-5/8
4
6
8
3
3
3
3
24
24
24
16
All material G90.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
R e d H e a d e r ro h e a d e r
22
Door and Window Framing
H e av y- D u t y S t u d ( H D S ) F r a m i n g S y s t e m
®
Ultimate load capacity for headers and jambs.
The ClarkDietrich HDS Framing
The HDSC header bracket is a unique,
System provides outstanding bending
prepunched clip that turns a twostrength in two directions and superior
person curtain wall header installation
axial strength. Plus, it reduces
into a one-person job.
material, labor costs and installation
• Use for curtain wall headers, jambs
time by up to 50%. The superior
and sills; drywall headers and jambs;
load-bearing jambs, and more.
strength and carrying capacity of the
•
Openings up to 15' wide
HDS means higher performance with
•
Eliminates multi-member
fewer members, like eliminating box
built-up truss chords and webs
beam headers, nesting track and stud
• Improves drywall finishing
for posts and jambs. It also means
around doors and windows
improved finish quality by eliminating
excessive material and screw head
buildup around doors and windows.
®
HDS Jamb
HDS Clip
HDS Header
H D S H e a d e r /J a m b
This highly innovative, multipurpose
HDS Framing System provides
cost-effective, member-reducing
framing solutions for headers, jambs
and posts.
Thickness
Product
code
Gauge
Mils
HDS3
20, 18
33, 43
HDS5
16, 14, 12
54, 68, 97
Design
thickness
(in)
0.0346,
0.0451
0.0566,
0.0713,
0.1017
ksi
Depth
(in)
Flange
(in)
Return
(in)
33
3-5/8, 4
6, 8
3
3
1-1/16
2-1/4
3-5/8, 4
3
1-1/16
6, 8
3
2-1/4
50
H D S C H e a d e r Br a c k e t
The HDSC header bracket is the
perfect complement to the HDS
Framing System. This simple, yet
innovative header bracket turns
a two-person curtain wall header
installation into a one-person job.
This unique, prepunched clip also
eliminates surface head fastener
buildup that can create finishing
challenges.
Pub. No. CD-Full Line 5/12
Product code
HDSC
Gauge
14
Thickness
Mils
68
Design thickness (in)
0.0713
Size (in)
3-1/2 x 3-1/16 x 2
3-7/8 x 3-1/16 x 2
5-7/8 x 3-1/16 x 2
7-7/8 x 3-1/16 x 2
Sold in pairs.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Door and Window Framing
23
ProX Header S ys tem
®
Ideal for door, window, shaftwall, HVAC and ventilation openings.
The Brady ProX Header system provides a direct solution to the many
problems associated with traditional headers. ProX Header is a superior
and cost-effective alternative to the limited span capabilities of a single
track, and the excessive buildup of traditional box headers. The ProX
Header is designed for all interior and exterior door and window wall
openings in the 3 to 12 ft. range.
®
• Standard single-piece design
• Installs flush leaving a smooth finish
• Installs quickly and consistently—and saves time and money
The ingenious ProX single-piece
header is designed to replace
multiple-piece built-up headers.
The profile allows the product to
snap into place on the jamb clip
and hold itself while applying the
mechanical fasteners.
Thickness
Product
code
PXH
Gauge
Mils
20
18
16
14
33
43
54
68
Design
thickness
(in)
0.0346
0.0451
0.0566
0.0713
ksi
Width
(in)
Height
(in)
33
3-5/8
4
6
8
4-1/4
All material CP60.
ProX Header is a registered trademark of Brady Construction Innovations.
®
P r o X Ins e r t
The ProX insert offers extra
strength for longer spans. The
strengthening insert positions
itself over the single-piece header
member and snaps into place to
deliver greater load values.
Product
code
PXT
Thickness
Gauge
Mils
20
18
16
14
33
43
54
68
Design
thickness
(in)
0.0346
0.0451
0.0566
0.0713
ksi
Width
(in)
Height
(in)
33
3.464
3.839
5.839
7.839
1-5/8
P r o X Cl i p
The ProX clip’s offset tabs enable the
ProX header to “snap” and hold itself
in place during installation. After
installation, all screw connections
remain flush and ready for a smooth
drywall finish.
Thickness
Product
code
Gauge
Mils
Design
thickness
(in)
ksi
Depth
(in)
Height
(in)
PXTC
16
54
0.0566
50
1-1/2
3-5/8
4
6
8
U.S. Patent Nos. 6,799,408 and 7,178,304 are owned by Brady Construction Innovations.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
ProX Header
24
Bridging, Bracing and Backing
S pazzer 9200 S pac e r a n d B r i d g i n g B a r
®
The TradeReady Spazzer 9200
bar is a pre-notched, 20 gauge,
galvanized steel spacer and bridging
bar. It facilitates rapid erection of
studs into a rigid, accurately laid out
gridwork that has excellent resistance
to stud rotation and displacement.
Hanging drywall is also faster and
easier because the Spazzer 9200 bar
eliminates the bow that often occurs
in tall interior studs.
®
®
Product
code
Gauge
SPZD
20
Thickness
Design thickness
(in)
33
0.0346
Mils
Packaging
Size
(in)
Pcs./Box
Pcs./Skid
7/8 x 7/8 x 50
N/A
1350
• Eliminates stud spacing layout at deck
• Improves drywall installation speed
• Automatically positions and rigidly holds studs on
16" or 24" centers without fasteners
• Eliminates clip angles and the labor required to install them
U.S. Patent Nos. 5,784,850 and 6,021,618
U-Channel
Combined with the deep-leg track
assembly and EasyClip™ clip angles
(U-Series™) or SwiftClip™ (LSSeries), the U-channel creates a
traditional assembly that allows for
the deflection of floor beams or
floor decks above interior partitions.
The single, long leg track assembly
requires 1-1/2" U-channel and
1-1/2" x 1-1/2" 16 gauge EasyClip
or SwiftClip clip angles, installed
continuously throughout the uppermost punchouts to align the studs
vertically within the plane of the wall.
Product code
Member
CHN1
CHN2
075U50-54
150U50-54
Thickness
Gauge
Mils
16
16
54
54
Size (in)
Design thickness
(in)
0.0566
0.0566
3/4
1-1/2
Available in 10,' 16' and 20' lengths.
S w i f t C l i p™ L S - S e r i e s™ S u p p o r t C l i p
SwiftClip LS-Series™ support clips
are used in multiple construction
projects, specifically in conjunction
with studs and track. The L-shaped
clips fit between the stud flanges, so
that shorter length clips do not need
to be ordered. These labor timesavers include prepunched holes
for quicker screw attachments,
and are punched to accommodate
for U-channel lateral bracing
connections.
Pub. No. CD-Full Line 5/12
Product
code
LS543
LS545
LS547
LS549
LS541
LS683
LS685
LS687
LS689
LS681
LS973
LS975
LS977
LS979
LS971
Thickness
Gauge
Mils
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
300
200
150
100
100
300
200
100
100
50
200
100
100
50
50
Design
thickness (in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Bridging, Bracing and Backing
25
E a s y C l i p™ U - S e r i e s™ C l i p A n g l e
ClarkDietrich EasyClip U-Series
clip angles are used to secure
U-channel to wall studs for lateral
bridging or for miscellaneous rigid
connections. U-channel is passed
through the stud knockout and an
EasyClip U-Series clip is screwattached or welded to provide
a rigid connection. These clips
are prepunched for faster, more
accurate fastener placement. Do
not use in bridging applications
when the stud width exceeds 6."
Product
code
U543
U545
U547
U549
U683
U685
U687
U689
U973
U975
U977
U979
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
400
200
100
100
200
170
100
100
200
130
100
80
Size (in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
400
200
100
100
200
170
100
100
200
130
100
80
Size (in)
Packaging
Pcs./Bucket
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
200
170
100
100
200
100
100
80
100
100
60
60
ClarkDietrich EasyClip B-Series™
clip angles are used to secure
U-channel to wall studs in backto-back framing applications and
for various miscellaneous rigid
connections. The shorter length
of the B-Series clip enables it to
be installed inside the C-shape. It
can also be used to secure lateral
bridging on single studs where
the clip is preferred to be inside
the C-shape. Do not use in lateral
bridging when stud width exceeds 6."
Product
code
B543
B545
B547
B549
B683
B685
B687
B689
B973
B975
B977
B979
Thickness
Gauge
Mils
Design
thickness (in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
E a s y C l i p X - S e r i e s™ C l i p A n g l e
ClarkDietrich EasyClip X-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging. U-Channel is passed
through the stud knockout and
an EasyClip X-Series clip is screwattached or welded to provide a rigid
connection. X-Series clip angles
and U-channel should not be used
in lateral bridging when stud width
exceeds 6."
clarkdietrich.com
Product
code
X543
X545
X547
X549
X683
X685
X687
X689
X973
X975
X977
X979
Thickness
Gauge
Mils
Design
thickness (in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
E a s y C l i p B - S e r i e s™ C l i p A n g l e
26
Bridging, Bracing and Backing
Fl at S t r a ppi n g
Properly spaced horizontal steel
bracing provides resistance to stud
rotation and minor axis buckling
under wind and axial loads. Block
and strapping is typically used
when wall studs exceed 6." Field cut,
blocking is used if knockouts do not
align. It’s also used as bridging when
framing members are unpunched.
Product
code
DTN3
DTN5
Thickness
Gauge
Mils
20
18
16
14
12
33
43
54
68
97
Design
thickness
(in)
0.0346
0.0451
0.0566
0.0713
0.1017
Size Available
Length
(ft)
Min. width
(in)
Max. width
(in)
2
12
10
2
12
10
DTN3 has a yield strength of 33,000psi.
DTN5 has a yield strength of 50,000psi.
Danback Wo o d B acki n g Pl at e
®
Just snap, flex and screw. It’s that fast.
Danback is a heavy-duty,
flexible wood backing system
used to support cabinets, shelves,
handrails, wall-mounted sinks
and counters, and all other wallmounted fixtures. Danback provides
superior connection shear and
pullout strength to support and
meet even some of the heaviest
loading conditions. The patented
hinge design actually flexes around
the stud and snaps into place for a
perfect fit—every time.
Product
code
D16F*
D24F*
D16C**
D24C**
®
•
•
•
•
•
Width
(in)
Length
(in)
Packaging
Pcs./Skid
5-1/8
48
250
Reduces installation time up to 90%
Available for 16" and 24" o.c. framing
Eliminates cutting, notching, ripping and routing
Made with Dricon fire-retardant treated wood
Complies with all national building codes
®
Dricon is a registered trademark of Arch Wood Protection, Inc.
Danback is a registered trademark of Daniel W. Tollenaar.
U.S. Patent No. 6,705,056 of Daniel W. Tollenaar.
*F = fire-treated plywood. D16 = 16" o.c. spacing. D24 = 24" o.c. spacing.
Trimables available for off-module spacing in small bucket or bulk quantities.
**FSC-certified lumber available on request, which can contribute to LEED points on
your project. Contact ClarkDietrich LEED professionals at 888-437-3244 for more
information. FSC chain-of-custody # BV-COC-008121.
®
®
®
FastB ack™ B ac k i n g c l i p
The FastBack™ backing system
features a universal design
that works with studs in either
direction—concealing fasteners on
the face of the product. The system
creates an interlocked design
between the stud and track for
baseboard backing installations; and
a cutaway design allows backing and
bracing to be installed all the way to
the floor.
Pub. No. CD-Full Line 5/12
Product
code
FBBC
FBBC
Width
(in)
1-1/4
1-1/4
Length
(in)
5-1/8
10-1/4
Packaging
Pcs./Carton
100
U.S. Patent No. 7,882,676 is owned by Jeffery Thomas Ellis.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Bridging, Bracing and Backing
27
B acki n g Pl at e
ClarkDietrich backing plate is a
general multipurpose flat stock
that is used for backer plate to
support shelves, cabinets, fixtures
or handrails when applied to metal
framing. Backing plate should not
be used as tension strapping or
cross bracing. Diagonal Tension
Strapping should be used in those
applications.
Product
code
Thickness
Gauge
Mils
Design thickness
(in)
BPN
25
18
0.0188
BPE
20
30
0.0312
Size
(in)
2
3
4
6
8
10
12
2
3
4
6
8
10
12
Length
(ft)
10
10
Katz™ bridging maintains accurate
member spacing to prevent
bowing or flexing of nonloadbearing framing. It can also be
used as backing between studs in
areas where cabinets or fixtures
are to be attached. Use standard
24" o.c. frame spacing.
Thickness
Product
code
Gauge
Mils
Design thickness
(in)
KATZ
25
18
0.0188
Size
(in)
Length
(ft)
3-5/8 x 1
24
Width
(in)
Leg
(in)
4
6
4
6
1, 1-1/4, 1-1/2
16" available by special order.
Notched Track
Notched track is used for bracing
and bridging of joists and exterior
walls. It's also ideal for use in
hospitals and schools as mechanical
backing to support equipment.
Product
code
NOTC
Thickness
Gauge
Mils
Design
thickness (in)
18
43
0.0451
16
54
0.0566
Available West Coast only.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
K at z™ b l o c k i n g
28
Shaf t wall
ClarkDietrich Shaftwall Systems
Tested, approved assemblies with unprecedented flexibility.
What makes the ClarkDietrich shaftwall construction
system unique is that it has been tested with almost every
gypsum board and shaftliner manufacturer in the country.
Other systems are only tested with one type of gypsum
board and shaftliner. Unlike competing systems, the
ClarkDietrich CT-stud and J-tabbed track system provide
maximum flexibility, allowing you to choose from a variety
of board manufacturers. This unprecedented flexibility
means quick availability of product at economical costs.
Shaftwall System consists of 1" shaftliner panels
supported by 2-1/2," 4" or 6" CT-studs and faced on one
side with varying layers of fire code board.
Stairwall Systems are designed to enclose stairwalls,
and are finished on both sides with varying layers of fire
code board.
Life S afe t y & Fire-Resis tant Protec tion
Shaftwall systems are nonload-bearing, fire-rated wall
assemblies that provide critical, life safety, fire-resistant
protection for elevator shafts, stairwells, vertical chases
and mechanical enclosures. Shaftwalls in elevators and
stairwells provide the only means of evacuation from the
building in an emergency—making them one of the most
important wall assemblies in a building. Vertical chases
and mechanical enclosures keep vital communication,
power, water, fresh air and exhaust systems intact when a
fire occurs.
Cons truc tion Me thods
Cavity shaftwalls are constructed utilizing one of two
methods: masonry/CMU or light-gauge steel and gypsum.
Gypsum drywall shaftwall construction has become the
preferred and most widely used shaftwall assembly. These
shaftwalls are lightweight, install faster, and provide lower
in-place costs. They also significantly reduce structural
framing and foundation costs, and are easy, quick and
clean to install.
Masonry shaftwalls in high-rise buildings historically
weigh between 20 and 45 lbs. per square foot,
compared to gypsum assemblies that weigh between
10 and 13 lbs. per square foot. In addition to substantial
weight reduction, gypsum shaftwall assemblies can be
installed from the exterior of the shaft at each floor,
eliminating the need for scaffolding.
Stairwall
Shaftwall
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Shaf t wall
29
CT S h a f t w a ll / S t a i r w e ll S t u d
Engineered to maintain shaftwall
integrity, ClarkDietrich CT cavity
shaftwall studs are punched with
1" circular knockouts at 12" o.c. for
easy installation of conduit or other
mechanical service lines.
Independent laboratory tests have
demonstrated that the slotting in
the web improves resistance to
thermal and noise transmissions
effectively.
Thickness
Product
code
Gauge
Mils
Design
thickness (in)
Stud
depth
(in)
CTN2
CTE2
CTN4
CTE4
CTE6
25
20
25
20
20
21
33
21
33
33
0.0230
0.0346
0.0230
0.0346
0.0346
2-1/2
2-1/2
4
4
6
For installations requiring compliance with NER506, special order products are required.
J -Ta b b e d T r a c k /J - R u n n e r
Thickness
Product
code
Gauge
Mils
Design
thickness
(in)
TTN (2,3)*
25
21
0.0230
Size
Width
(in)
2-1/2
4
2-1/2
TTE (2,3)*
20
33
0.0346
4
6
Leg
(in)
2-1/4
3
2-1/4
3
2-1/4
3
2-1/4
3
2-1/4
3
*2 designates 2-1/4" leg; 3 designates 3" leg.
Note: Revised ICC Report pending.
ClarkDietrich J-tabbed track is
punched with fold-up tabs every
12," permitting faster, more efficient
installation.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
ClarkDietrich J-tabbed track is
used at the floor and ceiling in
shaftwall assemblies. CT-studs
and gypsum shaftliner panels are
friction fit between the top and
bottom J-tabbed track. J-tabbed
tracks have unequal legs with the
longer leg (available in 2-1/4" and
3") installed against the shaft. The
leg provides a backstop for easy
installation of the shaftliner. Threeinch leg track is typically used as
jamb struts around closure details,
including duct and door openings,
abutments and intersections.
30
Shaf t wall
USG Shaftwall Systems
USG SHEETROCK brand shaftwall systems.
®
These systems are nonload-bearing gypsum panel partitions
designed to construct elevator shafts, mechanical
shafts, stairwells, air returns and horizontal membranes.
SHEETROCK brand shaftwall systems have been
comprehensively tested for 1- to 4-hour fire resistance
ratings (UL Design No. U415) only when all of the system
components are used together. Substitutions of any of the
components are not recommended.
Metal framing members for the system consist of USG
CH-studs, USG J-runners, USG E-studs and USG jamb
struts. Each steel component is formed to produce a strong,
highly efficient member.
Available Eastern U.S. only.
USG Sheetrock is a registered trademark of USG Corporation.
®
Utility chase
USG-CH stud
1" Sheetrock gypsum liner panels
1" Sheetrock MOLD TOUGH liner panels
1" Sheetrock glass-mat liner panels
USG J-runner
Two USG J-runners
1" Sheetrock gypsum liner panels
USG-CH stud
Sheetrock gypsum panels
Sheetrock gypsum panels
Elevator shaft
Elevator shaft door frame
Elevator car
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Shaf t wall
31
U S G CH - S t u d
USG CH-studs are nonload-bearing
members installed between abutting
liner panels. They have 1" holes for
easy installation of horizontal pipe
and conduit.
Product code
USG CHN2
USG CHN4
USG CHE2
USG CHE4
USG CHE6
Thickness
Gauge
Mils
Design thickness
(in)
25
18
0.0188
20
34
0.0359
Depth (in)
2-1/2
4
2-1/2
4
6
USG E-S tud
Product code
USG ESN2
USG ESN4
USG ESE2
USG ESE4
USG ESE6
Thickness
Gauge
Mils
Design thickness
(in)
25
18
0.0188
20
34
0.0359
Depth (in)
2-1/2
4
2-1/2
4
6
interior framing
USG E-studs are 2-1/2," 4" or 6"
wide, used simply to cap panels at
intersections with exterior walls or
back-to-back on studs in unusually
high partitions.
USG J-Runner
USG J-runner is used at the floor
and ceiling in shaftwall systems.
CH-studs and shaftliner panels are
friction-fitted between the top and
bottom J-track.
Product code
USG JRN2
USG JRN4
USG JRE2
USG JRE4
USG JRE6
Thickness
Gauge
Mils
Design thickness
(in)
24
23
0.0239
20
34
0.0359
Size
Width (in) Leg (in)
2-1/2
4
2-1/2
4
6
2
2
USG Jamb Strut
USG jamb struts are used in
jamb framing for fire-rated
elevator doors.
clarkdietrich.com
Product code
USG JSN2
USG JSN4
USG JSE2
USG JSE4
USG JSE6
Thickness
Gauge
Mils
Design thickness
(in)
24
23
0.0239
20
34
0.0359
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Width (in) Leg (in)
2-1/2
4
2-1/2
4
6
3
3
Pub. No. CD-Full Line 5/12
32
Are a Separ ation Wall
ClarkDietrich Area Separation Wall Systems
Fire-resistance protects lives and property.
Area separation walls are nonload-bearing, 2-hour
rated vertical wall assemblies that provide fire-resistant
protection between adjacent living units in apartment
buildings, condominiums and townhouses. They are also
referred to as party walls, firewalls, multi-family walls and
H-stud assemblies.
Assembled between two independent walls, area separation
walls form a commonly shared party wall that extends
from the foundation through the roofline. The walls are
assembled with two 1"-thick gypsum panel liners vertically
Pub. No. CD-Full Line 5/12
installed between 2" H-studs spaced 24" o.c. At the top
and bottom of the walls, C-runners (or H-tracks) are
installed back-to-back between vertically stacked panels.
Overall stacked area separation wall assemblies cannot
exceed 50 feet.
A photo of an area separation wall system after a fire is
shown below. Although this was a tragic event, it clearly
proves the effectiveness of the system. It performed
as designed by maintaining the integrity of the firewall,
protecting the lives and property of the adjacent units.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Are a Separ ation Wall
33
H-S tud
ClarkDietrich H-studs are 2" wide
vertical members used to secure two
1" thick pieces of gypsum shaftliner
in area separation wall assemblies.
H-studs are inserted into C-runners
and slid over gypsum panel liner
edges, repeating until the desired
wall length is achieved. Once the
wall is plumbed, it is secured with
aluminum burn clips.
Size
Thickness
Product
code
Gauge
HSN
25
Mils
Design thickness
(in)
Width
(in)
Length
(ft)
18
0.0188
2-1/16
8
10
12
Two-hour fire-rated assembly and ICC approved.
C- R u n n e r
Thickness
Size
Product
code
Gauge
Mils
Design thickness
(in)
Width (in)
Length
(ft)
HRN1
25
18
0.0188
2-1/8
8
10
Two-hour fire rated assembly and ICC approved.
Aluminum Burn Clip
ClarkDietrich aluminum burn clips
are used as part of the H-stud area
separation wall assembly and are
designed to melt when exposed
to fire. The clips hold the area
separation wall assemblies in place
at the floor, roof and truss line
between adjacent units. In a fire,
the aluminum burn clips on the
fire-ridden side of the wall will melt,
allowing the wall structure for that
side to collapse.
clarkdietrich.com
Product code
Thickness (in)
Size (in)
Packaging Pcs./Bucket
AB
AB63*
0.050
0.063
2 x 2 x 2-1/2
2 x 2 x 2-1/2
500
*AB63 meets requirements of ICC-ES Legacy Report 92-19.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
interior framing
ClarkDietrich C-runner (or
H-track) is used to secure H-stud
and gypsum shaftliner panels in
area separation wall assemblies.
Attached to the foundation
with powder-actuated fasteners,
C-runner is also used as top track
to cap the H-stud and gypsum
shaftliner panels, with a second
track screwed back-to-back to
the lower runner, to hold the next
assembly level.
34
E x te r i o r F r a m i n g
From low-rise to high-rise, count on
exterior framing that stands tall.
The high strength-to-weight ratio of light-gauge steel
framing maximizes design flexibility and delivers superior
structural integrity for a variety of criteria, including high
wind and seismic loads. It’s also easily insulated for energy
conservation and provides noncombustible support for
fire-rated construction.
Light-gauge steel is an ideal exterior framing material
for all types of low- to high-rise commercial structures,
including educational, institutional, multi-family and
multi-use. Because of its strength, ease of installation
and cost-effectiveness, steel is also an excellent choice for
residential construction. While light-gauge steel is commonly
stick-framed, it is also highly suited for prefabricated panel
construction, providing additional economy in today’s highly
competitive construction industry.
•
•
•
•
Used as primary framing up to nine stories
Economically combined with structural steel or concrete
Ideal support for brick-veneer, stucco and E.I.F.S.
Curtain wall, axial load-bearing wall and
head-of-wall deflection systems
• Door and window framing
• Bridging and bracing systems
• Conventional or specialty load-bearing headers
NOTE: This catalog does not provide load data (load capacities, limiting heights, physical and structural properties and span data) necessary for
building design. Contact ClarkDietrich at 888-437-3244 for technical assistance.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
C u rt a i n W a l l F r a m i n g
35
C - S t u ds
ClarkDietrich CWN™ 1-3/8" Flange
Curtain wall studs have a 1-3/8" flange and
3/8" return and are used to support the
exterior skin or cladding material (metal,
stone, tile, glass, etc.) and the wind loads
they are subjected to.
ClarkDietrich CSJ™ 1-5/8" Flange
Studs/joist have a 1-5/8" flange and
a 1/2" return and are considered the
industry standard. CSJ members are the
most widely used and specified framing
members. They provide the vertical strength
necessary for demanding load-bearing
structural applications and sufficient
strength for many joist applications.
ClarkDietrich CSW™ 2" Flange
Wide studs/joist have a 2" wide flange
and a 5/8" return that provides a
larger bearing surface for attaching
sub-flooring or sheathing materials.
This framing member is also used in
axial load-bearing wall assemblies.
ClarkDietrich CSE™ 2-1/2" Flange
Extra-wide studs/joist have a 2-1/2" wide
flange and a 5/8" return and are used in floor
joist assemblies and heavy loading conditions.
ClarkDietrich CSS™ 3" Flange
Super-wide studs/joist have a 3" flange and
a 5/8" return and are used in very heavy
loading and long spanning conditions.
Two of the key differences between the various
C-stud/Joist framing members are the flange and return
dimensions. The flange is typically the bearing surface
for cladding materials and a key contributor to the loadbearing capacity of the member.
Product
code*
Member
CWN3 (20 & 18 gauge)
CWN5 (16 & 14 gauge)
250S137-x
362S137-x
400S137-x
600S137-x
800S137-x
Product
code*
Member
250S162-x
350S162-x
362S162-x
400S162-x
550S162-x
CSJ3 (20 & 18 gauge)
CSJ5 (16, 14 & 12 gauge) 600S162-x
800S162-x
1000S162-x
1200S162-x
1400S162-x
Product
code*
Member
362S200-x
400S200-x
600S200-x
CSW3 (20 & 18 gauge)
800S200-x
CSW5 (16, 14 & 12 gauge)
1000S200-x
1200S200-x
1400S200-x
Product
code*
Member
362S250-x
400S250-x
600S250-x
CSE3 (20 & 18 gauge)
800S250-x
CSE5 (16, 14 & 12 gauge)
1000S250-x
1200S250-x
1400S250-x
Product
code*
Member
600S300-x
800S300-x
CSS3 (18 gauge)
1000S300-x
CSS5 (16, 14 & 12 gauge)
1200S300-x
1400S300-x
Thickness Depth
gauge
(in)
(mils)
2-1/2
20 (33), 3-5/8
18 (43),
4
16 (54),
6
14 (68)
8
Flange
(in)
Return
(in)
1-3/8
3/8
Thickness Depth
gauge
(in)
(mils)
2-1/2
3-1/2
3-5/8
20 (33),
4
18 (43),
5-1/2
16 (54),
6
14 (68),
8
12 (97)
10
12
14
Flange
(in)
Return
(in)
1-5/8
1/2
Thickness Depth
gauge
(in)
(mils)
3-5/8
4
20 (33),
6
18 (43),
16 (54),
8
14 (68),
10
12 (97)
12
14
Flange
(in)
Return
(in)
2
5/8
Thickness Depth
gauge
(in)
(mils)
3-5/8
4
20 (33),
6
18 (43),
16 (54),
8
14 (68),
10
12 (97)
12
14
Flange
(in)
Return
(in)
2-1/2
5/8
Thickness Depth
gauge
(in)
(mils)
6
18 (43),
8
16 (54),
10
14 (68),
12
12 (97)
14
Flange
(in)
Return
(in)
3
5/8
*20 and 18 gauge are standard as 33ksi yield strength. 16, 14 and 12 gauge are standard as 50ksi yield strength.
x = mil thickness identifier
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
Exterior Framing
C-Studs (C-Series™)
Light-gauge C-shaped framing members for axial loadbearing walls, curtain walls, tall interior partitions, floor
joists and roof truss assemblies.
36
Curtain Wall Fr a ming
K nocko u ts / K nocko u t P a tte r n
ClarkDietrich light-gauge C-studs for axial loadbearing and curtain wall framing are prepunched with
knockouts at regular intervals. These punchouts are
specifically designed to allow for rapid installation of
pipes, electrical conduit and wall bridging.
Standard knockout sizing is 1-1/2" x 4" in members
3-1/2" and wider. Members smaller than 3-1/2" are
unpunched unless otherwise specified at time of
order. If specified, members will be punched with a
3/4" x 4" knockout.
2-1/2"
wide studs
Knockouts are punched 12" o.c. from the lead edge
with additional knockouts every 24" o.c. (on the
West Coast, the first knockout is punched 24" o.c.
from the lead edge). Caution must be exercised when
installing studs so knockouts align for bridging. Based
on stud length, the distance the knockout falls from
the tail end of the stud may not be the same from the
lead end. To align punchouts, make sure to use the
same end in the same direction consistently.
3-1/2" and
wider studs
G r o m m ets
2-Piece Grommet
Grommets snap easily into stud
knockouts and are used to protect
electrical wiring and plumbing
lines from contacting metal.
Grommets are commonly used
when metal conduit is not required
by building code.
Product code
Size (in)
Description
Pcs./Carton
GROM
3/4
1-1/2
For 1-5/8" and 2-1/2" studs
For 3-1/2" and wider studs
100
Snap-In Bushing
S t r u ct u r a l T r a ck
ClarkDietrich structural track is a
U-shaped framing component used
as top and bottom runners to secure
wall studs. Structural track is also
used as end support closures for
joists at exterior or foundation walls,
head and sill plates of wall openings
and solid blocking. Track is normally
ordered in corresponding size and
gauge to the wall studs.
Pub. No. CD-Full Line 5/12
Product code
Member
TSA
TSB
TSF
TSC
TSD
TSE
x-T100-y
x-T125-y
x-T150-y
x-T200-y
x-T250-y
x-T300-y
Thickness
Gauge
20, 18, 16, 14, 12
Mils
33, 43, 54, 68, 97
Design
thickness (in)
2-1/2, 3-1/2, 3-5/8, 4, 5-1/2, 6,
8, 10, 12, 14
Leg
length (in)
1
1-1/4
1-1/2
2
2-1/2
3
x = Part depth. Tracks are available to match all stud and joist depths.
y = Mil thickness of steel.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
C u rt a i n W a l l F r a m i n g
37
C o r ne r An g l e
ClarkDietrich heavy-gauge corner
or utility angle is commonly used for
a variety of applications including:
concrete pour stop, connection
strut or angle, roof ridge angles and
corner reinforcement.
Thickness
Product
code
CAE
CAM
CAE
CAM
Gauge
Mils
20
18
16
14
12
20
18
16
14
12
33
43
54
68
97
33
43
54
68
97
Design
thickness (in)
0.0346
0.0451
0.0566
0.0713
0.1017
0.0346
0.0451
0.0566
0.0713
0.1017
Size*
(in)
Length*
(ft)
2x2
10
3x3
10
*Other sizes available on request.
H e a v y - D u t y F u r r i n g C h a nne l
ClarkDietrich heavy-duty furring
channel is a high-performance
framing component used in
ceiling, exterior wall and roof
applications. With two standard
depths—7/8" and 1-1/2"—heavyduty furring channel provides
greater resistance to deflection
and bending. In roof applications,
heavy-duty furring is used as purlins
to provide connection points for
roof sheathing.
Product
code
FCM
FCMD
Member
087F125-43
087F125-54
150F125-43
150F125-54
Thickness
Gauge
Mils
18
16
18
16
43
54
43
54
Design
thickness (in)
0.0451
0.0566
0.0451
0.0566
Size
(in)
Length
(ft)
7/8
10, 12
1-1/2
10, 12
Exterior Framing
C u sto m S h a pes a nd M i sce l l a neo u s An g l es
ClarkDietrich custom fabricates just about any shape, bend, angle or specialty framing
component to your exact specification. Custom parts include corner angles, roof
ridge angles, clip angles, long and uneven leg tracks, eave closures, support clips and
furring channels. To ensure proper fabrication, ClarkDietrich requires a detailed, fully
dimensioned part drawing at time of order placement.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
38
Door and Window Framing
RedHeader RO™
Rough openings made easy.
RedHeader RO™ can cut your labor time in half. It’s designed to replace
conventional boxed or lay-in headers and built-up jambs and provide better
results in half the time. One-piece headers and jambs eliminate the additional
studs, tracks, and screws required to frame conventional rough openings.
Headers and jambs are also pre-cut to specified lengths to eliminate field
cutting. The adjustable Drop ’N Lock™ clip makes field adjustments a snap and
provides a flat surface for a smooth drywall finish. Save on framing time, save
on drywall finishing time, and use about half the materials that conventional
rough opening framing methods require.
RedHeader RO He ader
Unpunched headers are pre-cut to
the length specified on your order.
Header depth is 1/8" narrower than
jamb depth to accommodate fit into
Drop ’N Lock clip. Header lengths
should be ordered 1/2" shorter
to fit inside our Drop ’N Lock
clips. RedHeader RO Extra-Duty
headers have a longer 3-1/2" flange
for wider spans.
Standard headers
Product code
Thickness
Gauge
Mils
Design
thickness (in)
ksi
18
43
0.0451
33
16
54
0.0566
50
14
68
0.0713
50
12
97
0.1017
50
Depth* (in)
HEAD
One RedHeader RO
Flange (in)
Return (in)
3
1
3
1
3
1
3
1
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
3-7/8
5-7/8
7-7/8
All material CP60.
*Header width is 1/8" less than jamb depth to fit inside Drop 'N Lock clip.
(1) RedHeader with:
(1) track for cripple attachments
w/ (2) screws at 16" o.c.
Replaces
Extra-Duty headers
Thickness
Product code
HEAD
Typical lay-in header with:
(1) 1-5/8" flange stud & (2) tracks
w/ (4) screws at 16" o.c.
Gauge
Mils
Design
thickness
(in)
ksi
16
54
0.0566
50
14
68
0.0713
50
12
97
0.1017
50
Depth* (in) Flange (in) Return (in)
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
3-7/8
5-7/8
7-7/8
3-1/2
1
3-1/2
1
3-1/2
1
All material CP60.
*Header width is 1/8" less than jamb depth to fit inside Drop 'N Lock clip.
Typical boxed header with:
(2) 1-5/8" flange studs & (2) tracks
w/ (4) screws at 16" o.c.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
D oor a n d W i n dow F r a m i n g
39
RedHeader RO Ja mb
One RedHeader RO jamb stud
As part of the RedHeader RO
system, the jamb eliminates capped
members, allowing drywall screws
to drive through only one thickness
of material. Plus, the open jamb
does not require pre-insulating.
RedHeader RO Extra-Duty jambs
have a longer 3-1/2" flange for
wider spans.
Standard jambs
Thickness
Product code
Gauge
Mils
Design
thickness
(in)
ksi
18
43
0.0451
33
16
54
0.0566
50
14
68
0.0713
50
12
97
0.1017
50
Design
thickness
(in)
ksi
JAMB
(1) RedHeader RO jamb stud:
No track or screws required
to build up sections
Depth (in) Flange (in) Return (in)
3-5/8
4
6
8
3-5/8
4
6
8
3-5/8
4
6
8
3-5/8
4
6
8
3
7/8
3
7/8
3
7/8
3
7/8
All material CP60.
Extra-Duty jambs
Thickness
Replaces
Product code
Gauge
JAMB
Typical jamb with:
(2) 1-5/8" flange studs & (1) track
w/ (4) screws at 16" o.c.
Mils
16
54
0.0566
50
14
68
0.0713
50
12
97
0.1017
50
Depth (in) Flange (in) Return (in)
3-5/8
4
6
8
3-5/8
4
6
8
3-5/8
4
6
8
3-1/2
7/8
3-1/2
7/8
3-1/2
7/8
E x ter i or F r a m i n g
All material CP60.
RedHeader RO Drop ’ N Lock™ Clip
Prepunched slots allow for vertical
field adjustments before fully
attaching the clip to the RedHeader
RO jamb stud. The narrower header
and clip width reduce material
buildup that pushes the gypsum
board out, eliminating additional
corner bead and taping costs.
clarkdietrich.com
Thickness
Product code
Gauge
Mils
Design
thickness
(in)
ksi
14
68
0.0713
50
DNLC683
DNLC684
DNLC686
DNLC688
Depth (in) Height (in)
3-5/8
4
6
8
3
3
3
3
Pcs./Box
24
24
24
16
All material G90.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
40
Door and Window Framing
H e av y- D u t y S t u d ( H D S ) F r a m i n g S y s t e m
®
Ultimate load capacity for headers and jambs.
The ClarkDietrich Heavy-Duty Stud
jambs. It also means improved finish
(HDS ) Framing System provides
quality by eliminating excessive
outstanding bending strength in two
material and screw head buildup
directions and superior axial strength.
around doors and windows.
Plus, it reduces material, labor costs
• Use for curtain wall headers, jambs
and installation time by up to 50%.
and sills; drywall headers and jambs;
HDS Jamb
®
The superior strength and carrying
capacity of the HDS means higher
performance with fewer members,
like eliminating box beam headers,
nesting track and stud for posts and
load-bearing jambs, and more.
• Openings up to 15' wide
• Eliminates multi-member
built-up truss chords and webs
• Improves drywall finishing
around doors and windows
HDS Clip
HDS Header
H D S H e a d e r /J a m b
This highly innovative, multipurpose
HDS Framing System provides
cost-effective, member-reducing
framing solutions for headers, jambs
and posts.
Thickness
Product
code
Gauge
Mils
HDS3
20, 18
33, 43
HDS5
16, 14, 12
54, 68, 97
Design
thickness
(in)
0.0346,
0.0451
0.0566,
0.0713,
0.1017
ksi
Depth
(in)
Flange
(in)
Return
(in)
33
3-5/8, 4
6, 8
3
3
1-1/16
2-1/4
3-5/8, 4
3
1-1/16
6, 8
3
2-1/4
50
H D S C H e a d e r Br a c k e t
The HDSC header bracket is the
perfect complement to the HDS
Framing System. This simple, yet
innovative header bracket turns
a two-person curtain wall header
installation into a one-person job.
This unique, prepunched clip also
eliminates surface head fastener
buildup that can create finishing
challenges.
Pub. No. CD-Full Line 5/12
Product code
HDSC
Gauge
14
Thickness
Mils
Design thickness (in)
68
0.0713
Size (in)
3-1/2 x 3-1/16 x 2
3-7/8 x 3-1/16 x 2
5-7/8 x 3-1/16 x 2
7-7/8 x 3-1/16 x 2
Sold in pairs.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
D oor a n d W i n dow F r a m i n g
41
ProX Header S ys tem
®
Ideal for door, window, shaftwall, HVAC and ventilation openings.
The Brady ProX Header system provides a direct solution to the many
problems associated with traditional headers. ProX Header is a superior
and cost-effective alternative to the limited span capabilities of a single
track, and the excessive buildup of traditional box headers. The ProX
Header is designed for all interior and exterior door and window wall
openings in the 3 to 12 ft. range.
®
• Standard single-piece design
• Installs flush leaving a smooth finish
• Installs quickly and consistently—and saves time and money
ProX Header
The ingenious ProX single-piece
header is designed to replace
multiple-piece built-up headers.
The profile allows the product to
snap into place on the jamb clip
and hold itself while applying the
mechanical fasteners.
Thickness
Product
code
Gauge
PXH
Mils
Design
thickness
(in)
20
33
0.0346
18
43
0.0451
16
54
0.0566
14
68
0.0713
ksi
Width
(in)
Height
(in)
3-5/8
33
4
6
4-1/4
8
All material CP60.
ProX Header is a registered trademark of Brady Construction Innovations.
E x ter i or F r a m i n g
®
P r o X Ins e r t
The ProX insert offers extra
strength for longer spans. The
strengthening insert positions
itself over the single-piece header
member and snaps into place to
deliver greater load values.
Product
code
Thickness
Gauge
Mils
20
18
16
14
33
43
54
68
PXT
Design
thickness
(in)
0.0346
0.0451
0.0566
0.0713
ksi
Width
(in)
Height
(in)
33
3.464
3.839
5.839
7.839
1-5/8
ProX Clip
The ProX clip’s offset tabs enable
the ProX header to “snap” and hold
itself in place during installation.
After installation, all screw
connections remain flush and ready
for a smooth drywall finish.
Thickness
Product
code
Gauge
Mils
Design
thickness
(in)
ksi
Depth
(in)
Height
(in)
PXTC
16
54
0.0566
50
1-1/2
3-5/8
4
6
8
U.S. Patent Nos. 6,799,408 and 7,178,304 are owned by Brady Construction Innovations.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
42
He ad-of-Wall Deflec tion Systems
M a xT r a k S l o tt e d D e f l e c t i o n T r a c k
®
MaxTrak is a head-of-wall
deflection track that is used for
framing exterior curtain walls and
nonload-bearing interior walls
where vertical deflection occurs—
and serves as a connecting member
that isolates the cold-formed steel
framing system from the movement
of the primary structure.
®
Product code
75025
75026
75027
75035
75036
75037
75045
75046
75047
75065
75066
75067
75085
75086
75087
•
•
•
•
Gauge
18
16
14
18
16
14
18
16
14
18
16
14
18
16
14
Thickness
Mils
43
54
68
43
54
68
43
54
68
43
54
68
43
54
68
Web width (in)
Leg length (in)
Standard
length (ft)
2-1/2
2-1/2
10
3-5/8
2-1/2
10
4
2-1/2
10
6
2-1/2
10
8
2-1/2
10
Positive attachment with total allowable vertical movement of 1-1/2" (±3/4")
One-piece system reduces cost of materials and labor
UL Classified R26034
IAPMO #0145
M a xT r a k 2 D S l o tt e d D e f l e c t i o n & D r i f t T r a c k
MaxTrak 2D is a head-of-wall
deflection track that is used for
framing exterior curtain walls and
nonload-bearing interior walls where
vertical deflection and horizontal
drift occurs—and serves as a
connecting member that isolates
the cold-formed steel framing
system from the movement of the
primary structure.
Product code
75125
75126
75127
75135
75136
75137
75145
75146
75147
75165
75166
75167
75185
75186
75187
Gauge
18
16
14
18
16
14
18
16
14
18
16
14
18
16
14
Thickness
Mils
43
54
68
43
54
68
43
54
68
43
54
68
43
54
68
Web width (in)
Leg length (in)
Standard
length (ft)
2-1/2
2-1/2
10
3-5/8
2-1/2
10
4
2-1/2
10
6
2-1/2
10
8
2-1/2
10
• Total allowable vertical movement of 1-1/2" (±3/4")
• Total allowable horizontal movement (drift) of 4" (±2")
• Slots in web (for seismic design) are 4" long, spaced at 8" o.c.
UL and UL Classified are registered trademarks of Underwriters Laboratories, Inc.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
H e a d - o f - W a ll Defle c t i o n S y stems
43
S L P - T RK S l o tt e d T r a c k
®
SLP-TRK slotted track is the most
cost-effective, positively attached
fire-rated deflection system. It
provides a positive attachment
for overall strength and allows
for vertical movement caused
by normal head-of-wall and floor
extension or compression. It also
smoothly integrates with a variety
of wall installation systems and is
extremely user-friendly as well as
economical. The simple design and
easy installation reduces the cost
of materials and labor. And the
installer can use the head-of-wall
systems he prefers to work with.
®
Thickness
Product
code
•
•
•
•
Gauge
Mils
Web
width (in)
Design
thickness (in)
BDTK
18
43
0.0451
BDTK
16
54
0.0566
BDTK
14
68
0.0713
2-1/2
3-5/8
4
6
8
2-1/2
3-5/8
4
6
8
2-1/2
3-5/8
4
6
8
Leg length
(in)
Standard
length (ft)
2-1/2
10
2-1/2
10
2-1/2
10
Positive attachment that allows up to 1" of vertical movement
Single-track assembly
Approved 1- and 2-hour systems
Meets IBC, BOCA, SBCCI, ASTM, UL2079,
and UBC building codes and standards
Custom sizes available on request.
SLP-TRK is a registered trademark of Brady Construction Innovations.
®
Slp-Trk for Seismic is a head-ofwall deflection track that is used for
framing exterior curtain walls and
nonload-bearing interior walls where
vertical deflection and horizontal
drift occurs—and serves as a
connecting member that isolates
the cold-formed steel framing
system from the movement of the
primary structure.
Product code
BDTK-WS
Gauge
18
16
14
18
16
14
18
16
14
18
16
14
18
16
14
Thickness
Mils
43
54
68
43
54
68
43
54
68
43
54
68
43
54
68
Web width (in)
Leg length (in)
Standard
length (ft)
2-1/2
2-1/2
10
3-5/8
2-1/2
10
4
2-1/2
10
6
2-1/2
10
8
2-1/2
10
• Total allowable vertical movement of 1-1/2" (±3/4")
• Total allowable horizontal movement (drift) of 4" (±2")
• Slots in web (for seismic design) are 2-1/4" long, spaced at 4" o.c.
SLP-TRK is a registered trademark of Brady Construction Innovations.
®
UL and UL Classified are registered trademarks of Underwriters Laboratories, Inc.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
E x te r i o r F r a m i n g
S l p - T r k f o r S e i sm i c
44
He ad-of-Wall Deflec tion Systems
DEE P L e g D e f l e c t i o n T r a c k
This traditional assembly
accommodates the deflection of
floor beams or floor decks at the
head-of-wall. The single long leg
track assembly requires 1-1/2"
cold-rolled channel and 1-1/2" x
1-1/2" 16 gauge EasyClip™ clip
angles (U-Series™) installed
continuously throughout the
upper-most punchouts to align
the studs vertically within the
plane of the wall. Deflection track
details must be designed for the
specific conditions of a building
to accommodate the required
deflection and end reactions of the
studs. Deflection tracks cannot
be used in axial load-bearing stud
conditions or above continuous
window spandrels.
Product
code
Member
362T200-33
600T200-33
362T200-43
600T200-43
362T200-54
600T200-54
362T200-68
600T200-68
362T200-97
600T200-97
362T300-33
600T300-33
362T300-43
600T300-43
362T300-54
600T300-54
362T300-68
600T300-68
362T300-97
600T300-97
TSC
TSE
Gauge
Thickness
Design thickness
(in)
20
0.0346
18
0.0451
16
0.0566
14
0.0713
12
0.1017
20
0.0346
18
0.0451
16
0.0566
14
0.0713
12
0.1017
Size
(in)
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
3-5/8
6
Custom sizes available on request.
D o u b l e T r a c k ™ ( O v e r t r a c k ) S y st e m
ClarkDietrich DoubleTrack™
system is a two-piece assembly
that accommodates deflection of
exterior curtain walls. A custommade deep leg outer track is
installed to the underside of the
floor deck. A wall assembly is
constructed on the floor and slid
into place, with a “gap” at the top for
deflection. DoubleTrack deflection
assemblies cannot be used in axial
load-bearing stud conditions or
above continuous window spandrels.
Product
code*
OTSC
OTSE
Thickness
Gauge
Mils
Design
thickness (in)
20
33
0.0346
18
43
0.0451
16
54
0.0566
14
68
0.0713
12
97
0.1017
20
33
0.0346
18
43
0.0451
16
54
0.0566
14
68
0.0713
12
97
0.1017
Web width
(in)
3-3/4
6-1/8
3-3/4
6-1/8
3-7/8
6-1/4
3-7/8
6-1/4
3-7/8
6-1/4
3-3/4
6-1/8
3-3/4
6-1/8
3-7/8
6-1/4
3-7/8
6-1/4
3-7/8
6-1/4
Leg length
(in)
Standard
length (ft)
2
10
3
10
*C = 2" legs; E = 3" legs.
Custom sizes available on request.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
H e a d - o f - W a ll Defle c t i o n S y stems
45
F a s t T o p™ C l i p
FTC3
Thickness
Product
code
Gauge
Mils
FTC3
FTC5
14
14
68
68
Design
thickness
(in)
0.0713
0.0713
Web
width
(in)
Leg
length
(in)
4
4
1-1/2
1-1/2
Standard
Packaging
length
Pcs./Carton
(ft)
3-1/4
4-3/4
25
30
FTC3 includes 55 FastClip™ deflection screws per box.
FTC5 includes 110 FastClip deflection screws per box.
U.S. Patent No. 6,688,069
E x te r i o r F r a m i n g
FTC5
ClarkDietrich Fast Top™ clips are
used in head-of-wall deflection
conditions for in-fill curtain wall
assemblies to provide for vertical
movement. These clips are used
in place of, or in combination
with, deflection track. They also
make a positive attachment and
eliminate the need to install bridging
continuously throughout the uppermost punchouts. Attach to the
underside of structural members,
concrete decks or floor assemblies.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
46
Bridging and Bracing
Spazzer 5400
®
ClarkDietrich TradeReady
Spazzer 5400 spacer bar is a
galvanized steel spacer and bridging
bar, engineered to facilitate the
rapid erection of exterior curtain
wall framing, load-bearing walls and
high interior partitions constructed
of structural studs. Proprietary
prepunched slots provide excellent
torsional and lateral stud restraint.
Thickness
®
®
•
•
•
•
Product
code
Gauge
Mils
SPZS
16
54
Design
thickness
(in)
0.0566
Packaging
Size
(in)
Pcs./Bundle
Pcs./Skid
1-1/4 x 1-1/4 x 50
N/A
680
Fast, easy and efficient
Reduces labor up to 40%
Eliminates clip angles, bridging clips and welding
Pre-notched at 12," 16" and 24" intervals so no layout is required
U.S. Patent No. 6,708,460 and other patents pending.
S p a z z e r B a r F ly C l i p
The Spazzer fly clip is a secure,
fast and efficient way to finish a
wall section. This prepunched clip
eliminates the need for cutting and
bending when using the Spazzer
5400 spacer bar.
Product code
SFLY
Size (in)
1 x 1-1/4 x 1
Product
code
SPBG
Size
(in)
3-1/4 x 1-5/8
Product
code
SPGR
Size
(in)
1-1/2 x 4
Packaging Pcs./Carton
100
Spazzer Bar Guard™
Used to secure the Spazzer 5400
spacer bar when used in loadbearing applications.
Packaging Pcs./Carton
100
Spazzer Snap-In Grommet
Used to secure the Spazzer 5400
spacer bar when used in curtain
wall applications.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Packaging Pcs./Carton
100
clarkdietrich.com
B r i dg i n g a n d B r a c i n g
47
U-Channel
ClarkDietrich U-channel, combined
with EasyClip™ clip angles
(U-Series™) and screws, is one of
the most common bridging methods
used to provide resistance to stud
rotation and minor axis bending
under wind and axial loads. 1-1/2"
U-channel is passed through the
stud knockout and secured. Lateral
bracing is typically installed at a
maximum of 48" o.c., but consult
ClarkDietrich’s Technical Design
Guide for proper spacing.
Thickness
Product
code
CSSBI
Reference
Gauge
Mils
Design thickness
(in)
CHN1
CHN2
075U50-54
150U50-54
16
16
54
54
0.0566
0.0566
Size
(in)
3/4
1-1/2
Available in 10,' 16' and 20' lengths.
Caution: EasyClip clip angles must be used with screws to brace cold-formed framing
properly. U-channel does not provide proper bracing if it is not adequately attached to the
framing member.
S w i f t C l i p™ L - S e r i e s™ S u p p o r t C l i p
LE-Series Support Clip
LA-Series Support Clip
clarkdietrich.com
Thickness
Product
code
Gauge
Mils
LS543
LS683
LS973
LS545
LS685
LS975
LS547
LS687
LS977
LS549
LS689
LS979
LS541
LS681
LS971
LS5413
LS6813
LS9713
LE543
LE683
LE973
LE545
LE685
LE975
LE547
LE687
LE977
LA543
LA683
LA973
LA545
LA685
LA975
LA547
LA687
LA977
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
16
14
12
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
54
68
97
Size
Common
Packaging
Design
(in)
application
Pcs./Bucket
thickness
(in)
0.0566
CRC/Openings
300
0.0713
1-1/2 x 1-1/2 x 3-1/4
Openings
300
0.1017
Openings
200
0.0566
CRC/Openings/Joists
200
0.0713
1-1/2 x 1-1/2 x 5-1/2
Openings/Joists
200
0.1017
Openings/Joists
100
0.0566
CRC/Openings/Joists
150
0.0713
1-1/2 x 1-1/2 x 7-1/4
Openings/Joists
100
0.1017
Openings/Joists
100
0.0566
Joists
100
0.0713
1-1/2 x 1-1/2 x 9-1/4
Joists
100
0.1017
Joists
50
0.0566
Joists
100
0.0713 1-1/2 x 1-1/2 x 11-1/4
Joists
50
0.1017
Joists
50
0.0566
Joists
50
0.0713 1-1/2 x 1-1/2 x 13-1/4
Joists
50
0.1017
Joists
25
0.0566
Fixed/Joists/Trusses
100
0.0713
1-1/2 x 3 x 3-1/4
Fixed/Joists/Trusses
100
0.1017
Fixed/Joists/Trusses
50
0.0566
Fixed/Joists/Trusses
100
0.0713
1-1/2 x 3 x 5-1/2
Fixed/Joists/Trusses
100
0.1017
Fixed/Joists/Trusses
50
0.0566
Fixed/Joists/Trusses
100
0.0713
1-1/2 x 3 x 7-1/4
Fixed/Joists/Trusses
50
0.1017
Fixed/Joists/Trusses
50
0.0566
Joists/Trusses
100
0.0713
3 x 3 x 3-1/4
Joists/Trusses
100
0.1017
Joists/Trusses
50
0.0566
Joists/Trusses
100
0.0713
3 x 3 x 5-1/2
Joists/Trusses
50
0.1017
Joists/Trusses
50
0.0566
Joists/Trusses
50
0.0713
3 x 3 x 7-1/4
Joists/Trusses
50
0.1017
Joists/Trusses
50
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
E x te r i o r F r a m i n g
LS-Series Support Clip
SwiftClip™ L-Series™ support clips
are used in multiple construction
projects, specifically in conjunction
with structural studs and track.
The L-shaped clips fit between the
stud flanges, so that shorter length
clips do not need to be ordered.
These labor time-savers include
prepunched holes for quicker screw
attachments, and are punched
to accommodate for CRC lateral
bracing connections.
48
Bridging and Bracing
E a s y C l i p™ U - S e r i e s™ C l i p A n g l e
ClarkDietrich EasyClip™ U-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging or for miscellaneous rigid
connections. U-channel is passed
through the stud knockout and an
EasyClip U-Series clip is screwattached or welded to provide
a rigid connection. These clips
are prepunched for faster, more
accurate fastener placement. Do
not use in bridging applications
when the stud width exceeds 6."
Product
code
U543
U545
U547
U549
U683
U685
U687
U689
U973
U975
U977
U979
Thickness
Design thickness
(in)
Gauge
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
400
200
100
100
200
170
100
100
200
130
100
80
Mils
16
54
0.0566
14
68
0.0713
12
97
0.1017
Di ag o n a l Te n s io n S tr a ppin g/S he a rwa ll B r acing
ClarkDietrich diagonal tension
strapping, combined with gusset
plate components, provides
shearwall (racking restraint) for
light-gauge, load-bearing framing
under wind and seismic loads. Straps
should be positioned diagonally in
an X-configuration from the bottom
to top track—on both sides of the
wall. At a minimum, double studs
at the ends of the X-brace serve as
compression studs, which must be
anchored to the foundation.
Product
code
Size Available
Thickness
Gauge
Mils
Design thickness
(in)
Min. width
(in)
Max. width
(in)
20
18
16
14
12
33
43
54
68
97
0.0346
0.0451
0.0566
0.0713
0.1017
2
2
2
2
2
12
12
12
12
12
DTNC*
*20 and 18 gauge are 33,000psi yield strength. 16, 14 and 12 gauge are 50,000psi yield strength.
Caution: Racking loads are first transferred to the roof/floor decking and then to the
shearwalls (X-bracing). The X-bracing relies on a proper foundation to resist uplift and shear
forces. For the system to function properly, the load path from the roof or floor deck, to
the shearwalls, to the foundation must be complete.
Fl at S t r a ppi n g
Properly spaced horizontal steel
bracing provides resistance to stud
rotation and minor axis buckling
under wind and axial loads. Block
and strapping is typically used
when wall studs exceed 6." Field cut,
blocking is used if knockouts do not
align. It’s also used as bridging when
framing members are unpunched.
Product
code
DTN3
DTN5
Thickness
Gauge
Mils
20
18
16
14
12
33
43
54
68
97
Design
thickness
(in)
0.0346
0.0451
0.0566
0.0713
0.1017
Size Available
Length
(ft)
Min. width
(in)
Max. width
(in)
2
12
10
2
12
10
DTN3 has a yield strength of 33,000psi.
DTN5 has a yield strength of 50,000psi.
G uss e t P l a t e s f o r S h e a r w a l l B r a c i n g
ClarkDietrich gusset plate
components, combined with
diagonal tension strapping, provide
shearwall (racking restraint) for
light-gauge, load-bearing framing
under wind and seismic loads.
Pub. No. CD-Full Line 5/12
Product
code
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
12
97
0.1017
GP
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Plate size
(in)
6x6
6 x 12
12 x 12
6x6
6 x 12
12 x 12
Packaging
Pcs./Bucket
25
25
clarkdietrich.com
Load-Bearing
49
H e av y- D u t y S t u d ( H D S ) F r a m i n g s y s t e m
®
The HDS framing system is a new,
high-performance, cost-effective,
multipurpose, heavy-duty framing
stud for headers, jambs, posts and
built-up tube truss chords and webs.
The superior strength and carrying
capacity mean higher performance
with fewer members. The HDS
framing system eliminates box beam
headers, nesting track and stud for
posts and jambs.
Thickness
®
Product code
Gauge
Mils
20
18
16
14
12
33
43
54
68
97
HDS
Design
thickness (in)
0.0346
0.0451
0.0566
0.0713
0.1017
ksi
Depth
(in)
Flange
(in)
Return
(in)
33
33
50
50
50
3-5/8,
6
3
1-1/16,
2-1/4
Patent pending.
L- H e a d e r
ClarkDietrich L-headers are
prefabricated, light-gauge 90˚
L-sections that are used in loadbearing wall framing. They slide
easily into place and eliminate
the labor-intensive process of
built-up field-assembled headers.
Install as single, one header one
side, or double, two headers, one
on both sides.
Thickness
Product
code
Gauge
Mils
Design thickness
(in)
18
16
14
18
16
14
18
16
14
43
54
68
43
54
68
43
54
68
0.0451
0.0566
0.0713
0.0451
0.0566
0.0713
0.0451
0.0566
0.0713
LHDR
Leg length
(in)
1-1/2 x 6
1-1/2 x 8
1-1/2 x 10
Custom lengths available on request.
Tr a d e Re a d y H e a d e r
The TradeReady load-bearing
one-piece header drastically
reduces labor costs when compared
to standard box beam headers
constructed with C-shaped
members. Pre-engineered to fit
standard door and window openings,
the TradeReady headers are easy
and fast to install.
Thickness
®
clarkdietrich.com
Product
code
Gauge
Mils
Design thickness
(in)
TDHA
14
68
0.0713
TDHB
14
68
0.0713
Wall
stud size
(in)
3-5/8
6
3-5/8
6
Leg
length
(in)
8
12
Standard lengths are 82" and 118."
Custom sizes available on request.
U.S. Patent No. 5,689,922
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
Exterior Framing
®
50
Floor Framing
You can have confidence in the strength of steel
under your feet.
Floor framing made from cold-formed steel is stronger
and more versatile. Its high strength-to-weight ratio
provides strong loading capacity and maximum spanning
capability. It can be used with all traditional flooring
materials such as plywood, OSB, concrete-filled steel
deck or one of the many varieties of fiber-reinforced
cement board. It doesn’t squeak when you walk across it.
What’s more is that ClarkDietrich’s exclusive
TradeReady® Floor System is designed with large
extruded openings in the joists to accommodate electrical,
mechanical, plumbing and technology lines. These
prepunched openings also eliminate drilling and soffit
framing during installation.
For all of these reasons, steel floor framing has become
the standard for low- and mid-rise commercial structures
such as hotels, apartments, condominiums and assisted
living, as well as residential homes.
• Available in a variety of web sizes, flanges,
•
•
•
•
gauges and yield strengths
Pre-spaced joist tabs
Greater spanning capabilities
Prepunched openings
Full system of joist components, accessories,
hangers and connectors
T h e C l a r k D i e t r i c h T r a d e R e a d y ® F l o o r S y st e m
The revolutionary TradeReady Steel Joist System features a tabbed rim track to strengthen the joist against web crippling
loads, and to provide greater versatility and strength for ledger applications. In conjunction with other floor sheathing
products, this system provides one of the most cost-effective systems for non-combustible low- and mid-rise structures.
• Prepunched openings eliminate drilling/cutting joist webs, and soffit framing
• Sustainable alternative to wood joists, offering long-term price stability
• Pre-spaced joist tabs eliminate layout, and joist hangers
• Greater spanning capabilities for design flexibility
-- Wider o.c. spacing for fewer joists
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
51
floor framing
T r a d e R e a d y ® S t e e l J o i st
ClarkDietrich TradeReady® steel
joists clear spans up to 33 feet,
and are one of the primary
components of the TradeReady
floor system. Large extruded holes
accommodate HVAC, mechanical,
plumbing, electrical and sprinkler
runs. The joist also features a series
of smaller holes for electrical and
technology lines. Hole sizes range
from 4-1/4" oval to 10" round, based
on member depth.
They offer consistent quality,
predictable performance and high
strength-to-weight ratio.
Thickness
Product code*
Gauge
Mils
Design
thickness (in)
18
16
14
12
18
16
14
12
43
54
68
97
43
54
68
97
0.0451,
0.0566,
0.0713,
0.1017
0.0451,
0.0566,
0.0713,
0.1017
TDJ3 (18 gauge)
TDJ5 (16, 14 & 12 gauge)
TDW3 (18 gauge)
TDW5 (16, 14 & 12 gauge)
Depth
(in)
Flange
(in)
Return
(in)
7-1/4
8
9-1/4
11-1/4
10
1-3/4
1-3/4
1-3/4
1-3/4
2
5/8
5/8
5/8
5/8
5/8
12
2
5/8
14
2
5/8
*18 gauge is standard as 33ksi yield strength.
16, 14 and 12 gauge are standard as 50ksi yield strength.
UL and UL Classified are trademarks of Underwriter’s Laboratories, Inc.
UL listed assemblies L564, G535, G536, G551, G553 and G560.
TradeReady Joist
Hole size
(in)
Web width
(in)
Hole shape
4-1/4 x 7
7-1/4 TDJ, 8 TDJ
6-1/4 x 9
9-1/4 TDJ,
10 TDW,
11-1/4 TDJ
8 Diam.
12 TDW
10 Diam.
14 TDW
Tr a d e Re a d y R i M
Thickness
Product code
TD12,
TD16,
TD19,
TD24
Gauge
18,
16,
14,
12
Mils
43,
54,
68,
97
Design
thickness (in)
0.0451,
0.0566,
0.0713,
0.1017
Depth
(in)
7-1/4
8
9-1/4
10
11-1/4
12
14
Flange Length
Top (in)
Bottom (in)
Tab spacing
(in)
1-1/4
2-1/2
12
.S. Patent Nos. 6,301,854; 6,691,478; 6,418,694; 6,691,487; 6,761,005; 7,240,459
U
Canadian Patent No. 2319346
Mexican Patent No. 243294
Floor Framing
Another major component of the
TradeReady floor system, the
standard 16'-long rim drastically
reduces framing time and effort.
Rims have pre-formed, prepunched
attachment tabs at 12", 16", 19.2"
or 24" o.c. spacing to eliminate
layout time—and ensure fast,
proper fastener placement.
Embossed stiffening ribs on each
side of the tabs provide additional
reinforcement, for a significant
reduction of web stiffeners (squash
blocks) and support clips in a
majority of applications.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
52
floor framing
Tr a d e Re a d y ® S t r u c t u r a l B l o c k i n g
The third component of the
TradeReady® Floor System,
TradeReady structural blocking
is pre-cut to fit securely between
the underside of the floor joists to
prevent joist rotation. Prepunched
for quick attachment, it's an
economical alternative to cross
bracing, X-bracing or strapping. For
easy attachment, install continuous
row of blocking every 8' o.c.
maximum, and staggered.
Thickness
Product code
Gauge
TDSB
TDSB
TDSB
TDSB
Design
thickness
(in)
Mils
18
43
0.0451
Effective
Packaging
length
Pcs./Bundle
(in)
Depth
(in)
12
16
19.2
24
2-1/2
10
Note: TDSB blocking is not required if sheathing is applied to the joists top and bottom.
Caution: To prevent joist rolling, TDSB blocking must be tied into the structure or
otherwise braced against lateral movement.
E a s y C l i p™ Q u i c kTw i s t ™ W e b S t i ff e n e r
EasyClip™ QuickTwist™ web
stiffeners are used to provide
reinforcement of joist webs
to prevent crippling. Web
reinforcement is often required
by design to enhance the load
capacity of joists. The unique
design of QuickTwist allows the
installer to insert the stiffener
on the inside of the joist after the
joist is installed. This stiffener
eliminates the need to pre-insert
traditional web stiffeners prior to
joist installation. The one-piece
assembly is easily rotated in-place
for a tight fit.
Product
code
Size (in)
Thickness
Gauge
Mils
Design
thickness (in)
QTWS
3-1/2
12
97
0.1017
QTWS
6
12
97
0.1017
Height*
(in)
7-1/4
8
9-1/4
10
11-1/4
12
14
7-1/4
8
9-1/4
10
11-1/4
12
14
Packaging
Dependent on order quantity
Dependent on order quantity
*Dimension is nominal size. Actual product is shorter to fit inside joist.
L i g h t - G a u g e C - J o i st F r a m i n g
ClarkDietrich C-joist components
provide an economical, lightweight
alternative to open web trusses,
bar joists, engineered lumber,
cast-in-place or hollow core floor
assemblies. Plus, they're pre-cut to
save time. Depending on loads and
spans, C-joists are typically spaced
at 12," 16," 19.2" or 24" o.c. Joist-togirder attachments are normally
supported with joist hangers,
EasyClip E-Series™ or S-Series™
support clips. Web stiffeners may
be required at supports and other
point loads.
Product
code*
CSJ
CSW
CSE
CSS
Member
800S162-x
1000S162-x
1200S162-x
1400S162-x
800S200-x
1000S200-x
1200S200-x
1400S200-x
800S250-x
1000S250-x
1200S250-x
1400S250-x
800S300-x
1000S300-x
1200S300-x
1400S300-x
Thickness
Gauge
Mils
18
16
14
12
18
16
14
12
18
16
14
12
18
16
14
12
43
54
68
97
43
54
68
97
43
54
68
97
43
54
68
97
Design
thickness (in)
0.0451
0.0566
0.0713
0.1017
0.0451
0.0566
0.0713
0.1017
0.0451
0.0566
0.0713
0.1017
0.0451
0.0566
0.0713
0.1017
Depth
(in)
8
10
12
14
8
10
12
14
8
10
12
14
8
10
12
14
Flange
(in)
Return
(in)
1-5/8
1/2
2
5/8
2-1/2
5/8
3
1
18 gauge is standard as 33ksi yield strength. 16, 14, and 12 gauge are standard as 50ksi
yield strength.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
53
floor framing
S T RUC T URAL T RACK
Structural track, usually in the same
gauge as the joist, is used as rim or
band enclosures.
Thickness
Product
code
Member
TSB
800T125-x
1000T125-x
1200T125-x
1400T125-x
Gauge
Mils
18
16
14
12
43
54
68
97
Design
thickness
(in)
0.0451
0.0566
0.0713
0.1017
Depth
(in)
Flange
(in)
8
10
12
14
1-1/4
18 gauge is standard as 33ksi yield strength. 16, 14, and 12 gauge are standard as 50ksi yield
strength.
Depth of TSB is measured to the inside of the flanges.
W e b S t i ff e n e r
ClarkDietrich web stiffeners are
used to provide reinforcement of
joist webs to prevent crippling.
Web reinforcement is often
required by design to enhance
the load capacity of joists. When
installing between the joist flanges,
a web stiffener must be installed by
sliding it in from the end of the joist.
Product
code
WS
Thickness
Gauge
Mils
Design thickness (in)
14
68
0.0713
Size
(in)
Length
(in)
4
5-3/4 to 13-3/4
Diagonal Tension Strapping
Product
code
DTN3
DTN5
Size Available (in)
Thickness
Gauge
Mils
Design thickness
(in)
20
18
16
14
12
33
43
54
68
97
0.0346
0.0451
0.0566
0.0713
0.1017
Length
(ft.)
Min.
width
Max.
width
2
12
10
2
12
10
DTN3 has a yield strength of 33,000psi.
DTN5 has a yield strength of 50,000psi.
Packaging may vary by region.
Floor Framing
Block and strap bridging helps
prevent joist rotation and lateral
movement. Solid blocking, a fieldcut track or joist section, is welded
or screw-attached between the first
and last two outer joist bays—at
a maximum of 8' o.c. along the
strap—over all interior supports
and adjacent to floor openings.
Two-inch-wide corrosion-resistant
strapping is also screw-attached or
welded to the bottom of every joist
flange. For sub-floor or decking
without lateral support, install strap
on the top flange of the joist.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
54
floor framing
E a s y C l i p™ E - S e r i e s™ S u p p o r t C l i p
ClarkDietrich EasyClip™ E-Series™
support clips are used for rigid
standoff connections. The 4" wide
leg provides extra length to achieve
standoff connections up to 3."
These support clips are commonly
used in bypass wall conditions, a
variety of floor framing applications
including solid and ladder blocking
attachments and joist-to-joist
connections, and to secure rafter
framing to the primary structure.
EasyClip E-series support clips are
prepunched for faster and more
accurate fastener placement.
Product
code
E543
E545
E547
E549
E541
E683
E685
E687
E689
E681
E973
E975
E977
E979
E971
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
100
100
100
50
50
100
100
80
50
50
50
50
50
50
40
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
400
200
100
100
100
200
200
100
100
100
200
150
100
80
70
Size
(in)
Packaging
Pcs./Bundle
3/4 x 20
3/4 x 27
3/4 x 36
50
E a s y C l i p S - S e r i e s™ S u p p o r t C l i p
ClarkDietrich EasyClip S-Series™
support clips are commonly used
for rigid connections in window and
door framing, joist, bypass or other
miscellaneous connections to secure
one framing member to another,
or to secure framing members to
the structural frame. This highperformance multi-use utility clip
is ideal for corner reinforcements,
stair openings and numerous
support applications. EasyClip
S-Series clips are prepunched for
faster and more accurate fastener
placement.
Product
code
S543
S545
S547
S549
S541
S683
S685
S687
S689
S681
S973
S975
S977
S979
S971
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Tension Bracing
Tension bracing is used to prevent
joist compression, flange lateral
movement, and rotation. These
tension ties are an alternative to
traditional block and strapping.
Traditionally used with wood
framing, ties can also be used with
conventional C-joists.
Product
code
T20
T27
T36
Thickness
Gauge
Mils
Design thickness
(in)
20
33
0.0346
As a general rule, floor bracing
or bridging is installed at 8'
o.c. maximum.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
55
floor framing
S i m p s o n ® S t r o n g - T i e ® J o i st H a n g e r
Providing maximum installation
flexibility, this universal hanger
can be used for 8"–14" deep
wood or steel framing members.
It's easily field skewable and
can accommodate up to 45˚
attachments. Floor joists can be
attached from either side or easily
doubled up.
Thickness
Product
code
Simpson
reference
Gauge
Mils
S/JCT
S/JCT
S/JCT8-14
S/HJCT
14
12
68
97
Design thickness
(in)
0.0713
0.1017
Packaging
Pcs./Carton
50
U.S. Patent No. 6,230,467 of Simpson Strong-Tie Company.
Simpson® and Simpson Strong-Tie® are registered trademarks of the Simpson Strong-Tie
Company, Inc.
Bridle Hanger
Bridle hangers are commonly
used to attach light-gauge
C-joists to structural steel
beams, wood ledgers or masonry
block. Connections can be made
with screws, powder-actuated
fasteners, drill-in concrete
anchors or welding. Single- and
double-wide hangers are also
available in other widths and
depths. The MB hanger can also
be sloped to a maximum of 45.̊
Skew only: MB series can be
skewed to a maximum of 45˚—
maximum allowable download is
62% of table load.
Thickness
Product
code
Gauge
Mils
Design
thickness
(in)
CDBV
14
68
.p0.0713
CDMB
12
97
0.1017
Depth
(in)
8
10
12
14
8
10
12
14
Width
(in)
Packaging
Pcs./Carton
2
25
2
25
MB: Slope 0˚ to 30,̊ maximum allowable download is 100% of table load.
Slope 31˚ to 45,̊ maximum allowable download is 80% of table load.
S i m p s o n S t r o n g -T i e S k e wa b l e A n g l e
SLS5
Simpson® Strong-Tie® skewable
angles are used to make rigid
attachments of joist-to-joist or joistto-other miscellaneous framing.
This clip is ideal for making off-angle
attachments. It is easily field bent
from 0˚ to 135˚.
Product
code
SLS5
SLS7
Thickness
Gauge
Mils
Design thickness
(in)
18
43
0.0451
Size
(in)
Packaging
Pcs./Carton
4-7/8
6-3/8
100
50
ICBO ER #5275 recognized.
Simpson® and Simpson Strong-Tie® are registered trademarks of the Simpson Strong-Tie
Company, Inc.
Floor Framing
CAUTION: This clip can only be bent
one time.
SLS7
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
56
I nt e r io r F ini s h in g
Occupants never see the effort put into
building the wall. They only see the finish.
ClarkDietrich offers an unmatched selection of interior
finishing products—all designed for durability and finesse.
Paper-faced metal beads and trims combine galvanized
metal with high-grade paper tape to provide costeffective, problem-free, compound-embedded drywall
finishing. Our products allow the joint compound
applied to the underside to seep through perforations
in the paper to provide superior adhesion and bonding
to gypsum. Corner and edge cracking are virtually
eliminated because beads float with the gypsum,
independent of framing movement or settling.
• Smoothest finish available
• Tape-on products provide superior adhesion and bonding
• Enhanced paintability
Traditional metal drywall beads and trims provide crisp,
clean and straight protection for gypsum wallboard
construction. Available in a wide selection of products
and sizes, metal is the versatile choice for almost any
drywall finish condition. Metal beads and trims can be
nailed, screwed, stapled or clinched in place and finished
with joint compound. They are low-cost, easily applied
and provide high-quality, long-lasting professional
finishes.
• Strong; dent- and impact-resistant
• Precision manufactured ensuring straight,
sharp and crisp edges and corners
• Corrosion-resistant
Vinyl beads and trims are designed to provide superior,
long-lasting interior finishes for drywall and veneer
plaster. Vinyl offers architects, interior designers
and contractors much more flexibility to create
dramatic, sweeping arches, curvatures and distinctive
architectural details. Vinyl also provides superior
expansion and contraction properties as the products
become embedded in the substrate prior to coating
and, therefore, actually move with the building through
temperature changes.
• Durable; impact-, corrosion- and ignition-resistant
• Superior expansion and contraction properties
• Excellent paint adhesion, no priming required
Goldline® PAPER-FACED TAPE-ON BE ADS
Goldline® paper-faced tape-on beads combine galvanized metal corner and edge protection with high-grade paper tape to
provide cost-effective, problem-free outside drywall corner finishing. They’re available in a number of different widths to
suit most wallboard applications. Wider flange beads are used to cover imperfect corners, while shorter flanges are used to
achieve maximum efficiency.
•
•
•
•
•
Substantially reduces joint compound consumption and eliminates one finish coat
Does not require nails, staples, screws or crimps
Impervious to “scuffing” and “fluffing-up”
Will not be damaged by sanding
Superior adhesion, bonding and paintability
Notes:
GOLDLINE® and PLATINUM® are registered
trademarks of Bailey Metal Products, Ltd.
GOLDLINE® Trims are covered under the following patents:
• USA 5,836,122 and 5,613,335
• Canada 2,212,854
• Australia 69582
• New Zealand 302378
Pub. No. CD-Full Line 5/12
PLATINUM® Trims (separate patent) are covered under the following:
• USA 7,214,434 B2
• Canada 2,417,325
• Australia 2004202648
• New Zealand 533606
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
PAPER-FACED BE ADS And TRIMS
57
P A P ER - F A C E D M E T A L O U T S I D E C O R N ER , T A P E - O N B E A D
Product
code
P1WO
P1UO
P1XW
P1XU
P1SU
USG
reference
B1W
B1EL
B1XW
B1XW EL
B1 Super Wide
Style
Standard Leg
Equal Leg
Extra Wide
Extra Wide Equal
Super Wide Equal
A
1/2
3/4
7/8
7/8
1-1/8
Dimensions (in)
B
C
3/4
7/8
3/4
3/4
5/8
5/8
7/8
5/8
1-1/8
5/8
D
7/8
3/4
3/4
5/8
5/8
Standard
length (ft)
8, 10
INTERIOR FINISHING
Goldline ® superior 90° outside
corner drywall finishing tape-on
bead virtually eliminates corner
cracks, edge chips and nail pops.
Applied using joint compound, the
beads don't require mechanical
fasteners. Helps reduce labor
and material costs by reducing
the amount of joint compound
needed, and also eliminating one
pass of finishing.
Other lengths are available.
P A P ER - F A C E D M E T A L O F F - A N G L E C O R N ER , T A P E - O N B E A D
Goldline off-angle tape-on bead,
also known as splayed or 120/135˚
corner bead, is used to provide a
strong, smooth finish for outside
off-angle drywall intersections.
Applied in the same manner as 90˚
paper bead, the result is a clean,
crisp, durable off-angle corner that
will not crack or chip.
Product
code
P100
USG
reference
B1 OS
Style
Off-Angle
A
1/2
Dimensions (in)
B
C
3/4
5/8
D
5/8
Standard
length (ft)
8, 10
A
3/8
Dimensions (in)
B
C
3/8
5/8
D
5/8
Standard
length (ft)
8, 10
D
5/8
Standard
length (ft)
8, 10
Other lengths are available.
P ap e r - F ac e d I n s id e C o r n e r , T ap e - O n B e ad
Goldline tape-on inside 90˚ paperfaced corner bead provides very
straight and precise inside corners.
The rigid, steel-reinforced inside
corners provide a durable guide to
achieve exceptionally straight and
sharp inside corners. Embed in joint
compound and press firmly into
place. Remove excess compound
with a drywall knife.
Product
code
P2I
USG
reference
B2
Style
Standard Angle
P ap e r - F ac e d M e tal O ff - A n g l e I n s id e C o r n e r , T ap e - O n B e ad
Goldline off-angle tape-on 120/135˚
inside (or reverse splayed) bead
is used to achieve a crisp, clean,
straight-finished inside off-angle
drywall finish. This bead can be
used for inside corner angles
between 120˚ and 135.̊ As with all
tape-on beads, off-angle bead is
applied using joint compound. No
mechanical fasteners are required.
clarkdietrich.com
Product
code
P20I
USG
reference
B2 OS
Style
Off-Angle
A
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Dimensions (in)
B
C
5/8
5/8
Pub. No. CD-Full Line 5/12
58
PAPER-FACED BE ADS And TRIMS
P ap e r - F ac e d 3 / 4 " B ullno s e O ut s id e C o r n e r , T ap e - O n B e ad
Goldline® 3/4" tape-on bullnose
corner bead is used to create
a smooth, rounded look to
standard drywall corners. It adds
contemporary styling and a sense of
openness to any room. Apply in the
same manner as all other tape-on
beads. Gypsum boards must be
cut back 3/4" to accommodate the
bullnose and ensure a flush fit.
Product
code
P1BO
USG
reference
SLOC
Style
A
7/8
Standard
Dimensions (in)
B
3/4
Standard
length (ft)
8, 10
C
7/8
P ap e r - F ac e d 3 / 4 " B ullno s e O ff - A n g l e O ut s id e C o r n e r , T ap e - O n B oa r d
Goldline off-angle bullnose tapeon bead (also known as splayed
bullnose or 120/135˚ bullnose corner
bead), is used to provide a rounded,
bullnose finish for off-angle drywall
intersections. It is applied in the
same manner as 90˚ paper bead.
Gypsum board must be cut back
3/4" to accommodate the bullnose
and ensure a flush fit.
Product
code
P0BO
USG
reference
SLOC OS
Style
A
1
Off-Angle
Dimensions (in)
B
3/4
Standard
length (ft)
8, 10
C
1
P ap e r - F ac e d 3 / 4 " B ullno s e O ut s id e C o r n e r , N A I L - O n B e ad
Goldline 3/4" nail-on bullnose
corner bead is used to create
a smooth, rounded look to
standard drywall corners. Nailon bullnose adds contemporary
styling and a sense of openness
to any room. Nails or mechanical
fasteners are used to secure
the bead to the wallboard.
Product
code
P1BN
USG
reference
SLOC N
Style
A
5/8
Standard
Dimensions (in)
B
3/4
Standard
length (ft)
8, 10
C
5/8
P ap e r - F ac e d 3 / 4 " B ullno s e off s e t O ut s id e C o r n e r , N A I L - O n B e ad
Goldline off-angle nail-on bullnose
bead, also known as splayed bullnose
or 120˚/135˚ bullnose corner bead, is
used to provide a rounded bullnose
finish for outside off-angle drywall
intersections. Nails or mechanical
fasteners are used to secure the
bead to the wallboard.
Pub. No. CD-Full Line 5/12
Product
USG
code
reference
P00B SLOC NOS
Style
Off-Angle
A
5/8
Dimensions (in)
B
3/4
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
C
5/8
Standard
length (ft)
8, 10
clarkdietrich.com
PAPER-FACED BE ADS And TRIMS
59
P ap e r - F ac e d I nn e r C o v e , T ap e - O n T r im
Product
code
P2BI
USG
reference
SLIC
Product
code
USG
reference
B4
B4
B4
Style
Dimensions (in)
B
3/4
A
5/8
Standard
Standard
length (ft)
8, 10
C
5/8
INTERIOR FINISHING
Goldline® tape-on inner cove 90˚
paper-faced bead provides subtle,
rounded inside or inner corners.
Inner cove tape-on beads are
embedded in joint compound and
pressed firmly into place. Excess
compound is removed with a drywall
knife or wiped clean with a rag.
P ap e r - F ac e d M e tal L , T ap e - O n T r im
Goldline L-trims are used to finish
the ends of wallboard where it
abuts dissimilar surfaces, such as
suspended ceilings, beams, plaster,
masonry or untrimmed door and
window jambs. Applied in the same
manner as all other tape-on beads—
joint compound embeds the paperfaced bead to the wallboard paper.
P4L
Style
3/8
1/2
5/8
A
7/16
9/16
11/16
Dimensions (in)
B
1-11/16
15/16
1-1/16
Standard
length (ft)
C
1-1/4
1-1/4
1
10
P ap e r - F ac e d M e tal R e v e al , T ap e - O n T r im
Goldline reveal trims are used to
finish wallboard terminations when
the board abuts other building
materials—such as suspended
ceilings, beams and untrimmed
door and window jambs—to create
a clean step inset or reveal. Helps
create aesthetic architectural
detailing around light fixtures,
ceilings, walls and soffits, without
mechanical fasteners.
clarkdietrich.com
Product
code
PGR
USG
reference
B4 NB Reveal (1/2")
B4 NB Reveal (5/8")
Style
1/2 x 1/2
5/8 x 5/8
A
1/2
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Dimensions (in)
B
C
1/2
1-3/16
5/8
15/16
D
7/8
7/8
Standard
length (ft)
10
Pub. No. CD-Full Line 5/12
60
m e t a l B EA D S A n d T R I M S
103 Deluxe® Corner Be ad
ClarkDietrich 103 Deluxe® corner
bead is considered the premier
drywall finishing corner bead
product. This product combines a
unique manufacturing process, with
specially enhanced steel to provide
consistent, high-quality finishing,
and solid protection at drywall
corners, every time. Nail, staple,
screw or clinch into place.
Product
code
CBU
(dull finish)
Width (in)
Size
1-1/4 x 1-1/4
Length
6' 9"
6' 10"
7' 0"
8' 0"
9' 0"
10' 0"
12' 0"
Quicksilver™ Co r n e r B e a d
Quicksilver™ corner bead is
a hot-dipped, highly durable
galvanized bead that offers superior
corrosion protection. This bead is
ideal for humid, moisture-prone
conditions and high-traffic areas
subject to more than normal abuse.
Quicksilver corner bead provides
a high-quality finish and solid
protection at drywall corners.
Product
code
CBS
(shiny finish)
Width (in)
Size
1-1/4 x 1-1/4
Length
6' 9"
6' 10"
7' 0"
8' 0"
9' 0"
10' 0"
12' 0"
Clinch-On Produc ts , Co. Corner Be ad/Dull
Clinch-On corner bead is
recognized as the premier product
for providing sturdy metal
reinforcement on 90˚ drywall
corners. Knurled and perforated
flanges offer superior compound
adhesion for smooth, straight
finishes. Corner bead attachments
are accomplished by nailing,
stapling, screwing or clinching
through the flanges.
Pub. No. CD-Full Line 5/12
Product
code
CBCO
(dull gray)
Width (in)
1-1/4 x 1-1/4
Size
Length
6' 0"
6' 9"
6' 10"
7' 0"
8' 0"
9' 0"
10' 0"
12' 0"
Not available in all geographic areas.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
m e t a l B EA D S A n d T R I M S
61
Clinch-On hot-dipped corner bead
offers the identical roll-formed
precision as its counterpart. Hotdipped galvanized metal corner bead
(meets ASTM A1047) provides
enhanced corrosion protection
and sturdy reinforcement at
exposed 90˚ corners. Flanges are
knurled and perforated to ease
joint compound adhesion and
nail attachment.
Product
code
CBCS
(shiny)
Width (in)
Size
1-1/4 x 1-1/4
Length
6' 9"
7' 0"
8' 0"
9' 0"
10' 0"
12' 0"
Not available in all geographic areas.
Sp l a y e d C o r n e r B e a d
ClarkDietrich’s 120/135˚ corner
bead, also referred to as splayed or
off-angle bead, provides a clean,
crisp finished look at off-angle
intersections. Specially enhanced
steel for corrosion protection and
superior compound adhesion, it’s
easy to attach and finish.
Product
code
CB12
(dull finish)
Width (in)
Size
1-1/4 x 1-1/4
Length (ft)
8
10
Bullnose 90º Corner Bead
ClarkDietrich bullnose corner bead
is used to create a smooth, rounded
look to standard drywall corners. Of
rugged steel construction, bullnose
90° corner bead is designed for
superior compound adhesion.
Just nail, screw or staple in place.
Available with a galvanized finish
meeting ASTM C1047 or with a
prime-painted surface for shadowfree finishing.
Product
code
Radius (in)
CBB
3/4
Product
code
Radius (in)
CBBW
3/4
Size
Length
7' 0"
8' 0"
8' 6"
9' 0"
10' 0"
10' 6"
B u l l n o s e Sp l a y e d 1 3 5 ˚ C o r n e r B e a d
ClarkDietrich splayed or off-angle
bullnose is used to create a smooth
rounded look at 135° corners.
Bullnose adds contemporary styling,
but also performs with corrosion
protection and durability. Available
with a galvanized finish conforming
to ASTM C1047 or prime-painted
surface for shadow-free finishing.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length
8' 0"
8' 6"
9' 0"
10' 0"
10' 6"
Pub. No. CD-Full Line 5/12
INTERIOR FINISHING
C l i n c h - O n P r o d u c t s , C o . C o r n e r B e a d / H o t - D i pp e d
62
m e t a l B EA D S A n d T R I M S
Bullnose Kerfed Bead
ClarkDietrich kerfed bullnose has
a distinctive shortened back flange
allowing for insertion into grooved
door jambs and window trims. This
feature provides for efficient, clean
installation, as well as the smooth
round appearance associated with
bullnose trims. Roll-formed from
galvanized steel, it conforms to
ASTM A1047 for added durability
and protection from corrosion.
Product
code
Radius (in)
Size
Length (ft)
7
8
9
10
7
8
9
10
3/4
CBBK
1-1/2
2-Way I n s i d e 3/4 " B u l l n o s e C o r n e r C a p 9 0 ˚
ClarkDietrich vinyl 2-way 3/4"
corner caps provide the ideal
component to transition bullnose
corner beads to a crisp finish
where inside corners intersect
at 90.̊ Examples of applications
include windows, closets, doorways,
skylights, etc. Easy to install, this
component provides a cost-effective
alternative to time-consuming
mitering of corners.
Product code
Style
Size radius (in)
M285
Plastic 2-way
corner cap
3/4
Product code
Style
Size radius (in)
M385
Plastic 3-way
corner cap
3/4
Pcs./Box
50
Packaging
Cartons/Skid
25
3 -Way 3/4 " B u l l n o s e C o r n e r C a p 9 0 ˚
ClarkDietrich 3-way 3/4" bullnose
90˚ corner caps provide the ideal
solution to finish corners quickly and
efficiently at 3-way intersections.
Features extended tabs for easier
alignment and a professional finish.
Works well with both metal and vinyl
bullnose corner beads, eliminating
the need for special corner bead
applications and mitering.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pcs./Box
50
Packaging
Cartons/Skid
25
clarkdietrich.com
m e t a l B EA D S A n d T R I M S
63
Bullnose to 90˚ Transition Cap
Product code
Style
Radius (in)
M859
Bullnose to 90˚
transition cap
3/4
Pcs./Box
Packaging
Cartons/Skid
50
25
INTERIOR FINISHING
ClarkDietrich bullnose corners
to 90˚ transition caps simplify
installation of baseboard or crown
molding corners into 3/4" bullnose
systems. Quick and easy to install,
this product eliminates corner gaps
and the need for time-consuming
caulking and filling. Use with metal
or vinyl 3/4" bullnose corner bead
for transition onto baseboard or
crown molding up to 4-1/2" wide.
M e ta l J -T r i m
ClarkDietrich metal J-trim is a
strong, reveal-type galvanized
steel casing that provides
maximum corrosion protection
and neat finished edges to drywall
terminations around door and
window openings. It also delivers
a clean trim line at intersections
or where gypsum panels abut
dissimilar surfaces, such as columns
and window mullions. Hemmed
edges allow quick installation and
do not require joint compound.
Product
code
Width (in)
M400
3/8
M401
1/2
M402
5/8
Product
code
Width (in)
Size
Length (ft)
8
10
8
10
8
10
M e t a l U - T r i m / Sp a ck l e J
ClarkDietrich U-trim, or Spackle
J, provides maximum protection
and clean finished edges on gypsum
panels around door and window
openings, and when wallboard
abuts dissimilar surfaces, such as
suspended ceilings, beams, plaster,
masonry and concrete. It’s easily
installed by sliding trim over the
edge of the board and nailing/
screwing through the knurled
(long) flange—which also enhances
compound adhesion.
clarkdietrich.com
M20A
1/2
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length (ft)
8
10
8
10
Pub. No. CD-Full Line 5/12
64
m e t a l B EA D S A n d T R I M S
M e ta l l-T r i m
ClarkDietrich metal L-trim provides
a clean finished edge at door and
window openings or when wallboard
abuts dissimilar surfaces, such as
suspended ceilings, beams, plaster,
masonry and concrete. Installed after
the gypsum panels are already in
place—unlike Spackle J which must
be installed during gypsum panel
installation—L-trim is easily attached
with screws or nails. A hemmed front
flange provides rigidity.
Product
code
Size
Width (in)
1/2
M20B
5/8
Length (ft)
8
10
8
10
093 Zinc Control Joint
ClarkDietrich 093 zinc control
joint is applied between abutting
gypsum panels, and is used to
relieve stresses of expansion and
contraction of drywall and veneer
plaster systems in large ceiling and
wall expanses over 30' in length. It’s
typically installed from door header
to ceiling, from floor to ceiling in
long partition runs, and from wall to
wall in large ceiling areas—and for
interior or exterior applications.
Product code
Size
Grounds (in)
3/32
ZNCJ
Length (ft)
10
Note: Where fire and sound control are prime considerations, an approved seal must be
installed behind the control joint.
Mini-Bead™ 800 and 900 Corner Be ad
ClarkDietrich Mini-Bead™ 800
and 900 corner bead are galvanized
steel reinforcements for interior,
outside corner, veneer or thin wall
plaster applications. Mini-Bead
800 has 1/16" grounds for one-coat
veneer plaster and 90 keys per
linear foot for excellent bonding and
strong corners. Mini-Bead 900 has
3/32" grounds for two-coat veneer
plaster systems.
Pub. No. CD-Full Line 5/12
Grounds (in)
Size
Width (in)
MB80 (galvanized)
1/16
1-1/4 x 1-1/4
MB90 (galvanized)
3/32
1-1/4 x 1-1/4
ZB80 (zinc)
ZB90 (zinc)
1/16
3/32
1-1/4 x 1-1/4
1-1/4 x 1-1/4
Product code
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Length (ft)
8
10
8
10
10
10
clarkdietrich.com
V I N Y L B E A D S and T R I M S
65
The finest accessories. The best customer experience.
For years, these have remained the hallmarks of Vinyl
Corp.’s business. Today, as a wholly owned subsidiary of
ClarkDietrich, Vinyl Corp. continues to lead the way with
innovations for stucco, plaster, drywall, veneer and EIFS/
DEFS PB and PM applications.
No matter how good the product, inconsistent delivery and
poor support can be costly. That’s why Vinyl Corp. works
equally as hard to maintain a reputation for customer service.
From 24-hour turnaround on orders, to in-house expertise,
to comprehensive technical support materials, Vinyl Corp.
excels at keeping projects moving forward.
At Vinyl Corp., quality begins with products derived from
superior ingredients. In fact, a commitment to using only
lead-free virgin vinyl compounds means you can count on
excellent products that function without question and meet
or exceed all applicable specifications. Add to this a set of
exacting manufacturing tolerances, which translates into
products that are easy to fit and form every time, every job.
Like ClarkDietrich, Vinyl Corp. is a progressive company with
a vision for the future. Together, we’re better able to deliver
innovative products that save finishing time, materials and
labor costs—while heightening aesthetic appeal.
For more information, visit vinylcorp.com
Vinyl Corner Bead
Vinyl corner bead is a rigid, easyto-apply 90˚ corner reinforcement
that nails or staples into place.
Multiple perforations along the
flanges enhance bonding. The
pronounced nose provides a ground
and screed to help achieve precise
finishing depth. It's easily cut, dentresistant, rustproof and maintains
shape, with no sharp edges or burrs
when field cut.
Product code
VLCB
Width (in)
Size
1-1/4 x 1-1/4
Length (ft)
8
10
V i n y l S P LAYED C ORNER B EAD 1 2 0 / 1 3 5 °
ClarkDietrich 120/135˚ corner or
splayed bead is used to finish off
angle interior corners from 120–
135.̊ Designed to provide straight,
rustproof, dent-resistant corners,
its flexibility allows a flush fit on
many unusual outside wallboard
intersections. Multiple perforations
along the flanges enhance joint
compound bonding.
clarkdietrich.com
Product code
VLSB
Width (in)
1-1/4 x 1-1/4
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length (ft)
8
10
Pub. No. CD-Full Line 5/12
INTERIOR FINISHING
Vin y l Corp.
66
V I N Y L B E A D S and T R I M S
V i n y l A r c h way C o r n e r B e a d
ClarkDietrich vinyl archway corner
bead fits almost any arch, curve or
radius to provide rigid corner and
edge protection. The notched single
flange adapts to virtually any radius
condition. Multiple perforations
along flanges and notches enhance
joint compound bonding. In addition
to nails or staples, use an adhesive to
secure arch tabs to gypsum board.
Product code
VLAB
Width (in)
Size
1-1/4 x 1-1/4
Length (ft)
8
10
Vinyl Bullnose 90˚ corner bead
ClarkDietrich vinyl bullnose corner
bead is used to create a smooth,
rounded look to standard drywall
corners. Vinyl bullnose adds
contemporary styling and a sense
of openness to any room. Ideal in
children’s play areas, it easily installs
with nails, screws or staples. It’s also
rustproof and dent-resistant.
Product code
VBCB 90˚ Bullnose
Radius (in)
Size
3/4
1-1/2
Length (ft)
8
10
8
10
V i n y l B u l l n o s e S p l ay e d 120/ 13 5 ˚ C o r n e r B e a d
ClarkDietrich vinyl bullnose
splayed corner bead is used to finish
off-angle interior corners from 120–
135˚ when a rounded “bullnose” look
is desired. This durable trim product
is dent-resistant, rustproof and
easily finished. Multiple elongated
perforations along both flanges
enhance joint compound bond.
Product code
VBSB
Radius (in)
Size
3/4
1-1/2
Length (ft)
8
10
8
10
Vinyl Bullnose Kerfed Corner Bead
Vinyl bullnose kerfed corner bead
has a distinctive shortened back
flange, allowing for insertion into
grooved door jambs and window
trims. Provides for efficient, clean
installation, as well as a smooth,
rounded appearance. It’s dentresistant, rustproof and maintains
shape with no sharp edges or burrs
when field cut. A cost-effective
alternative to expensive wood trims.
Pub. No. CD-Full Line 5/12
Product
code
VBKB
Size
Radius (in)
3/4
1-1/2
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Length (ft)
8
10
8
10
clarkdietrich.com
V I N Y L B E A D S and T R I M S
67
V i n y l B u l l n o s e A r c h way C o r n e r B e a d
Size
Product
code
Radius (in)
Length (ft)
8
10
8
10
3/4
VBAB
1-1/2
INTERIOR FINISHING
ClarkDietrich vinyl bullnose archway
corner bead provides a rounded,
contemporary look to archways,
curves or just about any radius.
Notched flanges enable it to be
arched to an inside or outside radius.
Secure each tab on the archway
bead with adhesive or staples before
application of joint compound.
V i n y l 2-Way I n s i d e 3/4 " B u l l n o s e C o r n e r C a p 9 0 ˚
ClarkDietrich vinyl 2-way 3/4"
corner caps provide the ideal
component to transition bullnose
corner beads to a crisp finish
where inside corners intersect
at 90.̊ Examples of applications
include windows, closets, doorways,
skylights, etc. Easy to install, this
component provides a cost-effective
alternative to time-consuming
mitering of corners.
Product code
Style
Radius (in)
M285
Plastic 2-way
corner cap
3/4
Product code
Style
Radius (in)
M385
Plastic 3-way
corner cap
3/4
Pcs./Box
50
Packaging
Cartons/Skid
25
V i n y l 3 -Way 3/4 " B u l l n o s e C o r n e r C a p 9 0 ˚
ClarkDietrich 3-way 3/4" bullnose
90˚ corner caps provide the ideal
solution to finish corners quickly and
efficiently at 3-way intersections.
Features extended tabs for easier
alignment and a professional finish.
Works well with both metal and vinyl
bullnose corner beads, eliminating
the need for special corner bead
applications and mitering.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pcs./Box
50
Packaging
Carton/Skid
25
Pub. No. CD-Full Line 5/12
68
V I N Y L B E A D S and T R I M S
V i n y l 3/4 " B u l l n o s e to 90 ˚ T r a n s i t i o n C a p
ClarkDietrich bullnose to 90˚
transition caps simplify installation
of baseboard or crown molding
corners into 3/4" bullnose systems.
Quick and easy to install, they
eliminate corner gaps and the need
for time-consuming caulking and
filling. Use with metal, vinyl or
paper-faced 3/4" bullnose corner
bead for transition onto baseboard
or crown molding up to 4-1/2" wide.
Product code
Style
Radius (in)
M859
Bullnose to 90˚
transition cap 3/4"
3/4
Pcs./Box
Packaging
Carton/Skid
50
25
vinyl j-bead
ClarkDietrich vinyl J-bead
provides a finished edge at
gypsum board stops around door
and window openings and at
ceiling intersections. Requires
no joint compound. Rigid vinyl
is not a thermal transmitter and
helps stop condensation where
gypsum board terminates at
exterior metal surfaces, such
as window frames and mullions.
Rustproof and dent-resistant.
Product code
VLJB
Width (in)
Size
1/2
5/8
Length (ft)
8
10
8
10
Vinyl Mudable J-Be ad
Mudable J-bead is used to cover
and protect exposed ends of
gypsum panels that abut other
substrates like masonry, glass and
metal frames. Raised shoulder and
extensive perforations along flange
ensure excellent finishing compound
adhesion and flush finish. Moistureand thermal-resistant properties
make this ideal around bathtubs,
showers, windows and skylights.
Rustproof, dent-resistant, easy to
cut and install.
Pub. No. CD-Full Line 5/12
Product code
VLMJ
Width (in)
1/2
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length (ft)
8
10
8
10
clarkdietrich.com
V I N Y L B E A D S and T R I M S
69
ClarkDietrich L-stop bead creates
a clean detail at gypsum panel
terminations into doors, windows
and ceilings. Easily attaches with
nails, screws or staples to studs
through bead flange. Multiple
perforations along 1-1/4" flange
and raised shoulder enhance strong
compound adhesion and provide
for a flush finish. Rustproof,
dent-resistant and easy to field
cut without distorting profile or
leaving sharp edges and burrs.
Product code
VLLS
Width (in)
Size
1/2
5/8
Length (ft)
8
10
8
10
V i n y l Ri p B e a d™ L-T r i m
ClarkDietrich Vinyl Rip Bead™
L-trim produces an exceptional
finish at intersection of gypsum
panels to ceiling grid, window
returns and dissimilar wall types.
A tear-away strip provides a
protective edge and guide for
drywall finishing knives. Once joint
compound is applied, finished and
painted, remove the tear-away
strip to form a crisp, clean edge.
Product code
VLZL
Width (in)
Size
1/2
5/8
Length (ft)
8
10
8
10
V i n y l Pa r t i t i o n E n d C a p fo r 1/2 " o r 5/8 " B oa r d
Vinyl partition end caps quickly
finish doorways, knee walls and
wall ends, providing a finished face.
Designed with a special factory
punched “T” slotted flange, they
can be easily cut to form arches
or curves. Instead of installing two
corner beads, you install a single
piece, using less compound. Easy to
cut, rustproof and dent-resistant.
clarkdietrich.com
Product code
PEC50
(1/2")
PEC58
(5/8")
Width (in)
2-1/2
3-5/8
2-1/2
3-5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length (ft)
10
10
Pub. No. CD-Full Line 5/12
INTERIOR FINISHING
V i n y l L - S TO P B EAD
70
V I N Y L B E A D S and T R I M S
V in y l 093 Dry wa ll Co ntro l J o int
Vinyl 093 control joint is applied
between abutting gypsum panels
to relieve stresses of expansion
and contraction of drywall in large
ceiling and wall expanses over 30'.
Typically installed from door header
to ceiling, from floor to ceiling in
long partition runs, and from wall to
wall in large ceiling areas. Remove
plastic tape (protects 1/4" opening
x 7/16" deep reveal) after compound
is applied and finished.
Product
code
VCJT
Size
Width (in)
3/32
Length (ft)
10
Note: Where sound transmission is a consideration, an approved seal must be provided
behind the control joint.
B u l l n o s e “J ” B e a d
Vinyl Corp. bullnose “J” bead is
designed to cover the raw edges of
wallboard with a 3/4" radius bead.
The perforated flange accepts joint
compound or veneer plaster for a
flush finish.
B u l l n o s e “J ” B e a d
Board
thickness (in)
1/2
5/8
Size
Pcs./Box
1" perforated flanges,
3/4" back leg
50
50
Size
Pcs./Box
1” perforated flanges
50
50
Surface Application
Vinyl Corp. bullnose “J” bead for
surface application is designed to
be applied after the wallboard is
installed. Cover the raw edges of
wallboard with a 3/4" radius bead.
The perforated flange accepts joint
compound or veneer plaster for a
flush finish.
Pub. No. CD-Full Line 5/12
Product
code
BJB50
BJB58
Product
code
BJB50S
BJB58S
Board
thickness (in)
1/2
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
71
M e ta l L at h a n d Acc e s s o r i e s
Whether using conventional or veneer plaster,
having the right trims, control joints and corner
reinforcements is an integral part of the wall
system’s appearance and long-term performance.
ClarkDietrich’s history in the manufacturing of metal
lath and accessories gives us unique knowledge of
this trade and the product quality it requires.
Metal lath and accessories create a strong mechanical
bond with plaster, stucco and veneer, providing
superior strength and reinforcement. Expanded
mesh and rigid pronounced edges provide excellent
keying and exacting grounds for superior bonding
and finishing to minimize cracks and shadowing.
Products can be readily shaped to enable ornamental
contours not possible with other materials.
clarkdietrich.com
Applications include interior and exterior walls,
ceilings, soffits, fascia and ceramic tile underlayment
for both commercial and residential construction.
• Flat diamond mesh, self-furring dimpled
and V-groove and high rib lath
• Wide selection of beads, screeds, joints and trim, in metal and vinyl
• Strength, flexibility, impact resistance
• Fire resistance: two hours for partitions,
four hours for ceilings and columns
• Extremely difficult to penetrate, providing
security against break-through
General notes/limitations: Metal lath products should not be
used with magnesium oxychloride cement stuccos or stuccos
containing calcium chloride additives. In ceiling assemblies,
certain precautions concerning construction, insulation
and ventilation are necessary for good performance.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
Durable beauty starts beneath the surface.
72
me tal l ath
G a lv a n i z e d J u n i o r ™ M e s h L a t h
ClarkDietrich Junior™ diamond
mesh lath is used as a substrate
for gypsum plaster or for Portland
cement plaster stucco on either
interior or exterior walls, ceilings,
soffit and fascia surfaces, and
can be used under ceramic tile in
wall, ceiling and floor applications.
It’s useful in all general-purpose
applications and is the best lath
available for ornamental work and
contoured surfaces.
Product code
Weight
(lbs/yard2)
LAM
(O)
1.75
2.5
3.4
Width
(in)
Size
Length
(in)
27
97
O = Paper is offset 1" on one long edge and end to ensure proper lath-to-lath laps and a
minimum 2" paper overhang on the opposing long edge and end.
Note: Asphalt paper-backed lath is available in a variety of offsets for various applications
requiring a moisture barrier. Paper conforms to Federal Specification UU-B-790A; type
grade D, style 2 and type 1, grade B, style 1a.
S e l f-Fu r r i n g D i m pl e d L at h
ClarkDietrich self-furring
dimpled lath is manufactured with
approximately 1/4" deep dimples
that raise diamond mesh away from
solid surfaces to enable thorough
plaster or stucco penetration
into and behind the lath for
superior mechanical bonding. The
dimples are spaced every 1-1/2"
over the rectangular sheet, with
approximately 11,000 keys per
square yard. Fasteners must be
applied within the dimple cavity,
to maintain designed furring
characteristics.
Product code
Weight
(lbs/yard2)
LAD
(O)
1.75
2.5
3.4
Width
(in)
Size
Length
(in)
27
97
O = Paper is offset 1" on one long edge and end to ensure proper lath-to-lath laps and a
minimum 2" paper overhang on the opposing long edge and end.
Note: Asphalt paper-backed lath is available for various applications requiring a
moisture barrier.
S e l f-Fu r r i n g V- G r o ov e M e s h L at h
ClarkDietrich self-furring v-groove
mesh lath is manufactured with
five, approximately 1/4" deep “V”
ribs along the length of the sheet.
The Vs allow thorough penetration
into and behind the lath for
superior mechanical bonding. Use
over solid surfaces like concrete,
cement board, column fireproofing,
masonry, sheathing and to replaster
over old surfaces.
Pub. No. CD-Full Line 5/12
Product code
Weight
(lbs/yard2)
LAV
(O)
1.75
2.5
3.4
Width
(in)
Size
Length
(in)
27
97
O = Paper is offset 1" on one long edge and end to ensure proper lath-to-lath laps and a
minimum 2" paper overhang on the opposing long edge and end.
Note: Asphalt paper-backed lath is available for various applications requiring a
moisture barrier.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
me tal l ath
73
3/8 " H i g h R i b L at h
ClarkDietrich 3/8" high rib lath
is the most rigid of all laths and
provides the added support required
when framing is more than 16"
o.c. but does not exceed 24" o.c.
Commonly used for soffits and
ceilings under steel or wood joist
construction and metal-reinforced
concrete floors. 3/8" V-shaped
ribs run the length of the sheet at
3-7/8" intervals and inverted 3/16"
intermediate ribs.
Product code
Weight
(lbs/yard2)
LAR
3.4
Product code
Weight
(lbs/yard2)
LARS
3.4
Width
(in)
27
Size
Length
(in)
97
A more rigid lath than diamond
mesh lath. Spray rib lath is the
same 3/8" rib lath except it’s made
with strips of 50 lb. brown kraft
paper backing, to help prevent
loss of plaster over open framing
or when machine-applied. Spray
rib lath is not to be used as a
replacement for Grade D breather
sheet moisture-retardant paper.
Width
(in)
27
Size
Length
(in)
97
Available West Coast only.
U t i l i t y L at h
ClarkDietrich utility lath is a
superior multipurpose expanded
steel product widely used for
ceramic tile and floor leveling,
and for plaster and stucco repair
and remodel. It is available in both
the Junior™ mesh style as well as
self-furring dimpled product. The
self-furring product is manufactured
with 1/4" deep dimples that raise
the mesh away from solid surfaces
for superior mechanical bonding.
clarkdietrich.com
Product code
LAMU – Junior Mesh (O)
LADU – Dimpled Self-Furring (O)
Width (in)
Length (in)
27
97
27
97
O = Paper is offset 1" on one long edge and end to ensure proper lath-to-lath laps and a
minimum 2" paper overhang on the opposing long edge and end.
Note: Asphalt paper-backed lath is available for various applications requiring
a moisture barrier.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
s p r ay R i b L at h
74
me tal l ath
barrier mesh
This tough, rigid heavy-gauge
security mesh is used behind
common-wall substrates to protect
against break-ins and break-outs.
Tough to smash or cut, it safeguards
walls and ceilings in homes,
apartments, offices, stores, vaults,
storage areas and correctional
facilities. Also fire-resistant, barrier
mesh is a cost-effective, time-saving
alternative to reinforced concrete or
concrete block.
Product
code
BM50
BM75
BM10
BM15
Gauge
18
16
13
13
10
16
16
13
10
Thickness
Overall
thickness (in)
.039
.050
.070
.070
.120
.050
.048
.070
.110
Size
(in)
SWD
Width
(in)
LWD
Length
(in)
1/2
96
48
3/4
96
48
1
96
48
1-1/2
96
48
C-C
of bond
(SWD x LWD)
Percent of
open area
.500" x 1.20"
.500" x 1.20"
.500" x 1.20"
.923" x 2.00"
.923" x 2.00"
1.090" x 2.00"
1.33" x 3.00"
1.33" x 3.00"
1.33" x 3.00"
60
63
52
74
63
78
83
80
75
• Product comes standard as carbon steel; galvanized is available upon request.
Available in standard or flat.
s t r i p l at h
ClarkDietrich strip lath is a flat
expanded metal strip used as plaster
reinforcement over joints of nonmetallic lathing bases and where
dissimilar bases join. It’s commonly
attached diagonally at the corners
of doors, windows or areas prone
to cracks. It may also be used to
span pipe chases or reinforce other
stress points such as the corners of
openings in the stucco membrane
within the lath system.
Product
code
LAST
Width
(in)
4
6
Size
Length
(ft)
8
C o r n e r i t e™ M e ta l L at h A n g l e
Cornerite™ metal lath angle is
used to reinforce all inside or inner
plaster corners to reduce corner
cracking. Formed from finished
edge strip lath, it’s bent lengthwise
to a 100° angle to ensure a snug fit
into 90° corners. It’s commonly
used when walls meet walls or
ceilings, over inner angles of
masonry construction, and in the
floating-angle method of applying
gypsum lath to wood framing.
Pub. No. CD-Full Line 5/12
Product code
XRIT
Width
(in)
2x2
2x2
3x3
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length
(ft)
4
8
8
clarkdietrich.com
me tal l ath
75
S t r u c t a l a t h ® II
For residential/wood frame
construction, Structalath® II is
a welded wire lath engineered to
enhance the performance of stucco
cladding. Structa Wire Corp's
Structalath reduces cracking and
increases stucco embedment while
providing worker-friendly benefits.
Width
(in)
38-3/8
54
48
Size
Length
(ft)
150
100
112.5
Area
(sq yds)
Weight/Roll
(lbs)
Packaging
Rolls/Pallet
53
53
53
54
54
54
32
25
25
Area
(sq yds)
Weight/Roll
(lbs)
Packaging
Rolls/Pallet
50
60
32
Area
(sq yds)
Weight/Roll
(lbs)
Packaging
Rolls/Pallet
30
57
48
Area
(sq yds)
Weight/Sheet
(lbs)
Packaging
Sheets/Bundle
2.1
4.5
12
• Equivalent to 1.75 metal lath
• Not available in all geographic areas
Structalath® is a registered trademark of Structa Wire Corp.
Structa Wire Corp's Twin Trac® is an
innovative self-furring, reinforcing
lath that simplifies the attachment
of lath to wood and steel studs.
Excellent for commercial
construction, it has all the great
features of regular Structalath
plus eight secondary cold-rolled
longitudinal wires that add strength
to form a 'track' for convenient
attachment. Also available in
stainless steel.
Width
(in)
38-3/8
Size
Length
(ft)
150
• Equivalent to 2.5 metal lath
• Not available in all geographic areas
Twin Trac® is a registered trademark of Structa Wire Corp.
M e g a L a t h™
Structa Wire Corp's Mega Lath™
is self-furring, welded wire providing
heavy-duty reinforcing for both
stucco and stone installation.
This product provides easy
attachment for both wood and
steel construction. It's specifically
designed for stucco applications
that require extra reinforcing.
Width
(in)
30
Size
Length
(ft)
108
• Equivalent to 3.4 metal lath
• Not available in all geographic areas
Mega Lath™ is a trademark of Structa Wire Corp.
V Tr u s s ®
V Truss® for walls and ceilings was
designed by Structa Wire Corp
to improve the performance of
stucco on overhead surfaces. This
self-furring, welded wire lath is also
approved for use on vertical surfaces
and as a reinforcing component for
rainscreen wall systems.
clarkdietrich.com
Width
(in)
28
Size
Length
(in)
98
• Equivalent to 3/8" high rib metal lath
• Not available in all geographic areas
• Also available with housewrap backing for open frame construction
V Truss® is a registered trademark of Structa Wire Corp.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
Tw i n T r a c ®
76
CORNER AND CASING BEADS
# 1 A E x p a n d e d F l a n g e C o r n e r B ea d
ClarkDietrich 1A expanded flange
corner bead is used to provide
strong corner reinforcement for
conventional plaster applications.
A solid metal nose provides a
straight, rigid ground for screeding,
and the 2-7/8" or 3" flanges can
be flexed easily over irregular,
uneven surfaces. Plaster keys near
the solid nose provide increased
reinforcement where needed and
ensure straight corners.
Size
Product code
Width
(in)
Length
(ft)
8
10
8
10
2-7/8
CBXA
(galvanized)
3
2-7/8
3
CBZA*
(zinc)
10
*Recommended for interior high-moisture exposure areas and exterior plaster applications.
D o u b l e - X ™ C o r n e r B ea d
ClarkDietrich Double-X,™ or 2A
galvanized corner bead, provides
additional rigidity for reinforcing
plaster corners. Easily adjusts to set
plaster depth on columns and is ideal
for finishing corners of structural tile
with rough masonry. Combination
of expanded flanges and pronounced
bead nose ensures effective corner
alignment and efficient plaster
keying from edge to nose.
Product code
Size
Width
(in)
3-1/4
CBXX
Length
(ft)
10
# 6 6 E x p a n d e d F l a n g e C a s i n g B ea d
ClarkDietrich #66 expanded
flange casing beads are used as
a plaster stop, an exposed trim
around wall openings, and at
junctions or intersections of
plaster and other wall or ceiling
finishes. Extra-long expanded
flange for tie-on applications.
Short 90˚ return flange at plaster
surface ensures a neat finish.
Commonly applied under metal
lath. Also used with gypsum
lath, plaster board, plaster
bases, masonry construction
or stucco applications.
Pub. No. CD-Full Line 5/12
Product code
XXCB
(galvanized)
XXZB
(zinc)
Grounds
(in)
3/8
1/2
5/8
3/4
7/8
1
1-1/4
3/8
1/2
5/8
3/4
7/8
1
1-1/4
Size
Length
(ft)
Weep
hole
10
None
10
None
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
CORNER AND CASING BEADS
77
Designed for use with select,
tested and approved one-coat
plaster systems, this version of the
#66 expanded flange casing bead
includes weep holes for moisture
dissipation. Expanded flange is
3-1/8" wide to aid plaster keying.
NOTE: It is important to remember
that casing beads with weep holes
punched in the ground flange are for
tested and approved one-coat systems.
No other applications are implied or
suggested.
Product code
XXCW
(galvanized)
XXZW
(zinc)
Grounds
(in)
3/8
1/2
5/8
3/4
7/8
1
1-1/4
3/8
1/2
5/8
3/4
7/8
1
1-1/4
Size
Length
(ft)
Weep
hole
10
Yes
10
Yes
Size
Length
(ft)
Weep
hole
10
No
10
No
# 6 6 N S h o r t F l a n g e C a s i n g B ea d
ClarkDietrich #66 N short flange
casing beads are used as plaster
stops, as exposed trim around
wall openings and junctions, or at
intersections of plaster and other
wall or ceiling finishes. Perforated
1-1/4" nailing flange aids attachment
and plaster keying. Short flange
7/8" beads are recommended when
flange is applied under gypsum lath
plaster base; and short flange 1/2"
beads when flange is applied over
gypsum lath plaster base.
Product code
SFCB
(galvanized)
SFZB
(zinc)
Grounds
(in)
3/8
1/2
5/8
3/4
7/8
1
1-1/4
3/8
1/2
3/4
7/8
Caution: Suggestions for installation precautions when installing two-piece expansion
joints and double casing beads used as double expansion joints—ASTM C1063 requires
that double casing beads used as a movement joint are installed “with a flexible barrier
membrane behind the casing beads.” It is ClarkDietrich’s opinion that all two-piece joints,
whether made from double casing beads or as a manufactured two-piece joint, should
be installed with the flexible peel and stick membrane behind the joint. It is further
recommended that they be filled with backer rod and a highly elastic top-quality sealant.
# 6 6 N S h o r t F l a n g e C a s i n g B ea d w i t h Wee p H o l e
This #66 N short flange galvanized
casing bead has the same uses as the
#66 expanded flange casing beads
associated with select one-coat
systems, but it has weep holes for
moisture dissipation. Perforated
1-1/4" nailing flange aids attachment
and plaster keying.
NOTE: It is important to remember that
casing beads with weep holes punched
in the ground flange are for tested and
approved one-coat systems. No other
applications are implied or suggested.
clarkdietrich.com
Product code
SFWB*
Grounds
(in)
3/8
1/2
5/8
3/4
7/8
1
1-1/4
Size
Length
(ft)
Weep
hole
10
Yes
*Available in zinc as a custom order.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
# 6 6 E x p a n d e d F l a n g e C a s i n g B ea d w i t h Wee p H o l e
78
CONTROL and EXPANSION JOINT S
D o u b l e-V Co n t r o l J o i n t
Double-V expansion control
joints relieve the stresses of
basic expansion and contraction
associated with inherent shrinkage
during stucco curing and general
thermal changes. Resists corrosion,
plus expanded flanges allow for
proper keying and easy installation.
Ground heights include 3/8" for
thin coat plaster and 1/2," 3/4" and
7/8" for conventional plaster.
Product code
VVCJ
(galvanized)
VVJZ
(zinc)
Grounds
(in)
3/8
1/2
3/4
7/8
1/2
3/4
7/8
Size
Length
(ft)
10
10
D o u b l e -J C o n t r o l J o i n t
A general-purpose control joint
offering exceptional expansion
control for plastered walls and
ceilings, the double-J expansion
control joint has a 5/16" reveal
and rolled outer edges that allow
effective plaster bonding. This helps
prevent visible separation cracks.
Plastic tape keeps the reveal clean
and is removed easily after finish
application.
Product code
XJ15
(galvanized)
ZJ15
(zinc)
Grounds
(in)
1/2
3/4
7/8
1/2
3/4
7/8
Size
Length
(ft)
10
10
Corner Master™ #30 Co ntr ac ti o n Co ntro l J o i nt
ClarkDietrich Corner Master™
#30 expansion/contraction
control joint is designed to provide
stress relief at plaster wall inside
corner intersections, by absorbing
movement and controlling cracking.
It has expanded flanges pre-formed
at 90˚ for a flush fit at inside corners.
Ground heights offered aid plaster
keying and result in a clean, straight
finish. Manufactured from galvanized
steel for corrosion protection.
Product code
CR30
Grounds
(in)
1/2
3/4
7/8
Size
Length
(ft)
10
CAUTION: Joints and corners are a potential point of water intrusion. ClarkDietrich strongly recommends building paper be placed as flashing behind all joints and
corners. Also, a bead of high-quality caulking should be applied under the joints prior to the attachment of the materials.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
CONTROL And EXPANSION JOINT S
79
E xpa n s i o n J o i n t #40
Product code
EJ40
(galvanized)
EZ40
(zinc)
Grounds
(in)
1/2
3/4
7/8
1/2
3/4
7/8
Size
Length
(ft)
10
10
Caution: Suggestions for installation precautions when installing two-piece expansion
joints and double casing beads used as double expansion joints—ASTM C1063 requires
that double casing beads used as a movement joint are installed “with a flexible barrier
membrane behind the casing beads.” It is ClarkDietrich’s opinion that all two-piece joints,
whether made from double casing beads or as a manufactured two-piece joint, should
be installed with the flexible peel and stick membrane behind the joint. It is further
recommended that they be filled with backer rod and a highly elastic top-quality sealant.
093 Zinc Control Joint
ClarkDietrich 093 zinc control
joint is applied between abutting
gypsum panels to relieve stresses
of expansion and contraction of
drywall and veneer plaster systems
in wall expanses over 30,' and ceiling
areas exceeding 2,500 square feet.
It’s installed from door header to
ceiling, from floor to ceiling in long
partition runs, and from wall to
wall in large ceiling areas or in areas
where framing or furring change
direction. For interior or exterior
applications.
Product code
ZNCJ
Grounds
(in)
3/32
Size
Length
(ft)
10
NOTE: Where fire and sound control are prime considerations, an approved seal must be
installed behind the control joint.
Zinc Control Joints 38, 50, 75 and 100
Zinc control joints 38, 50, 75
and 100 are roll-formed from
zinc to resist corrosion in both
interior and exterior applications
with gypsum or Portland cement
plaster. An open slot, 1/4" wide
and 1/2" deep, is protected with
plastic tape that is removed after
plaster and finish are completed.
Perforated short flanges aid keying
and wire attachment to metal
lath or stapling to gypsum lath.
Product code
ZCJ3
ZCJ5
ZCJ7
ZCJ1
Grounds
(in)
3/8
1/2
3/4
1
Size
Length
(ft)
10
CAUTION: Joints and corners are a potential point of water intrusion. ClarkDietrich strongly recommends building paper be placed as flashing behind all joints and
corners. Also, a bead of high-quality caulking should be applied under the joints prior to the attachment of the materials.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
ClarkDietrich expansion joint #40
is a two-piece slip joint that finishes
butt ends of adjacent panels in wide
or tall walls and ceilings, to allow
for multi-directional movement.
Ideal for joining dissimilar wall
types such as wood framing to
CMU and at construction joints.
Use where excessive horizontal
and vertical movement may
occur. Adjustable expansion
opening or reveal is 1/4" to 5/8".
80
WEEP And SILL SCREEDS
F. H . A . 7 F o u n d at i o n W e e p S c r e e d
Size
F.H.A.7 foundation weep screed
Product code
Grounds
Depth
Length
protects the stop edges of stucco
(in)
(in)
(ft)
and exterior insulated finish
7/8
3-1/2
10
FHA7
system materials at the sill plate.
1-3/8
3-1/2
10
Commonly referred to as F.H.A.
Also available without bonding holes and in 28 gauge (FHAE) for non-code work.
screed, it meets all pertinent
F.H.A. requirements as part of
a drainage system for exterior
stucco applications. Meets IBC
requirement for foundation screeds.
7/ 8 " S i l l S c r e e d
7/8" sill screed is a similar profile
to the F.H.A.7 foundation weep
screed except the bottom flange
has been cut back to allow trowel
access for cleaning excess material
and trimming of the vapor barrier.
It offers impact and splash
protection, and meets all other
applicable codes with respect to
3-1/2" nailing flange, 26 gauge
galvanized steel and 7/8" ground.
Product code
SI36
Size
Depth
(in)
5-1/2
Grounds
(in)
7/8
Length
(ft)
10
1 - 3 / 8 " J - W e e p w i t h 2 " Na i l i n g F l a n g e a n d W e e p H o l e
ClarkDietrich 1-3/8" J-weep lowback is commonly used as a stop
around door and window openings
or in areas where stucco or E.I.F.S.
terminations abut dissimilar wall
types. Nail, screw or staple-attach
to the frame or sheathing, then
foam insulation, cement board or
metal lath can be installed over it.
The protruding ridge of the metal
must extend beyond the plane of
overlaid materials.
Pub. No. CD-Full Line 5/12
Product code
JCLB
JWLB
Grounds
(in)
1-3/8
1-3/8
Size
Depth
(in)
2
2
Length
(ft)
10
10
Weep
hole
No
Yes
NOTE: Do not use as a foundation weep screed for three-coat stucco applications. It should
only be used on approved one-coat systems. Does not conform to code-required work if
used as a foundation weep.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
WEEP and SILL SCREEDS
81
3 - 1 / 2 " J - W e e p H i g h - B a c k P l as t e r S t o p
Product
code
JWP
Grounds
(in)
7/8
1-3/8
Size
Depth
(in)
3-1/2
3-1/2
Length
(ft)
10
10
Weep hole
Yes
CAUTION: Joints and corners are a potential point of water intrusion. ClarkDietrich
strongly recommends building paper be placed as flashing behind all joints and corners.
Also, a bead of high-quality caulking should be applied under the joints prior to the
attachment of the materials.
ME TAL L ATH & ACCESSORIES
J-weep high-back plaster stop
is a J-shaped square-nosed trim
manufactured from 26 gauge
galvanized steel. Punched weep
holes allow for use as a sill weep
screed or screed and trim around
wall openings. Squared bends
accommodate 1" rigid insulation and
3/8" one-coat stucco applications.
Meets the IBC requirements for
foundation weep screeds.
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
82
V E N E E R P L A S T E R B E A D S and T R I M S
Mini-Bead™ 800 and 900
ClarkDietrich Mini-Bead™ 800
and 900 are fine-mesh corner
beads used to provide corner
reinforcement for one- and
two-coat veneer plaster systems.
Mini-Bead 800 has 1/16" grounds
for one-coat veneer plaster and 90
keys per linear foot for excellent
bonding and strong corners. MiniBead 900 has 3/32" grounds for
two-coat veneer plaster systems.
Product code
MB80
(galvanized)
MB90
(galvanized)
ZB80
(zinc)
ZB90
(zinc)
Grounds
(in)
Width
(in)
Size
Length
(ft)
1/16
1-1/4
8
3/32
1-1/4
10
1/16
1-1/4
10
3/32
1-1/4
10
Note: Zinc Mini-Beads should be used in exterior finish systems.
#701 A M e ta l J -T r i m w i t h 3/ 32 " a n d 1/ 1 6" G r o u n d s
ClarkDietrich veneer trims are
J-shaped to fit standard gypsum
panel depths with grounds to
accommodate veneer finishes. They
provide clean, neat edge protection
for one- or two-coat veneer
plaster finishes at gypsum panel
terminations to wall openings and
wall or ceiling intersections. Trim
with 3/32" grounds is for two-coat
veneers and trim with 1/16" grounds
is for one-coat veneer plaster.
Product code
Grounds
(in)
M71A
(galvanized)
3/32
M81A
(galvanized)
1/16
Z71A
(zinc)
Z81A
(zinc)
3/32
1/16
Width
(in)
Size
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
Length
(ft)
8
10
8
10
8
10
8
10
10
10
10
10
Our zinc alternatives provide
ultimate corrosion protection
for cement board and exterior
applications.
#701 B M e ta l L-T r i m w i t h 3/ 32 " a n d 1/ 1 6" G r o u n d s
Our veneer trims are L-shaped
trims designed for use at junctions
of veneer gypsum base with rough
concrete or masonry ceilings. Sized
to fit standard gypsum plaster
bases, the trim with 3/32" grounds
is for two-coat veneer, and the trim
with 1/16" grounds is for one-coat
veneer plaster.
Our zinc alternatives provide the
added benefit of ultimate corrosion
protection for exterior applications.
Pub. No. CD-Full Line 5/12
Product code
Grounds
(in)
M71B
(galvanized)
3/32
M81B
(galvanized)
1/16
Z71B
(zinc)
Z81B
(zinc)
3/32
1/16
Width
(in)
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size
Length
(ft)
8
10
8
10
8
10
8
10
10
10
10
10
clarkdietrich.com
V E N E E R P L A S T E R B E A D S and T R I M S
83
#4 Short Fl ange Corner Bead
For use on straight corners, or one
flange can be snipped then bent
without kinking. For use on arched
radius.
Length
(ft)
8
10
Product code
#4
#4
Available West Coast only.
A welded wire right angle assembly,
affording a truer, stronger exterior
corner that reduces cracking in
Portland cement plaster.
Product code
W951
Flange
(in)
2-1/2 x 2-1/2
Size
Length
(ft)
10
Available West Coast only.
Bullnose, Stockaid and Archaid are
also available in stock 10' lengths.
tile cap
Preferred method where sink
or lavatory is to be recessed. A
punched metal strip attached to
the front edge of the cabinet is
used in some geographical areas
as a screed and support for the
countertop trim.
clarkdietrich.com
Product code
TC127
TZ154
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Length
(ft)
5
5
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
Wire Corner Reinforcement
84
V i n y l cor n er a n d C asi n g B ea d s
Vinyl Corner Bead
Vinyl Corp. #1 corner bead provides
hard-to-damage, rustproof, straight
corners, and is easily curved for
smooth arches. A heavier version of
our #1 corner bead, the #2 corner
bead also has wider flanges. #2
corner beads should be used where a
more durable corner is required.
Product code
#1
#2
Length (ft)
7, 8, 9, 10
8, 10
Ground
Any
Any
Size (in)
2-1/2 X 2-1/2
2-3/4 X 2-3/4
Pcs./Box
50
40
J u mb o C o r n e r B e a d
Vinyl Corp. jumbo corner bead is
designed for deep fills or irregular
corner conditions.
#40
Product code
#40
#30
#43
#4150
#3150
Ground
Any
Any
Any
Any
Any
Size (in)
4-1/4 x 4-1/4
3x3
4-1/4 x 3
4-1/4 x 1-1/2
3 x 1-1/2
Pcs./Box
25
25
25
25
25
Size (in)
2-1/2 x 2-1/2
2-3/4 x 2-3/4
2-1/2 x 1-1/2
2-3/4 x 1-1/2
Pcs./Box
50
40
50
40
U.S. Patent Nos. 5,816,002 and 6,070,374
#30
#4150
V i n y l Archmaker™ Co r n e r B e a d
Our #1 Archmaker™ corner bead
provides true, uniform, curved or
arched reinforcement. The heavier
version of our #1 Arch, our #2 Arch
corner bead should be used for
applications requiring increased
damage resistance. The #1X
Archmaker corner bead provides
a true, uniform, curved or arched
reinforcement with a 1-1/2" flange
for narrow returns. The #2X Arch
is a heavier version of our #1X Arch
and should be used for increased
damage resistance. All of our
Archmaker corner beads conform
to most arched and curved designs.
Pub. No. CD-Full Line 5/12
Product code
#1Arch
#2Arch
#1XArch
#2XArch
Ground
Any
Any
Any
Any
U.S. Patent Nos. 5,816,002 and 6,070,374
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
V i n y l E x pa n sio n C o n trol J oi n ts
85
Vinyl Bullnose Corner Bead
Designed for use in applications
such as schools and hospitals, Vinyl
Corp.’s #1B 3/4" bullnose corner
bead provides hard-to-damage,
rustproof, soft corners. The #2B
bullnose corner bead is a heavier
version that is appropriate for
applications where a more durable
corner is required.
Product code
#1B
#2B
Length (ft)
7, 8, 9, 10
8, 10
Ground
Any
Any
Size (in)
2-1/2 x 2-1/2
2-3/4 x 2-3/4
Pcs./Box
20
16
Length (ft)
7, 8, 9, 10
8, 10
Ground
Any
Any
Size (in)
2-1/2 x 2-1/2
2-3/4 x 2-3/4
Pcs./Box
20
16
#1 bullnose Archmaker™ corner
beads offer a true, uniform, curved
or arched corner reinforcement
with a bullnose design. The #2B
bullnose Archmaker corner bead
provides a heavier option for use
where a more durable corner is
desired. Both conform to most
arched and curved designs.
Product code
#1BArch
#2BArch
U.S. Patent Nos. 5,816,002 and 6,070,374
Vinyl C asing Be ad/Pl aster Stop
Vinyl Corp. casing beads and plaster
stops are used to terminate stucco
and plaster against doors, windows
and dissimilar materials.
Product code
6625
6638
6650
6658
6675
6678
66100
Ground (in)
1/4
3/8
1/2
5/8
3/4
7/8
1
Product code
1538
1550
1558
1575
1578
15100
Ground (in)
3/8
1/2
5/8
3/4
7/8
1
Size (in)
1-3/4 flange width
Pcs./Box
100
100
100
100
75
75
75
Vinyl Control Joint
Control joints are designed
to relieve stress and assist in
controlling cracking in large areas
of walls and ceilings. Vinyl Corp.’s
specially designed Connector Clips
are provided for alignment and base
for sealants.
clarkdietrich.com
Size (in)
4 flange width
Pcs./Box
35
35
30
26
20
20
NOTE: Connector Clips are not provided with 3/8" ground.
Positive attachment of each flange or control joint to separate framing is required.
Caulk all intersections, butt joints, ends and corners at time of installation.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
ME TAL L ATH & ACCESSORIES
V i n y l B u l l n o s e Archmaker™ Co r n e r B e a d
86
V i n y l W eep A ND S ill S cree d s
Vinyl Control Joint
With removable tape
Used to provide stress relief and
assist in controlling cracking in large
areas of walls and ceilings, control
joints with removable tape protect
the deep “V” expansion slot during
construction. Specially designed
Connector Clips are provided for
alignment and base for sealants.
Recommended for smooth finishes.
Product code
1525X
1538X
1550X
1558X
1575X
1578X
15100X
Ground (in)
1/4
3/8
1/2
5/8
3/4
7/8
1
Size (in)
2-1/4 flange width
Pcs./Box
50
50
40
35
30
30
30
3-1/4 flange width
NOTE: Connector Clips are not provided for 1/4" or 3/8" grounds.
Positive attachment of each flange of control joint to separate framing is required.
Caulk all intersections, butt joints, ends and corners at time of installation.
V i n y l 3 - 1 / 2 " W e e p Sc r e e d
Vinyl Corp. 3-1/2" weep screed
is designed to relieve moisture
from stucco and act as a stop.
It should be installed on frame
construction where stucco and
foundation walls meet.
Product number
WS38-350U
WS50-350U
WS58-350U
WS75-350U
WS78-350U
WS138-350U
Ground (in)
3/8
1/2
5/8
3/4
7/8
1-3/8
Size (in)
Pcs./Box
50
50
40
40
30
30
4 overall width
Caulk all intersections, butt joints, ends and corners at time of installation.
V i n y l F o u n d a t i o n W e e p Sc r e e d
Foundation weep screed acts as
a stop, and is designed with an
unperforated flange, allowing
moisture removal from stucco
installations on frame construction
at the foundation line.
Pub. No. CD-Full Line 5/12
Product code
FWS6678W
FWS66138W
Ground (in)
7/8
1-3/8
Size (in)
Pcs./Box
40
40
3-1/2 overall width
Caulk all intersections, butt joints, ends and corners at time of installation.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
87
Clips and Connectors
Any clip or connector you’d need, exactly when
you want it. Strength is in the details.
For the widest and most cost-effective array of clips,
connectors, supports and framing hardware, turn to
ClarkDietrich Clip Express. With Clip Express, you
get fully engineered, rigorously tested and precisionformed connectors each and every time. Many of
our connectors were developed by, or in conjunction
with, framing installers in order to deliver highperformance products for significant installed savings.
But what makes Clip Express unique is not simply the
vast lineup of products. It’s our delivery, and pronto.
Because we know that staying on schedule is crucial,
we ship most orders the same day they are received.
SM
We know that having the right products, at the right
time, and at the right price is absolutely essential to
getting the job done. ClarkDietrich Clip Express is
ready to deliver. When, how and where you need it.
Curtain wall/bypass connections
Head-of-wall, deflection and rigid connections
Floor joist, roof and truss framing connections
Bridging, bracing and backing connections
Gusset plates, specialty clips, connectors and fasteners
Overnight delivery available
CLIPS AND CONNECTORS
•
•
•
•
•
•
clarkdietrich.com
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
88
C U R T A I N W A L L an d B Y P A S S C O N N E C T I O N S
F a s t C l i p™ S l i d e C l i p
FastClip Slide Clip (3-1/2")
ClarkDietrich FastClip™ slide clip
deflection clips are used to attach
exterior curtain wall studs to the
building structure and provide
for vertical building movement
independent of the cold-formed
steel framing. FastClip slide
clips install quickly with screws
or powder-actuated fasteners.
Embossed with fastening patterns
to ensure accurate placement.
Product
code
Gauge
FCSC
FCSC
14
14
Thickness
Design thickness
(in)
68
0.0713
68
0.0713
Size
(in)
Packaging
Pcs./Carton
1-1/2 x 3-1/2 x 4-1/2
1-1/2 x 5-1/2 x 4-1/2
25
Mils
3-1/2" FCSC includes 55 FastClip deflection screws per carton.
5-1/2" FCSC includes 80 FastClip deflection screws per carton.
U.S. Patent No. 6,688,069
FastClip Slide Clip (5-1/2")
Fast Str ut™
Fast Strut 12
The ClarkDietrich Fast Strut™
curtain wall connector employs the
FastClip technology for curtain wall
stud attachment and is commonly
used when large standoff conditions
exist. FastStrut products allow
framing attachment well beyond the
perimeter of the structural steel—or
when the spandrel beams are set
back from the edge of the structure.
Attached to the underside of
structural members with screws,
welds or powder-actuated fasteners.
Product
code
Gauge
FS12
FS15
Custom lengths
14
14
14
Thickness
Design thickness
Mils
(in)
68
0.0713
68
0.0713
68
0.0713
Size
(in)
Packaging
Pcs./Carton
4 x 2 x 12-1/4
4 x 2 x 15-1/4
per customer specs
10
Includes 55 FastClip deflection screws per carton.
U.S. Patent No. 6,688,069
Fast Strut 15
Fa stH o o k Fa st Clip™ S l i d e C l i p
Left-hand version shown
Pub. No. CD-Full Line 5/12
Revolutionary FastHook technology
allows the installer to temporarily
hang clip in place on pour stop
or perimeter angle, freeing both
hands for the installation of
permanent fasteners. Used to
attach exterior curtain wall studs
to the building structure, they
provide for up to 3" of vertical
building movement independent
of the cold-formed steel framing.
Product code
FHCL
FHCR
Thickness
Gauge
Mils
14
14
68
68
Design
thickness (in)
0.0713
0.0713
Size (in)
Packaging
Pcs./Bucket
1-1/2 x 5-1/2 x 4-1/2
1-1/2 x 5-1/2 x 4-1/2
25
25
FHCL = FastHook FastClip, left
FHCR = FastHook FastClip, right
Please specify when ordering.
Includes 80 FastClip deflection screws per bucket.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
C U R T A I N W A L L an d B Y P A S S C O N N E C T I O N S
89
Fl at Tail S li d e Clip™
ClarkDietrich’s Flat Tail Slide Clip™
is used to attach exterior curtain
wall studs to the building structure,
providing for 2-1/4" vertical building
movement independent of the coldformed steel framing. It provides
variable standoff, eliminating the
need for shims or additional framing
components. Restricts lateral
movement, but enables the curtain
wall system to move vertically.
Product code
Thickness
Gauge
Mils
10
118
FTSC
Design thickness Stud width (in)
(in)
0.1242
3-5/8–8
Packaging
Pcs./Bucket
25
Includes 80 FastClip deflection screws per bucket.
Q u i c k C l i p™
Product
code
Gauge
QC3
QC4
QC6
QC8
10
10
10
10
Thickness
Design thickness
Mils
(in)
118
0.1242
118
0.1242
118
0.1242
118
0.1242
Stud width
(in)
Packaging
Pcs./Bucket
3-5/8
4
6
8
50
50
50
40
Size
(in)
Packaging
Pcs./Carton
2-3/8 x 5
2-3/8 x 5
50
U.S. Patent No. 5,836,133 of B&D Industries, Inc.
S l i d e C l i p™
A ClarkDietrich Slide Clip™ is
used to attach exterior curtain
wall studs to the building structure
and provide for vertical building
movement independent of the
cold-formed steel framing. Slide
clips are used in bypass framing
situations and are normally
welded or otherwise fastened to
the vertical leg of a structural
angle at the floor or roof edge.
clarkdietrich.com
Thickness
Product
code
Gauge
Mils
SD
SD
14
12
68
97
Design thickness
(in)
0.0713
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
QuickClip™ vertical slide clips
attach exterior curtain wall studs to
the building structure and provide
for vertical building movement
independent of the cold-formed
steel framing. Provide variable
standoff and eliminate the need
for shims or additional framing
components. Simply rotate into
place and fasten to the floor/
ceiling beam. The clips restrict
lateral movement, but enable the
structure to move vertically.
90
h ead - o f - w all de f lection C O N N E C T I O N S
F a s t T o p™ C l i p
FTC3
ClarkDietrich Fast Top™ clips are
used in head-of-wall deflection
conditions for in-fill curtain wall
assemblies to provide for vertical
movement. Use in place of, or
in combination with, deflection
track. They also make a positive
attachment and eliminate
the need to install bridging
continuously throughout the
upper-most punchouts.
Thickness
Product
code
Gauge
Mils
FTC3
FTC5
14
14
68
68
Design
thickness
(in)
0.0713
0.0713
Web
width
(in)
Leg
length
(in)
Standard
length
(ft)
Packaging
Pcs./Carton
4
4
1-1/2
1-1/2
3-1/4
4-3/4
25
30
FTC3 includes 55 FastClip™ deflection screws per carton.
FTC5 includes 110 FastClip deflection screws per carton.
U.S. Patent No. 6,688,069
FTC5
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
RIGID CONNECTIONS
91
U n i - C l i p™ E n d C l i p
ClarkDietrich’s Uni-Clip™ end clip
is a universal framing clip used to
attach and support numerous rigid
framing conditions. The Uni-Clip
framing clip has a stiffened corner
that provides superior design values
and is installed easily with screws or
powder-actuated fasteners. This clip
is ideal for most rigid connections,
including shear, tension and two-axis
loading.
Product
code
Gauge
UCEC
14
Thickness
Design thickness
(in)
68
0.0713
Size
(in)
Packaging
Pcs./Carton
3-1/2 x 1-1/2 x 4-1/2
25
Size
(in)
Packaging
Pcs./Bucket
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
100
100
100
50
50
100
100
80
50
50
50
50
50
50
40
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
400
200
100
100
100
200
200
100
100
100
200
150
100
80
70
Mils
U.S. Patent No. 6,688,069
ClarkDietrich EasyClip™ E-Series™
support clips are used for rigid
standoff connections. The 4" wide
leg provides extra length to achieve
standoff connections up to 3".
These support clips are commonly
used in bypass wall conditions,
solid blocking attachments in
joist framing, and to secure rafter
framing to the primary structure.
EasyClip E-Series support clips are
prepunched for faster and more
accurate fastener placement.
Product
code
E543
E545
E547
E549
E541
E683
E685
E687
E689
E681
E973
E975
E977
E979
E971
Gauge
Thickness
Design thickness
(in)
Mils
16
54
0.0566
14
68
0.0713
12
97
0.1017
E a s y C l i p s - S e r i e s™ S u p p o r t C l i p
ClarkDietrich EasyClip S-Series™
support clips are used for rigid
connections in window and door
framing, joist, bypass or other
miscellaneous connections to secure
one framing member to another—or
to secure framing members to the
structural frame. EasyClip S-Series
clips are prepunched for faster and
more accurate fastener placement.
clarkdietrich.com
Product
code
S543
S545
S547
S549
S541
S683
S685
S687
S689
S681
S973
S975
S977
S979
S971
Gauge
Thickness
Design thickness
Mils
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
E a s y C l i p™ E - S e r i e s™ S u p p o r t C l i p
92
RIGID CONNECTIONS
E a s y C l i p™ U - S e r i e s™ C LIP A N G L E
ClarkDietrich EasyClip™ U-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging or for miscellaneous rigid
connections. U-channel is passed
through the stud knockout and an
EasyClip U-Series clip is screwattached or welded to provide
a rigid connection. These clips
are prepunched for faster, more
accurate fastener placement. Do
not use in bridging applications
when the stud width exceeds 6".
Product
code
U543
U545
U547
U549
U683
U685
U687
U689
U973
U975
U977
U979
Thickness
Design thickness
Mils
(in)
Gauge
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
400
200
100
100
200
170
100
100
200
130
100
80
E a s y C l i p b - S e r i e s™ C LIP A N G L E
ClarkDietrich EasyClip B-Series™
clip angles are used to secure
U-channel to wall studs in backto-back framing applications and
for various miscellaneous rigid
connections. The shorter length
of the B-Series clip enables it to
be installed inside the C-shape. It
can also be used to secure lateral
bridging on single studs where
the clip is preferred to be inside
the C-shape. Do not use in lateral
bridging when stud width exceeds 6".
Product
code
B543
B545
B547
B549
B683
B685
B687
B689
B973
B975
B977
B979
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size (in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
400
200
100
100
200
170
100
100
200
130
100
80
E a s y C l i p x - S e r i e s™ C LIP A N G L E
ClarkDietrich EasyClip X-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging. U-channel is passed
through the stud knockout and an
EasyClip X-Series clip is screwattached or welded to provide a rigid
connection. X-Series clip angles
and U-channel should not be used
in lateral bridging when stud width
exceeds 6".
Pub. No. CD-Full Line 5/12
Product
code
X543
X545
X547
X549
X683
X685
X687
X689
X973
X975
X977
X979
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size (in)
Packaging
Pcs./Bucket
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
200
170
100
100
200
100
100
80
100
100
60
60
clarkdietrich.com
RIGID CONNECTIONS
93
S w i f t C l i p™ L S - S e r i e s™ S u p p o r t C l i p
SwiftClip™ LS-Series™ support clips
are used in multiple construction
projects, specifically in conjunction
with studs and track. The L-shaped
clips fit between the stud flanges, so
that shorter length clips do not need
to be ordered. These labor timesavers include prepunched holes
for quicker screw attachments,
and are punched to accommodate
for U-channel lateral bracing
connections.
Thickness
Product
code
Gauge
LS543
LS545
LS547
LS549
LS541
LS683
LS685
LS687
LS689
LS681
LS973
LS975
LS977
LS979
LS971
Mils
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
1-1/2 x 1-1/2 x 3-1/4
1-1/2 x 1-1/2 x 5-1/2
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 11-1/4
300
200
150
100
100
300
200
100
100
50
200
100
100
50
50
Design
thickness (in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
ClarkDietrich EasyClip™ A-Series™
end clips are most commonly used
to reinforce connections in kneewall applications or to reinforce jamb
stud connections to the primary
frame. These clips are unpunched,
as the specific application will
determine the appropriate number
and placement of fasteners.
Product
code
A543
A546
A683
A686
A973
A976
Thickness
Gauge
Mils
Design
thickness (in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Gauge
Mils
Design
thickness (in)
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
3x3x3
3x3x6
3x3x3
3x3x6
3x3x3
3x3x6
100
100
100
100
100
50
Size
(in)
Packaging
Pcs./Bucket
2 x 2 x 3-1/2
2 x 2 x 5-1/2
2 x 2 x 3-1/2
2 x 2 x 5-1/2
40
E a s y C l i p d - S e r i e s™ a n c h o r c l i p
ClarkDietrich EasyClip D-Series™
anchor clips are high-performance,
cost-effective solutions for knee
wall-to-foundation connections,
light-duty shearwall-tofoundation connections and
truss-to-wall connections. These
multi-application clips feature
reinforced stiffening ribs that
provide superior design values
for maximum performance.
clarkdietrich.com
Product
code
D683
D685
D973
D975
Thickness
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
E a s y C l i p™ A - S e r i e s™ e n d c l i p
94
RIGID CONNECTIONS
E a s y C l i p™ t - S e r i e s™ t a l l a n c h o r c l i p
ClarkDietrich EasyClip™
T-Series™ tall anchor clips are
high-performance, cost-effective
solutions for knee wall-tofoundation connections, lightduty shearwall-to-foundation
connections and truss-to-wall
connections. They are designed
to resist horizontal, torsional and
vertical (uplift) loads.
Pub. No. CD-Full Line 5/12
Product
code
T683
T685
T973
T975
Thickness
Design thickness
(in)
Gauge
Mils
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
2 x 4 x 3-1/2
2 x 4 x 5-1/2
2 x 4 x 3-1/2
2 x 4 x 5-1/2
40
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
BRIDGING, BRACING & BACKING CONNECTIONS
95
E a s y C l i p™ U - S e r i e s™ C L I P A N G L E
ClarkDietrich EasyClip™ U-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging or for miscellaneous rigid
connections. U-channel is passed
through the stud knockout and an
EasyClip U-Series clip is screwattached or welded to provide
a rigid connection. These clips
are prepunched for faster, more
accurate fastener placement. Do
not use in bridging applications
when the stud width exceeds 6".
Product
code
U543
U545
U547
U549
U683
U685
U687
U689
U973
U975
U977
U979
Thickness
Design thickness
(in)
Gauge
Mils
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
1-1/2 x 1-1/2 x 3-3/8
1-1/2 x 1-1/2 x 5-3/4
1-1/2 x 1-1/2 x 7-3/4
1-1/2 x 1-1/2 x 9-3/4
400
200
100
100
200
170
100
100
200
130
100
80
ClarkDietrich EasyClip B-Series™
clip angles are used to secure
U-channel to wall studs in backto-back framing applications and
for various miscellaneous rigid
connections. The shorter length
of the B-Series clip enables it to
be installed inside the C-shape. It
can also be used to secure lateral
bridging on single studs where
the clip is preferred to be inside
the C-shape. Do not use in lateral
bridging when stud width exceeds 6".
Product
code
B543
B545
B547
B549
B683
B685
B687
B689
B973
B975
B977
B979
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
Size (in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5-1/4
1-1/2 x 1-1/2 x 7-1/4
1-1/2 x 1-1/2 x 9-1/4
400
200
100
100
200
170
100
100
200
130
100
80
E a s y C l i p x - S e r i e s™ C L I P A N G L E
ClarkDietrich EasyClip X-Series™
clip angles are used to secure
U-channel to wall studs for lateral
bridging. U-channel is passed
through the stud knockout and an
EasyClip X-Series clip is screwattached or welded to provide a rigid
connection. X-Series clip angles
and U-channel should not be used
in lateral bridging when stud width
exceeds 6".
clarkdietrich.com
Product
code
X543
X545
X547
X549
X683
X685
X687
X689
X973
X975
X977
X979
Thickness
Gauge
Mils
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Size (in)
Packaging
Pcs./Bucket
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
2 x 2 x 3-3/8
2 x 2 x 5-3/4
2 x 2 x 7-3/4
2 x 2 x 9-3/4
200
170
100
100
200
100
100
80
100
100
60
60
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
E a s y C l i p b - S e r i e s™ C L I P A N G L E
96
BRIDGING, BRACING & BACKING CONNECTIONS
S p a z z e r ® 9 2 0 0 S pace r an d B r i d ging Ba r
The TradeReady® Spazzer® 9200
bar is a pre-notched, 20 gauge,
galvanized steel spacer and bridging
bar. It facilitates rapid erection of
studs into a rigid, accurately laid out
gridwork that has excellent resistance
to stud rotation and displacement.
Hanging drywall is also faster and
easier because the Spazzer 9200 bar
eliminates the bow that often occurs
in tall interior studs.
Product
code
Gauge
SPZD
20
Thickness
Design thickness
(in)
33
0.0346
Packaging
Size
(in)
Pcs./Box
Pcs./Skid
7/8 x 7/8 x 50
N/A
1350
Mils
• Eliminates stud spacing layout at deck
• Improves drywall installation speed
• Automatically positions and rigidly holds studs on
16" or 24" centers without fasteners
• Eliminates clip angles and the labor required to install them
U.S. Patent Nos. 5,784,850 and 6,021,618
Spazzer 5400
ClarkDietrich TradeReady Spazzer
5400 spacer bar is a galvanized
steel spacer and bridging bar,
engineered to facilitate the rapid
erection of exterior curtain wall
framing, load-bearing walls and
high interior partitions constructed
of structural studs. Proprietary
prepunched slots provide excellent
torsional and lateral stud restraint.
•
•
•
•
Thickness
Product
code
Gauge
Mils
SPZS
16
54
Design
thickness
(in)
0.0566
Packaging
Size
(in)
Pcs./Bundle
Pcs./Skid
1-1/4 x 1-1/4 x 50
N/A
680
Fast, easy and efficient
Reduces labor up to 40%
Eliminates clip angles, bridging clips and welding
Pre-notched at 12," 16" and 24" intervals so no layout is required
U.S. Patent No. 6,708,460 and other patents pending.
Spazzer Bar Guard™
Used to secure the Spazzer 5400
spacer bar when used in loadbearing applications.
Product code
SPBG
Size (in)
3-1/4 x 1-5/8
Packaging Pcs./Carton
100
Product code
SFLY
Size (in)
1 x 1-1/4 x 1
Packaging Pcs./Carton
100
S p a z z e r Ba r F l y C lip
The Spazzer fly clip is a secure,
fast and efficient way to finish a
wall section. This prepunched clip
eliminates the need for cutting and
bending when using the Spazzer
5400 spacer bar.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
BRIDGING, BRACING & BACKING CONNECTIONS
97
D a n b a c k ® W o o d Bac k ing P la t e
Just snap, flex and screw. It’s that fast.
Danback® is a heavy-duty,
flexible wood backing system
used to support cabinets, shelves,
handrails, wall-mounted sinks
and counters, and all other wallmounted fixtures. Danback provides
superior connection shear and
pullout strength to support and
meet even some of the heaviest
loading conditions. The patented
hinge design actually flexes around
the stud and snaps into place for a
perfect fit—every time.
Product
code
D16F*
D24F*
D16C**
D24C**
•
•
•
•
•
Width
(in)
Length
(in)
Packaging
Pcs./Skid
5-1/8
48
250
Reduces installation time up to 90%
Available for 16" and 24" o.c. framing
Eliminates cutting, notching, ripping and routing
Made with Dricon® fire-retardant treated wood
Complies with all national building codes
Dricon ® is a registered trademark of Arch Wood Protection, Inc.
Danback® is a registered trademark of Daniel W. Tollenaar.
U.S. Patent No. 6,705,056 of Daniel W. Tollenaar.
*F = fire-treated plywood. D16 = 16" o.c. spacing. D24 = 24" o.c. spacing.
Trimables available for off-module spacing in small bucket or bulk quantities.
**FSC-certified lumber available on request, which can contribute to LEED ® points on
your project. Contact ClarkDietrich LEED professionals at 888-437-3244 for more
information. FSC chain-of-custody # BV-COC-008121.
K a t z ™ b l o c k ing
Product code
Size (in)
KA
3-5/8
Length (in)
16
24
F a s t B a c k ™ Bac k ing C lip
For use with the FastBack™ backing
system, the FastBack backing clip
conceals fasteners on the face of
the product. Rotate the FastBack
clip over the flange of the stud until
it sits flush. Then fasten into place
using drywall screws in the predrilled holes.
clarkdietrich.com
Product code
FBBC
FBBC
Width (in)
1-1/4
1-1/4
Length (in)
5-1/8
10-1/4
Packaging Pcs./Carton
100
100
U.S. Patent No. 7,882,676 is owned by Jeffery Thomas Ellis.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
ClarkDietrich Katz™ blocking
is specifically manufactured to
ladder frame between parallel
framing members and provide for
the attachment of the top of the
interior nonstructural walls when
trusses or floor joists run parallel to
the walls. Katz blocks are secured to
the floor joists or roof trusses with
screws or nails.
98
GUSSE T PL ATES
g - S e r i e s™ p u n c h e d g u ss e t p l a t e s
G-Series™ punched gusset plates
are multipurpose connectors
used in a variety of framing
connections including roof framing,
header framing and shearwall
applications. They adapt to
multiple configurations and varying
construction tolerances.
Product
code
Gauge
G436
G546
G686
18
16
14
Thickness
Design thickness
(in)
43
0.0451
54
0.0566
68
0.0713
Mils
Size
(in)
Packaging
Pcs./Bucket
6 x 8-1/2
6 x 8-1/2
6 x 8-1/2
50
Plate size
(in)
Packaging
Pcs.
g p - S e r i e s™ u n p u n c h e d g u ss e t p l a t e s
GP-Series™ unpunched gusset
plates are used to facilitate
connections between chord
members for in-plane framing and
anchoring diagonal tension strapping
to corner studs for shearwalls.
Adapts to multiple configurations
and varying construction tolerances.
Product
code
Thickness
Design thickness
(in)
Gauge
Mils
16
54
0.0566
12
97
0.1017
Product
code
Gauge
Mils
H436
H546
H686
18
16
14
GP
6x6
6 x 12
12 x 12
6x6
6 x 12
12 x 12
25
25
H - S e r i e s™ UN I V E R S AL HEADE R HANGE R
The H-Series™ universal header
hanger is used to connect box
headers to jambs, or beams
to columns, and transfer large
vertical loads. This universal
hanger is designed so one part
can be used for either side of
the connection. The hanger also
features a support tab for proper
alignment and easy installation.
Pub. No. CD-Full Line 5/12
Thickness
Design thickness
(in)
43
0.0451
54
0.0566
68
0.0713
Size
(in)
Packaging
Pcs./Bucket
6 x 8-1/2
6 x 8-1/2
6 x 8-1/2
50
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
FLOOR JOIST FRAMING CONNECTIONS
99
E a s y C l i p™ e - S e r i e s™ s u p p o r t c l i p
ClarkDietrich EasyClip™ E-Series™
support clips are used for rigid
standoff connections. The 4" wide
leg provides extra length to achieve
standoff connections up to 3".
These support clips are commonly
used in bypass wall conditions,
solid blocking attachments in
joist framing, and to secure rafter
framing to the primary structure.
EasyClip E-Series support clips are
prepunched for faster and more
accurate fastener placement.
Product
code
E543
E545
E547
E549
E541
E683
E685
E687
E689
E681
E973
E975
E977
E979
E971
Thickness
Design thickness
(in)
Gauge
Size
(in)
Packaging
Pcs./Bucket
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
100
100
100
50
50
100
100
80
50
50
50
50
50
50
40
Size
(in)
Packaging
Pcs./Bucket
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
1-1/2 x 1-1/2 x 3
1-1/2 x 1-1/2 x 5
1-1/2 x 1-1/2 x 7
1-1/2 x 1-1/2 x 9
1-1/2 x 1-1/2 x 11
400
200
100
100
100
200
200
100
100
100
200
150
100
80
70
Mils
16
54
0.0566
14
68
0.0713
12
97
0.1017
Gauge
Mils
ClarkDietrich EasyClip S-Series™
support clips are used for rigid
connections in window and door
framing, joist, bypass or other
miscellaneous connections to secure
one framing member to another, or
to secure framing members to the
structural frame. EasyClip S-Series
clips are prepunched for faster and
more accurate fastener placement.
Product
code
S543
S545
S547
S549
S541
S683
S685
S687
S689
S681
S973
S975
S977
S979
S971
Thickness
Design thickness
(in)
16
54
0.0566
14
68
0.0713
12
97
0.1017
E a s y C l i p Q u i c kTw i s t ™ W e b S t i f f e n e r
EasyClip QuickTwist™ web
stiffeners are used to provide
reinforcement of joist webs
to prevent crippling. Web
reinforcement is often required
by design to enhance the load
capacity of joists. The unique
design of QuickTwist allows the
installer to insert the stiffener
on the inside of the joist after the
joist is installed. This stiffener
eliminates the need to pre-insert
traditional web stiffeners prior to
joist installation.
clarkdietrich.com
Product
code
Size
(in)
Thickness
Gauge
Mils
Design
thickness (in)
QTWS
3-1/2
12
97
0.1017
QTWS
6
12
97
0.1017
Height*
(in)
7-1/4
8
9-1/4
10
11-1/4
12
14
7-1/4
8
9-1/4
10
11-1/4
12
14
Packaging
Dependent
on order
quantity
Dependent
on order
quantity
*Dimension is nominal size. Actual product is shorter to fit inside joist.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
E a s y C l i p s - S e r i e s™ s u p p o r t c l i p
100
FLOOR JOIST FRAMING CONNECTIONS
U n i - C l i p™ E n d C l i p
ClarkDietrich’s Uni-Clip™ end
clip is a universal framing clip used
to attach and support numerous
rigid framing conditions. The UniClip framing clip has a stiffened
corner that provides superior
design values and is installed easily
with screws or powder-actuated
fasteners. This clip is ideal for most
rigid connections, including shear,
tension and two-axis loading.
Product
code
Gauge
UCEC
14
Thickness
Design thickness
(in)
68
0.0713
Size
(in)
Packaging
Pcs./Carton
3-1/2 x 1-1/2 x 4-1/2
25
Mils
U.S. Patent No. 6,688,069
F i e l d S k ew a b l e T r a d e R e a d y ® R i m T r a c k S p l i ce P l a t e
The ClarkDietrich field skewable
TradeReady® rim track splice plate
provides an easy and efficient
method for splicing TradeReady
rim. This prepunched plate is
also ideal for connecting and
reinforcing the rim at bay or bow
window details. The center of the
plate allows for easy one-time
field bending from 0˚ to 135˚.
Pub. No. CD-Full Line 5/12
Product
code
Gauge
TDSP
TDSP
18
16
Thickness
Design thickness
(in)
43
0.0451
54
0.0566
Mils
Size
(in)
Packaging
Pcs./Box
4x6
4x6
100
100
CAUTION: This plate can only be bent one time.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
R o o f A n d T r u s s C o n n e ct i o n s
101
g - S e r i e s™ p u n c h e d g u ss e t p l a t e s
G-Series™ punched gusset plates
are multipurpose connectors
used in a variety of framing
connections including roof framing,
header framing and shearwall
applications. They adapt to
multiple configurations and varying
construction tolerances.
Product
code
Gauge
G436
G546
G686
18
16
14
Thickness
Design thickness
(in)
43
0.0451
54
0.0566
68
0.0713
Mils
Size
(in)
Packaging
Pcs./Bucket
6 x 8-1/2
6 x 8-1/2
6 x 8-1/2
50
Plate size
(in)
Packaging
Pcs.
g p - S e r i e s™ u n p u n c h e d g u ss e t p l a t e s
GP-Series™ unpunched gusset
plates are used to facilitate
connections between chord
members for in-plane framing and
anchoring diagonal tension strapping
to corner studs for shearwalls.
Adapts to multiple configurations
and varying construction tolerances.
Product
code
Thickness
Design thickness
(in)
Gauge
Mils
16
54
0.0566
12
97
0.1017
Product
code
Gauge
Mils
UCEC
14
6x6
6 x 12
12 x 12
6x6
6 x 12
12 x 12
GP
25
25
U n i - C l i p™ E n d C l i p
clarkdietrich.com
Thickness
Design thickness
(in)
68
0.0713
Size
(in)
Packaging
Pcs./Carton
3-1/2 x 1-1/2 x 4-1/2
25
U.S. Patent No. 6,688,069
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
CLIPS AND CONNECTORS
ClarkDietrich’s Uni-Clip™ end
clip is a universal framing clip used
to attach and support numerous
rigid framing conditions. The UniClip framing clip has a stiffened
corner that provides superior
design values and is installed easily
with screws or powder-actuated
fasteners. This clip is ideal for most
rigid connections, including shear,
tension and two-axis loading.
Pub. No. CD-Full Line 5/12
102
R o o f A n d T r u s s C o n n e ct i o n s
E a s y C l i p™ E - S e r i e s™ S u p p o r t C l i p
ClarkDietrich EasyClip™ E-Series™
support clips are used for rigid
standoff connections. The 4" wide
leg provides extra length to achieve
standoff connections up to 3".
These support clips are commonly
used in bypass wall conditions,
solid blocking attachments in
joist framing, and to secure rafter
framing to the primary structure.
EasyClip E-Series support clips are
prepunched for faster and more
accurate fastener placement.
Product
code
E543
E545
E547
E549
E541
E683
E685
E687
E689
E681
E973
E975
E977
E979
E971
Gauge
Thickness
Design thickness
(in)
Mils
16
54
0.0566
14
68
0.0713
12
97
0.1017
Gauge
Mils
14
68
0.0713
12
97
0.1017
Size
(in)
Packaging
Pcs./Bucket
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
4 x 1-1/2 x 3
4 x 1-1/2 x 5
4 x 1-1/2 x 7
4 x 1-1/2 x 9
4 x 1-1/2 x 11
100
100
100
50
50
100
100
80
50
50
50
50
50
50
40
Size
(in)
Packaging
Pcs./Bucket
2 x 4 x 3-1/2
2 x 4 x 5-1/2
2 x 4 x 3-1/2
2 x 4 x 5-1/2
40
E a s y C l i p t - S e r i e s™ t a l l a n c h o r c l i p
ClarkDietrich EasyClip T-Series™
tall anchor clips are highperformance, cost-effective
solutions for knee wall-tofoundation connections, lightduty shearwall-to-foundation
connections and truss-to-wall
connections. They are designed
to resist horizontal, torsional and
vertical (uplift) loads.
Pub. No. CD-Full Line 5/12
Product
code
T683
T685
T973
T975
Thickness
Design thickness
(in)
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
SPECIALT Y CLIP S AND CONNEC TORS
103
Aluminum Burn Clip
ClarkDietrich aluminum burn clips
are used as part of the H-stud area
separation wall assembly and are
designed to melt when exposed
to fire. The clips hold the area
separation wall assembly in place
at the floor, roof and truss line
between adjacent units. In a fire,
the aluminum burn clips on the
fire-ridden side of the wall will melt,
allowing the wall structure for that
side to collapse.
Product
code
AB
AB63*
Thickness
(in)
0.050
0.063
Size
(in)
2 x 2 x 2-1/2
2 x 2 x 2-1/2
Packaging
Pcs./Bucket
500
500
*AB63 meets requirements of ICC-ES Legacy Report 92-19.
R E S ILI E N T S O UN D I S O L A T I O N C LIP
The RSIC-1® resilient sound isolation
clip is used in conjunction with
drywall furring channel to fasten
gypsum wallboard to various wall and
floor-ceiling designs and applications,
while simultaneously providing
acoustical separation (decoupling).
This significantly reduces the amount
of impact and sound that filters from
surrounding rooms—reducing the
noise transfer by 75 to 100%.
Product code
RSIC-1
Pcs./Bucket
200
U.S. Patent No. 6,267,347 of MTEC, LLC.
The RSIC-1 clip is a registered trademark of MTEC, LLC.
Ul and UL Classified are registered trademarks of
Underwriters Laboratories, Inc.
ClarkDietrich metal furring channel
clips are made of galvanized wire
and used to attach metal furring
channels to 1-1/2" U-channels in
ceiling gridwork. Clips must be
installed on alternating sides of the
1-1/2" channels. Use tie wire when
clips cannot be alternated. Clips
should only be used when singlelayer gypsum or single-layer veneer
plaster base is used.
clarkdietrich.com
Product code
MFCC
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pcs./Bucket
500
Pub. No. CD-Full Line 5/12
CLIPS AND CONNECTORS
M E T A L F URRIN G C H A NN E L C l i p
104
S P E C I A L T Y C L I P S A n d C O NN E C T O R S
c u sto m fab r i cated c l i p s a n d co n n ecto r s
When the job calls for a connection, clip or support that doesn’t exist in this catalog, ClarkDietrich can
create whatever you need. We can custom fabricate just about any shape, bend, angle or specialty framing
clip, connector or support to your exact specification. Manufactured using precision cutting and forming
equipment, a diverse selection of specialized sizes and shapes is available—including prepunched holes and/
or specialized slots. Simply submit your dimensioned drawings to your ClarkDietrich representative, and we'll
do the rest!
Note: The performance and installation of custom-made products is the sole responsibility of the design professional and
engineer of record. Any customer ordering a custom-fabricated clip, connector or support shall indemnify, defend and
hold harmless ClarkDietrich and ClarkDietrich Engineering Services for any loss or damage arising in whole or in part.
Pub. No. CD-Full Line 5/12
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Index
Product Name Index
A
A-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Anchor Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93-94
Archway Bead . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66-67
Area Separation Wall Systems . . . . . . . . . . . . . . 32-33
Aluminum Burn Clip . . . . . . . . . . . . . . . . . . . . . 33, 103
B
B-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 92, 95
Backing Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 97
Backing Plate . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27, 97
Barrier Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Bridle Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Bullnose Corner Beads . . . . . . . . . . 61-63, 66-68, 70
C
C-Joist Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
C-Runner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
C-Studs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
CH-Stud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
CT Shaftwall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Casing Bead . . . . . . . . . . . . . . . . . . . . . . . . . . 76-77, 85
Channel Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 103
Clinch-On Products . . . . . . . . . . . . . . . . . . . . . . 60-61
Clip Angle . . . . . . . . . . . . . . . . . . . . . . . . 25, 48, 92, 95
Clip Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Clips and Connectors . . . . . . . . . . . . . . . . . . . . 87-104
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Contour Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Corner Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 37
Corner Caps . . . . . . . . . . . . . . . . . . . . . . . 62-63, 67-68
Corner Master #30 . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cornerite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Custom Clips and Connectors . . . . . . . . . . . . . . . . 104
Custom Shapes . . . . . . . . . . . . . . . . . . . . . . . . . . 37, 104
D
D-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Danback Wood Backing Plate . . . . . . . . . . . . . . 26, 97
Deep Leg Deflection Track . . . . . . . . . . . . . . . . . 20, 44
Deflection Track . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 44
Diagonal Tension Strapping . . . . . . . . . . . . . . . . 48, 53
Drop ’N Lock Clip . . . . . . . . . . . . . . . . . . . . . . . . 21, 39
Double Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 44
Double-J Control Joint . . . . . . . . . . . . . . . . . . . . . . . . 78
Double-V Control Joint . . . . . . . . . . . . . . . . . . . 78, 85
Double-X Corner Bead . . . . . . . . . . . . . . . . . . . . . . . . 76
E
E-Series . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91, 99, 102
E-Stud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
EasyClip . . . . . . . . . . . . 25, 48, 52, 54, 91-95, 99, 102
End Clip . . . . . . . . . . . . . . . . . . . . . . . . 91, 93, 100, 101
Engineering Services . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Expansion Joint #40 . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Exterior Framing . . . . . . . . . . . . . . . . . . . . . . . . . 34-49
F
Fast Strut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Fast Top Clip . . . . . . . . . . . . . . . . . . . . . . . . . 20, 45, 90
FastBack Backing Clip . . . . . . . . . . . . . . . . . . . . . 26, 97
FastClip Slide Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
FastHook FastClip Slide Clip . . . . . . . . . . . . . . . . . . 88
Fast Strut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
clarkdietrich.com
Field Skewable TradeReady Splice Plate . . . . . . . 100
Flat Strapping . . . . . . . . . . . . . . . . . . . . . . . . 26, 48, 53
Flat Tail Slide Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Floor Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-55
Foundation Weep Screed . . . . . . . . . . . . . . . 80-81, 86
Furring Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 37
Furring Channel Clip . . . . . . . . . . . . . . . . . . . . . . 13, 103
G
G-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 101
GP-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 101
Galvanized Junior Mesh Lath . . . . . . . . . . . . . . . . . . . 72
General Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Goldline Paper-Faced Beads . . . . . . . . . . . . . . . 56-59
Grommets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 36, 46
Gusset Plates . . . . . . . . . . . . . . . . . . . . . . . . 48, 98, 101
H
H-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
H-Stud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
HDS Framing System . . . . . . . . . . . . . . . . . 22, 40, 49
HDS Header Bracket . . . . . . . . . . . . . . . . . . . . . 22, 40
Head-of-Wall Deflection Systems . . . . . . . . . . . 19-20
Heavy-Duty Furring Channel . . . . . . . . . . . . . . . . . . 37
Heavy-Duty Stud . . . . . . . . . . . . . . . . . . . . . . . . 22, 40
High Rib Lath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
How to Use This Catalog . . . . . . . . . . . . . . . . . . . . . . . . 6
I
Interior Contour Track . . . . . . . . . . . . . . . . . . . . . . . . 12
Interior Finishing . . . . . . . . . . . . . . . . . . . . . . . . . 56-70
Interior Framing . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-33
J
J-Bead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 68, 70
J-Runner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 31
J-Tabbed Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
J-Weep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80-81, 86
Jamb Strut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Joist Hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Junior Mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
K
Katz Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 97
Knockouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
ksi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
L-Bead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 69
L-Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
L-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
LA-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
LE-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
LS-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 47, 93
LEED Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
M
MaxTrak Slotted Deflection Track . . . . . . . . . . . . 19, 42
Mega Lath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Metal Corner Beads . . . . . . . . . . . . . . . . . . . . . . 60-64
Metal Lath and Accessories . . . . . . . . . . . . . . . . . 71-86
Metric Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mini-Bead 800/900 . . . . . . . . . . . . . . . . . . . . . . 64, 82
Miscellaneous Angles . . . . . . . . . . . . . . . . . . . . . . . . . 37
N
P
Paper-Faced Beads . . . . . . . . . . . . . . . . . . . . . . . 56-59
Partition End Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Plastic Grommets . . . . . . . . . . . . . . . . . . . . . 13, 36, 46
Product Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Product Substitution . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ProSTUD Drywall Framing System . . . . . . . . . . 10-11
ProSTUD Sound Assemblies . . . . . . . . . . . . . . . . . . . 15
ProTRAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Protective Coatings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ProX Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 41
ProX Header System . . . . . . . . . . . . . . . . . . . . . . 23, 41
Q
QuickClip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Quicksilver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
QuickTwist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 99
R
RC-1 Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RC-1 ProPlus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RC-2 Pro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RC-2 ProPlus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RC-Deluxe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RSIC-1 Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 103
RedHeader RO . . . . . . . . . . . . . . . . . . . . . . . 21, 38-39
Resilient Channel . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Resilient Channel Installation . . . . . . . . . . . . . . . . . . 18
Resilient Sound Isolation Clip . . . . . . . . . . . . . 18, 103
Rip Bead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Rough Openings . . . . . . . . . . . . . . . . 21-23, 38-41, 49
S
S-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91, 99
Self-Furring Dimpled Lath . . . . . . . . . . . . . . . . . . . . 72
Self-Furring V-Groove Mesh Lath . . . . . . . . . . . . . . 72
SFIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SLP-TRK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 43
Seismic SLP-TRK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Shaftwall Systems . . . . . . . . . . . . . . . . . . . . . . . . . 28-31
Shearwall Bracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Simpson Strong-Tie . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Skewable Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Slide Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88, 89
Slotted Track . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 42, 43
Sound Assemblies . . . . . . . . . . . . . . . . . . . . . 15-18, 103
Sound-Rated Systems . . . . . . . . . . . . . . . . . . 15-18, 103
Spazzer Bar . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 46, 96
Spazzer Bar Fly Clip . . . . . . . . . . . . . . . . . . . . . . . 46, 96
Spazzer Bar Guard . . . . . . . . . . . . . . . . . . . . . . . . 46, 96
Spazzer Snap-In Grommet . . . . . . . . . . . . . . . . . . . . 46
Splayed Corner Bead . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Spray Rib Lath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Standards & Specifications . . . . . . . . . . . . . . . . . . . . . . 7
Steel Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Strip Lath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
StructaLath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Structural Track . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 53
Stucco Accessories . . . . . . . . . . . . . . . . . . . . 74, 76-86
Stucco Corner Bead . . . . . . . . . . . . . . . . . . . 76, 84-85
Support and Services . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Support Clip . . . . . . . . . . . 24, 47, 54, 91, 93, 99, 102
SwiftClip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 47, 93
Notched Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Index
#4 Short Flange Corner Bead . . . . . . . . . . . . . . . . . 83
#701A Metal J-Trim . . . . . . . . . . . . . . . . . . . . . . . . . 82
#701B Metal L-Trim . . . . . . . . . . . . . . . . . . . . . . . . . 82
093 Control Joints . . . . . . . . . . . . . . . . . . . 64, 70, 79
103 Deluxe Corner Bead . . . . . . . . . . . . . . . . . . . . . 60
105
O
—
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
106
Index
Product Name Index
T
Product Code Index
#4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
T-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94, 102
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tension Bracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Tile Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
TradeReady Floor System . . . . . . . . . . . . . . . . . . 50-52
TradeReady Header . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TradeReady Rim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
TradeReady Steel Joist . . . . . . . . . . . . . . . . . . . . . . . . 51
TradeReady Structural Blocking . . . . . . . . . . . . . . . . 52
Twin Trac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
U
U-Bead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
U-Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24, 47
U-Series . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 48, 92, 95
USG Shaftwall Systems . . . . . . . . . . . . . . . . . . . 30-31
USG CH-Stud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG E-Stud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG J-Runner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG Jamb Strut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Uni-Clip End Clip . . . . . . . . . . . . . . . . . . . . 91, 100, 101
Universal Header Hanger . . . . . . . . . . . . . . . . . . . . . 98
Utility Lath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
V
V Truss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Vinyl Archmaker Corner Bead . . . . . . . . . . . . . . . . 84
Vinyl Bullnose Archmaker Corner Bead . . . . . . . . 85
Vinyl Corp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Vinyl Drywall Trims . . . . . . . . . . . . . . . . . . . . . . . 65-70
Vinyl Stucco Corner Beads . . . . . . . . . . . . . . . . 84-85
Vinyl Stucco Control Joints . . . . . . . . . . . . . . . . 85-86
Vinyl Stucco Trims . . . . . . . . . . . . . . . . . . . . . . . . 84-86
W
Web Stiffener . . . . . . . . . . . . . . . . . . . . . . . . . 52, 53, 99
Wire Corner Reinforcement . . . . . . . . . . . . . . . . . . 82
X
X-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 92, 95
Y
Yield Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Z
Z-Furring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Zinc Control Joints . . . . . . . . . . . . . . . . . . . . . . . 64, 79
A
A-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
AB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 103
B
B-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 92, 95
BDTK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 43
BJB50/58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
BJB50S/58S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
BM10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BM15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BM50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BM75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
BPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
BPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
C
CAE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
CAE 90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CAEW 135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
CAN 90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CANW 135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CB12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
CBB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
CBBK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
CBBW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
CBCO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
CBCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
CBS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
CBU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
CBXA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
CBXX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
CBZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
CDBV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
CDMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
CETB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CHN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 47
CNTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CR30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
CSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 52
CSJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 52
CSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 52
CSW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 52
CTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
CTN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
CWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
D
D-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
D16, D24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 97
DNLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 39
DTN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 48, 53
DTNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
E
E-Series . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91, 99, 102
EJ40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
EZ40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
F
FBBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 97
FCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 37
FCMD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 37
FCN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FCSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Pub. No. CD-Full Line 5/12
FHA7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
FHC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
FS12, 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
FTC3/FTC5 . . . . . . . . . . . . . . . . . . . . . . . . . 20, 45, 90
FTSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
G
G436 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 101
G546 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 101
G686 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 101
GP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 98, 101
GROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 36
H
H436 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
H546 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
H686 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
HCN90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
HDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 40, 49
HDSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 40
HEAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 38
HRN1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
HSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
J
JAMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 39
JCLB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
JWLB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
JWP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
K
KA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
KATZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
L
L-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
LAD (O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
LADU (O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
LAM (O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
LAMU (O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
LAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
LARS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
LAST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
LAV (O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
LHDR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
LS-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 93
M
M20A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
M20B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
M285 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 67
M385 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 67
M400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
M401 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
M402 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
M71A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
M71B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
M81A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
M81B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
M859 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 68
MAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 42
MB80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 82
MB90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 82
MFCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 103
N
NOTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
O
OTSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
OTSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 44
OTSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 44
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
Index
P00B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
P0BO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
P100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P1BN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
P1BO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
P1SU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P1UO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P1WO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P1XU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P1XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P2BI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
P2I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P20I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
P4L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PEC50/58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
PGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
PROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
PROT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
PXH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 41
PXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 41
PXTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 41
Q
QC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
QTWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 99
R
RCDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RCDN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RCSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RCUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
RSIC-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 103
S
S-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91, 99
S/JCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
SFCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
SFLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 96
SFWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
SFZB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
SI36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
SLS5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SLS7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SPBG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 96
SPGR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
SPZD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 96
SPZS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46, 96
T
T-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94, 102
T20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
T27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
T36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
TC127 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
TD12, 16, 19, 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
TDHA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TDHB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
TDJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
TDSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
TDSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
TDW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
TSA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
TSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 53
TSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 36, 44
TSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
TSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 36, 44
TSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
TTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
clarkdietrich.com
TTN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
TZ154 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
U
U-Series . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 48, 92, 95
UCEC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91, 100, 101
USG CH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG ES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG JR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
USG JS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
V
VBAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
VBCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
VBKB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
VBSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
VCJT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
VLAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
VLCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
VLJB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
VLLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
VLMJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
VLSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
VLZL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
VVCJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
VVJZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
W
W951 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
WS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
X
X-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 92, 95
XJ15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
XRIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
XXCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
XXCW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
XXZB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
XXZW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Z
Z71A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Z71B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Z81A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Z81B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
ZB80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 82
ZB90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 82
ZCJ1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
ZCJ3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
ZCJ5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
ZCJ7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
ZFE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ZFN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ZJ15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
ZNCJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 79
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Index
P
107
Pub. No. CD-Full Line 5/12
108
T ra d e marks A ND W arra n ty
P a t e n t s a n d T R ADE M A R K S
Patents
Deluxe, RC-Deluxe,™ QuickSilver,™ Rip Bead,™
Cornerite,™ Junior,™ Katz,™ C-Series,™ CWN,™
CSJ,™ CSW,™ CSE,™ CSS,™ Double-X,™ Corner
Master,™ Mini-Bead™ and Archmaker™ are owned
by ClarkDietrich Building Systems.
DriCon is a registered trademark of
Arch Wood Protection, Inc.
LEED is a registered trademark of the
U.S. Green Building Council.
Danback is a registered trademark
of Daniel W. Tollenaar.
Simpson and Simpson Strong-Tie
are trademarks of Simpson Strong-Tie
Company, Inc.
UL and UL Design are trademarks of Underwriter’s
Laboratories, Inc.
ProX Header and SLP-TRK are registered
trademarks of Brady Construction Innovations.
RSIC-1 is a registered trademark
of MTEC, LLC.
Structalath, Twin Trac and V Truss are registered
trademarks of Structa Wire Corp.
Mega Lath™ is a trademark of Structa
Wire Corp.
Goldline and Platinum are registered trademarks
of Bailey Metal Products, Ltd.
USG Sheetrock is a registered trademark of USG
Corporation.
®
U.S. Patent Nos. 5,689,922; 5,784,850;
5,816,002; 6,021,618;
6,070,374; 6,301,854;
6,418,694; 6,688,069;
6,691,478; 6,691,487;
6,708,460; 6,761,005;
7,240,459
Canadian Patent No. 2319346
GOLDLINE Trims are covered under the
following patents:
®
U.S. Patent Nos. 5,836,122 and 5,613,335
Canadian Patent No.
2,212,854
®
Australian Patent No. 69582
®
New Zealand Patent No. 302378
PLATINUM Trims (separate patent) are covered
under the following:
®
Mexican Patent No. 243294
U.S. Patent No.5,836,133 is owned by B&D
Industries, Inc.
U.S. Patent Nos.6,799,408 and 7,178,304 are
owned by Brady Construction
Innovations
U.S. Patent No.6,230,467 is owned by
Simpson Strong-Tie Company,
Inc.
U.S. Patent No.6,705,056 is owned by Daniel
W. Tollenaar
U.S. Patent No.6,267,347 is owned by
MTEC, LLC
U.S. Patent No.7,882,676 is owned by Jeffery
Thomas Ellis
U.S. Patent No. 7,214,434 B2
Canadian Patent No.
2,417,325
®
®
®
®
Australian Patent No. 2004202648
New Zealand Patent No. 533606
®
®
®
®
Trademarks
®
ClarkDietrich is a trademark of ClarkDietrich
Building Systems.
TradeReady, Spazzer, FastClip,™ EasyClip,™
Fast Top,™ Fast Strut,™ Uni-Clip,™ Clip
Express, Drop ’N Lock Clip,™ Stronger Than
Steel, FastBack,™ HDS, RedHeader RO,™
QuickTwist,™ Slide Clip,™ SubmittalPro,
SwiftClip,™ A-Series,™ B-Series,™ D-Series,™
E-Series,™ G-Series,™ GP-Series,™
H-Series,™ L-Series,™ LS-Series,™ LESeries,™ LA-Series,™ S-Series,™ T-Series,™
U-Series,™ X-Series,™ QuickClip,™ MaxTrak,
Bar Guard,™ DoubleTrack,™ QC-Series,™
ProSTUD, ProTRAK, Contour Track,
®
®
SM
SM
®
®
®
®
®
®
®
®
®
®
®
W A R R ANT Y
Warranty
Our products are manufactured in accordance
with company standards and/or industry
standards, as applicable. All ClarkDietrich
Building Systems products are covered by our
standard warranty which is contained in our
Standard Terms and Conditions of Sale and
which will be provided upon request. Generally,
we warrant our products will be free from
defects in material and workmanship at the
time of shipment, subject to the limitations
stated in the warranty. Unless specifically
agreed in writing by us with respect to specific
orders, we do not make any warranty of
merchantability or fitness for a particular
purpose. The buyer is responsible to assure that
buyer orders the appropriate product for any
applicable code or specification requirements.
Pub. No. CD-Full Line 5/12
NOTICE: Our liability is expressly limited to
replacement of defective products. We shall
not be liable for incidental and consequential
damages, nor for any loss caused by misuse or
misapplication of our products. Any claim shall
be deemed waived unless made in writing to us
within thirty (30) days from the date it was or
reasonably should have been discovered.
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
clarkdietrich.com
109
c o d e a pp r o va l s a n d p e r fo r m a n c e s ta n d a r d s
ClarkDietrich products meet or exceed these applicable performance standards.
AISI "North American Specification for the Design of Cold-Formed
Steel Structural Members, AISI S-100-2007 with 2010 supplement
LEED Credit MR 2
Construction Waste Management (Up to 2 points)
ASTM American Society for Testing and Materials
ClarkDietrich products are manufactured from cold-formed
steel. Steel is 100% recyclable, which helps divert debris
from the waste stream. The contribution to LEED must
be calculated by the contractor based on weight or volume.
Product specifications
ASTM C645
ASTM C955
ASTM C847
ASTM C841/C1063
ASTM C1047
Non-structural steel framing members
Load-bearing steel framing
Plastering steel products
Veneer and plaster accessories
Beads and trims–metal–paper–vinyl
Material specifications
ASTM A1003 (NS33, ST33L, ST33H, ST50L, ST50H)
ASTM A653
Zinc-coated hot-dip process
ASTM A653/B69
Veneer and plaster accessories
Protective coating standards
ASTM C645
ASTM C955
ASTM A653 ASTM C1063
ASTM C1047
Non-structural steel framing members
Load-bearing steel framing
Zinc-coated hot-dip process
Veneer and plaster accessories
Beads and trims–metal–paper–vinyl
®
LEED Credit MR 4 Recycled Content (Up to 3 points)
ClarkDietrich’s steel products have a minimum of 25.5%
post-consumer recycled content, and 6.8% pre-consumer.
If you wish to report a higher number for your project or seek
Credit MR 5 regional materials, please contact Tech Services
at 888-437-3244 or clarkdietrich.com.
ClarkDietrich Building Systems has prepared this literature with the utmost
diligence and care for accuracy and conformance to standards.
ClarkDietrich intends this information to be accurate, informative, and helpful
as a selection guide for choosing ClarkDietrich Building System products.
However, this information is only to be used for guidance and is not intended
to replace the design, drawings, specifications, and decisions of a professional
architect or engineer.
ClarkDietrich Building Systems or its affiliates shall not be responsible for
incidental or consequential damages, directly or indirectly sustained, nor for
loss caused by application of our products for other than their intended uses.
Our liability is limited to replacement of defective products. Claims shall be
deemed waived unless they are made to us in writing within thirty (30) days
of the date a problem was or reasonably should have been discovered.
UL Underwriters Laboratories testing standard
UL 263 "Fire Tests of Building Construction and Materials"
Additional code approvals
International Building Code
®
ClarkDietrich Building Systems reserves the right to modify or change any
information contained in this literature without notification.
ClarkDietrich Building Systems is a proud member of
the Steel Framing Industry Association (SFIA). Check
the updated list of Certified Production Facilities at
Architectural Testing's website at www.archtest.com.
USGBC and related logo is a
trademark owned by the U.S.
Green Building Council and is
used by permission.
Scan for the most
up-to-date ClarkDietrich
literature.
Lo c a t i o n s
ClarkDietrich Building Systems
Manufacturing and Sales Locations:
ClarkDietrich Engineering Services.
A full spectrum of solutions.
CALIFORNIA Riverside
CALIFORNIA Sacramento CONNECTICUT Bristol
P 951.360.3500
F 951.360.3333
P 866.921.0023
F 860.584.6899
FLORIDA Dade City
GEORGIA McDonough
hawaii Kapolei
ILLINOIS Rochelle
kansas Lenexa
Maryland Baltimore
ohio Warren-East
ohio Warren-West
TEXAS Baytown
TEXAS Dallas
Clip Express
Vinyl Corp.™
P 951.360.3500
F 951.360.3333
P 678.304.5500
F 678.304.5555
P 410.477.4000
F 410.477.1550
P 214.350.1716
F 214.350.7252
clarkdietrich.com
P 951.360.3500
F 951.360.3333
P 330.372.5564
F 330.372.4055
SM
P 866.638.1908
F 330.372.4055
P 800.659.0745
F 513.645.0750
P 330.372.4014
F 330.372.1945
P 352.518.4400
F 352.518.4450
P 800.659.0745
F 513.645.0750
P 281.383.1617
F 281.573.1679
Toll-Free Phone: 877.832.3206
Toll-Free Fax: 877.832.3208
Technical Services: 888.437.3244
Email: [email protected]
Central Crown Point, IN
southEAST Roswell, GA
NORTHEAST Bristol, CT
WEST Carlsbad, CA
Southeast McDonough, GA
P 800.648.4695
F 305.477.4108
The technical content of this literature is effective 5/31/12 and supersedes all previous information.
Pub. No. CD-Full Line 5/12
Turn to ClarkDietrich for a complete lineup of steel construction products and services nationwide:
Interior Framing ∙ Exterior Framing ∙ Interior Finishing ∙ Clips/Connectors ∙ Metal Lath/Accessories∙ Engineering
9100 Centre Pointe Dr. Suite 210
West Chester, OH 45069
P 513.870.1100
F 513.870.1300
clarkdietrich.com
Clarkwestern Dietrich Building Systems LLC
CD-Full Line 5/12 © 5/12 ClarkDietrich Building Systems. The technical content of this literature is effective 5/31/12 and supersedes all previous information.

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
