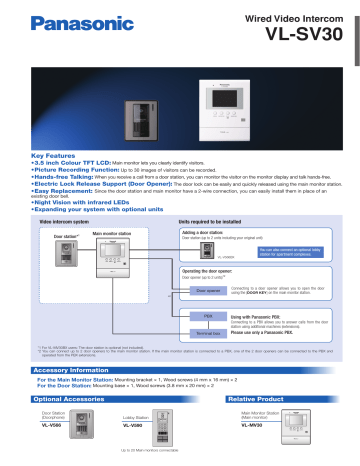

VL-SV30
Wired Video Intercom
VL-SV30
Key Features
•3.5 inch Colour TFT LCD: Main monitor lets you clearly identify visitors.
•Picture Recording Function: Up to 30 images of visitors can be recorded.
•Hands-free Talking: When you receive a call from a door station, you can monitor the visitor on the monitor display and talk hands-free.
•Electric Lock Release Support (Door Opener): The door lock can be easily and quickly released using the main monitor station.
•Easy Replacement: Since the door station and main monitor have a 2-wire connection, you can easily install them in place of an
existing door bell.
•Night Vision with infrared LEDs
•Expanding your system with optional units
Video intercom system
Door station*1
Units required to be installed
Adding a door station:
Main monitor station
Door station (up to 2 units including your original unit)
VL-V566BX
You can also connect an optional lobby
station for apartment complexes.
Operating the door opener:
Door opener (up to 2 units)*2
Door opener
Connecting to a door opener allows you to open the door
using the [DOOR KEY] on the main monitor station.
*2
PBX
Using with Panasonic PBX:
Connecting to a PBX allows you to answer calls from the door
station using additional machines (extensions).
Terminal box
Please use only a Panasonic PBX.
*1 For VL-MV30BX users: The door station is optional (not included).
*2 You can connect up to 2 door openers to the main monitor station. If the main monitor station is connected to a PBX, one of the 2 door openers can be connected to the PBX and
operated from the PBX extensions.
Accessory Information
For the Main Monitor Station: Mounting bracket × 1, Wood screws (4 mm x 16 mm) × 2
For the Door Station: Mounting base × 1, Wood screws (3.8 mm x 20 mm) × 2
Optional Accessories
Relative Product
Door Station
(Doorphone)
Lobby Station
Main Monitor Station
(Main monitor)
VL-V566
VL-V590
VL-MV30
Up to 20 Main monitors connectable
Model Composition
VL-SV30
VL-MV30 x 1, VL-V566 x 1
Specifications
Model number and name
VL-MV30
VL-V566
VL-V590
Main Monitor Station (Main monitor)
Door Station (Doorphone)
Optional Lobby Station
148
Up to 2
Dimensions
180
99
36
195
Power supply
17.3
36.5
358
131
100 – 240 V AC, 50/60 Hz
Standby: Approx. 0.04 A
During operation: Approx. 0.22 A
Supplied by the Main Monitor Station
Approx. 195 x 148 x 36 mm
Approx. 131 x 99 x 36.5 mm
Display
Talking method
Approx. 550 g
0 °C to 40 °C, Up to 90 % RH
(Relative Humidity) non condensing
3.5 inch colour LCD monitor
Hands-free
Viewing angle
-
Approx. 200 g
-10 °C to 50 °C, Up to 90 % RH
(Relative Humidity) non condensing
Horizontally: Aprrox. 87˚
Vertically: Approx. 66˚
Wall mount (Wall mount base included)
1 lx (within approx. 50cm from the camera lens)
Infrared LEDs
Flame retardant ABS resin
Power consumption
Dimensions (H x W x D)
(Excluding protruding sections)
Weight
Operating environment
Installation method
Minimum illuminance required
Lighting method
External material
-
Wall mount (Wall mount bracket included)
Flame retardant ABS resin
Wiring schematic diagram
Door station 1
Wire type and length
•Wire (between the main monitor station and the door station):
Door station 2
(Non polar)
(Non polar)
You can also connect
an optional lobby
station for apartment
complexes.
Terminal box
(4-conductor wiring)
(Non polar)
(Non polar)
(Non polar)
Type
Distance
General cable CAT-3
Maximum 50 m
Loop resistance
General cable 22 AWG (ø 0.65)
Maximum 100 m
10 Ω or lower
•Wire (between the main monitor station and PBX):
Type: General cable CAT-3 or 22 AWG (ø 0.65)
Distance: Maximum 100 m
PBX
Main monitor station
100 V – 240 V AC, 50/60 Hz
Standby: Approx. 0.02 A
During operation: Approx. 0.03 A
Approx. 358 x 180 x 17.3 mm
(Excluding sections embedded into the wall)
Approx. 2.0 kg
-10 °C to 50 °C, Up to 90 % RH
(Relative Humidity) non condensing
Horizontally: Aprrox. 87˚
Vertically: Approx. 66˚
Wall mount (Flush mounted box included)
Stainless steel and flame retardant ABS resin
Door
(Door Opener) 1
Door
(Door Opener) 2
Power plug
(100 – 240 V AC)
Installing the Doorphone
Installing the Main Monitor
•Example: Installation height is 1450 mm (standard position).
Side view
1810 mm
Centre of the
door station
1450 mm
Wood screws
Mounting base
66°
83.5 mm
Wire (Not included)
Mounting
bracket
Wire (Not included)
1160 mm
99 mm
Mounting base
Main Monitor
24 mm
83.5 mm 131 mm
500 mm
Wall
Wall
range
Image range:
960 mm
83.5 mm
650 mm
500 mm
Top view
Wood screws
148 mm
48.4 mm
Mounting bracket
83.5 mm 195 mm
87°
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• The actual product may vary slightly from photograph.
• Weights and dimensions are approximate.
• Design and Specifications are subject to change without notice.
• These products may be subject to export control regulations.
