2621 Ridgepoint Drive | Austin, TX 78754
512-837-0283

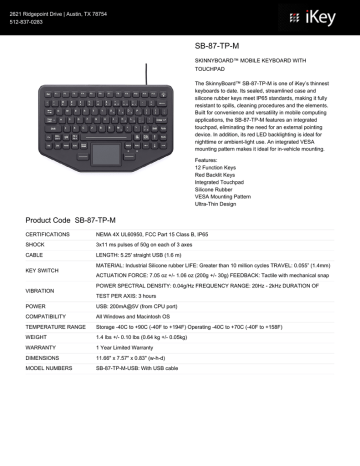

SB-87-TP-M
SKINNYBOARD™ MOBILE KEYBOARD WITH
TOUCHPAD
The SkinnyBoard™ SB-87-TP-M is one of iKey’s thinnest
keyboards to date. Its sealed, streamlined case and
silicone rubber keys meet IP65 standards, making it fully
resistant to spills, cleaning procedures and the elements.
Built for convenience and versatility in mobile computing
applications, the SB-87-TP-M features an integrated
touchpad, eliminating the need for an external pointing
device. In addition, its red LED backlighting is ideal for
nighttime or ambient-light use. An integrated VESA
mounting pattern makes it ideal for in-vehicle mounting.
Features:
12 Function Keys
Red Backlit Keys
Integrated Touchpad
Silicone Rubber
VESA Mounting Pattern
Ultra-Thin Design
Product Code SB-87-TP-M
CERTIFICATIONS
NEMA 4X UL60950, FCC Part 15 Class B, IP65
SHOCK
3x11 ms pulses of 50g on each of 3 axes
CABLE
LENGTH: 5.25' straight USB (1.6 m)
MATERIAL: Industrial Silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055” (1.4mm)
KEY SWITCH
ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2kHz DURATION OF
VIBRATION
TEST PER AXIS: 3 hours
POWER
USB: [email protected] (from CPU port)
COMPATIBILITY
All Windows and Macintosh OS
TEMPERATURE RANGE
Storage -40C to +90C (-40F to +194F) Operating -40C to +70C (-40F to +158F)
WEIGHT
1.4 lbs +/- 0.10 lbs (0.64 kg +/- 0.05kg)
WARRANTY
1 Year Limited Warranty
DIMENSIONS
11.66" x 7.57" x 0.83" (w-h-d)
MODEL NUMBERS
SB-87-TP-M-USB: With USB cable
