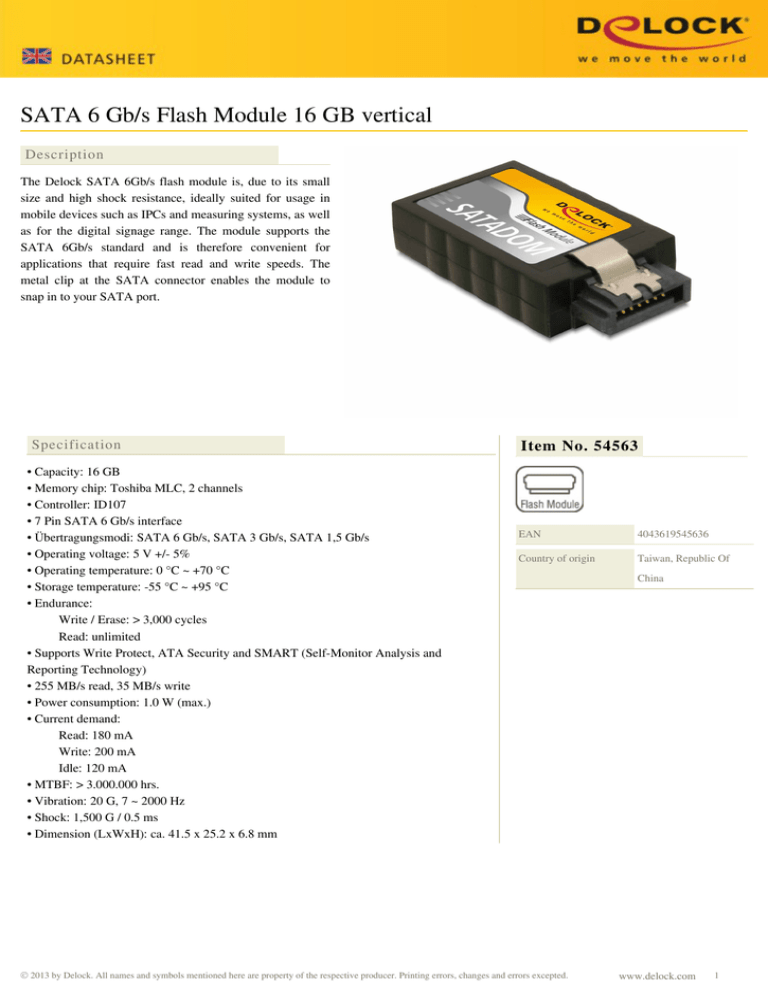

DeLOCK 16GB MLC SATA Datasheet

SATA 6 Gb/s Flash Module 16 GB vertical
Description
The Delock SATA 6Gb/s flash module is, due to its small
size and high shock resistance, ideally suited for usage in
mobile devices such as IPCs and measuring systems, as well
as for the digital signage range. The module supports the
SATA 6Gb/s standard and is therefore convenient for
applications that require fast read and write speeds. The
metal clip at the SATA connector enables the module to
snap in to your SATA port.
Specification
• Capacity: 16 GB
• Memory chip: Toshiba MLC, 2 channels
• Controller: ID107
• 7 Pin SATA 6 Gb/s interface
• Übertragungsmodi: SATA 6 Gb/s, SATA 3 Gb/s, SATA 1,5 Gb/s
• Operating voltage: 5 V +/- 5%
• Operating temperature: 0 °C ~ +70 °C
• Storage temperature: -55 °C ~ +95 °C
• Endurance:
Write / Erase: > 3,000 cycles
Read: unlimited
• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and
Reporting Technology)
• 255 MB/s read, 35 MB/s write
• Power consumption: 1.0 W (max.)
• Current demand:
Read: 180 mA
Write: 200 mA
Idle: 120 mA
• MTBF: > 3.000.000 hrs.
• Vibration: 20 G, 7 ~ 2000 Hz
• Shock: 1,500 G / 0.5 ms
• Dimension (LxWxH): ca. 41.5 x 25.2 x 6.8 mm
Item No. 54563
EAN
4043619545636
Country of origin
Taiwan, Republic Of
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
China
www.delock.com
1
System requirements
• A free SATA 7 pin port
• Power supply with a free Molex power connector
Package content
• SATA Flash module
• Power cable
Package
• Antistatic cover
