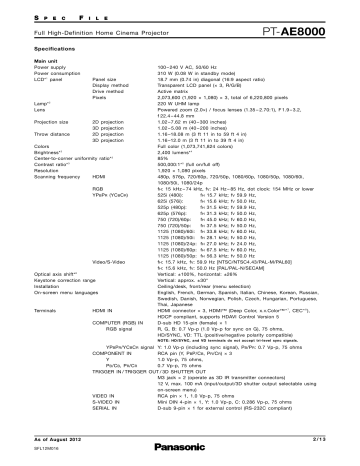

Full High-Definition Home Cinema Projector
PT-AE8000
Specifications
Main unit
Power supply
Power consumption
LCD* 1 panel
Panel size
Display method
Drive method
Pixels
Lamp* 2
Lens
Projection size
Throw distance
2D
3D
2D
3D
projection
projection
projection
projection
Colors
Brightness* 3
Center-to-corner uniformity ratio* 3
Contrast ratio* 3
Resolution
Scanning frequency
HDMI
RGB
YPBPR (YCBCR)
Video/S-Video
Optical axis shift* 6
Keystone correction range
Installation
On-screen menu languages
Terminals
HDMI IN
COMPUTER (RGB) IN
RGB signal
100 – 240 V AC, 50/60 Hz
310 W (0.08 W in standby mode)
18.7 mm (0.74 in) diagonal (16:9 aspect ratio)
Transparent LCD panel (× 3, R/G/B)
Active matrix
2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels
220 W UHM lamp
Powered zoom (2.0×) / focus lenses (1.35 – 2.70:1), F 1.9 – 3.2,
f 22.4 – 44.8 mm
1.02 –7.62 m (40 – 300 inches)
1.02 – 5.08 m (40 – 200 inches)
1.16 –18.08 m (3 ft 11 in to 59 ft 4 in)
1.16 –12.0 m (3 ft 11 in to 39 ft 4 in)
Full color (1,073,741,824 colors)
2,400 lumens* 4
85%
500,000:1* 5 (full on/full off)
1,920 × 1,080 pixels
480p, 576p, 720/60p, 720/50p, 1080/60p, 1080/50p, 1080/60i,
1080/50i, 1080/24p
fH: 15 kHz – 74 kHz, fV: 24 Hz – 85 Hz, dot clock: 154 MHz or lower
525i (480i):
fH 15.7 kHz; fV 59.9 Hz,
625i (576i):
fH 15.6 kHz; fV 50.0 Hz,
525p (480p):
fH 31.5 kHz; fV 59.9 Hz,
625p (576p):
fH 31.3 kHz; fV 50.0 Hz,
750 (720)/60p:
fH 45.0 kHz; fV 60.0 Hz,
750 (720)/50p:
fH 37.5 kHz; fV 50.0 Hz,
1125 (1080)/60i: fH 33.8 kHz; fV 60.0 Hz,
1125 (1080)/50i: fH 28.1 kHz; fV 50.0 Hz,
1125 (1080)/24p: fH 27.0 kHz; fV 24.0 Hz,
1125 (1080)/60p: fH 67.5 kHz; fV 60.0 Hz,
1125 (1080)/50p: fH 56.3 kHz; fV 50.0 Hz
fH: 15.7 kHz, fV: 59.9 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.6 kHz, fV: 50.0 Hz [PAL/PAL-N/SECAM]
Vertical: ±100%, horizontal: ±26%
Vertical: approx. ±30°
Ceiling/desk, front/rear (menu selection)
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai, Japanese
HDMI connector × 3, HDMI™ (Deep Color, x.v.Color™ * 7, CEC* 8 ),
HDCP compliant, supports HDAVI Control Version 5
D-sub HD 15-pin (female) × 1
R, G, B: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms,
HD/SYNC, VD: TTL (positive/negative polarity compatible)
NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals.
YPBPR/YCBCR signal Y: 1.0 Vp-p (including sync signal), PB/PR: 0.7 Vp-p, 75 ohms
COMPONENT IN
RCA pin (Y, PBP/CB, PR/CR) × 3
Y
1.0 Vp-p, 75 ohms,
PB/CB, PR/CR
0.7 Vp-p, 75 ohms
TRIGGER IN / TRIGGER OUT / 3D SHUTTER OUT
M3 jack × 2 (operate as 3D IR transmitter connectors)
12 V, max. 100 mA (input/output/3D shutter output selectable using
on-screen menu)
VIDEO IN
RCA pin × 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN
Mini DIN 4-pin × 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
SERIAL IN
D-sub 9-pin × 1 for external control (RS-232C compliant)
As of August 2012
SFL12M016
2/13
S
P
E
C
F
I
L
E
Full High-Definition Home Cinema Projector
Power cord length
Cabinet materials
Dimensions (W × H × D)
Weight* 1 0
Operation noise* 3
Operating temperature
Operating humidity
Remote control unit
Power supply
Operation range* 1 1
Dimensions (W × H × D)
Weight
PT-AE8000
3.0 m (9 ft 10 in)
Molded plastic (PC+ABS)
470 × 151 × 364* 9 mm (18-1/2 × 5-15/16 × 14-11/32 * 9 inches)
Approx. 8.7 kg (19.2 lbs)
22 dB (LAMP POWER: ECO)
0°– 40°C (32°–104°F)
20%– 80% (no condensation)
3 V DC (AA/R6 type battery × 2)
Approx. 7 m (23 ft) when operated from directly in front of the signal
receptor
48 × 138 × 28.3 mm (1-7/8 × 5-7/16 × 1-1/8 inches)
Approx. 125 g (4.4 oz) (including batteries)
Supplied accessories
Power cord (× 1) (× 2 for PT-AE8000EA)
Wireless remote control unit (× 1)
Batteries for remote control (AA/R6 type × 2)
Lens cover (× 1)
Optional accessories
Replacement lamp unit
Ceiling mount bracket
3D IR transmitter
3D Eyewear
ET-LAA410
ET-PKA110H (for high ceilings)
ET-PKA110S (for low ceilings)
ET-TRM110
TY-EW3D3M * 1 2
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
*1
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this
is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
* 2 The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to
illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending
on individual lamp characteristics and usage conditions.
* 3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
* 4 In dynamic mode, with dynamic iris on.
* 5 In cinema 1 mode, with dynamic iris on.
* 6 Shift range is limited during simultaneous horizontal and vertical shifting.
* 7 Effective in Rec. 709 picture mode.
* 8 CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
* 9 With legs at shortest position.
* 10 Average value. May differ depending on models.
* 11 Operation range differs depending on environments.
* 12 If you do not have a Panasonic 3D TV that supports 3D video, use a charger that has a USB2.0 port for charging your Eyewear. The recommended charger is Apple USB Power Adapter for iPhone. The code at the end of the model number of 3D Eyewear may differ depending on
the country of purchase.
As of August 2012
SFL12M016
3/13
