vector series

vector series
vector series
•
•
•
•
•
•
•
RESOLUTION 1600 X 1200
300 NIT UXGA DISPLAY
USB/PS2 KEYBOARD WITH MOUSE PAD
WIDE VIEWING ANGLE
0 TO 50°C OPERATION
2 POINT LOCK WHEN DISPLAY IS DOWN
19” RACK COMPATIBLE
Specifications
Display Type: 20.1” TFT
Active Display Area: 16.06” (w) x 12.05” (h)
408 mm x 306.1 mm
Pixel Pitch: .255 mm
Brightness: 300 nits
Viewing Angle: Left/Right 80º/80º
Up/Down 80º/80º
Contrast Ratio: 800:1
Response Time: Tr=4 ms; Tf=1 ms
Display Colors: 16.7M
Input Signal:
Video: Analog 0.7V p-p/75 Ω
Sync: Separate H&V
Video Input Connectors: HD-15
Video Inputs: VGA-VXGA (HD-15)
Optional: S-Video Composite
DVI-D
Video Cable: Integrated HD15 with Keyboard
and Mouse Functions
Resolutions Supported: 640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
Native Resolution: 1600 x 1200 (UXGA)
Full Keyboard Options: PS2/USB Keyboard
with Mouse Pad
Environmental
Temperature:
Humidity
(Non- Condensing):
Altitude:
Shock:
Vibration:
Power Requirements:
Dimensions &
Weight:
Agency:
Optional KVM:
Operating: 0°C to 50°C
Storage: -20°C to 65°C
Operating: 10 to 80%
Storage: 5 to 95%
Operating: 0 to 10,000 ft.
Storage: 0 to 40,000 ft.
10g Acceleration (11 ms Duration)
5-500 Hz, 1G RMS Random Vibration
Voltage: 100/240 VAC @
50/60 Hz Auto Sensing
Power: 48W Max
Current: .5a
Height: 1.75” (44 mm)
Width: 19” (482.67 mm)
Depth: 25.59” (650 mm)
Weight: 31.9 lbs (14.5 kg)
Designed to meet UL, CE
8 or 16 Port KVM
Video and Composite (BNC)
DVI-D
HDMI
12, 24, 48 VDC
Aydin Displays is:
a
comp an y
1 Riga Lane Birdsboro PA 19508 USA
1-866-367-2934
www.aydindisplays.com
7/14
All specifications subject to change without notice.

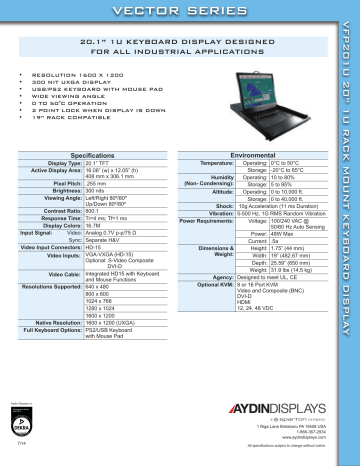

VFP201U 20” 1U RACK MOUNT KEYBOARD DISPLAY
20.1” 1U KEYBOARD DISPLAY DESIGNED
FOR ALL INDUSTRIAL APPLICATIONS
