SecurityMan IPCAM-SD Datasheet

SecurityMan IPCAM-SD Datasheet

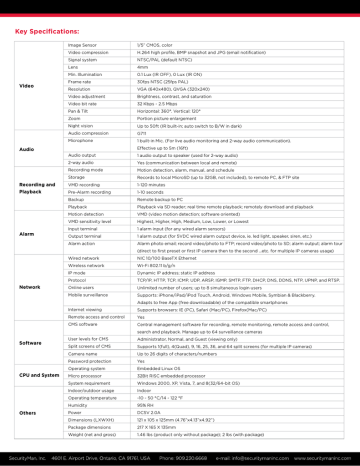

Key Specifications:
Video
Image Sensor
1/5” CMOS, color
Video compression
H.264 high profile, BMP snapshot and JPG (email notification)
Signal system
NTSC/PAL (default NTSC)
Lens
4mm
Min. Illumination
0.1 Lux (IR OFF), 0 Lux (IR ON)
Frame rate
30fps NTSC (25fps PAL)
Resolution
VGA (640x480), QVGA (320x240)
Video adjustment
Brightness, contrast, and saturation
Video bit rate
32 Kbps ~ 2.5 Mbps
Pan & Tilt
Horizontal: 360°. Vertical: 120°
Zoom
Portion picture enlargement
Night vision
Up to 50ft (IR built-in; auto switch to B/W in dark)
Audio compression
G711
Microphone
1 built-in Mic. (For live audio monitoring and 2-way audio communication).
Effective up to 5m (16ft)
Audio
Recording and
Playback
Alarm
Audio output
1 audio output to speaker (used for 2-way audio)
2-way audio
Yes (communication between local and remote)
Recording mode
Motion detection, alarm, manual, and schedule
Storage
Records to local MicroSD (up to 32GB, not included), to remote PC, & FTP site
VMD recording
1~120 minutes
Pre-Alarm recording
1~10 seconds
Backup
Remote backup to PC
Playback
Playback via SD reader; real time remote playback; remotely download and playback
Motion detection
VMD (video motion detection; software oriented)
VMD sensitivity level
Highest, Higher, High, Medium, Low, Lower, or Lowest
Input terminal
1 alarm input (for any wired alarm sensors)
Output terminal
1 alarm output (for 5VDC wired alarm output device, ie. led light, speaker, siren, etc.)
Alarm action
Alarm photo email; record video/photo to FTP; record video/photo to SD; alarm output; alarm tour
(direct to first preset or first IP camera then to the second …etc. for multiple IP cameras usage)
Network
Wired network
NIC 10/100 BaseTX Ethernet
Wireless network
Wi-Fi 802.11 b/g/n
IP mode
Dynamic IP address; static IP address
Protocol
TCP/IP, HTTP, TCP, ICMP, UDP, ARSP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, and RTSP.
Online users
Unlimited number of users; up to 8 simultaneous login users
Mobile surveillance
Supports: iPhone/iPad/iPod Touch, Android, Windows Mobile, Symbian & Blackberry.
Adapts to free App (free downloadable) of the compatible smartphones
Internet viewing
Supports browsers: IE (PC), Safari (Mac/PC), Firefox(Mac/PC)
Remote access and control
Yes
CMS software
Central management software for recording, remote monitoring, remote access and control,
search and playback. Manage up to 64 surveillance cameras
Software
CPU and System
Others
User levels for CMS
Administrator, Normal, and Guest (viewing only)
Split screens of CMS
Supports 1(full), 4(Quad), 9, 16, 25, 36, and 64 split screens (for multiple IP cameras)
Camera name
Up to 26 digits of characters/numbers
Password protection
Yes
Operating system
Embedded Linux OS
Micro processor
32Bit RISC embedded processor
System requirement
Windows 2000, XP, Vista, 7, and 8(32/64-bit OS)
Indoor/outdoor usage
Indoor
Operating temperature
-10 ~ 50 °C/14 ~ 122 °F
Humidity
95% RH
Power
DC5V 2.0A
Dimensions (LXWXH)
121 x 105 x 125mm (4.76”x4.13”x4.92”)
Package dimensions
217 X 165 X 135mm
Weight (net and gross)
1.46 lbs (product only without package); 2 lbs (with package)
