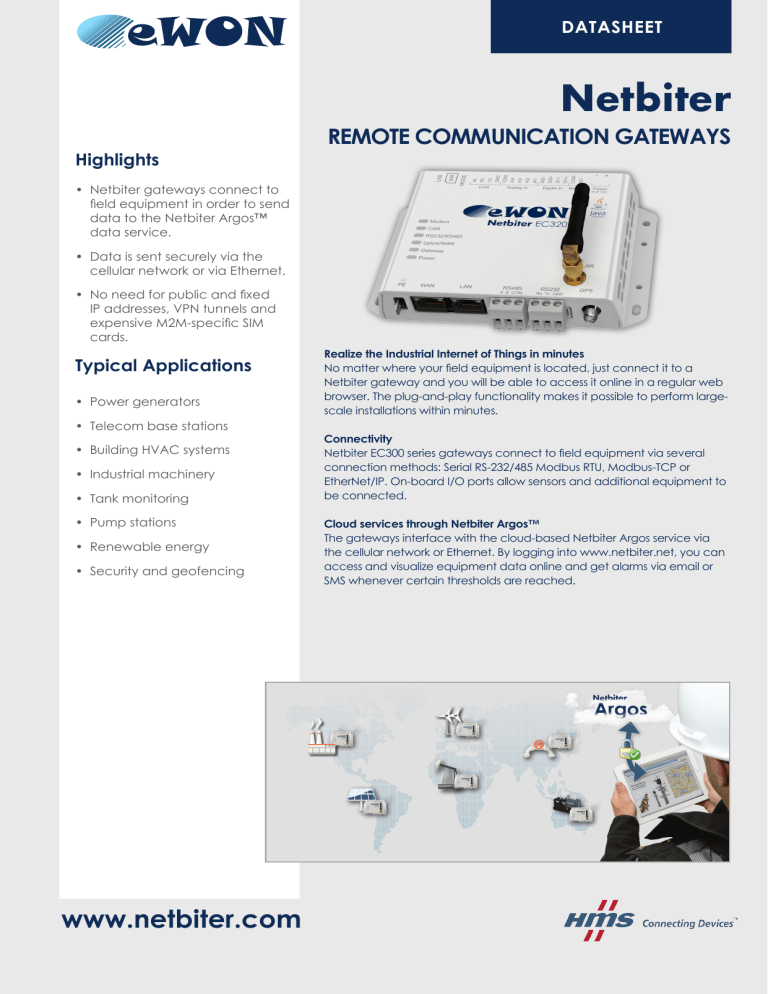

DATASHEET
Netbiter
Highlights
REMOTE COMMUNICATION GATEWAYS
• Netbiter gateways connect to
field equipment in order to send
data to the Netbiter Argos™
data service.
• Data is sent securely via the
cellular network or via Ethernet.
• No need for public and fixed
IP addresses, VPN tunnels and
expensive M2M-specific SIM
cards.
Typical Applications
• Power generators
• Telecom base stations
• Building HVAC systems
• Industrial machinery
• Tank monitoring
• Pump stations
• Renewable energy
• Security and geofencing
www.netbiter.com
Realize the Industrial Internet of Things in minutes
No matter where your field equipment is located, just connect it to a
Netbiter gateway and you will be able to access it online in a regular web
browser. The plug-and-play functionality makes it possible to perform largescale installations within minutes.
Connectivity
Netbiter EC300 series gateways connect to field equipment via several
connection methods: Serial RS-232/485 Modbus RTU, Modbus-TCP or
EtherNet/IP. On-board I/O ports allow sensors and additional equipment to
be connected.
Cloud services through Netbiter Argos™
The gateways interface with the cloud-based Netbiter Argos service via
the cellular network or Ethernet. By logging into www.netbiter.net, you can
access and visualize equipment data online and get alarms via email or
SMS whenever certain thresholds are reached.
TECHNICAL SPECIFICATIONS
Connection to Argos
Netbiter EC320
Ethernet and 2G/GSM/GPRS
Order code
Ethernet
2G/GSM/GPRS
Antenna connector
NB1021
10/100 Mbit/s
GPRS: Quad-Band GPRS Class 12 (850/900/1800/1900 MHz)
SMA female
Relay output (max 24 V, AC/DC, 1A)
Digital inputs
Analog inputs
(PT100, 0-10 V or 0-20 mA)
1
2 (Dry contact)
4, all supporting 0-10 V or 0-20 mA and 2 supporting PT100
Analog output (0-10 V)
-
Serial port #1
RS-232, 1,2 kbit/s to 115,2 kbit/s
Serial port #2
RS-485, 1,2 kbit/s to 115,2 kbit/s
Protocols
Built-in (antenna** via SMA female)
Modbus-RTU, Modbus TCP, EtherNet/IP
Modbus RTU to TCP conversion
Proxy support
YES
SOCKS/WEB
Wall mounting / DIN rail*
Mechanical dimensions (L•W•H)
Operating temperature
YES/YES
92 x 135 x 27 mm
-40 to +65 °C
Power supply
9-32 VDC
Power consumption
(max at 24 Vdc)
Certifications
*with DIN rail mounting kit **not included
GPS
4.5 W
FCC, UL, CE
Housing
Metal
Remote access functionality
NO
HMS - Sweden (HQ)
Tel : +46 35 17 29 00 (Halmstad HQ)
E-mail: [email protected]
HMS - Germany
Tel: +49 721 989777-000
E-mail: [email protected]
HMS - Switzerland
Tel: +41 61 511342-0
E-mail: [email protected]
HMS - Belgium (eWON)
Tel: +32 67 895 800
E-mail: [email protected]
HMS - India
Tel: +91 83800 66578
E-mail: [email protected]
HMS - UK
Tel: +44 1926 405599
E-mail: [email protected]
HMS - China
Tel : +86 010 8532 3183
E-mail: [email protected]
HMS - Italy
Tel : +39 039 59662 27
E-mail: [email protected]
HMS - United States
Tel: +1 312 829 0601
E-mail: [email protected]
HMS - France
Tel: +33 368 368 034 (Mulhouse office)
E-mail: [email protected]
HMS - Japan
Tel: +81 45 478 5340
E-mail: [email protected]
www.ewon.biz
Rev 1.1. Subject to change without notice.
