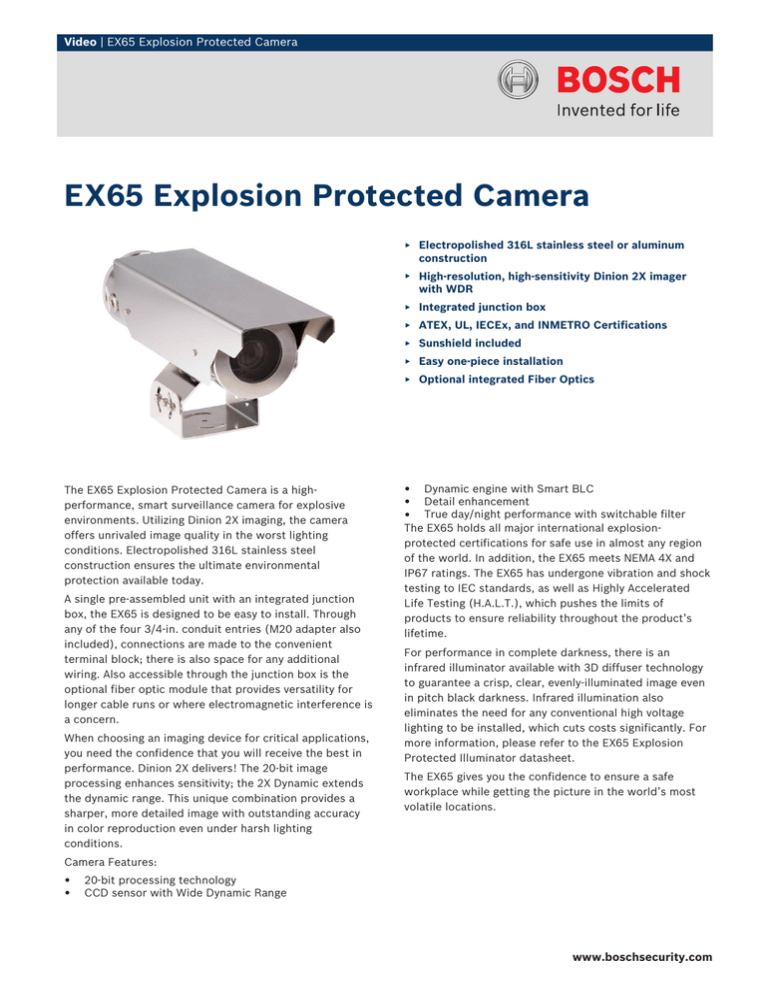

Video | EX65 Explosion Protected Camera
EX65 Explosion Protected Camera
▶ Electropolished 316L stainless steel or aluminum
construction
▶ High-resolution, high-sensitivity Dinion 2X imager
with WDR
▶ Integrated junction box
▶ ATEX, UL, IECEx, and INMETRO Certifications
▶ Sunshield included
▶ Easy one-piece installation
▶ Optional integrated Fiber Optics
The EX65 Explosion Protected Camera is a highperformance, smart surveillance camera for explosive
environments. Utilizing Dinion 2X imaging, the camera
offers unrivaled image quality in the worst lighting
conditions. Electropolished 316L stainless steel
construction ensures the ultimate environmental
protection available today.
A single pre-assembled unit with an integrated junction
box, the EX65 is designed to be easy to install. Through
any of the four 3/4‑in. conduit entries (M20 adapter also
included), connections are made to the convenient
terminal block; there is also space for any additional
wiring. Also accessible through the junction box is the
optional fiber optic module that provides versatility for
longer cable runs or where electromagnetic interference is
a concern.
When choosing an imaging device for critical applications,
you need the confidence that you will receive the best in
performance. Dinion 2X delivers! The 20-bit image
processing enhances sensitivity; the 2X Dynamic extends
the dynamic range. This unique combination provides a
sharper, more detailed image with outstanding accuracy
in color reproduction even under harsh lighting
conditions.
•
•
•
Dynamic engine with Smart BLC
Detail enhancement
True day/night performance with switchable filter
The EX65 holds all major international explosionprotected certifications for safe use in almost any region
of the world. In addition, the EX65 meets NEMA 4X and
IP67 ratings. The EX65 has undergone vibration and shock
testing to IEC standards, as well as Highly Accelerated
Life Testing (H.A.L.T.), which pushes the limits of
products to ensure reliability throughout the product’s
lifetime.
For performance in complete darkness, there is an
infrared illuminator available with 3D diffuser technology
to guarantee a crisp, clear, evenly-illuminated image even
in pitch black darkness. Infrared illumination also
eliminates the need for any conventional high voltage
lighting to be installed, which cuts costs significantly. For
more information, please refer to the EX65 Explosion
Protected Illuminator datasheet.
The EX65 gives you the confidence to ensure a safe
workplace while getting the picture in the world’s most
volatile locations.
Camera Features:
•
•
20-bit processing technology
CCD sensor with Wide Dynamic Range
www.boschsecurity.com
2 | EX65 Explosion Protected Camera
System Overview
Extreme Environment Ready
The EX65 Explosion Protected Camera includes a camera
and lens installed and pre-wired into an electropolished
316L stainless steel housing offering excellent corrosion
protection. For less corrosive environments, an anodized
aluminum configuration is also available. The EX65 holds
the most common explosion-protected certifications for
guaranteed safe operation in explosive environments and
also NEMA 4X and IP67 ratings for wet locations. For
operation in areas prone to vibration, the EX65 has been
tested to IEC standards for vibration and shock.
Integrated Junction Box
The integrated junction box allows for easy connections to
the terminal block for power and alarm outputs. Video is
available via a BNC connector or ST fiber connector
eliminating the need for a costly external junction box.
The alarm-out can be used for switching on external
illuminators and can trigger events if motion is detected.
In addition, there is sufficient room for the UTP module or
extra wiring if multiple cameras or illuminators are daisy
chained together.
Ease of Installation
The EX65 features one-piece installation and an integrated
junction box for easy mounting and wiring. The EX65 is
versatile enough to mount in multiple applications and
features remote camera configuration via a standard video
cable (Bilinx).
Detail in Extreme Lighting
Cameras in industrial applications must overcome the
challenge of providing a detailed image when lighting
varies across the scene, such as the dark corners and the
bright open areas on the deck of an offshore oil rig. To
produce a clear picture in these conditions and to reveal
details previously unseen, the EX65 combines 20-bit
image processing with wide dynamic range. 20-bit image
processing simultaneously captures the detail in both
bright highlights and in deep shadows. The wide dynamic
range, then, ensures that the camera delivers excellent
contrast in the bright areas and details in the dark areas.
2X-Dynamic and SmartBLC
Using 2X-Dynamic technology, pixel-by-pixel analysis
provides the user with the most detailed information. Turn
on SmartBLC to automatically compensate the image
without the need for complicated set-up or without
compromising dynamic range.
Detail Enhancement
Features such as Autoblack and Sharpness further
improve the details in a scene, pixel by pixel.
Day/Night Mode
The day/night mode provides enhanced night viewing by
increasing the IR sensitivity. The IR filter switches from
color to monochrome automatically by sensing the
illumination level. The filter can also be switched manually
via the Bilinx coaxial control interface. An internal
through-the-lens IR detector enhances the monochrome
mode stability, as it prevents reverting to the color mode
when IR illumination is dominant. IR contrast is also
measured and used to handle reflected IR light in outdoor
scenes.
Bilinx Technology
Bilinx is a bidirectional communication capability
embedded in the video signal of the EX65. Technicians
can check status, change camera settings, and update
firmware from virtually anywhere along the video cable.
Bilinx reduces service and installation time, provides for
more accurate set-up and adjustment, and improves
overall performance. In addition, Bilinx uses the standard
video cable to transmit alarm and status messages,
providing superior performance without additional
installation steps.
Video Motion Detection
The built-in video motion detector allows you to select a
programmable area with individual thresholds. The global
scene change detector minimizes false alarms caused by
sudden lighting condition changes, such as switching on
or off the indoor or security lighting. When motion is
detected, alarms can be displayed in the video signal, the
output relay can be closed or an alarm message can be
transmitted via Bilinx.
SensUp Dynamic
By increasing the integration time up to 10 times on the
CCD, the effective sensitivity in low light is dramatically
enhanced. This is especially useful when relying only on
moonlight for illumination.
Transmission Versatility
Enjoy the convenience of having video transmission
options. A standard video-out via a BNC connector is
accessible in the junction box with enough room for the
optional UTP module. A multimode fiber optic video out
configuration is also available via the integrated module;
conveniently located in the junction box for quick
connection to a fiber network via an ST connector.
Wide Temperature Range
Designed with the harshest conditions in mind, the EX65
welcomes deployment in the toughest areas on the planet
including the subzero conditions found in the far north or
the scorching heat found in hostile deserts. The
impressive –50°C to +60°C (–58°F to +140°F)
temperature range is standard on all aluminum models.
EX65 Explosion Protected Camera | 3
Global Explosion Protection Certification
The EX65 holds all major international explosion
protected certifications for global installation. As a UL
listed product the EX65 is certified for the division and
zone system per the NEC standards. For Europe it holds
the ATEX certification. The EX65 has been tested against
and conforms to the international IECEx scheme. For
Brazil the EX65 holds the INMETRO certification.
Infrared Illumination
For a complete 24-hour imaging solution, the EX65
Camera can be paired with an EX65 Illuminator to provide
a crisp clear picture in complete darkness. The Illuminator
turns on when the camera switches to night mode
through a telemetry connection which is easily accessible
in the junction box. For more information please refer to
the EX65 Explosion Protected Illuminator datasheet.
Region
Certification
Environmental
UL Type 4X; IP67; Sinusoidal Vibration tested;
Random Vibration tested; Shock tested;
UL50, UL50E, IEC 60529, EN60068-2-6, EN60068-2-64,
EN60068-2-22, CAN/CSA C22.2 No. 94.1-07, CAN/CSA C22.2 No.
94.2-07, CAN/CSA C22.2 No. 60529-05
Installation/Configuration Notes
3/4-in. NPTX 4
Certifications and Approvals
Region
Certification
Europe
CE Declaration of Conformity
USA
UL, FCC
Canada
cUL
Brazil
INMETRO
International
ATEX, IECEx
6.6
0.26
60.0
71°
Ø 2.36
Bottom View
Electromagnetic Compatibility (EMC)
Emission
EN55022 class B, FCC part 15 class B
Immunity
EN 61000-4, EN 50130-4:1996
471
18.54
Safety
UL 508, CAN/CSA C22.2 No. 60065-03
114
4.50
Explosion Protection
UL/cUL Listed 3RR9
UL/cUL Hazardous Locations Listed as per NEC Division and Zone requirements
• Class I, Div 1, Groups C, and D; Class II, Groups E, F, and G;
Class III
• Class I, Zone 1, AEx d IIB T6; Ex d IIB T6 X
• AEx tD 21 T85°C
• DIP DIP A21 Ta85°C X
ATEX / IECEx
• DEMKO 10 ATEX 0948139X
• CE 0344 II 2 GD
• Ex d IIB T6 Gb
• Ex tb IIIC T85°C Db IP67
11/UL-BRHZ-0037
UL 1203, UL 60079-0, UL 60079-1, ANSI/ISA-61241-0, ANSI/
ISA-61241-1, CAN/CSA C22.2 No. 30-M1986, CAN/CSA C22.2 No.
25-1966, CAN/CSA C22.2 No. 60079-0-07, CAN/CSA C22.2 No.
60079-1-07, CAN/CSA E61241-1-1-02, EN 60079-0:2006, EN
60079-1:2007, EN 60079-31:2009, IEC 60079-0:2009, IEC
60079-1:2007, IEC 60079-31:2008, INMETRO Portaria 179:2010,
ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009
208
8.18
90°
100
3.94
381
15.01
Side View
www.boschsecurity.com
4 | EX65 Explosion Protected Camera
Power Consumption
135
5.30
128
5.04
12 VDC (Tamb @ -50 °C)
(-58 °F)
16.0 W
14.7 W
24 VAC (Tamb @ -50 °C)
(-58 °F)
19.3 W
22.4 W
Active Pixels
102
4.01
PAL Model:
752 x 582
NTSC Model
768 x 494
Sensitivity (3200 K, scene reflectivity 89%, F1.2)
116
4.57
125
4.93
Full video
(100 IRE)
Usable picture Usable picture
(50 IRE)
(30 IRE)
Color
2.4 lx
(0.223 fc)
0.47 lx
(0.044 fc)
0.15 lx
(0.0139 fc)
Color
+ SensUp 10x
0.24 lx
(0.0223 fc)
0.047 lx
(0.00437 fc)
0.015 lx
(0.00139 fc)
Monochrome
0.98 lx
(0.091 fc)
0.188 lx
(0.0174 fc)
0.060 lx
(0.0056 fc)
Monochrome
+ SensUp 10x
0.098 lx
(0.0091 fc)
0.019 lx
(0.00176 fc)
0.0060 lx
(0.000557 fc)
Horizontal Resolution
540 TVL
Signal-to-Noise Ratio
>50 dB
Video Output
Composite video 1 Vpp, 75 ohm
Synchronization
Internal, Line Lock, HV-lock and Genlock
(Burst lock) selectable
Shutter
Auto (1/50 [1/60] to 1/10000) selectable
Auto (1/50 [1/60] to 1/50000) automatic
flickerless, fixed selectable
Sensitivity Up
Adjustable from Off up to 10x
Day/Night
Color, Mono, Auto
Auto Black
Automatic continuous, Off
Dynamic engine
XF-Dynamic, 2X-Dynamic, SmartBLC
Dynamic range
120 dB (20-bit image processing)
Front View
Technical Specifications
Electrical
Rated Voltage
CCD Type
12–24 VAC, 50/60 Hz
12–24 VDC
1/3-in. Interline, WDR dual shutter
Dynamic Noise Reduction Auto, On/off selectable
Power Consumption
Typical
Sharpness
Sharpness enhancement level selectable
SmartBLC
On (includes 2X-Dynamic ) / Off
AGC
AGC On or Off (0–30 dB) selectable
Peak White Invert
On/Off
White Balance
ATW, ATWhold and manual (2500 to
10000K)
Alarm Output
VMD or day/night switch
Standard Models
(BNC connector)
Fiber Optic Models
(ST connector)
12 VDC (Tamb @ 20 °C)
(68 °F)
6W
7.7 W
24 VAC (Tamb @ 20 °C)
(68 °F)
9.4 W
11.3 W
12 VDC (Tamb @ -50 °C)
(-58 °F)
10.2 W
11.3 W
Alarm Output Relay
30 VAC or +40 VDC, Max 0.5 A continuous,
10 VA
24 VAC (Tamb @ -50 °C)
(-58 °F)
15.7 W
17.6 W
Cable Compensation
(coax version only)
Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with Bilinx coaxial communication)
12 VDC (Tamb @ 20 °C)
(68 °F)
8.0 W
9.5 W
Camera ID
17-character editable string, position selectable
24 VAC (Tamb @ 20 °C)
(68 °F)
11.2 W
13.4 W
Test Pattern Generator
Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV
plane
Maximum
EX65 Explosion Protected Camera | 5
Modes
Six (6) preset programmable modes
Environmental
Remote Control
(coax version only)
Bilinx coaxial bi-directional communication
Operating Temperature
Video Motion Detection
One area, fully programmable
Privacy Masking
Four (4) independent areas, fully programmable
Controls
OSD with soft-key operation (multi-lingual)
Lens
5–50 mm IR corrected
Heater
Included
- Aluminum models
-50 °C to 60 °C (-58 °F to 140 °F)
- Stainless steel models
-50 °C to 55 °C (-58 °F to 131 °F)
Storage Temperature
-55 °C to 70 °C (-67 °F to 158 °F)
Operating Humidity
0 to 100% relative (condensing, after installed and sealed)
Storage Humidity
20 to 98% relative (non-condensing)
Fiber Optic Specifications
Optical Connector Type
ST
Optical Fiber
Compatibility
50/125 µm or 62.5/125 µm, graded index multimode glass fiber rated for a minimum bandwidth of 600 MHz-Km. For
50/125 fiber, subtract 4 dB from the
specified optical budget value.
Optical Distance
Specifications
Specified transmission distances are limited to the optical loss of the fiber and any
additional loss introduced by connectors,
splices, and patch panels. The modules
are designed to operate over the entire
optical loss budget range, so they do not
require a minimum loss in order to operate.
Number of Fibers
One (1)
Optical Budget
14 dB
Maximum Distance
4.0 km (2.5 miles)
Technology Type
AM Video modulation
Wavelength
850 nm
Optical Emitter
LED
Transmitter Output Power
25 uW (–16 dBm)
Video Bandwidth
5 Hz to 10 MHz
Differential Gain
< 5%
Differential Phase
< 5°
Tilt
< 1%
Signal-to-Noise Ratio (SNR)
> 55 dB @ 10 dB attenuation
> 60 dB @ 7 dB attenuation
Mechanical
Dimensions (L x W x H)
381 x 114 x 114 mm
(11.01 x 4.5 x 4.5 in.) without sunhood or
mounting cradle
Weight
Stainless Steel: 12.9 kg (28.5 lb)
Aluminum: 6.4 kg (14 lb)
Construction
Electropolished 316L Stainless Steel or
Anodized Aluminum
Bracket
Pan(±36°)/Tilt(±45°),
mounting cradle included
Cable Entry
Four (4) 3/4-in. NPT entries;
conduit seal included with NTSC models;
M20 adapter included with PAL models
View Window
9-mm thick borosilicate float glass
Ordering Information
VEN‑650V05‑1A3 Aluminum EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
PAL, 12-24 VDC/VAC
VEN-650V05-1A3
VEN‑650V05‑2A3 Aluminum EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
NTSC, 12-24 VDC/VAC
VEN-650V05-2A3
VEN‑650V05‑1A3F Aluminum EX65
Explosion Proctected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
PAL, Fiber, 12‑24 VDC/VAC
VEN-650V05-1A3F
VEN‑650V05‑2A3F Aluminum EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
NTSC, Fiber, 12‑24 VDC/VAC
VEN-650V05-2A3F
VEN‑650V05‑1S3 Stainless Steel EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
PAL, 12‑24 VDC/VAC
VEN-650V05-1S3
VEN-650V05-2S3 Stainless Steel EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
NTSC, 12‑24 VDC/VAC
VEN-650V05-2S3
VEN-650V05-1S3F Stainless Steel EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
PAL, Fiber, 12‑24 VDC/VAC
VEN-650V05-1S3F
VEN‑650V05‑2S3F Stainless Steel EX65
Explosion Protected Camera
Day/Night, 1/3-in. CCD, 2X DSP, 5-50 mm,
NTSC, Fiber, 12‑24 VDC/VAC
VEN-650V05-2S3F
Accessories
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
UPA-2430-60
UPA-2450-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 50 VA Out
UPA-2450-60
UPA-2420-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 20 VA Out
UPA-2420-50
UPA-2450-50 Power Supply
220 VAC, 50 Hz, 24 VAC, 50 VA Out
For use with certain 24 VAC camera models.
UPA-2450-50
www.boschsecurity.com
6 | EX65 Explosion Protected Camera
Ordering Information
VDA‑455UTP
Adaptor for UTP twisted pair output
VDA-455UTP
LTC 4642/60 Video Receiver
850 nm, 120 VAC, 60 Hz
LTC 4642/60
LTC 4642/50 Video Receiver
850 nm, 230 VAC, 50 Hz
LTC 4642/50
LTC 4642/00 Video Receiver, Rack Module
850 nm FOM, video signals, use with
LTC 4637 series rack
LTC 4642/00
Software Options
VP-CFGSFT Configuration Tool for Imaging
Devices
Camera configuration software for use with
Bilinx cameras
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
VP-CFGSFT
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2011 | Data subject to change without notice
T6893204235 | Cur: en-US, V4, 24 Jun 2011
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6258 5511
Fax: +65 6571 2698
[email protected]
www.boschsecurity.asia
Represented by
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
