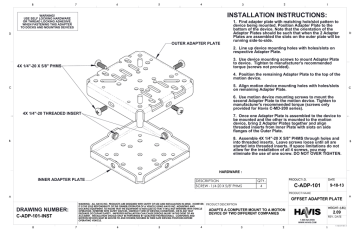

INSTALLATION INSTRUCTIONS:
WARNING!
USE SELF LOCKING HARDWARE
OR THREAD LOCKING ADHESIVE,
WHEN FASTENING THIS ADAPTER
TO DOCKS AND MOUNTING DEVICES
D
OUTER ADAPTER PLATE
1. Find adapter plate with matching hole/slot pattern to
device being mounted. Position Adapter Plate to the
bottom of the device. Note that the orientation of the
Adaptor Plates should be such that when the 2 Adapter
Plates are assembled the slots on the outer plate will be
running side-to-side.
D
2. Line up device mounting holes with holes/slots on
respective Adapter Plate.
3. Use device mounting screws to mount Adapter Plate
to device. Tighten to manufacturer's recommended
torque (screws not provided).
4X 1/4"-20 X 5/8" PHMS
4. Position the remaining Adapter Plate to the top of the
motion device.
5. Align motion device mounting holes with holes/slots
on remaining Adapter Plate.
C
C
6. Use motion device mounting screws to mount the
second Adapter Plate to the motion device. Tighten to
manufacturer's recommended torque (screws only
provided for Havis C-MD-200 series).
4X 1/4"-20 THREADED INSERT
7. Once one Adapter Plate is assembled to the device to
be mounted and the other is mounted to the motion
device, bring 2 Adapter Plates together and align
threaded inserts from Inner Plate with slots on side
flanges of the Outer Plate.
8. Assemble 4X 1/4"-20 X 5/8" PHMS through holes and
into threaded inserts. Leave screws loose until all are
started into threaded inserts. If space limitations do not
allow for the installation of all 4 screws, you may
eliminate the use of one screw. DO NOT OVER TIGHTEN.
B
B
HARDWARE :
INNER ADAPTER PLATE
DATE
PRODUCT I.D.
C-ADP-101
9-18-13
PRODUCT NAME
A
OFFSET ADAPTER PLATE
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER, PRODUCT DESCRIPTION
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
ADAPTS A COMPUTER MOUNT TO A MOTION
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
DEVICE OF TWO DIFFERENT COMPANIES
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
DRAWING NUMBER:
C-ADP-101-INST
8
7
6
5
4
3
2
WEIGHT: (LBS)
2.09
REV. DATE
1-800-524-9900
WWW.HAVIS.COM
1
F-730-019 REV A
A
8
7
5
6
GAMBER JOHNSON
MOUNTING SLOTS
D
4
2
3
JOTTO DESK
1
HAVIS
MOUNTING SLOTS
C
D
C
VESA 100mm
MOUNTING HOLES
RAM 2-1/4" BALL
MOUNTING HOLES
VESA 75mm
MOUNTING HOLES
VESA 100mm
MOUNTING HOLES
RAM 1-1/2" BALL
MOUNTING HOLES
B
B
VARIOUS HAVIS
MOUNTING
HOLES ON INNER
ADAPTER PLATE
DATE
PRODUCT I.D.
C-ADP-101
9-18-13
PRODUCT NAME
A
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER, PRODUCT DESCRIPTION
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
ADAPTS A COMPUTER MOUNT TO A MOTION
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
DEVICE OF TWO DIFFERENT COMPANIES
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
DRAWING NUMBER:
C-ADP-101-INST
8
7
6
5
4
3
2
UNIVERSAL ADAPTER
PLATE
WEIGHT: (LBS)
2.09
REV. DATE
1-800-524-9900
WWW.HAVIS.COM
1
F-730-019 REV A
A
