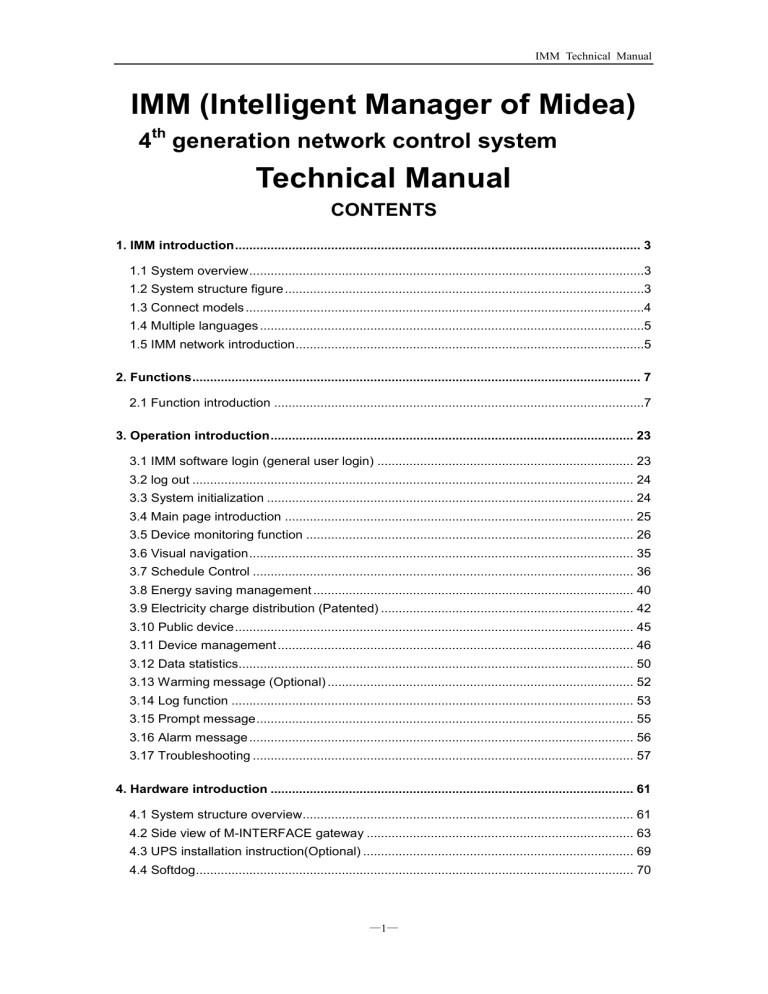

IMM Technical Manual
IMM (Intelligent Manager of Midea)
4th generation network control system
Technical Manual
CONTENTS
1. IMM introduction .................................................................................................................. 3
1.1 System overview ...............................................................................................................3
1.2 System structure figure .....................................................................................................3
1.3 Connect models ................................................................................................................4
1.4 Multiple languages ............................................................................................................5
1.5 IMM network introduction ..................................................................................................5
2. Functions .............................................................................................................................. 7
2.1 Function introduction ........................................................................................................7
3. Operation introduction ...................................................................................................... 23
3.1 IMM software login (general user login) ........................................................................ 23
3.2 log out ............................................................................................................................ 24
3.3 System initialization ....................................................................................................... 24
3.4 Main page introduction .................................................................................................. 25
3.5 Device monitoring function ............................................................................................ 26
3.6 Visual navigation ............................................................................................................ 35
3.7 Schedule Control ........................................................................................................... 36
3.8 Energy saving management .......................................................................................... 40
3.9 Electricity charge distribution (Patented) ....................................................................... 42
3.10 Public device ................................................................................................................ 45
3.11 Device management .................................................................................................... 46
3.12 Data statistics............................................................................................................... 50
3.13 Warming message (Optional) ...................................................................................... 52
3.14 Log function ................................................................................................................. 53
3.15 Prompt message .......................................................................................................... 55
3.16 Alarm message ............................................................................................................ 56
3.17 Troubleshooting ........................................................................................................... 57
4. Hardware introduction ...................................................................................................... 61
4.1 System structure overview............................................................................................. 61
4.2 Side view of M-INTERFACE gateway ........................................................................... 63
4.3 UPS installation instruction(Optional) ............................................................................ 69
4.4 Softdog ........................................................................................................................... 70
—1—
IMM Technical Manual
5. M-INTERFACE gateway introduction............................................................................... 71
5.1 M-INTERFACE network ................................................................................................. 71
5.1.1 IP configuration ........................................................................................................... 71
5.2 M-INTERFACE configuration ......................................................................................... 78
5.3 Web operation introduction ............................................................................................ 94
6. Software ............................................................................................................................ 109
6.1 Software installation ..................................................................................................... 109
6.2 IMM software configuration .......................................................................................... 139
6.3 software operates ........................................................................................................ 157
6.4 Aadministrator login ..................................................................................................... 157
6.5 Account management .................................................................................................. 159
6.6 Setting .......................................................................................................................... 160
6.7 Device searching ......................................................................................................... 162
6.8 Refrigerant system ....................................................................................................... 163
7. Electricity charge distribution ........................................................................................ 164
7.1 Electricity charge distribution overview ........................................................................ 164
7.2 Factors affect the electricity distribution error .............................................................. 165
7.3 indoor unit power consumption estimation .................................................................. 168
7.4 User report selection .................................................................................................... 168
7.5 Public air conditioner and idle air conditioner setting .................................................. 169
7.6 Full heat exchanger and new fan insert ....................................................................... 169
7.7 Electricity partition situation ......................................................................................... 170
7.8 Precautions .................................................................................................................. 170
8. IMM software upgrade ..................................................................................................... 171
8.1 Database backup ......................................................................................................... 171
8.2 Backup the power file .................................................................................................. 173
8.3 Uninstall the client and the server software ................................................................. 173
9.Appendix ........................................................................................................................... 175
9.1 Topology documents specification............................................................................... 175
9.2 The history power data query ...................................................................................... 177
9.3 Database backup and restore...................................................................................... 178
9.4 Power meter installation (Customized) ........................................................................ 186
—2—
IMM Technical Manual
1. IMM introduction
1.1 System overview
IMM is the short name for Intelligent Manager of Midea. It designs specifically to control
VRF systems and includes four parts: IMM software, M-INTERFACE web gateway (can
be connected Max. 4 gateways), air conditioner system and softdog.
IMM is based on a centralized format and dedicated to the complete control and
monitoring of all the system‟s functions. It can be used as a flexible multi-purpose system
and applied to a variety of needs, according to the scale, purpose and control method of
each building. IMM software provides user different operation function and the software
must be installed in the PC.
M-INTERFACE gateway can be connected to Midea Central Air conditioner through the
M-net port (XYE and K1K2E ports). Under the auto topology mode, one M-INTERFACE
gateway can be connected up to 4 refrigerant systems (Max. 256 indoor units and 16
outdoor units); under the manual topology mode, one M-INTERFACE gateway can be
connected up to 16 refrigerant systems (Max. 256 indoor units and 64 outdoor units).
1.2 System structure figure
Refrigerant systems must be correctly connected to the M-net port of M-INTERFACE
gateway and the gateway can connect to the PC which has installed IMM software
through LAN terminal. Users can access the M-INTERFACE‟s WEB function through the
Internet from like PC, Pad or Laptop. IMM software can monitor and control the air
conditioners and the system structure figure as following:
—3—
IMM Technical Manual
The router is optional if you want to use more than one computer to control the system.
The IMM can connect up to 4 M-INTERFACE gateways, totally could join up 64 refrigerant
systems, amount to 1024 indoor units and 256 outdoor units.
1.3 Connect models
1) Can freely connect all VRF models. If the projects need the electricity charge
distribution function, you need to use the V4 plus series indoor/outdoor units, and the
M-net ports communication wire need to connect from the outdoor units.
2) If Mini VRF will be connected to the project and need the electricity charge distribution
function, MD-NIM10 module must be used.
3) The new outdoor units and the old outdoor units cannot be mixed connected to the
same M-net port of the M-INTERFACE.
—4—
IMM Technical Manual
1.4 Multiple languages
IMM software and M-INTERFACE gateway can be supported 7 different languages:
Simple Chinese, English, Russian, French, Italian, German and Spanish. Customers can
switch freely according to their own needs.
1.5 IMM network introduction
IMM software includes three parts: server software, IMM cline-side software and database
software. The server software and the database software must be installed in the same
computer, the computer and the M-INTERFACE gateway should be in the same subnet
segment (for details, please refer to 5.1). The IMM cline-side software can connect to the
server through the local or remote network.
1.5.1 Local network connection
The IMM cline-side software can be connected to the server through the local network, the
local network connection as the following display:
1.5.2 VPN network connection
The IMM client-side software and server can use the remote network (VPN) connection.
There are two VPN connection methods: router establishing and computer establishing
methods. The remote network connection needs some IT knowledge and needs the IT
professionals to assist.
—5—
IMM Technical Manual
1) Router establishing methods
VPN tunnel is established between router and router, and then it can visit WEB page
through VPN tunnels. VPN Server can be established by yourself and also can be rented.
The topology structure as follow display:
2) Computer establishing methods
Use VPN client-side software and VPN Server to establish VPN tunnel, then user can visit
the server through VPN tunnel. VPN client-side software and VPN Server can be
achieved by commercial ways. The topology structure as follow display:
—6—
IMM Technical Manual
2. Functions
2.1 Function introduction
User can control and manage the air conditioner system through the WEB page and IMM
software. WEB page and IMM software can provide different functions and meet the
market requirements. In order to ensure the IMM system can be operational normally,
you need to check and maintain regularly.
2.1.1 WEB Function
There are "Control", "Map", "Setting", "DevInfo", "Upgrade", "CommLog" and "Help" and
so on functions on the WEB page of M-INTERFACE gateway.

Control (Device monitoring)
Provides the operating details information of indoor and outdoor units, and it can control
indoor units.
—7—
IMM Technical Manual

Map (Visual navigation)
Can display all situations of refrigerant systems; include quantities of indoor and outdoor
units in refrigerant system, power meter quantity and communication quality between
single device and M-INTERFACE gateway.

Setting function
It can set the basic configuration of the, time setting, IP setting, user management and
other functions.
—8—
IMM Technical Manual

DevInfo (Device information)
Can display and modify the information of indoor and outdoor units.

Upgrade (Software upgrade)
The function provides for upgrade the software of M-INTERFACE gateway.
—9—
IMM Technical Manual

CommLog (Communication log)
Provide communication fault log information of M-INTERFACE gateway.

Help function
Provide error codes of Web page for user.
—10—
IMM Technical Manual
2.1.2 IMM Software function
IMM software can provide the main functions to control and modify the units.

Control (Device monitoring)
Can control and management the indoor and outdoor units.
—11—
IMM Technical Manual

Dev.indication (Device indication)
User can see the location A/C which unit you want to check. IMM supports the traditional
display, and can be combined with the building structure, rapid positioning monitors and
controls A/C state.
—12—
IMM Technical Manual

Schedule (Schedule management function)
Provides the schedule control function and uses can set the running schedule for every day.
There are 4 sections and 10 actions per section in each day for each single unit or group.
Automatically performs facility start/stop control, switching the operating mode, setting
temperatures and enabling/disabling the remote control according to the present time
schedule.
—13—
IMM Technical Manual

Eco (Energy saving management)
IMM provides the energy saving management function. User can set limit to any running
unit, any parameter, such as cooling temp., heating temp., fan speed, running mode and
so on.
—14—
IMM Technical Manual

ECS (Statistics of energy consumption)
Statistics of energy consumption function is the electricity charge distribution function.
Electricity charge apportionment can be performed easily for the power consumed when
billing users for air conditioner power charges, such as tenants in a commercial building,
offices in a rental building, or rooms in a hotel.
—15—
IMM Technical Manual

Public Dev. (Public device)
IMM software provide the public device management, users can set the unit as the public
device for free, and it is convenient to manage the energy charge of the public devices.

Dev.Management (Device management)
Offers the group divisions function of air-conditioner device.
—16—
IMM Technical Manual

Statistical (Data statistics)
IMM system provides the state changing records of indoor unit, outdoor unit and
M-INTERFACE gateway.

Note alarm (Warning message)
If error occurs, it will be notified with warning message. The system is able to send error
messages to designated mobile phone number automatically via public phone lines and
SMS Modem .(* optional)
Notes: It is necessary to purchase an additional piece of equipment named "SMS
Modem" from Midea.
—17—
IMM Technical Manual

Log
It can offer all the operations records of the IMM client-side.
—18—
IMM Technical Manual

Setting
It offers project information configuration and electricity price configuration functions.
—19—
IMM Technical Manual

Account management
It can change the account password.
—20—
IMM Technical Manual

Refrigerant system
It can display the indoor and outdoor units‟ information in the refrigerant system, and
respond the system mapping relation.
—21—
IMM Technical Manual

Device searching
It can search the air conditioners and gateway devices in the same network.
—22—
IMM Technical Manual
3. Operation introduction
3.1 IMM software login (general user login)
There are two login methods for IMM software: general user login and administrator login.
Now introduction the general user login first.
Operate the IMM client-side software and it will enter the following page:
When display "Connect to the server successfully" at the lower left of the login page, then
you can carry out the login operations. The login operations steps as follow:
1) Input user name and password, the defaults are "user";
2) Choose whether save the password;
3) Click "OK" button to carry out login;
4) Click "Cancel" button to exit;
When clicked the "OK" button and login successfully, it will enter the system home page.
—23—
IMM Technical Manual
3.2 log out
Click the icon
on upper-right corner, and it will display "Logging out the system, please
waiting" and exit the system.
3.3 System initialization
When user login is successful, it will display the system initialization dialogue frame as
following, and carry out the system initialization to update the system information.
Click the "Exit the system" button, it will stop the initialization work and exist the system.
—24—
IMM Technical Manual
3.4 Main page introduction
The system main page display as following:
Software version
and user‟s login
name
Menu bar
Function bar
Display area
Information
remind bar
Menu bar: provide the system function menu.
Function bar: include the device monitoring, device indication (visual navigation),
schedule management, Eco (energy saving management), ECS (electricity charge
distribution), public device, device management, data statistics, note alarm (warning
message) and log function.
Display area: display the detailed information of each function.
Information remind bar: can display the prompt message and alarm information.
The upper-right corner of the interface will display the software version and user‟s login
name.
—25—
IMM Technical Manual
3.5 Device monitoring function
There are three parts can be operation: indoor units monitoring class, outdoor units
monitoring class and the M-INTERFACE gateway monitoring class. Each part can be
divided primary group and the secondary group display. For example, under the indoor
unit, it will display the primary group: Buildings; and under the primary group it will display
secondary group: first floor, second floor, third floor etc.
3.5.1 Indoor unit monitoring
Selecting "indoor unit" class, the left side of page will display the group information of the
indoor unit, and the right will display all the indoor units in the IMM system. Select the
"device control" can control single or more sets indoor units; select the "device details
information" can check the operating detail information of a single device.
1) Check the operating state of indoor unit
Choose the "device detail information" and select any one indoor unit, then the bottom of
the page will display the operating detail information of this device.
Displayed detail information: on and off state, operating mode, device‟s name and device
number and so on.
—26—
IMM Technical Manual
2) Control the operating state of indoor unit
Choose the "Device control", select the single or more sets indoor units (selecting method
refers to 3.5.4) to configure parameters: on and off setting, operation mode, fan speed,
temperature and swing setting, and click "send" button after setting, it will display as
following dialog:
After click "send" button ,the page will display the icons which waiting for being sent, and
after the order is finished, the send waiting icons will disappear, the page will be refresh,
then we can check the running state of air conditioner. If the control is failed, the "Prompt
message" will display the control failed information on the page bottom.
Notes: double click the digit below the icon can change the device‟s name, and then press
ENTER key to confirm.
—27—
IMM Technical Manual
3) Indoor icon introduction
Icon
Remark
Icon
Remark
Cooling
Heating mode
mode (Blue)
(Orange)
Error (Red)
Locking
Icon
Remark
Fan only (Green)
Power off (Gray)
The control order
is running, please
waiting
Offline
Selected unit
(White)
States selection:
There are some display states of the indoor unit: error (
(
Schedule ),
(
Locked
cooling (
Cool
), heating (
) and selected (
Selected ).
Heated ),
fan only (
Error ),
Fan ),
Offline (
Offline ),
power off (
Off
schedule
), locked
Click the above icons, and it will display all the
corresponding state of each unit. Right-click the "selected" icon, and it will "All
select/cancel all select", if selection "All select", it will select all the icons; if selection
"cancel all select", it will cancel selecting all the icons. Right-click the "locked" icon, it will
display the locked lists, and click the corresponding list will display the corresponding
devices.
—28—
IMM Technical Manual
3.5.2 Outdoor unit monitoring
Selecting "outdoor unit" class, it will display the group information of the outdoor unit on
the left side page, and the right side of page will display the corresponding outdoor units.
There are some display states of the outdoor unit: error, offline, cooling, heating and
selected. Selected or right-click the single outdoor unit can check the on and off state,
ambient temperature, power meter information etc. under the "Device details information".
Outdoor icon introduction
Icon
Remark
Icon
Remark
Icon
Remark
Cooling mode
( Blue)
Error (Red)
Selected unit
Heating mode
(Orange)
Power off (Gray)
Offline (White)
—29—
IMM Technical Manual
States selection:
The outdoor unit display state: error (
Error ),
(
Selected ).
Heated ),
power off (
Off
) and selected (
offline (
Offline ),
cooling (
Cool
), heating
Click above icons, and it will display all
the corresponding state of each unit. E.g.: click the cooling icon on the central building,
and then it will display all units which under the cooling state as following dialog:
—30—
IMM Technical Manual
3.5.3 M-INTERFACE gateway monitoring
Selecting "IMM WEB controller" (M-INTERFACE gateway) menu, the page will display all
the M-INTERFACE gateways in the IMM system.
There are 3 display states of M-INTERFACE gateway: off-line, locked and selected. When
selecting or right-click one M-INTERFACE gateway, the bottom of page will display
gateway‟s IP address and with the limit mode or not, and users can control the
M-INTERFACE gateway through setting the limit mode parameters, emergency stop
parameters and then click "send" button. Double-click the device name can change the
gateway‟s name, and press enter key to save. E.g.: selecting the M-INTERFACE gateway
named 40 and 42 (selecting method refers to 3.5.4), and select the "limit mode"
parameters, and then click the "send" button, the page display as following dialog:
—31—
IMM Technical Manual
After setting "Limit mode" successfully, the device icon will add a lock icon.
Parameters specifications:
Parameters
Remark
Lock: cannot operate in the WEB page of M-INTERFACE
Limit mode
gateway
Unlock: can unlock the M-INTERFACE gateway
----: cannot operate the emergency stop function
Emergency stop
Stop: can operate the emergency stop function and turn off all
the unit which under the same M-INTERFACE gateway
—32—
IMM Technical Manual
Icon specification
Icon
Remark
Icon
Remark
M-INTERFACE gateway
M-INTERFACE gateway offline
work normally
M-INTERFACE
gateway
M-INTERFACE gateway
locked
selected
States selection:
There are 3 states of M-INTERFACE gateway: locked (
selected (
Selected ).
Locked ),
offline (
Offline )
and
Clicking above state icons can check the corresponding state of each
gateway. If clicking the offline icon, it will display all the gateways which are offline.
Right-click the "selected" icon and it will display "All select/cancel all select" frame, if
choosing "All select", and then all the icons will be selected in the same page; if choosing
"cancel all select" all the icons will be cancel selected in the same page.
—33—
IMM Technical Manual
3.5.4 Shortcut keys operation

The mouse shortcut keys operation
The system offers shortcut keys operations, it convenient for user to select/cancel one or
more sets devices quickly.
1. Select single icon
Left-click the icon, if the icon has been framed, it means this device is selected.
2. Select several icons
There are two methods for selecting several icons:
1) Use the same way as selecting single icon to choose the device icons which you want
to choose.
2) Left-click outside the frame in the page and drag a dotted line frame to select the
corresponding icons.
3. Cancel single selected icon
Left-click the selected icon again, it will cancel selecting the icon
4. Cancel several selected icons
There are two methods for canceling several selected icons:
1) Cancel several selected icons way is the same as canceling single selected icon.
2) Double-click the left/middle/right key of the mouse in the blank place of the page, to
cancel several selected icons.

Function shortcut keys operations
Right-click the
Selected
icon, it will display the selection frame "All select/cancel all
select", if choosing "All select" or "Cancel all selected" can select and cancel quickly. The
operation steps as follow:
1) Select the "indoor unit" or "outdoor unit" class (or primary group or secondary group).
2) Click any one state display icon (cooling, heating, error, off unit etc.), for example, click
the cooling state icon, all the cooling units will be display.
3) Click the "select all" option, then all the cooling units will be selected in the same page,
and if clicking the "cancel the selected all", all the selected icons will be canceled
selecting.
—34—
IMM Technical Manual
3.6 Visual navigation
IMM system provide the visual navigation function and users can be combined with the
building structure, rapid positioning, monitors and controls A/C state.
Right-click any one secondary group, it will display "Enable equipment position change"
and " Replace floor plan" frame, and click "Replace floor plan", then it display as following
dialog:
User selects the corresponding floor plan (the picture will be in JPG format stored in the
map folder of the IMM client-side installation menus) and click "Save" button, and click
"Close" button after operation.
After selecting the floor plan, then click "Start changing device‟s location", user can select
any one device and drag it on the page to change its location.
—35—
IMM Technical Manual
3.7 Schedule Control
IMM system provide the schedule control function, users can operate schedule
management of the indoor unit.
Schedule control steps are as follows:

Add the name
Click the "Add" button and input the schedule name
—36—
IMM Technical Manual

Add device
Click the "Device selection" button on the page, then it will display the add device
frame as the following display:
Click the "Non-selected device" option, select the device and click the "add" button. Click
the "Selected device" option, and then it shows up the selected devices. Choose the
relative devices, and click "Move" to move the devices into "Non-selected device". After
selection, click "OK" and then close the selection frame. The page will display the selected
devices.
—37—
IMM Technical Manual

Control parameters setting
In the control parameters setting page, users can set time, on /off state, operation mode,
fan speed, temperature, swinging parameters. Click the cancel icon to cancel the setting.
Cancel icon
—38—
IMM Technical Manual

Time selecting
There are two ways can add time: date and week.
Date: select corresponding month and date and they will change to red.
Week: select corresponding week, then the day of each week will be listed in the schedule.
For example, selected Monday, then every Monday will run this schedule which you
setting.

Save
After setting, click the save button and display as the following:
The upper left corner of the page will display the schedule name and the right page will
display the added device. If device is the first time setting schedule, then the icon will add
the schedule icon.
Use the "Data statistics" function can check the schedule operating state. About the
important timing plan, you should set it again after 5 minutes.
—39—
IMM Technical Manual
3.8 Energy saving management
IMM software provides the Energy saving management for indoor units and the function
just only available for the new type indoor unit series (V4 plus series), the old type indoor
series (V4 series) do not support the function.
The left side will display the indoor units information, and select single or more sets indoor
units, and choose the energy saving option, click the "Setting" button. After setting each
parameter, the indoor unit icon will display the locked icon. If it needs to unlock the limit,
then choose the "Unlocked" and "Setting" button will unlock the limit and the locked icon
disappear. If the control failure, check the failed information in the "Prompt message".
Click the right key of the mouse on an indoor unit, and then the bottom of the interface will
display the locking detail information of this device.
—40—
IMM Technical Manual
Selection specifications:
There are seven elements to be limited, such as cooling temp, heating temp, on/off control,
running mode, fan speed, swinging and remote control. Users can set each parameter of
them to save energy. It‟s very convenient to manage the IDU operation state.
Selection
Specifications
Set the lowest limit of cooling temp, and limit the remote
Cooling temp. limit
controller control
Set the lowest limit of heating temp, and limit the remote
Heating temp. limit
controller control
Limit the indoor unit turn on and off operations by the
Turn on and off unit limit
remote controller
Mode limit
Limit the unit cooling or heating mode operations
Fan speed display
Limit the fan speed control by the remote controller
Swinging limit
Limit the swinging control by the remote controller
Remote controller limit
Limit the air conditioner operations by the remote controller
—41—
IMM Technical Manual
3.9 Electricity charge distribution (Patented)
Electricity charge distribution function can be performed easily for the power consumed
when billing users for air conditioner power charges, such as tenants in a commercial
building, offices in a rental building, or rooms in a hotel. The M-INTERFACE gateway
collects the energy used by outdoor units and capacity demand of each indoor unit,
apportions the energy to each indoor unit, report the hourly power consumption of each
indoor unit to the IMM, the 24 hours electricity charges by tenant are calculated by IMM
system. After technicians set the pricing standards, the IMM system automatically
assigned energy using situation, users can view the electricity discharge directly. It is the
Midea patented technology.
The function needs to be activated before use and users need to send the activate code
back to our company for activation. After activation, the page as shown in the figure below:
—42—
IMM Technical Manual
Select the "Start time", "End time" and "Dev. statistics" parameters, and then click the
"statistics" button, the page will display all the statistics result. If not select the "Dev.
statistics ", it default selects all the devices.
—43—
IMM Technical Manual
Click the "Setting" button, and it will display the dialogue frame to set the calculation
method of electricity statistics.
Click the "Export" button and it will export the displayed results in the xls/txt/csv format.
The xls format displays are as follows.
Input the unit‟s name and click the "Searching" button can search the unit and check the
parameters. Such as input in "40200" and searching, then the page will display the
searching results as following.
Notes:
1. Power statistics results only as for a reference, cannot use for commercial calculating
record.
2. IMM software can backup data automatically, and you‟d better export the report per
month.
—44—
IMM Technical Manual
3.10 Public device
For the commercial office building or apartment-style hotel, in order to ensure the power
distribution reasonability, it‟s necessary to divide the power of public device for each user.
The power rate of the idle device and public device will be divided into other using device
in IMM system and it does not appear in export report.
Find the corresponding device in the operated device, click "As public device" or "As idle
device" button, and divide it to the public device or idle device. Idle device means the
devices are not used; public device means the devices in the public place, such as the unit
on the hall or the corridor etc. You can also click "Cancel the public use state" button cancel.
—45—
IMM Technical Manual
3.11 Device management
IMM software provides the group division function, it convenient for device management.
Click the corresponding group option, the corresponding device in the group will be
displayed in the right of the page.

Add group
The adding group method of the outdoor/indoor unit is in the same way (Take adding the
secondary group of indoor unit for example):
—46—
IMM Technical Manual
Selecting the primary group "China buildings (40)" first, and then click the "Add" button to
input the secondary group name (1 floor). And click "Save" button, then it will build a
secondary group (4 floor) under the indoor and outdoor unit, and select the devices which
you want to add to the "1 floor", left-click the "4 floor" and choose the "Selected device add
[1 floor] floor".
After adding the device successfully, the 1 floor group will display the added devices.
Devices can only be added in the secondary group.
—47—
IMM Technical Manual

Change the indoor unit model
IMM can access the indoor unit according to the actual type to select the appropriate icon
display. Users can more easily grasp the system information
Select single or more set units under the secondary group and right-click on the unit, it will
display as the following option to change the indoor unit model.
When select the corresponding model, the indoor unit picture will change.
—48—
IMM Technical Manual

M-INTERFACE gateway display
Click the "IMM WEB controller", the page display as following:
The left of page will display all gateways and their terminals (40, 41, 42, and 43), click the
corresponding terminals, the right of page will display the air conditioner device under the
terminal; 1-4 terminals are indoor unit terminals, 5-8 terminals are outdoor unit terminals.
—49—
IMM Technical Manual
3.12 Data statistics
Statistical the operation changing records of indoor unit, outdoor unit and M-INTERFACE
gateway. Through this function can check the operation state of the schedule and the
changing state of the device.
Select the "Start time", "End time", "Device rating" and "Dev. statistics" parameters, and
then click the "Statistics" button, it will display as follows:
—50—
IMM Technical Manual
Click the search button in the statistics page, and the statistics result will be displayed in
the page. Such as input "41139", then the page will display the searching results as
follows:
Click the "Export" button and it will export in the xls/txt/csv format, the xls format display as
follows:
—51—
IMM Technical Manual
3.13 Warming message (Optional)
The system can receive error message from air conditioner units in more than one
building or structures and the system is able to send error messages to designated mobile
phone number automatically via public phone lines and SMS Modem. It is easy to monitor
the state of air conditioner.
Notes: It is necessary to purchase an additional piece of equipment named „SMS Modem‟
from Midea.
Connection the SMS Modem correctly at first, and then add the recipient phone number,
configuration parameters. If error occurs, the system will send the warning messages to the
recipient automatically.
—52—
IMM Technical Manual
3.14 Log function
It can display the IMM system operation records by all users.
Select the "Start time", "End time" and "Log type" parameters, there are five types in Log
type: command, schedule, energy saving, login and low-load operation reminding. And
then click the "Statistics" button, the page will display the statistics result. Click the "Reset"
button, the selection frame will be cleared.
Notes:
1. Low-load operation reminding function means energy-requiring is lower the setting
value when the outdoor unit is operated.
2. IMM can run low-load operation reminding according to the total capacity, the reminding
value can set as you need. It helps users understand the system and energy saving better,
and achieve centralized control management conveniently.
—53—
IMM Technical Manual
Input the search content and click the "searching" button, it will carry out the searching
function. Such as input "login", then the page will display the searching results as
following:
—54—
IMM Technical Manual
Click the "Export" button and the result will be exported in xls/txt/csv format, the xls form
display as following:
3.15 Prompt message
If there are some prompt messages, the prompt message icon will be change to red, and
click the "Prompt message" icon can check the corresponding information.
Prompt types include: air filter cleaning reminding function, low-load operation indicate,
operate failed and the server connection failed. Click a prompt message, the bottom of the
page will display detailed information. If checked "Popup the newest Message", then the
prompt dialogue frame will be popped-up automatically when there is any prompt
message.
—55—
IMM Technical Manual
3.16 Alarm message
When a fault occurs, the connection failed, the system will give an alarm message. The
alarm frame display as follows:
When the alarm condition is removed and the alarm dialog will display the "Alarm cleared".
Click a massage will display the detailed massage on the bottom of page. If checked the
"Popup the newest alarm", it will popup the prompt frame automatically when there is
prompt message. When there was alarm message, it should be maintained immediately.
—56—
IMM Technical Manual
3.17 Troubleshooting
3.17.1 Login failed
1) The server connection failed
Login before connected to the server, it will display "Fail to connect the server". The
solution is: check whether the configuration information of IMM client-side setting is right,
whether the network between the server and the IMM client-side is smooth and whether
the IMM client-side can connect to the database or not.
—57—
IMM Technical Manual
2) Wrong password
There may be two reasons for login WEB page failure:
01 .No input password: If the user does not input the password, and click "OK", then it will
display "Please input the password". Type the correct password and then login again.
02. Wrong Password: When the password is wrong, it will display "login failed". Type the
correct password again.
3) Control failed
1).When setting the mode lock, it might cause control failed. For example, locking the
heating mode, then open the cooling mode, it will cause control failed, and the failed
information will display in the prompt message frame. It needs to unlock the air conditioner,
and do the mode setting again.
2). If setting the remote controller lock, then when using remote controller to control the air
conditioner, it will cause control failure.
3). When controlling the indoor unit, if it is failed, then find out the reason through the
prompt message.
4) No respond in operate page
1) As for the IMM control page, if the page cannot be operated, then should check the
connecting icon in the lower left of the page to judge, whether it was normally connected
to the server, if the connection failed, then it needs to contact the local dealer or
technicians to maintain the network.
—58—
IMM Technical Manual
3.17.2 Error code analysis of IMM client-side interface
The following error code tables are suitable for the V4 plus series indoor and outdoor
units.
Indoor unit error codes table:
Codes
Error protection
Codes
Error or protection
E0
Phase sequence error or lack
of phase
P1
Anti-cold or defrost protection
E1
Communication error
P2
Condenser high temp. protection
E2
Room temp. T1 sensor error
P3
Compressor temp. protection
E3
Middle evaporator temp. T2
sensor error
P4
Discharge pipe temp. protection
E4
Evaporator outlet temp. T2B
sensor error
P5
Discharge high pressure
protection
E5
T3/T4/digital compressor
discharge temp. sensor error
P6
Discharge low pressure
protection
E6
Zero crossing detection error
P7
Over voltage or under
voltage protection
E7
EEPROM error
P8
Compressor over current protection
E8
Fan speed detection out of
control error
PF
Other protections
E9
Communication error
between main board and
display board
0#
Communication error between network
connect module
and mainboard
EA
Compressor over current
error
(4 times)
1#
Communication error between
centralized controller and
network connect module
EB
Inverter module error
2#
Communication error between
centralized monitor and function module
EC
Fresh error
3#
Communication error between
centralized monitor and computer
(gateway)
ED
Outdoor unit error
4#
Order limit execution
EE
Water level checking error
5#
Order timeout, no execution
EF
Other errors
6#
Excepted address not exist
P0
Evaporator temp. protection
7#
Error (unsupported) order
—59—
IMM Technical Manual
Outdoor unit error code table:
Codes
Error or protection
Codes
Error or protection
E0
Communication error between
outdoor units
P2
E1
Phase sequence error or lack of
phase
P3
E2
Indoor units and master unit
communication error
P4
Discharge temp. protection
E3
Ambient temp. T4/pipe temp.T3 or
digital compressor discharge
sensor error
P5
Condenser high temp. protection
E6
T6 sensor error
P6
Inverter module protection
E9
Voltage error
P7
Compressor current protection 2
EF
Other errors
P8
Compressor current protection 3
H0
DSP communication error
P9
Over voltage or under
voltage protection
H1
Network communication error
PA
Defrosting protection
H2
Quantity of outdoor units
decrease error (only display on
master unit)
PD
Oil return
H3
Quantity of outdoor units increase
error (only display on master unit)
PE
Oil balance
P0
Top temperature protection of
inverter compressor
PF
Other protections
P1
Discharge high pressure
protection
/
/
—60—
Discharge low pressure
protection
Compressor current protection 1
IMM Technical Manual
4. Hardware introduction
4.1 System structure overview

M-INTERFACE gateway is used to query and control indoor unit, and transmits
the state information of indoor unit to the computer and the controlling and
querying orders from the computer to the indoor unit.

The air conditioner should be connected to the M-net ports of the
M-INTERFACE gateway, and the gateway can communicate with IMM software
through the LAN port.

The longest of Network cable should be 100 meters. Communication wire must
use the 3-core shielded wire, and the 485 communication wire can be up to
1000 meters between each Web controller and the outdoor unit
—61—
IMM Technical Manual

Under the auto topology mode, one M-INTERFACE gateway can be connected
Max. 4 refrigerant systems, insert 16 outdoor units and 256 indoor units, the
wiring should be polarity connection: indoor/outdoor units of No.1 system must
be connected to the No.1 and No.5 port of M-INTERFACE; the indoor /outdoor
units of No.2 system must be connected to the No.2 and No.6 port;
indoor/outdoor units of No.3 system must be connected to the No.3 and No.7
port; indoor/outdoor units of the No.4 system must be connected to the No.4
and No.8 port.

Under the manual topology mode, one M-INTERFACE gateway can be
connected Max.16 refrigerant systems, insert 64 outdoor units and 256 indoor
units. Indoor units belong to the same refrigerant system cannot connect to
different M-net ports, but the M-net port can connect indoor units from different
systems and the indoor units‟ address must be different; outdoor units belong to
the same system cannot connect to different M-net ports, but the M-net port can
connect outdoor units from different systems and the outdoor units‟ address
must be different.

M-INTERFACE gateway controller can only be installed at the end of the XYE
or K1K2E communication wire, cannot be installed at the middle of the XYE or
K1K2E communication wire. And need to add matched resistance120 Ω if
necessary.
—62—
IMM Technical Manual
4.2 Side view of M-INTERFACE gateway
M-net port
I/O port (Emergency
stop/ Alarm signal
output)
LED indicator lamp
LAN port, to PC, or
Router/Hub/Switch
Power supply
Console port
Power ON/OFF switch
—63—
IMM Technical Manual
4.2.1 M-INTERFACE gateway ports
Physical product picture
There are 8 M-net ports on the M-INTERFACE gateway, and the1 to 4 port are the indoor
unit communication ports, they can only connect to XYE ports of the indoor units; 5 to 8
port are the outdoor units communication ports, can only connect the K1K2E ports of the
outdoor units.
—64—
IMM Technical Manual
4.2.2 Dimensional design (319*251*67.5mm)
1) Front view of M-INTERFACE gateway controller (Unit: mm)
319
292.5
251
173
66.4±1
2) Side view of M-INTERFACE gateway controller (Unit: mm)
319±1
3) Detailed drawing of installation holes (Unit: mm)
5.5
4
R3.5
Installation precautions:
1. Must be installed indoors, guarantee the gateway controller installation must be higher
than the ground 50 cm;
2. Install at a place where should not affect by electromagnetic wave or dust;
3. Avoid installation place where affects by sunshine or heat source device etc.
4. Avoid installation place where has high humidity or can contact the water;
5. Avoid installation place where will produce corrosive or flammable gas.
—65—
IMM Technical Manual
4.2.3 Communication wiring diagram
M-INTERFACE gateway need to install at the end of the XYE or K1K2E communication
wire, it cannot be installed at the middle of the XYE or K1K2E communication wire.
Connection needs to use 0.7mm2~1.0mm2 three cores shielded communication wire.
—66—
IMM Technical Manual
4.2.4 LED indication lamp
Indication lamp
Color
Specifications
TX1~TX8
Yellow
1 to 8 lamp is the sending ports indication lamps
RX1~RX8
Green
1 to 8 lamp is the receiving ports indication lamps
Power
Red
Power indication lamp
States
Green
States indication lamp
Alarm
Yellow
Alarm indication lamp
Modem
Green
Reserve indication lamp
LED States:
Under the normal situation, state lamp will be flashed with 1Hz and the alarm lamp will
lights off.
With error situation, state lamp and alarm lamp will be flashed with 1Hz at the same time.
4.2.5 M-INTERFACE gateway specifications
Voltage
Power supply
AC 100-240V~1P,50/60 Hz
Consumption power
Max. 15W
Voltage fluctuation
Using conditions
Rated value ±10%
Ambient temp.
-10~50℃
Ambient humidity
0~95%
Storage temp.
Capacity
-20~60℃
When it is DC 500VM,it will over 50MΩ
Insulate resistance
Weight
4.4kg
Dimension(W*H*D)
319*67.5*251(mm)
—67—
IMM Technical Manual
4.2.6 Dial switch definition
Dial code switch locates on the display lamp panel
Dial
ON
name
SW1-1
No electricity charge
distribution function
OFF(Factory
default )
With electricity
charge distribution
ON
DIP
ON
function
1
SW1-2
Dial code setting IP
WEB setting IP
SW1-3
Manual topology mode
Auto topology mode
SW1-4
Reserve
2
3
4
OFF
When dial SW- 2 set to OFF and SW-3 set to ON means that the system can use WEB
function to set the IP and apply the manual topology mode.
*Notes: when manual adjusts the dial code switch, it needs to take off the top cover plate
of M-INTERFACE gateway. There are 4 bolts on the cover plate, please take them down
and keeping properly.
4.2.7 Battery installation
After setting the dial code switch, take out the battery from the accessory bag, and the
positive pole of battery must be upward side and install on the mainboard as the following.
System time synchronization refers to 5.2.3 synchronization time.
—68—
IMM Technical Manual
4.2.8 I/O Port
Gateway
Name
Note
Pin1
Error output port.
Pin2
When the device operates normally, Pin1 and
Pin2 will be broken, and Pin2 and Pin3 will be
connected. If there are some errors, Pin1 and
Pin2 will be connected, Pin2 and Pin3 will be
broken.
Pin3
When A/C is powered off, the device still output
error.
Pin4
Emergency stop input signal. If the signal is high
level (12~36V DC), then means emergency stop;
if the signal is low level (0~0.7V DC), then means
operate normally.
Pin5
Reserve
Pin6
Ground wire of emergency signal.
Installation notes:
1). Avoid to sunlight exposure
2). Do not close to the heating source.
3). Do not install in places with high humidity or water.
4). Do not install in the place where is easy to produce corrosion or flammable gas.
4.3 UPS installation instruction(Optional)
UPS model
BK650-CH
Capacity
650 VA/400 Watt
Output voltage
220V±8%(Battery)
Output power
50Hz±1Hz(Battery)
Notes: When turnoff the power, please turn off the computer safely.
—69—
IMM Technical Manual
4.3.1 UPS wiring figure
One UPS can only provide power supply for one computer, one switchboard and 4
M-INTERFACE gateways.
4.3.2 UPS installation
According to UPS BA650-CH operation instruction, power wire and signal wire
separately connect to the power and computer. Install UPS BK650-CH power
management software.
Notes: please carefully read the UPS operation instruction, and safely shut down the
computer when power-off.
4.4 Softdog
Softdog must be inserted to the server PC first, and then operate the server software.
The softdog can be inserted to any USB ports of PC. Softdog will be sent with the device
and it is only used by Midea.
—70—
IMM Technical Manual
5. M-INTERFACE gateway introduction
M-INTERFACE gateway has 8 M-net ports, 1 LAN port, 8 M-net ports indication lamps, 4
state display lamps (Power, States, Alarm, and Modem) and a power switch.
5.1 M-INTERFACE network
M-INTERFACE gateway can connect the local area network or Internet network through
LAN port. M-INTERFACE gateway can connect to the LAN network through switch or
router. IP address of computer or other similar devices must be in the same subnet area
as the IP address of M-INTERFACE gateway,
5.1.1 IP configuration
Default IP of M-INTERFACE gateway is 192.168.100.40, subnet mask is 255.255.255.0.
M-INTERFACE gateway's IP address and IMM server must be in the same subnet area.
If you want to modify the gateway's IP address through the WEB page, you need to
manually configure static IP address of the PC or other similar devices (Pad, Laptop),
and static IP must be meet the following requires: within 192.168.100 segment, subnet
mask is 255.255.255.0. The single IP is the general configuration, if the PC IP address is
not easy to modify, can be used to configure multiple IP ways. Now take Windows 7 for
an example.
—71—
IMM Technical Manual
5.1.1 PC configure the statistic IP

Configure single IP
Open the protocol attribute dialogue box to configure the IP address and subnet mask. For
example: IP address is 192.168.100.44, subnet mask is 255.255.255.0.
After configuration, click the "OK" button to finish single IP configuration.

Configure several IP
It needs to configure a statistic IP address before configure several IP.
1) Check the local IP
Open the property dialogue box, if the option "uses the following IP address" is selected,
and the display page with an IP address, then the local IP is a static IP address,
otherwise it is a dynamic IP address, and then it needs to configure a statistic IP address.
—72—
IMM Technical Manual
2) Configuration static IP address
Open the "start" menu, and input "cmd" in the search box, the dialog box as following:
Input "ipconfig" on the above diagram, the page will display local dynamic IP address; fill
in the IP address to the properties dialog box, static IP address configuration is completed.
Open the property dialogue box again, select the "Advanced", you will enter the
"Advanced TCP/IP settings". Click "add" button in the IP address bar, add an IP address in
the same net area with "192.168.100.40", such as IP is192.168.100.101, subnet mask is
255.255.255.0, and click the "Add" button complete setting, the dialog box as following:
Step 2
Step 1
*Notes: do not set the gateway IP to be: 192.168.100.0/255, if not the server will be error
during operation. You can ask the IT engineer to configure IP address.
—73—
IMM Technical Manual
5.1.2
Web local connection
M-INTERFACE gateway can connect to the LAN network through switch or router. IP
address of computer or other similar devices must be in the same subnet area as the IP
address of M-INTERFACE gateway, and input the address of M-INTERFACE gateway in
the browser(e.g.: http://192.168.100.40) then you can access the M-INTERFACE WEB to
control the air conditioner. The topology structure of local access as following:
5.1.3 Remote network connection
Under the environmental permit conditions, M-INTERFACE gateway can be set up in the
public network. Users can control air conditioner via computer or other similar devices
anytime and anywhere. There are 3 remote network connection ways:
Notes: Remote connection needs the help from the network administrator.
 Statistic IP
Configure the public network statistic IP address for M-INTERFACE gateway, and set it in
the internet, we can visit the public network address (visit WEB page) directly.
It needs to consult and get the public network address from the local network operator.
The corresponding cost of the public access will be charged by the operator and need to
consider the problem of network security at the same time.
—74—
IMM Technical Manual

Network port mapping
If there is a public network address shared in a company, it needs to map a port for
M-INTERFACE gateway from fire wall.
When the PC or other similar devices access M-INTERFACE gateway, they visit it like
http:// public network IP: port. For example: http:// 203.208.60.72:6080.
—75—
IMM Technical Manual
 VPN access
The IMM client-side and server also can use the remote network (VPN) connection. VPN
has router establishing and PC establishing methods.
1) Router establishing method
M-INTERFACE gateway may use the same public IP address with other devices and
cannot map a port to the M-INTERFACE gateway, and then can use VPN for remote
visiting.
VPN tunnels achieve connection by routers, or using VPN client-side software and VPN
server in the computer, and then we can visit the M-INTERFACE gateway from
long-distance. VPN Server can be established by oneself and also can be rented. The
topology structure as following display:
2) PC establishing method
It is difficult to establish VPN tunnel by PC for ordinary users
Use VPN client-side software and VPN Server to establish VPN tunnel together on the
user‟s computer, then user can visit the server through VPN tunnel. VPN client-side
software and VPN Server can be achieved by commercial ways. The topology structure
as follow display:
—76—
IMM Technical Manual
5.1.4 Setting the gateway IP address
In PC which is configured with a static IP via a browser (for example: Internet Explorer 9)
to enter the IP configuration page of the WEB system and as an administrator to operate
the WEB system, WEB page will display as following:
After setting and click the "OK" button. If there are several M-INTERFACE gateways in
the same network segment, and then the IP addresses cannot be repeated.
—77—
IMM Technical Manual
5.2 M-INTERFACE configuration
5.2.1 Administrator login
Input the IP address of the M-INTERFACE gateway in the browser and press Enter key,
then the page will enter the web login page (take Window 7 and IE for example):
1). Double-click logo on the page
, it will display the login frame (figure 1 and
figure 2), and the default user name is "adm".
2). Input your password in the login fields (default: 123456).
3) Select language
4) Click the [Ok] button will enter the M-INTERFACE WEB page.
5) Click the [Cancel] button will cancel login.
Double click
Fig.1
—78—
IMM Technical Manual
Fig.2
—79—
IMM Technical Manual
5.2.2 Serial port setting
After login, select "Setting" and click "Basic" can set the serial port as following:
Outdoor unit port:
V4+/D4+: 600
Other models: 480
The baud rate of 5 to 8 serial ports should be set to be the communication baud rate of
outdoor units (V4 plus and D4 plus outdoor units‟ baud is 600, other models‟ baud is 480).
If the indoor units cannot compatibility (0533 chip indoor units cannot compatibility), the
option of "compatibility" should be selected "yes", and then the gateway controller will
distribute the capacity to the indoor units automatically. It needs to be restarting the unit
after modification, otherwise it will fail. If the setting baud rate was different from the
outdoor unit communication baud rate, then it cannot search outdoor units which
connected to the port.
—80—
IMM Technical Manual
5.2.3 Synchronization time
Synchronous the M-INTERFACE gateway's time as following:
Select "Time zone", and click the "OK" button, and then click "Synchro time" button to
complete synchronous time setting function.
—81—
IMM Technical Manual
5.2.4 User’s password management
The administrator can modify their own password and 4 common user's password, the
page will display as following:
After modifying and click "Ok" button.
—82—
IMM Technical Manual
5.2.5 IP setting
If you want to connect the M-INTERFACE gateway to the local network, then it needs to
reset the M-INTERFACE IP address. After setting and click "OK" button. If there are
many M-INTERFACE gateways in the same network area, then the IP address cannot be
repeated.
—83—
IMM Technical Manual
5.2.6 FTP setting
FTP setting page as following:
1. Set the IP address
2. Port (default: 21)
3. Login name (default: test)
4. Password (default: 123456)
It needs to set the IP address of the FTP server (the PC address of the server software
installation), and the default port is 21, user‟s name default "test" and the login password
default 123456. Click "Apply" button will complete the setting.
—84—
IMM Technical Manual
5.2.7 Multi-pipe system configuration
The function is only available for three-pipe system (V4+R system). It can set system
mode (3: three-pipe system), auto cooling and heating mode (YES: auto mode setting),
ΔT (Room temperature (T1) - Setting temperature (Ts) = ΔT), time interval (interval of
indoor unit modes changing).
After setting and click "Save" button, auto mode of three-pipe system will be set
completely in the setting page.
—85—
IMM Technical Manual
5.2.8 Search device
Under the system map function can operate device search through auto topology and
manual topology mode
5.2.8.1 Auto topology mode
Under the auto topology mode, you can operate the device search function through the
WEB page.
On the setting page, click "system map" and enter the refrigerant system mapping page to
click the "Scan" button. M-INTERFACE gateway can search the air conditioners
automatically.
—86—
IMM Technical Manual
5.2.8.2 Manual topology mode
Under the manual topology mode, it needs to manual import the system topology
documents (topology document refers to 9.1), and during the importing process,
M-INTERFACE gateway will operates device search function automatically. Importing
system topology documents page as following:
Notes: During the device searching process, it will check the indoor and outdoor devices
automatically.
—87—
IMM Technical Manual
5.2.9. Device verification
5.2.9.1 Search results check
After searching, WEB page will display this information: quantity of the indoor and
outdoor units, serial number of indoor and outdoor units and so on.
—88—
IMM Technical Manual
5.2.9.2 Communication quality inspection
WEB function will give out the communication quality between gateway and single air
conditioner, display as following:
Click single device, the communication quality bar will display the communication quality
between this device and gateway.
—89—
IMM Technical Manual
5.2.10 Device information setting
5.2.10.1 Indoor unit information setting
Select the refrigerant system, click the "IndoorInfo", and then the indoor unit information
will display as following:
The display contents include: port (terminal number which connected to the M-net port),
indoor or outdoor units‟ address, physics location (device name), sales model, fan power,
E-heater power and maintenance state information. Administrator can modify the
physical location, sales model, fan power (when the sales model is others can modify
only), electrical heating power (when the sales model is others can modify only) and
maintenance state. After modifying the physical location, the corresponding device name
will be modified, and if other options will be modified, it will affect the electricity charge
distribution function. After modifying and then click the "Save" button.
If setting the maintenance state to "yes", devices will not participate in electricity charge
distribution, and it needs to restart the M-INTERFACE gateway. Under the maintenance
—90—
IMM Technical Manual
state, devices will not display in the WEB page. And if modify the maintenance state
property of the device, IMM software needs to search again. Otherwise, it fails to control,
and user can see "Didn‟t find the indoor unit address information" in the prompt message
frame. After searching the IMM software again, the devices which under the maintenance
state will not display in the IMM software control page.
5.2.10.2 Outdoor unit information setting
Select the refrigerant system to click the "OutdoorInfo", and then outdoor unit information
will display as following:
The display contents include: port, address, device name and sales model. Administrator
can modify the "Device Name" and "Sales Model" parameters, and click the "Save"
button will be OK. After modifying the device name, the corresponding device name will
be changed.
—91—
IMM Technical Manual
5.2.11 Software upgrade
M-INTERFACE gateway can be upgraded through WEB page. When administrator
logins the WEB page and enter to the software upgrade page, the display as following:
Select the "Upgrade" and click "Browse" button in the page to select the upgrade
program, and then click the "Upgrade" button will perform the upgrade command. After
upgrade, the page will prompt "Re-start the M-INTERFACE" message. After restarting
the gateway and upgrade finish. Upgrade time is about 10 minutes, and during the
upgrade process cannot cut-off the power.
—92—
IMM Technical Manual
5.2.12 Communication diagnosis
Administrator can login WEB page to check the communication diagnosis information.
Administrator can clear the logs, download the logs and download the diagnosis
information in this page.
5.2.13 Precautions
1). When change the auto/manual modes of M-INTERFACE gateway, user must be set
the dial code first.
2). If cannot use the sending button in the WEB page, it means the M-INTERFACE
gateway was locked in the IMM software. It needs to be un-locked in the state page of
M-INTERFACE gateway.
3).After change the system inserted port number, it must to search M-INTERFACE again.
4).In I/O port, Pin4 and Pin6 ports‟ input voltage are higher than 3V and last for 3 seconds,
M-INTERFACE will send emergency stop command and all the devices which connected
to the M-INTERFACE gateway will be stopped.
5). Install the battery before use the M-INTEFACE gateway.
—93—
IMM Technical Manual
5.3 Web operation introduction
5.3.1 User login
Input the IP address of the M-INTERFACE gateway in the browser and press Enter key,
then the page will enter the web login page (take Window 7 and IE for example):
1) Select the user‟s name and input your password (default password: 123456).
2) Select language
3) Click the [Ok] button will enter the M-INTERFACE WEB page.
4) Click the [Cancel] button will cancel login.
Notes:
For safety, each user name is allowed only login in one place, if there is repeated login
(even 2 different browsers on the same computer), the first login users name will be
forced back to the login page. After login system, if there is not operation about 5 minutes,
then operation again, the page will return to the login page automatically.
—94—
IMM Technical Manual
5.3.2 W EB home page
Web home page consists of three parts: main menu, submenu and information display
page. Main menu can display all functions, include "Device monitoring", "System
mapping", "Setting", "Device information" and "Help" etc. Submenu: simple divide the
main menu. Information display: display information of a function.
Main menu
Submenu
Information
display area
—95—
IMM Technical Manual
5.3.3 Devices monitoring
It can display the operation states of indoor/outdoor units according to the ports and
system way. You can control the indoor units and check the operation/error states of
indoor/outdoor units. The detailed display page will refresh automatically for per 10
seconds.
 Ports monitoring
Under the device monitoring function to select the port, the page will display the
corresponding units which connect to the 8 m-net ports. The 1 to 4 ports are connected to
the indoor units and it can check and modify the indoor units‟ running state. The 5 to 8
ports are connected to the outdoor units and it can check the outdoor units‟ running state.
1) Check the running states of indoor unit
Indoor running states: cooling, heating, fan only, turn off, offline, error and locking.
Different running state will correspond to different images. Click a single indoor unit, it will
display the operating state information of the indoor unit on the bottom of page, including
on/off state, running mode, units‟ name and HP etc. information.
—96—
IMM Technical Manual
2) Control the running states of indoor unit
Click the "
"button, and then will enter the control page.
We can select the single or multi units to control and set the control parameters, including
"ON/OFF setting", "running mode", "Swing setting", "Temp setting" and "Fan speed
setting". And then click the "Send" button and after that the page will display the
information to send success or failure. You can check the execution state of order through
the change icons on the page.
—97—
IMM Technical Manual
3) Check the running states of outdoor unit
Select the 5-8 ports, the page will display the corresponding outdoor unit, and then click
one outdoor unit, it will display the operating states, include ON/OFF state, running mode,
fan state, indoor unit quantity, error /protection states, ammeter readings etc.
Step 2: select one ODU
Step 1: select 5-8 ports
4) Control the running states of outdoor unit
There are 5 priority running modes can be selected: heating priority, cooling priority,
Voting priority (larger capacity requirement), heating mode only and cooling mode only.
The function is only available for V4+W series
—98—
IMM Technical Manual
 System monitoring
Click "System map" under the device monitor function. The function can be in accordance
with the refrigerant system to display all indoor units of each system and it can check and
control the operating states of all indoor units.
1)Check the detailed information of indoor units
Select one refrigerant system, the page will display all the indoor unit of the refrigerant
system, and then click one indoor unit, it will display the operating states, including
ON/OFF state, running mode, fan speed, indoor unit quantity, error/protection states,
ammeter readings etc.
—99—
IMM Technical Manual
2) Control the running states of indoor unit
Click the "
"button, and then will enter the control page. Select the single or multi units
can control and set the control parameters, including "ON/OFF setting", "running mode",
"Swing setting", "Temp setting" and "Fan speed setting". And then click the "Send" button
and after that the page will display the information to send success or failure. You can
check the execution state of order through the change icons on the page.
—100—
IMM Technical Manual
5.3.4 System mapping
It can display entire situation of the refrigerant system and to reflect the mapping
relationship between the indoor and outdoor units.
Select a single refrigerant system, the page display all indoor units icon which under this
refrigerant system, and then the bottom of the page will display the indoor unit quantity,
outdoor unit quantity and ammeter quantity. Click the single indoor unit to check the
communication quality between this device and the M-INTERFACE gateway.
Characters instruction:
Indoor unit quantity
Calculate all the indoor unit quantity of
refrigerant system
Outdoor unit quantity
Calculate all the outdoor unit quantity of
refrigerant system
Outer ammeter quantity
Calculate all the ammeter quantity of
refrigerant system
Communication quality
Communication quality between single
device and M-INTERFACE gateway
—101—
IMM Technical Manual
5.3.5 Setting function
In order to ensure the M-INTERFACE gateway can operation safety, normal users can
only operation the "user management" function and other function operational method
refer to the administrator login.

User management
It can change the account password of this user‟ name and click "OK" button after
changing.
—102—
IMM Technical Manual

Refrigerant system mapping
Output the topology document, the auto topology structure as follow display:

Gateway controller state
It can display the states information of gateway controller, including lock or unlock the
gateway controller, SD card state, SD card reader error.
—103—
IMM Technical Manual
5.3.6 Device information
It can check the indoor/outdoor units‟ information in the refrigerant system.
 Indoor units information
Select one refrigerant system and click the "Indoor Info", it will display the indoor units‟
information as following. The display contents including: serial port (the number of M-net
ports), address, physics location, sales model, fan power, E-heater power and
maintenance states etc. information.
—104—
IMM Technical Manual

Outdoor units’ information
Select one refrigerant system and click the "Outdoor Info", it will display the outdoor units‟
information as following. The display contents including: serial port, address, physics
location, sales model.
5.3.5 Help function
The function offers error code table for analyze, to help user to check the malfunction and
the error code may differ from the display contents in the display board, please refer to the
corresponding technical manual for the product
5.3.6 Exit function
The function can operate back to the login page when click the "Exit" menu, and the
system will back to the login page automatically.
—105—
IMM Technical Manual
5.3.7 Troubleshooting
1) Unable to enter the login page
Input IP address of M-INTERFACE gateway in the browser will enter the login page. If it
cannot display the login page, then may be error of network; if necessary, you can ask the
IT administer to check the local network. Check the computer whether stay the same
network area with the N-INTERFACE gateway.
2) Login failed
There may be two reasons for login gateway WEB page failure:

No password
If the user does not input a password and then clicked "OK", it will display as following
dialog box. Input the correct password and then login again.
—106—
IMM Technical Manual
2) Wrong password
When the password is wrong, it will display "Login failed". Input correct password again.
3) No device display
If login successful, but there is no data display on the home page, please check whether
the wiring of M-net communication port is correct, whether the air conditioner system has
been connected with M-INTERFAVE gateway correctly.
4) Control failed
When changing the operating states of indoor units, it may be prompt message of "Setting
failed", means the current operation failed. Please check whether the communication
between the device and M-net terminal was correct, and also the Ethernet.
5) No respond in operate page
As for the M-Interface gateway control page, when operating the page and no respond or
display "No connection" message, that means the network communication between
computer and M-Interface gateway is broke off, and it needs to check the computer
network card, IP setting, and the switch board, as well as the IP of the M-Interface
gateway and LAN port network card indication lamp of M-Interface gateway whether have
the right set up.
—107—
IMM Technical Manual
5.3.8 Icon specification
User friendly icon-based unit control, color indication and icon make it easy to recognize
unit state.
Icon
specification
Icon
specification
Indoor unit is selected,
Indoor unit error (red)
ambient temp. 25℃(blue)
Outdoor unit operates
Indoor unit is offline (white)
cooling, ambient temp.
25℃(blue)
Indoor unit runs cooling mode,
ambient temp. 25℃(blue)
Outdoor unit is turn off,
ambient temp. 25℃(grey)
Outdoor unit runs heating
Indoor unit runs heating mode,
ambient temp. 25℃(croci)
mode, ambient temp.
25℃(croci)
Indoor unit runs fan only,
ambient temp. 25℃(green)
Outdoor unit error (red)
Indoor unit is powered off,
ambient temp. 25℃(grey)
Outdoor unit is selected,
Indoor unit is locked, ambient
temp. 25℃(grey)
Indoor unit is offline
ambient temp. 25℃(blue)
—108—
(white)
IMM Technical Manual
6. Software
6.1 Software installation
6.1.1 Preparation
Before installation the 4th generation of VRF network control software, it needs to meet
the following requirements:

System requirements
Specification
Suggestions
Remark
Use the IBM or
DELL products
Must be use the
desktop PC,
and make sure
computer can
work normally
before installing
the software.
laptop is not
available.
CPU: i3 or more
Internal storage: 2G or above
Hard disk: 120G or more
PC
Keyboard/Mouse with middle roller
Network: 108ASE-T
Display: Screen resolution should
over 1024*768 and screen size
should over 17 inch
Microsoft Windows XP ;
Professional Service Pack 3;
System
Windows 7 Home/ Ultimate /
Official version 32-bit system
Windows 8 official version 32/64-bit.
Windows 8 Ultimate /win 8 pro 64 bit
Document
form
NTFS document form
1. Make sure that the fire wall of server and IMM software PC has been closed.
2. In non-English system area, change PC‟s system region and language form setting
when the IMM software and database installation is complete. (Take windows 7 English
system for example):
—109—
IMM Technical Manual

Languages setting (take Win 7 for example)
Open the control panel, the display as following:
Double click "Region and Language", and it will display the dialog as following:
—110—
IMM Technical Manual
Setting the time form as the above frame, after setting and then click "OK" button to save.
Select "Administrative" and then display as following:
—111—
IMM Technical Manual
Click "Change system locale…", then it will display the following figure:
Select "English (United States)", click "OK". And re-start the computer after modification.
Note: during the IMM software operating process, do not change the region and
language setting; otherwise it will lead the electricity charge distribution error.

Accounts setting
If server and IMM software install on the windows7 system, then it need to set as
following:
Open the control panel will enter the following figure:
—112—
IMM Technical Manual
Select the "User account", and enter the following figure:
Click the "Change user account control setting" on the above interface and it will enter
the following figure:
Setting to the "Never notify" as the above figure and click "OK" button, and then it needs
to restart the computer after modification.
—113—
IMM Technical Manual
When install the server and IMM software, you need to set as following:
Take Windows 7 system for example:
Open the "Power option" in the control panel and it will enter the following interface:
Click "Change power settings" as the above figure, and it will enter the following interface:
—114—
IMM Technical Manual
Click "Change plan settings" as the above interface, and it will enter the following figure:
Setting the "Turn off the display" and "Put the computer to sleep" to "Never" state, and
click the "Change advanced power settings". It will display as following:
Setting the "Turn off hard disk after" to "Never" state, after setting and clicks "OK" button.
—115—
IMM Technical Manual

Port setting
It needs to ensure that the 21 port of the server has been open. If the server PC doesn‟t
open the port 21, then it will display prompt information about opening port 21 when starts
Energy FTP software, displays as following:
Operation method:
Take windows XP system for example:
"Start" "Control panel" "Windows fire wall", select "Exception" and it will enter the
following interface:
—116—
IMM Technical Manual
Select "Add port" and it will enter the following interface:
Please input the name "ftp" and port number "21" as the above figure, and then click the "OK"
button.
Notes: do not change the region and language setting of the system before install the
software on other language system.
—117—
IMM Technical Manual
6.1.2 System components installation
Database software, server software and dogsoft driver must be installed on the same
computer. The IMM software can be installed on the other computer. If the server is
Microsoft Windows XP system, you must install the program first:
NET Framework 3.5 SP1, Microsoft Windows Installer 4.5, Windows PowerShell 1.0 and
dotNetFx40_Full_x86_x64.exe.
If IMM software is Microsoft Windows XP system, then it needs to previous install the
program NET Framework 3.5 SP1 and dotNetFx40_Full_x86_x64.exe assembly. IMM
software and server which with Microsoft Windows 7 systems do not need to install the
system components. Take Microsoft Windows XP system for example:

NET Framework 3.5 SP1 installation
You need to find out the program called dotNetFx35setup.exe, under the disk menu of
Windows XP components\NET Framework 3.5\ dotnetfx35\ wcu\ dotNetFramework,
Installation steps are as following.
1. Double click the program called dotNetFx35setup.exe, it will display as following:
2. After installing components, it will enter the following interface:
—118—
IMM Technical Manual
Then select "I have read and ACCEPT the terms of the License Agreement", and click
"Install" button.
3. "Download and installation process" as following:
4. After installation and click exit.
—119—
IMM Technical Manual

Microsoft Windows Installer 4.5 installation
1. Under the Windows XP components\Windows Installer 4.5 menu, you need to find out
the program called WindowsXP-KB942288-v3-x86.exe and double-click it.
2. Click the "Next" button and runs as the following figure.
—120—
IMM Technical Manual
3. Select "I Agree" and click "Next" button then will display as following:
4. Click "Continue" and will display as following:
5. After installation, then click "Finish" to re-start the computer.
—121—
IMM Technical Manual

Windows PowerShell 1.0 installation
Under Windows XP components\Windows PowerShell 1.0 menu, you need to find out the
program called PowerShell_Setup_x86.msi.
1. Double-click the program called "PowerShell_Setup_x86.msi", and it will display the
following dialog:
2. Click the "Next" button on the above dialog, and it will display the following:
—122—
IMM Technical Manual
3. Select "I accept the ……. "on the above dialog, and click the "Next" button.
4. Click "Install" button on the above dialog, it will be installation automatically.
—123—
IMM Technical Manual
5. After installation and click "Finish" button will be OK.

DotNetFx40_Full_x86_x64.exe installation
Under the Windows XP components\NET Framework 4.0 menu, you need to find out the
program called dotNetFx40_Full_x86_x64.exe, installation steps are as follows.
1. Double-click the program called dotNetFx40_Full_x86_x64.exe, it will display as
following dialog.
—124—
IMM Technical Manual
2. Select "I have read and …..", and click "Install (I)" button, it will be installation
automatically.
3. After installation, it will display as the following frame.
4. After installation and click "Finish" button will be OK.
—125—
IMM Technical Manual
6.1.3 Database installation
Under the DataBase menu to find out the program called "SQLEXPRWT_x86_ENU.exe",
installation steps are as follows.
1. Double click the program called "SQLEXPRWT_x86_ENU.exe", it will display as
following dialog.
—126—
IMM Technical Manual
2. Click the "New installation or add ….." on the above dialog and it will be installation
automatically as following dialog.
3. After installation and click "OK" button, it will enter the next step.
—127—
IMM Technical Manual
4. Select "I accept the license terms" and click "Next" button, it will be installation
automatically as following dialog.
5. After installation and click the "Install" button on the above dialog, it will display as
following dialog.
—128—
IMM Technical Manual
6. Select all the options on the above content, and click the "Next" button, it will display as
following dialog.
7. Select "Default instance" on the above dialog and click "Next" button, it will display as
following dialog.
—129—
IMM Technical Manual
8. Select "NT AUTHORITY/SYSTEM" on the above dialog and click "Next" button, it will
display as following dialog.
9. Select "Mixed Mode……. "on the above dialog, and input the sa user‟s password,
default password is 654321. Click "Next" button, it will display as following dialog.
—130—
IMM Technical Manual
10. Do not select "Send Windows and SQL Server…. "on the above dialog, and click
"Next" button, it will display as following dialog.
11. After installation and click "Close" button.
—131—
IMM Technical Manual
6.1.4 Server installation
Under the IMM menu to find out the program called IMMServer_Vx.exe (server installation
program). The installation steps are as following.
1. Double-click the installation program, it will display as following dialog.
2. Click the "Next" button and it will enter the next step.
—132—
IMM Technical Manual
3. Select "I agree to the terms of this license agreement" on the above dialog and click
"Next" button, it will enter the next step.
4. Click the "Next" button on the above dialog, and it will enter the next step.
—133—
IMM Technical Manual
6.
You can change the software installation menu. In order to ensure the safety of the
system, you'd better install in a non-system disk. Such as the operating system can be
installed in the C disk, then the software can be installed in D or E disk. Click the "Next"
button.
After installation, click "Finish" button and exit installation. You can find out the "IMM
Client" software under the "start" "all programs".
—134—
IMM Technical Manual
6.1.5 IMM client-side software installation
Under the IMM menu to find out the program called IMMClient_Vx.exe, and the installation
steps are as following.
1. Double-click the program called IMMClient_Vx.exe, and it will display as following
dialog.
2. Click the "Next" button and it will enter the next step as following dialog.
—135—
IMM Technical Manual
3. Select "I agree to the terms of this license agreement" and click "Next" button. It will
enter the next step as following dialog.
4. Click the "Next" button on the above dialog.
—136—
IMM Technical Manual
5. You can change the software installation menu and you'd better install in a non-system
disk, and then click "Next" button.
6. After installation, click "Finish" button and exit installation.
—137—
IMM Technical Manual
6.1.6 Softdog driver installation
Under Dog Driver menu to find out the softdog driver program (MicroDogInstdrv.exe),
and double-click this program to install (take Windows 7 system for example). It will enter
the next step as following dialog.
1. Select the "USB dog driver" and click the "Install Driver" button on the following dialog.
2. After installation and click the "Exit" button on the following dialog.
—138—
IMM Technical Manual
6.2 IMM software configuration
6.2.1 Server and client-side operation configuration
6.2.1.1 Database operation
1. Under "Start" menu and select "All programs" to open the "SQL Server Configuration
Manager".
2. Operate TCP/IP in the SQL Service network configuration.
On the above dialog, the "TCP/IP" must be set to "Enabled".
—139—
IMM Technical Manual
3. Change Sql Server property.
On the above dialog, right-click on the "SQL Server (MSSQLSERVER) and select the
"Property", it will enter the following dialog.
Select "Built-in account" and "Local System", and then click "OK" button.
4. Open the connected IP address
Right-click the "TCP/IP" on the above dialog, select the "Property", it will enter the
following dialog.
—140—
IMM Technical Manual
Select the "IP Addresses" on the above dialog, and it will open the corresponding IP
address. You need to change the "Enabled" set to" Yes" and TCP Port need to set to
1433 (127.0.0.1 address must be open). And then click the "OK" button.
5. Re-start the SQL Service server
Right-click the "SQL Server (MSSQLSERVER)" on the above dialog, and select the
"start/restart", and then it will re-start the database server.
—141—
IMM Technical Manual
6.2.1.2 Database initialization
The purpose of database initialization is created an IMM database in the database, and it
can operation initialization. The operation steps are as following:
1. Double-click InitializationDB.exe in the server software installation menu (E.g.:
D:\Program Files\IMMServer), it will display as following dialog.
2. Select the "Initialize DabaBase" and input the initialization parameters.
—142—
IMM Technical Manual
Parameter specifications:
Database Server IP: 127.0.0.1
local default IP
(Make sure to set "Yes" for the "Enabled" of address 127.0.0.1 in the step four sated in
6.2.1.1)
Port: 1433
TCP/IP default port number: 1433
Database Name:IMM
To be set up a database name (through the program to create, default is IMM)
Login Name:sa (Default user)
Password:*** (default 654321)
Initialize the database using SQL file: IMM.sql
The SQL script files to initialize the database, it is in the directory of D:\Program
Files\IMMServer.
Choose the Database Save Directory:
D:\IMM_Server menu stored the database document, it‟s recommended to be
none-system disk.
After the above parameters, click the "Connect to Database" button; if the button turns to
be gray and display "Connect Successfully", means to connect the database successfully.
Then can continue to operate.
3. Initialize the IMM database
After connecting to the database successfully and the "Initialize Database" have been
activated, click "Initialize Database" button again to initialization operation. If initialize
database succeeds, it will display as following.
If the database initialization failed, please check whether there is the IMM sql file exists in
the server installation menu (e.g. D:\Program Files\IMMServe) or the IMM database has
already existed in database.
—143—
IMM Technical Manual
6.2.1.3 Establish database user
1. Open SQL Server Management studio under the "Start" "All programs" menu.
2. Select the SQL Server authentication, and use sa account to login the database.
Login: sa
Password: 654321
3.After login, it will display the following dialog:
—144—
IMM Technical Manual
4. Right-click "Logins" and select "New Login" in the popup dialog, it will display the
following dialog
Server Roles
Input "IMM" in the Login name and choose "SQL Server authentication", and then input
IMM user password (default: IMMV4).Do not choose anything in the red dialog on the
above, and choose "IMM" in the default database.
5. Left-click the "Server Roles" on the above dialog, it will display the following dialog:
Select "sysadmin" on the above dialog and click “OK” button. It will be set up the database
user successfully.
—145—
IMM Technical Manual
6.2.1.4 Update the database
The function is only used for IMM software upgrade from the first phase to the II phase.
The operation steps as following:
1. Double-click "InitializationDB.exe" in the server software installation menu (E.g.:
D:\Program Files\IMMServer), it will display the following dialog:
1. Choose the "Update Database" and input the update parameters
—146—
IMM Technical Manual
Parameter specifications:
Database Server IP: 127.0.0.1
Local default IP
(Make sure to set "Yes" for the "Enabled" of address 127.0.0.1 in the step four sated in
6.2.1.1)
Port:1433
TCP/IP default port number: 1433
Database Name:IMM
To be set up a database name (through the program to create, default is IMM)
Login Name:sa (Default user)
Password:***
You need to input the password (default 654321) when installing the database software.
Initialize the database using SQL file: IMM.sql
The SQL script files to initialize the database, it is in the directory of D:\Program
Files\IMMServer.
Choose the Database Save Directory:
D:\IMM_Server menu stored the database document, it‟s recommended to be
none-system disk.
After the above parameters, click the "Connect to Database" button; if the button turns to
be gray and display "Connect Successfully", means to connect the database successfully.
Then can continue to operate.
3. Initialize the IMM database
After connecting to the database successfully and the "Initialize Database" have been
activated, click "Initialize Database" button again to carry out initialization operation.
—147—
IMM Technical Manual
6.2.1.5 Server operation configuration
Under server installation menu (e.g.: D:\Program Files\IMMServer), you can open the
program name called IMMServerSet.exe, and it will display the following dialog:
Operation steps:
1. Click the button on the right side of Path in option "Collection procedures", and choose
the server's installation menu, e.g.:\Program Files\IMMServer.
2. Click the button on the right side of Path in option "Electricity", and choose the
electricity analysis program installation menu, e.g.:
D: \Program Files\IMMServer\EnergyFTP.
3. Click "Read" button, it will display the following dialog:
—148—
IMM Technical Manual
Input Control IP (M-INTERFACE gateway IP which needs to be searched), e.g.:
192.168.100.40; several IP should separate by English comma and make sure the form is
right.
4. Select Ftp Path, Electricity Original, Electricity Error, Electricity OK path.
There are two methods can be selected:
1). Click the right button (
) to select the exiting path in the corresponding frame.
2). Click the "Create Directory" button, auto select the path for it. The follow is the interface
of clicking the "Create Directory" (default selects the method):
—149—
IMM Technical Manual
5. Click the button on the right side of Path in option "Backup Path", and select the backup
document storage path.
Notes: The database file must be stored in the same menu when initialize the database
(refer to the second step in 6.2.1.2).
6. Click the "Save" button and close the dialogue frame.
7. After configuration, double-click the program "IMMServer.exe" in the server software
installation menu (softdog must be inserted first), and you need to build a show.txt
document, it will display the following dialog:
When it displays "Connect to database success" and it means that the configuration was
successfully.
Notes: If you change IMMServerSet configuration, the server must be re-started
—150—
IMM Technical Manual
6.2.1.6 IMM software client-side operation configuration
1. Under the IMM Client-side software installation menu (e.g.: D:\Program Files\IMM), you
can open the program "IMMIp.exe" and it will display the following dialog:
Parameter specifications:
Server IP: Server IP address
Data port IP: Database IP address
Ftp IP: FTP server IP address (server IP address)
Server port: Default 7700, must be same with Server port1 of Server Configuration in
5.2.1.4.
Data port: Default 1433 and cannot be changed normally.
Ftp port: Default 21 and cannot be changed normally.
Select language: Can change client-side interface language.
After configuration and click "Save" button.
Notes: Default Server IP, Data port IP and Ftp IP data terminal are the same.
—151—
IMM Technical Manual
2. Double-click the cursor middle key on the blank place of the above dialog, and it will
display the following dialog:
Parameter specifications:
Database name: Refer to 6.2.1.2 in the name of the database you have built, default IMM.
Database port: Default 1433 and cannot be changed normally.
Database user name: Refer to 6.2.1.2 in the name of the database you have built, default
IMM.
Database password: Refer to 6.2.1.2 and the user (IMM) default password is IMMV4.
FTP user name: Default test and cannot be changed normally.
FTP password: Default 123456 and cannot be changed normally.
Upgrade path: Default/ update/update.zip, and cannot be changed normally.
After configuration and click "Save" button.
—152—
IMM Technical Manual
3. In the "Start" menu bar, click "All Programs" to run "Midea intelligent management
system", or in the client installation menu to run IMM.exe program, it will display the
following dialog:
If the left side of the interface displays "Connect the server successfully", it means that
configure is correctly.
Notes: If it is the first time to run the software, you need to select the language which you
need.
6.2.2 Process management configuration
The process management is for make sure the program can be operated again after exit
program process. E.g.: the IMMServer is in the process management range, if IMMServer
process stops, then the process management program can make the IMMServer process
start again.
—153—
IMM Technical Manual
6.2.2.1 Operate IMMTaskMGR software
Under the "Start" →"All Programs" → "Midea intelligent management system –service
side" to run the IMMTaskMGR software, it will display the following dialog:
Notes: if did not display, need to establish a show.txt document in IMMTaskMGR software
installation directory, e.g.: D:\Program Files\IMMServer\TaskMGR):
6.2.2.2 IMMTaskMGR software operation
1. Add monitor program
Click "Add" button on the above, it will display a row letter, and then click "Running path"
to select the path where installed the monitoring program. E.g. add IMMServer process,
the interface will display as following (It need to add the IMMServer.exe and
IMMEnergy.exe, separately in the D:\Program Files\IMMServer and D:\Program
Files\IMMServer\EnergyFTP menu, operate server as this method):
—154—
IMM Technical Manual
After adding, you can check the corresponding process operating from task manager as
following dialog:
If you want to display IMMServer and IMMEnergy operating interfaces, you need to set up
a new document called "show.txt" in the corresponding menu.
—155—
IMM Technical Manual
2. Delete monitor program
Choose the program which you want to delete and click "Delete" button, the
corresponding program will be deleted from the interface and the corresponding program
will stop monitoring.
3. Pause all the monitored programs
Click "Pause" button and it will pause all the programs monitoring; click "Start" button and
it will operate the monitor function again. If click "Quit" button will be stopped
IMMTadkMGR process.
—156—
IMM Technical Manual
6.3 software operates
Operate steps as following:
1. Insert softdog in the server PC.
2.In the "Start" menu bar, click "All Programs""Midea intelligent management system –
service side" to run IMMTaskMGR software, and according to the
monitor program
method in 6.2.2.2 to add "IMMServer" and "IMMEnergy" processes in the IMMTaskMGR
interface.
3. Click the client-side software in "Start""All programs""Midea intelligent
management system", and then enter the client-side login interface.
6.4 Aadministrator login
Administrator can use the following method to login.
1. Open the IMM client-side software and it will enter the following dialog:
Step 2: double click
Step 1: double click
Step 3: double click
—157—
IMM Technical Manual
2. Double-click the icon "IMM" in the upper left corner, and then double-click in the upper
right corner of the version information (e.g.: IMM2.0.0.70RELEASE), double-click on the
right side of the "user" option to choose the "service".
1. User‟s name: Service
2. The default password is "service".
3. You can save the password or not.
4. Click "OK" button can be login.
—158—
IMM Technical Manual
6.5 Account management
When the administrator login the IMM client-side, select "Account management" under the
"Advance function" and it will enter the following dialog:
Click the corresponding account and input the new password and click "Save" button.
Notes:
User name "user" default password is "user".
User name "service" default password is "service".
—159—
IMM Technical Manual
6.6 Setting
When the administrator login the IMM client-side, select "Setting" under the "Advance
function" and it will enter the following dialog:
Configure the report display forms of program information, electricity price and electricity
partition.
Screen cleaning time limit (hours) is the air filter cleaning reminding function. It records the
total running time of the indoor unit. When the accumulated running time reaches the
pre-set value, click warning message can see the air filter cleaning reminding message, to
remind users that the air filter of the indoor unit needs to be cleaned.
Small load operation (low-load operations indicate): When the outdoor unit is running and
the capacity requirements are lower than the set value.
—160—
IMM Technical Manual
Electricity price calculation methods
There are three kinds of electricity price calculation methods: one-part electric price (the
single price), Step tariff (the multi-stage price) and Peak valley price (the peak-valley price,
the setting steps as following:
1. Select the "one-part electric price" frame and input the price value, and then all the cost
will be calculate according to the price.
2. Select the "Step tariff price" and setting the load-point and price. The electricity charge
will be calculated according to the stage price of the power consumption.
3. Select "Peak-valley price", input the load-point and price in each period. It offers four
periods in one day to calculate in “peak valley price”. For example: the first stage is
setting as 0-1, and the unit electric price is 2, which means from 0:00 to 02:00, the power
consumption is calculated by the unit electric charge of 2.
After configuration and click the "OK" to save.
—161—
IMM Technical Manual
6.7 Device searching
After administrator login the client-side and select "Device search" under "Advance
function", it will display the following dialog:
Notes: After first installation or reinstall, IMM software must be operated the device
searching.
Local IP frame displays the server IP address. Click "Start searching" button, server will
search specified IP address of M-INTERFACE gateway. (The specified IP address can be
set in 6.2.1.4).
If there is server connection or database failures during running the device reaching
function, it needs to search the devices again. After system installed, you need to run the
device reaching function as an administrator.
—162—
IMM Technical Manual
6.8 Refrigerant system
After administrator login the IMM client-side software, select "Refrigerant system" under
"Advance function" menu, it will enter the following dialog:
The interface can search all M-INTERFACE gateway and refrigerant system, the left side
of page can display the refrigerant system and the system, the upper right display the
indoor units under corresponding refrigerant system, the lower side display the outdoor
unit quantity, indoor unit quantity, outdoor main/slave units‟ ID number, outdoor unit
corresponding ammeter readings.
—163—
IMM Technical Manual
7. Electricity charge distribution
7.1 Electricity charge distribution overview
The algorithm of electricity charge distribution is Midea patented technology.
M-INTERFACE gateway collects the data from indoor units, outdoor units and ammeter‟s
data with a cycle of 30 seconds through M-net terminal. Every hour (120 sampling
periods) take refrigerant systems as a unit to configure the electricity consumed by
outdoor unit, and report the result documents to the IMM software. IMM software will
gather the electricity documents and create the user report.
7.1.1 Distribution factor
Indoor units‟ distribution factor calculation:
M-INTERFACE gateway will sum 120 "capacity requirements" of one indoor unit in the
refrigerant system, and then divide the summation of all the indoor units‟ "capacity
requirements" of refrigerant system to get the unit partition factor β.
Notes: "capacity requirement" of indoor unit
is calculated by setting temperature,
ambient temperature, mode and horsepower etc. parameters, the actual display to be
electrical expansion valve opening etc.
7.1.2 Electricity distribution
M-INTERFACE gateway will divide the outdoor unit consumed electricity gathered by
every hour to be: outdoor unit operating electricity P1, outdoor unit standby electricity P2
and outdoor unit malfunction electricity P3. The distribution factor β multiply by P1 to get
the indoor unit operating electricity X, P2 divide indoor unit quantity to get the indoor unit
operating electricity Y. M-INTERFACE gateway will turn X, Y, P1, P2, P3 to be electricity
documents then upload to IMM software.
—164—
IMM Technical Manual
7.1.3 Electricity settlement
IMM software will gather the received electricity documents, and accord to the user
selection to produce report of electricity price output in the specified hour.
Settlement 1: IMM software gathered electricity documents, add the indoor unit‟s X, Y
and all the outdoor unit abnormal electricity P3, and this summation divide the effective
indoor unit quantity get the value, then to get the consumed electricity W.
Settlement 2: IMM software gathered electricity documents, add all indoor units‟ X to get
indoor unit operating electricity W1; all the outdoor unit standby electricity P2 and normal
electricity P3‟s summation divide the effective indoor unit quantity get the indoor unit
maintenance electricity W2.
7.1.4 Method of settlement
Settlement 1 can get the indoor unit consumed electricity W, even if the indoor unit didn‟t
operate, W cannot be 0. For indoor unit standby electricity Y cannot be 0.
Settlement 2 can get the indoor unit operating electricity W1 and maintenance electricity
W2. If indoor unit didn‟t operate then W1 is 0. W2 can get through "Air-conditioner
maintenance cost".
7.2 Factors affect the electricity distribution error
7.2.1 Power meter sampling error
Ammeter precision has different class. Class 1 is 1% error. Class 2 is 2% error.
7.2.2 Calculation error
Electricity partition calculation error is 1%, that‟s two decimal places.
—165—
IMM Technical Manual
7.2.3 Safeguard system under malfunction situations
When the device cannot collect the data for power-off, off-line, safeguard system is
necessary to avoid electricity loss or serious phenomenon. At that time the
reasonableness of electricity distribution will be decreased. It should be handled the
device error as soon as possible. If the following situations came out, the safeguard
system will be operated:
1. When total indoor unit quantity of a refrigerant system were 1~5 sets, and disconnected
indoor units in an hour were more than 1 set, classify P1 as P3 power;
2. When total indoor unit quantity of a refrigerant system were 6~10 sets, and
disconnected indoor units in an hour were more than 2 sets, classify P1 as P3 electricity;
3. When total indoor unit quantity of a refrigerant system were 11~64 sets, and
disconnected indoor units in an hour were more than 3 sets, classify P1 as P3 electricity;
4. When there has produced P1 electricity, but total indoor unit capacity requirements in
an hour were zero, classify P1 as P3 electricity;
5. When it changed the ammeter and the first readings of changed ammeter was larger
than the readings of the former ammeter, and then it will produce P3 electricity;
Increase the reasonableness of electricity partition under this situation is: calculate the
electricity report before changing the ammeter and use a new day (begin with 00:00) as
the start time of the next calculation.
6. When the outdoor unit off-line, the produces electricity during off-line period will as P3
electricity;
7. When the ammeter was disconnected, the produces electricity during the disconnected
will as P3 electricity;
8. When the M-INTERFACE gateway powered off (disconnected, switchboard power-off
error etc.), classify the produced electricity during this period as P3 electricity;
9. When the M-INTERFACE gateway system time was synchronized back to the past, as
the follow display, supposed M-INTERFACE gateway was operating till 19:00, at this time
point, synchronized the M-INTERFACE gateway system time back to 18:00, and
continued to operate 2 hours to the current time 20:00. And the timestamp between
—166—
IMM Technical Manual
18:00~19:00 will come out twice. Under this situation, the electricity of the set back time
will be lost.
Set back time
18:00
After time synchronization
19:00
Synchronous operation
20:00
Current time
Timer shaft
If came out this situation, it needs to find out the electricity readings records of 19:00 and
20:00 in IMM database and manual share the electricity for indoor units to avoid lose.
10. The ammeter readings continue to change, produce P4 electricity. Communication
between outdoor unit and ammeter met the ammeter communication rules, the
correctness of the data transmission was protective, but under some disturbed or
ammeter error situations, sampled ammeter readings may be changed. For low down the
correctness of electricity partition, filter the ammeter changed situation, and the filtering
value P4 will be recorded in the electricity document but not in electricity partition.
11. Electricity produced during IMM WEB software upgrade period (about 8 minutes) will
be classified as P3 electricity.
Notes:
P3 electricity will be shared to indoor units according to the effective indoor unit quantity;
Generally it should not use an old ammeter for changing;
When the customer reads ammeter and finds out the ammeter reading is abnormal, that
may cause by ammeter readings changed, it needs to correct the ammeter.
—167—
IMM Technical Manual
7.3 indoor unit power consumption estimation
7.3.1 Estimation method
The fan and electrical heater of the indoor unit will consume electricity. The consumed
electricity of indoor unit is the sum of the fan and E-heater‟s consumed electricity.
Fan consumed electricity: fan‟s operating hour multiply the fan‟s rated power.
E-heater consumed electricity: electrical heater‟s operating hour multiply the electrical
heater‟s rated power.
7.3.2 Estimation error
The fan and electrical heater might be outputted not as the rated power during operating
process, e.g.: AC fan may be operated high/med/low three speeds. This situation will
cause error. The estimation value will be more than the actual value. If cannot accept this
error, then can choose to install the ammeter at the indoor unit power supply side.
7.4 User report selection
After install the IMM software, through administrator rights to select user report way:
1. Output/not output maintenance cost
2. Estimate/not estimate indoor unit consumed electricity
Notes:
If the customer does not accept the non-operating air-conditioner might cause output cost,
it‟s suggested that select “Output maintenance cost”;
If the customer does not accept the error caused by indoor unit consumed electricity
estimation, it‟s suggested that select not estimate indoor unit consumed electricity, and
install the ammeter at the indoor unit power supply side.
—168—
IMM Technical Manual
7.5 Public air conditioner and idle air conditioner setting
IMM software can divide the air conditioners to be public air conditioner and idle air
conditioner, this function is suitable for the situations of commercial office building or
apartment-style hotel. The setting interface is as follow:
IMM software will calculate the consumed electricity of public and idle air-conditioner, and
share to the effective indoor units.
7.6 Full heat exchanger and new fan insert
Under the full heat-exchanger and new fan requirements situations, these two
air-conditioners cannot mix with V4+ indoor units to connect into the refrigerant system.
Under auto topology mode, needs to separate insert to M-net indoor unit communication
connector; under manual topology mode, needs to establish a single refrigerant system in
CSV document (refer to 8.1).
—169—
IMM Technical Manual
7.7 Electricity partition situation
Under the following situations, will share electricity:
1. Indoor unit standby.
2. Indoor unit operates the fan, the report display the device operating time not less than 0,
but still has cost.
3. Outdoor unit produces abnormal electricity; at this time, no matter what modes the
indoor unit operates, the abnormal electricity will be shared.
7.8 Precautions
1. Midea electricity partition method is not through the calculation tools, but through
collecting the data and analysis and calculate the data, then get the result, so this cost
report is only for reference, and should not use for commercial calculation basis.
2. If M-INTERFACE gateway‟s topology structure changes (air-conditioner quantity
change), then use the changing time as separate point to print the report separately.
3. Indoor unit operation time specification
E.g.: 10 sets indoor units, one indoor unit operation time is not 0, other units are 0(select
not estimate indoor unit electricity), why shares the electricity?
Reason: Operate the fan, or reach the setting temperature, indoor unit operation time will
not be 0, but at that time the indoor unit state is the same with other standby indoor units,
so share the electricity.
—170—
IMM Technical Manual
8. IMM software upgrade
8.1 Database backup
Before the IMM software upgrade, the database must be backup. And before the backup,
it need to choose a directory that the backup file storage. For example, D: \
IMM_DB_BACK. Before backup the database, be sure to disconnect all database
connection, close the IMM client side software and server.
8.1.1 Close the client and server applications
Close the IMM client software interface directly, shut down the server can follow the steps
below:
At the same time, press "CTRL + ALT + Delete" key on the keyboard, select "Start Task
Manager", as below:
—171—
IMM Technical Manual
You must be in accordance with the order to close the IMMTaskMGR. exe process,
IMMEnergy. exe program and IMMServer. exe.
Take closing IMMEnergy. exe program for example:
Selected IMMEnergy. exe in the bar, and then click "End Process" button. Choose "end
process" in the pop-up box, then IMMEnergy. exe program was shut down.
8.1.2 Database backup
"Start"  "all programs"  Microsoft Sql server 2008 R2sql server Management Studio.
On the pop-up login box to input sa password (set in the database be installed, default:
654321), access the database, find the below part.
Click the red box to expand the Database option, the diagram below:
Please backup database of the red box. The backup steps reference to 9.3.1.
—172—
IMM Technical Manual
8.2 Backup the power file
Find the server installation directory (for example: D:\Program Files\IMMServer\
EnergyFTP), Backup the entire OK folders which stores the power data files.
8.3 Uninstall the client and the server software
8.3.1 Uninstall the client software
Before uninstall the client software, the client software must be closed. Then click: start
all the procedures IMM Client Uninstall IMM Client
Select "Next" button will display as following:
—173—
IMM Technical Manual
Click "Finish” button and Uninstall complete.
8.3.2 Uninstall the server software
Before uninstall the server, all the server software should be closed. Then click:
StartControl PanelPrograms and Features  Right click the IMM Server Uninstall
—174—
IMM Technical Manual
9.Appendix
9.1 Topology documents specification
System topology document reflects the system mapping relation, the topology document
use CSV form, under manual topology mode, needs manual fill the CSV document.
1. Document structure
2. Column name specifications
Column name
sys_id
outdoor
Indoor_x(x=1,2.3…..15,,16)
Specifications
System number(range 1,2,…….15,16)
Outdoor unit
Indoor unit
3. Form
sys_id form: 1.2…..16.
Outdoor form: "Port No." _ "Outdoor unit address" (Display as two number, not enough
number then add 0 in front of it)
Indoor_x form: "Port No." _ "Indoor unit address" (Display as two number, not enough
number then add 0 in front of it)
4. Specifications
There are max. 16 systems in a CSV document, that is sys_id value‟s range is
(1,2,…….16).
There are max. 4 outdoor units in a system, each outdoor unit in a row, and fill 16 indoor
units behind it.
Indoor units in the same system cannot come out in several ports, but a port can has
several indoor units (different indoor unit addresses) of several systems. That means
indoor unit port number of the same system is the same.
Outdoor units in the same system cannot come out in several ports, but a port can has
several outdoor units (different outdoor unit addresses) of several systems. That means
—175—
IMM Technical Manual
outdoor unit port number of the same system is the same.
Outdoor unit address range: 00~31, outdoor main unit address must find the value from
(0,4,8,12,16,20,24,28).
Indoor unit address range: 00~63 (use two number display)
Port number range: 01~08 (use two number display)
5. Examples
System 1 concludes one outdoor unit (address: 00) and 64 indoor units (address: 00~63),
outdoor unit connect to the No.5 port, indoor unit connect to No.1 port.
System 2 concludes one outdoor unit (address: 04) and 12 indoor units (address: 00~11),
outdoor unit connect to the No.8 port, indoor unit connect to No.4 port.
System 3 concludes one outdoor unit (address: 08) and 12 indoor units (address: 12~23),
outdoor unit connect to the No.8 port, indoor unit connect to No.4 port.
system 4 concludes one outdoor unit (address: 20) and 40 indoor units (address: 24~63),
outdoor unit connect to the No.8 port, indoor unit connect to No.4 port.
CSV document filling as follow:
—176—
IMM Technical Manual
9.2 The history power data query
1. Database will auto backup the data of previous 3 months, and carries out backup
operation at 02:30 every day. E.g.: Database IMM_12010203 backup is the data of Jan,
Feb and Mar in 2012.
2. If carry out database backup query operation, it only needs configure the database to
need connected database in the client-side IMMIP.exe dialogue frame. E.g.: if needs to
query Apr, May and Jun of 2012‟s data, then do the following setting in IMMIP.exe:
Change to:
IMM_12040506
Set the database name to be IMM_12040506, and then click "Save" button to finish.
—177—
IMM Technical Manual
9.3 Database backup and restore
9.3.1 Backup the database
Taking IMM database for example:
1) Right click the IMM database, "Tasks"  "Back Up..." , as below:
—178—
IMM Technical Manual
2) Click the "Add" button will enter the following page:
3) Click the button in the red box, select the directory used to save backup files in the
pop-up box:
—179—
IMM Technical Manual
4) Click the backup directory, type the name of the backup in the red box: IMM. bak (the
same with the database name, Take. Bak suffix). Click "OK" button.
—180—
IMM Technical Manual
5) Click "OK " button in the above image.
6) Choose backup file in the picture above , click "ok" button.
After backup is completed, the successful message will be popuped, as follow:
—181—
IMM Technical Manual
9.3.2. Restore the database
Close all the connections before restore the database (include IMM client-side and server),
and delete the data and log documents of waiting restored database (IMM.mdf and
IMM_log.ldf), e.g.: D:\DB\IMM.mdf and D:\DB\IMM_l og.ldf
Select the database which needs to backup on the above figure, and right click on the
database which needs to backup, select "Tasks" "Restore" "File and Filegroups",
then display as the following:
—182—
IMM Technical Manual
1. Select the database
which needs to backup
2. Click the button
After click the right side button of "From device", then display as following:
—183—
IMM Technical Manual
Click the "Add" button of the above, then display as follow:
Select the document used for restoring, click "OK" button.
Select it
—184—
IMM Technical Manual
Click the "Option" of the above image, then displays as following:
Selected the red box section on the above image and click "ok" button. Restore operation
is complete.
—185—
IMM Technical Manual
9.4 Power meter installation (Customized)
9.4.1 Power meter installation solution
At present there are two kinds of power meter wiring schemes in engineering:
A refrigerant system can be connected to three-phase digital power meter of low current
only used by Midea (can connect to the external current transformer). The external current
transformer power meter can be installed directly on the power of the air conditioner
system bus, implement a refrigerant system with one meter.
Code
Name
Overload current
three-phase digital power
DTS634-M
(380V,50Hz,6A)(CHINT)(RoHS)
BH-0.66-30IB
180A
current transformer (150A/5A)
2. A outdoor unit connects to three-phase digital power meter of large current, at present
there are two kinds of meter in using, details are as follows:
Code
Name
Overload current
three-phase digital power meter
DTS634-F
180A
(380V,50Hz,100A)(RoHS)
three-phase digital power
DTS634/DTS636
60A
(60A)(RoHS)
—186—
IMM Technical Manual
9.4.2 Wiring instructions
1. The wiring between current transformer and power meter
The power meter installed is DTS634-M. In the wiring diagram, the 1, 4 and 7 ports of the
power meter need to connect to current transformer‟s S1 terminal; the 3, 6 and 9 ports of
the power meter need to connect to current transformer‟s S2 terminal. The 2, 5 and 8
ports of the power meter need to connect to three-phase power supply. The 10 and 11
ports of the power meter need to connect to ground. In sure to safety,it‟s necessary to
connect current transformer‟s S2 terminal before connecting the ground.
—187—
IMM Technical Manual
2. The connection of meter and outdoor unit
In the above figure 485A connects to the O terminal of power meter. 485B connects to A
terminal of power meter. The length of communication wire should less than 100m.
Communication cable is isolated to high voltage.
3. Notes:
(1) The power meter is customized by Midea, it has been set the percentage of 30:1, and
if it is bought from the market, it will not normally use
(2) DTS634-M meters‟ current specifications:
1.5 (6) A is used with BH-0.66-30IB current transformer, and the current specifications will
change into: 45 (180) A, so the power meter‟s maximum current is 180 A.
(3) We only offer DTS634-M power meter and BH-0.66-30IB current transformer. The
connection line from current transformer output to the electricity meter should be offered
by installer. We suggest that the line diameter should ≥2.5mm².
Current transformer of BH-0.66 30IB:
Back
Face
—188—
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
