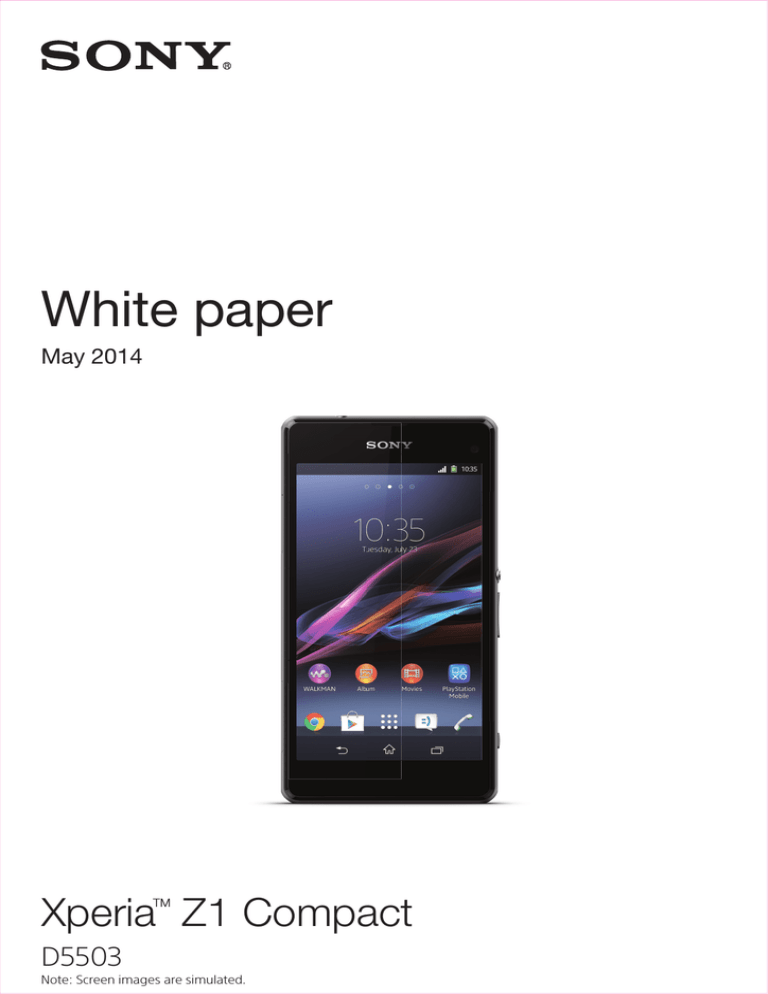

White paper
May 2014
Xperia Z1 Compact
Note: Screen images are simulated.
White paper | Xperia™ Z1 Compact
Purpose of this document
Sony product White papers are intended to give an overview of a product and provide details in relevant
areas of technology.
Document history
January 2014
First released version
Version 1
February 2014
Second released version
Version 2
February 2014
Third released version
Version 3
June 2014
Fourth released version
Version 5
Sony Mobile Developer World
For the latest technical documentation and development tools, go to
This document is published by Sony Mobile
Communications AB, without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
AB at any time and without notice. Such changes
will, however, be incorporated into new editions
of this document. Printed versions are to be
regarded as temporary reference copies only.
This White paper is published by:
Sony Mobile Communications AB,
SE-221 88 Lund, Sweden
© Sony Mobile Communications AB, 2009-2014.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
Any rights not expressly granted herein are
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
First released version (January 2014)
Publication number: 1278-0975
June 2014
White paper | Xperia™ Z1 Compact
Table of contents
Product overview ........................................................................................................2
Xperia™ Z1 Compact highlights ............................................................................2
Facts – dimensions, weight, performance and networks ......................................4
Categorised feature list ..........................................................................................6
Technologies in detail .................................................................................................9
Device-to-device communications (local) .............................................................9
ANT+™ wireless technology...............................................................................9
Bluetooth® wireless technology .......................................................................10
Wi-Fi® ...............................................................................................................11
DLNA Certified® (Digital Living Network Alliance) ............................................12
Messaging ...........................................................................................................13
MMS (Multimedia Messaging Service)..............................................................13
Email .................................................................................................................13
Positioning – location based services .................................................................14
Provisioning (OMA CP) ........................................................................................14
Multimedia (audio, image and video) ...................................................................15
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................17
Web browser .......................................................................................................17
Memory in Android™ devices .............................................................................18
Trademarks and acknowledgements ..................................................................22
June 2014
White paper | Xperia™ Z1 Compact
Product overview
Xperia™ Z1 Compact highlights
• Sony G Lens, 1/2.3 inches 20.7 MP Exmor RS™ for mobile image sensor and BIONZ™ for mobile
image processing engine
• 4.3” TFT-IPS TRILUMINOS™ Display for mobile with X-Reality™ for mobile picture engine
• Water and dust resistant (IP55 & IP58), durable tempered glass with a solid one-piece aluminium frame
• Qualcomm Snapdragon™ 800 quad-core 2.2 Ghz processor, 2300 mAh battery, Battery STAMINA
• Live broadcast to Facebook™ via Social live
The world’s best camera in a water resistant smartphone*
Sharper. Clearer. Brighter. That’s what Sony’s industry leading compact digital cameras give you. And
now with the Xperia™ Z1 Compact, we have created a groundbreaking smartphone built with the very
same components, giving you the most stellar picture and video quality possible. By combining the large
1/2.3 inches 20.7MP Exmor RS™ for mobile image sensor, Sony’s award-winning G Lens, and intelligent
BIONZ™ for mobile image processing engine, the results are nothing less than amazing. The lightsensitive 27mm wide angle lens comes with an aperture of F2.0. Wide apertures mean that bokeh – the
way the lens renders out-of-focus points of light – will be naturally incorporated in images produced. The
large high sensitivity sensor is made exclusively for the Xperia™ Z1 Compact and is equivalent to the
sensor size used in Sony’s Cyber-shot™ digital still cameras, which together with the intelligent noise
reduction capabilities of the image processing engine and the sensitive ISO 6400 enables incredibly clear
low-light pictures without sacrificing detail. The high pixel resolution, aspherical lens and BIONZ™ for
mobile super resolution technology enables zoom without quality loss - just like an optical zoom, while the
high shutter speed reduces any risk of blurry footage. Images are delivered with super sharpness, clarity
and brightness.
*Xperia™ Z1 Compact features a camera combining the world’s largest image sensor (1/2.3 inches) with
the highest resolution (20.7 MP) in a water resistant smartphone. It also includes the brightest lens (F2.0)
available in a slim water resistant (IPX5/IPX8) smartphone. Specifications verified by Strategy Analytics’
SpecTRAX service as of May 10, 2013. For more information on Strategy Analytics results, go to:
The best colour and sharpness ever
Built with the latest Sony BRAVIA® technologies optimised for mobile, the Xperia™ Z1 Compact
incorporates a large high-resolution 4.3 inch TRILUMINOS™ Display for mobile, for a wider palette of rich,
natural colours – just like having a broader range of colour pencils to draw from. With Sony’s exclusive XReality™ for mobile picture engine, everything you watch – from HD movies to web videos and photos – is
analysed and selectively processed to deliver clean, clear, and lifelike pictures. In addition, the Intelligent
Super Resolution technology finds and reproduces lacking pixels, so you’ll always be able to enjoy the
sharpest videos, preventing your entertainment from being spoiled by low resolution videos. The display
comes with a 1280 x 720 progressive scan, for incredibly crisp pictures free of jagged edges. Paired with
a pixel density of 342 pixels per inch, you get pictures that are razor sharp and incredibly bright.
Smart, sleek and water resistant*
Building upon the rich history of Sony’s craftsmanship, the Xperia™ Z1 Compact has been carefully
crafted using only clean lines and premium materials. With OmniBalance™ design, this smartphone offers
balance and symmetry in all directions, creating a smartphone that feels wonderful to hold in every angle.
June 2014
White paper | Xperia™ Z1 Compact
The front side of the phone is made of durable tempered glass, and the back side is made of high-rigid
plastic sheet, reflecting the world around you while allowing you to get so immersed in content that the
hardware virtually disappears. The innovative solid one-piece aluminium frame is designed without
breaks, creating a completely seamless expression. Paired with the Magnetic Charging Dock DK31,
charging is made smooth and comfortable, with no need to open a USB cap. And due to its IP55/IP58
rating, this slims and sleek smartphone is both water and dust resistant. In fact, even the headphone jack
is water resistant. For a smartphone that is just as breathtaking as it is tough.
*In compliance with IP55 and IP58, the Xperia™ Z1 Compact is protected against the ingress of dust and
is water resistant. Provided that all the covers for the micro USB port, the micro SIM slot and the memory
card slot are firmly closed, the phone is (i) protected against low pressure jets of water from all practicable
directions in compliance with IP55; and/or (ii) can be kept under 1.50 metres of freshwater for up to 30
minutes in compliance with IP58. For more information, go to
Blazing fast performance
Performance that never lets you down. Isn’t that what we’re all craving for? With the Xperia™ Z1
Compact, that’s exactly what you get. This smartphone supports super-fast LTE networks, giving you
access to entertainment anytime and anywhere. With the latest Qualcomm Snapdragon™ 800 quad-core
2.2 Ghz processor with 2GB RAM, this smartphone comes with ultra-fast performance and breathtaking
graphics. So stream your favourite YouTube™ clips and download the latest podcasts.
Better battery life
Smartphones use a lot of power, even when you’re not actively using them. All those apps that you have
on your phone may still be running in the background, draining your battery. Battery STAMINA Mode
saves you wasted battery drain. It recognises when you’re not using your display and automatically turns
off the functions you don’t need, while keeping the notifications you want. As soon as you press the power
button to wake up your screen, everything is up and running again.
Social live – broadcast your precious moments live
Your best friend’s wedding. Your child’s first steps. That winning goal. With Social live, you can broadcast
every precious moment as it happens live via Facebook. Get your friend’s response right on the screen
and keep the conversation going, all in real-time. So go ahead and let the Xperia™ Z1 Compact erase the
distance and bring together the people that matter to you most.
Info-eye™ – an innovative way to gain information
How tall is the Eiffel Tower? What meat should you eat with that bottle of red? And what does that QR
code tell you? Photograph the object and Info-eye™ is designed to instantly give you relevant information
you need. An innovative way to search information on the things that interest you – right through your
camera viewfinder.
June 2014
White paper | Xperia™ Z1 Compact
Facts – dimensions, weight, performance and
Operating system
Google™ Android™ 4.3 (Jelly Bean MR2)
2.2 GHz Qualcomm MSM8974 Quad Core
Adreno 330
127 x 64.9 x 9.5 mm
137 grams
Available colours
SIM card
micro SIM
Main screen
16,777,216 colour TFT-IPS
1280x720 pixels
Size (diagonal)
4.3 inches
Input mechanisms
Text input
On-screen QWERTY keyboard
Touch screen
Touch gesture
Yes – multi-touch, up to 10 fingers supported
2 GB
Flash memory
Up to 16 GB*
Expansion slot
microSD™ card, up to 64 GB (SDXC supported)
Camera resolution
20.7 MP
Digital zoom
Photo light
Yes – Pulsed LED
Video recording
Yes – HD 1080p
Front Camera
Yes – HD 1080p for video chat and 2 MP for camera capture
ISO 3200 maximum in manual mode
Minimum Focus distance
100 mm
June 2014
White paper | Xperia™ Z1 Compact
Proximity sensor
Ambient light sensor
UMTS HSPA+ 850 (Band V), 900 (Band VIII), 1700 (Band IV),
1900 (Band II), 2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
LTE (Bands 1, 2, 3, 4, 5, 7, 8, 20)
Data transfer speeds
Up to 107 kbps
Up to 296 kbps
HSUPA (upload)
Cat 6, up to 5.8 Mbps
HSDPA (download)
Cat 24, up to 42 Mbps
LTE (upload)
Cat 4, up to 50 Mbps
LTE (download)
Cat 4, up to 150 Mbps
Talk time (GSM)
Up to 10 hours**
Standby time (GSM)
Up to 670 hours**
Talk time (UMTS)
Up to 18 hours**
Standby time (UMTS)
Up to 600 hours**
Standby time (LTE)
Up to 550 hours**
Music listening time
Up to 94 hours**
Video playback time
Up to 12 hours**
Battery (Embedded)
2300 mAh minimum
* Memory comprises approximately 4 GB of firmware, plus 12 GB of “Internal storage” for music, pictures
and movies, and downloaded applications and their data. For more details about memory, see “Memory in
Android™ devices” on page 18.
** Values are according to GSM Association Battery Life Measurement Technique as performed in controlled laboratory conditions. Actual time may vary.
NOTE: Battery performance may vary depending on network conditions and configurations, and device
NOTE: Performance metrics measured under laboratory conditions.
June 2014
White paper | Xperia™ Z1 Compact
Categorised feature list
20.7 megapixel camera
8x digital zoom
Auto focus
Burst mode
HDR for photos and movies
Face detection
Flash/Pulsed LED
Flash/Photo light
Front-facing camera (2 MP 1080p)
HD video recording (1080p)
Image stabiliser
Object tracking
Picture Effect
Quick Launch
Red-eye reduction
Scene recognition
Send to web
Smile Shutter™
Sony Exmor RS® for mobile
Image sensor
Superior Auto
Sweep Panorama
Touch capture
Touch focus
White balance
3D Surround Sound (VPT)
Album art
Bluetooth® stereo (aptX®, A2DP)
Clear Bass™
Clear Phase™
Clear stereo
Dynamic normaliser
Low power audio playback***
Music tones (MP3/AAC)
PlayNow™ service*
TrackID™ music recognition*
“WALKMAN” application
xLoud™ Experience
Google Chrome™*
Google Play™*
Google™ search*
Google Voice™ Search*
Google Maps™ for Mobile with
Street view*
NeoReader™ barcode scanner*
Pan & zoom
Sony Select
Xperia™ Home
Web browser (WebKit™)*
June 2014
White paper | Xperia™ Z1 Compact
Call list
Facebook™ application*
Noise suppression
Polyphonic ringtones
Slow talk
Talk equaliser
Twitter™ application*
Voice enhancement
Xperia™ Socialife*
Google Mail™*
Handwriting recognition
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Sound recorder
Text messaging (SMS)
Auto rotation
Direct touch
Face Unlock
Gesture input
IPX5 and IPX8 (water resistant)**
IP5X (Dust protected)
On-screen QWERTY keyboard
Battery STAMINA mode
Screenshot capturing
X-Reality™ for mobile
Touch screen
Triluminos™ Display for mobile
Voice inputs
June 2014
White paper | Xperia™ Z1 Compact
3D games
Media browser
Motion gaming
PlayStation® Certified
Radio (FM radio with RDS)
Reader mode
SensMe™ slideshow
Sony Entertainment Network*
TV launcher
Video streaming
Airplane mode
Alarm clock
Document readers
Setup guide
3.5 mm audio jack (CTIA)
ANT+™ sport, fitness,
health support
Bluetooth® 4.0 wireless
DLNA Certified®
MHL + 5-pin support
Media Go™
Media Transfer Protocol support
Micro USB support
Native USB tethering
PC Companion
Screen mirroring
Smart Connect
Synchronisation via Facebook™
Synchronisation via Google™*
Synchronisation via SyncML™
Synchronisation via Exchange
USB charging
USB High speed 2.0 support
USB Host
Xperia Link™
Wi-Fi® Hotspot functionality
* This service is not available in all markets.
** In compliance with IP55 and IP58 standards, Xperia™ Z1 Compact is protected against the ingress of
dust and water. Provided that all ports and covers are firmly closed, the phone is (i) protected against low
pressure jets of water from all practicable directions in compliance with IP55; and/or (ii) can be kept under
1.50 metres of freshwater for up to 30 minutes in compliance with IP58. The phone is not designed to float
or work submerged underwater outside the IP55 or IP58 classification range that may lead to your warranty
being void. To find out more, go to more
*** This feature is only available when you play music using the "WALKMAN" application.
June 2014
White paper | Xperia™ Z1 Compact
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Mobile Developer World or
your Sony contact person where applicable.
Device-to-device communications (local)
ANT+™ wireless technology
Connectable devices
ANT+™ devices require download of a supporting application
Frequency band
2.4 GHz
Data transfer rate
Up to 60 Kbps
One to Many, Many to One, Peer to Peer, Star, Practical Mesh
June 2014
White paper | Xperia™ Z1 Compact
Bluetooth® wireless technology
Bluetooth® profiles supported
Advanced Audio Distribution Profile v1.2
Audio/Video Remote Control Profile v1.3
Device Identification Profile v1.3
Generic Attribute Profile Client/Server over LE
Handsfree Profile v1.6 (Wide band speech)
Headset Profile v1.2
Health Device Profile v1.1
Human Interface Device Profile, Host role v1.1
Messaging Access Profile v1.0
Object Push Profile v1.1
Personal Area Networking Profile v1.0
Phonebook Access Profile v1.1
Proximity Monitor Profile over LE v1.0
Serial Port Profile v1.1
Core version and supported
core features
Version 4.0
Bluetooth Low Energy
Other supported features
aptX® CD quality audio streaming over Bluetooth®
Connectable devices
Products support at least one of the Bluetooth® profiles
listed above.
Bluetooth® 4.0 accessories generally require installation
of a supporting application.
More information:
June 2014
White paper | Xperia™ Z1 Compact
Supported standards
IEEE 802.11a/b/g/n/ac and Wi-Fi®
Wi-Fi Direct™, Wi-Fi Protected Setup
Connectable devices
Wi-Fi® access points
Wi-Fi Direct compatible devices
Frequency band
2.4 GHz/5 GHz
Data transfer rate
Up to 325 Mbit/s
Open Authentication
Shared Authentication
WPA Personal and WPA2 Personal
WPA Enterprise and WPA2 Enterprise
WEP 64 bit, WEP 128 bit, TKIP and CCMP (AES)
Power save
June 2014
White paper | Xperia™ Z1 Compact
DLNA Certified® (Digital Living Network Alliance)
Supported Device Classes
M-DMS – Mobile Digital Media Server
Media Types: images, music and video
Summary: The digital media server exposes the media
files in your device to a Wi-Fi® network. The files can
then be accessed from other DLNA Certified® clients.
Media Types: image, video and music
Summary: Play media in your device on another device,
such as a TV or computer using 2 box push technology.
+PU+ is integrated in the Album, Movies and
"WALKMAN" applications.
M-DMP – Mobile Digital Media Player
Media Types: image, video and music
Summary: Play content stored on another device, for
example, a server or a PC, directly on your device.
Media Types: video and music
Summary: Download content stored on another device,
for example, a server or a PC, and play the downloaded
content directly on your device.
Supported Bearers
Wi-Fi® Direct
DRM Support
The DLNA Certified® implementation does not support
DRM-protected content.
June 2014
White paper | Xperia™ Z1 Compact
MMS (Multimedia Messaging Service)
According to OMA Multimedia Messaging Service v1.0 + SMIL
Bearer type (IP)
Character sets
BIG5 Traditional Chinese
ISO-2022-JP Japanese
ISO-8859-2 Eastern Europe
ISO-8859-5 Cyrillic
ISO-8859-7 Greek
ISO-8859-9 Turkish
ISO 8859-11
KOI8-R Cyrillic
Shift_JIS Japanese
Windows® 874
Windows® 1251 Cyrillic
Windows® 1252
Windows® 1254 Turkish
Windows® 1258 Vietnamese
POP3 and IMAP4
Push email
Microsoft® Exchange ActiveSync® (EAS)
Secure email
SSL/TLS, both port methods (POPS/IMAPS) and
HTML mail
Yes (read only)
More information:
June 2014
White paper | Xperia™ Z1 Compact
Positioning – location based services
Supported standards:
• OMA Secure User Plane Location (SUPL) v1.0 & v2.0
• 3GPP™ Control Plane location (incl. Emergency location)
• Qualcomm® GPSOneXtra™
Supported satellite systems:
* NOTE: GPS and GLONASS are used together to calculate the position. Positioning is more robust and
accurate in most conditions if both systems are active. The benefits of using GLONASS are automatically
available for all applications using the Satellite Positioning API (referred to as "GPS Provider" in Android
Provisioning (OMA CP)
OMA CP version 1.1
June 2014
White paper | Xperia™ Z1 Compact
Multimedia (audio, image and video)
Audio Playback
Audio Recording
Image Playback
Image Capture
Decoder format
Supported in file format
3GPP (.3gp, 3gpp), MP4 (.mp4,
.m4a), ADTS (.aac)
3GPP (.3gp, .3gpp), MP4 (.mp4,
.m4a), AMR (.amr, .awb)
FLAC (.flac), Matroska (.mka)
SMF (.mid), XMF (.xmf), Mobile
XMF (.mxmf), OTA (.ota), RTTTL
(.rtttl), RTX (.rtx), iMelody (imy)
MP3 (.mp3)
WAV (.wav)
OGG (.ogg), Matroska (.mkv)
ASF (.wma)
Encoder format
Supported in file format
3GPP (.3gp, .3gpp), MP4 (.mp4,
3GPP (.3gp, .3gpp), MP4 (.mp4,
.m4a), AMR (.amr)
Decoder format
Supported in file format
BMP (.bmp)
GIF (.gif)
JPEG (.jpg, .jpeg)
PNG (.png)
WebP (.webp)
Windows bitmap
BMP (.bmp)
Encoder format
Supported in file format
JPEG (.jpg)
June 2014
White paper | Xperia™ Z1 Compact
Video Playback
Decoder format
Supported in file format
3GPP (.3gp, .3gpp), MP4 (.mp4,
.m4v), Matroska (.mkv), AVI
(.avi), Xvid (.xvid)
3GPP (.3gp, .3gpp), MP4 (.mp4,
3GPP (.3gp, .3gpp), MP4 (.mp4,
.m4v), Matroska (.mkv)
MP4 (.mp4, .m4v)
WebM (.webm), Matroska (.mkv)
Encoder format
Supported in file format
3GPP (.3gp), MP4 (.mp4)
3GPP (.3gp), MP4 (.mp4)
3GPP (.3gp), MP4 (.mp4)
Audio/Video Streaming
Streaming transport
HTTP progressive streaming
DRM (Digital Rights Management) –
features the rights and copy
protection of downloaded content
OMA DRM v1.0
Marlin DRM
Widevine Level 3
PlayReady DRM (available in
specific regions)
Video Recording
* NOTE: H.265 is not available in all markets.
June 2014
White paper | Xperia™ Z1 Compact
Synchronisation (OMA DS, EAS, Google Sync™)
OMA Data Synchronisation protocol versions 1.1.2 and 1.2
OMA Data Formats: vCard 2.1, vCalendar 1.0
Microsoft® Exchange ActiveSync® protocol version 2.5
Microsoft® Exchange ActiveSync® protocol version 12
Microsoft® Exchange ActiveSync® protocol version 12.1
Microsoft® Exchange ActiveSync® protocol version 14
Microsoft® Exchange ActiveSync® protocol version 14.1
Google Sync™
Related information:
Web browser
Google Chrome™ for Android™ is pre-installed.*
Related information:
* Google Chrome may not be available in all markets.
June 2014
White paper | Xperia™ Z1 Compact
Memory in Android™ devices
To use Android devices efficiently, users should be aware of the different types of device memory. This
knowledge is important in order to understand, for example, where music, photos and videos are saved;
how many apps can be downloaded from Google Play™; and how photos can be copied to a PC.
The below information is also of interest to developers who want to optimise their programs to make the
best possible use of the resources in the device.
Generally, all Android devices share the same basic memory setup. What differs is how much memory is
available to you via the different types of memory, and whether your device uses an external SD card or an
internal memory chip. Any information specific to the particular device model described in this White
Paper is noted as such.
Types of memory
The types of memory described and numbered below are consistent with the terminology used in Sony
mobile device menus and in other content relating to 2014 Xperia™ devices:
1. Dynamic Memory (also known as RAM) is used by applications that run when the device is turned on.
The amount of Dynamic Memory influences how many applications and operating system services can
run at the same time. The Android operating system automatically closes applications and services
that are not being used.
However, such automatic functionality has limits. For example, if a lower amount of free RAM is
available to applications after a new release of the operating system (due to increased capabilities in
the system), device speed will eventually be impacted. This is the main reason that a device cannot be
indefinitely upgraded to newer releases of Android™.
If you experience problems with RAM, for example, if the device runs slower than usual or if the Home
application restarts frequently when you leave an application, you should minimise the use of apps that
run all the time. Such apps could include, for example, applications that frequently download social
networking service updates. You could also consider using a static wallpaper instead of a live
To see which apps and services are currently active, go to Settings > Apps > Running. You should
have at least 50 MB, and ideally 100 MB or more, of free RAM to avoid slowdowns and application
You should also be aware that if you update the device to a later Android release, the load on the builtin Dynamic Memory will increase due to the addition of more features, as mentioned above. As a
result, the device may run slower after an update.
The Xperia™ Z1 Compact has about 2 GB of RAM available to the Android OS and applications, of
which about 200 MB is already used out of the box.
2. System Memory (also known as “System partition” or “/system”) is used for the Android OS and for
most applications that are pre-loaded from the factory. This type of memory is normally locked, and
can only be changed through a firmware upgrade. There is usually some free space available in this
section of memory. However, since it is locked, you cannot save apps, photos or any other content to
this memory. System Memory is reserved for future firmware upgrades, which almost always need
more memory than the original firmware. You cannot see or influence the use of this memory.
3. Internal Storage is memory used as” working” memory. It can be compared to the C: drive on a PC
or to the startup disk on a Mac.
June 2014
White paper | Xperia™ Z1 Compact
This type of memory is used to store all application downloaded from the Google Play™ Store (and
other sources) as well as their settings and data (such as emails, messages and calendar events, for
example). All applications have an allocated area which no other applications can access and where
the application data can be stored.
Some game applications also store content such as game music and game level information outside
their own designated area. In most cases, an application can choose to save its data in a location of its
own choosing (outside the protected application settings area). Generally, such content is not deleted
when an application is uninstalled; it must be removed manually by connecting the device to a
computer with a USB cable, or by using a file manager application.
Internal Storage is also used for all user content added, for example, as a result of the user taking
photos with the camera, downloading media files, and performing file transfers. Typical user content
• photos
• movies
• music
• downloaded documents (as email attachments, for example)
Internal Storage will tend to fill up as a result of normal usage. Examples of such usage are the saving
of data by applications; the downloading and installation of new applications; the downloading of free
or paid content; and the shooting of pictures and movies. Therefore, the larger this memory is from the
start, the more applications you can download and use, and the more pictures and movies you can
If the Internal Storage starts to get full, the device slows down, and in some cases it might no longer be
possible to install more apps. You should always ensure that you have at least 100 MB of free Internal
Storage. If not, you should consider removing some apps that you seldom use, or move content that
you do not frequently access to safe storage.
You can see approximately how much Internal Storage is free in Settings > Storage > DEVICE
MEMORY. You can also view more detail about how much memory is used by applications under
Settings > Apps. In the Xperia™ Z1 Compact, about 12 GB of Internal Storage is available out of the
Please note that in Sony Mobile 2014 products, “Internal Storage” is now the combination of what was
previously known as “Device Memory” or “Phone Memory” (for applications and their data – also
previously known as “/data”) and “Internal Storage” (for user’s content – also previously known as “/
sdcard”). The reason for this change is to make the use of available memory more flexible, and also to
enable the optional encryption of user’s content.
Memory card slot
In some products you may find both a large internal memory and a memory card reader slot. However, on
the current Android platform, the card reader slot does not work in the same manner in a device with a
large internal memory as it does in a device with ONLY a memory card slot.
Generally, since most applications expect only a single location for storage, such applications will not
generally allow you to SAVE anything to the memory card (i.e., they do not offer the option to choose a
storage location). However, some applications (for instance, the Sony Mobile “Camera” application) may
actually allow you to do so. Other applications, for example, backup applications such as the Sony Mobile
“Memory” application, will by definition be configured to copy content from the Internal Storage to the
external SD card.
June 2014
White paper | Xperia™ Z1 Compact
On the other hand, when it comes to reading from an external SD Card, you will be able to access content
(for example, videos, photos and music) on a memory card inserted in this slot without any special
consideration since the Android system searches all available memory for content. Therefore, such
products may be regarded as supporting a fourth type of memory, called “External Card” or “SD Card”.
4. SD Card (known as “/ext_card” from a programmer’s point of view, or by other names in other Android
products) is the name for the removable SD memory card in all 2014 Sony Mobile products. As
described above, this External Card memory is generally more limited in that any application can read
from it, but many applications cannot save to this card. Only a few applications, including backup
applications and file manger applications, have the capability to save to this card.
Backing up data to different memory types
Generally, you should not save photos, videos and other personal content solely on the internal memory
of a device. If something should happen with the hardware, or if the device is lost or stolen, the data
stored on the device’s internal memory is gone forever.
In a device where an SD card reader is the main memory, it is relatively easy to take the card out and copy
all content to a PC or Mac, or to an entertainment device with a memory card slot. In a product featuring
Internal Storage as the main memory, it is not possible to physically remove the memory. Instead, any
critical or high-value content must either be copied to an external SD card by a special backup
application, transferred to remote storage over a network (mobile or Wi-Fi), or to a computer via a USB
To facilitate the transfer of data via a cable, the Xperia™ Z1 Compact supports the Microsoft standard,
Media Transfer Protocol (MTP), which makes it possible to easily transfer content back and forth between
your device and a Windows PC. For Apple Mac computers, a special application called Sony™ Bridge for
Mac is available with built-in support for MTP. This application can be downloaded from the Xperia™ Z1
Compact support page.
Note that you do not need to back up or make a copy of applications that you have downloaded from the
Google Play™ Store. They can normally be downloaded again after you have set up your Google account
to work in a new device (or in a device where the memory has been completely erased).
Note 1:
As noted above, some Android devices, including Sony Mobile devices from 2012 and Sony Ericsson
devices from 2011 and earlier, do not use a single “Internal Storage” for both applications (and their data)
and user content. Instead, these devices use either an external SD card for user content, or a
corresponding area of internal memory to reproduce the functionality of an SD card. In such devices, there
is a fixed limit between the application area (“/data”) and the user content area (“/sdcard”), with the result
that user content can build up and reach this limit. The consequence of such a limit being reached, for
example, for the camera application, would be that no new pictures could be taken even if there was still a
considerable amount of free space in the application area (or in the user content area). In such an
instance, the download and installation of new applications would also not be possible, even if there was
enough free memory in the content area.
Note 2:
Some devices with integrated storage have abandoned the distinction between the application area and
the content area when it comes to a Factory Data Reset. As a result, there is no option in such devices to
perform a Factory Data Reset and preserve content. In such devices, all content is mandatorily and
completely deleted from the device when a reset is performed.
In contrast, Sony Mobile’s memory integration solution makes it possible to preserve user content in this
situation. Therefore, when performing a Factory Data Reset, the default action will still be to only remove
applications and their data, and an option box must be checked if all content is to be removed as well (as
might be desirable when selling the device second-hand, for instance).
June 2014
White paper | Xperia™ Z1 Compact
Note 3:
For a developer, it is important to note that from a programming point of view the location names used to
refer to the different memory areas described in Note 1 are still valid, i.e., the area used for applications (“/
data”) is still present, as is the area used for content (“/sdcard”).
In reality, “sdcard” is a so-called “symbolic link” to “/data/media”. However, from inside an Android
application, “/sdcard” can still be used. For example, you can use “sdcard/DCIM/100Android” to find all
camera images. The continued use of “/sdcard” to access the content area ensures compatibility across
different products and Android releases in this regard.
June 2014
White paper | Xperia™ Z1 Compact
Trademarks and acknowledgements
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property
of their respective owners.
Visit for more information.
June 2014
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
