Toshiba 4820-5LG touch screen monitor Datasheet

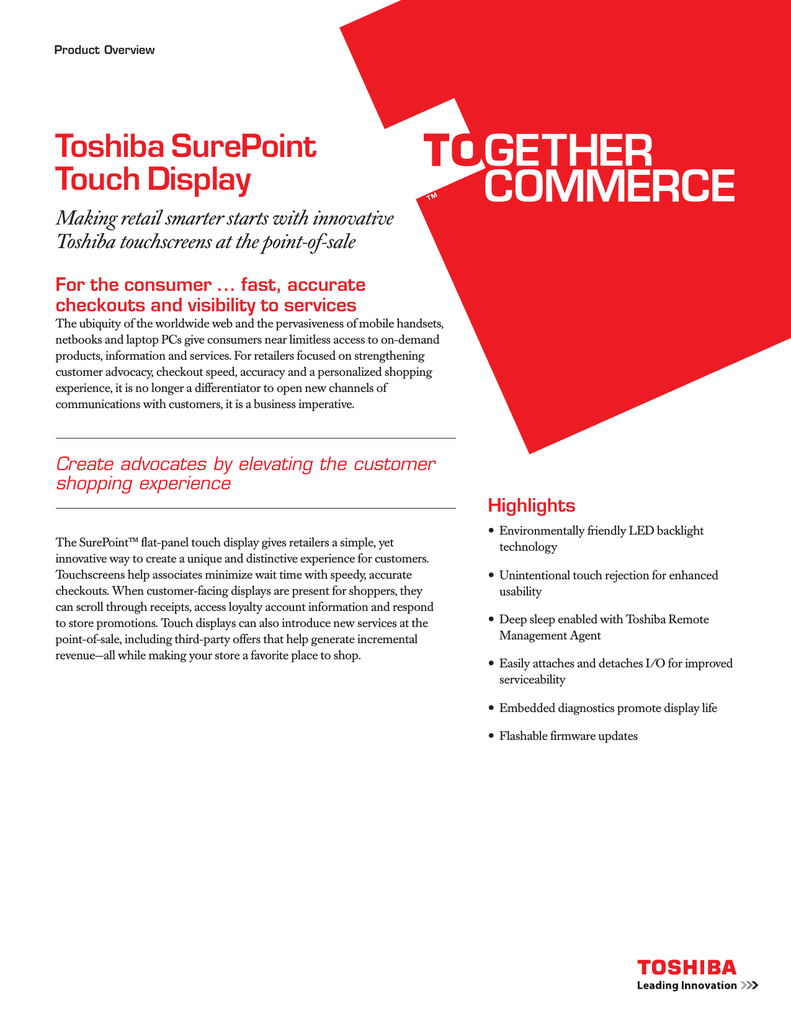

Product Overview
Toshiba SurePoint
Touch Display
Making retail smarter starts with innovative
Toshiba touchscreens at the point-of-sale
For the consumer ... fast, accurate
checkouts and visibility to services
The ubiquity of the worldwide web and the pervasiveness of mobile handsets,
netbooks and laptop PCs give consumers near limitless access to on-demand
products, information and services. For retailers focused on strengthening
customer advocacy, checkout speed, accuracy and a personalized shopping
experience, it is no longer a differentiator to open new channels of
communications with customers, it is a business imperative.
Create advocates by elevating the customer
shopping experience
The SurePoint™ flat-panel touch display gives retailers a simple, yet
innovative way to create a unique and distinctive experience for customers.
Touchscreens help associates minimize wait time with speedy, accurate
checkouts. When customer-facing displays are present for shoppers, they
can scroll through receipts, access loyalty account information and respond
to store promotions. Touch displays can also introduce new services at the
point-of-sale, including third-party offers that help generate incremental
revenue—all while making your store a favorite place to shop.
Highlights
— Environmentally friendly LED backlight
technology
— Unintentional touch rejection for enhanced
usability
— Deep sleep enabled with Toshiba Remote
Management Agent
— Easily attaches and detaches I/O for improved
serviceability
— Embedded diagnostics promote display life
— Flashable firmware updates
Product Overview
For the employee … less training
time, less stress
While the innovative Toshiba SurePoint touch display helps
improve employee productivity and positively impacts customer
loyalty, it also enables retailers to operate smarter and realize a fast
return on investment. For example, flashable firmware and security
updates help reduce service and staffing costs. Built-in diagnostic
tools monitor each display’s health with critical information such
as bulb life, brightness settings and power-on hours, maximizing
the usable life. Peripherals can be attached and removed easily
without disassembling the display, simplifying future upgrades.
The Toshiba SurePoint touch display is engineered for optimum
usability for store associates. Touchscreens dramatically reduce
training time, enhancing the associate’s confidence and
productivity.
Speed employee training and increase
accuracy, employing intuitive touch
interfaces
The latest Toshiba SurePoint touch displays help retailers demonstrate their environmental commitment and build a sustainable
business. More energy efficient than ever before, new displays
support ultra-low power deep sleep automation and feature LED
backlight technology free from harmful chemicals.1 The retailhardened design ensures long service life even under the most
extreme conditions. In addition, displays are constructed from
recycled materials and packaging is made from 100 percent
recycled post-consumer waste to help reduce the cost and
environmental impact of end-of-life disposal.
Robust infrared (IR) touchscreens never need recalibrating and
they offer the most flexibility for various input devices—from a
bare finger or stylus to a credit card—speeding transactions.
Glare-proof tempered glass and unique unintentional touch rejection maximize usability. In addition, tactile and auditory feedback
during transactions—including a forward-facing speaker kit—help
associates avoid unnecessary errors.
Trust Toshiba’s retail experience
As the world’s leading provider of integrated in-store solutions
and retail insights, Toshiba Global Commerce Solutions delivers
end-to-end solutions for checkout, consumer interactions and
retail operations that unlock amazing new possibilities for retailers
and shoppers everywhere. In partnership with the Together
Commerce Alliance, our global business partner program, we help
bring innovation and value to every retailing experience so that
you can delight your customers every day, everywhere.
For the retailer … a smarter business
Retailers who deploy Toshiba SurePoint touchscreens at checkout
can begin seeing an immediate return on their investment. Touch
displays promote significantly faster throughput that can potentially reduce the number of checkout lanes open and the number
of cashiers required at the front end.
Deliver quick return on investment,
streamlining operations, controlling
costs and managing risk.
2
Product Overview
1 . Intuitive, infrared touch display
2. High-contrast ratio, minimal glare and wide-angle viewing
3. High brightness, active-matrix display supports full motion video for
better viewing
4. Convenient infrared technology interaction accepts various modes
of input
5. Energy-efficient design offers low power consumption
6. Supports deep sleep on Toshiba SurePOS units
7. Direct attachment by USB to I/O and POS
8. Forward-facing speaker kit
9. Spill resistant retail hardened construction
10. Integrates with various optional peripherals for a unified appearance
(magnetic strip readers, keypads, key locks and speakers
11. 32-key programmable keypad for rapid data entry (optional)
12. A choice of 12-inch or 15-inch display
13. Wide tilt range for ergonomically correct viewing
14. Multiple mounting options for versatile placement options
15. 180-degree rotational range enables use by cashier and/or customer
16. Stable mount fixtures offer a steady screen display
17. Available in pearl white or iron gray to match existing POS
hardware
3
Product Overview
Toshiba SurePoint Touch Display Technical Requirements
Model Number - Touch
4820 - 2LW
4820 - 2LG
4820 - 5LW
4820 - 5LG
Screen Size
12.1”
12.1”
15”
15”
Resolution
800 × 600
800 × 600
1024 × 768
1024 × 768
Model Color
Pearl White
Iron Gray
Pearl White
Iron Gray
Backlit bulb
LED backlight
LED backlight
LED backlight
LED backlight
Power requirements
18 W max (20 W
w/ brick), 15 W typical
18 W max (20 W
w/ brick), 15 W typical
18 W max (20 W
w/ brick), 15 W typical
18 W max (20 W
w/ brick), 15 W typical
Energy consumption
efficiency*
N/A
Connectivity
Video interface
Analog
Touch interface
Powered USB, standard USB
Optional mounting features
Mounting stands
Integrated mounting stands: Toshiba SurePOS 700, Toshiba SurePOS 500 (second display)
Weighted distributed base
VESA-compliant adapter
Optional I/O devices
Magnetic Stripe Reader (MSR)
w/Keylock
Three track MSR
2-position programmable lock (up to 4-position available as option)
Keypad w/MSR and Keylock
32-key programmable keypad with three track MSR
2-position programmable lock (up to 4-position available as option)
Speaker Kit
Forward-facing speaker assembly
Physical dimensions and weight
Maximum dimensions
(W×D×H)
12 inch: 12.12 × 2.2 × 10.43 (308 × 56 × 265 mm)
15 inch: 14.13 × 2.2 × 11.87 (359 × 56 × 301.5 mm)
MSR
7.68 × 1.49 × 2.87 (195.5 × 38 × 73 mm)
MSR and Keypad
8.27 × 2.09 × 5.31 (210 × 53 × 135 mm)
Weight
12 inch: 5.51 lbs (2.5 kg)
15 inch: 7.37 lbs (3.35 kg)
Software
Operating Systems supported†
Toshiba 4690 OS V5.2, or higher**
Microsoft Windows Embedded for Point of Service
Microsoft Windows Embedded POSReady 2009
Microsoft Windows XP Pro SP2, SP3
Microsoft Windows 7
Drivers supported
OPOS 1.13 or later
Java POS 1.13 or later
Warranty Service‡
One year depot or on-site service
Technical support§
24×7 phone support (during warranty period) and web-based help
4
Product Overview
For more information
To learn more about how Toshiba SurePoint touch displays can
help transform your business, contact your local Toshiba sales representative or Toshiba Business Partner or visit: toshibagcs.com
Together Commerce
Together Commerce is Toshiba’s vision for the new
future of retail where retailers adapt their strategies,
their stores and their technology to engage with
consumers throughout the buying process in a seamless
and helpful way. This collaborative approach enables
retailers and customers to create mutually rewarding
commerce—together.
Additionally, IBM Global Financing can help you acquire the IT
solutions that your business needs in the most cost-effective and
strategic way possible. We’ll partner with credit-qualified clients to
customize an IT financing solution to suit your business goals,
enable effective cash management, and improve your total cost
of ownership. IBM Global Financing is your smartest choice to
fund critical IT investments and propel your business forward.
For more information, visit: ibm.com/financing
5
Copyright © 2013 Toshiba Global Commerce Solutions, Inc.
Toshiba Global Commerce Solutions, Inc.
3039 Cornwallis Road
Research Triangle Park,
NC 27709 U.S.A.
Printed in the United States of America
April 2013
All Rights Reserved
Toshiba, the Toshiba logo, Toshiba.com, and SurePoint are trademarks or registered
trademarks of Toshiba in the United States, other countries or both.
Toshiba Global Commerce Solutions, the Toshiba Global Commerce Solutions logo
and toshibagcs.com are trademarks of Toshiba Global Commerce Solutions in the
United States, other countries or both. If these and other Toshiba Global Commerce
Solutions trademarked terms are marked on their first occurrence in this information
with a trademark symbol (® or ™), these symbols indicate U.S. registered or common
law trademarks owned by Toshiba Global Commerce Solutions at the time this
information was published. Such trademarks may also be registered or common law
trademarks in other countries. A current list of Toshiba Global Commerce Solutions
trademarks is available on the web at “Copyright and trademark information” at
http://www.toshibagcs.com/legal/copytrade.shtml
IBM is the trademark or registered trademark of International Business Machines in the
United States, other countries or both.
JavaPOS and all Java-based trademarks and logos are trademarks or registered
trademarks of Oracle and/or its affiliates.
Microsoft, Windows Windows NT and the Windows logo are trademarks of
Microsoft Corporation in the United States, other countries or both.
Other company, product or service names may be trademarks or service marks
of others.
References
1
Deep sleep power state is defined as “suspend to RAM” (random access memory)
(meaning the power supply is in a reduced power mode). The system appears off;
the CPU has no power; RAM is in slow refresh.
* The energy consumption efficiency is the value of the power consumption measured
in accordance with the measuring method specified by the Japan energy saving
law divided by the Composite Theoretical Performance specified by the energy
saving law.
† An operating system is not included and can be purchased separately.
‡ For a copy of Toshiba’s Statement of Limited Warranty, please contact your
Toshiba representative or authorized reseller.
§ Technical support response times may vary.
** For deep sleep and wake on touch, 4690 OS V6.2 Enhanced with PTF
(Program Temporary Fix) required. For MSR fields available in RMA 2.6 (Remote
Management Agent), 4690 OS V6.2 (Classic or Enhanced) is required.
The information included in this publication could include technical inaccuracies
or typographical errors. Toshiba may make improvements and/or changes in the
product(s) or the program(s) described in this publication at any time without
notice Toshiba assumes no responsibility or liability for any use of the information
contained herein and all such information is provided “AS IS” without warranties of
any kind, express or implied, including but not limited to the implied warranties of
merchantability or fitness for a particular purpose. Nothing in this document shall
operate as an express or implied license or indemnity under the intellectual property
rights of Toshiba or third parties. For more details on limited warranty terms and
conditions or extended warranty, please contact your Toshiba representative.
References in this publication to Toshiba products or services do not imply that
Toshiba intends to make them available in all countries in which Toshiba operates.
Copying or downloading the images contained in this document is expressly prohibited
without the written consent of Toshiba. Any proposed use of claims in these materials
must be reviewed by Toshiba counsel prior to such use.
All statements regarding Toshiba’s future direction and intent are subject to change or
withdrawal without notice, and represent goals and objectives only.
The Toshiba Global Commerce Solutions home page on the Internet can be found at
toshibagcs.com
Please Recycle
RTD12514-USEN-04

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
