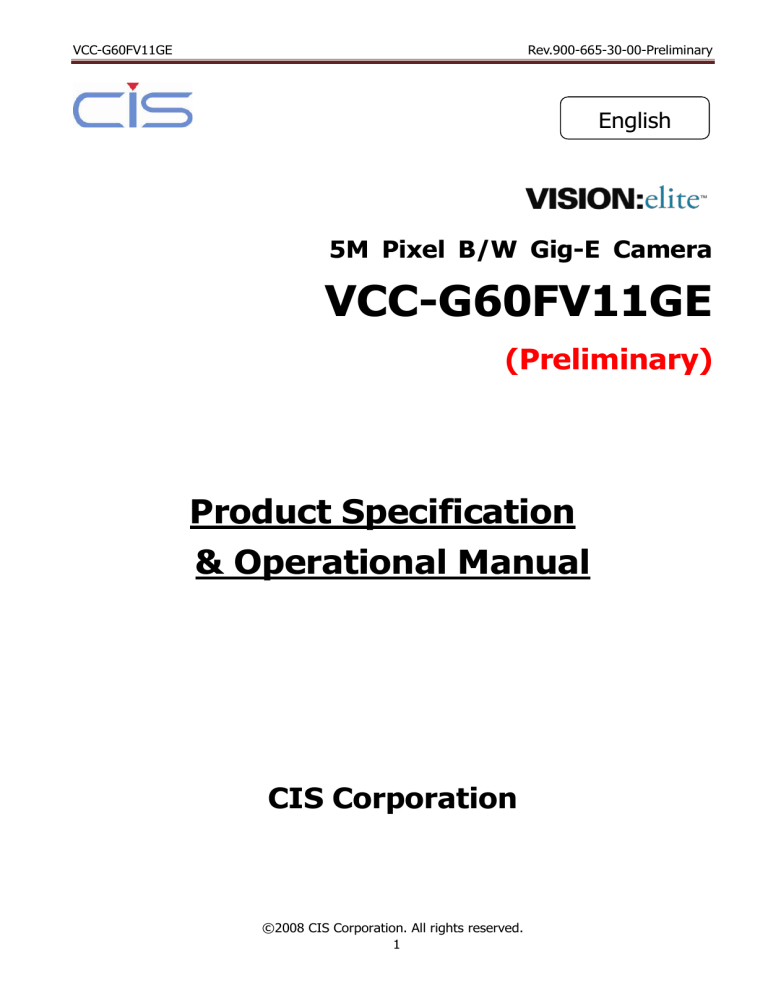

5M Pixel B/W Gig-E Camera

VCC-G60FV11GE

(Preliminary)

Product Specification

& Operational Manual

CIS Corporation

©2008 CIS Corporation. All rights reserved.

1

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

Table of Contents

1. Scope of Application.......................................................................................................................... 3

2. Handling Precautions ........................................................................................................................ 3

3. Product Outline ................................................................................................................................. 4

4. Specification ..................................................................................................................................... 5

4.1. General Specification .................................................................................................................. 5

4.2. Camera Output Signal Specification .............................................................................................. 7

4.3. CCD Spectral Response (Representative Value) ............................................................................. 8

5. Function Settings .............................................................................................................................. 9

6. External Connector Pin Assignment ................................................................................................... 11

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE) .................................................................. 11

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD) ..... 11

7. Timing Chart.................................................................................................................................... 12

7.1. Horizontal Synchronous Signals Timing ........................................................................................ 12

7.2. Full Frame Scan Mode Timing ..................................................................................................... 12

7.3. Standard Trigger Mode Timing .................................................................................................... 13

7.4. Pulse Width Trigger Timing ......................................................................................................... 14

8. Partial Scan Mode Details ................................................................................................................. 15

9. Remote Interface Function ............................................................................................................... 16

10. Initial Settings ............................................................................................................................... 17

11. CCD Optical Axis Accuracy .............................................................................................................. 18

12. Dimensions .................................................................................................................................... 19

13. Cases for Indemnity (Limited Warranty) ........................................................................................... 21

14. CCD Pixel Defect ............................................................................................................................ 22

15. Product Support ............................................................................................................................. 22

©2008 CIS Corporation. All rights reserved.

2

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

1. Scope of Application

This is to describe VCC-G60FV11GE, 5M pixels Gig-E B/W CCD Camera. All specifications contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions. z Do not use or store the camera in the following extreme conditions:

¾ Extremely dusty or humid places.

¾ Extremely hot or cold places (operating temperature –5 to +4 ℃

¾ Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

¾ Places subject to fluorescent light reflections.

¾ Places subject to unstable (flickering, etc.) lighting conditions.

¾ Places subject to strong vibration. z Remove dust or dirt on the surface of the lens with a blower. z Do not apply excessive force or static electricity that could damage the camera. z Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera is not in use, put the lens cap on. z Follow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices. z Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera. z Do not apply excessive voltage.(Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera. z The voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power

supply voltage may cause noises on the video signals. z The rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please avoide noises like chattering when rising.

©2008 CIS Corporation. All rights reserved.

3

VCC-G60FV11GE Rev.900-665-30-00-Preliminary z 2ch output, separated into right and left, CCD is utilized for VCC-G60FV11GE. Image signals for right half screen and left half screen are output via each independent circuit. Therefore, differences between right screen and left screen could be seen depending on the usage conditions (shooting conditions /temeperature conditions and so on). CIS trys its best to adjust this differences but please be noted it would not be perfect.

9

8

7

12

11

10

10 20 30 40

Voltage Rising Time [ ms]

50 60 70

In case of abnormal operation, contact the distributor from whom you purchased the product.

3. Product Outline

VCC-G60FV11GE is a Gigabit Ethernet interfaced, high-resolution industrial black and white video camera module utilizing a 2/3 inch PS IT CCD. 5M pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution. At Full Frame Scan Mode, entire pixels can be read out within approx. 1/15s.

Features

High speed communication, maximum 108MB/s. (Comform to 1000BASE-T)

The maximum transmission distance is approx. 100m with cable more than CAT5e.

Camera settings can be set via LAN.

Software trigger input via LAN or hardware trigger input via 12pin connector at rear is selectable.

Shutter speed can be set from 1/15sec ~ 1/30,000sec by 1H.

At partial scan mode, both capturing start position and capturing width can be set by 3H.

Bundled Items

Camera iPORT Software Development Kit 2.4.1 build 921. ※

CIS image capturing and controlling demonstration software (CIS Coyote) ※

VCC-G60/F60 GE series start up manual

Please ask for the details or download it from our web.

©2008 CIS Corporation. All rights reserved.

4

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

4. Specification

4.1. General Specification

Item Specification

Pickup device Device Type 2/3” Interline Transfer B/W CCD, Sony ICX625ALA

Effective Pixel Number 2456 (H) x 2058 (V)

Unit Cell Size

3.45μm (H) x 3.45μm (V)

Chip Size 9.93mm (H) x 8.70mm (V)

Videooutput frequency Pixel Clock 60 MHz

Horizontal Frequency 31.185 KHz Pixel Clock: 1924CLK

Sync. system

Vertical Frequency

Internal Sync. System

Full Frame Scan Mode: 2079 lines, approx 15.000Hz

Video output standard Gigabit Ethernet (Comform to 1000BASE-T) Trasferring speed: 108MB/s (max)

Resolution

Resolving power

Sensitivity

2058 TV lines

8bit / 10bit (Note; Real time capturing is invalid with 10 bit output.)

F 5.6 400 lx (Shutter speed 1/15s, Gain 0dB)

Minimum illumination F 1.4 1 lx (Shutter speed 1/15s, Gain Max +18dB)

Dust or stains in No dust or stain shall be detected on the testing screen with setting the camera optical system aperture at F16.

Power requirements

DC +12V ± 10% (Max voltage not to exceed +15V)

Power consumption 5.8 W (At DC +12V IN, normal mode, and full frame scan mode)

6.0W (At DC +12V IN, normal mode, and partial scan mode)

Dimension Refer to overall dimension drawing (Clause 12)

55mm x 55mm x 60mm (excluding projection)

Approx. 190 g Mass

Lens mount C mount (Refer to overall dimension drawing)

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 11)

Gain variable range

0~+12dB (Analog Gain; over 0dB~+6dB, Digital Gain; 0dB~+6dB)

Shutter speed variable range

1/15s (Off) ~1/30000s

Trigger shutter mode ・Standard Trigger Mode ・Pulse Width Trigger Mode

©2008 CIS Corporation. All rights reserved.

5

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

Item Specification

Safety/Quality standards

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: To be applied

FCC: To be applied to FCC Class A digital Device

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Frequency

20~200 Hz

Vibration

Durability

Operation environment

Shock

Testing time 120 min for each direction

No mulfunction shall be occurred with 490m/s

2

(50G) for X, Y, Z direction. (without package)

Temperature Performance guaranteed temperature: 0℃~+40℃

Camera operation guaranteed temeprature: -5℃~+40℃

All the specifications specified in this manual is guaranteed under performance guaranteed temperature.

All the camera functions operate normally under operation

Storage environment

Humidity guaranteed temperature

RH 20~80% with no condensation

Temperature -25℃ ~ +60℃

Humidity

RH 20~80% with no condensation

Recommended System LAN Card

LAN Cable

Intel PRO/1000 series

MOD-YSP-A1AS-SP series (Honda Tsushin Kogyo)

OS

Memory

MV series (CEI: via SIMCO)

Windows 2000 and over

Over 512 MB (over 1GB recommeded)

©2008 CIS Corporation. All rights reserved.

6

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

4.2. Camera Output Signal Specification

Video output data

Sync. Signal

I/O

Item Specification

2456 (H) x 2058 (V)

At Full Frame Scan Mode

Video out

60MHz 2Tap output

LVAL output

FVAL output

LVTTL (3.3V Output)

LVTTL (3.3V Output)

HR10-10R-12PA

Output pin assignment is

DVAL output

SP (Exposure Pulse)

LVTTL (3.3V Output)

LVTTL (3.3V Output) set via iPort SDK. Please refer to our VCC-G60/F60

GE series startup manual, section 5.6. Trigger Mode.

Polarity POSI/NEGA Selectable

Trigger Pulse width

Min. over 2 HD ~ Max. under 4158 HD

Trigger input

Hardware Trigger input LVTTL (5.0V Tolerant) HR10-10R-12PA signal

Software Trigger input RJ-45

White Clip Level

Setup Level

Digital 8bit

Digital 8bit

: FFh

: 08h±04h

Digital 8bit : Under 08h for both horizontal and vertical

(Conditions: Gain 0dB)

Leval differences between right and left

Digital 8 bit

: Under 03h (Conditions: Gain 0dB)

5 secounds shall be waited after turning on power to get proper camera operation.

+3.3V

VCC

SN74LV125A(TI)

Vih : Vcc × 0.7(Min)

Vil : Vcc × 0.3(Max)

Voh : 2.48V(Min)

Vol : 0.44V(Max)

180Ω

180Ω

UDZS TE-17 6.2B

(ROHM)

TTL In(a)

TTL Out(b)

(a):0~3

(b):0~2

12 pins circular connector at rear GPIO interface

©2008 CIS Corporation. All rights reserved.

7

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

4.3. CCD Spectral Response (Representative Value)

※ Lens charcteristics and luminous source charcteristics are not considered.

Image output format (Coyote Application Setting)

2-Taps , Segmented, Dual Left + Right Inverted Output

Area of interest Width : 2456 Height : 2058 Offset X : 0 Offset : 12

©2008 CIS Corporation. All rights reserved.

8

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

5. Function Settings

Camera functions can be set with serial communications.

0:

1:

0 dB: Analog Fixed Gain

+3 dB: Analog Fixed Gain

3: +12 dB: Analog Gain (+6dB) + Digital Gain (+6dB)

0: 1/15s(Off)

1: 1/30s

2: 1/60s

3: 1/90s

4: 1/120s

5: 1/150s

6: 1/200s

7: 1/250s

Trigger Mode

Manual Analog Gain (Right)

Manual Analog Gain (Left)

004

9: 1/750s

10: 1/1000s

11: 1/2000s

12: 1/5000s

13: 1/10000s

14: 1/15000s

15: 1/30000s

16:

0:

1:

Manual Shutter (Refer to Address 009 & 010)

Normal Trigger Mode (Trigger Mode Off)

Standard Trigger Mode (Shutter speed can be set with address 002.)

2:

005&006 0~512:

007&008 0~512:

Pulse Width Trigger Mode (Shutter speed can be set with trigger pulse width.)

0: 0dB~512: over +12dB (Log Linear)

Set the address 001 data to 004.

0: 0dB~512: over +12dB (Log Linear)

Set the address 001 data to 004.

Manual Shutter Control

Trigger Polarity

1/15s (Off)から1/36058s

Set the address 002 data to 016.

009&010 0~2078: Address 009 MSB and address 010 LSB makes total 16 bit.

Shutter speed = (2078-(009&010)) x 32.07μs + 27.73μs

011

0:

Max data = 2078

Positive Input

Output Data Select

Gamma Mode

Partial Scan Mode

013

014

015

0:

1:

0:

1:

0:

8bit Output Data

10bit Output Data

Gamma Off (1.0)

Gamma On (Option)

Full Frame Scan Mode

©2008 CIS Corporation. All rights reserved.

9

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

Partial Scan Start Position

Partial Scan Effective Line

Partial Scan Total Line

Manual Digital Gain (Right)

Manual Digital Gain (Left)

016&017 0~685:

019&020 0~684:

Set the address 015 data to 001.

Address 016 MSB and address 017 LSB makes total 16 bit.

Start Position: 3 H/step Min Data: 0 (0H)/Max Data : 685 (2055 H)

Start Position (016&017)+ Effective Line (019&020) <= 685

Set the address 015 data to 001.

Address 019 MSB and address 020 LSB makes total 16 bit.

Effective Line: 3 H /step Min Data: 0 (3 H)/Max Data : 685 (2058 H)

Start Position (016&017)+ Effective Line (019&020) <= 685

021&022 0~2078:

Read Only

Total line number at Partial Scan Mode or Full Frame Scan Mode minus 1 is set

256

256: x1(0dB)~512: x2(+6dB)

126&127

512:

Set address 001 data to 004.

128&129

256

512:

256: x1(0dB)~512: x2(+6dB)

Set address 001 data to 004.

255 Input 083 to save the data in EEP-ROM. Data Save

Note: The data set with 2 Byte with Manual Analog/Digital Gain control, Manual Shutter Control, Partial Scan

Start Position, and Partial Scan Effective Line shall be set with High Byte first, then set with Low Byte. The camera rewrites the internal resister when receiving Low Byte.

©2008 CIS Corporation. All rights reserved.

10

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

6. External Connector Pin Assignment

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)

Pin No.

1

2

3

4

8

9

10

5

6

7

11

12

GND

POWER IN DC +12V

TTL In3 (LVTTL Input 5V Tolerant)

TTL Out2 (LVTTL 3.3V Output)

GND

TTL In2 (LVTTL Input 5V Tolerant)

TTL Out1 (LVTTL 3.3V Output)

TTL In1 (LVTTL Input 5V Tolerant)

TTL Out0(LVTTL 3.3V Output)

TTL In0 (LVTTL Input 5V Tolerant)

NC

NC

TTL In(a) a:0~3・・・Trigger Input etc.

TTL Out(b) b:0~2・・・LVAL, FVAL, DVAL, SP,

Pulse Generator etc.

Pin assignment and functions can be set arbitrarily via iPORT software.

Please refer to iPORT.Software.Coyote.pdf in¥Program Files¥Pleora Technologies Inc

¥ iPORT Software¥Documentation.

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD)

LINK(Green LED) ACT( Yellow LED)

LINK LED: Lighting-off

・・・

Unconnected to LAN

Lighting-on Connected to LAN

Blinking ・・・Transmitting the data

ACT LED: Lighting-off

・・・

Unconnected or connected with 10Mbps/100Mbps

Blinking ・・・Connected with 1000Mbps

©2008 CIS Corporation. All rights reserved.

11

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

7. Timing Chart

7.1. Horizontal Synchronous Signals Timing

Video Output

LVAL Output

DVAL Output

696 CLK

FVAL Output

696 CLK

1 CLK

7.2. Full Frame Scan Mode Timing

Video Output

2058 H

(CCD Read Out Signal)

LVAL Output

2075 2076 2077 2078 2079 1

DVAL Output

FVAL Output

2 3 4

1924 CLK

5

9 H

6

21 H

7

1228 CLK

8 9

CLK = 60MHz

2 Tap Output

10 11 12

12 H

2058 H

21 22 23 24

Total = 2079H

©2008 CIS Corporation. All rights reserved.

12

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

7.3. Standard Trigger Mode Timing

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to the start of exposure, is 1.40μs at RAW mode.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

Trigger input during the execution of exposure (exposure time) shall be ignored. (Refer to the “G” below.)

TTL IN(a)

(Trigger Input)

Video Output

12H 2058H

LVAL Output

1

(CCD Read

Out Signal)

9

22 2079

DVAL Output

FVAL Output

2070H

TTL IN(a)

(Trigger Input)

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

81

CLK a

SP Output

Delay(Fixed)

(Exposure Signal) b Exposure Time

CLK60MHz a b

1.40μs nHD × 32.07μs+27.73μs

(a):0~3

©2008 CIS Corporation. All rights reserved.

13

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

7.4. Pulse Width Trigger Timing

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to the start of exposure, is 1.40μs. Delay time, from detecting the trigger edge to completion of exposure, is 29.13μs.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. Please refer to the “C” below. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL

output.

L IN(a)

(Trigger Input)

12H

2058H

Vi deo Output

LVAL Output

D VAL Output

FVAL Output

(CCD Read

Out Signal)

1 9

TTL IN(a)

(Trigger Input)

(Sub Pulse)

22

SP Output

3

CLK

81

CLK

(CCD Read Out Signal) a

Delay(Fixed)

(Exposure Signal)

2070H

Exposure Time

1216

CLK

532

CLK b

Delay(Fixed)

2079

CLK60MHz a b

1.40μs

29.13μs

(a):0~3

©2008 CIS Corporation. All rights reserved.

14

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

8. Partial Scan Mode Details

Capturing start position and capturing width can be set by 3H via LAN.

2079 H

2058 H

Video Output

(Normal Scan)

12 H

LVAL Output

(Normal Scan)

9 H

VIDEO Output

(Partial Scan)

High Speed

Transmit Term

Y Offset

12H + Starting Position

(Address016&017)

Effective Line

(Address 019&020)×3+3H

High Speed

Transmit Term

LVAL Output

(Partial Scan)

9 H

Total Line(Address 021&022) + 1H

341

399

0

159

255

3 H

480 H

768 H

1026 H

1200 H

709 H

1027 H

1219 H

1391 H

1507 H

©2008 CIS Corporation. All rights reserved.

15

44 fps

30 fps

26 fps

22 fps

21 fps

15 fps

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

9. Remote Interface Function

Through LAN or serial port of 12pin connector at rear, the camera can be controlled.

(1) The settings for RS-232C

Baud rate : 9600bps

Data : 8bit

Stop bit : 1bit

Parity : None

XOn/XOff : Not controlled

(2) Control code

The total control code is 14 bits, which conforms to ASCII code.

The control code consists of camera No. process code, remote controller address, remote controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.

8 9 10 11 12 13 14

Camera No.

000000: fixed

Process code

“R” Read mode

“W” Write mode

“C” Camera mode

Remote controller address

Please refer to the address table of

Section 5. Function

Settings.

Remote controller data CR

000~255

0 Dh

Camera No. is fixed with 6 bite numerical strings, “000000”.

Process code

Input any one of R, W, or C to the process code.

R (read mode) is to read the data of remote controller address.

Please be noted to set any dummy data (000~255) to 11 th

~13 th

, since a command shall consists of 14 bytes.

W (write mode) is to write the data to the remote controller address.

Please be noted that the data cannot be saved into EEPROM of the camera.

(Reboot the camera, and the data is reset to the initial setting.)

To save the data into EEPROM, please refer to Section 5. Function Settings.

C is the code to send the data back from the camera.

Note: Do not set code C when sending the data from PC side.

©2008 CIS Corporation. All rights reserved.

16

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

Remote controller address

Note: Do not write the data into the address other than specified, since it may cause

the damages or malfunction of the camera.

Remote controller data

Set the decimal number (000~255) for the remote controller data. Please be noted to set any dummy data at read control mode.

CR

Be sure to input “CR” to confirm the end of the command.

Note: The data set with 2 Byte with Manual Analog/Digital Gain control, Manual Shutter Control,

Partial Scan Start Position, and Partial Scan Effective Line shall be set with High Byte first, then set with

Low Byte. The camera rewrites the internal resister when receiving Low Byte.

10. Initial Settings

Function Address

E-Shutter

Trigger Mode

Trigger Polarity

Output Data Select

Partial Scan Mode

Partial Scan Total Lines

002

004

011

013

015

0: 1/15s (Off)

Data

0: Normal Trigger Mode (Trigger Mode Off)

0: Positive Input

0: 8 bit Output Data

0: Full Frame Scan Mode

021 & 022 2078: Read Only

©2008 CIS Corporation. All rights reserved.

17

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

11. CCD Optical Axis Accuracy

55 11.1

Inclination of optical axis to datum plane

0.

±

5° nd

U er

Datum Plane

The center of effective pixels shall be within f 0.6

to the center of lens mount.

60

6.3

±

°

0.5

Inclination of effective pixels ?

to datum plane shall be

?? ±0.5°

Datum Plane

Screws for tripod attachment

? )Dimension from datum plane to the center of lens mouont.

910-003-00-00

(Unit:mm)

©2008 CIS Corporation. All rights reserved.

18

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

12. Dimensions

4-M3

Depth 4

55

28

±0.1

C M oun t (?

)

0 -0.05

Under R1

11.1

4.5

±0.1

4-M3

Depth 4

60

52

6.3

? 1) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B).

? 2) Screw length from C mount lens surface shall be under 6mm. And protruding portion shall be

lesss than 10mm.

Product Name

Label Position

GigE

999-500-00-00(1/2)

(Unit:mm)

DC IN

©2008 CIS Corporation. All rights reserved.

19

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

(31)

(51)

(23)

(19)

CCXC-12PxxN

(SONY)

MOD-YSP-A1AS-SP()+

(HONDA TSUSHIN KOGYO)

Cable Reference Drawing

999-500-00-00(2/2)

(Unit:mm)

©2008 CIS Corporation. All rights reserved.

20

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

13. Cases for Indemnity (Limited Warranty)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases.

— In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

— In case indirect, additional, consequential damages (loss of business interests, suspension of business activities) are incurred as result of malfunction or non-function of the equipment, we shall be exempted from responsibility for such damages.

— In case damage or losses are caused by failure to observe the information contained in the instructions in this product specification & operation manual.

— In case damage or losses are caused by use contrary to the instructions in this product specification

& operation manual.

— In case damage or losses are caused by malfunction or other problems resulting from use of equipment or software that is not specified.

— In case damage or losses are caused by repair or modification conducted by the customer or any unauthorized third party (such as an unauthorized service representative).

— Expenses we bear on this product shall be limited to the individual price of the product.

©2008 CIS Corporation. All rights reserved.

21

VCC-G60FV11GE Rev.900-665-30-00-Preliminary

14. CCD Pixel Defect

After delivery, CCD pixel defects might be noted with time of usage of the products.

Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS shall be exempted from taking responsibility on it.

15. Product Support

When defects or malfunction of our products occur, and if you would like us to investigate on the cause and repair, please contact your distributors you purchased from to consult and coordinate.

©2008 CIS Corporation. All rights reserved.

22

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
