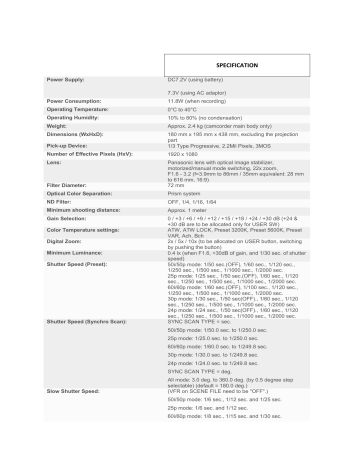

SPECIFICATION
Power Supply:
DC7.2V (using battery)
7.3V (using AC adaptor)
Power Consumption:
11.8W (when recording)
Operating Temperature:
0°C to 40°C
Operating Humidity:
10% to 80% (no condensation)
Weight:
Approx. 2.4 kg (camcorder main body only)
Dimensions (WxHxD):
Pick-up Device:
180 mm x 195 mm x 438 mm, excluding the projection
part
1/3 Type Progressive, 2.2Mil Pixels, 3MOS
Number of Effective Pixels (HxV):
1920 x 1080
Lens:
Filter Diameter:
Panasonic lens with optical image stabilizer,
motorized/manual mode switching, 22x zoom,
F1.6 - 3.2 (f=3.9mm to 86mm / 35mm equivalent: 28 mm
to 616 mm, 16:9)
72 mm
Optical Color Separation:
Prism system
ND Filter:
OFF, 1/4, 1/16, 1/64
Minimum shooting distance:
Approx. 1 meter
Gain Selection:
0 / +3 / +6 / +9 / +12 / +15 / +18 / +24 / +30 dB (+24 &
+30 dB are to be allocated only for USER SW)
ATW, ATW LOCK, Preset 3200K, Preset 5600K, Preset
VAR, Ach, Bch
2x / 5x / 10x (to be allocated on USER button, switching
by pushing the button)
0.4 lx (when F1.6, +30dB of gain, and 1/30 sec. of shutter
speed)
50i/50p mode: 1/50 sec.(OFF), 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
25p mode: 1/25 sec., 1/50 sec.(OFF), 1/60 sec., 1/120
sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
60i/60p mode: 1/60 sec.(OFF), 1/100 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
30p mode: 1/30 sec., 1/50 sec(OFF)., 1/60 sec., 1/120
sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
24p mode: 1/24 sec., 1/50 sec(OFF)., 1/60 sec., 1/120
sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
SYNC SCAN TYPE = sec.
Color Temperature settings:
Digital Zoom:
Minimum Luminance:
Shutter Speed (Preset):
Shutter Speed (Synchro Scan):
50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec.
24p mode: 1/24.0 sec. to 1/249.8 sec.
SYNC SCAN TYPE = deg.
Slow Shutter Speed:
All mode: 3.0 deg. to 360.0 deg. (by 0.5 degree step
selectable) (default = 180.0 deg.)
(VFR on SCENE FILE need to be "OFF".)
50i/50p mode: 1/6 sec., 1/12 sec. and 1/25 sec.
25p mode: 1/6 sec. and 1/12 sec.
60i/60p mode: 1/8 sec., 1/15 sec. and 1/30 sec.
30p mode: 1/8 sec. and 1/15 sec.
24p mode: 1/6 sec. and 1/12 sec.
RECORDING FORMAT AVCHD:
.
Compression Method:
MPEG-4 AVC/H.264
Recording Media (AVCHD):
SD Memory Card: 512MB, 1GB, 2GB (FAT12, FAT16)
Recording Video Format:
SDHC Memory Card: 4GB, 6GB, 8GB, 12GB, 16GB,
32GB (FAT32)
SDXC Memory Card8/29/2011: 48GB, 64GB, up to 2TB
(exFAT)
*PH/HA mode requires Class4 or faster Card. VFR
recording requires Class6 or faster.
50 Hz mode:
PH mode: 1080/50i, 1080/25p (over 50i), 720/50p and
720/25p (over 50p)
HA, HE mode: 1080/50i only
PM mode: 720/50p
59.94 Hz mode:
PH mode: 1080/59.94i, 1080/29.97p (over 59.94i),
1080/23.98p, 720/59.94p, 720/29.97p (over 59.94p), and
720/23.98p
HA, HE mode: 1080/59.94i only
PM mode: 720/59.94p
Transmission Rate:
PH mode: Approx. 21 Mbps (VBR, max 24 Mbps)
PM mode: Approx. 8 Mbps (VBR)
HA mode: Approx. 17 Mbps (VBR)
HE mode: Approx. 6 Mbps (VBR)
Interval Recording:
OFF / 1 sec. / 10 sec. / 30 sec. / 1min. / 2 min.
RECORDING FORMAT - DV:
*Recording mode need to be set in "PH 1080/25p" or
"1080/23.98p". Maximum continuous recording dyration is
168 hours (7 days).
.
File Format:
AVI Type2
Recording Media (DV):
SD Memory Card: 512MB, 1GB, 2GB (FAT12, FAT16)
SDHC Memory Card: 4GB, 8GB, 16GB, 32GB (FAT32)
SDXC Memory Card: 8GB, 64GB, up to 2TB (exFAT)
*DV recording requires Class6 or faster.
VIDEO OUT - AVCHD:
.
SDI OUT:
BNC x 1, 0.8Vp-p, 75 Ω, HD/SD auto-detect, but not
converting between HD/SD
HDMI x 1, Type A (1080i / 720p)
HDMI OUT - Video (AVCHD):
VIDEO OUT - DV:
Pin jack x 1, 1.0Vp-p, 75 Ω, 480/60i (59.94Hz) or 576/50i
(50Hz)
.
SDI OUT - Video (DV):
BNC x 1, 480/60i (59.94Hz) or 576/50i (50Hz)
VIDEO OUT (DV):
AUDIO RECORDING:
Pin jack x 1, 1.0Vp-p, 75 Ω, 480/60i (59.94Hz) or 576/50i
(50Hz)
AVCHD
AUDIO RECORDING Compression:
PH mode: Dolby Digital/2ch, Linear PCM switchable
VIDEO OUT (AVCHD):
PM/HA/HE mode: Dolby Digital/2ch
AUDIO RECORDING Sampling Frequency
(DV):
48kHz
AUDIO RECORDING Quantization:
16 bit
Bit Rate:
PH mode: 384kbps
PM/HA/HE mode: 256kbps
AUDIO RECORDING - DV:
.
Sampling Frequency (DV):
48kHz
Built-in Microphone:
Stereo microphone
Audio IN:
XLR (3 pins) x 2 (INPUT 1, INPUT 2)
LINE / MIC switchable, high-impedance
LINE: 0 dBu
MIC: -40 / -50 / -60 dBu (selectable in menu)
MIC POWER: +48V ON/OFF switchable
Audio IN Additional information:
Headroom 12dB
Audio Out:
Pin jack x 2 (CH 1, CH 2), Output: 316 mV, 600Ω
SDI OUT - Audio (DV):
2 ch (Linear PCM)
HDMI OUT - Audio (DV):
2 ch (Linear PCM)
5.1ch (Dolby Digital)
Headphone:
Stereo mini jack (3.5 mm diameter) x 1
Built-in Speaker:
20 mm (round) x 1
Camera Remote:
Super Mini jack (2.5mm diameter) x 1 for ZOOM and
recording START/STOP operations
INDEX Remote:
Mini jack (3.5mm diameter) x 1 for FOCUS and IRIS
controls
Super Mini jack (2.5 mm diameter) x 1
TC PRESET IN/OUT (double as VIDEO
OUT):
IN: 1.0 to 4.0 Vp-p, 10 kΩ
USB2.0 ::
Type mini B connector (compliant with USB ver. 2.0)
DV OUT (only for DV mode):
*The AG-AC160EJ cannot write to a memory card from a
computer.
IEEE 1394 6pin x 1
LCD Monitor:
Viewfinder:
Accessories (attached to the unit):
Standard Accessories:
OUT: 2.0±0.5 Vp-p, low impedance
3.45 inches, LCD color monitor, approx. 921,000 pixels
(16:9)
0.45 inches, LCD color viewfinder, approx. 1,226,000
pixels (16:9)
Lens Cap, INPUT Terminal Cap x2, Lens Hood, Hand
Strap
Battery Pack x 1 [7.2 V, 5800/5400 (typ./min.) mAh], AC
Adaptor (Battery Charger), AC Cable, DC Cable,
Wireless Remote Controller with button-type battery,
Microphone Holder, Microphone Holder Screws x4,
Microphone Holder Adaptor, Eye Cup, Shoulder Belt, CDROM
