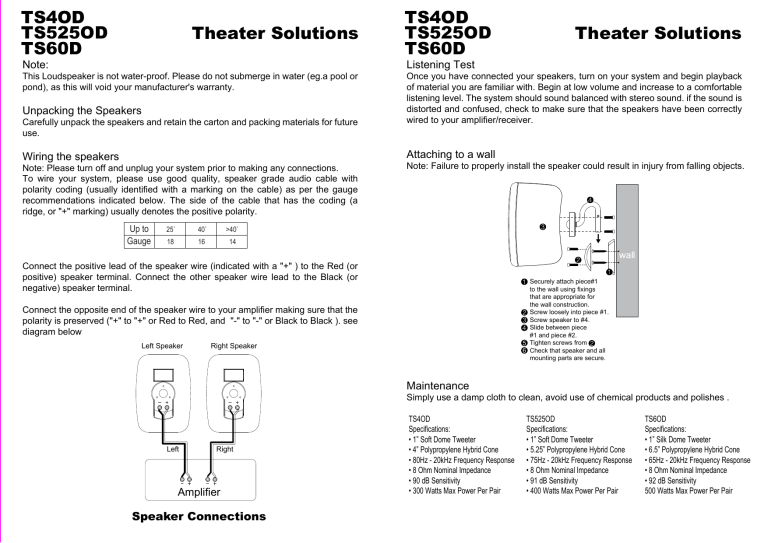

TS4OD TS525OD TS60D TS4OD TS525OD

TS4OD TS525OD TS60D TS4OD TS525OD
TS4OD
TS525OD
TS60D
Theater Solutions
Note:
This Loudspeaker is not water-proof. Please do not submerge in water (eg.a pool or
pond), as this will void your manufacturer's warranty.
Unpacking the Speakers
Carefully unpack the speakers and retain the carton and packing materials for future
use.
TS4OD
TS525OD
TS60D
Theater Solutions
Listening Test
Once you have connected your speakers, turn on your system and begin playback
of material you are familiar with. Begin at low volume and increase to a comfortable
listening level. The system should sound balanced with stereo sound. if the sound is
distorted and confused, check to make sure that the speakers have been correctly
wired to your amplifier/receiver.
Attaching to a wall
Wiring the speakers
Note: Please turn off and unplug your system prior to making any connections.
To wire your system, please use good quality, speaker grade audio cable with
polarity coding (usually identified with a marking on the cable) as per the gauge
recommendations indicated below. The side of the cable that has the coding (a
ridge, or "+" marking) usually denotes the positive polarity.
Up to
Gauge
25`
40`
>40`
18
16
14
Note: Failure to properly install the speaker could result in injury from falling objects.
Connect the positive lead of the speaker wire (indicated with a "+" ) to the Red (or
positive) speaker terminal. Connect the other speaker wire lead to the Black (or
negative) speaker terminal.
Securely attach piece#1
to the wall using fixings
that are appropriate for
the wall construction.
Screw loosely into piece #1.
Screw speaker to #4.
Slide between piece
#1 and piece #2.
5 Tighten screws from
6 Check that speaker and all
mounting parts are secure.
Connect the opposite end of the speaker wire to your amplifier making sure that the
polarity is preserved ("+" to "+" or Red to Red, and "-" to "-" or Black to Black ). see
diagram below
Left Speaker
Right Speaker
Maintenance
Simply use a damp cloth to clean, avoid use of chemical products and polishes .
Left
Right
Amplifier
Speaker Connections
TS4OD
Specifications:
• 1” Soft Dome Tweeter
• 4” Polypropylene Hybrid Cone
• 80Hz - 20kHz Frequency Response
• 8 Ohm Nominal Impedance
• 90 dB Sensitivity
• 300 Watts Max Power Per Pair
TS525OD
Specifications:
• 1” Soft Dome Tweeter
• 5.25” Polypropylene Hybrid Cone
• 75Hz - 20kHz Frequency Response
• 8 Ohm Nominal Impedance
• 91 dB Sensitivity
• 400 Watts Max Power Per Pair
TS6OD
Specifications:
• 1” Silk Dome Tweeter
• 6.5” Polypropylene Hybrid Cone
• 65Hz - 20kHz Frequency Response
• 8 Ohm Nominal Impedance
• 92 dB Sensitivity
500 Watts Max Power Per Pair
