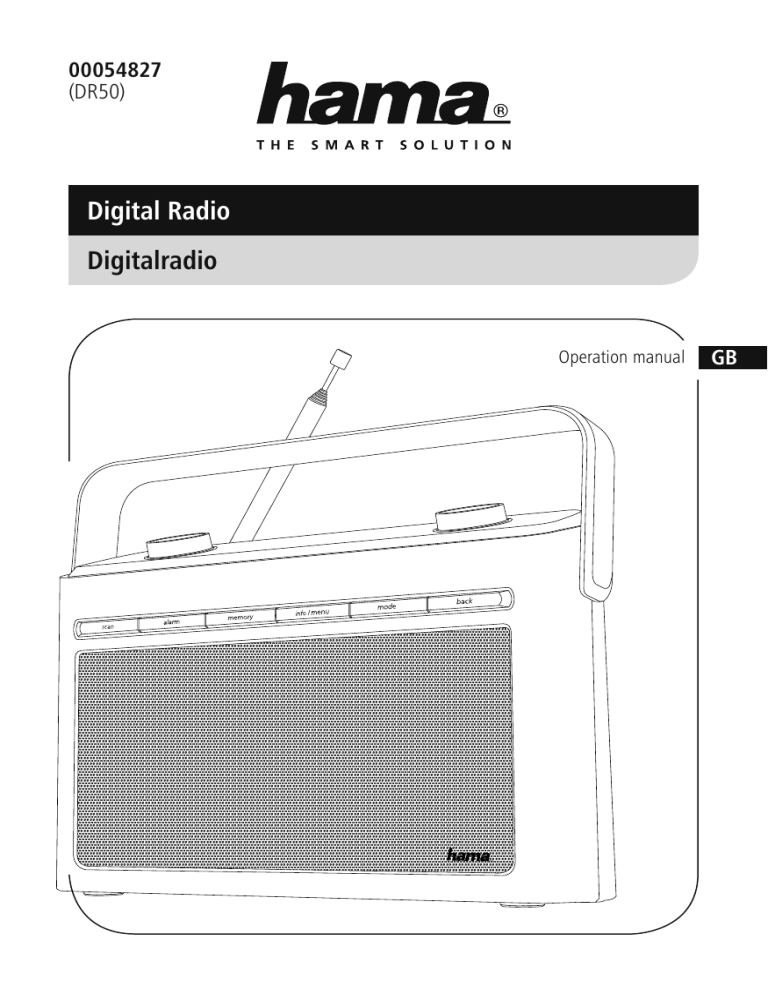

00054827
(DR50)
Digital Radio
Digitalradio
Operation manual
GB
Technical Data / Technische Daten
Radio Receiver/
Radio Empfänger
DAB
ü
DAB+
ü
Display/
Bildschirm
2.8" 2x16 Icon LCD
Speaker/
Lautsprecher
2 W RMS
Power input/
Stromeingang
DC 6 V 1000 mA
4 x AA Battery (not included)
Frequency range/
Frequenzbereich
DAB/DAB+:
174~240 MHz
FM:
87.5~108 MHz
Sensitivity/
Empfindlichkeit
DAB/DAB+:
-97 ~ -99 dBm
FM:
-105 ~ -109 dBm
Power Consumption/
Stromaufnahme
Operation/
Betrieb
Input & Output/
Anschlüsse
DC Socket, 3.5 mm Earphone Jack
Presets/
Favoriten
DAB/DAB+:
10
Codec/
Formate
DAB:
MP2, AAC
UI Languages/
UI Sprachen
English, French, German, Italian, Finnish, Dutch, Danish, Norwegian, Polish, Swedish,
Slovak, Czech
Package Content/
Verpackungsinhalt
Manual, AC/DC Adapter
Dimension (WxHxD)/
Größe (BxHxT)
230 x 193 x 72 mm
max. 6 W
FM
ü
Standby/
Bereitschaft
Internet
-
Spotify
-
~1W
FM:
10
A
2
1
5
4
3
6
B
09:45
7
8
9
C
10 11
25
12
G Operation manual
Controls and Displays
A: Front
1
[scan]
Automatic search
2
[alarm]
Direct access to alarm
clock settings
3
[memory]
List/save favourites
4
[info / menu]
Press: Display additional
information
Press & hold: Direct access
to the menu
5
[mode]
Changing operating mode
(DAB, FM)
6
[back]
Back one menu level
B: Top side
Drehen: Selection/ Direct
7
[select / snooze / access to Station list /
manual tune
- tune +]
Press: Confirm
8
9
2.8” LCD
[ standby/
- volume +]
Rotate: Volume control
Press: On/off switch
B: Rear
10
Mains power supply
11
Headphone socket
12
Battery compartment
1
Content
1. Explanation of Warning Symbols and Notes . . 4
9. Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . 4
10. Additional settings. . . . . . . . . . . . . . . . . . . . . 13
10.1 Equaliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10.2 Time/ date settings . . . . . . . . . . . . . . . . . . . . . . 13
10.3 Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10.4 Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
10.5 Info / Software version . . . . . . . . . . . . . . . . . . . . 15
3. Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. Information and notes before getting started 5
5. Getting started . . . . . . . . . . . . . . . . . . . . . . . . 5
5.1 Battery operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.2 Mains operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5.3 General notes on use . . . . . . . . . . . . . . . . . . . . . . . 5
5.4 Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5.5 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
11. Care and Maintenance . . . . . . . . . . . . . . . . . 15
12. Warranty Disclaimer . . . . . . . . . . . . . . . . . . . 15
13. Service and Support. . . . . . . . . . . . . . . . . . . . 15
6. DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.1 Search/ Automatic search . . . . . . . . . . . . . . . . . . 7
6.2 Manual station search . . . . . . . . . . . . . . . . . . . . . 7
6.3 Station list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.4 Edit station list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.5 Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6.5.1 Save favourites . . . . . . . . . . . . . . . . . . . . . . . . 8
6.5.2 Access favourites . . . . . . . . . . . . . . . . . . . . . . . 8
6.6 DRC (Dynamic Range Control) . . . . . . . . . . . . . . . . 9
14. Recycling Information
Note on environmental protection:. . . . . . . . . . . 15
7. FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7.1 Scan setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7.2 Automatic station search . . . . . . . . . . . . . . . . . . . 10
7.3 Manual station search . . . . . . . . . . . . . . . . . . . . . 10
7.4 Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.4.1 Save favourites . . . . . . . . . . . . . . . . . . . . . . . 10
7.4.2 Access favourites . . . . . . . . . . . . . . . . . . . . . . 10
7.5 Audio setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.1 Alarm settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8.2 Acitivating/ deactivating the alarm . . . . . . . . . . . . 12
8.3 Activate/deactivate alarm in standby mode . . . . . . 12
8.4 Stopping the alarm/ Snooze function . . . . . . . . . . 12
2
Menu structure
DAB
Full scan
Manual tune
DRC
Prune
DRC off
DRC high
DRC low
System
FM
Scan setting
Audio setting
System
SYSTEM
Sleep
Equaliser
Time
All stations
Strong station
Forced mono
Stereo allowed
Off
15 minutes
30 minutes
45 minutes
60 minutes
90 minutes
Pop
Rock
Normal
Classik
Jazz
Set Time/Date
Auto update
Set 12/24 hour
Set date format
Backlight
Power on
Standby
Language
Factory Reset
SW version
3
Update from DAB
Update from FM
No update
Update from Any
Set 24 hour
Set 12 hour
DD-MM-YYYY
MM-DD-YYYY
High
Medium
Low
Medium
Low
Thank you for choosing a Hama product.
Take your time and read the following instructions and
information completely. Please keep these instructions in a
safe place for future reference. If you sell the device, please
pass these operating instructions on to the new owner.
3. Safety notes
• The product is intended for private, non-commercial use
only.
• Protect the product from dirt, moisture and overheating
and use it in dry rooms only.
• As with all electrical devices, this device should be kept
out of the reach of children.
• Do not drop the product and do not expose it to any
major shocks.
• Do not operate the product outside the power limits
given in the specifications.
• Keep the packaging material out of the reach of children
due to the risk of suffocation.
• Dispose of packaging material immediately according to
locally applicable regulations.
• Do not modify the device in any way. Doing so voids the
warranty.
1. Explanation of Warning Symbols and Notes
Risk of electric shock
This symbol indicates product parts energized with a
dangerous voltage of sufficient magnitude to constitute
a risk of electric shock.
Warning
This symbol is used to indicate safety instructions or to
draw your attention to specific hazards and risks.
Risk of electric shock
Note
• Do not open the device or continue to operate it if it
becomes damaged.
• Do not use the product if den AC adapter, adapter
cable or power cable is damaged.
• Do not attempt to service or repair the product
yourself. Leave any and all service work to qualified
experts.
This symbol is used to indicate additional information or
important notes.
2. Package Contents
• Digital clock radio DR50
• Power supply unit
• Quick guide
Warning Batteries
• When inserting batteries, note the correct polarity (+
and - markings) and insert the batteries accordingly.
Failure to do so could result in the batteries leaking
or exploding.
• Do not allow children to change batteries without
supervision.
• Remove the batteries from products that are not being
used for an extended period.
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.
• Do not mix old and new batteries or batteries of a
different type or make.
4
4. Information and notes before getting started
5.3 General notes on use
Note – Optimal reception
Notes on use
• For best reception, ensure that the antenna is fully
extended.
• Try various different positions if necessary to get the
best reception.
• When a selection among menu items is to be made
(such as Y or N), the one currently selected flashes.
• In menus offering a variety of different options (such
as DRC, language and so on), the currently selected
option is marked with *.
5. Getting started
5.1 Battery operation
• Open the battery compartment cover. It is located on the
rear of the radio.
• Insert the batteries paying attention to match the
polarities correctly. The correct polarity is indicated by the
plus and minus symbols in the battery compartment.
• Replace the battery compartment cover.
Navigation and controls
• Select among menu items by turning [select / snooze / tune +].
• Confirm the selection by pressing [select / snooze / tune +].
This procedure is indicated in these operating instructions
by the following symbols:
selection (navigate)
5.2 Mains operation
Connect the network cable to a properly installed and
easily accessible network socket.
The power supply unit is suitable for mains voltages
between 100 and 240 V, and is thus operable on almost
any AC power grid. Please note that a country-specific
adapter may be necessary.
You can find an appropriate selection of Hama products at
www.hama.com.
comfirmation (enter)
Some features can be
accessed by means
of shortcut buttons.
Pressing shortcut buttons
is indicated here by this
symbol.
Note
• Only connect the product to a socket that has been
approved for the device.
• The electrical socket must always be easily accessible.
• When using a mult-socket power strip, make sure
that the sum power draw of all the connected devices
does not exceed its maximum throughput rating.
• If you will not be using the product for a ling period
of time, disconnect it from mains power.
After pressing a shortcut button, navigate amongst the
menu items using the [select / snooze / - tune +].
Volume adjustment
• You can turn the volume up (right) or down (left) by
turning [ standby / - volume +] accordingly.
5
Additional information
Press [info] to display context-dependent additional
information. The information shown depends on the
operating mode as well as the current selection of radio
station.
Switching on/ off
• Press [ standby / - volume +], uto switch the radio
on or off (Standby).
• To completely switch off the device, disconnect it from
the power supply.
5.4 Initial setup
The station search in the operating mode DAB starts up
automatically when the radio is turned on for the first time.
By default, the radio starts with the English menu
navigation. Set up your desired language as described in
5.5 Language.
[info / menu]
• Description
Indicates the radio station, the current program,
contents, subjects, etc.
5.5 Language
To change the menu language from that selected at firsttime startup, proceed as follows:
• Program genre/country
Indicates the genre (music style) and the country or
region of the station.
• Bit-Rate
The currently received digital bit rate of the received
station is displayed.
[info / menu]
2-3 sec.
• Codec
Specifies the encoding scheme used to digitise the data
or signal (such as MP3 or WMA).
Language

Desired language
• Sampling rate
Specifies the sampling rate, or the frequency with which
the audio signal is polled (Sampling-/ Samplerate), in a
certain period of time.
• Signal strength
The signal strength of the received station is displayed
via a bar and its length.
6. DAB
The radio receives all established digital radio frequencies
in the range of 174 MHz (band III, channel 5A to 13F).
• Today’s date
• Time
• Press [mode] repeatedly to activate operating mode
DAB:
• Signal error
• Service not available
Is displayed if there is currently no DAB reception.
[mode]
The display shows DAB top left in operating mode DAB.
6
6.2 Manual station search
With the manual station search function you can search
through individual frequencies and channels. If you know
the frequency of the desired station and the automatic
station search failed to find it, use this feature to set the
reception frequency directly.
6.1 Search/ Automatic search
The automatic DAB channel search scans the DAB band III
for available stations. After the station search, all
interference-free stations are saved in alphabetical order.
The automatic DAB station search starts automatically
when DAB mode is started for the first time; it is indicated
by Scanning… on the display.
Proceed as follows, choosing a frequency range between
5A and13F:
If you would like to start the search again, proceed as
follows:
[info / menu]
[info / menu]
2-3 sec.
2-3 sec.
Manual tune
Full Scan
The bar indicates the current signal strength. The marking
along the bar indicates the value required for interferencefree reception. If this value is not reached (the bar is
empty), then the signal strength is not sufficient on this
channel.
or:
[scan]
7
6.3 Station list
You can access the station list in DAB mode at any time via
two methods:
6.5.1 Save favourites
Set the station that you would like to save as a favourite
station preset.
If a station is already playing, simply press the navigation
keys [◄] / [►]. The radio will then display the station list.
If the station is received, proceed as follows:
6.4 Edit station list
To remove stations that are not currently in the reception
area, from your station list, proceed as follows:
[memory]
2-3 sec.
• You can switch between the station presets (1 to 10) by
turing [select / snooze / - tune +].
• Press [select / snooze / - tune +] to save the station on
the desired station preset.
[info / menu]
2-3 sec.
6.5.2 Access favourites
Proceed as follows to open the overview with the list of
saved stations.
Prune
[memory]
2-3 sec.
If you answer Y, then all currently unavailable stations will
be removed from the station list.
Note
6.5 Favourites
You can save up to 10 of your favourite stations for quick
and direct access.
Favourites cannot be deleted.
If all 10 station memory slots are filled and you wish to
save a new station, choose one of the occupied slots.
The station in this slot will be overwritten with the new
station.
8
6.6 DRC (Dynamic Range Control)
Some radio stations in the DAB network support an audio
level control that is activated at varying volumes during
playback. If the audio level suddenly rises during playback,
DRC automaticall yreduces the volume. The same happens
if playback suddenly becomes quieter, with the radio then
increasing the volume.
This radio has three different settings for DRC:
7. FM
Press [mode] repeatedly to activate operating mode FM:
DRC high:
total equalisation of different volumes. Strong compression
can audibly reduce the dynamics of a music title.
The display shows FM top left in operating mode FM.
[mode]
7.1 Scan setting
The search run setting allows you to determine whether
stations with low signal strength are ignored during the
automatic search run.
DRC low:
partial equalisation of differen tvolumes. More subtle
compression,without too much loss of dynamics.
Proceed as follows:
DRC off:
no equalisation.
Proceed as follows to do the settings:
[info / menu]
2-3 sec.
[info / menu]
2-3 sec.
Scan Setting
DRC
To have the search run stop only at stations with high
signal strength, select Strong stations only. Otherwise
(All stations), the search run will stop at every station for
which a signal is received.
9
7.2 Automatic station search
Press [scan] to start the automatic station search.
7.4.1 Save favourites
Set the station that you would like to save as a favourite
station preset.
If the station is received, proceed as follows:
[scan]
[memory]
• Wird ein Sender gefunden, stoppt das Radio den
Suchlauf und beginnt mit der Wiedergabe.
• Durch erneutes Drücken von [scan] wird der
Suchvorgang fortgesetzt bis der nächste Sender
gefunden wird.
2-3 sec.
• You can switch between the station presets (1 to 10) by
turing [select / snooze / - tune +].
• Press [select / snooze / - tune +] to save the station on
the desired station preset.
7.3 Manual station search
When you make station settings manually, you can define
the desired frequency yourself and tune into stations that
were ignored during automatic station search because
their signals were too weak.
• Press [select / snooze / - tune +]
(right:+ 0.05 MHz / left:- 0.05 MHz) until you see the
desired frequency. Wait a moment until playback oft he
received station signal begins.
7.4.2 Access favourites
Proceed as follows to open the overview with the list of
saved stations.
[memory]
7.4 Favourites
You can save up to 10 of your favourite stations for quick
and direct access.
2-3 sec.
Note
Favourites cannot be deleted.
If all 10 station memory slots are filled and you wish to
save a new station, choose one of the occupied slots.
The station in this slot will be overwritten with the new
station.
10
7.5 Audio setting
For some stations with a weak signal, quality can be
slightly improved by playing them in mono quality. You
can enable this function in the menu, and the radio will
automatically switch to mono reception when signal
quality is poor.
To change the audio setting, proceed as follows:
8.1 Alarm settings
You can access the alarm settings as follows:
[alarm]
Alarm1 and alarm 2 are configured identically. So you can
save two different alarm times. Select alarm 1 or 2 – by
pressing [alarm] repeatedly and confirm by pressing
[select / snooze / - tune +] – and make the following
settings by means of [select / snooze / - tune +].d
[info / menu]
2-3 sec.
Time:
First choose the hour, then the minute at which the alarm
is to activate.
Duration:
Choose a time interval (15/30/45/60/90 minutes). The
alarm stays switched on for the selected time interval.
Audio setting
Buzz / DAB / FM:
Set whether you wish to be woken by an alarm ton (Buzz),
by DAB or by FM.
8. Alarms
Program:
If you selected DAB / FM, choose which station you wish
to be woken with. You can choose any of the 10 favourites
station slots or the Last listened.
Note
Because a higher level of power is required when the
alarm is active, the alarm is only configurable in mains
operation. The alarm function cannot be used on battery
power.
Mode:
Choose when the alarm is to activate: Wählen Sie aus,
wann der Wecker aktiviert sein soll:
 Daily – Once – Weekdays – Weekends
The radio has two individually adjustable alarm times.
Date:
If you selected Once, enter he date for the one-off alarm.
Volume:
You can set the volume at which the alarm sound should
be played. This setting makes it irrelevant how loud you
last listened to the radio.
Save:
Select On / off to complete your alarm settings.
11
9. Timer
The radio hast a sleep function, after a defined time the
radio switches to standby mode.
Note
It is recommended to allow the radio to update the
time automatically. This ensures that the time is always
correct even if there is a separation of power supply –
for example a power cut.
• Repeatedly press [select / snooze / - tune +] to set
the desired time interval (Sleep OFF/15/30/45/60/90
minutes).
8.2 Acitivating/ deactivating the alarm
• Confirm/ complete the alarm settings with On to activate
the alarm.
• Confirm/ complete the alarm settings with Off to
deactivate the alarm.
[info / menu]
2-3 sec.
8.3 Activate/deactivate alarm in standby mode
• Press [alarm] in standby mode to display the current
alarm setting.
• Press [alarm] again or rotate [select / snooze /
- tune +] to activate/deactivate alarm 1 and/or alarm 2.
• Press [select / snooze / - tune +] to confirm your
settings.
System settings

Sleep
8.4 Stopping the alarm/ Snooze function
• When the alarm activates, press [ standby /
- volume +] to stop the alarm.
• Repeatedly press [select / snooze / - tune +] to activate
snooze mode.
• The alarm turns off for the selected time interval (5/10
minutes) before activating once again.
• If the alarm is not stopped, the radio automatically
switches into standby mode after the selected time
interval (Duration).
• After the defined time the radio switches to standby
mode.
• Press [ standby / - volume +], to turn the radio back
on.
12
10. Additional settings.
10.1 Equaliser
The equaliser allows you to adjust the sound of the radio
to suit your preferences by amplifying or reducing the
amount of bass or treble in the audio .
You can choose from preconfigured profiles, adjusted to
suit a variety of music genres.
10.2 Time/ date settings
To access the time/ date settings, proceed as follows:
[info / menu]
2-3 sec.
• To set the Equaliser, proceed as follows:
System settings

Time
[info / menu]
2-3 sec.
Set Time / Date
Set the date (DD-MM-YYYY/ MM-DD-YYYY) and time
(hh:mm) manually using [select / snooze / - tune +].
System settings

Equaliser
Auto update
• Update from FM/ Update from DAB
If automatic time and date adjustment is activated,
the device receives time and date information from the
station over the FM/DAB/DAB+ radio network. This is
the best way to ensure that the clock will run accurately
and the alarm will trigger at the correct time, even after
power outages.
• Use [select / snooze / - tune +] to choose one of the
preconfi gured profiles.
• If playback is already started when you
• modify these settings, you can hear the changes in the
audio immediately.
• Confirm your settings by pressing [select / snooze /
- tune +] once more.
• Update from Any
It is recommended to use this setting (Update from FM
and DAB) for the auto update.
• No Update
The time and date (DD-MM-YYYY / MM-DD-YYYY) must
be set manually; no automatic calibration takes place.
13
Format
• Set 12/24 hour
Choose between 12 and 24 hours format.
• Set date format
Choose between the DD-MM-YYYY / und MM-DD-YYYY
date format.
10.4 Factory Reset
To reset the radio to the factory default settings, proceed
as follows:
[info / menu]
10.3 Backlight
Manual settings
The backlight can be configured for each operating mode
(Operation mode, Standby mode) separately.
2-3 sec.
Proceed as follows:
System settings

Factory Reset
[info / menu]
2-3 sec.
Confirm the following prompt with Y to reset the radio to
the factory default settings.
All settings made previously are deleted.
System settings

Backlight
Note
• Resetting to the factory default settings can solve
some problems and malfunctions.
• However, all settings made previously, such as
favourites and station lists, are permanently deleted.
• For the operation modes Operation mode (Power on)
and Standby mode (Standby), select between various
brightness levels.
• When the radio is in standby, press [ standby / volume +] to illuminate the display at the brightness
level set for that operation mode for ca. 10 seconds.
14
10.5 Info / Software version
To have the radio display information about ist software,
proceed as follows:
13. Service and Support
Please contact Hama Product Consulting if you have any
questions about this product.
Hotline:+ 49 9091 502-115 (German/English)
Further support information can be found here:
www.hama.com
[info / menu]
14. Recycling Information
Note on environmental protection:
After the implementation of the European Directive
2012/19/EU and 2006/66/EU in the national legal
system, the following applies: Electric and
electronic devices as well as batteries must not be
disposed of with household waste. Consumers are obliged
by law to return electrical and electronic devices as well as
batteries at the end of their service lives to the public
collecting points set up for this purpose or point of sale.
Details to this are defined by the national law of the
respective country. This symbol on the product, the
instruction manual or the package indicates that a product
is subject to these regulations. By recycling, reusing the
matierals or orther forms of utilizing old devices/ batteries,
you are making an important contribution to protecting our
environment.
2-3 sec.
System settings

SW version
11. Care and Maintenance
• Only clean this product with a slightly damp, lint-free
cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the
device and disconnect it from the power supply. Store it
in a clean, dry place out of direct sunlight.
12. Warranty Disclaimer
Hama GmbH & Co. KG assumes no liability and provides no
warranty for damage resulting from improper installation/
mounting, improper use of the product or from failure to
observe the operating instructions and / or safety notes.
15
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted,
and subject to technical changes. Our general terms of delivery and payment are applied.
00054822/06.16
Hama GmbH & Co KG
86652 Monheim / Germany
www.hama.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
