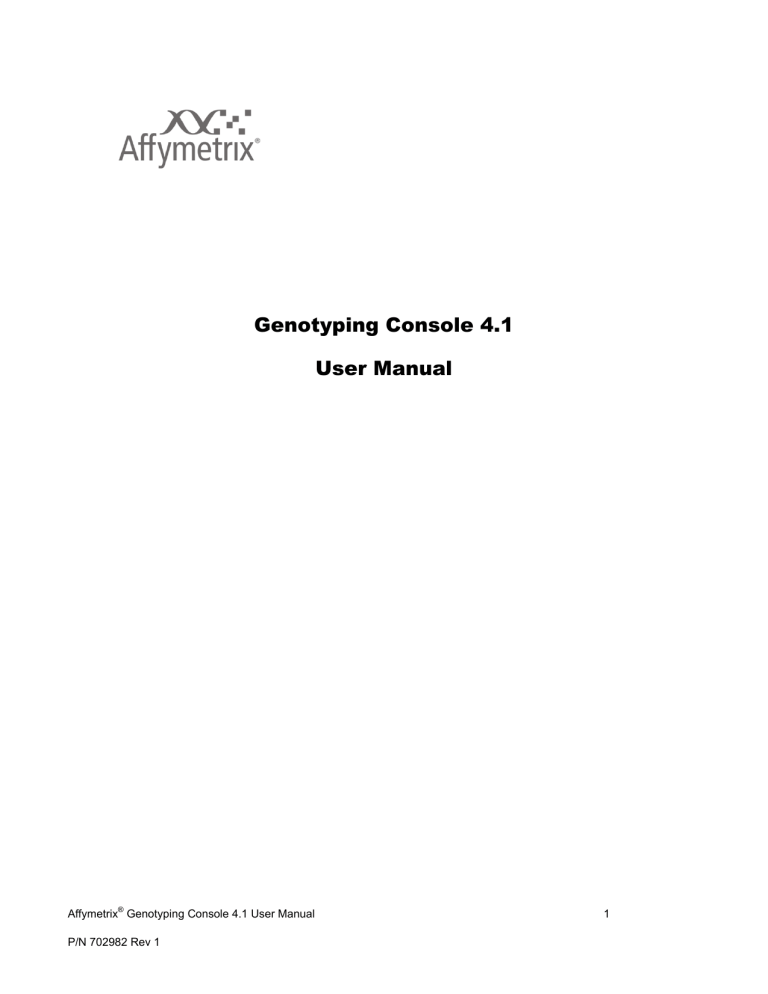

Genotyping Console 4.1
User Manual
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
1
For research use only.
Not for use in diagnostic procedures.
Trademarks
®
®
®
®
Affymetrix , GeneChip , NetAffx , Command Console , Powered by Affymetrix™, GeneChip-compatible™, Genotyping
Console™, DMET™, GeneTitan™, Axiom™, GeneAtlas™, and myDesign™ are trademarks or registered trademarks of
Affymetrix, Inc. All other trademarks are the property of their respective owners.
All other trademarks are the property of their respective owners.
This database/product contains information from the Online Mendelian Inheritance in Man® (OMIM®) database, which has
been obtained under a license from the Johns Hopkins University. This database/product does not represent the entire,
unmodified OMIM® database, which is available in its entirety at www.ncbi.nlm.nih.gov/omim/.
Limited License Notice
Limited License. Subject to the Affymetrix terms and conditions that govern your use of Affymetrix products, Affymetrix grants
you a non-exclusive, non-transferable, non-sublicensable license to use this Affymetrix product only in accordance with the
manual and written instructions provided by Affymetrix. You understand and agree that except as expressly set forth in the
Affymetrix terms and conditions, that no right or license to any patent or other intellectual property owned or licensable by
Affymetrix is conveyed or implied by this Affymetrix product. In particular, no right or license is conveyed or implied to use this
Affymetrix product in combination with a product not provided, licensed or specifically recommended by Affymetrix for such
use.
Patents
Software products may be covered by one or more of the following patents: U.S. Patent Nos. 5,733,729; 5,795,716; 5,974,164;
6,066,454; 6,090,555; 6,185,561; 6,188,783; 6,223,127; 6,228,593; 6,229,911; 6,242,180; 6,308,170; 6,361,937; 6,420,108;
6,484,183; 6,505,125; 6510,391; 6,532,462; 6,546,340; 6,687,692; 6,607,887; 7,062,092 and other U.S. or foreign patents.
Copyright
© 2011 Affymetrix, Inc. All Rights Reserved
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
2
Contents
CHAPTER 1:
INTRODUCTION ........................................................................................................................................ 6
ABOUT THIS MANUAL .................................................................................................................................................................... 7
ABOUT THIS UPDATE...................................................................................................................................................................... 8
TECHNICAL SUPPORT ..................................................................................................................................................................... 9
CHAPTER 2:
WORKING WITH GENOTYPING CONSOLE ............................................................................................... 11
INSTALLATION INSTRUCTIONS ........................................................................................................................................................ 12
UPDATES & GENERAL INFORMATION .............................................................................................................................................. 12
NOTES FOR USERS OF EARLIER VERSIONS OF GENOTYPING CONSOLE..................................................................................................... 13
STARTING GENOTYPING CONSOLE .................................................................................................................................................. 13
PARTS OF THE CONSOLE ............................................................................................................................................................... 17
FILE TYPES & DATA ORGANIZATION IN GTC ..................................................................................................................................... 19
BASIC WORKFLOWS IN GENOTYPING CONSOLE ................................................................................................................................. 24
WORKING WITH COMMANDS IN GENOTYPING CONSOLE..................................................................................................................... 31
WINDOW LAYOUT OPTIONS .......................................................................................................................................................... 31
CHAPTER 3:
USER PROFILES ....................................................................................................................................... 36
CREATING AND SELECTING A USER PROFILE ...................................................................................................................................... 36
DELETING A USER PROFILE ............................................................................................................................................................ 38
CHAPTER 4:
LIBRARY & ANNOTATION FILES .............................................................................................................. 39
SETTING THE LIBRARY PATH........................................................................................................................................................... 39
OBTAINING LIBRARY & ANNOTATION FILES ...................................................................................................................................... 42
ANNOTATION OPTIONS ................................................................................................................................................................ 48
SETTING PROXY SERVER ACCESS..................................................................................................................................................... 50
CHAPTER 5:
WORKSPACES & DATA SETS ................................................................................................................... 55
CREATING A NEW WORKSPACE ...................................................................................................................................................... 56
CREATING A DATA SET ................................................................................................................................................................. 58
ADDING DATA TO A DATA SET ....................................................................................................................................................... 59
OPENING A CREATED WORKSPACE FILE ........................................................................................................................................... 67
VIEWING THE LOCATION OF DATA FILES........................................................................................................................................... 69
REMOVING DATA FROM A DATA SET ............................................................................................................................................... 72
SAMPLE ATTRIBUTES TABLE........................................................................................................................................................... 74
EDITING SAMPLE ATTRIBUTES ........................................................................................................................................................ 75
LOCATING MISSING DATA ............................................................................................................................................................. 78
SHARING DATA ........................................................................................................................................................................... 81
CHAPTER 6:
INTENSITY QUALITY CONTROL FOR GENOTYPING ANALYSIS .................................................................. 86
PERFORMING INTENSITY QC.......................................................................................................................................................... 86
MODIFYING QC THRESHOLDS ........................................................................................................................................................ 91
INTENSITY QC TABLES .................................................................................................................................................................. 94
CREATING CUSTOM INTENSITY DATA GROUPS USING INTENSITY QC DATA ............................................................................................. 97
GRAPHING QC RESULTS ............................................................................................................................................................. 100
SIGNATURE GENOTYPES ............................................................................................................................................................. 101
CHAPTER 7:
GENOTYPING ANALYSIS ........................................................................................................................ 104
PERFORMING GENOTYPING ANALYSIS ........................................................................................................................................... 104
ANALYSIS CONFIGURATION OPTIONS ............................................................................................................................................ 114
OTHER GENOTYPING OPTIONS..................................................................................................................................................... 117
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
3
CHP SUMMARY TABLE ............................................................................................................................................................... 126
CREATING A CUSTOM INTENSITY GROUP FROM THE CHP FILE DATA ................................................................................................... 133
TWO-STEP GENOTYPING WORKFLOW ........................................................................................................................................... 140
CHAPTER 8:
REVIEW THE GENOTYPING RESULTS ..................................................................................................... 142
GENOTYPING QC STEPS ............................................................................................................................................................. 142
CREATE A SNP LIST ................................................................................................................................................................... 143
IMPORT CUSTOM SNP LISTS ....................................................................................................................................................... 149
SNP SUMMARY TABLE ............................................................................................................................................................... 151
CONCORDANCE CHECKS ............................................................................................................................................................. 158
CHAPTER 9:
USING THE SNP CLUSTER GRAPH .......................................................................................................... 168
INTRODUCTION ......................................................................................................................................................................... 169
GENERATING SNP CLUSTER GRAPHS ............................................................................................................................................ 172
PARTS OF THE SNP CLUSTER GRAPH ............................................................................................................................................. 176
CHANGING THE DISPLAY ............................................................................................................................................................. 189
SAVING CLUSTER GRAPH INFORMATION ........................................................................................................................................ 195
CHAPTER 10:
EXPORTING GENOTYPE RESULTS .......................................................................................................... 203
EXPORT GENOTYPES TO TXT FORMAT ............................................................................................................................................ 203
EXPORT THE COMBINED RESULTS OF AN ARRAY SET ......................................................................................................................... 210
EXPORT GENOTYPE RESULTS FOR PLINK ....................................................................................................................................... 213
CHAPTER 11:
TABLE & GRAPH FEATURES................................................................................................................... 221
TABLE FEATURES ....................................................................................................................................................................... 221
GRAPH FEATURES...................................................................................................................................................................... 227
CHAPTER 12:
COPY NUMBER & LOH ANALYSIS FOR HUMAN MAPPING 100K/500K ARRAYS ..................................... 229
INTRODUCTION TO 100K/500K ANALYSIS..................................................................................................................................... 230
COPY NUMBER/LOH ANALYSIS FOR HUMAN MAPPING 100K/500K ARRAYS...................................................................................... 231
COPY NUMBER QC SUMMARY TABLE FOR 100K/500K ................................................................................................................... 254
CHANGING ALGORITHM CONFIGURATIONS FOR HUMAN MAPPING 100K/500K ANALYSIS ..................................................................... 255
CHAPTER 13:
COPY NUMBER & LOH ANALYSIS FOR GENOME-WIDE HUMAN SNP 6.0 ARRAYS ................................. 265
COPY NUMBER/LOH ANALYSIS FOR SNP 6.0 ARRAYS ..................................................................................................................... 267
CN/LOH QC REPORT TABLE FOR THE GENOME-WIDE HUMAN SNP ARRAY 6.0 .................................................................................. 284
CHANGING CN/LOH ALGORITHM CONFIGURATIONS FOR SNP 6.0 ANALYSIS....................................................................................... 289
BASIC CONFIGURATION OPTIONS FOR SNP 6.0 CN/LOH ANALYSIS ................................................................................................... 297
ADVANCED CONFIGURATION OPTIONS FOR SNP 6.0 CN/LOH ANALYSIS ............................................................................................ 299
CHAPTER 14:
COMMON FUNCTIONS FOR COPY NUMBER/LOH ANALYSES ................................................................ 308
USING THE SEGMENT REPORTING TOOL & CUSTOM REGIONS............................................................................................................ 308
LOADING DATA INTO THE GTC BROWSER ...................................................................................................................................... 329
EXPORT COPY NUMBER/LOH DATA.............................................................................................................................................. 331
SETTING QC THRESHOLDS........................................................................................................................................................... 336
CHAPTER 15:
COPY NUMBER VARIATION ANALYSIS .................................................................................................. 339
PERFORMING COPY NUMBER VARIATION ANALYSIS ......................................................................................................................... 339
CNV TABLE DISPLAY .................................................................................................................................................................. 341
EXPORTING CNV DATA .............................................................................................................................................................. 343
CHAPTER 16:
HEAT MAP VIEWER............................................................................................................................... 347
OPENING THE HEAT MAP ........................................................................................................................................................... 348
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
4
OVERVIEW OF THE HEAT MAP DISPLAY ......................................................................................................................................... 354
CNV MAP ............................................................................................................................................................................... 356
HEAT MAP............................................................................................................................................................................... 357
NAVIGATING THE HEAT MAP ....................................................................................................................................................... 360
SORTING DATA IN THE HEAT MAP ................................................................................................................................................ 364
EXPORTING VIEWER IMAGES ....................................................................................................................................................... 366
VIEWING REGIONS IN OTHER SITES ............................................................................................................................................... 367
APPENDIX A:
ALGORITHMS ....................................................................................................................................... 369
GENOTYPING ............................................................................................................................................................................ 369
COPY NUMBER/LOH ................................................................................................................................................................. 370
APPENDIX B:
FORWARD STRAND TRANSLATION ....................................................................................................... 372
APPENDIX C:
ADVANCED WORKFLOWS ..................................................................................................................... 373
ANALYZING GENOTYPING RESULTS OF SPECIFIC GENE LISTS ............................................................................................................... 373
VIEW SNP CLUSTER GRAPHS OF CASE VERSUS CONTROL SAMPLES ..................................................................................................... 376
APPENDIX D:
ANNOTATION DEFINITIONS .................................................................................................................. 381
APPENDIX E:
GENDER CALLING IN GTC ...................................................................................................................... 384
GENDER CALLS IN INTENSITY QC .................................................................................................................................................. 384
GENDER CALLS IN INTENSITY QC AND GENOTYPING ANALYSIS ........................................................................................................... 384
GENDER CALLS (FEMALE OR MALE) IN COPY NUMBER ANALYSIS (SNP 6.0 ONLY) ................................................................................. 387
CN SEGMENT REPORT (SNP 6.0 ONLY) ........................................................................................................................................ 387
APPENDIX F:
CONTRAST QC FOR SNP 6.0 INTENSITY DATA ....................................................................................... 389
APPENDIX G:
BEST PRACTICES SNP 6.0 ANALYSIS WORKFLOW .................................................................................. 391
APPENDIX H:
BEST PRACTICES AXIOM ANALYSIS WORKFLOW ................................................................................... 392
APPENDIX I:
COPY NUMBER VARIATION ANALYSIS .................................................................................................. 394
APPENDIX J:
HARD DISK REQUIREMENTS ................................................................................................................. 395
APPENDIX K:
TROUBLESHOOTING ............................................................................................................................. 396
TROUBLESHOOTING TIPS............................................................................................................................................................. 396
USING THE TROUBLESHOOTER TOOL ............................................................................................................................................. 397
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
5
Chapter 1:
Introduction
®
The Affymetrix Genotyping Console™ software (GTC) provides an easy way to create genotype calls for
collections of CEL files. Genotyping Console generates Copy Number, Loss of Heterozygosity (LOH),
Copy Number Segments data, and copy number variation data, depending on the array type
(see Table 1.1).
Table 1.1 Genotyping Console analyses for different array types
®
Affymetrix Array Type
Genotype
Calls
Copy Number/LOH
Data
Copy Number
Segments Data
Copy Number
Variation Analysis
Mapping50K_Xba240
Yes
Yes
Yes
No
Mapping50K_Hind240
Yes
Yes
Yes
No
Mapping 250K_Nsp
Yes
Yes
Yes
No
Mapping 250K_Sty
Yes
Yes
Yes
No
Genome-Wide Human SNP
Array 5.0
Yes
No
No
No
Rat and Mouse Arrays
Yes
No
No
No
Genome-Wide Human SNP
Array 6.0
Yes
Yes
Yes
Yes
Axiom Genotyping Array plates,
including:
Yes
No
No
No
Human Mapping 100K Arrays:
Human Mapping 500K Arrays:



Axiom™ Genome-Wide
Human Arrays
Axiom™ myDesign™ Arrays
Axiom™ BOS 1 Array
Note: The Axiom™ Genome-Wide CEU 1 Array is the same as the Axiom Genome-Wide Human
Array.
Genotyping Console displays metrics and annotation information in standard tabular form so you can
evaluate the data quality for a given array. Scatter plots, line graphs and the heat map viewer give you
the power to quickly identify features of interest in your data set. Numerous data and visualization export
features make it easy to share results with other applications and users.
The GTC Browser enables you to survey your Copy Number and Loss of Heterozygosity data.
Genotyping Console is not a secondary analysis package. However, it does create CHP files and tabdelimited text files required for secondary analysis packages available from companies in the Affymetrix
®
GeneChip Compatible Program.
The following sections in this chapter include:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
6

About This Manual (page 7)

About this Update (page 8)

Technical Support (page 8)
About This Manual
This manual presents information about Genotyping Console in the following chapters and appendices:
Chapter
Explains How to…
Chapter 2: Working with Genotyping Console
(page 11)
Install and configure Genotyping Console including setting up user
profiles and installing/downloading library and annotation files
Chapter 3: User Profiles (page 36)
Create, select, and delete user profiles
Chapter 4: Library & Annotation Files
(page 39)
Set up the library path and download library and annotation files
Chapter 5: Workspaces & Data Sets (page 50)
Create a workspace to analyze array data and import, add, and
organize data sets
Chapter 6: Intensity Quality Control for
Genotyping Analysis (page 86)
QC your array data and review results
Chapter 7: Genotyping Analysis (page 104)
Perform genotyping using the BRLMM, BRLMM-P, BRLMM-P+,
Birdseed, Birdseed v2, or Axiom GT1 algorithm
Chapter 8: Review the Genotyping Results
(page 142)
Review the results from genotyping
Chapter 9: Using the SNP Cluster Graph
(page 168)
Use the SNP Cluster Graph to view SNP clustering
Chapter 10: Exporting Genotype Results
(page 203)
Export genotyping results in formats that can be used by other analysis
software.
Chapter 11: Table & Graph Features
(page 221)
Work with tables and graphs in Genotyping Console
Chapter 12: Copy Number & LOH Analysis for
Human Mapping 100K/500K Arrays
(page 229)
Perform copy number and LOH analysis for 100K/500K data
Chapter 13: Copy Number & LOH Analysis for
Genome-Wide Human SNP 6.0 Arrays
(page 265)
Perform copy number and LOH analysis for SNP 6.0 data
Chapter 14: Common Functions for Copy
Perform functions that are common to copy number/LOH analysis for
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
7
Number/LOH Analyses (page 308)
100K/500K and SNP 6.0 data
Chapter 15: Copy Number Variation Analysis
(page 339)
Perform copy number variation analysis
Chapter 16: Heat Map Viewer (page 347)
View copy number and copy number variation data in the heat map
Appendix
Description
Appendix A: Algorithms (page 369)
A list of the algorithms offered in Genotyping Console software with
links to reference material for further reading
Appendix B: Forward Strand Translation (page
372)
Additional data analysis options that are available in Genotyping
Console
Appendix C: Advanced Workflows (page 373)
Additional data analysis options that are available in Genotyping
Console
Appendix D: Annotation Definitions
Available probe set annotations
(page 381)
Appendix E: Gender Calling in Genotyping
Console (page 384)
Explains the processes used to make gender calls for different array
types
Appendix F: Contrast QC for SNP 6.0 Intensity
Data (page 389)
Describes the derivation and use of the metric ―Contrast QC‖ for use in
quality control for SNP 6.0 data.
Appendix G: Best Practices SNP 6.0 Analysis
Workflow (page 391)
Summarizes the recommend workflow for using the Genome-Wide
Human SNP Array 6.0 in association studies.
Appendix H: Best Practices Axiom Analysis
Workflow (page 392)
Summarizes the recommend workflow for using the Axiom™ GenomeWide Human Array in association studies.
Appendix I: Copy Number Variation Analysis
(page 394)
Information about the Copy Number Variation analysis algorithm –
Canary
Appendix J: Hard Disk Requirements (page
395)
Example hard disk requirements for 450 CEL files from different types
of arrays and analyses.
Appendix K: Troubleshooting (page 396)
Common questions encountered in Genotyping Console
About this Update
GTC 4.1 includes the following enhancements and major new features:

Enables you to perform genotyping analysis on data from new types of arrays, including custom
human arrays and non-human arrays. GTC 4.1 supports analysis of:
-
Axiom™ Genome-Wide Human Array (Reagent Versions 1 and 2)
-
Axiom™ Genome-Wide Human ASI Array (Reagent Versions 1 and 2)
-
Other Axiom™ myDesign™ Genotyping Arrays
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
8
-
Axiom™ Genome-Wide BOS 1 Array
-
Affymetrix Mouse Diversity Genotyping Array
®

Supports Windows 7 (both 32-bit and 64-bit), Windows 2008 Server (64-bit)

New options available for genotyping algorithms for various arrays:
-
Select a subset of SNPs to analyze for genotyping
-
Create and select model files; use customized models file for future genotyping
-
Use additional information to improve genotyping performance:
-
Use hints file to train difficult SNPs with known reference genotype data
-
Use gender file to provide gender information
-
Use Inbred Sample file to control the bias against inbreeding

New call rate metrics calculation method: call_rate, hom_rate, and het_rate are calculated using
autosomal SNPs only

Supports the two-step genotyping workflow

Enhancements to the SNP cluster graph, including:
-
View prior/posterior ellipses in the cluster graph for most arrays
-
New Sample Table displays information about sample attributes
-
Select samples using a lasso function in the cluster graph and identify selected samples in the
sample table displayed below the cluster graph
-
Interaction between the sample table and cluster graph enable you to dynamically identify
samples of interest

Supports Hg19 version of Canary algorithm

Supports Hg19 version of browser annotation files for the Genome-Wide Human SNP Array 6.0,
Human Mapping 500K Array Set, and Human Mapping 100K Array Set

Plug-in tools:

-
Annotation Converter for making custom annotation files (annot.db)
-
New diagnostic tool for working with Customer Support
Supports custom annotation files generated by Annotation Converter
Technical Support
Affymetrix provides technical support to all licensed users via phone or E-mail. To contact Affymetrix
Technical Support:
AFFYMETRIX, INC.
3420 Central Expressway
Santa Clara, CA 95051 USA
Tel: 1-888-362-2447 (1-888-DNA-CHIP)
Fax: 1-408-731-5441
[email protected]
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
9
[email protected]
AFFYMETRIX UK Ltd.,
Voyager, Mercury Park,
Wycombe Lane, Wooburn Green,
High Wycombe HP10 0HH
United Kingdom
UK and Others Tel: +44 (0) 1628 552550
France Tel: 0800919505
Germany Tel: 01803001334
Fax: +44 (0) 1628 552585
[email protected]
[email protected]
AFFYMETRIX JAPAN K.K.
Mita NN Bldg. 16F
4-1-23 Shiba Minato-ku,
Tokyo 108-0014 Japan
Tel. 03-5730-8200
Fax: 03-5730-8201
[email protected]
[email protected]
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
10
Chapter 2:
Working with Genotyping Console
®
Genotyping Console is a stand-alone application. It can be installed on computers that have GeneChip
®
Operating System (GCOS) software, Affymetrix GeneChip Command Console™ (AGCC) software, or
either.
Note: If you are using GCOS files, Affymetrix recommends that you transfer data out of GCOS
using the Data Transfer Tool (available at Affymetrix.com) and use the Flat File option in order
to retain sample attributes.
Table 2.1 and Table 2.2 show the operating systems that Genotyping Console has been verified on and
the recommended minimum requirements. The larger data file size associated with Genome-Wide Human
SNP 5.0 and 6.0 Arrays should be taken into account when calculating the necessary available disk
space requirement.
Table 2.1 Verified 32-bit operating systems & minimum hardware requirements for GTC software
32-bit Operating System
Speed
Memory
(RAM)
Available Disk
Space*
Web Browser
®
3 GHz Intel Pentium
Processor
3 GB
RAM
150 GB HD +
data storage
IE 7.0 and above
®
3 GHz Intel Pentium
Processor
3 GB
RAM
150 GB HD +
data storage
IE 7.0 and above
Microsoft Windows 7 professional
Microsoft Windows XP operating
system with Service Pack 3
Recommended: Processer: 3G Quad Core Pentium Processor and 4G of RAM
Table 2.2 Verified 64 -bit operating systems & recommended requirements for GTC Software
64-bit Operating System
Speed
Memory
(RAM)
®
4 GHz Intel Pentium
Quad Core Processor
8 GB RAM 150 GB HD +
data storage
IE 7.0 and above
®
4 GHz Intel Pentium
Quad Core Processor
8 GB
RAM
150 GB HD +
data storage
IE 7.0 and above
®
4 GHz Intel Pentium
Quad Core Processor
8 GB
RAM
150 GB HD +
data storage
IE 7.0 and above
Microsoft Windows 7 professional
Microsoft Windows XP operating
system with Service Pack 2.0
Microsoft Windows Server 2008 R2
Standard with Service Pack 1
Available Disk
Space*
Web Browser
Recommended: 16 GB of RAM.
The following sections in this chapter describe:

Installation Instructions (page 12)

Updates & General Information (page 12)

Notes for Users of Earlier Versions of Genotyping Console (page 13)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
11

Starting Genotyping Console (page 13)

Parts of the Console (page 17)

File Types & Data Organization in GTC (page 19)

Basic Workflows in Genotyping Console (page 24)

Working with Commands in Genotyping Console (page 31)

Window Layout Options (page 31)
To use Genotyping Console, you must:
1. Install the GTC software (page 12).
2. Create a user profile (page 36 ).
3. Download or copy the necessary library and annotation files (page 39).
4. Set up a workspace and data set(s) (page 56).
Installation Instructions
1. Download the software from Affymetrix.com: http://www.affymetrix.com. You will need to download
the 32-bit or 64-bit installer, depending on your computer operating system. If you download the 32bit installer for a 64 bit Windows operating system, it won‘t work and vice versa.
2. Unzip the downloaded software package. This includes the installation program and release notes.
3. Review the release notes and installation instructions before proceeding with the installation.
4. Double-click GenotypingConsoleSetup.exe or GenotypingConsoleSetup32.exe to install the software
(the exe file names are different, depending on whether it is a 32-bit or 64-bit installer).
5. Follow the directions provided by the installer.
Note: The setup process installs the required Microsoft components, which includes the .NET
3.5 framework and Java components and Visual C++ runtime libraries.
Updates & General Information
New information about Genotyping Console will be made available to customers through the Update
Button on the main tool bar in Genotyping Console. There are 3 different options: Updates Available, No
New Updates, or Updates (Offline).
When updated information is available, click on the green Updates Available button on the main tool bar
and a web browser will be launched indicating what new information is available.
When there are no new updates available, the following button will be displayed on the main tool bar.
Clicking on the button will launch a web browser showing the current informational messages.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
12
If the computer is offline, Genotyping Console will be unable to determine if there are any updates
available and the Updates button will indicate the offline status.
Notes for Users of Earlier Versions of Genotyping Console
GTC 4.1 and earlier versions of GTC cannot be run on the same computer. The GTC 4.1 library and
annotation files are not compatible with earlier versions of GTC. You can use GTC 4.1 and an earlier
version of GTC on two different computers; however, you will need to separately maintain two sets of
library and annotation files on the appropriate computer. To do this:
1. Create a new GTC 4.1 library folder on your computer.
2. Download or copy the new GTC 4.1 library and annotation files to this folder. See Obtaining Library &
Annotation Files (page 42) for more information.
3. Set the library path for GTC to the new library folder. See Setting the Library Path (page 39).
Note: GTC 4.1 workspaces cannot be opened in earlier versions of GTC. Workspaces created
in earlier versions of GTC can be opened in GTC 4.1, but then cannot be used in earlier
versions of GTC.
Note: Custom analysis configurations for earlier versions of GTC will be updated to work with
GTC 4.1. Once they have been updated they will not work with older versions of GTC.
Starting Genotyping Console
1. Double-click the Genotyping Console shortcut
on the desktop. Alternately, from the Windows
Start Menu, select Programs > Affymetrix > Genotyping Console.
The Genotyping Console opens with the User Profile window displayed.
2. Select or create a User Profile (see Creating and Selecting a User Profile on page 36).
After creating a User Profile, the library path notice appears (Figure 2.1).
Figure 2.1 Prompt to set the library path
3. Click OK.
The Browse for Folder dialog box opens (Figure 2.2).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
13
Figure 2.2 Select or create a library folder
4. Select or create a location for the GTC 4.1 library folder and click OK.
The Temporary file folder location notice appears (Figure 2.3).
Figure 2.3 Temp Folder location notice
The Affymetrix Power Tools software uses the temporary files folder during data analysis. The
temporary files folder must reside on a local hard drive, not a network drive. Users must have write
access to the temporary files folder.
See Appendix J: Hard Disk Requirements (page 395) for information on local hard drive space
requirements.
5. Click OK.
The Browse for Temp Folder dialog box opens (Figure 2.4)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
14
Figure 2.4 Browse for Temp Folder dialog box
4. Select or create a location for the GTC 4.1 temp folder and click OK.
The Temp Files path notice appears (Figure 2.5).
Figure 2.5 Temp Folder location notice
Click OK and proceed with creating a workgroup (see Chapter 5: Workspaces & Data Sets on
page 50) or other tasks.
Changing Folder Locations
You can change the location of the library and temp folder in the Options dialog box.
To change the location of a folder:
1. From the Edit menu, select Options; or
Click the Options button
in the tool bar.
The Options dialog box opens (Figure 2.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
15
Figure 2.6 Options dialog box
2. Specify a new location for library and temp files by either:
-
Entering a path in the appropriate box
-
Clicking the Browse button and browsing to the new location.
3. Click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
16
Parts of the Console
After creating or selecting the user profile the Genotyping Console Opens (Figure 2.7).
The components of the GTC interface are introduced below.
1: Menu Bar
2: Tool Bar
3: Display Area
4: Data Tree
5: Status Window
6: Status Bar
Figure 2.7 Genotyping Console with workspace selected
Note: See the Affymetrix GTC Browser 1.2 User Manual for information about viewing the
Copy Number, Loss of Heterozygosity, and Copy Number Segment data in graphical format.
1 and 2: Menu Bar and Tool Bar
The menu bar and tool bar provide quick access to the GTC functions.
3: Display area
Some of the data generated by GTC can be viewed in tables and graphs in the display area, including:

Intensity file QC data and graphs

Genotyping Data tables

SNP Cluster Graph

Copy Number/Loss of Heterozygosity QC data

Heat Map for Copy Number and Copy Number Variation data
Note: The Copy Number, Loss of Heterozygosity, and Copy Number Segment data generated
by GTC is displayed in the GTC Browser. See the Affymetrix GTC Browser 1.2 User Manual for
more information.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
17
4: Data Tree
Genotyping Console displays workspace information in the form of a data tree. The items within the Data
Sets section of the data tree are ordered by the typical user workflow (Figure 2.8).
Data sets start as collapsed nodes in the data tree. Double-click a data set to expand the node and show
the tree items. By double-clicking on the data tree items, the first item in the right-click menu will
automatically open. For example, if you double-click the All Intensity group, the Intensity QC Table will
open, showing the QC information for all intensity data files in the data group.
Figure 2.8 GTC data tree showing workspace, data set, and SNP lists
5: Status Window
The Status window displays all status and algorithm progress information (Figure 2.9).
Figure 2.9 Status window
To disable this view, go to the Window menu and select Hide Status Messages Window (Figure 2.10).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
18
Figure 2.10 Enabling/disabling the Status window display
6: Status Bar
The Status bar at the bottom of the GTC window (Figure 2.11) displays information on the path to library
files and the user profile.
Path to library files
Current User Profile
Figure 2.11 Status bar shows the library path and current user profile
File Types & Data Organization in GTC
To fully use the capabilities of GTC, you need to understand the file types and data organization used in
this software. GTC uses:

Data and QC Files (below)
Note: QC files (.gqc) are no longer available for AGCC CEL files QCed in GTC 4.0 and 4.1.
The QC information is stored in the CEL file.

Support files (page 20).

Data Organization in Genotyping Console (page 20)
Data and QC Files
The data and QC files used by GTC are listed below, along with the file extensions used to identify them.
Some data files are generated by other Affymetrix software and used by GTC:

Sample files (.arr and .xml)

Intensity data files (.cel)
GTC generates other data files during the analysis of the intensity data files:

Genotype Data files (.chp)

Copy Number Data files (.cnchp)

LOH Data files (.lohchp)

Copy Number/LOH Data files (.cnchp) for SNP 6.0 analysis
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
19

Copy Number Segment Data (.cn_segments)

Copy Number Segment Summary (.cn_segments_summary)

Custom Regions Report (.custom_regions)

Custom Regions Summary Report (.custom_regions_summary)

Copy Number Variation Data files (.cnvchp) for SNP 6.0 analysis
GTC generates QC information to help you evaluate your data:

Intensity QC information for assessing suitability for batch genotyping and/or Copy Number/LOH
analysis

QC data for Copy Number/LOH analysis
Note: QC files (.gqc) are no longer available for AGCC CEL files QCed in GTC 4.0 and 4.1. The
QC information is stored in the CEL file.

Report files for viewing data and record keeping
You access the data in these files through the GTC data tree.
Support files
The support files are necessary to use all of the features of GTC.

Library file sets, with files for genotyping, copy number/LOH/CN Segment and copy number variation
analysis.

Reference Model files for SNP 6.0 single sample Copy Number/LOH analysis

Prior and Posterior model files for:
-
BRLMM-P
-
Birdseed V1 and V2
-
Axiom GT1

Annotation files for the Arrays

Browser Annotation files

Optional files, including:
-
SNP lists (both provided by Affymetrix and generated by user)
-
Hints files
-
Inbred sample files
-
Gender files
Data Organization in Genotyping Console
The data used in GTC is organized by:

Workspaces (page 21)

Data Sets (page 21)

SNP Lists (page 23)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
20
Workspaces
A workspace is a collection of data sets and SNP lists.
Only one workspace can be displayed in an open instance of GTC.
Note: Once you open a workspace in GTC 4.1, you will no longer be able to use it in earlier
versions of GTC.
Figure 2.12 Workspace with data sets and SNP list
A workspace should contain only related data (for example, belonging to one primary investigator or one
research study).
Note: Only one user can have the same workspace open at one time. If other users need
access to the same data files, they can either make a personal copy of a workspace file that is
not in use, or create a new Workspace and add the same data files to the new workspace.
Simultaneous genotyping of the same set of CEL files within two workspaces is not
recommended.
The workspace file stores the locations of the data files, not a copy of the data files themselves. See
Chapter 5: Workspaces & Data Sets (page 50) for more information about workspaces.
Data Sets
Each workspace can have multiple data sets (Figure 2.13). A data set manages a group of ARR/XML,
CEL, CHP, CNCHP (and/or LOHCHP), cn_segments files, and CNVCHP files from a single type of array
or array set (e.g. Human Mapping 100K or 500K Arrays, Genome-Wide SNP Array 5.0, Genome-Wide
SNP Array 6.0, or Axiom™ Genome-Wide Human Arrays).
Figure 2.13 Data set
A data set manages:

Sample attributes: ARR or XML files
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
21

Intensity data in CEL files
During QC the files are grouped into the following categories:
-
All: all CEL files in the data set
-
In Bounds: CEL files that passed intensity QC criteria
-
Out of Bounds: CEL files that failed intensity QC criteria
Note: GQC files are not available for AGCC CEL files QCed in GTC 4.0 and 4.1. The QC
information is stored in the CEL file.
You can also assemble custom lists of intensity data. For more information, see:



-
Creating Custom Intensity Data Groups using Intensity QC Data (page 97)
-
Creating a Custom Intensity Group from the CHP File Data (page 133)
-
Creating Custom Intensity Data Groups Using the SNP Cluster Graph (page 185)
Genotype Results: CHP files. These are grouped into:
-
Batch genotype results, either from direct analysis or import
-
Custom CHP groups assembled by you
Copy Number/LOH Results: Analysis files for:
-
Copy Number
-
LOH
-
Copy Number Segments and Copy Number Custom Regions
Copy Number Variation Results in CNVCHP files. These are grouped into:
-

Batch Copy Number Variation results, either from direct analysis or import
Reports
-
Concordance reports
Within a data set, the following information can be displayed in tables and graphs for viewing and
exporting:

Sample attribute information

QC metrics

Signature SNP genotypes

CHP and SNP summary data

SNP cluster graphs

Copy Number/LOH QC information, copy number segment and custom region data (available for
Human Mapping 100K/500K Arrays and Genome-Wide Human SNP Array 6.0)

Copy Number Variation results data
Note: Copy Number/LOH data can be displayed in the GTC Browser. See the Affymetrix GTC
Browser 1.2 User Manual for more information.
Note: Copy Number Variation data for SNP 6.0 is also displayed in the Heat Map Viewer
together with copy number data. In order to view Copy Number Variation data in the Heat Map
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
22
Viewer, you must have copy number data that originates from same CEL files. See Chapter 13:
Heat Map Viewer on page 347 for more information.
SNP Lists
SNP lists allow you to manage markers of interest. You can generate SNP lists from your genotyping data
or import SNP lists from other sources.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
23
Basic Workflows in Genotyping Console
Figure 2.14 shows an overview of the GTC workflows.
Create or Select a User Profile
Load Data
Create a workspace and data set(s)
Add Sample (ARR and Intensity (CEL) data to the data set
Perform Intensity QC
Not available for some non-human array data.
Genotyping Console Analysis Options
Human Mapping
100K/500K Array
Genotyping
(BRLMM Algorithm)
Genome-Wide Human
SNP 5.0 Array
Rat and Mouse Array
Genotyping
(BRLMM Algorithm)
Copy Number &
LOH Analysis
(CN4 Algorithm)
Genome-Wide SNP 6.0 Array
Genotyping
(BRLMM
Algorithm)
Copy Number &
LOH Analysis
(CN5 or
BRLMMP+
Algorithm
Copy Number
Variation Analysis
(Canary Algorithm)
Axiom Array*
Genotyping
(Axiom GT1
Algorithm)
Copy Number Segment
Analysis
Copy Number
Segment Analysis
* Axiom Arrays include:



Axiom Genome-Wide Human
Arrays
Axiom myDesign Arrays
Axiom BOS 1 Array
Figure 2.14 Overview of GTC workflows for different array types
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
24
The following sections describe the workflows for the different array types. There are many similarities
between the workflows for different array types, but some significant differences, too.

GTC Workflow for Axiom Arrays (below)

GTC Workflow for SNP 6 Arrays (page 26)

GTC Workflow for Genome-Wide SNP Array 5 (page 28)

GTC Workflow for Human Mapping 100K/500K Arrays (page 29)
GTC Workflow for Axiom Arrays
GTC 4.1 can perform Genotyping analysis using the Axiom GT1 algorithm on the following types of
arrays:

Axiom Genome-Wide Human Arrays and Array Sets

Axiom myDesign Arrays

Axiom non-human Arrays
The workflow requires the following sets of steps:
1.
Create Workspace and Data Sets
1. Create a workspace and data set for the data (see Creating a New Workspace, page 56).
2. Import intensity data (and Sample/Array Data, if available) into the data set (see Adding Data, on
page 59).
Note: QC can also be automatically performed upon import of CEL files to the data set.
2.
Perform Intensity QC and break into Reagent Versions.
Note: Axiom Genome-Wide BOS 1 Arrays are not processed with different reagent versions
and do not need to be separated into separate intensity data groups.
Note: Axiom CEL files that have been QCed previously in GTC 4.0 or earlier will need to be
submitted for intensity QC in GTC 4.1 to provide reagent version information.
1. Perform intensity QC to determine basic data quality (see Chapter 6: Intensity Quality Control for
Genotyping Analysis on page 86).
The intensity quality control check automatically creates the following intensity data groups,
based on the Dish QC thresholds:
-
All
-
In Bounds
-
Out of Bounds
The resulting Dish QC values and other metrics are displayed in tables and graphs, and can be
exported.
Removing poor quality CEL files from the set can improve the quality of the genotypes of the
remaining CEL files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
25
2. Create custom intensity data file groups for CEL files produced using different reagent sets:
-
Reagent Version 1
-
Reagent Version 2
Use data files from the In Bounds group to create these custom data file groups to make sure
they pass the QC criteria.
See Creating Custom Intensity Data Groups using Intensity QC Data (page 97).
3.
Perform Genotyping on samples from different Reagent Versions.
1. Select an intensity data file (CEL) group with data from Reagent Version 1 or Reagent Version 2.
2. Perform genotyping analysis on the group of files, as described in Chapter 7: Genotyping
Analysis (page 104).
3. Review the initial genotyping analysis QC data in the CHP Summary Results table, using Call
Rate and other metrics, as described in CHP Summary Table (page 126).
4. Create new Intensity Data file group for samples with good performance in initial genotyping
analysis and perform a second genotyping analysis, as described in Creating a Custom Intensity
Group from the CHP File Data (page 133).
5. View the SNP calls and other metrics in the SNP Summary Results table, as described in
Chapter 8: Review the Genotyping Results (page 142).
Note: You need a SNP list to view genotype result data. See Create a SNP List (page 143).
6. Review the clustering performance for SNPs of interest in the SNP Cluster Graph.
See Chapter 9: Using the SNP Cluster Graph (page 168).
7. Export the genotype calls for downstream analysis.
See Chapter 10: Exporting Genotype Results (page 203)
GTC Workflow for SNP 6 Arrays
GTC 4.1 can perform the following analyses on SNP 6.0 Arrays:

Genotyping Analysis (using the Birdseed v1 or Birdseed v2 algorithm)

Copy Number/LOH Analysis (using CN5 BRLMM-P+ algorithm)

Copy Number Variance (using the Canary algorithm)
The workflow requires the following sets of steps:
1.
Create Workspace and Data Sets
1. Create a workspace and data set for the data (see Creating a New Workspace, page 56).
2. Import intensity data (and Sample/Array Data, if available) into the data set (see Adding Data, on
page 59).
2.
Perform Intensity QC
1. Perform intensity QC to determine basic data quality (see Chapter 6: Intensity Quality Control for
Genotyping Analysis page 86).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
26
The intensity quality control check automatically creates the following intensity data groups,
based on the Contrast QC thresholds:
-
All
-
In Bounds
-
Out of Bounds
Additional custom groupings of CEL files can also be made.
Removing poor quality CEL files from the data set can improve the quality of the genotypes of the
remaining CEL files.
3.
Perform Genotyping
1. Select a group or set of intensity data files (CEL) in a data set.
2. Perform genotyping analysis on the group of files, as described in Chapter 7: Genotyping
Analysis (page 104).
3. Review the initial genotyping analysis QC data in the CHP Summary Results table, using Call
Rate and other metrics, as described in CHP Summary Table (page 126).
4. Create new Intensity Data file group for samples with good performance in initial genotyping
analysis and perform a second genotyping analysis, as described in Creating a Custom Intensity
Group from the CHP File Data (page 133).
5. View the SNP results in the SNP Summary Results table, as described in Chapter 8: Review the
Genotyping Results (page 142)
Note: You need a SNP list to view genotype result data. See Create a SNP List (page 143).
6. Review the clustering performance for SNPs of interest in the SNP Cluster Graph.
See Chapter 9: Using the SNP Cluster Graph (page 168).
7. Export the genotype calls for downstream analysis.
See Chapter 10: Exporting Genotype Results (page 203)
4.
Perform Copy Number/LOH Analysis for SNP 6.0 Arrays
1. Perform Copy Number and/or LOH analysis in GTC to generate Copy Number/LOH data files.
See Chapter 13: Copy Number & LOH Analysis for Genome-Wide Human SNP 6.0 Arrays (page
265).
2. Run the Segment Reporting Tool on the CNCHP files to generate:
-
Segment Data files
-
Segment Summary file
-
Custom Region Data files
-
Custom Region Summary file
See Using the Segment Reporting Tool & Custom Regions (page 308).
3. Review the data in the GTC Browser (page 329.
4. View the log2ratio values in the Heat Map Viewer.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
27
See Chapter 16: Heat Map Viewer (page 347).
5. Export the data for further analysis.
5.
Perform Copy Number Variation Analysis
Note: Copy Number Variation (CNV) analysis can be performed only on Genome-Wide Human
SNP Array 6.0 data.
For CNV analysis, the Canary algorithm makes CN state calls (0, 1, 2, 3, 4) for regions with known
copy number variants (CNV) or copy number polymorphisms (CNP). The region within known copy
number variants can contain one or more CN/SNP probe sets.
1. Perform the Copy Number Variation analysis. See Chapter 15: Copy Number Variation Analysis
(page 339).
2. View the results in the Heat Map viewer with copy number results. See Chapter 16: Heat Map
Viewer (page 347).
GTC Workflow for Genome-Wide SNP Array 5
GTC 4.1 can perform Genotyping analysis using the BRLMM-P algorithm on the following types of arrays:

Genome-Wide SNP Array 5.0

Rat Array

Mouse Array
Note: Intensity QC and Signature SNPs are not available for Rat and Mouse Arrays.
The workflow requires the following sets of steps:
1.
Create Workspace and Data Sets
1. Create a workspace and data set for the data (see Creating a New Workspace, page 56).
2. Import intensity data (and Sample/Array Data, if available) into the data set (see Adding Data,
page 59).
2.
Perform Intensity QC
1. Perform intensity QC to determine basic data quality (see Intensity Quality Control for Genotyping
Analysis on page 86).
The intensity quality control check automatically creates the following intensity data groups,
based on the Contrast QC thresholds:
-
All
-
In Bounds
-
Out of Bounds
Additional custom groupings of CEL files can also be made.
Removing poor quality CEL files from the data set can improve the quality of the genotypes of the
remaining CEL files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
28
3.
Perform Genotyping and Review Data
1. Select an intensity data files (CEL) group.
2. Perform genotyping analysis on the group of files, as described in Chapter 7: Genotyping
Analysis (page 104).
3. Review the initial genotyping analysis QC data in the CHP Summary Results table, using Call
Rate and other metrics, as described in CHP Summary Table (page 126).
4. Create new Intensity Data file group for samples with good performance in initial genotyping
analysis and perform a second genotyping analysis, as described in Creating a Custom Intensity
Group from the CHP File Data (page 133).
5. View the SNP results in the SNP Summary Results table, as described in Chapter 8: Review the
Genotyping Results (page 142)
Note: You need a SNP list to view genotype result data. See Create a SNP List (page 143).
6. Review the clustering performance for SNPs of interest in the SNP Cluster Graph.
See Chapter 9: Using the SNP Cluster Graph (page 168).
7. Export the genotype calls for downstream analysis.
See Chapter 10: Exporting Genotype Results (page 203)
GTC Workflow for Human Mapping 100K/500K Arrays
You can perform the following types of analyses on Human Mapping 100K/500K Array data:

Genotyping

Copy Number/Loss of Heterozygosity
1.
Create Workspace and Data Sets
1. Create a workspace and data set for the data (see Creating a New Workspace, page 56).
2. Import intensity data (CEL) (and Sample/Array Data) into the data set (see Adding Data, page
59).
2.
Perform Intensity QC
1. Perform intensity QC to determine basic data quality (see Intensity Quality Control for Genotyping
Analysis page 86).
The intensity quality control check automatically creates the following intensity data groups,
based on the Contrast QC thresholds:
-
All
-
In Bounds
-
Out of Bounds
Additional custom groupings of CEL files can also be made.
Removing poor quality CEL files from the data set can improve the quality of the genotypes of the
remaining CEL files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
29
3.
Perform Genotyping
1. Select a group of intensity data files (CEL) in a data set.
2. Perform genotyping analysis on the group of files, as described in Chapter 7: Genotyping
Analysis (page 104).
For mapping arrays, one intensity data group can contain CEL files from two different array types.
But during genotyping, GTC will automatically separate them and genotyping results will be
grouped by array type. Users can make a custom genotype result batch and manually add CHP
files with different array types.
3. Review the initial genotyping analysis QC data in the CHP Summary Results table, using Call
Rate and other metrics, as described in CHP Summary Table (page 126).
4. Create new Intensity Data file group for samples with good performance in initial genotyping
analysis and perform a second genotyping analysis, as described in Creating a Custom Intensity
Group from the CHP File Data (page 133).
5. View the SNP results in the SNP Summary Results table, as described in Chapter 8: Review the
Genotyping Results (page 142)
Note: You need a SNP list to view genotype result data. See Create a SNP List (page 143).
6. Review the clustering performance for SNPs of interest in the SNP Cluster Graph.
See Chapter 9: Using the SNP Cluster Graph (page 168).
7. Export the genotype calls for downstream analysis.
See Chapter 10: Exporting Genotype Results (page 203)
4.
Copy Number/LOH Workflow for 100K/500K Arrays
To perform a CN/LOH analysis for 100K/500K arrays, you must have both the CEL intensity data files
and the genotyping CHP files for the arrays you wish to analyze.
1. Perform Copy Number and/or LOH analysis in GTC, producing:
-
Copy Number Data Files
-
LOH Data Files
See Copy Number & LOH Analysis for Human Mapping 100K/500K Arrays (page 229).
2. Run the Segment Reporting Tool on the CN files to generate:
-
Segment Data Files
-
Segment Summary file
-
Custom Region Data files
-
Custom Region Summary File
See Using the Segment Reporting Tool & Custom Regions (page 308).
3. Review data in the GTC Browser (page 329).
4. Export data for further analysis.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
30
Two-Step Genotyping Workflow
The two-step genotyping workflow enables you to get optimal call rates when working with genotyping
data.
In the two-step workflow, you evaluate the performance of the array data using both intensity QC metrics
and initial genotyping call rate in the following steps:
1. Perform intensity QC and remove samples that do not meet the QC thresholds.
2. Perform a first round of genotyping on the remaining samples.
3. Remove samples based on outlier call rates (for Axiom arrays, use a call rate < 97% as the cutoff)
4. Perform a second round of genotyping to get optimal call rates.
This workflow is described in more detail in Two-Step Genotyping Workflow (page 140)
Working with Commands in Genotyping Console
Commands in Genotyping Console can be accessed from:

Main menus

Tool bar shortcuts

Right-clicks on tree items

Right clicks on table rows

Right-clicks on graphs or from the graph tool bar
The tree items serve dual functions, organizing the data and results as well as guiding you through the
workflow. The file menus are context sensitive, which means that some commands will be hidden until
you‘ve selected the items in the tree or table to which the command applies.
Window Layout Options
Genotyping Console windows can be arranged either as tabbed windows or multiple windows. To select a
layout option, choose Tabbed Windows or Multiple Windows from the Window/Layout menu (Figure
2.15).
Figure 2.15 Window layout options
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
31
In the tabbed window layout, each open table or graph fills the entire available space and switching
between active windows can be accomplished by clicking the tabs at the top of the window. The active
window is highlighted with a white background and an orange line on the top (Figure 2.16).
Displayed window
with Orange line
Arrows for
displaying
other tabs
Figure 2.16 Tabbed window layout
To close a tabbed window, use the
button at the top right of the tab (Figure 2.17).
Figure 2.17 Close a tabbed window
In the Multiple Window layout (Figure 2.18), each open table or graph can be:

Individually sized

Expanded to the maximum size
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
32

Minimized
Figure 2.18 Multiple layout

Displayed in a cascade, tiled horizontally, or tiled vertically (see below)
To select the Cascade, Tile Horizontally, or Tile Vertically layout:
From the Window Menu, select Layout > [display option]:

Cascade (Figure 2.19)

Tile Horizontally (Figure 2.20)

Tile Vertically (Figure 2.21)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
33
Figure 2.19 Cascade layout
Figure 2.20 Horizontal Tiled layout
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
34
Figure 2.21 Vertical Tiles layout
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
35
Chapter 3:
User Profiles
A user profile stores a user's preferences for custom analysis settings, table and graph viewing options,
and other application settings. Security by profiles is not provided by the application; it is simply a means
of storing application parameters.
This chapter describes:

Creating and Selecting a User Profile (page 36)

Deleting a User Profile (page 38)
Creating and Selecting a User Profile
You can create a new user profile or create a previously selected one when you start Genotyping
Console.
To create a new User Profile:
1. Start Genotyping Console by double-clicking on its shortcut on the Desktop, or
From the Windows Start Menu select Programs > Affymetrix > Genotyping Console.
The Genotyping Console opens with the User Profile dialog box displayed (Figure 3.1).
Figure 3.1 Genotyping Console main window and User Profile dialog box
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
36
2. Type in a name for the new profile in the User Profile dialog box (Figure 3.2).
Figure 3.2 User Profile dialog box
3. Click OK.
The software will prompt you to create the new profile (Figure 3.3).
Figure 3.3 Confirmation dialog box
After setting up a user profile, the software will either prompt you to select:

a library file path (if Affymetrix Command Console is not installed on the workstation or the library
folder has not already been specified during a prior session). See Setting the Library Path on page 39

a workspace to open. See Creating a New Workspace on page 56.
To select an existing Profile:

Use the drop-down menu on the User Profile window (Figure 3.4).
Figure 3.4 User Profile dialog box
Note: You can select a different profile without terminating the program, but the Workspace
must be closed.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
37
To change profiles:
1. From the Edit menu, select Change User Profile.
The User Profile dialog box appears (Figure 3.4).
2. Enter a new profile name or select a previously generated profile from the drop-down box (see
Figure 3.4).
Deleting a User Profile
To remove profiles no longer needed:
1. From the Edit menu, select Delete User Profile.
The Select the user profiles to delete dialog box opens (Figure 3.5).
Figure 3.5 Delete a user profile
2. Select the User Profile to be deleted and select OK.
The selected User Profile, and all parameter files associated with the profile, will be removed. To add
a new User Profile, see Create/Select a User Profile (page 36).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
38
Chapter 4:
Library & Annotation Files
Genotyping Console requires information stored in library files to analyze the CEL files generated by
®
GCOS or Affymetrix GeneChip Command Console™ (AGCC) software. These library files are available
from NetAffx and can be downloaded within Genotyping Console. Genotyping Console downloads only
those library files it requires from NetAffx for analysis; these files are not registered with GCOS or
Command Console and are not sufficient to scan arrays.
Genotyping Console uses SQLite annotation files (*.annot.db) to display and export additional information
about the SNP and CN probe sets (such as Chromosome, chr start and chr stop, dbSNP RS ID, etc.) as
well as for certain analysis and filtering steps. You can use custom annotation files in GTC 4.1, but the
files must be in SQLite format.
You can use the Annotation Converter (AC) to generate SQLite annotation files for Axiom myDesign
arrays. Users will be able to customize NetAffx annotation files by using the AC with text (.csv) files as
input.
See the documentation on the Annotation Converter for more information.
GTC 4.1 updates genotyping config files from GTC 4.0; depends on the file types updated, a subfolder
will be created within the library folder to host different corrupted or outdated config files.
The following sections in this chapter include:

Setting the Library Path (see below)

Obtaining Library & Annotation Files (page 42)
Setting the Library Path
If Genotyping Console software is installed on a workstation with Command Console, the library path is
automatically set to the library path used by Command Console. If Command Console is not installed and
a path is not specified, Genotyping Console prompts you to select a location for the library path
(Figure 4.1). You can set the library path without terminating the program, but any open workspace(s)
must be closed.
Note: Users must have write access to the library folder. Make sure that all of the library files
for use in Genotyping Console are copied to only one library folder. You can select any
location for the library files folder; however it is recommended that the library folder not be
located within the GTC application folder.
Figure 4.1 Library path notification
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
39
To change an existing library path:
1. Close any open workspaces.
2. Click the Options
tool bar shortcut; or
from the File menu, select Option.
The Options dialog box appears (Figure 4.2).
Figure 4.2 Options dialog box, Directories tab
3. In the Directories tab, enter the path to the new directory or click the Browse button
The Browse For Folder dialog box opens (Figure 4.3).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
40
.
Figure 4.3 Browsing for library folder
®
Note: You can select any location for the library files folder. If the Affymetrix GeneChip
Operating System software (GCOS) is installed on your system, Affymetrix recommends that
you do NOT select the GCOS library file directory as the library file directory for Genotyping
Console, to avoid confusion. Do not place any library files in a subfolder. Genotyping Console
cannot find library files in a subfolder!
A. Browse to the folder which contains the library files or create a new folder for your library files.
Make sure all library files for use in Genotyping Console are copied to this folder or are
downloaded to this folder through NetAffx using the GTC download functions from the File menu.
B. Click OK in the Browse to Folder dialog box.
6. Click OK in the Options dialog box.
The selected library path is displayed in the bottom left corner of the application window (Figure 4.4).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
41
Library Path
Figure 4.4 Genotyping Console main window displaying the library path
Note: GCOS users must use the Data Transfer Tool (DTT) using the Flat File option to transfer
files to be analyzed by Genotyping Console software from the GCOS database to an
independent folder, in order to retain all sample attributes. More detailed instructions can be
found at www.affymetrix.com.
Obtaining Library & Annotation Files
Genotyping Console 4.1 software requires new and updated library and annotation files. GTC 4.1 uses
SQLite annotation files (*.annot.db). The library and SQLite annotation files can be downloaded from the
Affymetrix website, NetAffx, or from within GTC.
There are several ways to obtain library and annotation files.
To Obtain…
Computer With Internet Access
Computers Without Internet
Access
Library files
Download Library Files (page 43)
Manually Copy Library Files
(page 45)
from within GTC (click the
bar button)
Annotation files
Download Annotation Files (page 45)
from within GTC (click the
button)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
tool
tool bar
Manually Copy & Optimize
Annotation Files (page 47)
42
Downloading the ″GTC_4.1_Analysis_Files″ Zip Package
The zip package ″GTC_4.1_Analysis_Files″ contains library files for Axiom™ Genome-Wide Human
Arrays (CEU and ASI) and the Axiom Genome-Wide BOS 1 Array. The zip package can be downloaded
from the Affymetrix website. It includes the files required for processing samples processed with Reagent
Version 1 or Reagent Version 2.
1. Go to the Affymetrix web site and download the zip package ″GTC_4.1_Analysis_Files″.
2. Unzip this file and then copy the files from the GTC_4.1_Analysis_Files folder to the Genotyping
Console library folder.
Download Library Files
1. Click the Download Library Files button
: or
From the File menu, select Download Library Files.
The NetAffx Account Information dialog box opens (Figure 4.5).
Figure 4.5 NetAffx Account Information dialog box
2. Enter your Affymetrix account information and click OK.
If you do not have a NetAffx account, click Register Now which launches www.affymetrix.com. Follow
the instructions to set up an account.
The Select the array sets to download dialog box opens (Figure 4.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
43
Figure 4.6 Select the array sets to download dialog box
3. Select the array set library files to download and click OK.
The Downloading NetAffx files box opens and displays the download progress (Figure 4.7)
Figure 4.7 Download progress
Note: The download may take several minutes or more, depending on the connection speed,
as the library files are large. Please be patient.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
44
Manually Copy Library Files
If the workstation with Genotyping Console does not have an Internet connection and cannot download
the library files, manually copy the necessary files to the library folder.
Do not create subdirectories within the library file folder. Genotyping Console does not look at
subdirectories!
Download Annotation Files
1. Click the Download Annotation Files button
Annotation Files on the menu bar.
on the tool bar. Alternately, select File > Download
The NetAffx Account Information dialog box opens (Figure 4.8).
Figure 4.8 NetAffx Account Information dialog box
2. Enter your NetAffx account information and click OK.
If you do not have a NetAffx account, click Register Now which launches www.affymetrix.com. Follow
the instructions to set up an account.
The Select the array sets to download dialog box opens (Figure 4.9).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
45
Figure 4.9 Selecting annotation files to download
3. Select the Array set annotation files to download and click OK.
The download progress is displayed in the Downloading NetAffx files box (Figure 4.10).
Figure 4.10 Download progress
Note: Please be patient. The download may take several minutes or more, depending on the
connection speed, as these files are large.
After Genotyping Console downloads the selected *.annot.db file from NetAffx, it optimizes the file for
application use. This may take several minutes. We recommend that you not cancel this operation. If you
cancel this operation, you can manually optimize the annotation file (select File > Optimize Annotation
Files on the menu bar).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
46
Manually Copy & Optimize Annotation Files
If the workstation with Genotyping Console does not have an Internet connection and cannot download
the annotation files, manually copy the necessary files to the library folder. After the annotation files are
copied to the library folder, they must be optimized to improve application performance.
1. Copy the required annotation files (.annot.db) to the library folder.
2. From the File menu, select Optimize Annotation Files.
The Select annotations to optimize dialog box opens (Figure 4.11).
Figure 4.11 Select annotations to optimize dialog box
3. Select the annotations file(s) to optimize, and click OK.
The Optimizing data files box displays the progress of optimization (Figure 4.12).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
47
Figure 4.12 Optimizing annotation files progress
File optimization may take several minutes or more, depending on your computer configuration.
Note: If you do not manually optimize the annotation files, GTC automatically optimizes the file
the first time it is used.
Note: To export Human Mapping 100K/500K analysis results or to further process samples in
segment reporting tool (SRT), na24 annotation files (*.annot.db) are required.
For Genome-Wide Human SNP Array 6.0, to export CN/LOH analysis results or to further
process samples in SRT, na25 or higher annotation files (*.annot.db) are required, depending
on which annotation version was used to generated the CNCHP files.
Annotation Options
You can select a particular annotation version for use with an array type in GTC using the Genotyping
Annotations tab of the Options dialog box. Pre-selecting an annotation version will let you avoid having a
prompt window appear to select the version during later operations.
If you download a newer version of the annotation file, the selected annotation version will be updated to
the newer version.
To select an annotation version:
1. Close any open workspaces.
2. Click the Options
tool bar shortcut; or
from the File menu, select Option.
The Options dialog box appears.
3. Click the Genotyping Annotations tab (Figure 4.13).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
48
Figure 4.13 Options dialog box, Genotyping Annotations tab
4. Select the array set from the drop-down list (Figure 4.14).
Figure 4.14 Selecting Array Set
5. Click the Browse button
.
The Select an Annotation file dialog box opens (Figure 4.15).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
49
Figure 4.15 Select an annotation file dialog box
6. Select the desired annotation file in the list and click OK in the Select an annotation file dialog box.
7.
Click OK in the Options dialog box.
The selected annotation file is used as the default file
Setting Proxy Server Access
This configuration should only be done if the user‘s system has to go through a proxy server to access
Affymetrix NetAffx server. Please contact your IT department if you do not know or are not sure
about the answer to this question.
1. From the Edit menu, select Proxy Configuration… (Figure 4.16).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
50
Figure 4.16 Proxy Configuration menu item
The Proxy Server Settings dialog appears (Figure 4.17). By default, it has ‗Use System Proxy‘
option selected.
Figure 4.17 Proxy Server Settings
2. Select ‗Use Custom Proxy‘ and enters the proxy server address and port for their proxy server.
3. Click OK.
GTC software validates the entries for the proxy server address and port.
If either the proxy server address or the port is left blank, the following dialog box pops up
(Figure 4.18).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
51
Figure 4.18 Blank Address or port notice
Proxy port cannot be greater than 65535. Otherwise, the following dialog box will pop up
(Figure 4.19).
Figure 4.19 Incorrect port value notice
If the proxy server address or port is incorrect, the following dialog box pops up (Figure 4.20).
Figure 4.20 Unable to connect to the remote server notice
Click OK to return to the Proxy Server Settings dialog box (Figure 4.17).
If you then click Cancel on the ‗Proxy Server Settings‘ dialog box, GTC software exits proxy server
configuration and defaults to the previous successful setting.
Once the proxy server address and port validation is successful and the server requires user
authentication, the following ‗Credentials‘ dialog pops up (Figure 4.21.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
52
Figure 4.21 Proxy Server Credentials dialog box
5. The user enters the user id and password for the proxy server. User clicks OK.
Please note that this user id and password is not the same ID and password used to connect
to the Affymetrix NetAffx server
If validation fails, the following dialog box pops up (Figure 4.22).
Figure 4.22 Proxy Authentication Error notice
Click OK to return to the ‗Credentials‘ dialog box (Figure 4.21).
If the user clicks ‗Cancel‘ on the ‗Credentials‘ dialog box, the following dialog box pops up
(Figure 4.23).
Figure 4.23 Offline mode notice
GTC software cannot download library and annotation files from the Affymetrix NetAffx server.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
53
Once the proxy server userid/password validation succeeds, GTC software can download library and
annotation files from the Affymetrix NetAffx server for the rest of the user session. The Proxy
password must be entered at the next start of GTC software.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
54
Chapter 5:
Workspaces & Data Sets
To get started using Genotyping Console, you will create a workspace and add a data set(s) consisting of
a collection of the following types of files for analysis and examination:

Sample files (ARR/XML)

Intensity files (CEL)

Genotyping files (CHP)

Copy number (CNCHP), LOH (LOHCHP), and/or copy number segment files (cn_segments)/copy
number custom region files (custom_regions)

Copy number variation files (CNVCHP)
The files in the workspace are organized in data sets and SNP lists (Figure 5.1).
Figure 5.1 Data tree with workspace and data set with data
Data sets contain:

Sample Attributes

Intensity Data

Genotype Results

Copy Number/LOH results (if available)

Copy Number Variation results (if available)

Reports
The workspace file stores the locations of the data files, not a copy of the data files themselves. Only one
user can have a workspace open at one time. If other users need to have access to the same data files,
they can either make a personal copy of a Workspace file that is not in use, or create a new workspace
and add the same data files to the new workspace. Simultaneous genotyping of the same set of CEL files
within two workspaces is not recommended.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
55
Creating a new workspace and loading it with data files requires the following sets of steps:
1. Creating the workspace (page 56)
2. Creating one or more data sets in the workspace (page 58)
3. Adding data from the appropriate array type to the selected data set (page 59)
This chapter also describes:

Opening a Created Workspace File (page 67)

Viewing the Location of Data Files (page 69)

Removing Data from a Data Set (page 72)

Viewing attributes in the Sample Attributes Table (page 74)

Editing Sample Attributes (page 75)

Locating Missing Data (page 78)

Sharing Data (page 81)
Note: GCOS users must use DTT v1.1, using the Flat File option, to transfer files to be
analyzed by Genotyping Console from the GCOS database to an independent folder, in order
to retain all sample attributes. More detailed instructions can be found at www.affymetrix.com.
Note: Affymetrix recommends that you do not use long file names for the .CEL and .CHP files,
since these long names can cause display problems in the Heat Map Viewer. The status bar in
the Heat Map Viewer will not be able to display all the information if the CNCHP and CNVCHP
file names (derived from the .CEL file names) are too long.
Note: GTC 4.1 workspaces cannot be opened in earlier version of GTC. Workspaces from
earlier versions of GTC can be opened in GTC 4.1, but then cannot be opened again in earlier
versions of GTC.
Creating a New Workspace
If you create a new workspace, Genotyping Console will also prompt you to:
1.
Create a new data set (page 58).
2.
Select data to add to the data set (page 59).
To create a new workspace:
1. Do one of the following:
a. Launch GTC and create a user profile, if necessary.
See Starting Genotyping Console (page 13).
The Workspace dialog box opens (Figure 5.2).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
56
Figure 5.2 Workspace dialog box
b. Select the Create New Workspace radio button and select OK.
The Save As dialog box opens (Figure 5.3).
Or:
a. Close all workspaces in GTC.
Note: Only one workspace can be opened at a time.
b. From the File menu, select New Workspace; or
Click the New Workspace button
in the tool bar.
The Save As dialog box opens (Figure 5.3).
Figure 5.3 Save As dialog box
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
57
2. Use the Save As dialog box navigation tools to find or create a folder for the workspace.
3. Enter the Workspace name in the File name box.
4. Click Save.
The Workspace description dialog box opens (Figure 5.4).
Figure 5.4 Workspace description dialog box
5. Enter a description of the Workspace by typing in the Description window (optional).
6. Click OK.
GTC prompts you to create a Data Set (see Creating a Data Set (page 58).
Creating a Data Set
To create a new data set in a workspace:
1. Do one of the following:
-
Click the Create Data Set shortcut
-
Right-click the Data Sets node in the tree and select Create Data Set; or
-
From the Workspace menu, select Data Sets > Create Data Set.
on the main tool bar, or
The Create New Data Set dialog box opens (Figure 5.5).
Figure 5.5 Create New Data Set dialog box
Note: This dialog box opens automatically when you have finished creating a new workspace.
2. Enter a name for the data set.
3. Select the array type for the new Data Set from the Array drop-down list (Figure 5.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
58
Figure 5.6 Create New Data Set dialog box, Array drop-down list
3. Click OK.
Note: Data Sets can only contain files which belong to the same array type. For example, a
GenomeWideSNP_5 Data Set cannot contain data from the GenomeWideSNP_6 array. If you
wish to have data from multiple arrays in one Workspace, you need to create at least one Data
Set for each array type.
Note: For Human Mapping 100K/500K, you can include arrays from both enzyme sets (for
example, Mapping 250K_Nsp and Mapping250K_Sty for a set of 500K arrays) in the same data
set. If you select a CEL intensity group that contains both types of arrays, the resulting
genotyping data will be divided into two results sets, one for each enzyme set.
After you create a data set, the software will automatically prompt you to add data to this data set. See
Adding Data to a Data Set (below) for more information.
Adding Data to a Data Set
Note: Only data files (ARR/XML, CEL, or CHP) generated by Affymetrix  software or GeneChip
compatible software partners can be imported into Genotyping Console. Any supported data
files that are edited outside of these software packages may cause import to fail or
Genotyping Console software to crash.
Note: Affymetrix recommends using data files in AGCC format, as there is only limited support
for GCOS files. For example, editing of XML sample attributes is not supported. Also, CHP
files that are generated by Genotype Console and then imported into another workspace will
not include sample attribute information if the CHP files were generated from GCOS-format
CEL files. Affymetrix recommends using the Data Transfer Tool (DTT v1.1.1, provided with
GCOS) Flat File transfer out option to create a copy of the XML and CEL files for use by
Genotyping Console. For more information, go to:
http://www.affymetrix.com/support/downloads/manuals/data_transfer_tool_user_guide.pdf or
www.affymetrix.com; then to Support/Technical/Tutorial/GCOS.
To add ARR/XML, CEL, and/or CHP files to a existing data set:
1. Do one of the following:
-
Right click the data set in the tree and select Add Data on the shortcut menu (Figure 5.7).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
59
Figure 5.7 Data set shortcut menu
-
Click on the Add Data shortcut
-
From the Data Sets menu, select Add Data.
-
Use the CTRL-A shortcut.
on the main tool bar.
If more than one data set is available, the Select a data set dialog box opens (Figure 5.8).
Figure 5.8 Select a data set dialog box
2. Select the data set from the list and click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
60
The Add Data to [data set name] dialog box opens (Figure 5.9).
Figure 5.9 Add Data to [data set name] dialog box
Note: This dialog box appears automatically when you have finished creating a new data set.
The Add Data dialog box provides a set of options for adding data to a data set.
3. Select the data type (ARR/XML, CEL and GQC, and/or CHP) to add to the newly created Data Set
using the options described in Table 5.1.
Table 5.1 Add data options
Select data to add to Data Set
Description
Select Files radio buttons
Add files selected from a directory to the data set.
Select Directory radio button
Add all files in a selected directory to the data set.
Sample Files (ARR, XML)
If selected, Genotyping Console will add user-selected sample files to the Data Set.
These files can be in either AGCC format (ARR, preferred) or GCOS format (XML).
Intensity and QC Files
(CEL,GQC)
If selected, Genotyping Console will add user-selected Intensity (CEL) and associated
Genotyping Console QC files (GQC) to the Data Set.
Batch Genotype Results folder
(CHP)
If selected, Genotyping Console software will add CHP files in the user-selected folder.
If the CHP files are not from the same batch genotyping operation, they will be
separated into multiple Genotype Result groups.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
61
Select data to add to Data Set
Description
Batch Copy Number/LOH
Results folder (CNCHP,
LOHCHP, CN_SEGMENTS,
CUSTOM_REGIONS)
If selected, Genotyping Console software will add CNCHP and/or LOHCHP and
CN_SEGMENTS and CUSTOM_REGIONS files in the user-selected folder.
Batch Copy Number Variation
Results folder (CNVCHP)
If selected, Genotyping Console software will add CNVCHP files in the user-selected
folder.
If you want to select an entire directory, click the Select Directory radio button.
Note: When loading a large set of files, it is recommended that you use the “Select Directory”
option, load all contained files, and then optionally remove undesired files after import.
Windows has a fixed buffer that limits how many files can be returned to the application using
the “Select Files” option. It is possible to select more files than the Windows buffer causing
only a subset of the files to be returned. The maximum number of files varies. As an example,
when trying to add 800 ARR and CEL files to the Data Set at one time, although all files could
be selected only a subset are actually added to the Workspace.
4. Check-mark any automated steps that should also occur, such as auto-add data or auto-QC intensity
files using the options described in Table 5.2.
Table 5.2 Automation options
Automation
Description
Auto-add Sample Files
Some CEL files in the Data Set may be missing the associated Sample files. If this
option is selected, Genotyping Console software will look for these Sample files in the
same folder as the associated CEL files, and add them to the Data Set.
Auto-add Intensity and QC Files
Some sample files in the data set may be missing the associated CEL and QC files. If
this option is selected, Genotyping Console will look for these CEL files in the same
folder as the associated sample files, and add them to the data set. When a CEL file is
added to the data set, Genotyping Console software will also load the associated QC
file (.gqc), if it exists in the same folder as the CEL file.
Auto-QC Intensity Files
Genotyping Console software will automatically initiate QC analysis of imported CEL
files that do not include QC information or are not associated with a QC file (.gqc),
provided the necessary library files are present in the library folder.
5. Click OK.
Note: You must have write access to the folder in which the CEL files are located for GTC to
be able to write QC information. If you only have read access, you must first copy the data to a
folder where you have write access.
Note: Genotyping Console will only add files to the data set that use the same array type as
the data set.
The next steps depend upon the types of data you wish to import and the options you have selected
for the import:
-
Importing XML/ARR/CEL/GQC files by Selecting the Directory (below)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
62
-
Importing XML/ARR/CEL/GQC files by Selecting Individual Files (page 63)
-
Selecting CHP Data (page 64)
Importing XML/ARR/CEL/GQC files by Selecting the Directory
If you have chosen to select the directory containing the files you wish to import, the Select the intensity
data folder dialog box opens (Figure 5.10).
Figure 5.10 Select the intensity data folder dialog box

Browse to the folder with the data you wish to import and click OK.
If you are importing CHP files, another Browse for Folder dialog box opens, asking you to select the
appropriate folder for the results. See Selecting CHP Data (page 64).
If you are not importing CHP files, the loading progress bar displays the progress of the import. See
Viewing the Loading Progress (page 66).
Note: When loading a large set of files, it is recommended that you use the “Select Directory”
option, load all contained files, and then optionally remove undesired files after import.
Windows has a fixed buffer that limits how many files can be returned to the application using
the “Select Files” option. It is possible to select more files than the Windows buffer causing
only a subset of the files to be returned. The maximum number of files varies. As an example,
when trying to add 800 ARR and CEL files to the Data Set at one time, although all files could
be selected only a subset are actually added to the Workspace.
Importing XML/ARR/CEL/GQC files by Selecting Individual Files
If you choose to select individual Sample files and/or Intensity and QC files, the Select files to add to the
data set dialog box opens (Figure 5.11).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
63
Figure 5.11 Select files to add to the data set

Select the files to be imported and click Open.
Tip: You can quickly select all files in a folder with the CTRL-A shortcut.
If you are importing CHP files, another Browse for Folder dialog box opens, asking you to select the
appropriate folder for the results. See Selecting CHP Data (page 64).
If you are not importing CHP files, the loading progress bar displays the progress of the import. See
Viewing the Loading Progress (page 66).
The selected ARR/XML/CEL/GQC files will be added to the data set only if they are:
-
From the same array type as is used by the data set
-
Not already in the data set
Note: When loading a large set of files, it is recommended that you use the “Select Directory”
option, load all contained files, and then optionally remove undesired files after import.
Note: If you selected “Auto-QC Intensity Files” and the required library files are not found, a
warning message will appear and all import actions will be aborted. See Library and
Annotation Files on page 39 for information on downloading and setting up the library path.
Selecting CHP Data
After selecting the intensity data directory or files for import, you will be prompted to select batch results
folders for the following results files:

Genotype analysis results files (.CHP)

Copy Number/Loss of Heterozygosity (CN/LOH) analysis results files (CNCHP and LOHCHP)

Copy Number Variation (CNV) analysis results files (.CNVCHP)
Depending upon the array type, not all of these file types may be available.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
64
After selecting intensity data for loading:
An appropriate Browse For Folder dialog box opens (Figure 5.12).
Figure 5.12 Browse For Folder dialog box
1. Browse to the folder containing the CHP files you wish to load and click OK.
You do not have the option of selecting individual CHP files.
Genotyping Console scans the set of CHP files in the selected folder (subfolders are ignored). If all
the CHP files belong to the same batch analysis operation, and they belong to the same array used
by the Data Set, then you will be asked to provide a name for the added Results Group (Figure 5.13).
Figure 5.13 Enter name
If the CHPs belong to multiple batch operations, Genotyping Console will import them as multiple
Groups. You will be asked to provide a name for each Group.
Note: By default, the Genotype Results, Copy Number/LOH Results and Copy Number
Variation Results Group names are based on the folder name. If you later rename a Results
Group name, you will need to use the Windows files system to rename the actual folder if you
wish them to continue to have the same name. You can view the actual folder names by using
the file location features. See Viewing the Location of Data Files (page 69).
2. Click OK,
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
65
If there are other types of results files available, the appropriate browse to window opens and you will
be prompted for a batch results name after selecting the directory.
If there are no other types of results files available, the data import starts and the Loading Progress
dialog box is displayed (below).
Viewing the Loading Progress
The progress of loading the files into the data set is displayed in a dialog box with a progress bar
(Figure 5.14)
Figure 5.14 Loading files progress bar
When the loading is complete, the new data set is displayed in the data tree (Figure 5.15).
Note: Based on the type(s) of data added, the Sample Attribute Table, the Intensity QC Table,
and/or CHP Summary Table will automatically open, displaying information about the existing
and added files. The Status Message Pane will report any problems with the Add Data step.
Figure 5.15 Data tree with workspace and data set with data
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
66
Opening a Created Workspace File
There are two ways to open a workspace file that has been previously created:

In Windows Explorer, double-click the workspace file (.gtc_workspace). This will open the workspace
in a new session of Genotyping Console.

You can also open an existing workspace in Genotyping Console, if no workspace is currently open.
To open a workspace In Genotyping Console:
1. Do one of the following:
-
Select File/Open Workspace
-
Use the shortcut CTRL-O
-
Click the Open Workspace shortcut
on the main tool bar
The Open dialog box opens (Figure 5.16).
Figure 5.16 Open dialog box
2. Browse to the location of the workspace file, select the file, and click Open.
The Workspace dialog box opens and displays the description and data set information (Figure 5.17).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
67
Figure 5.17 Workspace dialog box
The Verify file locations option will confirm all data file locations upon opening the Workspace. If any
files are missing or have been deleted, you will be prompted to either update the file paths or ignore
the missing files. See Missing Data (page 78) for more information.
Click Show Locations to display the full path names of the data files (Figure 5.18).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
68
Figure 5.18 Workspace file locations displayed
Viewing the Location of Data Files
You can view the location of the data files using one of the following methods:
1. From the Workspace Menu, select Properties > Show Information; or
Press Control + I.
The Workspace dialog box opens (Figure 5.19).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
69
Figure 5.19 Workspace dialog box
2. Click Show Location.
The File Locations are displayed in the File Locations box (Figure 5.20).
Figure 5.20 File Locations displayed
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
70
You can also right-click a data set in the directory tree and select Show File Locations on the shortcut
menu (Figure 5.21).
Figure 5.21 Workspace shortcut menu
The Data Set window displays the file locations for the files in the workspace (Figure 5.22).
Figure 5.22 Locations of data set files
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
71
Removing Data from a Data Set
In Genotyping Console, data can be removed by either removing the entire Data Set or by removing subsets of files of a particular type of data (e.g. attribute (ARR/XML) files only, CEL intensity files only or CHP
batch results).
To remove the entire Data Set:

Right-click on a Data Set and select Remove Data Set (Figure 5.23).
This will remove all data files for that Data Set from the Workspace.
Figure 5.23 Shortcut menu, Remove Data Set
Note: Removing all data or sub-sets of data from a workspace or data set does not delete the
files from the file system, just the pointers to the data used by GTC.
Both individual as well as sets of data files can be removed from the Workspace in Genotyping Console.
The following sections explain how to:

Remove Sample Files from a Data Set (below)

Remove Intensity Files from a Data Set (page 73)

Remove Genotyping, Copy Number/LOH or Copy Number Variation Results from a Data Set
(page 74)
Remove Sample Files from a Data Set
To remove Sample (ARR/XML) files:
1. Open the Sample Attribute Table and highlight the rows (or ARR/XML files) to be removed.
2. Right-click and select Remove Selected Data from Data Set (Figure 5.24).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
72
Figure 5.24 Remove sample files from a data set
The software prompts you to confirm the deletion. The highlighted rows (ARR/XML files) will be
removed from the Data Set.
Note: If there are associated CEL and/or CHP files with these ARR files, they will not be
removed from the Data Set.
Remove Intensity Files from a Data Set
To remove intensity (CEL) files:
1. Open the Intensity QC Table and highlight the rows (or CEL files) to be removed.
2. Right-click and select Remove Selected Data from Data Set (Figure 5.25).
Figure 5.25 Remove sample files from a data set
The software prompts you to confirm the deletion. The highlighted rows (CEL files) will be removed
from the Data Set.
Note: If there are associated ARR/XML and/or CHP files with these CEL files, they will not be
removed from the Data Set.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
73
Remove Genotyping, Copy Number/LOH or Copy Number Variation Results from a
Data Set
To remove Genotyping, Copy Number/LOH (CHP/CNCHP/LOHCHP) or Copy Number Variation
(CNVCHP) files:

Right-click on the batch of results and select Remove Batch/Results (Figure 5.26).
Figure 5.26 Remove Copy Number/LOH results group from a data set
The software prompts you to confirm the deletion.
Note: In Genotyping Console, individual CHP files cannot be removed; only entire batch
results can be removed. If there are associated ARR/XML and/or CEL files with these CHP
files, they will not be removed from the data set.
Sample Attributes Table
The Sample Attributes Table contains attribute information from the ARR/XML file. See Table Features
(page 221) for more information on customizing the table view.
The columns displayed will vary depending on whether this data was:

Generated by AGCC

Generated by GCOS

Converted from GCOS to AGCC format
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
74
The attributes displayed in the table also depend upon the templates used in creating the sample file.
®
®
®
See the Affymetrix GeneChip Command Console User Manual for more information on ARR files and
attributes.
To open the Sample Attributes table:

Double-click the Sample Attributes icon
in the data tree. Alternately, from the Workspace Menu,
select Sample Attributes > Show Sample Attributes.
The Sample Attributes table displays the ARR/XML file information for the files in the Workspace
(Figure 5.27).
Figure 5.27 Sample Attributes table for the SNP 6 data set
By default, columns are displayed for every available attribute type in the ARR file.
See Table Features (page 221) for more information about customizing the displayed columns.
The file attributes listed in Table 5.3 are displayed in the table, as well as the attributes in the file.
Table 5.3 Sample Attribute Table columns
Column Name
Description
File
ARR/XML file name
# CELs Per Sample
Number of CEL files in this data set for the ARR/XML file
File Date
The date and time the ARR/XML files was last modified.
You can edit sample attributes for AGCC sample files (ARR) (see below).
Editing Sample Attributes
Only AGCC sample files (ARR) can be edited in Genotyping Console software.
To make full use of the features in Genotype Console, data files should be in the Command Console
format. Affymetrix provides the Data Exchange Console software (DEC) to convert your GCOS formatted
data to Command Console format. The conversion to the new format will embed a unique file identifier
that is used to track the relationship between ARR, CEL, and CHP files, removing the dependence on the
file names to track relationships.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
75
Note: The sample attributes contained in the XML files created by the Data Transfer Tool
cannot be edited within Genotyping Console. If edits are needed, please edit the information in
GCOS or GTYPE prior to using the Data Transfer Tool.
®
®
®
See the Affymetrix GeneChip Command Console User Manual for more information on ARR files and
attributes.
To edit an ARR file in Genotyping Console:
1. From the File menu, select Open/Edit Sample File.
The Open dialog box opens (Figure 5.28).
Figure 5.28 Open dialog box
2. Browse to the directory that contains the ARR file to be edited.
3. Select the file and select Open.
The Attribute Editor opens in Genotyping Console (Figure 5.29).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
76
Figure 5.29 Attribute Editor
4. Select the attribute to edit (e.g. edit the gender).
The appropriate Enter New Attribute Value dialog box opens (Figure 5.30 through Figure 5.32)
5. Enter a new value for the attribute and click OK.
-
If the attribute is a text attribute (Figure 5.30), type the value of the attribute in the Enter New
Attribute Value window.
Figure 5.30 Enter New Attribute Value dialog box for single-select attribute
-
If the attribute is a date (Figure 5.31), then select the correct date from the calendar.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
77
Figure 5.31 Enter New Attribute Value dialog box for single-select attribute
-
If the attribute is a single select attribute (enables you to select a single value from a controlled
vocabulary list) (Figure 5.32), select the correct value from the pull-down menu.
Figure 5.32 Enter New Attribute Value dialog box for single-select attribute
Genotyping Console will prompt you to save the changes.
Note: Only one ARR file can be edited at a time. To batch edit ARR files, use the AGCC Portal.
Note: ARR files are updated by the attribute editor. If the ARR file is in a directory that is
monitored by AGCC then changes made in Genotyping Console will also be reflected in
AGCC.
Locating Missing Data
When opening a workspace, Genotyping Console software will confirm all of the locations for all files in
the specified workspace as well as the workspace file itself.
If any file has been moved or deleted, including the workspace file, Genotyping Console software will
prompt you to update the file locations or ignore the missing file(s).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
78
If the workspace file has been moved:
1. The Workspace file has been moved dialog box appears (Figure 5.33).
Figure 5.33 Workspace file has been moved dialog box
-
If you click Yes, you will be asked to select the new location for each data file in the workspace.
The Find File dialog box (Figure 5.34) opens for each data file in the workspace.
-
If you click No, you will only be asked to select the location of missing files.
If the data files haven‘t been moved, you won‘t be asked for locations.
If you are asked for the location of a missing data file:
1. The Find dialog box opens (Figure 5.34).
Figure 5.34 Find file dialog box
The Find dialog box options include:
-
Directory Search: Locate the directory which contains this file
-
File search: Locate the file itself
-
Ignore: Ignore this file and open the workspace without it
-
Ignore All: Ignore all missing files
2. Select the desired option and click OK.
If the Ignore or Ignore All option is selected, the file(s) will be flagged as missing in the software until
they are either deleted from the workspace or the path is corrected. This may result in data being
missing from data tables.
If you selected Directory Search, see Directory Search (below).
If you selected File Search, see File Search (page 80).
Note: If a workspace is already opened, go to Workspace/Verify File Locations to perform this
check.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
79
Directory Search
If the directory search option is chosen:
1. The Browse for Folder dialog box opens (Figure 5.35).
Figure 5.35 Browse For Folder dialog box
2. Browse to the folder containing the specified missing file and click OK.
Note: Genotyping Console will look for the missing file in that directory. If there are additional
files from the specified Workspace in this new directory, their paths will also be updated.
File Search
If the file search option is chosen:
1. The File Search dialog box opens (Figure 5.36).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
80
Figure 5.36 File search dialog box
2. Browse to the correct folder and select the missing file.
3. Click OK.
Note: In the file search option, Genotyping Console will add the specified file to the
Workspace. You will be prompted to locate each missing file.
Sharing Data
If multiple users in the same organization want to share the same workspace from different computers,
you may decide to place the Workspace file in a shared folder. However, only one user can have the
same workspace file open at a time. Also note that processing data and viewing some tables will be
significantly faster if the data files are on the same computer as the Genotyping Console.
The Zip Workspace feature in GTC gathers all of the files in a selected workspace (as well as the
workspace file) into a single package file. The package file can then be used to easily move the entire
workspace from one location to another. The Zip Workspace feature will modify the data file locations in
the workspace file when unpacking the file.
Note: Files not part of the workspace, such as Segment Summary reports and Custom Region
Summary reports are not packaged as part of the zipped workspace. GTC 4.0 and higher
versions cannot unzip workspace zip files > 4 GB that were created in earlier versions of GTC.
However, GTC 4.1 can zip and unzip workspaces created within GTC 4.0 and higher versions
with a zip file size > 4 GB.
Alternately, individual data files can be shared by simply copying the files to a new location and
generating a new Workspace file.
If you decide to simply move the data files and/or the Workspace file, Genotyping Console will ask you
locate the missing files. See Locating Missing Data (page 78) for more information.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
81
Using Zip Workspace
To zip a workspace:
1. From the File menu, select Zip Workspace.
The Select name of package to save dialog box opens (Figure 5.37).
Figure 5.37 Select name of package to save dialog box
2. Enter a name for the workspace you wish to save in the File name box.
3. Use the navigation tools in the dialog box tool bar to select a location for the packed workspace.
4. Click Save.
The Workspace Zip progress indicator appears (Figure 5.38).
Figure 5.38 Workspace Zip Progress bar
The progress indicator provides an estimate of the time needed to finish the packing. When packing is
finished, the package appears in the location specified and can be archived or shared with another user.
To unzip a workspace package:
1. From the File menu, select Unzip Workspace.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
82
The Select Workspace Package to unpack dialog box opens (Figure 5.39).
Figure 5.39 Selecting a workspace package to unpack dialog box
2. Select the workspace package you wish to unzip and click Open.
The Unpack Location dialog box opens (Figure 5.40).
Figure 5.40 Select a folder to unpack the workspace
3. Browse to the folder where you wish to unzip the files in the workspace package and click OK.
The Unpacking Progress indicator appears (Figure 5.41).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
83
Figure 5.41 Unpacking progress indicator
When the unpacking operation is finished, the progress indicator disappears. You can now open the
workspace in GTC.
Changing Zip Compression Level
You can change the settings for the zip operation to balance the time it takes to create a zip file and the
size of the file.
To change the zip operation settings:
1. Click the Options
tool bar shortcut; or
from the File menu, select Option.
The Options dialog box appears.
2. Click the ZIP tab (Figure 5.42).
Figure 5.42 Zip options
3. Select the Compression Level setting from the drop-down list (Figure 5.43).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
84
Figure 5.43 Compression Level options
4. Click OK in the Options dialog box.
The selected setting will be used for creating ZIP files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
85
Chapter 6:
Intensity Quality Control for Genotyping
Analysis
Affymetrix has developed several control features to help researchers establish quality control processes
for genotyping analyses. Researchers are encouraged to monitor these controls on a regular basis to
assess assay data quality. These features include:

Intensity QC Metrics

Signature SNPs genotype calls
This chapter provides a description of the intensity QC features in the following sections:

Performing Intensity QC (below)

Modifying QC Thresholds ( page 91)

Custom Groups of Intensity QC Files (page 94)

Graphing QC Results (page 100)

Signature SNPs (page 101)
Note: Intensity QC and Signature SNPs are not available for all array types.
The overall QC operations when performing Genotyping are described in Genotyping QC Steps (page
142).
Performing Intensity QC
The QC analysis provides an estimate of the overall quality for a sample based on the QC algorithm
shown in Table 6.1. This analysis provides a quick preview of data quality prior to performing a full
clustering analysis.
Table 6.1 Intensity QC information
Array
Number of SNPs used for QC
Human Mapping 100K Array:
Mapping50K_Hind240
All
Mapping 50K_Xba240
All
Human Mapping 500K Array:
QC Algorithm
Dynamic Model (DM) algorithm with QC Call
Rate
Dynamic Model (DM) algorithm with QC Call
Rate
Mapping250K_Nsp
All
Mapping250K_Sty
All
Genome-Wide Human SNP Array 5.0
3022
Dynamic Model (DM) algorithm with QC Call
rate
Genome-Wide Human SNP Array 6.0
3022
Contrast QC (CQC) is the primary QC
method, as Dynamic Model (DM) algorithm
was also used for QC
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
86
Array
Number of SNPs used for QC
QC Algorithm
Axiom™ Human Arrays:
4070 non-polymorphic probes from
22 autosomal chromosomes
Dish QC (DQC) followed by measuring the
genotype cluster call rate as generated
nd
during 2 pass genotyping with the Axiom
GT1 algorithm
5115 non-polymorphic probes from
29 autosomal chromosomes
Dish QC (DQC) followed by measuring the
genotype cluster call rate as generated
nd
during 2 pass genotyping with the Axiom
GT1 algorithm


Axiom Genome-Wide Human Arrays
 Axiom Genome-Wide CEU 1
Array
 Axiom Genome-Wide ASI 1
Array
 Axiom Genome-Wide YRI Array
set
Axiom myDesign Genotyping Arrays
Axiom™ Genome-Wide BOS 1 Array
Note: Intensity QC is not available for Rat and Mouse arrays.
Note: GTC looks for existing QC information in the CEL file first, then a QC file (.gqc). If
available, GTC uses this QC information and does not execute the QC algorithm. If the
information is not available, GTC performs intensity QC and stores the information in the CEL
file if it is an AGCC CEL file or in the gqc file, if it is a GCOS CEL file. However, it is required to
perform intensity QC again for SNP 6.0 arrays with QC information generated in GTC 2.0 due
to a QC algorithm update since GTC 2.1.
Only samples that meet QC thresholds should be genotyped.
Note: It is recommended that samples not meeting the QC thresholds be re-hybridized or
rescanned.
Note: The intensity QC metric is well-correlated with clustering performance and is an effective
single-sample metric for deciding what samples should be used in downstream clustering.
However the correlation between the metric and genotyping performance is not perfect and
there will occasionally be a sample that passes the metric but which has sub-optimal
genotyping performance. See the following sections for recommendations on additional persample QC to perform after the clustering analysis.
-
Two-Step Genotyping Workflow (page 140)
-
Chapter 9: Using the SNP Cluster Graph (page 168)
Note: The majority of the time Genome-Wide Human SNP Array 5.0 samples that meet the
default QC Call Rate criteria will have a BRLMM-P genotyping call rate of at least 96% and an
accuracy of at least 99% (with average performance significantly higher) when analyzed with
Genotyping Console at default settings.
Note: The majority of the time Genome-Wide Human SNP Array 6.0 samples that meet the
default Contrast QC criteria will have a Birdseed genotyping call rate of at least 97% and an
accuracy of at least 99% (with average performance significantly higher) when analyzed with
Genotyping Console at default settings.
Note: You will need to run QC on Axiom CEL files even if they have already been QCed in
GTC 4.0. GTC 4.1 provides information on the reagent version used to process the arrays, and
this information is required to perform Genotyping analysis on Axiom data in GTC 4.1.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
87
QC can be automatically initiated upon import of CEL files by selecting the Auto-QC Intensity Files option.
See Adding Data (page 59).
Gender analysis is also performed during the QC step. It provides a gender call that will be used to select
models for the X and Y chromosomes during genotyping. Different processes are used for the gender
call, depending upon the type of array being analyzed. See Gender Calling in GTC (page 384) for more
details.
To initiate QC on CEL files already in the workspace:
1. Do one of the following:
-
Select an intensity group from the tree (e.g. All) (Figure 6.1).
Figure 6.1 Starting QC from Data Tree right-click menu
-
Select row(s) from an open Intensity QC table (Figure 6.2).
2. Right-click and select Perform QC.
Figure 6.2 Starting QC from Intensity QC table
If you have already performed QC on the selected data, the following notice appears:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
88
Figure 6.3 Redo QC notice
Click Yes to proceed with the QC.
When the QC is completed the results will automatically be displayed in the Intensity QC table (see
Intensity QC Tables on page 94).
The Results will automatically be parsed into 3 groups:
-
―All‖ group contains results for all Intensity files in the Data Set (both newly added and existing
files).
-
―In Bounds‖ group contains the results for Intensity files which pass the QC Threshold(s).
-
―Out of Bounds‖ group contains the results for all Intensity files which do not meet the QC
Threshold(s).
Note: After performing QC on Axiom CEL files, you will need to create intensity data groups to
group the data from arrays processed with Reagent Version 1 and Reagent Version 2 into
separate groups. See Creating Custom Intensity Data Groups using Intensity QC Data (page
97) for more information.
By default, the In and Out of Bounds grouping is based upon the default QC parameter for the array type
(Table 6.2):
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
89
Table 6.2 QC Parameters for different Array types
Array
QC Parameter
Human Mapping 100K Array:
 Mapping50K_Hind240
 Mapping 50K_Xba240
Human Mapping 500K Array:
 Mapping250K_Nsp
 Mapping250K_Sty
Genome-Wide Human SNP Array 5.0
Genome-Wide Human SNP Array 6.0
QC Call Rate (see page 93)
Contrast QC (see page 94)
Axiom Genotyping Array plates, including:



Axiom Genome-Wide Human Arrays
Axiom myDesign Genotyping Arrays
Axiom Genome-Wide BOS 1 Array
DISH QC (see page 94)
To modify, see Modifying QC Thresholds (page 91).
To view the QC results for all data in the data set, open the Intensity QC table for all data. Out of bounds
samples will be flagged with a red highlight in the QC Call Rate column (Figure 6.4).
Figure 6.4 Intensity QC table showing out-of-bounds data (Dish QC threshold has been changed
from default)
For more information, see:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
90

Intensity QC Table for Axiom™ Data (default view) (page 94)

Intensity QC Table for SNP 6.0 Data (default view) (page 95)

Intensity QC Table for Human Mapping 100K/500K & SNP 5.0 Data (default view) (page 97)
For more information on displaying data in the Intensity QC Table see Table and Graph Features (page
221).
Note: For faster performance, Affymetrix recommends performing QC analysis with all files
stored locally.
To review the QC Results at any time:

Right-click on an Intensity Group and select Show Intensity QC Table (Figure 6.5) or double click on
an Intensity group in the data tree.
Figure 6.5 Opening the Intensity QC table
The Intensity QC table (page 94) contains the QC results. If the QC step is skipped, some or all of the
Intensity files may have no QC results (the GQC file is missing or not updated with Contrast QC values, or
the QC information is missing from the CEL file). If no intensity files in the data set have been QCed, the
QC metrics columns will not appear in the Intensity QC table.
Note: The Contrast QC metric, the default metric for the Genome-Wide Human SNP Array 6.0,
is not present in GQC files generated in GTC 2.0 software. SNP Array 6.0 data generated in
GTC 2.0 will need to be re-QCed to generate the Contrast QC data. See the Quality Control
section (page 142) for more information on running the QC step. QC Call Rate data will also be
(re)generated during the QC step and available in the All Columns View, or by making a
custom view. See Table Features (page 221) for more information on customizing the table
view. Choosing All Columns View displays all data columns.
Modifying QC Thresholds
Genotyping Console maintains default thresholds for QC metrics, and will highlight in the Intensity QC
tables the metrics which are outside of the threshold values. You can modify the QC thresholds as
needed.
To modify the QC threshold options:
1. Click on the QC Thresholds button
on the main tool bar: or
From the Edit menu, select QC Thresholds.
The QC Thresholds dialog box opens (Figure 6.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
91
Figure 6.6 QC Thresholds dialog box
2. Select the array type to be modified (Figure 6.7).
Figure 6.7 Selecting array type
3. Select the metric, the comparison operator (less than (<), less than or equal to (), greater than (>),
greater than or equal to (), equal to (=), or not equal to (!=)), and the value (Figure 6.8).
Comparison
operator
Figure 6.8 Changing the threshold
To use a different metric, select the text in the ―Threshold Name‖ cell and type the exact name, casesensitively, of the new metric in this field. For metrics to be applied, they must exist in the Intensity
QC Table (All Columns View).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
92
3. Enter a new Threshold Name if desired:
A. Click Add.
A new row appears in the dialog box (Figure 6.9).
Figure 6.9 New Row added
B. Enter a new threshold name. The metric must exist in the Intensity QC Table (All Columns View).
C. Select a comparison operator.
D. Enter the comparison value.
4. To delete a threshold item, click Remove.
5. Click OK in the QC Thresholds dialog box when you have finished editing the thresholds.
Figure 6.10 Flag in the QC Thresholds dialog box indicating that the QC thresholds have been
changed from the default values
QC Call Rate
QC call rate is the recommended QC metric for:

Genome-wide SNP Array 5.0

Human Mapping 100K Array

Human Mapping 500K Array
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
93
Note: The QC Call Rate threshold has a default value for each array type. If you adjust this
value or add additional metrics to threshold by, a flag will indicate that the thresholds are
different from the defaults (Figure 6.10).
Contrast QC
Note: Contrast QC is the recommended QC metric for the Genome-Wide Human SNP 6.0 array.
The default threshold is >= 0.4 for each sample. If you adjust this value or change the SNP 6.0
QC threshold settings to another metric such as QC Call Rate, or add additional metrics to
threshold by, a flag will indicate that the thresholds are different from the defaults.
Contrast QC is a metric that captures the ability of an experiment to resolve SNP signals into three
genotype clusters. It uses 10,000 random SNP 6.0 SNPs. See Appendix F:Contrast QC for SNP 6.0
Intensity Data (page 389) and Appendix G:Best Practices SNP 6.0 Analysis Workflow (page 391) for
more details.
DISH QC
Dish QC (DQC) is the recommended Genotyping Console QC metric for the Axiom™ Genome-Wide
Array Plates and Axiom myDesign Array Plates in Genotyping Console. The default threshold is greater
than or equal to 0.82 for each sample. For bovine samples, the threshold is 0.95. It operates by
measuring signal at a collection of sites in the genome that are known not to vary from one individual to
the next. Because it monitors non-polymorphic locations, it is known at each position which of the two
channels in the assay should contain signal and which channel should be just background. DQC is a
measure of the extent to which the distribution of signal values separate from background values, with 0
indicating no separation and 1 indicating perfect separation.
DQC is a useful single-sample metric of performance and, under normal circumstances, it correlates well
with genotyping performance. One exception is the case of sample mixing―a sample consisting of
different individuals mixed together can still have a good DQC score, since the signals at nonpolymorphic locations will remain the same in a mixture. Such samples can generally be identified by
having abnormally low genotyping call rates, though they may still have good DQC values.
Intensity QC Tables
The intensity QC table displays different data for different array types:

Intensity QC Table for Axiom™ Data (default view) (below)

Intensity QC Table for SNP 6.0 Data (default view) (page 96)

Intensity QC Table for Human Mapping 100K/500K & SNP 5.0 Data (default view) (page 97)
Intensity QC Table for Axiom™ Data (default view)
The following information can be displayed for Axiom data after running QC in Genotyping Console
(Table 6.3):
Table 6.3 Intensity QC metrics for Axiom data
Column Name
Description
File
CEL file name.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
94
Column Name
Description
Bounds
In Bounds/Out of Bounds indicates whether the CEL file met the specified QC
threshold(s).
Reagent Version
The reagent version used for processing the arrays, based on data intensity
values.
You can only perform batch genotyping analysis on CEL files processed using
the same reagent version.
You can create custom intensity data groups (page 97) to group CEL files
processed using the same reagent version before genotyping analysis.
Dish QC
A QC metric that evaluates the overlap between the two homozygous peaks
(AT versus GC) using normalized intensities of control non-polymorphic probes
from both channels. It is defined as the fraction of AT probes not within two
standard deviations of the GC probes in the contrast space.
Log Difference QC
A cross channel QC metric, defined as mean(log(AT_SBR))/std(log(AT_SBR))
+ mean(log(GC_SBR))/std(log(GC_SBR)), where signal and background are
calculated for control non-polymorphic probes after intensity normalization.
AT Channel FLD
Linear Discriminant for signal and background in the AT channel, defined as
2
(median_of_GC_probe_intensities – median_of_AT_probe_intensities) / [0.5 *
2
2
(Axiom_signal_contrast_AT_B_IQR + Axiom_signal_contrast_AT_S_IQR )].
GC Channel FLD
Linear Discriminant for signal and background in the GC channel, defined as
2
(median_of_GC_probe_intensities – median_of_AT_probe_intensities) / [0.5 *
2
2
(Axiom_signal_contrast_GC_B_IQR + Axiom_signal_contrast_GC_S_IQR )].
Computed Gender
Computed gender of organism sample was taken from (see Appendix E:
Gender Calling in GTC (page 384)).
#CHP/CEL
Number of CHP files in this data set for the specified CEL file.
File Date
The date and time the CEL file was last modified.
Note: See Table Features (page 221) for more information on customizing the table view.
Note: The ligation nucleotide is the nucleotide at the 3‟ end of a solution probe which is the
nucleotide that is ligated to the array probe. The AT channel is the optical channel in which
signal from ligated A or T nucleotides are detected. The GC channel is the optical channel in
which signal from ligated G or C nucleotides are detected. The AT probes are those control
probes that correspond to non-polymorphic genomic positions for which the expected ligation
nucleotide is A or T. The GC probes are those control probes that correspond to nonpolymorphic genomic positions for which the expected ligation nucleotide is G or C.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
95
Intensity QC Table for SNP 6.0 Data (default view)
The following information can be displayed for SNP 6.0 data after running QC in Genotyping Console
(Table 6.4):
Table 6.4 Intensity QC Table metrics for SNP 6.0 data
Column Name
Description
File
CEL file name.
Bounds
In Bounds/Out of Bounds indicates whether the CEL file met the specified QC
threshold(s).
Contrast QC
Computed Contrast QC for all QC SNPs.
Contrast QC (Random)
Contrast QC for 10K random autosomal SNPs .
QC Call Rate
Computed QC Call Rate for all QC SNPs.
Computed Gender
Computed gender. For more details, see Appendix E: Gender Calling, page 384.
# CHP/CEL
Number of CHP files in this data set for the specified CEL file.
File Date
The date and time the CEL file was last modified.
Note: See Table Features (page 221) for more information on customizing the table view.
The Genome-Wide Human SNP Array 6.0 contains SNPs and CN probe sets from two enzyme
sets (Nsp and Sty). Some SNPs and CN probe sets are only present on fragments generated
by one of the enzymes, while other SNPs and CN probe sets are present on fragments
generated from both of the enzymes.
There are situations where a sample may work properly with one enzyme set, but not with the
other.
Contrast QC is broken down by enzyme set to help you evaluate the data for this issue.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
96
Intensity QC Table for Human Mapping 100K/500K & SNP 5.0 Data (default view)
The following information can be displayed for Human Mapping 100K/500K and SNP 5.0 data after
running QC in Genotyping Console (Table 6.5):
Table 6.5 Intensity QC Table metrics for 100K/500K and SNP 5.0 data
Column Name
Description
File
CEL file name.
Bounds
In Bounds/Out of Bounds indicates whether the CEL file met the specified QC threshold(s).
QC Call Rate
Computed QC Call Rate for all QC SNPs.
QC Call Rate (Nsp)
See note below.
QC Call Rate
(Nsp/Sty Overlap)
See note below.
QC Call Rate (Sty)
See note below.
Computed Gender
Computed gender.
For more details, see Appendix E: Gender Calling, page 384.
# CHP/CEL
Number of CHP files in this Data Set for the specified CEL file.
File Date
The date and time the CEL file was last modified.
The Genome-Wide Human SNP Array 5.0 contains SNPs and CN probe sets from two enzyme
sets (Nsp and Sty). Some SNPs and CN probe sets are present on fragmented from one of the
enzyme sets, while other SNPs and CN probe sets are present on fragments generated from
both of the enzymes.
There are situations where a sample may work properly with one enzyme set, but not with the
other.
The QC Call rate is broken down by enzyme set to help you evaluate the data for this issue.
Note: See Table Features (page 221) for more information on customizing the table view.
Creating Custom Intensity Data Groups using Intensity QC Data
Important: Axiom array plates may be processed with more than one reagent version. You can
only perform batch genotyping analysis on CEL files processed using the same reagent
version. You can create custom intensity data groups with CEL files processed using the
same reagent version.
Genotyping Console allows for custom grouping of intensity data (CEL) Files based on Intensity QC
performance.
You can also create custom groups of intensity data files by selecting sample files using:

CHP File data (page 133)

The SNP Cluster Graph (page 185)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
97
This feature enables you to group Axiom CEL files processed using the same reagent version before
genotyping analysis.
To make a custom group of intensity data files:
1. Select the row(s) to be added to the new group from an open Intensity QC table.
See Table Features (page 221) for information on sorting the table by metrics values and selecting
rows.
2. Right-click on the selected rows and select Add Selected Data to Group (Figure 6.11).
Figure 6.11 Add Selected Data to Group
The Select a new or existing data group dialog box opens (Figure 6.12).
Figure 6.12 Select data group
3. Enter a name or select an existing data group in the drop-down list and select OK.
The new group will be displayed in the tree. Custom groups are indicated by white icons, while the
default groups are indicated by green icons (Figure 6.13).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
98
Figure 6.13 Intensity data groups in the GTC data tree
Custom Intensity groups can be re-named by right-clicking on the group and selecting Rename Intensity
Data Group.
Custom Intensity groups can be deleted by right-clicking on the group and selecting Remove Intensity
Data Group.
Note: Removing a custom Intensity Data Group does not remove the data from the Data Set.
To remove Intensity data, see Remove Data from a Data Set (page 72).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
99
Graphing QC Results
In addition to the tabular display of the metrics, the QC results can be displayed in a line graph. The
graphical display is useful in identifying outlier samples.
To open a line graph:

Click on the Line Graph shortcut
on the Intensity QC Table tool bar.
Figure 6.14 Graph of QC data
For more information, see Graph Features (page 227).
Note: Values displayed in tables or exported to a text file are only done with a certain number
of digits after the decimal. Filtering is performed using the full precision stored in the SNP
statistics file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
100
Signature Genotypes
During the QC step in Genotyping Console, a set of SNPs are genotyped using the QC algorithm shown
in Table 6.6. These SNPs can be used to verify a sample‘s identity by comparing the genotype calls to
the SNP calls made using a different technology, for example, genotyping by PCR, or other references.
Table 6.6 Algorithms used to make Signature SNP genotype calls
Array Type
Number of
Signature SNPs
Signature SNP Genotyping Generated Using:
Human Mapping 100K Array
31
Dynamic Model (DM) algorithm
Human Mapping 500K Array
50
Dynamic Model (DM) algorithm
Genome-Wide Human SNP Array 5.0
72
Dynamic Model (DM) algorithm
Genome-Wide Human SNP Array 6.0
72
Contrast QC (CQC) is the primary QC method, as
Dynamic Model (DM) algorithm was also used for QC
Axiom Genome-Wide CEU Array Plate
83
Axiom Genome-Wide ASI Array Plate
88
Dish QC (DQC) followed by measuring the genotyping
nd
call rate as generated during the 2 pass genotyping
with the Axiom GT1 algorithm
116
Axiom Genome-Wide BOS 1 Array
Plate
Dish QC (DQC) followed by measuring the genotyping
nd
call rate as generated during the 2 pass genotyping
with the Axiom GT1 algorithm
To see the Signature SNP genotypes:

Right-click an Intensity QC group and select Show Signature Genotypes (Figure 6.15).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
101
Figure 6.15 Show Signature Genotypes menu item
The Sample Signature table opens showing the genotype calls for the Signature SNPs (Figure 6.16).
Figure 6.16 Sample Signature table with Signature SNP genotypes
By default the following columns are displayed:
File - file name
AFFX-SNP_# - Probe set ID for signature SNP
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
102
Annotations for these signature SNPs can be obtained either from NetAffx, or by first importing a custom
SNP list containing the listed Probe Set IDs. For more information on displaying data in the Sample
Signature Table see Table and Graph Features (page 221).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
103
Chapter 7:
Genotyping Analysis
Genotyping Console 4.1 supports genotyping analysis for the following algorithms and arrays (Table 7.1):
Table 7.1 CHP Algorithms and array types for genotyping analysis
Algorithm
Array Type
BRLMM
Human Mapping 100K Array
Human Mapping 500K Array
BRLMM-P
Genome-Wide Human SNP Array 5.0
Rat and Mouse Arrays
Birdseed v1 or Birdseed v2
Genome-Wide Human SNP Array 6.0
Axiom GT1
Axiom Arrays, including:


Axiom Human Arrays:
 Axiom Genome-Wide Human Arrays
 Axiom Genome-Wide CEU 1 Array
 Axiom Genome-Wide ASI 1 Array
 Axiom Genome-Wide YRI 1 Array set
 Axiom myDesign Custom Arrays
Axiom Genome-Wide BOS 1 Array
The following sections describe:

Performing Genotyping Analysis (below)

Analysis Configuration Options (page 114)

Other Genotyping Options (page 117)

Creating a Custom Intensity Group (page 133)

Two-Step Genotyping Workflow (page 140)
Performing Genotyping Analysis
Association studies are designed to identify SNPs with subtle allele frequency differences between
different populations. Genotyping errors, differences in sample collection and processing, and population
differences are among the many things that can contribute to false positives or false negatives. Efforts
should be made to minimize or account for technical or experimental differences. For example,
randomization of cases and controls prior to genotyping can reduce or eliminate any possible effects from
running cases and controls under different conditions.
Affymetrix recommends that you perform genotyping and QC analysis with all files stored
locally. For more details on the hard disk space requirements to perform genotyping, see
Appendix J: Hard Disk Requirements (page 395).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
104
The two-step genotyping workflow (page 140) can be used to optimize genotyping calls.
This section includes:

Intro to Genotyping Options (below)

Selecting the Number of Samples for Analysis (page 106)

Running a Genotyping Analysis (page 107)
Intro to Genotyping Options
GTC provides multiple options for performing genotyping.
Genotyping options are selected in the Perform Genotyping dialog box (Figure 7.1) prior to initializing the
genotyping.
Figure 7.1 Perform Genotyping dialog box for Axiom GT1 algorithm
Not all options are available for all the different types of analyses and arrays.
The following options are common to all analyses and are described in Running a Genotyping Analysis
(page 107):

Select Output Root Path

Select Base Batch Name

Output File Suffix
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
105
You can create and select a new analysis configuration for all array types, but the specific options vary
from array to array. See Analysis Configuration Options (page 114) for more information
See Other Genotyping Options (page 117) for information about the other options.
Selecting the Number of Samples for Analysis
See the notes below for information on determining the number of samples for analysis.
Important: See the BRLMM white paper, BRLMM-P white paper and Birdseed references on
Affymetrix.com for recommendations on minimum number of samples to run. In general, more
samples are better, 44 per batch is recommended for these algorithms, though fewer may
yield acceptable results.
100K/500K
For Human Mapping 100K/500K array sets, the algorithm is run on each array type separately.
Therefore, the CHP files are grouped in two batch results, and the CHP Summary data for each
array type will be displayed in its own table. Each table will have the appropriate array type
appended to its base batch name. You may choose to create a custom group that contains all
CHP files.
Note: The BRLMM algorithm requires at least two observations of each genotype to create a
prior, so 6 is the absolute minimum number of samples required to run this algorithm.
However, running it with this small a number is not advised. Performance has been seen to
peak when running 50 or so samples. Depending on sample quality, fewer can yield
acceptable results.
SNP5/SNP6
Note: For BRLMM-P and Birdseed (v1), there is no minimum required number of CEL files. You
can run either on a single CEL file, although performance may be poor. Running Birdseed v2
requires a minimum of two samples, although performance may be poor. It is recommended
that each BRLMM-P or Birdseed (v1) or Birdseed v2 clustering run consist of at least 44
samples.
SNP 6 Only
Note: Birdseed v2 uses the EM algorithm to derive a max likelihood fit of a 2-dimensional
Gaussian mixture model in A vs. B space. A key difference between Birdseed (v1) and
Birdseed v2 is that v1 uses SNP-specific models or priors only as an initial condition from
which the EM fit is free to wander- on rare occasions this allows for mislabeling of the
clusters. For Birdseed v2 the SNP-specific priors are used not only as initial conditions for
EM, but are incorporated into the likelihood as Bayesian priors. This constrains the extent to
which the EM fit can wander off. Correctly labeling SNP clusters, whose centers have shifted
relative to the priors, is problematic for both Birdseed versions. However, given the additional
constraint on the EM fit, Birdseed v2 is more likely than Birdseed to either correctly label the
clusters or set genotypes to No Calls.
Note: For Birdseed or Birdseed v2, chromosome X and Y performance within each gender will
be influenced by the number of samples of that gender in the clustering. For example,
clustering a single female with males will yield typical high performance on autosomal SNPs
for all samples, but performance on the X chromosome for the female may be poor. For good
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
106
performance on X in females, it is recommended that at least 15 female samples be included
in the clustering run. For X or Y in males there is no minimum requirement.
Axiom
Note: Running Axiom GT1 requires a minimum of 20 distinct samples with either zero female
samples or at least 10 distinct female samples. See Appendix H: Best Practices Axiom Analysis
Workflow (page 392) for more details.
Note: Running Axiom GT1 with generic priors for Axiom myDesign™ arrays requires a minimum
of 90 distinct samples with either zero female samples or at least 30 distinct female samples.
Axiom array plates can be processed with more than one reagent version. You can only
perform batch genotyping analysis on CEL files processed using the same reagent version.
You can create custom intensity data groups (page 97) with CEL files processed using the
same reagent version after performing QC.
Running a Genotyping Analysis
Affymetrix recommends that you perform genotyping and QC analysis with all files stored
locally. For more details on the hard disk space requirements to perform genotyping, see
Appendix J: Hard Disk Requirements (page 395).
To initiate genotyping analysis:
1. Right-click on a CEL intensity group (e.g. In Bounds or Custom Group) and select Perform
Genotyping… (Figure 7.2).
You can only perform batch genotyping analysis on CEL files processed using the same
reagent version. You can create custom intensity data groups with CEL files processed using
the same reagent version after performing QC. See Creating Custom Intensity Data Groups
using Intensity QC Data (page 97).
Figure 7.2 Perform Genotyping…
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
107
The Perform Genotyping dialog box opens.
The Perform Genotyping dialog box has different options for different array types (Figure 7.3 through
Figure 7.8).
Figure 7.3 Perform Genotyping dialog box, Axiom™ Genome-Wide Array Plate (processed with
Reagent Version 1)
Figure 7.4 Perform Genotyping dialog box, Genome-Wide Human SNP Array 6.0
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
108
Figure 7.5 Perform Genotyping dialog box, Genome-Wide Human SNP Array 5.0
®
Figure 7.6 Perform Genotyping dialog box, Affymetrix Mouse Diversity Genotyping Array
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
109
Figure 7.7 Perform Genotyping dialog box, GeneChip Human Mapping 500K Array Set
Figure 7.8 Perform Genotyping dialog box, GeneChip Human Mapping 100K Array Set
2. Select the Analysis Configuration.
A different analysis configuration can be selected for each type of analysis, but the available
parameters vary depending upon the analysis (see Parameter Definition and Default Settings
(page 114)).
The available analysis configurations are available from the drop down menu (Figure 7.9).
Figure 7.9 Select Analysis Configuration, Axiom GT1
The current settings are displayed below the menu.
To modify the default settings, see Analysis Configuration Options (page 114)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
110
3. Select a Prior Model File if the option is available (Figure 7.10).
Figure 7.10 Select Prior Models File, Axiom GT1
This option can be used for:
-
BRLMM-P (SNP 5, mouse, and rat)
-
Axiom GT1 (including custom Axiom™ myDesign™ arrays and Axiom™ Genome-Wide BOS 1
arrays)
The currently selected model file is displayed in the Select Prior Models Files box.
See Select Prior Models File (page 120) for more information on selecting a prior model file.
See Model Files Options (page 118) for a discussion of the types of model files and how they are
used in genotyping.
4. Select a SNP List file if the option is available (Figure 7.11).
Figure 7.11 Select SNP List File
The SNP List option can be selected for:
-
BRLMM-P (SNP 5, mouse and rat)
-
Birdseed V1 and Birdseed V2
-
Axiom GT1 (including custom Axiom™ myDesign™ arrays and Axiom™ Genome-Wide BOS 1)
arrays
See Select SNP List File (page 121).
Note: You can use the SNP List file name as a suffix for the CHP files to distinguish CHP
files generated with different SNP lists.
5. Select a Gender File if the option is available (Figure 7.12).
Figure 7.12 Select Gender File
A Gender file is a list of the samples with gender calls.
This option is available for:
-
BRLMM-P for mouse and rat only
-
Axiom GT1 (including custom Axiom™ myDesign™ arrays and Axiom™ Genome-Wide BOS 1
arrays)
See Gender File (page 122).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
111
6. Select a Hints File or In-bred Sample File if the option is available (Figure 7.13, Figure 7.14).
Note: The Hints and In-bred Sample file options are mutually exclusive.
Figure 7.13 Select Hints File (Axiom GT and BRLMM-P only)
Figure 7.14 Select Hints or In-Bred Sample File (BRLMM-P and Axiom for non-human arrays only)
The Hints file option can be selected for:
-
BRLMM-P (including mouse and rat)
-
Axiom GT1 (including custom Axiom™ myDesign™ arrays and Axiom™ Genome-Wide BOS 1
arrays)
The In-bred Sample File option is available only for non-human arrays.
See Hints and In-bred Sample File Options (page 123).
7. Change the output options if desired (Figure 7.15).
Figure 7.15 Analysis output options
Change the following if desired:
-
Output Root Path: location of the Genotyping Results Group folder.
-
Base Batch Name: Name of the Genotyping Results Group and its folder.
Note: This folder is the location where the different Data Results files are kept. You can access
the folder through Windows Explore to view report files.
-
Output File Suffix: suffix added to distinguish output file names.
Note: The default batch name includes the date and time; therefore, it is unique for each run.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
112
9. Select the Posterior File options if available (Figure 7.16).
Figure 7.16 Select Posterior File Options
This option is available for:
-
BRLMM-P
-
Birdseed v1 and Birdseed V2
-
Axiom GT1
See Posterior File Options (page 121).
10. Click OK.
Once the genotyping analysis is initiated, several windows will be displayed showing the progress of
the algorithm (Figure 7.17):
Figure 7.17 Progress dialog boxes for Genome-Wide Human SNP Array 5.0
Note: The status messages window also displays information regarding the algorithm process.
Note: For fastest run time, Affymetrix recommends performing genotyping analysis with all
files stored locally.
Important: Batches of up to 800 CEL files (Axiom™ Genome-Wide Human Array) have been
successfully run on the recommended workstation.
When the algorithm completes the genotyping analysis, GTC automatically displays the CHP Summary
Table (Figure 7.18).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
113
Figure 7.18 CHP Summary table
For more information, see CHP Summary Table (page 126).
Analysis Configuration Options
Certain genotyping algorithm parameters can be changed to match experimental conditions. You can
modify or create a configuration for all analysis and array types, but the particular parameters that can be
changed will vary.
This section provides information on:

Parameter Definition and Default Settings (below)

Modifying the Parameters (page 115)

Selecting a New Configuration (page 117)
Parameter Definition and Default Settings
The following parameters can be changed:
Score/Confidence
Threshold
The maximum value of confidence for which the algorithm will make a genotype call. Calls
with confidence scores less than the threshold are assigned a call. For example, if the
threshold is 0.15, then any SNP with confidence < 0.15 is called, and any SNP with
confidence > 0.15 is not called. If the threshold is increased (maximum = 1), then additional
SNPs in which there is less confidence (higher confidence score) will be called.
Prior Size (100K/500K How many probe sets to use for determining prior.
only)
DM Threshold
(100K/500K only)
®
DM confidence threshold used for seeding clusters.
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
114
Table 7.2 lists the default settings for configuration parameters for the different types of arrays and
algorithms:
Table 7.2 Algorithm Parameters
Algorithm
BRLMM
Array
100K/ 500K
Score/confidence
Threshold
0.5
0.5
0.1
0.1
10000
N/A
N/A
0.17
N/A
N/A
Prior Size
DM Threshold
BRLMM-P
SNP 5
Rat
and
Mouse
Birdseed
Birdseed
2
SNP 6
SNP 6
Axiom GT
Human
Bovine
0.1
0.15
0.15
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Modifying the Parameters
To modify the default algorithm settings:
1. Select the New Genotyping Configuration shortcut
on the main tool bar, or
From the Edit menu, select Genotyping Configurations > New Configuration.
The Select a Probe Array Type dialog box opens (Figure 7.19).
Figure 7.19 Select a Probe Array Type dialog box
2. Select the array type from the list and click Select.
For the Axiom Genome-Wide ASI Array Plate, you will be asked to choose whether to edit the
configuration for AxiomGT1 or AxiomGT2 (Figure 7.20).
Select ―GT1‖ for Axiom CEL files processed with Reagent Version 1. Select ―GT2‖ for Axiom CEL files
processed with Reagent Version 2.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
115
Figure 7.20 Select Axiom GT version
For the Genome-wide Human SNP Array 6.0, you will be asked to choose whether to edit the
configuration for Birdseed (v1) or Birdseed v2 (Figure 7.21).
Figure 7.21 Select Birdseed version
3. Next, for all array types, the appropriate Analysis Configuration dialog box opens (Figure 7.22).
The default algorithm parameters available for editing will be displayed.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
116
Figure 7.22 Analysis Configuration dialog box
For information about the parameters and settings for different array types, see Parameter Definition
and Default Settings (page 114)
4. Enter a new value for the parameter(s) you wish to change and select OK.
Click the Default button to return to the default settings.
You will be asked to provide a name for the new genotyping analysis configuration.
Selecting a New Configuration
The default and modified analysis configurations are available from the drop down menu (Figure 7.23) in
the Perform Genotyping dialog box .
Figure 7.23 Select Analysis Configuration, Axiom GT1
The current settings are displayed below the menu.
Other Genotyping Options
The table below lists the options that vary by analysis and array type. Additional information can be found
at the links.
None of these options are available for 100K/500K arrays.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
117
Table 7.3 Other Genotyping options
Algorithms
Birdseed V1
and V2
Axiom GT1
SNP5
Non-Human
SNP6
Axiom
Human
Arrays
Including
myDesign
Axiom NonHuman
Select Prior Models File
(page 118)
Yes
Yes
No
Yes
Yes
select name for posterior
models file (page 121)
Yes
Yes
Yes
Yes
Yes
Select Hints File
(page 121)
Yes
Yes
No
Yes
Yes
Select SNP List File
(page 121)
Yes
Yes
Yes
Yes
Yes
Inbred Sample File
(page 125)
No
Yes
No
No
Yes
Gender File (page 122)
No
Yes
No
No
Yes
Array Types
Parameters
BRLMM-P
Model Files Options
GTC 4.1 enables you to select model files for the following genotyping analyses:

BRLMM-P

Axiom GT1
These model files contain cluster location information that is used in generating genotyping calls.
We can define genotyping model files in two different ways:

The methods and data used to create them.

How they are used in the Genotyping process.
There are three different ways Genotyping model files can be created:
1. Generic model files have generic cluster location information: every diploid and haploid SNP uses the
same cluster coordinates.
Note: in some cases a generic model file may have cluster location data for specific SNPs.
2. SNP Specification Model files: have cluster location information based on information from the
Affymetrix training data, but not experimental data. These files are provided by Affymetrix.
SNP Specification Model files contain the best estimate for where genotype clusters are located
before using any data in the current experimental dataset. This estimate can come from general
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
118
principles (the BB genotype should have more intensity in the B probe than in the A probe) or from
specific training data (for any given SNP in HapMap), the BB genotypes had the following average
intensities). This also incorporates a measure of precision – estimates taken from general principles
are treated as being vague and easily overridden by observed data, and estimates from specific
training are treated as precise and difficult to override. Note that some clusters for low MAF SNPs
may have many observations in the training data and be precise, while the rare homozygous allele
cluster may not be known to high precision because of a lack of training data.
3. User-generated posterior model files: contain cluster location information generated during
genotyping using:
-
data on the cluster location information contained in a model file that was selected prior to
genotyping,
-
information in the Hints file
-
the current experimental data set selected for genotyping.
-
For animals samples only:
-
Information in the Inbred Sample file
-
Information in the Gender File
The cluster data in the user-generated posterior model file is then used to produce the reported
genotype call for the samples.
Posterior models file contain the best estimate for where genotype clusters are located after the data
in the current experimental data set is combined with the prior model information. This posterior set of
cluster properties is used to generate the genotype calls. Clusters that are known with high precision
in the prior will not change much unless there is a large amount of observed data contradicting that
cluster location, clusters that are known with low precision in the prior will easily adapt to observed
data. This prevents clusters from being ‗mislabeled‘ as one of the other genotypes, while allowing
some flexibility to adapt to the current dataset.
These user-generated files are saved in the same folder as the results CHP files. If you want to use a
previously created posterior models file as a prior models file for future genotyping, you will need to
copy the posterior models file from the result folder to the current library folder
The model files can be used in different stages of Genotyping:

Prior Model File: Selected before genotyping begins, used as the starter for the process.
Prior model files can be any of the three types of model files:

-
Generic
-
SNP Specification
-
User-generated
Posterior Model File: created during genotyping and used to generate the final calls.
Posterior model files are always user-generated model files, but not every user-generated file will be
used as a prior file for future genotyping.
When viewing SNP data in the SNP Cluster Graph, both the prior model and the posterior model cluster
information can be displayed as ellipses or lines for BRLMM-P, Birdseed v1 and V2, and Axiom GT1
data. See Chapter 9: Using the SNP Cluster Graph (page 168).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
119
Select Prior Models File
For BRLMM-P and Axiom GT1 analyses you can select a different prior models file than the default model
file provided with the library files, including any of the following:

Generic model file

SNP Specification file

Previously generated posterior file
The currently selected model file is displayed in the Select Prior Models Files box (Figure 7.24).
Figure 7.24 Select Prior Models File
To select a different model file:
1. Make sure that the model file you wish to select is in the GTC Library folder.
You can copy a posterior file to the folder.
2. Click the Browse button.
The Select a Prior File dialog box opens (Figure 7.25).
Figure 7.25 Select a Prior File dialog box
3. Select the prior model file you wish to use.
4. Click Open.
The new model file name is displayed in the Select Prior Models File box (Figure 7.26).
Figure 7.26 New Prior Models File selected
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
120
Posterior File Options
The posterior file options allow you to change the name of the posterior models file (Figure 7.27).
Figure 7.27 Posterior file options

Deselect the Use Default Base Batch Name checkbox and enter a new posterior models file name.
Select SNP List File
The Select SNP List File option enables you to genotype only the SNPs of interest, instead of all the
SNPs on the array.
The Select SNP List File option is available for the following genotyping algorithms:

Axiom GT (human and animal)

Birdseed/Birdseed 2

BRLMM-P (human and animal)
The probe sets genotyped during the analysis will be restricted to those in the SNP List. The genotyping
call rate metrics will be calculated only using the probe sets in the SNP List. For Axiom™ myDesign™
Genotyping Arrays and Axiom™ Genome-Wide CHB Array, the call rate metrics will be calculated using
the probe sets in the SNP list plus the 3000 SNPQC probe sets. The contents of the resultant CHP files
will contain analysis results for those probe sets included in the SNP List instead of all of the SNP probe
sets found in the CDF file.
You can use a SNP list generated by GTC or one created in the following tab-separated value (TSV)
format:

Comment lines starting with the hash ―#‖ symbol.

Probe Set ID

List of probe sets to be genotyped.
®
SNP list files can be created and edited using simple text editing programs like Microsoft Notepad
(Figure 7.28)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
121
®
Figure 7.28 SNP List File viewed in Microsoft Notepad
To select a SNP list:
1. Make sure that the SNP list file you wish to select is in the GTC Library folder.
You can copy a file to the folder.
Figure 7.29 Select SNP List File
2. Enter the path and file name (Figure 7.29); or
Click the Browse button and select a SNP list from the dialog box.
Gender File
The Select Gender File option allows you to improve the clustering performance of an algorithm by
providing information on the gender of the individual from which the sample was taken.
The gender information in the Gender file substitutes for the computed gender in all respects, including
the choice of model used for special SNPs.
The Select Gender File option can be used with:

Axiom GT (human and non-human arrays)

BRLMM-P arrays (non-human arrays only)
The file uses the following format (Figure 7.30):
The first row in the file has the following headings:

cel_files: the name of the CEL file corresponding to the samples for which gender info is being
provided

gender: value for the gender call (Table 7.4).
Table 7.4 Sample Gender code
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
122
Sample Gender
Code
Unknown
0
Male
1
Female
2
Each following row lists a CEL file name and gender for the individual.
Figure 7.30 Gender File information viewed in Microsoft Notepad
All CEL files need to be listed. Files without gender information should have a ‗0‘ in the gender column.
Empty value will be treated as ‗0‘.
To select a Gender file:
1. Make sure that the file you wish to select is in the GTC Library folder.
You can copy a file to the folder.
Figure 7.31 Select Gender File
2. Enter the path and file name (Figure 7.31); or
Click the Browse button and select the file from the dialog box.
Hints and In-bred Sample File Options
These options are only available for certain algorithms and arrays, as described below.
The Hints file and the In-Bred Sample file options are mutually exclusive. You may only choose one or the
other, not both.
Hints Files
The Hints File allows you to refine the clustering performance of an algorithm by incorporating reference
data. If some data points have known genotypes, the genotype cluster locations may be adapted towards
clusters that reproduce the supplied genotypes (even if incorrect). The Hints file data may not change the
cluster properties if the existing cluster properties are too strong, as the existing information will override
the information in the Hints file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
123
The supplied genotypes are not used in making genotype calls. Only the resulting genotype cluster
properties (i.e., the resulting posterior files) will be used to make genotype calls that can be exported.
You can use the Hints file option for:

Axiom GT (human and bovine)

BRLMM-P (Human, rat, and mouse)
The file uses the following format (Figure 7.32 and Table 7.5):
The first row in the file lists has the following headings:

Probeset ID: Identifier for the SNP probe set

CEL file Name: the Cel File the calls are provided for
Each following row lists a probe set ID and a genotyping call for each CEL file, using the following code:
Table 7.5 Hints code
Number
Call
-1
No call (in this case, no reference)
0
AA
1
AB
2
BB
Figure 7.32 Hints file viewed in Microsoft Excel
To select a Hints file:
1. Make sure that the file you wish to select is in the GTC Library folder.
You can copy a file to the folder.
2. Click the Hints file button (Figure 7.33).
Figure 7.33 Select Hints File
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
124
3. Enter the path and file name; or
Click the Browse button and select the file from the dialog box.
Inbred Sample File
The In-bred Sample File allows you to improve the clustering performance of an algorithm by providing
additional information about the degree of increased homozygosity (or decreased heterozygosity)
expected from in-bred samples.
This option is available only for non-human data (Axiom Bovine, Mouse, and Rat).
The inbred sample data is provided by the user in a TSV file (Figure 7.34).
Figure 7.34 In-bred Sample File format viewed in Microsoft Notepad
The In-bred Samples file uses the following format:
The first row in the file lists has the following headings:

cel_files: CEL file that the penalty information is provided for

inbred_het_penalty: The inbreeding penalty value that controls how much to bias clustering against
having heterozygous calls in samples which may be inbred. ―0‖ = no penalty (normal sample), 1 =
mild penalty, 16 = maximum penalty (inbred sample). The Inbred Sample file shall include all the
samples and each sample shall have an inbreeding penalty value (use 0 for normal samples).
Each following row lists a cell file name and penalty value for the file.
To select an inbred sample data file:
1. Make sure that the file you wish to select is in the GTC Library folder.
You can copy a file to the folder.
2. Click the In-bred Sample File button (Figure 7.35).
Figure 7.35 Select In-bred Sample File
3. Enter the path and file name; or
Click the Browse button and select the file from the dialog box.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
125
CHP Summary Table
The CHP Summary Table contains a summary of the batch genotyping results.
See Table Features (page 221) for more information on customizing the table view.
The tables below provide definitions for items in the CHP Summary Table:

Table 7.6 CHP Summary table, items common to all arrays (below)

Table 7.7 CHP Summary table, items for 100K/500K arrays (page 127)

Table 7.8 CHP Summary table, items for SNP 5 arrays (includes mouse and rat arrays) (page 129)

Table 7.9 CHP Summary table, items for SNP 6 arrays (page 129)

Table 7.10 CHP Summary table, items for Axiom Arrays (includes custom Axiom™ myDesign™
arrays and Axiom™ Genome-Wide BOS 1 arrays) (page 130)
Table 7.6 CHP Summary table, items common to all arrays
Item (common to all arrays)
Definition
File
File name.
computed_gender
Computed gender for the sample.
For more information about the processes used to compute gender for
the different array types, Appendix E: Gender Calling, page 384.
call_rate
BRLMM/BRLMM-P/Birdseed/Axiom call rate at the default or userspecified threshold for autosomal SNPs.
total-call_rate
BRLMM/BRLMM-P/Birdseed/Axiom call rate at the default or userspecified threshold for all SNPs.
het_rate
Percentage of SNPs called AB (i.e. the heterozygosity) for autosomal
SNPs.
total_het_rate
Percentage of SNPs called AB (i.e., the heterozygosity) for all SNPs.
hom_rate
Percentage of SNPs called AA or BB (i.e. the homozygosity) for
autosomal SNPs.
total_hom_rate
Percentage of SNPs called AA or BB (i.e. the homozygosity) for all
SNPs.
Genotyping Console 4.1 uses a new method to calculate call_rate, het_rate and hom_rate
metrics after genotyping. Instead of using all SNPs to calculate these metrics, the new method
only uses autosomal SNPs to calculate these metrics. When using a SNP list for genotyping,
only the autosomal SNPs included in the list will be used to calculate these metrics. For
Axiom™ myDesign™ Genotyping Arrays and Axiom™ Genome-Wide CHB Array, these
metrics will be calculated using the autosomal SNPs in the list plus the 3000 SNPQC SNPs.
The old metrics calculated using all SNPs will be hosted under 3 new metrics named as
total_call_rate, total_het_rate, and total_hom_rate respectively.
The results will vary, depending on the array and the sample. Overall, if the array has
chromosome Y SNPs, the call rates for female samples could improve slightly and the call
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
126
rates for male samples could go down very slightly. If the array does not have chromosome Y
SNPs, the call rates could go down very slightly for both male and female samples. This is
because male and female samples have a tendency to have homozygous calls on X & Y
chromosomes. Removing them could slightly reduce the homozygous call rate and therefore
raise the heterozygous call rate and reduce the overall call rate.
CHP Summary table, items common to all arrays
Item (common to all arrays)
Definition
cluster_distance_mean
Average distance to the cluster center for the called genotype.
cluster_distance_stdev
Standard deviation of the distance to the cluster center for the called
genotype.
raw_intensity_mean
Average of the raw PM probe intensities.
raw_intensity_stdev
Standard deviation of the raw PM probe intensities.
allele_summarization_mean
Average of the allele signal estimates (log2 scale).
allele_summarization_stdev
Standard deviation of the allele signal estimates (log2 scale).
allele_deviation_mean
Average of the absolute difference between the log2 allele signal
estimate and its median across all arrays.
allele_deviation_stdev
Standard deviation of the absolute difference between the log2 allele
signal estimate and its median across all arrays.
allele_mad_residuals_mean
Average of the median absolute deviation (MAD) between observed
probe intensities and probe intensities fitted by the model.
allele_mad_residuals_stdev
Standard deviation of the median absolute deviation (MAD) between
observed probe intensities and probe intensities fitted by the model.
em cluster chrX het contrast_gender
Gender call made by the em-cluster-chrX-het-contrast_gender
method.
This method estimates the heterozygosity rate (% AB genotypes) of
SNPs on the X chromosome. If the heterozygosity is above a
threshold, then the gender call is female, otherwise the gender call is
male.
em cluster chrX het
contrast_gender_chrX_het_rate
The estimated heterozygosity rate (% AB genotypes) of SNPs on the
X chromosome.
pm_mean
Average of the PM probe signals.
File Date
The date and time the CHP file was last modified.
QC Call Rate
Computed QC Call Rate for all QC SNPs (not available for Axiom).
Table 7.7 CHP Summary table, items for 100K/500K arrays
Item (100K/500K)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
Definition
127
Item (100K/500K)
Definition
dm chrX het rate_gender
Gender call based on ChrX Het rate using DM calls.
dm chrX het rate_gender_chrX_het_rate
The DM based ChrX Het rate from which the gender call is based.
dm listener call rate
DM call rate.
Note: For Human Mapping 100K/500K arrays, the CHP Summary data for the different array
types (used for different enzyme sets) will be displayed in separate tables. Each table will have
the appropriate array type appended to its base batch name. Separate results sets are
displayed in the Genotype Results (Figure 7.36).
Figure 7.36 Genotype results files for Human Mapping 500K arrays with paired enzyme sets
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
128
Table 7.8 CHP Summary table, items for SNP 5 arrays
Item (SNP 5)
Definition
QC Call Rate (NSP)
Computed QC Call Rate (via DM algorithm) for SNPs located only on NSP
restriction fragments.
QC Call Rate (Nsp/Sty Overlap)
Computed QC Call Rate (via DM algorithm) for SNPs located on both NSP
and STY restriction fragments.
QC Call Rate (Sty)
Computed QC Call Rate (via DM algorithm) for SNPs located only on STY
restriction fragments.
Table 7.9 CHP Summary table, items for SNP 6 arrays
Item (SNP 6)
Definition
QC cn probe chrXY ratio_gender_meanX
The average probe intensity (raw, untransformed) of X chromosome
nonpolymorphic probes.
QC cn probe chrXY ratio_gender_meanY
The average probe intensity (raw, untransformed) of Y chromosome
nonpolymorphic probes.
QC cn probe chrXY ratio_gender_ratio
Gender ratio Y/X = cn probe chrXY-ratio_gender_meanY/ cn probe
chrXY ratio_gender_meanX.
QC Computed Gender
Computed gender. For more details, see Appendix E: Gender Calling
in GTC, page 384.
Gender calls made by the cn-probe-chrXY-ratio_gender method. If the
cn-probe-chrXY-ratio_gender_ratio is less than the lower cutoff the
gender call is female. If the cn-probe-chrXY-ratio_gender_ratio is
greater than the upper cutoff, then the gender call is male. If the cnprobe-chrXY-ratio_gender_ratio is between the lower and upper
cutoffs, then the gender call is unknown.
Contrast QC
Computed Contrast QC for all QC SNPs.
Contrast QC (Random)
Contrast QC for 10K random autosomal SNPs.
Contrast QC (Nsp)
Contrast QC for QC 20K SNPs on Nsp fragments.
Contrast QC (Sty)
Contrast QC for QC 20K SNPs on Sty fragments.
Contrast QC (Nsp/Sty Overlap)
Contrast QC for QC 20K SNPs on both an Nsp and Sty fragment.
QC Call Rate (NSP)
Computed QC Call Rate (via DM algorithm) for SNPs located only on
NSP restriction fragments.
QC Call Rate (Nsp/Sty Overlap)
Computed QC Call Rate (via DM algorithm) for SNPs located on both
NSP and STY restriction fragments.
QC Call Rate (Sty)
Computed QC Call Rate (via DM algorithm) for SNPs located only on
STY restriction fragments.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
129
Table 7.10 CHP Summary table, items for Axiom Arrays
Item (Axiom)
Definition
QC cn probe chrXY ratio_gender_meanX
The average probe intensity (raw, untransformed) of X chromosome
nonpolymorphic probes.
QC cn probe chrXY ratio_gender_meanY
The average probe intensity (raw, untransformed) of Y chromosome
nonpolymorphic probes.
QC cn probe chrXY ratio_gender_ratio
Gender ratio Y/X = cn probe chrXY-ratio_gender_meanY/ cn probe
chrXY ratio_gender_meanX.
QC Computed Gender
Computed gender. For more details, see Appendix E: Gender Calling
in GTC, page 384.
Gender calls made by the cn-probe-chrXY-ratio_gender method. If the
cn-probe-chrXY-ratio_gender_ratio is less than the lower cutoff the
gender call is female. If the cn-probe-chrXY-ratio_gender_ratio is
greater than the upper cutoff, then the gender call is male. If the cnprobe-chrXY-ratio_gender_ratio is between the lower and upper
cutoffs, then the gender call is unknown.
QC axiom_signal_contrast_AT_B_IQR
Interquartile range of control GC probe raw intensities (background
intensities) in the AT channel.
QC axiom _signal_contrast_AT_B
Mean of the control GC probe raw intensities (background intensities)
in the AT channel.
QC AT Channel FLD
Linear Discriminant for signal and background in the AT channel,
defined as (median_of_GC_probe_intensities –
2
median_of_AT_probe_intensities) / [0.5 *
2
(Axiom_signal_contrast_AT_B_IQR +
2
Axiom_signal_contrast_AT_S_IQR )].
QC axiom_signal_contrast_AT_SBR
Signal to background ratio in the AT channel, defined as
Axiom_signal_contrast_AT_S / Axiom_signal_contrast_AT_B.
QC axiom_signal_contrast_AT_S_IQR
The interquartile range of control AT probe raw intensities (signal
intensities) in the AT channel.
Qc axiom_signal_contrast_AT_S
Mean of the control AT probe raw intensities (signal intensities) in the
AT channel.
QC axiom_signal_contrast_A_signal_mean
Mean of the control A probe raw intensities in the AT channel.
QC axiom_signal_contrast_C_signal_mean
Mean of the control C probe raw intensities in the GC channel.
QC axiom_signal_contrast_GC_B_IQR
The interquartile range of control AT probe raw intensities
(background intensities) in the GC channel.
QC Axiom_signal_contrast_GC_B
Mean of control AT probe raw intensities (background intensities) in
the GC channel.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
130
Item (Axiom)
Definition
QC GC Channel FLD
Linear Discriminant for signal and background in the GC channel,
defined as (median_of_GC_probe_intensities –
2
median_of_AT_probe_intensities) / [0.5 *
2
(Axiom_signal_contrast_GC_B_IQR +
2
Axiom_signal_contrast_GC_S_IQR )].
QC Axiom_signal_contrast_GC_SBR
Signal to background ratio in the GC channel, defined as
Axiom_signal_contrast_GC_S / Axiom_signal_contrast_GC_B.
QC axiom_signal_contrast_GC_S_IQR
Interquartile range of control GC probe raw intensities (signal
intensities) in the GC channel.
QC Axiom_signal_contrast_GC_S
Mean of control GC probe raw intensities (signal intensities) in the GC
channel.
QC axiom_signal_contrast_G_signal_mean
Mean of the control G probe raw intensities in the GC channel.
QC axiom_signal_contrast_T_signal_mean
Mean of the control T probe raw intensities in the AT channel.
Dish QC
A QC metric that evaluates the overlap between the two homozygous
peaks (AT versus GC) using normalized intensities of control nonpolymorphic probes from both channels. It is defined as the fraction of
AT probes not within two standard deviations of the GC probes in the
contrast space.
SNP QC call rate
Call rate for approximately 3000 SNPs that Affymetrix provides as
positive controls on custom arrays (Axiom myDesign only).
Log Difference QC
A cross channel QC metric, defined as
mean(log(AT_SBR))/std(log(AT_SBR)) +
mean(log(GC_SBR))/std(log(GC_SBR)), where signal and
background are calculated for control non-polymorphic probes after
intensity normalization.
QC axiom_varscore_CV_GC
Median of the coefficient of variation for each control GC probe set in
the GC channel.
QC axiom_varscore_CV_AT
Median of the coefficient of variation for each control AT probe set in
the AT channel.
In addition to the tabular display of the metrics, the CHP results can be displayed in a line graph.
To open a line graph:

Click the line graph shortcut
on the CHP Summary table tool bar.
See Graph Features (page 227) for more information.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
131
Creating Genotyping Results Custom Groups
Genotyping Console enables you to create custom groupings of genotyping results.
To make a custom group of genotyping results:
1. Select the row(s) from an open CHP Summary table to be added to the new group (Figure 7.37).
Rows can be selected individually or by call rate or other parameter in the table.
2. Right-click and select Add Selected Rows to Results Group (Figure 7.37).
Figure 7.37. Add Selected Rows to Results Group
The Select a new or existing data group dialog box appears (Figure 7.38).
Figure 7.38. Select new or existing data group
3. Enter a name or select an existing data group and select OK.
The new genotype results custom group will be displayed in the tree (Figure 7.39). Custom groups
are indicated by white icons.
Figure 7.39. Custom Group in tree
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
132
Custom results groups can be renamed or deleted by right-clicking the group and selecting Rename
Genotype Results Group or Remove Genotype Results Group (Figure 7.40).
Figure 7.40. Removing or renaming custom group
Note: Removing a custom Genotyping Results Group does not remove the data from the Data
Set. To remove Genotype Results data, see Removing Data from a Data Set (page 72).
Note: If a custom Genotype Results group is selected for displaying SNP summary results or
SNP cluster graphs, the first time the SNP summary table or SNP cluster graph is generated,
Genotyping Console will prompt you to save the summary statistics file.
Creating a Custom Intensity Group from the CHP File Data
You can create a custom intensity group from the CHP summary table using information in the CHP files.
This is useful when performing the two-step genotyping workflow.
The creation of custom groups is based on checks implemented using the properties listed below. These
properties need to match for the CHPs being added to the custom group in the following order:

Algorithm family (always present)

Array type (always present)

CDF GUID (Can be 'Default' or the GUID from the CDF file)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
133

Probelist Checksum (Can be None if no probelist file is used or the MD5 checksum of the used
probelist file)
There are two methods to do this:

Creating a Custom Intensity Data Group Using the CHP Summary Table (below)

Creating a Custom Intensity Data Group Using Thresholds Filtering (page 137)
You can also use either of the following options to create a custom intensity data group:

Creating Custom Intensity Data Groups using Intensity QC Data (page 97)

Creating Custom Intensity Data Groups Using the SNP Cluster Graph (page 185)
The custom intensity group can be used for the two-step genotyping workflow, described on page 140.
Creating a Custom Intensity Data Group Using the CHP Summary Table
To create a custom intensity data group using the CHP Summary Table:
1. Group the array files you wish to exclude or include using the Sort functions of the CHP Summary
Table tool bar.
A. Click in the column header for the column you wish to sort by (Figure 7.41).
Figure 7.41 CHP Summary Table with Call Rate column selected
B. Sort the table by clicking the Sort Ascending
tool bar.
or Sort Descending
buttons in the table
The files are sorted by the column parameter.
2. Select the rows in the table that you wish to include or exclude.
You must select the rows by clicking in the rows label column (Figure 7.42).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
134
Rows label
column
Figure 7.42 Selecting CHP files
Select contiguous rows by clicking in the top and bottom rows while holding down the Shift key
Select multiple non-contiguous roles by clicking in the rows while holding down the CTRL key.
2. Right click on the selected cells and select the desired option from the menu (Figure 7.43):
-
Create Custom Intensity Group With Selected Results
-
Create Custom Intensity Group Excluding Selected Samples
Figure 7.43 CHP files selected in table and right-click menu
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
135
If you have selected improperly, you will see the following error message (Figure 7.44):
Figure 7.44 Error message when rows not selected properly
If you have selected properly, the Custom Intensity Group Name Dialog box opens (Figure 7.45).
Figure 7.45 Custom Intensity Data Group Name dialog box
3. Enter a name for the intensity group and click OK.
You can also use the default name that appears in the dialog box.
The new group is displayed in the data tree. Custom Groups are indicated by white icons
(Figure 7.46).
Figure 7.46 Data tree displaying regular (in green) and custom (in white) data intensity groups
Custom Intensity Groups can be re-named by right-clicking on the group and selecting Rename Intensity
Data Group.
Custom Intensity groups can be deleted by right-clicking on the group and selecting Remove Intensity
Data Group.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
136
Creating a Custom Intensity Data Group Using Thresholds Filtering
You can also use thresholds filtering on different metrics to create an intensity data group.
To create an intensity data group using thresholds filtering:
1. Right-click on the Genotype Results set you wish to filter and select Create Custom Intensity Group
from the right-click menu (Figure 7.47).
Figure 7.47 Data Tree and Right-click menu
The Threshold dialog box opens (Figure 7.48).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
137
Figure 7.48 Threshold dialog box
2. Select the metric, the comparison operator (less than (<), less than or equal to (), greater than (>),
greater than or equal to (), equal to (=), or not equal to (!=)), and the value (Figure 7.49).
Comparison
operator
Figure 7.49 Threshold box
To use a different metric, select the text in the ―Threshold Name‖ filed and type the exact name, casesensitively, of the new metric in this field. For metrics to be applied, they must exist in the CHP
Summary Table (page 126) when All Columns View is selected in the table.
3. Enter a new Threshold Name if desired:
A. Click Add.
A new row appears in the dialog box (Figure 7.50).
Figure 7.50 New Row added
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
138
B. Enter a new threshold name. The metric must exist in the CHP Summary Table (page 126) when
All Columns View is selected in the table.
C. Select a comparison operator.
D. Enter the comparison value.
If you enter more than one threshold, the samples must meet both thresholds to be included in the
new group.
4. To delete a threshold item, click Remove.
A notice appears in the dialog box when you have changed the thresholds (Figure 7.51).
Figure 7.51 Flag in the Thresholds dialog box indicating that thresholds have been changed
The threshold name must be an algorithm attribute; you cannot filter on sample or user attributes.
4. Click OK.
The Enter a name for the intensity data group dialog box opens (Figure 7.52).
Figure 7.52 Enter a name for the intensity data group dialog box
5. Enter a name and click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
139
The Progress box displays the progress of the filtering operation (Figure 7.53).
Figure 7.53 Input Value
When the filtering operation is finished, the new intensity group is displayed in the data tree with a white
icon (Figure 7.54.
Figure 7.54 New intensity data group in data tree
Two-Step Genotyping Workflow
The Two-Step Genotyping workflow helps maximize the quality of the resulting genotypes by
implementing a workflow with two different QC steps to obtain optimal call rates when working with
genotyping data.
The two-step workflow requires two different QC steps:
1. Remove samples based on single sample intensity QC metrics, such as Dish QC, as described in
Intensity Quality Control for Genotyping Analysis (page 86).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
140
2. Perform a first round of genotyping, as described in Performing Genotyping Analysis (page 104).
3. Remove the outlier samples with call rates (for Axiom, Affymetrix recommends using < 97% as a
cutoff) by using either of the following methods:
-
Creating a Custom Intensity Data Group Using the CHP Summary Table (page 134)
-
Creating a Custom Intensity Data Group Using Thresholds Filtering (page 137)
4. Perform a second round of genotyping on the remaining samples.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
141
Chapter 8:
Review the Genotyping Results
This chapter describes the options for performing an initial review of the genotyping results.
It contains the following sections:

Genotyping QC Steps (below)

Create a SNP List (page 143)

Import Custom SNP Lists (page 149)

SNP Summary Table (page 151)

Concordance Checks (page 158)
Genotyping QC Steps
Before conducting downstream analysis of genotyping results it is essential to perform thorough QC of
both SNPs and samples. There is no single ‗best‘ way to do the QC, but some steps that are generally
helpful in a broad range of circumstances are outlined below.
1. Per-sample QC filtering


Pre-clustering
-
Samples failing the per-array QC metric should be excluded prior to clustering, as described in
Chapter 6: Intensity Quality Control for Genotyping Analysis (page 86).
-
Sample swaps which may have occurred during handling should be identified and resolved or
removed. One way to do this is to generate a ‗fingerprint‘ by typing all samples on a subset of a
dozen or more SNPs which intersect with the SNPs reported in the Signature (page 101).
Another is to use known pedigree information (where appropriate) to confirm expected
relatedness patterns.
Post-clustering
-
Remove samples with outlier clustering call rates or heterozygosity (which will tend to be lowperforming samples that escaped the QC call rate filter).
-
Depending on the downstream analysis to be applied, consider identifying any cryptic relatedness
and removing related samples.
-
Depending on the downstream analysis to be applied, consider controlling for population structure
possibly be removing samples that are clearly from different populations from the bulk of the
collection.
2. Per-SNP QC filtering

Remove SNPs with per-SNP call rates (sometimes referred to as completeness) less than some
threshold. Commonly-used values for the per-SNP call rate threshold range from 90% to 95%.

Consider removing SNPs with minor allele frequency (MAF) below a certain threshold (for example,
1%).

Depending on circumstances, consider removing SNPs significantly out of Hardy Weinberg
-7
equilibrium in cases and/or controls. A p-value threshold in the range of 10 is sometimes used.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
142
Once the genotyping results are generated, you can:

Create SNP Lists (page 143)

Import SNP Lists (page 149)

Display SNP Summary Table (page 151)

Display Custom Groups of Genotyping Results (page 132)
You can also review the individual SNP calls in the SNP Cluster Graph (see Using the SNP Cluster Graph
on page 168).
Create a SNP List
For many genotyping applications, poorly performing SNPs can lead to an increase in false positives and
a decrease in power. Such under-performing SNPs can be caused by systematic or sporadic errors that
occur due to stochastic, sample, or experimental factors. Prior to downstream analysis it is prudent to
apply some SNP filtering criteria to remove SNPs that are not performing ideally in the data set in
question.
The subject of SNP filtering is an area of current research and best practices are still being developed by
the community. Some common filters used will:

Remove SNPs with a significantly low per SNP call rate

Remove SNPs significantly out of HW equilibrium in cases and/or controls

Remove SNPs with significantly different call rates in cases and controls

Remove SNPs with Mendelian errors
Studies on multiple data sets have shown that SNPs with a lower per SNP call rate tend to have a higher
error rate, and disproportionately contribute to the overall error rate in the experiment. Most importantly,
though they may constitute a very small fraction of the total pool of SNPs, if the errors happen to stratify
by case/control status then these low per-SNP call rate SNPs are more likely to show up as apparent
associations.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
143
To create a SNP list for filtering SNPs:
1. Right-click a genotyping batch results and select Create SNP List (Figure 8.1).
Figure 8.1 Creating a SNP list to enable per-SNP QC
The Select an annotation file dialog box opens (Figure 8.2).
Figure 8.2 Select an annotation file dialog box
2.
Select the annotation file to be used with the list and click OK.
The SNP Filters Threshold window box opens (Figure 8.3).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
144
Figure 8.3. SNP Filter Thresholds
3. Enter a name for the SNP List (Figure 8.4).
Figure 8.4. Enter a SNP List name
4. Click the Add button (Figure 8.5).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
145
Comparison
Operator
Click Add button
Figure 8.5. Adding a threshold
5. Select the Threshold Name from the drop-down list (Figure 8.6).
Figure 8.6. Selecting a Threshold Name
The list displays:
-
Metrics displayed in the SNP Summary Table (see page 151)
-
Some of the annotations in the annotations file
6. Choose the operator (e.g. =, >, has). The ―has‖ option is used when the category being filtered is text
based (e.g. Associated Gene, In HapMap, etc.).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
146
Figure 8.7. Selecting a comparison operator
7. Enter a Comparison Value (e.g. 99, YES, etc.) (Figure 8.8).
Figure 8.8. Entering a comparison value
7. Repeat steps 4 through 7 to add another threshold; or
Select OK.
To remove filter criteria, select the Remove button.
If you enter more than one threshold, the SNPs must meet all thresholds to be included in the new
SNP list.
The resulting SNP List will be automatically displayed (Figure 8.9). If some SNPs in the list have db
NULL values, those SNPs will not be returned as results.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
147
Figure 8.9. Custom SNP table
The list is added to the SNP List in the Tree (Figure 8.10).
Figure 8.10. Custom SNP table and list in data tree
For more information on displaying data in SNP Lists see Table and Graph Features (page 221).
SNP Lists can be exported, renamed, or removed by right-clicking on the SNP List and selecting the
appropriate action (Figure 8.11).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
148
Figure 8.11. SNP list menu
To view a SNP List, select the Show SNP List option. To review the filter criteria for a SNP List, select
the Show Information option.
Note: When the criteria used to create a custom SNP list are unknown (e.g. an imported SNP
List), the Show Information option will only indicate the SNP count.
Note: SNP lists are created based on a batch and the filters apply to the original batch on
which they are based. For example, filtering by call rate on batch A will contain SNPs that
pass this threshold. If this SNP list is used with a different batch, SNPs in the list may now
demonstrate call rates below the threshold.
After creating a SNP List, you can apply any SNP List to generate SNP Cluster Graph (page 168) or
during Export Genotype Results (page 203).
Import Custom SNP Lists
The Import Custom SNP List option enables you to import custom SNP lists that you may receive from
other users.
The SNP List file must be a text file and contain a column labeled ―Probe Set ID‖. The file can contain
additional columns although they will be ignored by the software. A SNP List can be generated by
NetAffx: see the Advanced Workflow example Analyzing Genotyping Results of Specific Gene Lists
(page 373)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
149
To import a SNP List:
1. Right-click on SNP Lists in the data tree and select Import SNP List (Figure 8.12).
Figure 8.12. SNP List menu
The Open dialog box appears (Figure 8.13).
Figure 8.13. Open dialog box
2. Navigate to the location of the SNP List and select a list.
3. Click Open.
The Input Value dialog box opens (Figure 8.14).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
150
Figure 8.14. Input Value box for new SNP List name
4. Enter a name of the SNP List and click OK.
If the import fails, the following notice appears (Figure 8.15):
Figure 8.15. Import Failure notice
Click OK and correct the problem with the file.
If the import succeeds, the SNP List will be displayed in the data tree (Figure 8.16).
Figure 8.16. Imported SNP List
SNP Summary Table
Important: you cannot display the SNP Summary Table until you have created a SNP list. See
Create a SNP List (page 143) for more information.
The SNP Summary Table contains SNP level statistics based on the batch of CHP files.
Genotyping Console stores the SNP summary information in a binary file. By generating this file,
Genotyping Console can more quickly display the data each subsequent time the results are displayed.
This file is usually generated during genotyping analysis, but if the CHP files were imported into GTC, or if
the batch folder selected is for a newly created custom Genotype Results group, you will be prompted to
save a SNP Statistics Summary file.
To open the SNP Summary Table:
1. Right-click a Genotype Results batch file in the GTC data tree and select Show SNP Summary
Table (Figure 8.17).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
151
Figure 8.17 Show SNP Summary Table
If the SNP Statistics have not been calculated for the CHP files, the SNP Statistics dialog box opens
(Figure 8.18).
Figure 8.18 SNP Statistics Calculation dialog
2. Click OK in the SNP Statistics Calculation dialog box.
The Save the summary statistics file dialog box opens (Figure 8.19).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
152
Figure 8.19 Save the summary statistics file dialog box
The dialog box is open to the batch results folder and prompts you to save a summary file with the
name of the batch folder.
3. Click Save in the Save the summary Statistics file dialog box.
The Calculating SNP Summary Statistics dialog box appears (Figure 8.20).
Figure 8.20 Calculating SNP Summary Statistics dialog box
When the SNP Summary Statistics have been calculated, the Select SNP List dialog box opens
(Figure 8.21).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
153
Figure 8.21 Select a SNP list dialog box
4. Select a SNP list and click OK.
If a default SNP Annotation file has not been selected, the Select an annotation file dialog box opens
(Figure 8.22).
Figure 8.22 Select an annotation file dialog box
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
154
See Annotation Options (page 48) for instructions on setting a default SNP annotations file.
5. Select an annotation file and click OK in the Select an annotation file dialog box.
If you click Cancel, the following notice appears. (Figure 8.23).
Figure 8.23 SNP Annotations notice
Click OK in the SNP Annotations notice to display the SNP Summary without annotation information.
The SNP Summary Table opens (Figure 8.24, Figure 8.25).
Figure 8.24 SNP Summary table without annotation data
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
155
Figure 8.25 SNP Summary table with annotation data
Note: You can see additional annotations by switching to “All Columns View”.
Note: For readability, metrics are not displayed at full precision, and tables saved to file
contain the same precision as is displayed in Genotyping Console. However, SNP filtering is
performed using the full precision stored in the binary SNP summary file.
The SNP Summary Table contains the SNP level results and metrics (Table 8.1).
Note: For Human Mapping 100K/500K, the SNP Summary data for the different array types will
be displayed in different tables with different names.
See the Genotyping Analysis section (page 104) for more information on performing genotyping. See
Table Features (page 221) for more information on customizing the table view.
Table 8.1 SNP Summary table metrics
Column Header
Description
SNPID
The Affymetrix unique identifier for the set of probes used to detect a particular Single
Nucleotide Polymorphism (SNP).
Call Rate for that SNP across all samples in the batch.
SNP Call Rate
SNP Call Rate 
# AA # AB # BB
Total # CHPFiles
Percentage of AA calls for this SNP in this batch.
SNP %AA
% AA 
# AA Calls
Total # CHP Files
Percentage of AB calls for this SNP in this batch.
SNP %AB
®
% AB 
# AB Calls
Total # CHP Files
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
156
Column Header
Description
Percentage of BB calls for this SNP in this batch.
SNP %BB
% BB 
# BB CALLS
Total # CHP Files
The allele frequency for the A allele is calculated as:
# AA Calls 0.5 * # AB Calls
PA 
Minor Allele
Frequency
Total # Calls
Where the Total # Calls does not include the No Calls.
The B allele frequency is PB  1 PA .
The minor allele frequency is the Min (PA, PB).
Hardy Weinberg p-value is a measure of the significance of the discrepancy between the
observed ratio or heterozygote calls in a population and the ratio expected if the population
was in Hardy Weinberg equilibrium. The Hardy Weinberg p-value is calculated from the
likelihood ratio:
x
2
f

2
aa  fa

2
2

f aa
2 faafbb  fab2
2 faafbb

f
2
bb  fb

2
f bb
Where:
H-W p-value
fa 
# AA Calls
Total # Calls
fb 
# BBCalls
Total # Calls
faa 
fbb 
fab 
# AA Calls 0.5 * # AB Calls
Total # Calls
# BB Calls 0.5 * # AB Calls
Total # Calls
# AB Calls
Total # Calls
The Hardy Weinberg p-value is
 
PHW  CDF x 2 .
Where CDF is the Cumulative Distributive Function for the chi-squared distribution.
dbSNP RS ID
The dbSNP ID that corresponds to this probe set or SNP. The dbSNP at the National
Center for Biotechnology Information (NCBI) attempts to maintain a unified and
comprehensive view of known single nucleotide polymorphisms (SNPs), small scale
insertions/deletions, polymorphic repetitive elements, and microsatellites from TSC and
other sources. The dbSNP is updated periodically, and the dbSNP version used for
mapping is given in the dbSNP version field. For more information, please see:
http://www.ncbi.nlm.nih.gov/SNP/.
Chromosome
The chromosome on which the SNP is located on the current Genome Version.
Physical Position
The nucleotide base position where the SNP is found. The genomic coordinates given are in
relation to the current genome version and may shift as subsequent genome builds are
released.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
157
Column Header
Description
Allele A
The allele of the SNP that is in lower alphabetical order. When comparing the allele data on
NetAffx to the allele data for the corresponding RefSNP record in dbSNP, the alleles
reported here could be different from the alleles reported for the corresponding RefSNP on
the dbSNP web site. This difference arises mainly from the reference genomic strand that
was chosen to define the alleles by Affymetrix. To choose the reference genomic strand, we
follow a convention based on the alphabetic ordering of the sequence surrounding the SNP.
Sometimes the reference strand on the dbSNP is different from NetAffx, and the alleles
could represent reverse complement of those provided on dbSNP.
Allele B
The allele of the SNP that is in higher alphabetical order. When comparing the allele data on
NetAffx to the allele data for the corresponding RefSNP record in dbSNP, the alleles
reported here could be different from the alleles reported for the corresponding RefSNP on
the dbSNP web site. This difference arises mainly from the reference genomic strand that
was chosen to define the alleles by Affymetrix. To choose the reference genomic strand, we
follow a convention based on the alphabetic ordering of the sequence surrounding the SNP.
Sometimes the reference strand on the dbSNP is different from NetAffx, and the alleles
could represent reverse complement of those provided on dbSNP.
Note: You can display additional annotations by selecting the “All Columns View”. For
complete descriptions on all available annotations columns in the SNP Summary table, see
Appendix D.
See the Perform Genotyping Analysis (page 104) section for more information on performing genotyping
analyses. See Table and Graph Features (page 221) for more information on customizing the table view.
Note: The SNP Summary table does not support line graphs.
Concordance Checks
The concordance checks enable you to compare the SNP calls in different files. You can perform:

CHP vs. TXT Concordance Check (below): Compares the SNP calls in a CHP file with the SNP calls
in a previously created text file. In this check you can compare multiple CHP files to the same text file.
You can use a Text reference file, such as the 500K Ref_103 file provided on the Affymetrix website,
or create your own reference file. Reference files for Concordance Checks must have ―ProbeSet ID‖
as the first column and ―Call‖ or ―Consensus‖ as the second column.

CHP vs. CHP Concordance Check (page 164): Compares the SNP calls in one CHP file to the SNP
Calls in another CHP file. This comparison is done on a paired basis—you can perform the check on
multiple pairs of CHP files in the same analysis. The output for both checks is a single "report" file
that can be displayed as a table.
In both cases the check compares the SNPs that are common to both sample and reference files and
have genotype calls. SNPs that are not shared between the files, and SNPs that do not have calls, are
not included in the comparison.
Important: The definition of allele A and allele B (call codes) is different among different
arrays. For some arrays, all SNPs are mapped to the forward strand of the genome. For other
arrays, SNPs can be on the forward strand or reverse strand of the genome. This means that a
particular SNP that is present in two different arrays can have different call codes for the same
base calls. For example, the same GG base call can be AA in SNP 6.0 results or BB in Axiom™
Genome-Wide array results. The „Strand‟ column in the annot.db file lists the strand
information for all the SNPs.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
158
Table 8.2 Examples of the different call codes and base calls made for the same G/C SNP on the
Genome-Wide Human SNP Array 6.0 and on Axiom Genome-Wide Human Array
dbSNP XX
Genome-Wide Human SNP Array 6.0
Annotation file
Export
Base Call (Reverse
Strand)
Base Call
Axiom Genome-Wide CEU 1 Array
Affymetrix
Call Code
Annotation file and
export
Affymetrix Call
Code
Base Call
(Forward Strand)
(Forward Strand)
Allele 1
C
G
A
G
B
Allele 2
G
C
B
C
A
Important: When performing a CHP vs. Text Concordance Check between Axiom™ GenomeWide Human Arrays and other arrays, the data must be carefully compared. You cannot
simply look at “%Concordance” numbers. For call code comparisons of SNPs on the reverse
strand of the genome, the AA calls = BB calls in Axiom, AB calls = BA calls in Axiom, BB calls
= AA calls in Axiom (Table 8.3). For SNPs on the forward strand of the genome, the AA calls =
AA calls in Axiom; AB calls = AB calls in Axiom; BB calls = BB calls in Axiom.
Table 8.3 Possible genotypes for an example G/C SNP
Genome-Wide Human SNP Array 6.0
Axiom™ Genome-Wide CEU 1 Array
Forward Strand
Base Call
Affymetrix
Forward Strand
Base Call
Affymetrix
GG
AA
CC
AA
GC
AB
CG
AB
CC
BB
GG
BB
Call Code
Call Code
CHP vs. Text Concordance Check
To perform a reference concordance check:
1. Open the Workspace and select the Data Set with the data for analysis.
2. Select the Genotype Results file set.
3. From the Workspace menu, select Genotype Results > Run CHP vs. TXT Concordance Check; or
Right-click the Genotype Results file set and select Run CHP vs. TXT Concordance Check from the
pop-up menu.
If you have not previously selected a Results file set, the Select Genotype Results Groups dialog box
opens (Figure 8.26).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
159
Figure 8.26. Select Genotype Results Group dialog box
4. Select a results group from the list and click OK.
Note: You will be able to select arrays from only one enzyme set at a time when performing a
CHP vs. Text Concordance Check.
The Select files dialog box opens (Figure 8.27).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
160
Figure 8.27. Select Results files dialog box
4. Select the files for concordance check and click OK.
The Select Reference File opens (Figure 8.28).
Figure 8.28. Select Reference File dialog box
5. Browse to the location with the reference file you wish to use and select the file.
See Reference File Format (page 163) for more information.
6. Click Open.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
161
The Save As dialog box opens (Figure 8.29).
Figure 8.29. Save As dialog box
7. Browse to the location where you want to save the report and enter a file name for the report.
8. Click Save.
If the reference file does not have the correct format, the following error message appears (Figure
8.30_.
Figure 8.30. Error message
If this message appears, click OK to cancel the operation and then fix the file format problem.
See Reference File Format (page 163) for more information.
If the reference file is correct, the Progress bar appears (Figure 8.31).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
162
Figure 8.31. Progress bar displaying the progress of the concordance check
When the analysis is finished, the Reference Concordance Report table appears (Figure 8.32).
Figure 8.32. Reference Concordance Report table
You can also open the concordance report from the data tree. The Reference Concordance report table
contains the following information:

File – Sample file name

Reference – Reference file name

#SNP‘s Called – Number of SNPs common to both sample and reference files with genotype calls

# Concordant SNP‘s – Number of called SNPs that have the same genotype call

% Concordance – Percentage of called SNPs that have the same genotype call
You can:

Copy selected data in the table to the clipboard.

Save the entire table as a text file.
Reference File Format
The reference file is a tab-delimited text file with two columns (Figure 8.33):
-
First column must be titled ―Probe Set ID‖
-
Second column must be titled ―Consensus‖ or ―Call‖
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
163
Figure 8.33. Example reference file for Reference Concordance check
A reference file can be created by editing a genotyping results file (page 203).
Note: The column headers must be capitalized as shown in Figure 8.33.
CHP vs. CHP Concordance Check
To perform a CHP vs. CHP concordance check:
1. Open the Workspace and select the Data Set with the data for analysis.
2. Select the Genotype Results file set (optional).
3. From the Workspace menu, select Genotype Results > Run CHP vs. CHP Concordance Check; or
Right-click the Genotype Results file set and select Run CHP vs. CHP Concordance Check from
the pop-up menu.
The Select files dialog box opens (Figure 8.34).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
164
Figure 8.34. Select Results files dialog box
4. Select files in the Available Files list.
Click the Add button
Click the Remove button
to add data to the sample or reference list.
to remove data from a list.
Note: The first file in the Sample Files list is compared to the first file in the Reference Files
list. The second files in both lists are compared to each other, and so on, as shown in Figure
8.35.
Note: You can pair files from different enzyme sets for Human Mapping 100K/500K array sets;
this allows you to compare the signature SNPs for arrays with different enzyme sets.
Figure 8.35. Files paired for CHP vs. CHP concordance check
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
165
5. When you have selected the files for the concordance check, click OK.
The Save As dialog box opens (Figure 8.36).
Figure 8.36. Save As dialog box
6. Browse to the location where you want to save the report and enter a file name for the report.
7. Click Save.
If the reference file is correct, the Progress bar appears (Figure 8.37).
Figure 8.37. Progress bar for the concordance check
When the analysis is finished, the Concordance Report table appears (Figure 8.38).
Figure 8.38. Reference Concordance Report table
You can also open the concordance report from the data tree.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
166
The Reference Concordance report table contains the following information:
File – Sample CHP file name
Reference – Reference CHP file name
# SNP‘s Called – Number of SNPs common to both sample and reference files with genotype calls
# Concordant SNP‘s – Number of called SNPs that have the same genotype call
% Concordance – Percentage of called SNPs that have the same genotype call
You can:
-
Copy selected data in the table to the clipboard.
-
Save the entire table as a text file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
167
Chapter 9:
Using the SNP Cluster Graph
The SNP Cluster Graph (Figure 9.1) displays the SNP calls for selected samples as a set of points in the
clustering space used for making the calls. It allows you to perform a visual inspection of the SNP calls
and aids in identifying problematic SNPs.
Figure 9.1 SNP cluster graph for data from an Axiom Genome-Wide array. See Parts of the SNP
Cluster Graph (page 176) to learn more about the SNP Cluster Graph components.
The SNP Cluster Graph is described in the following sections:

Introduction (page 169)

Generating SNP Cluster Graphs (page 172)

Parts of the SNP Cluster Graph (page 176)

Changing the Display (page 189)

Saving Cluster Graph Information (page 195)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
168
Introduction
While applying per-SNP filters helps remove the majority of problematic SNPs, no filtering scheme is
perfect. Even with stringent filtering, a small proportion of poorly performing SNPs may remain. Moreover,
the poorly performing SNPs are often the ones most likely to perform differently between cases and
controls. The list of significantly associated SNPs is often enriched for such problematic SNPs.
The SNP filtering process greatly reduces the occurrence of these false positives, but given their
tendency to end up in the list of associated SNPs, it is likely that some will remain. Before carrying forth
SNPs to subsequent phases of analysis, visual inspection of the SNPs in the clustering space is strongly
recommended, since this inspection can help identify problematic SNPs.
The SNP Cluster Graph displays SNP clusters and allows you to perform this visual inspection.
In the cluster graph, user-selected colors and shapes can be assigned to genotype and sample call data
and to other attributes. For example, the cluster graph in Figure 9.1 displays genotype by color and uses
different shapes to indicate gender.
Note: Samples must have a sample file (ARR) in order to display user attributes by color or
shape. If sample files are not available (for example, CHP files generated in GCOS), then only
array plate information, fluidics instrument information or scanner information (if available in
the CHP file) can be displayed using color or shape.
The graph can also display the prior and posterior cluster location information used to make the calls.
Note: SNP filtering uses the full precision of stored metrics. The displayed precision in tables
is less than this for readability.
The Clustering space is calculated differently depending upon the analysis applied to the data:

BRLMM and BRLMM-P Data (page 170)

Birdseed Data (page 171)

Axiom Data (page 172)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
169
BRLMM and BRLMM-P Data
For BRLMM and BRLMM-P, the clustering is performed in the transformed contrast dimension.
Contrast is defined as:
 A  B
Contrast  f 

  A  B 
See the BRLMM-P white paper for more details on the transformation applied to the contrast.
The BRLMM graph does not display the cluster location information (Figure 9.2).
Figure 9.2. SNP Cluster Graph for samples analyzed using the BRLMM algorithm
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
170
The graph for BRLMM-P graph displays the cluster location information as straight lines, using solid lines
for posterior model files and dashed lines for prior model files lines (Figure 9.3).
Figure 9.3. SNP Cluster Graph for samples analyzed using the BRLMM-P algorithm
Birdseed Data
For Birdseed, clustering is performed in a two dimensional A versus B space (Figure 9.4).
Figure 9.4. SNP Cluster Graph for samples analyzed using the Birdseed v2 algorithm
The graph displays the prior and posterior cluster location information as ellipses, using solid lines for
posterior model files and dashed lines for prior model files lines (Figure 9.4).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
171
Axiom Data
For the Axiom GT1 algorithm, clustering is performed in Log ratio versus strength space (Figure 9.5). Log
ratio and strength are defined as:

Log Ratio = log2(A)-log2 (B)

Strength = (log2 (A)+log2 (B))/2
Figure 9.5 SNP Cluster Graph for samples analyzed using the Axiom GT1 algorithm
The graph displays the prior and posterior cluster location information as ellipses, using solid lines for
posterior model files and dashed lines for prior model files lines (Figure 9.5).
Generating SNP Cluster Graphs
Before generating a SNP cluster graph, you need:

A set of genotyping results
See Chapter 7: Genotyping Analysis (page 104).

A SNP List for that set of results
See Create a SNP List (page 143).
To generate SNP cluster graphs:
1. Right-click a Genotyping Results batch and select Show SNP Cluster Graphs on the shortcut menu
(Figure 9.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
172
Figure 9.6. Genotype Results menu, Show SNP Cluster Graphs selected
If none of the CHP files have matching sample files (for example, if the files were generated by
GCOS), or if all of the CHP files have matching sample files, no warning appears and the cluster
graph is generated.
If some of the CHP files are missing matching sample files (ARR), the following warning appears
(Figure 9.7):
Figure 9.7 Missing sample files prompt
If you click:
-
Yes – The cluster graph will displays a gray spade (
from the Color or Shape drop-down lists.
) for samples without the attributes selected
The Status window lists the files with missing sample data. No user attributes are available for
these CEL files. Only the physical array attributes (scanner ID or fluidics information, if available)
can be selected from the Color and Shape drop-down lists.
Files with sample data available will be displayed normally.
-
No – The cluster graph is not created.
The Select a SNP list dialog box appears (Figure 9.8).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
173
Figure 9.8. Select a SNP List dialog box
If no SNP List is available, you must first generate one.
For more details, see:
-
Create a SNP List (page 143).
-
Import Custom SNP Lists (page 149).
2. Select a SNP List and click OK.
If there are no common SNPs in the selected SNP list and the array probes, the following notice appears
(Figure 9.9).
Figure 9.9. No valid SNPs notice
If some SNP lists are in common, the following notice appears (Figure 9.10):
Figure 9.10. Invalid SNPs notice
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
174
A new SNP list with the SNPs common to both the original SNP list and the array probe set is created
in the genotyping results folder. It can be imported and used for the SNP Cluster graph.
Note: Depending on the number of CHP files in the Genotyping Results batch and the number
of SNPs in the SNP List, generating the SNP Cluster Graph can take several minutes.
If the SNP list has no invalid SNPs, the Select an Annotation File dialog box (Figure 9.11) opens if an
annotation file has not already been selected.
If an annotation file is not available on the computer, you are prompted to download one.
]
Figure 9.11. Select an annotation file for SNP Cluster Graph
3. (optional) Select an annotation file and click OK.
The SNP Cluster graph is displayed (Figure 9.12).
See Parts of the SNP Cluster Graph (page 176) for more information.
The values of the graph axes are different, depending upon the type of array data displayed:
-
BRLMM and BRLMM-P Data (page 170)
-
Birdseed Data (page 171)
-
Axiom Data (page 172)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
175
Parts of the SNP Cluster Graph
Graph Tab
Graph Tool bar
Cluster
Graph
Legends
Tables
Status Bar
Figure 9.12. Parts of the SNP Cluster Graph
The SNP Cluster Graph has the following components:

Graph Tab: displays name of genotype results set

Cluster Graph Tool Bar (below)

Cluster Graph (page 178)

Tables

-
SNP Summary Table (page 184)
-
Sample Table (page 184)
Status Bar: Displays:
-
Number of SNPs in table
-
Number of Samples in Sample Table
-
Missing ARR files.
Cluster Graph Tool Bar
The Cluster Graph Tool bar (Figure 9.13) allows quick access to the functions of the graph.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
176
Figure 9.13. Cluster Graph Tool bar
See Table 9.1 for more information.
Table 9.1 Cluster Graph Tool bar functions
Button
Function
Select Files: Select different model and special SNPs list files
See:


Selecting Model Display Options (page 191)
Selecting the Special SNPs File (page 194)
Copy Image to Clipboard (page 195)
Save Image to File (page 196)
Save All SNP Cluster Graphs to PDF File (page 198)
Save SNP Data (page 200)
Set axis on graph (page 195)
Select attributes for the color of SNPs (page 189)
Select attributes for the shape of SNPs (page 189)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
177
Cluster Graph
The cluster graph displays the SNP calls for each sample in the results group.
Each sample is plotted on the axes appropriate for the analysis type:

BRLMM and BRLMM-P Data (page 170)

Birdseed Data (page 171)

Axiom Data (page 172)
The components of the cluster graph are described in Parts of the SNP Cluster Graph (page 179).
The default view shows samples colored by the genotype call.
See Selecting Colors and Shapes for Attributes (page 189) for information on changing the attributes
indicated by different shapes and colors.
The software warns you if some of the CHP files do not have matching sample files (ARR).
The SNP cluster graph can display up to 10 different colors and up to 10 different shapes.
If the attributes selected for display have more than 10 categories, categories 1 through 9 will be
displayed normally, but categories 10 and higher will be grouped together.
See Selecting Colors and Shapes for Attributes (page 189) for more information.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
178
Parts of the SNP Cluster Graph
Title
Legend
Samples
Y axis
Cluster Location (Models)
X axis
Show Models checkboxes
Figure 9.14. SNP Cluster Graph with samples analyzed using Axiom GT1 algorithm

Title: displays the ID of displayed SNP in the following format:
SNP ID (Genotyping Results batch name - SNP list name)

X and Y axes
See Change the Scale of the SNP Cluster Graph Axes (page 195)

Legend box: Displays the legend for the graph, including information on:
-
Use of colors and shapes for displaying calls
See Selecting Colors and Shapes for Attributes (page 189) for information on changing the
attributes indicated by different shapes and colors.
-
Colors of cluster location ellipses
-
Use of dashed or solid lines to display cluster location (model) information
You can mouse over the Posterior or Prior legend to display information on the name and location
of the displayed model file (Figure 9.15).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
179
Figure 9.15. Displaying model file name and location

Show Models checkboxes: toggle the display of the model ellipses on and off.
See Selecting Model Display Options (page 191)

Special SNP information (see Figure 9.16):
Provides info on SNPs on the following types of chromosomes:
-
Mitochondrial
-
X
-
Y
-
PAR (PseudoAutosomal Region)
See Selecting the Special SNPs File (page 194).
Special SNPs Information
Figure 9.16. SNP Cluster Graph with Special SNPs data
You can change the SNP cluster graph being displayed by toggling through the data displayed in the SNP
Summary table.
To display the SNP cluster graph that corresponds to a particular SNP:

Click on the corresponding row in the SNP summary table.
You can use the arrow keys on the keyboard to toggle through the list. The SNP Cluster graph
updates to display the data for the SNP.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
180
In the graphical portion of the window, you can copy the current image to the Clipboard
current image to file
(*.png format).
To learn more about a particular sample:

Place the cursor over the sample symbol (Figure 9.17).
The CHP file name of that particular sample is displayed.
Figure 9.17. Displaying the CHP file name for a particular sample.
To select a single sample:

Click on the data point in the SNP Cluster Graph (Figure 9.18, A).
The CHP file corresponding to the selected sample is checked in the Sample Table.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
181
, or save the
A
B
Figure 9.18. Selecting a single sample
The CHP file corresponding to the selected sample is checked in the Checked column (Figure 9.18,
B).
To select multiple samples (aka symbols):
1. Drag the cursor around the group of samples to draw a closed shape around them.(Figure 9.19).
The lasso function automatically draws a straight line to the starting point if you release the mouse
button.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
182
Figure 9.19. Selecting multiple samples
The samples in the group and their associated CHP files in the Sample table are selected when you
release the button (Figure 9.20).
Selected Samples in Graph
Selected CHP
files in table
Figure 9.20. Selected samples and CHP files with multiple samples selected
You may need to sort the Checked column in the Sample table to locate the selected files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
183
SNP Summary Table
The SNP Summary Table (Figure 9.21) displays information on all the SNPs in the selected SNP List.
Note: SNP filtering uses the full precision of stored metrics. The displayed precision in tables
is less than this for readability.
Figure 9.21. SNP Summary Table in the SNP Cluster Graph
The table displays the same information and has the same functions as the SNP Summary Table that is
displayed after genotyping. See SNP Summary Table (page 151) for more information.
You can step through the SNPs in the table by clicking on a line, or by pressing the down arrow button.
The Cluster Graph will automatically update to the selected SNP.
Sample Table
The Sample Table (Figure 9.22) displays information on the samples from which the displayed SNPs are
derived.
Figure 9.22. Sample Table in the SNP Cluster Graph
The SNP Cluster Graph Sample table has the same labels as the CHP Summary table (page 126).
You can:

Select a sample in the table and have it highlighted in the Cluster graph.

Select samples in the cluster graph and have the corresponding CHP files checked in the table.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
184
The highlighting of selected samples persists as you move from SNP to SNP.
The Checked column in the Sample Table enables you to select individual CHP files for additional
analyses and manipulation, such as creating custom intensity groups (below).
Creating Custom Intensity Data Groups Using the SNP Cluster Graph
The lasso option allows you to select a group of samples of interest in the cluster graph.
You can use this option as the basis for either the inclusion or exclusion of certain samples and create a
custom intensity group for a second round of genotyping to obtain optimum genotyping performance.
The following section describes how to create a custom intensity data group based on information
displayed in the SNP Cluster Graph. In this example, a custom intensity data group is created to
specifically exclude the outlier samples (Figure 9.23).
Figure 9.23. SNP Cluster Graph, two samples have NoCalls
In this example, two samples have no calls for the SNP AX-11086536 (gray spade). Two samples lie
outside the cluster ellipses defined by dashed lasso lines.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
185
To create a Custom Intensity Data Group:
1. Draw a closed shaped around the samples you want to select by dragging the cursor around the
samples (Figure 9.24).
The lasso function automatically draws a straight line to the starting point if you release the mouse
button.
Figure 9.24. Selecting samples for exclusion
Samples corresponding to those selected symbols will have the Checked cell marked in the Sample
table.
2. Select the Checked column header and select the Sort Ascending
buttons in the Sample Table tool bar.
or Sort Descending
The CHP files will be grouped by their ―checked‖ column status.
2. Select the rows in the table that you wish to include or exclude.
You must select the rows by clicking in the rows label column (Figure 9.25).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
186
Rows label
column
Figure 9.25 Selecting CHP files
Select contiguous rows by clicking in the top and bottom rows while holding down the Shift key.
Select multiple non-contiguous roles by clicking in the rows while holding down the CTRL key.
You can also select samples using the Sample table shortcut menu (right-click the Sample table):
-
Check all samples – Puts a check mark next to all samples.
-
Uncheck all samples – Removes all check marks.
-
Check highlighted samples – Puts a check mark next to user-selected rows.
-
Invert highlighted samples – Removes check marks from user-selected rows or adds check
marks to user-selected rows.
3. Right-click on the Sample Table and select Create Custom Intensity Data Group Excluding
Checked Samples (Figure 9.26).
Figure 9.26. Sample Table with shortcut menu
You can also use Create Custom Intensity Data Group From Checked Samples, depending upon
whether you want to include or exclude the selected samples from the custom intensity data group.
The Enter a name for the intensity data group dialog box appears (Figure 9.27).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
187
Figure 9.27. Input Value dialog box
4. Enter a name for the intensity data group and click OK.
A progress bar appears (Figure 9.28).
Figure 9.28. Progress bar for custom intensity data group creation
The new intensity data group (white icon) is displayed in the Data Tree (Figure 9.29) and the CEL
files are listed in the Intensity QC Data Table.
Figure 9.29. GTC data tree with the custom intensity data group
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
188
After the outliers have identified and/or removed, you can perform a second round of genotyping to get
the optimal call rate.
Changing the Display
Users can change the appearance of the SNP Cluster Graph using the following options:

Selecting Colors and Shapes for Attributes (below)

Selecting Model Display Options (page 191)

Selecting the Special SNPs File (page 194)

Change the Scale of the SNP Cluster Graph Axes (page 195)
Selecting Colors and Shapes for Attributes
In the cluster graph, user-selected colors and shapes can be assigned to:

Genotype and gender call data

all user attributes

array plate information

fluidics instrument information

scanner information (if available)
To change the color or shape assigned to an attribute, make selections from the Color or Shape dropdown lists (Figure 9.30).
Figure 9.30. Selecting Genotype call as the color attribute
Figure 9.31 shows a SNP Cluster Graph where the user has customized the display to include
information on the Family ID and sample name attributes.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
189
Figure 9.31. Multiple Attributes displayed by color and shape
Some attributes are provided by default by the GTC software and the CHP file. Other attributes are
derived from ARR files.
The ARR file attributes are only available in the drop-down lists if the files are available for the sample
data. If an attribute is missing in a particular file, the SNP cluster Graph assigns shapes and colors as
shown in Table 9.2.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
190
Table 9.2 Color and shape assignments with attribute information missing
Color attribute available
Shape attribute available
Shape attribute missing
SNP call marked by shape and color
colored spade shape
Color attribute missing
Gray spade shape
Gray attribute shape
If an attribute has more than 10 values:

When the attribute value is text, the software takes the first nine values and assigns each a color or
shape. The remaining values are put into a bin called ―Other‖. All values in the Other bin have the
same color or shape.

When the attribute value is a date or number, the software divides the range of data into 10 equal
bins and assigns a color or shape to each bin. If the data includes one or more outliers, it is possible
to have one value in a particular bin and all other values in another bin.
Selecting Model Display Options
GTC 4.1 uses model files for the following genotyping analyses:

BRLMM-P

Birdseed v1 and V2

Axiom GT1
The SNP Cluster Graph does not display model files for BRLMM (100K and 500K) analyses.
These model files contain cluster location information that is used in generating genotyping calls.
Borders of clusters can be displayed for individual SNPs in the SNP Cluster Graph.
The colors and lines used for different models are displayed in the Legend box of the SNP Cluster Graph
(Figure 9.32).
Figure 9.32. Model Ellipses legends as shown in the SNP Cluster Graph
See Model Files Options (page 118) for more information about the use of model files.
To display or conceal the cluster model data:

Select or deselect the Show Prior Models and/or Show Posterior Models checkboxes in the graph
(Figure 9.33).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
191
Figure 9.33. Model Ellipses checkboxes for displaying models
To select prior model files for display:
1. Make sure the model files are in the GTC Library folder.
2. Choose Select priors file from the Select Files menu (Figure 9.34).
Figure 9.34. Select Files menu
3. The Select Prior Model File dialog box opens (Figure 9.35).
Figure 9.35. Select Prior Models File dialog box
4. Select the desired file from the dialog box and click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
192
The selected model file information is displayed in the Cluster graph.
To select posterior model files for display:
1. Choose Select posteriors file from the Select Files menu (Figure 9.36.
Figure 9.36. Select Files menu
2. The Select Posterior Model File dialog box opens (Figure 9.37).
Figure 9.37. Select Posterior Models File dialog box
Note: the Select Posterior Models File dialog box displays the contents of the Genotyping
Results Group folder for the displayed results group.
3. Select the desired file from the dialog box and click OK.
The selected model file information is displayed in the Cluster graph.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
193
Selecting the Special SNPs File
The Special SNPs File provides a notice when SNPs from the following types of chromosomes and
regions are displayed:
-
Mitochondrial
-
X
-
Y
-
PAR (PseudoAutosomal Region)
A default Special SNP file is loaded while creating the SNP Cluster Graph. You may select a different
special SNP file using the Select Files drop-down menu.
To select Special SNP files for display:
1. Choose Select special SNPs file from the Select Files menu (Figure 9.38).
Figure 9.38. Select Files menu
2. The Select a Special SNPs File dialog box opens (Figure 9.39).
Figure 9.39. Select a Special SNPs File dialog box
3. Select the desired file from the dialog box and click OK.
Additional information is displayed when a SNP in the Special SNP file is selected for display.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
194
Change the Scale of the SNP Cluster Graph Axes
To change the scale of the graph axes:
1. Click the Set Axis Scale shortcut
select Scale on the shortcut menu.
on the graph tool bar. Alternately, right-click the graph and
2. In the Scale dialog box that appears (Figure 9.40), enter values for the x and y-axis minimum and
maximum.
3. To automatically scale the axes, choose the Auto Scale X Axis and Auto Scale Y Axis options.
Auto-scaling sets the graph width to include all sample symbols.
Figure 9.40. Scale dialog box
Saving Cluster Graph Information
You can save:

The actual SNP Cluster Graph image for use as an illustration (below)

SNP data as a tab-delimited text file (page 200)
Note: You can also save data from the SNP Summary Table and Sample Table (see Table
Features on page 221).
Saving the SNP Cluster Graph Image
You can use the following options to save the SNP Cluster Graph image:

Copy Image to Clipboard (page 195)

Save Image to File (page 196)

Save All SNP Cluster Graphs to PDF File (page 198)
Copy Image to Clipboard
You can save the SNP Cluster Graph image to the Clipboard and then paste it into a graphics program
such as Paint for use in a document.
To save the image to the Clipboard:

Click the Save to Clipboard button
on the SNP Cluster Graph tool bar; or
Right click on the SNP Cluster Graph and select Copy image to Clipboard (Figure 9.41).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
195
Figure 9.41. SNP Cluster Graph right-click menu
Note: If you right-click in one of the SNP Cluster Graph tables you will access a different set of
functions.
The image of the SNP Cluster Graph is copied to the Clipboard and can be pasted into a graphics
program such as Paint (Figure 9.42).
Figure 9.42. Paint software with image pasted in
Save Image to File
You can save the SNP Cluster Graph image as a PNG file for use in other documentation.
To save the image as a graphics file:
1. Click the Save Image to File button
on the SNP Cluster Graph tool bar; or
Right-click the SNP Cluster Graph and select Save image to file (Figure 9.41).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
196
Figure 9.43. SNP Cluster Graph right-click menu
Note: If you right-click in one of the SNP Cluster Graph tables you will access a different set of
functions.
The Save As dialog box opens (Figure 9.44).
Figure 9.44. Save As dialog box for Cluster Graph
The dialog box automatically opens to the folder for the genotyping results and with the default name
of the file displayed using the following format: SNP ID (Genotyping Results batch name SNP list name)
You can change the file location and name in the dialog box.
2. Click Save.
The file is saved in the selected folder.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
197
Save All SNP Cluster Graphs to PDF File
You can save the cluster graph visualizations for all SNPs in a SNP List to a single PDF file.
To save to a PDF:
1. Click on the Save All Cluster Graphs to PDF shortcut
on the SNP Cluster Graph tool bar.
Figure 9.45. Save to PDF button in graph tool bar
The Save As dialog box opens (Figure 9.46).
Figure 9.46. Save to PDF button in graph tool bar
2. Select a location to save this file and enter a name for the file.
3. Click Save.
The Enter a title for the PDF file dialog box opens (Figure 9.47).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
198
Figure 9.47. Enter a title for the PDF file dialog box
Note: The PDF title has a 55 character limit.
4. Enter a title for the PDF file. This title will be displayed at the top of every page in the PDF document.
5. Click OK in the Enter a title for the PDF file dialog box.
A progress bar displays the progress of the export (Figure 9.48).
Figure 9.48. Progress dialog box
The first page of the PDF displays the Legend for the SNP Cluster Graph (Figure 9.49).
Figure 9.49. Legend information for SNP Cluster Graph
The remaining pages display six graphs per page (Figure 9.50).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
199
Figure 9.50. Pages two and 3 of the PDF file
Save SNP Data from the SNP Cluster Graph
This feature saves SNP data for SNPs displayed in the SNP Cluster Graph in a tab-delimited text file
(Figure 9.51) with the following column headers:

SNP ID

CHP Name

Genotype

The X and Y axes values plotted for the algorithm type:
-
BRLMM and BRLMM-P Data (page 170)
-
Birdseed Data (page 171)
-
Axiom Data (page 172)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
200
Figure 9.51. .TXT file open in Microsoft Excel
To save SNP data to a .TXT file:
1. Click on the Save Data to File button
on the SNP Cluster Graph tool bar.
The Save As dialog box opens (Figure 9.52).
Figure 9.52. Pages two and 3 of the PDF file
2. Select a location and enter a name for the text file.
3. Click Save.
The text file is saved in the designated location.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
201
The text file can be opened with text editing or spreadsheet software.
You can also export data from the tables using the table functions (see Table Features on page 221).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
202
Chapter 10: Exporting Genotype Results
You can export genotype results in the following ways:

Export genotypes to TXT format

Export the Combined Results of an Array Set (page 210)

Export Genotype Results for PLINK (page 213)
Export genotypes to TXT format
Genotyping Results can be exported into a tab-delimited text file or a set of files.
The contents of the files vary depending upon:

The array and algorithm used to collect the data

The options selected for the export
To export genotype results to TXT format:
1. Do one of the following:
-
Right-click a Genotype Results group.
a. Select Export Genotype Results on the shortcut menu (Figure 10.1).
Figure 10.1 Genotype results shortcut menu
The Select one or more genotype result files dialog box opens (Figure 10.2).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
203
Figure 10.2. Select one or more genotype result files
b. Select files in the dialog box and click OK.
Select All selects all files.
Or
-
select results (rows) in the CHP Summary table (Figure 10.3), right-click the selection, and
choose Export Genotype Results on the shortcut menu.
Figure 10.3. Selecting files for export from the CHP Summary table
The Tab Delimited Export Options dialog box opens (Figure 10.4)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
204
Figure 10.4. Export Options dialog box
2. Click the Browse button
to select the output directory.
3. Enter a name for the file or folder:
-
Export Folder Name (Figure 10.5) if Export all results to single file is not selected.
Figure 10.5. Select Export Folder Name
-
Export File Name (Figure 10.6) if Export all results to single file is selected.
Figure 10.6. Select Export File Name
4. Choose the Genotype Export options (Figure 10.7), as described in Table 10.1.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
205
Figure 10.7. Genotype Export Options
Table 10.1 Genotype Export Options for Tab Delimited Export
Genotype Export Options
Description
Only export call codes
Choose this option to include only the allele call codes (AA, AB, or BB) in
the text file.
Only export forward strand base calls
Choose this option to include only the forward strand base calls (AT, CG,
AG, TC, --, etc) in the text file.
Export both call codes and forward
strand base calls
Choose this option to include both the allele call codes and the forward
strand base calls in the text file. For more details on forward strand base
call translation, see Appendix B: Forward Strand Translation, page 372.
5. Select the Select options (Figure 10.8), as described in Table 10.2.
Figure 10.8. Select Options
Table 10.2 Select Options for Tab Delimited Export
Select Options
Description
Filter by SNP List
Exports only the SNPs in a user-specified SNP list.
Separate file for each chromosome
Generates 26 text files (one for each chromosome, plus files containing SNPs
on chromosome X, Y, or MT and a file containing SNPs that do not have
chromosome information) instead of one text file for each CHP file.
This option is not available if you select the ―Export all results to single file‖
option.
Include confidence values
®
Choose this option to include the confidence value for each call in the
exported results.
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
206
Select Options
Description
Include dbSNP RS ID
Choose this option to include the dbSNP RS ID that corresponds to the SNP
probe set. The dbSNP at the National Center for Biotechnology Information
(NCBI) attempts to maintain a unified and comprehensive view of known
SNPs, small scale insertions/deletions, polymorphic repetitive elements, and
microsatellites from the SNP consortium (TSC) and other sources. The
dbSNP database is updated periodically, and the dbSNP version used for
mapping is given in the dbSNP version field. For more information, please
see http://www.ncbi.nlm.nih.gov/SNP/.
Export all results to single file
Generates a single text file. If this option is not chosen, one text file is
generated for each CHP file. For more information, see:


Export Each CHP file to a Separate Text File (below).
Export All Data to One File (page 209).
Include forced call
Calls that do not meet the confidence score threshold specified by the
configuration file are normally reported as ―No Call‖. If the ―Include forced
call‖ option is selected, the genotype results include what the call would be if
―No Calls‖ are not allowed.
Include chromosomal position
The chromosome and chromosomal position for the probe set
Include signal data
The software uses the signal data to generate the SNP cluster graphs. The
specific signal data types vary depending upon the type of array and analysis
used:

contrast and strength for the Genome-Wide Human SNP Array 5.0 and
Human Mapping 100K or 500K Arrays.
 Signal A and Signal B data for the Genome-Wide Human SNP Array 6.0.
 Log Ratio and Strength for the Axiom Arrays
For more information, see Chapter 9: Using the SNP Cluster Graph
(page 168).
Include Affymetrix SNP ID
Include the Affymetrix unique identifier for the set of probes used to detect a
particular SNP. See Note Below.
Note: If you select “Include Affymetrix SNP ID” for export when using NA29, NA30, NA31
annotation files the export column will be blank except for the column header because the
annot.db files do not have that column.
6. Click OK in the Tab Delimited Export Options dialog box.
The data is exported to one or more text files, depending upon the options selected.
These options are described in more detail in:
-
Export Each CHP file to a Separate Text File (below)
-
Export All Data to One File (page 209)
Note: An export that generates “NoChromosome.txt” indicates an invalid SNP list (for
example, retired SNPs that are no longer annotated.)
Export Each CHP file to a Separate Text File
If the ―Export all results to single file‖ option is not selected, a separate text file or set of text files will be
generated for each exported genotyping results file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
207
If you have not chosen to generate separate files for each chromosome, the text file name uses the
following format: CHP file name.algorithm name.txt
If you have chosen to generate separate files for each chromosome, the text file name uses the following
format: CHP file name.algorithm name.chromosome number.txt, where chromosome number can be:

The number of the chromosome where the SNP was located

X

Y

MT

NoCh: SNPs with no chromosome location information.

Contig ID – The number of the contig ID where the SNP was located (Axiom™ Genome-Wide BOS 1
array).
The header of the text file (Figure 10.9 and Figure 10.10) includes the following information:

source CHP file location and name

the execution GUID (a globally unique identifier for the genotyping batch run during which this CHP
file was generated)

SNP List (if chosen)

Annotation versions

Column headers for SNP data
The headers depend upon the array and algorithm type and options selected. For more information,
see:
-
Table 10.1 Genotype Export Options for Tab Delimited Export (page 206)
-
Table 10.2 Select Options for Tab Delimited Export (page 206)
The SNP calls and information are displayed in rows below the file header.
If the confidence values, forced call, and/or signal data were selected for export, they will be included in
the text file.
Note: Three dashes (---) represent a missing value. For Axiom™ results, two dashes (--)
represent deletion in both alleles. One dash (-) represents deletion in one allele.
File Header
SNP Calls and
Information
Figure 10.9. Exported genotype results, Genome-Wide SNP 6.0 array (tab-delimited .txt)
In Figure 10.9 the SNP data for all chromosomes has been exported into a single file and the exported
SNP information includes chromosome number.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
208
File Header
SNP Calls and
Information
Figure 10.10 Exported genotype results, Axiom™ Genome-Wide Human Array (tab-delimited .txt)
In Figure 10.10, the data for each chromosome has been exported into a separate file, and the SNP
information does not include Chromosome number.
Export All Data to One File
If the ―Export all results to single file‖ option is selected, the data for all CHP files will be exported to a
single .TXT file (Figure 10.11. ). The file name is the one entered in Export File Name box.
File Header
SNP Calls
and other
information
Figure 10.11. Export data to a single file option selected
The header of the text file includes the following information:

Annotation versions, if available

SNP List (if chosen)

Column headers for SNP data
The headers depend upon the array and algorithm type and options selected. For more information,
see:
-
Table 10.1 Genotype Export Options for Tab Delimited Export (page 206)
-
Table 10.2 Select Options for Tab Delimited Export (page 206)
If the following options are selected, a column will be created for the data for each CHP file exported:

Call Code

Only export forward strand call codes

Include confidence values

Include forced calls

Include signal data
If the following options are selected, a single column will be created in the .TXT file:

dbSNP RS ID
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
209

Include Chromosomal Position (displays chromosome number and position in separate columns)

Include Affx ID
Export the Combined Results of an Array Set
The genotype results from the arrays of an array set (for example, Human Mapping 250K Nsp and 250K
Sty results) can be combined and exported to one text file.
The Sample (ARR) files for the for each paired array in the array set must have an attribute in common
that can be used to match the files for merging.
Note: Sample files (ARR) are required for the genotype results that you want to combine and
export.
1. Right-click a Genotype Results group and select Export Merged Genotype Results on the shortcut
menu (Figure 10.12).
Figure 10.12 Select genotype results to merge for export
The Select the samples to export (*.ARR files) dialog box opens (Figure 10.13).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
210
Figure 10.13 Select samples for merged export
2. Select the samples to export and click OK.
The Export Merged Genotype Results Options dialog box opens (Figure 10.14)
Figure 10.14 Export Merged Genotype Results Options dialog box
3. Select a destination directory and enter a name for the results file (Figure 10.15).
Figure 10.15 Select Export File options
4. Select a sample matching option using one user attribute from ARR files for these samples.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
211
Figure 10.16 Select Export File options
5. Select an export option (Figure 10.17):
-
Export forward strand base calls with dbSNP RS ID – Choose this option to include the forward
strand base calls (AT, CG, AG, TC, --, etc.) in the text file. Only probe sets with dbSNP RS ID are
included.
-
Export call codes with Probe Set ID - Choose this option to include the Affymetrix call codes (AA,
AB, or BB) in the text file.
Figure 10.17 Export Options
6. Click OK in the Export Merged Genotype Results Options dialog box.
The Select an annotation file dialog box opens (Figure 10.18).
Figure 10.18 Select an annotation file
4. Select an annotation file and click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
212
The merged genotyping calls are exported to a .TXT file.
Figure 10.19 shows an example of merged results.
Figure 10.19 Example merged results with one sample per row
Export Genotype Results for PLINK
Genotype results can be exported to a file format that is compatible with PLINK software. To export files
for PLINK, the genotype CHP result files must have matched sample attribute files (ARR) created with the
Pedigree template (available in the Affymetrix AGCC software) and the corresponding information for
each sample. If the ARR files were created without this template or are missing data for some of the
samples, update the ARR files using the Pedigree template before you attempt to export the data using
this option.
Note: PLINK export is not available for non-human arrays in GTC 4.1. For more information on
exporting non-human arrays in PLINK compatible format, see page xx.
Exporting Human Genotype Results in PLINK Format
1. Do one of the following:
Right-click a Genotype Results group and select Export Genotype Results for PLINK on the
shortcut menu (Figure 10.20).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
213
Figure 10.20 Select Genotype Results group in data tree for PLINK export
Select Workspace > Genotype Results > Export Genotype Results for PLINK on the menu bar
(Figure 10.21).
Figure 10.21 Export Genotype Results for PLINK from Workspace menu
Select results (rows) in the CHP Summary table. Right-click the selection, and choose Export Genotype
Results for PLINK on the shortcut menu (Error! Reference source not found.).
If you have not picked a specific results group, the Select a genotype results group dialog box opens
(Figure 10.22)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
214
Figure 10.22 Select a genotype results group dialog box
2. Select a group and click the OK button in the Select a genotype results group dialog box.
The Select one or more genotype results files dialog box appears (Figure 10.23).
Figure 10.23 Select one or more genotype results file dialog box
3. Select the results to export and click OK in the Select one or more Genotype results files dialog box.
The Plink Export Options dialog box opens (Figure 10.24)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
215
Figure 10.24 PLINK export options dialog box
4. Click the Browse button
to select the output directory (Figure 10.25).
Figure 10.25 Select Export Folder options
The Browse for Folder dialog box opens (Figure 10.26).
Figure 10.26 Browse for Folder dialog box
5. Navigate to the folder and click OK
6. Enter a name for the Export file (Figure 10.28).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
216
Figure 10.27 Select Export Folder options
7. Select an export file format (Figure 10.28).
Figure 10.28 Selecting export file format
You can select from the following options:
-
Transposed – Generates three files: .tped, .tfam, and .map ( Table 10.3)
Table 10.3 Example PLINK transposed format
-
SNP
Patient 1
Patient 2
Patient 3
SNP 1
Call
Call
Call
SNP 2
Call
Call
Call
SNP 3
Call
Call
Call
SNP 4
Call
Call
Call
Standard – Generates two files: .map and .ped (Table 10.4)
Table 10.4 Example PLINK standard format
8.
Patient
SNP 1
SNP 2
SNP 3
Patient 1
Call
Call
Call
Patient 2
Call
Call
Call
Patient 3
Call
Call
Call
Patient 4
Call
Call
Call
Select the Filter by SNP List option (Figure 10.29)
Choose this option to export only the SNPs specified in a user-selected SNP list.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
217
Figure 10.29 Selecting Filter by SNP List option
Click the checkbox and select a SNP list from the dropdown list.
9. Click OK in the Plink Export Options dialog box.
If you do not have an annotation file selected for the array type, the Select an Annotation file dialog
box opens (Figure 10.30)
Figure 10.30 Select an annotation file dialog box
10. Select an annotation file and click OK in the Select an annotation file dialog box.
If you are overwriting previously exported files, the Confirm Export Files Overwrite dialog box opens
(Figure 10.31).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
218
Figure 10.31 Confirm Export Files Overwrite dialog box
-
Click Yes to overwrite the files
-
Click No to return to the Plink export options dialog box (Figure 10.24)
The Exporting genotype results progress bar appears (Figure 10.32).
Figure 10.32 Exporting genotype results progress bar
The exported files are placed in the location you chose.
Exporting Non-Human Genotype Results for PLINK
1. Right-click the genotype results and select Export Genotype Results on the shortcut menu (Figure
10.33).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
219
2.
Figure 10.33 Select genotype results for export
3. In the dialog box that appears, select the genotype result to export and click OK.
4. In the Tab Delimited Export Options dialog box that appears (Figure 10.34), set the output root path
and enter the export file name. Choose the following export options:
-
―Only export forward strand base calls‖
-
―Export all results to single file‖
Figure 10.34 Export options
5. Click OK.
6. Modify the exported text file to a PLINK compatible format.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
220
Chapter 11: Table & Graph Features
In Genotyping Console, there are several properties which are common to all tables and graphs. The
following sections describe:

Table Features (page 221)

Graph Features (page 227)
Note: The use of the GTC Copy Number to view Copy Number/LOH data is described in the
GTC Browser Manual.
Table Features
In Genotyping Console, the tables used to display data share several common features:
All common table functions are accessible through the shortcuts on the table tool bar (Figure 11.1,
Table 11.1).
Figure 11.1 Table tool bar
Table 11.1 Table Tool bar functions
Table Function
Tool bar
Table Views
New Views
Edit Views
Copy to Clipboard
Save Table to File
Find
Reset Sort Order
Sort Ascending
Sort Descending
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
221
Table Function
Tool bar
Show Line Graph
Custom View Features
Each table in Genotyping Console has a default set of displayed columns. The features described below
enable you to change these columns.
To create custom views:
1. Select the New View shortcut
.
The Custom View dialog box opens (Figure 11.2).
Figure 11.2 Custom View dialog box
2. Select the columns to be displayed. To re-order the columns in the table, click the column name and
use the Up and Down buttons.
3. Click Save and enter a name for this view.
The Save dialog box opens (Figure 11.3)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
222
Figure 11.3 Save dialog box
4.
Enter a name for the view and click Save in the Save dialog box.
Use the drop down menu to display this custom view.
To select a previously generated view:

Select the view from the drop-down menu (Figure 11.4)
Figure 11.4. Selecting view
To edit a previously generated custom view:
1. Click on the Edit View shortcut
The dropdown menu displays a list of user-generated views (Figure 11.5).
Figure 11.5. Selecting view for editing
2. Select the View to edit.
The Custom View dialog box opens (Figure 11.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
223
Figure 11.6. Custom View dialog box
3. Make the desired changes and save the view
Click Save As to save the changes with a new view name.
Other Table Features
You can select one or many cells, rows, or columns.
To quickly select a range of rows:

Click the first row index, and then SHIFT-click the last row index (Figure 11.7).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
224
Row index
Click Here
first
SHIFT-click
here
Figure 11.7. Selecting a range of rows
To select multiple rows that are not adjacent:

CTRL-click on each row.
These options are available for columns and cells as well.
To copy a selection to the Clipboard:
1. Select the desired cells, rows, columns.
2. Click on the Copy to Clipboard shortcut
on the tool bar, or
Right-click on the selected items and select the Copy Selection to Clipboard from the right-click menu
(Figure 11.8).
Figure 11.8. Right-click menu
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
225
Note: Copy to Clipboard may fail if too much data is copied (for example, copying the entire
SNP Summary Table). Affymetrix recommends that you Save Table To File if you wish to
transfer table information to another application.
To save all of the data in the open table to a text file:
1. Select the Save Table to File shortcut
from the tool bar, or
Right-click and select the same command from the right-click menu.
2. Enter a name for the file and select Save.
All displayed data will be written to the text file (Figure 11.9).
Figure 11.9. Text file
To find data in the table:

Select the Find shortcut
and enter the value to search on in the Find dialog box (Figure 11.10).
Figure 11.10. Find value dialog box
The Find Next button will continue to search the table for additional instances of the search criteria.
When the end of the document is reached, it will restart the search from the top of the table.
Note: The Find function does not utilize wildcards.
To return the table to the default sort order:

Select the Reset Sort Order shortcut
.
To sort the table:

Select a column header and select the Sort Ascending
or Sort Descending
shortcuts.
In the Intensity QC and CHP Summary tables, a line graph can be displayed.
To invoke the line graph

Click on the Show Line Graph shortcut
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
.
226
See Graph Features, below, for more information.
Features and functions specific to a particular table type are described in the section of the
manual dealing with that table and data.
Graph Features
This section describes the line graph features that can be used to display different metrics in the tables
The Line Graph is not available for every table.
Line graphs can be generated for the different results.
To invoke the line graph:
1. Click on the Line Graph shortcut
from the table shortcut bar.
Figure 11.11. Line Graph
2. To sort the X-axis by another category (e.g. Bounds), select the category from the X-axis drop-down
menu or right-click on the graph and select Set X-axis Category.
3. To graph additional results, right-click on the graph and select Set Y-axis Categories or use the Yaxis drop-down menu.
4. To set the axis scale, right-click on the graph and select Set Axis Scale or select the Set Scale
shortcut
from the tool bar.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
227
Figure 11.12. Scale dialog box
The line graph data can be copied to the Clipboard
saved as a text file
(tab-delimited *.txt format).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
, saved as an image file
(*.png format), or
228
Chapter 12: Copy Number & LOH Analysis for Human
Mapping 100K/500K Arrays
GTC can be used to perform the following analyses for Human Mapping 100K/500K arrays:

Copy Number (CN)

Loss of Heterozygosity (LOH)

Copy Number Segment Reporting

Custom Region Copy Number Segment Reporting
Copy Number/LOH analysis for Genome-Wide Human SNP 6.0 data is described on page 265.
Features common to Human Mapping 100K/500K arrays and Genome-Wide Human SNP Arrays 6.0
arrays, including running the Segment Reporting Tool, are described in Chapter 14: Common Functions
for Copy Number/LOH Analyses (page 308).
Important: CN and LOH analyses for Human Mapping 100K and 500K platforms in GTC 4.1 are
algorithmically the same as in CNAT4.0.1 software, and for more details users should refer to
the Affymetrix White Paper “Copy Number and Loss of Heterozygosity Estimation Algorithms
for the GeneChip Human Mapping Array Sets” Files that result from this analysis have the
extension .CN4.
Note: GTC does not perform copy number, LOH, or Copy number region analysis on data from
Genome-Wide Human SNP 5.0 or Axiom™ Genome-Wide Human arrays.
Affymetrix recommends that you perform Copy Number/LOH analysis with all files stored
locally.
The basic workflow for Copy Number/LOH analysis involves:
1. Performing Copy Number/LOH analysis on a selection of CEL or CHP files.
There are two options for this:
-
Paired Copy Number and LOH Analysis (page 231)
-
Unpaired Copy Number and LOH Analysis (page 238)
2. Performing the Copy Number Segment analysis on the CN data files (page 308).
Note: Segment Reporting Analysis can be performed on Human Mapping 100K/500K data and
on Genome-Wide Human SNP Array 6.0 data.
3. Viewing QC data in table format (page 254)
4. Viewing the data in the GTC Browser (page 329)
5. Exporting data into formats that can be used by secondary analysis software (page 331)
You can also:

Change the QC threshold settings (page 336)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
229

Change the algorithm parameters for 100K/500K analysis (page 255)
Introduction to 100K/500K Analysis
This section provides a brief description of:

100K/500K Array

CN and LOH Algorithms
100K/500K Array Configuration
Human Mapping 100K/500K analyses use two arrays to provide full coverage of the genome. Analyses
can also be performed using only the data from a single 50K or 250K array


Human Mapping 100K is a combination of data from the following arrays:
-
Mapping50K_Xba240
-
Mapping50K_Hind240
Human Mapping 500K is a combination of data from the following arrays:
-
Mapping250K_Nsp
-
Mapping250K_Sty
The Segment Report Tool is run after Copy Number analysis.
If you wish to run CN number and/or LOH analysis on both array types at the same time, you need to
have Enzyme Set attributes set up for the files. You can use Enzyme Set and Sample + Reference
attributes to make sorting and pairing up the files easier. For more information on these steps see Using
Shared Attributes to Group Samples (page 249).
CN and LOH Algorithms
CN4 performs paired and unpaired CN analysis:

Paired CN Analysis
Paired CN Analysis is used to compare two samples from the same individual to look for copy
number differences in different types of tissues (examples of the two samples would be
Tumor/Normal or Treated/Untreated samples from the same individual).
Paired analysis requires that genotyping batch analysis be performed on the data that will be used for
CN analysis.

Unpaired CN Analysis
Unpaired CN Analysis is used to compare sample files to a set of reference files.
Unpaired analysis requires that genotyping batch analysis be performed on the data that will be used
for CN analysis.
Copy number data is output in files with the suffix .CN4.cnchp.
LOH analysis can be run at the same time as copy number analysis or in a separate step without running
the copy number analysis.
Human Mapping 100K/500K copy number and LOH data is output in separate files (CN4.cnchp files and
CN4.lohchp files)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
230
Copy number segment reports can be run on Human Mapping 100K/500K array CN data, but no gender
calls are made by the Segment Reporting Tool.
Copy Number/LOH Analysis for Human Mapping 100K/500K Arrays
Affymetrix recommends that you perform Copy Number/LOH analysis with all files stored
locally.
This section describes the different Copy Number/LOH workflows for Human Mapping 100K/500K arrays.

Paired Copy Number and LOH Analysis (below)

Unpaired Copy Number and LOH Analysis (page 238)

Copy Number/LOH File Format for Human Mapping 100K/500K Array Data (page 244)

Selecting Results Groups (page 247)

Using Shared Attributes to Group Samples (page 249)
Paired Copy Number and LOH Analysis
Paired CN Analysis is used to compare two samples from the same individual to look for copy number
differences in different types of tissues (Normal/Tumor, for example).
Genotyping batch analysis must be performed on the data used for CN analysis prior to the CN analysis.
Enzyme Set attributes must be assigned to the arrays to match array sets originating with the same
sample. For example, you could use the ―Subject ID‖ attribute as the Enzyme Set identifier.
Sample/Reference attributes can be useful in group arrays into either the Sample or Reference category.
For example, you could use ―Disease State‖ or ―Tissue State‖ attributes to distinguish between reference
and sample arrays for paired analysis.
The Copy Number and LOH files resulting from combined Enzyme Set data will be named using the
Enzyme Set attribute for the array set. Output files can be given a suffix.
For more information about using shared attributes to pair files by enzyme set or sample/reference group,
see Using Shared Attributes to Group Samples (page 249).
To perform a Paired copy number and/or LOH analysis:
1. Open the Workspace and select the Data Set with the data for analysis.
2. Select the Intensity Data file set.
3. Do one of the following:
-
From the Workspace menu, select Intensity Data > Copy Number/LOH Analysis > Perform
Copy Number/LOH Analysis….(Figure 12.1).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
231
Figure 12.1. Selecting CN/LOH analysis from Workspace menu
-
Right-click the Intensity Data file set and select Perform Copy Number/LOH Analysis from the
pop-up menu (Figure 12.2).
Figure 12.2. Selecting CN/LOH analysis from the Data tree
-
Click the Perform Copy Number Analysis button
in the tool bar and select Perform Copy
Number/LOH Analysis from the dropdown list Figure 12.3.
Figure 12.3. Selecting CN/LOH analysis from the Tool bar
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
232
The Select Analysis Type dialog box opens (Figure 12.4).
Figure 12.4. Select Analysis Type dialog box
4. Select Paired Sample Analysis for Sample type
5. Select the analysis type (CN, LOH, or both)
6. Click OK.
The Copy Number Analysis Options dialog box opens (Figure 12.5).
Figure 12.5. Copy Number Analysis Options dialog box
7. Review analysis configuration parameters and select new analysis configuration if desired.
See Changing Algorithm Configurations for Human Mapping 100K/500K (page 255) for more
information on creating a new analysis configuration.
Change the following if desired:
-
Output Root Path: location of the CN/LOH Results Group folder.
-
Base Batch Name: Name of the CN/LOH Results Group and its folder.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
233
Note: This folder is the location where the different Data Results files are kept. You can
access the folder through Windows Explore to view report files.
-
Output File Suffix: suffix added to distinguish output file names.
9. Click OK.
The Select Files dialog box opens (Figure 12.6).
Figure 12.6. Select Files dialog box where files users can select files for paired sample CN and
LOH analysis
10. Select the Enzyme Set shared attribute from the Enzyme Set Shared Attribute drop-down list (Figure
12.7).
Figure 12.7. List of Enzyme Set shared attributes that can be used to find matching array sets
which originate with the same sample
The files are sorted by Enzyme Set Attribute (Figure 12.8).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
234
Figure 12.8. Files sorted by Subject Name Enzyme Set Attribute
11. Select the Sample vs. Reference attribute from the drop-down list (Figure 12.9).
Figure 12.9. Selecting the Sample vs. Reference attribute
The files in the Available Files box are sorted by both the Enzyme Set Shared attribute and the
sample/reference attribute (Figure 12.10).
Figure 12.10. Sorted by Enzyme Set and Sample/Reference attributes
12. In the Select Files dialog box, choose files from the Available Files list and move them to the Sample
or Reference Files lists (Figure 12.11).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
235
Click the Add button
Click the Remove button
to add data to the Sample Files list or Reference Files list.
to remove data from a list.
Select files
Click buttons to
move to list
Figure 12.11. Moving files in the Select Files dialog box
If the files in the Available Files list are highlighted (Figure 12.12), you will not be able to move them
to the Sample or Reference lists until you have selected a results group for the file.
Figure 12.12. Highlighted file (need to select Results Group).
The message "<Select Results Group>‖ appears if a file is selected for movement to a reference or
sample group without first choosing a results group as the destination for the file to be moved. See
Selecting Results Groups (page 247) for more information.
13. Click the Up
and Down
buttons to change the file‘s position and align arrays by enzyme set
and sample/reference attributes. The analysis will compare the first sample CEL+CHP in the list with
the first reference CEL+CHP, the second sample CEL+CHP with the second reference CEL+CHP,
and so on (Figure 12.13).
Note: You can also change the sort order of the Sample and Reference files list by clicking on
the column headers in the list.
For more information about using shared attributes to pair files by enzyme set or sample/reference
group, see Using Shared Attributes to Group Samples (page 249).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
236
Figure 12.13. Files paired by enzyme set and sample/reference attributes
14. When the files are paired by enzyme set and sample/reference attributes, click OK.
Various error messages may appear if you do not have the samples paired properly or the attributes
selected properly (Figure 12.14, Figure 12.15, Figure 12.16).
Figure 12.14. Unable to verify pairing error message
Figure 12.15. Unable to run analysis error message
You will see the following notice (Figure 12.16) if you try running a paired CN/LOH analysis without
selecting an enzyme set attribute:
Figure 12.16. Warning notice.
See Using Shared Attributes to Group Samples (page 249) for more information about using
attributes.
The Copy Number and LOH use different naming conventions depending upon whether array
enzyme sets are matched or not:
-
If array enzyme sets are being matched in the analysis, the output files are named using the
Enzyme Set attribute for the arrays.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
237
-
If array enzyme sets are being matched in the analysis (if only CEL files processed using a single
enzyme are being analyzed), the output files are named using the CEL file name for the Sample
file.
The Copy Number and LOH use different naming conventions depending upon whether array
enzyme sets are matched or not:
-
If array enzyme sets are being matched in the analysis, the output files are named using the
Enzyme Set attribute for the arrays.
-
If array enzyme sets are being matched in the analysis (if only CEL files processed using a single
enzyme are being analyzed), the output files are named using the CEL file name for the Sample
file.
Different progress windows open as the analysis proceeds.
After generating the Copy Number and/or LOH files, you can:
-
View the QC data in the Copy Number QC Summary Table for 100K/500K (page 254
-
Generate a Segment Report (page 308
-
View the CN/LOH/CN Segment data in the GTC Browser (page 329)
-
Export data to other software (page 331)
The data file format is described in Copy Number/LOH File Format for Human Mapping 100K/500K
Array Data (page 244).
Unpaired Copy Number and LOH Analysis
Unpaired CN Analysis is used to compare sample files to a set of reference files.
The software requires that batch genotyping analysis is performed on the data (CEL -> CHP files) before
the unpaired Copy Number/LOH analysis is run.
When using a single enzyme array type (50K/250K) in an unpaired Copy Number/LOH analysis, an
Enzyme Set attribute is not required.
When using Enzyme Sets (100K/500K array sets) an Enzyme Set attribute shared by both members of a
sample‘s enzyme set must be assigned and used to pair arrays in an enzyme set.
The Sample vs. Reference attribute can be helpful if entered, but is not required.
To perform unpaired copy number/LOH analysis:
1. Open the Workspace and select the Data Set with the data for analysis.
2. Select the Intensity Data file set from the Data tree.
3. Do one of the following:
-
From the Workspace menu, select Intensity Data > Copy Number/LOH Analysis > Perform
Copy Number/LOH Analysis….(Figure 12.17).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
238
Figure 12.17. Selecting CN/LOH analysis from Workspace menu
-
Right-click the Intensity Data file set and select Perform Copy Number/LOH Analysis from the
pop-up menu (Figure 12.18).
Figure 12.18. Selecting CN/LOH analysis from the Data tree
-
Click the Perform Copy Number Analysis button
in the tool bar and select Perform Copy
Number/LOH Analysis from the dropdown list (Figure 12.19).
Figure 12.19. Selecting CN/LOH analysis from the Tool bar
The Copy Number Analysis Options dialog box opens (Figure 12.20).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
239
Figure 12.20. Copy Number Analysis Options dialog box
4. Select Un-Paired Sample Analysis for Sample type
5. Select the analysis type (CN, LOH, or both)
6. Click OK.
The Copy Number Analysis Options dialog box opens (Figure 12.21).
Figure 12.21. Copy Number/LOH Analysis Options dialog box (unpaired analysis)
7. Review analysis configuration parameters and select new analysis configuration if desired.
See Changing Algorithm Configurations for Human Mapping 100K/500K (page 255) for more
information on creating a new analysis configuration.
8. Change the following if desired:
-
Output Root Path: location of the CN/LOH Results Group folder.
Click on the Browse button
-
to search for an output path.
Base Batch Name: Name of the CN/LOH Results Group folder.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
240
Note: This folder is the location where the different Data Results files are kept. You can
access the folder through Windows Explore to view report files.
-
Output File Suffix: suffix added to distinguish output file names.
9. Click OK.
The Select Files dialog box opens (Figure 12.22).
Figure 12.22. Select Files dialog box for unpaired analysis
10. Select the Enzyme Set shared attribute from the Enzyme Set Shared Attribute drop-down list
(Figure 12.23).
Note: This step is not required if you are analyzing a single Enzyme array type.
Figure 12.23. Enzyme Set Shared Attribute dropdown list
The files are sorted by Enzyme Set Attribute (Figure 12.24).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
241
Figure 12.24. Files sorted by Enzyme Set
11. Select the Sample vs. Reference attribute from the drop-down list (Figure 12.25).
Note: This step is not required but may be useful if you have assigned attributes to
samples you wish to use as Samples and References.
Figure 12.25. Selecting the Sample/Reference Attribute
The files are sorted by the sample/reference attribute (Figure 12.26).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
242
Figure 12.26. Sorted by Enzyme Set and Sample/Reference attributes
12. Select files in the Available Files list (Figure 12.27).
Click the Add button
Click the Remove button
to add data to the Sample Files list or Reference Files list.
to remove data from a list.
Select files
Click buttons to
move to list
Figure 12.27. Moving files in the Select Files dialog box
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
243
If the files in the Available Files list are highlighted, you will not be able to move them to the Sample
or Reference lists until you have selected a results group for the file (Figure 12.28).
Figure 12.28. Highlighted file (need to select Results Group)
See Selecting Results Groups (page 247) for more information.
13. Click the Up
and Down
buttons to change the file‘s position and align arrays by enzyme set.
Note: The reference set for unpaired analysis for Human Mapping100K/500K (CN4) analysis
should consist of at least 25 samples, preferably all female. Reference samples should all be
female for best results on the X chromosome. If X chromosome information is not important,
male samples may be used in the reference set. For more information, see the Affymetrix
website for the white paper “Copy Number and Loss of Heterozygosity Estimation Algorithms
for the GeneChip Human Mapping Array Sets”
Note: You can also change the sort order of the Sample and Reference files list by clicking on
the column headers in the list.
For more information about using shared attributes to pair files by enzyme set or sample/reference
group, see Using Shared Attributes to Group Samples (page 249).
14. Click OK.
IMPORTANT: The Copy Number and LOH output files will be named using the Enzyme Set
attribute for the arrays.
Different progress windows open as the analysis proceeds.
The Copy Number and LOH files use different naming conventions depending upon whether array
enzyme sets are matched or not:
-
If array enzyme sets are being matched in the analysis, the output files are named using the
Enzyme Set attribute for the arrays.
-
If array enzyme sets are being matched in the analysis (if only CEL files processed using a single
enzyme are being analyzed), the output files are named using the CEL file name for the Sample
file.
After generating the Copy Number and/or LOH files, you can:
-
View the QC data in the Copy Number QC Summary Table for 100K/500K (page 254
-
Generate a Segment Report (page 308
-
View the CN/LOH/CN Segment data in the GTC Browser (page 329)
-
Export data to other software (page 331)
The data file format is described in Copy Number/LOH File Format for Human Mapping 100K/500K
Array Data (page 244).
Copy Number/LOH File Format for Human Mapping 100K/500K Array Data
The copy number and LOH data are in separate files for Human Mapping 100K/500K array data.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
244
The Copy Number and LOH use different naming conventions depending upon whether array enzyme
sets are matched or not:

If array enzyme sets are being matched in the analysis, the output files are named using the Enzyme
Set attribute for the arrays.

If array enzyme sets are being matched in the analysis (if only CEL files processed using a single
enzyme are being analyzed), the output files are named using the CEL file name for the Sample file.
Header Section
The resulting CN4.cnchp and CN4.lohchp data files contain the following information in the header:

Information about the array (number of SNPs, probe array type, and library file)

Algorithm parameters and command line that was executed (e.g. all advanced parameters that were
used)

Workflow (e.g. paired copy number)

Sample Name

Reference file(s) used
Data Section – For *.CN4.cnchp (Copy Number) Files
The resulting *.CN4.cnchp data files contain the data shown in Table 12.1.
Note: Those values that are labeled “paired analysis only” require that the Generate AlleleSpecific Copy Number check box is selected in the Advanced Analysis options.
Table 12.1 Data items for CNCHP files
Item
Description
ProbeSet
SNP ID
Chromosome
Chromosome number
Position
Physical position of the SNP
Log2Ratio
Smoothed Log2 ratio value
HmmMedianLog2Ratio
Median Log2 ratio value of all contiguous SNPs in the given HMM copy
number state segment
CNState
HMM copy number state
NegLog10PValue
Negative Log10 p-value indicating how different the median Log2 ratio
of the HMM state is from the normal state (CN State 2) for that
particular sample
Log2RatioMin
Smoothed Log2 ratio value for the allele with the lower signal intensity
(paired analysis only)
HmmMedianLog2RatioMin
Median Log2 ratio value of all the contiguous SNPs in the given HMM
copy number state segment of the allele with the lower signal intensity
(paired analysis only)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
245
Item
Description
CNStateMin
HMM copy number state of the allele with the lower signal intensity
(paired analysis only)
NegLog10PValueMin
Negative Log10 p-value indicating how different the median Log2 ratio
of the HMM state of the allele with the lower signal intensity is from the
CN 2 State for that particular sample (paired analysis only)
Log2RatioMax
Smoothed Log2 ratio value for the allele with the higher signal intensity
(paired analysis only)
HmmMedianLog2RatioMax
Median Log2 ratio value of all the contiguous SNPs in the given HMM
copy number state segment of the allele with the higher signal intensity
(paired analysis only)
CNStateMax
HMM copy number state of the allele with the higher signal intensity
(paired analysis only)
NegLog10PValueMax
Negative Log10 p-value indicating how different the median Log2 ratio
of the HMM state of the allele with the higher signal intensity is from the
CN 2 State for that particular sample (paired analysis only)
Chip#
The Array ID (1 or 2) where the SNP resides:
1 = The first array in the virtual set as displayed in the Sample List box.
2 = The second array in the virtual set as displayed in the Sample List
box.
Data Section – For *.CN4.lohchp (LOH) files
The resulting *.CN4.lohchp data files contain the data shown in Table 12.2.
Table 12.2 Data for LOH files
Item
Description
ProbeSet
SNP ID
Chromosome
Chromosome number
Position
Physical position of the SNP
Call
Genotype call for the tumor/test sample
RefCall
Genotype call for the paired reference sample (paired analysis only)
RefHetRate
Heterozygosity rate of the given SNP in the reference samples (unpaired analysis only)
LOHState
1=LOH and 0=Retention
LOHProb
Likelihood that a SNP is in LOH state (closer to 1 indicates a strong
likelihood of LOH)
RetProb
Likelihood that a SNP is in Retention state (closer to 1 indicates a strong
likelihood of Retention)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
246
Selecting Results Groups
If a CEL file selected for CN/LOH analysis has more than one set of genotype results, you will see the file
highlighted in the Available files list (Figure 12.29).
Figure 12.29. Highlighted files in the Available Files list
This will occur if a particular CEL file has been genotyped in more than a single batch, or if the same CHP
file is present in more than one results group (Figure 12.30).
In the example below (Figure 12.30, Figure 12.31, Figure 12.32), the male sample has been separated
out into an additional results set.
Figure 12.30. Multiple Genotype Results groups
Figure 12.31 shows the full results set with all results files.
Figure 12.31. First Results Set
Figure 12.32 shows the male results set with data from male samples.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
247
Figure 12.32. Second Results set with the same CHP file names
You will not be able to select the highlighted files and move them to the Sample or Reference Files lists
until you choose a CHP file from a results group.
To select the Results set for a file:
1. Select the CEL file name and click the Select Results Group button (Figure 12.33).
Select File
Click button
Figure 12.33. Selecting CEL file name
The Select Results Group dialog box opens (Figure 12.34).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
248
Figure 12.34. Select Results Group dialog box.
2. Select the Results group with the file you wish to use and click OK.
The file in the Available Files list displays the CHP file name (Figure 12.35).
Figure 12.35. File with selected Results Group
You can now select the file and move it to the Sample Files List or Reference Files list.
Using Shared Attributes to Group Samples
Attributes in the array files (.ARR, .XML) can be used to group samples for different analysis types.
You assign a common attribute to:

Pair the two different enzyme set arrays arising from the same biological source/state.
The Enzyme Set shared attribute FUNCTIONALLY couples the two array enzyme set types from the
single biological sample, inextricably linking and interleaving the data together in the resulting single
cnchp file (and/or single lohchp file). The Enzyme Set Attribute is a functional attribute required by
GTC software to enable the CN4 algorithm to run correctly when paired CN/LOH or unpaired enzyme
set arrays are analyzed for CN/LOH.

Match up arrays for paired analysis from the same sample.
The Sample/Reference pairing sorts out the list and is therefore helpful, but optional, and is not
required by the algorithm in any way.
Using shared attributes allows you to sort files for easier selection and informs you if you have made
certain mistakes in pairing files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
249
Enzyme Set Shared Attribute (Functionally required in all paired and enzyme set unpaired Copy
Number/LOH analysis )
The Human Mapping 100K and 500K arrays use two different physical arrays to cover the entire set of
SNPs.


Human Mapping 100K includes the following arrays:
-
Mapping50K_Xba240
-
Mapping50K_Hind240
Human Mapping 500K includes the following arrays:
-
Mapping250K_Nsp
-
Mapping250K_Sty
Running the same biological sample on both arrays in a set is necessary to completely cover the
genome.
You can group analysis results from the two arrays for one sample into one copy number data (CNCHP)
file using the Enzyme Set Shared Attribute to group arrays.
It is necessary to match enzyme sets with the Enzyme Set Attribute, whether you are performing a paired
or unpaired CN/LOH analysis.
To set files up for using enzyme set attributes:
1. Put the Sample (ARR or XML), Intensity (CEL) and Genotyping (CHP) files for both array types in the
same data set.
2. Specify the necessary attributes for Enzyme Set in the Sample files. This should be done during initial
sample registration, but you can add and edit the attributes using GCOS or AGCC later on.
Each pair of enzyme set arrays needs to be assigned at least one shared attribute unique to the
CN/LOH analyses of which it will be a part. For example, in Figure 12.36, the Patient_State attribute
is the attribute used to pair the enzyme set arrays from a single sample..
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
250
Enzyme Set Shared Attribute
Figure 12.36. Table of sample files (run as array sets) displaying different sample attributes (for
example, Patient_State) that can be used to pair the sample sets
Sample vs. Reference Shared Attribute (Helpful but never required for analysis)
This attribute pairing is useful when performing paired CN analysis; it enables you to sort the
Sample/Reference data for easier selection and provides a basic check to make sure you haven‘t mixed
them up.
To set files up for using Sample/Reference attributes:
1. Put the Sample (ARR or XML), Intensity (CEL) and Genotyping (CHP) files for both array types in the
same data set.
2. Specify the necessary attributes for Sample vs. Reference in the Sample files. This should be done
during initial sample registration, but you can add and edit the attributes using GCOS or AGCC later
on.
A Sample vs. Reference attribute should be designated for the files. All Sample files should be
assigned one attribute value, and all Reference files should be assigned a different attribute value
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
251
Sample vs. Reference Shared Attribute
Figure 12.37. Sample vs. Reference attribute
Example
As an example, let‘s say we‘re doing a paired analysis on two samples (Diseased/Normal) from five
patients, A, B, C, D, E
We‘ve used Human Mapping 500K arrays, so we have to run each sample (Diseased or Normal) on two
arrays. This gives us a total of 20 arrays to match up, both for enzyme set and for sample/reference
analysis.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
252
Figure 12.38. Table of files and attributes
When you sort by enzyme set with these attributes, you get this:
Figure 12.39. Sorted by Enzyme Set Attribute
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
253
Each sample from diseased tissue is given the value ―Disease‖ in the Sample type attribute, while each
sample from normal tissue is given the value ―Normal.‖
Figure 12.40. Sorted by Enzyme Set and Sample/Reference attributes
This allows you to pair up the files, both by Enzyme set and by sample/reference pair, as shown in Figure
12.41.
Figure 12.41. Selected array files, paired by enzyme set and sample/reference status
Copy Number QC Summary Table for 100K/500K
The Copy Number QC Summary Table displays QC information about the copy number and LOH
analyses.
Use the GTC Browser (page 329) to view Copy Number, LOH, and CN Segments data in a genomic
context.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
254
The Copy Number QC Summary Table uses all the table options as described in Table Features
(page 221).
To open the QC Summary table:

Right-click a Copy Number/LOH Results set and select Show Copy Number QC Summary Table; or
From the Workspace menu, select Copy Number/LOH Results > Show Copy Number QC
Summary Table.
The QC Summary table opens (Figure 12.42).
Figure 12.42. Copy Number QC Report for 100K arrays, all columns view
The following information is displayed for Human Mapping 100K/500K arrays in All Columns View:
File
File name
Bounds
In or out of QC bounds. See Setting QC Thresholds (page 336) for more information.
IQR for all
chromosomes
Interquartile range average for all chromosomes
IQR for individual
chromosomes
Interquartile range for each individual chromosome
The interquartile range (IQR) of the un-smoothed log2ratio smoothed total
CN is displayed for each sample. The IQR values are displayed for each
chromosome as well as for the whole sample. In a paired analysis, the IQR
values are reported for each allele independently.
The interquartile range is a measure of dispersion or spread. It is the difference
between the 75th percentile (often called Q3 or 3rd quantile) and the 25th percentile
(Q1 or first quantile). The formula for interquartile range is therefore: Q3-Q1. Since the
IQR represents the central 50% of the data, it is not affected by outliers or extreme
values and is hence a robust measure of dispersion. In general the sample-level IQR
should be comparable to the chromosomal IQR for the given sample. A discordance in
a chromosomal observation is potentially indicative of a biological change.
File Date
Date the file was created
Changing Algorithm Configurations for Human Mapping 100K/500K Analysis
You can change algorithm parameters for the copy number and LOH analysis for Human Mapping
100K/500K arrays.
To open the Configurations dialog box:
1. From the Edit menu, select Copy Number Configurations > New Configuration.
The Select Probe Array Type dialog box opens.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
255
Figure 12.43. Select Probe Array Type dialog box
2. Select Mapping100K or Mapping500K from the list and click Select.
The Copy Number/LOH Configuration Options dialog box opens .
Figure 12.44. Basic Configuration Options for Human Mapping 100K/500K arrays
3. Enter values for configuration Options.
The parameters are described in:
-
Basic Options (page 257)_Basic_Options
-
Advanced Options (page 259)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
256
4. Save the new configuration file:
-
To save as new configuration: Click Save As.
-
Save as default configuration: Click Default.
To edit a previously created Configuration.
1. From the Edit menu, select Copy Number Configurations > Open Configuration.
The Open dialog box opens.
Figure 12.45. Open dialog box
2. Select the configuration file to be edited and click Open.
The Basic Options dialog box opens.
3. Enter values for configuration Options.
The parameters are described in:
-
Basic Options (below)
-
Advanced Options (page 259)
Basic Options
The basic options are displayed when the dialog box first opens (Figure 12.46).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
257
Figure 12.46. Basic Configuration Options
The Basic Options allow you to change parameters for:

Restrict by Fragment Size

Normalization

Copy Number Parameters
See below for an explanation of these parameters.
Restrict by Fragment Size
This option enables the analysis to be performed on only a subset of SNPs based on the fragment size
where the SNPs reside. By default, this option is unchecked and all SNPs are included in the analysis.
Figure 12.47. Restrict by Fragment Size
To enable this option:
1. Check the box next to Restrict Analysis to SNPs on Fragment Sizes Ranging.
2. Enter the size of fragments that you want to be included in the analysis.
3. Proceed to further customize the analysis configuration as outlined below or save the configuration
changes to exit the dialog box.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
258
Normalization
This option enables specification of the probe-level normalization. Select one of the following two options
in the Normalization group box.
Figure 12.48. Normalization group box
Quantile
Quantile normalization performs a sketch normalization, based on perfect match (PM) probes across the
CEL files. Quantile is the default setting.
Median
Median scaling performs a linear scaling based on the median of all CEL files included in the analysis. All
PM and mismatch (MM) probes are included to compute the median intensity of a CEL file.
Copy Number Parameters
Figure 12.49. Copy Number Parameters
Generate Allele Specific Copy Number
For paired analysis, an allele-specific analysis can be performed on the SNPs, which are heterozygous in
the paired normal. This option can be disabled by unchecking the Generate Allele Specific Copy Number
box.
Genomic Smoothing
The genomic smoothing option allows the user to specify the genomic smoothing length (in megabases)
to be used. The genomic smoothing that is applied is a Gaussian smoothing. The default bandwidth value
is 100 Kb (0.1 Mb) that results in a window size of 400 Kb. This default is optimized for Human Mapping
500K analyses. For Human Mapping 100K analyses, use 0.5 Mb. Genomic smoothing can be disabled by
applying a smoothing bandwidth of 0 bp. See Copy Number Parameter Settings (page 263) for
recommended CN parameter settings.
Note: The smoothing bandwidth should be determined based on the type of aberration in the
sample. For example, if you are interested in small aberrations such as micro-deletions, you
will want to use a smaller genomic smoothing length or no smoothing, comparable to or less
than the size of the micro effect that is being studied. If you are looking for large chromosomal
deletions, you may choose to use a large Mb smoothing bandwidth.
Advanced Options
Click the Advanced Options button to display the following options:

HMM Parameters
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
259

Post-HMM Processing

LOH Parameters
Figure 12.50. Options DB with Advanced Options shown
Copy Number Parameters/HMM Parameters adjust:
-
CN State: Prior Value and Standard Deviation
-
Transition Decay
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
260
Figure 12.51. HMM Parameters
CN State – Prior Value
A 5-state Hidden Markov Model (HMM) is applied for smoothing and segmenting the CN data. The priors
and transition decay length are the two user tunable parameters.
The HMM has 5 possible states:
State 0 =
CN of 0; homozygous deletion
State 1 =
CN of 1; heterozygous deletion
State 2 =
CN of 2; normal diploid
State 3 =
CN of 3; single copy gain
State 4 =
CN of 4; amplification
The default for each state is 0.2 indicating that each SNP has equal prior probability of being in any one
of the 5 states. Generally speaking, the prior should not be adjusted unless it is known that the bulk of the
data is comprised of hemizygous deletions. In this case, the prior corresponding to State 1 can be
changed from 0.2 to 0.96 with all other prior states adjusted accordingly to equal a total of 1.
Note: The prior values entered are only initial estimates. The HMM optimizes this parameter
based on the data.
Standard Deviation
Standard deviation is one of the parameters that affect the probability with which the underlying CN state
is emitted to produce the observed state. Specifically, it reflects the underlying variance or dispersion in
each CN state. The standard deviation of each underlying state can be adjusted. As a rule of thumb, the
lower the Genomic Smoothing value, a higher standard deviation should be used for each CN state. This
basically implies that with increased noise (due to less smoothing) the variance of the CN states should
be increased.
The default is 0.07 for state 2 and 0.09 for all other states (0, 1, 3, 4). (See Copy Number Parameter
Settings (page 263) for suggested changes to this parameter).
Transition Decay
This parameter controls the expected correlation between adjacent SNPs. The copy number state of any
given SNP is partially dependent on that of its neighboring SNPs and is weighted based on the distance
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
261
between them. By adjusting this parameter, neighboring SNPs can either have more or less of a
dependence on each other.
The default value is 10 Mb.
To reduce the influence of neighboring SNPs, decrease this value (transition faster).
For example, if you set the decay to 1 Mb, and if a given SNP is in CN State 1, the probability that the
flanking SNPs to the right will continue to be in State 1 is much lower compared to the case where the
transition decay is 100 Mb.
To increase the influence of neighboring SNPs, increase this value (transition slower).
Post-HMM Processing
Figure 12.52 Re-adjusting outliers
Re-adjust outliers
This parameter enables adjusting the CN state of singleton SNPs in a different state in comparison to the
states of the flanking SNPs.
For example, if there is a single SNP in a 1 Mb region that is called CN State 3 by the HMM, but all
surrounding SNPs are called CN State 2, then by checking the Re-adjust outliers checkbox, this singleton
SNP will be changed from CN State 3 to CN State 2, provided it is within the threshold for SNP outlier
adjustment. See Threshold for SNP Outlier Adjustment
If the surrounding states of the singleton SNP are two different states, the algorithm computes a weight
median to determine which state to assign to the singleton SNP.
Note: Weighting of the median is determined by the distance to the flanking SNPs.
Threshold for SNP Outlier Adjustment
This parameter is linked to the re-adjust outliers parameter. It is the distance that is applied to determine if
the flanking SNPs should impact the readjustment of the singleton SNP.
The default value is 1000 bp (the singleton SNP is in the center of this region).
Note: These parameters are highly correlated with the Gaussian smoothing used. If heavily
smoothed (for example, >1Mb), the readjustment should be turned off. If the readjustment is
enabled at the default threshold distance, it may not have any effect.
The readjustment parameter should be disabled for detection of micro-aberrations.
Suggested Cytogenetics Settings for Human Mapping 100K/500K Arrays
You may wish to save the HMM Parameters settings when performing cytogenetic analysis. Suggested
values are:
Table 12.3 Recommended copy number parameter settings
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
262
CN State
Prior Value
Standard Deviation
0
0.2
0.23
1
0.2
0.23
2
0.2
0.2
3
0.2
0.23
Copy Number Parameter Settings
Analysis can be optimized to the specific copy number experiment by changing the algorithm parameters.
The table below describes a set of recommended parameter settings for some common experimental
conditions.
Table 12.4 Recommended copy number parameter settings
Copy
Number
Footprint
of
Change
Microdeletions
Ref. Set
Probe-level
normalization
Gaussian
Smoothing
(kb)
HMM
Priors
HMM
Transition
Decay
(Mb)
HMM Std.
Deviation
<4Mb
Unpaired
> 25
Median Scaling
Low
Equal
<1000
Refer to
off
BW versus
SD table
(algorithm
in manual)
Chr X
changes
Size of
chr X
Unpaired
> 25
Quantile
100
Equal
1000
0.09 for
on
states 0, 1,
3, 4 & 0.07
for state 2
Trisomy/
Disomy
Variable
Unpaired
> 25
Quantile
100
Equal
1000
0.09 for
on
states 0, 1,
3, 4 & 0.07
for state 2
TumorNormal
pairs
Variable
1
Median/Quantile 100
Equal
1
0.09 for
on
states 0, 1,
3, 4 & 0.07
for state 2
Homozygous
deletions
Variable
Unpaired
> 25
Quantile
100
State
10
0=0.96
All other
states =
0.01
0.09 for
states 0,
1, 3, 4 &
0.07 for
state 2
Unpaired
> 25
Quantile
500
Equal
0.06 for
on
states 0, 1,
3, 4 & 0.03
for state 2
Pseudo―95 SNPs
autosomal (Nsp)
regions on
X (Male)
―140 SNPs
(Sty)
®
Restrict
by
Fragment
Size
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
10
263
Adjust
Outliers
on
Copy
Number
Footprint
of
Change
Restrict
by
Fragment
Size
Ref. Set
Probe-level
normalization
Gaussian
Smoothing
(kb)
HMM
Priors
HMM
Transition
Decay
(Mb)
HMM Std.
Deviation
Adjust
Outliers
Karyotype 1–5 Mb
Unpaired
> 25
Quantile
50
Equal
1
0.11 for
states
0,1,3,4 &
0.08 for
state 2
on
FISH
(BAC
clones)
200 Kb
Unpaired
> 25
Quantile
50
Equal
1
0.11 for
states
0,1,3,4 &
0.08 for
state 2
on
Analysis
of FFPE
samples
Variable
(exclude
Unpaired
SNPs on
larger PCR ≥ 30
fragments)
Quantile
100
Equal
1-100
0.09 for
states
0,1,3,4 &
0.07 for
state 2
on
LOH Parameters
Figure 12.53. LOH Parameters - Advanced Options page
Analysis can be optimized to the specific LOH experiment by changing the algorithm parameters. Table
12. describes a set of recommended parameter settings for some common experimental conditions.
Table 12.2 Recommended LOH parameters
LOH
Reference Set
HMM Transition Decay (Mb)
Tumor – Normal Pairs
1
10
Unpaired
>30 from mixed population
10
Unpaired
~30 from same population
10
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
264
Chapter 13: Copy Number & LOH Analysis for GenomeWide Human SNP 6.0 Arrays
GTC 4.1 can be used to perform the following analyses for the Genome-Wide Human SNP Array 6.0:

Copy Number (CN)

Loss of Heterozygosity (LOH)
The following analyses are performed on the CN data generated during CN/LOH analysis:

Copy Number Segment Reporting

Custom Region Copy Number Segment Reporting
Note: Copy Number Variation (CNV) analysis is performed in a separate step from CN/LOH
analysis. The CNV data can be viewed in the Heat Map with the CN data. See Chapter 15: Copy
Number Variation Analysis (page 339) for more information.
GTC 4.1 provides an updated default CN configuration file to accommodate updates in CN analysis. For
the configuration type CN/LOH Analysis, the Marker-level Normalization option is set to Median Autosome
in the default configuration file. You can manually change the Marker-level Normalization option by editing
the configuration file (for more details, see Changing CN/LOH Algorithm Configurations for SNP 6.0
Analysis, page 289).
CN configuration files from GTC 3.0, 3.0.1, and 3.0.2 are automatically updated when GTC 4.1 launches,
or when a new user profile is selected, or when the library path is changed. Configuration files from GTC
2.0 or 2.1 are not updated. The updates are listed in a Conversion Report (Figure 13.1)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
265
Figure 13.1 CN configuration update
Only SNP 6.0 CEL files are needed for analysis by BRLMM-P+; genotyping (CHP) files are not required.
Important: Copy Number and LOH analysis algorithms performed on SNP 6.0 array data are
collectively referred to in Genotyping Console as “CN5” in output file names.
Note: GTC 4.1 does not perform copy number, LOH, or Copy number region analysis on data
from SNP 5.0 and Axiom Array types.
Affymetrix recommends that you perform Copy Number/LOH analysis with all files stored
locally. For more details on hard disk space requirements, see Appendix J: Hard Disk
Requirements (page 395).
Affymetrix recommends that you perform Copy Number/LOH analysis with regional GC
correction configuration.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
266
The basic workflow for Copy Number/LOH analysis for SNP 6.0 arrays involves:
1. Performing Copy Number/LOH analysis on a selection of CEL files (page 267).
There are two options for this analysis:
-
CN/LOH Reference Model File Creation and Analysis (Batch Sample Mode) (page 268).
-
CN/LOH Analysis with a Previously Created Reference Model File (Single Sample Mode)
(page 276).
2. Performing the Copy Number Segment analysis on the SNP 6.0 CN data files (page 308).
Note: Segment Reporting Analysis can also be performed on 100K/500K data.
3. Running the Segment Reporting Tool on the SNP 6.0 CN data (page 308).
For SNP 6.0 data, the Segment Report also provides gender calls, including reports for samples with
unknown (or ambiguous) genders.
4. Viewing QC data in table format (page 284).
5. Viewing the CN/LOH data in the GTC Browser (page 329).
6. Viewing the Copy Number and Copy Number Variation (CNV) data in the Heat Map Viewer
(page 347).
Note: CNV analysis is performed in a separate step from CN/LOH analysis. The CNV data can
be viewed in the Heat Map with the CN data. See Chapter 15: Copy Number Variation Analysis
(page 339) for more information.
7. Exporting data into formats that can be used by secondary analysis software (page 331).
You can also:

Change the QC threshold settings (page 336).

Change the algorithm parameters for SNP 6.0 analysis (page 289).
Note: Small numerical differences may occur between different runs even with the same
inputs due to an interaction between rounding from double to single precision and the way the
application handles memory management.
Copy Number/LOH Analysis for SNP 6.0 Arrays
Important: Affymetrix recommends that you perform Copy Number/LOH analysis with all files
stored locally.
The CN/LOH analysis for SNP 6.0 arrays outputs files with the extension CN5.cnchp; these files contain
both copy number and LOH data.
The following types of analysis can be performed:

CN/LOH Reference Model File Creation and Analysis (Batch Sample Mode) (below)
This analysis first creates a Reference Model file using the CEL files for the selected samples. Then
each CEL file used to create this Reference Model file is re-analyzed against the new Reference
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
267
Model file. From this comparison, the sample's Copy Number and LOH data are generated. The
genotype calls made on the fly by the BRLMM-P+ algorithm are used for the LOH analysis.
The analysis provides Gender Calls — Female or Male.

CN/LOH Analysis with a Previously Created Reference Model File (Single Sample Mode) (page 276)
In this analysis you compare the selected sample CEL files to a previously created Reference Model
file, either the HapMap270 file supplied by Affymetrix or a Reference Model file you have created
using the CN/LOH Reference Model File Creation and Analysis process described above. In this
―Single sample‖ workflow, the LOH analysis is done with the genotype calls made on the fly by the
BRLMM-P+ algorithm using the Reference Model data.
The analysis provides Gender Calls — Female or Male.
Note: Small numerical differences may occur between different runs even with the same
inputs due to an interaction between rounding from double to single precision and the way the
application handles memory management.
Note: CN/LOH analysis can be run either with regional GC correction or without regional GC
correction. Either configuration works with both batch sample mode and single sample mode.
Note: Previous GTC 3.0 configuration files will automatically be updated by GTC 4.1 and run
without GC correction and with updated score threshold (1.0) and configurable Marker-level
Normalization.
Note: Analysis performed with regional GC correction will need NetAffx NA26.1 or higher
version of annotation files. Analysis performed without regional GC correction will need
NetAffx NA25 or higher version of annotation files.
Copy Number and LOH analyses are done during the same analysis run and the data are kept in the
same CN5.cnchp file.
CN/LOH Reference Model File Creation and Analysis (Batch Sample Mode)
Important: Affymetrix recommends that you perform Copy Number/LOH analysis with regional
GC correction configuration.
Important: Affymetrix recommends that you run Copy Number/LOH analysis with batch
sample mode and regional GC correction using arrays run at the same lab using the same
reagent lots to reduce general variability and to correct GC waviness.
See Appendix J, page 395 for more details on hard disk space requirements.
This analysis first creates a Reference Model file using the CEL files for the selected samples. Then each
CEL file used to create this Reference Model file is re-analyzed against the new Reference Model file.
From this comparison, the sample's Copy Number and LOH data are generated. The genotype calls
made on the fly by the BRLMM-P+ algorithm are used for the LOH analysis. The Reference Model Files
end in the filename extension .ref.
To create a Reference Model File and perform SNP 6.0 CN/LOH analysis:
1. Select the Intensity Data file set from the Data tree.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
268
2. Do one of the following:
-
From the Workspace menu, select Intensity Data > Create Copy Number/LOH Reference
Model File and Perform Analysis; or
-
Right-click on the Intensity Data file set in the data tree and select Copy Number/LOH Analysis
>Create Copy Number/LOH Reference Model File and Perform Analysis from the pop-up
menu Figure 13.2); or
Figure 13.2. Selecting CN/LOH Analysis from the data tree
-
Click the Create Copy Number/LOH Analysis button
in the tool bar and select Create
Copy Number/LOH Reference Model File and Perform Analysis… from the menu.
Figure 13.3. Selecting CN/LOH analysis from the tool bar
If you have not selected a particular Intensity Data set, the Select a user intensity data group dialog
box opens (Figure 13.4).
Figure 13.4. Copy Number Analysis Options dialog box
3. Select a data group and click OK in the Select a user intensity data group dialog box.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
269
The Copy Number/LOH Analysis Options for Reference Model File Creation and Analysis dialog box
opens (Figure 13.5).
Figure 13.5. Copy Number Analysis/LOH Analysis Options for Reference Model File Creation and
Analysis dialog box
Click the Advanced button to review analysis configuration parameters (Figure 13.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
270
Figure 13.6. Displaying the Analysis Configuration Parameters
4. Select a different Analysis Configuration (Figure 13.7) (optional).
Analysis configurations are sets of parameters used in the analysis. See Changing CN/LOH
Algorithm Configurations for SNP 6.0 Analysis (page 289) for more information on creating a new
analysis configuration.
Figure 13.7 Copy Number Analysis Options dialog box, Configuration drop-down list
-
Select a different configuration from the drop-down list.
5. Enter a name for the new Reference File (Figure 13.8):
Figure 13.8 Save Reference Model File As
a. Click the Save Reference Model File As browse button
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
.
271
The Save dialog box opens (Figure 13.9).
Figure 13.9 Save dialog box
b. Enter a name for the file in the Name box.
c.
Click Save in the Save dialog box.
6. Select a different annotation file (Figure 13.10) (optional).
This option enables you to select an annotation file for the analysis.
Figure 13.10 Select Annotation File
a. Click the Select Annotation File browse button
.
The Select the annotation file dialog box (Figure 13.11) opens.
Figure 13.11. Select annotation file dialog box
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
272
Note: The NetAffx annotation file must be of NA26.1 or higher version if configuration files are
with regional GC correction. If the configuration files are without regional GC correction, the
NetAffx annotation file can be of NA25 or higher version.
Note: Only official released SNP6 NetAffx annotation files are filtered in this dialogue window.
Annotations for other array platforms or custom annotation files will not be filtered.
b. Click OK in the Select Annotation File dialog box.
7. Select Output Root path (Figure 13.12) (optional):
This option changes the location where the CN/LOH files are placed.
Figure 13.12. Select Output Root Path
a. Click the Select Output Root Path browse button
.
The Browse for Folder dialog box opens (Figure 13.13).
Figure 13.13. Browse for Folder dialog box
b. Select a new location for the CN/LOH data files and click OK in the Browse for Folder dialog box.
8. Select CN/LOH Batch Name (Figure 13.14) (optional):
This option changes the name of the folder in which the CNCHP files are placed. A name based on
the analysis type and the time and date of the analysis is automatically assigned to the folder unless
you change it.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
273
Figure 13.14. Select CN/LOH Batch Name
-
Click in the box and enter the Batch Name.
Note: This is the name of the folder where the different Data Results files are kept. To view
report files, access the folder through Windows Explorer.
9. Enter File Suffix for the CNCHP files (Figure 13.15) (optional):
This option adds a suffix to the CNCHP files to help you track them. Click in the box and enter a
suffix.
Figure 13.15. Output File Suffix
10. Click OK in the Copy Number/LOH Analysis Options for Reference Model File Creation and Analysis
dialog box.
The Create Copy Number Reference Model File dialog box opens (Figure 13.16).
Figure 13.16. Create Copy Number Reference Model File dialog box
The Sample/Reference Attribute (optional) dropdown list (Figure 13.17) enables you to sort the CEL
files by an attribute in the corresponding Sample (ARR) files.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
274
Figure 13.17. Sample/Reference Attribute (optional) dropdown list
11. Select files in the Available Files list. A minimum of five files is required to run the analysis.
Note: To create a useful Reference Model File, it is recommended that you select 44 or more
samples if possible, although the software will accept as few as 5. For obtaining good data on
the X and Y chromosomes, you should use a minimum of 15 files from female samples and 15
files from male samples to generate the Reference Model file. See Notes on Selecting Files for
Creating Reference Model Files (page 276) for more information.
Note: If all other parameters and files are the same, reference model files generated with or
without regional GC correction are exactly the same. You do not have to regenerate a
reference model file twice with different settings in the regional GC correction option.
Click the Add button
Click the Remove button
to add data to the Reference list.
to remove data from the Reference list.
12. Click OK.
If you have selected fewer than the recommended number of samples, a warning appears
(Figure 13.18).
Figure 13.18. File number warning
Click Yes to proceed with the analysis.
A notice shows that the analysis is in progress (Figure 13.19.
Figure 13.19. Performing Unpaired Copy Number Analysis notice
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
275
After generating the Copy Number/LOH (CN5.cnchp) files, you can:
-
View CN QC data in tables (page 284).
-
Use the new Reference Model file to perform additional single-sample CN/LOH analysis (below).
-
Generate Copy Number Segment Reports (page 308).
-
View the CN data in the Heat Map viewer (page 347)
-
Export data to other software (page 331)
Notes on Selecting Files for Creating Reference Model Files
Affymetrix recommends using a minimum of 44 samples when creating a Reference Model File. A
minimum of five files is required to generate the reference model file.
Affymetrix recommends using a set of mixed gender samples when creating a Reference Model File for
analysis.
Affymetrix recommends using at least 15 female samples when creating a Reference Model File for
analysis of the X chromosome.
Affymetrix recommends using at least 15 male samples when creating a Reference Model File for
analysis of the Y chromosome.
CN/LOH Analysis with a Previously Created Reference Model File (Single Sample
Mode)
Important: Affymetrix recommends that you perform Copy Number/LOH analysis with regional
GC correction.
Important: Affymetrix recommends that you run Copy Number/LOH analysis with batch
sample mode and regional GC correction using arrays run at the same lab using the same
reagent lots to reduce general variability and to correct GC waviness.
Affymetrix recommends that you perform Copy Number/LOH analysis with all files stored
locally. For more details on hard disk space requirements, see Appendix J: Hard Disk
Requirements (page 395).
In this analysis you compare the selected sample CEL files to a previously created Reference Model file,
either the HapMap270 one supplied by Affymetrix or a reference you have created using the CN/LOH
Reference Model File Creation and Analysis process described above. In this workflow no CHP files are
required; instead the LOH analysis is done with the genotype calls made on the fly by the BRLMM-P+
algorithm.
Note: You can perform a single sample analysis on more than one CEL file at a time; single
sample means that each CEL file is compared to a reference model file.
Notes on Selecting Files for Analysis against a Previously Created Reference Model File
Affymetrix recommends not analyzing only female samples against a Reference Model File previously
generated with only male samples when running CN/LOH analysis.
See Appendix A:Algorithms (page 369) for references to the BRLMM-P+ algorithm.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
276
To perform CN/LOH analysis with a previously created Reference Model File:
1. Select the Intensity Data file set.
2. Do one of the following:
-
From the Workspace menu, select Intensity Data > Perform Copy Number/LOH Analysis; or
-
Right-click on the Intensity Data file set in the data tree and select Copy Number/LOH Analysis
> Perform Copy Number/LOH Analysis from the pop-up menu (Figure 13.20); or
Figure 13.20. Selecting Copy Number/LOH Analysis from the data tree
-
Click the Create Copy Number/LOH Analysis button
in the tool bar and select Perform
Copy Number/LOH Analysis … from the menu (Figure 13.21).
Figure 13.21. Selecting Copy Number/LOH Analysis from the tool bar
If you have not selected a particular Intensity Data set, the Select a user intensity data group dialog
box opens (Figure 13.22).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
277
Figure 13.22. Select a user intensity data group dialog box
3. Select a data group and click OK in the Select a user intensity data group dialog box.
The Copy Number Analysis Options dialog box opens (Figure 13.23).
Figure 13.23. Copy Number/LOH Analysis Options dialog box
Click the Advanced button to review analysis configuration parameters (Figure 13.6).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
278
Figure 13.24. Displaying the Analysis Configuration Parameters
Note: You cannot change the annotation files in this analysis once a specific reference model
file is chosen. The annotation files used to create the Reference file are automatically
selected.
5. Select a different Analysis Configuration without regional GC correction or any other custom
configuration files (Figure 13.25) (optional).
Analysis configurations are sets of parameters used in the analysis. See Changing CN/LOH
Algorithm Configurations for SNP 6.0 Analysis (page 289) for more information on creating a new
analysis configuration.
Note: For some parameters, you cannot select different values than those used in the
generation of the reference file used for the analysis.
Figure 13.25 Copy Number/LOH Analysis Options, configurations drop-down list
-
Select a different configuration from the drop-down list.
6. Select a Reference File for the analysis:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
279
Figure 13.26 Copy Number/LOH Analysis Options, configurations drop-down list
a. Click the Select Reference Model File As browse button
.
The Select Reference Model file dialog box opens (Figure 13.27).
Figure 13.27 Select Reference Model File dialog box
b. Select a reference file from the list and click Open in the Select Reference Model File dialog box.
The correct annotation file is automatically selected (Figure 13.28).
Figure 13.28 Annotation File Used for Reference Model File
Note: If you choose the GenomeWideSNP_6.hapmap270.na26.1.r1.a5.ref as reference model
file, you are required to have NetAffx NA26.1 version of annotation files.
Note: You cannot change the annotation files in this analysis once a specific reference model
file is chosen. The annotation files used to create the Reference file are automatically
selected.
Note: The NetAffx annotation files must be of NA26.1 or higher version if configuration files
are with regional GC correction. If the configuration files are without regional GC correction,
the NetAffx annotation files can be of NA25 or higher version.
7. Select Output Root path (Figure 13.29) (optional).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
280
Figure 13.29 Select Output Root Path
This option changes the location where the CN/LOH files are placed.
a. Click the Select Output Root Path browse button
.
The Browse for Folder dialog box appears (Figure 13.30).
Figure 13.30 Browse for Folder dialog box
b. Select a new location for the CN/LOH data files and click OK in the Browse for Folder dialog box.
8. Select CN/LOH Batch Name (Figure 13.31):
Figure 13.31 Select CN/LOH Batch Name
This option changes the name of the folder in which the CNCHP files are placed.
A name based on the analysis type and the time and date of the analysis is automatically assigned to
the folder unless you change it.
Note: This folder is the location where the different Data Results files are kept. You can access
the folder through Windows Explore to view report files.
-
Click in the box and enter the Batch Name.
9. Enter a File Suffix for the CNCHP files (Figure 13.32):
Figure 13.32 Output File Suffix
This option adds a suffix to the CNCHP files to help you track them.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
281
-
Click in the Box and enter a suffix.
10. Click OK in the Copy Number/LOH Analysis Options dialog box.
The Select Files dialog box opens (Figure 13.33).
Figure 13.33. Select Files: Copy Number Analysis for Unpaired dialog box
The Sample/Reference Attribute (optional) dropdown list (Figure 13.34) enables you to sort the CEL
files by an attribute in the corresponding Sample (ARR) files.
Figure 13.34. Sample/Reference Attribute (optional) dropdown list
11. Select files in the Available Files list.
Click the Add button
Click the Remove button
®
to add data to the sample or reference list.
to remove data from a list.
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
282
12. Click OK in the Select Files: Copy Number Analysis for Unpaired dialog box.
A notice shows that the analysis is in progress (Figure 13.35).
Figure 13.35. Performing Unpaired Copy Number Analysis notice
After generating the Copy Number/LOH (CN5.cnchp) files, you can:
-
View CN QC data in tables (page 284).
-
Generate Copy Number Segment Reports (page 308).
-
View the CN data in the Heat Map viewer (page 347)
-
Export data to other software (page 331)
The file format is described below.
Copy Number/LOH Data File Format for Genome-Wide Human SNP Array 6.0 Data
For Genome-Wide Human SNP Array 6.0 analysis, the Copy Number and LOH data are kept in the same
file.
Header Section
The header section contains the following information:

Information about the Software and Algorithm version used to generate the data

File name, creation and modification times, and unique identifier

Array type

Genome version and library information

CN/LOH Algorithm parameters

Reference Model File used

Number of Markers for each chromosome

X and Y chromosome information
Data Section – for *.CN5.cnchp files
The data section contains information on the following output fields found in *.CN5.cnchp files:
allele
difference
Difference between the A channel signal and the B
channel signal, with each signal standardized with
respect to their median values in the reference
cnstate
Hidden Markov Model (HMM) copy number state
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
283
smoothsignal
Smoothed log2 ratios or smoothed log2 ratios
calibrated to Copy Number and anti-logged
(depending on the options setting)
loh
Loss of Heterozygosity, 1=LOH, and 0=retention
log2ratio
Log2 ratio value
Adjusting Normalization and Background Parameters for Reference Model File and Sample Files
The Copy Number algorithms depend on comparing signal for each marker in each sample against a
reference formed from a group of samples. The underlying assumption is that for each marker the
reference signal state in the group will be CN=2 (except for the Y chromosome, where the reference state
is CN=1), and hence deviations from the reference signal can be seen by forming the log ratio of each
marker's signal compared to its reference value. For the autosomes, the reference value for each probe
set is formed by taking the median of summarized probe set signals across all samples in the reference.
For each SNP probe set, summary signal is calculated after normalizing intensities by using probe
logarithmic intensity error (PLIER) with non-standard options for each of the SNP allele probe sets and
summing the result of both alleles. For each CN probe set, summary signal is the normalized intensity
only. For chromosome X, the reference value is formed using only the samples determined not to have a
single X and assumes the majority of such samples are diploid. For chromosome Y, the reference value is
formed using only the samples determined to have a Y present.
Note: Forming a reference where a large fraction of the samples have one or more
chromosomal aneuploidies in common will give you unreliable results for the chromosomes
affected by aneuploidy.
In the process of calculating signal various normalization steps are made so that signal from each sample
can be meaningfully compared with each other. If these normalization steps are not the same, then the
comparison is no longer meaningful. In particular, in single sample workflow, new samples are normalized
in the same way as the reference.
For information about changing the algorithm parameters, see Changing CN/LOH Algorithm
Configurations for SNP 6.0 Analysis (page 289).
For information about the algorithm description, see Appendix A: Algorithms (page 369).
CN/LOH QC Report Table for the Genome-Wide Human SNP Array 6.0
Use the GTC Browser (page 329) to view Copy Number, LOH, and CN Segments data in a genomic
context.
Use the Heat Map Viewer (page 347) to view Copy Number data along with Copy Number Variation data,
if available.
The Copy Number QC Summary Table displays QC information about the copy number and LOH
analyses.
The Copy Number QC Summary Table uses all the table options as described in Table Features
(page 221).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
284
To open the QC Summary table:

Right-click on the Copy Number/LOH Results set of interest and select Show Copy Number QC
Summary Table; or
Figure 13.36 Right-click data tree menu, Copy Number/LOH Results
From the Workspace menu, select Copy Number/LOH Results > Show Copy Number QC
Summary Table.
Figure 13.37 Workspace menu, Copy Number/LOH Results
If you have not selected a specific Copy Number/LOH Results group, the Select a copy number/LOH
results group dialog box opens (Figure 13.38).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
285
Figure 13.38 Select a copy number/LOH results group dialog box
Select a results group and click OK in the dialog box.
The Copy Number QC Report table opens (Figure 13.39).
Figure 13.39 Copy Number/LOH QC Report for Genome-Wide Human SNP 6.0 array (All Columns
View)
The Copy Number/LOH QC Report provides the following information for SNP 6.0 data:
Table 13.1 SNP 6.0 Copy Number/LOH QC Report data
Item
Description
File
File name.
Bounds
In or out of QC bounds.
See Setting QC Thresholds (page 336) for more information.
Gender
Gender call for the sample. It can be:



®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
Male
Female
Unknown
286
Item
Description
MedianAutosomeMedian
Defined by taking the median of the medians of the log2 ratios of all
autosomes, then subtracting this from each log2 ratio (including X and Y).
This correction assumes the majority of the autosomes represent normal
diploid DNA and this correction removes subtle array to array biases in
normalization.
MAPD
Median absolute pairwise difference. See MAPD and Copy Number QC on
the Genome-Wide Human SNP Array 6.0 (below), for more information.
iqr
Interquartile range average for all chromosomes.
all_probeset_rle_mean
The mean absolute relative log expression (RLE) – This metric is generated
by taking the probe set summary for a given array and calculating the
difference in log base 2 from the median value of that probe set over all the
arrays. The mean is then computed from the absolute RLE for all the probe
sets for a given CEL file.
gc-correction-size
The median of the absolute value of the differences between uncorrected
log2 ratios and GC waviness corrected log2 ratios.
sample-median-cn state
The median of all the calibrated (mapped in CN state space) log2 ratios for
the sample.
sample-hom-frequency
The frequency (homozygous calls / all SNP calls) of SNP homozygous calls
for the sample.
sample-het-frequency
The frequency (heterozygous calls / all SNP calls) of SNP heterozygous
calls for the sample.
waviness-sd
The residual standard deviation (SD) after correcting for adjacent probe set
to probe set SD based on autosomal log2 ratios. The waviness-sd is a
measure of the signal variability in longer range waviness.
chrom_MinSignal (one for each
chromosome)
Minimum Log2Ratio for a given chromosome and sample (see Figure
13.40).
Chrom_MaxSignal (one for each
chromosome)
Maximum Log2Ratio for a given chromosome and sample (see Figure
13.40.
File Date
Date file was created.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
287
Figure 13.40 Copy Number/LOH QC Report showing chrom_MinSignal and chrom_Max_Signal for
chromosomes 1, 2, and 3
MAPD and Copy Number QC on the Genome-Wide Human SNP Array 6.0
MAPD is defined as the Median of the Absolute values of all Pairwise Differences between log2 ratios for
a given array. Each pair is defined as adjacent in terms of genomic distance, with SNP markers and CN
markers being treated equally. Hence any two markers that are adjacent in the genomic coordinates are a
pair. Except at the beginning and the end of a chromosome every marker belongs to 2 pairs as it is
adjacent to the marker preceding it and the marker following it on the genome.
MAPD is a per array estimate of variability, like Standard Deviation (SD). If the log2 ratios are distributed
normally with a constant SD then MAPD/0.96 is equal to SD. MAPD is a robust QC check against high
biological variability in log2 ratios induced by conditions such as cancer.
Variability in log2 ratios in an array arises from two distinct sources:
-
Intrinsic variability in the starting material, hyb cocktail preparation, the array, the scanner
-
Apparent variability induced by the fact that the arrays used to produce the reference file may
have systematic differences from the array currently being analyzed.
Regardless of the source of the variability, increased variability in the log2 ratios decreases the quality of
CN calls. Very high MAPD indicates that the log2 ratio differences for the given array are too large to
recommend the array for further analysis. Variability in general will be reduced by using a reference set
generated from arrays run at the same lab using the same reagent lots.
As in genotyping, there can be substantial batch effects or lab-to-lab systematic effects. If a reference is
generated from arrays run in a lab other than the lab where the arrays used for analysis are run, such
systematic differences inflate the apparent variability between the reference and the analysis set.
Affymetrix has observed that using the supplied Affymetrix reference with arrays run in different labs will
inflate MAPD by around 50%, although a factor of 2 is possible.
If an array with MAPD generated from the Affymetrix reference is greater than 0.35, then we recommend
against using that array in an analysis.
When using a Reference Model File made up of arrays NOT generated in the same lab using the same
reagent lots: CNCHP files with a MAPD value greater than 0.35 should not be used for further analysis.
When using a Reference Model File made up of arrays that WERE generated in the same lab using the
same reagent lots: CNCHP files with a MAPD value greater than 0.3 should not be used for further
analysis.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
288
Changing CN/LOH Algorithm Configurations for SNP 6.0 Analysis
Affymetrix recommends that you perform Copy Number/LOH analysis with regional GC
correction configuration.
Note: You cannot edit a configuration file that was created in GTC 2.1 or earlier. You can only
edit configuration files that were created in GTC 3.0 or higher.

Creating a New Algorithm Configuration (below)

Restoring Configuration Settings to Default Values (page 292)

Editing a Configuration (page 293
The configuration options are described in:

Basic Configuration Options for SNP 6.0 CN/LOH Analysis (page 297)

Advanced Configuration Options for SNP 6.0 CN/LOH Analysis (page 299)
Creating a New Algorithm Configuration
To create a new algorithm configuration:
1. From the Edit menu, select Copy Number Configurations > New Configuration (Figure 13.41).
Figure 13.41. Select Probe Array Type dialog box
The Select Probe Array Type dialog box opens (Figure 13.42).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
289
Figure 13.42. Select Probe Array Type dialog box
2. Select GenomeWideSNP_6 from the list and click Select.
The Select Configuration Template dialog box opens (Figure 13.43).
Figure 13.43. Select Configuration Template with or without regional GC correction
Note: The same configuration parameters are available for both the Regional GC Correction
and No Regional GC Correction templates, but the default values for some parameters are
different in the two template types. See HMM Parameters (page 301) for more information.
3. Select the configuration template and click OK.
The CN/LOH Configuration Options Template dialog box opens (Figure 13.44).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
290
Figure 13.44. CN/LOH configuration Options Template dialog box, Basic Options displayed
The Array type selected is displayed in the title bar.
The template selected is displayed at the top of the dialog box.
The same parameters can be adjusted for Regional GC Correction and for No Regional GC
Correction, although some of the default parameter values differ. These differences are explained in
HMM Parameters (page 301).
4. Select the Configuration Type (Figure 13.45).
-
CN/LOH Analysis
-
Reference Model File Creation and CN/LOH Analysis
Certain options are available only when the Reference Model File Creation and CN/LOH Analysis
option is selected.
Figure 13.45. Selecting Configuration Type
See Configuration Type (page 297).
5. Enter values for configuration Options.
The options are described in:
-
Basic Configuration Options for SNP 6.0 CN/LOH Analysis (page 297)
-
Advanced Configuration Options for SNP 6.0 CN/LOH Analysis (page 299)
6. Click Save as or Save in the CN/LOH Configuration Options Template dialog box.
The Save dialog box opens (Figure 13.46).
Note: See Restoring Configuration Settings to Default Values (page 292) to restore the
default values.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
291
Figure 13.46. Save dialog box
7. Enter a name for the configuration and click Save in the Save dialog box.
Restoring Configuration Settings to Default Values
To restore the default values for configuration settings:
1. Click the Default button in the CN/LOH Configuration Options Template dialog box (Figure 13.47).
Changed
score
threshold
Figure 13.47. CN/LOH Configuration Options Template dialog box with score threshold changed
The Select Configuration Template dialog box opens (Figure 13.48).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
292
Figure 13.48 Select Configuration Template dialog box
2. Select a template and click OK in the Select Configuration Template dialog box.
The default configuration values for the selected template are restored in the CN/LOH Configuration
Options Template dialog box (Figure 13.49).
Score threshold
restored to default
Figure 13.49. CN/LOH Configuration Options Template dialog box with default values restored
Editing a Configuration
Note: GTC cannot edit a configuration file that was created in GTC 2.1 or earlier. You can only
edit configuration files that were created in GTC 3.0, GTC 3.0.1, GTC 3.0.2, GTC 4.0, or
GTC 4.1.
To edit a configuration that was created in GTC 3.0.1, GTC 3.0.2, GTC 4.0, or GTC 4.1:
1. From the Edit menu, select Copy Number Configurations > Open Configuration.
The Open dialog box opens (Figure 13.50).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
293
Figure 13.50. Open dialog box
Note: The Open dialog box shows configuration files that were created in GTC 3.0, GTC 3.0.1,
GTC 3.0.2, GTC 4.0, or GTC 4.1. You can edit these files directly (see below for more
information).
Note: Configuration files that were created in GTC 2.1 or earlier will be displayed in the Open
dialog box to help you avoid overwriting them. You cannot edit these files directly (see below
for more information).
2. Select the configuration file and click Open.
The Copy Number/LOH Configurations Options Template dialog box opens (Figure 13.51).
File Name
Figure 13.51. Copy Number/LOH Configurations Options Template Dialog box, Edit mode
The file name is displayed in the title bar of the dialog box when editing a configuration.
3. Select the configuration options and enter new parameter values
The parameters are described in:
-
Basic Configuration Options for SNP 6.0 CN/LOH Analysis (page 297)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
294
-
Advanced Configuration Options for SNP 6.0 CN/LOH Analysis (page 299)
4. Save the changes to the configuration:
-
To save the new values in the original configuration: Click Save in the Copy Number/LOH
Configurations Options Template Dialog box.
The configuration is updated with the new values.
-
To save as new configuration:
a. Click Save as in the Copy Number/LOH Configurations Options Template Dialog box.
The Save dialog box opens (Figure 13.52).
Figure 13.52. Save dialog box for edited configuration
b. Enter a configuration name and click the Save button in the Save dialog box.
The new configuration is saved.
Note: See Restoring Configuration Settings to Default Values (page 292) to restore the
default values.
To edit a configuration that was created in GTC 3.0:
1. From the Edit menu, select Copy Number Configurations > Open Configuration.
The Open dialog box appears (Figure 13.53).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
295
Figure 13.53. Open dialog box
Note: Configuration files that were created in GTC 3.0 will be displayed in the Open dialog box
for selection. You can edit these files directly (see below for more information). If GTC 3.0
configuration files are opened in GTC 3.0.1, these files will be treated as configurations
without regional GC correction.
Note: If you are editing a configuration file created in GTC 3.0, you need to update the Score
Threshold from 0.05 to 1.0 as the Affymetrix recommended new setting.
2. Select the configuration file and click Open.
The CN/LOH Configuration Options Template dialog box opens with additional ―No Regional GC
Correction‖ added (Figure 13.54).
Figure 13.54 CN/LOH Configuration Options Template dialog box
3. Select the configuration options and enter a score threshold.
4. Save the changes to the configuration:
-
To save as new configuration: Click Save as.
Note: See Restoring Configuration Settings to Default Values (page 292) to restore the
default values.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
296
To transfer parameters from a configuration created in GTC 2.1:
1. From the Windows Explorer, find the old configuration file and open it using text editor software
2. Write down or print the old configuration file
3. Make a new configuration file in GTC 3 using the old configuration parameters (a few parameters are
new to GTC 3 configuration).
The parameters are described in:
-
Basic Configuration Options for SNP 6.0 CN/LOH Analysis (page 297)
-
Advanced Configuration Options for SNP 6.0 CN/LOH Analysis (page 299)
Basic Configuration Options for SNP 6.0 CN/LOH Analysis
The basic options are displayed when the dialog box first opens (Figure 13.55).
Figure 13.55 Basic Options, regional GC correction template chosen
The Basic Options allow you to change:

Configuration Type (below)

Confidence (page 298)

Probe-level Normalization for Reference Model File Creation (page 298)
Configuration Type
You can create a configuration for the following types of analysis:

CN/LOH Analysis

Reference Model File Creation and CN/LOH Analysis
Figure 13.56 Configuration Type
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
297
Note: Some configuration options are available only when the Reference Model File Creation
and CN/LOH Analysis option is selected.
Confidence Score Threshold Parameter
Confidence Score Threshold (Figure 13.57) is the maximum score at which the algorithm will make a
genotype call.
Figure 13.57 Confidence Score Threshold
Larger values of the score/confidence threshold indicate less certain calls. Calls with confidence scores
above the threshold are assigned a no-call.
Probe-level Normalization for Reference Model File Creation Parameter
You can select different options for probe-level normalization for reference model file creation
(Figure 13.58).
Figure 13.58 Reference Model File Creation: Probe-level Normalization
Note: This option is available only when the Reference Model File Creation and CN/LOH
Analysis configuration option is selected.

Quantile normalization is recommended for copy number analysis of association and cytogenetics
samples. Quantile normalization is most appropriate for samples where most of the chromosomes are
relatively normal.
Quantile Normalization makes the entire distribution of data from the different arrays the same. The
assumption for this method is that the signal distributions from all of the arrays should be similar. The
data from each array is sorted and ranked from the lowest to the highest with each rank representing
a quantile. The average intensity of each quantile is calculated across all the arrays. Then for each
array in the set, the measured intensity in a given quantile is replaced with the calculated average
intensity. All arrays in the data set now have identical distributions.

In contrast, many cancer samples contain significant abnormalities that impact much of the genome;
therefore, median normalization is recommended.
Median Normalization scales all of the arrays in a set so that they have the same median intensity.
This is a linear normalization method that will normalize all of the arrays to the median value of the
medians for the individual arrays.
For a more detailed discussion of normalization please refer to A Comparison of Normalization Methods
for High Density Oligonucleotide Array Data Based on Variance and Bias. Bioinformatics. 2003 Jan
22;19(2):185-93. B. M. Bolstad, R. A. Irizarry, M. Astrand and T. P. Speed.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
298
Important: For any single sample Copy Number/LOH Analysis run, the Probe-level
Normalization and Probe-level Background Correction parameters must be and will be set to
the same values for the Analysis as the parameters used to generate the Reference Model File
used in the Analysis.
Advanced Configuration Options for SNP 6.0 CN/LOH Analysis
Click the Advanced Options button (Figure 13.59) to display the Advanced Options for CN/LOH
Configuration.
Figure 13.59 Basic Options, regional GC correction template chosen
Figure 13.60. CN/LOH Configurations Options Template Dialog box: Advanced Options displayed
The Advanced Options include:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
299

Reference Model File Creation: (below)

Marker-level Normalization (page 300)

Copy Number Parameters: (page 301)

LOH Parameters (page 304)

SmoothSignal Graph Output (page 306)
Reference Model File Creation: Probe Level Background Correction
Note: This option is available only when the Reference Model File Creation and CN/LOH
Analysis configuration option is selected.
The SNP 6.0 assay uses both Sty and Nsp enzymes to cut the original DNA into fragments. Each enzyme
has four alternative recognition sites (adapters). Fragment-specific amplification has been observed
depending on the particular pair of adapters used to cut out fragments. Such fragment-specific effects are
typically very similar within a set of samples run together, but between sample sets such effects are
occasionally quite different.
Figure 13.61. Reference Model File Creation Options: Probe-level Background Correction
The probe-level ―Adapter Type‖ normalization (Figure 13.61) is used to ensure the fragment effects are
uniform across all samples. For any single sample Copy Number/LOH Analysis run, the Probe-level
Normalization and Probe-level Background Correction configuration parameters should be set the same
for the analysis as these parameters were set during the generation of the Reference Model file used in
the analysis.
Marker-level Normalization
You can select the Median Autosome marker-level normalization (Figure 13.62) as an optional
normalization done after log2 ratios are calculated: the log2 ratios are adjusted by subtracting the median
of the median log2 ratio of all the autosomes.
Figure 13.62 Marker-level Normalization options
This adjustment can be useful for samples with primarily diploid autosomes when probe-level
normalization may be affected by an aneuploidy such as high CN gain in Chromosome X. Note that this
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
300
adjustment is not a probe-level background correction. This is only recommended for samples where
most of the chromosomes are relatively normal.
Copy Number Parameters:
These advanced parameters enable you to adjust the Copy Number performance
You can adjust:

HMM Parameters

Post-HMM Processing Parameters
Figure 13.63 Default Copy Number Parameters for Regional GC Correction Template
HMM Parameters
CN State represents the possible values that the HMM can find. The HMM looks for CN states 0, 1, 2, 3
and 4-or-greater. CN state of 5 or more will also be represented as CN State 4
A 5-state Hidden Markov Model (HMM) is applied for smoothing and segmenting the CN data. The user
tunable parameters for the HMM are:

Priors Settings (below)

Transition Decay (page 303)
Priors Settings
The HMM has 5 possible states:
State 0 =
CN of 0; homozygous deletion
State 1 =
CN of 1; heterozygous deletion
State 2 =
CN of 2; normal diploid
State 3 =
CN of 3; single copy gain
State 4 =
CN 4; amplification
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
301
For each of these states you can modify the following priors values:

Copy Number State
The default for each state is 0.2 indicating that each SNP has equal prior probability of being in any
one of the 5 states. We have not extensively tested the impact of modifying this initial estimate on the
performance of the HMM.
Note: The prior values entered are only initial estimates. The HMM optimizes this
parameter based on the data.

Mean
The mean is the expected log2 ratio of each CN state. For example if the reference is diploid for each
marker then the expected log2 ratio for CN = 2 is 0. A Chromosome X titration experiment was
performed using samples that have differing numbers of X chromosomes spanning the range of the
HMM. The observed log2 ratios for different copy numbers of Chromosome X were used to set the
default mean for each state (except CN = 0, which is unchanged from CNAT 4).

Standard Deviation
Standard deviation is one of the parameters that affect the probability with which the underlying CN
state is emitted to produce the observed state. Specifically, it reflects the underlying variance or
dispersion in each CN state. The standard deviation of each underlying state can be adjusted. The
defaults in the SNP 6.0 parameters are a little lower than the observed SD‘s in each state, but when
adjusted during testing to match the observed SD‘s did not improve the results of the HMM.
The HMM prior options have different parameters for regional GC and no Regional GC
The Hidden Markov Model (HMM) with regional GC correction is modified for SNP 6.0 with the
following changes in the Mean values for different CN states (Figure 13.64).
Figure 13.64 HMM parameters for SNP 6.0 with Regional GC Correction
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
302
In the SNP 6.0 CN/LOH configuration without regional GC correction (Figure 13.65), the same Hidden
Markov Model (HMM) is used for SNP 6.0 as that used in CNAT 4, with the following notable exceptions
for SNP 6.0:

Smoothing log2 ratios prior to using the HMM is not possible

Signal in log2 ratios for SNP markers is always ―logSum‖

The ―sumLog‖ signal summary is not possible
Figure 13.65. HMM parameters for SNP 6.0 with no Regional GC Correction
Accordingly, other than smoothing, the same parameters in CNAT 4 are exposed as advanced options.
These parameters are used to define how the HMM calculates per marker Copy Number from log2 ratios.
Transition Decay
The Transition Decay parameter (Figure 13.66) controls the expected correlation between adjacent
markers. The copy number state of any given marker is partially dependent on that of its neighboring
markers and is weighted based on the distance between them. By adjusting this parameter, neighboring
markers can either have more or less of a dependence on each other.
Figure 13.66. Transition Decay parameter
The default value is 1000 Mb.
To reduce the influence of neighboring markers, decrease this value (transition faster). For example, if
you set the decay to 1 Mb, and if a given marker is in CN State 1, the probability that the flanking markers
to the right will continue to be in State 1 is much lower compared to the case where the transition decay is
100 Mb.
To increase the influence of neighboring markers, increase this value (transition slower).
Post-HMM Processing Parameters
Occasionally a marker (typically a CN probe) on the SNP 6.0 array performs erratically for unknown
reasons. The outcome may be occasional singleton calls of CN different from unchanging CN in flanking
markers (both CN and SNP) surrounding this marker.
Figure 13.67 Post HMM processing parameters
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
303
Setting the CN Minimum Number Marker Threshold parameter (Figure 13.67) to 1 changes the CN
determination of such markers to agree with the other markers surrounding it.
For example, if there is a single marker that is called CN State 1 by the HMM, but the surrounding
markers are called CN State 2, then this singleton SNP will be changed from CN State 1 to CN State 2.
Setting this parameter to 0 leaves the original CN State value unchanged. For the SNP 6.0 array this field
refers to the number of flanking markers and can only be 0 or 1.
LOH Parameters
The SNP 6.0 LOH algorithm looks for runs of homozygous SNP calls, taking into account the overall het
rate and the likely error rate in calling.
Figure 13.68. LOH parameters
The following LOH Parameters can be adjusted.
HET Call Error Rate
The Genotyping algorithms perform well in the context of signal from diploid SNPs, with very low error
rates. However, when signal arises from a non-diploid SNP, the genotyping error rate is higher. In the
case of LOH associated with a CN =1 region, (e.g., as in a single X chromosome without special
treatment by the genotyping algorithm) then, while we would expect no hets at all to be called, in practice
with current default SNP 6.0 genotyping parameters, it is more usual to see around 5% het call rates
depending on sample quality.
Lower quality data will result in a higher het call error rate. The algorithm auto-adjusts the het call error
rate in the following case: if LOH is being called as part of a reference model generation and the default
no-call threshold (.05) for genotyping is used, then the algorithm will adjust the het call error rate upwards
if necessary, depending on the observed no-call genotyping rate. In all other cases the het call error is left
as the value in the panel (Figure 13.69).
Figure 13.69. HET Call Error Rate
The het call error rate is tuned for LOH in hemizygous deletions (i.e. a loss of a portion of 1 chromosome
out of a pair). In fact small regions of Copy Neutral LOH are very common; they may arise from portions
of paired chromosomes that can be traced through different lines of descent back to a single ancestor
and so these regions are identical and hence homozygous. To detect such Copy Neutral LOH, a het call
error rate of .02 is more appropriate.
Alpha and Beta
The LOH algorithm depends on 2 concepts:

Alpha (if LOH is present, this is the chance that the algorithm would fail to call it)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
304
Given that LOH is truly present, what are the odds that it is not found given the het call error rate?
This is referred to as Type I error and is traditionally referred to as ―Alpha‖ in statistics. Decreasing
alpha decreases the odds the algorithm will falsely rule against LOH but increases the odds it will
falsely find LOH.

Beta (if normal Heterozygosity is present, this is the chance of mistakenly calling it LOH)
Given the usual or expected rate of heterozygosity in a region what are the odds of falsely finding
LOH? This is referred to as Type II error or statistical power and is traditionally referred to as ―Beta‖ in
statistics. Decreasing Beta decreases the odds the algorithm will falsely find LOH but increases the
odds it will fail to find LOH when it is present.
The Alpha and Beta parameters can be adjusted
Figure 13.70. LOH parameters
Minimum Markers
The Minimum Markers parameter sets the minimum number of SNPs to be used in evaluating LOH. The
algorithm calculates the number of SNPs needed to satisfy alpha and beta. For the supplied alpha and
beta defaults this calculated number is well in excess of the default (10 marker) minimum, but if you
decide to change the alpha and beta parameters then the Minimum Markers parameter can be used as a
safety net.
Separation
LOH is calculated based on the assumption that LOH is found over a contiguous region of the genome.
When gaps occur in the genome (such as across a centromere), LOH can be calculated separately for
each stretch of the genome. The typical distance between SNPs on SNP 6.0 is on the order of 1,300
bases. The separation parameter controls how many base pairs must separate 2 markers before the LOH
algorithm starts calculating the LOH value for a new stretch of genome.
Figure 13.71. Separation
At the separation parameter‘s default setting the LOH algorithm will treat each chromosome as a region.
No Call Threshold
In any one sample not all SNP results provide equally reliable data. Some SNP results give high quality
information about the genotype they call, and others give low quality information. Including low quality
SNP calls increases the het call error rate over any improvement in the algorithm‘s accuracy by including
these extra SNPs. The quality of the SNP call is captured by its Confidence value (as defined in the
genotyping algorithm), and the No Call Threshold excludes SNPs with a greater Confidence value than
this parameter value (Figure 13.72).
Figure 13.72. No Call Threshold
See
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
305
LOH Minimum Physical Size Threshold
This parameter sets a minimum size that LOH blocks must exceed to be reported as LOH (Figure 13.73).
Figure 13.73. LOH Minimum Physical Size Threshold
As described above small regions of Copy Neutral LOH are very common; they may arise from portions of
paired chromosomes that can be traced through different lines of descent back to a single ancestor and
so these regions are identical and hence homozygous. Thus, some Copy Neutral LOH regions are
associated with haplotype blocks. As region size increases the odds we see Copy Neutral LOH related to
a haplotype block decreases. The HapMap phase 1 study shows roughly 70% of common haplotype
blocks in humans are less than about 100 kilobases; further increasing The LOH Minimum Physical Size
Threshold above the 100kb value will screen out Copy Neutral LOH regions arising from haplotype blocks
at the expense of losing smaller LOH regions arising from other events (e.g., a deletion event).
SmoothSignal Graph Output
These options control the signal smoothing functions.
Figure 13.74. Smoothing Signal Graph Output
Smoothing Gaussian Window
The log2 ratio is the raw estimate of log of CN signal compared to an expected state of CN=2 for each
marker. These raw estimates can be smoothed using a Gaussian kernel to lower noise to improve per
marker Signal to Noise ratio at the expense of blurring the boundaries where the CN state changes. For
each marker, the smooth is constructed using a weighted mean of the log2 ratios of surrounding markers
with weights proportional to the Gaussian transform of their genomic distance from that marker. The
Gaussian transform has Standard Deviation equal to the ―Smoothing Gaussian Window.‖ (Figure 13.75)
Figure 13.75. Smoothing Gaussian Window
In usual signal processing terminology this parameter is known as the bandwidth.
Setting this value to 0 will result in no smoothing.
Smoothing Sigma Multiplier
In principle, the Gaussian smooth uses all markers. In practice surrounding markers far from any
particular marker have little numerical impact on the final smoothed value. The Smoothing Sigma
Multiplier parameter (Figure 13.76) determines the number of Standard Deviations away from the given
marker where markers will be included in the smooth.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
306
Figure 13.76. Smoothing Sigma Multiplier
Note that larger values will result in increased compute times for the algorithm.
Setting this value to 0 will result in no smoothing.
Smoothing Parameters options
You can select from different smoothing parameter options (Figure 13.77)
Figure 13.77. Smoothing Parameters

Calibrate Smooth Log2 ratio to CN
Checking this option calibrates Smooth Log2 ratio to the HMM mean parameters for different CN
states and inverts the resultant smoothed log2 ratio to normal Copy Number. So a 0 value in the
smoothed log2 ratio will become 2 after inverting. If the HMM mean corresponding to CN state of 1 is
-.55 then a smoothed log2 ratio with a value of -.55 will be inverted to CN = 1. If the Smoothing
Gaussian Window is 0 or the Smoothing Sigma Multiplier is 0, then calibration and inversion to CN
units occurs without any smoothing.

Smooth Log2 Ratio
Checking this option results in the smoothed log2 ratios only.

Skip any smoothing
Checking this option will prevent smoothed log2 ratios from being calculated and included in the
CNCHP file output.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
307
Chapter 14: Common Functions for Copy Number/LOH
Analyses
This chapter covers the copy number/LOH functions that are common to both Human Mapping
100K/500K arrays and the Genome-Wide Human SNP Array 6.0. These functions include:

Using the Segment Reporting Tool & Custom Regions (page 308)

Loading Data into the GTC Browser (page 329)

Export Copy Number/LOH data (page 331)

Setting QC Thresholds (page 336)
Using the Segment Reporting Tool & Custom Regions
You can use the Segment Reporting Tool (SRT) to locate segments with copy number changes in the CN
data for 100K/500K and SNP 6.0 array data. The SRT detects both common and unique-to-a-sample
copy number change segments.
For SNP 6.0 data the SRT also produces a gender call for the sample, based on the detected copy
number state for the X and Y chromosomes. See CN Segment Report (SNP 6.0 only) (page 387) for
more information about the CN Segment Report Tool‘s gender call.
More information is given in:

Introduction (page 308)

Running the Segment Reports Tool (page 310)

Segment Report Tool Results Files (page 321)
Note: The SRT requires annotation files (*.annot.db) to analyze CNCHP files generated in
earlier versions of GTC. For Human Mapping 100K or 500K data, the SRT requires na24
version of the annotation file (*.na24.annot.db). For Genome-Wide SNP Array 6.0 data, the SRT
requires, na25 to na29 version of annotation files (*.annot.db), depending on the annotation
version that was used to generated the CNCHP file.
Introduction
There are three processes involved:
1. Detect all CN Segments that meet initial filter requirements.
2. Filter Segments using a designated CNV Map to remove Segments that overlap with known CNV
Regions (optional).
3. Generate Custom Regions Reports on regions that are defined in a Custom Region file (optional).
At the end of these processes, a Segment Report (*.cn_segments) for each copy number file is
generated. An optional Segment Summary Report that concatenates the segments from each
Segment Report can also be generated.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
308
If the Custom Region option is used, a Custom Regions Report file is created for each .CNCHP file
analyzed. An optional Custom Regions Summary Report that concatenates the segments from each
Custom Regions report can also be generated.
Detect CN Segments that meet initial requirements
This process detects all the copy number change segments in the CNCHP files that meet the initial
filtering parameters for:

Minimum number of markers per Segment

Minimum genomic size of a Segment
Filter Out segments that overlap with known CNV regions (optional)
The SRT can filter out Segments that overlap with known CNV regions by a user-defined percentage of
markers in the segment.
If the filter value is set to 25%, all segments that overlap known CNV Regions by more than 25% are not
included in the report. Segments that overlap by 25% or less are included in the reports.
The SRT produces a Segment Report file (*.cn_segments) for each copy number file that is analyzed.
The Segment Report files contain information on the copy number segments detected in a given CNCHP
file.
The Segment Report files can be viewed:

In the Copy Number Segment Report table of GTC 4.1

In the GTC Browser
See Segment Report (page 321) for more information.
The SRT can also generate an optional Segment Summary Report file (*.cn_segments_summary)
concatenating the segment data for all of the CNCHP files analyzed in a particular run.
The Segment Summary Report (page 324) can be viewed in a spreadsheet program.
Generate Custom Reports Using a Custom Regions File (optional)
You can also use a Custom Regions file to generate Custom Regions reports for each copy number file.
The Custom Regions file defines regions of the genome of interest. The Custom Regions Report allows
analysis of ―favorite‖ regions of the genome without needing to filter the cn_segments_report manually for
these regions, or needing to view data in the GTC Browser.
A sample template Custom Input Regions file (Custom Regions template cn_input_regions.bed) is
located in the Library folder.
See Custom Region File Format (page 319) for more information.
The Custom Regions reports include information on segments with copy number changes in the defined
custom regions. The report includes:

custom region name

overlap of the region with the segment and vice versa

genomic location

size

# of markers in the segment
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
309

overlap with known CNVs

other annotation
The Custom Regions Report files can be viewed:

In the Copy Number Segment Report table of GTC 3.0.1

In the GTC Browser
You can also generate an optional Custom Regions Summary Report file (.custom_regions_summary)
concatenating the custom regions data for all of the files analyzed in a particular run.
The Custom Regions Summary Report (page 328) can be viewed in a spreadsheet program.
IMPORTANT: the Custom Input Regions file can be loaded into the GTC Browser as a track.
This allows you to view your Custom Regions in a genomic context.
Running the Segment Reports Tool
The basic operation of the Segment Reporting Tool is described below.
You can select from several options for using the Segment Reporting Tool:

Selecting CNV Map (page 315)

Selecting Filters (page 316)Filter Out segments that overlap with known CNV regions (optional) (page
309)

Adding a Suffix to the Segment Report File (page317)

Create Segment Summary Report File (page 317)

Using a Custom Regions File (page 318)

Create Custom Region Summary Report (page 320)
To create a segment report:
1. Select the results set you wish to generate a report for.
2. Do one of the following:
-
From the Workspace menu, select Copy Number/LOH Results > Run Segment Reporting
Tool
-
Right-click the Copy Number/LOH Results file set and select Run Segment Reporting Tool from
the pop-up menu (Figure 14.1)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
310
Figure 14.1. Pop-up menu
-
Click the Run Segment Reporting Tool button
in the tool bar.
Note: If you have selected a data set with no copy number files available, the following notice
appears (Figure 14.2):
Figure 14.2. Warning notice
If you see this notice, click OK and then select a data set with copy number data.
If you have selected a data set with more than one copy number result batch available, the following
notice appears to ask you to choose a CN result batch (Figure 14.3):
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
311
Figure 14.3 Select Results Group dialog box
3. Select the group you wish to analyze and click OK.
The Select Files dialog box opens (Figure 14.4).
Figure 14.4 Select files dialog box
4. Select the copy number data you wish to analyze and click OK.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
312
The Segment Reporting Tool Filters dialog box opens (Figure 14.5).
Figure 14.5 Segment Reporting Tool Filters dialog box
5. Select Options you wish to use (see below).
The options are described in:
-
Selecting CNV Map (page 315)
-
Selecting Filters (page 316)
-
Include segments that overlap with known CNV regions by % (page 316)
-
Adding a Suffix to the Segment Report File (page 317)
-
Create Segment Summary Report File (page 317)
-
Using a Custom Regions File (page 318)
-
Create Custom Region Summary Report (page 320)
6. Click OK in the Segment Reporting Tool Filters dialog box.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
313
The Progress bar displays the progress of the Segment Reporting Tool (Figure 14.6).
Note: An error message appears if you do not have .24.annot.db for Human Mapping 100K or
500K arrays or the correct version of annot.db for SNP 6.0.
Figure 14.6 Progress bar
The following notice appears if the Custom Regions input file is not in the correct format (Figure 14.7).
Figure 14.7 Notice of incorrect format
When the Segment report is finished, a notice appears.
The following notice appears if none of the copy number data files had any Segments (Figure 14.8).
Figure 14.8 No Segments Results notice
The following notice appears (Figure 14.9) if:
-
If at least one of the copy number data files had Segments; or
-
If you click OK in the notice above.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
314
Figure 14.9 View Segment/CN/LOH data Notice
Click Yes to display the files in the GTC Browser.
Selecting CNV Map for Filtering Segments
The SRT allows you to filter the detected copy number segments against a CNV Map of known copy
number variation regions by a specified percentage. The SRT uses the Toronto CNV map as the default
map for analysis. You can choose other CNV maps (e.g. Broad CNV map, or user-defined map) in the
SRT Filters dialog box (Figure 14.10).
A CNV map template (Custom Regions template cn_input_regions.bed) is provided in the library folder.
When SNP and CN probe sets lose genome positions due to an annotation update, those SNP and CN
probe sets are not included in the SRT to calculate % overlap.
Figure 14.10 CNV Map options
The CNV Map files use the BED file format.
To select a custom CNV map:
1. Select the Custom radio button.
2. Click the Browse button.
The dialog box opens (Figure 14.11).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
315
Figure 14.11 Open CNV Map File dialog box
3. Select the CNV Map file from the list displayed in the dialog box and click Open.
Selecting Filters
You can define thresholds for the segment size and number of markers required to define segments
(Figure 14.12).
Figure 14.12 Select Filters
To set thresholds:

Enter values for the filter parameters:
Minimum number of markers per
segment
Minimum number of SNP and CNV probe
sets that must be present to report the
segment.
Minimum genomic size of a segment
(kpb)
Minimum size of a segment in kilobase
pairs.
Include segments that overlap with known CNV regions by %
CNV regions from the CNV map files are the known (or user-defined) regions in the genome identified as
having copy number variants (CNVs), or copy number polymorphisms (CNPs) in the general population
(or in some humans). This data comes from the Toronto DGV database (or as user defined) and can be
displayed as Variants in the Browser track called genomic variants or comes from other resources.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
316
To aid in the discovery of novel regions with copy number variants, it is possible to exclude segments that
overlap these regions with known copy number variants (Figure 14.13). The identification of segments to
be excluded is based on the percentage of the markers (SNP+CN makers) that overlap the boundaries of
the SNP and CN annotation in the database.
If the percentage of markers in a copy number changed segment which overlap with known CNV regions
in the Toronto DGV database (or users defined CNV regions) exceeds the selected percentage, then the
Segment Reporting Tool will not report that segment.
Figure 14.13 Overlap Filter setting
To set the threshold:

Enter values for the % Overlap:
If the percent value is set to 25%, segments with up to 25% of their markers overlapping known CNV
regions will be reported as part of the Segment Report. Segments with more than 25% of their
markers overlapping known CNV regions will be excluded from the Segment Report.
Note: 100% means that all of the segments will be reported.
Adding a Suffix to the Segment Report Files
A suffix can be added to keep the output files from overwriting the results of an earlier analysis
(Figure 14.14). The suffix will be added to Segment Report files and Custom Region Report files. Suffixes
are not added to Summary reports.
Figure 14.14 Add a segment report file suffix
To add a suffix:

Enter a suffix for the segment report file in the Segment Report File Suffix textbox.
Create Segment Summary Report File
This option (Figure 14.15) allows you to generate a summary segment report with information on change
regions in all the CNCHP files you are analyzing. This tab-delimited file contains the file extension
.cn_segments_summary.
Figure 14.15 Segment Summary report file option
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
317
To create a segment summary report file:
1. Select the Create segment report summary checkbox.
2. Click the Browse button
.
The Save Segment Summary Report File dialog box opens (Figure 14.16).
Figure 14.16 Save Segment Summary Report File dialog box
3. Select a location for the Segment Summary Report file and enter a name for the file. (Segment
Report File suffixes are not automatically added to Summary files)
4. Click Save in the Save Segment Summary Report File dialog box.
Using a Custom Regions File
You can use a Custom Regions file (Figure 14.17) to look for copy number gain and loss in select regions
of the genome. Custom Regions are defined in tab-delimited ―.bed‖ file format
This information results from filtering the whole genome Copy Number Segment data generated by the
Segment Reporting Tool to look at only the defined regions, during the same run for the same samples.
A sample template Custom Input Regions file (Custom Regions template cn_input_regions.bed) is
located in the Library folder.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
318
Figure 14.17 Options for using a custom regions file and creating a Custom Regions Summary
report
Create Custom Regions Summary report
This option allows you to generate a summary segment report with information on CN change segments
for select regions in all the CNCHP files you are analyzing. This tab-delimited file contains the file
extension.custom_regions_summary.
To select a custom regions file and generate custom regions reports:
1. Select the Process segments with custom regions checkbox.
2. Click the Browse button
.
The Open Custom Input Regions File dialog box opens (Figure 14.18).
Figure 14.18 Open Custom Input Regions File dialog box
3. Select the Custom Input Regions .bed file and Click Open.
Custom Region File Format
The Segment Reporting Tool also allows generation of a Custom Regions Report (*.custom_regions).
Custom Regions are any regions of the genome defined by coordinates entered into a text file in tabdelimited ―.bed‖ format http://genome.ucsc.edu/FAQ/FAQformat#format1
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
319
The Custom Regions Report that results from processing Segment for Custom Regions contains copy
number gain and loss segment and CNV overlap information about just the defined regions.
You can use a Custom Regions file (Figure 14.19) to look for copy number gain and loss in select regions
of the genome. Custom Regions are defined in tab-delimited ―.bed‖ file format, with columns for:

chromosome

custom region start position

custom region stop position

custom region name
The header lines marked with the # symbol are ignored.
Figure 14.19 Custom Input Regions File
Custom Regions template cn_input_regions.bed can:

Serve as custom region for SRT

Serve as custom CNV map for SRT

loaded into heat map viewer

loaded into GTC browser

loaded into other browsers such as USCS genome browser
Create Custom Region Summary Report
To create a custom regions summary report file:
1. Select the Create custom region summary report checkbox.
2. Click the Browse button
.
The Save Custom Regions Summary Report File dialog box opens (Figure 14.20).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
320
Figure 14.20 Save Custom Regions Summary Report File dialog box
3. Select a location for the Custom Regions Summary Report file and enter a name for the file.
(Segment Report File suffixes are not automatically added to Summary files)
4. Click Save in the Save Custom Regions Summary Report File dialog box.
Segment Report Tool Results Files
The Segment Report Tool can produce the following types of report files:

Segment Report file (.cn_segments) for each copy number file.

Segment Summary Report file (.cn_segments_summary) concatenating all the data for all files run at
a time (optional).
If a Custom Regions file has been selected, the report tool generates:

Custom Regions Report file (.custom_regions) for each copy number file.

Custom Regions Summary Report file (.custom_regions_summary) concatenating all the data for all
files run at a time (optional).
CN segment and custom region files are automatically saved with CNCHP files in the same CN result
folder; segment summary and custom region summary files can be saved manually.
Segment Report File
The Segment Report files (Figure 14.21) contain information on the copy number segments detected in a
given CNCHP file.
The Segment Report files can be displayed in the GTC Browser in the Karyoview and as an annotation
track in the Chromosome View.

Segment Data files for Human Mapping 100K/500K arrays have the CN4.cn_segments extension.

Segment Data files for the Genome-Wide Human SNP Array 6.0 have the CN5.cn_segments
extension.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
321
Figure 14.21 Segment Reports
To View the Segment Report from Genotyping Console:
1. In the Genotyping Console data tree, select a Copy Number/LOH Results group for which you have
previously generated Segment Reports using the Segment Reporting Tool.
To do this: Right-click on a Copy Number/LOH Results group and choose Show Copy Number
Segments (Figure 14.22).
Figure 14.22 Show Copy Number Segments
The Select Copy Number Segments dialog box appears (Figure 14.23).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
322
Figure 14.23 Select Copy Number Segments dialog box
2. Select Copy Number Segments files (*.cn_segments) from the list and Click OK.
The Segment Reports for all chosen files open in a single list in the display area.
Segment report information can also be viewed in the GTC Browser. See Loading Data into the
GTC Browser (page 329).
The Copy Number Segments Report table content changes if you are using a custom map in the ―Copy
Number Segments Report‖ table. Starting from GTC 3.0.1, ―%CNV_Overlap‖ is replaced with the
%CNV_Overlap numbers calculated from the custom map and ―CNV_Annotation‖ is replaced with
variations names from the custom map.
File
Name of the segment data file (seen in GTC table view
only).
Sample
CNCHP File name.
Copy Number State
Per marker CN as estimated by the HMM.
Loss/Gain
Whether the Copy number change is a decrease or
increase from the expected normal value.
Chr
Chromosome where the segment is located.
Cytoband_Start_Pos
The Chromosome‘s cytoband within which a Copy Number
change segment begins.
Cytoband_End_Pos
The Chromosome‘s cytoband within which a Copy Number
change segment ends.
Size (kb)
Size of the segment of Copy Number change.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
323
#Markers
Number of SNPs+CNV markers within the segment.
Avg_DistBetweenMarkers(kb)
Length of segment divided by number of markers
encompassed by that segment.
%CNV_Overlap
Percentage of markers in a segment which overlap the
boundaries of a known CNV.
Start_Linear_Pos
Base pair position on the Chromosome at which the first
marker in the segment begins (going from top of the p-arm
to the bottom of the q-arm of the chromosome).
End_Linear_Position
Base pair position on the Chromosome at which the last
marker in the segment begins (going from top of the p-arm
to the bottom of the q-arm of the chromosome).
Start_Marker
Name of the first SNP or CN marker of a Copy Number
change segment.
End_Marker
Name of the last SNP or CN marker of a Copy Number
change segment.
CNV_Annotation
Information from the Toronto Database of Genomic
Variants about the CNV variants which overlap the Copy
Number change segment (or Genomic Variants annotation
information from other database if it is a custom map).
Segment Summary Report
The segment summary report (Figure 14.24) has every cn segment info from the whole batch vs.
segment report only has cn segment info from originated from one .CNCHP file, and the header
information is also concatenated to include data on all the .CNCHP files.
The summary report can‘t be displayed in the Browser; it can be viewed in a spreadsheet program.
You will be directed to specify a name and location for the Segment Summary Report file before
performing the analysis.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
324
SRT Settings
CNCHP file information
Copy Number Segment information for all files
Figure 14.24 Summary report displayed in spreadsheet
The File contains:

Information on SRT settings and CNCHP files analyzed in the header.

Copy Number Segment information (same as in Segment Report)
Custom Regions Report
The Custom Regions Report files (Figure 14.25) contain information on the copy number segments
detected in the custom regions designated in the Custom Region file for a given CNCHP file. Each
Segment overlapping a Region generates one row in the table. Regions with no overlapping Segments in
a sample are represented as a single row in the table with the Loss/Gain column not populated.

Custom Regions Segment Data files for Human Mapping 100K/500K arrays have the
CN4.custom_regions extension.

Custom Regions Segment Data files for the Genome-Wide Human SNP Array 6.0 have the
CN5.custom_regions extension.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
325
Figure 14.25 Custom Regions table in GTC
To View A Custom Region Report in Genotyping Console:
1. In the Genotyping Console data tree, select a Copy Number/LOH Results group for which you have
previously generated Custom Region Reports using the Segment Reporting Tool.
To do this: Right-clicking on a Copy Number/LOH Results group and choose Show Copy Number
Custom Regions (Figure 14.26).
Figure 14.26.Select Custom Regions
The Select Copy Number Custom Region Files dialog box opens (Figure 14.27).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
326
Figure 14.27 Select Copy Number Custom Region Files
2. Select Copy Number Custom Regions files (*.custom_regions) from the list and click OK.
The Custom Regions for all selected files opens in a single list and displays the following information:
File
Custom Regions report file name.
Region Name
Region name from Custom Input Regions ―*.bed‖ file.
Sample
CNCHP File name.
% overlap of region by
segment (length)
Percentage of overlap of the Custom Region by any one
segment in the region, as measured by length. Segments as
large or larger than a Region will have a value of ―100‖
% overlap of segment by
region (length)
Percentage of overlap of the Segment by the Region, as
measured by length. Regions as large or larger than
overlapping Segments will have a value of ―100‖
# markers in region
Number of SNPs+CNV markers within the region.
Loss/Gain
Whether the Copy number change is a decrease or increase
from the expected normal value.
Segment size (kb)
Size of the segment of Copy Number change as measured in
kilobase pairs.
Segment size (markers)
Size of the segment of Copy Number change as measured in
total number of SNP + CN markers.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
327
Avg_DistBetweenMarkers(kb)
Length of segment divided by number of markers
encompassed by that segment.
%CNV_Overlap
Percentage of markers in the segment which overlap the
boundaries of a known CNV.
Chromosome
Chromosome where the Region and Segment are located.
Cytoband_Start_Pos
The Chromosome‘s cytoband within which a Copy Number
change segment begins.
Cytoband_End_Pos
The Chromosome‘s cytoband within which a Copy Number
change segment ends.
Start_Linear_Pos
The base pair position on the Chromosome at which the first
marker in the segment begins (going from top of the p-arm to
the bottom of the q-arm of the chromosome).
End_Linear_Position
The base pair position on the Chromosome at which the last
marker in the segment begins (going from top of the p-arm to
the bottom of the q-arm of the chromosome).
Region start
The base pair position on the Chromosome at which the
Custom Region begins (going from top of the p-arm to the
bottom of the q-arm of the chromosome).
Region end
The base pair position on the Chromosome at which the
Custom Region ends (going from top of the p-arm to the
bottom of the q-arm of the chromosome).
Custom Regions Summary Report
The summary report can‘t be displayed in the Browser; it can be viewed in a spreadsheet program
(Figure 14.28). You will be directed to specify a name and location for the Segment Summary Report file
before performing the analysis.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
328
Figure 14.28 Custom Regions Summary Report in Excel
The File contains Custom Regions Segment information, organized by Region Name, with the same
information on regions as in the Segment Report.
Loading Data into the GTC Browser
Note: Upon running Segment Reporting Tool, you are given the option to open the new files in
the Browser.
Note: If you generated Custom Regions, you can load the cn_input_regions.bed file into the
Browser using the File> Open menu in the Browser, to see your regions displayed as an
Annotation track in the Chromosome View.
Displaying copy number data in the GTC browser:
1. In the Genotyping Console data tree, select the copy number data you wish to display (Figure 14.29).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
329
Figure 14.29 Selecting results in the GTC data tree
2. Right-click on the Results Group and select View Results in Browser from the context-sensitive
menu; or
From the Workspace menu, select Copy Number/LOH Results > View Results in Browser; or
In the tool bar, click the View Results in Browser button.
The Select Copy Number Results dialog box opens (Figure 14.30).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
330
Figure 14.30 Select Copy Number Results dialog box
The dialog box displays a list of the results data available in the selected Results set.
You can select the following types of results for display:
-
Segment Data files (.cn_segments)
-
Copy Number Data files (.cnchp)
-
LOH Data Files (.lohchp)
Note: Not all the file types may be available depending upon the type of array used.
3. Select the files you wish to view; or click Select All.
4. Click OK.
The GTC browser opens and displays the data, along with the default annotation files.
See the GTC Browser User Manual for more information.
Note: To compare results from different analysis runs, use the file open functionality with the
Browser to open the files.
Export Copy Number/LOH data
The copy number/LOH data can be exported as tab-delimited text file that can be imported into other
software.
Note: You can also export data in different formats in the GTC Browser (see the GTC Browser
manual for more information).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
331
Note: Annotation files (*.annot.db) are required to include dbSNP RS ID in the export option for
CNCHP files generated in earlier versions of GTC. For Human Mapping 100K or 500K data, the
export will require na24 version of the annotation file (*.na24.annot.db). For Genome-Wide
SNP Array 6.0 data, the export will require na25 to na29 version of annotation files
(*.annot.db), depending on the annotation version that was used to generated the CNCHP file.
To export data:
1. Select the data set that you wish to export in the tree.
2. From the Workspace menu, select Copy Number/LOH Results > Export Copy Number/LOH
Results; or
Right-click the Copy Number/LOH data set and select Export Copy Number/LOH Results from the
pop-up menu.
The Select files for export dialog box opens (Figure 14.31).
Figure 14.31 Select files for export dialog box
3. Select the files to export from the list and click OK.
Note: You can click Select All to select all files in the list.
The Select Columns to Export dialog box opens (Figure 14.32, Figure 14.33).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
332
Figure 14.32 Select columns for export (SNP6)
Figure 14.33 Select columns for CN/LOH export (100K/500K)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
333
The data in these columns is described in:

Copy Number/LOH File Format for Human Mapping 100K/500K Array Data (page 244)

Copy Number/LOH Data File Format for Genome-Wide Human SNP Array 6.0 Data (page 283)
Note: not all of these columns may be available, depending upon whether or not you are
exporting CN data, LOH data, or both.
4. Select the data to export and click OK.
Note: You can click Select All to select all data types in the list.
An input dialog box opens enabling you to enter a suffix to be applied to the default file name so that
previously exported results will not be overwritten (Figure 14.34).
Figure 14.34 Input Value dialog box
5. Enter a suffix and select OK.
The Export Options dialog box opens (Figure 14.35).
Figure 14.35 Export Thresholds dialog box
The export options dialog box allows you to filter the export output using different parameters.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
334
To add a threshold:
6. Click the Add button.
A row appears in the table with drop-down lists.
7. Select the parameter you wish to filter on from the Column Name list (Figure 14.36).
It is possible to filter on any of the exported columns, Chromosome and Position
Figure 14.36 Selecting a parameter
8. Select the comparison operator (Figure 14.37):
-
less than (<)
-
less than or equal to (≤)
-
greater than (>)
-
greater than or equal to (≥)
-
equal to (=)
-
not equal to (!=)
Figure 14.37 Selecting a comparison type.
9. Enter a value for the threshold parameter.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
335
10. Repeat the above steps to filter on different parameters
11. Click OK.
The Progress bar displays the progress of the export (Figure 14.38).
Figure 14.38 Progress bar
The export process creates a text file using a name based on the .cnchp file names, with a .txt
extension. The file is place in the same directory used for the Copy Number/LOH Results group.
Setting QC Thresholds
Files that exceed the QC thresholds set in this dialog box will be flagged in the Copy Number/LOH QC
table as out of bounds.
Genotyping Console maintains default thresholds for copy number QC metrics, and will highlight in the
copy number QC tables the metrics that are outside of the threshold values. You can modify the QC
thresholds as needed.
To modify the QC threshold options:
1. Click on the Copy Number QC Thresholds button
on the main tool bar, or
From the Edit menu, select Copy Number QC Thresholds.
The Copy Number QC Thresholds dialog box appears (Figure 14.39).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
336
Figure 14.39 Copy Number QC Thresholds dialog box
2. Select the array type to be modified from the Array dropdown list.
3. Enter the metric in the Threshold Name list in the table. (The metrics are all listed in the Intensity QC
Table (All Columns View).
4. Select the comparison operator:
-
less than (<)
-
less than or equal to (≤)
-
greater than (>)
-
greater than or equal to (≥)
-
equal to (=)
-
not equal to (!=)
5. Enter the Comparison value for the threshold.
To delete a threshold item, click Remove.
Note: The default threshold for Genome-Wide Human SNP Array 6.0 is based on MAPD, while
for Human Mapping 500K arrays it is based on IQR. The Human Mapping 100K array does not
have a default threshold. When adjusting this value or adding additional metrics to threshold
by, a flag will indicate that the thresholds are different from the defaults.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
337
Figure 14.40 Values have been changed from default
Note: You can restore the Default threshold values by clicking Default.
If you wish to add another metric:
6. Select Add.
7. Type the exact name of this metric in the Threshold Name field, select a comparison, and enter a
value.
For additional metrics to be applied, they must exist in the Intensity QC Table (All Columns View).
For more information, see:
-
Copy Number QC Summary Table for 100K/500K (page 254)
-
CN/LOH QC Report Table for the Genome-Wide Human SNP Array 6.0 (page 284)
8. Click OK to save the new copy number QC values.
The new QC values will be used to filter results.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
338
Chapter 15: Copy Number Variation Analysis
Copy Number Variation (CNV) Analysis uses the Canary algorithm to make a CN state call (0, 1, 2, 3,
4) for previously identified regions with known copy number variations in the genome. It uses a region file
with a region ID and a list of the CN/SNP probe sets in the region (a region with common copy number
variation can contain a few too many CN/SNP probe sets).
Note: CNV is only available for Genome-Wide Human SNP Array 6.0 data; it does not work with
other arrays.
Performing Copy Number Variation Analysis
Important: Always save your results folders with a different batch name and location to make
sure you can find your data later on. If you don't change the output root path, GTC will use the
previous file path, which can belong to another data set or another hard disk. For more details
on hard disk space requirements, see Appendix J, page 395.
To perform CNV analysis:
1. Open the workspace and select the data set with the data for analysis.
2. Select the intensity data file set from the data tree.
3. From the workspace menu, select Intensity Data > Perform Copy Number Variation Analysis…;
or
Right-click the intensity data file set and select Perform Copy Number Variation Analysis… from
the pop-up menu; or
Click the Perform Copy Number Variation Analysis… button
in the tool bar.
The Copy Number Analysis Options dialog box opens (Figure 15.1).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
339
Figure 15.1 CNV Genotyping Options
Figure 15.2 CNV Genotyping Options – Hg19
4. Select the Output Root Path for the CNVCHP results set.
Important: always save your results folders with a different batch name and location to make
sure you can find your data later on. If you don't change the output root path, GTC will use the
previous file path, which can belong to another data set or another hard disk.
5. Change the Base Batch (and folder) name if desired.
6. Click OK.
Notices and a progress bar display the progress of the analysis (Figure 15.3).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
340
Figure 15.3 CNV Progress notice
When the analysis is complete, the results are displayed in the CNV Table (see below).
The CNV call data can also be viewed in the Heat Map viewer if you have run Copy Number Analysis
for the same CEL files; you cannot view CNVCHP data without CNCHP data.
CNV Table Display
The CNV Results table displays the Call (Call, Confidence Score, and sample attributes with All Column
View) for each defined CNV Region on a selected chromosome, listed by CNVCHP file and CNV Region
ID.
To open the CNV Table:

Double-click on the CNV batch folder of interest; or
Right-click on the Copy Number/LOH Results batch folder of interest and select Show Copy Number
Variation Results Table; or
From the Workspace menu, select Copy Number Variation Results > Show Copy Number
Variation Results Table.
The table opens and displays the results for Chromosome 1 (Figure 15.4).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
341
Figure 15.4 CNV Results table, default view
When you first open the table, it displays the Default view; if you change the view, the software
remembers your choice and will open to the selected view the next time the table is opened.
If the samples have attributes, those attributes will be displayed at the far right of the table if you select All
Columns View (Figure 15.5).
Figure 15.5 Sample attributes displayed in table
For each chromosome, the table displays:
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
342

File Name: Name of the copy number variation CHP file.

Call and Confidence Score for each defined CNV Region, by CNV Region ID. The CNV Region IDs
are organized by genome position.
Call - Copy number state estimated by the Canary algorithm
Confidence Score - Probability of Canary copy number state call given all possible Canary calls
To display results for a different chromosome, select the chromosome number from the Chromosome
drop-down list in the table tool bar.
You can also scroll through chromosomes by clicking in the Chromosome dropdown list and:

Using the mouse wheel

Using the up/down arrow keys
Other table functions are described in Table Features (page 221).
You can also view CNV calls in the Heat Map viewer (page 347).
Exporting CNV Data
You can export the CNV Results data in three different ways:

Copy selected data in the table to the clipboard and paste it into a file

Export the Table as a single text file with data for all CNVCHP files and the currently selected
chromosome

From the Batch Results, as a set of text files for the different CNV files, with data for all chromosomes
in each file.
Exporting from the Table
To save selected data to the clipboard:
1. Select the cells you want to export in the table
2. Right-click in the table and select Copy Selection to Clipboard (Figure 15.6).
Figure 15.6 Right-click menu in table
The selected data is copied to the clipboard and can be pasted into a file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
343
When you export the data from the CNV Results table, you export the CNV data for the displayed
chromosome and for all displayed CNVCHP files.
To save the table as a tab-delimited text file:
1. From the Table menu, select Save Table to File…; or
Right-click in the table and select Save Table to File… from the pop-up menu; or
Click the Save Table to File button
in the table tool bar.
The Save As dialog box opens (Figure 15.7).
Figure 15.7 Save As dialog box
2. Select a location, enter a name for the text file and click Save.
The file is saved in the specified location.
The file (Figure 15.8) contains a list of the files, chromosome regions and sample attribute information
(if available) displayed in the table. It displays data only for the selected chromosome.
Figure 15.8 Text file (displayed in spreadsheet software).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
344
Exporting from the Batch Results
If you export data from the CNV batch folder, you create an individual text file for each CNVCHP file
exported.
The file lists information about the CNV regions for every chromosome in each CNVCHP file in the results
set.
To export CNV data from the Results set:
1. Select the Results set that you wish to export in the Data Tree.
2. From the Workspace menu, select Copy Number Variation Results > Export Copy Number
Variation Results; or
Right-click the Copy Number/LOH data set and select Export Copy Number Variation Results from
the pop-up menu.
If you have only one batch folder of CNVCHP files, they are automatically selected.
If you have not selected a batch results data set, the Select Copy Number results group dialog box
opens (Figure 15.9).
Figure 15.9 Select Results Set dialog box
3. Select a results group for export and click OK.
The Select Files for Export dialog box opens (Figure 15.10).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
345
Figure 15.10 Select Files to Export dialog box
4. Select the Copy Number Variation Results files for export, or click Select All.
Click OK.
The Input Value dialog box opens (Figure 15.11).
Figure 15.11 Input Value dialog box
5. Enter a suffix for the output files if desired and click OK.
Individual txt files are created for each CNVCHP file.
Each file has header with information about CNV analysis, inherited from the CNVCHP files, and four
columns, with:
-
Region
-
Signal
-
Call
-
Confidence
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
346
Chapter 16: Heat Map Viewer
The Heat Map viewer (Figure 16.1) below displays:

Copy Number (CN) intensity values (~log2 ratios) from probe sets in the CNCHP files

Copy number state calls for the copy number variations (CNV) in corresponding CNVCHP files, if
available
Note: You can view CN data with or without matching CNV data. If you change the default CNV
map after data is loaded in the Heat Map viewer, all the associated CNVCNP files will be
removed (CNVCHP files are map-specific). You must have CNCHP data available to load
CNVCHP data.
It allows you to:

Compare the CNV calls from CNVCHP files using raw intensity values from individual probe sets
within the CNV regions from CNCHP files.

Survey large quantities of genomic data to detect de novo CNV regions.
The Heat Map viewer displays:

CNV regions if you load CNVCHP files (the default CNV map file with BED format will automatically
follow)

Genomic positions of the current viewing window

Log2ratio value data from CNCHP files (intensity value) for each SNP or CN as a color value
representing the converted log2 ratios in a heat map with a pre-defined scale.

Summary histogram to indicate the frequencies of probe sets with certain color values
In the status bar, it shows:

Sample names: CNCHP file name, and CNVCHP file name (if available)

SNP or CN probe set ID,

log2 ratio of a SNP or CN probe set; or

With additional CNV region ID, copy number call for the CNV region and confidence score for the
copy number call from CNVCHP files (if available) if you mouse over a CNV region contains CNV
calls.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
347
Figure 16.1 Heat map in GTC
Opening the Heat Map
To open the Heat Map viewer without loading data:

Click the Heat Map button
in main tool bar.
This allows you to change the log2 Ratio Range before loading data (see 352). The recommended
range should not exceed -10 to 10.
Note: You can view CN data with or without matching CNV data. If you change the default CNV
map after data is loaded in the Heat Map viewer, all the associated CNVCNP files will be
removed (CNVCHP files are map-specific).
You must have CNCHP data available to load CNVCHP data.
Note: You can only view CHCHP/CNVCHP files from one SNP 6.0 data set in the Heat Map
viewer at one time.
Note: Loading data into the Heat Map may take a long time, especially with large results sets.
You can use the Quick Load feature to save loaded data and reload it more quickly (see Using
the Quick Load Feature, page 352).
To open the Heat Map and load it with data:
1. Right-click on the CN/LOH batch results you wish to view and select View Results in Heat Map; or
From the Workspace menu, select Copy Number/LOH Results > View Results in Heat Map; or
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
348
Click the Heat Map button
in main tool bar.
If more than one batch of CN results is available, a dialog box opens (Figure 16.2).
Figure 16.2 Select Copy Number/LOH results group
2. Select the Results Set you want and click OK.
A list of the CNCHP files in the batch set opens (Figure 16.3).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
349
Figure 16.3 CNCHP files
3. Select files you wish to load or click Select All.
4. Click OK.
If only one CNVCHP file is associated with each selected CNCHP files of CNVCHP files is available,
the data will automatically start loading both CNCHP and the matching CNVCHP files into the Heat
Map.
If some of the CNCHP files do not have matching CNVCHP, it will just load CNCHP files for these
samples; if some of CNCHP are associated with more than one CNVCHP files, then you get the
dialogue window.
If multiple CNVCHP files are associated with the selected CNCHP file the CN/CNV File Association
dialog box opens (Figure 16.4).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
350
Figure 16.4 Selecting File associations for multiple CNVCHP files
4. Use the CN/CNV File Association dialog box to select the CNV files to be displayed with the CNCHP
files in the Heat Map.
You can select all CNVCHP files from a given batch using the Select CNV Batch drop-down (Figure
16.5) and manually override your batch choice for any of chosen CNVCHP files
The CNV data is automatically loaded if available, and the CNV map associated with these CNVCHP
files will automatically follow
Figure 16.5 Selecting CNV batch
5. Click OK.
Notices and progress bars display the progress of loading the data.
The Heat Map opens and loads the results.
The CNV data is automatically loaded if available and the CNV map associated with these CNVCHP
files is also automatically loaded.
When loading is finished, a notice (Figure 16.6) informs you of the number of copy number and copy
number variation (if available) files loaded. Click OK to exit the confirmation window.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
351
Figure 16.6 Load Notice
The Heat Map menu appears in the GTC main menu bar.
Changing the log2 Ratio Range
You can change the range of log2 ratio values displayed on the selected heat map palette.
Note: Changing the ratio range must be done before loading data in the Heat Map viewer.
To change the log2 Ratio range:
1. Open the Heat Map viewer without loading data (click the
2. Enter the ratio values in the Range boxes in the tool bar.
3. Load data as described above.
Using the Quick Load Feature
Loading data into the Heat Map may take a long time, especially with large results sets.
The Quick Load feature of the Heat Map allows you to save loaded data, so that you can reload it more
quickly.
NOTE: You will not be able to add any more data to it, to change a CNV map, or to use quick
load feature once you load in a quick load file.
To save a data set in a Quick Load file after loading data:
1. Click the Quick Load save button
.
The Save Quick Load file dialog box opens (Figure 16.7).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
352
Figure 16.7 Save Quick Load dialog box
2. Select a location and enter a name for the file.
3. Click Save.
The Quick Load file is saved.
To reload a Quick Load file:
1. Click the Quick Load save button
.
The Select Quick Load file dialog box opens( Figure 16.8).
Figure 16.8 Select Quick Load dialog box
2. Select a previously created Quick Load file.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
353
3. Click Open.
The data is loaded into the Heat Map more quickly.
Note: You cannot add data or use quick load feature in an opened quick load file.
Changing the CNV Map
You can change a CNV map when you have added files to heat map; if you have both CNCHP and
CNVCHP files loaded, changing a CNV map will flash out all the CNVCHP files because CNVCHP
files are CNV map specific; once you change your CNV map, you will no longer be able to see CNV
calls and call confidences even you can still choose a CNV region or browser it in the heat map that's because we don't support custom map for CNV analysis at this time.
Overview of the Heat Map Display
The Heat Map viewer (Figure 16.9) displays:

Log2ratio value Data from CNCHP files (copy number) for each SNP or CN probe set on the selected
chromosome as a color value in a heat map scale.

Genomic position of the SNP and CN probe sets and CNV regions for that chromosome

Copy Number call for the CNV regions from the CNVCHP files (if available) in the status bar by
mouse over the heat map.

When first opened, the viewer displays the data for Chromosome 1.
Tool
bar
CNV Map
Heat Map
Histogram
Status Bar
Figure 16.9. Parts of the Heat Map
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
354
The Heat Map (Figure 16.9) has the following components:

Tool bar (see below)

CNV Map (page 356)

Heat Map(page 357)

Histogram (page 359)

Status Bar (page 359)
You can:

Navigate to regions of interest

Sort the files by different values (median intensity values or CNV calls).

Export a list of the sorted or unsorted files, with file path and file name.

Export Images

Double-click to show file path and file name, attribute information for CNCHP and CNVCHP files, if
available

Link to external database/browser
Tool bar
The Tool bar (Figure 16.10) provides quick access to the functions of the Heat Map.
Figure 16.10 Heat Map tool bar
Item
Description
Open
Close files
Save loaded data in Heat Map to disk
Load a previously saved data from heat map
Open CNV map
Change color palette
Select chromosome for display
Select CNV region from CNV map
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
355
Item
Description
Move left
Zoom in
Zoom out
Move right
Full zoom out
Sort by median
Sort by CNV call
Resort sort
Range display: Can only be set before loading data
Many of these functions can also be accessed using the Heat Map menu when the Heat map is open.
Some can be accessed by right-clicking in the Heat Map and using the popup menu.
CNV Map
The CNV Map (Figure 16.11) displays:

CNV regions in the loaded CNV Map for the selected chromosome

Chromosome Coordinate scale displaying the chromosome positions for CNV regions that contains
the SNPs and CN probe sets displayed in Heat Map.

Position of the SNP and CN probe sets displayed in the Heat Map on the section of chromosome in
the current view.
End of displayed
Chromosome Segment
Start of displayed
Chromosome Segment
CNV Regions
Chromosome
Position scale
Position lines to SNP/CN Probe sets in Heat Map
Figure 16.11 CNV Map (detail)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
356
Since SNP and CN probe sets are not uniformly distributed along the chromosome, the relationship
between the heat map and the chromosome map is not linear (Figure 16.12).
Figure 16.12 Non-alignment of SNP/CN Probe set in Heat Map with genomic position in CNV Map
Heat Map
The Heat Map displays the log2ratio values for the SNPs and CN probe sets using a heat range scale.
SNP/CN intensity values are displayed on the horizontal range, with the results files stacked vertically
(Figure 16.13).
CNV map
CNV
Regions
Lines to SNP/CN Probe set position
SNP/CN Probe
sets
Lines to Position
Heat
map
Data
files
Histogram
Color range
and Status
bar
Figure 16.13 CNV map, Heat map, histogram
The initial file order is by the imported file name.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
357

You can sort by median intensity values for the SNP and CN probe sets displayed in the heat map
within the current view window and unsort to go to the original order

You can sort by the CNV calls from CNVCHP files in the heat map if your current viewing window has
a CNV region in it and unsort to go to the original order
If some CNCHP files do not have CNVCHP file data, these files will be displayed at the bottom of the
Heat Map after sorting on CNV Call values.
You can export a list of the CNCHP and CNVCHP file path and files names in their imported order before
and after sorting
You can select different color palettes for the display (below) or change the log2 Ratio range (page 352).
To select different color palettes for the display:

Click the Color Palettes button in the viewer tool bar and select a palette choice (Figure 16.14).
Figure 16.14 Heat Map color options
To display the attributes and other data, if available:

Double-click in the Heat Map in the file row you are interested in.
A box (Figure 16.15) opens with sample data: CNCHP and CNVHP file path and file names (if
available), and sample attribute data (if available).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
358
Figure 16.15 Sample data
Histogram
The histogram (Figure 16.16) indicates the frequencies of probe sets with certain intensity values.
Figure 16.16 Histogram
When you navigate to a certain region, the histogram automatically adjusts and displays the frequencies
of probe sets within that specific region.
Status Bar
You can display the following information in the Status bar (Figure 16.17) by putting the mouse arrow
over a SNP or CN probe set position:

CN and CNV file names (if CNV data available)

SNP or CN probe set ID, with
-
Chromosome Position
-
Log2Ratio
Note: The log2 ratios displayed in the status bar may not exactly match the log2 ratios for in
the CNCHP files. The values in the CNCHP file are converted into a color value used for the
heat map display; this color value is then translated into the log2 ratio value used for the
status bar display.

CNV region ID if CNVCHP files are loaded, with:
-
CNV calls
-
Call confidence
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
359
Note: Affymetrix recommends that you do not use long file names for the .CEL and .CHP files,
since these long names can cause display problems in the Heat Map Viewer. The status bar in
the Heat Map will not be able to display all the information if the CNCHP and CNVCHP file
names (derived from the .CEL file names) are too long. If the data is truncated, you can
increase the size of the Heat Map on the screen by dragging the vertical window split bar.
Figure 16.17 Information in Status bar
Navigating the Heat Map
The Heat Map provides several options for selecting data of interest:

Selecting Chromosome

Selecting Regions

Manual zoom
Selecting the Chromosome for Display
The viewer displays the data for one chromosome at a time. When it is first opens, it displays all of
chromosome 1 in the Chromosome Map and Heat Map.
Select the Chromosome of interest from the Chromosome dropdown (Figure 16.18).
Figure 16.18 Chromosome list
You can also scroll through chromosomes by clicking in the Chromosome dropdown list and:

Using the mouse wheel

Using the up/down arrow keys
Viewing CNV Regions
The CNV regions in the loaded CNV map are displayed in the Chromosome Map.
To look at a specific region

Select the region from the Region list in the viewer tool bar (Figure 16.19).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
360
Figure 16.19 Regions dropdown list
The selected region is displayed in the Heat Map as default view (Figure 16.20).
Figure 16.20 Selected Region displayed
You can also scroll through regions by clicking in the Region drop-down list and using the:

Mouse wheel

Up/down arrow keys
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
361
Double-click a region in the CNV Map to highlight the markers and to zoom to that region (Figure 16.21).
Figure 16.21 Highlighted region and markers
Zooming In on an Area
You can zoom in on a section of the Heat Map by selecting the area in the heat map.

Click at the start and release at the end of the area you wish to zoom in on (Figure 16.22).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
362
Figure 16.22 Selecting the map region to zoom in on
The selected region is displayed in the heat map and the CNV map (Figure 16.23).
Figure 16.23 Magnified region
You can also use the buttons in the viewer tool bar and the commands in the Heat Map menu to change
the view in the Heat Map.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
363
Move left.
Zoom in
Zoom out
Move right
Full zoom out
Double click on a region in the CNV Map to highlight the markers and to zoom to that region.
Sorting Data in the Heat Map
You can sort the displayed SNP values by:

Median Log2 ratio values for all the SNP and CN probe sets displayed as current view in the Heat
Map (Figure 16.24).

CNV Call values for the CNV regions currently displayed in the Heat Map. If more than one CNV
region is present, then the average of CNV calls for all the CNV regions is used to sort the CNV calls.
If some CNCHP files do not have CNVCHP file data, these files will be displayed at the bottom of the
Heat Map after sorting on CNV Call values.
After sorting you can export a list of the files in their new sorted order.
To sort:
1. Zoom in on the region you wish to investigate.
2. Select the sort option from the Heat map menu, or click the button for the option:
-
Sort by Median Log2 ratios
-
Sort by CNV values
The files will be sorted by the selected metric (Figure 16.24).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
364
Figure 16.24 Sorted by median
Export List of Files in Sorted Order
To export a list of files in their sorted order:
1. From the Heat Map menu, select Export Ordered File Names..; or
Right-click in the heat map and select Export Ordered File Names… from the popup menu
(Figure 16.25).
Figure 16.25 Heat Map shortcut menu
The Save As dialog box opens (Figure 16.26).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
365
Figure 16.26. Save As dialog box
2. Select a location and enter a name for the file.
3. Click Save in the Save As dialog box.
A text file (Figure 16.27) is created with the CNCHP and CNVCHP (if available) file path and file
names.
Figure 16.27 List of sorted files in text format
Exporting Viewer Images
You can‘t export CN/LOH and CNV data from the viewer. You can use the export functions in GTC to do
this. See Exporting CNV Data (page 343) for more information.
GTC provides several ways to export a view of the Heat Map for use in a publication or to show other
users.
You can:

Print the Heat Map Viewer out.

Export the image of the viewer to the clipboard.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
366

Export the image of the viewer to a PNG file
To print out the Heat Map viewer:
1. From the File Menu, select Print.
The Print dialog box opens.
2. Select the printer and other options and click OK in the Print dialog box.
To export the image to the clipboard:

Right-click in the heat map and select Copy image to clipboard from the popup menu; or
From the Heat Map menu, select Copy image to clipboard.
You can paste the image into a graphics file using software such as Paint.
To export the heat map image as a PNG file
1. From the Heat Map menu, select Save image to file….
A Save As dialog box opens.
2. Enter a name and location for the PNG file and click Save.
The PNG file is created.
Viewing Regions in Other Sites
You can view the region selected in the Display area at one of the following public sites:

UCSC

Ensembl

Toronto DGV
To view the selected region:

From the Heat Map menu, select External Links > [desired link].
The external link will display the view using the genomic positions in the Heat Map viewer
(Figure 16.28).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
367
Figure 16.28 Display in the UCSC Genome Browser
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
368
Appendix A: Algorithms
The details of the algorithms used by GTC 4.1 and their typical performance are described in various
white papers.
Genotyping
100K/500K BRLMM algorithm
http://www.affymetrix.com/support/technical/whitepapers/brlmm_whitepaper.pdf
SNP 5.0 arrays BRLMM-P algorithm
http://www.affymetrix.com/support/technical/whitepapers/brlmmp_whitepaper.pdf
SNP 6.0 Birdseed (v1) and Birdseed v2 genotyping algorithms
Genotyping Console 4.0 allows users to choose between genotyping SNP 6.0 array data with the
Birdseed (v1) and the Birdseed v2 algorithms. Birdseed v2 uses EM to derive a maximum likelihood fit of
a 2-dimensional Gaussian mixture model in A vs. B space.
A key difference between Birdseed (v1) and Birdseed v2 is that v1 uses SNP-specific models or priors
only as an initial condition from which the EM fit is free to wander- on rare occasions this allows for
mislabeling of the clusters. For Birdseed v2 the SNP-specific priors are used not only as initial conditions
for EM, but are incorporated into the likelihood as Bayesian priors. This constrains the extent to which the
EM fit can wander off. Correctly labeling SNP clusters, whose centers have shifted relative to the priors, is
problematic for both Birdseed versions. However, given the additional constraint on the EM fit, Birdseed
v2 is more likely than Birdseed to either correctly label the clusters or set genotypes to No Calls.
Birdseed v2 is usually more robust than Birdseed in the face of poor quality experiments, and increases
accuracy with a small decrease in call rate in these cases. In high quality datasets, little performance
difference between v1 and v2 is seen, while in low quality datasets large increases in concordance are
seen with v2
Birdseed v2 clustering by plate is equivalent to clustering all samples, unlike Birdseed (v1) where
clustering by plate increases False Discovery Rate. Because of this, use of Birdseed v2 allows clusteringby-plate or clustering all samples at once, which ever best fits with the laboratory‘s workflow.
See the Affymetrix.com website for information on Birdseed algorithms.
Axiom GT1 Algorithm
The Axiom GT1 method is a new genotyping procedure delivered in Genotyping Console 4.0 for use with
the Axiom Genome-Wide Human array. The primary methodological change has been to incorporate
multichannel processing into the APT workflow, supporting the ligation-based assay. In addition, Axiom
GT1 incorporates substantial improvements and features in the areas of preprocessing and genotype
calling over BRLMM-P which was used for the Genome-Wide SNP Array 5.0 (see SNP 5.0 arrays
BRLMM-P algorithm). Many of the improvements in genotype calling were developed for the DMET Plus
product, including 2-dimensional cluster modeling and outlier detection. Preprocessing has been
improved by an artifact reduction layer which reduces the impact of spatially localized artifacts on
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
369
genotyping performance. Together these changes allow for good genotyping performance on the ligationbased assay platform.
Multichannel processing allows the use of both traditional allelic differences, in which two different probes
respond to the same region of sequence and distinguish alleles, as well as dye-based allele detection, in
which the same probe is imaged in more than one channel to distinguish alleles. Both these workflows
are handled in Genotyping Console 4.0 transparently to the user, and both types of probe strategy are
used on the Axiom product.
The second area of improvement is in the genotype clustering and calling. Many of the improvements
were developed in the course of the DMET Plus product and can be found described in the DMET Plus
algorithm white paper:
http://www.affymetrix.com/support/technical/whitepapers/dmet_plus_algorithm_whitepaperv1.pdf
Briefly, clusters are now represented as 2-dimensional gaussians and resistance to non-gaussian cluster
behavior has been improved. As usual, training data has been used to generate SNP-specific models
which represent the cluster properties learned for each marker. Unlike DMET Plus which is designed to
call in a single sample mode without adapting to the data, the default behavior is to use dynamic
clustering to adapt the clusters to the observed data. Although a single sample can be run by itself, more
samples allow more learning of any shifts from the training data.
Finally, the key advance in preprocessing is an "artifact reduction" layer that is designed to use
information obtained from replicated probes to reduce the impact of small localized artifacts which
sometimes occur. This method operates on the raw probe data using spatially distributed replicate probes
to detect unusual differences between replicate intensities. Standard image processing operations
(morphological transformations) are used to detect regions of the array where deviations occurring in both
channels cluster, indicating a potential localized artifact. Once regions are marked as untrusted due to a
potential artifact, intensities from trusted replicates are used to replace untrusted features for genotyping
purposes. In the case where all replicates are marked untrusted for a given probe, the failsafe behavior is
to leave the intensities unmodified and allow the genotyping method to evaluate whether the data is
compatible with the clusters. This preprocessing layer improves the genotyping performance in the
relatively rare case where localized artifacts occur on the image, while leaving typical arrays without
artifacts unaffected.
Summarizing, Axiom GT1 handles multichannel data, incorporates improvements in genotype clustering
and calling that have occurred in the development of other products, and introduces an artifact-reduction
stage in preprocessing. These changes have been tuned to provide high performance on the ligation
assay based genotyping platform and allow for flexible adaption of the method to future genotyping
products.
Copy Number/LOH
100K/500K CN/LOH Algorithm
http://www.affymetrix.com/support/technical/whitepapers/cnat_4_algorithm_whitepaper.pdf
SNP 6.0 CN/LOH Algorithm
SNP 6.0 CN/LOH analysis uses the BRLMM-P+ algorithm, which is similar to BRLMM-P with some
different parameters. See the existing documentation for BRLMM-P associated with SNP5 for more
information.
SNP 6.0 CN GC waviness algorithm implemented into APT and since GTC 3.0.1
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
370
The summary of the algorithm correction is: for each sample, markers are divided into 25 different bins
based on the equally spaced percentiles of the average GC count (GC content) in the
upstream/downstream 250kb for a particular marker (500kb total). Within each of the 25 bins, the markers
are sub-divided based on their type: CN/SNP marker type, enzyme fragment type (Nsp, Sty, Nsp+Sty),
which gives 5 sub-bins per major bin as there is no CN probes in Sty-only fragments, for a total of
5x25=125 bins. For the autosomal markers in each bin, the median log2 ratio of each bin is adjusted to
zero and interquartile ranges (IQRs) are equalized across all the bins. Then the log2 ratios of all markers
(including X and Y markers) in that bin are adjusted using the adjustment based on the autosomal
markers on that bin. Finally, the IQRs of all the adjusted log2 ratios (including the X and Y chromosomes)
is multiplied by a factor that makes the IQRs of the adjusted log2 ratios equal to the IQRs of the original
log2 ratios.
SNP 6.0 Canary Algorithm
The Canary Algorithm is a clustering algorithm developed by the Broad Institute used to provide copy
number state calls of a pre-determined set of genomic regions with copy number variation (CNV regions).
The copy number state call is reported by an integer call of copy number. Each call is paired with a
confidence score between 0 and 1 with 1 reflecting a high level of confidence that the call is correct. The
CNV regions are polymorphic in the sense that their copy number is atypically variable in relation to the
genome as a whole. The terms copy number variation (CNV) and copy number polymorphism (CNP) are
each used to describe the same attribute of copy number variability of genomic regions.
Inputs to the Canary algorithm are:
1. A region file containing region names and sets of SNP and CN probe sets for each region
2.
A prior file containing clustering information empirically derived from external training data
3. A normalization file containing a list of names of probe sets used for normalizing the data
4. A set of CEL files, one for each sample to be genotyped.
A CDF file is needed by the software running Canary in order to retrieve probe sets intensities recorded in
the CEL files.
Output consists of a set of CHP files, one for each CEL file, with the suffix CNVCHP. Each CHP file
contains region names, intensities, calls and confidences.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
371
Appendix B: Forward Strand Translation
The convention in the genomic research field has become to map allele genotypes to the forward strand
of the genome. The convention used to select the reference strand to define Affymetrix alleles for
Mapping 100K, 500K, SNP 5.0 and SNP 6.0 is based on an algorithm that alphabetically sorts the
flanking-sequences for SNPs. They may be on either forward strand or reverse strand of the current
genome. However, the relationship between Affymetrix alleles and the forward strand of the genome is
provided in the publicly available NetAffx annotation files. For Axiom Genome-Wide Human Array, all
Affymetrix alleles have been mapped to the forward strand of the current genome.
NetAffx defines allele A and allele B based on following convention: For AT or CG SNPs (SNP alleles are
A/T or C/G), the alleles coded are in alphabetical order on that strand (allele A is C, allele B is G; or allele
A is A, allele B is T). For non-AT and non-CG SNPs, allele A is A or T, allele B is C or G. For Axiom
insertion/deletion alleles, allele A is ‗-‗, allele B is the insertion (Table B. 1).
Table B. 1 Affymetrix allele call codes defined by NetAffx convention
CG SNP
AT SNP
Non-AT & Non-CG SNP
Insertion or Deletion
(Axiom™ Genome-Wide
Human Array Only)
Base, Insertion
or Deletion
C
G
A
T
A or T
C or G
Deletion (-)
Insertion (+)
Allele
A
B
A
B
A
B
A
B
For example, rs4607103 (SNP_A-2091752 on the Genome-Wide SNP Array 6.0) is a non-AT and nonCG SNP oriented on the reverse strand at position 64686944 on chromosome 3 (build 36.1). GTC 4.1
uses this information to provide the forward strand base call (Table B. 2).
Table B. 2 Example forward strand translation for SNP_A-2091752 (Genome-Wide SNP Array 6.0)
SNP_A-2091752
Annotation File
Reverse Strand
Forward Strand
Translation
SNP_A-2091752
Allele A
A
T
Affymetrix Allele Call
Codes
AA
AB
BB
Allele B
G
C
Translated Forward
Strand Base Calls
TT
TC
CC
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
372
Appendix C: Advanced Workflows
This Appendix describes the following Advanced Workflows:

Analyzing Genotyping Results of Specific Gene Lists (page 373)

View SNP Cluster Graphs of Cases versus Control Samples (page 376)
Analyzing Genotyping Results of Specific Gene Lists
Figure B. 1 Workflow to analyze specific gene lists shows the basic steps on how to get SNP information
for a specific set of genes and analyze those SNPs in Genotyping Console.
Figure B. 1 Workflow to analyze specific gene lists
Step 1: A list of genes is generated. Perhaps the gene list contains a set of biologically relevant
genes (e.g. kinases).
The list of genes must be contained in a text file where each gene ID is on a separate line.
Step 2: Using NetAffx, perform a batch query to identify SNPs which are mapped to the location of
the specified genes in the list.
1. Login to NetAffx website (http://www.affymetrix.com/analysis/index.affx)
2. Select Genotyping Batch Query
3. Select the array type, search option, gene list file, and view.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
373
4. Click on search.
NetAffx will identify all SNPs which are mapped to the specified genes.
5. Click on the Export button.
6. Select the TSV export option.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
374
7. Click Export.
Step 3: Open Genotyping Console and import the SNP List generated by NetAffx.
8. Right-click on SNP Lists.
9. Select Import SNP List.
10. Migrate to the location of the TSV file generated by NetAffx and Select Open.
11. Provide a name for the SNP List to be displayed in Genotyping Console and Select OK.
The SNP List will be displayed in the data tree.
Step 4: After the SNP List is imported in Genotyping Console, the SNP List can be used for many
different functions:

View the SNP List (page 149)

Exporting genotypes for SNP in the list (page 203)

View the SNP Cluster Graph for SNPs in the list (page 168)
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
375
View SNP Cluster Graphs of Case versus Control Samples
Applying per-SNP filters helps remove the majority of problematic SNPs. However, no filtering scheme is
perfect. Even with stringent filtering, a small proportion of poorly performing SNPs will remain. Moreover,
the poorly performing SNPs will often be the ones most likely to perform differently between cases and
controls. The list of significantly associated SNPs is often enriched for such problematic SNPs.
The SNP filtering process greatly reduced the occurrence of these false positives. But given their
tendency to end up on the list of associated SNPs, it is likely that some will remain. Before carrying forth
SNPs to subsequent phases of analysis, visual inspection of the SNPs in the clustering space is strongly
recommended. Visual inspection typically helps in identifying problematic cases.
To display case versus control SNP clusters, perform the following steps:
Step 1: Make two custom groups of CHP files, one for the Cases and one for the Control samples.
1. Select the row(s) from an open CHP Summary table which contains the case samples, right-click and
select Add Selected Rows to Results Group.
Note: Selecting the appropriate files is dramatically simplified if your sample files contain an
attribute to distinguish your cases from controls. If the attribute exists, simply create a
custom view that displays this attribute, and sort on it.
2. Enter a name for this data group (e.g. Cases) and select OK. The new group will be displayed in the
tree. Custom groups are indicated by white icons.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
376
3. Repeat step1 to step 2 for the control samples.
Step 2: Import the SNPs to be displayed in the cluster graphs.
In association studies, SNPs with poor cluster properties can be a source of false positives. After running
your association test, evaluate the top SNP hits prior to additional analyses.
4. Right-click on the SNP Lists icon in the tree and select Import SNP List.
Note: SNP Lists can also be generated in Genotyping Console. See Create SNP List section
for more information.
5. Browse to the location of the file of your top SNP hits and enter a name for the new SNP List.
The new SNP list will be displayed in the data tree.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
377
Step 3: Open two cluster graphs, one of the cases and one of the controls both using the same
SNP List.
7. To view the SNP Cluster Graphs for the Cases, right-click on the Cases Genotyping Results custom
batch and select Show SNP Cluster Graphs.
8. Genotyping Console will need to compute the SNP statistics for this new group. You will be prompted
for a ―summary.bin‖ file to save the results.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
378
9. Next, select the new SNP List.
10. Genotyping Console will then calculate the SNP summary statistics and collect the data to draw the
SNP cluster graph for the Cases.
11. Repeat steps # 1- 3 for the Controls.
For BRLMM-P the clustering is performed in the transformed contrast dimension where contrast is
defined as:
f 
®
A  B
A  B
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
379
For details of the transformation applied to the contrast, see the BRLMM-P white paper. For Birdseed,
clustering is performed in a two dimensional A versus B space. See the Birdseed white paper for
more details. For the Axiom GT1 algorithm, clustering is performed in Log ratio versus strength
space. Log ratio and strength are defined as:
Log Ratio = log2(A)-log2 (B)
Strength = (log2 (A)+log2 (B))/2
Step 4: Display the two cluster graphs side-by-side for easy inspection of the SNP cluster.
12. Modify the display to show multiple windows. Select Window/Layout/Multiple Windows.
13. Modify the display to tile the windows side-by-side. Select Window/Layout/Tile Vertically.
The two SNP cluster graphs for Cases and Controls will be displayed side-by-side.
Currently, each cluster graph must be toggled independently. Future versions of Genotyping Console will
integrate these plots.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
380
Appendix D: Annotation Definitions
Column Name
Description
Probe Set ID
The Affymetrix unique identifier for the set of probes used to detect a
particular Single Nucleotide Polymorphism (SNP probe sets only).
Affx SNP ID
The Affymetrix unique identifier for the set of probes used to detect a
particular Single Nucleotide Polymorphism (SNP). (SNP probe sets only, not
available for Axiom™ Genome-Wide Human Array).
dbSNP RS ID
The dbSNP ID that corresponds to this probe set or SNP. The dbSNP at the
National Center for Biotechnology Information (NCBI) attempts to maintain a
unified and comprehensive view of known single nucleotide polymorphisms
(SNPs), small scale insertions/deletions, polymorphic repetitive elements,
and microsatellites from TSC and other sources. The dbSNP is updated
periodically, and the dbSNP version used for mapping is given in the dbSNP
version field. For more information, please see:
http://www.ncbi.nlm.nih.gov/SNP/ (SNP probe sets only).
Chromosome
The chromosome on which the SNP is located on the current Genome
Version.
Chromosome Start
The nucleotide base start position where the SNP is found. The genomic
coordinates given are in relation to the current genome version and may shift
as subsequent genome builds are released.
Chromosome Stop
The nucleotide base stop position where the SNP is found. The genomic
coordinates given are in relation to the current genome version and may shift
as subsequent genome builds are released.
Strand
Genomic strand that the SNP resides on.
Cytoband
Cytoband location of the SNP derived from the SNP physical map and the
chromosome band data provided by UCSC.
Strand Vs dbSNP
Indicates whether the SNP is on the same or reverse strand as compared to
dbSNP (SNP probe sets only).
ChrX pseudo-autosomal region
SNPs on the X Chromosome which are mapped to the two pseudoautosomal region have a value of 1 or 2 in this field. All other SNPs are
indicated by 0. A value of ―1‖ indicates that the marker maps to the PAR-1
region and a value of ―2‖ indicates that the marker maps to the PAR-2 region.
A value of ―0‖ indicates that the marker does not map to either of the two PAR
regions.
Probe Count
The total number of probes in the probe set.
Flank
The nucleotide sequence surrounding the SNP. This is a 33-mer sequence
with 16 nucleotides on either end of the SNP position. The alleles at the SNP
position are provided in the brackets (SNP probe sets only).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
381
Column Name
Description
Allele A
The allele of the SNP that is in lower alphabetical order. When comparing the
allele data on NetAffx to the allele data for the corresponding RefSNP record
in dbSNP, the alleles reported here could be different from the alleles
reported for the corresponding RefSNP on the dbSNP web site. This
difference arises mainly from the reference genomic strand that was chosen
to define the alleles by Affymetrix. To choose the reference genomic strand,
we follow a convention based on the alphabetic ordering of the sequence
surrounding the SNP. Sometimes the reference strand on the dbSNP is
different from NetAffx, and the alleles could represent reverse complement of
those provided on dbSNP (SNP probe sets only).
Allele B
The allele of the SNP that is in higher alphabetical order. When comparing
the allele data on NetAffx to the allele data for the corresponding RefSNP
record in dbSNP, the alleles reported here could be different from the alleles
reported for the corresponding RefSNP on the dbSNP web site. This
difference arises mainly from the reference genomic strand that was chosen
to define the alleles by Affymetrix. To choose the reference genomic strand,
we follow a convention based on the alphabetic ordering of the sequence
surrounding the SNP. Sometimes the reference strand on the dbSNP is
different from NetAffx, and the alleles could represent reverse complement of
those provided on dbSNP (SNP probe sets only).
Associated Gene
SNPs were associated with human genes by comparing the genomic
locations of the SNPs to genomic alignments of human mRNA sequences. In
cases where the SNP is within a known gene, NetAffx reports the
association. Additionally, for genes with exon or CDS annotations, NetAffx
reports whether or not the SNP is in an exon, and in the coding region. If the
SNP is not within a known gene, NetAffx reports the closest genes in the
genomic sequence, and the distance and relationship of the SNP relative to
the genes. A SNP is upstream of a gene if it is located closer to the 5' end of
the gene and is downstream of a gene if it is located closer to the 3' end of
the gene.
Genetic Map
Describes the genetic location of the SNP derived from three separate
linkage maps (deCODE, Marshfield, or SLM). The physical distance between
the markers is assumed to be linear with their genetic distance. The genetic
location is computed using the linkage maps from the latest physical location
of the SNP and the neighboring microsatellite markers (SNP probe sets only).
Microsatellite
Describes the nearest microsatellite markers (upstream, downstream and
overlapping) for the SNP.
Enzyme Fragment
Lists the enzyme, the restriction fragment containing the SNP and the
fragment length. The Whole Genome Assay protocol detects SNPs that are
contained within the genomic restriction fragments to simplify the sequence
background for genotyping arrays (not available for Axiom Genome-Wide
Human Array).
Copy Number Variation
When available, a description of Copy Number Variation Region (CN) probe
sets as described by the Database of Genomic Variants (not available for
Axiom Genome-Wide Human Array).
SNP Interference
This column is for Copy Number probe sets. It indicates whether or not a
known SNP overlaps a copy number probe (CN probe sets only, not available
for Axiom Genome-Wide Human Array).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
382
Column Name
Description
In Final List
This column annotates extended content for genotyping arrays. A value of ―1‖
indicates that the marker is included in the final version of the library file and
a value of ―0‖ indicates that the marker is not included in the final version of
the library file (SNP probe sets only, not available for Axiom Genome-Wide
Human Array).
% GC
The fraction of bases that are G or C in a window of 250,000 bases to each
side of the SNP or CN position. All positions that are nearer to the end than
250,001 are set to the value of the position at 250,001 from that end. Position
and chromosome values for SNPs and CN probes were mapped to the
position of bases in the FASTA files for the build of the genome used in this
release of NetAffx, and these bases were then used for all calculations (not
available for Axiom Genome-Wide Human Array).
Heterozygous Allele Frequencies
Describes the heterozygous frequency of the allele from Yoruba, Japanese,
Han Chinese and CEPH studies using the Affymetrix genotyping arrays.
(SNP probe sets only)
Allele Sample Size
Sample size used for Allele Frequency estimates (SNP probe sets only).
Allele Frequencies
Describes the major and minor frequency of the allele from Yoruba,
Japanese, Han Chinese and CEPH studies using the Affymetrix genotyping
arrays (SNP probe sets only).
Minor Allele
Indicates the Minor Allele of a SNP (SNP probe sets only).
Minor Allele Frequency
The Minor Allele Frequency of a SNP (SNP probe sets only).
OMIM ID
Furnishes OMIM and Morbid Map IDs and their respective gene titles. This
database contains information from the Online Mendelian Inheritance in
®
Man® (OMIM ) database, which has been obtained under a license from the
Johns Hopkins University. This database/product does not represent the
entire, unmodified OMIM® database, which is available in its entirety at
www.ncbi.nlm.nih.gov/omim/.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
383
Appendix E: Gender Calling in GTC
GTC 4.1 can generate gender calls from:

Intensity QC

Genotyping Analysis

CN Segment Report (for SNP 6.0 only)
Copy number analysis for SNP 6.0 arrays provides information about calls for the X chromosomes and
about calls for the Y chromosome based on signal intensity and allelic ratio, and provide a gender call
(Female or Male) in the output table.
The processes used for gender calling differ depending upon:

The type of array being analyzed.

Step in the workflow being performed
Gender Calls in Intensity QC
See Chapter 6: Intensity Quality Control for Genotyping Analysis (page 86) for information on the
algorithm used for the Intensity QC step.
QC analysis for genotyping uses DM algorithm to make SNP calls for Intensity QC purposes. It uses the
following processes for making the gender call during this step.
Contrast QC is the recommended QC metric for the SNP 6.0 array in Genotyping Console 3.0.1. The
default threshold is ―greater than or equal to 0.4‖ for each sample. When adjusting this QC metric‘s
threshold value, or changing SNP 6.0 QC settings to another metric such as QC Call Rate, or adding
additional metrics to threshold, a flag in the configuration setting dialog box will indicate that the
thresholds are different than the defaults.
Contrast QC is a metric that captures the ability of an experiment to resolve SNP signals into three
genotype clusters. It uses 10,000 random SNP 6.0 SNPs. See Appendix F: Contrast QC for SNP 6.0
Intensity Data (page 389) for more details.
Gender Calls in Intensity QC and Genotyping Analysis
Table D. 1 summarizes the methods used for gender calls during Intensity QC and genotyping analysis.
Table D. 1 Gender calling methods
Array Type
Gender Call
Algorithm
Genotyping Algorithm
Gender Call
Reference
Axiom™
Arrays
cn-probe-chrXYratio_gender
Yes:
See below
Male
Female
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
384
Array Type
Gender Call
Algorithm
Genotyping Algorithm
Gender Call
Reference
Unknown
Genome-Wide
Human SNP
Array 6.0
cn-probe-chrXYratio_gender
Yes:
See below
Male
Female
Unknown
Genome-Wide
Human SNP
Array 5.0
em-cluster-chrX-hetcontrast_gender
Yes:
BRLMM-P white paper
Male
Female
Unknown
Human
Mapping
100K/500K
Arrays
estimated
heterozygosity rate on
the X chromosome
Yes:
BRLMM white paper
Male
Female
Genotyping Gender Call Process: cn-probe-chrXY-ratio_gender
In GTC 4.1 the gender calling algorithm used to populate the ―Computed Gender‖ call in the ―Intensity QC
Table‖ and the ―CHP Summary Table‖ for SNP 6.0 and Axiom arrays is called cn-probe-chrXYratio_gender method from Affymetrix Power Tools (APT). The cn-probe-chrXY-ratio_gender method is
more robust when dealing with lower quality samples. Optimal genotyping of sex chromosome SNPs
requires use of the correct model type, haploid or diploid. Haploid models are used for X and Y
chromosome SNPs, when the gender call is ―male‖, while diploid models are used for X chromosome
SNPs, when the gender call is ―female‖. A ―No Call‖ is made for Y chromosome SNPs when the gender
call is female.
The cn-probe-chrXY-ratio_gender method determines gender based on the ratio (cn-probe-chrXYratio_gender_ratio) of the average probe intensity of nonpolymorphic probes on the Y chromosome (cnprobe-chrXY-ratio_gender_meanY) to the average probe intensity of nonpolymorphic probes on the X
chromosome (cn-probe-chrXY-ratio_gender_meanX). The probe intensities are raw and untransformed
for these calculations, and copy number probes within the pseudoautosomal regions (PAR region) of the
X and Y chromosomes are excluded. For SNP 6.0 arrays, if the ratio is less than 0.48, the gender call is
female; and if it is greater than 0.71, the gender call is male. If the ratio is between these values, the
gender call is unknown. For Axiom™ Genome-Wide Human arrays, if the ratio is less than 0.54, the
gender call is female, and if it is greater than 1.0, the gender call is male. If the ratio is between these
values, the gender call is unknown.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
385
Window
Data
Tree
Figure D.1 The SNP 6.0 frequency distribution
Status Barof the Gender Y/X ratio for over 1500 male (blue)
and 1500 female (red) samples without filtering based on QC callrate is shown here. The locations
of the lower cutoff (red line) and upper cutoff (blue line) are shown, and regions corresponding to
three possible gender calls are labeled Female, Unknown, and Male.
The cn-probe-chrXY-ratio_gender method produces ―Unknown‖ gender calls for poor quality samples.
However in extreme cases, where the sample has essentially no signal, the gender call will be male.
Such experiments are easily identified by examining the QC CallRate.
The cn-probe-chrXY-ratio_gender method classifies genders considering only two possible cases, male:
XY and female: XX. However, unusual genders such as XXX, XO, XXY, and XYY occur at low rates in
populations along with X chromosome mosaicism, a variable loss or gain of the X chromosome known to
happen sometimes both in vivo and in cell lines. To help detect and identify these unusual genders four
additional gender columns can displayed in the CHP Summary Table by selecting ―Show All Data‖. The
four additional columns are:
em-cluster-chrX-het-contrast_gender_chrX_het_rate
The estimated heterozygosity rate (% AB genotypes) of SNPs on the X chromosome.
cn-probe-chrXY-ratio_gender_meanX
The average probe intensity (raw, untransformed) of X chromosome nonpolymorphic probes
cn-probe-chrXY-ratio_gender_meanY
The average probe intensity (raw, untransformed) of Y chromosome nonpolymorphic probes
cn-probe-chrXY-ratio_gender_ratio
Gender ratio Y/X = cn-probe-chrXY-ratio_gender_meanY/ cn-probe-chrXY-ratio_gender_meanX
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
386
Note: SNP 6.0 CHP files created with GTC 1.0 will not contain these data columns, one must
genotype the files again using GTC 2.0 or above for them to be calculated.
Scatter plots of em-cluster-chrX-het-contrast_gender_chrX_het_rate vs. cn-probe-chrXYratio_gender_ratio should contain two main clusters of points, one for males and one for females.
Samples with unusual genders are expected to fall outside of the two main clusters indicating possible
deviations from normal sex chromosome copy numbers. The figure below shows the this scatter plot for
the 270 HapMap individuals. Sample NA10854 and NA18540 fall outside of the usual gender clusters.
Previous work has demonstrated that NA10854 is known to have a significant degree of X mosaicism
(BMC Bioinformatics 2006, 7:25) and that sample NA18540 has X chromosome mosaicism as well as
aneuploidy in several other chromosomes (Am. J. Hum. Genet., 79:275-290, 2006)
Figure D.2 Gender Metrics for 270 HapMap samples on SNP 6.0
Gender Calls (Female or Male) in Copy Number Analysis (SNP 6.0 only)
Copy number analysis for SNP 6.0 data provides an actual gender call (Female or Male).
The gender is determined using the same method as in the SNP 6.0 genotyping gender call process
described above, using the ratio of chrX to chrY nonpolymorphic probes.
CN Segment Report (SNP 6.0 only)
For SNP 6.0 Arrays the Segment Reporting Tool makes a gender determination for the sample, based on
the detected copy number state for the X and Y chromosomes. Normal males and females are expected
to have Copy Number State=2 for autosomes1-22. Females are expected to have Copy Number State =2
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
387
for the X chromosome, while normal males are expected to have Copy Number State=1 for the X
chromosome and =1 for Y chromosome.
First the algorithm checks that the Copy Number QC metric MAPD is less than 0.5 to ensure the data is of
sufficient quality. Next the mean copy number for the non-pseudo autosomal portion of the X
chromosome and Y chromosome are used to assign gender. If the mean copy number for the X
chromosome is between 0.8 to 1.3 and the mean copy number for Y is between 0.8 to 1.2, then a "male"
is assigned. If the mean copy number for X is from 1.9 to 2.1 and Y is from 0 to 0.4, then a "female" is
assigned. Finally, if neither of the above cases are true, then "Unknown" is assigned. Samples flagged
―Unknown ‖ by the software and are assessed for Copy Number change as if they were female (CN State
for X=2, and Y=0).
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
388
Appendix F: Contrast QC for SNP 6.0 Intensity Data
Contrast QC is the per sample Quality Control test metric for SNP 6.0 intensity data (CEL files). When all
steps of the assay are working as expected, the Contrast QC is typically greater than 0.4. As an added
flag for potentially problem data sets, check that the proportion of samples that fall below the 0.4
threshold are less than 10%, and the average of the samples that pass this 0.4 test are greater than or
equal to 1.7. If the proportion falling below 0.4 is greater than 10%,or the average of the passing samples
is at or below 1.7, then sample quality and process should be closely examined for possible issues.
The Contrast QC is a metric that captures the ability of an experiment to resolve SNP signals into three
genotype clusters. It uses a static set of 10,000 randomly chosen SNP 6.0 SNPs, measuring the
difference between peaks in ―Contrast‖ distributions (Fig 217) produced by homozygote genotypes, and
the valleys they share with the heterozygote peak, and takes the smaller of the two values. In poor quality
experiments the homozygote peaks are not well-resolved from the heterozygote peak and the difference
values approach zero. Contrast QC values are also computed for Contrast distributions produced by a
static set of 20K randomly chosen SNPs on Nsp fragments only and a static set of 20K randomly chosen
SNPs on Sty fragments only. These are called Contrast QC (Nsp) and Contrast QC (Sty); respectively. If
the absolute difference between these two values is greater than two, this is evidence that that a sample
may have worked properly with one enzyme set, but not with the other, and the Contrast QC value is
adjusted to zero to reflect this problem. These Contrast QC values are well correlated with the higher Call
Rates and concordance achieved when calls are subsequently made with Birdseed (versions 1 or 2). The
correlation between Birdseed accuracy and Birdseed Call Rate is also very high. As an extra guard
against the inclusion of any outlier samples that pass through the Contrast QC filter, it is a good idea to
reject samples that are notable outliers in terms of their Birdseed Call Rate. When using Birdseed (v1),
clustering larger batches of samples will improve the performance of the algorithm. The algorithm
improvements in Birdseed v2 allow you to cluster by plate with the same performance as clustering larger
batches of samples.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
389
Figure E.1 Distribution of Contrast Values. The X axis is the Contrast Value about which a bin of
size 0.02 is centered. The Y axis is the %of SNPs (10000 random autosomal GW 6 SNPs) whose
Contrast values fall within the bin. Contrast = sinh[K*(A-B)/(A+B)]/sinh(K)], K=2, A and B are the
summary values for probes covering the A and B alleles; respectively ( see
http://www.affymetrix.com/support/technical/whitepapers/brlmm_whitepaper.pdf).
The Contrast QC is adjusted to zero if abs[Contrast QC (Nsp)- Contrast QC (Sty)] > 2
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
390
Appendix G: Best Practices SNP 6.0 Analysis Workflow
1. Study Design:
-
Where possible, randomization of cases and controls across sample plates is usually a good
idea.
-
In studies involving trios, it is usually good to try to ensure that all three members of a trio are on
the same sample plate.
2. Pre-Cluster Sample Quality Check
-
Reprocess samples with Contrast QC < 0.4
3. Pre-Cluster Plate or Dataset Check
4. Genotyping: Cluster Samples with Birdseed v2
-
Cluster by plate or cluster all together according to which process is most convenient for the lab
workflow
-
Each cluster should contain a minimum of 44 samples with a least 15 female samples
5. Genotyping: Post-Cluster Sample Quality Check
-
Reject samples with outlier low Birdseed Callrates
-
Reject samples with excess predicted heterozygosity
6. Genotyping: Post-Genotyping SNP Filtration
-
Filter for SNPs with high SNP callrates over all samples in the study; somewhere in the range of
90-95%
-
The exception is Y chr SNPs- which are always NoCalls for Female samples
-
May also want to reject based on deviation from HW equilibrium, reproducibility, where possible
and appropriate
7. Genotyping: Post-Association Study Analysis
-
Visually analyze all candidate SNPs
8. Copy Number: Reference Model File Creation
-
Set of samples used to create Reference Model File should contain a minimum of 44 samples
with a least 15 female samples
9. Copy Number: CNCHP file Quality Check
-
Track CNCHP quality using MAPDs. Reprocess samples with MAPDs greater than 0.3 when
using an intra-lab reference (Reference Model File made from lab‘s own samples) or greater than
0.35 when using an external reference (Reference generated elsewhere, such as the supplied
270HapMap Reference).
-
If MAPDs are consistently high when using an external reference, recalculate MAPDs with an
intra-lab reference. If the MAPDs all drop significantly, then the high MAPD is an artifact
introduced by a systematic difference between current samples and the samples that made up
the reference rather than a quality issue.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
391
Appendix H: Best Practices Axiom Analysis Workflow
1. Study Design
-
Where possible, randomization of cases and controls across sample plates is usually a good
idea.
-
In studies involving trios, it is usually good to try ensure that all three members of a trio are on the
sample plate.
2. Pre-Cluster Sample Quality Check:
-
Exclude/reprocess samples with Dish QC < 0.82
3. Genotyping, preliminary round: Cluster Samples with Axiom GT1
-
Cluster by 96 well plate or cluster all together according to which process is most convenient for the lab
workflow
-
Each cluster should contain a minimum of 20 distinct samples with either zero females samples
or at least 10 distinct female samples
-
Each cluster should contain a minimum of 90 distinct samples with either zero female samples or
at least 30 distinct female samples when generic prior is used for Axiom myDesign™ arrays
4. Post-Cluster Sample Quality Check
-
Reject samples with clustering call rates less than 97%
-
Reject samples with excess predicted heterozygosity. What exactly constitutes an outlier will depend on
the population. It is often useful to plot the heterozygosity against the sample call rate, often outlier
samples will have unusual call rate/heterozygosity combinations. Note also that because Genotyping
Console reports heterozygosity including chrX markers, females will generally have slightly higher
heterozygosity than males.
5. Plate level quality check
-
For each plate, check the overall sample failure rate and the distribution of performance (DQC &
call rate) for passing samples. Any plate with an unusually high number of failures or a striking
shift in performance of passing samples should be considered carefully. The key goal would be to
distinguish between the possibility of a plate-wide issue that may still affect even the passing
samples as opposed to a sample-specific issue that affects just a specific subset of experiments.
6. Genotyping, final round
-
Repeat genotype clustering after rejection of any outlier samples identified in the preliminary
round of clustering.
7. Post-Genotyping SNP Filtration
-
Exclude SNPs with low SNP call rates, evaluated over all passing samples in the study; somewhere in
the range of 90-95% is typical
-
The exception is Y chr SNPs which are always NoCalls for Female samples
-
You may also want to reject based on deviation from HW equilibrium (in controls), reproducibility and
Mendelian Inheritance errors where possible and appropriate
8. Post-Association Study Analysis
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
392
-
Visually inspect cluster plots for all candidate SNPs to ensure that there is nothing unusual about
the clustering
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
393
Appendix I: Copy Number Variation Analysis
Copy Number Variation Analysis is performed using the Canary algorithm which was developed by the
Broad Institute for the purpose of making copy number state calls for genomic regions with copy number
variations. These genomic regions can be called regions with copy number variation (CNV regions) or
regions with copy number polymorphism (CNP). These CNV regions are observed to be more variable in
regard to copy number states than is typical of the genome as a whole. The specialized algorithm,
Canary, was developed for these CNV regions because other copy number analysis methods assume a
copy number of 2 to be the predominant copy number state in a sample of individuals. This frequency
assumption is not reliable in the CNV regions and can lead to misled copy number state calls in the set of
samples as a whole.
The Broad Institute first identified and made copy number state calls for the CNV regions in the
population of HapMap samples. For each of these regions a set of probe sets, deemed to be ―smart‖, was
assigned. Fidelity and robust response are two criteria attributed to smart probe sets. Within each CNV
region selected by the Broad Institute, summaries of smart probe sets resulted in a clustering pattern
consistent with copy number state. The frequency of HapMap individuals with a certain copy number
state as well as cluster centers and means was recorded as empirical prior clustering estimates used by
Canary. In GTC 4.1, the sets of smart probe sets mapping to CNV regions are stored a region file and the
prior cluster information is stored in a prior file. All smart probe sets in the region file correspond to NCBI
build 36.1 of the human genome. The CNV regions with their corresponding chromosomal positions are
recorded in the CNV map file. This CNV map file is required for CNV result table display and also for the
heat map viewer display.
GTC 4.1 uses a set of 1141 CNV regions derived from those identified by the Broad. To reduce sampleto-sample variability, these 1141 CNV regions are a subset filtered to ensure that each CNV region is
mapped to by more than one smart probe set, reduced by restriction enzymes into more than one
fragment and produces clustering results consistent in two full sets of HapMap samples independently
processed at separate sites.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
394
Appendix J: Hard Disk Requirements
This appendix provides example hard disk requirements for 450 CEL files from different types of arrays
and analyses. The temp folder is required for analysis and the result folder is required to save data.
Table J. 1 Hard disk (HD) requirements for 450 CEL files (temp folder and results folder on
different hard disks)
Temp Folder HD
Result Folder HD
Type of Analysis
Per CEL File
(MB)
Total GB Required
(450 CEL files)
Per CEL File
(MB)
Total GB Required
(450 CEL files)
SNP 6.0 Genotyping
83.54
~38
65.87
~30
SNP 6.0 CN/LOH
83.54
~38
78.10
~36
SNP 6.0 CNV
83.54
~38
0.046
<1
Axiom Genotyping
34.33
~16
22.58
~11
Table J. 2 Hard disk (HD) requirements for 450 CEL files (temp folder and results folder on the
same hard disk)
Temp Folder
Result Folder
HD (GB)
Type of Analysis
Per CEL
File (MB)
Total GB
Required (450
CEL files)
Per CEL File
(MB)
Total GB Required
(450 CEL files)
SNP 6.0
Genotyping
83.54
~38
65.87
~30
~68
SNP 6.0 CN/LOH
83.54
~38
78.10
~36
~74
SNP 6.0 CNV
83.54
~38
0.046
<1
~39
Axiom Genotyping
34.33
~16
22.58
~11
~27
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
395
Appendix K: Troubleshooting
The following information is provided to help you troubleshoot GTC:

Troubleshooting Tips (below)

Using the Troubleshooter Tool (page 397)
Troubleshooting Tips
Issue
Resolution
Data file(s) (ARR, XML, CEL, GQC, or CHP) cannot be
imported and/or causes the software to crash.
Confirm that the data files were generated by Affymetrix
software or GeneChip compatible software partners can be
imported into Genotyping Console and have not been
tampered with or edited. Any data files which are edited
outside of these software packages may cause import to fail or
Genotyping Console software to crash.
I tried to import my CEL files and selected the auto-QC
option. An error indicated that I was missing a library file and
the QC step was aborted but no CEL files were added to the
Workspace.
If an action is selected such as auto-QC and the required
library files are missing, all current actions are aborted so no
data files including the CEL files are added to the Workspace.
To resolve this issue, download the required library files from
the File menu and repeat the data import.
My analysis is taking a long time.
Confirm that the CEL files are located on the local machine
and NOT on a network. Affymetrix recommends that you
perform genotyping and QC analysis with all files stored
locally. Close other applications to free up memory and CPU
resources.
I copied data to the Clipboard but when I pasted it into a new
document/file, not all of the text was copied.
The copy to Clipboard is a Windows operating system feature
and can only hold a certain amount of data. If you copy a large
amount of rows/columns of data, it may not all be able to
handled by Windows. To resolve this issue, copy smaller
sections of data or export to a text file.
I selected files to be added to the workspace but not all files
were added.
Windows has a fixed buffer which limits how many files can be
returned to the application. The control lets a user pick any
number of files, but due to its buffer size it may return fewer
files. The maximum number of files varies. As an example,
when trying to add 800 ARR and CEL files to the Data Set at
one time, although all files could be selected only a subset are
actually added to the Workspace. The work-around is to either
work with Windows folders containing smaller sets of data, or
to perform the Add Data operation multiple times, each time
selecting a different set of files in the Windows folder.
Sorting and/or scrolling the SNP Summary table is slow and
unresponsive.
Since the SNP summary table holds all of the SNP results for
all CHP files in the batch, it can become very large. Not all of
the data is loaded into the memory. Sorting and scrolling this
file may take time. If you select multiple actions, the software
may become unstable. To resolve this issue, export the SNP
summary table to text or use the Filter SNPs option to select a
subset of the data for easier use.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
396
Issue
Resolution
Genotyping analysis failed.
View the log window; it may contain information relating to the
issue.
Confirm that the algorithm parameter values are valid. To
resolve this issue, make sure you are using values within
these bounds:
Score Threshold: 0 – 1
Genotyping Console could not perform the QC and/or the
Genotyping analysis.
Confirm that the library files are present. Refer to the Library
and Annotation file section of the manual for more information.
I got an error when I tried to add additional data to my Data
Set.
Data Sets can consist of only one array type. Confirm that you
are adding data which is the same probe array type (e.g.
Genome-Wide SNP 5.0) to the existing Data Set.
I tried to perform QC and/or Genotyping analysis and
Genotyping Console could not find the data files.
Confirm that the data files have not been moved or deleted by
verifying the file locations. Go to Workspace/Verify File
Locations.
Using the Troubleshooter Tool
The Affymetrix Support Tool (Figure K.1) can be used to collect information on the operation of GTC that
may be useful to Affymetrix Support in troubleshooting problem.
Figure K.1 Affymetrix Support Tool
It creates a set of XML files in a zip package that can be sent to Affymetrix Support.
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
397
To collect troubleshooting information using the tool:
1. From the Tools menu, select Troubleshooter.
The Affymetrix Support Tool dialog box opens (Figure K.1).
2. Enter the path and name for the output location (Figure K.2); or
Figure K.2 Output Location
A. Click the Browse Button
The Browse for Folder dialog box opens (Figure K.3).
Figure K.3. Browse For Folder dialog box
B. Navigate to the folder location (making a new folder if necessary) and click OK in the Browse for
Folder dialog box.
3. Select the Reports you wish to generate (Figure K.4).
Figure K.4 Options for collecting information
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
398
You can choose from the following options (Figure K.4):
-
Collect GTC System Information – The exported file contains information about Physical RAM,
CPU, 32/64-bit OS, Total and Free Space of C Drive and Windows OS Version and Service Pack
Version.
-
Collect Library File Information – The exported file contains local library file path (including date
and file size), lists of probe array types with complete library files and annotation files. Library and
annotation file versions as specified in the file name.
-
Collect Workspace Information – If there is no workspace opened, the exported file will contain a
simple report saying that there is no workspace opened. If that‘s not the case, the exported file
will be an xml file of the currently opened workspace.
-
Collect Status Log Information – The exported file contains log information in the status log
window in GTC.
-
Collect GTC Version Information – The exported file contains GTC Version and Build number as
reported in the about box.
-
Collect Current User Profile – The exported file contains the user profile currently logged in.
-
Collect Installation Information – The exported file contains information about file name, path,
date and size of installation files under GTC folder. The extensions of the files can be set freely,
for example, .exe and .zip.
-
Collect Windows System Information – the exported file contains comprehensive windows system
information generated via msinfo32.exe.
-
Collect Windows Event Log – The exported file contains windows event log
4. Click Run Selected Tasks.
The dialog box displays the progress of the various tasks (Figure K.5).
Figure K.5 Affymetrix Support Tool running
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
399
When the information has been collected, a notice appears (Figure K.6).
Figure K.6 Notice of completion
The selected information is collected in a zip file at the output location (Figure K.7)
Figure K.7 Zip file with information
®
Affymetrix Genotyping Console 4.1 User Manual
P/N 702982 Rev 1
400
