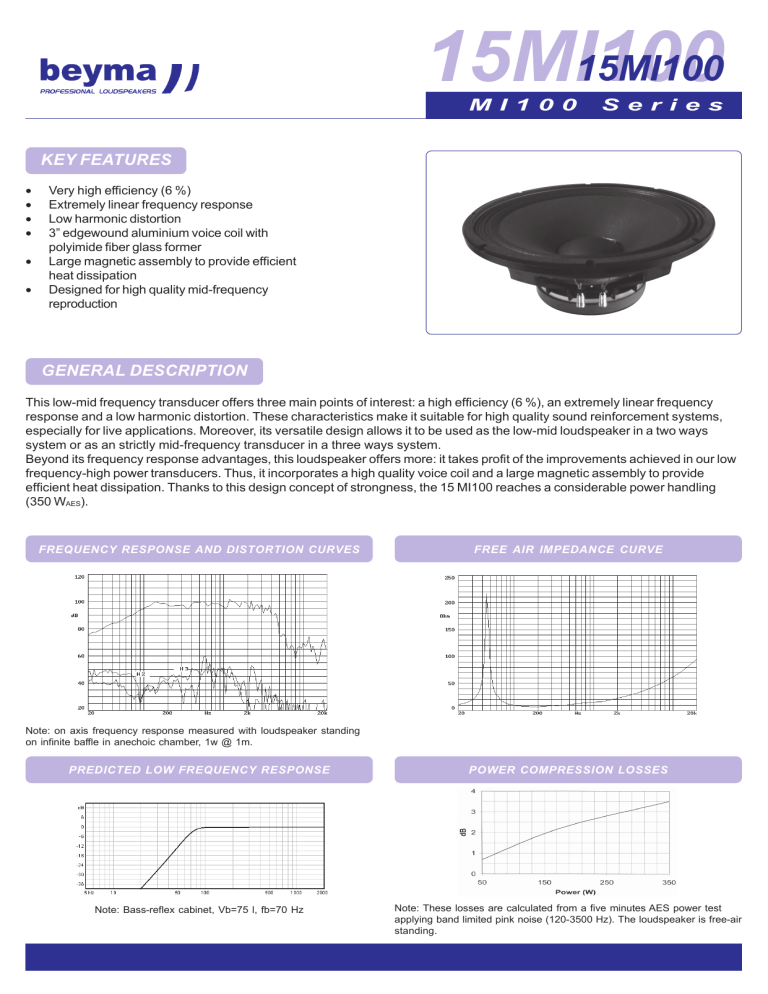

15MI100 - Mw System
15MI100
15MI100
M I 1 0 0
S e r i e s
KEY FEATURES
•
•
•
•
•
•
Very high efficiency (6 %)
Extremely linear frequency response
Low harmonic distortion
3” edgewound aluminium voice coil with
polyimide fiber glass former
Large magnetic assembly to provide efficient
heat dissipation
Designed for high quality mid-frequency
reproduction
GENERAL DESCRIPTION
This low-mid frequency transducer offers three main points of interest: a high efficiency (6 %), an extremely linear frequency
response and a low harmonic distortion. These characteristics make it suitable for high quality sound reinforcement systems,
especially for live applications. Moreover, its versatile design allows it to be used as the low-mid loudspeaker in a two ways
system or as an strictly mid-frequency transducer in a three ways system.
Beyond its frequency response advantages, this loudspeaker offers more: it takes profit of the improvements achieved in our low
frequency-high power transducers. Thus, it incorporates a high quality voice coil and a large magnetic assembly to provide
efficient heat dissipation. Thanks to this design concept of strongness, the 15 MI100 reaches a considerable power handling
(350 WAES).
FREQUENCY RESPONSE AND DISTORTION CURVES
FREE AIR IMPEDANCE CURVE
Note: on axis frequency response measured with loudspeaker standing
on infinite baffle in anechoic chamber, 1w @ 1m.
PREDICTED LOW FREQUENCY RESPONSE
POWER COMPRESSION LOSSES
Note: Bass-reflex cabinet, Vb=75 l, fb=70 Hz
Note: These losses are calculated from a five minutes AES power test
applying band limited pink noise (120-3500 Hz). The loudspeaker is free-air
standing.
15MI100
15MI100
M I 1 0 0
TECHNICAL SPECIFICATIONS
S e r i e s
DIMENSION DRAWINGS
Nominal diameter
380 mm. 15 in.
Rated impedance
8 ohms.
Minimum impedance
7.5 ohms.
Power capacity*
350 w AES
Program power
700 w
Sensitivity
101 dB 2.83v @ 1m @ 2␲
Frequency range
30 - 4000 Hz
Recom. enclosure vol.
40 / 100 l 0.7 / 1.75 ft.3
Voice coil diameter
77 mm. 3 in.
Magnetic assembly weight
6.5 kg. 14.2 lb.
BL factor
21.6 N / A
Moving mass
0.072 kg.
Voice coil length
13.5 mm.
Air gap height
9.5 mm.
X damage (peak to peak)
24 mm.
MOUNTING INFORMATION
Overall diameter
Bolt circle diameter
Baffle cutout diameter:
- Front mount
- Rear mount
Depth
Volume displaced by driver
Net weight
Shipping weight
MATERIALS
388 mm. 15.28 in.
370 mm. 14.56 in.
352 mm. 13.85 in.
355 mm. 13.97 in.
163 mm. 6.42 in.
7 l 0.25 ft.3
7.8 kg. 17.2 lb.
8.6 kg. 18.9 lb.
THIELE-SMALL PARAMETERS**
Resonant frequency, fs
D.C. Voice coil resistance, Re
Mechanical Quality Factor, Qms
Electrical Quality Factor, Qes
Total Quality Factor, Qts
Equivalent Air Volume to Cms, Vas
Mechanical Compliance, Cms
Mechanical Resistance, Rms
Efficiency, ␩ o (%)
Effective Surface Area, Sd (m2)
Maximum Displacement, Xmax
Displacement Volume, Vd
Voice Coil Inductance, Le @ 1 kHz
48 Hz
6.3 ohms.
6.38
0.30
0.28
166 l
153 ␮m / N
3.3 kg / s
6
0.0880 m2
2 mm.
175 cm3
2.3 mH
•
•
•
•
•
•
•
Voice coil: edgewound aluminium wire with high
temperature bonding strength. Polyimide fiber glass
former able to withstand high temperatures.
Cone: light and stiff paper cone to provide good midfrequency response.
Surround: treated cloth to equalize mechanically
the frequency response.
Spider: cotton spider.
Metal parts: anti-corrosion coated back plate
designed to resist aggressive environmental
conditions.
Basket: specially designed die cast aluminium basket to avoid disturbing resonances.
Magnet: high Curie temperature ferrite.
Notes:
* The power capacity is determined according to AES2-1984 (r2003)
standard. Program power is defined as the transducer's ability to handle
normal music program material.
** T-S parameters are measured after an exercise period using a
preconditioning power test. The measurements are carried out with a
velocity-current laser transducer and will reflect the long term parameters
(once the loudspeaker has been working for a short period of time).
acústica beyma,s.a.
Polígono Industrial Moncada II · C/. Pont Sec, 1c · 46113 MONCADA - Valencia (Spain)
· Tel. ( 34 ) 96 130 13 75 · Fax ( 34 ) 96 130 15 07 · http://www.beyma.com · E-mail:[email protected] ·
