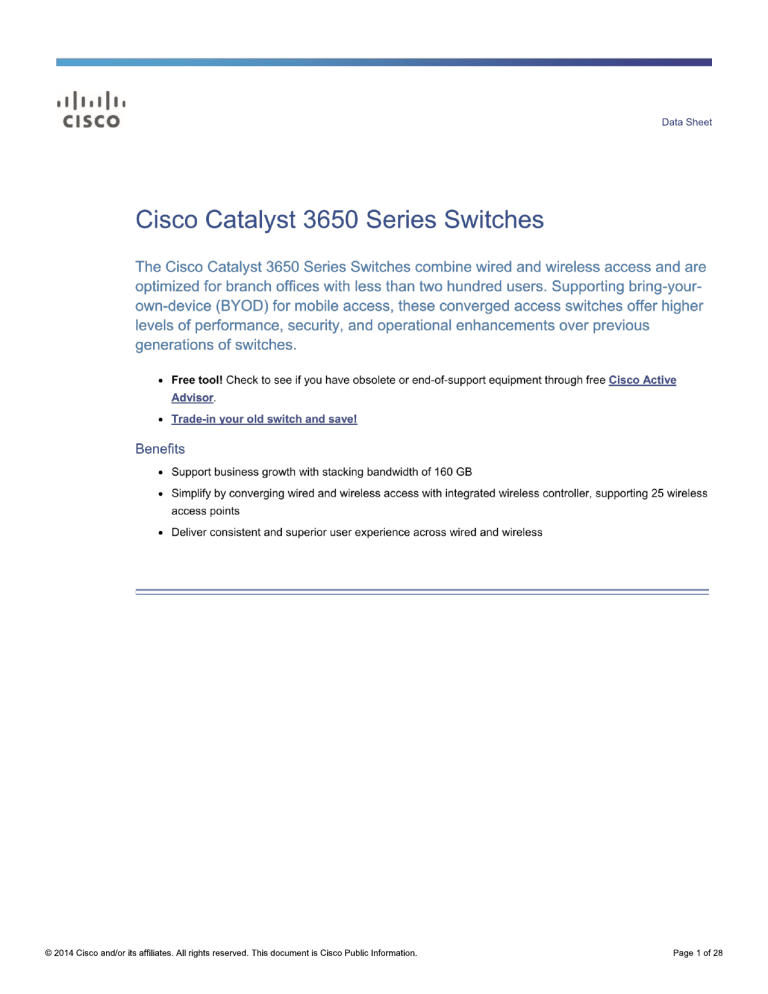

Cisco Catalyst 3650 Series Switches Data Sheet

Cisco Catalyst 3650 Series Switches Data Sheet
Cisco Catalyst 3650 Series Switches
Jump to:
●
Overview
●
Features
●
Specifications
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer
switches that provide the foundation for full convergence between wired and wireless on a single platform. The
Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco®
Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform
wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency.
The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer
modular and field-replaceable redundant fans and power supplies. They can help you increase wireless
productivity and reduce your TCO.
Product Overview
●
Integrated wireless controller capability with:
◦ Up to 40G of wireless capacity per switch (48-port models)
◦ Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
●
24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
●
Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet
ports
●
Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack
throughput
◦ Dual redundant, modular power supplies and three modular fans providing redundancy
◦ Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
●
Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible
NetFlow (FNF) Version 9, and enhanced security features
●
Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for
software features
●
Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement
and 90-day access to Cisco Technical Assistance Center (TAC) support
Switch Models and Configurations
All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports and ship with one power supply. Tables 1
through 5 provide further details. Figure 1 is an image of the Cisco Catalyst 3650 Series Switches.
Figure 1.
Cisco Catalyst 3650 Series Switches
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 2 of 29
Table 1 shows the Cisco Catalyst 3650 Series configurations.
Table 1.
Cisco Catalyst 3650 Series Configurations
Models
Fixed Uplinks
Total 10/100/1000
Ethernet Ports
Default AC Power Supply
Available PoE Power
WS-C3650-24TS
4 x Gigabit Ethernet with
Small Form-Factor
Pluggable (SFP)
24
250 WAC
-
640 WAC
390 W
775 W
WS-C3650-48TS
48
WS-C3650-24PS
24 PoE+
WS-C3650-48PS
48 PoE+
WS-C3650-48FS
48 PoE+
1025 WAC
24
250 WAC
WS-C3650-24TD
WS-C3650-48TD
2 x 10 Gigabit Ethernet
with SFP+ or 4 x Gigabit
Ethernet with SFP
48
WS-C3650-24PD
24 PoE+
WS-C3650-48PD
48 PoE+
WS-C3650-48FD
WS-C3650-48TQ
WS-C3650-48PQ
4 x 10 Gigabit Ethernet
with SFP+ or 4 x Gigabit
Ethernet with SFP
WS-C3650-48FQ
640 WAC
390 W
48 PoE+
1025 WAC
775 W
48
250 WAC
48 PoE+
640 WAC
390 W
48 PoE+
1025 WAC
775 W
Fixed Uplinks
All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports. Customers can choose from three types of
uplink ports at the time of the switch purchase:
●
4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP)
●
2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP
●
4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP
The SFP+ interface supports both 10 Gigabit Ethernet and Gigabit Ethernet ports. Refer to Table 1 for a description
of the basic switch models and the corresponding uplink ports. Refer to Table 2 for a description of the various
uplink port interface options.
Table 2.
Network Module Configurations
Interface Options
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 3 of 29
Network Module
10 Gigabit Ethernet SFP+ Ports
Gigabit Ethernet SFP Ports
4 x Gigabit Ethernet
0
4
4 x Gigabit Ethernet/2 x10 Gigabit Ethernet
Network Modules
2
0
0
4
2
2
4
0
0
4
2
2
3
1
1
3
4 x Gigabit Ethernet/4 x10 Gigabit Ethernet
Network Modules
Dual Redundant Modular Power Supplies
The Cisco Catalyst 3650 Series Switches support dual redundant power supplies (See Figure 2). The switch ships
with one power supply by default, and the second power supply can be purchased at the time of ordering the
switch or at a later time. If only one power supply is installed, it should always be in power supply bay 1. The switch
also ships with three field-replaceable fans.
Figure 2.
Redundant Power Supplies
Table 3 shows the different power supplies available in these switches and available PoE power.
Table 3.
Switch Models and Corresponding Default Power Supplies
Models
Default Power Supply
Available PoE Power
24-port data switch
PWR-C2-250WAC
-
PWR-C2-640WAC
390 W
PWR-C2-1025WAC
775 W
48-port data switch
24-port PoE switch
48-port PoE switch
48-port full PoE switch
In addition to the power supplies listed in Table 3, a 640 WDC power supply is available at the time of order or as a
spare on all switch models. The DC power supply also delivers PoE capabilities for maximum flexibility (refer to
Table 5 for available PoE budget with DC power supplies). Customers can mix and match the AC and DC power
supplies in the two available power supply slots. Any of these power supplies can be installed in any of the
switches.1
Table 4.
1
Available PoE with DC Power Supply
The 250 WAC power supply will be supported on the PoE-capable switches in a future release.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 4 of 29
Model
Number of 440WDC Power Supplies
Total Available PoE Budget
24-port or 48-port PoE Switch
1
390 W
2
780 W
Power over Ethernet Plus (PoE+)
The Cisco Catalyst 3650 Series Switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard),
which provide up to 30 W of power per port. PoE removes the need for wall power to each PoE-enabled device
and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone
and WLAN deployments. The Cisco Catalyst 3650 Series Switches can provide a lower TCO for deployments that
incorporate Cisco IP phones, Cisco Aironet® wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant
end device. Table 5 shows the power supply combinations required for different PoE needs. Table 5.
Minimum Power Supply Requirements for Full PoE and PoE+
PoE on All Ports (15.4 W per port)
24-Port PoE Switch
48-Port PoE Switch
One PWR-C2-640 WAC
One PWR-C2-1025WAC or Two PWR-C2-640
WAC
PoE+ on All Ports (30 W per port)
One PWR-C2-1025WAC or Two PWR-C2-640
WAC
Two PWR-C2-1025 WAC
Benefits
Converged Wired plus Wireless Access
The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless
services on a single Cisco IOS XE Software-based platform. With this, Cisco has pioneered a host of rich
capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and
Flexible NetFlow (FNF) across wired and wireless in a seamless fashion. Also, the wired plus wireless features are
bundled into a single Cisco IOS Software image, which reduces the number of software images that users have to
qualify/certify before enabling them in their network. The single console port for command-line interface (CLI)
management reduces the number of touch points to manage for wired plus wireless services, thereby reducing
network complexity, simplifying network operations, and lowering the TCO to manage the infrastructure.
Converged wired plus wireless not only improves wireless bandwidth across the network but also the scale of
wireless deployment. Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the
24-port model). This wireless capacity increases with the number of members in the stack. This makes sure that
the network can scale with current wireless bandwidth requirements, as dictated by IEEE 802.11n-based access
points and with future wireless standards such as IEEE 802.11ac. Additionally, the Cisco Catalyst 3650 distributes
the wireless controller functions to achieve better scalability. Each Cisco Catalyst 3650 switch/stack can operate as
the wireless controller in two modes:
●
Mobility agent (MA): This is the default mode in which the Cisco Catalyst 3650 switch ships. In this mode
the switch is capable of terminating the CAPWAP tunnels from the access points and providing wireless
connectivity to wireless clients. Maintaining wireless client databases and configuring and enforcing security
and QoS policies for wireless clients and access points can be enforced in this mode. No additional license
on top of IP Base is required to operate in the mobility agent mode.
●
Mobility controller (MC): In this mode, the Cisco Catalyst 3650 switch can perform all the mobility agent
tasks in addition to mobility coordination, radio resource management (RRM), and Cisco CleanAir ®
coordination within a mobility subdomain. The mobility controller mode can be enabled on the switch CLI.
IP Base license level is required when the Cisco Catalyst 3650 switch is acting as the mobility controller.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 5 of 29
A centrally located Cisco 5508 Wireless LAN Controller (WLC 5508), Cisco Wireless Services Module 2
(WiSM2) (when running AireOS Version 7.3), and Wireless LAN Controller 5760 can also perform this role
for larger deployments.
With mobility agents located in the wiring closets providing 40 Gbps of wireless per switch (n x 40 Gbps for
a stack of n switches) and mobility controllers managing some of the central wireless functions, the
converged access-based wireless deployment provides best-in-class scalability for wireless and
significantly improved wireless throughput.
Figure 3.
Mobility Controller (MC) and Mobility Agent (MA)
Distributed Intelligent Services Flexible NetFlow (FNF)
Full visibility into the wired plus wireless traffic is achieved because of the access point Control and Provisioning of
Wireless Access Points (CAPWAP) tunnel termination on the switch. This helps identify users and user traffic flows
in order to identify potential attackers and take corrective action at the access layer before the attack penetrates
further into the network. This is achieved using FNF, which monitors every single flow entering and exiting the
switch stack for wired and wireless users. It also helps identify the top wired/wireless talkers and enforce
appropriate bandwidth provisioning policies.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 6 of 29
QoS
The 3650 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line
interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth
management starting at the per-access-point level and drilling further down to per-radio, per-service set
identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various
radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also
capable of automatically allocating equal bandwidth among the connected users within a given SSID. This makes
sure that all users within a given SSID get a fair share of the available bandwidth while being connected to the
network. The UADP ASIC enables the hierarchical bandwidth management and fair sharing of bandwidth, thereby
providing hardware-based QoS for optimized performance at line-rate traffic.
In addition to these capabilities, the switch is able to do class of service (CoS) or differentiated services code point
(DSCP) based queuing, policing, shaping, and marking of wired plus wireless traffic. This enables users to create
common policies that can be used across wired plus wireless traffic. The 3650 also supports downloadable policy
names from the Cisco Identity Services Engine (ISE) when a user successfully authenticates to the network using
the ISE.
Security
The Cisco Catalyst 3650 provides a rich set of security features for wired plus wireless users. Features such as
IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane
protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users
and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports
sessionaware networking, in which each device connected to the network is identified as one session, and unique
access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these
sessions, providing better control on the devices connecting to the network.
Resiliency
Cisco StackWise-160 Technology
The Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology.
Cisco StackWise-160 technology is built on the highly successful industry-leading StackWise® technology, which is
a premium stacking architecture. StackWise-160 has a stack bandwidth of 160 Gbps. StackWise-160 uses Cisco
IOS Software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is
managed by an “active” switch elected by the member switches. The active switch automatically elects a standby
switch within the stack. The active switch creates and updates all the switching/routing/wireless information and
constantly synchronizes that information with the standby switch. If the active switch fails, the standby switch
assumes the role of the active switch and continues to the keep the stack operational. Access points continue to
remain connected during an active-to-standby switchover. A working stack can accept new members or delete old
ones without service interruption. StackWise-160 creates a highly resilient single unified system of up to nine
switches, providing simplified management using a single IP address, single Telnet session, single CLI,
autoversion checking, auto-upgrading, auto-configuration, and more. StackWise-160 also enables local switching in
Cisco Catalyst 3650 Series Switches. (See Figure 4)
Figure 4.
StackWise-160 Kit with Stack Adapters and Cables
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 7 of 29
Foundation for Open Network Environment
The heart of the Cisco Catalyst 3650 is the UADP ASIC with programmability for future features and intelligence
with investment protection. The new ASIC provides the foundation for converged APIs across wired and wireless,
Cisco Open Network Environment, software-defined networking (SDN) readiness and OnePK SDK through
software updates over the product lifetime.
Software Features and Services on Cisco Catalyst 3650 Series Switches
Software services supported on the Cisco Catalyst 3650 Series Switches can be classified into five broad
categories:
●
Ease of operations
●
Advanced security features
●
Resiliency
●
Application visibility and control
Ease of Operations
The Cisco Catalyst 3650 helps reduce the operating costs through:
●
Cisco Catalyst Smart Operations
●
Easy-to-use deployment and control features
●
Efficient switch operations
●
Network management tools
Cisco Catalyst Smart Operations
Cisco Catalyst Smart Operations are a comprehensive set of capabilities that simplify LAN deployment,
configuration, and troubleshooting. In addition to adaptive, always-on technologies such as StackWise-160, Cisco
Catalyst Smart Operations enable zero-touch installation and replacement of switches, fast upgrade, and ease of
troubleshooting with reduced operational cost. Cisco Catalyst Smart Operations are a set of features that includes
Smart Install, Auto Smartports, Smart Configuration and Smart Troubleshooting to enhance operational excellence:
● Cisco
Smart Install is a transparent plug-and-play technology to configure the Cisco IOS Software image and
switch configuration without user intervention. Smart Install utilizes dynamic IP address allocation and the
assistance of other switches to facilitate installation, providing transparent network plug and play.
●
Cisco Auto Smartports provide automatic configuration as devices connect to the switch port, allowing
autodetection and plug and play of the device onto the network.
●
Cisco Smart Troubleshooting is an extensive array of debug diagnostic commands and system health
checks within the switch, including Generic Online Diagnostics (GOLD) and Onboard Failure Logging
(OBFL).
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 8 of 29
●
Embedded Event Manager (EEM) is a powerful and flexible feature that provides real-time network event
detection and onboard automation. Using EEM, customers can adapt the behavior of their network devices
to align with their business needs. This feature requires the IP Base feature set.
Easy-to-Use Deployment and Control Features
●
User experience:
◦ IP service-level agreements (SLAs) enable customers to assure new business-critical IP applications, as
well as IP services that utilize data, voice, and video, in an IP network. This feature requires the IP
Services feature set.
◦ DHCP autoconfiguration of multiple switches through a boot server eases switch deployment.
◦ Automatic QoS (AutoQoS) simplifies QoS configuration in voice over IP (VoIP) networks by issuing
interface and global switch commands to detect Cisco IP phones, classify traffic, and help enable egress
queue configuration.
◦ Autonegotiation on all ports automatically selects half- or full-duplex transmission mode to optimize
bandwidth.
◦ Automatic media-dependent interface crossover (MDIX) automatically adjusts transmit and receive pairs if
an incorrect cable type (crossover or straight through) is installed.
●
Simplified configuration and connectivity:
◦ Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.
◦ Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel groups or Gigabit
EtherChannel groups to link to another switch, router, or server.
◦ Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that
conform to IEEE 802.3ad. This feature is similar to Cisco EtherChannel technology and PAgP.
◦ Unidirectional Link Detection Protocol (UDLD) and aggressive UDLD allow unidirectional links caused by
incorrect fiber-optic wiring or port faults to be detected and disabled on fiber-optic interfaces.
◦ Cisco VLAN Trunking Protocol (VTP) Version 3 supports dynamic VLANs and dynamic trunk configuration
across all switches.
●
Efficient switch operation:
◦ Switching database manager (SDM) templates, VLAN template (specific to LAN Base license level), and
advanced template allow the administrator to automatically optimize the ternary content-addressable
memory (TCAM) allocation to the desired features based on deployment-specific requirements.
◦ Local proxy Address Resolution Protocol (ARP) works in conjunction with private VLAN edge to minimize
broadcasts and maximize available bandwidth.
◦ Stacking master configuration management with Cisco StackWise-160 technology helps make sure that
all switches are automatically upgraded when the master switch receives a new software version.
Automatic software version checking and updating help ensure that all stack members have the same
software version.
◦ Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading
from a centralized location.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 9 of 29
◦ Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.
●
Multicast:
◦ Optimized multicast for wired plus wireless: Cisco Catalyst 3650 offers greater multicast efficiency by
receiving only one multicast stream and replicating it for all connected wired plus wireless devices
connected to that switch.
◦ Internet Group Management Protocol (IGMP) v1, v2, v3 snooping for IPv4: multicast listener discovery
(MLD) v1 and v2 snooping provides fast client joins and leaves of multicast streams and limits
bandwidth-intensive video traffic to only the requestors.
●
Monitoring:
◦ Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch
network from any other switch in the same network.
◦ For enhanced traffic management, monitoring, and analysis, the Embedded Remote Monitoring (RMON)
software agent supports four RMON groups (history, statistics, alarms, and events).
◦ Layer 2 traceroute eases troubleshooting by identifying the physical path that a packet takes from source
to destination.
◦ Wireless RF management provides both real-time and historical information about RF interference
affecting network performance across controllers using systemwide Cisco CleanAir technology
integration.
Efficient Switch Operation
Cisco Catalyst 3650 Series Switches, designed and engineered by Cisco, provide optimum power-saving, EEE,
low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco
Catalyst 3650 ports are capable of reduced power modes so that ports not in use can move into a lower power
utilization state. Other efficient switch operation features are:
●
Cisco Discovery Protocol Version 2 allows the Cisco Catalyst 3650 Series Switches to negotiate a more
granular power setting when connecting to a Cisco powered device such as IP phones or access points
than what is provided by IEEE classification.
●
Per-port power consumption command allows customers to specify a maximum power setting on an
individual port. Per-port PoE power sensing measures actual power being drawn, enabling more intelligent
control of powered devices.
●
The PoE MIB provides proactive visibility into power usage and allows customers to set different powerlevel
thresholds.
Environmentally Responsible
Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours.
The integrated wireless LAN controller avoids the deployment of additional devices in the network.
Network Management Tools
The Cisco Catalyst 3650 Series Switches offer both a superior CLI for detailed configuration and Cisco Prime ™
infrastructure for unified wired plus wireless management. Prime infrastructure provides day 0 and ongoing
provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views
and serves as the FNF collector for user traffic views using the Prime Assurance Manager module.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 10 of 29
For detailed information about Cisco Prime infrastructure, go to
http://www.cisco.com/en/US/products/ps12239/index.html.
Advanced Security Features
Cisco Catalyst 3650 Series Switches support advanced security features including but not limited to:
● Protection
against attackers:
◦ Port security secures the access to an access or trunk port based on MAC address. It limits the number of
learned MAC addresses to deny MAC address flooding.
◦ DHCP snooping prevents malicious users from spoofing a DHCP server and sending out bogus
addresses. This feature is used by other primary security features to prevent a number of other attacks
such as ARP poisoning.
◦ Dynamic ARP inspection (DAI) helps ensure user integrity by preventing malicious users from exploiting
the insecure nature of ARP.
◦ IP source guard prevents a malicious user from spoofing or taking over another user’s IP address by
creating a binding table between the client’s IP and MAC address, port, and VLAN.
◦ The Unicast Reverse Path Forwarding (RPF) feature helps mitigate problems caused by the introduction
of malformed or forged (spoofed) IP source addresses into a network by discarding IP packets that lack a
verifiable IP source address.
◦ Bidirectional data support on the SPAN port allows the Cisco intrusion detection system (IDS) to take
action when an intruder is detected.
● User
authentication:
◦ Flexible authentication that supports multiple authentication mechanisms, including 802.1X, MAC
authentication bypass, and web authentication using a single, consistent configuration.
◦ RADIUS change of authorization and downloadable calls for comprehensive policy management
capabilities.
◦ Private VLANs restrict traffic between hosts in a common segment by segregating traffic at Layer 2,
turning a broadcast segment into a nonbroadcast multiaccess like segment. Private VLAN edge provides
security and isolation between switch ports, which helps ensure that users cannot snoop on other users’
traffic.
◦ Multidomain authentication allows an IP phone and a PC to authenticate on the same switch port while
placing them on appropriate voice and data VLAN.
◦ MAC address notification allows administrators to be notified of users added to or removed from the
network.
◦ Mobility and security for secure, reliable wireless connectivity and consistent end-user experience.
Increased network availability through proactive blocking of known threats.
◦ IGMP filtering provides multicast authentication by filtering out nonsubscribers and limits the number of
concurrent multicast streams available per port.
●
ACLs:
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 11 of 29
◦ Cisco security VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within
VLANs.
◦ Cisco standard and extended IP security router ACLs define security policies on routed interfaces for
control-plane and data-plane traffic. IPv6 ACLs can be applied to filter IPv6 traffic.
◦ Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.
●
Device access:
◦ Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3
(SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions.
SSH Protocol, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic
software image because of U.S. export restrictions.
◦ TACACS+ and RADIUS authentication facilitates centralized control of the switch and restricts
unauthorized users from altering the configuration.
◦ Multilevel security on console access prevents unauthorized users from altering the switch configuration.
●
Bridge protocol data unit (BPDU) Guard shuts down Spanning Tree PortFast-enabled interfaces when
BPDUs are received to avoid accidental topology loops.
●
Spanning Tree Root Guard (STRG) prevents edge devices not in the network administrator’s control from
becoming Spanning Tree Protocol root nodes.
●
Wireless end-to-end security offers CAPWAP-compliant DTLS encryption to make sure of encryption
between access points and controllers across remote WAN/LAN links.
Resiliency
Borderless networks enable enterprise mobility and business-grade video services. Industry’s first unified network
(wired plus wireless) location services enable tracking of mobile assets and the users of those assets for both wired
plus wireless devices. The true borderless experience is enabled by the following feature sets in the Cisco Catalyst
3650 Series Switches:
●
High availability
●
High-performance IP routing
●
Superior QoS
High Availability
In addition to StackWise-160, the Cisco Catalyst 3650 Series supports high-availability features including but not
limited to the following:
●
Cross-Stack EtherChannel provides the ability to configure Cisco EtherChannel technology across different
members of the stack for high resiliency.
●
Flexlink provides link redundancy with convergence time less than 100ms.
●
IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide
rapid spanning-tree convergence independent of spanning-tree timers and also offer the benefit of Layer 2
load balancing and distributed processing. Stacked units behave as a single spanning-tree node.
●
Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree reconvergence on a per-VLAN
spanning-tree basis, without requiring the implementation of spanning-tree instances.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 12 of 29
●
Switch-port autorecovery (Err-disable) automatically attempts to reactivate a link that is disabled because of
a network error.
High-Performance IP Routing
The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in the
Cisco Catalyst 3650 Series Switches:
●
IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng,
Enhanced Interior Gateway Routing Protocol [EIGRP] stub) are supported for small-network routing
applications with the IP Base feature set. Limited static routing with the LAN Base feature set. Equal-cost
routing facilitates Layer 3 load balancing and redundancy across the stack.
●
Advanced IP unicast routing protocols (Open Shortest Path First [OSPF], EIGRP, Border Gateway Protocol
Version 4 [BGPv4], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for
load balancing and constructing scalable LANs. IPv6 routing (OSPFv3, EIGRPv6) is supported in hardware
for maximum performance. OSPF for routed access is included in the IP Base image. The IP Services
feature set is required for full OSPF, EIGRP, BGPv4, and IS-ISv4.
●
Policy-based routing (PBR) allows superior control by facilitating flow redirection regardless of the routing
protocol configured. Virtual routing and forwarding (VRF)-Lite enables a service provider to support two or
more VPNs, with overlapping IP addresses. The IP Services feature set is required.
●
Protocol-independent multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIMSM), PIM dense mode (PIM-DM), PIM sparse-dense mode, and source-specific multicast (SSM).
The IP Services feature set is required.
●
IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and
troubleshooting.
Superior QoS
The Cisco Catalyst 3650 Series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing
smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking,
classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.
The following are some of the QoS features supported in the Cisco Catalyst 3650 Series Switches:
●
Granular wireless bandwidth management and fair sharing use Cisco’s proven Cisco IOS Software and
UADP ASIC technology to provide hierarchical bandwidth management at line rate (per access point, per
radio, per SSID, per client-based policies). Fair sharing across the users within an SSID makes sure that no
single user is starved because of other heavy-hitting users. Fair sharing is automatically enabled for
wireless at user level as well as SSID level.
●
802.1p CoS and DSCP field classification is provided, using marking and reclassification on a per-packet
basis by source and destination IP address, MAC address, or Layer 4 Transmission Control Protocol/User
Datagram Protocol (TCP/UDP) port number.
●
Shaped round robin (SRR) scheduling helps ensure differential prioritization of packet flows by intelligently
servicing the ingress queues and egress queues. Weighted tail drop (WTD) provides congestion avoidance
at the ingress and egress queues before a disruption occurs. Strict priority queuing helps ensure that the
highest priority packets are serviced ahead of all other traffic.
●
The Cisco committed information rate (CIR) function provides bandwidth in increments as low as 8 Kbps.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 13 of 29
●
Rate limiting is provided based on source and destination IP address, source and destination MAC address,
Layer 4 TCP/UDP information, or any combination of these fields, using QoS ACLs (IP ACLs or MAC
ACLs), class maps, and policy maps.
●
Eight egress queues per port for wired traffic and four egress queues for wireless help enable differentiated
management of different traffic types across the stack for wired traffic. Up to 2000 aggregate policers are
available per switch.
Application Visibility and Control Using Flexible NetFlow (FNF)
Cisco IOS Software FNF is the next generation in flow visibility technology, allowing optimization of the network
infrastructure, reducing operation costs, and improving capacity planning and security incident detection with
increased flexibility and scalability. The Cisco Catalyst 3650 provides optimized application visibility with FNF
across wired plus wireless. The switch is capable of 48,000 flow entries on 48-port models and 24,000 flow entries
on 24-port models across wired and wireless. With UADP ASIC, Cisco Catalyst 3650 delivers next-generation flow
technology with unprecedented flexibility and comprehensive visibility extending from Layer 2 (MAC and VLAN) to
Layer 4 (TCP/UDP) flags and so on across wired plus wireless traffic. The Cisco Catalyst 3650 switch is Medianet
capable to provide visibility and troubleshooting capabilities across wired plus wireless video traffic. Specific
Medianet features will be enabled in future software updates.
The flow data collected by FNF can be exported to an external collector for analysis and reporting or tracked by the
EEM. The Cisco Catalyst 3650 enables powerful on-box and customizable event correlation and policy actions with
EEM, allowing the switches to trigger customized event alarms or policy actions when the predefined condition is
met. With no external appliance required, customers are able to use existing infrastructure to perform traffic
monitoring, making traffic analysis economical even on a large IP network.
Details about Cisco FNF are available at
http://www.cisco.com/en/US/prod/collateral/iosswrel/ps6537/ps6555/ps6601/ps6965/product_data_sheet0900aecd
804b590b.html.
The Cisco Catalyst 3650 supports Wireshark, the world's foremost network protocol analyzer, and is ideal for
proactive debugging, troubleshooting, and network performance monitoring. Using Wireshark, a user can capture
control and data wired and wireless packets, easily displaying and analyzing them on a screen or a Wireshark GUI.
Using Flexible NetFlow and Embedded Event Manager, a Wireshark packet capture can be initiated in events such
as SYN flood attacks or abnormal bandwidth usage by specific users.
High-performance video over wireless integrates Cisco VideoStream technology to optimize the delivery of video
applications across the WLAN.
Wired plus wireless IP telephony supports unified communications for improved collaboration through messaging,
presence, and conferencing and supports all Cisco Unified Communications wireless IP phones for cost-effective,
real-time voice service.
Deployment Options
Campus
In a campus-type deployment, operating the Cisco Catalyst 3650 in the mobility agent mode and centralizing the
mobility controller functionality in a WLC 5760, WLC 5508, or WiSM2 helps achieve better scalability and
performance. The Cisco Catalyst 3650 provides CAPWAP termination for access points, uniform policy
enforcement for wireless clients, better wireless bandwidth, and uniform Cisco IOS Software-based configuration
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 14 of 29
and monitoring for wired plus wireless features. The mobility controller provides central mobility, RRM, and
CleanAir coordination.
Backward compatibility with traditional centralized wireless deployment mode on the WLC 5508, WiSM2, and WLC
5760 helps ensure that customers can migrate to the Cisco Catalyst 3650-based converged access approach in
phases, providing a continued controller for existing access points. This migration also provides investment
protection on the existing wireless controller infrastructure. A phased adoption of the new Cisco Catalyst 3650
helps ensure that migration to the converged access mode of wireless is seamless. Figure 5 shows the Cisco
Catalyst 3650 in a campus deployment.
Figure 5.
Deploying Cisco Catalyst 3650 in a Branch Environment
Branch
3650 is optimized for branch deployments when it operates in mobility controller mode. In this mode, not only can
the switch terminate CAPWAP tunnels from the access points and provide client connectivity, it can also manage
mobility within the branch. This eliminates the need for a local controller in every branch in addition to the
accesslayer switches. Also, complete visibility into the wired plus wireless traffic means that the WAN router can
prioritize the right wired plus wireless traffic in and out of the branch. Figure 6 shows the Cisco Catalyst 3650 in a
branch deployment.
Figure 6.
Deploying Cisco Catalyst 3650 in a Branch Location
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 15 of 29
Cisco Catalyst 3650 Series Specifications
Switch Performance
Table 6 shows Cisco Catalyst 3650 Series Switches performance specifications.
Table 6.
Cisco Catalyst 3650 Performance Specifications
Performance Numbers for All Switch Models
Switching capacity
176 Gbps on 48-port models
88 Gbps on 24-port models
Stacking bandwidth
160 Gbps
Total number of MAC addresses
32,000
Total number of IPv4 routes (ARP plus learned routes)
24,000
FNF entries
48,000 flow on 48-port models
24,000 flows on 24-port models
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 16 of 29
DRAM
4 Gb
Flash
2 Gb
VLAN IDs
4,094
Total switched virtual interfaces (SVIs)
1,000
Jumbo frame
9198 bytes
Total routed ports per 3650 stack
208
Wireless
Number of access points per switch/stack
25
Number of wireless clients per switch/stack
1000
Total number of WLANs per switch
64
Wireless bandwidth per switch
Up to 40 Gbps on 48-port models
Up to 20 Gbps on 24-port models
Supported Aironet access point series
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Forwarding Rate of Switch Models (with the 2 x 10 Gigabit Ethernet Uplink-Models for 24-Port Models and the 4 x 10 Gigabit Ethernet
Uplink-Models for 48-Port Models)
Model
Forwarding Rate
3650-24TD
65.47 Mpps
3650-24PD
3650-48TQ
130.95 Mpps
3650-48PQ
3650-48FQ
Dimensions, Weight, Acoustic, Mean Time Between Failure, and Environmental Range
Specifications for Cisco Catalyst 3650 Series Switches
Table 7 shows dimensions, weight, acoustic, mean time between failure (MTBF), and environmental range. Weight
includes the chassis assembly as it is shipped: three fans, two Stackwise adapters, and one power supply blank.
The weight also includes the default power supply that is shipped with the unit.
Table 7.
Dimensions, Weight, Acoustic, MTBF, and Environmental Range
Dimensions (H x W x D)
Inches
Centimeters
WS-C3650-24T
1.73 x 17.5 x 17.625
4.4 x 44.5 x 44.8
WS-C3650-24P
WS-C3650-48T
WS-C3650-48P
WS-C3650-48F
1.73 x 17.5 x 19.125
4.4 x 44.5 x 48.6
Weight
Pounds
Kilograms
WS-C3650-24T
15.15
6.87
WS-C3650-24P
16.00
7.26
WS-C3650-48T
15.90
7.21
WS-C3650-48P
16.75
7.60
WS-C3650-48F
17.20
7.80
STACK-T2-BLANK
0.1
0.05
C3650-STACK-KIT
0.25
0.11
MTBF Hours
WS-C3650-24T
661,800
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 17 of 29
WS-C3650-24P
528,280
WS-C3650-48T
527,580
WS-C3650-48P
383,760
WS-C3650-48F
383,760
PWR-C2-250WAC
751,642
PWR-C2-640WAC
693,692
PWR-C2-1025WAC
570,259
PWR-C2-640WDC
706,759
FAN-T1
16,661,470
Environmental Ranges
With AC Power Supply
Normal operating temperature* and altitudes:
Operating Environment and Altitude
-5ºC to +45ºC, up to 5000 feet (1500m)
-5ºC to +40ºC, up to 10,000 feet (3000m)
-5ºC to +35ºC, up to 13,000 feet (4000m)
-5ºC to +30ºC, up to 16,400 feet (5000m)
* Minimum ambient temperature for cold start is 32°F (0°C).
Short-term* exceptional conditions:
-5ºC to +50ºC, up to 5000 feet (1500m)
-5ºC to +45ºC, up to 10,000 feet (3000m)
-5ºC to +40ºC, up to 13,000 feet (4000m)
-5ºC to +35ºC, up to 16,400 feet (5000m)
-5ºC to +45ºC, at sea level with single fan failure
*
With DC Power Supply
Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15
occurrences.
Normal operating temperature and altitudes:
Operating Environment and Altitude (NEBS)
-5ºC to +45ºC, up to 6000 feet (1800m)
-5ºC to +40ºC, up to 10,000 feet (3000m)
-5ºC to +35ºC, up to 13,000 feet (4000m)
-5ºC to +30ºC, up to 16,400 feet (5000m)
Short-term* exceptional conditions:
-5ºC to +55ºC, up to 6000 feet (1800m)
-5ºC to +50ºC, up to 10,000 feet (3000m)
-5ºC to +45ºC, up to 13,000 feet (4000m)
-5ºC to +40ºC, up to 16,400 feet (5000m)
-5ºC to +45ºC, at sealevel with single fan failure
*
Relative Humidity
Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15
occurrences.
5% to 96%, noncondensing
Acoustic Noise
With AC or DC power supply (with 16 PoE+ ports loaded):
Measured Per ISO 7779 and Declared Per
ISO 9296
LpA: 45dB typical, 48dB maximum
Bystander Positions Operating to an
Ambient Temperature of 25°C
Typical: Noise emission for a typical configuration
Storage Environment
Temperature: -40 to 158º F (-40 to 70º C)
LwA: 5.5B typical, 5.8B maximum
Maximum: Statistical maximum to account for variation in production
Altitude: 16,400 ft (5,000 m)
Vibration
Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and
200Hz 5dB/octave roll off at each end.
Non-operating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz
and 100Hz 5dB/octave roll off at each end.
Shock
Operating: 30G, 2ms half sine
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 18 of 29
Non-operating: 55G, 10ms trapezoid
Connectors for Cisco Catalyst 3650 Series Table
8 shows connectors.
Table 8.
Connectors
Connectors and cabling
● 1000BASE-T ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling
● 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling
● 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors
(single-mode or multimode fiber)
● 10GBASE-SR, LR, LRM, CX1 (v02 or higher) SFP+ transceivers: LC fiber connectors (single-mode or
multimode fiber)
● Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Power connectors
● Customers can provide power to a switch by using the internal power. The connectors are located at the back of
the switch.
● Internal power supply connector: The internal power supply is an auto-ranging unit. The internal power supply
supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power
connector to an AC power outlet.
Management and Standards Support for Cisco Catalyst 3650 Series Switches
Table 9 shows management and standards support for the Cisco Catalyst 3650 Series.
Table 9.
Management and Standards Support for the Cisco Catalyst 3650 Series
Description
Specification
Management
BRIDGE-MIB
CISCO-SNMP-TARGET-EXT-MIB
CISCO-AUTH-FRAMEWORK-MIB
CISCO-STACKMAKER-MIB
CISCO-MEMORY-POOL-MIB
CISCO-BGP4-MIB, BGP4-MIB
CISCO-BRIDGE-EXT-MIB
CISCO-BULK-FILE-MIB
CISCO-CABLE-DIAG-MIB
CISCO-CALLHOME-MIB
CISCO-CEF-MIB
CISCO-CIRCUIT-INTERFACE-MIB
CISCO-ENTITY-VENDORTYPE-OID-MIB
CISCO-CONTEXT-MAPPING-MIB
CISCO-DEVICE-LOCATION-MIB
CISCO-DHCP-SNOOPING-MIB
CISCO-EIGRP-MIB
Description
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TCP-MIB
CISCO-UDLDP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
EtherLike-MIB
HC-RMON-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
Specification
CISCO-EMBEDDED-EVENT-MGR-MIB
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
IGMP-MIB
Page 19 of 29
CISCO-ENTITY-FRU-CONTROL-MIB
IGMP-STD-MIB
CISCO-ENTITY-SENSOR-MIB
IP-FORWARD-MIB
ENTITY-MIB
IP-MIB
CISCO-ERR-DISABLE-MIB
IPMROUTE-STD-MIB
CISCO-CONFIG-COPY-MIB
LLDP-EXT-MED-MIB
CISCO-FLOW-MONITOR-MIB
LLDP-MIB
CISCO-FTP-CLIENT-MIB
NOTIFICATION-LOG-MIB
OLD-CISCO-MEMORY-MIB
CISCO-HSRP-EXT-MIB
CISCO-HSRP-MIB
CISCO-IETF-ISIS-MIB
CISCO-CDP-MIB
POWER-ETHERNET-MIB
CISCO-IGMP-FILTER-MIB
RMON2-MIB
RMON-MIB
CISCO-CONFIG-MAN-MIB
SNMP-COMMUNITY-MIB
CISCO-IF-EXTENSION-MIB
CISCO-IP-CBR-METRICS-MIB
CISCO-IPMROUTE-MIB
CISCO-IP-STAT-MIB
CISCO-IP-URPF-MIB
CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-LAG-MIB
CISCO-LICENSE-MGMT-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-PROXY-MIB
SNMP-TARGET-MIB
SNMP-USM-MIB
SNMPv2-MIB
CISCO-MAC-NOTIFICATION-MIB
SNMP-VIEW-BASED-ACM-MIB
TCP-MIB
UDP-MIB
CISCO-MDI-METRICS-MIB
CISCO-IMAGE-MIB
CISCO-FLASH-MIB
CISCO-STACKWISE-MIB
CISCO-OSPF-MIB
AIRESPMACE-WIRELESS-MIB
CISCO-OSPF-TRAP-MIB
CISCO-PAE-MIB
CISCO-LWAPP-IDS-MIB
CISCO-LWAPP-AP-MIB
CISCO-PAGP-MIB
CISCO-LWAPP-CCX-RM-MIB
CISCO-PIM-MIB
CISCO-LWAPP-CLIENT-ROAMING-MIB
CISCO-PING-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
CISCO-MAC-AUTH-BYPASS-MIB
CISCO-PORT-QOS-MIB
CISCO-PORT-SECURITY-MIB
CISCO-PORT-STORM-CONTROL-MIB
CISCO-POWER-ETHERNET-EXT-MIB
CISCO-PRIVATE-VLAN-MIB
CISCO-PROCESS-MIB
CISCO-PRODUCTS-MIB
CISCO-RF-MIB
CISCO-RTP-METRICS-MIB
CISCO-RTTMON-MIB
CISCO-SMART-INSTALL-MIB
CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
CISCO-LWAPP-DOT11-CLIENT-MIB
CISCO-LWAPP-DOT11-MIB
CISCO-LWAPP-DOWNLOAD-MIB
CISCO-LWAPP-LINKTEST-MIB
CISCO-LWAPP-MFP-MIB
CISCO-LWAPP-MOBILITY-EXT-MIB
CISCO-LWAPP-QOS-MIB
CISCO-LWAPP-REAP-MIB
CISCO-LWAPP-ROGUE-MIB
CISCO-LWAPP-RRM-MIB
CISCO-LWAPP-SI-MIB
CISCO-LWAPP-TSM-MIB
CISCO-LWAPP-WLAN-MIB
CISCO-LWAPP-WLAN-SECURITY-MIB
Standards
IEEE 802.1s
RMON I and II standards
IEEE 802.1w
IEEE 802.11
IEEE 802.1x
SNMPv1, SNMPv2c, and SNMPv3
IEEE 802.1x-Rev
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX,
and 1000BASE-T ports
Description
Specification
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 20 of 29
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
Power Supply Specifications
Table 10 lists the power specifications for the Cisco Catalyst 3650 Series based on the kind of power supply used.
Table 10.
Power Specifications for Cisco Catalyst 3650 Series
Description
Specification
PWR-C2-1025 WAC
PWR-C2-640 WAC
PWR-C2-250 WAC
PWR-C2-640 WDC
Power Supply Rated Maximum
1025W
640W
250W
640W
Total Output BTU (Note: 1000
3497 BTU/hr, 1025W
2183 BTU/hr, 640W
853 BTU/hr, 250W
2188 BTU/hr, 640W
115-240VAC,
100-240VAC,
100-240VAC,
-36VDC to -72VDC
50-60 Hz
50-60 Hz
50-60 Hz
Input Current
12-6A
8-4A
4-2A
21 - 10.5 A
Output Ratings
12V @ 20.83A
12V @ 20.83A
12V @ 20.83A
12V @ 20.83A
-54V @ 14.6A
-54V @ 7.36A
10 ms minimum @
16.7 ms minimum @
16.7 ms minimum @
102.5VAC
100VAC
100VAC
Power-Supply Input
Receptacles
IEC 320-C16
IEC 320-C16
(IEC60320-C16)
IEC 320-C13
(IEC60320C13)
Terminal strip
(IEC60320-C16)
Power Cord Rating
13A
13A
10A
20A @ 100VDC
Physical Specifications
(H x W x D): 1.58 X 3.75 X
13.25 in (4.0 x 9.5 x 33.7
cm)
(H x W x D): 1.58 X 3.75
X 11.75 in (4.0 x 9.5 x
29.8 cm)
(H x W x D): 1.58 X 3.75
X 11.75 in (4.0 x 9.5 x
29.8 cm)
(H x W x D): 1.58 X 3.75
X 11.75 in (4.0 x 9.5 x
29.8 cm)
Weight: 3.55 lb
(1.61 kg)
Weight: 3.1 lb
(1.41 kg)
Weight: 2.55 lb
(1.16 kg)
Weight: 2.75 lb
(1.25 kg)
BTU per hr = 293 W)
Input-Voltage Range and
Frequency
(Note: ±10% of "Input-Voltage
Range”)
Output Holdup Time
Operating Temperature
-54V @ 7.36A
> [email protected]
For the operating temperature ranges at various altitudes of AC and
DC power supply module powered switches, see Table 1.
Storage Temperature
-40 to 158°F (-40 to 70°C)
Relative Humidity Operating
5 to 96% noncondensing
and Non-Operating
Noncondensing
Altitude
16,400 ft. (5,000 meters)
MTBF
Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated
MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC Compliance
“AC OK”: Input power to the power supply is OK
“PS OK”: Output power from the power supply is OK
Safety Compliance
For the operating temperature ranges at various altitudes of AC and
DC power supply module powered switches, see Table 1.
LED Indicators
-40 to 158°F (-40 to 70°C)
Power Consumption of Standalone Cisco Catalyst 3650 Series Switches
Table 11 shows power consumption of standalone Cisco Catalyst 3650 Series Switches based on Alliance for
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 21 of 29
Telecommunications Industry Solutions (ATIS) testing using IMIX distribution stream traffic, with input voltage of
115VAC @ 60 Hz, Energy Efficient Ethernet (EEE) enabled, and no PoE loading. The values given are the
maximum possible power consumption numbers under the respective test scenarios.
Table 11.
Power Consumptions (in Watts) of Standalone Cisco Catalyst 3650 Series
Model
Fixed Uplink
WS-C3650-24TS
WS-C3650-48TS
4 x Gigabit Ethernet
with Small
FormFactor
Pluggable
(SFP)
WS-C3650-24PS
WS-C3650-48PS
WS-C3650-48FS
WS-C3650-24TD
WS-C3650-48TD
WS-C3650-24PD
WS-C3650-48PD
2 x 10 Gigabit
Ethernet with SFP+
& 2 x Gigabit
Ethernet with SFP
or 4 x Gigabit
Ethernet with SFP
Power Consumption (Watts) - (No more than)
0% Traffic
10% Traffic
100% Traffic
Weighted Average
43.9
56.4
57.1
55.21
61.1
85.1
86.4
82.85
53.8
81.4
65.3
98.7
65.9
99.5
64.18
97.09
90.8
108.7
109.4
106.98
54.0
60.8
63.0
60.35
73.3
90.9
93.9
89.40
61.1
68.3
70.1
67.75
80.3
99.1
101.5
97.45
WS-C3650-48FD
88.8
106.5
109.4
105.03
WS-C3650-48TQ
73.0
91.9
96.7
90.47
86.4
103.4
107.4
102.10
96.6
116.2
120.5
114.69
WS-C3650-48PQ
4 x 10 Gigabit
Ethernet with SFP+
or 4 x Gigabit
Ethernet with SFP
WS-C3650-48FQ
Safety and Compliance
Table 12 lists the safety and compliance information for the Cisco Catalyst 3650 Series.
Table 12.
Safety and Compliance Information for Cisco Catalyst 3650 Series
Description
Specification
Safety Certifications
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
GOST
NOM (obtained by partners and distributors)
Electromagnetic
Emissions Certifications
47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A)
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
KCC
CNS13438 Class A
EN55024
CISPR24
KN24
Description
Specification
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 22 of 29
Environmental
Reduction of Hazardous Substances (ROHS) 5
Noise Specifications
Office Product Spec: 48dBA at 25°C (refer to ISO 7779)
Telco
Common Language Equipment Identifier (CLEI) Code
Cisco Enhanced Limited Lifetime Hardware Warranty
The Cisco Catalyst 3650 Series Switches come with an E-LLW that includes NBD delivery of replacement
hardware where available and 90 days of 8x5 Cisco TAC support.
Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco
information packet that accompanies your Cisco product. We encourage you to review carefully the warranty
statement shipped with your specific product before use.
Cisco reserves the right to refund the purchase price as its exclusive warranty remedy.
For further information on warranty terms, visit http://www.cisco.com/go/warranty. Table 13 provides information
about the E-LLW.
Table 13.
E-LLW Details
Cisco E-LLW
Device Covered
Applies to Cisco Catalyst 3650 Series Switches.
Warranty Duration
As long as the original customer owns the product.
EoL Policy
In the event of discontinuance of product manufacture, Cisco warranty support is limited to 5 years from the
announcement of discontinuance.
Hardware Replacement
Cisco or its service center will use commercially reasonable efforts to ship a replacement for NBD delivery, where
available. Otherwise, a replacement will be shipped within 10 working days after receipt of the RMA request. Actual
delivery times might vary depending on customer location.
Effective Date
Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller,
not more than 90 days after original shipment by Cisco).
TAC Support
Cisco will provide during business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and
troubleshooting of device-level problems for up to a 90-day period from the date of shipment of the originally
purchased Cisco Catalyst 3650 product. This support does not include solution or network-level support beyond the
specific device under consideration.
Cisco.com Access
Warranty allows guest access only to Cisco.com.
Licensing for Cisco Catalyst 3650 Series Switches
The three feature sets available with all Cisco Catalyst 3650 Series Switches are:
●
LAN Base: Enterprise access layer 2 switching features
●
IP Base: Enterprise access layer 3 switching features
●
IP Services: Advanced enterprise layer 3 switching (IPv4 and IPv6) features
The LAN Base feature set offers enhanced intelligent services that include comprehensive Layer 2 features, with
up to 255 VLANs. The IP Base feature set provides entry-level enterprise services in addition to all LAN Base
features, with 4094 VLANs. IP Base also includes the support for wireless controller functionality (mobility agent
and mobility controller role; additional access point license required for mobility controller role), routed access,
smart operations, FNF, and so on. The IP Services feature set provides full enterprise services that include
advanced Layer 3 features such as EIGRP, OSPF, BGP, PIM, and IPv6 routing such as OSPFv3 and EIGRPv6. All
software feature sets support advanced security and MQC-based QoS.
The Cisco Catalyst 3650 Series Switches with LAN Base feature set can only stack with other Cisco Catalyst 3650
Series LAN Base switches. The same applies to IP Base and IP Services as well. A mixed stack of LAN Base
switch with IP Base or IP Services feature set is not supported.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 23 of 29
Customers can transparently upgrade the software feature set in the Cisco Catalyst 3650 Series Switches through
Cisco IOS Software CLI using the right to use (RTU)-based software upgrade process. Software activation enables
the Cisco IOS Software feature sets. Based on the license’s type, Cisco IOS Software activates the appropriate
feature set. License types can be changed, or upgraded, to activate a different feature set.
Access Point License for Cisco Catalyst 3650
An access point license is required for Cisco Catalyst 3650 operating in mobility controller mode. No access point
license is required for 3650 operating in mobility agent mode. This functionality is included in the IP Base feature
set. Other devices that can act as mobility controller are the WLC 5760, WLC 5508, and WiSM2 wireless
controllers. Access point licenses can be transferred only between two 3650 switches or between 3650 and 5760
controller and vice versa.
Software Policy for Cisco Catalyst 3650 Series Switches
Customers with Cisco Catalyst LAN Base and IP Base software feature sets will be provided with maintenance
updates and bug fixes designed to maintain the compliance of the software with published specifications, release
notes, and industry standards compliance as long as the original end user continues to own or use the product or
up to one year from the end-of-sale date for this product, whichever occurs earlier. Customers with licenses for our
IP Services software images require a service support contract such as Cisco SMARTnet® Service to download
updates. This policy supersedes any previous warranty or software statement and is subject to change without
notice.
Cisco and Partner Services for Next-Generation Cisco Catalyst Fixed Switches
Enable the innovative, secure, intelligent edge in the Borderless Network Architecture using personalized services
from Cisco and our partners. Through a discovery process that begins with understanding your business
objectives, we help you integrate the next-generation Cisco Catalyst fixed switches into your architecture and
incorporate network services onto that platform. Sharing knowledge and leading practices, we support your
success every step of the way as you deploy, absorb, manage, and scale new technology. Choose from a flexible
suite of support services designed to meet your business needs and help you maintain high-quality network
performance while controlling operational costs. (See Table 14)
Table 14.
Technical Services Available for Cisco Catalyst 3650 Switches
Technical Services
Cisco SMARTnet Service
● Around-the-clock, global access to the Cisco TAC
● Unrestricted access to the extensive Cisco.com knowledge base and tools
● Next-business-day, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement and onsite parts replacement and installation available
● Ongoing operating system software updates within the licensed feature set
● Proactive diagnostics and real-time alerts on Smart Call Home-enabled devices
Cisco Smart Foundation Service
● NBD advance hardware replacement as available
● Business hours access to SMB TAC (access levels vary by region)
● Access to Cisco.com SMB knowledge base
● Online technical resources through Smart Foundation Portal
● Operating system software bug fixes and patches
Technical Services
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 24 of 29
Cisco SP Base Service
● Around-the-clock, global access to the Cisco TAC
● Registered access to Cisco.com
● NBD, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement; return to factory option available 2
● Ongoing operating system software updates1
Cisco Focused Technical Support Services
● Three levels of premium, high-touch services are available:
◦ Cisco High-Touch Operations Management Service
◦ Cisco High-Touch Technical Support Service
◦ Cisco High-Touch Engineering Service
● Valid Cisco SMARTnet or SP Base contracts on all network equipment are required
Notes:
1
Cisco operating system updates include the following: maintenance releases, minor updates, and major updates within the
licensed feature set.
2
Advance hardware replacement is available in various service-level combinations. For example, 8x5xNBD indicates that shipment
will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant
region), with NBD delivery. Where NBD is not available, same day ship is provided. Restrictions apply; for details, review the
appropriate service descriptions.
Ordering Information
Table 15 lists ordering information for the Cisco Catalyst 3650 Series. To place an order, visit the Cisco Ordering
homepage at http://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html.
Table 15.
Cisco Catalyst 3650 Series Ordering Information
Product Number
Product Description
Cisco Catalyst 3650 4x1G Uplink Series
WS-C3650-24TS-L
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, LAN Base feature set
WS-C3650-48TS-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, LAN Base feature set
WS-C3650-24PS-L
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48PS-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48FS-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-24TS-S
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, IP Base feature set
WS-C3650-48TS-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, IP Base feature set
WS-C3650-24PS-S
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, IP Base feature set
WS-C3650-48PS-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, IP Base feature set
WS-C3650-48FS-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC
power supply, 1 RU, IP Base feature set
WS-C3650-24TS-E
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, IP Services feature set
WS-C3650-48TS-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power
supply, 1 RU, IP Services feature set
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 25 of 29
Product Number
Product Description
WS-C3650-24PS-E
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, IP Services feature set
WS-C3650-48PS-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC
power supply, 1 RU, IP Services feature set
WS-C3650-48FS-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC
power supply, 1 RU, IP Services feature set
Cisco Catalyst 3650 2x10G Uplink Series
WS-C3650-24TD-L
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, LAN Base feature set
WS-C3650-48TD-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, LAN Base feature set
WS-C3650-24PD-L
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48PD-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48FD-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-24TD-S
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Base feature set
WS-C3650-48TD-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Base feature set
WS-C3650-24PD-S
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Base feature set
WS-C3650-48PD-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Base feature set
WS-C3650-48FD-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC
power supply, 1 RU, IP Base feature set
WS-C3650-24TD-E
Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Services feature set
WS-C3650-48TD-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Services feature set
WS-C3650-24PD-E
Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Services feature set
WS-C3650-48PD-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Services feature set
WS-C3650-48FD-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC
power supply, 1 RU, IP Services feature set
Cisco Catalyst 3650 4x10G Uplink Series
WS-C3650-48TQ-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power
supply, 1 RU, LAN Base feature set
WS-C3650-48PQ-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48FQ-L
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC
power supply, 1 RU, LAN Base feature set
WS-C3650-48TQ-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Base feature set
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 26 of 29
WS-C3650-48PQ-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Base feature set
WS-C3650-48FQ-S
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC
power supply, 1 RU, IP Base feature set
Product Number
Product Description
WS-C3650-48TQ-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power
supply, 1 RU, IP Services feature set
WS-C3650-48PQ-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC
power supply, 1 RU, IP Services feature set
WS-C3650-48FQ-E
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC
power supply, 1 RU, IP Services feature set
Cisco Catalyst 3650 Bundles
WS-C3650-24PWS-S
Catalyst 3650 24 Port PoE 4x1G Uplink w/5 AP licenses IPB
WS-C3650-24PWD-S
Catalyst 3650 24 Port PoE 2x10G Uplink w/5 AP licenses IPB
WS-C3650-48FWS-S
Catalyst 3650 48 Port FPoE 4x1G Uplink w/5 AP licenses IPB
WS-C3650-48FWD-S
Catalyst 3650 48 Port FPoE 2x10G Uplink w/5 AP licenses IPB
WS-C3650-48FWQ-S
Catalyst 3650 48 Port FPoE 4x10G Uplink w/5 AP licenses IPB
Cisco Catalyst 3650 Series Spare StackWise-160 Module, Cables and Blank
C3650-STACK-KIT=
Cisco Catalyst 3650 Stack Module spare
STACK-T2-50CM=
Cisco StackWise-160 50CM Stacking Cable Spare
STACK-T2-1M=
Cisco StackWise-160 1M Stacking Cable Spare
STACK-T2-3M=
Cisco StackWise-160 3M Stacking Cable Spare
STACK-T2-BLANK=
Cisco Catalyst 3650 Stacking Blank Spare
Cisco Catalyst 3650 Series RTU Feature License and Software Options
C3650-RTU=
Paper SW License for Cisco Catalyst 3650 Switches
C3650-48-L-E
Cisco Catalyst 3650 48-port LAN Base to IP Services Paper RTU License
C3650-24-S-E
Cisco Catalyst 3650 24-port IP Base to IP Services Paper RTU License
C3650-24-L-S
Cisco Catalyst 3650 24-port LAN Base to IP Base Paper RTU License
C3650-48-L-S
Cisco Catalyst 3650 48-port LAN Base to IP Base Paper RTU License
C3650-24-L-E
Cisco Catalyst 3650 24-port LAN Base to IP Services Paper RTU License
C3650-48-S-E
Cisco Catalyst 3650 48-port IP Base to IP Services Paper RTU License
L-C3650-RTU=
Electronic SW License for Cisco Catalyst 3650 Switches
L-C3650-48-S-E
Cisco Catalyst 3650 48-port Switch IP Base to IP Services Electronic RTU License
L-C3650-48-L-S
Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License
L-C3650-48-L-E
Cisco Catalyst 3650 48-port Switch LAN Base to IP Services Electronic RTU License
L-C3650-24-L-S
Cisco Catalyst 3650 24-port Switch LAN Base to IP Base Electronic RTU License
L-C3650-24-S-E
Cisco Catalyst 3650 24-port Switch IP Base to IP Services Electronic RTU License
L-C3650-24-L-E
Cisco Catalyst 3650 24-port Switch LAN Base to IP Services Electronic RTU License
Access Point Licenses
L-LIC-CT3650-UPG
Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
L-LIC-CTIOS-1A
1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
LIC-CT3650-UPG
Primary upgrade license SKU for Cisco 3650 wireless controller (paper license)
LIC-CTIOS-1A
1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
Cisco Catalyst 3650 Series Spare Power Supplies and Fan
PWR-C2-250WAC=
250 WAC power supply spare
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 27 of 29
PWR-C2-640WAC=
640 WAC power supply spare
PWR-C2-1025WAC=
1025 WAC power supply spare
PWR-C2-640WDC=
640 WDC power supply spare
PWR-C2-BLANK=
Power supply blank spare
FAN-T1=
Fan module spare
Product Number
Product Description
Cisco Catalyst 3650 Series Spare Power Cords
CAB-TA-NA=
AC power cord for Cisco Catalyst 3650 (North America)
CAB-TA-AP=
AC power cord for Cisco Catalyst 3650 (Australia)
CAB-TA-AR=
AC power cord for Cisco Catalyst 3650 (Argentina)
CAB-TA-SW=
AC power cord for Cisco Catalyst 3650 (Switzerland)
CAB-TA-UK=
AC power cord for Cisco Catalyst 3650 (United Kingdom)
CAB-TA-JP=
AC power cord for Cisco Catalyst 3650 (Japan)
CAB-TA-250V-JP=
Japan 250VAC power cord for Cisco Catalyst 3650 (Japan)
CAB-TA-EU=
AC power cord for Cisco Catalyst 3650 (Europe)
CAB-TA-IT=
AC power cord for Cisco Catalyst 3650 (Italy)
CAB-TA-IN=
AC power cord for Cisco Catalyst 3650 (India)
CAB-TA-CN=
AC power cord for Cisco Catalyst 3650 (China)
CAB-TA-DN=
AC power cord for Cisco Catalyst 3650 (Denmark)
CAB-TA-IS=
AC power cord for Cisco Catalyst 3650 (Israel)
CAB-C15-CBN=
Cabinet jumper power cord, 250 VAC 13A, C14-C15 connectors
CAB-C15-CBN-JP=
Japan Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15
CAB-TA-JP-RA=
Japan AC Right Angled Power Cord for Cisco Catalyst 3650
CAB-TA-NA-RA=
North America AC Right Angled Power Cord for Cisco Catalyst 3650
Catalyst 3650 Series Spare Accessory and Rack Mount Kits
ACC-KIT-T1=
Accessory kit for Cisco Catalyst 3650 Series
RACK-KIT-T1=
Rack mount kit for Cisco Catalyst 3650 Series
4PT-KIT-T1=
Extension rails and brackets for four-point mounting for Cisco Catalyst 3650 Series
Optics Compatibility Information
The Cisco Catalyst 3650 Series supports a wide range of optics. Because the list of supported optics is updated on
a regular basis, consult the tables available here for the latest SFP compatibility information:
http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
Page 28 of 29
Printed in USA
© 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
C78-729449-05 04/14
Page 29 of 29
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
