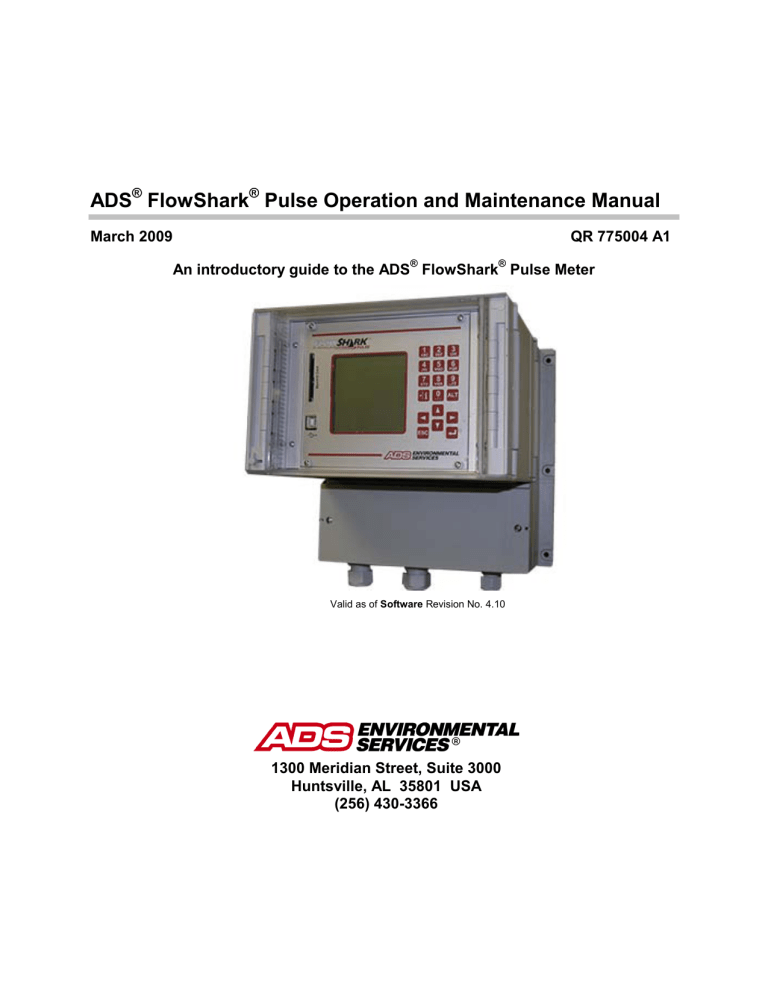

ADS® FlowShark® Pulse Operation and Maintenance Manual
March 2009
QR 775004 A1
An introductory guide to the ADS® FlowShark® Pulse Meter
Valid as of Software Revision No. 4.10
1300 Meridian Street, Suite 3000
Huntsville, AL 35801 USA
(256) 430-3366
ii
ADS FlowShark Pulse O&M Manual
© 2009 ADS® LLC. All rights reserved.
ADS®, ADS Environmental Services®, and FlowShark® are registered trademarks
of ADS LLC.
NIVUS® is a registered trademark of NIVUS GmbH.
Java™ is a trademark of Sun Microsystems, Inc.
All other brand and product names are trademarks or registered trademarks of their
respective holders.
Notice of Proprietary Information
The information contained herein represents the latest information available at the
time of publication. ADS LLC reserves the right to make any changes or
modifications to the content of this document, without notice, to reflect the latest
changes to the equipment. No part of this document may be reproduced in any form
without the written consent of ADS LLC.
Table of Contents iii
Table of Contents
Chapter 1 Warranty and Certifications
1-1
Declaration of Conformity ................................................................................... 1-2
Product Warranty ................................................................................................. 1-3
New Product Warranty................................................................................... 1-3
Out of Warranty Product Repairs................................................................... 1-3
Troubleshooting Fee ...................................................................................... 1-3
Shipping ......................................................................................................... 1-3
Ex-Approval Transmitter ..................................................................................... 1-5
Ex-Approval Sensors ......................................................................................... 1-10
Chapter 2 Use and Specifications
2-1
Use in Accordance with the Requirements .......................................................... 2-2
Specifications ....................................................................................................... 2-4
Transmitter ..................................................................................................... 2-4
Combi Sensor/Pipe Insertion Sensor ............................................................. 2-5
Air-Ultrasonic Sensor .................................................................................... 2-7
Accessories (Option) ...................................................................................... 2-8
Chapter 3 Safety and Identification
3-1
Device Identification ............................................................................................ 3-2
Replacement Parts and Accessories ..................................................................... 3-3
Emergency and Safety Procedures ....................................................................... 3-4
User’s Responsibilities......................................................................................... 3-5
Chapter 4 System Overview and Operation
4-1
Combination Sensor ............................................................................................. 4-2
Water-Ultrasonic Depth Measurement .......................................................... 4-2
Pressure Depth Measurement......................................................................... 4-3
Flow Velocity Measurement .......................................................................... 4-3
Air-Ultrasonic Depth Sensor................................................................................ 4-6
Pipe Insertion Sensor ........................................................................................... 4-7
Device Versions ................................................................................................... 4-8
Transmitter ..................................................................................................... 4-8
Sensors ........................................................................................................... 4-9
iv
ADS FlowShark Pulse O&M Manual
Chapter 5 Delivery, Maintenance, and Handling
5-1
Delivery and Receipt ............................................................................................ 5-2
Maintenance ......................................................................................................... 5-3
Handling............................................................................................................... 5-5
Storage ........................................................................................................... 5-5
Transport ........................................................................................................ 5-5
Disposal.......................................................................................................... 5-5
Chapter 6 Installation
6-1
Transmitter Installation and Connection .............................................................. 6-2
General ........................................................................................................... 6-2
Enclosure Dimensions ................................................................................... 6-3
Transmitter Connection ................................................................................. 6-3
Sensor Installation and Connection...................................................................... 6-6
Choosing a Suitable Location for Sensor Installation .................................... 6-6
Sensor Installation ........................................................................................ 6-10
Sensor Connection ....................................................................................... 6-17
FlowShark Pulse Power Supply ......................................................................... 6-25
Overvoltage Protection Precautions ................................................................... 6-27
Regulator Mode ................................................................................................. 6-30
General ......................................................................................................... 6-30
Setting up the Measurement Location ......................................................... 6-31
Connection ................................................................................................... 6-34
Control Algorithm ........................................................................................ 6-34
Communication .................................................................................................. 6-36
General ......................................................................................................... 6-36
Data Communication ................................................................................... 6-36
Communication Options .............................................................................. 6-36
Chapter 7 Initial Startup and Communication
7-1
Establishing Communication Through a Browser ............................................... 7-2
Operator Keypad .................................................................................................. 7-6
Display ................................................................................................................. 7-7
Operation Basics .................................................................................................. 7-8
Table of Contents v
Chapter 8 Parameter Settings
8-1
Quick Start Guide for Setting Parameters ............................................................ 8-2
Basics for Setting Parameters .............................................................................. 8-3
Operation Mode (RUN) ....................................................................................... 8-5
Display Menu (EXTRA) ...................................................................................... 8-9
Parameter Menu (PAR)...................................................................................... 8-12
Parameter Menu: Measurement Place.......................................................... 8-12
Parameter Menu: Level ................................................................................ 8-19
Parameter Menu: Flow Velocity .................................................................. 8-24
Parameter Menu: Analog Inputs .................................................................. 8-28
Parameter Menu: Digital Inputs ................................................................... 8-30
Parameter Menu: Analog Outputs................................................................ 8-32
Parameter Menu: Digital Outputs ................................................................ 8-35
Parameter Menu: Flow Controller ............................................................... 8-38
Parameter Menu: Settings ............................................................................ 8-47
Parameter Menu: Memory Mode ................................................................. 8-49
Data Structure on the Memory Card ............................................................ 8-53
Parameter Menu: Communication ............................................................... 8-54
Signal Input/Output Menu (I/O)......................................................................... 8-58
I/O Menu: Analog Inputs ............................................................................. 8-58
I/O Menu: Digital Inputs .............................................................................. 8-59
I/O Menu: Analog Outputs .......................................................................... 8-59
I/O Menu: Relay Outputs ............................................................................. 8-60
I/O Menu: Sensors ....................................................................................... 8-60
I/O Menu: Interfaces .................................................................................... 8-63
I/O Menu: Controller ................................................................................... 8-63
I/O Menu: Memory Card ............................................................................. 8-64
Calibration and Calculation Menu (CAL) ......................................................... 8-67
CAL Menu: Level ........................................................................................ 8-67
CAL Menu: Velocity.................................................................................... 8-69
CAL Menu: Simulation................................................................................ 8-73
Chapter 9 Parameter Tree
9-1
Chapter 10 Data Collection
10-1
Data Collection .................................................................................................. 10-2
Deleting Data Files............................................................................................. 10-4
Viewing Data ..................................................................................................... 10-5
vi
ADS FlowShark Pulse O&M Manual
Chapter 11 Troubleshooting
11-1
Chapter 12 Materials and Chemical Resistance
12-1
Chemical Resistance Legend ............................................................................. 12-3
Resistance .................................................................................................... 12-3
Material Names ............................................................................................ 12-3
CHAPTER 1
Warranty and Certifications
This chapter includes the Declaration of Conformity, the ADS® warranty, and all
required certifications for the ADS FlowShark® Pulse.
Please notice that the certifications included in this chapter identify
the FlowShark Pulse as the OCM Pro CF. The FlowShark Pulse is
a version of the NIVUS® OCM Pro CF designed specifically for
ADS. In all aspects related to certification, the FlowShark Pulse is
identical to the OCM Pro CF.
1-2
ADS FlowShark Pulse O&M Manual
Declaration of Conformity
EC Declaration of Conformity
Pursuant to
z
the EC Low Voltage Directive 73/23/EEC, Annex III
z
the EC EMC Directive 89/336/EEC, Annex I and II
z
the EC Directive 94/9/EC: Equipment and protective systems intended for use
in potentially explosive atmospheres (ATEX)
We hereby declare that the design of the
Description: Measuring device OCM Pro with active sensor
as delivered complies with the above regulations and following EC directives and
DIN EN standards:
Directive/
Standard
Title
73/23/ EC
EC Low Voltage Directive
EN 61010-1
Safety requirements for electrical equipment for measurement,
control and laboratory use – Part 1: General requirements
89/336/EC
EC EMC Directive
EN 61000-6-2
Electromagnetic compatibility – Generic immunity standard – Industrial
environment
Electromagnetic compatibility – Generic immunity standard – Industrial
environment
EN 61000-6-4
94/9/EC
(ATEX 100a)
EC Directive: Equipment and protective systems intended for use in
potentially explosive atmospheres
EN 1127-1
Explosive atmospheres – Explosion prevention and protection –
Part 1: Basic concepts and methodology
Electrical apparatus for potentially explosive atmospheres – General
requirements
Electrical apparatus for potentially explosive atmospheres – Intrinsic
safety "i"
EN 50014
EN 50020
Unauthorized changes to the device invalidate this declaration.
Eppingen, March 15th, 2007
..............................................
Heinz Ritz
Head of Quality Management
Warranty and Certifications 1-3
Product Warranty
This section includes warranty information for the ADS FlowShark Pulse.
New Product Warranty
All new products manufactured by ADS will be free from defects in material and
workmanship for up to two (2) years following the date of shipment from ADS.
During this warranty period, upon satisfactory proof of a defect, the product may be
returned for repair or replacement, at ADS’s sole option. No returns will be accepted
unless the Owner has prepaid shipping and has received a prior authorization return
number from ADS. Please contact ADS to obtain an authorization return number.
Warranty repairs and replacements will be performed only by ADS. Any
unauthorized repair or replacement will void this product warranty. Any repair or
replacement will be covered by this new product warranty for ninety (90) days from
the date that such repaired or replaced product is shipped from ADS. This warranty
is available only if the product has been setup and operated in accordance with the
procedures outlined in the ADS Operations and Maintenance Manual. This warranty
does not apply to damage by catastrophes of nature, fire, explosion, acts of God
(including, but not limited to, lightning damage and power surges), accidents,
improper use or service, damage during transportation, or other similar causes beyond
ADS’s control.
Out of Warranty Product Repairs
After the new product warranty expires, a product may be returned, at the owner’s
prepaid expense, to ADS for repair. The owner will pay for all parts and labor
associated with the repair. Any repair part will be covered by the new product
warranty for 90 days from the date of shipment from ADS.
Troubleshooting Fee
ADS will charge a troubleshooting fee if the reported product defect cannot be found
and/or the reported defect is not due to a defect in materials or workmanship.
Shipping
All repaired products will be returned via surface transportation prepaid by ADS.
Import duties, fees, taxes, and other related charges are the responsibility of the
owner.
1-4
ADS FlowShark Pulse O&M Manual
THIS IS THE ONLY WARRANTY FOR ADS PRODUCTS. NO OTHER
WARRANTY IS EXPRESSED OR IMPLIED, INCLUDING FITNESS FOR A
PARTICULAR PURPOSE OR MERCHANTABILITY. PRODUCT REPAIR
OR REPLACEMENT IS THE ONLY REMEDY. IN NO EVENT WILL ADS
BE RESPONSIBLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, OR
SPECIAL DAMAGES.
Warranty and Certifications 1-5
Ex-Approval Transmitter
The approval is valid only when the corresponding indicator
displays on the transmitter nameplate.
1-6
ADS FlowShark Pulse O&M Manual
The approval is valid only when the corresponding indicator displays
on the transmitter nameplate.
Warranty and Certifications 1-7
The approval is valid only when the corresponding indicator displays
on the transmitter nameplate.
1-8
ADS FlowShark Pulse O&M Manual
The approval is valid only when the corresponding indicator displays
on the transmitter nameplate.
Warranty and Certifications 1-9
The approval is valid only when the corresponding indicator displays
on the transmitter nameplate.
1-10 ADS FlowShark Pulse O&M Manual
Ex-Approval Sensors
The approval is valid only when the corresponding indicator
displays on the transmitter nameplate.
Warranty and Certifications 1-11
The approval is valid only when the corresponding indicator displays
on the transmitter nameplate.
CHAPTER 2
Use and Specifications
Please read this instruction manual thoroughly. It contains all the information
necessary to configure and operate the FlowShark Pulse for proper operation. This
manual is written primarily for qualified technical staff that have adequate knowledge
of measurement technology, automation technology, information technology, and
wastewater hydraulics. Reading and following the instructions in this manual before
initial start-up will help ensure success in device configuration. Do not initiate startup until installation is verified and complete.
Part
1
Description
Memory Card Slot
2
Display
3
Keypad
4
Cable Glands
5
Terminal Clamp Housing
6
USB Interface
7
Pipe Insertion Sensor
8
Air-Ultrasonic Sensor
9
Combi Sensor (Flow Velocity, Water Ultrasonic, and Pressure Depth)
Figure 2-1 Overview
2-2
ADS FlowShark Pulse O&M Manual
Use in Accordance with the Requirements
The ADS FlowShark Pulse and corresponding sensors are designed for measuring
slightly- to heavily-polluted flow in partially-filled and full pipes or other similar
applications. Please adhere to the measurement specifications designated in this
chapter. Monitoring flow under conditions falling outside the documented
specifications of the equipments’ capabilities without prior written permission of
ADS occurs at the owner’s risk.
Modifying or using this equipment for purposes other than the
intended use (described above) without the prior written consent of
the manufacturer will be considered outside the specifications of
the equipment. Therefore, any resulting damages that may occur
will be at the user’s risk or expense.
This equipment has an estimated lifetime of 10 years. Therefore,
inspect and overhaul equipment exceeding 10 years in age.
Ex-Protection
The Ex-version of the FlowShark Pulse active sensor is designed for use in explosive
environments (zone 1).
Always install the transmitter outside Ex-zones!
Approval
Sensor:
II 2 G EEx ib IIB T4
Transmitter:
II(2)G [EEx ib] IIB
Electronic Specifications
Analog sensor connections:
Ignition protection type intrinsically-safe
EEx ia IIB
Clamps D8, D9
for connecting certified sensors only
Max values:
U0
= 23.1 V
I0
= 162 mA
linear characteristic
Use and Specifications
Max. outer inductivities allowed
Max. outer capacities allowed
Sensor connections
2 mH
380 nF
1 mH
430 nF
0.5 mH
510 nF
0.2 mH
660 nF
Ignition protection type intrinsically-safe
EEx ia IIB
Clamps D1...D5, E1...E5
for connection of accompanying sensors only
F1...F5, G1...G5
Type POA/...OCL/... according to TÜV 03
ATEX 2262
Max. values per circuit:
U0
= 10.5 V
I0
= 640 mA
rectangular characteristic
Max. outer inductivities allowed:
0.12 mH
Max. outer capacities allowed:
4.8 µF
The intrinsically-safe circuits are isolated galvanically safe from the remaining
circuits up to a peak voltage of 375 volts.
The certification is valid only when the corresponding label exists
on the transmitter or sensor nameplate.
For installation and initial start-up, perform all work in
accordance with the appropriate certificates of conformity and
testing from the respective authorities.
2-3
2-4
ADS FlowShark Pulse O&M Manual
Specifications
Transmitter
Power Supply
100 to 240 V AC, +10% /-15%, 47 to 63 Hz
or 24 V DC ± 15%, 5% residual fluctuation
Power
Consumption
Maximum 20 VA
Wall-Mount
Enclosure
•
Material:
Polycarbonate
•
Weight:
approximately 6.4 pounds
•
Protection: IP65
Ex-Approval
(optional)
II(2)G [EEx ib] IIB
Operating
Temperature
-4° to 122° F (-20° to +50° C)
Storage
Temperature
-4° to 158° F (-20° to +70° C)
Maximum
Humidity
Display
Operation
Inputs
Outputs
80%, non-condensing
Back-lit graphic display, 128- x 128-pixel
18 keys, menu-driven in English, German, French, and Italian
•
1 x 4 – 20 mA for external depth measurement (2-wire sensor)
•
1 x RxTx-Bus for ADS air-ultrasonic sensor (Type LUS)
•
1 (Model 10 transmitter) or 4 (Model 20 transmitter) x 0/4 – 20
mA, 12-bit resolution for external depth measurement, external
setpoints, and data storage setpoint
•
4 digital inputs (Model 20 only)
•
1 (Model 10) or 2/3 (Model 20) velocity sensors connectable
•
1 (Model 10) or 4 (Model 20) x 0/4 – 20 mA, load 500 Ohm, 12-bit
resolution, accuracy greater than 0.1%
•
2 (Model 10) or 5 (Model 20) switchable relays, loadable up to
230V AC / 2 A (cos ϕ0.9)
•
RJ45 for Internet communication
Data Storage
Plug-in Compact Flash Card up to 128 MB
Data
Transmission
Via Compact Flash Card; open protocol via RS 485; direct connection
over a TCP/IP network, internal ISDN, or external GSM/GPRS
gateway
Use and Specifications
2-5
Combi Sensor/Pipe Insertion Sensor
Measurement
Principle
•
Ultrasonic transit time (depth measurement) – Combi Sensor
only
•
Piezoresistive pressure measurement (depth measurement) –
Combi sensor only
•
Correlation with digital pattern detection (flow velocity)
Measurement
Frequency
1 MHz
Protection Rating
IP 68
Ex-Approval
(optional)
II 2 G EEx ib IIB T4
Operating
Temperature
-4° to 122° F (-20° to +50° C) (104° F (40° C) in Ex Zone 1)
Storage
Temperature
-22° to 158° F (-30° to +70° C)
Operating
Pressure
Maximum 58 psi (4 bar) (combi sensor with pressure element
maximum 14 psi (1 bar))
Cable Length
33/66/99/165 feet (10/20/30/50 m), extendable up to 820 feet (250
m); sensors with pressure measurement require pressure
compensation element junction box
Cable Types
•
Sensors with pressure measurement:
LiYC11Y 2x1.5 + 1x2x0.34 + PA 1.5/2.5
•
Sensors without pressure measurement:
LiYC11Y 2x1.5 + 1x2x0.34
Outside Cable
Diameter
•
Sensors with pressure measurement:
0.34 ±0.01 inches (8.7 ±0.25 mm)
•
Sensors without pressure measurement:
0.3 ±0.01 inches (7.6 ±0.25 mm)
Sensor Types
•
Flow velocity sensor with velocity measurement using crosscorrelation and temperature measurement to compensate for the
effect of temperature on the velocity of sound
•
Combi sensor with flow velocity sensor using cross-correlation,
depth measurement via water-ultrasonic, and temperature
measurement to compensate for the effect of temperature on the
velocity of sound (combi sensor only)
•
Combi sensor with flow velocity sensor using cross-correlation,
depth measurement via pressure, and temperature
measurement to compensate for the effect of temperature on the
velocity of sound (combi sensor only)
•
Combi sensor with flow velocity sensor using cross-correlation,
2-6
ADS FlowShark Pulse O&M Manual
depth measurement via water-ultrasonic (and redundant
pressure measurement), and temperature measurement to
compensate for the effect of temperature on the velocity of
sound (combi sensor only)
Types of
Construction
Medium
Contacting
Materials
•
Wedge sensor for installation on pipe bottom
•
Insertion sensor for installation through pipe wall with nozzle and
cutting ring
Polyurethane, stainless steel 1.4571, PPO GF30, PA (combi sensor
only)
Option: Sensor made of PEEK, resistant against chemical
substances, Hastelloy mounting plate, Titanium mounting plate, FEP
coated cable
Depth Measurement – Water-Ultrasonic
Measurement
Range
Zero Point Drift
Measurement
Error
0 to 6.56 feet (0 to 200 cm), lowest absolutely measurable depth
0.13 feet (4 cm)
Absolutely stable
Less than ±0.08 inches (±2 mm)
Depth Measurement – Pressure
Measurement
Range
Zero Point Drift
Measurement
Error
0 to 11.5 feet (0 to 350 cm)
Maximum 0.75% of final value (32 °F to 122 °F (0 – 50 °C))
<0.5% of final value
Depth Measurement – External Sensor
Measurement
Range
Zero Point Drift
Based on device
Measurement
Error
Flow Velocity Measurement
Measurement
Range
-3.28 to 19.7 feet per second (-100 to +600 cm/s)
Number of Scan
Layers
16 (maximum)
Zero point drift
Absolutely stable zero point
Error Limits
(per scan layer)
<1% of measurement value (v >3.28 feet per second (1 m/s))
Number of
Sensors
<0.5 % of measurement value 0.2 inches per second (+5 mm/s) (v
<3.28 feet per second (1 m/s))
1 to 3 per transmitter
Use and Specifications
Sonic Beam Angle ±5 degrees
Temperature Measurement
Measurement
Range
-4° to 140° F (-20° to +60° C)
Measurement
Error
±0.5 K
Air-Ultrasonic Sensor
Measurement
Principle
Ultrasonic transit time
Measurement
Frequency
120 kHz
Protection Rating
IP68
Ex-Approval
II 2 G EEx ib IIB T4
Operating
Temperature
-4° to 122° F (-20 to +50° C) (104° F (+40° C) in Ex Zone 1)
Storage
Temperature
-22° to 158° F (-30° to +70° C)
Operating Pressure Maximum 14 psi (1 bar)
Cable Length
Cable Type
33/66/99/165 feet (10/20/30/50 m), extendable up to 820 feet
(250 m) maximum
LiYC11Y 2x1.5 + 1x2x0.34
Outside Cable
Diameter
0.3 ± 0.01 inches (7.6 ±0.25 mm)
Type of
Construction
Wedge sensor for installation at top of pipe
Medium Contacting Polyurethane, stainless steel 1.4571, PPO GF30, PA
Materials
Depth Measurement
Measurement
Range
Dead Band
0 to 6.56 feet (0 to 200 cm)
0.33 feet (10 cm)
Measurement Error less than ±0.2 inches (5 mm)
Temperature Measurement
Measurement
Range
-4° to 140° F (-20° to +60° C)
Measurement Error ±0.5 K
2-7
2-8
ADS FlowShark Pulse O&M Manual
Accessories (Option)
Pressure
Compensation
Element
For connection of sensors with integrated pressure measurement
cell
Memory Card
SanDisk compact flash card with 128-MB maximum capacity
Read-out Adapter
Adapter for PCMCIA interfaces, primarily for data read-out via laptop
Read-out Uunit
USB interface for PC connection
Pipe Mounting
System
For temporarily clamping air-ultrasonic or combi sensors in pipes
DN 200 - 800 (~ID 6 – 32 inches)
CHAPTER 3
Safety and Identification
Following are the descriptions or interpretations for the general safety or danger
symbols corresponding to the special notes referenced throughout this manual.
Represents cautionary information to observe
Represents special notes
Represents information regarding present dangers associated
with electric voltage
Represents special warnings
To avoid accidents, observe the following information, regulations (such as Exregulations), and safety requirements during installation, initial start-up, and
operation of the FlowShark Pulse.
To ensure safety and maintain the product warranty, ADS must perform all operations
that extend beyond the installation, connection, or configuration procedures
designated in this manual for this device.
Due to the wastewater environment in which the transmitter,
sensors, and cables are installed and operate in the field, this
equipment may become coated with potentially dangerous diseases
and germs. Therefore, please take precautionary measures to
protect human health.
3-2
ADS FlowShark Pulse O&M Manual
Device Identification
The instructions in this manual pertain only to the FlowShark Pulse. The nameplate
affixed to the bottom of the unit contains the following information:
z
Name and address of the manufacturer
z
CE label
z
Type and serial number
z
Year of manufacture
z
Ex-label (applies only to Ex-version equipment), as noted in Chapter 2
To expedite processing, please specify the article number and serial number of the
respective transmitter or sensor when inquiring about products or ordering
replacement parts.
Art. Nr. OCP-x3WO xx x3 E xx
100-240V~
20VA
Ser. Nr. JKW xxyyzz
II (2)G
NR. 0032
TÜV 00 ATEX 1572
Elektrische Daten
siehe Bescheinigung
Figure 3-1: FlowShark Pulse Nameplate
This instruction manual is an essential component of the
FlowShark Pulse; therefore, ADS recommends keeping this manual
accessible at all times.
Please follow all safety instructions contained in this manual.
ADS strictly prohibits disabling or altering the function of the
safety devices in any way.
Safety and Identification 3-3
Replacement Parts and Accessories
ADS does not certify replacement parts or accessories that are not supplied by ADS.
Installing and/or using such products could adversely affect the operation of the
equipment. Therefore, users are responsible for all damages incurred as a result of
using parts or accessories supplied by any manufacturer other than ADS.
3-4
ADS FlowShark Pulse O&M Manual
Emergency and Safety Procedures
In case of an emergency, terminate power in one of the following ways:
z
Turn off power at the source from the which the FlowShark Pulse is receiving
power.
z
Set the slide switch for power on the FlowShark Pulse to the OFF position.
When performing maintenance, cleaning, and making repairs (authorized personnel
only), disconnect the unit from its power source and take the appropriate measures to
prevent it from powering up accidentally during these activities.
Safety and Identification 3-5
User’s Responsibilities
Obtain all local operating permits required and observe the provisions contained
within the permits. In addition, observe all local laws and regulations concerning the
following:
z
Personnel safety (accident prevention regulations)
z
Work material and tool safety (safety equipment and maintenance)
z
Product disposal (laws on wastes)
z
Cleaning (cleansing agents and disposal)
z
Environmental protection
Before operating this equipment, all personnel involved in installation and initial
start-up activities must consider and acknowledge all local regulations, such as
performing operations in sanitary sewer environments.
CHAPTER 4
System Overview and Operation
The FlowShark Pulse is a long-term monitoring system designed for flow
measurement, flow control (Model 20 transmitters only), data storage, and (optional)
remote access via TCP/IP communication. This device primarily is designed for use
in slightly- to heavily-polluted flow of various compositions. It can function in
partially-filled and full pipes of various shapes and dimensions.
The method for measuring flow velocity is based on the ultrasonic
reflection principle. Therefore, to ensure the system operates properly, it
is essential that particles, such as dirt, gas bubbles, or similar objects,
are present in the flow for reflecting the ultrasonic signal sent by the
sensor.
4-2
ADS FlowShark Pulse O&M Manual
Combination Sensor
The FlowShark Pulse uses a combination (combi) sensor that can simultaneously
determine both flow velocity and flow depth. A combi sensor may contain up to two
2 depth measurement devices: a water-ultrasonic device and/or a hydrostatic
(pressure) device.
1
Ground Plate
2
Acoustic Coupling Layer
3
Temperature Sensor
4
Flow Velocity Sensor
5
Ultrasonic Depth Sensor
6
Electronics
7
Pressure Measurement Cell
8
Pressure Measurement Duct
9
Cable Gland
Fig 4-1: Combination sensor with additional pressure measurement cell for installation at pipe bottom
Water-Ultrasonic Depth Measurement
Water-ultrasonic depth measurement involves using a horizontal sensor crystal to
determine flow depth based on the time difference between transmitting and receiving
a pulse reflected off the flow surface (the transit-time method).
hl =
c • tl
2
Where,
h = Depth Level
c = Transit Time of Sound
t1 = Time Elapsed Between the Transmitted and Received Signals
Sound travels in water at a speed of 4856 feet per second (1480 m/s) at 68 °F (20 °C),
varying at a rate of 0.13 % for each difference in degree Fahrenheit (0.23% for each
degree Centigrade). To ensure accurate depth measurements, all calculations must
compensate for the flow temperature and the travel time of sound in the flow.
System Overview and Operation
4-3
Adding the sensor offset to the measured depth value (h1) determines the depth total
(h). The sensor offset represents the distance from the bottom of the pipe to the
sensor crystal position. The measured depth value represents the distance from the
crystal to the flow surface.
Pressure Depth Measurement
The combi sensor may have an integrated hydrostatic depth measurement device.
This piezoresistive pressure sensor operates according to the relative pressure
principle, where the pressure of the standing water column above the sensor is
directly proportional to the depth level. This device can measure depth levels even
when the combi sensor is installed away from the bottom center of the pipe.
During installation, this sensor must be calibrated based on a manual depth
measurement and the position of the sensor in the pipe.
Flow Velocity Measurement
The combi sensor has a piezo crystal for measuring flow velocity. This crystal sends
an ultrasonic pulse at a defined angle into the oncoming flow. All air and/or dirt
particles in the path of the pulse reflect a small amount of the ultrasonic signal. The
size and shape of a particle determines the result of the reflected signal. Together, the
returned signals produce a reflection pattern (Figure 4-2) received by the piezo
crystal. This pattern is converted into electric signals that are loaded into a digital
signal processor (DSP) housed in the sensor.
Fig. 4-2: Conditions at first signal detection
After a certain period, the sensor sends a second ultrasonic pulse into the flow. The
DSP also saves the new reflected signal.
Flow velocities differ at varying depth levels, creating a velocity profile. Therefore,
the distances (or movement) between reflective particles’ initial and subsequent
positions also vary at different depth levels, resulting in a distorted reflection pattern
(Figure 4-3). Several other factors also influence particle reflection and velocity
profile measurement. Rotating particles may exhibit multiple shapes for reflection;
4-4
ADS FlowShark Pulse O&M Manual
particles may exit the measurement range before a subsequent measurement can
occur; and new particles may enter into the measurement range.
Fig. 4-3 Conditions at second signal detection
The DSP checks both of the received reflection patterns for similarities using the
cross-correlation method. All existing signal differences are rejected so that the two
similar, but temporarily offset, signal patterns remain for velocity evaluation.
Based on the depth levels, both patterns are subdivided into 16 measurement
windows. The DSP then examines the lag ∆t (change in time – Refer to t1, t2, and t3
in Figure 4-4) of the signal pattern for each measurement window.
Fig. 4-4 Echo signal images and evaluation
The angle of the beam, the interval between the transmitted signals, and the lag ∆t of
the signal pattern for each measurement window determine the flow velocity. The
profile of the acoustic path indicated on the display reflects the mathematical
integration of the individual velocity measurements.
Fig. 4-5 Investigated flow profile
A 3-dimensional representation of the flow velocity distribution can be rendered from
a velocity profile performed at a location with a known pipe height and geometry
(Figure 4-6).
System Overview and Operation
4-5
Figure 4-6 Calculated 3-dimensional flow profile
Flow rate can be calculated and displayed based on the flow velocity distribution,
pipe shape and dimensions, and flow depth. It also is available for display or output
to another device through either a free programmable analog signal or a pulse signal.
4-6
ADS FlowShark Pulse O&M Manual
Air-Ultrasonic Depth Sensor
An air-ultrasonic depth sensor uses horizontal sensor crystals to determine the
distance (range) from the sensor to the flow surface based on the time difference
between transmitting and receiving a pulse reflected off the flow surface (the transittime method). The flow depth is calculated by subtracting the range and the sensor
offset from the pipe height. The sensor offset represents the distance from the top of
the pipe to the sensor crystal position.
The air-ultrasonic sensor is not effective for depth measurement when the sensor
becomes submerged or depths occur within 4 inches of the sensor crystal, known as
the deadband.
1
Plug with spigot nut, IP68 (only for PCM)
2
Sensor cable
3
Sensor body
4
Ground plate
5
Cable gland
6
Sensors (crystals) for depth measurement using air-ultrasonic
Figure 4-7 Air ultrasonic sensor
System Overview and Operation
4-7
Pipe Insertion Sensor
The pipe insertion sensor primarily is used to measure flow velocity in closed pipes
that remain full, eliminating the need for a depth measurement device. When
installed, the sensor mounts perpendicular to the pipe and extends from the outside of
the pipe, through the pipe wall, and slightly into the flow.
The pipe insertion sensor uses the same technology for measuring velocity as the
velocity component of the combi sensor. Therefore, refer to the Flow Velocity
Measurement on page 4-3 for more information on the method employed by this
sensor for velocity measurement.
Figure 4-8 Pipe insertion sensor
4-8
ADS FlowShark Pulse O&M Manual
Device Versions
The FlowShark Pulse transmitter and the supporting combi, pipe insertion, and airultrasonic sensors are available in different versions. The tables below provide a
brief overview of the various options.
Transmitter
Transmitters vary primarily based on the power supply, Ex-protection, and enclosure
construction. The article number posted on a label on the bottom of the enclosure
identifies the device type. Refer to the following table for device type specifications.
FlowShark
Pulse
Flow measurement transmitter in wall mount enclosure (IP65) for open
channels and partially-filled and full pipes. Spatial allocation of flow
velocities by ultrasound. Signal evaluation using cross-correlation.
Depth measurement based on sensor type via air-ultrasonic, waterultrasonic, pressure measurement cell, or mA input for external depth
measurement. Membrane keypad; 128- by 128-pixel graphic display.
Compact flash card slot for data storage. Internet access via HTML
protocol and TCP/IP via Intranet.
5000PULSE
METER-
Model
10
Standard version with 2 relays, 2 mA outputs (galvanicallyisolated), and 1 mA input (galvanically-isolated with 2-wire sensor
supply) for external depth measurement
20
Multi-functional version with 5 relays, 4 mA outputs (galvanicallyisolated), 4 digital inputs, 5 analog inputs (1 galvanically-isolated
with 2-wire sensor supply), integrated 3-point step controller with
flush function, and connection options for up to 3 sensors
Data Transmission (* B, C, and D currently are not available)
A
Internet communication via Ethernet or LAN
B
Internet communication via internal analog modem*
C
Internet communication via internal ISDN modem*
D
Internet communication via GPRS and T-D1*
Power Supply
1
100-240 V AC/47-63 Hz
2
24 V DC regulated
Approvals
None
E
Intrinsically-safe sensor supply in Ex zone 1
Fig. 4-9 Type key for FlowShark Pulse transmitters
System Overview and Operation
4-9
Sensors
Several sensor models support the FlowShark Pulse. Individual models may vary
based on Ex-protection, cable length, and unique construction. The item number
identifying the sensor model is printed on the sensor where the cable enters the sensor
body and on a nameplate at the end of the cable. A transparent tube on the end of the
cable provides protection for the nameplate against weather conditions and abrasion.
Combi
and Pipe
Insertio
n
Sensors
Active ultrasonic combi and pipe insertion sensors for flow
velocity and depth measurement. Connect to the FlowShark
Pulse. These sensors provide spatial allocation of flow velocities
over a maximum of 16 scan layers.
5000PULSESENS-W
Sensors
1
2
3
Without Depth Measurement
K
Combi sensor made of PPO with PEEK sensor face;
ground plate 1.4571
R
Pipe insertion sensor made of PPO with PEEK sensor
face; pipe body 1.4571
With Water-Ultrasonic
K
Combi sensor made of PPO with PEEK sensor face;
ground plate 1.4571
R
Pipe insertion sensor made of PPO with PEEK sensor
face; pipe body 1.4571
With Pressure Measurement Cell (pressure
compensation element required)
K
4
Combi sensor made of PPO with PEEK sensor face;
ground plate 1.4571
With Pressure Measurement Cell and Water-Ultrasonic
(pressure compensation element required)
K
Combi sensor made of PPO with PEEK sensor face;
ground plate 1.4571
Approvals
None
E
Ex zone 1
Cable Lengths
10
10 meters (33 ft)
15
15 meters (49 ft)
20
20 meters (66 ft)
30
30 meters (98 ft)
50
50 meters (164 ft)
99
100 meters (328 ft)
4-10 ADS FlowShark Pulse O&M Manual
Sensor Connection
K
Cable end pre-configured for connection
to 1K/1R and 2K/2R FlowShark Pulse
units
L
Cable end pre-configured for connection
to 3K and 4K FlowShark Pulse units
(pressure compensation element
required)
Pipe Length
0
(applies only to combi sensor)
2
20 centimeters (8 in) – standard
3
30 centimeters (12 in)– minimum
length for stop valve)
4
40 centimeters (16 in)
G
20 centimeters (8 in) with threaded
extension
Fig. 4-10 Type key for combi sensors
AirUltrasonic
Sensor
Air-ultrasonic sensors measure flow depth without contacting the flow.
Connects to the FlowShark Pulse
500PULSESENS-AIR-
Approvals
None
E
Ex zone 1
Cable Lengths
10
10 meters (33 ft)
15
15 meters (49 ft)
20
20 meters (66 ft)
30
30 meters (98 ft)
50
50 meters (164 ft)
99
100 meters (328 ft)
Sensor Connection
K
Cable end pre-configured for connection to
Pulse
Fig. 4-11 Type key for air-ultrasonic sensors
OCS (old model range) passive sensors do not support Model
10/20 transmitters.
CHAPTER 5
Delivery, Maintenance, and Handling
This chapter contains information regarding shipping, maintaining, handling, storage,
and disposal of the FlowShark Pulse transmitter and sensors.
5-2
ADS FlowShark Pulse O&M Manual
Delivery and Receipt
Delivery of a typical FlowShark Pulse measurement system includes the following:
z
Instruction manual including all the necessary steps to correctly install and
operate the measurement system and the certificate of conformity
z
FlowShark Pulse Model 10 or 20 transmitter
z
Ultrasonic sensor: combi sensor or pipe insertion sensor with threaded cutting
ring (consisting of spigot nut, cutting ring, and pipe double nipple)
Additional accessories, such as a pressure compensation element (when using combi
sensors with an integrated pressure measurement cell), memory cards, card readers,
pipe mounting systems, or separate depth measurement devices (such as an airultrasonic sensor), also may be included in the order.
Upon receipt, please inspect the hardware and verify all standard equipment and
accessories according to the invoice to ensure the order is complete and intact. If
damage has occurred in transit, immediately report the damage to the carrier and send
a written report to ADS.
Please provide a written report of any missing items to an ADS representative within
two weeks.
Resolve all problems immediately!
Delivery, Maintenance, and Handling 5-3
Maintenance
Because the measurement system primarily exists in a wastewater
environment, it may be contaminated with hazardous germs.
Therefore, please take special precautions when handling the
transmitter, cables, sensors, and associated equipment.
The FlowShark Pulse is extremely durable, is virtually maintenance-free, and does
not require calibration. The only item in the system that requires maintenance is the
combi sensor with the integrated pressure measurement cell.
If necessary, clean the transmitter enclosure with a dry, lint-free cloth. For heavy
soiling, ADS recommends using a mild detergent. Do not use abrasive cleansers!
To clean the enclosure surface with a damp cloth, first disconnect
the unit from the main power supply.
In flow that contains a significant amount of debris and/or pipes that experience a
substantial amount of silt, it may be necessary to clean the sensor regularly using a
plastic bristle brush, broom, or similar tool.
Do not use hard objects, such as wire brushes or scrapers, to clean
the sensor. A water hose with a maximum pressure of up to 50 psi (4
bars) can be used to clean most sensors. However, do not use a
water hose to clean a flow velocity sensor with a pressure
measurement cell (Types 3K and 4K).
Do not use a high pressure device for cleaning. This could damage
the equipment, producing measurement failure.
Due to the physical design of sensors with pressure measurement cells, these sensors
experience long-term drift in depth measurements (see Chapter 2, Overview and
Specifications). Therefore, ADS recommends calibrating sensors with integrated
pressure measurement cells twice a year relative to the respective zero point. The
best results are produced when the depth level is as low as possible or the sensor is
independent from the measurement medium. Refer to Chapter 8 for the calibration
procedure.
To ensure reliable, accurate, and trouble-free operation of the flow measurement
system, contact ADS to perform an inspection of the equipment at least once a year.
5-4
ADS FlowShark Pulse O&M Manual
To identify the zero point for the pressure measurement cell, consider
measuring the current depth level with a yardstick, ruler, or similar
tool without removing the sensor from the flow. However, keep in
mind that this method can produce errors. Inserting the ruler (or
yardstick) into the flow creates a surge that could lead to
measurement errors based on the current flow velocity. When this a
concern, another method for determining flow depth involves
measuring the distance from the top of the pipe to the flow surface
(commonly referred to as “range”) and subtracting this distance
from the pipe diameter.
Remove combi sensors with the pressure measurement cell (Type 3K
and 4K) if the pressure depth measurement component fails. Rinse
this sensor with clean water for a sufficient amount of time and then
carefully rinse the pressure duct or clean it with a soft brush.
Do not use high pressure water to flush the duct. This could damage
or destroy the built-in pressure sensor.
In addition, never remove the ground plate. This could increase the
potential for leakage or permanent damage to the sensor.
Delivery, Maintenance, and Handling 5-5
Handling
This sections includes instructions and procedures for the FlowShark Pulse and
sensors concerning storage, transport, and disposal.
Storage
Strictly adhere to the following conditions regarding equipment storage:
Transmitter: Maximum temperature:
Sensor:
158°F (70°C)
Minimum temperature:
-22°F (- 30°C)
Maximum humidity:
80 %, non-condensing
Maximum temperature:
158°F (70°C)
Minimum temperature:
-22°F (- 30°C)
Maximum humidity:
100 %
Protect the devices from corrosive or organic solvent vapors, radioactive emissions,
and strong electromagnetic radiation.
Transport
The sensor and transmitter are designed for use in harsh industrial conditions.
However, please avoid exposing these devices to heavy shocks or vibrations.
Always transport the equipment in the original packaging.
Disposal
When discarding the FlowShark Pulse transmitter and sensors, follow all local
regulations involving electronic product disposal.
CHAPTER 6
Installation
Reading and following the installation instructions before initial start-up will help
ensure success in flow measurement and device configuration. Do not initiate startup until installation is complete and verified. If any problems occur during
installation, connection, or configuration, please contact an ADS representative.
Installation should be performed only by qualified personnel according to all
statutory standards, regulations, and technical rulings. During installation, refer to all
local regulations regarding electronic equipment.
Protect the FlowShark Pulse power supply separately using a 6amp slow-blow fuse and isolate it from other facility parts through
a separate turn-off. For example, consider using an automatic
cut-off.
Successfully complete transmitter and sensor installation before providing the rated
voltage.
All outer circuits, wires, and lines connected to the device must have a minimum
isolation resistance of 250 volts. Voltages exceeding 42 volts DC require an isolation
resistance of at least 500 kOhm.
The cross-sectional dimension of the power supply wires must be 0.03 square inches
(0.75 mm2) and in accordance to IEC 227 or IEC 245. The device protection rating is
IP 65.
The maximum allowable switching voltage on the relay contacts must not exceed 250
volts. According to Ex protection, this voltage must be verified if the device’s power
supply will be integrated into the facility’s emergency shutdown procedures.
6-2
ADS FlowShark Pulse O&M Manual
Transmitter Installation and Connection
General
When selecting a mounting location for the transmitter, avoid locations exhibiting or
near the following conditions:
z
Direct sunlight (use weatherproof cover, if necessary)
z
Heat-emitting objects (maximum ambient temperature of 104°F (40°C))
z
Objects generating strong electromagnetic fields (such as frequency
converters or electric motors that consume significant power)
z
Corrosive chemicals or gas
z
Mechanical shock
z
Walkways or heavy traffic areas
z
Vibration
z
Radioactive emissions
To fasten the wall mount enclosure, use one of the following fastener configurations
based on the composition of the mounting structure:
z
Four M5 machine screws of suitable length with corresponding nuts and
shims. These screws must penetrate the wall at least 1.575 inches (40 mm).
z
Four wood screws with a minimum diameter of 0.177 inches (4.5 mm).
These screws must penetrate the appropriate dowels at least 1.97 inches (50
mm).
The clear door on the measurement transmitter has a protective film to prevent
potential damage during transport and scratches during assembly. Remove this film
immediately after assembly.
Exposing the film to direct solar radiation for a long period will
make it more difficult to remove the film.
Clean the door with mineral spirits or car polish, when necessary. If these cleansers
are not effective, order a new front door from ADS.
The FlowShark Pulse Model 10/20 transmitter does not support
passive OCS sensors (older models).
Installation 6-3
Enclosure Dimensions
Fig 6-1 Wall mount enclosure
Transmitter Connection
General
The FlowShark Pulse transmitter is available in 2 different versions:
z
Model 10 standard version
z
Model 20 with supplemental connections for up to 3 flow velocity sensors,
digital inputs, and additional analog inputs/outputs plus controller function
Both models have the same clamp terminal marking. However, the Model 20
transmitter includes additional connections.
The wall mount enclosure has cable glands and dummy plugs. Some are screw-type
and some are enclosed for spare or additional parts. The transmitter model
determines the number and size of cable glands and dummy plugs.
Model 10 Transmitter:
z
2 glands M20 x 1.5
z
1 gland M16 x 1.5
z
2 plugs M20 x 1.5
z
2 plugs M16 x 1.5
6-4
ADS FlowShark Pulse O&M Manual
Model 20 Transmitter:
z
2 glands M20 x 1.5
z
3 glands M16 x 1.5
z
2 plugs M20 x 1.5
z
2 plugs M16 x 1.5
Use the glands supplied to connect the following outer cable cross-sections:
z
M16 x 1.5: 3.5 mm – 10.5 mm (0.138 – 0.413 in)
z
M20 x 1.5: 6.0 mm – 14.0 mm (0.236 – 0.591 in)
To use a cable with a diameter outside of the specified tolerance, use a gland that
ensures IP 65 minimum protection.
Protect unused wire access openings with an appropriate dummy plug before initial
start-up.
The transmitter has terminal clamps that accommodate power supplies and
digital/analog outputs/inputs with single and multi-wired cables with cross-sectional
areas of 0.007 – 0.098 inches² (0.18-2.5 mm²).
The combi, air-ultrasonic, and 2-wire level sensors have connection plugs for
handling purposes. The cable ends of the FlowShark Pulse sensors or single and
multi-wired cables with cross-sectional areas of 0.007-0.098 inches² (0.18-2.5 mm²)
can receive these plugs.
The 7-pole plug-and-socket connections of the flow velocity sensors are
interchangeable. However, the hardware configuration does not support switching
between 7-pole and 9-pole plug rails (9 poles = level sensors).
Connecting terminal clamps requires a slotted screwdriver with a 0.118- or 0.138inch (3.0-mm or 3.5-mm) blade. Connect the sensors to the plugs using a slotted
screwdriver with a 0.079- to 0.098-inch (2.0-mm to 2.5-mm) blade.
While the terminal clamps typically arrive unscrewed upon delivery, please verify
they are unscrewed before connecting the power supply or the signal wires.
Before making the first connection, apply slight pressure to the
screw on the clamping connection to ensure safety in opening and a
proper connection.
Water or dirt must not leak into the terminal housing. Therefore,
please seal the housing with the lid and two screws supplied.
Position lid with the beveled side up (it is not reversible). An
improper or faulty seal will not provide adequate protection.
3
4
6
7
= 0.9
8
9
AI3 AI4 GND AO3 AO4 GND
AO
AO
serial
interface
10-36V
GND potentials isolated from each other: DE1/2, DC-, AE1 ... 4, AA1 ... 4
Internal wiring: b2 + b15; b3 + a14
Figure 6-2 Wiring diagram for FlowShark Pulse wall mount enclosure
digital inputs
(for type
M3 only)
analog
inputs
(AI2-4
M3 only)
10 11 12 13 14 15 16 17 18 19 20 21
auxiliary supply-
relay outputs 1-5
(for type S3 only)
relay 1+2 occupied
cos
Imax 230V AC/2A
5
shield
10 11 12 13 14 15 16 17 18 19 20 21
TxD RTS GND DI3 DI4 GND
COM
DC-
9
analog
outputs
(AO3-4
M3 only)
0/4-20mA
power supply
2
8
10 11
A
D
A
D
RxD CTS blank DI1 DI2 GND + 24V AI1 AI2 GND AO1 AO2 GND
DI DC +
AI
AO
1/2
9
a(b)12
1
7
8
a(b)13
a
6
7
a(b)14
PE
5
6
BUS BUS PE
-+
A
a(b)16
N
4
5
c8
A
a(b)17
3
4
c4
b8
D
a(b)18
2
b4
D
a(b)19
24V GND
DC + DC -
24V DC
a8
ISDN
or
analog
modem
a(b)20
L1
+
OFF
ON
a4
Ethernet
a(b)21
b
c
clamp
line
230V AC
FlowShark Pulse
F1
F2
D3
F4
F5
F6
F7
connector plug
flow velocity sensor(s)
air ultrasonic and
external 2-wire level
measirement
E1
E2
D2
D1
E3
D3
E4
E5
D5
D4
E6
E7
G1
G2
G3
G4
G5
G6
G7
E/F/G 6+7 not occupied
D6
D7
D8
D9
Ex area
Installation 6-5
R Lmax 500
max. 100mA +
6-6
ADS FlowShark Pulse O&M Manual
Sensor Installation and Connection
Choosing a Suitable Location for Sensor Installation
Clear and stable hydraulic conditions are essential for obtaining accurate sensor
measurements. Therefore, consider the following when inspecting the physical and
hydraulic conditions at all potential installation locations:
z
Strictly avoid locations experiencing or near draw-downs, steps, curves,
obstructions, pipe joints, profile changes, or immediately upstream or
downstream of inlet or lateral connections.
z
Choose a location where sedimentation (sand, grit, sludge, etc.) does not
develop under normal flow conditions. Sedimentation can accumulate due to
friction in pipes at locations exhibiting minimal or negative slope or structural
deficiencies that create obstructions or pockets. Typically, channels that
regularly exhibit flow velocities of more than 2 feet per second will not
experience a buildup of sediment.
z
Avoid measuring flow depth in closed pipes that remain at least 80 percent
full under normal flow conditions. These sites can fill up completely during
elevated or peak flows, potentially resulting in backup or surcharge
conditions.
z
Avoid locations that exhibit significant changes in slopes.
z
In general, make sure the distance of the upstream approach to the sensor is 5
times the approximate diameter of the pipe and the distance downstream from
the sensor is 2 times the approximate diameter of the pipe. However, consider
longer straight approaches when turbulent hydraulic conditions generate
distorted flow profiles.
The following figures provide examples of appropriate and problematic sensor
installations. Please forward any applicable drawings/photos and contact your ADS
representative for assistance in selecting an appropriate location or in assessing
potential locations to install sensors for accurate flow measurements.
Figure 6-3 Sensor Adjustment: (left) proper installation in center that should yield reliable measurements; (right)
faulty installation that will yield erroneous measurements
Installation 6-7
Angle of the
Curve in the Pipe
v ≤ 1m/s
v > 1m/s
α ≤15°
L ≥ min. 3x DN
L ≥ min. 5x DN
α ≤45°
L ≥ min. 5x DN
L ≥ min. 10x DN
α ≤90°
L ≥ min. 10x DN
L ≥ min. 15-20x DN
DN represents the nominal diameter
Figure 6-4 Sensor position behind curves or elbows
= Error! Undesirable flow conditions
= Sufficient distance to obtain steady flow (10 … 50 x diameter, depending on the application)
Figure 6-5 Overflow pipes or fall error caused by unstable flow conditions
= Error!
Risk of debris build-up / sludge accumulation caused by negative slope
Figure 6-6 Negative slope – risk of silt accumulation
6-8
ADS FlowShark Pulse O&M Manual
= Error! Changes in slope = changes in flow profile
= Distance depending on slope and flow velocity reading
l = min. 20 x diameter
Figure 6-7 Error caused by changes in slope
= Error! Installed in draw-down
Depth measurement may fail + velocity and depth measurement may be erroneous
? = Critical measurement point, not recommended! Flow begins to fall (or sink)
= Distance l = min. 5 x hmax at place of installation
Figure 6-8 Error caused by changes in flow profile in front of slope fluctuation or fall
(1) = Fixtures such as samplers or similar
(2) = Obstruction
= Error! Caused by vorticity, tangential, and/or asymmetric flow
= Distance l1 (upstream of obstruction) = minimum 5 x hmax
Distance l2 (downstream of obstruction) = minimum 10 x hmax in case of flow velocities >1 m/s
Figure 6-9 Errors caused by equipment or obstructions
Installation 6-9
3
~
~ 11.8 in
max. WSP
~
~ 3.94 in
1
2
(1) = Wave formation on water surface behind the sensor Æ error message from following air-ultrasonic sensor (2)
(2) = Good (might have to be installed 0.39 inches (10 mm) lower in low flow depth conditions)
(3) = Distance too large from edge of sensor bottom to maximum water level
Figure 6-10 Installation with separate depth measurement devices in the manhole
= Error! Caused by vorticity and wave formation behind fall
Æ Choose another location or redesign manhole
Figure 6-11 Error caused by fall or changing slope
6-10 ADS FlowShark Pulse O&M Manual
Sensor Installation
When installing the sensors, use only non-corrosive fastening materials and fasten the
sensors both securely and tightly.
To avoid disturbances from electrical interference, do not locate
sensor cables close (or parallel) to an engine (motor) or main
power lines.
Combi Sensor
Fasten the sensor through the four holes on the front and reverse sides of the ground
plate (Figure 6-12, detail Y). Use the slotted holes (Figure 6-12, detail X) to snap the
sensor onto a special base plate (Type BST) for use in conjunction with the pipe
mounting system. Never use the slotted holes to install the sensor with screws or
similar fasteners.
1.57 in (40 mm)
.94 in (24 mm)
.69 in (17.5 mm)
Y
X
.69 in (17.5 mm)
12.60 in (320 mm)
9.33 in (237 mm)
M16
.67 in (17 mm)
.12 in (3 mm)
.47 in (12 mm)
Figure 6-12 Combi sensor dimensions (X represents slotted holes for fastening on the pipe mounting system; Y
represents 4 x countersunk holes M6 for direct fastening)
To install the combi sensor on the pipe bottom, use 4 stainless steel screws of
sufficient length (between 1.18 and 2.76 inches (30 and 70 mm)) with the
accompanying dowels. ADS does not recommend using studs or similar bolts.
Determine the length of the screws based on the consistency and integrity of the
structure to which the sensor will be secured. Choose an adequate length to ensure
the sensor can be safely and securely fastened and the installation will remain durable
under any operational conditions.
Screws and fasteners extending into the flow can introduce
turbulence or build-up in a wastewater environment, potentially
resulting in erroneous flow measurements. Therefore, use wellfitting, counter-sunk screws and screw them completely into the
mounting plate so they are as flush as possible with the plate.
Install the sensor at the bottom the center of the pipe (unless instructed otherwise by
ADS) with the beveled side facing upstream toward the oncoming flow.
When using a combi sensor with simultaneous water-ultrasonic depth detection,
install the sensor parallel with the flow surface and no more than ±2 ° from the
Installation 6-11
bottom center of the pipe. Higher depth levels and/or flow velocities may produce
erroneous measurements if the sensor is not installed properly.
When using a combi sensor with water-ultrasonic and pressure measurement
capability, environmental conditions, such as the Bernoulli effect, may produce
erroneous measurements in the presence of high flow velocities and low depth levels.
Under these conditions, ADS recommends taking ultrasonic measurements using the
air-ultrasonic sensor from the top of the pipe and pressure depth measurements from
the bottom in the flow simultaneously until flow depth levels reach an adequate depth
to implement water-ultrasonic depth measurement using the combi sensor.
Although the design of the sensor significantly limits build-up from debris in the
flow, the sensor mounting plate is more susceptible to build-up. Therefore, make
sure that no gap exists between the sensor mounting plate and pipe bottom. Seal any
gap or seam that may exist around the tip of the sensor following installation with
silicone or a similar material.
The bottom of the pipe must be completely flat (plane surface) for
sensor installation. Otherwise, the sensor could experience
damage or leakage, resulting in potentially irreparable damage to
the electronic components.
Do not bend the ground plate during installation or removal. Use
only an appropriate screwdriver for sensor removal; do not use a
pry bar, chisel, hammer, lever, crowbar, hammer drill, or similar
tool. In addition, do not use excessive force to remove the sensor.
Do not remove any sensor parts! Removing or loosening the
ground plate and/or cable glands on the sensor will result in
leakage and sensor failure.
For sensors without integrated pressure elements, consider installing the sensor in a
depression at the pipe bottom up to 0.47 inches (12 mm) deep. This will minimize
the lowest measurable depth level and the susceptibility of the sensor to the build-up
of debris. Once installation is complete, fill up the remaining gaps and seams with a
permanently elastic material, such as silicone.
Never countersink combi sensors with integrated pressure
measurement cells. The sealing material on the sides of the
countersunk sensor or accumulated debris/silt could result in
erroneous measurements and/or pressure measurement cell failure.
6-12 ADS FlowShark Pulse O&M Manual
1
Pipe Bottom
2
Silicone or Similar
3
Sensor
4
Mounting Plate
Figure 6-13 Suggestion for installing countersunk combi sensors
Make sure the combi sensor is not covered with or deposited in
filling material. This could result in signal attenuation or
erroneous measurements.
Run the sensor cable along the pipe bottom from the back of the sensor to the pipe
wall. To minimize build-up, cover the cable with a thin, stainless steel sheet or lay it
in a small canal on the pipe bottom and then seal the canal with a permanent, elastic
material. Appropriate covers are available through ADS.
1
Stainless steel sheet/cable cover (for example, Type ZMS 140)
2
Cable
3
Cable
4
Permanent, elastic material
Figure 6-14 Suggested cable layout
Do not run the cable loosely, uncovered, or across the silt at the
bottom of the pipe. This could lead to a build-up of debris and/or
cause the sensor or the cable to pull apart.
Installation 6-13
Figure 6-15 Hints on cable layout (1 represents the protective cover)
Do not bend the standard signal cable in more than a 3.94-inch
(10-cm) radius. Bending it into a smaller radius could break the
cable and, for certain sensors, produce kinks in the cable and
create obstructions in the air compensation hose (resulting in
erroneous depth measurements).
The cables of high-resistance sensors (special models) are coated with an additional
transparent FEP jacket that protects the cables against organic solvents, acids, and
lye. Do not damage (such as cut, penetrate, or crush) or remove this protective jacket
under any circumstances.
Handle high-resistance sensors equipped with additional protective
jacket (cables with FEP jacket) with care. Do not damage or crush
the protective jacket in any way.
The minimum bending radius of cables with protective FEP jackets
is 5.91 inches (15 cm). Bending the cables in a smaller radius may
damage the protective jacket, resulting in sensor malfunction.
Combi Sensor with Integrated Pressure Measurement Cell
To compensate for atmospheric pressure, sensors with integrated pressure
measurement cells have an air hose located inside the cable. Do not buckle or seal
this air hose or clamp the hose into hermetically sealed connection sockets without air
pressure compensation. The pressure cell will not be able to measure flow depth
accurately under these conditions.
Pipe Insertion Sensor
The pipe insertion sensor would be most suitable in applications such as closed pipes
that remain full. To install the sensor, screw it tightly into the 1½-inch nozzle using a
cutting ring and spigot nut. The cutting ring of the sensor will warp during
installation and, therefore, cannot be used again. Therefore, to obtain new cutting
rings, please contact an ADS representative..
Another installation option would involve using a ball valve to
allow for sensor removal without applying pressure or a
retractable fitting to allow sensor removal and replacement under
operational conditions.
6-14 ADS FlowShark Pulse O&M Manual
Make sure the horizontal part of the sensor is flush with the pipe wall once installed
(Figure 6-16, far left).
Figure 6-16 Proper pipe insertion sensor installation (left – represents a proper installation; center – represents a
poor installation due to build-up; right – represents a poor installation due to faulty readings or sensor failure)
Install the sensor so that the beveled side is facing upstream. The “installation help”
screw (Figure 6-17) assists in proper positioning.
Figure 6-17 Pipe insertion sensor dimensions
When using a pipe insertion sensor with simultaneous ultrasonic depth detection from
bottom up, please install the sensor perpendicular to the flow surface and no more
than ±2 ° from the bottom center of the pipe. Improper installation could produce
erroneous depth measurements under high depth and high flow velocity conditions.
When assembling the pipe insertion sensor, use a special grease for
the stainless steel couplings (DIN 2353, or equivalent). Apply a
small amount of grease to the cap nut thread, threads, cone, and
cutting ring during pre-assembly. The screw joints come pregreased from the manufacturer. Purchase additional grease
through ADS, when necessary.
Installation 6-15
1
Cutting ring inside and outside
2
Thread
3
Inner cone
4
Inner thread of spigot nut
Figure 6-18 Greasing parts
Air-Ultrasonic Sensors
Install the air-ultrasonic sensor with clamping using an pipe mounting system. To
install the sensor using this mounting system, run the mounting sheet located in the
pipe vertex (crown) through the cut-out (Item 4 on Figure 6-19) in the air-ultrasonic
sensor prior to final assembly.
1
Ground Plate 1
2
Ground Plate 2
3
Ground Plate 3
4
Cut-out for Pipe Mounting Plate
Figure 6-19 Installing the air-ultrasonic sensor using the pipe mounting system
Before clamping the system into the pipe, adjust the sensor so that it is completely
parallel to the water surface. When installing an air-ultrasonic sensor and combi
sensor measuring flow velocity together, locate the air-ultrasonic sensor upstream at
least 4 inches (10 cm) ahead of the combi sensor at the bottom.
6-16 ADS FlowShark Pulse O&M Manual
4-inch (10-cm) Dead Band
79 inches (200 cm)
h max
Figure 6-20 Installing the air-ultrasonic sensor
L
4 in (10 cm)
FLOW
Figure 6-21 Mounting example
For a permanent installation, secure the air-ultrasonic sensor to the top of the pipe
with 3 stainless steel screws (M5) and corresponding dowels (Figure 6-22).
Installation 6-17
1.57 in (40 mm)
.29 in (7.5 mm)
.94 in (24 mm)
X
.69 in (17.5 mm)
12.60 in (320 mm)
10.22 in (354.5 mm)
M16
1.22 in (31 mm)
.12 in (3 mm)
Y
Figure 6-22 Air-ultrasonic sensor dimensions (X represents countersunk holes DIN 74 - A M5 for direct fastening; Y
represents the three adapter plates required for fastening to the pipe mounting system.)
The air-ultrasonic sensor has a 4-inch (10 cm) deadband and,
therefore, cannot measure depths within this range.
If depths occur within this deadband, the FlowShark Pulse will
indicate a fixed distance of 4 inches (10 cm) below the airultrasonic sensor, producing erroneous flow quantity
measurements.
If the air-ultrasonic sensor becomes submerged, the sensor will
send the signal directly into the flow. Since sounds travels faster in
flow than in air, erroneous depth measurements are likely to occur.
Therefore, do not include the deadband in the maximum depth
parameter for the air-ultrasonic sensor. Instead, configure the
equipment to obtain depth readings within this range from the
pressure sensor.
Sensor Connection
A sensor with an integrated pressure cell has a Type LIY11Y 2x1.5 mm² + 1x2x0.34
mm² + PA 1.5/2.5 custom cable.
Sensors without a pressure measurement cell have Type LIY11Y 2x1.5 mm² +
1x2x0.34 mm² cables. These sensors can be extended with single-shielded signal
extension cables without modification.
ADS recommends Type A2Y(L)Y 6x2x0.8 cables (or equivalent cable types) or a
higher number of wires using 2 wires for bus communication. The remaining wires
must be connected in parallel as 2 complete wires for the power supply.
The maximum fixed cable length permitted between the flow velocity sensor and the
transmitter is 450 feet (150 m). A cable length of up to 750 feet (250 m) may be used
if a flow velocity sensor with a 90-foot (30-m) fixed cable is used in conjunction with
a connection box and a signal extension cable with a larger cross-sectional area.
6-18 ADS FlowShark Pulse O&M Manual
The maximum cable length for an LUS air-ultrasonic sensor is 328
feet (100 m). This sensor cable may not be extended.
The signal cable attached to the sensor is not designed for underground burial for an
extended period of time without protection. When burying signal cables in soil,
concrete, or other comparable materials, first run the cable through conduit for
protection. Consider cable removal and replacement when selecting the inner
diameter, bending radius, and layout of protective pipes and hoses.
When extending the sensor cables, please note that the total
resistance of the power supply lines must not exceed:
•
2.100 Ohm for sensors with 30-foot (10-m) fixed cables
•
1.850 Ohm for sensors with 60-foot (20-m) fixed cables
•
1.600 Ohm for sensors with 90-foot (30-m) fixed cables
(Specification corresponds to feed + return wires!)
Longer cable lengths may be used under certain circumstances involving special
cross-sectional cable areas. Please contact ADS for specific guidance.
Do not use common extensions for different installations or a
common signal cable to extend separate depth and flow velocity
sensors.
For sensors with a pressure measurement cell (Types 3K and 4K, the maximum
uninterrupted cable length is 90 feet (30 m). For cable extensions, install a
connection box with a pressure compensation element (Figure 6-23). This pressure
compensation element, available through ADS, must be installed even if the cable of
a sensor with an integrated pressure measurement cell is connected directly to the
transmitter.
Operating sensors with an integrated pressure measurement cell
for a long period without a pressure compensation element may
lead to irreversible damage to the sensor electronics.
Installation 6-19
FlowShark Pulse
not occupied
G7
not occupied
G6
outer shield
G5
supply +
G4
UE-GND
G3
RxTx -
G2
RxTx +
G1
(black; shield, no earth)
(red)
8.6 V
(blue)
A2Y (L)2Y
or similar
max 820.2 ft
(green)
(white)
Figure 6-23
connection box with air pressure compensation
(pressure compensation element)
LIYC 11Y 2 .1.5mm 2
+1 . 2 . 0.34mm 2
+PA 1.5/2.5
combi sensor supporting flow
max. 98.4 ft
velocity & pressure measurement
Connecting a sensor with pressure measurement cell
The pressure compensation element supplied by ADS consists of a filter element with
an air hose and air plug, metal connection box (including terminal clamps and cable
glands), connection box lid (including integrated, self-locking socket for the air hose
plug), and 2 cable clips (Figure 6-24).
1
Filter element with air hose and air plug
2
Cable clips
3
Terminal clamps
4
Connection box
Figure 6-24 Components of air compensation element
Connect the 5-wire cable coming from the combi sensor to the terminal clamp strip in
the connection box, with each individual wire connecting to a separate terminal
clamp. For this application, connect only the power supply wires (red + blue) and the
signal bus lines (white + green) to the terminal clamp strip. Connect the cable shield
(black) to one of the shield connection screws in the box (Figure 6-25).
6-20 ADS FlowShark Pulse O&M Manual
1
Shield connection screws
2
Air hose
3
Transmitter side
4
Terminal clamps
5
Flow velocity sensor side
Figure 6-25 Open connection box
Run an extension between the connection box and the transmitter using A2Y or
similar appropriately shielded signal cables. After connecting the cables, secure the
air filter onto one of the cables with the cable clips so that the opening of the filter
element faces downward. Snap the air hose plug into the socket on the lid of the box
lid, and then screw the lid onto the box.
Figure 6-26
Assembled pressure compensation element
Install the connection box in an area with reliable flood protection.
Never operate the pressure compensation element with the air hose
unplugged. The automatic self-locking mechanism of the
integrated socket will shift the zero point for the depth
measurement.
The opening of the filter element must always face downward.
Installation 6-21
Be sure to connect the feed and return cable shields to the shield
connections on the metal connection box.
When necessary, extend sensors with the 30-foot (10-m) fixed cable using A2Y(L)2Y
with “X“ • 2 • 0,8 alternatively. X represents the number of wire pairs, depending on
length of the line. Leave 15 percent of the wire for reserve.
Use a single wire to extend each signal line (RxTx).
To extend the power supply UE and earth UE-GND, use one or more parallel
connected wires per line, depending on the distance.
The following table lists the minimum number of wires per connection. Two
required: 1x for UE + and 1x for UE-GND.
Extension to
Minimum number of wires
required for power supply and
ground*
Total number of wires
required for extension
(no reserves)
98 feet (30 m)
1 UE+/1 UE-GND
4
164 feet (50 m)
1 UE+/1 UE-GND
4
230 feet (70 m)
2 UE+/2 UE-GND
6
328 feet (100 m)
2 UE+/2 UE-GND
6
492 feet (150 m)
3 UE+/3 UE-GND
8
656 feet (200 m)
4 UE+/4 UE-GND
10
820 feet (250 m)
5 UE+/5 UE-GND
12
984 feet (300 m)
6 UE+/6 UE-GND (consult ADS)
14
1312 feet (400 m)
8 UE+/8 UE-GND (consult ADS)
18
1640 feet (500 m)
10 UE+/10 UE-GND (consult ADS)
22
*Solder the parallel wires for UE + and GND together based on the supply line.
Equivalent extension cables with other cross-sectional areas are available upon
request.
Connection boxes used to extend cables must be metal. Always
connect the feed and return cable shields to the shield connections
on the metal connection box.
Establishing improper connections that create higher transition
resistance or using other cables may lead to signal disruptions and
erroneous measurements.
6-22 ADS FlowShark Pulse O&M Manual
Connect the sensor cable to the transmitter at the termination block. Refer to the
following diagram to connect a flow velocity or water-ultrasonic combi sensor:
FlowShark Pulse
not occupied
G7
not occupied
G6
outer shield
G5
supply +
G4
UE-GND
G3
RxTx -
G2
RxTx +
G1
black (shield, no earth)
red
8.6 V
LIYC 11Y 2 . 1.5mm 2
+1 . 2 . 0.34mm2
max. 492.1 ft
blue
green
white
combi sensor supporting flow velocity
or water-ultrasonic measurement
Figure 6-27 Connecting a combi sensor supporting flow velocity or water-ultrasonic
FlowShark Pulse
not occupied
F7
not occupied
F6
outer shield
F5
supply +
F4
UE-GND
F3
RxTx -
F2
RxTx +
F1
black (shield, no earth)
red
8.6 V
LIYC 11Y 2 . 1.5mm 2
+1 . 2 . 0.34mm2
max. 492.1 ft
blue
green
white
combi sensor supporting
flow velocity measurement
Figure 6-28 Connecting a second velocity sensor to the FlowShark Pulse Model 20
FlowShark Pulse
not occupied
E7
not occupied
E6
outer shield
E5
supply +
E4
UE-GND
E3
RxTx -
E2
RxTx +
E1
black (shield, no earth)
red
8.6 V
LIYC 11Y 2 . 1.5mm 2
+1 . 2 . 0.34mm2
max. 492.1 ft
blue
green
white
combi sensor supporting
flow velocity measurement
Figure 6-29 Connecting a third velocity sensor to the FlowShark Pulse Model 20
FlowShark Pulse
not occupied
G7
not occupied
G6
outer shield
G5
supply +
G4
UE-GND
G3
RxTx -
G2
RxTx +
G1
connection box with air pressure compensation
(pressure compensation element)
(black; shield, no earth)
(red)
(blue)
(green)
(white)
8.6 V
A2Y (L)2Y
or similar
max 820.2 ft
LIYC 11Y 2 . 1.5mm 2
+1 . 2 . 0.34mm 2
+PA 1.5/2.5
combi sensor supporting flow
max. 98.4 ft
velocity & pressure measurement
Figure 6-30 Connecting a flow velocity sensor with an integrated pressure measurement cell
Installation 6-23
The pressure compensation element also serves as a connection
socket for the cable extension. Run no more than 750 feet (250 m)
of cable between the sensor and transmitter to avoid exceeding the
maximum permissible resistance.
FlowShark Pulse
not occupied
D7
not occupied
D6
outer shield
D5
supply +
D4
UE-GND
D3
RxTx -
D2
RxTx +
D1
black (shield, no earth)
red
8.6 V
air ultrasonic sensor
LIYC 11Y 2 . 1.5mm 2
+1 . 2 . 0.34mm 2
max. 328 ft
blue
green
white
Figure 6-31 Connecting an air-ultrasonic sensor
Refer to the following wiring diagram to perform depth measurements using a 2-wire
probe provided by a reputable supplier:
FlowShark Pulse
+ 22 V Ex
AI 5 Ex
D8
D9
A2Y 2 x 2 x 0.8 or similar,
max. 492.15 ft (150m)
I = 4 - 20mA
loop powered
2-wire sensor or pressure probe
for the direct connection
of intrinsically safe sensors
(EEx ia IIB)
Figure 6-32 Connecting an external 2-wire sensor (Ex) for flow depth measurement
FlowShark Pulse
24 V DC
+
b15
-
a14
A2Y 2 x 2 x 0.8 or similar,
max. 492.15 ft (150m)
2-wire sensor or pressure probe
no Ex !
insert
wire bridge
+
b16
-
a18
I = 4 - 20mA
Figure 6-33 Connecting an external 2-wire sensor (non-Ex) for flow depth measurement
If an external transmitter provides the mA signal for depth measurement, connect to
the clamps in the following way:
6-24 ADS FlowShark Pulse O&M Manual
FlowShark Pulse
mA-input
GND AE1/2
b18
AI 1
b16
A2Y 2 x 2 x 0.8 or similar, length dependant
on the Ri (internal resistance) of the external device
I = 4 - 20mA
-
mA-output
+
from exteral flow height
measurement
Figure 6-34 Connecting an external transmitter for flow depth measurement
When using sensors in an Ex-area, do not run the sensor cables
past the mechanical shield between the termination blocks. Use
only the 3 cable connections on the sensor connection block!
Installation 6-25
FlowShark Pulse Power Supply
FlowShark Pulse models are equipped to operate using either 85-260V AC
(alternating current) or 24 V DC (direct current) power. Two on/off slide switches
exist above the terminals. The 24V switch (Figure 6-35) powers up or down the
auxillary 24-volt DC output and powers down 24-volt DC input.
Figure 6-35 Slide switch position on the bus board
A 24 V DC transmitter cannot be operated with alternating
current; a 230 V AC transmitter cannot be operated with direct
current.
Before connecting a power source to the unit, move the 230V and 24V switches to
the off position. For AC power, wire the 120 V circuit to L1, N, and PE (Figure 636). For 24V DC power, wire to terminals b2 (+) and b3 (–), as shown in Figure 637. If the unit is AC-powered, 24V DC auxillary power is available, as shown in
Figure 6-36 (24V DC, 100 mA maximum).
Figure 6-36 AC model power supply
6-26 ADS FlowShark Pulse O&M Manual
Figure 6-37 DC model power supply
Installation 6-27
Overvoltage Protection Precautions
To adequately protect the FlowShark Pulse transmitter, the power supply and mAoutput must have protection. ADS recommends EnerPro 220Tr, EnerPro 24Tr surge
arrestors (for 24 V DC) for the mains supply and the DataPro 2x1 24/24Tr for mAoutputs.
The flow velocity sensor and the LUS air-ultrasonic sensor have internal protection
against overvoltage. Provide protection against higher voltages using the DataPro
2x1 24/24 Tr and DataPro 2x1 12/12 –0.3 Tr(N).
Using overvoltage protection elements reduces the maximum
allowable cable length.
DataPro 2x1 12/12 –0.3 Tr(N) overvoltage protection will consume
up to 300 mV. The line resistance is 0.3 Ohm/wire. This resistance
must be taken into account with the total allowable resistance
(refer to Sensor Connection on page 6-17).
6-28 ADS FlowShark Pulse O&M Manual
for DIN rail mounting
in the control panel
24 V AC
FlowShark Pulse
+ b19
1p
+
1
EnerPro
2 x 1 - 24 V
- b20
2p
24 V AC
-
2
power supply
1.5 mm 2 min.
230 V AC
analog output 1
Do not switch the
protected (p) and
unprotected side of the
overvoltage protection.
a1
L
a2
N
a3
+
b18
-
b20
L
1
PE
1
N
230
EnerPro 220 Tr
1p
PE
230 V AC
green/yellow
1.5 mm 2 min.
1
DataPro
2 x 1 24 V / 24 V
2p
2
1.5 mm 2 min.
analog output 2
+
b19
1p
1
DataPro
2 x 1 24 V / 24 V
2p
2
1.5 mm 2 min.
analog input 1
+
-
b16
1p
1
external level signal
4-20mA
(supply of a signal)
DataPro
2 x 1 24 V / 24 V
b18
2p
2
1.5 mm 2 min.
analog input 5
(Ex)
+
D8
-
D9
1p
1
DataPro
2 x 1 24 V / 24 V
2p
external 2-wire sensor
(Ex)
2
1.5 mm 2 min.
analog input 4
+
a17
-
a18
1p
1
DataPro
2 x 1 24 V / 24 V
2p
external
control set point value
2
1.5 mm 2 min.
Figure 6-38 Connecting the overvoltage protection for the power supply and analog inputs and outputs
Please observe the non-reversed connection of the DataPro (p-side
to transmitter) and a correct, straight wiring supply. Ground
(earth) must lead to the unprotected side.
Installation 6-29
FlowShark Pulse
outer shield
G5
supply +
G4
UE-GND
G3
RxTx -
G2
RxTx +
G1
black
1p
2p
DataPro
2 x 1 12 V / 12 V
-0.3 Tr (N)
red
1
2
blue
1.5 mm 2 min.
1p
1
DataPro
2 x 1 24/24 Tr
2p
2
green
white
1.5 mm 2 min.
Figure 6-39 Overvoltage protection for the combi sensor supporting water-ultrasonic measurement
FlowShark Pulse
outer shield
D5
supply +
D4
UE-GND
D3
RxTx -
D2
RxTx +
D1
black
1p
2p
DataPro
2 x 1 12 V / 12 V
-0.3 Tr (N)
1
2
red
blue
air ultrasonic sensor
1.5 mm min.
2
1p
1
DataPro
2 x 1 24/24 Tr
2p
2
green
white
1.5 mm 2 min.
Figure 6-40 Overvoltage protection for the air-ultrasonic sensor
Please observe the non-reversed connection of the DataPro (p-side
to transmitter) and a correct, straight wiring supply. Ground
(earth) must lead to the unprotected side.
Please note that incorrect wiring will deactivate the overvoltage
protection function.
6-30 ADS FlowShark Pulse O&M Manual
Regulator Mode
General
A FlowShark Pulse Model 20 is required for managing flow volume, which is
controlled automatically by the transmitter. The FlowShark Pulse Model 10 has
neither an external setpoint input nor the two digital outputs to drive the regulator
slide valve or digital inputs required for slide valve administration. Therefore, when
operating a Model 10, please use an appropriate external controller and program it
according to the manufacturer’s specifications.
Typically, sluice gate valves, knife gate valves, or iris gate valves are used with an
electrically driven three-step controller. Analog-driven slide valves cannot be used.
ADS recommends selecting gate valves based on the following regulating intervals
(i.e., the time elapsed between a completely open valve and completely closed valve):
</= 300 mm (11.8 in) diameter: minimum 60 seconds
</= 500 mm (19.7 in) diameter: minimum 120 seconds
</= 800 mm (31.5 in) diameter: minimum 240 seconds
</= 1000 mm (39.4 in) diameter: minimum
For proper operation and error monitoring of the slide valve, the Way-End-Switches
must turn OFF and ON and the torque switches must turn ON. These signals must
be connected to the digital inputs of the FlowShark Pulse. Please use gold-plated
contacts to ensure contact reliability. Connect a signal relay between the switches
and the FlowShark Pulse digital input to safely conduct the 10 mA input current.
Analog position feedback to the FlowShark Pulse is not intentional.
The FlowShark Pulse operates as a three-step controller with surge detection, quickclose control, slide valve monitoring, and automatic flush function.
Digital inputs 4 and 5 are designated, by default, to drive the regulating unit. Digital
output 4 represents slide valve closed, and digital output 5 represents slide valve
open.
Modifying the assignment of the digital outputs is not permitted.
The input current for the digital inputs of the FlowShark Pulse is 10
mA. Ensure contact reliability by selecting appropriate contact
materials for the end switch of the controlled slide valve.
Installation 6-31
Setting up the Measurement Location
If possible, install the measurement device in front of the regulating unit. This setup
may not acknowledge or consider the response time of the control system. However,
it does prevent or minimize hydraulic disturbances from external vortices
downstream of the regulating unit.
Figure 6-41 Setting up a controlled system, such as a discharge control
If this installation configuration is not possible, install the measurement
device downstream of the slide valve a distance of at least 12 times the
maximum pipe height (Figure 6-42). In addition, inspect the hydraulic
conditions at the location before installing the equipment. To ensure
suitable measurement conditions, establish an adequate distance or
implement appropriate calming measures (such as deflectors or similar
devices) between the gate valve and the measurement location
downstream.
6-32 ADS FlowShark Pulse O&M Manual
Figure 6-42 Setting up measurement to occur behind the slide valve
Please note that extended run times delay feedback from measurement and control.
Therefore, program the control to respond slowly.
If maintaining a minimum distance is not possible, install flow calming elements,
such as rebounding surfaces or returns. Custom design these installations according
to the specific application and contact ADS for guidance.
Figure 6-43 Pipe measuring section
Installation 6-33
Additional Information Concerning Control Systems
Determine the distance between the flow velocity sensor and the corresponding
control slide valve based on the default flow value, nominal diameter, and
preliminary pressure. This distance should be at least 3 times the internal diameter of
the pipe; however, a distance of up to 5 times the internal diameter is preferable,
when possible.
Flow velocities in the control distance should not fall below 0.98 feet per second
(30cm/s) under typical flow conditions to ensure adequate detection.
When using an air-ultrasonic sensor, calculate the required dome height according to
the maximum preliminary pressure.
Please note when using ADS air-ultrasonic sensors:
Minimum dome height [mm] = 350 mm (13.78 inches) + x • 40 mm (1.57 inches)
x=
maximum impound pressure in [m] upstream of
control slide valve
The slide valve should have exactly the same inside diameter as the incoming and
outgoing pipes. Always avoid hydraulic jumps, ledges, weld seams, rising flange
densities, and other structures when choosing a measurement location.
Install pipe insertion sensors slightly off center when sludge and/or silt are present.
Measuring flow depth with the pipe insertion sensor is not possible
when the sensor is not installed at the bottom center of the pipe.
6-34 ADS FlowShark Pulse O&M Manual
Connection
Figure 6-44 Wiring diagram for controller operation
Control Algorithm
Selecting the regulator function automatically sets relay 4 to for the SLIDE VALVE
CLOSED function and relay 5 for the SLIDE VALVE OPEN function. This default
assignment cannot be modified.
The digital inputs are programmable for providing position feedback. To ensure
proper, reliable slide valve drive response, employ the PATH OFF, PATH ON and
TORQUE OFF messages for the slide valve drive.
Installation 6-35
The input current per digital input is 10 mA.
When driving the slide valves via the digital inputs, always use all
three messages. Activating only one message may destabilize
regulator operation.
The regulator can operate with an external or internal setpoint. When using external
setpoints, always route them to analog input 4.
When using a 4-20 mA signal as an external setpoint, monitor the signal for cable
breaks and short circuits. If errors occur, the FlowShark Pulse will access the internal
setpoint. Always set the internal setpoint when using external 4-20 mA setpoints and
error monitoring.
The following equation can be used for the internal calculation for slide valve control
time:
control time = (setpoint – flowactual value) • P_factor •
maximum slide valve runtime
maximum flow
6-36 ADS FlowShark Pulse O&M Manual
Communication
General
Access to the FlowShark Pulse is available, based on the following requirements:
z
Corporate Intranet or TCP/IP network (i.e., Local Area Network (LAN))
z
Current Internet Explorer browser (not accessible through Firefox, Opera, or
other browsers)
z
Java®
PCs and laptop computers require no special software or configuration. Once the
FlowShark Pulse is configured and data transmission is set up, the unit is accessible
from any location.
The FlowShark Pulse does not provide real-time access or
automatic data transmission. Access to the FlowShark Pulse
involves direct communication initiated by the user through a PC
or laptop computer.
Data Communication
The following methods are available for data communication and setting remote
parameters, depending on the model of transmitter:
z
Ethernet
z
External GSM/GPRS gateway
Obtaining remote access to the unit will require the user to incur
certain communication costs corresponding to the equipment and
usage. These costs may vary based on the Internet provider, time
online, flat rate, and other contracts and agreements. ADS neither
profits from nor influences these costs and/or fees.
The system administrator is responsible for anticipating and
planning for immediate and ongoing communication expenses.
Communication Options
ADS offers several communications options for the FlowShark Pulse:
z
Direct Ethernet connection between a PC/Laptop and the FlowShark Pulse
using a cross-link cable
Installation 6-37
z
Ethernet connection over a TCP/IP network connection through an Ethernet
hub or switch (see Figure 6-45) using patch cables
z
Network server connection via DHCP (Dynamic Host Configuration Protocol)
and/or DNS (Domain Name Server) – See Figure 6-46.
z
Remote communication through a GSM/GPRS communication device
(gateway) – See Figure 6-47.
FlowShark Pulse
PC/Laptop/Server
HUB/Switch
Address http://192.168.003.084
Simply input IP address
Will call up the integrated
web server automatically.
TCP/IP network
TCP/IP network
Figure 6-45 Communication without a server
FlowShark Pulse
Client
HUB/Switch
TCP/IP network
Address http://192.168.003.084
TCP/IP network
Server
Simply input IP address or name
Will call up the integrated
web server automatically.
The DHCP-Server creates an assignment
from the MAC address (hardware) of the
FlowShark Pulse to an IP address. If you
wish to use a DNS additionally, it is
necessary to assign a name to the
IP address.
Figure 6-46 Communication with a server
PC/Laptop/Server
FlowShark Pulse
GSM/GPRS Gateway fitted with
Static IP Address SIM Card
Address http://192.168.003.084
TCP/IP
TCP/IP
Simply input IP address or name
Will call up the integrated
web server automatically.
Figure 6-47 Communication through a GSM/GPRS gateway
CHAPTER 7
Initial Startup and Communication
After installing and connecting the FlowShark Pulse transmitter and sensors (refer to
Chapter 6, Installation) and providing power to the unit, the user can communicate
with the unit. The user interface on the FlowShark Pulse enables the user to easily set
up basic and advanced settings on a graphic dialog to ensure reliable device
operation. This interface includes a keypad on the transmitter and is also accessible
through an Internet browser.
Communication with the transmitter through a browser can occur on-site or from a
remote location. Direct communication requires only an Ethernet connection using a
cross-link cable between the user’s PC/laptop and the FlowShark Pulse. Remote
access occurs over a TCP/IP network (LAN) or through an external GSM/GPRS
gateway.
This chapter includes instructions on establishing communication with the FlowShark
Pulse through an Internet brower, reading the display, and operating the keypad.
Review this chapter carefully to become familiar with the display and keypad before
configuring the device.
7-2
ADS FlowShark Pulse O&M Manual
Establishing Communication Through a Browser
To establish communication with a FlowShark Pulse through an Internet browser,
launch the browser from a PC or laptop computer and then enter the IP address for
the transmitter. Once the connection has been established successfully, enter the
proper username and password.
Figure 7-1 Login screen for FlowShark Pulse
Once the user is logged in, the current Measurement Data (flow rate, depth level,
and flow velocity) displays on the right side of the screen.
Initial Startup and Communication
7-3
Figure 7-2 Static communication page
Setup the screen to automatically refresh these values at 2-, 5-, or 10-second intervals
by selecting the desired interval from the drop-down list below the Measurement
Data field.
Clicking the Remote Control button on the left side of the screen launches a Java™
applet. If the Java software is not installed on the PC, download it for free from the
Java website by clicking the Java link (beside the Remote Control button).
The remote control function is not available if the free Java
software is not installed on the user’s PC or laptop computer.
7-4
ADS FlowShark Pulse O&M Manual
®
Figure 7-3 Launching the Java Applet
After successfully launching Java™, the FlowShark Pulse screen displays.
Figure 7-4 Viewing the connection online
The user can now operate the FlowShark Pulse via the PC or laptop computer
keyboard (using the left, right, up, and down arrow keys and the Enter, ESC and
ALT keys) as though the user were using the keys on the front of the unit. Another
available method for operating the unit involves clicking the virtual keys on the
screen using a mouse.
The user may experience delays in response due to the method of transmission.
Therefore, ADS recommends avoiding quick, consecutive control entries. After
Initial Startup and Communication
initiating a specific command, confirm visible execution and completion of the
operation before proceeding to the next command.
Log off the unit by clicking on the Logout link on the left side of the screen.
7-5
7-6
ADS FlowShark Pulse O&M Manual
Operator Keypad
The FlowShark Pulse has an 18-button keypad for setting parameters.
Figure 7-5 Operator panel
Initial Startup and Communication
7-7
Display
The FlowShark Pulse has a large, backlit graphic display with a 128- x 128-pixel
resolution.
Figure 7-6 Display
The top of the display provides five basic menus for selection:
z
RUN This menu represents the standard mode of operation. In addition to
indicating the name of the measurement location, this menu allows the user to
view time, flow rate, flow depth, average flow velocity (as well as flow
velocity distribution), daily totals, and error messages. It also includes a
function enabling the user to observe historical flow volume, flow depth, and
average flow velocity.
z
PAR This is the most extensive menu on the FlowShark Pulse. It exists for
setting the parameters for the measurement location, sensors, analog and
digital inputs and outputs, data storage and transmission, and regulator
function.
z
I/O This menu provides information concerning the internal operation of the
FlowShark Pulse. It allows the user to view all current readings, including the
values of analog and digital outputs and relays. It also displays sensor echoes
and individual velocity readings. In addition, it enables the user to determine
the memory remaining on the optional memory card as well as the time
remaining on the card (based on the cycle time).
z
CAL This menu allows the user to calibrate flow depth offsets, set additional
velocity parameters, and simulate analog and digital outputs.
z
EXTRA This sub-menu enables the user to modify the basic display settings:
contrast, lighting, language, units, system times, and totalizer presets.
7-8
ADS FlowShark Pulse O&M Manual
Operation Basics
The FlowShark Pulse has a user-friendly interface and is completely menu driven.
Use the control keys to navigate through the menu (refer to Chapter 8, Parameter
Settings).
Use these buttons to move among the main menus.
Use these buttons to scroll within the main menus.
Use this button to enter a selected submenu and open inputs
and drop-down lists. This button also exists for confirming
data entries.
Use this button to exit submenus or cancel data entered.
-
Use these buttons to set parameters and to enter numbers and
text (such as the name of a measurement location). Entering
text on the FlowShark Pulse is similar to entering text using
a telephone keypad or cell phone buttons. Pressing a button
multiple times quickly moves the cursor to the next letter.
The cursor will automatically jump to the next digit if a
button is not pressed within 2 seconds.
Use this button for entering digits and, when in RUN-Mode,
recalling identification information for the device, such as
the software version, sensor firmware version, and
transmitter serial numbers. It also functions to resume
communication between the transmitter and the flow
velocity sensor or air-ultrasonic sensor.
Use this button to alternate between uppercase and
lowercase letters in text entry mode. It also is useful for
removing and adding data. When setting parameters, this
button can be used to enable or disable various functions and
to SHIFT-key between various programming options.
CHAPTER 8
Parameter Settings
After installing and connecting the FlowShark Pulse transmitter and sensors (refer to
Chapter 6, Installation), hooking up the power supply, and establishing initial
communication with the transmitter, set the configuration parameters for the system.
Standard applications typically require the user to input or modify only a few basic
settings:
z
Geometry and dimensions of the measurement location
z
Sensors in use and positioning
z
Display units
z
Span and function of analog and digital outputs
A standard application reflects the following conditions and equipment:
z
Partially-filled, standard pipe
z
Combi sensor installed at the bottom of the pipe for measuring flow depth and
velocity (ignoring values above or below the minimum and maximum
detectable depth levels)
z
Presence of silt that requires a vertical sensor offset
z
1x mA output for flow rate and 1x impulse output (e.g., to a sampler)
For projects involving advanced configuration, complex hydraulic conditions, unique
pipe shapes, limited technical staff, or specific setup procedures and error protocols,
contact ADS for assistance in configuring the FlowShark Pulse.
8-2
ADS FlowShark Pulse O&M Manual
Quick Start Guide for Setting Parameters
Set the following parameters for a standard installation using the FlowShark Pulse
menu:
1. EXTRA > Units Select the units of measure for flow rate (mgd), velocity
(ft/s), depth/height (ft), and total (ft³) (units in brackets reflect the default
settings).
2. PAR > Measurement place > Channel profile Select the profile of the
pipe or channel.
3. PAR > Measurement place > Channel dimensions Enter the
dimensions of the channel or pipe.
4. EXTRA > Display Adjust the brightness and contrast for the display, if
necessary.
5. EXTRA > System time Adjust the time, if necessary.
Additional Settings
6. PAR > Measurement place > Name Enter the name of the measurement
location.
7. PAR > analog outputs > Function Enable analog output 1 (flow).
8. PAR > analog outputs > output span Select the output range (e.g., 4 –
20 mA).
9. PAR > analog outputs > measurement span Select the specific entity
measurement range (e.g., 0 – 20 mgd).
10. PAR > analog outputs > error mode Designate the default depth value
the analog output should report when a sensor error occurs.
11. PAR > Relay outputs > Function Enable relay 1 (select pos-total
impulse).
12. PAR > Relay outputs > Pulse parameter Set the impulse value (e.g.,
volume of flow after which an impulse is triggered) and duration.
When finished setting the parameters, exit the parameter settings and save the settings
by entering the following code number: 2718.
Parameter Settings
8-3
Basics for Setting Parameters
The transmitter operates automatically using the existing settings until the user enters
and accepts new input parameters. Once the user finishes entering all the new
settings, the system will prompt the user whether to accept the new values.
Following confirmation, the user must enter the following code number.
2718
Type in 2718 if prompted.
Do not give this code number to an unauthorized person. In
addition, do not leave the code next to or write it down on the
equipment. This number prevents access by unauthorized users.
If the user enters the wrong code three times, the system will abort the parameter
mode and initiate operation based on the existing parameters. If the correct code is
entered, the system will accept the modified parameters and reset. The reset will take
approximately 20 to 30 seconds.
In addition to saving modified parameters or rejecting modifications (by clicking No
at the end of the parameter setting procedure), the user also can return to the previous
menu level using the Back function. This enables the user to modify settings that
may have been overlooked without saving the settings modified previously.
Figure 8-1 Screen displayed once parameters are set
If the user verifies each parameter without modifying any of the parameters, the
system will not prompt the user at the end.
Because the language, units, contrast, and display brightness parameters only affect
presentation, and not measurement or output, the user is not required to enter the code
after modifying these settings.
This instruction manual describes all the configuration and
programming options for the FlowShark Pulse. The transmitter
type will determine the inputs and outputs available. While the
inputs/outputs may be programmable, they may not be available for
8-4
ADS FlowShark Pulse O&M Manual
use or connection. Refer to Chapter 4, System Overview and
Operation.
The FlowShark Pulse Model 10 transmitter represents this kind of
scenario because it has only 2 analog outputs, 2 relay outputs, and
1 analog input. This device does not have a digital input and
cannot be operated as a controller. It can be operated only with 2
analog outputs and 2 relay outputs. Please use the Model 20
transmitter to employ digital input and controller functions.
After mounting and installing the sensor and transmitter (refer to Chapter 7,
Installation), activate the power supply.
The initial start-up dialog displayed is language selection:
Figure 8-2 Language Selection
Select the desired language using the arrow keys, and then press Enter to confirm.
Please press the key only one time.
The transmitter initiates communication with the sensor and coordinates both
processor programs. While this occurs, the software version number displays on the
transmitter. This number is required for reference if problems occur during
configuration.
Perform this procedure after each sensor change.
For safety reasons, please reset the system when replacing a sensor by powering
down the transmitter. The user can perform a full reset to the factory default settings
by selecting the load factory setup from the setup parameter submenu of the PAR
main menu.
Once the previous actions are complete, begin setting the parameters.
The unit loses custom parameters during a full reset, restoring the
factory default parameters.
Parameter Settings
8-5
Operation Mode (RUN)
This menu displays when the unit is in standard operating mode. The parameters
contained in the following submenus are not essential for parameter setup:
Figure 8-3 Standard operating mode
Standard
This screen displays basic information including the measurement location name, the
time, and the current flow rate, velocity, flow depth (level), and flow volume (since
midnight by default).
Graphic
This screen indicates the velocity distribution in a vertical measurement path.
Pressing up/down arrow keys moves the indicator line in the corresponding direction.
The selected height and current velocity displays at the bottom (Figure 8-4)
This screen enables the user to view the current flow conditions at the selected
measurement location. The velocity profile should be distributed evenly without
excessive discontinuity (Figure 8-5).
Under poor flow conditions, change the position of the velocity sensor.
Figure 8-4 Flow velocity distribution (height = maximum depth; v-max = maximum velocity; Hx = current depth value;
Vx = current velocity value; horizontal line in graph represents measurement window indicator)
8-6
ADS FlowShark Pulse O&M Manual
very good profile, area good profile, strongly
free of backwater
tending to backwater
Ill-suited profile
suitable profile
unsuitable profile
Figure 8-5 Flow velocity profiles
Day Values
Select the INFO submenu from the day values menu (Figure 8-6). This screen
displays the flow totals for the past 7 days (Figure 8-7), provided the transmitter has
operated without interruption for the past 7 days. If an interruption occurs, it displays
the flow totals for the uninterrupted days of operation.
Flow totals typically are calculated at midnight (00:00 h). Modify the time at which
this will occur, if necessary, through the RUN > Day Values > Interval (Figure 8-8).
The user also can obtain partial totals since the last reset. Reset the total to 0 by
pressing the ALT key. This reset does not modify the totalizer.
Figure 8-6 Info menu
Figure 8-7 Day values
Parameter Settings
8-7
Figure 8-8 Totalizing based on the time of day
Error Messages
This screen monitors any interruptions in unit function. The unit saves and organizes
errors by the type of error and the date and time at which the error occurred. The
ALT key deletes error messages one at a time, from the latest to the oldest.
Deleting an error message before it has been addressed will
prevent it from being written to memory again. However, the error
will surface in the memory once it occurs again (or if the power
supply is briefly interrupted).
Trend
This display functions like an electronic logger. It records average readings at a
designated interval for depth, average flow velocity, and depth (level) for the past 90
days. The user can select and view individual values from a submenu.
Figure 8-9 Trend value selection
The period over which the values have been averaged displays at the bottom of the
screen. New values are added as vertical lines on the right-hand side of the display at
the end of each configured storage interval (Figure 8-10). As new readings display,
older values move to the left and eventually move into the internal memory.
Use the left/right arrow keys to scroll through the time intervals to view older data
sets. Browse through daily values using the up/down arrow keys. This enables the
user to calculate and evaluate previous measurements, trends, dry weather periods,
and possible measurement problems that may have occurred in recent days.
The internal memory has a 90-day capacity. Therefore, new data will overwrite older
data sets in memory.
Scrolling will scale the readings displayed automatically; therefore, these values may
change to represent the most accurate reading available.
The user can set the time interval for the memory in the PAR > Storage Mode >
Interval menu. The factory default setting is a 2-minute interval.
8-8
ADS FlowShark Pulse O&M Manual
Figure 8-10 Example of trend graphic
The system will delete all graphic value trends saved previously if
the user modifies the memory interval or another parameter.
Parameter Settings
8-9
Display Menu (EXTRA)
This menu allows the user to modify settings, such as the basic screen, units,
language, and the display. The EXTRA menu contains the following submenus:
Figure 8-11 Extra submenus
Figure 8-12 Unit system selection
Figure 8-13 Selecting individual units
Units
This menu contains the following submenus:
z
Flow rate
z
Velocity
z
Level (Depth)
z
Total
The user can select the unit system in which each reading will display. Several unit
system options are available for each kind of reading.
Unit System
This feature allows the user to select from among the metric system (liter, cubic
meters, cm/s, etc.), English system (ft, in, gal/s, etc.), and American system (fps, mgd,
etc.).
8-10 ADS FlowShark Pulse O&M Manual
Language
This option enables the user to select the language (German, English, French, Czech,
or Italian) in which readings will display.
Display
This feature allows the user to adjust the display settings regarding contrast and
brightness. Use
and
to decrease settings; use
and
to increase settings.
and
modify settings at 5 percent increments;
and
modify settings at1
percent increments.
System Time
To perform various control and memory functions, the unit includes an internal
system clock for saving dates corresponding to years, weekdays, and week numbers.
The user can modify clock date and time.
First, select the Info menu option:
Figure 8-14 System time submenu
The unit displays the system time after confirming the settings:
Figure 8-15 System time (date, calendar week, time)
This menu option is for display purposes only. Therefore, the user cannot adjust the
system time through this option. Perform these modifications through the Date and
Time menu options.
The corresponding week number will be set automatically once the date has been set.
Totalizer
This menu option allows the user to manually set the totalizer displayed on the main
screen. This function typically would be performed when replacing a transmitter to
ensure the same value displays following replacement.
After setting the new value, click on the Enter key twice consecutively to confirm
and then enter the code number 2718 to accept the new value. The unit offers the
user two attempts to enter the correct code.
Parameter Settings
Figure 8-16 Totalizer modification
Figure 8-17 Service code request
8-11
8-12 ADS FlowShark Pulse O&M Manual
Parameter Menu (PAR)
This is the most comprehensive and critical menu involved in setting FlowShark
Pulse parameters. While the user can modify many different parameters, the system
typically only requires the user to set the following parameters:
z
Location name
z
Pipe shape
z
Pipe dimensions
z
Sensor types
z
Analog output (function, signal range, and measurement range)
z
Relay output (function and values)
All other functions correspond to unique circumstances or applications, such as
special pipes, regulator mode, storage mode, or unusual hydraulic conditions.
Contact an ADS representative for assistance in setting these parameters.
This instruction manual describes all configuration and
programming options for the FlowShark Pulse. The device type
determines the inputs and outputs available. While these inputs
and outputs may be programmable, they may not be available for
use or connection.
This applies to the FlowShark Pulse Model 10, which has only 2
analog outputs, 2 relay outputs, 1 analog input, and no digital
input. The Model 10 cannot serve as a controller.
The parameter menu (PAR) includes 11 submenus described in the following
sections.
Parameter Menu: Measurement Place
Figure 8-18 Measurement place submenu
Parameter Settings
8-13
This menu is used for defining the measurement location and, therefore, serves as one
of the most important menus involved in setting parameters.
Due to the limited area for display, the entire menu cannot display on the screen. The
black bar to the right of the menu options indicates that additional options are
available on the menu.
Use up and down arrow keys to scroll through the menu.
Name of Measurement Location
ADS recommends managing and designating names based on the names used in the
associated documentation. A name may contain up to 21 characters. Entering a
name on the screen is similar to entering text on a cellular phone:
After selecting the Measurement Place Name submenu from the PAR menu, the
default setting, ADS, will display. Toggle between uppercase and lowercase letters
using the up and down arrow keys.
Pressing the Alt key will select or deselect a set of special characters (e.g., % or #).
Select a specific character using the left or right arrow keys, and confirm the selection
by pressing Enter.
Figure 8-19 Setting the name for the measurement location
Enter the desired name using the keypad; each key represents three letters and a
number (Refer to Chapter 7, Initial Startup and Communication). Cycle among the
four characters by repeatedly pressing a key. The cursor automatically will proceed
to the next character if the key has not been pressed for two seconds.
Following are descriptions of the function keys:
Move the cursor to the left or the right.
Move the cursor to the left side to delete the
character to the left of the cursor.
Move the cursor to the right to create a character
representing a space.
Toggle between uppercase and lowercase letters.
Shift to uppercase letters.
Shift to lowercase letters.
Confirm the name entered and exit the menu.
8-14 ADS FlowShark Pulse O&M Manual
Subdivide Channel Profile
This is a special parameter that enables the user to set parameters for large or oddshaped pipes with rounded tops. This parameter is not required for most standard
applications. Typically, ADS will set the parameters for applications involving
unique pipe types and sizes for the customer. Following is a brief description of how
to set this parameter.
The method for setting the dimensions for this pipe type involves dividing the pipe
profile into 2 or 3 level or height zones.
Press the ALT key to move among the following 3 options:
z
NO (no profile subdivision, standard setting)
z
2 (divide profile into 2 level / height zones)
z
3 (divide profile into 3 level / height zones)
Set the zones through PAR > Measurement Place > Channel Profile(s).
Set the bottom zone of the profile to Pipe (round), Egg, Rectangle, U-Profile,
Trapezoid, or 2r Egg. Set the height-width or height-area characteristics for the
central zone, and enter the segment dimensions of the circle representing the top zone
of the unique channel profile.
Figure 8-20 Profile divided into 3 zones
Channel Profile(s)
If the profile has not been subdivided, first select the zone (bottom, center, top) with
the ALT key and then set the desired profile. Select one of the following standard
profiles:
z
Pipe (round)
z
Egg (standard; height-to-width ratio = 1.5:1)
z
Rectangle
z
U-Profile
z
Trapezoid
Parameter Settings
z
2r Egg (height-to-width ratio = 1:1)
z
Q = f(h) (function of height – Lookup table)
z
Ellipse
Figure 8-21 Selecting the shape of the pipe
Select pipe shape using the up and down keys.
Confirm selection by pressing Enter.
The profile created displays in the programming mode screen.
Figure 8-22 Selected profile
If the existing profile does not correspond with any of the available options from
which to select, choose Custom shape.
Confirm by pressing Enter.
A message displays, requesting the known dimensional relationship.
Figure 8-23 Custom shape menu
8-15
8-16 ADS FlowShark Pulse O&M Manual
Channel Dimensions
Enter the corresponding pipe dimensions based on the previously selected profile.
Please note the units of measure in which the values are displayed.
Select Custom shape to display the table of 32 potential vertical segments. Enter the
values relating height-width or height-area (Figure 8-24), and then enter the
corresponding value pairs.
Figure 8-24 List of custom shape breakpoints
To define the zero point for the pipe, begin by entering 0 – 0 for segment 1. Enter the
subsequent segments based on the height and width/area.
Distances may vary among individual segments. Decrease the distance between
segments under conditions of heavy and irregular fluctuation within a specific area.
It is not necessary to use all 32 segments. The FlowShark Pulse will interpolate
between the missing segments.
Figure 8-25 Custom profile breakpoints
Parameter Settings
8-17
For pipe profiles divided into two zones, set the following parameters:
Bottom zone:
Top zone:
•
Pipe (round)
•
Egg
•
Rectangle
•
U-Profile
•
Trapezoid
•
2r Egg
•
Q=f(h)
•
Ellipse
•
Custom profile
For pipe profiles divided into three zones, set the following parameters:
•
Pipe (round)
•
Egg
•
Rectangle
•
U-Profile
•
Trapezoid
•
2r Egg
•
Q=f(h)
•
Ellipse
Center zone:
•
Custom profile
Top zone:
•
Pipe
Bottom zone:
Configuring individual pipe sections requires comprehensive
knowledge and experience in operating the FlowShark Pulse. To
ensure proper configuration, contact ADS for assistance in setting
up these parameters.
Sludge Level
This parameter represents the depth of the sludge that has accumulated at the bottom
of a pipe. This factor must be subtracted from the total wetted hydraulic area before
the FlowShark Pulse performs flow calculations.
8-18 ADS FlowShark Pulse O&M Manual
Low-Flow Volume Qmin.
This parameter exists to minimize the impact of slow-moving flows or noticeable
increases in volume. It primarily is used to measure overflow volumes in structures
that remain flooded by incoming flow.
Qmin: readings lower than this value will be set to 0. The user can only set positive
values, and each value will be considered an absolute value (i.e., very small positive
or negative flows will be set to zero).
Vmin: low-flow volumes in applications with large profiles and depth levels can be
suppressed using this parameter. Lower velocity fluctuations within longer periods of
time may cause apparently large volume fluctuations which cannot be ignored using
the Qmin value function.
Flow velocities below this value will be set to 0, which will ensure a calculated
volume of 0.
The user only can set positive values, and each value will be considered an absolute
value (i.e., very small positive or negative velocities will be set to zero).
Both low-flow suppression setting options have an OR logic relationship to each
other.
Figure 8-26 Selecting low-flow volumes
Suppressing low-flow volumes does not serve as an offset, but as a
limitation.
Parameter Settings
8-19
Parameter Menu: Level
Figure 8-27 Level measurement menu
This menu allows the user to define the parameters regarding depth measurement.
The start screen (Figure 8-28) and parameters available for setting may vary based on
the sensor type selected.
Figure 8-28 Example for selected depth sensor
Figure 8-29 Designating sensor type
8-20 ADS FlowShark Pulse O&M Manual
Sensor
No.
Air-Ultrasonic
01
Depth measurement using an air-ultrasonic sensor
connected directly to the FlowShark Pulse.
Requires an air-ultrasonic sensor.
Water-Ultrasonic
02
Standard version. Flow velocity and depth
measurement using combi sensor from the bottom
up.
Requires a 2K combi sensor.
External Sensor
03
Second standard version. Depth measurement using
an external, 2-wire sensor powered by FlowShark
Pulse or by external measurement unit and depth
input via mA input signal.
Requires an external 4-20 mA sensor.
Fixed Value
04
Use this point to set parameters for pipes and pipes
that remain full. These applications typically do not
require depth measurements. Enter the consistent
depth level under Scale/Height.
Pressure
05
Depth measurement determined by a sensorintegrated pressure measurement cell.
Requires a 3K or 4K combi sensor.
Pressure + AirUltrasonic
06
Depth measurements performed using a sensorintegrated pressure measurement cell and an airultrasonic sensor connected directly to a FlowShark
Pulse.
Requires a 3K or 4K combi sensor and an airultrasonic sensor.
Pressure + WaterUltrasonic
07
Depth measurements performed using combination
of sensor-integrated pressure measurement cell and
water-ultrasonic from bottom up.
Requires a 3K or 4K combi sensor.
Pressure + External
Sensor
08
Depth measurements performed using combination
of sensor-integrated pressure measurement cell and
external 2-wire sensor powered by FlowShark Pulse
or by an external measurement unit and depth input
via mA input signal.
Requires a 3K or 4K combi sensor and an external
4-20 mA sensor.
Parameter Settings
Sensor
No.
Water-Ultrasonic +
Air-Ultrasonic
09
8-21
Depth measurements performed using combination
of water-ultrasonic from bottom up and airultrasonic sensor connected directly to FlowShark
Pulse.
Requires a 2K or 4K combi sensor and an airultrasonic sensor.
Water-Ultrasonic +
External Sensor
10
Depth measurement performed using combination
of water-ultrasonic measurement from bottom up
and external 2-wire sensor or external measurement
unit and depth input via mA input signal.
Requires 2K or 4K combi sensor and external 4-20
mA sensor.
Pressure + WaterUltrasonic sensor +
external sensor
11
One of two FlowShark Pulse maximum
configurations. Three different depth sensors can
determine the depth level. The sensor-integrated
pressure measurement cell operates in combination
with the water-ultrasonic sensor from bottom up
and with an external 2-wire sensor powered by the
FlowShark Pulse or by an external measurement
unit and depth input via mA input signal.
Requires a 4K combi sensor and an external 4-20
mA sensor.
Pressure + WaterUltrasonic + AirUltrasonic
12
This is the second FlowShark Pulse maximum
configuration. Unlike the configuration above, the
third depth detection will be performed by an airultrasonic sensor connected directly to the
FlowShark Pulse. Therefore, this sensor replaces
the external transducer. Both other methods – the
sensor-integrated pressure measurement cell and the
water-ultrasonic sensor from bottom up – will be
used in same way mentioned previously.
Requires a 4K combi sensor and an air-ultrasonic
sensor.
8-22 ADS FlowShark Pulse O&M Manual
78.7 in (200 cm)
h max
=
h2
h2
h min
V1
h1
Figure 8-30 Example of an installation involving 2 depth sensors
Depth level measurement combinations 6-12 provide reliable readings under difficult
measurement conditions. These involve measurement locations that require more
than one sensor and experience surcharge conditions during rainfall events.
Please note that, when combined depth detection is in use among separate sensors,
the system employs only one method to measure flow quantity. Select the
appropriate method during configuration activities based on the flow depth. To
ensure reliable depth measurements, assess the general hydraulic conditions and
determine the most effective method for measurement at the location.
Enabling the memory mode and installing a memory card ensures all settings and
measurements are saved, providing access to the data for verification and
recalculation purposes at any time.
Determine the appropriate method for measuring depth during the preliminary stages
of project planning.
When choosing the method of measurement, connect a sensor to the
unit that is appropriately equipped for implementing that method.
While universal sensors have broad functionality, they may not be
adequate for acquiring the measurements required.
Mounting height
This parameter represents the height of the depth sensor above the pipe bottom. The
user cannot view or set the mounting height if sensor type 3 or 4 is selected.
This parameter is set to 0.394 inches (10 mm) by default. Do not modify this value
unless the sensor will be installed at a higher or lower elevation. When installing the
sensor higher (such as on a block), enter the total elevation of the 0.394 in (10 mm)
default value plus the additional height. When installing the sensor lower, enter the
Parameter Settings
8-23
value resulting from subtracting the reduced height from the default value of 0.394 in
(10 mm).
When using the air-ultrasonic sensor, enter the distance between the bottom edge of
the sensor and the pipe bottom.
The standard mounting height for the combi sensor with the pressure cell is 0.197 in
(5 mm), which represents the elevation of the sensor diaphragm above the pipe
bottom. It is not necessary to modify this value unless the sensor will be installed
higher or offset sideways. When installed higher, enter the total elevation of 0.197 in
(5 mm) plus the additional height.
Scale
This parameter is available only when sensor type 3 or 4 is selected.
To configure this parameter as a fixed value, enter the persistent water level. For a
full pipe, this value would be equivalent to the inside diameter of the pipe.
When using external sensors, enter the offset (to be added to the reading) and
measurement range (equivalent to 20mA of the FlowShark Pulse analog input).
Adjust the scale according to the measurement range or the scale of the
corresponding external depth sensor’s analog output.
Connection
This parameter is not available if the external depth sensor (sensor type 3, 8, or 10) is
selected. The user can enable the respective terminal clamp by clicking the ALT key.
Two-wire sensors must be connected to terminal clamps D8 and D9.
Select Ex-Zone from the Connection menu.
External level signals must always be connected to the non-Ex
area. Under this condition, select All from the Connection menu.
To connect these sensors, refer to Chapter 6, Installation.
Split Sensors
This parameter is available only when the unit is set up for combined depth
measurement (sensor combinations 6–12).
The user can choose up to 3 level zones: bottom, center, and top. Toggle among the
zones using the Alt key, and set the desired method for measuring depth for each
zone. The only methods available for selection are those that have been previously
selected during sensor type selection.
After selecting the method for measurement, set the height at which to switch the
FlowShark Pulse to the adjacent zone.
8-24 ADS FlowShark Pulse O&M Manual
Figure 8-31 Selecting the measurement method
Figure 8-32 Setting the switchover depth between measurement methods
Errors are not uncommon when setting the parameters for combi
sensors that perform several methods for measuring depth at
multiple locations. Therefore, to confirm these settings, please
contact an ADS representative for assistance in performing the
initial setup procedures.
Parameter Menu: Flow Velocity
Connecting 1 sensor
The number of sensors is set to 1 by default.
Figure 8-33 Setting the number of sensors
Parameter Settings
8-25
Configuring additional sensors requires extensive hydraulic
knowledge. Therefore, ADS strongly recommends contacting an
ADS representative for assistance in configuration to ensure proper
setup.
Figure 8-34 Sensor settings
Choosing the sensor type displays the following screen:
Figure 8-35 Selecting a sensor type
Sensor Type
Choose the wedge (combi) or pipe insertion sensor by selecting the desired option
and clicking the ALT key.
Installation position is set to positive by default. Do not modify this parameter.
The negative setting only exists for specific applications where the flow velocity
sensor is facing downstream (the sensor faces upstream during standard applications)
to detect negative velocities.
Mounting Place
This parameter allows the user to modify the installation height for the flow velocity
(combi) sensor. The default setting is 0.788 in (20 mm), which represents the
position of the sensor when it is installed at the bottom center of the pipe. This
setting does not require modification unless the sensor has been installed higher or
lower. If the sensor has been installed higher, enter the total value of the additional
mounting height plus 0.788 inches (20 mm); if the sensor has been installed lower,
enter the overall height after subtracting the missing height from 0.788 inches (20
mm).
8-26 ADS FlowShark Pulse O&M Manual
Connecting 2 or 3 sensors: Selecting 2 or 3 flow velocity sensors displays the
following screen:
Figure 8-36 Extended sensor settings
Select the sensor corresponding to Flow Velocity/Sensor No. The following screen
displays.
Figure 8-37 Selecting sensor type and mounting position
Sensor Type
Selecting and choosing the parameters for several flow velocity sensor types involves
the same procedure used for only one velocity sensor.
Mounting Place
Enter the mounting height for each sensor on this screen. Use the lowest sensor
(must be sensor 1) as the point of reference for determining the height of the other
sensors. (refer to Figure 8-38).
Installed at the lowest point in the channel or pipe, sensor 1 serves
as the guide for the height settings for the other flow velocity
sensors.
If several flow velocity sensors are in use and one of them functions
in conjunction with ultrasonic depth measurement from the bottom
up (water-ultrasonic) or with the pressure measurement cell,
designate this sensor as sensor 1 within the sequence and install it
at the lowest point of the installation.
Parameter Settings
8-27
Modifying the mounting location for the depth sensor requires
modifying the CAL > Velocity > Channel No. > h_crit parameter
by the same factor.
Figure 8-38 Sensor assignment
If sensors 2 and 3 are installed at a higher elevation than sensor 1,
enter the height difference for height h under the mounting place
menu option. Velocities occurring below this level will refer to
only sensor 1.
Figure 8-39 Assigning individual values for flow velocity sensors
Distance d represents the distance to the vertical profile center line. This parameter
currently is not applicable.
8-28 ADS FlowShark Pulse O&M Manual
The percent setting defines the relative weighting of each sensor in relation to the
velocity profile.
The weighting of individual sensor velocities depends primarily upon the geometry of
the channel and sensor placement. Contact ADS for assistance in assigning
weighting for each sensor.
Parameter Menu: Analog Inputs
Figure 8-40 Analog inputs – submenu
Based on the transmitter type, several analog inputs may be available. For example,
the Model 10 transmitter includes the following inputs:
z
1 analog input (galvanically isolated) for two-wire sensors
z
1 additional analog input for external depth sensor connection
Model 20 transmitters include the following inputs:
z
1 analog input (galvanically isolated) for two-wire sensors
z
4 additional analog inputs for external depth sensor connection and external
setpoints or analog data storage.
The user can choose and select settings for any analog input,
regardless of the transmitter in use (for example, Model 10
transmitters have only 2 analog inputs).
If an external depth sensor (connection: AI1) has been enabled for
a Model 10 transmitter in the Level menu in the past, an analog
input parameter will no longer be available in the settings.
Function, measurement range, control signal span, and other parameters may be set
for each analog input. It also is possible to linearize each input stage independently.
Parameter Settings
8-29
Channel Number
Select the appropriate analog input, from inputs 1–4, for which to set the following
parameters.
Name
(optional) Enter a name to which to save the analog input to the memory card. This
card is the only location in which this name will be saved.
To enter the name, follow the same procedure used in PAR > Measurement Place >
Name.
Function
Assign functions to the analog input selected under the Channel Number. Select
from among the following functions by pressing the ALT key:
z
Analog input disabled – disabling the analog input
z
Log value – saving/logging the analog input value (data logging function of
transmitter)
z
Setpoint – enabling the analog input as the external setpoint when the unit is
in regulator mode
z
Setpoint + Log – enabling and saving the analog input as the external setpoint
when the unit is in regulator mode
Measurement Span
Select the appropriate signal measurement span: 0-20 mA or 4-20 mA. Using an
optional 0-5 V or 0-10 V voltage input requires a corresponding modification to the
unit hardware. This modification should be performed only by ADS personnel.
Units
Select the appropriate unit of measure from the units table.
Figure 8-41 Units of measurement table
8-30 ADS FlowShark Pulse O&M Manual
Linearization
Define the range for the analog input, and modify the weighting of the analog input
using a 16-digit (maximum) breakpoint table. When used properly, this point can
provide some helpful insight into setting FlowShark Pulse parameters. For example,
the user can convert a depth/height signal into a volume-proportional signal, which
can be saved, or route the signal to one of the analog outputs for further processing or
display.
Simply enter the number of breakpoints, and then confirm the entry by pressing
This displays a table with the respective units.
.
Figure 8-42 Table of values for analog input range
Enter the mA value in the X-column and the other value in the Y-column (The user
previously selected the appropriate unit of measure through the Units menu option).
For standard (linear) applications, such as setpoint input, or to save a reading, enter 2
as the breakpoint value. Then, define the analog input range (i.e., enter the respective
values for 4 mA and 20 mA).
Offset
In addition to the input current, add a fixed positive or negative offset to the analog
value using the units previously chosen.
Parameter Menu: Digital Inputs
Figure 8-43 Digital inputs – submenu
Parameter Settings
8-31
This section enables the user to set and assign the digital input signals Control
OPEN, Control CLOSED, and Torque CLOSED. The FlowShark Pulse Model 20
requires these input classifications for regulator operation.
The Lock v-measurement function is available only for digital input 1.
Figure 8-44 Digital input functions
Locking measurements may be useful for challenging applications, such as locations
that characteristically reflect backwater conditions. The unit either releases or locks
the velocity measurement based on a limit value contact, such as a discrete echo
sounder, float switch, or conductive transducer, using the overflow height as the
switching threshold. Locking refers to setting the flow velocity readings to 0. Since
the unit will calculate volume as V=0, no analog or digital values corresponding to
flow will be available.
However, selecting the option to save individual gates will ensure individual velocity
readings are saved.
Channel number
Select the appropriate digital input, from inputs 1–4, for which to set the following
parameters.
Name
(optional) Enter the name to which to save the digital input to the memory card. This
card is the only location in which this name will be saved.
To enter the name, follow the same procedure used in PAR > Measurement Place >
Name.
Function
Assign regulator setting functions to the digital input selected under the Channel
Number. Select from among the following functions by pressing the ALT key:
z
Disabled
z
Control CLOSED Routes the slide end switch for closed condition to the
selected digital input
8-32 ADS FlowShark Pulse O&M Manual
z
Control OPEN Wires the slide end switch for open condition to the selected
digital input
z
Torque Connects the torque switch for closed condition to the selected
digital input
z
Lock V-measurement Configures DI 1 to lock the measurement
exclusively. The display will read Measurement locked. No output from
AO + DO.
This function is designed particularly for locations that characteristically
experience turbulent backwater conditions. To effectively use this function,
the flow velocity reading must be either locked or released at a specific
threshold value corresponding to the peak overflow. For example, detection
could occur using a separate echo sounder, float switch, or conductive sensor.
A locked measurement means that flow velocity reading will be set to 0.
Therefore, the volume will be calculated based on a velocity reading of 0,
eliminating analog or digital flow output. Enabling the option for saving
single velocity gates will ensure the unit saves individual velocity readings
without using them in calculations.
Digital inputs are passive and, therefore, are supplied by an
external 2- V DC power supply. The signal current is 10 mA. To
ensure reliable conductivity, use relay or end switch contacts made
of a high-quality material.
Logic
Toggle between inverse and non-inverse input by pressing ALT. For example, this
can allow a user to configure the unit to view closed slide valve signals under normal
conditions. Therefore, a constant signal level would be equivalent to a disengaged
end switch, allowing the unit to detect cable breaks easily.
Parameter Menu: Analog Outputs
Figure 8-45 Analog outputs – submenu
Parameter Settings
8-33
Use this option to define the function and measurement range of each analog output.
The user typically can select and set 4 analog outputs; however,
Model 10 transmitters have only 2 analog outputs.
Channel number
Select the analog output, from outputs 1-4, for which to set the following parameters.
Name
This parameter is not required. Set this parameter only when saving the analog
output to the memory card. This name will be saved only to the card.
Follow the same procedure described in PAR/Measurement Place/Name.
Function
Assign the following functions based on the analog output channel selected through
the Channel Number parameter. Select the desired output function from the list:
z
Disabled No analog output signal is available.
z
Output flow Analog signal output represents calculated flow volume.
z
Output level Analog signal output represents the depth level reading.
z
Velocity Analog signal output represents the mean (or average) flow
velocity based on the individual velocity readings.
z
Water temperature Analog signal output represents the water temperature
reading.
z
Air temperature Analog signal output represents the air temperature
measured by the LUS air-ultrasonic sensor (output is available only when the
LUS sensor is connected).
z
Analog input 1 Analog output signal represents the analog input 1output
value assigned by the user.
z
Analog input 2 Analog output signal represents the analog input 2output
value assigned by the user.
z
Analog input 3 Analog output signal represents the analog input 3 output
value assigned by the user.
z
Analog input 4 Analog output signal represents the analog input 4output
value assigned by the user.
The following functions also are available when using more than one velocity sensor:
Function
z
Velocity v1 Analog signal output represents average velocity from sensor 1.
8-34 ADS FlowShark Pulse O&M Manual
z
Velocity v2 Analog signal output represents average velocity from sensor 2.
z
Velocity v3 Analog signal output represents average velocity from sensor 3.
Figure 8-46 Selecting analog output functions
The hardware configuration of the Model 20 transmitter allows the
user to route the analog input to the analog output. While the user
can configure the Model 10 transmitter for this setup, the wiring in
the Model 10 does not support this hardware implementation.
Output span
Select one of the following output spans: 0-20 mA or 4-20 mA.
Measurement span or range
Define the range for the analog output signal. Negative values may be included.
Figure 8-47 Measurement span
Example:
The measurement location tends to experience backwater conditions. Therefore, the
unit will record negative values. However, the system has only one analog input
available. When this occurs, set the analog output signal for "floating” conditions.
Configure the measurement span so that the zero (0) reading for flow exists in the
middle of the measurement span, such as the following:
4 mA = -1.00 mgd
20 mA = 1.00 mgd
For this example, the signal output for a zero (0) reading for flow would be 12 mA.
Backwater would decrease the analog signal; positive flow would increase the signal.
Parameter Settings
8-35
Error mode
Define the desired analog output condition for errors, such as cable breaks or a CPU
failure.
Pressing this key offers the following options for selection:
z
0 mA
z
Hold (This option retains the latest valid signal value until the error has been
removed or no longer exists.)
z
4 mA
z
20.5 mA
Parameter Menu: Digital Outputs
Figure 8-48 Digital outputs – submenu
This menu allows the user to define both functions and accompanying parameters,
such as limit values and pulse duration, for individual relay outputs.
Typically, the user can choose and set 5 relays; however, Model 10
transmitters have only 2 relays.
Relays 4 and 5 in Model 20 transmitters are dedicated for regulator
functions only when the regulator has been enabled.
Channel number
Select the relay, from relays 1–5, for which to set the following parameters.
8-36 ADS FlowShark Pulse O&M Manual
Name
This menu is available only when a function has been enabled. Entering a name is
not required; the name is used only for internal unit functions. However, when
entering a name, select a name corresponding to the name of the relay output
previously selected.
To enter the name, use the same procedure described in PAR > Measurement Place
> Name.
Function
Assign functions to the selected relay by entering the Channel Number. Use the
ALT key to select from the following functions:
z
Disabled This function is not in use.
z
Flow limit contact The relay will close if the flow exceeds a designated
threshold and open if the flow falls below a second designated threshold.
z
Velocity limit contact The relay will close if velocity exceeds a designated
threshold and open if velocity falls below a second designated threshold.
z
Level limit contact The relay will close if the depth level exceeds a
designated threshold and open if the depth level falls below a second
designated threshold.
The following functions need to be set only one time:
Total positive impulses – the relay will output volume-proportional
impulses if the flow occurs in a positive direction. Weighting and
impulse duration are programmable.
Total negative impulses – the relay will output volume-proportional
impulses if the flow occurs in a negative direction (backwater].
Weighting and impulse duration are programmable.
Error messages – the relay will close when error messages occur,
such as sensor errors, cable breaks, power failures, or processor
failures.
Figure 8-49 Defining the relay function
Parameter Settings
8-37
Logic
Pressing the ALT key enables the user to select between normally open and
normally closed. Selecting normally open ensures the relay closes once the
designated threshold is met. Selecting normally close ensures the relay closes
immediately after setting the parameter and opens once the designated threshold is
met.
Trigger Levels
This menu displays only when the trigger level function is selected.
Figure 8-50 Setting the trigger levels
The start and stop point settings determine whether the corresponding trigger serves
as a switching threshold (ON > OFF) or as an in-range alarm (ON < OFF).
Impulse Parameter
This menu displays only when the Impulses function is selected.
Figure 8-51 Setting impulse parameters
Select from the following options:
z
Duration Select an impulse duration between 0.01 and 2.0 seconds. The
ratio between impulse and break is 1:1. It is useful to increase the impulse
duration beyond the 0.5-second default setting for slow PLC inputs or when
mechanical counters are in use.
z
Amount This parameter defines when the impulse occurs. The measured
amount (e.g., gallons flowing) will be integrated internally until the selected
value has been reached. An impulse signal of the duration programmed
previously will be emitted, afterwhich the integrated internal value will be set
to 0 again. This process will recur indefinitely.
8-38 ADS FlowShark Pulse O&M Manual
Parameter Menu: Flow Controller
Figure 8-52 Basic settings for the flow controller
This menu enables the user to adjust the transmitter for almost any wastewater
conditions to achieve optimum performance. It also allows slide valve execution,
torque monitoring, and quick-close control or automatic flush functions.
Refer to the Regulator section in Chapter 6, Installation, for more comprehensive
information on the principles for setup and operation.
The flow controller function may be used only in conjunction with
Model 20 transmitters. While the Model 10 allows the setting of
these parameters, it has neither the outputs nor respective
connections for regulator operation.
Function
The function must be enabled (by pressing the ALT key) to display additional
submenus. In addition, the regulator setting options will not display if the regulator
has not been enabled.
Figure 8-53 Enabling the flow controller
Setpoint
Choose the type of setpoint. Selecting internal allows for defining setpoints through
the FlowShark Pulse; selecting external provides setpoints that have been preset
through the dedicated analog input 4.
Parameter Settings
8-39
Figure 8-54 Setting the setpoint type
Analog input 4 is the dedicated hardware input for analog setpoint
signals. Therefore, this assignment cannot be changed.
Parameters:
Internal setpoint:
z
Define the internal setpoint for the selected unit.
External setpoint:
z
Enter the name. This parameter is not required; it is for internal use only.
z
Select the range of measurement range for the external setpoint: 0/4-20mA or
0-5/10V.
z
Set the setpoint input linearization. Under normal conditions, enter 2 for the
number of breakpoints. Set the starting setpoint start (= 0) to 0/4-20mA and
the stopping setpoint to 20mA.
Offset:
z
Enter the offset to be added to the external setpoint. Negative values are
acceptable.
Setting a 4-20 mA range for the external setpoint initiates monitoring for cable
breaks. The unit switches over to an internal setpoint when a cable break is detected
(default setting = 100 l/s).
Relays
Use this menu to modify the logic functions for both output relays.
8-40 ADS FlowShark Pulse O&M Manual
Figure 8-55 Assigning relay functions
Slide valve CLOSED: Enter the internal name (not required) and select the logic
function for relay 4 (normally closed or normally open) by pressing ALT.
Slide valve OPEN: Enter the internal name (not required) and select the logic
function for relay 5 (normally closed or normally open) by pressing ALT.
Relay 4 is defined as slide valve CLOSED and relay 5 is defined as
slide valve OPEN by the hardware configuration. The unit does
not permit modification of this assignment.
If normally open has been selected, the relay will energise for the
designated period of time once the corresponding setpoint has been
reached. If normally closed has been selected, the relay will
energise immediately after setting the parameters and will open for
the designated period of time once the corresponding setpoint has
been reached.
End switch
This menu allows the user to assign functions and the associated parameters to the
corresponding digital inputs.
The channel number is equivalent to the number of the digital input. For example,
channel no. 1 would represent digital input 1, and channel no. 2 would represent
digital input 2.
Selecting channel number and function enables the user to determine the specific end
switch to which an individual signal input is connected.
Entering the name is for internal use only and, therefore, is not required.
Modifying the logic (inverse / non-inverse) allows the user to detect cable breaks at
end switch connections.
Parameter Settings
8-41
Figure 8-56 End switch assignment
Figure 8-57 Possible functions
P-Factor
The P (proportionality) factor indicates the degree to which the regulating time will
be affected when a deviation ∆ w from setpoint w occurs. The higher the
proportionality factor, the longer the regulating time of the slide valve at the same
control deviation.
Figure 8-58 P-Factor setting
Interval/cycle time
Set the processing interval for the controller.
Figure 8-59 Setting the interval
8-42 ADS FlowShark Pulse O&M Manual
Shorter intervals will accelerate the control behavior; however, they will cause the
control circuit to oscillate when longer run times exist between the regulating unit
and measurement.
A longer interval will decrease the tendency for the controller to oscillate; however, it
will increase the inertia of the regulating system.
Guideline:
Interval =
average flow velocity
distance between regulating unit and measurement
• 1.3
Control deviation
This parameter defines the amount of deviation that can occur from the setpoint of the
control system without executing a regulating event. This setting reduces the
tendency for the system to oscillate. Hydraulic conditions cause volume
measurements to fluctuate. If there is no tolerance defined for setpoint deviation, the
system will repeatedly attempt to adjust the actual value according to the setpoint.
This may cause the regulating unit to run continuously, potentially resulting in
mechanical defects or deterioration.
Both values have an AND logic relationship to each other. Under this condition, it
typically is sufficient to define a percentage value.
Consider entering an absolute value for external setpoint control (channel network
management) and large controlling ranges. Otherwise, for low setpoints, the
permissible control deviation percentage may be very low. Inputting an absolute
value as well will help avoid control oscillations under these conditions.
Figure 8-60 Setting permissible control deviations
Minimum duration of control impulse
This parameter is similar to the I-component of PID controllers. It defines the
minimum regulating time for a regulating unit to ensure that very short calculated
control impulses mechanically affect the regulating unit. Therefore, specify a longer
duration for the minimum control impulse than required for the combined motor startup time, gear clearance, and slide valve clearance.
Parameter Settings
8-43
Figure 8-61 Setting the minimum duration for the control impulse
Slide valve run time/shifter time
Use this parameter to monitor spindle breaks, slide valve gate breaks, gear defects,
and power failures involving the regulating unit or other system malfunctions that
may indicate that the regulating unit is not moving, even when the unit is generating
control signals.
Figure 8-62 Setting the slide valve run time
The control unit will generate an error message if it does not reach
the end switch CLOSED position after the slide run time has
expired.
Guideline:
Slide run time = time elapsed between open and closed condition of slide valve
during permanent operation • 1.2 ......2.0. (The longer the slide run time, the lower the
factor.)
The slide run time produces an effect similar to the P-factor and
must be set.
Quick-close function
Use the quick-close function when certain conditions, such as large diameters, long
slide valve run times, and long dead times, exist at the measurement location. During
sudden rainfall events, this function will partially close the open slide valve
independent of the calculated regulating time. During normal operations, this
function will be executed without any interruption to runtime.
8-44 ADS FlowShark Pulse O&M Manual
Figure 8-63 Enabling quick-close function
Figure 8-64 Quick-close parameters
Qmax and hmax serve as OR logic parameters. Based on the application, set these
parameters 10 to 50 percent higher than the parameters set for conditions when the
system switches to regulator mode during dry weather operation.
Tmax is the amount of time the control unit requires to move from the open position to
the standard position during control operation mode.
Automatic flush function
This function provides the capability to frequently flush the measurement section
during dry weather operation using regulator mode. To dam up the flow and generate
a flush surge, set the Days and Time parameters. The control unit will open again
after the Impounding Duration (to be set) has expired and will remain in the open
condition for the designated Duration of Flush. This sequence will occur
repetitively.
Set the number of flush events: from 1 to 9.
Figure 8-65 Enabling flush function
The flush function is not available during active control operation.
Parameter Settings
8-45
Figure 8-66 Flush function parameters
Start days represents the days to execute the flush function
Use the ALT key to select the days individually.
Figure 8-67 Setting individual flush days
Start time designates the time at which the flush will begin. Each selected day may
have a different start time.
Figure 8-68 Setting the flush start time
Number of flush events designates the number of times to execute the flush event.
A complete flush event involves the impounding duration and the duration of the
flush.
8-46 ADS FlowShark Pulse O&M Manual
Figure 8-69 Setting the number of flush events
Duration of flush defines the length of time the regulating unit will remain open,
independent of the current value.
Figure 8-70 Setting the duration of the flush
Impounding duration defines the length of time the regulating unit will remain
closed, independent of the current value, to allow the flow to dam up for flushing
purposes.
Figure 8-71 Setting the duration of impounding
Parameter Settings
1
Backwater
2
Impounding duration
3
Number of flush events
4
Start day, start time
5
Duration of flush
8-47
Figure 8-72 Example of a flush event
Parameter Menu: Settings
Figure 8-73 Settings – submenu
This menu allows the user to either modify or reset the following basic settings of the
system.
Load factory setup
This option enables the user to reset the measurement transmitter. Selecting this
option displays the following screen:
8-48 ADS FlowShark Pulse O&M Manual
Figure 8-74 Executing a general reset
Selecting YES will reset the system to the basic parameter settings.
The default settings will be restored and all customer modifications
will be eliminated (system general reset).
Service code
Entering a special code provides additional system settings options. These options
may include capabilities, such as modifying the beam angle or medium sound of the
velocity sensor, transmit voltages, or special adjustments regarding the transmitter’s
crystal drive. These settings may be modified only by ADS personnel during start-up
activities because they require comprehensive knowledge of the equipment and
should not require adjustment during standard use.
Damping
This menu enables the user to adjust the display and analog output damping between
20 and 600 seconds. A 0 to 100 percent increase in the calculated volume requires
the designated time to pass on either the display or the output.
Based on the damping setting, the FlowShark Pulse reading will fall to 0 if this period
expires without an accurate depth/height measurement.
Damping, Example 1: Damping 30 seconds, jump from 0 l/s to 100 l/s (=100 %) –
unit requires 30 seconds to run from 0 l/s to 100 l/s.
Damping, Example 2: Damping 30 seconds, jump from 80 l/s to 100 l/s (=20 %) –
unit requires 6 seconds to run from 80 l/s to 100 l/s.
Constancy
The constancy parameter represents the period during which the FlowShark Pulse
will retain and output (via Analog Output) the last valid reading before registering
zero (e.g., due to a temporary sensor obstruction).
Parameter Settings
8-49
Parameter Menu: Memory Mode
Figure 8-75 Memory mode – submenu
Before accessing this menu, insert an ADS 16 to 128 (maximum) MB compact flash
card. When necessary, obtain this card through your ADS representative.
Use memory cards purchased only from ADS. Other
manufacturer’s cards may lead to irreversible loss of data,
measurement failure, or permanent transmitter reset.
Insert the card into the Memory Card slot on the unit’s faceplate. Orient the card so
that the side with the small holes is plugged into the unit. The card can plug into the
unit in only one way. Therefore, if it does not insert easily, please do not apply force.
Instead, rotate the card into the correct position and then attempt to re-insert it into
the unit. Make sure the card is seated securely.
Figure 8-76 Memory Card slot
After a new memory card has been installed and storage has been enabled in the
programming menu, the FlowShark Pulse will prompt the user to Format card.
Figure 8-77 Request to format the card
8-50 ADS FlowShark Pulse O&M Manual
Execute card formatting through the I/O > Memory Card > Format card menu.
Due to the card’s storage cycle restrictions (approximately 100,000 writing events),
the FlowShark Pulse only saves incoming data on the card on an hourly basis. This
interval is pre-set through the internal system time. Two exceptions include very
high data density and a cumulative data volume of approximately 3000 – 4000 bytes.
Data is saved in a standard text file format under the following filename: [name of
measurement location set].TXT. This file can be read and processed using Excel.
Do not format the memory cards on a PC; always use the
FlowShark Pulse. The FlowShark Pulse can neither use nor accept
cards formatted on a PC.
The unit will save data as mean values averaged over the
designated interval set in memory, not as current individual values.
Operation Mode
Figure 8-78 Enabling the operation mode
Mode
Pressing this key allows toggling among the following options:
z
Disabled – this option prevents data from being saved
z
Periodic – this option provides cyclical storage of depth level, flow velocity,
and flow rate data
z
Event – this option offers two different memory cycles (cycle interval and
event interval) with user-defined storage times
Parameter Settings
8-51
Periodic interval
Select the periodic storage interval from 1 minute to 1 hour. The available intervals
include 1; 2; 3; 4; 5; 6; 10; 15; 20; 30, or 60 minutes. Entering a different value
manually will cause the FlowShark Pulse to set the interval to the valid (available)
interval that falls immediately before the value entered.
Figure 8-79 Entering the storage cycle
Select Data
Designate data sets to store in addition to the depth level, average flow velocity,
volume, and medium temperature, which are stored automatically.
Select among analog inputs 1, 2, 3, and 4 and system to designate the saving options.
Figure 8-80 Select data table
Analog I1 to I4
This setting applies only to Model 20 transmitters because it is equipped with
additional analog inputs.
Use this key to toggle between the following saving options:
z
No – prevents analog input from being saved
z
Yes – saves selected analog input
System
Use this key to toggle between the following saving options:
z
No – prevents saving system parameters
z
Yes – saves additional system parameters (all velocity gates and all depth data
from up to 3 depth sensors), system errors, error messages, and system
ON/OFF events
8-52 ADS FlowShark Pulse O&M Manual
Unit System
Select the unit of measure in which to store data:
z
Metric (litres, cubic meters, centimeters per second, etc.)
z
English (feet, inches, gallons per second, etc.)
z
American (feet per second, millions of gallons per day, etc.).
The display does not reflect the setting selected for this parameter.
Figure 8-81 Selecting the unit system in which to save data
Units
Set the desired storage units for the 3 main memory parameters: flow, level (depth),
and velocity. The options available depend on the setting selected previously for
Unit system.
Figure 8-82 Selecting units
Format of numbers
Choose whether to save data with commas or decimal points. Commas typically are
used in Europe; decimal points typically are used in other regions.
Figure 8-83 Selecting the number format
Parameter Settings
8-53
Data Structure on the Memory Card
Main Directory
FLASH and PARA Subfolders
Figure 8-84 Data structure on memory card
Flash
This folder represents the location in which the backup file is saved (To execute the
backup, select I/0 > Memory Card > Save backup).
The name of the backup file containing the depth, velocity, flow, and temperature
data written from internal memory is always Q_H_V_T.TXT. The DIAG.TXT file
contains all messages, including error messages which might have occurred during
measurement activities. These may include the beginning and end of Internet
communication, modem restart, or CPU restart after system reset or reprogramming.
The respective message is labelled with the date and time:
>: received error/message
<: reason for error/message cleared
Save the DIAG file by selecting I/0 > Memory Card > Save backup.
PARA
This folder includes all the parameter files with a date stamp. These files allow the
user to retrace transmitter settings involving modifications to the measurement
location and parameter settings. The unit saves the latest modification made within a
particular day.
The filename is PA TT MM JJ .TXT, where TT = day, MM = month, and JJ = year.
name of measurement place.TXT
This is the file in which all of the interval readings are stored. It is saved under the
name of the measurement location.
NIVIDENT.TXT
This text (.txt) file contains the name of the measurement location.
8-54 ADS FlowShark Pulse O&M Manual
If the location name saved to the memory card is not consistent with the name of the
measurement location saved to the FlowShark Pulse, the unit will prompt the user to
format the card.
The FlowShark Pulse will create a new file for the readings with the new name,
provided the card does not require formatting.
PARAMET.NIV, PARAMET.TXT
These files are created when parameters are saved to the memory card.
PARAMET.NIV is required for uploading data to FlowShark Pulse.
PARAMET.TXT is the printable (text) version of PARAMET.NIV.
Use memory cards purchased only through ADS. Other
manufacturer’s cards may lead to irreversible loss of data,
measurement failure, or permanent transmitter reset.
Do not format memory cards on a PC. Format cards only on the
FlowShark Pulse. The FlowShark Pulse can neither use nor accept
cards that have been formatted on a PC.
Parameter Menu: Communication
Modifications in this menu are required only when the user will be accessing the unit
over the Internet or a local network.
The communication options available (local network or GSM/GPRS gateway) depend
on the type of transmitter (see Chapter 4, System Overview and Operation).
Figure 8-85 Options for Internet connection
Remote Control
Select one of the following options for remote access:
z
Disabled – no remote access available
z
Modem – (For the FlowShark Pulse, this option currently is unavailable.)
Parameter Settings
z
z
8-55
Ethernet – communication via a local network (Ethernet) or a GSM/GPRS
gateway with static IP address SIM card
Modem Æ Ethernet – (For the FlowShark Pulse, this option currently is
unavailable.)
While any variation in communication is possible, the unit must support the selected
option for communication to occur. The respective configuration is available on the
device ID posted on the unit (refer also to Chapter 4, System Overview and
Operation).
Figure 8-86 Selecting remote access
Ethernet
Choosing this option allows the user to designate whether to automatically assign the
IP address (required for unit access) or manually enter the address. Selecting YES
executes assignment automatically through a DHCP routine (similar to the Internet
PC setting Get IP address automatically). Selecting NO allows the user to enter the
unit IP address manually. Always select this option for applications involving a
GSM/GPRS gateway with static IP address SIM card. When manually entering an IP
address, ADS recommends using a network address assigned by the IT administrator.
Figure 8-87 Selecting automatic or manual IP address
Observe the current network configuration.
Figure 8-88 Assigning the IP address
8-56 ADS FlowShark Pulse O&M Manual
If the manual option (NO) has been selected, enter the IP address, the gateway
(optional, in case of interdigitate subnets), and the IP mask. For the IP mask, the
default setting (255.255.255.000) typically is suitable for most connections.
Figure 8-89 Manually setting the IP address
For assistance, please contact the system administrator or an ADS
representative.
DNS Server
This parameter will display only if remote control has been enabled and Ethernet:
IP_Ad aut = yes has been selected.
Typically, ADS recommends setting DNS auto to yes. This setting allows the
provider or the local network to assign the DNS automatically. If it is set to NO, the
user must enter a primary and secondary DNS, which are available from the service
provider or system administrator of the local network.
Figure 8-90 Manual DNS entry
Direct Access
This setting is required only if the user is connecting to the FlowShark Pulse directly
from a Laptop/PC through a network cable and the internal RJ45 interface. Under
this configuration, designate both a username and a password for the internal
connection on the PC/Laptop.
Parameter Settings
Figure 8-91 Enabling direct unit access
8-57
8-58 ADS FlowShark Pulse O&M Manual
Signal Input/Output Menu (I/O)
This menu includes several submenus that enable the user to access and to verify the
sensors as well as control signal inputs and outputs. It also displays various readings
and measurements, current inputs and outputs, relay conditions, echo profiles, and
individual velocities. However, it does not enable the user to modify signals or
settings, such as offsets, adjustment, or simulations. This menu primarily allows the
user to view the parameter settings and diagnose errors.
Figure 8-92 I/O submenu
This menu essentially allows the user to view any input and output,
even those that may not be connected or available, such as with the
Model 10 transmitter.
I/O Menu: Analog Inputs
The user can manage and view analog input values routed to the transmitter inputs
from this menu. Use this menu to display values before (in [mA/V]) or after
(calculated values) the analog input linearization.
Figure 8-93 Selecting indication of values
This function primarily is useful for controlling current signals from external
depth/height measurement units during initial start-up.
Typically, Values in [mA/V] will be set. A screen similar to the following will
display:
Parameter Settings
8-59
Figure 8-94 Analog value indication
Setting Calculated values without an available signal (>4 mA) will display the
following error screen:
Figure 8-95 Error screen
I/O Menu: Digital Inputs
The menu enables the user to view digital input values routed to the transmitter input
clamps. Displays OFF or ON.
Figure 8-96 Screen digital values
I/O Menu: Analog Outputs
Figure 8-97 Screen analog values
8-60 ADS FlowShark Pulse O&M Manual
This menu indicates the calculated values that must be sent to the analog converter as
mA signals. While a Model 10 transmitter allows the user to set and display 4 analog
outputs, only analog outputs 1 and 2 physically exist.
The actual current on the output clamps will not display. The only visible
signal is the signal the analog output converter receives for output
purposes.
The unit can neither detect nor indicate faulty external wiring through
this menu.
I/O Menu: Relay Outputs
The user can view conditions calculated by the transmitter and later routed to the
relay for output purposes from this menu. Displays OFF or ON.
Figure 8-98 Digital values
The actual output condition of the relay contacts on the output clamps
will not display. The only signal visible is the signal the relay receives
for output purposes.
The unit can neither detect nor indicate faulty external wiring from this
menu.
I/O Menu: Sensors
This menu and the associated submenus allow the user to view and assess the sensor
status and operational conditions. It provides information on the measurement
location quality, cable layout, echo signal quality, and many other parameters.
When using 2 or 3 flow velocity sensors, select the sensor by choosing the
corresponding channel number. The menu that displays depends on the sensor
configuration (depth measurement from bottom up, depth measurement from top
down based on range, pressure measurement, or external sensor measurement):
Parameter Settings
8-61
Figure 8-99 Basic selection menu
The subsequent submenu H-Sensor(s) may vary based on the depth sensor selected:
Figure 8-100 Menu with water-ultrasonic sensor from bottom up
V-Sensor
Selecting this point displays a 2-page table that includes all the individual velocity
readings and the heights of the respective measurement windows.
Figure 8-101 Individual velocity readings
+
Toggle between both pages (measurement windows or gates 1-8 and 9-16) using the
up and down arrow keys.
The absence of a reading (------ ) in a measurement window indicates that flow
velocity currently is not available for measurement in the associated window. This
may occur when the water is very clear or vorticity exists within the area. This also
may occur with low flow depths, such as approximately 13.78 inches (35 cm), where
8-62 ADS FlowShark Pulse O&M Manual
the FlowShark Pulse automatically reduces the number of measurement windows
available. The unit does not require as many measurement windows when low flow
depths exist.
The failure of one or more windows does not determine measurement success.
However, ADS recommends investigating the location if more than 50 percent of the
measurement windows fail (except under low flow conditions). When necessary,
please contact ADS for diagnostic support.
H-Sensor
When level measurement from bottom up has been selected, the depth level and
signal quality for the returned echo will display. When external depth measurement
devices are in use, only the input signal (mA) for a sensor is available.
The signal quality level should be around 90 to 100 percent. Therefore, a depth
measurement with a signal quality falling below 50 percent will be rejected,
producing a 0 reading.
H-Echo profile
(enabled only when measuring depth using an air- or water-ultrasonic sensor)
Figure 8-102 Echo profile for depth measurement
The previous graphic enables the service personnel to assess the echo signal within
the acoustic range measured. Ideally, the initial peak would be very narrow, steep,
and high, representing reflections from the interface between water and air. The
remaining peaks would be lower and wider, representing double and multiple
reflections caused by the signal echoing back and forth between the water/air and
water/ground interfaces.
T-Sensor
This screen allows the user to view water and air temperature readings. Air
temperature is available only when using an external LUS air-ultrasonic sensor
supporting the FlowShark Pulse. Invalid measurements may indicate cable breaks,
short circuits, or improperly terminated connections.
Parameter Settings
8-63
Figure 8-103 Temperature screen
I/O Menu: Interfaces
This menu displays the transmission speed of the internal interfaces. This
information is available only for service purposes and is not relevant to the user.
I/O Menu: Controller
This menu is available only when the controller has been enabled through the PAR
menu.
Figure 8-104 Controller information screen
Info
This menu indicates all the signals (end switch) and settings (proportionality factor,
slide valve run time, control deviation, etc.) required for controller operation. It also
displays the output signal times (regulating and switching times).
Use the information on this screen to detect missing end switch conditions and to
monitor the current control deviation, calculated regulating time, and current
controller condition. This menu also provides basic diagnostic options for addressing
internal controller errors or problems.
Figure 8-105 Overview of current controller processes
8-64 ADS FlowShark Pulse O&M Manual
Manual operation
The user can open and close the slide valve manually for testing purposes. The arrow
keys,
and , serve as the controls for manual operation.
Figure 8-106 Menu for manual controller operation
I/O Menu: Memory Card
This menu enables the user to view general information concerning the memory card.
The user also can save data and display and load the system parameters from this
menu.
Figure 8-107 Memory card menu
The Info menu contains information concerning the remaining storage capacity and
time on the card.
Figure 8-108 Card information
This information is accessible only when the memory card is installed in the unit.
The card must be installed in the unit for at least one hour before the user can view
the remaining storage capacity and time on the card.
Parameter Settings
8-65
The user can replace the memory card at any time, unless the display
indicates MemoryCard active, which occurs for approximately 1
second each full hour.
Format the card using the following menu. Perform this procedure when using the
card for the first time and following each data transfer operation. The formatting
process takes 10 to 60 seconds, depending on the card capacity, and is complete when
the main screen re-appears.
Do not press any keys or turn the unit off during formatting. This
could cause irreversible damage to the card.
Figure 8-109 Card formatting request
All data saved to the card will be removed during the formatting
process.
Save FlowShark Pulse parameter settings for backup purposes or to transfer the
settings to similar measurement locations.
Select Save parameters to write the parameters to the memory card. This procedure
takes approximately 30 seconds; a progress bar displays for tracking purposes.
Figure 8-110 Saving parameters to the memory card
The Load parameters menu option displays all the configuration files available on
the card. Selecting this option transmits the file to the FlowShark Pulse.
The name of the required file is PARAMET.NIV.
save
writes the parameters from the FlowShark Pulse to the memory card
load
writes the parameters from the memory card to the FlowShark Pulse
The FlowShark Pulse enables the user to back up data stored in the unit within the
past 14 days for protection against data loss due to a faulty data readout, defective
8-66 ADS FlowShark Pulse O&M Manual
cards, unintentional formatting, or other issues. Use the Store backup option to
perform this operation.
Figure 8-111 Data backup
Parameter Settings
8-67
Calibration and Calculation Menu (CAL)
CAL Menu: Level
This menu allows the user to calibrate depth sensors against actual field
measurements by automatically modifying sensor mounting heights, adapt analog
outputs to the corresponding systems, and emulate relay switching events and analog
outputs. An option to enable and/or modify the automatic velocity calculation
function (when depth falls below the minimum depth required for velocity
measurement) also is available.
Figure 8-112 Menu selection
When using a combi sensor with the pressure measurement cell to measure depth, the
pressure measurement cell, based on its design, may experience zero point drift over
an extended period of time (refer to Chapter 3, Overview and Specifications).
Therefore, calibrate the pressure sensor to the zero point on a regular basis. ADS
recommends calibrating the sensor every 6 months. Analyze measurements taken
with the sensor out of the flow or in as shallow flow as possible.
Manually measure the depth levels thoroughly before calibrating the sensor (i.e.,
adjusting mounting height) according to another reliable measurement method or
device (e.g., value = 0, if the sensor has been removed from the flow).
The current depth level and range of fluctuation, including minimum and maximum
values, measured by the sensor will display while this window is open. This will
allow the user to determine the stability of flow depth conditions (e.g., surface
roughness). The best results are obtained under conditions where little variation
exists between the minimum and maximum values. Accept the current depth by
clicking on the (Enter) key.
Enter the manual (field-confirmed) value in the reference field on the next menu.
Figure 8-113 Adjusting the depth measurement
8-68 ADS FlowShark Pulse O&M Manual
Figure 8-114 Entering the correct depth (level)
An overview menu displays, showing the new sensor depth (level) values to use.
Upon pressing the ESC button to return to the main menu, the user receives a prompt
to save these new values. The user can save these values by selecting YES or ignore
and eliminate these new values by selecting NO.
Figure 8-115 New sensor values
Figure 8-116 Prompt to save values
Parameter Settings
8-69
Determining the zero point for the pressure measurement cell often
involves measuring the current depth level using a yardstick, a ruler,
or another similar device without removing the sensor from the flow.
This method, however, can produce errors. Inserting the ruler (or
yardstick) into the flow can create a surge leading to erroneous
measurements depending on the current flow velocity.
CAL Menu: Velocity
Based on the continuous profiling technology employed, velocity typically does not
require calibration. However, under unusual site conditions where velocity requires
constant adjustment, contact ADS for assistance in performing calibrations.
When flow falls below the minimum depth required for proper operation of the
velocity sensor, (i.e., only 2.2 inches of flow exists between the water ultrasonic
sensor face and the flow surface or a total depth of 2.6 inches of flow exists when the
bottom plate of the sensor is at the bottom of the channel), use an automatic
estimation (auto calculation) of velocity. Use this function for computing very low
flow velocities under low depth conditions, such as unusually low minimum nightly
flows. Do not implement this function at locations that experience backwater
conditions.
Make sure that obtaining reliable depth measurements down to 0 is possible through
an independent, external depth measurement device (e.g., an air-ultrasonic sensor).
With falling depth levels, at some point it may no longer be possible to measure flow
velocity. When depths reach this designated minimum level, h_crit (critical level, the
lowest level at which flow velocity can be measured reliably), the FlowShark Pulse
will create an internal table of Q & V vs h values using the last valid flow velocity
reading before dropping below this critical depth. This table of values enables flow
calculations to continue, even when velocity measurements are not available, by
assigning an estimated velocity to a corresponding depth level (based on the
Manning-Strickler relationship). The unit automatically will compensate for the
shape of the pipe in the curve.
The erroneous measurements that develop from using this method in
the context of unstable hydraulic conditions may be significantly
greater than the errors that arise from measuring the actual flow
velocity and depth levels.
This method is suitable only for very low flow volumes that are
backwater-free.
8-70 ADS FlowShark Pulse O&M Manual
Figure 8-117 Calculation – submenu
min. + max. value
This parameter defines the range within which the FlowShark Pulse will measure and
process flow velocity.
Set the minimum value below zero only when negative readings are
expected. It is impossible to measure and to record negative velocity
readings during negative flows if the minimum setting is 0.
Velocity h_crit
This table represents either the latest values obtained from depth and corresponding
velocity measurements or preset values (i.e., default values of 2.6 inches for h-critical
and zero for v-critical). If a reasonably reliable estimate of velocity is available at the
critical depth, enter this estimate as v-critical. Otherwise, the system will apply
values from the Manning-Strickler table to estimate the corresponding velocity when
depth drops below h-critical while the auto calculation function is in use (set to yes).
See Auto Calculation on page 8-71.
Leaving the default v-critical value at zero with the auto calculation function
disabled (set to no) will drop velocity to zero when depth is below h-critical.
Figure 8-118 Table of values for automatic Q/h relation
Parameter Settings
8-71
Manning-Strickler
The user can change the Manning-Strickler coefficient and slope values used to
populate the internal Manning-Strickler table manually or allow them to adjust
automatically by setting the auto calculation function to yes (Refer to Auto
Calculation on page 8-71).
Figure 8-119
Auto Calculation
Selecting automatic YES from the auto calibration menu automatically updates the
Manning-Strickler table based on the last valid velocity value before depth drops
below h-critical. Selecting automatic NO prevents set values (including v-critical)
from changing, regardless of subsequent measurements.
Use the ALT button to toggle between YES and NO.
Running simulations through FlowShark Pulse outputs will impact
controlled facility equipment that does not have security measures
in place!
Simulations should be executed only by knowledgeable personnel.
Due to the extremely high risk of danger and unpredictable
consequences that may arise from incorrect or faulty simulations,
ADS is not responsible for any possible injury to persons or
damage to property that may occur.
8-72 ADS FlowShark Pulse O&M Manual
Simulating analog inputs and outputs may be performed only by
trained, specialized electricians with in-depth knowledge of the
facility’s control system. In addition, safety personnel must be
available at all times.
The following system must be set to manual operation mode.
Actuators or similar devices must be disabled, if possible, or under
strict control to prevent damage.
Analog Outputs
This parameter allows the user to simulate FlowShark Pulse output signals.
After selecting analog outputs, enter the PIN again. This will prevent unauthorized
personnel from executing simulations during operation.
Figure 8-120 Selecting the analog output simulation
Channel number
Choose the analog output (from 1 through 4) to simulate by entering the respective
number or using the left or right arrow keys in the simulation main menu.
Simulation
Enter the desired value in mA and confirm by pressing Enter to output the signal
directly to the corresponding terminal.
Figure 8-121 Executing the simulation
Relay outputs
Select the desired relays to simulate by pressing the left or right arrow keys. The
relay number chosen will display on the first line of the output table.
Parameter Settings
8-73
Use the up or down arrow keys to either enable or disable the previously selected
relay.
After selecting Relay Outputs, enter the PIN again. This will prevent unauthorized
personnel from executing simulations during operation.
Figure 8-122 Relay simulation
CAL Menu: Simulation
This function allows the user to simulate flow conditions by entering hypothetical
depth and velocity values that are not currently available. The FlowShark Pulse will
calculate the current flow measurement based on the simulated values and the
designated pipe dimensions. The results will be sent to the corresponding analog and
digital outputs.
Simulate the desired flow velocity by pressing the left or right arrow keys; simulate
the desired flow depth by pressing the up or down arrow keys.
Both simulated values will display in the table. The calculated flow value will
display above the table.
Figure 8-123 Flow measurement simulation
CHAPTER 9
Parameter Tree
This chapter contains diagrams (trees) outlining the structure and content of each
item (heading) contained in the main menu of the FlowShark Pulse transmitter
display. These diagrams can assist the user in identifying the location for setting
specific options and parameters on submenus throughout the display menu.
Operation Mode Menu (RUN)
RUN
Standard
Graphic
Day values
Info
Interval
Errors
Trend
Flow rate
Velocity
Level
9-2
ADS FlowShark Pulse O&M Manual
Parameter Menu (PAR) Part 1
Parameter Tree
Parameter Menu (PAR) Part 2
9-3
9-4
ADS FlowShark Pulse O&M Manual
Parameter Menu (PAR) Part 3
Parameter Tree
Parameter Menu (PAR) Part 4
9-5
9-6
ADS FlowShark Pulse O&M Manual
Parameter Menu (PAR) Part 5
Parameter Tree
Parameter Menu (PAR) Part 6
9-7
9-8
ADS FlowShark Pulse O&M Manual
Parameter Menu (PAR) Part 7
Signal Input/Output Menu (I/O)
Parameter Tree
Calibration Menu (CAL)
Display Menu (EXTRA)
EXTRA
units
unit system
metric
flow rate
velocity
level
total
UK-english
flow rate
velocity
level
total
US-english
flow rate
velocity
level
total
language
Deutsch
English
Français
Czech
Italiano
display
contrast
brightness
change time
info
date
time
set total-counter
9-9
C H A P T E R 10
Data Collection
Once the system parameters have been set by the user, the FlowShark Pulse can begin
taking the appropriate measurements and logging relevant data. Managing and
collecting this data directly from the unit occurs through an Internet browser.
The FlowShark Pulse does not provide real-time access or
automatic data transmission. Access to the FlowShark Pulse
involves direct communication initiated by the user through a PC
or laptop computer.
This chapter contains instructions for collecting the data from the memory card on the
FlowShark Pulse, deleting data files, and viewing data.
10-2 ADS FlowShark Pulse O&M Manual
Data Collection
After a connecting and logging onto the FlowShark Pulse through a browser (refer to
Chapter 7, Initial Start-up and Communication), the screen will display the current
Measurement Data (flow rate, depth level, and flow velocity), the transmitter
display window, and several links.
Figure 10-1 Viewing the connection online
Click the File Download link to download data directly from the memory card
installed in the unit. Downloading this data will not delete the information from the
card; therefore, this data will be available for downloading at a later time.
After clicking the desired file, either open the file directly or download it in the
original, uncompressed format or as a compressed .zip file. Use a file utility, such as
WinZip®, to extract the file from the .zip file.
Using the .zip format reduces the file size by approximately 75 percent and, therefore,
ADS recommends using this format.
Refer to Chapter 8, Parameter Settings, for more information on the FlowShark Pulse
file structure and using the individual files.
The user cannot transfer data files if the memory card is not
installed and the storage capability is disabled.
Data Collection
Figure 10-2 Selecting the file to transmit or delete
Figure 10-3 Viewing or saving transmitted files to the PC or laptop
10-3
10-4 ADS FlowShark Pulse O&M Manual
Deleting Data Files
Delete a specific file by clicking the red delete link corresponding to the file (Figure
10-4). To save this file for viewing or to transmit the file at another time, the file will
be moved into a backup folder. If a backup folder does not already exist, it will be
created automatically. Files that have been transferred to this folder can be
permanently removed from the memory card by deleting the file from the backup
directory.
Figure 10-4 Contents of backup folder created
Data files that have not been deleted or moved to the backup folder
will continue to receive all future readings. This will dramatically
increase the size of the file because older, duplicate data will be
transmitted and saved to the file again.
Deleting a file (moving it into the backup folder) while a file of the
same name exists in the target folder will cause the older file to be
overwritten without warning.
Data Collection
10-5
Viewing Data
Clicking the Trend link on the left side of the screen displays a trend graph similar to
the trend screen displayed on the FlowShark Pulse. This graph displays up to 90 days
of the data stored in the unit memory. The following screen (Figure 10-5) offers an
example of this graph.
Figure 10-5 Online trend graph
Flow volume, depth level, average flow velocity, and water temperature display in
color on the graph. The units on the graph reflect the units designated on the
FlowShark Pulse display.
The readings on the y-axis are scaled at intervals of 0.1, 0.2, 0.5, 1, 2, 5, 10 ..... up to
10000. For this example, the selected scaling unit represents a horizontal line on the
grid.
Set the starting date and time for the trend graph in the Date and Time fields and set
the resolution (scale of the time axis) for the graph in the Res field. Choose from the
following options: 10 minutes, 1 hour, 6 hours, or 24 hours per grid line.
Click on the Update button to refresh the graph with new measurement data as it is
collected.
If the selected start date/time for the graph is the current date/time or
the time axis range allows the user to view a larger range than
selected for the start date/time and resolution, the graph will include
data that is older than the start date/time selected.
C H A P T E R 11
Troubleshooting
Error
No Indication of Flow
(0 or ----)
Possible Reason
Correction
Connections
Check the connection between the sensor
cable and terminal strip. Check the
connection boxes, sensor extension cable
connections, and air compensation element
for proper connection or moisture.
Sensor
Check sensor installation for proper
orientation toward the flow and horizontal
position.
Check the sensor for existing soil,
sedimentation, or silt, and remove
obstructive debris as necessary.
Check the sensor for mechanical, body, or
cable damage, and replace the sensor,
when necessary.
Flow Depth
Measurement
Important: When no flow depth exists,
measuring flow velocity is not possible.
Water-ultrasonic measurement: Check the
sensor for horizontal installation. Check for
sensor function in I/O > Sensors > HSensor > echo profile menu.
External level measurement: Check the
external transmitter for function and signal
transmission. Inspect cables, clamp
connections, short circuits, and contact
resistances.
Pressure cell measurement: Inspect the
compensation tube and hardware for
obstructions.
When flow depth is greater than 2.56 inches
(65 mm), the FlowShark Pulse is in Q/H
measurement mode at initial start-up.
Manually enter the velocity at a depth of 2.56
inches (65 mm) in the CAL > Flow vel. >
Velocity h_crit parameter. Perform this
procedure only one time.
11-2 ADS FlowShark Pulse O&M Manual
Error
Possible Reason
Correction
Check depth measurement parameter Fixed
value when measuring in a full pipe without
obtaining a depth measurement.
Transmitter
Check error memory log and take corrective
measures. Check cables, plug, and socket
connections and sensor installation.
Contact ADS if an CPU Error displays.
Examine the moment of failure through the
RUN > Trend menu.
Negative Flow Direction Check orientation of sensor installation and
then reposition sensor, if necessary.
For occasional reverse flows that are
followed by measurement failure, set the
minimum value to -3.28 feet per second (–
1.0m/s) in the CAL-Flow vel. – min. + max.
value menu.
Blank or Flickering
Screen
Configuration
Check the transmitter parameter settings
thoroughly.
Connection
Check power supply connection.
Power Supply
Check voltage of power supply.
Check the switch position on the connection
board.
Compare the power supply (AC or DC)
against the transmitter type.
Memory card
Confirm that an ADS-supplied memory card
is in use. Replace card from unauthorised
manufacturer with ADS card, when
necessary.
Confirm memory card does not exceed
capacity requirements. Use cards only
within the maximum memory capacity
allowed.
Verify method used for formatting cards.
Send cards formatted on a PC to ADS.
Troubleshooting
Error
Sensor Error (X)
Indicated on Display
Possible Reason
Connection
11-3
Correction
Check cable connection. Verify wiring on
terminal strip is properly connected, cables
are firmly connected to plugs (retighten
screws and pull at cable ends), and
clamping of single wires is free of insulation.
Confirm plug is firmly seated and connected
in socket.
Note: Error messages indicating sensor
number 1, 2, or 3 refer to flow velocity
sensor 1, 2, or 3, respectively. Error
Sensor 4 refers to the air-ultrasonic sensor.
Erratic Readings
Communication
Check communication with the sensor by
pressing the I key. Screen should display
sensors in the third line. Check cables for
interruption or loose connections and the
sensor for mechanical damage.
Unsuitable Hydraulic
Conditions at
Measurement Location
Use the graphic flow profile display to verify
the quality of the measurement location.
Relocate the sensor to a more suitable
location that exhibits better hydraulic
conditions (extend calming section).
Remove any existing silt or other
obstructions from the front of the sensor.
Straighten the flow profile by installing
appropriate baffle plates and calming
elements, flow straighteners, or similar
devices upstream from the measurement
location.
Increase damping.
Sensor
Check the sensor orientation and horizontal
position.
Inspect the sensor for silt or other
obstructions.
Erroneous Readings
Unsuitable Hydraulic
Conditions at
Measurement Location
Refer to possible solutions under Erratic
Measurement Readings.
External Level (Depth)
Signals
Check for proper connection.
Check for damaged or crushed cables, short
circuits, improper resistance loads, or
current-consuming devices without galvanic
isolation.
Check measurement range and span.
Check input signal from I/O menu.
11-4 ADS FlowShark Pulse O&M Manual
Error
Possible Reason
Sensor
Correction
Check for correct connection.
Check for crushed or damaged sensor
cables/extension cables, short circuits, surge
arresters, or improper resistance loads.
Check the level signal, echo profile, flow
velocity signal, cable parameters, and
temperature from I/O menu.
Verify that the sensor is installed in a
vibration-free location. Check sensor
installation for orientation to flow, horizontal
position, and presence of silt.
Faulty Relay Output
Configuration
Verify proper settings for measurement
location, such as pipe shape and dimensions
(and units), sensor type, and sensor
installation height.
Connection
Check connections on terminal clamp strip.
Check power supply for external control
relays.
Check signal output in the I/O menu.
Check output control function in calibration
menu.
Transmitter
Verify transmitter type. While Model 10
transmitters have only 2 relay outputs, Model
20 transmitters have 5 relays.
Configuration
Verify that relay outputs have been enabled.
Verify outputs are properly assigned to their
respective output channels.
Check additional values, such as impulse
parameters, limit values, and logic.
Controller is not
Functioning
Connection
Check terminal clamps. Relays 4 and 5 are
dedicated to controller function.
Check the power supply for the external
control relays.
Check the input signals from the limit
contacts and setpoint.
Check the output control function manually
through menu-driven controller operation.
Transmitter
Verify the transmitter type. Only Model 20
transmitters are suitable for controller
operation.
Configuration
Check relevant settings. Verify whether the
controller has been enabled and parameters
Troubleshooting
Error
Faulty mA Output
Possible Reason
Connection
11-5
Correction
have been set; analog input has been set
and enabled as the setpoint; and relay
outputs have been enabled.
Check the connection clamps for the correct
wiring and polarity.
When several outputs are in use, make sure
the receiving systems/indicators are not
indicating a voltage. Two analog outputs
share a common ground.
Configuration
Verify that the output has been enabled.
Verify that specific functions have been
assigned to the correct output channels.
Check the output range (0 or 4-20 mA).
Check the output span.
Check the offset.
Check the output signal on the I/O menu
Receiving Systems
Check cables and connections as well as
input and output terminals.
Check the input range (0 or 4-20 mA) for the
system undergoing monitoring.
Check the input span for the system
undergoing monitoring.
Check offset for the system undergoing
monitoring.
Memory Card has No
Data or is Missing
Data
Memory Card
Verify whether the memory card is
functioning correctly. Check function in the
I/O – MemoryCard – Info menu.
Make sure the memory card is a card
supplied by ADS. Replace card from
another manufacturer with an ADS-supplied
card.
Verify that the system can support the
memory card capacity. Older systems can
read cards up to 32 or 64 MB. Check the
capacity through the CPU version by
pressing the I key.
The system currently cannot support
memory cards with more than 128MB
capacities.
Verify the method used for formatting cards.
Send cards formatted on a PC to ADS.
Transmitter
Verify that the memory card is seated
11-6 ADS FlowShark Pulse O&M Manual
Error
Possible Reason
Correction
securely and completely in the unit.
Make sure the memory card has been
seated in unit for at least 60 minutes. This is
required prior to saving data. Unit saves
data to the card every hour.
Configuration
Verify storage is enabled in Memory Mode >
Operation Mode > Mode.
C H A P T E R 12
Materials and Chemical Resistance
Sensor construction involves the following materials:
z
Stainless steel V4A (ground plate or pipe sensor jacket)
z
PPO GF30 (sensor body)
z
PEEK (sensor crystal cover)
z
Polyurethane (cable sheath and glands)
Sensors with the pressure measurement cell include the following materials:
z
Hastelloy C276
z
Viton (PA/PR)
The sensors are resistant to wastewater, dirt, and rainwater. While the sensors do not
experience damage from the wastewater exiting most industrial plants, the sensors are
not resistant to all substances and mixtures.
In general, damage to the sensor may occur from chloride media
(corrodes stainless steel ground plate or sensor jacket), hydrogen
sulphide (H2S – decays copper wires and conductor paths from
diffusion through cable sheath or sensor body), and various
organic solvents (dissolves cable sheath or sensor body).
Individual substances may not adversely affect a sensor. However, under certain
circumstances, the combination of several of these substances could adversely affect
a sensor. Due to the unlimited number of possible combinations of substances, it is
impossible to determine the impact on a sensor from combining these substances.
Contact ADS representative to request free sample materials for long-term testing
purposes.
For special applications involving highly destructive or solvent-containing media,
Hastelloy or titanium ground plates are available for sensors made of PEEK. Pipe
sensors composed of highly resistant steel also are available. A special FEP coating
that is resistant to organic solvents or hydrogen sulphide is available for sensor cables
that will be immersed in the following highly corrosive, destructive media:
V4A
FEP
PEEK
PUR
PPO GF30
FORMULA
HDPE
MEDIUM
CONCENTRATION
12-2 ADS FlowShark Pulse O&M Manual
Acetaldehyde
C2H4O
40 %
3/3
4
4
1
(1)
(1)
Acetic acid
C2H4O2
10 %
1/1
2
3
1
1/1
1/1
Acetic acid methylester
C3H6O2
tech. clean
1/0
3
0
1
1/0
1/1
Aceton
C3H6O
40 %
1/1
4
4
1
(1)
1/1
Allyl alcohol
C3H6O
96 %
1/3
2
0
1
1/1
1/1
Aluminium chloride
AlCl3
10 %
1/1
2
0
1
1/1
3/4
Aluminium chloride
(NH4)Cl
aqueous
1/1
1
0
1
1/1 1/2L
Ammonium hydroxide
NH3 + H2O
5%
1/1
2
4
1
1/1
1/1
Anilin
C6H7N
100 %
1/2
3
4
1
1/1
1/0
Benzene
C6H6
100 %
3/4
3/4
2
1
1/1
1/1
Benzyl alcohol
C7H8O
100 %
3/4
3
2
1
1/1
1/1
Boric acid
H3BO3
10 %
1/1
1
1
1
1/1
1/1
Bromic acid
HBrO3
konz.
0/0
0
3
1
0/0
(4)
Butanol
C4H10O
tech. clean
1/1
2
3
1
1/1
(1)
Calcium chloride
CaCl2
spirituous
1/0
1
1
1
1/1 1/2L
Chloric gas
Cl2
4/4
3
3
1
1/1
Chloric methane
CH3Cl
tech. clean
3/0
4
4
1
1/0 1/1L
Chlorine water
Cl2 x H2O
3/0
2
0
1
(1) 2/0L
Chlorobenzene
C6H5Cl
100 %
3/4
3
4
1
1/1
1/1
Chloroform
CHCl3
100 %
3/4
4
4
1
1/1
1/1
1/2
1/0
Chromate
CrO3
10 %
1/1
1
0
1
1/1
Diesel oil
—
100 %
1/3
2
0
1
(1)
(1)
Ethanol
C2H6O
96 %
1/0
1
1
1
1/1
1/1
Ethyl acetate
C4H8O2
100 %
1/3
3
3
1
1/1
(1)
Ethylen chloride
C2H4Cl2
3/3
4
3
1
1/1 1/1L
Ferric-(III)-chloride
FeCl3
saturated
1/1
2
3
2
1/1
4/4
Formaldehyde solution
CH2O
10 %
1/1
1
2
1
1/1
1/1
Gasoline, unleaded
C5H12 - C12H26
2/3
3
2
1
1/1
1/1
Glycerol
C3H8O3
90%
1/1
1
2
1
1/1
1/1
Heptane, n-
C7H16
90%
2/3
1
1
1
1/1
1/1
Hexane, n-
C6H14
100 %
2/3
1
2
1
1/1
1/1
Hydrofluoric acid
HF
50 %
1/1
2
3
1
1/1
4/4
Isopropanol
C3H8O
tech. clean
1/1
1
2
1
1/1
(1)
Magnesium chloride
MgCl2
aqueous
1/1
1
2
1
1/1 1/0L
Potassium hydroxide
KHO
10 %
1/1
1
3
1
1/1
Potassium nitrate
Methanol
Methyl benzene (toluene)
Lactic acid
Mineral oil
Sodium bisulphite
Sodium carbonate
Sodium chloride
Sodium hydroxide
Sodium sulphate
Nitrobenzene
Oleic acid
Oxalic acid
Ozone
Petroleum
Essential oils
Phenol
Phosphoric acid
Quicksilver-(II)-chloride
Nitric acid
Hydrochloric acid
Carbon disulphide
Sulphuric acid
Ethyl alcohol
Carbon tetrachloride (TETRA)
Trichloroethylene (TRI)
Citric acid
KNO3
CH4O
C7H8
C3H6O3
—
NaHSO3
Na2CO3
NaCl
NaHO
Na2SO4
C6H5NO2
C18H34O2
C2H2O4 x 2H2O
O3
—
—
C6H6O
H3PO4
HgCl2
HNO3
HCl
CS2
H2SO4
C2H6O
CCl4
C2HCl3
C6H8O7
aqueous
1/1
1/1
3/4
1/1
1/1
1/1
1/1
1/1
1/1
1/1
3/4
1/3
1/1
3/4
1/3
0/0
2/3
1/1
1/1
1/1
1/1
4/4
1/1
1/0
4/4
3/4
1/1
1
1
3
1
1
1
1
1
1
1
3
1
2
2
3
1
3
1
1
1
1
2
1
1
3
4
1
0
2
3
0
1
0
3
2
3
0
4
1
0
2
1
1
2
0
0
3
3
0
3
1
4
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1/1 1/1
1/1 1/1
1/1 1/1
1/1 1/1
1/1 1/1
(1) 1/1
1/1 1/1
1/1 1/2
1/1 1/3
1/1 1/1
1/1 1/1
(1) 1/1
1/1 1/3
1/1 0/0
(1) 1/1
(1) 1/1
1/1 1/1
1/1 1/3
1/1 (4)
1/1 1/1
1/1 4/4
1/1 1/1
1/1 2/3
1/1 1/1
1/1 1/1L
1/1 1/1L
1/1 1/1
100 %
3%
aqueous
aqueous
aqueous
50 %
aqueous
tech. clean
aqueous
tech. clean
100 %
85 %
aqueous
1-10 %
1-5 %
100 %
40 %
100 %
100 %
100 %
10 %
1/1
Materials and Chemical Resistance
12-3
Chemical Resistance Legend
Resistance
Two values concerning resistiveness are available for each medium:
left number = value at +68° F (+20° C)/ right number = value at +122° F (+50° C).
z
0
no specifications available
z
1
very good resistance/suitable
z
2
good resistance/suitable
z
3
limited resistance
z
4
not resistant
z
K
no general specifications possible
z
L
risk of corrosion from pitting or cracking from stress corrosion
z
()
estimated value
Material Names
z
HDPE
Polyethylene, high-density
z
FEP
Tetrafluorethylene-Perfluorpropylene
z
V4A
Stainless steel 1.4401 (AISI 316)
z
PPO GF30
Polyphenyloxylene with 30% glass fibers
z
PU
Polyurethane
z
PEEK
Polyetheretherketone
