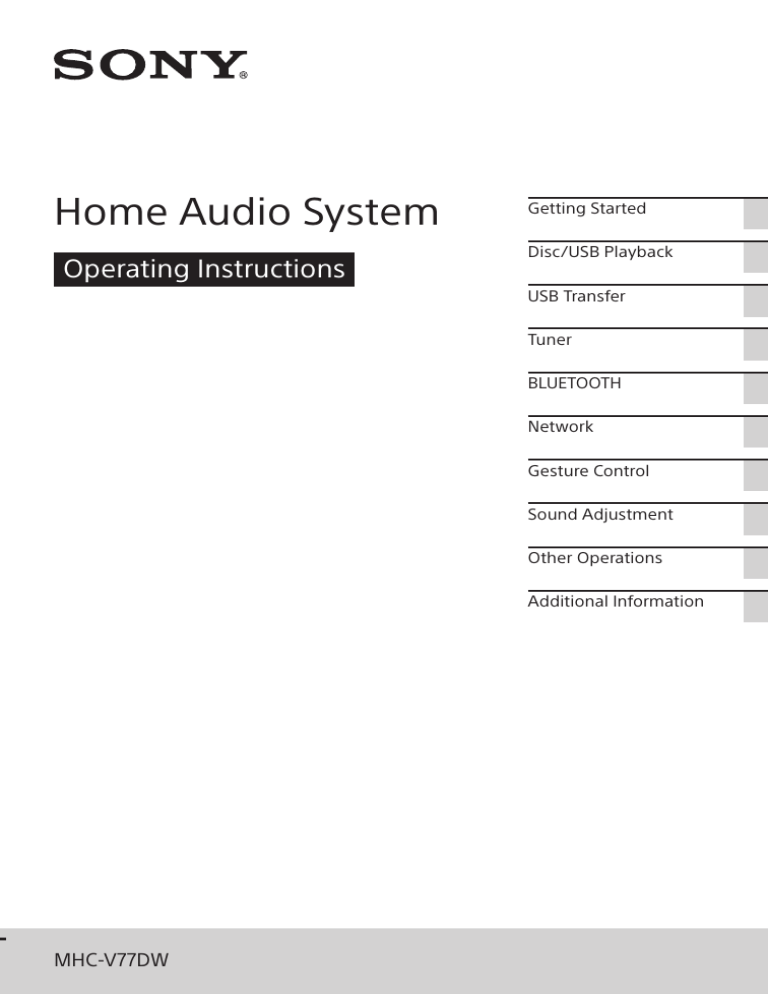

Home Audio System

Home Audio System

Operating Instructions

Getting Started

Disc/USB Playback

USB Transfer

Tuner

BLUETOOTH

Network

Gesture Control

Sound Adjustment

Other Operations

Additional Information

MHC-V77DW

MHC-V77DW.GB.4-596-07614(1)

2

GB

WARNING

To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.

Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet.

Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

The unit is not disconnected from the mains as long as it is connected to the

AC outlet, even if the unit itself has been turned off.

Indoor use only.

For product with CE marking

The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic

Area).

CAUTION

The use of optical instruments with this product will increase eye hazard.

For customers in Europe

This appliance is classified as a CLASS

1 LASER product under IEC 60825-

1:2007. This marking is located on the rear exterior.

Disposal of waste batteries and electrical and electronic equipment (applicable in the

European Union and other

European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

MHC-V77DW.GB.4-596-07614(1)

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-oflife to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

This product has been manufactured by or on behalf of Sony Corporation,

1-7-1 Konan Minato-ku Tokyo, 108-0075

Japan. Inquiries related to product compliance based on European

Union legislation shall be addressed to the authorized representative,

Sony Belgium, bijkantoor van Sony

Europe Limited, Da Vincilaan 7-D1, 1935

Zaventem, Belgium. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.

Hereby, Sony Corp., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC.

For details, please access the following

URL: http://www.compliance.sony.de/

This product is intended to be used in the following countries.

AT, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE,

GR, HU, IS, IE, IT, LV, LI, LT, LU, MT, NL,

NO, PL, PT, RO, SK, SI, ES, SE, CH, GB, AL,

BA, MK, MD, RS, ME, TR, Kosovo

5,150 MHz – 5,350 MHz band is restricted to indoor operations only.

This equipment has been tested and found to comply with the limits set out in the EMC regulation using a connection cable shorter than

3 meters.

This system is designed to be used for the following purposes:

• Playing back music/video sources on discs or USB devices

• Transferring music to USB devices

• Listening to radio stations

• Listening to TV sound

• Playing back music sources on

BLUETOOTH devices

• Enjoying social gatherings with the

“Party Chain” function

• Streaming music through network connection

For customers in Australia and

New Zealand

This equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

3

GB

MHC-V77DW.GB.4-596-07614(1)

4

GB

For customers in Australia and

India

Disposal of Old

Electrical & Electronic

Equipment

(Applicable in the

European Union and other European countries with separate collection systems)

For customers in Singapore

For customers in the United

Arab Emirates

This appliance is classified as a CLASS 1

LASER product under IEC 60825-1:2007.

This marking is located on the rear exterior.

License and Trademark Notice

• is a trademark of DVD Format/

Logo Licensing Corporation.

• “DVD+RW”, “DVD-RW”, “DVD+R”,

“DVD-R”, “DVD VIDEO”, and the “CD” logos are trademarks.

• WALKMAN® and WALKMAN® logo are registered trademarks of Sony

Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

• This system incorporates Dolby*

Digital.

* Manufactured under license from

Dolby Laboratories. Dolby, Dolby

Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• This system incorporates High-

Definition Multimedia Interface

(HDMI™) technology. The terms

HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

• “BRAVIA” is a trademark of Sony

Corporation.

• LDAC™ and LDAC logo are trademarks of Sony Corporation.

MHC-V77DW.GB.4-596-07614(1)

• The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony

Corporation is under license. Other trademarks and trade names are those of their respective owners.

• The N-Mark is a trademark or registered trademark of NFC Forum,

Inc. in the United States and in other countries.

• Android™ is a trademark of Google

Inc.

• Google Play™ is a trademark of

Google Inc.

• Google Cast™ is a trademark of

Google Inc.

• Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple

Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi Alliance® are registered trademarks of Wi-Fi Alliance®.

• Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are trademarks of Wi-Fi Alliance®.

• DLNA™, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the

Digital Living Network Alliance.

• AOSS is a trademark of BUFFALO

INC.

• This product incorporates Spotify software which is subject to 3rd party licenses found here: https://developer.spotify.com/ esdk-third-party-licenses/

• Spotify and Spotify logos are trademarks of the Spotify Group.

• ClearAudio+ and trademarks of Sony Corporation.

are

• “Xperia” and “Xperia Tablet” are trademarks of Sony Mobile

Communications AB.

• THIS PRODUCT IS LICENSED UNDER

THE MPEG-4 VISUAL PATENT

PORTFOLIO LICENSE FOR THE

PERSONAL AND NON-COMMERCIAL

USE OF A CONSUMER FOR

(i) ENCODING VIDEO IN

COMPLIANCE WITH THE MPEG-4

VISUAL STANDARD (“MPEG-4

VIDEO”)

AND/OR

(ii) DECODING MPEG-4 VIDEO THAT

WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND

NON-COMMERCIAL ACTIVITY

AND/OR WAS OBTAINED FROM

A VIDEO PROVIDER LICENSED TO

PROVIDE MPEG-4 VIDEO.

NO LICENSE IS GRANTED OR SHALL

BE IMPLIED FOR ANY OTHER

USE. ADDITIONAL INFORMATION

INCLUDING THAT RELATING TO

PROMOTIONAL, INTERNAL AND

COMMERCIAL USES AND LICENSING

MAY BE OBTAINED FROM MPEG LA,

L.L.C.

HTTP://WWW.MPEGLA.COM

• All other trademarks are trademarks of their respective owners.

• In this manual, ™ and ® marks are not specified.

5

GB

MHC-V77DW.GB.4-596-07614(1)

6

GB

About this manual

• This manual mainly explains operations using the remote control, but the same operations

• can also be performed using the keys on the touch panel of the unit having the same or similar names.

Icons, such as , listed at the

• top of each explanation indicate the type of media that can be used with the function being explained.

Some illustrations are presented

• as conceptual drawings, and may be different from the actual products.

The items displayed on the TV

• screen may vary depending on the area.

The default setting is underlined.

The text enclosed in bracket ([--]) appears on the TV screen, and the text enclosed in double quotation mark (“--”) appears on the display.

MHC-V77DW.GB.4-596-07614(1)

Table of Contents

About this manual .................6

Unpacking ..............................9

Playable discs or files on discs/USB device ...................9

Websites for compatible devices ..................................12

Guide to parts and controls .................................13

Getting Started

Hooking up the system securely .................................19

Deactivating the demonstration ......................21

Inserting batteries ................21

Connecting the TV ............... 22

Carrying the unit .................. 24

Changing the color system .................................. 24

Performing the quick setup .................................... 24

Changing the display mode .................................... 25

Disc/USB Playback

Before using the USB device ................................... 26

Basic playback ..................... 26

Other playback operations ............................ 27

Using play mode ..................30

Restricting playback of the disc (Parental Control) ...........31

Viewing information of a disc and USB device ............. 32

Using the Setup Menu ......... 33

USB Transfer

Before using the USB device ................................... 37

Transferring music ............... 37

Tuner

Listening to the radio ...........40

BLUETOOTH

About the BLUETOOTH wireless technology ..............41

Pairing this system with a

BLUETOOTH device ...............41

Listening to music on a

BLUETOOTH device .............. 42

One Touch BLUETOOTH

Connection by NFC .............. 43

Setting the BLUETOOTH audio codecs ........................44

7

GB

MHC-V77DW.GB.4-596-07614(1)

8

GB

Network

Selecting the method of network connection ............. 45

Connecting with a computer ............................. 45

Listening to the same music from the multiple speakers

(SongPal Link function) ........ 47

Listening to an Internet music service (Google

Cast) ..................................... 47

Listening to an Internet music service (Spotify) .........48

Gesture Control

Enjoying the Gesture

Control .................................49

Using the Gesture Control during playback ...................50

Creating a party atmosphere (DJ Effect) .........50

Using the Gesture Control during Karaoke function .......51

Sound Adjustment

Adjusting the sound ............ 52

Selecting the Virtual

Football mode ...................... 52

Creating your own sound effect .................................... 53

Other Operations

Controlling the system using a smartphone or tablet

(SongPal) .............................. 53

Getting frenzied parties with the “Fiestable” app ....... 54

Using the Control for HDMI function ................................ 54

Using the Party Chain function ................................ 57

Singing along: Karaoke ........60

Enjoying music with the

Party Light and Speaker

Light ......................................61

Using the Sleep Timer ...........61

Using optional equipment ....61

Deactivating the touch panel on the unit (Child

Lock) ..................................... 62

Deactivating the touch panel on the unit for a short time (Party Lock) .................. 62

Setting the automatic standby function.................. 62

Setting the BLUETOOTH/

Network standby mode ....... 63

Turning on or off the

BLUETOOTH/Wi-Fi signal ..... 63

Updating the software .........64

Additional Information

Troubleshooting .................. 65

Precautions .......................... 76

Specifications ....................... 79

Language code list .............. 82

MHC-V77DW.GB.4-596-07614(1)

Unpacking

This unit (MHC-V77DW) (1)

Remote control (1)

R03 (size AAA) batteries (2)

FM lead antenna (1)

AC power cord (mains lead) (1)

• AC plug adaptor* (1) (supplied only for certain areas)

* This plug adaptor is not for the use in

Chile, Paraguay and Uruguay. Use this plug adaptor in the countries where it is necessary.

Note

When unpacking the carton, be sure that two people handle the unit. Dropping the unit may cause personal injury and/or property damage.

Playable discs or files on discs/USB device

Playable discs

DVD VIDEO

DVD-R/DVD-RW in DVD VIDEO format or video mode

DVD+R/DVD+RW in DVD VIDEO format

• •

VIDEO CD (Ver. 1.0, 1.1, and 2.0 discs)

Super VCD

CD-R/CD-RW/CD-ROM in VIDEO

CD format or super VCD format

AUDIO CD

CD-R/CD-RW in AUDIO CD format

Playable files on discs

Music:

MP3 files (.mp3)* 1 * 2

Video:

MPEG4 files (.mp4/.m4v)* files (.avi)

2

*

3

, Xvid

Playable files on USB device

Music:

MP3 files (.mp3)*

(.wma)*

2

.3gp)* 2 files (.aiff)* 2

ALAC files (.alac)*

.dsdiff)*

2

1

2

*

2

, WMA files

, AAC files (.m4a/.mp4/

, WAV files (.wav)* 2

Video:

MPEG4 files (.mp4/.m4v)*

, AIFF

, FLAC files (.flac)*

, DSD (.dsf/

2 * 3

2 ,

, Xvid files (.avi)

Note

• The discs must be in the following format:

— CD-ROM/-R/-RW in DATA CD format that contains the MP3* 1 * 2 , MPEG4* 2 * 3 and Xvid files, and conforms to

ISO 9660*

4

Level 1/Level 2 or Joliet

(extended format).

— DVD-ROM/-R/-RW/+R/+RW in

DATA DVD format that contains the

MP3*

1

*

2

, MPEG4*

2

*

3

and Xvid files, and conforms to UDF (Universal Disk

Format).

• The system will attempt to play back any data with the extensions above, even if it is not in the supported format.

Playing this data may generate a loud noise which could damage your speaker system.

* 1 MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/

MPEG for compressed audio data. MP3 files must be in MPEG 1 Audio Layer 3 format.

* 2 Files with copyright protection (Digital

Rights Management) cannot be played

* 3 back by the system.

MPEG4 files must be recorded in MP4 file format. Supported video codec and audio codec are as follows:

— Video codec: MPEG4 Simple Profile

(AVC is not supported.)

— Audio codec: AAC-LC (HE-AAC is not supported.)

* 4

A logical format of files and folders on CD-ROMs, defined by ISO

(International Organization for

Standardization).

9

GB

MHC-V77DW.GB.4-596-07614(1)

10

GB

Discs/files that cannot be played back

You cannot play back the following discs

—BDs (Blu-ray Discs)

—CD-ROMs recorded in PHOTO CD format

—Data part of CD-Extra or Mixed

Mode CDs*

—CD Graphics disc

• created in Packet Write format

—DVD-RAM

• not been correctly finalized

—CPRM (Content Protection for

Recordable Media) compatible

DVD-R/-RW recorded in Copy-

Once programs

—A disc that has a non-standard shape (e.g., heart, square, star)

—A disc that has adhesive tape, paper, or a sticker attached to it

• You cannot play back the following files

—The video files which is larger than 720 (width) × 576 (height) pixels.

• to length ratio.

—A WMA file in WMA DRM, WMA

Lossless, or WMA PRO format.

—An AAC file in AAC DRM or AAC

Lossless format.

—The AAC files which is encoded at 96 kHz.

—Files that are encrypted or protected by passwords.

—Files with DRM (Digital Rights

Management) copyright protection.

—Some Xvid files that are longer than 2 hours.

The MP3 PRO audio file can be played back as MP3 file.

The system may not play back an

Xvid file when the file has been combined from two or more Xvid files.

* Mixed Mode CD: This format records data on the first track and audio (AUDIO

CD data) on the second and subsequent tracks of a session.

Notes on CD-R/-RW and

DVD-R/-RW/+R/+RW

In some cases, a CD-R/-RW and

DVD-R/-RW/+R/+RW cannot be played back on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording

• device and authoring software.

For more information, refer to the operating instructions of the recording device.

Some playback functions may not work with some DVD+Rs/+RWs, even if they have been correctly finalized. In this case, view the disc by normal playback.

Notes on discs

This product is designed to play back discs that conform to the

Compact Disc (CD) standard.

DualDisc and some music discs encoded with copyright protection technologies do not conform to the CD standard. Therefore, these discs may not be compatible with this product.

Note on multisession disc

This system can play back continuous sessions on a disc when they are recorded in the same format as the first session. However, the playback is not guaranteed.

MHC-V77DW.GB.4-596-07614(1)

Note on DVD VIDEO and VIDEO

CD playback operations

Some playback operations for a DVD VIDEO or VIDEO CD may be intentionally restricted by software producers. Therefore, some playback features may not be available. Be sure to read the operating instructions of the DVD

VIDEO or VIDEO CD.

Notes on playable files

• Playback may take a longer time to start when:

—a DATA CD/DATA DVD/USB device is recorded with a complicated tree structure.

• another folder have just been played back.

• The system can play back a DATA

CD/DATA DVD or video files on a USB device in the following conditions:

—up to a depth of 8 folders

—up to 999 files in a disc

The system can play back audio files on a USB device in the following conditions:

—up to a depth of 8 folders

• in a folder

These numbers may vary

• depending on the file or folder configuration.

Folders that have no audio files or video files are skipped.

Files transferred by a device such as a computer may not be played back in the order in which they were transferred.

The playback order may not be

• applicable depending on the software used for creating the audio file or video file.

Compatibility with all encoding/

• writing software of the supported formats, recording devices, and recording media cannot be guaranteed.

Depending on the Xvid file, the picture may be unclear or the sound may skip.

Notes about USB devices

This system is not guaranteed to operate with all USB devices.

• Although there are a variety of complex functions for USB devices, the playable contents of USB devices connected to the system are music and video

• contents only. For details, refer to the operating instructions of the

USB device.

When a USB device is inserted, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish

• reading the USB device.

Do not connect the system and the USB device through a USB hub.

• With some connected USB devices, there may be a delay before an operation is performed by this system.

The playback order for the system may differ from the playback order of the connected USB device.

Before using a USB device, make sure that no virus-ridden files are on the USB device.

11

GB

MHC-V77DW.GB.4-596-07614(1)

12

GB

Region code

Your system has a region code and will only play back a DVD VIDEO labeled with an identical region code or .

Websites for compatible devices

Check the websites below for the latest information about compatible

USB and BLUETOOTH devices.

For customers in Latin America:

<http://esupport.sony.com/LA>

For customers in Europe and

Russia:

<http://www.sony.eu/support>

For customers in other countries/ regions:

<http://www.sony-asia.com/ support>

Compatible iPhone/iPod models

The compatible iPhone/iPod models are as follows. Update your iPhone/ iPod with the latest software before using with the system.

BLUETOOTH technology works with:

• iPhone SE

• iPhone 6s Plus iPhone 6s iPhone 6 Plus iPhone 6

• iPhone 5s iPhone 5c iPhone 5 iPhone 4s

• iPod touch (6th generation) iPod touch (5th generation)

MHC-V77DW.GB.4-596-07614(1)

Guide to parts and controls

You can lock the keys except

 (power) on the unit to prevent them from

being operated by mistake (page 62).

Unit

Top

  

Slot

Side

Front

13

GB

MHC-V77DW.GB.4-596-07614(1)

14

GB

 Power indicator

Indicates the current status of the system:

Lights off: The system

• is in standby mode and

BLUETOOTH/Network standby mode is set to off.

Lights up:

— Orange: The system is in standby mode and

BLUETOOTH/Network standby mode is set to on.

— Green: The system is turned on.

Flashes:

— Green: The system is in the midst of turning on or entering standby mode.

— Red: The system detects an abnormality that cannot be displayed with an error message.

 (power) button

Press to turn on the system, or set it to standby mode.

  (play) key

Touch to start playback.

Touch and hold

 for more than 2 seconds, the built-in sound demonstration will be played back.

Touch

 to stop the demonstration.

• (stop) key

— Touch to stop playback.

When touched twice, resume playback can be canceled.

— Touch to stop transfer during music transfer.

— Touch to stop the built-in sound demonstration.

 GESTURE ON/OFF key

(page 49, 50, 51)

 BLUETOOTH indicator

(page 41)

BLUETOOTH key

Touch to select the BLUETOOTH function.

PAIRING key

Touch and hold to activate

BLUETOOTH pairing during the

BLUETOOTH function.

 NETWORK indicator

Indicates the current status of the system:

Lights off: The system is in standby mode.

• Lights up:

— White: The network connection is established.

— Green: The system is connected to a music service via Spotify.

— Blue: The system is connected to a music

• service via Google Cast.

Flashes in white: While connecting to network.

NETWORK key

Touch to select NETWORK function.

WPS (Wi-Fi Protected

Setup™) key (page 45)

Touch and hold to set up a Wi-Fi network.

 STEREO PAIR key

Touch to use the Wireless

Stereo* function for combining two systems.

MHC-V77DW.GB.4-596-07614(1)

SET UP key

Touch and hold to use the

Wireless Stereo* function for two speaker systems.

* Wireless Stereo can be used after you update the software of the system. For information about updating, refer to the URL below. http://sony.net/nasite/

 Display

 Party Light (page 61)

Do not look directly at the light- emitting part when the Party

Light is turned on.

 GESTURE CONTROL sensor

(page 49, 50, 51, 62)

 FUNCTION key

Touch to select a function.

 FIESTA indicator (page 52)

Lights up when FIESTA sound effect is selected.

FIESTA key (page 52)

 MEGA BASS key (page 52)

 SOUND FIELD key (page

52)

 PARTY CHAIN key (page

59)

PARTY LIGHT key (page 25,

61)

 MIC LEVEL +/– key

(page 60)

 VOLUME +/– key

Touch to adjust the volume.

 +/– (select folder) key

Touch to select a folder on a data disc or a USB device.

 / (go backward/go forward) key

Touch to select a track or file.

TUNING +/– key (page 40)

  (open/close) key

Touch to open or close the disc tray.

 Direct function key (DVD/CD,

USB, FM, AUDIO IN, TV)

To use this button, touch

PLAYBACK (

), then the function key you want.

VOCAL FADER key (page

60)

SCORE key (page 60)

VOICE CHANGER +/– key

(page 61)

MIC ECHO key (page 60)

 PLAYBACK key (page 50)

DJ key (page 50)

SAMPLER key (page 50)

KARAOKE key (page 51)

 Disc tray

(N-Mark) (page 43)

 Remote control sensor

15

GB

MHC-V77DW.GB.4-596-07614(1)

16

GB

 MIC1 jack, MIC2 jack (inside the MIC1 MIC2 cover)

Place your fingernail in the slot to open the cover.

Use to connect the microphone(s).

 (USB) port (inside the USB

REC/PLAY cover)

Open the cover according to the arrow direction.

Use to connect a USB device.

This port can be used for both playback and music transfer.

Remote control

  (power) button

Press to turn on the system, or sets it to standby mode.

 PLAY MODE button (page

30, 38)

 REPEAT/FM MODE button

(page 30, 40)

 Numeric (0 – 9) buttons*

1

*

2

— Press to select a track, chapter or file with its item number.

— Press to enter numbers or values.

SUBTITLE button (page 28)

AUDIO*

32)

2

button (page 28,

ANGLE button (page 28)

DVD SETUP button (page

33)

MEDIA MODE button (page

26)

Press to select the media to be played back on a data disc or

USB device.

CLEAR button (page 28)

REC TO USB button (page

38)

Press to transfer music to the

USB device connected to the

 (USB) port.

MIC ECHO button (page 60)

SCORE button (page 60)

MHC-V77DW.GB.4-596-07614(1)

+/– (select folder)

Press to select a folder on a data disc or a USB device.

KEY CONTROL

/ button

(page 60)

 DVD TOP MENU button

Press to display the DVD title on the TV screen.

DVD/TUNER MENU button

(page 27, 28, 40)

RETURN button (page 27)

OPTIONS button

Press to enter or exit options menu.

/ / / button

Press to select the menu items.

button

Press to enter/confirm the settings.

 SEARCH button (page 27,

28)

  (volume) +/–* 2

button

Press to adjust the volume.

 SHIFT* 1

button

Hold down to activate the buttons printed in pink.

 / (fast reverse/fast

forward) button (page 27)

Press to find a point in a track or file during playback.

/

 (slow back/slow

forward) button (page 27)

Press to play in slow-motion.

TUNING+/– button (page

40)

 (play)*

2 button

Press to start playback.

/ (go backward/go

forward) button (page 27)

Press to select a track or file.

PRESET+/– button (page

40)

 (pause) button

Press to pause playback. To resume playback, press

.

 (stop) button

— Press to stop playback.

When pressed twice, resume playback can be canceled.

— Press to stop transfer during music transfer.

— Press to stop the built-in sound demonstration.

 FUNCTION +/– button

Press to select a function.

 MEGA BASS button (page

52)

 SOUND FIELD button (page

52)

MUSIC button (page 53)

MUSIC ARENA button (page

52)

 PARTY LIGHT button (page

25, 61)

LIGHT MODE button (page

61)

17

GB

MHC-V77DW.GB.4-596-07614(1)

 DISPLAY button (page 21,

25, 32, 40, 42)

Press to change the information on the display.

DISPLAY* 1 button (page

32)

Press to view or hide the onscreen display.

 SLEEP button (page 61)

* 1 This button is printed in pink. To use this button, hold down SHIFT (

)

*

2 button, then press this button.

The numeric button 2/AUDIO,

 + and

 buttons have a tactile dot. Use the tactile dot as a reference when operating the system.

18

GB

MHC-V77DW.GB.4-596-07614(1)

Getting Started

Hooking up the system securely

Unit (Rear)

Note

The jacks/terminal/port at the rear panel have cover, open the cover then make the connection.

HDMI OUT (TV) jack

Use an HDMI cable (not supplied) to connect to the HDMI IN jack of

a TV (page 22).

VIDEO OUT jack

Use a video cable (not supplied) to connect to the video input jack

of a TV or projector (page 22).

Note

Do not connect this system to the TV through the video deck.

19

GB

MHC-V77DW.GB.4-596-07614(1)

20

GB

Audio input and output jacks

Use an audio cable (not supplied) to make either connection as follows:

AUDIO/PARTY CHAIN OUT

L/R jacks

—Connect to the audio input jacks of an optional

• equipment.

• system to enjoy the Party

Chain function (page 57).

AUDIO/PARTY CHAIN IN (TV)

L/R jacks

—Connect to the audio output jacks of a TV or an audio/ video equipment. The sound is output through this system.

• system to enjoy the Party

Chain function (page 57).

Wireless LAN antenna

If you use the wireless network function, set the antenna as shown in the illustration.

FM ANTENNA terminal

Find a location and an orientation that provide good reception when you set up the antennas.

Keep the antenna away from the

AC power cord (mains lead) and the USB cable to avoid picking up noise.

Extend the FM lead antenna horizontally

LAN (100) port

Use a LAN cable (not supplied) to connect to a network equipment

(page 46).

AC power cord (mains lead)

Connect the AC power cord

(mains lead) (supplied) to the unit, then to the wall outlet.

To wall outlet

Note

If a network (LAN) cable is connected to the system, the system automatically operates to establish a wired LAN connection. If you wish to use a wireless LAN connection, do not connect a network (LAN) cable to the system.

Hint

We recommend you to adjust the wireless LAN antenna to 90 degrees as in the illustration above for maximum reception.

When the AC power cord (mains lead) is connected, the system is performing initialization. During system initialization, “WELCOME” appears on the display. While the initializing is in progress, you cannot turn on the system.

After initialization completes,

demonstration (page 25)

starts automatically. If you press

 to turn on the system, the demonstration ends.

MHC-V77DW.GB.4-596-07614(1)

Deactivating the demonstration

To deactivate the demonstration while the system is turned off, press

DISPLAY repeatedly to select the no display mode (Power Saving Mode)

(page 25).

Inserting batteries

Insert the two supplied R03 (size

AAA) batteries, matching the polarities shown below.

To operate the unit using the remote control

Point the remote control at the unit’s remote control sensor.

Note

Do not mix an old battery with a new one or mix different types of batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion.

MHC-V77DW.GB.4-596-07614(1)

21

GB

22

GB

Connecting the TV

Connecting the TV

Before connecting cables, be sure to disconnect the AC power cord (mains lead).

To watch video

Select the connection methods according to the jacks on your TV.

High quality

HDMI cable* 1 (not supplied)

HDMI IN (ARC) *2

or

HDMI IN

Video cable (not supplied)

VIDEO IN

Standard quality

Recommended connection

Alternative connection

* 1 High Speed HDMI Cable with Ethernet

* 2 You can listen to TV sound via the system if you connect the system to the TV’s HDMI

IN (ARC) jack. The Audio Return Channel (ARC) function enables the TV to output sound through the system with an HDMI connection, without performing an audio connection (connection

 below). To set the ARC function on this system, see [AUDIO

RETURN CHANNEL] (page 36). To check the compatibility of your TV’s ARC function,

refer to the operating instructions supplied with your TV.

MHC-V77DW.GB.4-596-07614(1)

To listen to TV sound via the system

If you do not connect the system to the TV’s HDMI IN (ARC) jack, make this connection.

Audio cable (not supplied)

AUDIO OUT

To listen to TV sound, press FUNCTION +/– repeatedly to select “TV”.

Hint

You can also enjoy the sound of external equipment (DVD players, etc.) via the system by connecting to the AUDIO IN (TV) jack as connection

 above. For details, refer to the operating instructions of your equipment.

• If the audio output level from the system is low when connecting the external equipment, try adjusting the audio output settings on the connected equipment. It may improve the audio output level. For details, refer to the operating instructions of your equipment.

MHC-V77DW.GB.4-596-07614(1)

23

GB

24

GB

Carrying the unit

The unit has caster wheels so that you can roll it easily. Normally, carrying the unit by this method is recommended on flat surfaces.

Before carrying the unit, disconnect all the cables.

Note

• The caster wheels can be used only on flat surfaces. Lift the unit by two people on uneven surfaces. Correct hand placement while carrying the unit is very important to avoid personal injury and/or property damage. Be sure to use the handle when lifting the unit.

Changing the color system

(Except for Latin American,

European, and Russian models)

Set the color system to PAL or NTSC depending on the color system of your TV.

Each time you perform the procedure below, the color system changes as follows:

NTSC

 PAL

Use the keys on the touch panel of the unit to perform this operation.

1

Press

to turn on the system.

2

Touch FUNCTION repeatedly to select “DVD/CD”.

3

Touch and hold DJ and TUNING + for more than 2 seconds.

“NTSC” or “PAL” appears on the display.

Handle

Exercise extreme caution when carrying the unit on a slope.

• Do not carry the unit with a person,

• luggage, etc. on it.

Do not let children or infants be near when carrying the unit.

Performing the quick setup

Before using the system, you can make the minimum basic adjustments in the quick setup.

1

Turn on your TV and select the video input.

2

Press

to turn on the system.

3

Press FUNCTION +/– repeatedly to select “DVD/CD”.

The guide message [Press ENTER to run QUICK SETUP.] appears at the bottom of the TV screen.

MHC-V77DW.GB.4-596-07614(1)

4

Press without loading a disc.

[LANGUAGE SETUP] appears on the

TV screen. Displayed items may vary depending on country or region.

LANGUAGE SETUP

OSD :

MENU

AUDIO

:

:

S U B T I T L E

:

ENGLISH

ENGLISH

CHINESE 1

CHINESE 2

THAI

5

Press / repeatedly to select a language, then press .

[VIDEO SETUP] appears on the TV screen.

6

Press / repeatedly to select the setting that matches your

TV type, then press .

After [QUICK SETUP is complete.] appears on the TV screen, the system is ready for playback.

To change the setting manually

See “Using the Setup Menu”

(page 33).

To quit the quick setup

Press DVD SETUP.

Note

The guide message appears when you turn on the system for the first time or

after performing [RESET] (see “Returning the setup menu settings to the default” on page 75).

Changing the display mode

Press DISPLAY repeatedly while the system is turned off.

Each time you press the button, the display mode changes as follows.

Demonstration

The messages about the main features of this system scrolls across the display and the illumination turns on.

To turn off the illumination, press

PARTY LIGHT.

No display (Power Saving Mode)

The display is turned off to conserve power.

MHC-V77DW.GB.4-596-07614(1)

25

GB

26

GB

Disc/USB Playback

Before using the USB device

For compatible USB devices, see

“Websites for compatible devices”

(page 12).

(You can use your Apple devices with this system via BLUETOOTH connection only.)

Touch

 on the unit again to close the disc tray.

Do not forcibly push the disc tray to close it as this may cause a malfunction.

For USB function:

Open the USB REC/PLAY cover according to the arrow direction, then connect a USB device to the

 (USB) port.

Basic playback

1

Press FUNCTION +/– repeatedly to select “DVD/CD” or “USB”.

Alternatively, touch PLAYBACK, then touch DVD/CD or USB on the unit.

2

Prepare the playback source.

For DVD/CD function:

Touch

 on the unit to open the disc tray and load a disc with the label facing up on the disc tray.

Note

You can use a USB adaptor (not supplied) to connect the USB device to the unit if the USB device cannot be plugged into the (USB) port.

3

( only)

Press MEDIA MODE repeatedly to select the media type

([MUSIC]/[VIDEO]) you want.

4

Press

to start playback.

When you play back an 8 cm disc such as a CD single, place it on the inner circle of the tray.

MHC-V77DW.GB.4-596-07614(1)

Other operations

To Do this

Stop playback Press

.

Pause playback

Press

.

Press

.

Resume playback or return to normal playback

Cancel the resume point

Press

 twice.

Select a track, file, chapter or scene

Press

 or  during playback.

Or, hold down SHIFT, press the numeric buttons, then press .*

(Operation might be prohibited by disc or

USB device.)

* This operation is not available for audio file playback of USB device.

To use the Gesture Control during playback

See page 50.

To play from a specific video file on the disc or USB device

1

Press MEDIA MODE repeatedly to select [VIDEO].

2

Press SEARCH to display the folder list.

3

Press / repeatedly to select the folder you want.

4

Press to display the file list.

5

Press / repeatedly to select the file you want, then press .

Other playback operations

Depending on the type of disc or file, the function may not work.

To

View DVD menu

Do this

Press DVD/TUNER

MENU.

View folder list or file list

Press SEARCH.

Press SEARCH again to turn off the folder list or file list.

Return to folder list when in file list

Press RETURN.

Find a point in an audio file of

USB device

Hold down

 or  during playback.

Locate a point quickly in fast forward or fast reverse (Lock

Search)

Press

 or  during playback.

Each time you press

 or , the playback speed changes.

Watch frame by frame

(Slow-motion

Play)

Press

, then press or

.

Each time you press or

, the playback speed changes.

27

GB

MHC-V77DW.GB.4-596-07614(1)

28

GB

Searching a specific title/ chapter/scene/track/index

1

Press SEARCH repeatedly during playback to select the search mode.

2

Hold down SHIFT, press the numeric buttons to enter the title, chapter, scene, track, or index number you want, then press .

Playback starts.

Note

• For VIDEO CD with PBC playback, press

SEARCH to search the scene.

• For VIDEO CD without PBC playback, press SEARCH to search the track and index.

To search for a particular point using the time code

2

Press / / / , or hold down

SHIFT and press the numeric buttons, to select the title or item you want to play back, then press .

Changing the camera angles

Press ANGLE repeatedly during playback to select the camera angle you want.

Selecting the subtitle setting

1

Press SEARCH repeatedly during playback to select the time search mode.

2

Hold down SHIFT, press the numeric buttons to enter the time code, then press .

Example: To find a scene at 2 hours,

10 minutes, and 20 seconds after the beginning, hold down SHIFT, then press 2, 1, 0, 2, 0 ([2:10:20]).

If you make a mistake, press CLEAR to cancel the number.

To search using the DVD menu

1

Press DVD/TUNER MENU.

Press SUBTITLE repeatedly during playback to select the subtitle language you want or turn off the subtitle.

Changing the language/sound

Press AUDIO repeatedly during playback to select the audio format or mode you want.

DVD VIDEO

You can select audio format or language when the source contains multiple audio formats or multilingual audio.

When 4 digits are displayed, they indicate a language code. See

“Language code list” (page 82)

to confirm which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.

MHC-V77DW.GB.4-596-07614(1)

VIDEO CD/AUDIO CD/DATA CD/

DATA DVD (MP3 file)

You can change the sound output.

[STEREO]: The standard stereo

• sound.

[1/L]/[2/R]: The monaural sound of the left or right channel.

SUPER VIDEO CD

• •

[1:STEREO]: The stereo sound of audio track 1.

[1:1/L]/[1:2/R]: The monaural sound of the left or right channel of audio track 1.

[2:STEREO]: The stereo sound of audio track 2.

[2:1/L]/[2:2/R]: The monaural sound of the left or right channel of audio track 2.

Playing a VIDEO CD with PBC functions

You can use the PBC (Playback

Control) menu to enjoy the interactive features of VIDEO CD

(VIDEO CD Version 2.0 and Super

VCD).

1

Press

to play a VIDEO CD

with PBC functions.

The PBC menu appears on the TV screen.

2

Hold down SHIFT, press the numeric buttons to select the item number you want, then press .

3

Continue playback according to the instructions on the menu.

Note

PBC playback is canceled when Repeat

Play is activated.

To cancel PBC playback

1

Press

 or , or hold down

SHIFT and press the numeric buttons, to select a track when playback is stopped.

2

Press

 or .

Playback starts from the selected track.

To return to PBC playback

Press

 twice, then press .

Multi-disc resume play

This system can store playback resume points for up to 6 discs and resumes playback when you insert the same disc again. If you store a playback resume point for the 7th disc, the resume point for the first disc will be deleted.

To activate this function, set [MULTI-DISC RESUME] in [SYSTEM SETUP] to [ON]

(page 35).

Note

To play back from the beginning of the disc, press

 twice, then press .

29

GB

MHC-V77DW.GB.4-596-07614(1)

Using play mode

Playing in sequential order

(Normal Play)

When playback is stopped, press

PLAY MODE repeatedly.

When playing a disc

[DISC]: plays the disc.

• [FOLDER]*: plays all playable files in the specified folder on the disc.

* Cannot be selected for AUDIO CD.

When playing a USB device

[ONE USB DEVICE]: plays the USB device.

[FOLDER]: plays all playable files in the specified folder on the USB device.

Note

• “FLDR” and “SHUF” light off on the display when Normal Play is set to

[DISC] or [ONE USB DEVICE].

• •

“FLDR” lights up on the display when

Normal Play is set to [FOLDER].

• When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the display.

Playing in random order

(Shuffle Play)

30

GB

When playback is stopped, press

PLAY MODE repeatedly.

When playing a disc

[DISC (SHUFFLE)]: shuffles all audio files on the disc.

[FOLDER (SHUFFLE)]*: shuffles all audio files in the specified folder on the disc.

* Cannot be selected for AUDIO CD.

When playing a USB device

[ONE USB DEVICE (SHUFFLE)]: shuffles all audio files on the USB device.

[FOLDER (SHUFFLE)]: shuffles all audio files in the specified folder on the USB device.

Note

• •

“SHUF” lights up on the display when

Shuffle Play is set to [DISC (SHUFFLE)] or

[ONE USB DEVICE (SHUFFLE)].

“FLDR” and “SHUF” lights up on the display when Shuffle Play is set to

[FOLDER (SHUFFLE)].

• When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the display.

• Shuffle Play cannot be performed for video files.

• •

Shuffle Play is canceled when you:

— open the disc tray.

— perform Synchronized Transfer.

— change MEDIA MODE.

• •

Shuffle Play may be canceled when you select a folder or a track to play back.

Playing repeatedly (Repeat

Play)

Press REPEAT repeatedly.

Depending on the type of disc or file, some settings may not be available.

[OFF]: does not play back

• •

• repeatedly.

[ALL]: repeats all tracks or files in the selected play mode.

[DISC]: repeats all contents (DVD

VIDEO and VIDEO CD only).

MHC-V77DW.GB.4-596-07614(1)

[TITLE]: repeats the current title

(DVD VIDEO only).

[CHAPTER]: repeats the current chapter (DVD VIDEO only).

[TRACK]: repeats the current track.

[FILE]: repeats the current video file.

To cancel Repeat Play

Press REPEAT repeatedly to select

[OFF].

Note

• •

“ ” lights up on the display when

Repeat Play is set to [ALL] or [DISC].

• “ ” lights up on the display when

Repeat Play is set to [TITLE], [CHAPTER],

[TRACK] or [FILE].

When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the

• display.

You cannot perform Repeat Play with

VIDEO CD during PBC playback.

Depending on the DVD VIDEO, you

• cannot perform Repeat Play.

Repeat Play is canceled when you

— open the disc tray.

— turn off the system (DVD VIDEO and

VIDEO CD only).

— change the function (DVD VIDEO and

VIDEO CD only).

— perform Synchronized Transfer.

— change MEDIA MODE.

Restricting playback of the disc (Parental

Control)

You can restrict playback of

DVD VIDEOs according to a predetermined level. Scenes may be skipped or replaced with different scenes.

1

When playback is stopped, press DVD SETUP.

2

Press / repeatedly to select

[SYSTEM SETUP], then press .

3

Press / repeatedly to select

[PARENTAL CONTROL], then press .

4

Hold down SHIFT, press the numeric buttons to enter or re-enter your 4-digit password, then press .

5

Press / repeatedly to select

[STANDARD], then press .

6

Press / repeatedly to select a geographic area as the playback limitation level, then press .

The area is selected.

When you select [OTHERS

], enter the area code for the geographic area you want according to the

“Parental Control area code list”

(page 83) by holding down SHIFT,

then press the numeric buttons.

7

Press / repeatedly to select

[LEVEL], then press .

8

Press / repeatedly to select the level you want, then press

.

The lower the value, the stricter the limitation.

To turn off the parental control function

Set [LEVEL] to [OFF] in step 8.

To play back a disc for which the parental control is set

1

Load the disc and press .

The display for entering your password appears on the TV screen.

31

GB

MHC-V77DW.GB.4-596-07614(1)

2

Hold down SHIFT, press the numeric buttons to enter or re-enter your 4-digit password, then press .

The system starts playback.

If you forget your password

Remove the disc and repeat steps 1

to 3 of “Restricting playback of the disc (Parental Control)” (page 31).

Hold down SHIFT, press the numeric buttons to enter a password

“199703”, then press .

Follow the on-screen instructions and enter a new 4-digit password.

Then, reload the disc and press

.

You need to enter your new password again.

Viewing information of a disc and USB device

Information on the TV screen

Hold down SHIFT, then press

 DISPLAY repeatedly during playback.

32

GB

Playback information

Playing time and remaining time

Bit rate

File type

Playback status

Title* 1

/track/file name*

2

Album*

1 /folder name* 2

/ chapter/index number

Artist name*

1 * 2

Appears when playing an audio file.

*

1

If an audio file has an ID3 tag, the system will display an album name/ title name/artist name from the ID3 tag information. The system can support

* 2

ID3 ver 1.0/1.1/2.2/2.3.

If the file or folder contains characters which cannot be displayed, those characters will be displayed as “_”.

Note

• Depending on the source being played,

— some information may not be displayed.

— some characters cannot be

• displayed.

Depending on the play mode, the

• information displayed may be different.

When USB function is selected, you can view the information on the TV screen only if MEDIA MODE is set to [VIDEO].

Displaying the audio format information in DVD VIDEOs and video files

Press AUDIO repeatedly during playback.

Information on the display

Press DISPLAY repeatedly when the system is on.

You can view the information as follows:

—playing time, remaining time of track, title, chapter

—scene number

—file name, folder name

MHC-V77DW.GB.4-596-07614(1)

Note

The disc name or track name may not be displayed depending on the

• characters.

Playing time of audio files and video files may not be displayed correctly.

• •

The elapsed playing time for an audio file encoded using a VBR (variable bit rate) is not displayed correctly.

Using the Setup Menu

You can make various adjustments to items such as picture and sound.

Displayed items vary depending on the country or region.

Note

Playback settings stored in the disc take priority over the setup menu settings.

Therefore, some of the setup menu settings may not be performed.

1

When playback is stopped in

DVD/CD function, press DVD

SETUP.

The setup menu appears on the TV screen.

2

Press / repeatedly to select

[LANGUAGE SETUP],

[VIDEO SETUP], [AUDIO SETUP],

[SYSTEM SETUP] or

[HDMI SETUP], then press .

3

Press / repeatedly to select the item you want, then press

.

4

Press / repeatedly to select the setting you want, then press

.

The setting is selected and setup is completed.

To exit the menu

Press DVD SETUP.

Setting the language

– [LANGUAGE SETUP]

[OSD]

Sets the language of the on-screen display.

[MENU]

Sets the language for the DVD menu.

[AUDIO]

Switches the language of the sound track.

When you select [ORIGINAL], the language given priority in the disc is selected.

[SUBTITLE]

Switches the language of the subtitle recorded in the DVD VIDEO.

When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.

Note

If you select [OTHERS

] in [MENU],

[AUDIO], and [SUBTITLE], enter a

language code from the “Language code list” (page 82) using the numeric

buttons.

33

GB

MHC-V77DW.GB.4-596-07614(1)

Setting the TV screen

– [VIDEO SETUP]

[TV TYPE]

[16:9]: Selects this when you connect a wide-screen TV or a TV with a wide-mode function.

[NORMAL]: Changes the picture size to fit the screen size with the original picture aspect ratio. This setting displays black bands on the left and right side if you display a 4:3 screen picture.

34

GB

[4:3 LETTER BOX]: Selects this when you connect a 4:3 screen TV that does not have a wide-mode function. This setting displays a wide picture with black bands on the top and bottom.

[4:3 PAN SCAN]: Selects this when you connect a 4:3 screen TV that does not have a wide-mode function. This setting displays a fullheight picture on the entire screen, with trimmed sides.

[4:3 OUTPUT]

[FULL]: Selects this when you connect a TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.

[COLOR SYSTEM(VIDEO CD)]

(Except for Latin American,

European, and Russian models)

Sets the color system (PAL or NTSC).

[AUTO]: Outputs the video signal according to the color system of the disc. Select this setting if your TV uses a DUAL system.

[PAL]: Changes the video signal of an NTSC disc and output it in PAL system.

[NTSC]: Changes the video signal of a PAL disc and output it in NTSC system.

For details, see “Changing the color system” (page 24).

[BLACK LEVEL]

(Latin American model only)

Selects the black level (setup level) for the video signals output from the

VIDEO OUT jack.

[ON]: Sets the black level of the output signal to the standard level.

[OFF]: Lowers the standard black level. Use this when the picture becomes too white.

[PAUSE MODE]

[AUTO]: The picture, including subjects that move dynamically, is output with no jitter. Normally select this setting.

MHC-V77DW.GB.4-596-07614(1)

[FRAME]: The picture, including subjects that do not move dynamically, is output in high resolution.

Note

This function only works for the HDMI

OUT (TV) jack. To use this function, be sure to set [HDMI SETUP] – [AUDIO(HDMI)] to

[PCM].

Setting the audio options

– [AUDIO SETUP]

[TRACK SELECTION]

Gives priority to the sound track which contains the highest number of channels when you play back a

DVD VIDEO on which multiple audio formats (PCM, MPEG audio, or Dolby

Digital) are recorded.

[OFF]: No priority given.

[AUTO]: Priority given.

[A/V SYNC]

(Video files only)

[OFF]: Does not adjust.

[ON]: Adjusts the delay between picture and sound when the sound does not synchronize with the displayed picture.

Note

• •

Depending on the playback contents, this function may not work.

• When you use HDMI connection, this function is only effective if you set

[HDMI SETUP] – [AUDIO(HDMI)] to

[PCM].

[DOWNMIX]

Selects the audio output signal for playing a multi-channel audio.

[NORMAL]: Outputs multi-channel audio into a 2-channel stereo signal.

[DOLBY SURROUND]: Outputs multi-channel audio into a

2-channel surround signal.

Setting the system

– [SYSTEM SETUP]

[SCREEN SAVER]

The screen saver will help prevent your display device from becoming damaged (ghosting). Press

 +/– to exit the screen saver.

[ON]: The screen saver image appears if you do not operate the system for about 15 minutes.

[OFF]: Turns off the function. The screen saver image does not appear.

[BACKGROUND]

Selects the background color or picture to be displayed on the TV screen.

[JACKET PICTURE]: The jacket picture (still picture) recorded on the disc appears in the background.

[GRAPHICS]: A preset picture stored in the system appears in the background.

[BLUE]: The background color is blue.

[BLACK]: The background color is black.

[PARENTAL CONTROL]

Sets the playback restrictions. For

details, see “Restricting playback of the disc (Parental Control)”

(page 31).

[MULTI-DISC RESUME]

[ON]: Stores the resume playback point in the memory for up to

6 discs.

35

GB

MHC-V77DW.GB.4-596-07614(1)

36

GB

[OFF]: Playback starts at the resume playback point only for the current disc in the system.

[RESET]

Returns the setup menu settings to the default settings. For details, see

“Returning the setup menu settings to the default” (page 75).

Setting the HDMI options

– [HDMI SETUP]

[HDMI RESOLUTION]

Selects the TV output resolution when the TV is connected via HDMI cable.

[AUTO(1920×1080p)]: Outputs video signals according to the resolution of the TV.

[1920×1080i]/[1280×720p]/

[720×480p]*

1

/[720×480/576p]*

2 the selected resolution setting.

:

Outputs video signals according to

* 1 For Latin American models only.

* 2 For other models.

[YC

B

C

R

/RGB(HDMI)]

[YC

B

C

R

]: Outputs YC

B

C

R

video signals.

[RGB]: Outputs RGB video signals.

[AUDIO(HDMI)]

[AUTO]: Outputs audio signals in original format from HDMI OUT (TV) jack.

[PCM]: Outputs 2-channel Linear

PCM signals from HDMI OUT (TV) jack.

[CONTROL FOR HDMI]

[ON]: The Control for HDMI function is enabled. You can operate mutually between system and TV connected with an HDMI cable.

[OFF]: Off.

[AUDIO RETURN CHANNEL]

Set this function when the system is connected to a TV’s HDMI IN jack that is compatible with Audio Return

Channel. This function is available when you set [CONTROL FOR HDMI] to [ON].

[ON]: You can listen to TV sound from the speakers of the system.

[OFF]: Off.

[STANDBY LINKED TO TV]

This function is available when you set [CONTROL FOR HDMI] to [ON].

[AUTO]: When you turn off the TV, the system turns off automatically in the following conditions:

• loaded in DVD/CD function

—a DATA CD or DATA DVD is loaded and [VIDEO] mode is selected

—USB function and [VIDEO] mode are selected

—TV function is selected

[ON]: The system turns off automatically when you turn off the

TV regardless of the function.

[OFF]: The system does not turn off when you turn off the TV.

MHC-V77DW.GB.4-596-07614(1)

USB Transfer

Before using the USB device

For compatible USB devices, see

“Websites for compatible devices”

(page 12).

(You can use your Apple devices with this system via BLUETOOTH connection only.)

Transferring music

You can transfer music from a disc (AUDIO CD or MP3 disc only) to a USB device connected to the

 (USB) port.

The audio format of files transferred by this system is MP3.

Note

• Do not remove the USB device during transfer or erase operations. Doing so may corrupt the data on the USB device or damage the USB device itself.

• MP3 files are transferred with the same bit rate as the original files.

• When transferring from AUDIO CD, you may select the bit rate before

• transferring.

USB transfer and erase operations are prohibited when the disc tray is opened.

Note on copyright-protected content

The transferred music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.

To select the bit rate

You can select a higher bit rate to transfer music with better quality.

1

Press OPTIONS.

2

Press / repeatedly to select

“BIT RATE”, then press .

3

Press / repeatedly to select the bit rate you want, then press

.

• •

“128 KBPS”: encoded MP3 files have smaller file size and lower audio quality.

• “256 KBPS”: encoded MP3 files have bigger file size but higher audio quality.

To exit the options menu, press

OPTIONS.

Transferring music from a disc

You can transfer music to a USB device connected to (USB) port as follows:

Synchronized Transfer: Transfer all

MP3 files from a disc to USB.

REC1 Transfer: Transfer a single track or MP3 file during playback.

1

Connect a transferable USB device to the  (USB) port.

Note

You can use a USB adaptor (not supplied) to connect the USB device to the unit if the USB device cannot be plugged into the (USB) port.

37

GB

MHC-V77DW.GB.4-596-07614(1)

38

GB

2

Press FUNCTION +/– repeatedly to select “DVD/CD”, then load a disc.

3

Prepare the sound source.

Synchronized Transfer:

If the system starts playback automatically, press

 twice to stop the playback fully.

When playback is stopped, press

PLAY MODE repeatedly to select the play mode you want.

Note

If you start transferring in Shuffle Play or Repeat Play, the selected play mode changes to Normal Play automatically.

REC1 Transfer:

Select the track or MP3 file you want to transfer, then start playback.

4

Press REC TO USB.

“PUSH ENTER” appears on the display.

5

Press .

The transfer starts, then “DO NOT

REMOVE” appears on the display.

Do not remove the USB device until the transfer is complete.

When the transfer is complete, the system performs as follows:

Synchronized Transfer:

When the transfer is complete, the disc stops automatically.

REC1 Transfer:

The transfer is completed automatically, but the disc continues to play the next track or file.

To stop transfer

Press

.

Notes on transfer

• •

You cannot transfer MP3 files on a UDF

(Universal Disk Format) formatted disc

• to the USB device.

While transferring, no sound is output.

• •

CD-TEXT information is not transferred to the created MP3 files.

• The transfer stops automatically if:

— the USB device runs out of space during transfer.

— the number of audio files or folders on the USB device reaches the limit that the system can recognize.

• •

If a folder or file that you are trying to transfer already exists on the

USB device with the same name, a sequential number is added after the name without overwriting the original folder or file.

• You cannot perform the following operations during transfer:

— Eject the disc.

— Select another track or file.

— Pause playback or find a point in the track or file.

— Change the function.

When transferring music to a

WALKMAN® using “Media Manager for

WALKMAN”, be sure to transfer in MP3

• format.

When connecting a WALKMAN® to the system, be sure to connect after the display “Creating Library” or

“Creating Database” on the WALKMAN® has disappeared.

Folder and file generation rules

Maximum number of MP3 files that can be generated

298 folders

650 files in a folder

650 files in REC1-CD or REC1-MP3 folder.

These numbers may vary depending on the file or folder configuration.

MHC-V77DW.GB.4-596-07614(1)

When transferring to a USB device, a “MUSIC” folder is created directly below “ROOT”. Folders and files are generated within this “MUSIC” folder according to the transfer method and source as follows:

Synchronized Transfer

When transferring CD-DA tracks

from an AUDIO CD

Folder name: “CDDA0001”*

File name: “TRACK001”*

When transferring MP3 files

from a disc

Folder name: Same as the source

File name: Same as the source

REC1 Transfer

When transferring a CD-DA track

from an AUDIO CD

Folder name: “REC1-CD”

File name: “TRACK001”*

When transferring an MP3 file

from a disc

Folder name: “REC1-MP3”

File name: Same as the source

* Folder and file numbers are assigned serially thereafter.

Erasing audio files or folders on the USB device

1

Press FUNCTION +/– repeatedly to select “USB”.

Alternatively, touch PLAYBACK, then touch USB on the unit.

2

Press MEDIA MODE repeatedly to select [MUSIC].

3

When playback is stopped, press OPTIONS.

4

Press / repeatedly to select

“ERASE”, then press .

The folder list is displayed on the TV screen.

5

Press / repeatedly to select a folder, then press .

The file list is displayed on the TV screen.

6

Press / repeatedly to select an audio file you want to erase, then press .

If you want to delete all the audio files in the folder, select

[ALL TRACKS] on the list.

“FOLDER ERASE” or “TRACK ERASE” and “PUSH ENTER” appear on the display.

To cancel erase operations, press

.

7

Press .

“COMPLETE” appears on the display.

To exit the options menu, press

.

Note

• You can erase MP3/WMA/AAC/WAV

• format file only.

A folder that contains non-MP3/WMA/

AAC/WAV format audio files or sub folders cannot be erased.

• Erase operation is prohibited when the disc tray is opened.

39

GB

MHC-V77DW.GB.4-596-07614(1)

40

GB

Tuner

Listening to the radio

1

Press FUNCTION +/– repeatedly to select “TUNER FM”.

Alternatively, touch PLAYBACK, then touch FM on the unit.

2

Tune to a station.

For automatic scanning:

Hold down TUNING+/– until the frequency begins to change on the display.

Scanning stops automatically when a station is tuned in. “ST” (for FM stereo programs only) lights up on the display.

If scanning does not stop, press

 to stop scanning. Then, perform manual tuning (below).

For manual tuning:

Press TUNING+/– repeatedly to tune to the station you want.

Note

When you tune to an FM station that provides RDS services, information such as the service name or station name is provided by broadcasts. You can check the RDS information by pressing DISPLAY repeatedly.

Hint

To reduce static noise on a weak FM stereo station, press FM MODE repeatedly until “ST” disappears from the display. You will lose the stereo effect, but reception will improve.

Presetting radio stations

You can store up to 20 FM stations as your favorite stations.

1

Tune to the station you want.

2

Press DVD/TUNER MENU.

3

Press / repeatedly to select the preset number you want, then press .

“COMPLETE” appears on the display and the station is stored.

If another station is already assigned to the selected preset number, that station is replaced by the new one.

To listen to the preset station

Press PRESET+/– repeatedly to select the preset number you want.

MHC-V77DW.GB.4-596-07614(1)

BLUETOOTH

About the BLUETOOTH wireless technology

BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between digital devices.

Supported BLUETOOTH version, profiles and codecs

For details, see “BLUETOOTH section” (page 80).

Compatible BLUETOOTH devices

For details, see “Websites for compatible devices” (page 12).

About the BLUETOOTH indicator

The BLUETOOTH indicator on the unit lights up or flashes in blue to show the BLUETOOTH status.

System status

BLUETOOTH standby

BLUETOOTH pairing

BLUETOOTH connection is established

Indicator status

Flashes slowly

Flashes quickly

Lights up

Pairing this system with a BLUETOOTH device

Pairing is an operation where

BLUETOOTH devices register with each other beforehand. Once a pairing operation is performed, it does not need to be performed again.

If your device is an NFC-compatible smartphone, the manual pairing procedure is not necessary. (See

“One Touch BLUETOOTH Connection by NFC” (page 43).)

1

Place the BLUETOOTH device within 1 meter from the unit.

2

Touch BLUETOOTH on the unit to select the BLUETOOTH function.

“BT AUDIO” appears on the display.

Hint

• When there is no pairing information on the system (for example, when you use the BLUETOOTH function for the first time after purchase),

“PAIRING” flashes on the display and the system enters the pairing mode.

Proceed to step 4.

If the system is connected to a BLUETOOTH device, touch

BLUETOOTH on the unit to disconnect the BLUETOOTH device.

3

Touch and hold PAIRING on the unit for 2 seconds or more.

“PAIRING” flashes on the display.

4

Perform the pairing procedure on the BLUETOOTH device.

For details, refer to the operating instructions of your BLUETOOTH device.

41

GB

MHC-V77DW.GB.4-596-07614(1)

42

GB

5

Select “MHC-V77DW” on the display of the BLUETOOTH device.

Perform this step within 5 minutes, otherwise pairing will be canceled.

In this case, repeat from step 3.

Note

If passkey is required on the

BLUETOOTH device, enter “0000”.

“Passkey” may be called “Passcode”,

“PIN code”, “PIN number”, or

“Password”.

6

Establish connection with the

BLUETOOTH device.

When pairing is completed and the

BLUETOOTH connection is established, BLUETOOTH device name appears on the display.

Depending on the BLUETOOTH device, connection may start automatically after pairing is completed.

You can check the BLUETOOTH device address by pressing DISPLAY repeatedly.

Note

You can pair up to 9 BLUETOOTH devices. If the 10th BLUETOOTH device is paired, the oldest paired device will

• be deleted.

If you want to pair with another

BLUETOOTH device, repeat steps 1 to 6.

To cancel the pairing operation

Touch and hold PAIRING on the unit for 2 seconds or more until “BT

AUDIO” appears on the display.

Listening to music on a

BLUETOOTH device

You can operate a BLUETOOTH device by connecting the system and the BLUETOOTH device using

AVRCP.

Check the following before playing music:

—The BLUETOOTH function of the

BLUETOOTH device is turned on.

—Pairing has been completed

(page 41).

Once the system and the

BLUETOOTH device are connected, you can control playback by pressing

, , , / and

/.

1

Touch BLUETOOTH on the unit to select the BLUETOOTH function.

“BT AUDIO” appears on the display.

2

Perform a BLUETOOTH connection with the BLUETOOTH device.

Touch BLUETOOTH on the unit to connect to the last connected

BLUETOOTH device.

Perform the BLUETOOTH connection from the BLUETOOTH device if the device is not connected.

Once the connection is established, the BLUETOOTH device name appears on the display.

3

Touch

to start playback.

Depending on the BLUETOOTH device,

— you may need to touch

 twice.

— you may need to start playing an audio source on the BLUETOOTH device.

MHC-V77DW.GB.4-596-07614(1)

4

Adjust the volume.

Adjust the volume of the

BLUETOOTH device first. If the volume level is still too low, adjust the volume level on the system.

Note

• When the system is not connected to any BLUETOOTH device, the system will connect to the last connected

BLUETOOTH device automatically when you touch BLUETOOTH on the unit or

.

• •

If you try to connect another

BLUETOOTH device to the system, the current connected BLUETOOTH device will be disconnected.

To use the Gesture Control during playback

See page 50.

To terminate the BLUETOOTH connection

Touch BLUETOOTH on the unit. “BT

AUDIO” appears on the display.

Depending on the BLUETOOTH device, the BLUETOOTH connection may be terminated automatically when you stop playback.

One Touch BLUETOOTH

Connection by NFC

NFC (Near Field Communication) is a technology enabling shortrange wireless communication between various devices, such as smartphones and IC tags.

When you touch the system with an

NFC-compatible smartphone, the system automatically:

—turns on in the BLUETOOTH function.

—completes the pairing and

BLUETOOTH connection.

Compatible smartphones

Smartphones with a built-in NFC function (OS: Android 2.3.3 or later, excluding Android 3.x)

Note

The system can only recognizes and connects to one NFC-compatible smartphone at a time. If you try to connect another NFC-compatible smartphone to the system, the currently connected NFC-compatible smartphone will be disconnected.

• Depending on your NFC-compatible smartphone, you may need to perform the following steps on your NFCcompatible smartphone in advance.

— Turn on the NFC function. For details, refer to the operating instructions of the NFC-compatible smartphone.

— If your NFC-compatible smartphone has an OS version that is older than

Android 4.1.x, download and start the “NFC Easy Connect” application.

“NFC Easy Connect” is a free application for Android smartphones that can be obtained from Google

Play. (The application may not be available in some countries/regions.)

1

Touch the smartphone to the

N-Mark on the unit until the smartphone vibrates.

Complete the connection by following the instructions displayed on the smartphone.

When the BLUETOOTH connection is established, the BLUETOOTH device name appears on the display.

43

GB

MHC-V77DW.GB.4-596-07614(1)

44

GB

2

Start playback of an audio source on the smartphone.

For details, refer to the operating instructions of your BLUETOOTH device.

Hint

If pairing and the BLUETOOTH connection fail, do the following.

— Remove the case from the smartphone if using a commercially available smartphone case.

— Touch the smartphone to the N-Mark on the unit again.

— Relaunch the “NFC Easy Connect” application.

To terminate the BLUETOOTH connection

Touch the smartphone to the

N-Mark on the unit again.

Setting the BLUETOOTH audio codecs

You can enable AAC, LDAC or SBC codec from BLUETOOTH device.

AAC/LDAC can be selected only when the BLUETOOTH device supports AAC/LDAC.

1

Press OPTIONS.

2

Press / repeatedly to select

“BT CODEC”, then press .

3

Press / repeatedly to select the setting, then press .

• “AUTO”: Enable reception in AAC or LDAC codec format depending on the BLUETOOTH device’s capabilities.

• “SBC”: Receive in SBC codec format.

To exit the options menu, press

OPTIONS.

Note

You can enjoy high quality sound if AAC or LDAC is selected. If you cannot listen

• to AAC or LDAC sound from your device or the sound is interrupted, select “SBC”.

If you change this setting while the system is connected to a BLUETOOTH device, the BLUETOOTH device will be disconnected. To connect to the

BLUETOOTH device, perform the

BLUETOOTH connection again.

Hint

LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res)

Audio content, even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content*

1

, and allows approximately three times more data*

2

than those other technologies to be transmitted over a BLUETOOTH wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

*

*

1

2

Excluding DSD format contents.

In comparison with SBC (Subband

Coding) when the bitrate of 990 kbps

(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.

MHC-V77DW.GB.4-596-07614(1)

Network

Selecting the method of network connection

If you connect this system to a network, you can enjoy this system in various ways. Depending on your network environment, setting up methods are different. Select the appropriate connecting method for your network environment from below.

Note

• Connecting to a Wi-Fi network and a wired network simultaneously is not possible. When you connect to a Wi-Fi network, be sure to disconnect the LAN

• cable from the unit.

Depending on the function, the system may need to be updated.

Hint

For setting the fixed IP address, use the screen in step 6 of “Connecting with a

computer” (page 45).

Method for using a smartphone/ iPhone

Installing the “SongPal” application to your smartphone/iPhone is required.

Before making the connection, be sure to turn on the BLUETOOTH feature on your smartphone/ iPhone, then operate the “SongPal” application to connect your smartphone or iPhone to this system via BLUETOOTH.

For details, refer to the Wi-Fi Startup

Guide (separate document).

Method for using a wireless router with a WPS (AOSS) button

Touch and hold WPS on the unit, then press the Wi-Fi Protected

Setup™ (WPS) button of the wireless router. For details, refer to the Wi-Fi

Startup Guide (separate document).

Method for using computer

See “Connecting with a computer”

(page 45).

Method for using wired network

Refer to Help Guide for details.

http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/

Connecting with a computer

If your wireless router does not have a WPS (AOSS) button, configure

Wi-Fi settings by connecting the unit to your computer with a LAN cable

(not supplied).

Hint

When setting up a Wi-Fi network, the

SSID (Wi-Fi Network Name) and security key (WEP or WPA key) may be required.

The security key (or network key) uses encryption to limit the devices with which communication can occur. It is used to provide higher security for devices communicating via a wireless router/ access point.

45

GB

MHC-V77DW.GB.4-596-07614(1)

46

GB

1

Record the SSID and password of your router.

For details, refer to the operating instructions of your router.

SSID (Wi-Fi Network Name):

Password (Security Key):

2

Connect the unit to the computer with a LAN cable (not supplied) directly.

4

Access the [Sony Network

Device Settings] screen.

Start the browser and input the following URL into the browser’s address bar.

http://169.254.1.1

The above URL is only for when the

PC and unit are connected with a

LAN cable.

5

Select [Network Settings] from the menu.

3

Press

to turn on the system.

Wait until lights up on the display. It takes about 2 minutes (in some cases, 4 or 5 minutes).

Network Settings

6

Select the SSID of your wireless router and enter the password.

SSID

See the recorded password in step 1.

MHC-V77DW.GB.4-596-07614(1)

7

Select [Apply].

8

When prompted, unplug the

LAN cable from the unit.

When the LAN cable is unplugged from the unit, on the display turns off. When the Wi-Fi connection is established, lights up on the display.

It may take more than 2 minutes to light up.

For information on how to listen to music with this system, refer to the Wi-Fi Startup Guide (separate document).

Note

This procedure needs to be completed within 10 minutes. If uncompleted, reset

the system (page 74).

2

Connect the system and smartphone/iPhone to your

Wi-Fi network.

Connect the system and smartphone/iPhone to the same

SSID (network) of your router.

3

When connecting multiple devices, connect the multi-room compatible devices to your

Wi-Fi network.

Refer to Help Guide for detailed operation.

http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/

Listening to the same music from the multiple speakers (SongPal Link function)

Enjoying the Wireless Party

Chain

If you connect the multi-room compatible speakers to your Wi-Fi network and set them in the same room, you can enjoy high pressure sound like the Party Chain function via Wi-Fi.

You can enjoy your favorite music stored in your PCs or mobile phones, furthermore, music from streaming services with ultimate sound quality in any rooms via Wi-Fi.

1

Install the “SongPal” application on your smartphone/iPhone.

Listening to an Internet music service (Google

Cast)

Google Cast allows you to select music content from the Google

Cast™-enabled app and play back on the system.

Google Cast requires the initial setup using SongPal.

47

GB

MHC-V77DW.GB.4-596-07614(1)

48

GB

1

Install the “SongPal” application on your smartphone/iPhone.

2

Connect the system and smartphone/iPhone to your

Wi-Fi network.

Connect the system and smartphone/iPhone to the same

SSID (network) of your router.

3

Launch “SongPal” and download a Google Castenabled app.

Launch “SongPal” then tap

[MHC-V77DW]

 [Settings] 

[Google Cast]

 [Learn how to

Cast].

See the instructions, then find and install a Google Castenabled app on your smartphone/iPhone.

4

Launch the Google Castenabled app, then tap the Cast button ( ) to select

“MHC-V77DW”.

5

Select music to listen to on your

Google Cast-enabled app.

The music is played on the system.

Refer to Help Guide for detailed operation.

http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/

Listening to an Internet music service (Spotify)

“Spotify” gives you instant access to millions of songs. The “Spotify

Connect” feature lets you select music on the Spotify App and stream it on the system. To use

“Spotify Connect” feature, you need a Premium account.

For details, visit www.spotify.com/ connect

1

Connect the system and smartphone/iPhone to your

Wi-Fi network.

Connect the system and smartphone/iPhone to the same

SSID (network) of your router.

2

Download the Spotify App to your smartphone/iPhone from

Google Play or the App Store.

3

Launch the Spotify App and log in to a Spotify Premium account.

4

Select and start playing the music.

5

Tap the Connect icon ( ) and select the system as the audio output device.

Note

Depending on the country and region, music services and their periods of availability may differ.

MHC-V77DW.GB.4-596-07614(1)

Hint

When “Spotify Connect” is activated, the

Connect icon ( ) lights up.

Gesture Control

Enjoying the Gesture

Control

You can control the operations for PLAYBACK, DJ, SAMPLER and

KARAOKE mode by swiping your hand over the GESTURE CONTROL sensor on the unit.

Note

Do not touch or contact to the GESTURE

CONTROL sensor when you perform the swiping motion.

Swipe your hand over the GESTURE

CONTROL sensor in 6 directions as follows.

Swiping motion Swipe in this direction

Right to left

Left to right

Bottom to top

Top to bottom

Clockwise

Anticlockwise

To activate the Gesture Control

Touch GESTURE ON/OFF, then touch the mode you want (PLAYBACK, DJ,

SAMPLER, KARAOKE).

The GESTURE CONTROL lights up.

To deactivate the Gesture

Control

Touch GESTURE ON/OFF.

The GESTURE CONTROL lights off.

49

GB

MHC-V77DW.GB.4-596-07614(1)

50

GB

Using the Gesture

Control during playback

You can use the Gesture Control to control basic playback when playing music from a disc, USB device or

BLUETOOTH device.

Use the keys and GESTURE

CONTROL sensor on the touch panel of the unit to perform this operation.

1

Touch GESTURE ON/OFF.

The GESTURE CONTROL lights up.

2

Touch PLAYBACK.

The PLAYBACK mode is activated.

3

Touch DVD/CD, USB, FM, AUDIO

IN, or TV to select the function you want.

4

Swipe your hand over the

GESTURE CONTROL sensor.

To Swipe in this direction

Go backward

Go forward

Play

Stop

Increase volume

Reduce volume

Creating a party atmosphere (DJ Effect)

Use the keys and GESTURE

CONTROL sensor on the touch panel of the unit to perform this operation.

1

Touch GESTURE ON/OFF.

The GESTURE CONTROL lights up.

2

Touch DJ or SAMPLER.

The DJ or SAMPLER mode is activated.

3

Swipe your hand over the

GESTURE CONTROL sensor.

For DJ mode:

To Swipe in this direction

Select FLANGER*

1

Select ISOLATOR*

2

Select WAH*

3

Select PAN*

4

Increase the level of the selected effect

Reduce the level of the selected effect

*

1

Creates a deep flanging effect that is similar to the roar of a jet plane.

* 2 Isolates a specific frequency band by adjusting the other frequency bands. For example, when you want to focus on vocals.

* 3 Create a special effect of “Wahwah” sound by moving the frequency of a filter up and down automatically.

* 4 Create a feeling that the sound is moving around the speakers between left and right channels.

MHC-V77DW.GB.4-596-07614(1)

For SAMPLER mode:

To Swipe in this direction

Output “Come

On!”

Output “Let’s Go!”

Output Reggae

Horn sound effect

Output Phaser sound effect

Output Scratch sound effect

Output Audience sound effect

To output the SAMPLER mode sound effect

Touch SAMPLER, then touch one of the direct function key (DVD/CD,

USB, FM, AUDIO IN, TV) to output the sound effect you want.

To turn off the DJ mode

Swipe your hand over the GESTURE

CONTROL sensor in the same direction as in step 3 above.

Note

• The DJ Effect is automatically turned off when you:

— turn off the system

— change the function

— change sound field

— change the mode to PLAYBACK/

SAMPLER/KARAOKE

If you activate the DJ Effect during transferring, the sound effect will not be transferred onto the USB device.

Using the Gesture

Control during Karaoke function

Use the keys and GESTURE

CONTROL sensor on the touch panel of the unit to perform this operation.

1

Touch GESTURE ON/OFF.

The GESTURE CONTROL lights up.

2

Touch KARAOKE.

The KARAOKE mode is activated.

3

Swipe your hand over the

GESTURE CONTROL sensor.

To

Reduce the pitch of music (

)

Increase the pitch of music (

)

Increase the microphone volume

Decrease the microphone volume

Output hand clapping sound effect

Output booing sound effect

Swipe in this direction

MHC-V77DW.GB.4-596-07614(1)

51

GB

52

GB

Sound Adjustment

Adjusting the sound

To Do this

Reinforce bass sound and create more powerful sound (MEGA

BASS)

Press MEGA BASS repeatedly to select

“BASS ON”. To cancel, press MEGA

BASS repeatedly to select “BASS OFF”.

Reproduce the sound effect of a party hall (Fiesta)

Reproduce the sound effect of a concert hall

(Digital Music

Arena)

Select a preset sound effect

(Preset sound effect)

Touch FIESTA on the unit. The FIESTA indicator lights up.

To cancel, press

SOUND FIELD repeatedly to select

“FLAT”.

Press MUSIC ARENA to select “ON”. To cancel, press MUSIC

ARENA again.

Press SOUND FIELD repeatedly to select the sound effect you want. To cancel, press SOUND FIELD repeatedly to select

“FLAT”.

Selecting the Virtual

Football mode

You can experience the feeling of being in the stadium when watching a football match broadcast.

Note that you can only select Virtual

Football mode during AUDIO IN and

TV functions.

Press SOUND FIELD repeatedly while watching a football match broadcast.

ON NARRATION: You can enjoy an immersive feeling of being in a football stadium through enhanced stadium cheers.

OFF NARRATION: You can enjoy a more immersive feeling of being in a football stadium by minimizing the volume level of narration in addition to the enhancement of cheers.

To cancel the Virtual Football mode

Press SOUND FIELD repeatedly to select “FLAT”.

Note

• We recommend that you select the

Virtual Football mode when watching a

• football match broadcast.

If you hear unnatural sounds in the content when “OFF NARRATION” is selected, “ON NARRATION” is

• recommended.

This feature does not support monaural sound.

MHC-V77DW.GB.4-596-07614(1)

Creating your own sound effect

You can raise or lower the levels of specific frequency bands, then store the setting in the memory as

“CUSTOM EQ”.

1

Press OPTIONS.

2

Press / repeatedly to select

“CUSTOM EQ”, then press .

3

Press / repeatedly to adjust the equalizer level, then press

.

4

Repeat step 3 to adjust the level of other frequency bands and surround effect.

To exit the options menu, press

OPTIONS.

To select the custom equalizer setting

Press MUSIC repeatedly to select

“CUSTOM EQ”.

Other Operations

Controlling the system using a smartphone or tablet (SongPal)

“SongPal” is a dedicated app for operating “SongPal”-compatible audio devices manufactured by

Sony using a smartphone or tablet.

Search for “SongPal” on Google Play or App Store and download it using your smartphone or tablet.

“SongPal” allows you to:

—change the function of the system, control the playback of the disc/

USB device and tune to an FM station.

—browse the music content of disc/

USB device.

—view the information of disc/USB such as playing time and title.

—adjust the volume and change sound setting.

1

Search for “SongPal” or scan the two-dimensional code below.

2

Download “SongPal” app on your remote device.

3

Connect the system and device by BLUETOOTH connection

(page 41) or network

connection (page 45).

53

GB

MHC-V77DW.GB.4-596-07614(1)

54

GB

Hint

If you connect the system and remote device by network connection, connect the device by Wi-Fi to the same network as that of the system.

4

Launch “SongPal” and follow the on-screen instructions.

Note

• We recommend you to use the latest

“SongPal” version.

If the “SongPal” application does not work properly, touch BLUETOOTH on the unit to terminate the BLUETOOTH connection, then perform the

BLUETOOTH connection again so that the BLUETOOTH connection functions normally.

• Available operations via “SongPal” may differ depending on the audio devices.

• •

For more details on “SongPal”, refer to the following URL.

• http://info.songpal.sony.net/help/

Specifications and display design of “SongPal” are subject to change without notice.

1

Search and download “SongPal” app on your remote device

(page 53).

2

Search and download

“Fiestable” app from Google

Play or App Store using your remote device.

3

Connect the system and remote device by BLUETOOTH

connection (page 41).

4

Launch “SongPal” and touch the

“Fiestable” icon at the top left corner.

Getting frenzied parties with the

“Fiestable” app

You can control the party features of Sony’s Home Audio System with intuitive and fancy user interface with the “Fiestable” app. “Fiestable” allows you to control features such as DJ Effect, illumination and

Karaoke.

Even if “Fiestable” is installed, the

“Fiestable” icon is not displayed on the remote device home screen. It is embedded in the “SongPal” app as a plug-in.

Note

• For notes on using “Fiestable”, refer

• to the “Notes on using the “Fiestable” application” (separate document) for details.

For more details on “SongPal”, refer to the following URL. http://info.songpal.sony.net/help/

Using the Control for

HDMI function

Connecting a TV compatible with the Control for HDMI function* by

HDMI cable (High Speed HDMI Cable with Ethernet, not supplied) enables you to easily operate the device by a

TV remote control.

The following functions can be used with the Control for HDMI function.

MHC-V77DW.GB.4-596-07614(1)

System Power Off function

System Audio Control function

Audio Return Channel

One-Touch Play function

Remote Easy Control

Language Follow

* Control for HDMI is a standard used by CEC (Consumer Electronics Control) for allowing HDMI (High-Definition

Multimedia Interface) devices to control each other.

Note

These functions may work with devices other than those manufactured by Sony, but operation is not guaranteed.

Preparing to use the Control for

HDMI function

Press DVD SETUP, then set [HDMI

SETUP] – [CONTROL FOR HDMI] on

the system to [ON] (page 36). The

default setting is [ON].

Enable the Control for HDMI function settings for the TV connected to the system.

Hint

If you enable the Control for HDMI

(“BRAVIA” sync) function when using a

TV manufactured by Sony, the Control for HDMI function of the system is also enabled automatically. When settings are completed, “COMPLETE” appears on the display.

System Power Off function

When you turn off the TV, the system will turn off automatically.

Press DVD SETUP, then set

[HDMI SETUP] – [STANDBY LINKED

TO TV] on the system to [ON] or

[AUTO] (page 36). The default

setting is [AUTO].

Note

The connected device may not turn off depending on the status of the device.

System Audio Control function

If you turn on the system while you are watching the TV, the TV sound will be output from the speakers of the system. The volume of the system can be adjusted using the

TV’s remote control.

If the TV sound was output from the speakers of the system the previous time you watched the TV, the system will be turned on automatically when you turn on the TV again.

Operations can also be made by the

TV’s menu. For details, refer to the operating instructions of your TV.

Note

• The system’s volume level is displayed on the TV screen depending on the TV.

It may differ from the volume level on the display.

• Depending on the settings of the TV, the System Audio Control function may not be available. For details, refer to the operating instructions of your TV.

Audio Return Channel

If the system is connected to a TV’s

HDMI IN jack compatible with Audio

Return Channel, you can listen to

TV sound from the speakers of the system without connecting an audio cable (not supplied).

On the system, press DVD SETUP, then set [HDMI SETUP] –

[AUDIO RETURN CHANNEL] to [ON]

(page 36). The default setting is

[ON].

Note

If the TV is not compatible with Audio

Return Channel, an audio cable (not supplied) needs to be connected

(page 23).

55

GB

MHC-V77DW.GB.4-596-07614(1)

56

GB

One-Touch Play function

When you play video content on disc or USB device on the system, the TV is turned on automatically.

The TV’s input is switched to the

HDMI input which the system is connected.

Note

Depending on the TV, the beginning part of content being played may not play correctly.

Remote Easy Control

You can select the system by the

SYNC MENU button on the TV remote control and operate the system.

This function can be used if the TV supports the link menu. For details, refer to the operating instructions of your TV.

Note

• In the TV’s link menu, the system is recognized by the TV as “Player”.

• •

Some operations may not be available with some TVs.

Language Follow

When you change the language for the on-screen display of the

TV, the system’s on-screen display language is also changed.

MHC-V77DW.GB.4-596-07614(1)

Using the Party Chain function

You can connect multiple audio systems in a chain to create a more interesting party environment and to produce higher sound output.

An activated system in the chain will be the “Party Host” and share the music.

Other systems will become “Party Guests” and play the same music as that being played by the “Party Host”.

Setting up the Party Chain

Set up a Party Chain by connecting all the systems using audio cables (not supplied).

Before connecting cables, be sure to disconnect the AC power cord (mains lead).

If all the systems are equipped with Party Chain function

Example: When connecting using this system as the first system

First system

Continue the connection until the last system

Second system

Last system

The last system must be connected to the first system.

Any system can become a Party Host.

You can change the Party Host to another system in the chain. For details,

see “To select a new Party Host (when all the systems are equipped with

Party Chain function)” (page 59).

57

GB

MHC-V77DW.GB.4-596-07614(1)

58

GB

If one of the systems is not equipped with Party Chain function

Example: When connecting using this system as the first system

First system

Continue the connection until the last system

Second system

Last system*

* Connect the system which is not equipped with Party Chain function at the last system, otherwise the chain will stop at that system. Be sure to select the Audio In function on this last system.

• •

The last system is not connected to the first system.

You must select the first system as Party Host so that all systems are playing the same music when Party Chain function is activated.

MHC-V77DW.GB.4-596-07614(1)

Enjoying the Party Chain

1

Plug in the AC power cord

(mains lead) and turn on all the systems.

2

Adjust the volume on each system.

3

Activate the Party Chain function on the system to be used as the Party Host.

Example: When using this system as the Party Host

Touch FUNCTION repeatedly on the unit to select the function you want

(except when the AUDIO IN function is used in connection

(page 57)). Start playing the

music, then touch PARTY CHAIN on the unit.

“PARTY CHAIN” appears on the display. The Party Host starts the

Party Chain, and other systems become Party Guests automatically.

All systems play the same music as that being played by the Party Host.

To enjoy the Wireless Party

Chain

See page 47.

Note

Depending on the total unit of systems you have connected, Party Guests may

• take some time to start playing the music.

Changing the volume level and sound effect on the Party Host will not affect the output on the Party Guests.

• When you use the microphone on Party

Host, the sound will not be output from

Party Guests.

When one of the systems in the chain is performing USB transfer, wait for the system to complete or stop the transfer before you activate the Party Chain function.

• For detailed operation on other systems, refer to the operating instructions of the systems.

To select a new Party Host (when all the systems are equipped with Party Chain function)

Repeat step 3 of “Enjoying the Party

Chain” on the system to be used

as a new Party Host. The current

Party Host becomes Party Guest automatically. All systems play the same music as that being played by the new Party Host.

Note

• You can select another system as the new Party Host only after the Party

Chain function of all the systems in the

Chain has been activated.

• If the selected system does not become a new Party Host after a few seconds,

repeat step 3 under “Enjoying the Party

Chain”.

To deactivate the Party Chain

Touch PARTY CHAIN on the Party

Host.

Note

If the Party Chain function is not deactivated after a few seconds, touch

PARTY CHAIN on the Party Host again.

Setting the Party Chain sound mode

You can set the sound mode when the Party Chain function is activated.

1

Press OPTIONS.

2

Press / repeatedly to select

“P CHAIN MODE”, then press .

59

GB

MHC-V77DW.GB.4-596-07614(1)

60

GB

3

Press / repeatedly to select the mode you want, then press

.

• “STEREO”: outputs the stereo sound.

• “RIGHT CH”: outputs the monaural sound of the right channel.

“LEFT CH”: outputs the monaural sound of the left channel.

To exit the options menu, press

OPTIONS.

Singing along: Karaoke

Preparing for Karaoke

1

Touch MIC LEVEL – on the unit repeatedly to reduce the microphone volume level.

2

Connect an optional microphone to MIC1 or MIC2 jack on the unit.

Connect another optional microphone if you want to sing in duet.

3

Start playing the music and adjust the microphone volume.

Press MIC ECHO repeatedly to adjust the echo effect.

4

Start singing along with the music.

To use the Gesture Control during karaoke

See page 51.

Note

If howling occurs:

— move the microphone away from the system.

— change the direction of the microphone.

— lower the microphone volume level.

— press

 – to reduce the volume level or press MIC ECHO repeatedly to adjust the echo level.

• •

Microphone sound will not be transferred to the USB device during

USB transfer.

Using Vocal Fader

You can reduce the sound of the vocal in stereo source.

Touch KARAOKE, then touch

VOCAL FADER on the unit repeatedly to select “ON V FADER”.

To cancel Vocal Fader effect, touch

VOCAL FADER repeatedly to select

“OFF”.

Changing the key (Key Control)

Press KEY CONTROL

/•to suit

your vocal range.

Selecting the scoring mode

(Score Mode)

You only can use scoring function when the microphone is connected.

Your score is calculated from a scale of 0 to 99 by comparing your voice with the music source.

1

Start playing the music.

2

Press SCORE before singing a song.

MHC-V77DW.GB.4-596-07614(1)

3

After singing for more than a minute, press SCORE again to view your score.

Using Voice Changer

You can change your voice when you talk or sing into microphone.

There are 7 different patterns.

Touch KARAOKE, then touch VOICE

CHANGER +/– on the unit repeatedly to change your voice effect.

Using the Sleep Timer

The system turns off automatically after the preset time.

Press SLEEP repeatedly to select the time you want.

To cancel Sleep Timer, press SLEEP repeatedly to select “OFF”.

Hint

To check the remaining time before the system turns off, press SLEEP.

Enjoying music with the

Party Light and Speaker

Light

1

Press PARTY LIGHT repeatedly to select “LED ON”.

2

Press LIGHT MODE repeatedly to select “SYNC ON”.

To turn off Party Light and

Speaker Light

Press PARTY LIGHT repeatedly to select “LED OFF”.

Note

• •

Do not look directly at the light-emitting part when the Party Light is turned on.

• If the illumination brightness is glaring, switch on the room lights or turn off the

• illumination.

You can turn on or off the Party Light and Speaker Light when demonstration is turned on.

Using optional equipment

1

Press

– repeatedly until “VOL

MIN” appears on the display.

2

Connect an optional equipment

(page 19).

3

Press FUNCTION +/– repeatedly to select “AUDIO IN”.

4

Start playing the connected equipment.

5

Press

+ repeatedly to adjust

the volume.

Note

The system may enter standby mode automatically if the volume level of the connected equipment is too low. Adjust the volume level of the equipment.

If you turn off automatic standby

function, see “Setting the automatic standby function” (page 62).

61

GB

MHC-V77DW.GB.4-596-07614(1)

62

GB

Deactivating the touch panel on the unit (Child

Lock)

You can deactivate the keys (except

) on the touch panel of the unit to prevent misoperation, such as child mischief.

Touch and hold

on the unit for

more than 5 seconds.

“CHILD LOCK ON” appears on the display.

You can only operate the system using the buttons on the remote control.

To turn off the Child Lock function, touch and hold

 on the unit for more than 5 seconds until “CHILD LOCK OFF” appears on the display.

Note

• Child Lock function will be turned off automatically when you disconnect the

AC power cord (mains lead).

• Child Lock function cannot be activated when you open the disc tray.

Deactivating the touch panel on the unit for a short time (Party Lock)

When you accidentally splash liquid on the touch panel of the unit during party, you can deactivate the keys

(except

) on the touch panel of the unit for 30 seconds and wipe off the liquid with a cloth.

Hold your hand above GESTURE

CONTROL sensor on the unit for more than 5 seconds.

“PARTY LOCK ON” appears on the display.

To turn off the Party Lock function, hold your hand above GESTURE

CONTROL sensor on the unit for more than 5 seconds until “PARTY

LOCK OFF” appears on the display.

Note

• The party lock being applied cancels automatically in 30 seconds.

• While the party lock is applied, the touch panel indications of the unit are turned off.

Setting the automatic standby function

The system enters standby mode automatically in about 15 minutes when there is no operation or audio signal output.

By default, the automatic standby function is turned on.

1

Press OPTIONS.

2

Press / repeatedly to select

“AutoSTBY”, then press .

3

Press / repeatedly to select

“ON” or “OFF”, then press .

To exit the options menu, press

OPTIONS.

Note

• •

“AutoSTBY” flashes on the display about

2 minutes before entering standby mode.

MHC-V77DW.GB.4-596-07614(1)

• The automatic standby function does not work in the following cases:

— during tuner function.

— when the Sleep Timer is activated.

— when microphone is connected.

Setting the

BLUETOOTH/Network standby mode

The BLUETOOTH/Network standby mode enables the system to turn on automatically when you establish a BLUETOOTH connection, a Wi-Fi connection, or a wired LAN connection.

1

Press OPTIONS.

2

Press / repeatedly to select

“NW STBY”, then press .

3

Press / repeatedly to select the setting, then press .

“ON”: The system turns on automatically even when the system is in standby mode.

• •

“OFF”: Turns off this function.

To exit the options menu, press

OPTIONS.

Turning on or off the

BLUETOOTH/Wi-Fi signal

You can connect to the system from a linked network device or a paired

BLUETOOTH device in all functions when the system’s BLUETOOTH/

Wi-Fi signal is set to on. The

BLUETOOTH/Wi-Fi signal is turned on by default.

1

Press OPTIONS.

2

Press / repeatedly to select

“RF”, then press .

3

Press / repeatedly to select the setting you want, then press

.

• “RF ON”: Wi-Fi signal is on/

BLUETOOTH signal is on

• “WIFI OFF”: Wi-Fi signal is off/

BLUETOOTH signal is on

• “RF OFF”: Wi-Fi signal is off/

BLUETOOTH signal is off

To exit the options menu, press

OPTIONS.

Note

• You cannot perform the following operations when BLUETOOTH/Wi-Fi signal is set to off:

— Pairing and/or connecting with

BLUETOOTH device

— Using “SongPal”

— Change the BLUETOOTH audio codecs

• If you touch the N-Mark on the unit with an NFC-compatible smartphone or set the BLUETOOTH/Network standby mode to on, the BLUETOOTH/Wi-Fi signal will be set to on automatically.

63

GB

MHC-V77DW.GB.4-596-07614(1)

64

GB

Updating the software

The software of this system may be updated in the future.

You can update your system’s preinstalled software by using one of the following 3 methods:

Automatic update via the

Internet

When the system is connected to the Internet, the system updates the software automatically if a new update file is detected. This feature requires the settings to be made by using a smartphone/iPhone installed with “SongPal”.

Launch “SongPal” on your smartphone/iPhone, and set [Auto

Update] in the [Settings] menu.

Refer to SongPal Help for more details.

http://info.songpal.sony.net/help/

Hint

Automatic update will start updating the software after downloading all the update files. So, data corruption and loss do not occur even if the network connection is unintentionally disconnected. If the error message persists, perform the manual update via a USB device.

Manual update via the Internet

When the system is connected to the Internet, “UPDATE” lights up on the display if the system detects a new update file.

1

Press OPTIONS.

2

Press / repeatedly to select

“SYSTEM”, then press .

3

Press / repeatedly to select

“UPDATE”, then press .

4

Press / repeatedly to select

“VIA NW”, then press .

5

Press / repeatedly to select

“EXEC”, then press .

6

Press / repeatedly to select

“YES”, then press .

To exit the options menu, press

OPTIONS.

Manual update via a USB device

Use a computer or another device to download the update file from the websites below, then store it in a USB device. Follow the online instructions to update the software.

For customers in Latin America:

<http://esupport.sony.com/LA>

For customers in Europe and

Russia:

<http://www.sony.eu/support>

For customers in other countries/ regions:

<http://www.sony-asia.com/ support>

MHC-V77DW.GB.4-596-07614(1)

Additional Information

Troubleshooting

Should you encounter a problem with your system, find your problem in the troubleshooting checklist below and take the corrective action.

If the problem persists, consult your nearest Sony dealer.

Note that if the service personnel changes some parts during repair, these parts may be retained.

If “PROTECTX” (X is a number) appears on the display

Immediately unplug the AC power cord (mains lead), and check if anything is blocking the ventilation openings of the unit.

After you have checked and found no problems, reconnect the AC power cord (mains lead), and turn on the system. If the issue persists, contact your nearest Sony dealer.

General

The power does not turn on.

• Check that the AC power cord

(mains lead) is connected securely.

The system cannot be turned off even though

is pressed.

You may have set the display mode to the demonstration mode unintentionally. Press DISPLAY repeatedly to select Power Saving

Mode (page 25).

The system has entered standby mode.

This is not a malfunction. The system enters standby mode automatically in about 15 minutes when there is no operation or

audio signal output (page 62).

There is no sound.

Adjust the volume.

Check the connection of the

• optional equipment, if any

(page 19).

Turn on the connected equipment.

Unplug the AC power cord (mains lead), then plug in the AC power cord (mains lead) again and turn on the system.

There is no picture/sound when connected to the HDMI OUT (TV) jack.

• Change the setting in [HDMI

SETUP] – [HDMI RESOLUTION]. The problem may be solved.

• The equipment connected to the HDMI OUT (TV) jack does not conform to the audio signal format. In this case, set [HDMI

SETUP] – [AUDIO (HDMI)] to [PCM]

(page 36).

Try the following:

—Turn the system off and on again.

—Turn the connected equipment off and on again.

—Disconnect then connect the

HDMI cable again.

There is no microphone sound.

Adjust the microphone volume level.

Make sure the microphone is connected to the MIC1 or MIC2 jack

• • on the unit correctly.

Make sure the microphone is turned on.

65

GB

MHC-V77DW.GB.4-596-07614(1)

66

GB

No TV sound is heard from the system.

Check that the speaker output setting on the TV is set to use external speakers.

There is severe hum or noise.

Move the system away from sources of noise.

Connect the system to a different wall outlet.

Install a noise filter (not supplied) to the AC power cord (mains lead).

Turn off surrounding electrical equipment.

• The noise generated by the cooling fans of the system may be heard when the system is turned on. This is not a malfunction.

The remote control does not function.

Remove the obstacles between the remote control and the unit.

Move the remote control closer to

• the unit.

Point the remote control at the unit’s sensor.

Replace the batteries (R03/size

AAA).

Move the unit away from the fluorescent light.

There is acoustic feedback.

Reduce the volume.

Move the microphone away from the system or change the direction of the microphone.

The color irregularity on a TV screen persists.

Turn off the TV at once, then turn it on after 15 to 30 minutes. If the color irregularity still persists, place the system farther away from the TV.

“CHILD LOCK” appears when you touch any key on the unit.

Set the Child Lock function to off

(page 62).

A clicking sound is heard when turning the power on.

• This is the operating sound and it occurs when the power is turned on or off, for example. This is not a malfunction.

Disc player

The disc tray does not open and

“LOCKED” appears on the display.

Consult your nearest Sony dealer or local authorized Sony service facility.

The disc tray does not close.

• Load the disc correctly.

The disc does not eject.

• •

You cannot eject the disc during

CD-USB Synchronized Transfer or

REC1 Transfer. Press

 to cancel the transfer, then touch

 on the unit to eject the disc.

Consult your nearest Sony dealer.

Playback does not start.

Wipe the disc clean (page 77).

Reload the disc.

Load the disc that this system can

play back (page 9).

Remove the disc and wipe away

• the moisture on the disc, then leave the system turned on for a few hours until the moisture evaporates.

The region code on the DVD VIDEO does not match the system.

MHC-V77DW.GB.4-596-07614(1)

The sound skips.

Wipe the disc clean (page 77).

Reload the disc.

Move the unit to a place with no vibration.

Playback does not start from the first track.

• •

Set the play mode to Normal Play

(page 30).

Resume Play has been selected.

Press

 twice. Then, press  to start playback.

You cannot perform some functions such as Stop, Lock

Search, Slow-motion Play, Repeat

Play, or Shuffle Play.

• Depending on the disc, you may not be able to do some of the operations above. Refer to the operating instructions supplied with the disc.

The DATA CD/DATA DVD (MP3,

MPEG4, or Xvid) cannot be played back.

• •

The data is not stored in the supported format.

Make sure you have selected the correct Media Mode before playback.

The folder name, track name, file name and ID3 tag characters do not appear properly.

The ID3 version is not in Version 1

(1.0/1.1) or Version 2 (2.2/2.3).

• The character codes that can be displayed by this system are as follows:

—Upper cases (A to Z)

—Symbols (< > * +, [ ] \ _)

Other characters appear as “_”.

The sound loses stereo effect when you play back an AUDIO CD,

VIDEO CD, audio file, video file, or

DVD VIDEO.

Turn off the Vocal Fader

(page 60).

Make sure the system is connected properly.

USB device

Transferring results in an error.

• You are using an unsupported USB device. Check the information on the website about compatible USB

devices (page 12).

The USB device is not formatted correctly. Refer to the operating instructions of the USB device on

• how to format.

Turn off the system and remove the USB device. If the USB device has a power switch, turn the USB

• device off and on again after removing it from the system. Then, perform the transfer again.

If the transfer and erase

• operations are repeated multiple times, the file structure within the

USB device becomes fragmented.

Refer to the operating instructions of the USB device on how to deal with this problem.

The USB device was disconnected or the power was turned off during transfer. Delete the partially-transferred file, and perform the transfer again. If this does not fix the problem, the USB device may be broken. Refer to the operating instructions of the USB device on how to deal with this problem.

67

GB

MHC-V77DW.GB.4-596-07614(1)

68

GB

Audio files or folders on the USB device cannot be erased.

Check if the USB device is writeprotected.

• The USB device was disconnected or the power was turned off during the erase operation. Delete the partially-erased file. If this does not fix the problem, the USB device may be broken. Refer to the operating instructions of the USB device on how to deal with this problem.

There is no sound.

• The USB device is not connected correctly. Turn off the system and reconnect the USB device, then turn on the system and check if

“USB” appears on the display.

There is noise, skipping, or distorted sound.

You are using an unsupported USB device. Check the information on

• the website about compatible USB

devices (page 12).

Turn off the system and reconnect the USB device, then turn on the

• system.

The music data itself contains noise, or the sound is distorted.

Noise may have entered during

• the transfer process. Delete the file, and try transfer again.

The bit rate used in encoding an audio file was low. Send an audio file with higher bit rate to the USB device.

“READING” is displayed for an extended time, or it takes a long time before playback starts.

The reading process can take a long time in the following cases.

on the USB device (page 11).

—The file structure is extremely complex.

—The memory capacity is excessive.

—The internal memory is fragmented.

“NO FILE” appears on the display.

• The system has entered the software update mode, and all keys (except

) are deactivated.

Press

 on the unit to cancel the software update.

“OVER CURRENT” appears on the display.

A problem has been detected with the level of electrical current from the (USB) port. Unplug the AC power cord (mains lead) and remove the USB device from the port. Make sure there is no problem with the USB device.

If this display pattern persists, contact your nearest Sony dealer.

Erroneous display.

The data stored in the USB device may have been corrupted, perform the transfer again.

The character codes that can be displayed by this system are as follows:

Other characters appear as “_”.

The USB device is not recognized.

Turn off the system and reconnect the USB device, then turn on the system.

Check the information on the website about compatible USB

devices (page 12).

MHC-V77DW.GB.4-596-07614(1)

The USB device is not working properly. Refer to the operating instructions of the USB device on how to deal with this problem.

Playback does not start.

Turn off the system and reconnect the USB device, then turn on the system.

Check the information on the website about compatible USB

devices (page 12).

Playback does not start from the first file.

• •

Set the play mode to Normal Play

(page 30).

Files cannot be played back.

Make sure you have selected the correct Media Mode before playback.

USB devices formatted with file systems other than FAT16 or FAT32

• are unsupported.*

If you use a partitioned USB device, only files on the first partition can be played back.

* This system supports FAT16 and FAT32, but some USB devices may not support all of these FAT. For details, refer to the operating instructions of each USB device or contact the manufacturer.


There is no picture.

Check that the system is connected securely.

If the video cable or HDMI cable is damaged, replace it with a new one.

Make sure you connect the unit to the HDMI input jack or the video

input jack of your TV (page 22).

Make sure you turn on the TV and operate the TV correctly.

Make sure you select the video

• input on the TV so that you can view the pictures from the system.

(Except for Latin American,

European, and Russian models)

Make sure you set the color system correctly, according to your

TV’s color system.

Picture noise appears.

Wipe the disc clean (page 77).

• If video signal from your system has to go through your VCR to your TV, the copy-protection applied to some DVD VIDEO programs could affect the picture

• quality.

(Except for Latin American,

European, and Russian models)

When you play back a VIDEO CD recorded in a different color system from the one you set to the system, the picture image may be

distorted (pages 24, 34).

(Except for Latin American,

European, and Russian models)

Set the color system to match your

TV (pages 24, 34).

The aspect ratio of the TV screen cannot be changed.

• •

The aspect ratio is fixed on your

DVD VIDEO and video file.

Depending on the TV, you may not change the aspect ratio.

The language for the sound track cannot be changed.

Multilingual tracks are not recorded on the DVD VIDEO being

• played back.

The DVD VIDEO prohibits changing the language for the sound track.

69

GB

MHC-V77DW.GB.4-596-07614(1)

70

GB

The subtitles language cannot be changed.

Multilingual subtitles are not recorded on the DVD VIDEO being played back.

• The DVD VIDEO prohibits changing the subtitles.

The subtitles cannot be turned off.

The DVD VIDEO prohibits turning off subtitles.

The camera angles cannot be changed.

Multi-angles are not recorded on the DVD VIDEO being played back.

The DVD VIDEO prohibits changing the angles.

Tuner*

There is severe hum or noise, or stations cannot be received.

Connect the antenna properly.

Change antenna location and its orientation to obtain good reception.

Turn off nearby electrical equipment.

* Radio may not be received depending on the radio wave conditions or the housing environment in your area.

BLUETOOTH device

Pairing cannot be performed.

Move the BLUETOOTH device closer to the system.

Pairing may not be possible if

• other BLUETOOTH devices are present around the system.

In this case, turn off the other

BLUETOOTH devices.

Make sure to enter the correct passkey when selecting the system’s name (this system) on the BLUETOOTH device.

The BLUETOOTH device cannot detect the system, or “RF OFF” appears on the display.

Set the BLUETOOTH/Wi-Fi signal to “WIFI OFF” or “RF ON”

(page 63).

Connection is not possible.

• •

The BLUETOOTH device you attempted to connect does not support the A2DP profile, and cannot be connected with the system.

Enable the BLUETOOTH function of the BLUETOOTH device.

Establish a connection from the

BLUETOOTH device.

The pairing registration information has been erased.

Perform the pairing operation again.

The sound skips or fluctuates, or the connection is lost.

The system and the BLUETOOTH device are too far apart.

If there are obstacles between the system and your BLUETOOTH device, remove or avoid the

• obstacles.

If there is equipment that generates electromagnetic radiation, such as a wireless LAN, other BLUETOOTH device, or a microwave oven nearby, move them away.

The sound of your BLUETOOTH device cannot be heard on this system.

• Increase the volume on your

BLUETOOTH device first, then adjust the volume using

+/–.

MHC-V77DW.GB.4-596-07614(1)

There is severe hum, noise, or distorted sound.

If there are obstacles between the system and your BLUETOOTH device, remove or avoid the obstacles.

If there is equipment that generates electromagnetic radiation, such as a wireless LAN,

• other BLUETOOTH device, or a microwave oven nearby, move them away.

Turn down the volume of the connected BLUETOOTH device.

Network connection

The system cannot connect to the network. (Other equipment on the network cannot find or recognize the system.)

Check that is lit on the display.

It takes about 2 minutes for the system to acquire an IP address when the system is turned on in a communication environment without a router.

• When you use a fixed IP address, the same IP address may be used by other equipment. Use a different IP address.

The system cannot connect to the network via a wireless LAN connection.

• •

If a network (LAN) cable is connected to the system, the system automatically operates to establish a wired LAN connection.

If you wish to use a wireless LAN connection, do not connect a network (LAN) cable to the system.

Check the settings of the wireless

LAN router/access point. If the

SSID stealth mode is set to “On” on the access point, set it to “Off”.

For details on the settings of the access point of the wireless router, refer to the operating manual of the access point.

Set the BLUETOOTH/Wi-Fi signal

to “RF ON” (page 63).

The system cannot connect to the network using WPS.

Set up your network after searching the access point using

• the access point scan.

You cannot connect to a network using WPS when your access point is set to WEP.

• Update the firmware of the wireless LAN router/access point to the latest version.

Music Services

The system cannot connect to

Music Services.

Make sure the wireless LAN router/access point is turned on.

Check that is lit on the display.

If not, set up a wireless network again. For details, see Wi-Fi

Startup Guide.

When the system is connected

• to a wireless network, place the wireless LAN/access point and the system closer together and perform the setup again.

Depending on the providers, only one connection to Internet is allowed.

When you turn on your mobile phone (Android device, Xperia device, or iPhone/iPod touch) after a moment of power off, try to restart the “SongPal” application.

71

GB

MHC-V77DW.GB.4-596-07614(1)

72

GB

Home Network

The controller (the operating device) cannot find this system.

(The controller cannot browse the contents of this system.)

• •

Make sure that the controller is connected to the home network.

The multicast control on the access point is enabled.

Music started automatically.

• This system may be controlled by another equipment. To block such control, set the BLUETOOTH/

Network standby mode to off

(page 63).

The sound is interrupted.

The DLNA server is overloaded.

Quit all running applications.

The wireless signal has

• interference. Turn off other devices such as your microwave oven.

The communications speed of the wireless LAN may become slower for IEEE802.11n-compliant wireless

LAN routers/access points if the security method is set to WEP or WPA/WPA2-PSK (TKIP). If the speed becomes slower, change the security method to

WPA/WPA2-PSK (AES).

The encryption (security) scheme varies depending on the device.

For details, refer to the operating instructions of your router/access point.

Tuning or playback cannot be performed.

Confirm that the audio file is improper or has been deleted from the server. Refer to the operating instructions of the server.

The server tries to play the audio file in an audio format that the system does not support. Check the audio format information on the server.

Disable the multicast control on the wireless LAN router/access point. If it is enabled, it may take several minutes to output the audio. For details, refer to the operating instructions of the wireless LAN router/access point.

The access from this system is not permitted by the server. Change the settings on the server to allow access from this system.

For details, refer to the operating instructions of the server.

Gesture Control

The Gesture Control cannot be activated.

Touch GESTURE ON/OFF repeatedly until GESTURE

CONTROL lights up.

Make sure the Child Lock function

is not activated (page 62).

The Gesture Control does not operate properly.

Move your hand closer to

GESTURE CONTROL sensor (page

49) when you perform the

swiping motion.

Perform the swiping motion at a slower speed.

Select the correct mode

(PLAYBACK, DJ, SAMPLER or

KARAOKE) before you start using

the Gesture Control (page 50,

51).

Install a noise filter (not supplied) to the AC power cord (mains lead).

Turn off surrounding electrical equipment.

MHC-V77DW.GB.4-596-07614(1)

“PARTY LOCK” appears when you touch any key on the unit.

Set the Party Lock function to off

(page 62).

Control for HDMI (“BRAVIA”

Sync)

The system does not turn on even when the TV is turned on.

• Press DVD SETUP, then set [HDMI

SETUP] – [CONTROL FOR HDMI]

to [ON] (page 36). The TV must

support the Control for HDMI

function (page 54). For details,

refer to the operating instructions of your TV.

Check the speaker settings of the

TV. The system power syncs with the speaker settings of the TV.

For details, refer to the operating instructions of your TV.

If the sound was output from the

TV’s speakers the previous time, the system does not turn on even when the TV is turned on.

The system turns off when the TV is turned off.

• •

Check the setting of [HDMI

SETUP] – [STANDBY LINKED TO

TV] (page 36). When [STANDBY

LINKED TO TV] is set to [ON], the system turns off automatically when you turn off the TV regardless of the input.

The system does not turn off even when the TV is turned off.

Check the setting of [HDMI

SETUP] – [STANDBY LINKED TO TV]

(page 36).

To turn the system off automatically regardless of the input when you turn off the TV, set

[STANDBY LINKED TO TV] to [ON].

The TV must support the Control

for HDMI function (page 54).

For details, refer to the operating instructions of your TV.

No TV sound is output from the system.

• •

Check the type and connection of the HDMI cable or audio cable that is connected to the system and

• •

the TV (page 22).

If your TV is compatible with Audio

Return Channel, make sure the system is connected to an ARCcompatible HDMI IN jack of the TV

(page 22). If sound is still not

output or if sound is interrupted, connect an audio cable (not supplied) and press DVD

SETUP, then set [HDMI SETUP] –

[AUDIO RETURN CHANNEL] to

[OFF] (page 36).

• If your TV is not compatible with

Audio Return Channel, TV sound will not be output from the system even if the system is connected to

• the TV’s HDMI IN jack. To output TV sound from the system, connect an audio cable (not supplied)

(page 23).

Switch input of the system to “TV”

(page 23).

Increase the volume on the system.

73

GB

MHC-V77DW.GB.4-596-07614(1)

74

GB

Depending on the order in

• which you connect the TV and the system, the system may be muted and “MUTING” lights up in display panel of the system. If this happens, turn on the TV first, then the system.

Set the speakers setting of the TV

(BRAVIA) to Audio System. Refer to the operating instructions of your

TV on how to set the TV.

The sound is output from both the system and the TV.

Mute the sound of the system or

• the TV.

Change the speaker output on the

TV to TV speaker or Audio System.

The Control for HDMI function does not work properly.

Check the connection with the

• •

system (page 19).

Enable the Control for HDMI function on the TV. For details, refer to the operating instructions

• • of your TV.

Wait a while, then try again. If you unplug the system, it will take a while before operations can

• be made. Wait for 15 seconds or longer, then try again.

Make sure the TV connected to the system support the Control for

• •

HDMI function.

The type and number of devices that can be controlled by the

Control for HDMI function is restricted by the HDMI CEC standard as follows:

—Recording devices (Blu-ray Disc recorder, DVD recorder, etc.): up to 3 devices

Player, DVD player, etc.): up to

3 devices (this system uses one of them)

—Tuner-related devices: up to

4 devices

—Audio system (receiver/ headphone): up to 1 device

(used by this system)

Party Chain

Party Chain function cannot be activated.

Check the connections

(page 57).

Make sure the audio cables are connected correctly.

Party Chain function does not work properly.

Turn off the system. Then, turn it back on again to activate the Party

Chain function.

Resetting the system

If the system still does not operate properly, reset the system to factory default settings.

1

Unplug the AC power cord (mains lead), then plug it back in.

2

Press

 to turn on the system.

3

Press OPTIONS.

4

Press / repeatedly to select

“SYSTEM”, then press .

5

Press / repeatedly to select

“RESET”, then press .

6

Press / repeatedly to select

“YES”, then press .

“RESET” appears on the display.

After the reset completes, the system automatically reboots. Press

 to turn on the system.

All user-configured settings, such as preset radio stations and Sleep

Timer are reset to factory default setting.

MHC-V77DW.GB.4-596-07614(1)

Returning the setup menu settings to the default

You can return the setup menu settings (except for

[PARENTAL CONTROL] settings) to the default settings.

1

Press DVD SETUP.

The setup menu appears on the TV screen.

2

Press / repeatedly to select

[SYSTEM SETUP], then press .

3

Press / repeatedly to select

[RESET], then press .

4

Press / repeatedly to select

[YES], then press .

It takes a few seconds to complete.

Do not press

 while resetting the system.

Self-diagnosis Function

When letters/numbers appear on the TV screen or the display

When the self-diagnosis function is activated to prevent the system from malfunctioning, a service number appears. The service number consists of an alphabet and numerals (e.g. C 13 50). See the following table for the cause and corrective action.

First 3 characters of the service number

Cause and corrective action

C 13

C 31

This disc is dirty.

• Clean the disc with a

soft cloth (page 77).

The disc is not inserted correctly.

• Turn off the system, then turn it back on again. Then re-insert the disc correctly.

E XX

(XX is a number)

To prevent a malfunction, the system has performed the self-diagnosis function.

Contact your nearest

Sony dealer or local authorized Sony service facility and give the

5-character service number.

Example: E 61 10

Messages

One of the following messages may appear or flash on the display during operation.

CANNOT PLAY

A disc that cannot be played back was inserted.

A DVD VIDEO with unsupported region code was inserted.

DATA ERROR

The file is created in unsupported

• • format.

The file extensions does not match the file format.

75

GB

MHC-V77DW.GB.4-596-07614(1)

76

GB

DEVICE ERROR

The USB device could not be recognized or an unknown device is connected.

DEVICE FULL

The memory of the USB device is full.

ERASE ERROR

Erase of audio files or folders on the

USB device failed.

FATAL ERROR

The USB device was removed during transfer or erase operation, and may have been damaged.

FOLDER FULL

You cannot transfer onto the USB device because the number of folders has reached its maximum.

GUEST

The system has become a Party

Guest as the Party Chain function has been activated by a Party Host.

HOST

The system activated the Party

Chain function and has become a

Party Host.

NoDEVICE

No USB device is connected or unsupported device is connected.

NO DISC

There is no disc in the player.

NO MUSIC

No supported audio files exist in the playback source.

NO SUPPORT

An unsupported USB device is connected, or the USB device is connected through a USB hub.

NO VIDEO

No supported video files exist in the playback source.

NOT USE

You tried to perform a specific operation under conditions where that operation is prohibited.

OVER CURRENT

An over current from the (USB) port was detected.

PROTECT

The USB device is write-protected.

PUSH STOP

You tried to perform an operation that can be performed only when the playback is stopped.

READING

The system is reading information of the disc or USB device. Some operations are not available.

REC ERROR

The transfer did not start, stopped partway, or otherwise could not be performed.

TRACK FULL

You cannot transfer onto the USB device because the number of files has reached its maximum.

Precautions

When carrying the unit

To avoid damaging the disc mechanism, perform the following procedure before carrying the unit.

Use the keys on the touch panel of the unit to perform this operation.

1

Press

 to turn on the system.

MHC-V77DW.GB.4-596-07614(1)

2

Touch FUNCTION repeatedly to select “DVD/CD”.

3

Remove the disc.

Touch

 to open and close the disc tray.

Wait until “NO DISC” appears on the display.

4

Unplug the AC power cord (mains lead).

Notes on discs

Before playing, wipe the disc with a cleaning cloth from the center outward

• to the edge.

Do not clean discs with solvents, such as benzine, thinner, or commercially available cleaners or anti-static spray intended for vinyl LPs.

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave them in a car parked in direct sunlight.

On safety

• Completely disconnect the AC power cord (mains lead) from the wall outlet

(mains) if it is not going to be used for an extended period of time. When unplugging the system, always grip the plug. Never pull the cord itself.

• •

Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again.

• •

AC power cord (mains lead) must be changed only at the qualified service shop.

On handling the unit

• •

Do not splash water on the unit on purpose. Dust and drip proof performance is improved by the flat top structure of the unit, but this is not guaranteed for all the situations. If you accidentally splash liquid on the unit,

• wipe off immediately.

To maintain the dust and drip proof performance, make sure all the covers of the jacks/port/terminal are securely closed.

On placement

• •

Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light.

• Be careful when placing the system on surfaces that have been specially treated (for example, wax, oil, polish) as staining or discoloration of the surface

• may result.

If the system is brought directly from a cold to a warm location or is placed in a very damp room, moisture may condense on the lens inside the unit, and cause the system to malfunction.

In this situation, remove the disc, and leave the system turned on for about an hour until the moisture evaporates.

On heat buildup

• •

Heat buildup on the unit during operation is normal and is not a cause

• for alarm.

Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become

• hot.

Do not obstruct the ventilation holes.

On the speaker system

The built-in speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the

TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move the system far away from the TV.

IMPORTANT NOTICE

Caution: If you leave a still video image or on-screen display image displayed on your TV for an extended period of time via this system, you risk permanent damage to your TV screen. Projection TVs are especially susceptible to this.

77

GB

MHC-V77DW.GB.4-596-07614(1)

78

GB

Cleaning the cabinet

Clean this system with a soft cloth slightly moistened with a mild detergent solution.

Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol.

Notes on updating

This system allows you to update the software automatically when connected to the Internet via a wired or wireless network.

You can add new features and use the system with more convenience and safety by updating the system.

If you do not want to update automatically, you can disable the function by using SongPal installed on your smartphone/iPhone. However, the system may update the software automatically for reasons such as safety, even if this function is disabled.

You can also update the software using the settings menu when this function is disabled. See “Updating the software”

(page 64) for details.

You may not use the system while the software is being updated.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony shall not be held responsible in these situations.

On BLUETOOTH communication

• BLUETOOTH devices should be used within approximately 10 meters

(unobstructed distance) of each other. The effective communication range may become shorter under the following conditions.

— When a person, metal object, wall or other obstruction is between the devices with a BLUETOOTH connection

— Locations where a wireless LAN is installed

— Around microwave ovens that are in use

— Locations where other electromagnetic waves are generated

BLUETOOTH devices and wireless LAN

(IEEE 802.11b/g/n) equipment use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur. This could result in lower data transfer rates, noise, or inability to connect. If this happens, try the following remedies:

— Use this system at least 10 meters away from the wireless LAN equipment.

— Turn off the power of the wireless

LAN equipment when using your

BLUETOOTH device within 10 meters.

— Use this system and BLUETOOTH device as closer to each other as possible.

• •

The radio waves broadcast by this system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power on this system and BLUETOOTH device in the following locations:

— In hospitals, on trains, in airplanes, at gas stations, and any place where flammable gases may be present

— Near automatic doors or fire alarms

This system supports security functions that comply with BLUETOOTH specifications to ensure secure connections during communication using BLUETOOTH technology. However, this security may be insufficient depending on the setting contents and other factors, so always be careful when performing communication using

BLUETOOTH technology.

Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.

• BLUETOOTH communication is not necessarily guaranteed with all

BLUETOOTH devices that have the same profile as this system.

MHC-V77DW.GB.4-596-07614(1)

• BLUETOOTH devices connected with this system must comply with the

BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be certified to comply. However, even when a device complies with the

BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.

• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.

Specifications

Speaker section

Speaker system:

Tweeter + Midrange speaker +

Woofer

Speaker unit:

Tweeter L/R: 40 mm, cone type

Midrange L/R: 120 mm, cone type

Woofer: 250 mm, cone type

Rated impedance:

Tweeter L/R: 4 ohms

Midrange L/R: 4 ohms

Woofer: 8 ohms

Inputs

AUDIO/PARTY CHAIN IN (TV) L/R:

Voltage 2 V, impedance

47 kilohms

TV (ARC):

Supported audio signal:

2-channel Linear PCM

MIC1, MIC2:

Sensitivity 1 mV, impedance

10 kilohms

Outputs

AUDIO/PARTY CHAIN OUT L/R:

Voltage 2 V, impedance 1 kilohm

VIDEO OUT:

Max. output level 1 Vp-p, unbalanced, Sync. negative load impedance 75 ohms

HDMI OUT (TV):

Supported audio signal:

2-channel Linear PCM (up to

48 kHz), Dolby Digital

HDMI section

Connector:

Type A (19 pin)

Disc player section

System:

Compact disc and digital audio and video system

Laser Diode Properties

Emission Duration: Continuous

Laser Output*: Less than 44.6 μW

* This output is the value measurement at a distance of

200 mm from the objective lens surface on the Optical Pick-up

Block with 7 mm aperture.

Frequency response:

20 Hz – 20 kHz

Video color system format:

Latin American model:

NTSC

Other models:

NTSC and PAL

USB section

Supported USB device:

Mass Storage Class

Maximum current:

1 A

(USB) port:

Type A

FM tuner section

FM stereo, FM superheterodyne tuner

Antenna:

FM lead antenna

Tuning range:

87.5 MHz – 108.0 MHz (50 kHz step)

79

GB

MHC-V77DW.GB.4-596-07614(1)

80

GB

BLUETOOTH section

Communication system:

BLUETOOTH Standard version 4.2

Output:

BLUETOOTH Standard Power

Class 1

Maximum communication range:

Line of sight approx. 30 m* 1

Frequency band:

2.4 GHz band (2.4000 GHz –

2.4835 GHz)

Modulation method:

FHSS (Freq Hopping Spread

Spectrum)

Compatible BLUETOOTH profiles*

2

:

A2DP (Advanced Audio

Distribution Profile)

AVRCP (Audio Video Remote

Control Profile)

SPP (Serial Port Profile)

Supported codecs:

SBC (Subband Codec)

AAC (Advanced Audio Coding)

LDAC

* 1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.

*

2

BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Network section

Ethernet LAN

100BASE-TX

Wireless LAN

Compatible standards:

IEEE 802.11 a/b/g/n

Security:

WPA/WPA2-PSK, WEP

Radio frequency:

2.4 GHz, 5 GHz

Supported audio formats

Supported bit rate and sampling frequencies:

MP3:

16/22.05/24/32/44.1/48 kHz,

16 kbps – 320 kbps (CBR/VBR)

AAC:

16/22.05/24/32/44.1/48/88.2/

96 kHz, 16 kbps – 320 kbps (CBR/

VBR)

WMA:

32/44.1/48 kHz, 16 kbps –

320 kbps (CBR/VBR)

WAV:

16/22.05/24/32/44.1/48/88.2/

96/176.4/192 kHz (16/24 bit)

AIFF:

32/44.1/48/88.2/96/176.4/

192 kHz (16/24 bit)

FLAC:

16/22.05/24/32/44.1/48/88.2/

96/176.4/192 kHz (16/24 bit)

ALAC:

16/22.05/24/32/44.1/48/88.2/

96/176.4/192 kHz (16/24 bit)

DSD (DSF/DSDIFF):

2.8 MHz (1 bit)

Supported video formats

Xvid:

Video codec: Xvid video

Bit rate: 4.854 Mbps (MAX)

Resolution/Frame rate:

720 × 480, 30 fps

720 × 576, 25 fps (except for Latin

American model)

Audio codec: MP3

MPEG4:

File format: MP4 File Format

Video codec: MPEG4 Simple

Profile (AVC is not compatible.)

Bit rate: 4 Mbps

Resolution/Frame rate:

720 × 480, 30 fps

720 × 576, 25 fps (except for Latin

American model)

MHC-V77DW.GB.4-596-07614(1)

Audio codec: AAC-LC (HE-AAC is not compatible.)

DRM: Not compatible

General

Power requirements:

AC 120 V – 240 V, 50/60 Hz

Power consumption:

220 W

Power consumption (at the Power

Saving mode):

0.5 W (When “NW STBY” is set to

“OFF” and [CONTROL FOR HDMI] is set to [OFF].)

3 W* (When “NW STBY” is set to

“ON” and [CONTROL FOR HDMI] is set to [ON].)

Dimensions (W/H/D) (Approx.):

340 mm × 924 mm × 378 mm

Mass (Approx.):

22 kg

* The power consumption of the system will be less than 0.5 W when there is no

HDMI connection and “NW STBY” is set to “OFF”.

Design and specifications are subject to change without notice.

MHC-V77DW.GB.4-596-07614(1)

81

GB

82

GB

Language code list

The language spellings conform to the ISO 639:1988 (E/F) standard.

Code Language

1027 Afar

Code Language

1186 Scots Gaelic

Code Language

1350 Malayalam

1028 Abkhazian

1032 Afrikaans

1039 Amharic

1044 Arabic

1045 Assamese

1051 Aymara

1052 Azerbaijani

1053 Bashkir

1194 Galician

1196 Guarani

1203 Gujarati

1209 Hausa

1217 Hindi

1226 Croatian

1229 Hungarian

1233 Armenian

1057 Byelorussian

1059 Bulgarian

1060 Bihari

1061 Bislama

1235

1239

1245

1248

Interlingua

Interlingue

Inupiak

Indonesian

1066 Bengali; Bangla 1253 Icelandic

1067 Tibetan

1070 Breton

1254

1257

Italian

Hebrew

1079 Catalan

1093 Corsican

1097 Czech

1103 Welsh

1105 Danish

1109 German

1130 Bhutani

1142 Greek

1144 English

1145 Esperanto

1149 Spanish

1150 Estonian

1151

1157

Basque

Persian

1165 Finnish

1166 Fiji

1171 Faroese

1174 French

1181 Frisian

1183 Irish

1352

1353

1356

1357

1358

1363

1365

1369

1376

1379

1393

1403

1408

Mongolian

Moldavian

Marathi

Malay

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

Oriya

1417 Punjabi

1428 Polish

1261 Japanese

1269 Yiddish

1283 Javanese

1287 Georgian

1297 Kazakh

1298 Greenlandic

1299 Cambodian

1300 Kannada

1435 Pashto; Pushto

1436 Portuguese

1463 Quechua

1481 Rhaeto-Romance

1482 Kirundi

1483 Romanian

1489 Russian

1491 Kinyarwanda

1301 Korean

1305 Kashmiri

1307 Kurdish

1311 Kirghiz

1313 Latin

1326 Lingala

1495 Sanskrit

1498 Sindhi

1501 Sangho

1502 Serbo-Croatian

1503 Singhalese

1505 Slovak

1327 Laothian

1332 Lithuanian

1506 Slovenian

1507 Samoan

1334 Latvian; Lettish 1508 Shona

1345 Malagasy 1509 Somali

1347 Maori

1349 Macedonian

1511 Albanian

1512 Serbian

Code Language

1513 Siswati

1514 Sesotho

1515 Sundanese

1516 Swedish

1517 Swahili

1521 Tamil

1525 Telugu

1527 Tajik

1528 Thai

1529 Tigrinya

1531 Turkmen

1532 Tagalog

1534 Setswana

1535 Tonga

1538 Turkish

1539 Tsonga

1540 Tatar

1543 Twi

1557 Ukrainian

1564 Urdu

1572 Uzbek

1581 Vietnamese

1587 Volapük

1613 Wolof

1632 Xhosa

1665 Yoruba

1684 Chinese

1697 Zulu

1703 Not specified

MHC-V77DW.GB.4-596-07614(1)

Parental Control area code list

Code Area

2044 Argentina

2047 Australia

2046 Austria

2057 Belgium

2070 Brazil

2079 Canada

2090 Chile

2092 China

2115 Denmark

Code Area

2165 Finland

2174 France

2109 Germany

2248 India

2238 Indonesia

2254 Italy

2276 Japan

2304 Korea

2363 Malaysia

Code Area

2362 Mexico

2376 Netherlands

2390 New Zealand

2379 Norway

2427 Pakistan

2424 Philippines

2436 Portugal

2489 Russia

2501 Singapore

Code Area

2149 Spain

2499 Sweden

2086 Switzerland

2528 Thailand

2184 United Kingdom

MHC-V77DW.GB.4-596-07614(1)

83

GB

©2016 Sony Corporation Printed in Malaysia 4-596-07614(1)
