CableWholesale 30D1-18200 Datasheet

CableWholesale 30D1-18200 Datasheet
 REV. DESCRIPTION DATE
A
B 04-2008
O
6 = | 1— Lo Lo
— о o
= NULL MODEM ое
9 = 5— Lo ° ||1-9
© „©
Q O
Pin Out
DB9 DB9
Male Female
1+6 4
2 3
3 2
4 1+6
5 5
7 8
8 7
G G

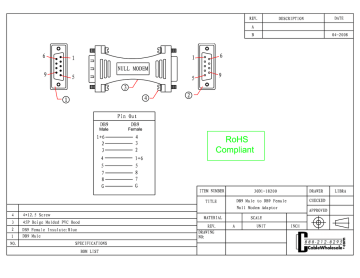

ITEM NUMBER 30D1-18200 DRAWER LIBRA
TITLE DB9 Male to DB9 Female CHECKED
Null Modem Adaptor APPROVED
4 | 412.5 Screw MATERIAL SCALE
3 | 45P Beige Molded PVC Hood {by +
REV. UNIT INCH
2 DB9 Female Insulate: Blue DRAWING
1 DB9 Male NO: E
NO. SPECIFICATIONS 6885-21 2-82756
CableWholesale :
BOM LIST
