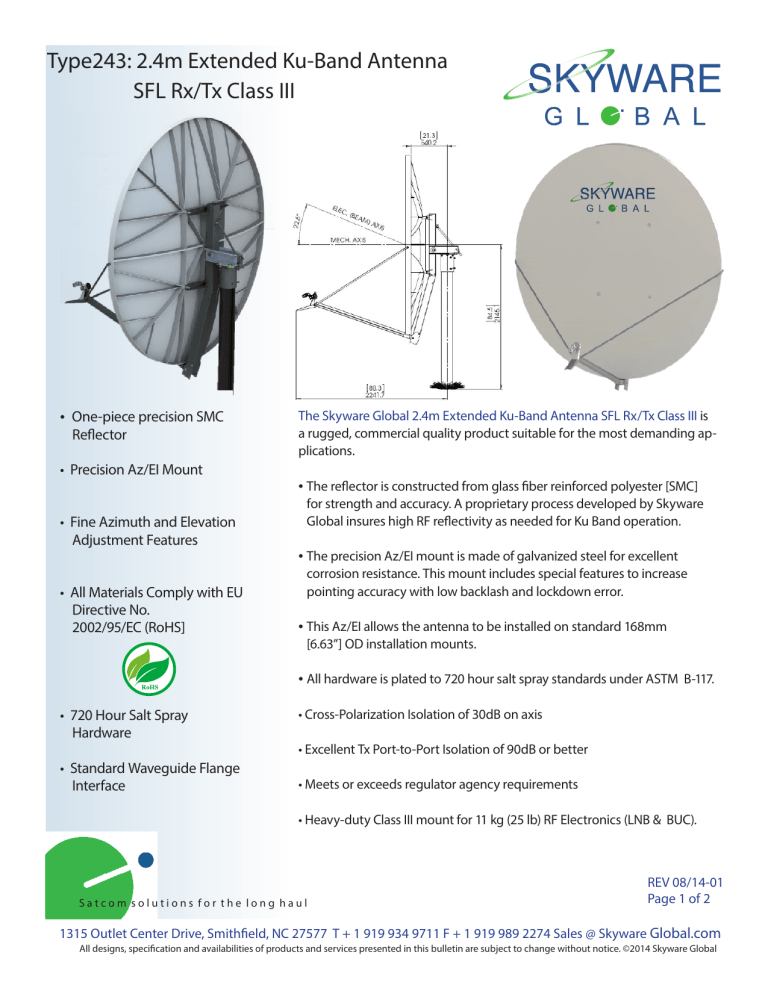

Type243: 2.4m Extended Ku-Band Antenna SFL

Type243: 2.4m Extended Ku-Band Antenna SFL
Type243: 2.4m Extended Ku-Band Antenna
SFL Rx/Tx Class III
• One-piece precision SMC
Reflector
• Precision Az/EI Mount
• Fine Azimuth and Elevation
Adjustment Features
• All Materials Comply with EU
Directive No.
2002/95/EC (RoHS]
The Skyware Global 2.4m Extended Ku-Band Antenna SFL Rx/Tx Class III is
a rugged, commercial quality product suitable for the most demanding applications.
• The reflector is constructed from glass fiber reinforced polyester [SMC]
for strength and accuracy. A proprietary process developed by Skyware
Global insures high RF reflectivity as needed for Ku Band operation.
• The precision Az/EI mount is made of galvanized steel for excellent
corrosion resistance. This mount includes special features to increase
pointing accuracy with low backlash and lockdown error.
• This Az/EI allows the antenna to be installed on standard 168mm
[6.63”] OD installation mounts.
• All hardware is plated to 720 hour salt spray standards under ASTM
• 720 Hour Salt Spray Hardware
• Standard Waveguide Flange
Interface
B-117.
• Cross-Polarization Isolation of 30dB on axis
• Excellent Tx Port-to-Port Isolation of 90dB or better
• Meets or exceeds regulator agency requirements
• Heavy-duty Class III mount for 11 kg (25 lb) RF Electronics (LNB & BUC).
Satcom solutions for the long haul
REV 08/14-01
Page 1 of 2
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2014 Skyware Global
•P R O D U C T S P E C I F I C AT I O N S
2.4m Extended Ku-Band Antenna
SFL Rx/Tx Class III
RF Performance
Mechanical Performance
Operating Frequency
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.75 -14.5 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.70 -11.7 GHz
Reflector Material. . . . . .Glass Fiber Reinforced Composite
Polarization
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear Orthogonal
Mount Type . . . . . . . . . . . . . . . . . . . . . Elevation Over Azimuth
Gain (±0.3 dB)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48.9 dBi @ 14.3 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46.8 dBi @ 11.2 GHz
3 dB Beamwidth
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.6° @ 14.3 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8° @ 11.2 GHz
Sidelobe Envelope (Tx, Co-Pol dBi)
Mainbeam< q< 20° . . . . . . . . . . . . . 29-25 log q dBi
20° < q< 26.3° . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -3.5 dBi
26.3° <q< 48° . . . . . . . . . . . . . . . . . . . . . .32-25 log q dBi
48° < q < 180° . . . . . . . . . . . . . . . . . . . . . -10 dBi (Typical)
Antenna Cross-Polarization
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB (on Axis)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 dB in .5 dB Contour
Antenna Noise Temperature
10° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55K°
20° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46K°
30° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45K°
VSWR
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3:1 Max
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5:1 Max
Isolation*(Port to Port)
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 dB
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 dB
Feed Interface
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
Antenna Optics . . . . . . . . . . 2-Piece Offset Feed Prime Focus
Elevation Adjustment Range . . . . . . . . .10° - 90° Continuous
Fine Adjustment
Azimuth Adjustment Range . . . . . . . 360° Continuous; ± 12°
Fine Adjustment
Feed Support . . . . . . .Regular Section with Alignment Legs
Mast Size . . . . . . . . . . . . . . . . . . . . . . .6.63” (168mm) Diameter
Antenna Weight. . . . . . Approx 110.65Kg (Not Including
Mast)
Enviromental Performance
Operational Wind Speed. . . . . . . . . . . . . . . . 80km/h (50 mph)
Functional Survival . . . . . . . . . . . . . . . . . . 200km/h (125 mph)
Operational Temperature . . . . . . . . . . . . . . . . . .-50°C to +80°C
Humidity. . . . . . . . . . . . . . . . . . . . . . . . .0 to 100% (Condensing)
Atmosphere. . . . . . . . . . . . .Standard Hardware 720 Hrs SST
Requirements (ASTM B-117)
Solar Radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .360 BTU/h/ ft2
Shock and Vibration. . . . . . . . . . . . . . . As Encountered during
Shipping and handling
(All specifications typical)
(* With Skyware Global OMT/Filter)
