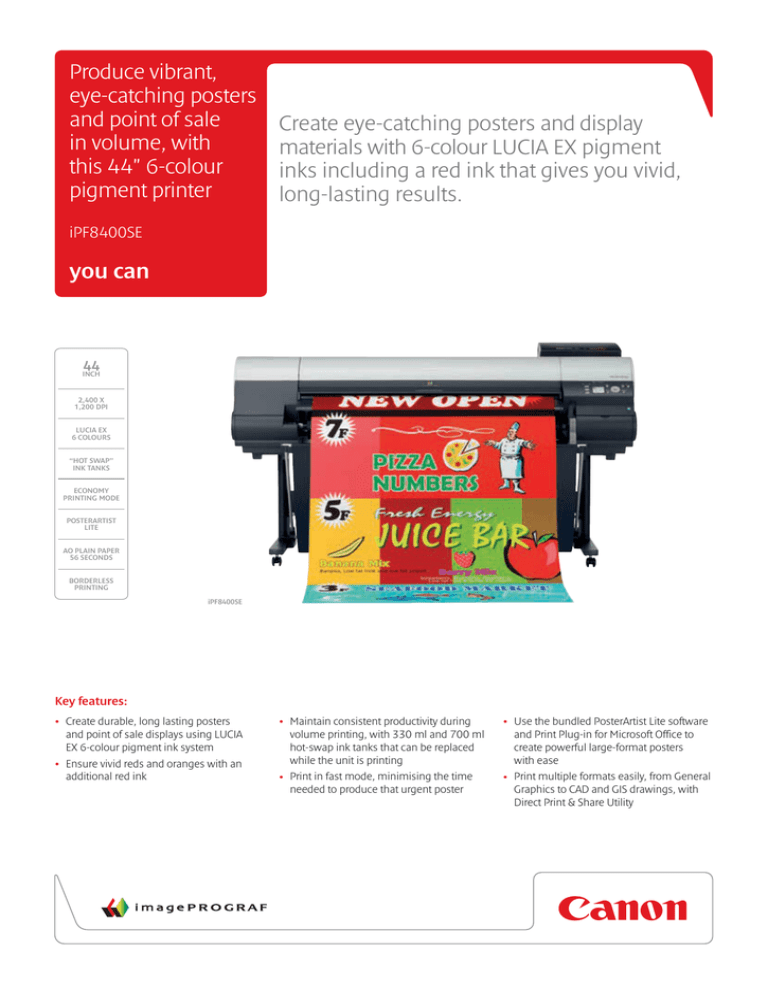

Produce vibrant,
eye-catching posters
and point of sale
in volume, with
this 44" 6-colour
pigment printer
Create eye-catching posters and display
materials with 6-colour LUCIA EX pigment
inks including a red ink that gives you vivid,
long-lasting results.
iPF8400SE
you can
44
inch
2,400 x
1,200 dpi
LUCIA EX
6 COLOURS
“Hot swap”
ink tanks
ECONOMY
PRINTING MODE
POSTERARTIST
LITE
AO PLAIN PAPER
56 Seconds
BORDERLESS
PRINTING
iPF8400sE
Key features:
•Create durable, long lasting posters
and point of sale displays using LUCIA
EX 6-colour pigment ink system
•Ensure vivid reds and oranges with an
additional red ink
•Maintain consistent productivity during
•Use the bundled PosterArtist Lite software
•Print in fast mode, minimising the time
•Print multiple formats easily, from General
volume printing, with 330 ml and 700 ml
hot-swap ink tanks that can be replaced
while the unit is printing
needed to produce that urgent poster
and Print Plug-in for Microsoft Office to
create powerful large-format posters
with ease
Graphics to CAD and GIS drawings, with
Direct Print & Share Utility
Specifications: imagePROGRAF iPF8400SE
Printer Model
imagePROGRAF iPF8400SE
TECHNOLOGY
Printer Type
Print Technology
Number of Nozzles
Print Resolution
6 Colour – 44" / 1,117.6 mm
Canon Inkjet on Demand 6 colours integrated type
(6 chips per print head x1 print head)
Total: 15,360 - BK / MBK / M/ C / Y / R – 2,560 nozzles for each colour
2,400 x 1,200dpi
Nozzle Pitch
1,200dpi x 2
Line Accuracy
±0.1% or less
Ink Droplet Size
Ink Capacity
Ink Type
OS Compatibility
Printer Languages
Standard Interfaces
Buffer RAM
4 Picoliter
Bundled Starter Ink: 330 ml – BK / MBK / M / C / Y / R
Sales Ink: 330 ml or 700 ml – BK / MBK / M / C / Y / R
Printer Model
Software
Included
GARO (Graphic Arts language with Raster Operations)
USB 2.0 High-Speed
Ethernet 10 / 100 Base-T/TX
384 MB
PRINTING SPEED
(A0, Full
Colour Image)
Canon Printer Driver, Status Monitor, Free Layout & iR Enlargement Copy,
Optimised Driver for AutoCAD, Media Configuration Tool, PosterArtist Lite
(Windows only), Print Plug-in for Microsoft® Word / Excel / PowerPoint
(Windows only), Direct, Print & Share (Windows only)
POWER AND
OPERATING
REQUIREMENTS
Power Supply
Power Consumption
Operating
Environment
Noise Level (Approx.)
Pigment Ink: LUCIA EX
6 colour: BK / MBK / M / C / Y / R
Windows: XP / Vista / 7 / 8 / Server 2003 / 2003 R2, Windows Server 2008
(32 / 64 bit), Server 2012 (64 bit), Macintosh OSX 10.6.8 – OS10.9.x
imagePROGRAF iPF8400SE
Regulations
Environment
Certificates
AC 100 – 240 V (50 – 60 Hz)
Operation: 190 W or less
Power off (Standby): 0.5 W or less
Temperature: 15 – 30°C, 10 – 80% (Condensation free)
Operation: 50 dB (A) or less
Standby: 35 dB (A) or less
Accoustic Power: 6.8 Bels
Based on ISO 7779
Europe: CE mark, Germany: TUV mark, Russia: EAC
Other Countries: CB Certification
International Energy Star Program (WW), RoHS Directive
OPTIONS
Roll Holder Set
RH2-44
CONSUMABLES
Ink Tanks
330 ml: PFI-306 BK / MBK / C / M / Y / R
700 ml: PFI-706 BK / MBK / C / M / Y / R
Printing Speed
(Plain Paper)
56 sec (Fast Economy Mode)
3 min 5 sec (Standard Mode)
Print Head
Printing Speed
(Coated Paper)
1 min 42 sec (Fast Economy Mode)
3 min 5 sec (Standard Mode)
PF-05
Cutter Blade
CT-06
3 min 5 sec (Fast Economy Mode)
6 min 8 sec (Standard Mode)
Maintenance
Cartridge
MC-08
Printing Speed
(Glossy Photo Paper)
PAPER HANDLING
Media Width
Media Thickness
Roll Paper: 254 – 1,117.6 mm
Cut Sheet: 203.2 – 1,117.6 mm
Roll Paper: 0.07 – 0.8 mm
Cut Sheet: 0.07 – 0.8 mm
Minimum Printable
Length
203.2 mm (8 inch)
Maximum Printable
Length
Roll Paper: 18 m (Varies according to the OS and application)
Cut Sheet: 1.6 m
Margins (Top,
Bottom, Sides)
Recommended Area:
Roll Paper – Top: 20 mm, Bottom: 5 mm, Side: 5 mm
Cut Sheet – Top: 20 mm, Bottom: 23 mm, Side: 5 mm
Printable Area:
Roll Paper – Top: 5 mm, Bottom: 5 mm, Side: 5 mm
Roll Paper Borderless Print – Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut Sheet – Top: 5 mm, Bottom: 23 mm, Side: 5 mm
Maximum Media Roll
Diameter
150.0 mm
Paper Feed Method
Roll Feed: One Roll, Front Loading, Front Output
Manual Feed: Front Loading, One Sheet, Front Output
Borderless Printing
Width (Roll Only)
515 mm (JIS B2), 1,030 mm (JIS B0), 594 mm (ISO A1),
841 mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
DIMENSIONS
AND WEIGHT
Physical Dimensions
(W x D x H)
Main Unit with Printer Stand and Basket: 1,893 (W) x 971 (D) x 1,144 (H) mm
Main Unit with Printer Stand and Basket Closed: 1,893 (W) x 734 (D) x
1,144 (H) mm
Weight: Approx. 117 kg (Excluding consumables)
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods.
This leaflet and the specifications of the product have been developed prior to the date of product launch.
Final specifications are subject to change without notice.™ and ®: All company and / or product names are
trademarks and / or registered trademarks of their respective manufacturers in their markets and / or countries.
Canon recommends you use Canon Media for the best results. Please check media (paper) compatibility list
to see which variety of paper / media is recommended.
Genuine Canon ink cartridges are developed together with Canon large format printers as an important part of
the large format printer printing system. Advanced technologies achieved by our research and development
activities are incorporated into these ink cartridges. For optimum performance of Canon large format printers,
Canon recommends use of genuine Canon ink cartridges.
Canon Inc.
Canon Europe Ltd
canon.com
3 The Square, Stockley Park
Uxbridge, Middlesex
UB11 1ET UK
Canon Europe
canon-europe.com
English Edition
© Canon Europa N.V., 2014
