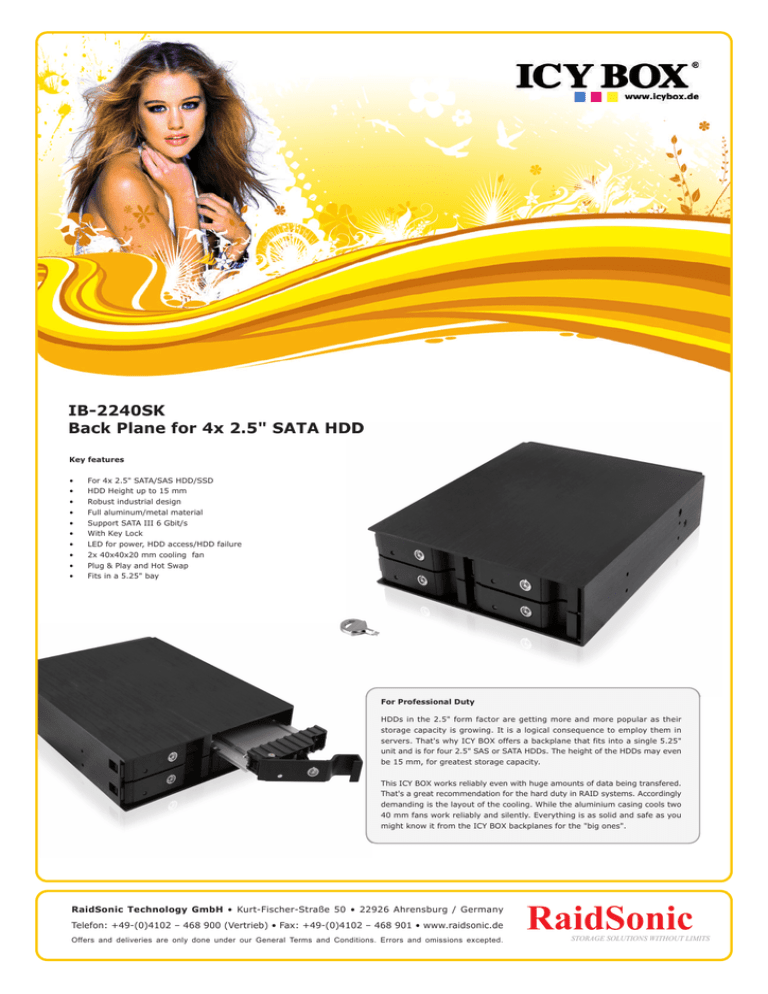

ICY BOX 20316 Datasheet
IB-2240SK
Back Plane for 4x 2.5" SATA HDD
Key features
•
•
•
•
•
•
•
•
•
•
For 4x 2.5" SATA/SAS HDD/SSD
HDD Height up to 15 mm
Robust industrial design
Full aluminum/metal material
Support SATA III 6 Gbit/s
With Key Lock
LED for power, HDD access/HDD failure
2x 40x40x20 mm cooling fan
Plug & Play and Hot Swap
Fits in a 5.25" bay
For Professional Duty
HDDs in the 2.5" form factor are getting more and more popular as their
storage capacity is growing. It is a logical consequence to employ them in
servers. That's why ICY BOX offers a backplane that fits into a single 5.25"
unit and is for four 2.5" SAS or SATA HDDs. The height of the HDDs may even
be 15 mm, for greatest storage capacity.
This ICY BOX works reliably even with huge amounts of data being transfered.
That's a great recommendation for the hard duty in RAID systems. Accordingly
demanding is the layout of the cooling. While the aluminium casing cools two
40 mm fans work reliably and silently. Everything is as solid and safe as you
might know it from the ICY BOX backplanes for the "big ones".
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Technical data
Model
IB-2240SK
HDD height
6 - 15 mm
Article No.
20316
HDD capacity
Unlimited
EAN code
4250078188520
Host interface
4x SATA Data Connector 7Pin
Brand
ICY BOX
Transfer rate
Up to 6 Gbit/s
Article text
Back Plane for 4x2.5" SATA HDD
Hot Swap
Yes
Colour
Black
Plug & Play
Yes
Material
Aluminium
Lock
Yes
Required space
1x 5.25" bay
Operating system
OS independent
Fan
2x 40x40x20 mm cooling fan
LED
Power and HDD Access
HDD interface
4x 2.5" SATA I/II/II
Power connector
1x 15pin SATA power
Front view
1.
1.
2.
2.
1.
1.
Lock
2.
LED for power and HDD access
1.
SATA interface
2.
SATA power connector
3.
4x4x2 cm fan
4.
On/off switch for LED
1.
2.
2.
Rear view
3.
3.
1.
2.
4.
1.
1.
1.
Packing content
1x IB-2240SSK, 2x keys, 28x screws, 1x short manual
Logistical data
Packing unit:
Total weight:
Gross weight (incl. packing):
Net weight:
20 pcs./carton
16.60 kg/carton
0.83 kg
0.70 kg
Dimension/carton:
Dimension of packing box:
Dimension of article:
Country of origin:
420x325x265 mm
197x152x46 mm
181x146x42 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
