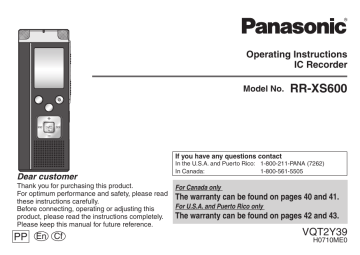

Operating Instructions
IC Recorder
Model No.
RR-XS600
If you have any questions contact
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read
these instructions carefully.
Before connecting, operating or adjusting this
product, please read the instructions completely.
Please keep this manual for future reference.
PP En Cf
In the U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
In Canada:
1-800-561-5505
For Canada only
The warranty can be found on pages 40 and 41.
For U.S.A. and Puerto Rico only
The warranty can be found on pages 42 and 43.
VQT2Y39
H0710ME0
Supplied accessories
Recording
Features
Meeting
Lesson/Lecture
Dictation
This unit supports the Linear PCM (hereinafter
referred to as “PCM”) recording. Data is not
compressed in PCM recording. Therefore,
high-quality recording is enabled, comparable
to the sound quality of CD.
Playing back
to listen
• Recorded file
• MP3 music file
with speaker
or earphones
(not included)
VQT2Y39
Connecting this unit to a computer
2
Using a computer
• Copy/Organize (Delete) recorded files/
Play back to listen
From a computer
• Transfer recorded files and data files
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses
when asking for replacement parts.
(Product numbers correct as of July 2010.
These may be subject to change.)
Only for U.S.A. and Puerto Rico:
To order accessories, refer to
“Accessory Purchases (United
States and Puerto Rico)” on
page 43.
Only for Canada: To order accessories, call the
dealer from whom you have
made your purchase.
1 USB cable [K2KZ4CB00012]
CAUTION
Danger of explosion if battery is incorrectly
replaced. Replace only with the same
or equivalent type recommended by the
manufacturer. Dispose of used batteries
according to the manufacturer’s instructions.
Basic Operations
Recording settings ............................................................ 8
Switching recording position ........................................ 8
Recording ......................................................................... 9
Playing ............................................................................ 10
Listening to the audio using earphones.......................... 11
Deleting recorded files .................................................... 12
Locking recorded files (File protection)........................... 13
Advanced Operations
Changing recording settings
(Monaural/Stereo, Microphone sensitivity) ..................... 14
Changing recording settings
(Zoom microphone/Recording mode
(PCM/XP/LP/SLP)) ......................................................... 15
Preventing unnecessary recording (VAS) ....................... 16
Confirming possible (remaining) recording time ............. 16
Setting the playback speed control function ................... 17
Reducing noise (EQ setting)........................................... 18
Slight return playback ..................................................... 18
Repeat play/Successive play .......................................... 19
A-B Repeat play ............................................................. 19
Security functions ........................................................... 20
Recording using an external microphone ....................... 22
Recording from other devices ......................................... 22
Recording to other devices ............................................. 23
Canceling the operation beep......................................... 23
Using with a computer
Connecting this unit to a computer ................................. 24
Opening the folder of this unit using a computer ............ 25
Importing the recorded files in this unit to a
computer/Organizing files ............................................... 26
Returning the files imported to the computer to
this unit ........................................................................... 27
Listening to music on this unit
(Transferring MP3 music files to this unit) ....................... 28
Listening to music on this unit
(Playing MP3 music files on this unit) ............................. 29
Creating MP3 music files ................................................ 30
Other
System requirements...................................................... 31
Q & A (Frequently Asked Questions).............................. 32
Troubleshooting guide .................................................... 33
Care and use .................................................................. 36
Maintenance ................................................................... 37
Product Service .............................................................. 38
Specifications ................................................................. 39
Limited Warranty (ONLY FOR CANADA)........................ 40
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO) ...................... 42
VQT2Y39
Preparation
Features ........................................................................... 2
Supplied accessories ....................................................... 2
Part names ....................................................................... 4
Inserting the batteries ....................................................... 5
Turning ON/OFF the Power .............................................. 6
Hold function..................................................................... 6
Setting the time................................................................. 7
Preparation
Table of contents
3
Part names
Main unit
ԁ
Ԃ
ԃ
„
‟
Ԅ
ӻ
†
‡
•
‣
․
‥
ӹ
Ӻ
VQT2Y39
Display
4
′
Ӽ
ӽ
Ӿ
ӿ
″
Ԁ
‴
„ Recording indicator (red)
‟ LCD display
† FOLDER/SPEED
‡ STOP
• + (Volume)
‣ u (Fast backward)
․ q/g (Play/Stop/Enter)
‥ – (Volume)
… i (Fast forward)
‧ Built-in speaker
OPR/HOLD
Recording position switch
(ZOOM/WIDE/MANUAL)
‪ REC/PAUSE
‫• ‫‬A-B (A-B repeat/Repeat)/−MENU
‬ ERASE
‭ USB jack
‫ ‮‬Built-in microphone
Ԃ External microphone jack (MIC)
‰ Headphone/earphone jack (W)
‱ Stand
When you perform zoom
recording with the unit placed
on a surface, stable zoom
effect can be obtained by
using the stand.
stand
′ Zoom microphone
″ġBattery cover
‴ġHand strap hole
The enclosed Canadian French label sheet corresponds to
English display on the unit.
Remaining memory/Recording level
: Recording mode
: Monaural/Stereo
: Microphone sensitivity
SPEED
: Playback speed control
: Noise reduction
: Formatting
: Folder
: Successive/Repeat play
: Zoom microphone
ALL
File number
: Security
: Slight return playback
: VAS function
Clock/Recording elapsed time/Recording date/
Possible recording time/Playback elapsed time/Remaining playback time etc.
: Battery indicator
: Delete
: File protection
: Possible remaining
recording time
: Operation beep
The remaining battery display shown below is
displayed while recording or playing.
Blinking
* If the batteries run out, “ ” blinks. Replace the
batteries as soon as possible.
* Remove the batteries from the unit if you will not
use it for a long period of time.
* Please replace batteries within approx. 30
seconds for preservation of the clock data.
1
4
3
2 AAA LR03 batteries
(not included)
Make sure the batteries face the right direction.
* Use alkaline batteries.
Make sure to turn the power off before
removing the batteries.
• If the batteries are removed while recording,
deleting, etc., all data on this unit may be lost or
this unit may be destroyed.
VQT2Y39
2
Preparation
Inserting the batteries
5
Turning ON/OFF the Power
HOLD
OPR
Hold function
Button operations are ignored when you set Hold
on.
OPERATION/HOLD Switch
OPR: operation
Switching Hold on/off
Hold on
HOLD
VQT2Y39
Turning the power ON
• Slide OPERATION/HOLD switch to OPR side,
then the power turns on and the display lights on.
6
Turning the power OFF
• Slide and hold OPERATION/HOLD switch to OPR
side for 2 seconds.
Also, when you do not operate the unit for more
than approx. 15 minutes while the unit is stopped,
“
” is displayed and the power automatically
turns off.
* When batteries are inserted for the first time,
“
” blinks on the display. Please set
the time (➜ page 7).
OPR
Hold off
HOLD
OPR
• When the Hold function is on, button operation is
ignored even if the unit is on (“
” is displayed).
Accordingly, operation mistakes (i.e. Recording or
playback stops midway) can be prevented.
When the power is turned on, “
” blinks on the display when the time is not set (e.g. at the
” (blinking) in approx. 1 minute.)
time of purchase). (In power-on condition, the display changes to “
The clock is used for preserving recording date. Please set the time first.
Recording is possible even if the clock is not set. However, the Recording date, Recording start time will be displayed as “
”.
STOP
/ MENU
When “
” is blinking
• Turn the power on (➜ page 6).
1
2
Press q/g .
Press +, – to set the year and
press q/g to enter.
Set month and day in the same way.
When the time display is
“ ” (blinking) or you change
the time
• Turn the power on (➜ page 6).
• Press
1
Year
Month
Day
The above illustration is a display example.
3
4
Press u, i to select the time
display and press q/g to enter.
2
24-hour display
3
12-hour display
Press +, – to set the time and
press q/g to enter.
You can adjust the time quickly by
pressing and holding +, –.
24-hour display
12-hour display
STOP
to stop the unit.
• A-B
/ MENU
Press and hold
1 second or longer.
for
“
” (blinking) or “
(blinking) is displayed.
Press +, – to select “
and press q/g to enter.
If “
”
”
” blinks, press q/g to enter.
Follow step 2 , 3 and 4
shown at left.
STOP
* Press
to stop the setting process midway.
* The clock operates with the monthly loss/gain
of approx. 60 seconds at normal temperature.
* The time setting is cleared, if the battery has
been consumed completely.
VQT2Y39
• A-B
Preparation
Setting the time
7
Recording settings
Recording
setting item
Setting contents and
display
Recording High-quality
mode
(➜ page 15)
(XP, LP and SLP
Long recording
VQT2Y39
recording modes
use MP3 format)
8
Switching
Monaural
Monaural/ Stereo Stereo
(➜ page 14)
:
:
Microphone High
sensitivity Normal
(➜ page 14)
Low
:
:
:
:
:
:
:
Zoom
Zoom microphone ON :
microphone Zoom microphone OFF : No display
(➜ page 15)
The total possible recording time (➜ page
39) changes according to the combination
of the recording mode and Monaural/Stereo.
Switching recording position
This unit is equipped with 3 recording positions: [ZOOM],
[WIDE] and [MANUAL]. The [ZOOM] and [WIDE] content
settings are fixed while [MANUAL] content settings can
be changed according to your preference. You can switch
among the positions using Recording position switch.
REC/PAUSE
FOLDER/SPEED
STOP
Recording Setting contents (display)
position
and situations
For lessons, lectures,
etc. (Recording the
ZOOM
aimed person’s voice).
WIDE
For meetings, etc. (Recording
offering a sense of being in
the actual situation).
For
dictation,
etc.
✽ [MANUAL] position has been set to
MANUAL
be suitable for dictation at the time
of purchase. You can change the
setting according to your preference
(➜ pages 14, 15).
You can change the recording mode (PCM,
XP, LP, SLP) in all positions (➜ page 15).
✽
MANUAL
WIDE ZOOM
MANUAL WIDE
ZOOM
This unit has 4 recording setting items related to
recording quality. Using different combinations of
recording settings, you can adjust audio quality
according to recording situations.
Recording
position switch
Recording
1
to stop the unit.
Slide recording position switch to
select a position.
Switch modes according to situations (➜ page 8).
2
3
Select a folder for recording.
FOLDER/SPEED
The folder is switched each time you press
.
Select among “
” (The factory setting is
“ ”).
When you select “ ”, recording is automatically
saved in “ ” (If the folder already contains 99 files,
the next folder with recordable space is used).
Press
REC/PAUSE
(Recording starts).
Each time you press Pause
STOP
.
File
Recorded audio data from the starting point to the
ending point is saved as a file.
The saved data is called a file.
Recording resumes
Display during recording
Light stays on. (Blinks while paused.)
The display changes depending on
recording levels.
In stereo Top side: ch-L/
Bottom side: ch-R
Recording elapsed time
(Blinks while paused.)
To stop: Press
[Folder] for this unit means locations in which
recording (music) files are stored. There are 4
” and 1 music folder “ ” in
audio folders “
this unit.
Using each folder according to the purposes of
recording enables you to search files easily later.
A maximum of 99 files can be saved into each
audio folder to .
* Even if you change the position of Recording
position switch during recording, the setting will
not be changed until the recording is complete.
* Change the recording mode as necessary
(➜ page 15).
* Do not block the zoom microphone and built-in
microphone (➜ page 4) with hand during recording.
* Note if your finger or an object touches this unit
during recording, the noise will be recorded
through the microphone.
VQT2Y39
• Press
STOP
Basic Operations
Folder
• Turn the power on (➜ page 6).
9
Playing
STOP
• Press
to stop the unit.
• Select a folder (➜ right).
• Select a file (➜ right).
FOLDER/SPEED
STOP
1
Press q/g (Playback starts).
Adjusting the volume
Turn up the volume: Press +.
Turn down the volume: Press –.
Volume range is 0 to 20.
(The factory setting is 13.)
Operations during playback
Jump (Skip):
VQT2Y39
Press u, i.
Press u midway while playing a
file and the playback jumps to the
beginning of the file. To return to the
previous file, press u again within
1 second.
10
Fast backward/Fast forward
(Search):
Press and hold u, i.
Stop: Press q/g or
STOP
.
Select a folder
The folder is switched each time you
FOLDER/SPEED
.
press
Select among “ ”, “ ”, “ ”, “ ”, “ ”.
Select the folder that contains the file to
play.
Select a file
Press u, i to select.
Each time you press, the file number
changes.
File number
When a file is selected, the recording
information below is displayed.
Recording date → Recording start time →
Recording time → Total number of files in the
folder
Listening to the audio using earphones
Connect stereo earphones (not included).
Plug type: ø 3.5 mm (1/8") stereo mini plug
Press and hold FOLDER/SPEED
for 1 second or longer
during playback.
The remaining time of the file
being played is displayed for
approx. 3 seconds.
Monitoring the recording
progress
Adjusting the volume:
Insert
securely.
You can adjust the volume by pressing
+, –, but the recording level is not
affected.
Playback
elapsed time
Basic Operations
Confirming the
remaining time
Remaining
playback time
* The remaining playback time
for approx. the last 3 seconds
of file is not displayed.
Built-in
speaker
The audio during playback comes from
the speaker. Listening may be difficult in
noisy places due to the speaker output.
In that case, connect stereo earphones
(not included).
* The built-in speaker is turned off when
earphones are connected.
VQT2Y39
Listening to the audio
during playback
11
Deleting recorded files
• Select a folder (➜ page 10).
STOP
ERASE
1
Press
while
playing or the unit
is stopped.
2
Press u, i to select the file.
ERASE
ӱ Deleting one file
Ӳ Deleting all files in
one folder
ӳ Deleting all files in
folder A through D
VQT2Y39
Ӵ Deleting all files in
all folders
12
ӵ Formatting this unit
ӱ to Ӵ : Protected files (➜ page 13) and
files which cannot be played back
on this unit cannot be deleted.
3
4
Press q/g to enter.
Press u, i to select “
and press q/g to enter.
”
When deleting is complete, “ ” is
displayed.
It may take dozens of seconds until
deleting is complete.
Formatting
If the unit is formatted, all existing files
including protected files, music files,
data files transferred from PCs, etc. are
deleted.
* Deleted files cannot be recovered.
* You cannot delete a portion of a file.
STOP
* Press
to stop the operation midway.
* The file numbers displayed on this unit
are moved forward after deleting files.
* Both deleting and formatting data are
not available when the remaining battery
display shows “
” (blinking).
Locking recorded files (File protection)
• Select a folder (➜ page 10).
STOP
/ MENU
• Press
1
3
to stop the unit.
Press and hold • A-B / MENU for
1 second or longer.
“
2
STOP
4
5
Press q/g to enter.
Press u, i to select “ ”
and press q/g to enter.
” (blinking) is displayed.
Press +, – to select “
press q/g to enter.
” and
Press u, i to select the
file.
ӱ Selecting one file
Lock is performed.
It may take dozens of seconds until
locking is complete.
To cancel lock:
Follow step 1 to 4 , select “
enter in step 5 .
” and
STOP
Ӳ Selecting all files in
one folder
ӳ Selecting all files in all
folders
* Press
to stop the setting process
midway.
*“
” is displayed for the locked files
when the file is selected.
*“
” is not displayed when there is no
file in the selected folder.
* You cannot lock files when the remaining
battery display shows “
” (blinking).
VQT2Y39
• A-B
Basic Operations
Locked files cannot be deleted on this unit (except when formatting).
Use this function to protect files.
13
Changing recording settings (Monaural/Stereo, Microphone sensitivity)
Switching Monaural/Stereo
STOP
• A-B
/ MENU
• Set the Recording position switch to
[MANUAL] (➜ page 8).
• Set the Recording position switch to
[MANUAL] (➜ page 8).
• Press
• Press
1
STOP
MANUAL WIDE ZOOM
VQT2Y39
to stop the unit.
/ MENU
Press and hold
for
1 second or longer.
1
• A-B
“
14
Changing microphone sensitivity
” (blinking) is displayed.
2
3
Press u, i to select “
”
or “ ” and press q/g to enter.
Monaural
STOP
Stereo
”
to stop the unit.
Press and hold • A-B / MENU for
1 second or longer.
“
Press +, – to select “
and press q/g to enter.
STOP
” (blinking) is displayed.
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select
microphone sensitivity and
press q/g to enter.
Low
Normal
” and
High
* Press
to stop the setting process midway.
Recording
* If you select “ ” while “
” (zoom ON) is set (➜ page15), the zoom microphone
position switch
setting is canceled. (“
” turns off.)
Changing recording settings (Zoom microphone/Recording mode (PCM/XP/LP/SLP))
STOP
• Set the Recording position switch to [MANUAL] (➜ page 8).
• A-B / MENU • Set to “
” (Monaural) (➜ page 14).
• Press
1
STOP
to stop the unit.
Press and hold
“
for 1 second or longer.
2
Press +, – to select “
enter.
3
Press u, i to select “ ” or “
press q/g to enter.
STOP
MANUAL WIDE ZOOM
/ MENU
1
” and press q/g to
Zoom OFF
” and
STOP
to stop the unit.
• A-B
/ MENU
Press and hold
for 1 second or longer.
“
” (blinking) is
displayed.
(The factory setting is
“XP”.)
” (blinking) is displayed.
Zoom ON
Recording
position switch
• A-B
• Press
2
Press q/g to enter.
3
Press u, i to
select among “PCM”,
“XP”, “LP” and “SLP”
and press q/g to enter.
* Press
to stop the setting process midway.
* When “ ” is set ( ➜ page 14), you cannot set the zoom
* If noise bothers you when
” is not displayed on the menu screen.
microphone and “
recording/playing in SLP
* The zoom function does not work as long as a device is connected to the
mode, use other modes.
external microphone jack even if the zoom is set to “ ” on this unit.
* When you perform zoom recording with the unit placed on a
desk, etc., we recommend putting up the stand (➜ page 4).
Advanced Operations
How to set the
recording mode
(PCM/XP/LP/SLP)
When the zoom is set to on, the surrounding sound volume
is lowered, and the sound in front is clearly recorded.
When recording with zoom microphone, the audio becomes monaural.
VQT2Y39
Changing Zoom microphone setting
15
Preventing unnecessary recording (VAS)/Confirming possible (remaining) recording time
VAS (Voice Activated System) function
Recording stops automatically when silence
continues for about 3 seconds. If the unit
Recording indicator detects sound, the recording resumes.
• A-B
FOLDER/SPEED
STOP
/ MENU • Press
1
STOP
to stop the unit.
Press and hold • A-B
or longer.
“
/ MENU
for 1 second
” (blinking) is displayed.
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “ ” and
press q/g to enter.
Then “
” and
” is displayed.
VQT2Y39
Start recording to activate this function.
When the VAS function is active and the
recording is paused during recording, “ ”
and the recording indicator blink.
16
Canceling VAS function:
” and enter in step 3 .
Select “
* Turn the function off when recording
important matters.
* Press
STOP
to stop the setting process midway.
Confirming possible
(remaining) recording time
1
FOLDER/SPEED
Possible
Press and hold
recording time
for 1 second or
longer while
recording or stopped.
hour minute
Possible recording time is
second
displayed for approx. 3 seconds.
When there is only a little∗ remaining memory
left while recording, the display is automatically
changed to the remaining recording time
display.
* When the possible recording time is 1000
hours or longer, “
” is displayed.
The “ ” display while
stopped shows approximate
remaining memory.
“ ” lights up in response to
the remaining time.
When there is only a little∗ remaining
memory left, “ ” blinks.
∗ When the remaining recording time falls
below approx. 1 hour.
Setting the playback speed control function
Playback speed can be adjusted at 21 different steps (50 % to 200 %).
The playback speed for PCM files cannot be adjusted. (100 % speed playback only.)
FOLDER/SPEED
during playback.
e.g. for 100 % speed
Playback speed adjustment display appears. (screen at right)
The figure of 2 digits represents a speed step.
(The figure returns to the file number after playback speed adjustment display finishes.)
FOLDER/SPEED
STOP
2
3
Press u, i to select playback speed.
When pressing i , the playback speed becomes faster and “ ”
(blinking) moves to the right.
When pressing u , the playback speed becomes slower and “ ”
(blinking) moves to the left.
50 %
100 %
200 %
adjustable
adjustable
in 10 steps
in 10 steps
(at 5 % intervals)
(at 10 % intervals)
Advanced Operations
Press
Press q/g to enter.
* Press
STOP
to stop the setting process midway.
* When playing with speed other than 100 % speed, the bar at the top blinks and
“SPEED ” lights up.
e.g. When playing back with 75 % speed
VQT2Y39
1
17
Reducing noise (EQ setting)/Slight return playback
Reducing noise (EQ setting)
Setting Slight return playback
This function makes it easier to hear sounds during playback. Slight return playback function: When u is pressed
You cannot make this setting when “ ” is selected.
during playback, the play point reverses about
• A-B / MENU
5 seconds, and playback resumes from the point.
• A-B
/ MENU
1
Press and hold
for 1 second or
longer during playback.
EQ setting display appears.
STOP
2
Press u, i to select “ ” “ ”
or “ ” “ ”and press q/g to enter.
When “ ” is selected, high range noise is reduced.
When “ ” is selected, both high range noise and
low range noise are reduced.
After setting, “
” and enter in step 2 .
VQT2Y39
18
STOP
1
STOP
to stop the unit.
Press and hold
or longer.
“
• A-B
/ MENU
for 1 second
” (blinking) is displayed.
2
Press +, – to select “
press q/g to enter.
3
Press u, i to select “ ”
and press q/g to enter.
Then “
” and
” is displayed.
” is displayed while playing.
Canceling Noise reduction (EQ setting):
Select “
• Press
Canceling Slight return playback:
Select “
” and enter in step 3 .
* Press
to stop the setting process midway.
* When EQ is set to On, human voice can be heard more easily. However, components
of other sound ranges are reduced.
* Slight return playback cannot be done during A-B Repeat play (➜ page 19).
Repeat play/Successive play, A-B Repeat play
• A-B
STOP
/ MENU
/ MENU
Each time you press
while stopped, the playback
style is switched as follows.
ALL → ALL
Playback repeats between the start point (A)
and finish point (B) if those points are set.
1
The selected file until
the last file in the selected folder are
played successively. The unit stops
when the playback finishes.
(The factory setting is “ALL”.)
” display
Plays all files in the
folder repeatedly.
No display
When the playback for
one file finishes, the unit stops.
“ ” display
Plays one file repeatedly.
* Select one of the above settings
and, press q/g to start playback.
Press
• A-B
/ MENU
while playing.
The start point (A) is set and
“ ” (blinking) and “ ”
(lighting) are displayed.
→ No display →
“ALL” display
“ALL
A-B Repeat play
2
Press
• A-B
/ MENU
at the finish point (B).
The display changes to “ ”
(lighting) and repeat play starts.
Canceling A-B Repeat:
• A-B
Press
STOP
press
.
/ MENU
or u , i while playing. Or
* You cannot set A-B Repeat in the following cases;
• Within approx. 1 second from the beginning of
the file and within approx. 2 seconds from the
end of the file
• Less than approx. 2 seconds between the start
point (A) and finish point (B)
* When only the start point (A) is set and playback
continues until the end of the file, the end becomes
the finish point (B) and A-B Repeat begins.
* During A-B Repeat playback, the Slight return
playback (➜ page 18) is not available.
Advanced Operations
• A-B
VQT2Y39
Repeat play/Successive play
19
Security functions
If you set a password, password authentication is necessary when playing back this unit or connecting to
a computer. When the unit is lost or stolen, the recorded data stored in this unit cannot be played or the
computer does not recognize this unit as long as the password does not match.
If you forget the password, you cannot
4 Press +, – to select a number
play files in folder A to D. Please write
and press q/g to enter.
• A-B / MENU
it down in MEMO section (➜ right) for
Move to the next digit and select a
reference.
number. Repeat this until the 4th digit.
STOP
(You can select a digit with u, i.)
Setting the password
The password is determined when
(4-digit number)
you finish entering the 4th digit.
Then “ ” is displayed.
STOP
• Press
to stop the unit.
MEMO
1
Press and hold • A-B / MENU for
1 second or longer.
VQT2Y39
“
20
” (blinking) is displayed.
2
Press +, – to select “ ” and
press q/g to enter.
3
Press u, i to select “ ”
and press q/g to enter.
Enters the password entry display.
Password
If the password has been set and you
press q / g to play a file, the password
entry display appears (➜ page 21).
Canceling the security lock:
„ Select “ ” and enter in step 3 .
‟ Perform step 4 . (Enter the password.)
STOP
* Press
to stop the setting process
midway.
* To change the password, cancel the
security lock and set a password again
from step 1 .
To initialize the password, delete all files.
ӱ Release all locks set on files in folder A through
D (➜ page 13).
Ӳ Delete all files in folder A through D
(➜ page 12).
” in step 3 of “Setting the password
ӳ Select “
(4-digit number)” and press q/g to enter
(➜ page 20).
(Enter the password.)
g When the password matches
* The security lock is temporarily released and
the audio file can be played. (“ ” blinks while
temporarily canceling.)
* In the condition , the security lock is set again.
A
• When you do not operate for more than
approx. 15 minutes and the power turns off
while the unit is stopped (➜ page 6)
• When the unit is off for more than approx. 15
minutes
g When the password is wrong
* The unit beeps and “
” is displayed,
then the password entry display reappears.
When wrong passwords are entered 5 times in
succession, the unit stops accepting password
entry. In that case, reenter the password in
condition (➜ above).
* If this unit is connected to a computer when the
security lock is not canceled, the computer does
not recognize this unit. After connecting the USB
cable, the password entry display appears. Then,
authenticate the password.
* Even if the security lock is not canceled,
recording and playing music are still available.
This security function is only to limit a playback
function for files by password, not by encryption.
Panasonic does not guarantee any kind of loss in
case your password gets discovered.
Advanced Operations
g When you have forgotten the password
Perform step 4 on page 20.
VQT2Y39
Authenticating the password
21
Recording using an external microphone/Recording from other devices
Recording using an external
microphone
• Change the setting to monaural/stereo on this
unit according to the microphone’s monaural/
stereo (➜ page 14).
Insert
securely.
Plug type:
ø 3.5 mm
(1/8")
stereo mini
plug
MIC
External
microphone
(not included)
ӱ Record the audio (➜ page 9).
VQT2Y39
* If the recording level is too low or high, adjust the
microphone sensitivity (➜ page 14).
22
Recording from other devices
• Set monaural/stereo to stereo (➜ page 14).
Head phone
jack
Audio Cable with resistor (not included)
(Stereo
device)
Stereo
mini plug
Stereo
mini plug
(Monaural
device)
Monaural
mini plug
Stereo
mini plug
Playing
Insert
securely. MIC
Plug type:
ø 3.5 mm (1/8")
stereo mini plug
ӱ On the source, play audio you want to copy.
Ӳ On this unit, record the audio (➜ page 9).
* Use the connection cable that matches monaural/stereo of the
connected device. Wrong connection may cause recording trouble (i.e.
Only 1 channel is recorded.).
* The recorded sound may differ from the original recording sound.
* Adjust the recording volume on the source to the desired level.
* Read the operating instructions for the connected device.
* The microphone function of this unit does not work if another device is connected to the external microphone jack.
Canceling the operation beep
• Cancel the operation beep while copying (➜ right).
Audio Cable with resistor (not included)
• A-B
/ MENU
Stereo
mini plug
Stereo
mini plug
Monaural
mini plug
to stop the unit.
Press and hold
1 second or longer.
2
Press +, – to select “ ”
and press q/g to enter.
3
Press u, i to select
“ ” and press q/g to
enter.
• A-B
“
(Stereo
device)
STOP
1
STOP
Stereo
mini plug
Insert
securely.
Mini microphone
jack
• Press
/ MENU
for
” (blinking) is displayed.
(Monaural
device)
Recording
Plug type:
ø 3.5 mm (1/8")
stereo mini plug
ӱ On this unit, play the file you want to copy (➜ page 10).
Ӳ Record using recording equipment.
Setting the operation beep ON:
Select “
” and enter in step 3 .
VQT2Y39
* Read the operating instructions for the
connected device.
* Use the connection cable that matches monaural/stereo
of the connected device. Wrong connection may cause
recording trouble (i.e. Only 1 channel is recorded.).
* The recorded sound quality may differ from the
sound quality of this unit.
* Adjust the recording volume on this unit to the
* Press
desired level.
Advanced Operations
Recording to other devices
STOP
to stop the setting process midway.
23
Connecting this unit to a computer
You can copy files recorded on this unit to the computer.
• Start the computer beforehand.
• Press
STOP
to stop the unit.
1. Insert the USB cable into this unit.
2. Insert the USB cable into the computer.
This unit
Insert the USB
cable straight in
the same direction
as that of the
terminal.
Computer
USB cable (included)
• Do not use any other USB cable except the supplied one.
“ ” is displayed on the unit’s screen when the computer
recognizes this unit.
Use the supplied USB cable.
Do not use the supplied cable with other devices.
VQT2Y39
Caution: Use only the included USB cable with a
ferrite core when connecting to computer.
24
When the computer does not recognize this unit
” is displayed, enter the password (➜ page 21).
If “
If “
” is displayed, disconnect this unit from the computer
once, replace the batteries and reconnect the unit to the computer.
* Even if you connect this unit to the computer without the battery
or with a depleted battery, the computer cannot recognize this unit
(➜ page 33).
g System requirements (OS)
Windows 2000 (SP4), Windows XP and SP2, SP3,
Windows Vista and SP1, SP2, Windows 7, Mac OS X 10.2.8
to 10.6 (As of July 2010)
* Please see page 31 for details of system requirements.
g Removing the USB cable
Double-click the icon (Windows 2000/Windows XP: [ ], Windows
Vista/Windows 7: [ ]) on the task tray at the bottom of the computer
screen and follow the on-screen instructions to remove the USB cable.
(The icon may not be displayed depending on the OS settings.)
After the cable is removed, this unit turns off.
g USB mass storage function
This unit functions as a USB memory and is recognized as a
computer’s external storage device.
Data files in the computer can be transferred and saved in this unit.
* When the unit is connected to the computer, the computer may
not start (restart). It is recommended that the USB cable is
removed from this unit when starting (restarting) the computer.
* When the unit is connected to the computer, if you start (restart) the
computer or the computer enters standby mode, the computer may not
recognize the unit. Disconnect the unit and reconnect to the computer
or reconnect the unit after the computer is restarted.
* Operation is not guaranteed when 2 or more USB devices are
connected to 1 computer, or a USB hub or extension cable are used.
* Please see the Operating Instructions for the computer.
Opening the folder of this unit using a computer
The folders (A to D, MUSIC) in this unit appear.
(They are displayed as
on this unit’s
screen.)
1. Click [start] → [My Computer].
This unit is displayed as the IC RECORDER.
3. Right-click to open the folder.
Recorded files in this unit appear.
ユーザー名
The components of the computer and the external storage
device illustrated here is an example.
The display may differ depending on the computer you are
using.
“G” indicated in IC RECORDER (G:) is not a fixed character.
Depending on the computer you use, this unit may be
displayed as a “Removable Disk”.
Using with a computer
• Connect this unit to a Computer beforehand
(➜ page 24).
2. Right-click to open the IC RECORDER
(this unit).
VQT2Y39
The illustrations show Windows XP (OS). The
display may differ depending on the OS.
25
Importing the recorded files in this unit to a computer/Organizing files
• Open the IC RECORDER (this unit) displayed
on the computer screen and open the audio
folder (A to D) beforehand (➜ page 25).
Importing recorded files to a computer
1. Select the recorded file in this unit,
right-click and select [Copy].
2. Select a folder in the computer, right-click and
select [Paste] to import to the computer.
Folder in this unit
Folder in the computer
VQT2Y39
Playing recorded files on the computer:
26
Select the recorded file in this unit, right-click and
select [Play].
Delete unnecessary files using the
computer:
Select the recorded file in this unit, right-click,
select [Delete] and [Yes] to enter.
Do not change the folder names
If you change the names of folders (A, B, C,
D, MUSIC) of this unit, new A, B, C, D and
MUSIC folders are generated when this unit is
disconnected from the computer. The files in the
folders with changed names cannot be played on
this unit.
* Using [drag and drop], you can import the files to
the computer as well.
* If the file is deleted, file numbers displayed on
this unit are moved forward.
* “ ” (blinking) is displayed during the data
transmission. Never remove the USB cable
while “ ” is blinking. File data or this unit may be
destroyed, or all the data in this unit may be lost.
* When this unit is removed from the computer
or the power is turned on afterwards, “
” is
displayed for a moment while updating the file
data.
* Do not format this unit using a computer.
* File extensions displayed on the computer are
“.mp3” for XP/LP/SLP recording files and “.wav”
for PCM recording files.
Returning recorded files to this
unit from the computer
1. Select the recorded file imported to the computer
(➜ page 26), right-click and select [Copy].
2. Select the original folder in this unit, right-click
and select [Paste] to return the recorded file.
Reload the files to the original folder that the files
were imported from. When you reload the files to other
folders, those files cannot be played on this unit.
(Confirm the first character (A to D) of the file name
matches the folder name (A to D).)
Do not change the file names
If you change file names, those files cannot be
played on this unit. Return the file name to the
original one or move the file to the MUSIC folder.
* Up to 99 files in folder A to D respectively can
be played on this unit. Files over 99 cannot be
played on this unit.
* If you create folders in folder A to D, and put
recorded files in the new folder, those files
cannot be played on this unit.
* The files that are returned to this unit are played
back in the order the files are received. For
example, even if the file is recorded first, the
playback order becomes 5th if the file is the 5th
file reloaded from the computer.
File naming rules
(for recorded files on this unit)
The file name consists of [Folder name (1 byte,
1 character (A to D)) + File number (1 byte,
3 characters + Recording date (1 byte, 4 numbers)].
e.g. if the file is recorded as the first file in folder
A on July 20, the name is “A0010720”. The
second file on the same day is named as
“A0020720”.
VQT2Y39
• Open the audio folder (A to D) of this unit
beforehand (➜ page 25).
Using with a computer
Returning the files imported to the computer to this unit
27
Listening to music on this unit (Transferring MP3 music files to this unit)
You can enjoy music by transferring MP3 music files stored in the computer to this unit.
Transferring MP3 music files to
this unit from the computer
• Open MUSIC folder ( ) of this unit beforehand
(➜ page 25).
VQT2Y39
1. Select an MP3 music file or folder which
has MP3 music files in the computer,
right-click and select [Copy].
2. Select MUSIC folder of this unit, right-click
and select [Paste] to transfer to this unit.
28
* The files in the folder that was created into the MUSIC folder
are playable. However, note that playable folders are the
ones on the 1st hierarchy and 2nd hierarchy only. Folders on
the 3rd hierarchy and after are not playable.
* The audio files and folders that are loaded to this unit are played
back in the order the files and folders are received. But in case of
the structure at right, files in M2 are played after all files in M1 are
played since the loaded order of 1st hierarchy takes priority. Even
if M1-2 is loaded after M2-1, the files in M1-2 are played first.
* Files just under the folder are played first; e.g., even if
A.mp3 was loaded last, A.mp3 is played first.
* In the case of the structure shown at right, the order
of successive playback on this unit is
A.mp3 → B.mp3 → C.mp3 → D.mp3 → E.mp3 → F.mp3 → G.mp3.
Folder/file structure in MUSIC folder (example)
This is an example when M1 was loaded before M2 for M1
and M2, M1-1 was loaded before M1-2 for M1-1 and M1-2,
C.mp3 was loaded before D.mp3 for C.mp3 and D.mp3.
When two or more files are
MUSIC
A
loaded at a time, those are
M1
A
loaded in an order decided
M1-1
A
C.mp3 by the computer.
D.mp3
M1-2
A
E.mp3
B.mp3
M2
A
This is not playable
because this is on the 3rd
hierarchy.
M2-1
A
M2-1A
A.mp3
G.mp3
F.mp3
H.mp3
(M1, etc. represent a folder and A.mp3, etc. represent a file.)
* “ ” (blinking) is displayed during data transmission.
Never remove the USB cable while “ ” is blinking. File
data or this unit may be destroyed.
* You can also transfer PCM (WAV) files recorded on this
unit (other than MP3 files) to the MUSIC folder and play.
* Putting MP3 music files in folder A to D cannot play those
files. (File numbers are not displayed on this unit.)
• Press
FOLDER/SPEED
STOP
1
2
STOP
to stop the unit.
FOLDER/SPEED
Press
to select “ ”
(MUSIC folder).
Press u, i to select the
file you want to listen to.
File number
After selection, the length of the music
and the total number of files in MUSIC
folder are displayed.
3
Press q/g (Playback starts).
Stop:
Press q/g or
STOP
.
* See pages 10 and 11 for playback
operations.
* In “ ” folder, you can play a maximum
of 999 files. Files over 999 cannot be
played on this unit.
* The file name or folder name cannot
be displayed. Successive numbers,
” (file number) are
starting from “
displayed according to the order of
playback.
* M P 3 f i l e s , a n d P C M ( WAV ) f i l e s
recorded on this unit can be played.
Other file formats such as WMA and
AAC cannot be played. (The number is
not displayed on screen.)
* Copyright-protected MP3 music files
cannot be played.
* MP3 music files with variable bit rate
m ay b e p l aye d , bu t t h e p l ay b a ck
elapsed time display may differ from the
actual time.
* When the length of one music file is
1000 hours or longer, time after “
”
is displayed as “
”, “
” ...
VQT2Y39
• Remove the USB cable (➜ page 24).
• Turn the power on (➜ page 6).
Using with a computer
Listening to music on this unit (Playing MP3 music files on this unit)
29
Creating MP3 music files
This unit is not equipped with the function or computer software to create MP3 file from music CD. You
can create MP3 music files using separately sold computer software, etc.
Windows XP or Windows Vista users can create MP3 music files using Windows Media Player 11 (using
Windows Media Player 12 for Windows 7 users).
Following is the example of operating instructions when using Windows XP and Windows Media Player
11. See [Help] section of Windows Media Player for more details. (The display and operations may differ
depending on the OS.)
• Start the computer beforehand.
1. Select [start] - [All Programs] and start
[Windows Media Player] on the computer.
2. Select [Rip] → [Format] → [mp3].
3. Select [Rip] → [Bit Rate] and select among
[128 Kbps (Smallest Size)] , [192 Kbps],
[256 Kbps] and [320 Kbps (Best Quality)].
VQT2Y39
If you select low Bit Rate for ripping, more songs
will be ripped.
30
4. Select [Rip] → [Rip CD Automatically
When Inserted] and select [Never].
5. Set music CD into the computer.
6. In “ ” for the album, add the check mark
as “ ”.
If there are songs you do not want to rip, remove
the check mark “ ”.
7. Click [Start Rip] to begin ripping.
Music files ripped (encoded) into the
computer using Windows Media Player
are saved in [My Music] folder of
[My Documents] if the destination to save
has not been changed.
* Windows Media Player 9 and older versions
cannot create MP3 music file.
* Please see the homepage of the Microsoft
company for details of download/update of
Windows Media Player etc.
http://www.microsoft.com/windows/
windowsmedia/player/11/default.aspx
* If you cannot create MP3 music files successfully
or do not know how to operate the computer,
please consult the computer manufacturer.
• See page 28 for transferring MP3 music files to
this unit and page 29 for playback.
System requirements
VQT2Y39
IBM PC/AT compatible machines, Macintosh
• Windows® 2000 Professional SP4
• Windows® XP Home Edition/Professional and SP2, SP3
Pre-installed version
• Windows Vista® Home Basic/Home Premium/Business/
OS
Ultimate and SP1, SP2
®
• Windows 7 Starter/Home Premium/Professional/Ultimate
Mac OS X 10.2.8 - 10.6
Interface
USB port (Operation cannot be guaranteed if you use a USB hub or extension cable.)
✽ Even if the system requirements mentioned in this document are fulfilled, some personal computers cannot be used.
✽ (Macintosh) This software operates on the standard driver of OS.
✽ Operation is guaranteed only on compliant OSes.
✽ Operation is not guaranteed on an upgraded OS.
✽ Operation is not guaranteed on home-made computers.
✽ When using Windows Media® Player, your computer must fulfill the system requirements of Windows Media® Player.
Please consult Microsoft Corporation for details of Windows Media® Player.
✽ Microsoft, Windows, Windows Media and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation of the U.S. and other countries.
✽ MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
✽ IBM and PC/AT are registered trademarks of International Business Machines Corporation of the U.S.
✽ Macintosh and Mac OS are trademarks of Apple Inc.
✽ Other system names and product names appearing in this document are in general the registered trademarks or
trademarks of the respective developer companies. Note that the ™ mark and ® mark do not appear in this document.
✽ Depending on the computer environment, malfunctions may occur (e.g. Audio data recorded on this unit cannot be
used. etc.). Panasonic and Panasonic dealers cannot be held liable for any lost audio data or other direct or indirect
damage except in cases of intentional of gross negligence.
✽ This model is not compatible with TRC/ADPCM format IC recorders made by Panasonic. Also, files recorded on this unit cannot be played
on those IC recorders and/or MP3 files recorded on this unit cannot be read using Voice Editing software supplied with those IC recorders.
✽ You can transfer contents recorded on this unit to your PC without using the dedicated software. The computer software
(Voice Editing) is not supplied with this unit.
Using with a computer/Other
Computer
31
Q & A (Frequently Asked Questions)
Question
Can I play files recorded on other
Panasonic IC recorders?
Can I use audio editing software
(Voice Editing) included in other
Panasonic IC recorders?
Is the security lock set on all
folders if a password is set?
What kind of files can be played?
VQT2Y39
What kind of computers can be
connected with this unit?
Can I do timer recording?
Can I divide a file or delete a
portion of a file?
32
Answer
• You can play files recorded on IC recorders using MP3 format
by transferring them to MUSIC folder (➜ page 27). But cannot
play files with other formats (i.e. ADPCM and TRC formats)
because the recording format is different.
• Can be used with WAV files recorded in PCM mode. Cannot be
used with MP3 files recorded in XP, LP and SLP modes.
• When you play back on this unit, the security lock is set on
folders A through D only, but not on MUSIC folder. However,
password authentication is necessary when you use this unit
connected to a PC with the security lock set (➜ page 21).
• MP3 files, and PCM (WAV) files recorded on this unit can be
played. WMA, AAC and other files cannot be played.
• Please refer to “System requirements” (➜ page 31).
• No, you cannot.
• No, you cannot.
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem, refer to “Customer Services Directory (United States and Puerto Rico)” on
page 43 if you reside in the U.S.A. or Puerto Rico, or refer to “Product information” on page 38 if you reside in Canada.
“
“
“
” appears.
•
” is not displayed on menu screen. •
•
” appears.
Normal display appears during setting •
operation.
” appears.
•
“
Checkpoints
Make sure the batteries are correctly inserted.
You cannot operate on this unit when the unit is connected to a computer.
The Hold function is on. Switch Hold off (➜ page 6).
Please set the time (➜ page 7).
There are 99 files in folder A, B, C, D.
There is no remaining memory (➜ page 39). Delete unnecessary recording files, files and
data (➜ pages 12, 26).
If the batteries are extremely exhausted, “
” is displayed even if the unit is connected to the
computer and the computer does not recognize this unit. Disconnect this unit from the computer once,
replace the batteries (If batteries are not inserted, insert batteries.) (➜ page 5) and reconnect it.
“ ” has been set. When set to “
”, “
” is displayed on menu screen (➜ page 15).
This appears when updating data in this unit (e.g. after disconnecting this unit from the
computer, when turning the power on, etc.).
When you do not operate for 60 seconds during setting operation, the setting in process is
canceled and normal display appears.
Formatting was performed on a computer, etc., or the file system is damaged. Perform
formatting on this unit (All data is erased after formatting is complete.) (➜ page 12).
Other
This unit considers the battery as empty even if there is actually power left in it. This is to
preserve the clock setting.
VQT2Y39
Symptom
Battery
Cannot use a battery that can be still •
used on other equipment.
Operations
No operation.
•
•
Cannot operate when “
” appears. •
Display
•
“
”, “
” blinks.
“
” appears.
•
•
33
Troubleshooting guide
Symptom
Display
“
” appears.
” appears.
“
VQT2Y39
“
” appears.
Record
The memory is used completely
earlier than expected.
(“
” is displayed earlier than
expected.)
Recording is suspended by itself.
Howling occurs when listening to the
recording in progress with earphones.
Recording ended halfway.
34
Checkpoints
• The operation program is damaged. Consult your dealer.
• You tried to play the file that cannot be played on this unit, or the file is damaged. Delete this file.
If the problem persists, the file system is damaged. Perform formatting on this unit (All data is
erased after formatting is complete.) (➜ page 12).
• You entered a wrong password. Enter the correct password (➜ page 21).
• Remaining recording time largely differs depending on the recording mode (➜ page 39). Select a
suitable recording mode according to the purpose for use (➜ pages 8, 15).
• If you lower the Bit Rate for ripping music CDs, more songs will be saved (➜ page 30).
• Is much data stored? Delete unnecessary data (➜ page 26).
• VAS is functioning (➜ page 16).
• Turn down the volume (➜ page 10).
• Keep earphones and this unit separate.
• When you are using an external microphone, keep earphones and external microphone separate.
• The data may not be updated if the unit receives a shock (e.g. it is dropped), or the batteries
come off during recording.
“
” appears instead of the recording date. • Set the time (➜ page 7).
“
” is not displayed.
• You are using the external microphone (➜ page 15).
Playing
No sound from the speaker. • There is no sound when you have connected earphones (➜ page 11).
Cannot play the recorded file though • The file name was changed. Only files named according to the file naming rules (➜ page 27) can
it was recorded on this unit.
be played in folder A through D.
Playback speed is too fast or slow.
• You changed the playback speed (➜ page 17).
Checkpoints
• Ensure the plug is inserted firmly.
• Wipe the plug clean.
• Please lower the microphone sensitivity (➜ page 14) or keep more
distance from the recording sound source.
• Move a mobile telephone away from this unit when you use the two in the same area.
• Reduce noise (➜ page 18). Noise is reduced and listening may
become easier.
• The batteries may have run out. Replace the batteries with the new ones (➜ page 5).
• When you do not operate for more than approx. 15 minutes, the power automatically turns off. When
you slide the OPERATION/HOLD switch to “ OPR ” side, the power is turned on (➜ page 6).
• The file is protected (➜ page 13).
• The folder is already empty.
• “ ” (blinking) is displayed (➜ page12).
This unit is not recognized by • The OS on the computer may not be compliant with this unit (➜ page 31).
• The password has been set (➜ page 21).
a computer.
• Are the batteries in this unit? If they are not, insert batteries (➜ page 5).
• When the voltage of the batteries are too low, “
” is displayed
and the computer cannot recognize this unit (➜ page 33).
Other
• When the PCM playback starts after the playback of the speed-adjusted MP3 file finishes, the
speed returns to 100 % speed (➜ page 17).
• This occurs because files imported from the computer are placed at
the end in the folder (➜ page 27).
VQT2Y39
Symptom
Playing
I set the playback speed, however, the
file is played with 100 % speed.
The order of playing changed after
reloading files that were once imported
to the computer to this unit.
There is no sound from the earphones
or it is difficult to hear or noisy.
The sound is distorted. There is a
noise at the beginning of sound.
I hear noises from this unit.
Recorded sounds contain noise that
makes it difficult to hear sounds.
Others
The power cannot be turned on.
T h e p ow e r a u t o m a t i c a l ly
turns off.
Cannot delete a file or folder.
35
Care and use
To reduce risk of radio interference caused by headphone-, earphone- or microphone cables, only use
adequate accessories with a cable length of less than 3 m (9.8 ft.).
g Unit
• Avoid using or placing this unit near sources of heat.
• To avoid product damage, do not expose this product to rain, water or other liquids.
• The unit’s speaker does not have magnetic shielding. Do not place the unit near televisions, personal
computers, magnetized cards (bank cards, commuter passes) or other devices easily influenced by a magnet.
g Batteries
•
•
•
•
•
•
•
•
•
VQT2Y39
•
36
Do not peel off the covering on batteries and do not use the batteries if the covering has been peeled off.
Align the poles ( and ) correctly when inserting the batteries.
Do not mix different types of batteries or old and new batteries.
Remove the batteries if you do not intend to use the unit for a long time.
Do not heat or expose to flame.
Do not leave the batteries in an automobile exposed to direct sunlight for a long period of time with
doors and windows closed.
Do not attempt to recharge dry cell batteries.
Battery mishandling can cause electrolyte leakage which can damage items the fluid contacts and may
cause a fire. If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if
electrolyte comes in contact with any part of your body.
Keep the AAA, LR03 batteries out of reach of children to prevent swallowing. Accidental swallowing of
batteries can result in stomach and intestinal damage.
When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed
together with them. Contact with metal may cause short-circuiting which can cause a fire. For safety,
carry the batteries in the battery carrying case.
g Allergies
• Discontinue use if you experience discomfort with the earphones or any other parts that directly
contact your skin.
• Continued use may cause rashes or other allergic reactions.
Do not play your headphones or earphones at a high volume. Hearing
experts advise against continuous extended play.
If you experience a ringing in your ears, reduce volume or discontinue use.
Do not use while operating a motorized vehicle. It may create a traffic
hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
Even if your headphones or earphones are the open-air type designed to let you hear outside sounds,
don’t turn up the volume so high that you can’t hear what’s around you.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So
what sounds “normal” can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
• Leave it there.
Clean this unit with a dry and soft cloth.
• If the unit becomes too dirty, wring a cloth moistened
in water, wipe the dirt with it and clean with a dry
cloth.
• Do not use solvents including benzine, thinner,
alcohol, kitchen detergent, a chemical wiper, etc.
This might cause the exterior case to be deformed or
the coating to come off.
-If you see this symbolInformation on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this product,
please contact your local
authorities or dealer and ask for
the correct method of disposal.
VQT2Y39
Maintenance
Other
g Listening caution
37
Product Service
1. Damage requiring service – The unit should be serviced by qualified service personnel if:
(a) Objects or liquids have gotten into the unit; or
(b) The unit has been exposed to rain; or
(c) The unit does not operate normally or exhibits a marked change in performance; or
(d) The unit has been dropped or the cabinet damaged.
2. Servicing – Do not attempt to service the unit beyond that described in these operating instructions.
Refer all other servicing to authorized servicing personnel.
3. Replacement parts – When parts need replacing ensure the servicer uses parts specified by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes
may result in fire, electric shock, or other hazards.
4. Safety check – After repairs or service, ask the servicer to perform safety checks to confirm that the
unit is in proper working condition.
Product information
VQT2Y39
For product information or assistance with product operation:
In the U.S.A. and Puerto Rico, refer to “Customer Services Directory (United States and Puerto Rico)” on
page 43.
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the
website (www.panasonic.ca), or an authorized Servicentre closest to you.
38
Recording Format
Playable Bit Rate
(MUSIC folder)
Playable Sampling
Frequency (MUSIC folder)
Frequency Response
(-10 dB, Rec-Play,
Monaural)
DC 3.0 V (2 AAA LR03 batteries)
PCM : 44.1 kHz/44.1 kHz
XP : 44.1 kHz/44.1 kHz
LP : 22.05 kHz/16 kHz
SLP : 8 kHz/8 kHz
Linear PCM (16 bit), MP3
8 kbps to 320 kbps (MP3)
8 kHz to 48 kHz (MP3)
PCM : 90 Hz to 20,000 Hz
XP : 90 Hz to 15,100 Hz
LP : 90 Hz to 6,700 Hz
SLP : 90 Hz to 2,900 Hz
Built-in Microphone S/N Ratio 41 dB (PCM) Filter (JIS A)
USB
USB2.0 (Hi-Speed) DC 5 V / 150 mA
Audio Earphone
ø 3.5 mm (1/8"), 16 Ω, Max. 3 mW
Output Speaker output ø 20 mm (25/32"), 8 Ω, Max. 330 mW
Audio External
ø 3.5 mm (1/8");
Input
Microphone
0.80 mV plug in power
Max. Dimensions (W × H × D)
40.4 mm × 110.6 mm × 16.8 mm (1-19/32" × 4-11/32" × 21/32")
Cabinet dimensions (W × H × D)
39.0 mm × 110.1 mm × 15.1 mm (1-17/32" × 4-11/32" × 19/32")
Mass (Weight)
Approx. 64 g (2.26 oz.) with battery
Approx. 42 g (1.49 oz.) without battery
4 GB∗1
Built-in Memory
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity
20 % to 80 % RH (non-condensing)
∗1 GB means one billion bytes. Usable capacity will be less.
Battery life (may be less depending on the operating conditions.)
Recording mode Recording Format
Rec∗2
Play∗3
PCM
PCM
approx. 22 h. approx. 35 h.
XP
approx. 27 h. approx. 45 h.
Stereo
LP
MP3
approx. 30 h. approx. 45 h.
SLP
approx. 33 h. approx. 45 h.
PCM
PCM
approx.32 h. approx. 35 h.
XP
approx. 37 h. approx. 45 h.
Monaural
LP
MP3
approx. 46 h. approx. 45 h.
SLP
approx. 50 h. approx. 45 h.
Using Panasonic Alkaline (AAA LR3) batteries.
∗2 When zoom microphone is off.
∗3 When audio is output from speaker (Volume: 13, EQ: off,
Playback speed control : 100 %).
Standard recordable time (may be less depending on the operating conditions.)
Recording mode Recording Format
Recordable time
Bit rate
PCM
approx. 6 h. 10 min. 1411 kbps
PCM
approx. 68 h. 30 min. 128 kbps
Stereo XP
MP3
LP
approx. 137 h. 00 min.
64 kbps
SLP
approx. 548 h. 20 min.
16 kbps
PCM
approx. 12 h. 20 min. 705 kbps
PCM
approx. 137 h. 00 min.
64 kbps
Monaural XP
MP3
LP
approx. 274 h. 10 min.
32 kbps
SLP
approx. 1096 h. 50 min.
8 kbps
* Specifications are subject to change without notice.
VQT2Y39
Power
Batteries
Audio
Sampling Frequency
(Stereo/Monaural)
Other
Specifications
39
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
EXCHANGE PROGRAM
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as
stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace
it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be
made by Panasonic Canada Inc.
Panasonic Portable / Clock Radio (without Tape, CD, MD)
Panasonic Audio Product
Panasonic DVD Product
Accessories including rechargeable batteries
One (1) year
One (1) year
One (1) year
Ninety (90) days
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an
authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new
condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE
OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
VQT2Y39
LIMITATIONS AND EXCLUSIONS
40
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic
Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids,
commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or
damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE
LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING
OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)
CONTACT INFORMATION
For product information and operation assistance, please contact:
Our Customer Care Centre:
Telephone #:
Fax #:
Email link:
1-800-561-5505
(905) 238-2360
“Support → contact us → email” on www.panasonic.ca
Other
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of
implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may
have other rights which vary depending on your province or territory.
For defective product exchange within the warranty period, please contact the original dealer or our Customer Care Centre.
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
Product Identification Marking is located on
the bottom of unit.
VQT2Y39
The serial number of this product can be found
on either the back or the bottom of the unit.
Please note it in the space provided below and
keep for future reference.
RR-XS600
MODEL NUMBER
SERIAL NUMBER
41
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Portable Audio Products Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico
Only)
If your product does not work properly because of a defect in
materials or workmanship, Panasonic Consumer Electronics
Company (referred to as “the warrantor”) will, for the length of the
period indicated on the chart below, which starts with the date of
original purchase (“warranty period”), at its option either (a) repair
your product with new or refurbished parts, (b) replace it with a new
or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made
by the warrantor.
Product or Part Name
VQT2Y39
Labor
1 Year
1 Year
Multimedia & Compact Audio System
1 Year
1 Year
Rechargeable batteries (in exchange for
defective item)
SD Memory Card (in exchange for
defective item)
42
Parts
All Portable Audio Products except items listed
below
10 Days
90 Days
Not
Applicable
Not
Applicable
During the “Labor” warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts.
This Limited Warranty excludes both parts and labor for
non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs,
please ship the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive Suite B
McAllen, TX 78503
[email protected]
When shipping the unit, carefully pack, include all accessories, and
send it prepaid, adequately insured and preferably in the original
carton. If Lithium Ion batteries are shipped by air the package
must be labeled “Contains Lithium Ion Battery (No lithium metal)”.
Damaged batteries are prohibited from shipment by US Mail.
Batteries must be securely packed in a manner to prevent
short-circuiting and a package cannot contain more than 3 Lithium
Ion batteries. Include a letter detailing the complaint, a return
address and provide a daytime phone number where you can be
reached. A valid registered receipt is required under the Limited
Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT
RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear
or cosmetic damage. The warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused
by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY.
(As examples, this excludes damages for lost time, travel to and from
the servicer, loss of or damage to media or images, data or other
memory or recorded content. The items listed are not exclusive, but
for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. If a problem with
this product develops during or after the warranty period, you may
contact your dealer or Service Center. If the problem is not handled
to your satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Obtain Product Information and Operating Assistance;
locate your nearest Dealer or Service Center; purchase
Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Other
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
Customer Services Directory (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express, and
Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of November 2009
VQT2Y39
alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge,
lightning damage, modification, introduction of sand, humidity or
liquids, commercial use such as hotel, office, restaurant, or other
business or rental use of the product, or service by anyone other
than a Factory Service Center or other Authorized Servicer, or
damage that is attributable to acts of God.
43
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
VQT2Y39
FCC Caution:
44
To assure continued compliance, follow the
attached installation instructions and use only
shielded interface cables with ferrite core when
connecting to computer or peripheral devices.
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this equipment.
Declaration of Conformity
Trade Name:
Panasonic
Model No.:
RR-XS600
Responsible party:
Panasonic Corporation of North
America
One Panasonic Way, Secaucus,
NJ 07094
Support Contact:
Panasonic Consumer Electronics
Company 1-800-211-PANA (7262)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
THE FOLLOWING APPLIES ONLY IN CANADA.
This Class B digital apparatus complies with
Canadian ICES-003.
Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.ca
© Panasonic Corporation 2010
Printed in Malaysia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
