HP E4S03AT#ABB, E4S03AT Datasheet

HP E4S03AT#ABB, E4S03AT Datasheet

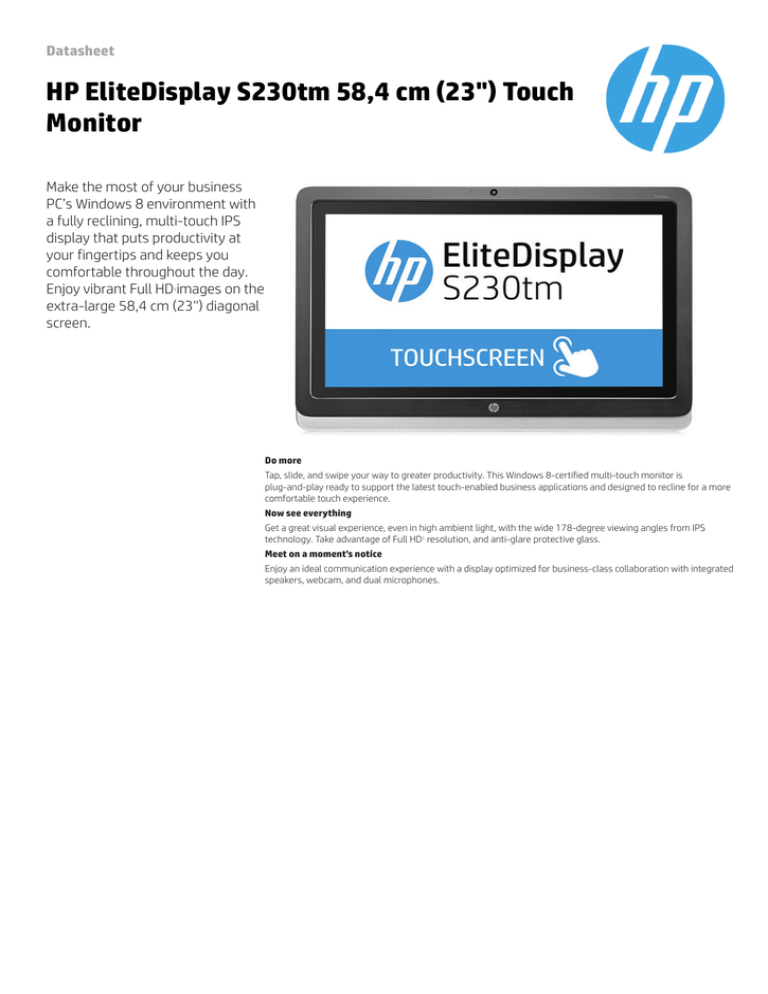

HP EliteDisplay S230tm 58,4 cm (23'') Touch
Make the most of your business
PC’s Windows 8 environment with
a fully reclining, multi-touch IPS
display that puts productivity at
your fingertips and keeps you
comfortable throughout the day.
Enjoy vibrant Full HD images on the
extra-large 58,4 cm (23'') diagonal
Do more
Tap, slide, and swipe your way to greater productivity. This Windows 8-certified multi-touch monitor is
plug-and-play ready to support the latest touch-enabled business applications and designed to recline for a more
comfortable touch experience.
Now see everything
Get a great visual experience, even in high ambient light, with the wide 178-degree viewing angles from IPS
technology. Take advantage of Full HD1 resolution, and anti-glare protective glass.
Meet on a moment's notice
Enjoy an ideal communication experience with a display optimized for business-class collaboration with integrated
speakers, webcam, and dual microphones.
HP EliteDisplay S230tm 58,4 cm (23'') Touch Monitor
Display size (diagonal)
58,4 cm (23”)
Viewable image area
178° horizontal; 178° vertical
220 cd/m²1
Contrast ratio
1000:1 static; 10000000:1 dynamic1
Response rate
7 ms gray to gray1
Product colour
Native resolution
1920 x 1080
Aspect Ratio
Display Features
5-point optical touch technology; Plug and Play; Anti-glare; User programmable; Language selection; On-screen controls; LED Backlights; In Plane
Switching panel; Touch enable
Input signal
1 DisplayPort (with HDCP support); 1 DVI-D
Ports and Connectors
Input power
Input voltage: 90 to 265 VAC
Power consumption
33 W (maximum), 25 W (typical), 0.5 W (standby)
Multimedia and input devices Internal 2W per channel speakers; headphone jack and dual microphone
Integrated 720p webcam
with stand: 59.93 x 6.95 x 40.92 cm
without stand: 59.93 x 4.05 x 40.92 cm
6.5 kg
Ergonomic features
Tilt: +15 to +70°
Physical security features
Security Lock-ready
Operating temperature: 5 to 35°C
Operating humidity: 20 to 80% RH
Energy Efficiency Compliance Energy Star® qualified
Certification and compliance
TCO Certified; CB; CE; TUV-S; EAC; CUL; FCC; CSA; NOM; S-mark; VCCI; PSB; ISC; CCC; BSMI; C-Tick; E-standby; eK; CECP; CEL Grade 1; SmartWay Transport
Partnership (NA); Microsoft WHQL Certification
What's in the box
Monitor; DVI-D cable; DisplayPort cable; USB cable; Audio cable; AC Power cable; Dcumentation kit with CD; HP Display Assistant software; HP YouCam
Protected by HP, including a 3-year standard limited warranty.
HP EliteDisplay S230tm 58,4 cm (23'') Touch Monitor
Accessories and services (not included)
HP Display and Notebook
The perfect home base for the business traveler who is constantly on the go - turn your HP Business Notebook into a
desktop solution supporting up to two displays (notebook display plus external display). The adaptable design of the HP
Adjustable Display Stand can accommodate a range of notebook sizes with the innovative adjustable shelf. This stand
can also accommodate notebooks that can be connected to a docking station and notebooks that do not have a docking
connector. Integrated base rollers let you rotate the stand so you can more easily share your work. A dual-hinged,
smooth-motion display stand allows for greater depth, height and tilt adjustment for maximum comfort.
Product number: AW662AA
HP Single Monitor Arm
The HP Single Monitor Arm is the perfect desk accessory for your work life. Sleek and streamlined, the HP Single Monitor
Arm is designed to complement the way you work.
Product number: BT861AA
HP Dual Output USB
Graphics Adapter
Increase screen real estate and productivity with a dual-monitor setup with the HP Dual Output USB Graphics Adapter,
featuring DVI-I and DisplayPort outputs to drive displays at high resolutions through a single USB 3.0 B connection to
your PC.
Product number: C5U89AA
HP Quick Release
A secure and easy-to-use mounting solution for your VESA-compliant HP thin clients, compatible HP flat panel monitors
and other HP desktop products. Attach to any a compatible stand, bracket or wall mount and make the most of your
Product number: EM870AA
HP DisplayPort Cable Kit
Connects a DisplayPort connector on an HP Business Desktop computer to a DisplayPort connector on a monitor.
5-year Next Business Day
Receive 5 years of next business day onsite repair from an HP-qualified technician for your computing device, if the issue
cannot be solved remotely
Product number: U7935E
Learn more at
Product number: VN567AA
HP EliteDisplay S230tm 58,4 cm (23'') Touch Monitor
High-definition (HD) content is required to view HD images.
Technical specifications disclaimers
All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.; 2 External power supplies, power cords, cables and peripherals are
not low halogen. Service parts obtained after purchase may not be low halogen.
Learn more at
Get engaged with HP Financial Services
Get engaged with HP Financial Services to implement innovative technologies essential for driving business value and competitive differentiation. More information on
Sign up for updates
The product could differ from the images shown. © 2014 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. Specific features may vary from model to model. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
4AA5-1128EEE, March 2014
