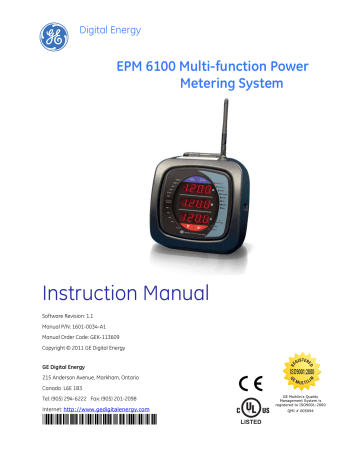

Instruction Manual - GE Grid Solutions

Instruction Manual - GE Grid Solutions

Digital Energy

EPM 6100 Multi-function Power

Metering System

Chapter 1:

Instruction Manual

Software Revision: 1.1

Manual P/N: 1601-0034-A1

Manual Order Code: GEK-113609

Copyright © 2011 GE Digital Energy

GE Digital Energy

215 Anderson Avenue, Markham, Ontario

Canada L6E 1B3

Tel: (905) 294-6222 Fax: (905) 201-2098

Internet: http://www.gedigitalenergy.com

*1601-0034-A1*

LISTED

RE

GISTERED

G

IISO9001:2000

E MULTILI

N

GE Multilin's Quality

Management System is registered to ISO9001:2000

QMI # 005094

GENERAL SAFETY PRECAUTIONS - EPM6100

• Failure to observe and follow the instructions provided in the equipment manual(s) could cause irreversible damage to the equipment and could lead to property damage, personal injury and/or death.

• Before attempting to use the equipment, it is important that all danger and caution indicators are reviewed.

• If the equipment is used in a manner not specified by the manufacturer or functions abnormally, proceed with caution. Otherwise, the protection provided by the equipment may be impaired and can result in Impaired operation and injury.

• Caution: Hazardous voltages can cause shock, burns or death.

• Installation/service personnel must be familiar with general device test practices, electrical awareness and safety precautions must be followed.

• Before performing visual inspections, tests, or periodic maintenance on this device or associated circuits, isolate or disconnect all hazardous live circuits and sources of electric power.

• Failure to shut equipment off prior to removing the power connections could expose you to dangerous voltages causing injury or death.

• All recommended equipment that should be grounded and must have a reliable and un-compromised grounding path for safety purposes, protection against electromagnetic interference and proper device operation.

• Equipment grounds should be bonded together and connected to the facility’s main ground system for primary power.

• Keep all ground leads as short as possible.

• At all times, equipment ground terminal must be grounded during device operation and service.

• In addition to the safety precautions mentioned all electrical connections made must respect the applicable local jurisdiction electrical code.

• Before working on CTs, they must be short-circuited.

FCC

This device complies with FCC Rules Part 15 and Industry Canada RSS-210 (Rev. 7).

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference, including interference that may cause undesired operation of the device.

L’appareil conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisé aux deux conditions suivantes:

1. L'appareil ne doit pas produire de brouillage.

2. L'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

The antenna provided must not be replaced with a different type. Attaching a different antenna will void the FCC approval, and the FCC ID can no longer be considered.

This product cannot be disposed of as unsorted municipal waste in the European union. For proper recycling return this product to your supplier or a designated collection point. For more information go to www.recyclethis.info .

Table of Contents

1: THREE-PHASE

POWER

MEASUREMENT

THREE-PHASE SYSTEM CONFIGURATIONS ........................................................................... 1-1

W

YE

C

ONNECTION

.............................................................................................................. 1-1

D

ELTA

C

ONNECTION

........................................................................................................... 1-3

B

LONDELL

S

T

HEOREM AND

T

HREE

P

HASE

M

EASUREMENT

......................................... 1-5

POWER, ENERGY AND DEMAND ............................................................................................... 1-8

REACTIVE ENERGY AND POWER FACTOR ............................................................................. 1-11

HARMONIC DISTORTION .............................................................................................................. 1-13

POWER QUALITY .............................................................................................................................. 1-16

2: EPM6100 SUBMETER

OVERVIEW AND

SPECIFICATIONS

HARDWARE OVERVIEW ................................................................................................................. 2-1

O

RDER

C

ODES

..................................................................................................................... 2-2

S

OFTWARE

O

PTIONS

........................................................................................................... 2-2

M

EASURED

V

ALUES

............................................................................................................ 2-2

U

TILITY

P

EAK

D

EMAND

....................................................................................................... 2-3

SPECIFICATIONS ............................................................................................................................... 2-4

3: MECHANICAL

INSTALLATION

4: ELECTRICAL

INSTALLATION

5: COMMUNICATION

INSTALLATION

6: ETHERNET

CONFIGURATION

OVERVIEW ........................................................................................................................................... 3-1

INSTALL THE BASE ........................................................................................................................... 3-2

M

OUNTING

D

IAGRAMS

....................................................................................................... 3-3

SECURE THE COVER ........................................................................................................................ 3-4

CONSIDERATIONS WHEN INSTALLING METERS ................................................................. 4-1

ELECTRICAL CONNECTIONS ........................................................................................................ 4-3

GROUND CONNECTIONS .............................................................................................................. 4-4

VOLTAGE FUSES ............................................................................................................................... 4-5

ELECTRICAL CONNECTION DIAGRAMS .................................................................................. 4-6

EPM6100 COMMUNICATION ...................................................................................................... 5-1

I

R

DA P

ORT

(C

OM

1) ........................................................................................................... 5-1

RS485 C

OMMUNICATION

C

OM

2 (485 O

PTION

) .......................................................... 5-2

KYZ O

UTPUT

....................................................................................................................... 5-4

E

THERNET

C

ONNECTION

.................................................................................................... 5-4

METER COMMUNICATION AND PROGRAMMING OVERVIEW ....................................... 5-6

H

OW TO

C

ONNECT

............................................................................................................. 5-6

EPM6100 D

EVICE

P

ROFILE

S

ETTINGS

............................................................................ 5-8

INTRODUCTION ................................................................................................................................ 6-1

FACTORY DEFAULT SETTINGS .................................................................................................... 6-2

M

ODBUS

/TCP

TO

RTU B

RIDGE

S

ETUP

........................................................................... 6-2

CONFIGURE NETWORK MODULE ............................................................................................. 6-3

C

ONFIGURATION

R

EQUIREMENTS

..................................................................................... 6-3

C

ONFIGURING THE

E

THERNET

A

DAPTER

.......................................................................... 6-4

D

ETAILED

C

ONFIGURATION

P

ARAMETERS

........................................................................ 6-6

S

ETUP

D

ETAILS

.................................................................................................................... 6-6

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE TOC–1

7: USING THE

SUBMETER

NETWORK MODULE HARDWARE INITIALIZATION ............................................................. 6-10

INTRODUCTION ................................................................................................................................ 7-1

S

UBMETER

F

ACE

E

LEMENTS

............................................................................................... 7-1

S

UBMETER

F

ACE

B

UTTONS

................................................................................................ 7-2

% OF LOAD BAR ............................................................................................................................... 7-4

WATT-HOUR ACCURACY TESTING (VERIFICATION) ........................................................... 7-5

KYZ P

ULSE

C

ONSTANTS

.................................................................................................... 7-5

UPGRADE THE SUBMETER USING SOFTWARE OPTIONS ................................................ 7-7

8: CONFIGURING THE

EPM6100 WITH THE

FRONT PANEL

OVERVIEW ........................................................................................................................................... 8-1

START UP ............................................................................................................................................. 8-3

CONFIGURATION .............................................................................................................................. 8-4

M

AIN

M

ENU

......................................................................................................................... 8-4

R

ESET

M

ODE

........................................................................................................................ 8-4

C

ONFIGURATION

M

ODE

...................................................................................................... 8-5

O

PERATING

M

ODE

............................................................................................................... 8-12

A: NAVIGATION MAPS

FOR THE EPM6100

METER

INTRODUCTION ................................................................................................................................ A-1

NAVIGATION MAPS (SHEETS 1 TO 4) ........................................................................................ A-2

B: MODBUS MAPPING

FOR EPM6100 METER

INTRODUCTION ................................................................................................................................ B-1

MODBUS REGISTER MAP SECTIONS ........................................................................................ B-2

DATA FORMATS ................................................................................................................................ B-3

FLOATING POINT VALUES ............................................................................................................ B-4

MODBUS REGISTER MAP .............................................................................................................. B-5

C: DNP MAPPING FOR

EPM6100 METER

INTRODUCTION ................................................................................................................................ C-1

DNP MAPPING (DNP-1 TO DNP-2) ............................................................................................ C-2

D: DNP 3.0 PROTOCOL

ASSIGNMENTS FOR

EPM6100 METER

DNP IMPLEMENTATION ................................................................................................................. D-1

DATA LINK LAYER ............................................................................................................................. D-2

TRANSPORT LAYER .......................................................................................................................... D-3

APPLICATION LAYER ....................................................................................................................... D-4

O

BJECT AND

V

ARIATION

..................................................................................................... D-4

E: USING THE USB TO

IRDA ADAPTER

(CAB6490)

INTRODUCTION ................................................................................................................................ E-1

INSTALLATION PROCEDURES ..................................................................................................... E-2

TOC–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 1: Three-Phase Power

Measurement

Three-Phase Power Measurement

This introduction to three-phase power and power measurement is intended to provide only a brief overview of the subject. The professional meter engineer or meter technician should refer to more advanced documents such as the EEI Handbook for Electricity

Metering and the application standards for more in-depth and technical coverage of the subject.

1.1

Three-Phase System Configurations

Three-phase power is most commonly used in situations where large amounts of power will be used because it is a more effective way to transmit the power and because it provides a smoother delivery of power to the end load. There are two commonly used connections for three-phase power, a wye connection or a delta connection. Each connection has several different manifestations in actual use.

When attempting to determine the type of connection in use, it is a good practice to follow the circuit back to the transformer that is serving the circuit. It is often not possible to conclusively determine the correct circuit connection simply by counting the wires in the service or checking voltages. Checking the transformer connection will provide conclusive evidence of the circuit connection and the relationships between the phase voltages and ground.

1.1.1

Wye Connection

The wye connection is so called because when you look at the phase relationships and the winding relationships between the phases it looks like a wye (Y). Fig. 1.1 depicts the winding relationships for a wye-connected service. In a wye service the neutral (or center point of

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–1

1–2

THREE-PHASE SYSTEM CONFIGURATIONSCHAPTER 1: THREE-PHASE POWER MEASUREMENT the wye) is typically grounded. This leads to common voltages of 208/120 and 480/277

(where the first number represents the phase-to-phase voltage and the second number represents the phase-to-ground voltage).

Ia

A

B

Vbn

Van

Vcn

N

C

FIGURE 1–1: Three-Phase Wye Winding

The three voltages are separated by 120° electrically. Under balanced load conditions the currents are also separated by 120°. However, unbalanced loads and other conditions can cause the currents to depart from the ideal 120° separation.

Three-phase voltages and currents are usually represented with a phasor diagram. A phasor diagram for the typical connected voltages and currents is shown in Figure 1.2

Vcn

Ic

Ia

Van

Ib

Vbn

FIGURE 1–2: Phasor diagram showing Three-phase Voltages and Currents

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTTHREE-PHASE SYSTEM CONFIGURATIONS

The phasor diagram shows the 120

° angular separation between the phase voltages. The phase-tophase voltage in a balanced three-phase wye system is 1.732 times the phase-toneutral voltage. The center point of the wye is tied together and is typically grounded.

Table 1.1 shows the common voltages used in the United States for wye-connected systems.

Table 1–1: Common Phase Voltages on Wye Services.

Phase-to-Ground Voltage

120 volts

277 volts

2,400 volts

7,200 volts

7,620 volts

Phase-to-Phase Voltage

208 volts

480 volts

4,160 volts

12,470 volts

13,200 volts

Usually a wye-connected service will have four wires; three wires for the phases and one for the neutral. The three-phase wires connect to the three phases (as shown in Fig. 1.1).

The neutral wire is typically tied to the ground or center point of the wye (refer to Figure

1.1).

In many industrial applications the facility will be fed with a four-wire wye service but only three wires will be run to individual loads. The load is then often referred to as a deltaconnected load but the service to the facility is still a wye service; it contains four wires if you trace the circuit back to its source (usually a transformer). In this type of connection the phase to ground voltage will be the phase-to-ground voltage indicated in Table 1.1, even though a neutral or ground wire is not physically present at the load. The transformer is the best place to determine the circuit connection type because this is a location where the voltage reference to ground can be conclusively identified.

1.1.2

Delta Connection

Delta connected services may be fed with either three wires or four wires. In a three-phase delta service the load windings are connected from phase-to-phase rather than from phase-to-ground.

Figure 1.3 shows the physical load connections for a delta service.

A

Ia

Iab

Vab

Vca

B

Ib

Ica

Vbc

Ibc

C

Ic

FIGURE 1–3: Three-Phase Delta Winding Relationship

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–3

THREE-PHASE SYSTEM CONFIGURATIONSCHAPTER 1: THREE-PHASE POWER MEASUREMENT

In this example of a delta service, three wires will transmit the power to the load. In a true delta service, the phase-to-ground voltage will usually not be balanced because the ground is not at the center of the delta.

Fig. 1.4 shows the phasor relationships between voltage and current on a three-phase delta circuit.

In many delta services, one corner of the delta is grounded. This means the phase to ground voltage will be zero for one phase and will be full phase-to-phase voltage for the other two phases. This is done for protective purposes.

Vbc

Ic

Ib

Ia

Vab

Vca

FIGURE 1–4: Phasor diagram showing three-phase voltages, currents delta connected.

Another common delta connection is the four-wire, grounded delta used for lighting loads.

In this connection the center point of one winding is grounded. On a 120/240 volt, fourwire, grounded delta service the phase-to-ground voltage would be 120 volts on two phases and 208 volts on the third phase. Figure 1.5 shows the phasor diagram for the voltages in a three-phase, four-wire delta system.

1–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTTHREE-PHASE SYSTEM CONFIGURATIONS

Vca

120 V

Vbc

Vnc

120 V

Vbn

Vab

FIGURE 1–5: Phasor diagram showing Three-phase, Four-wire Delta Connected System

1.1.3

Blondell’s Theorem and Three Phase Measurement

In 1893 an engineer and mathematician named Andre E. Blondell set forth the first scientific basis for poly phase metering. His theorem states:

• If energy is supplied to any system of conductors through N wires, the total power in the system is given by the algebraic sum of the readings of N wattmeters so arranged that each of the N wires contains one current coil, the corresponding potential coil being connected between that wire and some common point. If this common point is on one of the N wires, the measurement may be made by the use of N-1 wattmeters.

The theorem may be stated more simply, in modern language:

• In a system of N conductors, N-1 meter elements will measure the power or energy taken provided that all the potential coils have a common tie to the conductor in which there is no current coil.

• Three-phase power measurement is accomplished by measuring the three individual phases and adding them together to obtain the total three phase value.

In older analog meters, this measurement was accomplished using up to three separate elements. Each element combined the single-phase voltage and current to produce a torque on the meter disk. All three elements were arranged around the disk so that the disk was subjected to the combined torque of the three elements.

• As a result the disk would turn at a higher speed and register power supplied by each of the three wires.

• According to Blondell's Theorem, it was possible to reduce the number of elements under certain conditions. For example, a three-phase, three-wire delta system could be correctly measured with two elements (two potential coils and two current coils) if the potential coils were connected between the three phases with one phase in common.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–5

1–6

THREE-PHASE SYSTEM CONFIGURATIONSCHAPTER 1: THREE-PHASE POWER MEASUREMENT

• In a three-phase, four-wire wye system it is necessary to use three elements. Three voltage coils are connected between the three phases and the common neutral conductor. A current coil is required in each of the three phases.

• In modern digital meters, Blondell's Theorem is still applied to obtain proper metering. The difference in modern meters is that the digital meter measures each phase voltage and current and calculates the single-phase power for each phase.

The meter then sums the three phase powers to a single three-phase reading.

Some digital meters calculate the individual phase power values one phase at a time. This means the meter samples the voltage and current on one phase and calculates a power value. Then it samples the second phase and calculates the power for the second phase.

Finally, it samples the third phase and calculates that phase power. After sampling all three phases, the meter combines the three readings to create the equivalent three-phase power value. Using mathematical averaging techniques, this method can derive a quite accurate measurement of three-phase power.

More advanced meters actually sample all three phases of voltage and current simultaneously and calculate the individual phase and three-phase power values. The advantage of simultaneous sampling is the reduction of error introduced due to the difference in time when the samples were taken.

C

B

Phase B

Phase C

Node "n"

Phase A

A

N

FIGURE 1–6: Three-Phase Wye Load illustrating Kirchhoff’s Law and Blondell’s Theorem

Blondell's Theorem is a derivation that results from Kirchhoff's Law. Kirchhoff's Law states that the sum of the currents into a node is zero. Another way of stating the same thing is that the current into a node (connection point) must equal the current out of the node. The law can be applied to measuring three-phase loads. Figure 1.6 shows a typical connection of a three-phase load applied to a threephase, four-wire service. Krichhoff's Laws hold that the sum of currents A, B, C and N must equal zero or that the sum of currents into Node "n" must equal zero.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTTHREE-PHASE SYSTEM CONFIGURATIONS

If we measure the currents in wires A, B and C, we then know the current in wire N by

Kirchhoff's Law and it is not necessary to measure it. This fact leads us to the conclusion of

Blondell's Theorem that we only need to measure the power in three of the four wires if they are connected by a common node. In the circuit of Figure 1.6 we must measure the power flow in three wires. This will require three voltage coils and three current coils (a three element meter). Similar figures and conclusions could be reached for other circuit configurations involving delta-connected loads.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–7

POWER, ENERGY AND DEMANDCHAPTER 1: THREE-PHASE POWER MEASUREMENT

1.2

Power, Energy and Demand

It is quite common to exchange power, energy and demand without differentiating between the three. Because this practice can lead to confusion, the differences between these three measurements will be discussed.

Power is an instantaneous reading. The power reading provided by a meter is the present flow of watts. Power is measured immediately just like current. In many digital meters, the power value is actually measured and calculated over a one second interval because it takes some amount of time to calculate the RMS values of voltage and current. But this time interval is kept small to preserve the instantaneous nature of power.

Energy is always based on some time increment; it is the integration of power over a defined time increment. Energy is an important value because almost all electric bills are based, in part, on the amount of energy used.

Typically, electrical energy is measured in units of kilowatt-hours (kWh). A kilowatt-hour represents a constant load of one thousand watts (one kilowatt) for one hour. Stated another way, if the power delivered (instantaneous watts) is measured as 1,000 watts and the load was served for a one hour time interval then the load would have absorbed one kilowatt-hour of energy. A different load may have a constant power requirement of 4,000 watts. If the load were served for one hour it would absorb four kWh. If the load were served for 15 minutes it would absorb ¼ of that total or one kWh.

Figure 1.7 shows a graph of power and the resulting energy that would be transmitted as a result of the illustrated power values. For this illustration, it is assumed that the power level is held constant for each minute when a measurement is taken. Each bar in the graph will represent the power load for the one-minute increment of time. In real life the power value moves almost constantly.

The data from Figure 1.7 is reproduced in Table 2 to illustrate the calculation of energy.

Since the time increment of the measurement is one minute and since we specified that the load is constant over that minute, we can convert the power reading to an equivalent consumed energy reading by multiplying the power reading times 1/60 (converting the time base from minutes to hours).

40

30

20

10

0

60

50

80

70

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Time (minutes)

FIGURE 1–7: Power use over time

1–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTPOWER, ENERGY AND DEMAND

Table 1–2: Power and energy relationship over time.

Time Interval

(Minute)

Power (kW) Energy (kWh) Accumulated

Energy (kWh)

As in Table 1.2, the accumulated energy for the power load profile of Figure 1.7 is 14.92 kWh.

Demand is also a time-based value. The demand is the average rate of energy use over time. The actual label for demand is kilowatt-hours/hour but this is normally reduced to kilowatts. This makes it easy to confuse demand with power. But demand is not an instantaneous value. To calculate demand it is necessary to accumulate the energy readings (as illustrated in Figure 1.7) and adjust the energy reading to an hourly value that constitutes the demand.

In the example, the accumulated energy is 14.92 kWh. But this measurement was made over a 15-minute interval. To convert the reading to a demand value, it must be normalized to a 60-minute interval. If the pattern were repeated for an additional three 15minute intervals the total energy would be four times the measured value or 59.68 kWh.

The same process is applied to calculate the 15-minute demand value. The demand value associated with the example load is 59.68 kWh/hr or 59.68 kWd. Note that the peak instantaneous value of power is 80 kW, significantly more than the demand value.

Figure 1.8 shows another example of energy and demand. In this case, each bar represents the energy consumed in a 15-minute interval. The energy use in each interval typically falls between 50 and 70 kWh. However, during two intervals the energy rises sharply and peaks at 100 kWh in interval number 7. This peak of usage will result in setting a high demand reading. For each interval shown the demand value would be four times the indicated energy reading. So interval 1 would have an associated demand of 240 kWh/

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–9

POWER, ENERGY AND DEMANDCHAPTER 1: THREE-PHASE POWER MEASUREMENT hr. Interval 7 will have a demand value of 400 kWh/hr. In the data shown, this is the peak demand value and would be the number that would set the demand charge on the utility bill.

100

80

60

40

20

0

1 2 3 4 5

Intervals (15 mins.)

6

FIGURE 1–8: Energy use and demand

7 8

As can be seen from this example, it is important to recognize the relationships between power, energy and demand in order to control loads effectively or to monitor use correctly.

1–10 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTREACTIVE ENERGY AND POWER FACTOR

1.3

Reactive Energy and Power Factor

The real power and energy measurements discussed in the previous section relate to the quantities that are most used in electrical systems. But it is often not sufficient to only measure real power and energy. Reactive power is a critical component of the total power picture because almost all real-life applications have an impact on reactive power.

Reactive power and power factor concepts relate to both load and generation applications. However, this discussion will be limited to analysis of reactive power and power factor as they relate to loads. To simplify the discussion, generation will not be considered.

Real power (and energy) is the component of power that is the combination of the voltage and the value of corresponding current that is directly in phase with the voltage. However, in actual practice the total current is almost never in phase with the voltage. Since the current is not in phase with the voltage, it is necessary to consider both the inphase component and the component that is at quadrature (angularly rotated 90° or perpendicular) to the voltage. Figure 1.9 shows a single-phase voltage and current and breaks the current into its in-phase and quadrature components.

I

R

V

θ

I

X

I

FIGURE 1–9: Voltage and complex current

The voltage (V) and the total current (I) can be combined to calculate the apparent power or VA. The voltage and the in-phase current (IR) are combined to produce the real power or watts. The voltage and the quadrature current (IX) are combined to calculate the reactive power.

The quadrature current may be lagging the voltage (as shown in Figure 1.9) or it may lead the voltage. When the quadrature current lags the voltage the load is requiring both real power (watts) and reactive power (VARs). When the quadrature current leads the voltage the load is requiring real power (watts) but is delivering reactive power (VARs) back into the system; that is VARs are flowing in the opposite direction of the real power flow.

Reactive power (VARs) is required in all power systems. Any equipment that uses magnetization to operate requires VARs. Usually the magnitude of VARs is relatively low compared to the real power quantities. Utilities have an interest in maintaining VAR requirements at the customer to a low value in order to maximize the return on plant invested to deliver energy. When lines are carrying VARs, they cannot carry as many watts.

So keeping the VAR content low allows a line to carry its full capacity of watts. In order to encourage customers to keep VAR requirements low, some utilities impose a penalty if the

VAR content of the load rises above a specified value.

A common method of measuring reactive power requirements is power factor. Power factor can be defined in two different ways. The more common method of calculating power factor is the ratio of the real power to the apparent power. This relationship is expressed in the following formula:

Total PF = real power / apparent power = watts/VA

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–11

REACTIVE ENERGY AND POWER FACTORCHAPTER 1: THREE-PHASE POWER MEASUREMENT

This formula calculates a power factor quantity known as Total Power Factor. It is called

Total PF because it is based on the ratios of the power delivered. The delivered power quantities will include the impacts of any existing harmonic content. If the voltage or current includes high levels of harmonic distortion the power values will be affected. By calculating power factor from the power values, the power factor will include the impact of harmonic distortion. In many cases this is the preferred method of calculation because the entire impact of the actual voltage and current are included.

A second type of power factor is Displacement Power Factor. Displacement PF is based on the angular relationship between the voltage and current. Displacement power factor does not consider the magnitudes of voltage, current or power. It is solely based on the phase angle differences. As a result, it does not include the impact of harmonic distortion.

Displacement power factor is calculated using the following equation:

Displacement PF = cos Θwhere Θis the angle between the voltage and the current (see

Fig. 1.9).

In applications where the voltage and current are not distorted, the Total Power Factor will equal the Displacement Power Factor. But if harmonic distortion is present, the two power factors will not be equal.

1–12 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTHARMONIC DISTORTION

1.4

Harmonic Distortion

Harmonic distortion is primarily the result of high concentrations of non-linear loads.

Devices such as computer power supplies, variable speed drives and fluorescent light ballasts make current demands that do not match the sinusoidal waveform of AC electricity. As a result, the current waveform feeding these loads is periodic but not sinusoidal. Figure 1.10 shows a normal, sinusoidal current waveform. This example has no distortion.

1000

500

0

–500 a

2a t

–1000

FIGURE 1–10: Non-distorted current waveform

Figure 1.11 shows a current waveform with a slight amount of harmonic distortion. The waveform is still periodic and is fluctuating at the normal 60 Hz frequency. However, the waveform is not a smooth sinusoidal form as seen in Figure 1.10.

1500

1000

500

0

–500 a

2a t

–1000

–1500

FIGURE 1–11: Distorted current wave

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–13

1–14

HARMONIC DISTORTIONCHAPTER 1: THREE-PHASE POWER MEASUREMENT

250

200

150

100

50

0

-50

-100

-150

-200

-250

The distortion observed in Figure 1.11 can be modeled as the sum of several sinusoidal waveforms of frequencies that are multiples of the fundamental 60 Hz frequency. This modeling is performed by mathematically disassembling the distorted waveform into a collection of higher frequency waveforms. These higher frequency waveforms are referred to as harmonics. Figure 1.12 shows the content of the harmonic frequencies that make up the distortion portion of the waveform in Figure 1.11.

a t

FIGURE 1–12: Waveforms of the harmonics

The waveforms shown in Figure 1.12 are not smoothed but do provide an indication of the impact of combining multiple harmonic frequencies together.

When harmonics are present it is important to remember that these quantities are operating at higher frequencies. Therefore, they do not always respond in the same manner as 60 Hz values.

Inductive and capacitive impedance are present in all power systems. We are accustomed to thinking about these impedances as they perform at 60 Hz. However, these impedances are subject to frequency variation.

X

L

= j

ω

L and

X

C

= 1/j

ω

C

At 60 Hz,

ω

= 377; but at 300 Hz (5 th harmonic)

ω

= 1,885. As frequency changes impedance changes and system impedance characteristics that are normal at 60 Hz may behave entirely different in presence of higher order harmonic waveforms.

Traditionally, the most common harmonics have been the low order, odd frequencies, such as the 3 rd

, 5 th

, 7 th

, and 9 th

. However newer, non-linear loads are introducing significant quantities of higher order harmonics.

Since much voltage monitoring and almost all current monitoring is performed using instrument transformers, the higher order harmonics are often not visible. Instrument transformers are designed to pass 60 Hz quantities with high accuracy. These devices, when designed for accuracy at low frequency, do not pass high frequencies with high accuracy; at frequencies above about 1200 Hz they pass almost no information. So when instrument transformers are used, they effectively filter out higher frequency harmonic distortion making it impossible to see.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 1: THREE-PHASE POWER MEASUREMENTHARMONIC DISTORTION

However, when monitors can be connected directly to the measured circuit (such as direct connection to 480 volt bus) the user may often see higher order harmonic distortion. An important rule in any harmonics study is to evaluate the type of equipment and connections before drawing a conclusion. Not being able to see harmonic distortion is not the same as not having harmonic distortion.

It is common in advanced meters to perform a function commonly referred to as waveform capture. Waveform capture is the ability of a meter to capture a present picture of the voltage or current waveform for viewing and harmonic analysis. Typically a waveform capture will be one or two cycles in duration and can be viewed as the actual waveform, as a spectral view of the harmonic content, or a tabular view showing the magnitude and phase shift of each harmonic value. Data collected with waveform capture is typically not saved to memory. Waveform capture is a real-time data collection event.

Waveform capture should not be confused with waveform recording that is used to record multiple cycles of all voltage and current waveforms in response to a transient condition.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 1–15

POWER QUALITYCHAPTER 1: THREE-PHASE POWER MEASUREMENT

1.5

Power Quality

Power quality can mean several different things. The terms ‘power quality’ and ‘power quality problem’ have been applied to all types of conditions. A simple definition of ‘power quality problem’ is any voltage, current or frequency deviation that results in mis-operation or failure of customer equipment or systems. The causes of power quality problems vary widely and may originate in the customer equipment, in an adjacent customer facility or with the utility.

In his book “Power Quality Primer”, Barry Kennedy provided information on different types of power quality problems. Some of that information is summarized in Table 1.3 below.

It is often assumed that power quality problems originate with the utility. While it is true that may power quality problems can originate with the utility system, many problems originate with customer equipment. Customer-caused problems may manifest themselves inside the customer location or they may be transported by the utility system to another adjacent customer. Often, equipment that is sensitive to power quality problems may in fact also be the cause of the problem.

If a power quality problem is suspected, it is generally wise to consult a power quality professional for assistance in defining the cause and possible solutions to the problem.

Table 1–3: Typical power quality problems and sources

Impulse Transient

Oscillatory transient with decay

Sag / swell

Interruptions

Harmonic distortion

Transient voltage disturbance, sub-cycle duration

Transient voltage, sub-cycle duration

RMS voltage, multiple cycle duration

RMS voltage, multiple second or longer duration

Lightning

Electrostatic discharge

Load switching

Capacitor switching

Line/cable switching

Capacitor switching

Load switching

Remote system faults

Undervoltage /Overvoltage RMS voltage, steady state, multiple second or longer

Voltage flicker duration

RMS voltage, steady state, repetitive condition

Steady state current or voltage, long term duration

System protection

Circuit breakers

Fuses

Maintenance

Motor starting

Load variations

Load dropping

Intermittent loads

Motor starting

Arc furnaces

Non-linear loads

System resonance

1–16 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 2: EPM6100 Submeter

Overview and

EPM6100 Submeter Overview and Specifications

2.1

Hardware Overview

The EPM6100 multifunction meter is designed to measure revenue grade electrical energy usage and communicate that information via various communication media. The unit supports RS485, RJ-45 Ethernet or IEEE 802.11 Wi-Fi Ethernet connections. This allows the unit to be placed anywhere within a complex and it communicates back to central software quickly and easily. The unit also has an IrDA Port for direct PDA interface.

The unit is designed with advanced measurement capabilities, allowing it to achieve high performance accuracy. The EPM6100 Meter is specified as a 0.2% class energy meter for billing applications. To verify the submeter’s performance and calibration, power providers use field test standards to ensure that the unit’s energy measurements are correct. The

EPM6100 Meter is a traceable revenue meter and contains a utility grade test pulse to verify rated accuracy.

To be certified for revenue metering, power providers and utility companies have to verify that this billing energy submeter will perform to the stated accuracy. To confirm the submeter’s performance and calibration, power providers use field test standards to ensure that the unit’s energy measurements are correct.

EPM6100 Meter Features detailed in this manual are:

• 0.2% Class Revenue Certifiable Energy and Demand Submeter

• Meets ANSI C12.20 (0.2%) and IEC

62053-22 (Accuracy Class 0.2S)

• Multifunction Measurement including Voltage, Current, Power, Frequency, Energy, etc.

• Power Quality Measurements (%THD and Alarm Limits)

• 3 Line 0.56” Bright Red LED Display

Software Options - Field Upgrade without removing installed meter

• Percentage of Load Bar for Analog Meter Perception

• Modbus RTU (Over serial) and Modbus TCP (Over Ethernet)

• Serial RS485 Communication

• Ethernet and Wireless Ethernet (Wi-Fi)

• Easy to Use Faceplate Programming

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 2–1

2–2

HARDWARE OVERVIEWCHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONS

IrDA Port for PDA Remote Read

• Direct Interface with Most Building Management Systems

The unit uses standard 5 or 1 Amp CTs (either split or donut). It surface mounts to any wall and is easily programmed in minutes. The unit is designed specifically for easy installation and advanced communication.

2.1.1

Order Codes

Table 2–1: EPM6100 Order Codes

Base Unit

System

Frequency

Current Input

THD

PL6100 – * – * – * – HI – *

PL6100

|

5

6

|

|

|

5A

|

|

|

| |

Standard Unit with display. All current/ voltage/power/energy counters measurement, % load bar, RS 485 and

IrDA ports and one front test pulse output.

Power Supply: 90 to 400 V AC / 100 to 370

V DC

|

50 Hz AC frequency system

|

60 Hz AC frequency system

|

5 Amps

1A

|

0

|

|

1 Amp

No THD Option

THD

Communications Option

|

With THD and limit alarms

S Serial Port

W Wireless or LAN-based Ethernet

2.1.2

Software Options

The EPM6100 Meter is equipped with GE’s exclusive Software Options. The GE Software

Options are virtual firmware-based switches that allow you to enable meter features through communication, allowing the unit to be upgraded after installation to a higher model without removing the unit from service.

Available Software Option Keys

Software Option key 3 (-V3): Volts, Amps, kW, kVAR, PF, kVA, Freq., kWh, kVAh, kVARh & DNP

3.0

Software Option key 4 (-V4): Volts, Amps, kW, kVAR, PF, kVA, Freq., kWh, kVAh, kVARh, %THD

Monitoring, Limit Exceeded Alarms & DNP 3.0

2.1.3

Measured Values

The EPM6100 Meter provides the following Measured Values all in Real Time and some additionally as Avg, Max and Min values.

Table 2–2: EPM6100 Meter Measured Values

Measured Values

Voltage L-N

Voltage L-L

Current per Phase

Real Time

X

X

X

Avg

X

Max

X

X

X

Min

X

X

X

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONSHARDWARE OVERVIEW

Measured Values

Current Neutral

Watt

VAR

VA

PF

+Watt-Hour

Voltage Angles

Current Angles

% of Load Bar

Table 2–2: EPM6100 Meter Measured Values

Real Time

-Watt-Hour

Watt-Hour Net

+VAR-Hour X

-VAR-Hour X

X

X

VAR-Hour Net

VA-Hour

Frequency

%THD

X

X

X

X

X

X

X

X

X

X

X

X

X

Avg

X

X

X

X

Max

X

X

X

X

X

X

Min

X

X

X

X

X

X

** The EPM6100 Meter measures harmonics up to the 7th order for Current and up to the

3rd order for Voltage.

2.1.4

Utility Peak Demand

The EPM6100 Meter provides user-configured Block (Fixed) Window or Rolling Window

Demand. This feature allows you to set up a Customized Demand Profile. Block Window

Demand is demand used over a user-configured demand period (usually 5, 15 or 30 minutes). Rolling Window Demand is a fixed window demand that moves for a userspecified subinterval period.

For example, a 15-minute Demand using 3 subintervals and providing a new demand reading every 5 minutes, based on the last 15 minutes.

Utility Demand Features can be used to calculate kW, kVAR, kVA and PF readings. All other parameters offer Max and Min capability over the user-selectable averaging period.

Voltage provides an Instantaneous Max and Min reading which displays the highest surge and lowest sag seen by the meter

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 2–3

SPECIFICATIONSCHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONS

2.2

Specifications

POWER SUPPLY

Range: .................................................................Universal, (90 to 400)V ac @50/60Hz or (100 to 370)V dc

Power Consumption: ...................................16 VA Maximum

VOLTAGE INPUTS (MEASUREMENT CATEGORY III)

Range: .................................................................Universal, Autoranging up to 416V AC L-N, 721V AC L-L

Supported hookups: ....................................3 Element Wye, 2.5 Element Wye

2 Element Delta, 4 Wire Delta

Input Impedance: ..........................................1M Ohm/Phase

Burden: ...............................................................0.36VA/Phase Max at 600V, 0.0144VA/Phase at 120V

Pickup Voltage: ...............................................10V AC

Connection: ......................................................Screw terminal (Diagram 4.1)

Input Wire Gauge: .........................................AWG#16 - 26

Transient Withstand: ...................................Meets IEEE C37.90.1 (Surge Withstand Capability)

Reading: .............................................................Programmable Full Scale to any PT Ratio

CURRENT INPUTS

Class 10: ............................................................5Amp (Nominal), 10 Amp Maximum

Class 2: ...............................................................1Amp (Nominal), 2 Amp Secondary

Burden: ...............................................................0.005VA Per Phase Max at 11 Amps

Pickup Current: ...............................................0.1% of Nominal

Connections: ....................................................Screw terminal - #6-32 screws (Diagram 4.1)

Fault Withstand: ............................................100A/10sec. at 23°C

Reading: .............................................................Programmable Full Scale to any CT Ratio

ISOLATION

All Inputs and Outputs are galvanically isolated and tested to 2500V AC

ENVIRONMENTAL RATING

Storage: .............................................................-20 to +70°C

Operating: .........................................................-20 to +70°C

Humidity: ...........................................................to 95% RH Non-condensing

Faceplate Rating: ..........................................NEMA12 (Water Resistant)

Overvoltage Category: ...............................2

Pollution Degree: ...........................................2

Altitude: ..............................................................2000 m

MEASUREMENT METHODS

Voltage, Current: ............................................True RMS

Power: .................................................................Sampling at 400+ Samples per Cycle on All Channels

Measured Readings Simultaneously

Harmonic %THD: ...........................................% of Total Harmonic Distortion

A/D Conversion: .............................................6 Simultaneous 24 bit Analog to Digital Converters

UPDATE RATE

Watts, VAR and VA: .......................................Every six cycles. For example: 100 milliseconds (Ten times per second) @ 60 Hz

All other parameters: ..................................1 second

COMMUNICATION FORMAT

RS485

IrDA Port through Face Plate

2–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONSSPECIFICATIONS

Protocols: ..........................................................Modbus RTU, Modbus ASCII, DNP 3.0, Modbus TCP

(Ethernet)

Com Port Baud Rate: ...................................9600 to 57,600 b/s

Com Port Address: ........................................001-247

Data Format: ...................................................8 Bit, No Parity

WIRELESS ETHERNET (OPTIONAL)

802.11b Wireless or .....................................WiFi or RJ-45 Connection

10/100BaseT Ethernet

128 bit WEP Encryption ..............................128 bit Wireless Security

Modbus TCP Protocol

MECHANICAL PARAMETERS

Dimensions: .....................................................H7.9 x W7.6 x D3.2 inches, (H200.7 x W193.0 x D81.3 mm)

Weight: ...............................................................4 pounds (1.81 Kg)

Recommended tightening torque on voltage input screws: ........0.5 Nm (4.42 lbf in)

Maximum tightening torque on voltage input screws: ...................0.6 Nm (5.31 lbf in)

KYZ/RS485 PORT SPECIFICATIONS

RS485 Transceiver; meets or exceeds EIA/TIA-485 Standard:

Type: .....................................................................Two-wire, half duplex

Min. Input Impedance: .................................96kΩ

Max. Output Current: ....................................±60mA

WH PULSE

KYZ output contacts (and infrared LED light pulses through face plate; see Section 7.4 for

Kh values):

Pulse Width: ......................................................40ms

Full Scale Frequency:....................................~6Hz

Contact type:....................................................Solid State – SPDT (NO – C – NC)

Relay type: .........................................................Solid state

Peak switching voltage: ..............................DC ±350V

Continuous load current:............................120mA

Peak load current:..........................................350mA for 10ms

On resistance, max.:......................................35Ω

Leakage current:.............................................1µ[email protected]

Isolation: .............................................................AC 3750V

Reset State: .......................................................(NC - C) Closed; (NO - C) Open

Infrared LED:

Peak Spectral Wavelength: .......................940nm

Reset State: .......................................................Off

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 2–5

SPECIFICATIONSCHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONS

FIGURE 2–1: Internal Schematic

2–6

FIGURE 2–2: Output Timing

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONSSPECIFICATIONS

COMPLIANCE

Test

Electrostatic Discharge

RF immunity

Fast Transient Disturbance

Surge Immunity

Conducted RF Immunity

Radiated & Conducted Emissions

Power magnetic frequency

Voltage Dip & interruption

Reference Standard

EN/IEC61000-4-2

EN/IEC61000-4-3

EN/IEC61000-4-4

EN/IEC61000-4-5

EN/IEC61000-4-6

EN/IEC61000-6-4/CISPR 11

EN/IEC61000-4-8

EN/IEC61000-4-11

Level/Class

Level 3

10V/m

Level 3

Level 3

Level 3

Class A

Level 4

0,40, 70,80% dips, 250/

300cycle interrupts

APPROVALS

CE compliance

North America

Applicable Council Directive

Low voltage directive

EMC Directive

R&TTE Directive cULus Listed

According to:

EN/IEC61010-1

EN61000-6-2

EN61000-6-4

EN300 328

UL61010-1 (PICQ)

C22.2.No 61010-1 (PICQ7)

ISO Manufactured under a registered quality program

ISO9001

METER ACCURACY BY MEASURED PARAMETERS

Parameter

Voltage L-N [V]

Accuracy

0.1% of reading

2

Voltage L-L [V]

Current Phase [A]

0.1% of reading

0.1% of reading

1

Current Neutral (calculated) [A] 2.0% of Full Scale

1

Active Power Total [W] 0.2% of reading

1,2

Active Energy Total [Wh]

Reactive Power Total [VAR]

0.2% of reading

1,2

0.2% of reading

1,2

Reactive Energy Total [VARh]

Apparent Power Total [VA]

0.2% of reading

1,2

0.2% of reading

1,2

Accuracy Input Range

(69 to 480)V

(120 to 600)V

(0.15 to 5)A

(0.15 to 5)A @ (45 to 65)Hz

(0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF

(0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF

(0.15 to 5)A @ (69 to 480)V @ +/- (0 to 0.8) lag/lead PF

(0.15 to 5)A @ (69 to 480)V @ +/- (0 to 0.8) lag/lead PF

(0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 2–7

SPECIFICATIONSCHAPTER 2: EPM6100 SUBMETER OVERVIEW AND SPECIFICATIONS

Parameter

Apparent Energy Total [VAh]

Power Factor

Frequency

Total Harmonic Distortion (%)

Load Bar

Accuracy

0.2% of reading

1,2

0.2% of reading

1,2

+/- 0.01Hz

5.0%

1

+/- 1 segment

Accuracy Input Range

(0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF

(0.15 to 5)A @ (69 to 480)V @ +/- (0.5 to 1) lag/lead PF

(45 to 65)Hz

(0.5 to 10)A or (69 to 480)V, measurement range (1 to 99.99)%

(0.005 to 6)A

1

For 2.5 element programmed units, degrade accuracy by an additional 0.5% of

reading:

• For 1A (Class 2) Nominal, degrade accuracy by an additional 0.5% of reading.

• For 1A (Class 2) Nominal, the input current range for Accuracy specification is 20% of the values listed in the table.

2

For unbalanced voltage inputs where at least one crosses the 150V auto-scale

threshold (for example, 120V/120V/208V system), degrade accuracy by additional

0.4%.

2–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 3: Mechanical Installation

Mechanical Installation

3.1

Overview

The EPM6100 Meter can be installed on any wall. The various models use the same installation.

See Chapter 4 for wiring diagrams.

Mount the meter in a dry location, which is free from dirt and corrosive substances.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 3–1

INSTALL THE BASECHAPTER 3: MECHANICAL INSTALLATION

3.2

Install the Base

1.

Determine where you want to install the submeter.

2.

Then, with the submeter power off, open the top of the submeter. Use the Front Cover

Support to keep the cover open as you perform the installation..

3–2

FIGURE 3–1: EPM6100 Meter Opened

Remove the antenna before opening the unit.

Only use the front cover support if you are able to open the front cover to the extent that you can fit the front cover support into its base. DO NOT rest the front cover support on the inside of the meter, even for a short time - by doing so, you may damage components on the board assembly.

3.

Find the 4 Installation Slots and insert screws through each slot into the wall or panel.

Fasten securely.

DO NOT overtighten.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

3.2.1

Mounting Diagrams

CHAPTER 3: MECHANICAL INSTALLATIONINSTALL THE BASE

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

FIGURE 3–2: Mounting Dimensions

3–3

SECURE THE COVERCHAPTER 3: MECHANICAL INSTALLATION

3.3

Secure the Cover

1.

Close the cover, making sure that power and communications wires exit the submeter through the openings at the base.

3–4

FIGURE 3–3: EPM6100 Meter Closed

To avoid damaging components on the board assembly, make sure the front cover support is in the upright position before closing the front cover.

2.

Using the 3 enclosed screws, secure the cover to the base in three places.

Do not overtighten (you may damage the cover).

The unit can be sealed after the front cover is closed. To seal the unit, thread the seal tag through the housing located between the bottom access holes.

3.

Reattach the antenna, if appropriate.

Recommended Tools for EPM6100 Meter Installation: #2 Phillips screwdriver and wire cutters.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 4: Electrical Installation

Electrical Installation

4.1

Considerations When Installing Meters

Installation of the EPM6100 Meter must be performed by only qualified personnel who follow standard safety precautions during all procedures. Those personnel should have appropriate training and experience with high voltage devices.

Appropriate safety gloves, safety glasses and protective clothing are recommended.

During normal operation of the EPM6100 Meter, dangerous voltages flow through many parts of the meter, including: Terminals and any connected CTs (Current Transformers) and

PTs (Potential Transformers), all I/O Modules (Inputs and Outputs) and their circuits. All

Primary and Secondary circuits can, at times, produce lethal voltages and currents. Avoid contact with any current-carrying surfaces.

Do not use the meter or any I/O Output Device for primary protection or in an energylimiting capacity. The meter can only be used as secondary protection. Do not use the meter for applications where failure of the meter may cause harm or death.

Do not use the meter for any application where there may be a risk of fire.

All meter terminals should be inaccessible after installation.

Do not apply more than the maximum voltage the meter or any attached device can withstand. Refer to meter and/or device labels and to the Specifications for all devices before applying voltages. Do not HIPOT/Dielectric test any Outputs, Inputs or

Communications terminals.

GE recommends the use of Shorting Blocks and Fuses for voltage leads and power supply to prevent hazardous voltage conditions or damage to CTs, if the meter needs to be removed from service. CT grounding is optional.

• IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE MANUFACTURER, THE

PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED.

• THERE IS NO REQUIRED PREVENTIVE MAINTENANCE OR INSPECTION NECESSARY FOR

SAFETY. HOWEVER, ANY REPAIR OR MAINTENANCE SHOULD BE PERFORMED BY THE

FACTORY.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–1

CONSIDERATIONS WHEN INSTALLING METERSCHAPTER 4: ELECTRICAL INSTALLATION

DISCONNECT DEVICE: The following part is considered the equipment disconnect device.

A SWITCH OR CIRCUIT-BREAKER SHALL BE INCLUDED IN THE END-USE EQUIPMENT OR

BUILDING INSTALLATION. THE SWITCH SHALL BE IN CLOSE PROXIMITY TO THE EQUIPMENT

AND WITHIN EASY REACH OF THE OPERATOR. THE SWITCH SHALL BE MARKED AS THE

DISCONNECTING DEVICE FOR THE EQUIPMENT.

4–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTIONS

4.2

Electrical Connections

All wiring for the EPM6100 Meter is done through the front of the unit (lifting the cover with the power to the unit OFF) so that the unit can be surface mounted. Connecting cables exit the unit via two openings in the base plate.

DO NOT OVERTORQUE

SCREWS

FIGURE 4–1: Submeter Connections

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–3

GROUND CONNECTIONSCHAPTER 4: ELECTRICAL INSTALLATION

4.3

Ground Connections

The meter’s Ground Terminal (PE) should be connected directly to the installation’s protective earth ground.

4–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONVOLTAGE FUSES

4.4

Voltage Fuses

GE recommends the use of fuses on each of the sense voltages and on the control power, even though the wiring diagrams in this chapter do not show them.

Use a 0.1 Amp fuse on each voltage input.

Use a 3 Amp fuse on the power supply.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–5

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

4.5

Electrical Connection Diagrams

Choose the diagram that best suits your application. Make sure the CT polarity is correct.

1. Three Phase, Four-Wire System Wye with Direct Voltage, 3 Element

2. Three Phase, Four-Wire System Wye with Direct Voltage, 2.5 Element

3. Three-Phase, Four-Wire Wye with PTs, 3 Element

4. Three-Phase, Four-Wire Wye with PTs, 2.5 Element

5. Three-Phase, Three-Wire Delta with Direct Voltage (No PTs, 2 CTs)

6. Three-Phase, Three-Wire Delta with Direct Voltage (No PTs, 3 CTs)

7. Three-Phase, Three-Wire Delta with 2 PTs, 2 CTs

8. Three-Phase, Three-Wire Delta with 2 PTs, 3 CTs

9. Current Only Measurement (Three Phase)

10. Current Only Measurement (Dual Phase)

11. Current Only Measurement (Single Phase)

4–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

1.

Service: WYE, 4-Wire with No PTs, 3 CTs

Select: “3 EL WYE” (3 Element Wye) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–7

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

1a. Dual Phase Hookup

4–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

1b. Single Phase Hookup

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–9

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

2. Service: 2.5 Element WYE, 4-Wire with No PTs, 3 CTs

4–10

Select: “2.5 EL WYE” (2.5 Element Wye) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

3. Service: WYE, 4-Wire with 3 PTs, 3 CTs

Select: “3 EL WYE” (3 Element Wye) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–11

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

4.

Service: 2.5 Element WYE, 4-Wire with 2 PTs, 3 CTs

4–12

Select: “2.5 EL WYE” (2.5 Element Wye) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

5.

Service: Delta, 3-Wire with No PTs, 2 CTs

Select: “2 Ct dEL” (2 CT Delta) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–13

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

6.

Service: Delta, 3-Wire with No PTs, 3 CTs

4–14

Select: “2 Ct dEL” (2 CT Delta) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

7.

Service: Delta, 3-Wire with 2 PTs, 2 CTs

Select: “2 Ct dEL” (2 CT Delta) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–15

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

8.

Service: Delta, 3-Wire with 2 PTs, 3 CTs

4–16

Select: “2 Ct dEL” (2 CT Delta) in Meter Programming setup.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

9.

Service: Current Only Measurement (Three Phase)

Note

Select: “3 EL WYE” (3 Element Wye) in Meter Programming setup.

Even if the meter is used for only amp readings, the unit requires a Volts AN reference.

Please make sure that the voltage input is attached to the meter.

AC Control Power can be used to provide the Reference Signal.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–17

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

10. Service: Current Only Measurement (Dual Phase)

Note

Select: “3 EL WYE” (3 Element Wye) in Meter Programming setup.

Even if the meter is used for only amp readings, the unit requires a Volts AN reference.

Please make sure that the voltage input is attached to the meter.

AC Control Power can be used to provide the Reference Signal.

4–18 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 4: ELECTRICAL INSTALLATIONELECTRICAL CONNECTION DIAGRAMS

11. Service: Current Only Measurement (Single Phase)

Note

Select: “3 EL WYE” (3 Element Wye) in Meter Programming setup.

Even if the meter is used for only amp readings, the unit requires a Volts AN reference.

Please make sure that the voltage input is attached to the meter.

AC Control Power can be used to provide the Reference Signal.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 4–19

ELECTRICAL CONNECTION DIAGRAMSCHAPTER 4: ELECTRICAL INSTALLATION

4–20 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 5: Communication

Installation

Communication Installation

5.1

EPM6100 Communication

The EPM6100 Meter provides two independent Communication Ports plus KYZ Pulse

Output. (For information on Ethernet configuration, see Chapter 6.)

The first port, Com 1, is an IrDA Port, which uses Modbus ASCII. The second port, Com 2, provides RS-485 or RJ-45 Ethernet or WI-FI Ethernet Communication.

5.1.1

IrDA Port (Com 1)

The Com 1 IrDA port is located on the face of the submeter. The IrDA Port allows the unit to be set up and programmed with any device capable of IrDA communication, such as an

IrDA-equipped laptop PC or a USB/IrDA wand (such as the USB to IrDA Adapter [CAB6490] described in Appendix E).

IrDA port settings are:

Address: 1

Baud Rate: 57.6k

Protocol: Modbus ASCII

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–1

EPM6100 COMMUNICATIONCHAPTER 5: COMMUNICATION INSTALLATION

FIGURE 5–1: Simultaneous Dual Communication Paths

5.1.1.1 USB to IrDA Adapter

5–2

FIGURE 5–2: USB to IrDA Adapter

The USB to IrDA Adapter (CAB6490) enables IrDA wireless data communication through a standard USB port. The adapter is powered through the USB bus and does not require any external power adapter. The effective data transmission distance is 0 to 0.3 meters

(approximately 1 foot).

The USB to IrDA Adapter enables wireless data transfer between a PC and the EPM6100.

The adapter can also be used with other IrDA-compatible devices.

The adapter is fully compatible with IrDA 1.1 and USB 1.1 specifications.

System Requirements: IBM PC 100 MHz or higher (or compatible system), available USB port, CD-ROM drive, Windows® 98, ME, 2000 or XP.

See Appendix E for instructions on using the USB to IrDA Adapter.

5.1.2

RS485 Communication Com 2 (485 Option)

The EPM6100 Meter’s RS485 port uses standard 2-Wire, Half Duplex Architecture. The

RS485 connector is located on the front of the meter, under the cover.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 5: COMMUNICATION INSTALLATIONEPM6100 COMMUNICATION

A connection can easily be made to a Master device or to other Slave devices, as shown below.

Care should be taken to connect

+

to

+

and

-

to

-

connections.

The EPM6100 Meter’s RS485 can be programmed with the buttons on the face of the meter or by using Communicator EXT software.

Standard RS485 Port Settings:

Address: 001 to 247

Baud Rate: 9.6, 19.2, 38.4 or 57.6

Protocol: Modbus RTU, Modbus ASCII, DNP 3.0

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–3

EPM6100 COMMUNICATIONCHAPTER 5: COMMUNICATION INSTALLATION

5.1.3

KYZ Output

The KYZ Pulse Output provides pulsing energy values that verify the submeter’s readings and accuracy.

The KYZ Pulse Output is located on the face of the meter, under the cover and just below the RS485 connection.

See section 2.2 for the KYZ Output Specifications.

See section 7.3.1 for Pulse Constants.

5–4

5.1.4

Ethernet Connection

In order to use the Ethernet capability of the EPM6100 Meter, the Ethernet Module must be installed in your meter, and the JP2 must be set to positions 2-3. You can use either wired

Ethernet, or Wi-Fi.

For wired Ethernet, use Standard RJ-45 10/100Base T cable to connect to theEPM6100

Meter. The RJ-45 line is inserted into the RJ-45 Port of the meter.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 5: COMMUNICATION INSTALLATIONEPM6100 COMMUNICATION

For Wi-Fi connections, make sure you have the correct antenna attached to the meter.

Refer to Chapter 6 of this manual, Ethernet Configuration, for instructions on how to set up the Network Module for the EPM6100 Meter.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–5

METER COMMUNICATION AND PROGRAMMING OVERVIEWCHAPTER 5: COMMUNICATION INSTALLATION

5.2

Meter Communication and Programming Overview

Programming and communication can utilize the RS485 connection as shown in Section

5.1.2 or the RJ-45/Wi-Fi connection as shown in Section 5.1.4. Once a connection is established, Communicator EXT software can be used to program the meter and communicate to other devices.

Meter Connection

To provide power to the meter, use one of the wiring diagrams in Chapter 4 or attach an

Aux cable to GND, L(+) and N(-).

The RS485 cable attaches to SH, B(-) and A(+) as shown in Section 5.1.2.

5.2.1

How to Connect

1.

Open Communicator EXT software.

2.

Click the Connect button on the Icon bar.

The Connect screen opens, showing the Initial settings.

FIGURE 5–3: Serial Port Connection

5–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 5: COMMUNICATION INSTALLATIONMETER COMMUNICATION AND PROGRAMMING OVERVIEW

Note

FIGURE 5–4: Network Connection

Make sure your settings (in the case above, Serial Port) are the same as those shown here.

The settings you make will depend on whether you are connecting to the meter via Serial

Port or Network. Use the pulldown windows to make any necessary changes.

3.

Click the Connect button on the screen.

You may have to Disconnect power, Reconnect power then click Connect.

The Device Status screen appears, confirming a connection.

4.

Click OK.

The main screen of Communicator EXT software reappears.

5.

Click the Profile button on the toolbar.

You will see the EPM6100

meter’s Profile screen.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–7

METER COMMUNICATION AND PROGRAMMING OVERVIEWCHAPTER 5: COMMUNICATION INSTALLATION

5.2.2

EPM6100 Device Profile Settings

Click the tabs to access the settings for the EPM6100 meter’s Device Profile.

5–8

COMMUNICATION SETTINGS

COM1 (IrDA):

Response Delay (0-750 msec)

COM2:

(For RS485)

Address (1-247)

Protocol (Modbus RTU, ASCII or DNP)

Baud Rate (9.6 to 57.6)

Response Delay (0-750 msec)

(For Ethernet)

Address (1)

Protocol (Modbus RTU)

Baud Rate (57600)

Response Delay (No Delay)

Use pull-down menus to change settings, if desired.

6.

When changes are complete, click the Update button to send the new profile to the

EPM6100

meter.

7.

Click Cancel to exit the Profile; click other tabs to update other settings of the Profile.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 5: COMMUNICATION INSTALLATIONMETER COMMUNICATION AND PROGRAMMING OVERVIEW

SCALING (CT, PT Ratios and System Wiring)

Note

CT Numerator:

CT Denominator:

CT Multiplier:

CT Face Plate Value:

Calculation Based on Selections

PT Numerator:

PT Denominator:

PT Multiplier:

PT Face Plate Value

Calculation Based on Selections

System Wiring:

Number of Phases: One, Two or Three

VOLTS FULL SCALE = PT Numerator x PT Multiplier

Example:

A 14400/120 PT would be entered as:

Pt Numerator 1440

Pt Denominator 120

Pt Multiplier 10

This example would display a 14.40kV.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–9

Note

METER COMMUNICATION AND PROGRAMMING OVERVIEWCHAPTER 5: COMMUNICATION INSTALLATION

You must specify Primary and Secondary Voltage in Full Scale. Do not use ratios!

Example CT Settings:

200/5 Amps: Set the Ct-n value for 200, Ct-Multiplier value for 1.

800/5 Amps: Set the Ct-n value for 800, Ct-Multiplier value for 1.

2,000/5 Amps: Set the Ct-n value for 2000, Ct-Multiplier value for 1.

10,000/5 Amps: Set the Ct-n value for 1000, Ct-Multiplier value for 10.

Example PT Settings:

277/277 Volts Pt-n value is 277, Pt-d value is 277, Pt-Multiplier value is 1.

14,400/120 Volts: Pt-n value is 1440, Pt-d value is 120, Pt-Multiplier value is 10.

138,000/69 Volts: Pt-n value is 1380, Pt-d value is 69, Pt-Multiplier value is 100.

345,000/115 Volts: Pt-n value is 3450, Pt-d value is 115, Pt-Multiplier value is 100

345,000/69 Volts: Pt-n value is 345, Pt-d value is 69, PT-Multiplier value is 1000.

Settings are the same for Wye and Delta configurations.

ENERGY AND DISPLAY (Power and Energy Format)

5–10

Power Scale

Energy Digits

Energy Decimal Places

Energy Scale

(Example Based on Selections)

Power Direction: View as Load

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

Note

CHAPTER 5: COMMUNICATION INSTALLATIONMETER COMMUNICATION AND PROGRAMMING OVERVIEW

Demand Averaging

Averaging Method: Block or Rolling

Interval (Minutes)

Sub Interval

Auto Scroll: Click to Activate

Display Configuration: Click Values to be displayed.

You MUST have at lease ONE selected.

If incorrect values are entered on this screen the following message appears:

Current, CT, PT and Energy Settings will cause invalid energy accumulator values.

Change the inputted settings until the message disappears.

SETTINGS

Password

(Meter is shipped with Password Disabled and there is NO DEFAULT PASSWORD)

Enable Password for Reset

Enable Password for Configuration

Change Password

Change VSwitch

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–11

METER COMMUNICATION AND PROGRAMMING OVERVIEWCHAPTER 5: COMMUNICATION INSTALLATION

(Call GE for Update Information)

Change Device Designation

LIMITS (VSwitch

TM

Key 4 Only)

Note

5–12

For up to 8 Limits, set:

Address: Modbus Address (1 based)

Label: Your Designation

High Set Point: % of Full Scale

Example: 100% of 120VFS = 120V

90% of 120V FS = 108V

Return Hysteresis: Point to go back in Limit

Example: High Set Point = 110%

(Out of Limit at 132V)

Return Hysteresis = 105%

(Stay Out until 126V)

Low Set Point: % of Full Scale

Return Hysteresis: Point to go back in Limit

Settings appear in the Table at the bottom of the screen

If Return Hysteresis is > High Set Point, the Limit is Disabled.

Click Update to send a new Profile.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

Note

CHAPTER 5: COMMUNICATION INSTALLATIONMETER COMMUNICATION AND PROGRAMMING OVERVIEW

If the Update fails, the software will ask you if you want to try again to Update.

Click Cancel to Exit the Profile.

Use Communicator EXT to communicate with the device and perform required tasks.

Refer to the Communicator EXT User’s Manual for more details and additional instructions.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 5–13

METER COMMUNICATION AND PROGRAMMING OVERVIEWCHAPTER 5: COMMUNICATION INSTALLATION

5–14 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 6: Ethernet Configuration

Ethernet Configuration

Note

6.1

Introduction

The EPM6100 Meter has an option for a Wi-Fi (Wireless) or RJ-45 Ethernet connection. This option allows the submeter to be set up for use in a LAN (Local Area Network), using standard Wi-Fi base stations. Configuration for these connections is easily accomplished through your PC using Telnet connections. Then you can access the submeter to perform meter functions directly through any computer on your LAN: the EPM6100 meter does not need to be directly connected (wired) to these computers for it to be accessed.

This chapter outlines the procedures you use to set up the EPM6100 Meter to function via its Ethernet configuration.

These instructions are for EPM6100 Meters that have a Reset button, located on the

main board.

You can easily tell whether or not your meter has a Reset button: open the front cover of the EPM6100 Meter. The Reset button is located at the top, right of the main board. Refer to the figure below.

Some earlier versions of the EPM6100 Meter are not equipped with a Reset button. The instructions for Ethernet configuration are slightly different for these meters.

If your meter does not have a Reset button, please call GE’s Technical Support department

(at 905-294-6222) to obtain configuration instructions for your meter’s Ethernet connection.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 6–1

FACTORY DEFAULT SETTINGSCHAPTER 6: ETHERNET CONFIGURATION

Note

6.2

Factory Default Settings

The settings shown in Section 6.2.1 are the default settings for your EPM6100 Meter: they are the settings programmed into your meter when it is shipped to you. You may need to modify some of these settings when you set up your Ethernet configuration.

Change Settings 1 and 6 ONLY. Settings 2, 3, and 4 must be the same as shown in

Section 6.2.1. If they are not, reset them to the values shown in Section 6.2.1.

If setting 3 is not CP0..! Defaults (In), the procedure for Network Module Hardware

Initialization (Section 6.3.4) will not work.

6.2.1

Modbus/TCP to RTU Bridge Setup

NETWORK/IP SETTINGS:

Network Mode .................................................Wired Only

IP Address ..........................................................10.0.0.1

Default Gateway.............................................--- not set ---

Netmask .............................................................255.255.255.0

SERIAL & MODE SETTINGS:

Protocol...............................................................Modbus/RTU,Slave(s) attached

Serial Interface ................................................57600,8,N,1,RS232,CH1

MODEM/CONFIGURABLE PIN SETTINGS:

CP0..! Defaults (In) CP1..! GPIO (In) CP2..! GPIO (In)

CP3..! GPIO (In) CP4..! GPIO (In) CP5..! GPIO (In)

CP6..! GPIO (In) CP7..! GPIO (In) CP8..! GPIO (In)

CP9..! GPIO (In) CP10.! GPIO (In)

RTS Output.........................................................Fixed High/Active

ADVANCED MODBUS PROTOCOL SETTINGS:

Slave Addr/Unit Id Source ..........................Modbus/TCP header

Modbus Serial Broadcasts .........................Disabled (Id=0 auto-mapped to 1)

MB/TCP Exception Codes............................Yes (return 00AH and 00BH)

Char, Message Timeout...............................00050msec, 05000msec

WLAN SETTINGS:

WLAN ...................................................................Disabled, network:LTRX_IBSS

Topology.............................................................AdHoc, Country: US, Channel: 11

Security ...............................................................none

TX Data rate......................................................11 Mbps auto fallback

Power management.....................................not supported in ad hoc mode

D)efault settings, S)ave, Q)uit without save

Select Command or parameter set (1..6) to change:

6–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 6: ETHERNET CONFIGURATIONCONFIGURE NETWORK MODULE

6.3

Configure Network Module

These procedures detail how to set up the EPM6100 Meter on the Network Module.

Only one person at a time can be logged into the network port. This eliminates the possibility of several people trying to configure the Ethernet interface simultaneously.

6.3.1

Configuration Requirements

You may want to consult your network administrator before performing these procedures.

Some functions may be restricted to the network administrator.

If you have only one Ethernet adapter (network card), the screen displays only that configuration. You will use this Ethernet adapter to access the EPM6100 Meter’s Network

Module. You may have to configure the Ethernet adapter in order to use it with the

EPM6100 Meter’s Network Module, using the instructions in Section 6.4.2.

If you have multiple Ethernet adapters (network cards) installed on your computer, you must choose, configure and use the correct one to access the Network Module.

The Ethernet Adapter must be set up for point-to-point connection in order for it to connect to the EPM6100 Meter’s Network module, as follows:

IP Address should be 10.0.0.2

Subnet Mask should be 255.255.255.0

These settings can be made in the Ethernet Adapter. Follow the procedure in Section 6.3.2.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 6–3

CONFIGURE NETWORK MODULECHAPTER 6: ETHERNET CONFIGURATION

6.3.2

Configuring the Ethernet Adapter

1.

From the Start Menu, select Settings > Network Connections. You will see the screen shown below:.

6–4

2.

Right click on the Local Area Network Connection you will be using to connect to the

EPM6100 Meter, and select Properties from the pull-down menu.

You will see the screen shown below:

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 6: ETHERNET CONFIGURATIONCONFIGURE NETWORK MODULE

3.

Select Internet Protocol [TCP/IP] from the middle of the screen and click the

Properties button.

You will see the screen shown below:

4.

Click the Use the Following IP Address radio button.

The screen changes to allow you to enter the IP Address and Subnet Mask.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 6–5

Note

CONFIGURE NETWORK MODULECHAPTER 6: ETHERNET CONFIGURATION

• Enter 10.0.0.2 in the IP Address field.

• Enter 255.255.255.0 in the Subnet Mask field.

5.

Click the Okay button.

6.

You can now close the Local Area Connection Properties and Network Connection windows.

6.3.3

Detailed Configuration Parameters

Certain parameters must be configured before the Ethernet Interface can function on a network.

The Ethernet Interface can be locally or remotely configured using the procedures shown below.

Use a Telnet connection to configure the unit over the network. The Ethernet Interface's configuration is stored in memory and is retained without power. The configuration can be changed at any time. The Ethernet Interface performs a reset after the configuration has been changed and stored.

As mentioned above, to configure the Ethernet Interface over the network, establish a

Telnet connection to port 9999. Follow this procedure:

1.

From the Windows Start menu, click Run and type 'cmd’.

2.

Click the OK button to bring up Windows's Command Prompt window.

3.

In the Command Prompt window, type: 'telnet 10.0.0.1 9999' and press the Enter key:

Microsoft Windows XP [Version 5.1.2600]

(C) Copyright 1985-2001 Microsoft Corp.

C:\Documents and Settings\Administrator>telnet 10.0.0.1 9999

Be sure to include a space between the IP address and 9999.

The following parameters appear; for example:

Serial Number 5415404 MAC Address 00:20:4A:54:3C:2C

Software Version V01.2 (000719)

Press Enter to go into Setup Mode

4.

Press ENTER again quickly.

After entering "Setup Mode" (confirm by pressing Enter), you can configure the parameters for the software you are using by entering one of the numbers on the "Change Setup

Menu," or you can confirm default values by pressing Enter. Be sure to store new configurations when you are finished. The Ethernet Interface will then perform a power reset.

The Factory Default Settings will display again (refer to Section 6.2.1).

6.3.4

Setup Details

This section illustrates how each Section of settings appears on the screen, if you press Y

(Yes) to change one or more of the settings.

6–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

CHAPTER 6: ETHERNET CONFIGURATIONCONFIGURE NETWORK MODULE

Change Settings 1 and 6 ONLY. Settings 2, 3, and 4 must be the same as shown in Section

6.2.1. If they are not, reset them to the values shown in Section 6.2.1.

Network IP Settings Detail (1)

(Set device with static IP Address.)

Network Mode: 0=Wired only, 1=Wireless Only <0> ? 1

IP Address <010> 192.<000> 168.<000> .<000> .<001>

Set Gateway IP Address <N> ? Y

Gateway IP Address : <192> .<168> .<000> .<001>

Set Netmask <N for default> <Y> ? Y

<255> .<255> .<255> .<000>

Change telnet config password <N> ? N

Serial & Mode Settings (2)

(Make sure these settings match those shown in Section 6.2.1.)

Attached Device (1=Slave 2=Master) (1) ? 1

Serial Protocol (1=Modbus/RTU 2=Modbus/ASCII) (1) ? 1

Use serial connector (1=CH1 2=CH2) (1) ? 1

Interface Type (1=RS232 2=RS422/RS485+4-wire 3=RS485+2-wire) (1) ? 1

Enter serial parameters (57600,8,N,1) 57600, 8, N, 1

Modem/Configurable Pin Settings (3)

(Make sure these settings match those shown in Section 6.2.1.)

You must configure this setting correctly in order to be able to use the Network Module

Hardware Initialization procedure (Section 6.3.4).

Press 3. The following appears on the screen:

CP0 Function (hit space to toggle) GPIO (In)

Press the Space Bar until the following appears on the screen:

CP0 Function (hit space to toggle) Defaults(In)

Press Enter. The following appears on the screen:

Invert (active low) (Y)?

Press Y.

Ignore other settings (press Enter through the rest of Setting 3).

Advanced Modbus Protocol settings (4)

(Make sure these settings match those shown in Section 6.2.1.)

Slave address (0 for auto, or 1..255 fixed otherwise) (0) ? 0

Allow Modbus Broadcasts (1=Yes 2=No) (2) ? 2

Use MB/TCP 00BH/00AH Exception Responses (1=No 2=Yes) (2) ? 2

Disable Modbus/TCP pipeline (1=No 2=Yes) (1) ? 1

Character Timeout (0 for auto, or 10-6950 msec) (50) 50

Message Timeout (200-65000 msec) (5000) 5000

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 6–7

Note

6–8

CONFIGURE NETWORK MODULECHAPTER 6: ETHERNET CONFIGURATION

Serial TX delay after RX (0-1275 msec) (0) 0

Swap 4x/0H to get 3x/1x (N) ? N

Local slave address for GPIO (0 to disable, or 1..255) (0)? 0

WLAN Settings Detail (6)

(The settings shown are recommended by GE for use with EPM6100 Meter.)

Topology: 0=Infrastructure, 1=Ad-Hoc <1>? 0

Network name <SSID> <LTRX_IBSS>? EPM_METERS

Security suite: 0=none, 1=WEP, 2=WPA, 3=WPA2/802.11i <0> ? 0

TX Data rate: 0=fixed, 1=auto fallback <1>? 1

TX Data rate: 0=1, 1=2, 2=5.5, 3=11, 4=18, 5=24, 6=36, 7=54 Mbps <3>? 7

Enable power management <N>? Y

The settings for the Wireless Access Point should be IDENTICAL to the settings for LWAN above. For programming, see the User’s Manual for the Wireless Access Point in use.

See Section 6.3.4.1 for information on using an Encryption key.

• Exiting the screen

DO NOT PRESS ‘D.’

Press ‘S’ to Save the settings you’ve entered.

6.3.4.1 Encryption Key

GE recommends that you use 128-bit encryption when setting up your Ethernet configuration.

In the WLAN Settings (6), set Security WEP (1), Authentication shared (1), WEP128 (1) and

Change Key (Y).

When Change Key (Y) is entered, you are required to enter an Encryption Key. You can manually enter 26 hexadecimal characters (required for 128-bit encryption) or you can use a WEP Key provider online (example: www.powerdog.com/wepkey.cgi). WEP Key providers should note on their website that their encryption algorithm is for the Wired Equivalent

Privacy portion of IEEE 802.11b/g.

WEP Key Provider Steps

1.

Input 26 alphanumeric characters as your Passphrase. Remember your Passphrase.

2.

Click the Generate Keys button.

Your Hexadecimal WEP Keys appear.

PASSPHRASE TO HEXADECIMAL WEP KEYS

Enter the passphrase below:

1009egbck001036ab

Generate keys

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 6: ETHERNET CONFIGURATIONCONFIGURE NETWORK MODULE

PASSPHRASE TO HEXADECIMAL WEP KEYS

The passphrase 1009egbcke001306ab produces the following keys:

64-BIT (40-BIT KEYS)

1.

AA43FB768D

2.

637D8DB9CE

3.

AFDE50AF61

4.

0c35E73E25

128-BIT (104-BIT) KEY

041D7773D8B2C1D97BE9531DC

5.

Input the 128-bit Key in the Change Key section of the WLAN Settings (6). Continue inputting settings.

6.

Press ‘S’ to Save your settings.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 6–9

NETWORK MODULE HARDWARE INITIALIZATIONCHAPTER 6: ETHERNET CONFIGURATION

6.4

Network Module Hardware Initialization

If you don’t know your current Network Module settings, or if the settings are lost, you can use this method to initialize the hardware with known settings you can then work with.

Reset Button

JP3

Note

JP2

FIGURE 6–1: Right Side of Main Board

1.

Place a shorting block on JP3 and press the Reset button on the main board.

JP3 is located at the right hand side, upper corner of the main board. The shorting block can be “borrowed” from JP2, located at the middle, right hand side. See the figure shown above.

2.

After you press the Reset button, relocate the jumper back to JP2.

3.

Make sure your settings are the same as those in Section 6.2.1. Follow the steps in

Section 6.3 to configure the Network Module.

6–10 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 7: Using the Submeter

Using the Submeter

7.1

Introduction

The EPM6100 Meter can be configured and a variety of functions can be accomplished simply by using the Elements and the Buttons on the submeter face. This chapter will review Front Panel Navigation. Complete Navigation Maps can be found in Appendix A of this manual.

7.1.1

Submeter Face Elements

Reading Type

Indicator

Parameter

Designator

IrDA COMM

Port

% of Load Bar

FIGURE 7–1: Face Plate of 100-S with Elements

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Watt-hour

Test Pulse

Scale

Selector

7–1

INTRODUCTIONCHAPTER 7: USING THE SUBMETER

Reading Type Indicator: Indicates Type of Reading

IrDA Communication Port: Com 1 Port for Wireless Communication

% of Load Bar: Graphic Display of Amps as % of the Load

Parameter Designator: Indicates Reading Displayed

Watt-Hour Test Pulse: Energy Pulse Output to Test Accuracy

Scale Selector: Kilo or Mega multiplier of Displayed Readings

7.1.2

Submeter Face Buttons

Menu

Enter

7–2

Down

FIGURE 7–2: Face Plate of 100-S with Buttons

USING MENU, ENTER, DOWN AND RIGHT BUTTONS, PERFORM THE FOLLOWING

FUNCTIONS:

• View Submeter Information

• Enter Display Modes

• Configure Parameters (Password Protected)

• Perform Resets

• Perform LED Checks

• Change Settings

• View Parameter Values

• Scroll Parameter Values

• View Limit States

ENTER BUTTON: PRESS AND RELEASE TO ENTER ONE OF FOUR DISPLAY MODES:

• Operating Mode (Default),

Right

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

CHAPTER 7: USING THE SUBMETERINTRODUCTION

• Reset Mode (ENTER once, then Down)

• Settings Mode (ENTER twice, then Down)

• Configuration Mode (ENTER three times, then Down)

Menu Button: Press and release to navigate Config Menu, return to Main Menu

Right Button: Operating Mode - Max, Min, %THD, Del kW, Net kW, Total kW

Reset Mode - Yes, No

Settings Mode - On, Off, Settings

Configuration Mode - Password Digits, Available Values, Digits

Down Button: Scroll DOWN through Mode menus

USE BUTTONS IN MODES OF OPERATION:

Operating Mode (default): View Parameter Values

Reset Mode: Reset Stored Max and Min Values

Settings Mode: View Submeter Setting Parameters and Change Scroll Setting

Configuration Mode: Change Submeter Configuration (Can be Password Protected)

The above is a brief overview of the use of the Buttons. For Programming, refer to Chapter

8.

For complete Navigation Maps, refer to Appendix A of this manual.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 7–3

% OF LOAD BARCHAPTER 7: USING THE SUBMETER

7.2

% of Load Bar

The 10-segment LED bargraph at the bottom of the submeter display provides a graphic representation of Amps. The segments light according to the load in the %Load Segment

Table below.

When the Load is over 120% of Full Load, all segments flash “On” (1.5 sec) and “Off” (0.5 sec).

Table 7–1: % Load Segment Table

Segments

None

Load >=% Full Load

No Load

1 1%

1 - 2 15%

1 - 3

1 - 4

30%

45%

1 - 5

1 - 6

1 - 7

1 - 8

1 - 9

1 - 10

All Blink

60%

72%

84%

96%

108%

120%

>120%

7–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 7: USING THE SUBMETERWATT-HOUR ACCURACY TESTING (VERIFICATION)

7.3

Watt-Hour Accuracy Testing (Verification)

The EPM6100 Meter has a Watt-Hour Test Pulse on the face of the submeter. This is an infrared pulse that can be read easily to test for accuracy.

To be certified for revenue metering, power providers and utility companies have to verify that this billing energy submeter will perform to the stated accuracy. To confirm the submeter’s performance and calibration, power providers use field test standards to ensure that the unit’s energy measurements are correct. Since the EPM6100 Meter is a traceable revenue submeter, it contains a utility grade test pulse that can be used to gate an accuracy standard. This is an essential feature required of all billing grade meters and submeters.

Refer to the figure below for an example of how this process works.

MAX

MIN

LM1

LM2

%THD

PRG lrDA

120%-

90%-

60%-

30%-

-

-

-

%LOAD

MENU ENTER

A

VOLTS L-N

VOLTS L-L

AMPS

WNARP

B

VA/Hz

Wh

VARh

VAh

C

Wh Pulse

KILO

MEGA

Test Pulses

Comparator

Energy Pulses

Energy

Standard

Error

Results

FIGURE 7–3: Using the Watt-Hour Test Pulse

Refer to the Table below for the Wh/Pulse Constant for Accuracy Testing.

7.3.1

KYZ Pulse Constants

Table 7–2: Infrared & KYZ Pulse Constants for Accuracy Testing

Voltage Level

Below 150V

Above 150V

Class 10 Models

0.2505759630

1.0023038521

Class 2 Models

0.0501151926

0.2004607704

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 7–5

Note

WATT-HOUR ACCURACY TESTING (VERIFICATION)CHAPTER 7: USING THE SUBMETER

Minimum pulse width is 40 milliseconds.

Refer to chapter 2 for Wh Pulse Specifications.

7–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 7: USING THE SUBMETERUPGRADE THE SUBMETER USING SOFTWARE OPTIONS

Note

7.4

Upgrade the Submeter Using Software Options

The EPM6100 Meter can be equipped with a number of Software Options. These are virtual firmware-based switches that allow you to enable submeter features through communication.

This allows the unit to be upgraded to a higher model after installation, without removing the unit from service.

Available Software Option

 keys

Software Option 3: Volts, Amps, kW, kVAR, PF, kVA, Freq., kWh, kVAh, kVARh & DNP 3.0

Software Option 4: Volts, Amps, kW, kVAR, PF, kVA, Freq., kWh, kVAh, kVARh, %THD

Monitoring, Limit Exceeded Alarms & DNP.3.0

To change the Software Option

 key, follow these simple steps:

1.

Install Communicator EXT 3.0 in your computer.

2.

Set up the EPM6100 Meter to communicate with your computer (see Chapter 5); power up your submeter.

3.

Log on to Communicator EXT 3.0 software.

4.

Click on the Profile icon.

A set of screens appears.

5.

The first screen is the "Settings" screen.

6.

Click Change Software Option.

A small screen appears, that requests a code (shown here).

7.

Enter the code which GE provides.

8.

Click OK.

The Software Option

 key has been changed and the submeter resets.

For more details on software configuration, refer to the Communiator EXT 3.0 User Manual.

How do I get a Software Option

key?

Software Option

 keys are based on the particular serial number of the ordered submeter.

To obtain a higher Software Option key, you need to provide GE with the following information:

1. Serial Number or Numbers of the submeters for which you desire an upgrade.

2. Desired Software Option

 key upgrade.

3. Credit Card or Purchase Order Number.

Contact GE’s inside sales staff with the above information at xxxxxxxxxxxxxxxxxxxxxxxxxxxxx and GE will issue you the Upgrade Code.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 7–7

UPGRADE THE SUBMETER USING SOFTWARE OPTIONSCHAPTER 7: USING THE SUBMETER

7–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Chapter 8: Configuring the

EPM6100 with the

Front Panel

Configuring the EPM6100 with the Front Panel

8.1

Overview

Reading Type

Indicator

The EPM6100 Meter’s front panel can be used to configure the submeter.

Parameter

Designator

IrDA COMM

Port

% of Load Bar

FIGURE 8–1: EPM6100 Meter Label

The front panel has three MODES:

Operating Mode (Default),

Reset Mode and

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Watt-hour

Test Pulse

Scale

Selector

8–1

OVERVIEWCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

Configuration Mode.

The MENU, ENTER, DOWN and RIGHT buttons navigate through the MODES and navigate through all the SCREENS in each mode.

In this chapter, a typical set up is demonstrated. Other settings are possible. The complete

Navigation Map for the Display Modes is in Appendix A of this manual. The submeter can also be configured with software (see Communicator EXT 3.0 Manual).

8–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELSTART UP

8.2

Start Up

Upon Power Up, the submeter will display a sequence of screens. The sequence includes the following screens:

Lamp Test Screen where all LEDs are lighted

Lamp Test Screen where all digits are lighted

Firmware Screen showing build number

Error Screen (if an error exists)

The EPM6100 Meter will then automatically Auto- Scroll the Parameter Designators on the right side of the front panel. Values are displayed for each parameter.

The KILO or MEGA LED lights, showing the scale for the Wh, VARh and VAh readings.

An example of a Wh reading is shown here.

FIGURE 8–2: Wh Reading Detail

The meter will continue to scroll through the Parameter Designators, providing readings until one of the buttons on the front panel is pushed, causing the submeter to enter one of the other MODES.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–3

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

8.3

Configuration

8.3.1

Main Menu

Push MENU from any of the Auto-Scrolling Readings. The MAIN MENU Screens appear.

The String for Reset Mode (rSt) appears (blinking) in the A Screen.

If you push DOWN, the MENU scrolls and the String for Configuration Mode (CFG) appears

(blinking) in the A Screen.

If you push DOWN again, the String for Operating Mode (OPr) appears (blinking) in the A

Screen.

If you push DOWN again, the MENU scrolls back to Reset Mode (rSt).

If you push ENTER from the Main Menu, the submeter enters the Mode that is in the A

Screen and is blinking. See Appendix A for the Navigation Map.

8.3.2

Reset Mode

If you push ENTER from the Main Menu, the submeter enters the Mode that is in the A

Screen and is blinking. Reset Mode is the first mode to appear on the Main Menu. Push

ENTER while (rSt) is in the A Screen and the “RESET ALL? no” screen appears. Reset ALL

resets all Max and Min values. See Appendix A for Navigation Map.

8–4

If you push ENTER again, the Main Menu continues to scroll.

The DOWN button does not change the screen.

If you push the RIGHT button, the RESET All? YES: screen appears.

To Reset All, you must enter a 4-digit Password, if Enabled in the software.

Push ENTER; the following Password screen appears.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELCONFIGURATION

8.3.2.1 Enter Password (ONLY IF ENABLED IN SOFTWARE)

To enter a Password:

If PASSWORD is Enabled in the software (see Communicator EXT section 5.22 to Enable/

Change Password), a screen appears requesting the Password. PASS appears in the A

Screen and 4 dashes in the B Screen. The LEFT digit is flashing.

Use the DOWN button to scroll from 0 to 9 for the flashing digit. When the correct number appears for that digit, use the RIGHT button to move to the next digit.

Example: On the Password screens below:

On the left screen, four dashes appear and the left digit is flashing.

On the right screen, 2 digits have been entered and the third digit is flashing.

PASS or FAIL

When all 4 digits have been entered, push ENTER.

If the correct Password has been entered, “rSt ALL donE” appears and the screen returns to Auto-Scroll the Parameters. (In other Modes, the screen returns to the screen to be changed. The left digit of the setting is flashing and the Program (PRG) LED flashes on the left side of the submeter face.)

If an incorrect Password has been entered, “PASS ---- FAIL” appears and the screen returns to Reset ALL? YES.

8.3.3

Configuration Mode

The next Mode on the Main Menu is Configuration Mode. See Appendix A for Navigation

Map.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–5

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

To reach Configuration Mode, push the MENU Button from any of the Auto-Scrolling

Readings, then push the DOWN button to reach the String for Configuration Mode (CFG).

Push ENTER and the Configuration Parameters scroll, starting at the “SCROLL, Ct, Pt” screen.

Push the DOWN Button to scroll all the parameters: Scroll, CT, PT, Connection (Cnct) and

Port.

The ‘Active” parameter is in the A Screen and is flashing.

8.3.3.1 Configure Scroll Feature

Push ENTER and the Scroll no screen appears.

Push RIGHT and changes to Scroll YES.

8–6

When in Scroll Mode, the unit scrolls each parameter for 7 seconds on and 1 second off.

The submeter can be configured through software to display only selected screens. If that is the case, it will only scroll the selected display. Additionally, the submeter will only scroll the display enabled by the V-Switch that is installed.

Push ENTER (YES or no) and the screen scrolls to the Ct Parameters.

8.3.3.2 Program Configuration Mode Screens

To program the screens in Configuration Mode, other than SCROLL:

1.

Push DOWN or RIGHT button (Example Ct-n screen below).

2.

The Password screen appears, if Enabled (see section 5.22). Use the DOWN and RIGHT buttons to enter the PASSWORD. See section 8.3.2.1 for all Password steps.

Once the correct password is entered, push ENTER. The Ct-n screen reappears. The

Program (PRG) LED flashes on the left side of the submeter face.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELCONFIGURATION

The first digit of the setting will also flash.

3.

Use the DOWN button to change the digit.

Use the RIGHT Button to move to the next digit.

4.

When the new setting is entered, push MENU twice. The STORE ALL screen appears.

5.

Use the RIGHT Button to scroll from YES to no.

6.

While in STORE ALL YES, push ENTER to change the setting.

"Store All Done" appears.

Then, the submeter RESETS.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–7

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

8.3.3.3 Configure CT Setting

Push the DOWN Button to scroll all the parameters in Configuration Mode: Scroll, CT, PT,

Connection (Cnct) and Port. The ‘Active” parameter is in the A Screen and is flashing.

Push ENTER when CT is the ‘Active’ parameter and the Ct-n (Numerator) screen appears.

Push ENTER and the screen changes to Ct-d (Denominator).

The Ct-d screen is PRESET to a 5 or 1 Amp value at the factory and cannot be changed.

ENTER again changes the screen to Ct-S (Scaling). The Ct-S setting can be ‘1’, ‘10’ or ‘100’.

To program these settings (except Ct-d), see section 8.3.3.2 above.

Note

8–8

Example Settings:

200/5 Amps: Set the Ct-n value for 200 and the Ct-S value for 1.

800/5 Amps: Set the Ct-n value for 800 and the Ct-S value for 1.

2,000/5 Amps: Set the Ct-n value for 2000 and the Ct-S value for 1.

10,000/5 Amps: Set the Ct-n value for 1000 and the Ct-S value for 10.

The value for Amps is a product of the Ct-n value and the Ct-S value.

• Push ENTER and the screen scrolls through the other CFG parameters.

• Push DOWN or RIGHT and the Password screen appears (see section 8.3.2.1).

• Push MENU and you will return to the MAIN MENU.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

Note

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELCONFIGURATION

Ct-n and Ct-S are dictated by Primary Current.

Ct-d is Secondary Current.

Ct-d is FIXED to a 5 or 1 Amp Value.

8.3.3.4 Configure PT Setting

Push the DOWN Button to scroll all the parameters in Configuration Mode: Scroll, CT, PT,

Connection (Cnct) and Port. The ‘Active” parameter is in the A Screen and is flashing.

Push ENTER when PT is the ‘Active’ parameter and the Pt-n (Numerator) screen appears.

Push ENTER and the screen changes to Pt-d (Denominator).

ENTER again changes the screen to Pt-S (Scaling). The Pt-S setting can be ‘1’, ‘10’ or ‘100’.

To program any of these settings, see section 8.3.3.2 above.

Example Settings:

14,400/120 Volts: Pt-n value is 1440, Pt-d value is 120, Pt-S value is 10.

138,000/69 Volts: Pt-n value is 1380, Pt-d value is 69, Pt-S value is 100.

345,000/115Volts: Pt-n value is 3450, Pt-d value is 115, Pt-S value is 100.

345,000/69 Volts: Pt-n value is 345, Pt-d value is 69, Pt-S value is 1000.

• Push ENTER and the screen scrolls through the other CFG parameters.

• Push DOWN or RIGHT and the Password screen appears (see section 8.3.2.1).

• Push MENU and you will return to the MAIN MENU.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–9

Note

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

Pt-n and Pt-S are dictated by Primary Voltage.

Pt-d is Secondary Voltage.

8.3.3.5 Configure Connection (Cnct) Setting

Push the DOWN Button to scroll all the parameters in Configuration Mode: Scroll, CT, PT,

Connection (Cnct) and Port. The ‘Active” parameter is in the A Screen and is flashing.

Push ENTER when Cnct is the ‘Active’ parameter and the Connection screen appears for your submeter. To change this setting, use the RIGHT button to scroll through the three settings. Select the setting that is right for your submeter.

The possible Connection configurations include:

• 3 Element WYE

• 2.5 Element WYE

• 2 CT Delta

8–10

3-Element Wye 2.5-Element Wye

2 CT Delta

• Push ENTER and the screen scrolls through the other CFG parameters.

• Push DOWN or RIGHT and the Password screen appears (see section 8.3.2.1).

• Push MENU and you will return to the MAIN MENU.

8.3.3.6 Configure Communication Port Setting

Push the DOWN Button to scroll all the parameters in Configuration Mode: Scroll, CT, PT,

Connection (Cnct) and Port. The ‘Active” parameter is in the A Screen and is flashing.

Push ENTER when PORT is the ‘Active’ parameter and your submeter’s POrt screens appear.

To program the PORT screens, see section 8.3.3.2.

The possible PORT configurations include:

• Address (Adr) (Three digit number)

• BAUD (bAUd) 9600, 19.2, 38.4, 57.6

• Protocol (Prot): DNP 3.0 (dnP)

• Modbus (Mod) RTU (rtU)

• Modbus (Mod) ASCII (ASCI)

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELCONFIGURATION

The first PORT screen is Address (Adr)

Address 005

The current Address appears on the screen.

Follow the Programming steps in section 8.3.3.2 to change the Address.

The Baud Rate (bAUd) appears next. The current Baud Rate appears on the screen. To change the setting, follow the Programming steps in section 8.3.3.2. Possible screens appear below.

The Protocol (Prot) appears next. The current Protocol appears on the screen. To change the setting, follow the Programming steps in section 8.3.3.2. Possible screens appear below.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–11

Note

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

JP2 must be in positions 1-2 for RS485 or positions 2-3 for Ethernet. Refer to Chapter 5 of this manual, sections 5.1.2, 5.1.4, and 5.2.2 for related Communication instructions.

Baud Rate 9600 Baud Rate 19200

Baud Rate 38400 Baud Rate 57600

8–12

Modbus RTU Protocol

Modbus ASCII Protocol

DNP 3.0 Protocol

• Push ENTER and the screen scrolls through the other CFG parameters.

• Push DOWN or RIGHT and the Password screen appears (see section 8.3.2.1).

• Push MENU and you will return to the MAIN MENU.

8.3.4

Operating Mode

Operating Mode is the EPM6100 Meter’s Default Mode. After Start-Up, the submeter automatically scrolls through these parameter screens, if scrolling is enabled. The screen changes every 7 seconds. Scrolling is suspended for 3 minutes after any button is pressed.

Push the DOWN Button to scroll all the parameters in Operating Mode. The “Active” parameter has the Indicator light next to it on the right face of the submeter..

Push the RIGHT Button to view additional readings for that Parameter. A Table of the possible readings for Operating Mode is below.

See Appendix A (Sheet 2) for the Operating Mode Navigation Map.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANELCONFIGURATION

Note

Table 8–1: Operating Mode Parameter Readings

Parameter designator Available by THD Software

Option (see Order

Code table)

VOLTS L-N 0, THD VOLTS_LN

VOLTS L-L

AMPS

W/VAR/PF

VA/Hz

Wh

VARh

VAh

0, THD

0, THD

0, THD

VOLTS_LL

AMPS

W_VAR_PF

Possible Readings

VOLTS_LN_ MAX VOLTS_LN_ MIN

VOLTS_LL_ MAX VOLTS_LL_ MIN

AMPS_NEUTRAL AMPS_MAX

W_VAR_PF

_MAX_POS

W_VAR_PF

_MIN_POS

0, THD VA_FREQ

0, THD KWH_REC

VA_FREQ_ MAX

KWH_DEL

0, THD KVARH_ POS KVARH_ NEG

0, THD KVAH

VA_FREQ_ MIN

KWH_NET

KVARH_ NET

AMPS_MIN

W_VAR_PF

_MAX_NEG

KWH_TOT

KVARH_TOT

W_VAR_PF

_MIN_NEG

THD Option

Only

VOLTS_LN_ THD

AMPS_THD

Readings or Groups of readings are skipped if not applicable to the submeter type or hookup, or if explicitly disabled in the programmable settings.

Note

AMPS_NEUTRAL (Neutral Current) appears for Wye hookups only.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE 8–13

CONFIGURATIONCHAPTER 8: CONFIGURING THE EPM6100 WITH THE FRONT PANEL

8–14 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Appendix A: Navigation Maps for the EPM6100 Meter

Navigation Maps for the EPM6100 Meter

A.1 Introduction

The EPM6100 Meter can be configured and a variety of functions performed using the

Buttons on the meter face.

• An Overview of the Elements and Buttons on the meter face can be found in

Chapter 7.

• An Overview of Programming using the Buttons can be found in Chapter 8.

• The meter can also be programmed using software (see the Communicator EXT 3.0

User Manual).

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE A–1

NAVIGATION MAPS (SHEETS 1 TO 4)CHAPTER A: NAVIGATION MAPS FOR THE EPM6100 METER

Note

A.2 Navigation Maps (Sheets 1 to 4)

The EPM6100 Meter’s Navigation Maps begin on the next page.

They illustrate how to move from one screen to another, and from one Display Mode to another, using the buttons on the face of the meter.

After 10 minutes without user activity, the display automatically returns to Operating Mode

EPM6100 Meter Navigation map titles:

Main Menu Screens (Sheet 1)

Operating Mode Screens (Sheet 2)

Reset Mode Screens (Sheet 3)

Configuration Mode Screens (Sheet 4).

A–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER A: NAVIGATION MAPS FOR THE EPM6100 METERNAVIGATION MAPS (SHEETS 1 TO 4)

Main Menu Screens (Sheet 1)

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE A–3

NAVIGATION MAPS (SHEETS 1 TO 4)CHAPTER A: NAVIGATION MAPS FOR THE EPM6100 METER

Operating Mode Screens (Sheet 2)

A–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER A: NAVIGATION MAPS FOR THE EPM6100 METERNAVIGATION MAPS (SHEETS 1 TO 4)

Reset Mode Screens (Sheet 3)

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE A–5

NAVIGATION MAPS (SHEETS 1 TO 4)CHAPTER A: NAVIGATION MAPS FOR THE EPM6100 METER

Configuration Mode Screens (Sheet 4)

A–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Appendix B: Modbus Mapping for

EPM6100 Meter

Modbus Mapping for EPM6100 Meter

B.1

Introduction

The Modbus Map for the EPM6100 Meter gives details and information about the possible readings of the meter and about the programming of the meter. The EPM6100 Meter can be programmed using the buttons on the face plate of the meter (Chapter 8). The meter can also be programmed using software. For a Programming Overview, see section 5.2 of this manual. For further programming details, see the Communicator EXT 3.0 User Manual.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–1

MODBUS REGISTER MAP SECTIONSCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

B.2

Modbus Register Map Sections

The EPM6100 Meter's Modbus Register Map includes the following sections:

Fixed Data Section, Registers 1- 47, details the Meter’s Fixed Information described in

Section 8.2.

Meter Data Section, Registers 1000 - 5003, details the Meter’s Readings, including

Primary Readings, Energy Block, Demand Block, Maximum and Minimum Blocks, THD

Block, Phase Angle Block and Status Block. Operating Mode readings are described in

Section 8.3.4.

Commands Section, Registers 20000 - 26011, details the Meter’s Resets Block,

Programming Block,

Other Commands Block and Encryption Block.

Programmable Settings Section, Registers 30000 - 30067, details the Meter’s Basic

Setups.

Secondary Readings Section, Registers 40001 - 40100, details the Meter’s Secondary

Readings Setups.

B–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERDATA FORMATS

B.3

Data Formats

ASCII: ASCII characters packed 2 per register in high, low order and without any termination characters.

Example: “EPM6100” would be 4 registers containing 0x5378, 0x6172, 0x6B31,

0x3030.

SINT16/UINT16: 16-bit signed/unsigned integer.

SINT32/UINT32: 32-bit signed/unsigned integer spanning 2 registers. The lower-addressed register is the high order half.

FLOAT: 32-bit IEEE floating point number spanning 2 registers. The lower-addressed register is the high order half (i.e., contains the exponent).

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–3

FLOATING POINT VALUESCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

B.4

Floating Point Values

Floating Point Values are represented in the following format:

Register

Byte

Bit 7

Meaning s sign

0 1

0 1 0 1

6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 e e e e e e e e m m m m m m m m m m m m m m m m m m m m m m m exponent mantissa

The formula to interpret a Floating Point Value is: -1

sign

x 2

exponent-127

x 1.mantissa =

0x0C4E11DB9

-1

sign

x 2

137-127

x 1.11000010001110111001

-1 x 2

10

x 1.75871956

-1800.929

Note

Register

Byte

Bit 7

1

Meaning s sign

1

0x0C4E1 0x01DB9

0x0C4 0x0E1 0x01D 0x0B9

6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0

1 0 0 0 1 0 0 1 1 1 0 0 0 0 1 0 0 0 1 1 1 0 1 1 0 1 1 1 0 0 1 e e e e e e e e m m m m m m m m m m m m m m m m m m m m m m m exponent mantissa

0x089 = 137 0b11000010001110110111001

Formula Explanation

C4E11DB9 (hex) 11000100 11100001 00011101 10111001 (binary)

The sign of the mantissa (and therefore the number) is 1, which represents a negative value.

The Exponent is 10001001 (binary) or 137 decimal.

The Exponent is a value in excess 127. So, the Exponent value is 10.

The Mantissa is 11000010001110110111001 binary.

With the implied leading 1, the Mantissa is (1).C23B72 (hex).

The Floating Point Representation is therefore -1.75871956 times 2 to the 10.

Decimal equivalent: -1800.929

Exponent = the whole number before the decimal point.

Mantissa = the positive fraction after the decimal point.

B–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERMODBUS REGISTER MAP

B.5

Modbus Register Map

Hex Decimal

Table B –1: Modbus Register Map (Sheet 1 of 9)

Description

1

Format

Range

6

Units or

Resolution

Comments

Fixed Data Section

Identification Block

0000 - 0007 1

0008 - 000F 9

0010 - 0010 17

- 8

- 16

- 17

0011 - 0012 18

0013 - 0013 20

0014 - 0014 21

0015 - 0015 22

0016 - 0026 23

0027 - 002E 40

- 19

- 20

- 21

- 22

- 39

- 47

Meter Name ASCII 16 char

Meter Serial Number ASCII 16 char

Meter Type UINT16 bit-mapped

Firmware Version

Map Version

ASCII 4 char

UINT16 0 to 65535

Meter Configuration UINT16 bit-mapped

ASIC Version

Reserved

GE Part Number

UINT16 0-65535

ASCII 16 char

read-only

none none

-------t -----vvv t = transducer model (1=yes,

0=no), vvv =

THD (Software)

Option 0 or THD none none

-------- --ffffff ffffff = calibration frequency

(50 or 60)

1

2

1

1

8

8 none none

Block Size:

1

17

8

47

Primary Readings Block, 6 cycles (IEEE Floating

0383 - 0384 900 - 901 Watts, 3-Ph total

0385 - 0386 902 - 903 VARs, 3-Ph total

0387 - 0388 904 - 905 VAs, 3-Ph total

Meter Data Section

2

FLOAT -9999 M to +9999 M watts

FLOAT -9999 M to +9999 M VARs

FLOAT -9999 M to +9999 M VAs

Primary Readings Block, 60 cycles (IEEE Floating Point)

03E7 - 03E8 1000 - 1001 Volts A-N

03E9 - 03EA 1002 - 1003 Volts B-N

03EB - 03EC 1004 - 1005 Volts C-N

03ED - 03EE 1006 - 1007 Volts A-B

03EF - 03F0 1008 - 1009 Volts B-C

03F1 - 03F2 1010 - 1011 Volts C-A

03F3 - 03F4 1012 - 1013 Amps A

03F5 - 03F6 1014 - 1015 Amps B

03F7 - 03F8 1016 - 1017 Amps C

03F9 - 03FA 1018 - 1019 Watts, 3-Ph total

03FB - 03FC 1020 - 1021 VARs, 3-Ph total

03FD - 03FE 1022 - 1023 VAs, 3-Ph total

03FF - 0400 1024 - 1025 Power Factor, 3-Ph total

0401 - 0402 1026 - 1027 Frequency

0403 - 0404 1028 - 1029 Neutral Current

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 65.00

FLOAT 0 to 9999 M volts volts volts volts volts

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M volts amps amps amps

FLOAT -9999 M to +9999 M watts

FLOAT -9999 M to +9999 M VARs

FLOAT -9999 M to +9999 M VAs

FLOAT -1.00 to +1.00

none

Hz amps

Block Size: read-only

Block Size:

read-only

2

2

2

6

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

30

e g

#

R

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–5

MODBUS REGISTER MAPCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

Table B –1: Modbus Register Map (Sheet 2 of 9)

Hex Decimal

Description

1

Format

Range

6

Units or

Resolution

Comments

Primary Energy Block

044B - 044C 1100 - 1101 W-hours, Received

044D - 044E 1102 - 1103 W-hours, Delivered

044F - 0450 1104 - 1105 W-hours, Net

0451 - 0452 1106 - 1107 W-hours, Total

0453 - 0454 1108 - 1109 VAR-hours, Positive

SINT32 0 to 99999999 or

0 to -99999999

Wh per energy format

SINT32 0 to 99999999 or

0 to -99999999

Wh per energy format

SINT32 -99999999 to

99999999

SINT32 0 to 99999999

SINT32 0 to 99999999

Wh per energy format

Wh per energy format

VARh per energy format

* 5 to 8 digits

read-only

* Wh received & delivered always have opposite signs

* Wh received is positive for

"view as load", delivered is positive for "view as generator"

2

2

2

2

* decimal point implied, per energy format

2

0455 - 0456 1110 - 1111 VAR-hours, Negative SINT32 0 to -99999999

0457 - 0458 1112 - 1113 VAR-hours, Net

0459 - 045A 1114 - 1115 VAR-hours, Total

045B - 045C 1116 - 1117 VA-hours, Total

SINT32 -99999999 to

99999999

SINT32 0 to 99999999

SINT32 0 to 99999999

VARh per energy format

VARh per energy format

VARh per energy format

VAh per energy format

* resolution of digit before decimal point = units, kilo, or mega, per energy format

* see note 10

Block Size:

2

2

2

2

18

e g

#

R

Primary Demand Block (IEEE Floating Point)

07CF - 07D0 2000 - 2001 Amps A, Average

07D1 - 07D2 2002 - 2003 Amps B, Average

07D3 - 07D4 2004 - 2005 Amps C, Average

07D5 - 07D6 2006 - 2007 Positive Watts, 3-Ph,

Average

07D7 - 07D8 2008 - 2009 Positive VARs, 3-Ph,

Average

07D9 - 07DA 2010 - 2011 Negative Watts, 3-Ph,

Average

07DB - 07DC 2012 - 2013 Negative VARs, 3-Ph,

Average

07DD - 07DE 2014 - 2015 VAs, 3-Ph, Average

07DF - 07E0 2016 - 2017 Positive PF, 3-Ph,

Average

07E1 - 07E2 2018 - 2019 Negative PF, 3-PF,

Average

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M amps amps

FLOAT 0 to 9999 M amps

FLOAT -9999 M to +9999 M watts

FLOAT -9999 M to +9999 M VARs

FLOAT -9999 M to +9999 M watts

FLOAT -9999 M to +9999 M VARs

FLOAT -9999 M to +9999 M VAs

FLOAT -1.00 to +1.00

none

FLOAT -1.00 to +1.00

none

Block Size:

read-only

2

2

2

2

2

2

2

2

2

2

20

Primary Minimum Block (IEEE Floating Point)

0BB7 - 0BB8 3000 - 3001 Volts A-N, Minimum FLOAT 0 to 9999 M

0BB9 - 0BBA 3002 - 3003 Volts B-N, Minimum FLOAT 0 to 9999 M

0BBB - 0BBC 3004 - 3005 Volts C-N, Minimum FLOAT 0 to 9999 M

0BBD - 0BBE 3006 - 3007 Volts A-B, Minimum FLOAT 0 to 9999 M

0BBF - 0BC0 3008 - 3009 Volts B-C, Minimum FLOAT 0 to 9999 M

0BC1 - 0BC2 3010 - 3011 Volts C-A, Minimum FLOAT 0 to 9999 M

0BC3 - 0BC4 3012 - 3013 Amps A, Minimum Avg

Demand

0BC5 - 0BC6 3014 - 3015 Amps B, Minimum Avg

Demand

0BC7 - 0BC8 3016 - 3017 Amps C, Minimum Avg

Demand

0BC9 - 0BCA 3018 - 3019 Positive Watts, 3-Ph,

Minimum Avg Demand

0BCB - 0BCC 3020 - 3021 Positive VARs, 3-Ph,

Minimum Avg Demand

0BCD - 0BCE 3022 - 3023 Negative Watts, 3-Ph,

Minimum Avg Demand

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to +9999 M

FLOAT 0 to +9999 M

FLOAT 0 to +9999 M volts volts volts volts volts volts amps amps amps watts

VARs watts

read-only

2

2

2

2

2

2

2

2

2

2

2

2

B–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERMODBUS REGISTER MAP

Table B –1: Modbus Register Map (Sheet 3 of 9)

Hex Decimal

Description

1

Format

Range

6

Units or

Resolution

0BCF - 0BD0 3024 - 3025 Negative VARs, 3-Ph,

Minimum Avg Demand

0BD1 - 0BD2 3026 - 3027 VAs, 3-Ph, Minimum

Avg Demand

0BD3 - 0BD4 3028 - 3029 Positive Power Factor,

3-Ph, Minimum Avg

Demand

0BD5 - 0BD6 3030 - 3031 Negative Power Factor,

FLOAT 0 to +9999 M

FLOAT -9999 M to +9999 M

FLOAT -1.00 to +1.00

FLOAT -1.00 to +1.00

3-Ph, Minimum Avg

Demand

0BD7 - 0BD8 3032 - 3033 Frequency, Minimum FLOAT 0 to 65.00

VARs

VAs none none

Hz

Comments

Block Size:

Primary Maximum Block (IEEE Floating Point)

0C1B - 0C1C 3100 - 3101 Volts A-N, Maximum FLOAT 0 to 9999 M

0C1D - 0C1E 3102 - 3103 Volts B-N, Maximum FLOAT 0 to 9999 M

0C1F - 0C20 3104 - 3105 Volts C-N, Maximum FLOAT 0 to 9999 M

0C21 - 0C22 3106 - 3107 Volts A-B, Maximum FLOAT 0 to 9999 M volts volts volts volts

0C23 - 0C24 3108 - 3109 Volts B-C, Maximum FLOAT 0 to 9999 M

0C25 - 0C26 3110 - 3111 Volts C-A, Maximum FLOAT 0 to 9999 M volts volts

0C27 - 0C28 3112 - 3113 Amps A, Maximum Avg

Demand

0C29 - 0C2A 3114 - 3115 Amps B, Maximum Avg

Demand

0C2B - 0C2C 3116 - 3117 Amps C, Maximum Avg

Demand

0C2D - 0C2E 3118 - 3119 Positive Watts, 3-Ph,

Maximum Avg

Demand

0C2F - 0C30 3120 - 3121 Positive VARs, 3-Ph,

Maximum Avg

Demand

0C31 - 0C32 3122 - 3123 Negative Watts, 3-Ph,

Maximum Avg

Demand

0C33 - 0C34 3124 - 3125 Negative VARs, 3-Ph,

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to 9999 M

FLOAT 0 to +9999 M

FLOAT 0 to +9999 M

FLOAT 0 to +9999 M amps amps amps watts

VARs watts

Maximum Avg

Demand

0C35 - 0C36 3126 - 3127 VAs, 3-Ph, Maximum

Avg Demand

0C37 - 0C38 3128 - 3129 Positive Power Factor,

3-Ph, Maximum Avg

Demand

0C39 - 0C3A 3130 - 3131 Negative Power Factor,

FLOAT 0 to +9999 M

FLOAT -9999 M to +9999 M

FLOAT -1.00 to +1.00

FLOAT -1.00 to +1.00

3-Ph, Maximum Avg

Demand

0C3B - 0C3C 3132 - 3133 Frequency, Maximum FLOAT 0 to 65.00

VARs

VAs none none

Hz

Block Size:

read-only

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

34

2

2

34

2

2

2

e g

#

R

THD Block

7, 13

0F9F - 0F9F 4000 - 4000 Volts A-N, %THD

0FA0 - 0FA0 4001 - 4001 Volts B-N, %THD

0FA1 - 0FA1 4002 - 4002 Volts C-N, %THD

0FA2 - 0FA2 4003 - 4003 Amps A, %THD

0FA3 - 0FA3 4004 - 4004 Amps B, %THD

0FA4 - 0FA4 4005 - 4005 Amps C, %THD

0FA5 - 0FA5 4006 - 4006 Phase A Current 0th harmonic magnitude

0FA6 - 0FA6 4007 - 4007 Phase A Current 1st harmonic magnitude

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 9999, or 65535 0.1%

UINT16 0 to 65535 none

UINT16 0 to 65535 none

read-only

1

1

1

1

1

1

1

1

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–7

MODBUS REGISTER MAPCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

Table B –1: Modbus Register Map (Sheet 4 of 9)

Hex Decimal

Description

1

Format

Range

6

Units or

Resolution

Comments

0FA7 - 0FA7 4008 - 4008 Phase A Current 2nd harmonic magnitude

0FA8 - 0FA8 4009 - 4009 Phase A Current 3rd harmonic magnitude

0FA9 - 0FA9 4010 - 4010 Phase A Current 4th harmonic magnitude

0FAA - 0FAA 4011 - 4011 Phase A Current 5th harmonic magnitude

0FAB - 0FAB 4012 - 4012 Phase A Current 6th harmonic magnitude

0FAC - 0FAC 4013 - 4013 Phase A Current 7th harmonic magnitude

0FAD - 0FAD 4014 - 4014 Phase A Voltage 0th harmonic magnitude

0FAE - 0FAE 4015 - 4015 Phase A Voltage 1st harmonic magnitude

0FAF - 0FAF 4016 - 4016 Phase A Voltage 2nd harmonic magnitude

0FB0 - 0FB0 4017 - 4017 Phase A Voltage 3rd harmonic magnitude

0FB1 - 0FB8 4018 - 4025 Phase B Current

0FB9 - 0FBC 4026 - 4029 Phase B Voltage

0FBD - 0FC4 4030 - 4037 Phase C Current

0FC5 - 0FC8 4038 - 4041 Phase C Voltage

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535

UINT16 0 to 65535 none none none none none none none none

UINT16 0 to 65535

UINT16 0 to 65535 none none same as Phase A Current 0th to 7th harmonic magnitudes same as Phase A Voltage 0th to 3rd harmonic magnitudes same as Phase A Current 0th to 7th harmonic magnitudes same as Phase A Voltage 0th to 3rd harmonic magnitudes

Block Size:

Phase Angle Block

14

1003 - 1003 4100 - 4100 Phase A Current

1004 - 1004 4101 - 4101 Phase B Current

1005 - 1005 4102 - 4102 Phase C Current

1006 - 1006 4103 - 4103 Angle, Volts A-B

1007 - 1007 4104 - 4104 Angle, Volts B-C

1008 - 1008 4105 - 4105 Angle, Volts C-A

SINT16 -1800 to +1800

SINT16 -1800 to +1800

SINT16 -1800 to +1800

SINT16 -1800 to +1800

SINT16 -1800 to +1800

SINT16 -1800 to +1800

0.1 degree

0.1 degree

0.1 degree

0.1 degree

0.1 degree

0.1 degree

Block Size:

read-only

1

1

1

1

1

1

6

1

1

1

1

1

1

1

e g

#

R

1

1

1

8

4

8

4

42

Status Block

1387 - 1387 5000 - 5000 Meter Status UINT16 bit-mapped --exnpch ssssssss

1388 - 1388 5001 - 5001 Limits Status

7

1389 - 138A 5002 - 5003 Time Since Reset

UINT16 bit-mapped

UINT32 0 to 4294967294

87654321

87654321

4 msec

read-only

exnpch = EEPROM block OK flags (e=energy, x=max, n=min, p=programmable settings, c=calibration, h=header), ssssssss = state (1=Run,

2=Limp, 10=Prog Set

Update via buttons,

11=Prog Set Update via

IrDA, 12=Prog Set Update via COM2) high byte is setpt 1, 0=in,

1=out low byte is setpt 2, 0=in,

1=out wraps around after max count

Block Size:

1

1

2

4

Commands Section

4

Resets Block

9

4E1F - 4E1F 20000 - 20000 Reset Max/Min Blocks UINT16 password

5

4E20 - 4E20 20001 - 20001 Reset Energy

Accumulators

UINT16 password

5

write-only

1

1

B–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERMODBUS REGISTER MAP

Hex Decimal

Table B –1: Modbus Register Map (Sheet 5 of 9)

Description

1

Meter Programming Block

55EF - 55EF 22000 - 22000 Initiate Programmable

Settings Update

55F0 - 55F0 22001 - 22001 Terminate

Programmable

Settings Update

3

55F1 - 55F1 22002 - 22002 Calculate

Programmable

Settings Checksum

3

55F2 - 55F2 22003 - 22003 Programmable

Settings Checksum

3

UINT16 password

UINT16 any value

UINT16

UINT16

5

55F3 - 55F3 22004 - 22004 Write New Password

3

UINT16 0000 to 9999

59D7 - 59D7 23000 - 23000 Initiate Meter

Firmware

Reprogramming

Format

Range

6

UINT16 password

5

Units or

Resolution

Comments

Block Size:

read/conditional write

meter enters PS update mode meter leaves PS update mode via reset

1

1 meter calculates checksum on RAM copy of PS block

1 read/write checksum register; PS block saved in

EEPROM on write

8 write-only register; always reads zero

1

1

1

2

e g

#

R

Other Commands Block

61A7 - 61A7 25000 - 25000 Force Meter Restart UINT16 password

5

Block Size: 6

read/write

causes a watchdog reset, always reads 0

1

Block Size: 1

Encryption Block

658F - 659A 26000 - 26011 Perform a Secure

Operation

UINT16

read/write

encrypted command to read password or change meter type

Block Size:

12

12

Basic Setups Block

Programmable Settings Section (See note 15)

752F - 752F 30000 - 30000 CT multiplier & denominator

7530 - 7530 30001 - 30001 CT numerator

7531 - 7531 30002 - 30002 PT numerator

UINT16 1 to 9999

UINT16 1 to 9999

7532 - 7532 30003 - 30003 PT denominator UINT16 1 to 9999

7533 - 7533 30004 - 30004 PT multiplier & hookup UINT16 bit-mapped

7534 - 7534 30005 - 30005 Averaging Method

UINT16 bit-mapped

UINT16 bit-mapped dddddddd mmmmmmmm none none none mmmmmmmm

MMMMhhhh

--iiiiii b----sss

write only in PS update mode

high byte is denominator (1 or 5, read-only), low byte is multiplier (1, 10, or 100)

1

MMMMmmmmmmmm is

PT multiplier (1, 10, 100,

1000), hhhh is hookup enumeration (0 = 3 element wye[9S], 1 = delta 2 CTs[5S],

3 = 2.5 element wye[6S]) iiiiii = interval (5,15,30,60) b = 0-block or 1-rolling sss = # subintervals (1,2,3,4)

1

1

1

1

1

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–9

MODBUS REGISTER MAPCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

Hex Decimal

Table B –1: Modbus Register Map (Sheet 6 of 9)

Description

1

7535 - 7535 30006 - 30006 Power & Energy

Format

Format

Range

6

UINT16 bit-mapped

Units or

Resolution

pppp--nn -eeeddd

Comments

pppp = power scale (0-unit,

3-kilo, 6-mega, 8-auto) nn = number of energy digits (5-8 --> 0-3) eee = energy scale (0-unit,

3-kilo, 6-mega) ddd = energy digits after decimal point (0-6)

See note 10.

1

e g

#

R

7536 - 7536 30007 - 30007 Operating Mode

Screen Enables

7537 - 753D 30008 - 30014 Reserved

753E - 753E 30015 - 30015 User Settings Flags

753F - 753F 30016 - 30016 Full Scale Current (for load % bargraph)

UINT16 bit-mapped

UINT16 bit-mapped

UINT16 0 to 9999

7540 - 7547 30017 - 30024 Meter Designation

7548 - 7548 30025 - 30025 COM1 setup

7549 - 7549 30026 - 30026 COM2 setup

ASCII 16 char

UINT16 bit-mapped

UINT16 bit-mapped

754A - 754A 30027 - 30027 COM2 address

754B - 754B 30028 - 30028 Limit #1 Identifier

754C - 754C 30029 - 30029 Limit #1 Out High

Setpoint

754D - 754D 30030 - 30030 Limit #1 In High

Threshold

UINT16 1 to 247

UINT16 0 to 65535

SINT16 -200.0 to +200.0

SINT16 -200.0 to +200.0

754E - 754E 30031 - 30031 Limit #1 Out Low

Setpoint

SINT16 -200.0 to +200.0

00000000 eeeeeeee eeeeeeee = op mode screen rows on(1) or off(0), rows top to bottom are bits low order to high order

1

7

1 ---g--nn srp--wf- g = enable alternate full scale bargraph current

(1=on, 0=off) nn = number of phases for voltage & current screens

(3=ABC, 2=AB, 1=A, 0=ABC) s = scroll (1=on, 0=off) r = password for reset in use

(1=on, 0=off) p = password for configuration in use (1=on,

0=off) w = pwr dir (0-view as load,

1-view as generator) f = flip power factor sign

(1=yes, 0=no) none none

----dddd -

0100110

----dddd -pppbbb none

If non-zero and user settings bit g is set, this value replaces CT numerator in the full scale current calculation.

1 dddd = reply delay (* 50 msec) ppp = protocol (1-Modbus

RTU, 2-Modbus ASCII, 3-

DNP) bbb = baud rate (1-9600, 2-

19200, 4-38400, 6-57600)

1 use Modbus address as the identifier (See notes 7, 11,

1

1

8

1

0.1% of full scale Setpoint for the "above" limit (LM1), see notes 11-12.

1

0.1% of full scale Threshold at which "above" limit clears; normally less than or equal to the "above" setpoint; see notes 11-12.

1

0.1% of full scale Setpoint for the "below" limit (LM2), see notes 11-12.

1

B–10 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERMODBUS REGISTER MAP

Hex Decimal

Table B –1: Modbus Register Map (Sheet 7 of 9)

Description

1

754F - 754F 30032 - 30032 Limit #1 In Low

Threshold

Format

Range

6

SINT16 -200.0 to +200.0

Units or

Resolution

Comments

0.1% of full scale Threshold at which "below" limit clears; normally greater than or equal to the

"below" setpoint; see notes

11-12.

1

e g

#

R

7550 - 7554 30033 - 30037 Limit #2

7555 - 7559 30038 - 30042 Limit #3

755A - 755E 30043 - 30047 Limit #4

755F - 7563 30048 - 30052 Limit #5

7564 - 7568 30053 - 30057 Limit #6

7569 - 756D 30058 - 30062 Limit #7

756E - 7572 30063 - 30067 Limit #8

SINT16 same as Limit #1

SINT16

SINT16

SINT16

SINT16

SINT16

SINT16 same as Limit #1 same as Limit #1

Block Size:

5

5

5

5

5

5

5

68

12-Bit Readings Section

12-Bit Block

9C40 - 9C40 40001 - 40001 System Sanity

Indicator

9C41 - 9C41 40002 - 40002 Volts A-N

9C42 - 9C42 40003 - 40003 Volts B-N

9C43 - 9C43 40004 - 40004 Volts C-N

9C44 - 9C44 40005 - 40005 Amps A

9C45 - 9C45 40006 - 40006 Amps B

9C46 - 9C46 40007 - 40007 Amps C

9C47 - 9C47 40008 - 40008 Watts, 3-Ph total

9C48 - 9C48 40009 - 40009 VARs, 3-Ph total

9C49 - 9C49 40010 - 40010 VAs, 3-Ph total

9C4A - 9C4A 40011 - 40011 Power Factor, 3-Ph total

9C4B - 9C4B 40012 - 40012 Frequency

UINT16 0 or 1

UINT16 2047 to 4095

UINT16 2047 to 4095

UINT16 2047 to 4095

UINT16 0 to 4095

UINT16 0 to 4095

UINT16 0 to 4095

UINT16 0 to 4095

UINT16 0 to 4095

UINT16 2047 to 4095

UINT16 1047 to 3047

UINT16 0 to 2730

9C4C - 9C4C 40013 - 40013 Volts A-B

9C4D - 9C4D 40014 - 40014 Volts B-C

9C4E - 9C4E 40015 - 40015 Volts C-A

9C4F - 9C4F 40016 - 40016 CT numerator

9C50 - 9C50 40017 - 40017 CT multiplier

9C51 - 9C51 40018 - 40018 CT denominator

9C52 - 9C52 40019 - 40019 PT numerator

9C53 - 9C53 40020 - 40020 PT multiplier

9C54 - 9C54 40021 - 40021 PT denominator

9C55 - 9C56 40022 - 40023 W-hours, Positive

9C57 - 9C58 40024 - 40025 W-hours, Negative

UINT16 2047 to 4095

UINT16 2047 to 4095

UINT16 2047 to 4095

UINT16 1 to 9999

UINT16 1, 10, 100

UINT16 1 or 5

UINT16 1 to 9999

UINT16 1, 10, 100

UINT16 1 to 9999

UINT32 0 to 99999999

UINT32 0 to 99999999

9C59 - 9C5A 40026 - 40027 VAR-hours, Positive UINT32 0 to 99999999

9C5B - 9C5C 40028 - 40029 VAR-hours, Negative UINT32 0 to 99999999

9C5D - 9C5E 40030 - 40031 VA-hours

9C5F - 9C5F 40032 - 40032 Neutral Current

9C60 - 9CA2 40033 - 40099 Reserved

UINT32 0 to 99999999

UINT16 0 to 4095

N/A N/A volts volts volts amps amps amps watts none

VARs

VAs none

Hz volts volts volts none none none none none none

Wh per energy format

Wh per energy format

VARh per energy format

VARh per energy format

* resolution of digit before decimal point = units, kilo, or mega, per energy format

2

2

VAh per energy format amps none

read-only except as noted

0 indicates proper meter operation

2047= 0, 4095= +150

1 volts = 150 * (register -

2047) / 2047

1

0= -10, 2047= 0, 4095= +10 1

1

1 amps = 10 * (register - 2047)

/ 2047

1

1

0= -3000, 2047= 0, 4095=

+3000 watts, VARs, VAs =

1

1

3000 * (register - 2047) / 1

1047= -1, 2047= 0, 3047=

+1 pf =

(register - 2047) / 1000

0= 45 or less, 2047= 60,

2730= 65 or more freq = 45 + ((register / 4095)

* 30)

2047= 0, 4095= +300

1

1

1 volts = 300 * (register -

2047) / 2047

1

1

CT = numerator * multiplier

/ denominator

PT = numerator * multiplier

/ denominator

* 5 to 8 digits

* decimal point implied, per energy format

2

* see note 10 see Amps A/B/C above

1

1

1

1

1

1

2

2

1

67

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–11

MODBUS REGISTER MAPCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

Table B –1: Modbus Register Map (Sheet 8 of 9)

Hex Decimal

Description

1

9CA3 - 9CA3 40100 - 40100 Reset Energy

Accumulators

Format

Range

6

UINT16 password

5

Units or

Resolution

Comments

write-only register; always reads as 0

Block Size:

1

e g

#

R

100

Data Formats

ASCII ASCII characters packed 2 per register in high, low order and without any termination characters.

SINT16 / UINT16

SINT32 / UINT32

FLOAT

16-bit signed / unsigned integer.

32-bit signed / unsigned integer spanning 2 registers. The lower-addressed register is the high order half.

32-bit IEEE floating point number spanning 2 registers. The lower-addressed register is the high order half (i.e.,

Notes

1 All registers not explicitly listed in the table read as 0. Writes to these registers will be accepted but won't actually change the register (since it doesn't exist).

2 Meter Data Section items read as 0 until first readings are available or if the meter is not in operating mode. Writes to these registers will be accepted but won't actually change the register.

3 Register valid only in programmable settings update mode. In other modes these registers read as 0 and return an illegal data address exception if a write is attempted.

4 Meter command registers always read as 0. They may be written only when the meter is in a suitable mode. The registers return an illegal data address exception if a write is attempted in an incorrect mode.

5 If the password is incorrect, a valid response is returned but the command is not executed. Use 5555 for the password if passwords are disabled in the programmable settings.

6 M denotes a 1,000,000 multiplier.

7 Not applicable to EPM6000, THD (Software) Option 0

8 Writing this register causes data to be saved permanently in EEPROM. If there is an error while saving, a slave device failure exception is returned and programmable settings mode automatically terminates via reset.

9 Reset commands make no sense if the meter state is LIMP. An illegal function exception will be returned.

10 Energy registers should be reset after a format change.

11 Entities to be monitored against limits are identified by Modbus address. Entities occupying multiple Modbus registers, such as floating point values, are identified by the lower register address. If any of the 8 limits is unused, set its identifier to zero. If the indicated Modbus register is not used or is a nonsensical entity for limits, it will behave as an unused limit.

12 There are 2 setpoints per limit, one above and one below the expected range of values. LM1 is the "too high" limit, LM2 is "too low"

The entity goes "out of limit" on LM1 when its value is greater than the setpoint. It remains "out of limit" until the value drops below the in threshold. LM2 works similarly, in the opposite direction. If limits in only one direction are of interest, set the in threshold on the "wrong" side of the setpoint. Limits are specified as % of full scale, where full scale is automatically set appropriately for the entity being monitored: curren FS = CT numerator * t CT multiplier voltag FS = PT numerator * e PT multiplier

FS = CT numerator *

CT multiplier * PT numerator * PT multiplier * 3 [ *

SQRT(3) for delta power hookup] freque ncy FS = 60 (or 50) power FS = 1.0

factor

B–12 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER B: MODBUS MAPPING FOR EPM6100 METERMODBUS REGISTER MAP

Table B –1: Modbus Register Map (Sheet 9 of 9)

Hex Decimal

Description

1

Format

Range

6

Units or

Resolution

Comments

perce ntage FS = 100.0

angle FS = 180.0

13 THD not available shows 65535 (=0xFFFF) in all THD and harmonic magnitude registers for the channel when the THD (Software)

Option =THD. THD may be unavailable due to low V or I amplitude, or delta hookup (V only).

e g

#

R

14 All 3 voltage angles are measured for Wye and Delta hookups. For 2.5 Element, Vac is measured and Vab & Vbc are calculated. If a voltage phase is missing, the two voltage angles in which it participates are set to zero. A and C phase current angles are measured for all hookups. B phase current angle is measured for Wye and is zero for other hookups. If a voltage phase is missing, its current angle is zero.

15 If any register in the programmable settings section is set to a value other than the acceptable value then the meter will stay in LIMP mode. Please read the comments section or the range for each register in programmable settings section for acceptable.

16 If the THD (Software) Option is THD and protocol (ppp) is set to 3 (DNP) then meter will use the MODBUS RTU protocol as DNP is supported by THD (Software) Option THD.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE B–13

MODBUS REGISTER MAPCHAPTER B: MODBUS MAPPING FOR EPM6100 METER

B–14 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Appendix C: DNP Mapping for

EPM6100 Meter

DNP Mapping for EPM6100 Meter

C.1

Introduction

The DNP Map for the EPM6100 Meter shows the client-server relationship in its use of DNP

Protocol.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE C–1

DNP MAPPING (DNP-1 TO DNP-2)CHAPTER C: DNP MAPPING FOR EPM6100 METER

C.2

DNP Mapping (DNP-1 to DNP-2)

The EPM6100 Meter's DNP Point Map begins on the third page of this chapter.

Binary Output States, Control Relay Outputs, Binary Counters (Primary) and Analog

Inputs are described on Pages 1 and 2.

Internal Indication is described on Page 2.

Object Point Var Description Format

Binary Output States

10

10

0

1

2

2

Reset Energy Counters BYTE

Change to Modbus RTU

Protocol

BYTE

Range

Always 1

Always 1

N/A

N/A

Multiplier Units

none none

Comments

Read via Class 0 only

Control Relay Outputs

12 0 1 Reset Energy Counters N/A N/A

12 1 1 Change to Modbus RTU

Protocol

N/A N/A

N/A

N/A none none

Responds to Function 5

(Direct Operate), Qualifier

Code 17x or 28x, Control

Code 3, Count 0, On 0 msec,

Responds to Function 6

(Direct Operate - No Ack),

Qualifier Code 17x, Control

Code 3, Count 0, On 0 msec,

Binary Counters (Primary)

20

20

20

20

20

0

1

2

3

4

4

4

4

4

4

W-hours, Positive

W-hours, Negative

VAR-hours, Positive

VAR-hours, Negative

VA-hours, Total

UINT32

UINT32

0 to 99999999

0 to 99999999

UINT32 0 to 99999999

UINT32 0 to 99999999

UINT32 0 to 99999999 multiplier = 10

(nd)

, where n and d are derived from the energy format. n = 0, 3, or 6 per energy format scale and d = number of decimal places.

W hr

W hr

VAR hr

VAR hr

VA hr

Read via Class 0 only example: energy format = 7.2K and Whours counter = 1234567 n=3 (K scale), d=2 ( 2 digits after decimal point), multiplier = 10

(3-2)

= 10

1

= 10, so energy is 1234567 * 10

Whrs, or 12345.67 KWhrs

30

30

30

30

Analog Inputs (Secondary)

30 0 5 Meter Health

30

30

30

1

2

3

5

5

5

Volts A-N

Volts B-N

Volts C-N

6

7

4

5

5

5

5

5

Volts A-B

Volts B-C

Volts C-A

Amps A

30

30

8

9

5

5

Amps B

Amps C

SINT16 0 or 1

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

SINT16 0 to 32767

N/A none

(150 / 32768) V

(150 / 32768) V

(150 / 32768) V

(300 / 32768) V

(300 / 32768) V

(300 / 32768) V

(10 / 32768) A

(10 / 32768)

(10 / 32768)

A

A

Read via Class 0 only

0 = OK

Values above 150V secondary read 32767.

Values above 300V secondary read 32767.

Values above 10A secondary read 32767.

C–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER C: DNP MAPPING FOR EPM6100 METERDNP MAPPING (DNP-1 TO DNP-2)

30

30

30

30

30

30

30

30

Object Point Var

30 10 5

30

30

11

12

5

5

13

14

15

5

5

5

30

30

30

30

30

30

30

30

30

30

30

30

16

17

18

19

20

21

22

23

24

25

26

27

5

5

5

5

5

5

5

5

5

5

5

5

Description

Watts, 3-Ph total

VARs, 3-Ph total

VAs, 3-Ph total

Format Range Multiplier

SINT16 -32768 to +32767 (4500 / 32768) W

Units

SINT16 -32768 to +32767 (4500 / 32768) VAR

SINT16 0 to +32767 (4500 / 32768) VA

Power Factor, 3-Ph total SINT16 -1000 to +1000 0.001

Frequency SINT16 0 to 9999 0.01

Positive Watts, 3-Ph,

Maximum Avg Demand none

Hz

SINT16 -32768 to +32767 (4500 / 32768) W

Positive VARs, 3-Ph,

Maximum Avg Demand

SINT16 -32768 to +32767 (4500 / 32768) VAR

Negative Watts, 3-Ph,

Maximum Avg Demand

SINT16 -32768 to +32767 (4500 / 32768) W

Negative VARs, 3-Ph,

Maximum Avg Demand

SINT16 -32768 to +32767 (4500 / 32768) VAR

VAs, 3-Ph, Maximum

Avg Demand

SINT16 -32768 to +32767 (4500 / 32768)

Angle, Phase A Current SINT16 -1800 to +1800 0.1

Angle, Phase B Current SINT16 -1800 to +1800 0.1

Angle, Phase C Current SINT16 -1800 to +1800 0.1

Angle, Volts A-B SINT16 -1800 to +1800 0.1

Angle, Volts B-C SINT16 -1800 to +1800 0.1

Angle, Volts C-A

CT numerator

CT multiplier

SINT16

SINT16

SINT16

-1800 to +1800

1 to 9999

1, 10, or 100

0.1

N/A

N/A

VA degree degree degree degree degree degree none none

28

29

30

31

32

5

5

5

5

5

CT denominator

PT numerator

PT multiplier

PT denominator

Neutral Current

SINT16

SINT16

SINT16

SINT16

SINT16

1 or 5

1 to 9999

1, 10, or 100

1 to 9999

0 to 32767

N/A

N/A

N/A

N/A

(10 / 32768) none none none none

A

Comments

CT ratio =

(numerator * multiplier) / denominator

PT ratio =

(numerator * multiplier) / denominator

For 1A model, multiplier is (2 /

32768) and values above 2A secondary read 32767.

Internal Indication

80 0 1 Device Restart Bit N/A N/A N/A none Clear via Function 2 (Write),

Qualifier Code 0.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE C–3

DNP MAPPING (DNP-1 TO DNP-2)CHAPTER C: DNP MAPPING FOR EPM6100 METER

C–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Appendix D: DNP 3.0 Protocol

Assignments for

EPM6100 Meter

DNP 3.0 Protocol Assignments for EPM6100 Meter

D.1 DNP Implementation

Physical Layer

The EPM6100 Meter is capable of using RS485 as the physical layer. This is accomplished by connecting a PC to the EPM6100 Meter with the RS485 connection on the face of the submeter.

RS485

RS485 provides multi-drop network communication capabilities. Multiple submeters may be placed on the same bus, allowing for a Master device to communicate with any of the other devices.

Appropriate network configuration and termination should be evaluated for each installation to insure optimal performance.

Communication Parameters

EPM6100 Meters communicate in DNP 3.0 using the following communication settings:

• 8 Data Bits

• No Parity

• 1 Stop Bit

Baud Rates

EPM6100 Meters are programmable to use several standard baud rates, including:

• 9600 Baud

• 19200 Baud

• 38400 Baud

• 57600 Baud

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE D–1

DATA LINK LAYERCHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METER

D.2 Data Link Layer

The Data Link Layer as implemented on EPM6100 submeters is subject to the following considerations:

Control Field

The Control Byte contains several bits and a Function Code. Specific notes follow.

Control Bits

Communication directed to the submeter should be Primary Master messages (DIR =

1, PRM = 1).

Response will be primary Non-Master messages (DIR = 0, PRM = 1). Acknowledgment will be Secondary Non-Master messages (DIR = 0, PRM = 0).

Function Codes

EPM6100 Meters support all of the Function Codes for DNP 3.0. Specific notes follow.

Reset of Data Link (Function 0)

Before confirmed communication with a master device, the Data Link Layer must be reset. This is necessary after a submeter has been restarted, either by applying power to the submeter or reprogramming the submeter. The submeter must receive a RESET command before confirmed communication may take place. Unconfirmed communication is always possible and does not require a RESET.

User Data (Function 3)

After receiving a request for USER DATA, the submeter will generate a Data Link

CONFIRMATION, signaling the reception of that request, before the actual request is processed. If a response is required, it will also be sent as UNCONFIRMED USER DATA.

Unconfirmed User Data (Function 4)

After receiving a request for UNCONFIRMED USER DATA, if a response is required, it will be sent as UNCONFIRMED USER DATA.

Address

DNP 3.0 allows for addresses from 0 - 65534 (0x0000 - 0xFFFE) for individual device identification, with the address 65535 (0xFFFF) defined as an all stations address.

EPM6100 submeters' addresses are programmable from 0 - 247 (0x0000 - 0x00F7) and will recognize address 65535 (0xFFFF) as the all stations address.

D–2 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METERTRANSPORT LAYER

D.3 Transport Layer

The Transport Layer as implemented on EPM6100 submeters is subject to the following considerations:

Transport Header

Multiple-frame messages are not allowed for EPM6100 Meters. Each Transport Header should indicate it is both the first frame (FIR = 1) as well as the final frame (FIN = 1).

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE D–3

APPLICATION LAYERCHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METER

D.4 Application Layer

The Application Layer contains a header (Request or Response Header, depending on direction) and data. Specific notes follow.

Application Headers

Application Headers contain the Application Control Field and the Function Code.

Application Control Field

Multiple-fragment messages are not allowed for EPM6100 Meters. Each Application

Header should indicate it is both the first fragment (FIR = 1) as well as the final fragment

(FIN = 1).

Application-Level confirmation is not used for EPM6100 Meters.

Function Codes

The following Function codes are implemented on EPM6100 Meters.

Read (Function 1)

Objects supporting the READ function are:

• Binary Outputs (Object 10)

• Counters (Object 20)

• Analog Inputs (Object 30)

• Class (Object 60)

These Objects may be read either by requesting a specific Variation available as listed in this document, or by requesting Variation 0. READ request for Variation 0 of an

Object will be fulfilled with the Variation listed in this document.

Write (Function 2)

Objects supporting the WRITE function are:

• Internal Indications (Object 80)

Direct Operate (Function 5)

Objects supporting the DIRECT OPERATE function are:

• Control Relay Output Block (Object 12)

Direct Operate - No Acknowledgment (Function 6)

Objects supporting the DIRECT OPERATE - NO ACKNOWLEDGMENT function are:

• Change to MODBUS RTU Protocol

Response (Function 129)

Application responses from EPM6100 Meters use the RESPONSE function.

Application Data

Application Data contains information about the Object and Variation, as well as the

Qualifier and Range.

D.4.1 Object and Variation

The following Objects and Variations are supported on EPM6100 Meters:

• Binary Output Status (Object 10, Variation 2) †

• Control Relay Output Block (Object 12, Variation 1)

D–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METERAPPLICATION LAYER

• 32-Bit Binary Counter Without Flag (Object 20, Variation 5) †

• 16-Bit Analog Input Without Flag (Object 30, Variation 4) †

• Class 0 Data (Object 60, Variation 1) †

• Internal Indications (Object 80, Variation 1)

† READ requests for Variation 0 will be honored with the above Variations.

D.4.1.1 Binary Output Status (Obj. 10, Var. 2)

Binary Output Status supports the following functions:

Read (Function 1)

A READ request for Variation 0 will be responded to with Variation 2.

Binary Output Status is used to communicate the following data measured by EPM6100 submeters:

Energy Reset State

Change to MODBUS RTU Protocol State

Energy Reset State (Point 0)

EPM6100 Meters accumulate power generated or consumed over time as Hour

Readings, which measure positive VA Hours and positive and negative W Hours and

VAR Hours. These readings may be reset using a Control Relay Output Block object

(Obj. 12). This Binary Output Status point reports whether the Energy Readings are in the process of being reset, or if they are accumulating. Normally, readings are being accumulated and the state of this point is read as '0'. If the readings are in the process of being reset, the state of this point is read as '1'.

Change to Modbus RTU Protocol State (Point 1)

EPM6100 Meters are capable of changing from DNP Protocol to Modbus RTU Protocol.

This enables the user to update the Device Profile of the submeter. This does not change the Protocol setting. A submeter reset brings you back to DNP. Status reading of "1" equals Open, or de-energized. A reading of "0" equals Closed, or energized.

D.4.1.2 Control Relay Output Block (Obj. 12, Var. 1)

Control Relay Output Blocks support the following functions:

Direct Operate (Function 5)

Direct Operate - No Acknowledgment (Function 6)

Control Relay Output Blocks are used for the following purposes:

Energy Reset

Change to MODBUS RTU Protocol

Energy Reset (Point 0)

EPM6100 Meters accumulate power generated or consumed over time as Hour

Readings, which measure positive VA Hours and positive and negative W Hours and

VAR Hours. These readings may be reset using Point 0.

Use of the DIRECT OPERATE (Function 5) function will operate only with the settings of

Pulsed ON (Code = 1 of Control Code Field) once (Count = 0x01) for ON 1 millisecond and OFF 0 milliseconds.

Change to Modbus RTU Protocol (Point 1)

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE D–5

D–6

APPLICATION LAYERCHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METER

EPM6100 Meters are capable of changing from DNP Protocol to Modbus RTU Protocol. This enables the user to update the Device Profile of the submeter. This does not change the

Protocol setting. A submeter reset brings you back to DNP.

Use of the DIRECT OPERATE - NO ACKNOWLEDGE (Function 6) function will operate only with the settings of Pulsed ON (Code = 1 of Control Code Field) once (Count = 0x01) for ON 1 millisecond and OFF 0 milliseconds.

D.4.1.3 32-Bit Binary Counter Without Flag (Obj. 20, Var. 5)

Counters support the following functions:

Read (Function 1)

A READ request for Variation 0 will be responded to with Variation 5.

Counters are used to communicate the following data measured by EPM6100 submeters:

Hour Readings

.

Hour Readings (Points 0 - 4)

Point Readings Unit

These readings may be cleared by using the Control Relay Output Block

D.4.1.4 16-Bit Analog Input Without Flag (Obj. 30, Var. 4)

Analog Inputs support the following functions:

Read (Function 1)

A READ request for Variation 0 will be responded to with Variation 4.

Analog Inputs are used to communicate the following data measured by EPM6100 submeters:

• Health Check

• Phase-to-Neutral Voltage

• Phase-to-Phase Voltage

• Phase Current

• Total Power

• Three Phase Total VAs

• Three Phase Power Factor Total

• Frequency

• Three Phase +Watts Max Avg Demand

• Three Phase + VARs Max Avg Demand

• Three Phase -Watts Max Avg Demand

• Three Phase -VARs Max Avg Demand

• Three Phase VAs Max Avg Demand

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METERAPPLICATION LAYER

• Angle, Phase Power

• Angle, Phase-to-Phase Voltage

• CT Numerator, Multiplier, Denominator

• PT Numerator, Multiplier, Denominator

Health Check (Point 0)

The Health Check point is used to indicate problems detected by the EPM6100 submeter. A value of zero (0x0000) indicates the submeter does not detect a problem. Non-zero values indicate a detected anomaly.

Phase-to-Neutral Voltage (Points 1 - 3)

Point Reading

1 Phase AN Voltage

3 Phase CN Voltage

These points are formatted as 2's complement fractions. They represent a fraction of a 150

V Secondary input. Inputs of above 150 V Secondary will be pinned at 150 V Secondary.

Phase-to-Phase Voltage (Points 4 - 6)

Point Reading

5

6

Phase BC Voltage

Phase CA Voltage

These points are formatted as 2's complement fractions. They represent a fraction of a 300

V Secondary input. Inputs of above 300 V Secondary will be pinned at 300 V Secondary.

Phase Current (Points 7 - 9)

Point Reading

7 Phase A Current

8

9

Phase B Current

Phase C Current

These points are formatted as 2's complement fractions. They represent a fraction of a 10

A Secondary input. Inputs of above 10A Secondary will be pinned at 10 A Secondary.

Total Power (Points 10 - 11)

Point Reading

These points are formatted as 2's complement fractions. They represent a fraction of 4500

W Secondary in normal operation, or 3000 W Secondary in Open Delta operation. Inputs above/below +/-4500 or +/-3000 W Secondary will be pinned at +/-4500 or +/-3000 W

Secondary, respectively.

Total VA (Point 12)

This point is formatted as a 2's complement fraction. It represents a fraction of 4500 W

Secondary in normal operation, or 3000 W Secondary in Open Delta operation. Inputs above/below +/-4500 or +/-3000 W Secondary will be pinned at +/-4500 or +/-3000 W

Secondary, respectively.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE D–7

D–8

APPLICATION LAYERCHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METER

Point Reading

Power Factor (Point 13)

Point Reading

13 Power Factor Total

This point is formatted as a 2's complement integer. It represents Power Factors from -

1.000 (0x0FC18) to +1.000 (0x003E8). When in Open Delta operation, Total Power Factor

(Point 13) is always zero.

Frequency (Point 14)

Point Reading

14 Frequency

This point is formatted as a 2's complement fraction. It represents the Frequency as measured on Phase A Voltage in units of cHz (centiHertz, 1/100 Hz). Inputs below 45.00 Hz are pinned at 0 (0x0000), while inputs above 75.00 Hz are pinned at 9999 (0x270F).

Maximum Demands of Total Power (Points 15 - 19)

Point Reading

15 Maximum Positive Demand Total Watts

16 Maximum Positive Demand Total VARs

17

18

19

Maximum Negative Demand Total Watts

Maximum Negative Demand Total VARs

Maximum Average Demand VA

These points are formatted as 2's complement fractions. They represent a fraction of 4500

W Secondary in normal operation, or 3000 W Secondary in Open Delta operation. Inputs above/below +/-4500 or +/-3000 W Secondary will be pinned at +/-4500 or +/-3000 W

Secondary, respectively.

Phase Angle (Points 20 - 25)

Point Reading

20

21

22

Phase A Current Angle

Phase B Current Angle

Phase C Current Angle

24

25

Volts B-C Angle

Volts C-A Angle

These points are formatted as 2's complement integers. They represent angles from

180.0

0

(0x0F8F8) to +180.0

0

(0x00708).

CT & PT Ratios (Points 26 - 31)

Point Value

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Note

CHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METERAPPLICATION LAYER

Point Value

29 PT Ratio Numerator

30

31

PT Ratio Multiplier

PT Ratio Denominator

These points are formatted as 2's complement integers. They can be used to convert from units in terms of the Secondary of a CT or PT into units in terms of the Primary of a CT or PT.

The ratio of Numerator divided by Denominator is the ratio of Primary to Secondary.

EPM6100 submeters typically use Full Scales relating Primary Current to 5 Amps and

Primary Voltage to 120 V. However, these Full scales can range from mAs to thousands of kAs, or mVs, to thousands of kVs. Following are example settings.

CT Example Settings:

200 Amps: Set the Ct-n value for 200 and the Ct-S value for 1.

800 Amps: Set the Ct-n value for 800 and the Ct-S value for 1.

2,000 Amps: Set the Ct-n value for 2000 and the Ct-S value for 1.

10,000 Amps: Set the Ct-n value for 1000 and the Ct-S value for 10.

CT Denominator is fixed at 5 for 5 ampere unit.

CT Denominator is fixed at 1 for 1 ampere unit.

PT Example Settings:

120 Volts (Reads 14,400 Volts): Pt-n value is 1440, Pt-d value is 120, Pt-S value is 10.

69 Volts (Reads 138,000 Volts): Pt-n value is 1380, Pt-d value is 69, Pt-S value is 100.

115 Volts (Reads 347,000 Volts): Pt-n value is 3450, Pt-d value is 115, Pt-S value is 100.

69 Volts (Reads 347,000 Volts): Pt-n value is 345, Pt-d value is 69, Pt-S value is 1000.

D.4.1.5 Class 0 Data (Obj. 60, Var. 1)

Class Data support the following functions:

Read (Function 1)

A request for Class 0 Data from a EPM6100 submeter will return three Object Headers.

Specifically, it will return 16-Bit Analog Input Without Flags (Object 30, Variation 5),

Points 0 - 31, followed by 32-Bit Counters Without Flags (Object 20, Variation 4), Points

0 - 4, followed by Binary Output Status (Object 10, Variation 2), Points 0 - 1. (There is NO

Object 1.)

A request for Object 60, Variation 0 will be treated as a request for Class 0 Data.

D.4.1.6 Internal Indications (Obj. 80, Var. 1)

Internal Indications support the following functions:

Write (Function 2)

Internal Indications may be indexed by Qualifier Code 0.

Device Restart (Point 0)

This bit is set whenever the submeter has reset. The polling device may clear this bit by

Writing (Function 2) to Object 80, Point 0.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE D–9

APPLICATION LAYERCHAPTER D: DNP 3.0 PROTOCOL ASSIGNMENTS FOR EPM6100 METER

D–10 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

Digital Energy

EPM6100 Multi-function Power

Metering System

Appendix E: Using the USB to IrDA

Adapter (CAB6490)

Using the USB to IrDA Adapter (CAB6490)

E.1

Introduction

Com 1 of the EPM6100 Meter is the IrDA port, located on the face of the meter. One way to communicate with the IrDA port is with GE’s USB to IrDA Adapter (CAB6490), which allows you to access the EPM6100 Meter’s data from a PC. This Appendix contains instructions for installing the USB to IrDA Adapter.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE E–1

INSTALLATION PROCEDURESCHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)

E.2

Installation Procedures

The USB to IrDA Adapter comes packaged with a USB cable and an Installation CD.

Follow this procedure to install the Adapter on your PC.

1.

Connect the USB cable to the USB to IrDA Adapter, and plug the USB into your PC’s

USB port.

2.

Insert the Installation CD into your PC’s CD ROM drive.

3.

You will see the screen shown below. The Found New Hardware Wizard allows you to install the software for the Adapter. Click the Radio Button next to Install from a list or

specific location.

E–2

4.

Click Next. You will see the screen shown on the next page.

Select these

Options

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)INSTALLATION PROCEDURES

5.

Make sure the first Radio Button and the first Checkbox are selected, as shown in the above screen. These selections allow the Adapter’s driver to be copied from the

Installation disk to your PC.

6.

Click Next. You will see the screen shown below.

7.

When the driver for the Adapter is found, you will see the screen shown on the next page.

8.

You do not need to be concerned about the message on the bottom of the screen.

Click Next to continue with the installation.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE E–3

INSTALLATION PROCEDURESCHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)

9.

You will see the two windows shown below. Click Continue Anyway.

10. You will see the screen shown on the next page while the Adapter’s driver is being

installed on your PC.

E–4 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)INSTALLATION PROCEDURES

11. When the driver installation is complete, you will see the screen shown below.

Note

12. Click Finish to close the Found New Hardware Wizard.

Do NOT remove the Installation CD until the entire procedure has been completed.

13. Position the USB to IrDA Adapter so that it points directly at the IrDA on the front of the EPM6100 submeter. It should be as close as possible to the meter, and not more than 15 inches/38 cm away from it.

The Found New Hardware Wizard screen opens again.

14. This time, click the Radio Button next to Install the software automatically.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE E–5

INSTALLATION PROCEDURESCHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)

15. Click Next. You will see the screen shown below.

16. Make sure the first Radio Button and the first Checkbox are selected, as shown in the above screen. Click Next.

You will see the two screens shown below.

E–6 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)INSTALLATION PROCEDURES

When the installation is complete, you will see the screen shown below.

17. Click Finish to close the Found New Hardware Wizard.

18. To verify that your Adapter has been installed properly, click Start > Settings>Control

Panel > System > Hardware > Device Manager. The USB to IrDA Adapter should appear under both Infrared Devices and Modems (click on the + sign to display all configured modems). See the example screen below.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE E–7

Note

INSTALLATION PROCEDURESCHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)

If the Adapter doesn’t show up under Modems, move it away from the meter for a minute and then position it pointing at the IrDA, again.

19. Double-click on the Standard Modem over IR link (this is the USB to IrDA Adapter).

You will see the Properties screen for the Adapter.

20. Click the Modem tab. The Com Port that the Adapter is using is displayed in the screen.

E–8 EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE

CHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)INSTALLATION PROCEDURES

21. Use this Com Port to connect to the meter from your PC, using the Communicator

EXT software.

Refer to Chapter 5 of the Communicator EXT 3.0 User’s Manual for detailed connection instructions.

EPM6100 MULTI-FUNCTION POWER METERING SYSTEM – USER GUIDE E–9

INSTALLATION PROCEDURESCHAPTER E: USING THE USB TO IRDA ADAPTER (CAB6490)
