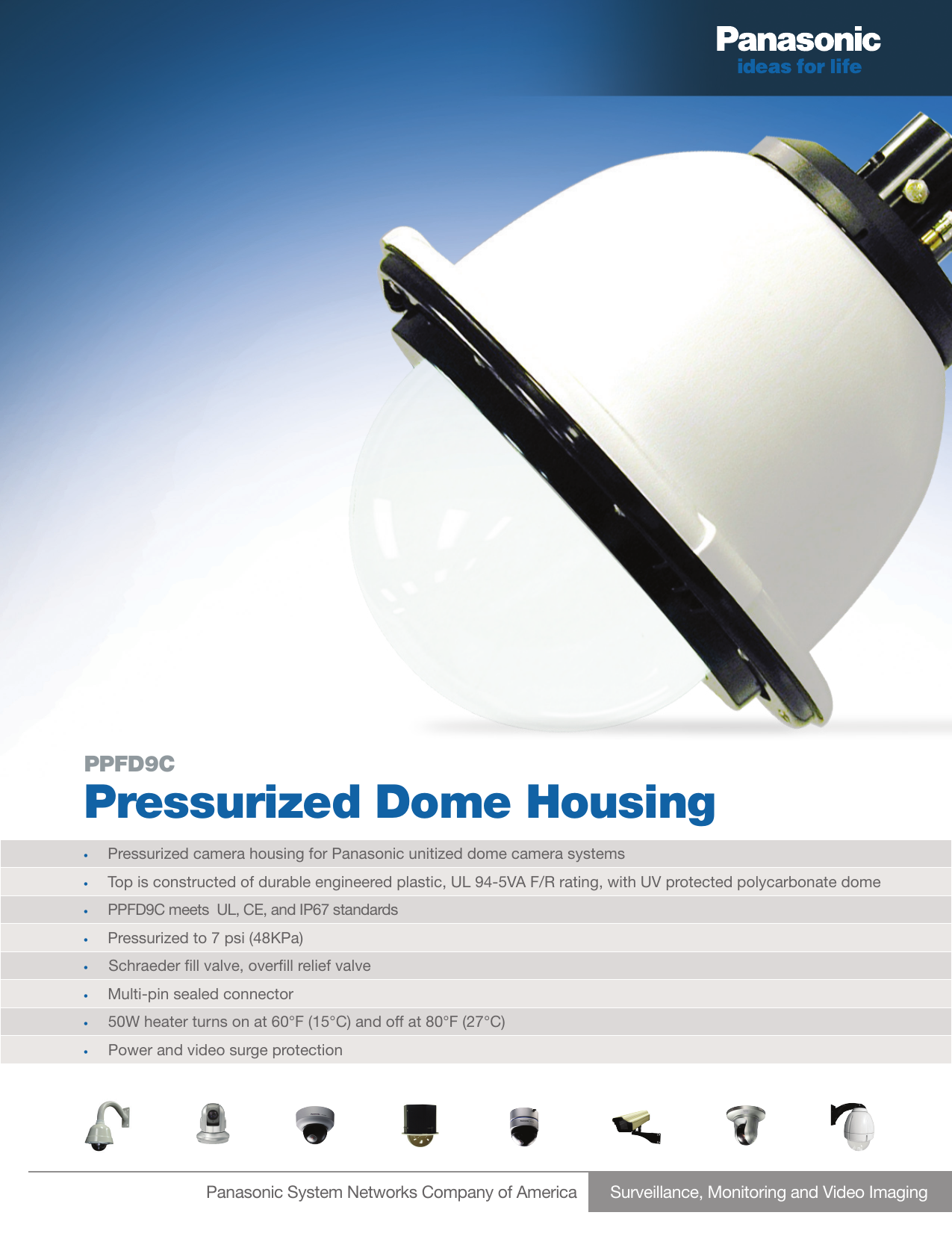

PPFD9C

PPFD9C
Pressurized Dome Housing
•
Pressurized camera housing for Panasonic unitized dome camera systems
•
Top is constructed of durable engineered plastic, UL 94-5VA F/R rating, with UV protected polycarbonate dome
•
PPFD9C meets UL, CE, and IP67 standards
•
Pressurized to 7 psi (48KPa)
•
Schraeder fill valve, overfill relief valve
•
Multi-pin sealed connector
•
50W heater turns on at 60°F (15°C) and off at 80°F (27°C)
•
Power and video surge protection
Panasonic System Networks Company of America
Surveillance, Monitoring and Video Imaging
Bid Specifications
The outdoor pressurized dome camera housing shall be a Panasonic model PPFD9C or equivalent. The housing shall be designed for Panasonic’s WV-CS954/WV-CS574/WV-NS324/
WV-NS202A unitized dome camera systems. The housing shall be capable of withstanding a total of 7 psi (48KPa) of nitrogen gas injected through a Schraeder valve located on a
machined aluminum plate on the housig top. A pressure relief valve located across from the Schraeder valve will provide an escape for pressure exceeding 7 psi (48KPa). Two (2) O-ring
seals shall be included, 0.136” (3.5mm) x 9.25” (235mm) (inner diameter) and 0.136” (3.5mm) x 4.5” (114mm) (inner diameter). A 10-pin hermetically sealed connector, located at the
top of the pressurized housing shall provide power, video and control functions. The housing shall be constructed of 0.125” (3mm) durable engineered plastic, UV with a flame rating
of UL 94-5VA. The lower dome portion shall be constructed of distortion-free injection molded polycarbonate and be 7.25” (185mm) in diameter. The dome shall be held in place with
minimum of (9) fasteners, and a safety cable shall be provided to hold the dome while servicing. Access to the enclosure shall be from below with (9) captive fasteners used to press the
dome against a sealing O-ring. A twist-off feature shall allow for the final removal of the dome. The housing shall come standard with pendant mount.
A wall mount bracket, Panasonic model PWM20G, shall be available as an option. The housing shall include a camera mounting bracket that integrates a heater, blower, video and
power surge protector capable of clamping differential node voltage between 54 - 72V and common node voltage from 27- 36V. The housing shall be powered with 24VAC (60Hz) and
have a power consumption not to exceed 52W not including the Unitized Camera. The blower shall draw 1.4W continuous power. The 50W heater shall turn on at 60°F (15°C) and turn
off at 80°F (27°C). A ground isolation transformer, Panasonic model PWBT1621, shall be available as an option. The housing shall support a temperature range of -50°F to 120°F (-45°
C to 50°C). The unit shall have a weight not to exceed 8 Lbs. (3.7Kg) (without camera) and dimensions of 13.0” (330mm) H x 11.5” (292mm) W x 11.5” (292mm) D.
Specifications
ELECTRICAL SPECIFICATIONS
Power
24VAC 52 watts (excluding camera); 24VAC 68 watts with camera
MECHANICAL SPECIFICATIONS
Size (HxWxD)
13.0” x 11.5” x 11.5” (330 x 292 x 292mm)
Weight
8 Lbs. (3.7 Kg) without camera
Construction
Top
0.125” (3mm) engineered plastic top, UL 94-5VA flame rated,
and UV protected
Dome
Injection molded polycarbonate
Components
Seals
0.136” x 9.25” (3.5 x 235mm) & 0.136” x 4.5” (3.5 x 114mm) O-rings
Pressure Relief Valve
5-7 psi (35-48KPa)
Nitrogen Input
Schraeder valve
Power Connectors
Power/Video/Controls
10-pin Souriau, hermetically sealed
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
-50°F to 120°F (-45°C to 50°C)
Heater activates at
60°F (15°C), deactivates at 80°F (27°C)
Effective Projected Area (EPA)
approx. 180 in^2 (1162 cm^2)
Certifications/Ratings
c
Options/Accessories
PWM20G
Aluminum gooseneck wall mount, black
PPRM30G
Aluminum parapet mount, black
PACA2
Aluminum corner mount adapter, black (must be used with PWM20G)
PAPM3
Aluminum existing pole mount adapter, black (must be used with PWM20G)
http://panasonic.com/security
Panasonic System Networks Company of America
Panasonic Service Center
415 Horizon Drive
Suite 350-B
Suwanee, GA 30024
(770) 904-8350
Surveillance, Monitoring and Video Imaging
Design and specifications subject
to change without notice.
05042011
