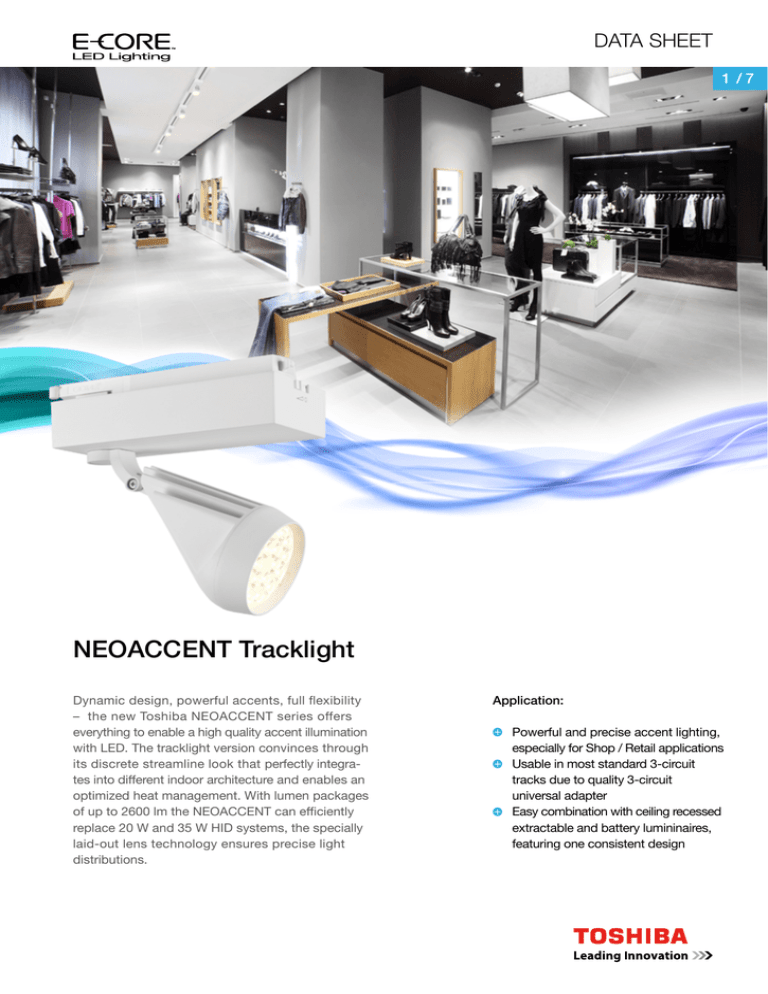

NEOACCENT Tracklight
Dynamic design, powerful accents, full flexibility
– the new Toshiba NEOACCENT series offers
everything to enable a high quality accent illumination
with LED. The tracklight version convinces through
its discrete streamline look that perfectly integrates into different indoor architecture and enables an
optimized heat management. With lumen packages
of up to 2600 lm the NEOACCENT can efficiently
replace 20 W and 35 W HID systems, the specially
laid-out lens technology ensures precise light
distributions.
Application:
Powerful and precise accent lighting,
especially for Shop / Retail applications
Usable in most standard 3-circuit
tracks due to quality 3-circuit
universal adapter
Easy combination with ceiling recessed extractable and battery lumininaires, featuring one consistent design
NEOACCENT Tracklight
2 /7
Product details
Tracklight with integrated LED module
Driver included in gear box
With 3-circuit universal adapter
Lighting head is rotating 355°, pivoting 90°
Beam angles 15°, 25°, 35°
Luminaire efficacy up to 81 lm/W
IP
20
17
220V
I
240V
Efficient replacement of 1 x 20 W and 1 x 35 W HID lamps
Colour rendition Ra 85, additional high CRI filter
available as accessory
Dimmable directly on gear box
850
°C
Optical parameters
MODEL NAME
NEOACCENT Tracklight
Rated wattage
Luminous flux
System efficacy
Beam angle
Colour description
Colour temperature
Colour rendering index
22 W / 32 W
Up to 1,700 lm / 2600 lm
Up to 81 lm/W
15° / 25° / 35°
Warm white / Neutral white
3000 K / 4000 K
Ra 85
Please find here an indication of the colour rendition values when using the additional high CRI filter, as well as
detailed photometric information:
22 W
32 W
3000 K
3000 K with filter
4000 K
4000 K with filter
3000 K
3000 K with filter
4000 K
4000 K with filter
CCT (K)
Ra
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
3,000
3,060
4,000
4,230
3,000
3,060
4,000
4,230
85
96
85
96
85
96
85
96
82
98
84
97
82
98
84
97
91
97
90
97
91
97
90
97
98
89
94
89
98
89
94
89
83
94
83
97
83
94
83
97
83
99
83
97
83
99
83
97
88
96
86
94
88
96
86
94
88
97
88
97
88
97
88
97
67
97
71
97
67
97
71
97
18
87
29
98
18
87
29
98
75
89
78
90
75
89
78
90
79
94
82
96
79
94
82
96
69
83
66
74
69
83
66
74
83
99
87
99
83
99
87
99
97
92
97
93
97
92
97
93
76
98
81
95
76
98
81
95
LUMEN OUTPUT (lm)
22 W
32 W
3000 K
3000 K with filter
4000 K
4000 K with filter
3000 K
3000 K with filter
4000 K
4000 K with filter
CBCP (cd)
CCT (K)
15°
25°
35°
15°
25°
35°
3,000
3,060
4,000
4,230
3,000
3,060
4,000
4,230
1,600
1,215
1,700
1,290
2,420
1,835
2,600
1,975
1,600
1,215
1,700
1,290
2,370
1,800
2,550
1,935
1,500
1,140
1,600
1,215
2,340
1,775
2,520
1,915
13,800
10,210
14,830
10,970
21,170
15,665
22,780
16,855
8,000
5,920
8,700
6,435
10,970
8,115
11,800
8,730
3,300
2,440
3,700
2,735
4,885
3,615
5,260
3,890
NEOACCENT Tracklight
3 /7
Optical parameters
parameter
Projekt 0
Projekt 0
29.01.2014
29.01.2014
Gelände
1 / Gebäude 1 / Etage 1 / TOSHIBA LEDEUS00036D30 E-CORE SPOTLIGHT Series for Shoplighting 1xLED /
Gelände 1 / Gebäude 1 / Etage 1 / TOSHIBA LEDEUS00027D30 E-CORE SPOTLIGHT Series for Shoplighting 1xLED
/
Leuchtendatenblatt (1xLED)
Leuchtendatenblatt (1xLED)
22 W
32 W
Lichtaustritt 1 / Kegeldiagramm
NEOACCENT 3000 K 15°
Lichtaustritt 1 / Kegeldiagramm
0.5
0.14
E(0°)
E(C0)
8.0°
55116
26814
0.5
0.14
E(0°)
E(C0)
7.9°
84675
41657
1.0
0.28
E(0°)
E(C0)
8.0°
13779
6703
1.0
0.28
E(0°)
E(C0)
7.9°
21169
10414
1.5
0.42
E(0°)
E(C0)
8.0°
6124
2979
1.5
0.42
E(0°)
E(C0)
7.9°
9408
4629
2.0
0.56
E(0°)
E(C0)
8.0°
3445
1676
2.0
0.56
E(0°)
E(C0)
7.9°
5292
2604
2.5
0.70
E(0°)
E(C0)
8.0°
2205
1073
2.5
0.69
E(0°)
E(C0)
7.9°
3387
1666
Projekt 0
3.0
29.01.2014
E(0°)
0.84
E(C0)
Lichtaustritt
Lichtaustritt 1
1 // Leuchtdichtediagramm
Kegeldiagramm
NEOACCENT 3000 K 25°
C225
C180
1531
745
Projekt 0
3.0
29.01.2014
E(0°)
0.83
E(C0)
Lichtaustritt 1 / Leuchtdichtediagramm
Lichtaustritt 1 / Kegeldiagramm
C225
C135
7.9°
2352
1157
C180
C135
0.5
0.21
E(0°)
E(C0)
11.8°
32488
15302
0.5
0.21
E(0°)
E(C0)
12.1°
43896
20713
1.0
0.42
E(0°)
E(C0)
11.8°
8122
3826
1.0
0.43
E(0°)
E(C0)
12.1°
10974
5178
1.5
C270
0.63
E(0°)
E(C0)
11.8°
3610
1700
C90
1.5
C270
0.64
E(0°)
E(C0)
12.1°
4877
2301
C90
2.0
0.84
E(0°)
E(C0)
11.8°
2031
956
2.0
0.86
E(0°)
E(C0)
12.1°
2743
1295
11.8°
1300
612
E(0°)
E(C0)
12.1°
1756
829
4000
6000
2.5
1.04
10000
Projekt 0
C315
3.0
C0
1.25
4000
6000
E(0°)
E(C0)
29.01.2014
E(0°)
E(C0)
902
11.8°C45 425
2.5
1.07
8000
10000
Projekt 0
C315
3.0
12000
C0
1.29
29.01.2014
E(0°)
E(C0)
1219
12.1°C45 575
Gelände
/ Gebäude 1 / Etage
1 / TOSHIBA LEDEUS00029D30 E-CORE
SPOTLIGHT Series for Shoplighting 1xLED
/
Gelände
1 / Gebäude 1 / Etage
1 / TOSHIBA LEDEUS00038D30 E-CORE
SPOTLIGHT Series for Shoplighting 1xLED /
Abstand
Kegeldurchmesser
Beleuchtungsstärke
Abstand 1[m]
Kegeldurchmesser
Beleuchtungsstärke
cd/m²
Distance
Cone Diameter [m]
Illuminance
[lx]
Distance
[m]
Cone Diameter [m]
Illuminance
[lx]
cd/m²
Leuchtendatenblatt
(1xLED)
Leuchtendatenblatt
(1xLED)
C0
C180 (Halbstreuwinkel:
g = -65.0°
g = 75.0° 24.2°)
g = 85.0°
C0= -65.0°
C180
(Halbstreuwinkel:
23.6°)23.6°)
g
g = 75.0°
g = 85.0°
C0
- C180
(Half-value
Angle:
C0 - C180 (Half-value Angle: 24.2°)
Lichtaustritt
Lichtaustritt 1
1 // Leuchtdichtediagramm
Kegeldiagramm
C225
NEOACCENT 3000 K 35°
8.0°
Gelände
1 / Gebäude 1 / Etage
1 / TOSHIBA LEDEUS00037D30 E-CORE
SPOTLIGHT Series for Shoplighting 1xLED /
Gelände
/ Gebäude 1 / Etage
/ TOSHIBA
E-CORE
SPOTLIGHT
Series for Shoplighting 1xLED
/
Abstand
Kegeldurchmesser
Beleuchtungsstärke
Abstand 1[m]
Kegeldurchmesser
Beleuchtungsstärke
Distance
Cone 1
Diameter
[m] LEDEUS00028D30
Illuminance
[lx]
Distance
[m]
Cone Diameter [m]
Illuminance
[lx]
Leuchtendatenblatt
(1xLED)
Leuchtendatenblatt (1xLED)
C0 - C180 (Halbstreuwinkel:
15.8°)
C0 -C0
C180
(Halbstreuwinkel:
16.0°)16°)
- C180
(Half-value Angle:
C0 - C180 (Half-value Angle: 15.8°)
C180
Lichtaustritt 1 / Leuchtdichtediagramm
Lichtaustritt 1 / Kegeldiagramm
C225
C135
C180
C135
0.5
0.31
E(0°)
E(C0)
17.0°
13941
6139
0.5
0.34
E(0°)
E(C0)
18.8°
19528
8350
1.0
0.61
E(0°)
E(C0)
17.0°
3485
1535
1.0
0.68
E(0°)
E(C0)
18.8°
4882
2088
1.5
C270
0.92
E(0°)
E(C0)
17.0°
1549
682
C90
1.5
C270
1.02
E(0°)
E(C0)
18.8°
2170
928
C90
2.0
1.22
E(0°)
E(C0)
17.0°
871
384
2.0
1.36
E(0°)
E(C0)
18.8°
1220
522
4000
6000
2.5
1.53
C315
3.0
1.83
10000
C0
Abstand
Distance
cd/m² [m]
Kegeldurchmesser
Cone Diameter [m]
C0
C180 (Halbstreuwinkel:
g = -65.0°
g = 75.0° 34.0°)
g = 85.0°
8000
E(0°)
E(C0)
17.0°
558
246
E(0°)
E(C0)
387
17.0°C45 171
Beleuchtungsstärke
Illuminance
[lx]
2.5
C315
3.0
2.04
C0
Kegeldurchmesser
Cone Diameter [m]
g =-65.0°
g = 75.0°37.6°)
g = 85.0°
C0
C180 (Halbstreuwinkel:
E(0°)
E(C0)
Seite
18.8° 17334
781
E(0°)
E(C0)
542
18.8° C45 232
Beleuchtungsstärke
Illuminance
[lx]
C0 - C180 (Half-value Angle: 37.6°)
Lichtaustritt 1 / Leuchtdichtediagramm
C180
12000
Abstand
cd/m² [m]
Distance
C0 - C180 (Half-value Angle: 34°)
C225
1.70
Lichtaustritt 1 / Leuchtdichtediagramm
C135
C225
C180
C135
NEOACCENT Tracklight
4 /7
Electrical parameters
MODEL NAME
NEOACCENT Tracklight
Rated wattage
System efficacy
Operating current
Rated voltage
Frequency
Power factor
Rated lifetime
Lumen maintenance
Connection
Dimmable
Dimming level
22 W
Up to 77 lm/W
550 mA
220-240 V
50 / 60 Hz
> 0.9
40,000 h
70% at the rated lifetime
3-circuit universal track adapter
Yes, control on gear box
5-100%
Mechanical parameters
MODEL NAME
NEOACCENT Tracklight
Material
Colour
Type of installation
Electrical class
IP rating
IK rating
LED module
Glow wire temperature
Approval mark
Operation temperature
Net weight
Die-cast aluminium
White / Silver / Black
3-circuit tracks
Class II
IP20
IK03
Integrated
850°C
CE, ENEC
+5°C - +35°C
1,434 g
32 W
Up to 81 lm/W
1100 mA
220-240 V
50 / 60 Hz
> 0.9
40,000 h
70% at the rated lifetime
3-circuit universal track adapter
Yes, control on gear box
5-100%
NEOACCENT Tracklight
5 /7
Drawings
219 mm
40 mm
90 mm
Φ 89 mm
162 mm
188 mm
198 mm
NEOACCENT Tracklight
6 /7
Logistic data
PRODUCT CODE
EAN CODE
DESCRIPTION
SIZE OF PACKAGING (mm) LxHxW
GROSS WEIGHT (g)
LEDEUS00045B30
LEDEUS00045B40
LEDEUS00046B30
LEDEUS00046B40
LEDEUS00047B30
LEDEUS00047B40
LEDEUS00048B30
LEDEUS00048B40
LEDEUS00049B30
LEDEUS00049B40
LEDEUS00050B30
LEDEUS00050B40
LEDEUS00051B30
LEDEUS00051B40
LEDEUS00052B30
LEDEUS00052B40
LEDEUS00053B30
LEDEUS00053B40
4974550461306
4974550461313
4974550461320
4974550461337
4974550461344
4974550461351
4974550461368
4974550461375
4974550461382
4974550461399
4974550461405
4974550461412
4974550461429
4974550461436
4974550461443
4974550461450
4974550461467
4974550461474
NEOACCENT TRK / 22W / 3000K / 15° / White
NEOACCENT TRK / 22W / 4000K / 15° / White
NEOACCENT TRK / 22W / 3000K / 25° / White
NEOACCENT TRK / 22W / 4000K / 25° / White
NEOACCENT TRK / 22W / 3000K / 35° / White
NEOACCENT TRK / 22W / 4000K / 35° / White
NEOACCENT TRK / 22W / 3000K / 15° / Silver
NEOACCENT TRK / 22W / 4000K / 15° / Silver
NEOACCENT TRK / 22W / 3000K / 25° / Silver
NEOACCENT TRK / 22W / 4000K / 25° / Silver
NEOACCENT TRK / 22W / 3000K / 35° / Silver
NEOACCENT TRK / 22W / 4000K / 35° / Silver
NEOACCENT TRK / 22W / 3000K / 15° / Black
NEOACCENT TRK / 22W / 4000K / 15° / Black
NEOACCENT TRK / 22W / 3000K / 25° / Black
NEOACCENT TRK / 22W / 4000K / 25° / Black
NEOACCENT TRK / 22W / 3000K / 35° / Black
NEOACCENT TRK / 22W / 4000K / 35° / Black
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
LEDEUS00054B30
LEDEUS00054B40
LEDEUS00055B30
LEDEUS00055B40
LEDEUS00056B30
LEDEUS00056B40
LEDEUS00057B30
LEDEUS00057B40
LEDEUS00058B30
LEDEUS00058B40
LEDEUS00059B30
LEDEUS00059B40
LEDEUS00060B30
LEDEUS00060B40
LEDEUS00061B30
LEDEUS00061B40
LEDEUS00062B30
LEDEUS00062B40
4974550461481
4974550461498
4974550461504
4974550461511
4974550461528
4974550461535
4974550461542
4974550461559
4974550461566
4974550461573
4974550461580
4974550461597
4974550461603
4974550461610
4974550461627
4974550461634
4974550461641
4974550461658
NEOACCENT TRK / 32W / 3000K / 15° / White
NEOACCENT TRK / 32W / 4000K / 15° / White
NEOACCENT TRK / 32W / 3000K / 25° / White
NEOACCENT TRK / 32W / 4000K / 25° / White
NEOACCENT TRK / 32W / 3000K / 35° / White
NEOACCENT TRK / 32W / 4000K / 35° / White
NEOACCENT TRK / 32W / 3000K / 15° / Silver
NEOACCENT TRK / 32W / 4000K / 15° / Silver
NEOACCENT TRK / 32W / 3000K / 25° / Silver
NEOACCENT TRK / 32W / 4000K / 25° / Silver
NEOACCENT TRK / 32W / 3000K / 35° / Silver
NEOACCENT TRK / 32W / 4000K / 35° / Silver
NEOACCENT TRK / 32W / 3000K / 15° / Black
NEOACCENT TRK / 32W / 4000K / 15° / Black
NEOACCENT TRK / 32W / 3000K / 25° / Black
NEOACCENT TRK / 32W / 4000K / 25° / Black
NEOACCENT TRK / 32W / 3000K / 35° / Black
NEOACCENT TRK / 32W / 4000K / 35° / Black
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
225 x 140 x 260
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
1,970
PRODUCT CODE
EAN CODE
DESCRIPTION
SIZE OF PACKAGING (mm) LxHxW
GROSS WEIGHT (g)
LEDEUSX0002
4974550466608
High CRI Filter (Box of 10 pcs.)
150 x 150 x 100
374
Accessories
NEOACCENT Tracklight
7 /7
Handling and safety information
Do not cover the lamp with paper, cloth or other easily flammable materials
Do not expose the lamp to water or high humidity
Avoid additional mechanical stress on the lamp
Do not touch the lamp during or shortly after usage. Risk of burn!
Use only with recommended dimmers
Ambient temperature range: +5 °C to +35 °C
Do not look directly into the lamp
Do not spray pesticide on this lamp
Please ensure the mains power is disconnected before undertaking any work on the luminaire or lamp
02/2014
www.toshiba.eu/lighting
Product specifications and configurations, and availability of products are subject
to change. Variations in product design and product features are subject to change.
Colours may vary from illustration. Errors and omissions excepted.
© Copyright 2014 Picture credits: Toshiba, Fotolia.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
