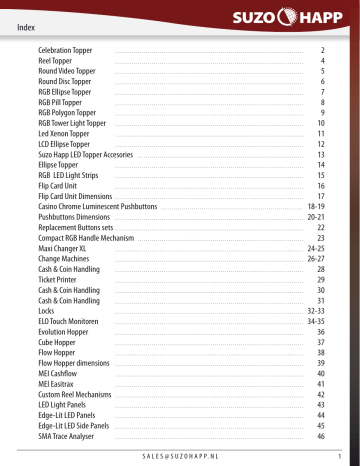

Table of Contents

Celebration Topper

Reel Topper

Round Video Topper

Round Disc Topper

RGB Ellipse Topper

RGB Pill Topper

RGB Polygon Topper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

4

5

6

7

8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

RGB Tower Light Topper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Led Xenon Topper

LCD Ellipse Topper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

12

Suzo Happ LED Topper Accesories

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Ellipse Topper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

RGB LED Light Strips

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

Flip Card Unit

32-33

ELO Touch Monitoren

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-35

Evolution Hopper

Cube Hopper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Flip Card Unit Dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Casino Chrome Luminescent Pushbuttons

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-19

Pushbuttons Dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20-21

Replacement Buttons sets

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Compact RGB Handle Mechanism

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Maxi Changer XL

Change Machines

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cash & Coin Handling

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

Ticket Printer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

Cash & Coin Handling

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Cash & Coin Handling

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

Locks

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24-25

26-27

36

37

Flow Hopper

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

Flow Hopper dimensions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

MEI Cashflow

MEI Easitrax

40

41

Custom Reel Mechanisms

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

LED Light Panels

Edge-Lit LED Panels

Edge-Lit LED Side Panels

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

SMA Trace Analyser

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

44

46

S A L E S @ S U Z O H A P P. N L 1

Celebration Video Topper

It is time to add some

CELEBRATION & EXCITEMENT

to your casino floor!

Pictured with Options

H95-00124-00

2

R1.00

TYP,

343.7mm

533.4mm

121.7mm

429.8mm

18.3mm

49.0mm

8.4mm

94.0mm

S A L E S @ S U Z O H A P P. N L

79.2mm

129.0mm

89.9mm

56.6mm

Celebration Video Topper

This innovative topper design creates a new level of excitement on your casino floor & stimulates additional game play Topper interfaces into the SAS* line to detect a hand pay signal from the slot machine and when the selected level of hand pay is achieved the topper triggers a “Celebration Event”

• Celebration Event options include ANY or ALL of the following:

- Confetti launcher throws out bursts of confetti

- Loud 8 Watt Stereo audio celebration alarm/sounds thru two

2” x 4” speakers

- Standard or customizable videos on the 15.6” LCD

(1366 x 768 resolution)

- Flashing multi-color RGB LEDs on both sides of the LCD

- Event Movement Modules that raises and lowers event

attraction modules, such as LED Tubes, Flashers, etc. from

within the topper

• 15.6” LCD driven by Network Digital Signage Player

- 10/100M Ethernet with RJ-45 connector

- Storage on Compact Flash (CF) card (up to 32GB)

- NTP, FTP Client, HTTP Client

- Download Performance over 300KBps with intranet HTTP server

(CF Card: Sandisk Extreme IV)

- Playback Formats of SD Video (1366 x 768): MPEG-1, MPEG-2,

MPEG-4, Divx up to 720p

- Audio Formats of WAV, MP3 (32k – 320k bps)

- Image Format of JPEG (max resolution 5120x3840)

- Remote Control

- Remote Control functions of Network setup for client IP, Server

IP and other settings

- Bundled Software for Windows XP/Vista to load, control and

monitor client’s status and activity

RSS feed capable

• Includes several Celebration videos that can be further

customized for fee by video production company

• Translucent bezel on sides of LCD contains 24 ultra-bright Nichia

RGB LEDs for a multi-colored light show

• Pre-programmed with unique flashing patterns & different

color combinations

• Backlight graphic panel can be substituted in place of 15.6” LCD

• Front of Video Topper has ability for custom branded graphic to

be inserted

• Confetti capsules are sold separately (95-0124-00) are spring

loaded (safe – no fireworks) and sprays over twenty color

stripes with six colors and colorful effects for 13-19 feet (4-6 M)

in the air

• Body is constructed of black UL-94 VO flame resistant plastic

• Requires +12vdc

• Three different mounting bases available) Flat, Round, Slant

(sold separately

• Base harness and power supply are both sold separately

• Tower light optional

• Patent Pending

SAS is a registered trademark of IGT

Please contact our Sales Department for pricing and options

Part no.

RBM-754X-XX

Description

Celebration Topper

E U . S U Z O H A P P. C O M 3

Reel Topper

125

300

453,8

M6

4

Reel Topper

• Equipped with three Starpoint reels with 12 symbols/ stops that

are 150mm in diameter and 90mm wide (a four reel version is

development)

• Illumination provided by multi-colour Nichia LEDs

• Unique triangle shaped side illumination design provides

attraction without distracting from the multi-reel action at

the front of the topper

• Optional custom logo can be integrated on the center cap on

the sides

• Bezel available in Chrome or Black Chrome

125

300

453,8

• Equipped with Xtopper which provides a customized USB

control-board designed for Suzo-Happ

M6

• Ideal for OEMs to economically upgrade existing machines

already installed in the casino to create a total new game concept

• Two on-board power supplies provide power (12VDC) to control

both reels along with the illumination

• Durable flame resistant UL-94 V0 ABS plastic housing

• Adjustable mounting base included

• Easy to remove transparent cover for cleaning and maintenance

• Size: 17.87” W x 11.77” H x 9.05” D

Part no.

104-1XXX

Description

Reel Topper

1- Off

50 Pcs

100 Pcs

Price

€ 275.00

€ 195.00

€ 179.00

S A L E S @ S U Z O H A P P. N L

96 68

229,8

Dimensions

32

96 68

229,8

32

Round Video Topper

300

125

300

470

M6

55

123

173

32

Round Video Topper

• Offers the game designer flexibility to incorporate new and

varied concepts

• Any games based on a disc/wheel type such as Roulette, Lottery

Wheel, Clock Type game are economical and easy to develop

• Elegantly designed in Samsung 19” LCD E4 panel with 178°

wide viewing angle

• Provides the appearance of the top monitor being round

• Bottom section has two windows where game features can

be displayed or they can be blanked out

• Monitor adjustments are easilyaccessible

• Two different illumination effects available:

- Multi-Color LEDs behind a translucent bezel

- White LEDs behind a black chromed bezel

• Equipped with Xtopper which provides a customized RS232

(USB in future) control-board designed by Suzo-Happ

• Ideal for OEMs to economically upgrade existing machines

already installed in the casino to create a total new game concept

• Durable flame resistant UL-94 VO ABS plastic housing

• Two on-board power supplies provide power to control both

LCD panel along with the illumination

• Adjustable mounting base included

• CE Approved

• Size: 18.50” W x 20.51” H x 6.81”

1- Off

50 Pcs

100 Pcs

E U . S U Z O H A P P. C O M

Price

€ 499.00

€ 425.00

€ 329.00

Part no.

104-2XXX

Description

Round Video Topper

5

Round Disc Topper

Figure 1

FRONT BEZEL

POINTER

LED BEZEL

MOTOR DRIVE

LARGE DISK

SMALL DISK

HUB

TL

Round Topper

• Leading technology from Suzo-Happ, and Starpoint are

combined within this unique product

• Easy and economical to develop anygame based on a disc/

wheel such as Roulette, Lottery Wheel, Clock Type game

• Integrated disc-mechanism with 2 motors creates a new

dimension (Figure 1)

• Front and back disc mounted in sequence or a disc and arm can

be independently controlled and run at different speeds and

directions

• Equipped with Xtopper which provides a customized USB

control-board designed for Suzo-Happ

• Offers the game designer flexibility to incorporate new and

varied concepts

• Bottom section has two windows where game features can

be displayed or they can be blanked out

• Two different illumination effects available:

- Multi-Colour LEDs behind a translucent bezel

- White LEDs behind a black chromed bezel

Dimensions

• Ideal for OEM’s to economically upgrade existing machines

already installed in the casino to create a total new game concept

• Two on-board power supplies provide power (12VDC) to control

both disc units along with the illumination

• Ventilation holes with optional cooling fans

• Adjustable mounting base included

• Durable flame resistant UL-94 V0 ABS plastic housing

• Artwork panel not included

• Size: 18.50” W x 20.51” H x 6.81” D

6

Part no.

104-22XXX

Description

Round Topper

1- Off

50 Pcs

100 Pcs

Price

€ 375.00

€ 295.00

€ 275.00

S A L E S @ S U Z O H A P P. N L

RGB Ellipse Topper

R12

5

R12

5

447

447

125,0

125,0

Dimensions

Pictured with Mounting Base

& Tower Light

(Sold separately)

• On board PCB allows stand alone operation or synchronization

of up to eight topper boxes

• Up to 8 toppers can be synchronized using cables

• Toppers can be synchronized to create unique patterns,

for example a snake pattern that runs from one topper to the next

• Eeven pre-programmed flashing patterns

• Different attract modes including twinkling, full on, rotating

left to right and right to left , flashing and more

• Ultra bright LEDs guarantee unequalled light output for a

spectacular multicoloured lightshow

• Back lighted by 11Watt SL Lamp

• Translucent bezel contains 40 ultra bright Nichia RGB LEDs

for a multi-colored light show

• Whole unit operates on 12VDC power

• Optional flat or radius mounting brackets with two mounting

studs available to accommodate different cabinet configurations

• Body is constructed of black UL-94 VO ABS flame resistant plastic,

colour customization available

• Tower Light and artwork panel not included

E U . S U Z O H A P P. C O M

Part no.

104-06000

Description

RGB Ellipse Topper

7

RGB Pill Topper

476mm

Pictured with Mounting Base

(Sold separately)

213mm

476mm

102mm

Dimensions

RGB Pill Topper

• Great for drawing increased attention to your Hot New or top

earning machines

• Completely backlit by fluorescent tube to make your graphics

look outstanding

• Translucent bezel contains 44 ultra bright Nichia RGB LEDs for a

multi-coloured light show

• Includes 2 Tier tower light with colour foils - Pink(1), Purple(1),

Teal(1), Std. Blue(2), Std. Green(1), Orange(1), Red(1), Yellow(1)

and White(1)

• Pre-programmed with 10 unique flashing patterns and 7

different colour combinations

• Requires +12vdc (3 Amps)

• Body is constructed of black UL-94 VO flame resistant plastic

• Four different mounting bases available (sold separately)

Flat, Round, Slant, Arch

• Base harness and power supply are both sold separately

• Artwork panel not included

8

Part no.

104-32000

Description

RGB Pill Topper

Price

€ 149.00

S A L E S @ S U Z O H A P P. N L

296mm

RGB Polygon Topper

391mm

309mm

103mm

Dimensions

466mm

Pictured with Mounting Base

(Sold Separately)

RGB Polygon Topper

• Great for drawing increased attention to your hot, new, or top

earning machines

• Completely backlit by fluorescent tube to make your graphics

look outstanding

• Translucent bezel contains 48 ultra bright Nichia RGB LEDs for a

multi-coloured light show

• Includes 2 Tier tower light with colour foils - Pink(1), Purple(1),

Teal(1), Std. Blue(2), Std. Green(1), Orange(1), Red(1), Yellow(1)

and White(1)

• Pre-programmed with 10 unique flashing patterns and 7

different colour combinations

• Requires +12vdc (3 Amps)

• Body is constructed of black UL-94 VO flame resistant plastic

• Four different mounting bases available (sold separately)

Flat, Round, Slant, Arch

• Base harness and power supply are both sold separately

• Artwork panel not included

E U . S U Z O H A P P. C O M

Part no.

104-31000

Description

RGB Polygon Topper

Price

€ 149.00

9

RGB Tower Light Topper

Pictured with Classic Tower Light

(Sold separately)

Pictured with

WMS, Aristocrat & Bally Classic Tower Lights

(Not Included)

• Designed to be mounted on top of any standard round classic

tower light with the included special top mounting bracket

• Works on any standard round tower light that has a diameter

between 1.98” (50.29mm) and 2.00” (50.29mm)

• Great for advertising special machine features such as

Multi-Denomination, Ticket-In Ticket-Out, Hot New Game,

Server Based Gaming, etc.

• Translucent bezel with 20 ultra bright Nichia multi-color RGB

LED’s provide light output for a elegant multi-coloured lightshow

• Pre-Programmed with 8 unique flashing patterns and

7 different colour combinations (104-08000)

• Alternative Solid color pattern version available (104-08000-AM)

• Backlit by 9 white high power Nichia LEDs

• Operates on +12vdc power

• Comes with dual sized hex thumb nut that has English

(6/32” Thread) and Metric (M4 Thread) for easy installation

• Several optional base/cap adapters make it easy to use on

other styles of tower lights:

- WMS Bluebird I

- Aristocrat Veridian

- Bally Super Candle

• Optional power harness 11-2801-00 makes it easy to install

on existing games by simply tapping into +12vdc and

ground or simply use the power supply H80-0414-10 into the

service outlet inside of machine

• Artwork panel and tower light are not included

• Durable flame retardant UL94 V0 ABS plastic housing

• Small Size: 7.64” W x 6.83” H x 2.34” D

10

Part no.

104-08000

Description

Topper with Standard Colour Pattern

1- Off

10 Pcs

50 Pcs

Price

€ 54,50

€ 49,75

€ 42,50

S A L E S @ S U Z O H A P P. N L

LED Xenon Topper

438,0

M 6

90,0

470,0

121,6

Mounting foot available for flat as well as round top machines

79,0

Dimensions

104-0025

H95-2846-00

• The LED Xenon Topper has a low profile to accommodate

locations where ceiling height is a problem

• On board PCB allows stand alone operation or up to 8 toppers

to be synchronized to work in a collective pattern

• Made of durable flame resistant UL-94 VO ABS plastics with

chrome bezel

• Back lighted by 11Watt SL Lamp

• Ultra bright LEDs guarantee unequalled light output for a

spectacular lightshow

• Chrome bezel contains 32 bright LEDs

• Seven pre-programmed flashing patterns

• Different attract modes including twinkling, waves, fades and

rollercoaster effects

• Whole unit operates on 12VDC power

• Optional mounting base (104-0025)

• Optional blank plexi panel (96-0915-00)

• Tower light optional

• Artwork not included or available

Part no.

104-07890SM

H95-2846-00

104-0025

Description

LED Xenon Topper

Mounting Base for LED Xenon Topper for Round Top Machines

Mounting Base for LED Xenon Topper for Flat Top Machines

E U . S U Z O H A P P. C O M 11

555mm

LCD Ellipse Topper

Dimensions

6mm

Pictured with Mounting Base

& Tower Light

(Sold separately)

• Features a 15” LCD monitor and media controller board

• Display your own MPEG video and/or JPEG pictures

• Graphic plexi insert included gives the LCD an added layer

of protection

• Durable flame retardant UL94 VO ABS plastic construction

with bright chrome bezel

• Bezel surrounded by 32 bright white LEDs

• Different attract modes including twinkling, full on,

rotating left to right and right to left

• Entire unit operates on one 12VDC power supply included

(H80-0414-10)

125mm

• Body is constructed of black styrene, colour customization available

• Topper mounting base sold separately

• Optional tower light sold separately

• Optional gold or black chrome bezel available at an additional charge

• Artwork not included or available

38.5mm

128.5mm

12

Part no.

103-58000

Description

With Media Controller Board

1- Off

10 Pcs

25 Pcs

S A L E S @ S U Z O H A P P. N L

Price

€ 628,95

€ 519,75

€ 498,75

22-0138

Suzo-Happ LED Topper Accessories

104-0051

H80-0414-10

-9902-11CW 104-0001

104-0020-1

Part no.

22-0139

Description

24V Ballast for Toppers

22-0138

12V Ballast for Toppers

H80-0414-10

12VDC 2.5A Power Supply for use with Suzo-Happ Toppers

104-0051

Topper Box Synchronizer

-9902-11CW

Cool White Replacement Compact Fluorescent Lamp

-9902-11

Warm White Replacement Compact Fluorescent Lamp

104-0020-1

104-0010-1

Topper Mounting Base, Flat

Topper Mounting Base, 15° Slant Angle

E U . S U Z O H A P P. C O M

Price

€ 20,95

€ 14,95

€ 35,65

€ 78,75

€ 2,75

€ 2,75

€ 6,25

€ 6,25

13

Ellipse & Mini Ellipse Topper

Pictured with Mounting Base

& Tower Light

(Sold separately)

447mm

128,5

124 mm

203,3

445,1

104-06890 Dimensions

• Made of durable plastics with bright chrome bezel

• Back lighted by 11Watt SL Lamp

125,0

• Different attract modes including twinkling, full on, rotating left

to right and right to left

• Whole unit operates on 12VDC power

• Optional flat or radius mounting brackets with two mounting

studs available to accommodate different cabinet configurations

Part no.

104-05890

104-06890

Description

Ellipse Topper

Mini Ellipse Topper

• Body is constructed of black flame retardant UL94 VO ABS

plastic, color customization available

• Optional towerlight sold separately

• Topper mounting base sold separately

• Optional blank plexi panel (H95-2738-00)

• Optional gold or black chrome bezel available at extra charge

• Artwork not included or available

Please ask for quotation

14 S A L E S @ S U Z O H A P P. N L

RGB LED Light Strips

104-02000

104-02001

• Light strips with opaque bezel contains bright multi colour

LEDs and when mounted to your cabinet they provide a

dazzling light show

• Can be used by themselves

• When used with RGB Xenon Topper it runs from the topper box

into the light strips and back

• Wire harness sold separately

LED Light Strip Controller sold separately

• Light strip controllers provide seven pre-defined color and seven

pre-defined flashing patterns

• Can synchronize/link colour and flashing patterns between

controllers and light strips (link cables sold separately)

• Controllers available for 20 LEDs or 40 LEDs

• +12vdc Operation

Part no.

104-02000

104-02001

104-0062

104-0056

104-0054

104-0053

Description

RGB LED Light Strip - 20 LEDs

RGB LED Light Strip - 10 LEDs

Light Strip Controller - 40 LEDs

Light Strip Controller - 20 LEDs

Harness for RGB LED Light Strip - for one 20 LED Strip

3 Harness for RGB LED Light Strip - for two 10 LED Strips

E U . S U Z O H A P P. C O M

104-0062

104-0056

15

Small Unit Large Unit

A new and innovative mechanical game device!

• Enhances the content and player appeal of new games

• Available in two sizes for design flexibility

• Provides a full deck of cards including face cards and jokers

• Driven by standard 12V, 24 step NMB stepper motors

• Three motor steps per card

• Designed to include movement detection

• Separate mounting cradle for ease of machine assembly

and service

• Units can be stacked together or mounted individually

• Cards are illuminated with RGB LEDs

• Cards can be driven by the host or through the Suzo-Happ

driver board

• Developer’s Kit available to aid in integration design

16

Part no.

164-20000

164-10000

Description

Large Unit

Small Unit

Open Unit

1- Off

50 Pcs

100 Pcs

Price

€ 79,00

€ 72,50

€ 65,00

S A L E S @ S U Z O H A P P. N L

Large Unit in Motion

Flip Card Unit

Small Unit

Large Unit

Flip Card Unit Dimensions

E U . S U Z O H A P P. C O M 17

Casino Chrome-Luminescent Pushbuttons

ITW Pancon Switch-Con Connector Nut over Snap-Tab Feature

(Nut Sold Separately RBM-K730-001)

*Reverse Polarity LED Version also available

Just add an “R” at the end of the Part Number

Pushbutton Schematic*

The Casino Chrome-Luminescent Series is the latest

pushbutton from Suzo-Happ providing the following

benefits:

• Polished chrome plated button bezel with translucent colour

washer molded in bezel to provide edge luminescent effect

• Special locking nut has special flare design to allow it to fit over

“Snap-Tab” feature with microswitch installed

• Ease & flexibility of mounting to metal control panels using

either the “Snap-Tab” or Traditional locking nut

(Nut sold separately, RBM-K730-001)

• For mounting via “Snap-Tab method a panel thicknesses of 18GA

(.047”/1.19mm), 16GA (.059”/1.15mm), 14GA (.070”/1.78mm)

Chrome plated only is required

• Switch pre-assembled on button for reduction assembly time

into control panel

• Supports ITW Pancon Switch-Con Crimp connector 5-pole

housing (CSF-MH-05-02)

18

• Easy to remove high quality Cherry DB5 switch

• Subminiature microswitch provides additional clearance room

under control panel

• Fitted standard with 12v white Nichia LED on printed

circuit board

• Grounded for ESD protection

• Polycarbonate lens for optical clarity and durability

• Available in several colour combinations of button &

luminescent effect

• Additional customization also available

• Switch snaps on bezel of button eliminating the need to have

separate lamp holder

• Custom printing on legends available at nominal charge

• Button Removal Tool and Nut Wrench Tool sold separately

(H96-0840-10)

• Patent Pending Design

S A L E S @ S U Z O H A P P. N L

Casino Chrome-Luminescent Pushbuttons

Large Square Large Rectangle Large Round

Small Square Small Rectangle Small Round

Part no.

26-1308-XX

26-1318-XX

26-1338-XX

26-1358-XX

26-1368-XX

26-1378-XX

Description

Small square chrome

Large square chrome

Rectangular chrome

Small rectangular chrome

Small round chrome

Large round chrome

Price 1- Off

€ 4,50

€ 4,50

€ 4,50

€ 4,50

€ 4,50

€ 4,50

Price 25 pcs Price 50 pcs

€ 3,75 € 2,95

€ 3,75

€ 3,75

€ 2,95

€ 2,95

€ 3,75

€ 3,75

€ 3,75

€ 2,95

€ 2,95

€ 2,95

E U . S U Z O H A P P. C O M 19

Large Square

22.0mm

51.5mm

41.2mm

Casino Chrome-Luminescent Pushbuttons Dimensions

10.0mm

6.6mm

42.0mm

.97”(24.7)

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

PANEL MOUNTING

Large Rectangle

22.0mm

1.2mm

2.7mm

36.7mm

26.4mm

10.0mm

6.6mm

42.0mm

.97”(24.7)

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

PANEL MOUNTING

1.2mm

2.7mm

20

Large Round

22.0mm

Ø35.0mm

Ø45.0mm

9.7mm

6.5mm

41.7mm

24.7mm

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

PANEL MOUNTING

1.2mm

2.7mm

S A L E S @ S U Z O H A P P. N L

Small Square

22.0mm

PANEL MOUNTING

Casino Chrome-Luminescent Pushbuttons Dimensions

36.7mm

26.6mm

10.0mm

6.6mm

42.0mm

24.7mm

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

1.1mm

2.7mm

Small Rectangle

22.0mm

PANEL MOUNTING

36.7mm

26.6mm

10.0mm

6.6mm

42.0mm

24.7mm

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

1.2mm

2.7mm

Small Round

22.0mm

Ø30.0mm

Ø40.0mm

PANEL MOUNTING

7.3mm

6.5mm

41.7mm

24.7mm

7.3mm

34.3mm

Dotted line represents mounting depth with

ITW Pancon connector

1.2mm

2.7mm

E U . S U Z O H A P P. C O M 21

Replacement Button Sets

Translucent Button Set for IGT Game King Button Set for IGT Slant Top Machines

• Draw more attention with this translucent button set with clear

caps for IGT Game King

• Small square buttons with clear caps

• All buttons have white legends and black print

• Fitted with 12V LED lamps

• Fitted with 12V LED lamps

Part no.

Price

H57-KIT-500 € 49,75

Part no.

H75-L012-KIT1G

Price

€ 42,50

Button Set for IGT Game King

Bar Top Machines

• Rectangular and small square buttons with clear caps

• All buttons have white legends and black print except the

“Change” button which has a red legend and white print

• Fitted with 12V LED lamps

Part no.

Price

H77-KIT-402 € 42,50

Button Set for IGT Game King

Upright Top Machines

• Small square buttons with clear caps

• All buttons have white legends and black print except the

“Change” button which has a red legend and white print

• Fitted with 12V LED lamps

Part no.

Price

H77-KIT-700L € 44,65

22 S A L E S @ S U Z O H A P P. N L

393.7mm

Compact RGB Handle Mechanism

23°

REF.

ø18.5mm

70mm

ø45mm

ø7.6mm TYP.

ø18.5mm

76mm

ø45mm

ø45mm

160mm

135mm

142mm

9.7mm

The Compact RGB Handle Mechanism is the latest Handle

Mechanism from Suzo-Happ providing the following benefits:

• Ultra Low-Profile design allows for external mounting

on cabinet and provides increased space on the inside of

the cabinet

• Ships as one assembly with handle for easy “Bolt-On”

installation

• Easily to remove for improved serviceability

• Ruggedized die cast design to provide long term performance

• RGB Attract Mode on handle mechanism cover attracts

additional attention

• As Handle is pulled LEDs light up with each of the six clicks of

the handle movement.

All LEDs light up when handle is fully pulled

• Pre-Programmed with unique flashing patterns and colour

combinations

• RGB Illuminated Mechanism ball with 2 multi colour LED’s

that flash, glow or flash light patterns to further trigger

your interest in your handle machines

• Durable ABS plastic cover

• 45 Degree rotation

• Available with Switches or Optics

• 12VDC LEDs & Coil

• Patent Pending Design

Part no.

12-300532

Description

Compact RGB Handle Mechanism with RGB Ball & RGB Effect Hub

E U . S U Z O H A P P. C O M 23

24

Maxi XL Changer

The Maxi XL is the largest machine in our Suzo-Happ range of change machines. With up to 4 hoppers and a capacity of more then 26.000 €1 coins this changer can handle a very large number of transactions per day.

The Maxi XL change machine can be used to change cash into coins or plastic tokens, or plastic tokens and change in regular coins.

This machine has a lightbox fitted, where information can be displayed. As an option a 15” lcd monitor with mediaplayer can be placed so digital content can be shown.

The modern design combined with programmable

RGB LED lighting gives this change machine a very modern look.

The LED lighting in the side panels and coin tray can be programmed in a matter of minutes to the desired colour, this way it can also support a certain theme within your location.

All illumination programming can be done with the included remote control.

There is a wide choice of banknote validators to choose from.

An Innovative NV9 banknote validator with stacker is fitted as standard, but other options are Innovative

NV200, Ardac Elite or MEI Cashflow.

So whatever banknote validator you prefer, you will find it within the Maxi XL range.

With the user-friendly mainboard, all changer settings can easily be changed without the use of equipment.

The bottom compartment has enough space to store for example additional coins and is secured with the same strong and secure locking system as the top compartment.

The Maxi XL is fitted with pop&t handles including

Venia security locks. Optional a Suzo-Happ alarm system can be fitted

.

S A L E S @ S U Z O H A P P. N L

Maxi Changer XL

Maxi Changer XL

Features:

• Free standing change machine, with mounting possibility to mount the cabinet to the wall or floor.

• Solid 3mm thick housing with 4-point locking system on top compartment, and 3-point locking

system on bottom compartment including Venia security locks.

• Bright vacuum fluorescent display to show accepted notes/coins and other details.

• Accounting log file, easy acces to all transaction details.

• Low level alarm function when hoppers get empty.

• Capacity around 26200 coins ( €1 ).

• Acceptance of maximum 4 different notes and 5 different coins.

• Payout of up to 4 different coins or tokens.

• Special versions available for payout of plastic tokens, these contain a special stirring unit to prevent

plastic tokens from nesting in the hopper extensions.

• Easy refill of hoppers.

• Wide choice of banknote validators : Innovative NV9 or NV200, Ardac Elite or MEI Cashflow.

• Can be fitted with RM5 coinvalidator.

• Dimensions : H 1600 x W 620 x D 450mm.

• Weight : Approx 150kg ( Empty ).

• Power : 110/240Vac ( power cable included ).

• Power consumption : Max. 40W.

• CE Approved.

• All maxi XL changers are supplied in a special wooden crate to avoid shipping damages.

• Optional change topper can be ordered separately

Please contact our sales department to receive our competitive pricing

E U . S U Z O H A P P. C O M 25

Change Machines

Arcade III Changer

The Arcade changer is a reliable and efficient solution to change banknotes or coins into 1 or 2 denominations

With the use of a change machine you will avoid unnecessary work for your employees and give a fast and efficient service to your customers.

The use of change machines will increase the revenue of the coin operated machines in a lot of circumstances.

The arcade changer is available in 4 different versions, with a Trilogy banknotereader and 2 Cube hoppers, Trilogy banknotereader and Evolution hopper, RM5 coin acceptor with

2 Cube hoppers or RM5 coin acceptor with Evolution hopper.

Although the Arcade changer is standard programmed on Euro currencies, it is available for almost every currency.

Please contact our sales department for your specific demands

• Wall mounting compact to fit most locations

• Solid housing with 3-point locking system including high security

Assa Desmo lock

• 6 Digit led display to show accepted notes and other details

• Accounting log file, easy acces to all transaction details

• Low level alarm function when hoppers get empty

• Capacity: 1200 coins, 24mm ( double Cube hopper ) or 1100 coins,

24mm ( Evolution hopper )

• Easy to reprogram ( no tools needed ) when changes in banknotes or

coins are desired

• Acceptance of maximum 4 different banknotes or coins

• Payout up to 2 different coins or tokens ( metal )

• Coin payout tray can hold plastic coin cups if desired

• All mounting accessories and drillplan are included

• Dimensions : H 712 x W 210 x D 304mm

• Weight : Approx 20kg ( Empty )

• Power : 110/240Vac ( power cable included )

• Power consumption : Max. 15W

• CE Approved

• All Arcade changers are shipped in a special crate to avoid any damage

( Included )

Part no.

Description

182-7000

Arcade III with Trilogy banknotereader and 2 Cube hoppers

Price

€ 799,00

182-7100

Arcade III with Trilogy banknotereader and Evolution hopper

€ 799,00

182-7200

Arcade III with RM5 coinacceptor and 2 Cube hoppers

182-7300

Arcade III with RM5 coinacceptor and Evolution hopper

€ 875,00

€ 875,00

26 S A L E S @ S U Z O H A P P. N L

Change Machines

182-6100

182-6200

Maxi III Changer

The Maxi changer is a reliable and efficient solution to change banknotes and coins into 1 or 2 denominations with a very large capacity.

The use of a change machine will avoid unnecessary work for your employees and gives a fast and efficient service to your customers.

The Maxi changer is available in 2 different versions, with only a trilogy notereader for “note-only” acceptance or with a trilogy notereader combined with an RM5 coinacceptor for combined acceptance of banknotes and coins.

In both versions payouts are done by 2 Evolution hoppers which can handle any coins between 16 and 30mm.

Although the Maxi changer is standard programmed on euro currencies, it is available for almost every currency.

Please contact our sales department with any specific demands

182-6200 inside

• Wall mounted

• Solid housing with 3-point locking system including high security

Assa Desmo lock

• 6 Digit led display to show accepted notes/coins and other details

• Accounting log file, easy acces to all transaction details

• Low level alarm function when hoppers get empty

• Capacity around 5000 coins ( 24mm )

• Acceptance of maximum 4 different notes and 6 different coins

• Payout of up to 2 different coins or tokens

• Special version available for payout of plastic tokens, these contain

a special stirring unit to prevent plastic tokens from nesting in the

hopper extension

• All mounting accessories and drillplan are included

• Dimensions : 345x350x640mm (HxWxD )

• Weight : Approx 36kg ( Empty )

• Power : 110/240Vac ( power cable included )

• Power consumption : Max. 15W

• CE Approved

• All maxi changers are supplied in a special wooden crate to avoid

shipping damages. ( included )

Part no.

Description

182-6100

Maxi changer Trilogy ( note only )

182-6200

Maxi changer Trilogy/RM5 ( note/coin )

182-6300

Maxi changer Trilogy/RM5 ( note/coin )

182-6400

Maxi changer Trilogy/RM5 plastic tokens

E U . S U Z O H A P P. C O M

Price

€ 999,00

€ 1099,00

€ 1099,00

€ 1199,00

27

Cash & Coin Handling

Ntegra Multi-currency desktop tito ticket and banknote counter/sorter

The power of a sorter in the body of a counter

Ntegra is the compact and portable desktop solution for multi-currency counting and sorting challenges.

Engineered to deliver unprecedented efficiency savings through continuous and uninterrupted use, Ntegra can denominate and authenticate different currencies at a processing speed of 1000 notes per minute.

Ntegra

can revolutionise desktop cash handling in small, medium and large cash processing environments.

Optional fitness sorting capability ensures that processes, which were once only achievable on large sorting systems, are now attainable at the front line.

Ntegra

is ideal for organisations looking to deploy an affordable sorting solution that ensures banknotes meet the customer and legislative requirements (for example, the European Central

Bank’s Banknote Recycling Framework).

Ntegra

is a true desktop machine with a large reject pocket providing high speed uninterrupted processing.

A compact footprint allows Ntegra to be used in areas where space is a premium, whilst a strong and robust design means that

Ntegra

is at home in small, medium and large desktop processing environments.

Detection

Full width CIS, IR and Tape UV, FL, PPD and Double Detection

Multi Channel Magnetics.

User Experience

Ntegra

provides an unmatched user experience.

A large colour LCD display, along with Windows CE, Graphics User

Interface (GUI) and multi-language options provides a machine which is incredibly easy and intuitive to use.

Part no.

Description

177-0800

Ntegra Currency Counter Euro

Price

€ 3395,00

177-0801

Ntegra Currency Counter printer/connectivity

€ 4500,00

177-0804

Ntegra Currency Counter fitness / TITO / connectivity

€ 6999,00

28

Modes:

• Counting

• Authentication

• Denomination

• Multi-currency

• Facing

• Orientation

• Fitness Sorting: Soil, Holes, Tears, Tape etc

• Issue Splitting

• Serial Number Printing

• Ticket In/Ticket Out (TITO) (optional)

Models of Ntegra Available

• NT8860: Valuing and Authentication

• NT8870: Valuing, Authentication and Basic Fitness

• NT8880: Valuing Authentication and Full Fitness

Data Interface

Cash counting is no longer simply counting money.

Records must be kept, audit trails must be created.

Ntegra automates this process through multiple options.

• RS232 Connectivity

• USB

• LAN

• On Screen Display (OSD – Video In/Out)

• Remote Display (7 Segment or Graphics)

• Integral Printer

• Clearance Program (Multi Batch Recording)

Ntegra Currency counters are available in many different configurations, with integrated printer, connectivity, TITO functionality etc.

The standard model is supplied with Euro currency setup as standard.

Additional currency sets are available as an option( USD, GBP etc. )

Please contact our sales department for assistance.

S A L E S @ S U Z O H A P P. N L

Ticket Printer

Futurelogic

GEN2 Universal™ Printer

The GEN2 Universal™ family of printers build on the technology that has made FutureLogic the leading manufacturer of TITO ticket printers for cashless gaming.

Developed with design feedback from global gaming OEMs and casinos, GEN2 Universal printers are compatible with existing gaming platforms (RS232 and NetPlex) as well as the next generation of USB games.

The GEN2 Universal printers anticipate new GSA standards for downloadable games, are IGT compliant and permit in-game firmware updates via the USB communications port.

In addition to the interoperability and ease of integration required for the next generation of electronic games, GEN2

Universal printers offer compatibility with existing games on your floor, allowing you to specify a single printer for your entire property.

Features:

• Universal Communications

3 Ports to Support All Game Types

- USB 2.0 Full Speed (Future GSA Compliant, IGT Compliant)

- RS232 Port (Backward Compatible)

- NetPlex Port (Backward Compatible)

• ITH

® (Intelligent Ticket Handling)

Makes Ticket Available ONLY after Fully Printed Internally &

Automatically Burst

• Large Paper Capacity 50% More Capacity Saves $200/Printer

Annually

• IntelligentBezel™ System

Paper Jam Reduction via Blocked Bezel Detection

Award-Winning Printer

Most Decorated Printer in Gaming

• Superior Electro-Mechanical Design

High Reliability and Easy Maintenance

• ProColor™ Printing

Readily Available 2-Colour Printing Technology

• Expanded Graphics Memory

Stores Hundreds of Clip Art Objects and Thousands of

Graphic Templates

• Hot Swappable

Printer Removal Without Powering Down

Part no.

46-0301

Description

GEN2 Universal Printer

E U . S U Z O H A P P. C O M 29

Cash & Coin Handling

Mach® 6 Coin sorter/counter

With optional WAVE™ coin authentication

The Mach 6 is a fast, compact coin sorter/ counter configurable for tabletop or higher volume applications requiring bagging capability.

Mach 6 is the perfect solution for medium size bank branches, retailers, transportation authorities and even small casino operations.

Highly configurable, Mach 6 can track and consolidate management information, eliminating the need for manual reporting.

Ease of use

Utilising minimal counter or floor space, the Mach 6 can be accommodated into virtually any work environment.

Its superior design offers functionality, efficiency and is ergonomically designed to enable fast processing of coins with minimal fatigue on the operator.

Selectable bag stops with multiple total levels are easily accessed via a direct keypad. A two-line alphanumeric

LCD display clearly conveys operational messages at a glance.

The Mach 6 features a lockout security function to protect vital operating information.

Coin detection

With the addition of the coin detection option, utilising Talaris patented Wave™ sensor technology; the Mach 6 becomes the ideal machine to assist the rejection of intrusive or counterfeit coins. Coin detection increases accountability while maintaining the highest degree of accuracy.

Flexible

The Management Information Control System (MICS) option provides three levels of memory and allows other media – such as cheques, vouchers or bulk coin to be entered via keypad.

Notes can be entered manually or automatically transferred if a note counter is interfaced, ensuring an audit trail.

For applications where consumer coin counting is offered as a customer service, the Mach 6’s Fee Key enables either a whole value amount or a fixed percentage to be automatically applied as a transaction fee.

This Mach 6 is delivered without drawer and bagging attachment

30

Part no.

Description

177-0200

Mach 6 coin sorter

Price

€ 2695,00

177-0201

Mach 6 coin sorter with “Wave” coin authentication

€ 57,95

177-0202

Mach 6 coin drawer 1 pc

177-0203

Mach 6 bagging kit 1 pc

€ 15,70

€ 34,95

177-0203

Mach 6 printer k it

177-0205

Mach 6 batch total display

177-0206

Mach 6 machine stand

€ 495,00

€ 495,00

€ 495,00

S A L E S @ S U Z O H A P P. N L

Cash & Coin Handling

Mach® 3 Coin sorter/counter/packager

Suitable for tabletop or portable applications

The Mach 3 is a versatile, cost efficient, compact coin sorter that simplifies and speeds coin processing for any business that counts, sorts, or packages coins by hand.

Ultimate in versatility

Mach 3 sorting containers can be configured to create a truly customised solution for each application. Processing only a few coins of one denomination? Use a standard drawer for coin capture. Processing large amounts of other denominations?

Use a bagging attachment to limit the number of times a user needs to stop the count process.

Coin drawers (two sizes), coin bags, or packaging kits can be used in any combination to optimise throughput.

Compact size

The Mach 3 is equally at home sitting on the counter of a small bank branch or retail cash office, or, using the built-in carrying handle, transported from location to location to process vending or ticket machine contents.

Counter space at a premium? Mach 3 easily stores under the counter and out of the way until it’s needed.

Ease of use

User selectable bag stops as well as batch and grand totals are accessed via a direct access keypad. A two-line alpha-numeric

LCD display conveys operational messages at a glance.

With few moving parts and full coin path access, the Mach 3 is easy to use and maintain.

Flexibility

Every Mach 3 includes; an extra large inspection pan reducing the number of coin pours required to process coin batches, RS232 and USB interface ports supporting printer, remote display, or

PC interface and exact stopping ensuring the precise number of coins selected by an operator enter a coin drawer or bag.

Optional features include audit trail printer, remote display, carrying bag/cover and magnet kit for removal of ferrous slugs and debris.

This Mach3 is delivered without drawer and bagging attachment

Part no.

Description

177-0100

Mach 3 coin sorter

177-0101

Mach 3 carry bag soft sides

177-0102

Mach 3 coin drawer 1 pc

177-0103

Mach 3 bagging attachment 1 pc

Price

€ 1595,00

€ 26,20

€ 10,95

€ 25,95

E U . S U Z O H A P P. C O M 31

Locks

The world’s largest manufacturer of locks Assa has developed the Assa

Desmo as it’s top of the range camlock product.

With many of the world’s largest casino groups as a customer the product has become a standard for any casino operator who insist on maximum security combined with maximum operating comfort.

The launch of the RC (removable core) version has made this line complete; the casino operator has now both maximum security and economic handling united in one product.

The Assa Desmo is a patented lock construction based on direct drive pins (no spring operation) making it particularly suitable for many operations in dirty and hostile environments. False cuts on the pins provide resistance to any currently known method of picking.

A large key made from nickel silver provides many years of guaranteed comfortable handling.

The Assa Desmo system is the effective way to prevent unauthorized manufacturing, cutting and distribution of key blanks, it also requires the most advanced and precise key cutting equipment in the lock industry.

No key blanks for Assa Desmo are sold and key production for Europe is only done in Sweden.

Code

Desmo Casino Locks

Features:

• 8-pin lock combined with two strong side bars

• Patent protected against unauthorized key duplication

• False cuts on the pins provide extra resistance to any known method of picking

• Large key made of nickel silver for lasting durability and comfortable operation

• Standard 90 degrees operation and key removable in locked position,

optionally available with removable key in either locked or unlocked position

• Various collars available to adjust any mounting depth

• Switchlocks available in same keycode as standard camlocks

• Standard supplied with 32mm cam, other sizes and models available

• Key-different locks are supplied with 2 keys per lock

Side bar pin

Side bar springs

Side bar

Locking pins

Inner cylinder

Part no.

D1118KA*

D1118KD

D1118KA-AD

D1118KA2-AD

Cylinder house

* Key alike, minimum quantity 25 pcs

Description

Desmo Casino lock 28.5mm (1-1/8”) key alike

Price 1-Off

€ 16,50

Desmo Casino lock 28.5mm (1-1/8”) key different

€ 21,80

Desmo Casino lock 28.5mm (1-1/8”) key alike 2 pull out positions

€ 17,80

Desmo Casino lock 28.5mm (1-1/8”) key alike as set of 2 pieces

1 with 1 pull out position and 1 with 2 pull out positions

€ 38,35

Price 50 pcs

€ 13,95

€ 17,75

€ 15,00

Price 500 pcs

€ 12,25

€ 15,95

€ 14,20

Part no.

DSW2000KA

DSW2000KD

Description

Desmo switchlock 43.5mm long key alike

Desmo switchlock 43.5mm long key different

Assa Desmo Switchlocks

Price 1- Off

€ 13,19

€ 36,70

32 S A L E S @ S U Z O H A P P. N L

Locks

Security

Camlocks

Key Alike

Security

Switchlocks

• 10 pin operation

• Die cast housing with chrome finish

• Camlocks available in 3 lengths, 16mm (5/8”) 22.3mm (7/8”

and 28.6mm (1-1/8”)

• Large key provides good grip during operation

• Key made of nickel silver material for trouble free performance

• Standard supplied with 32mm cam with dual hole so the lock

can be mounted in any position

• Key different locks are supplied with 2 keys per lock

Part no.

Description

X1058KD

Xlock 16mm (5/8”) key diff.

1- Off 25 pcs 100 pcs

€ 7,30 € 6,25 € 5,55

X1078KD

Xlock 22.3mm (7/8”) key diff.

€ 7,30 € 6,25 € 5,55

X1118KD

Xlock 28.5mm (1-1/8”) key diff.

€ 7,30 € 6,25 € 5,55

Key Alike Camlocks

• Key alike locks are supplied in lots of 25, 50 or 100 locks per

keycode

• Re-orders on the same keycodes are possible with a minimum

of 25 locks

Part no.

Description

X1058KA25

Xlock 16mm (5/8”) key alike 25 pcs

X1058KA50

Xlock 16mm (5/8”) key alike 50 pcs

X1058KA100

Xlock 16mm (5/8”) key alike 100 pcs

X1078KA25

Xlock 22.3mm (7/8”) key alike 25 pcs

X1078KA50

Xlock 22.3mm (7/8”) key alike 50 pcs

X1078KA100

Xlock 22.3mm (7/8”) key alike 100 pcs

X1118KA25

Xlock 28.5mm (1-1/8”) key alike 25 pcs

X1118KA50

Xlock 28.5mm (1-1/8”) key alike 50 pcs

X1118KA100

Xlock 28.5mm (1-1/8”) key alike 100 pcs

Price

€ 156,20

€ 288,75

€ 495,00

€ 156,20

€ 288,75

€ 495,00

€ 156,20

€ 288,75

€ 495,00

• 10 pin operation

• Die cast housing with chrome finish

• Length 36.4mm (1-7/16”)

• Large key provides good grip during operation

• Key made of nickel silver material for trouble free performance.

• Switchlocks have 6.3x0.8mm terminalsfitted for easy connection

• Key different locks are supplied with 2 keys per lock

• Switchlocks are available with or without automatic key return

Part no.

Description

X2-1138KD

Xlock switchlock key different

1- Off

€ 7,65

25 pcs 100 pcs

€ 6,25 € 5,55

X20-1138KD

Xlock switchl. key diff. auto return

€ 7,65 € 6,25 € 5,55

Key Alike Switchlocks

• Key alike locks are supplied in lots of 25, 50 or 100 locks per

new keycode, with a total of 5 keys per keycode

• Re-orders on the same keycodes are possible with a minimum

of 25 locks

Part no.

X2-1138KA25

Description

Xlock switchlock key alike 25 pcs

X2-1138KA50

Xlock switchlock key alike 50 pcs

X2-1138KA100

Xlock switchlock key alike 100 pcs

Price

€ 164,10

€ 301,90

€ 577,90

X20-1138KA25

Xlock switchlock key alike auto return 25pcs

€ 164,10

X20-1138KA50

Xlock switchlock key alike auto return 50 pcs

€ 301,90

X20-1138KA100

Xlock switchlock key alike auto return 100 pcs

€ 577,90

STC Round

Key Camlocks

• 7-pin tumbler lock

• Diecast housing with chrome finish

• Round chrome plated key

• Available as key different and key alike

• Available in 16mm (5/8”) 22.3mm (7/8”)

and 28.6mm (1-1/8”)

• Cam included

All new key-alike series are supplied in lots of 25,50 or 100 pcs with a total of 5 keys per keycode.

Re-orders on the same keycode are possible with a minimum of

25 locks per keycode

Part no.

Description

S1058KA

Lock 16.0mm 5/8” key alike * specify quantity

S1058KD

Lock 16.0mm 5/8” key different

S1078KA

Lock 22.3mm 7/8” key alike * specify quantity

S1078KD

Lock 22.3mm 7/8” key different

S1118KA

Lock 28.6mm 1-1/8” key alike * specify quantity

S1118KD

Lock 28.6mm 1-1/8” key different

S1148KD

Lock 38.0mm 1-1/2” key different

1- Off 100 pcs 500 pcs

€ 3,10 € 2,30 € 2,10

€ 3,10 € 2,30 € 2,10

€ 3,10 € 2,30 € 2,10

€ 3,10 € 2,30 € 2,10

E U . S U Z O H A P P. C O M 33

Touch Monitors

2639 26” Open Frame Touch Monitor

• A bright, high-contrast display with wide viewing angle easily

attracts and holds the user’s attention

• Pure-glass Acoustic Pulse Recognition technology combines optical

quality, durability and drift-free stability, with excellent drag

properties

• IntelliTouch (surface acoustic wave) technology offers high-quality

optics, durability, and long-term reliability

• A transparent protective coating makes the touchscreen resistant to

scratches and abrasions

• Integrated precision minibezel with watertight 0.5 mm seal

• The enclosure is controlled by Elo specifications and results in a

long-lasting product cycle

• Multiple mounting options are available

• Dual serial and USB connectivity are standard

• Worldwide agency approvals and a three-year standard warranty

are backed by Elo

Part no.

150TFIT2601

150TFNT2601

Description

26” Touchmonitor with Intellitouch SAW touchscreen

26” Monitor non-touch with glass

4200L

42” Interactive Digital Signage Display

• Available with Zero-bezel Acoustic Pulse Recognition (APR) for an

elegant appearance and sensitive touch response with virtually any

touch stylus - finger, prosthetic, stylus, card or pen

• IntelliTouch surface acoustic wave reliable single touch by finger or

soft stylus

Pure-glass display surface delivers excellent imagery with high light

transmissions

• Touch is impervious to changes in ambient light

Housed in a highly durable steel chassis for a long-life of reliable

performance

• VESA mounting with optional stand

• Aspect ratio 16:9

• True High Definition (HD) 1080p (1920 x 1080)

• Seamless, field installable, computer module, docking integration

• Heat strengthened glass per ASTM C1048; UL60950 ball drop test

compliant

• Analog VGA and HDCP-capable HDMI 1.3, video

• Two 10W speakers

34

Part no.

150TDT2202 Model 2200L

Size

22”

Resolution

1680x1050

2200L Desktop Touch Monitor

• High definition LED display offers ultimate HD interactivity, clarity

and resolution

• 16:9 aspect ratio panel

• 250 nits panel

• USB touch controller, DVI, VGA and built-in speakers for a rich audio

experience

• LED backlighting allows for state-of-the-art slim design, while

reducing power consumption

• Removable base and mounting features, including a VESA mount as

well as wall- and arm-mounting options for installation flexibility in

almost any architectural configuration.

• Ruggedized for use in high-traffic environments

• Three-year warranty

S A L E S @ S U Z O H A P P. N L

Touch Monitors

1939L 19” Open Frame Touch Monitor

• High quality panel with 178°x178° viewing angle

• 1300:1 contrast ratio

• Long lasting product cycle-enclosure controlled by Elo specifications

• Future generation panels phased-in without external changes

• Integrated precision minibezel with watertight 0.5 mm seal

• Mounting options including rear-mount (two standard rear-mount

brackets included) and VESA mount;

optional front mount (see Accessories for details) and

rack mount (see Accessories for details)

• IntelliTouch or SecureTouch surface wave, AccuTouch Five-Wire

Resistive and CarrollTouch Infrared touch technology with

dual serial/USB touch interface; Acoustic Pulse Recognition

touch technology with USB touch interface.

(SecureTouch monitors use a 3 mm chemically strengthened

glass touch sensor.)

• Multilingual on-screen display (OSD)

• Worldwide agency approvals

1938L 19” Wide Open Frame

Touch Monitor

• High quality panel with 160°x160° viewing angle

• 1000:1 contrast ratio

• Long lasting product cycle-enclosure controlled by Elo specifications

• Future generation panels phased-in without external changes

• Integrated precision minibezel with watertight 0.5 mm seal

• Mounting options including rear-mount (with two included

mounting brackets) and VESA mount

• Acoustic Pulse Recognition (APR), IntelliTouch or SecureTouch

surface wave touch technology with dual serial/USB touch interface.

(SecureTouch monitors use a 3 mm chemically strengthened glass

touch sensor.)

• Integrated multilingual on-screen display (OSD), connector for

optional remote on-screen display (OSD)

• Worldwide agency approvals

• Three year warranty

Part no.

150ETI1902

Description

19” Touchm. with Intellitouch SAW touchscreen

150ENT1902

19” Monitor non-touch with glass

150ETI1901

19” Widescreen Touchmonitor with Intellitouch SAW touchscreen

2240L 22” Open Frame Touch Monitor

• A bright, high contrast display with ultra-wide 178° x 178° viewing

angle easily attracts and holds the users’ attention

• Elo TouchSystems IntelliTouch (surface acoustic wave) technology

offers high quality optics, durability, and long-term reliability

• “Designed for touch” from the ground-up, including Elo TouchSystems

proprietary ultra-slim protective bezel for sealing against liquids

• A long product life with the enclosure controlled by Elo TouchSystems

specifications

• Multiple mounting options are available

• Dual serial and USB connectivity are standard

• Worldwide agency approvals and a three-year standard warranty

are backed by Elo

2244L 22” Open Frame Touch Monitor

• Slimmer dimensions enables thinner, artistic enclosure designs

• High definition LCD display offers ultimate HD interactivity, clarity

and resolution

• Viewing angle of 178°(h) × 178°(v), wider than most

22” touchmonitors, allows colors to remain sharp and graphics to

retain their integrity in both portrait and landscape modes

• 16:9 aspect ratio and bright 250 nits panel for a larger display

surface and bright vivid images

• LED backlighting allows for state-of-the-art slim design while

reducing power consumption

• Optimized for use in high-traffic environments

• Three year warranty

Part no.

Description

150ETI2205

22” Touchmonitor 178/178 SAW

150ENT2205

22” Non touch 178/178 with Glass

150ETI2202

22” Touchmonitor 178/178 SAW

150ENT2201

22” Non touch monitor 178/178 with Glass

E U . S U Z O H A P P. C O M 35

Evolution Hopper

The

Evolution Hopper

is a great extension to the Hopper line of Suzo.

This belt driven hopper has been re-engineered and the result is an improvement over existing belt driven hoppers in its performance and maintenance.

The unique concept provides a single build type hopper that is suitable for 95% of world’s coins and tokens without needing adjustments.

The

Evolution Hopper

is suitable for many applications such as:

Vending, Parking, Change, Amusement and Gaming machines.

Made from extremely strong, wearing resistant plastics in combination with state of the art electronics resulting in low cost of ownership.

Large DC motor in combination with electronic motor control board for reduced friction and motor noise.

Optic board is easily accessible by removing the electronic control board from outside the hopper.

Connector can be easily changed from front to back by just loosening two screws and pulling the cable with connector in its position. (reduced inventory for manufacturers that use both styles)

The

Evolution Hopper

is available in different interfaces:

Standard parallel, ccTalk encrypted and non-encrypted serial interfaces.

Serial interfaces provide higher security and better diagnostics especially by networked machines.

Supplied with standard quick-fit and release plate, connector as shown or optional with Bulgin connector.

Features:

• Modular space –efficient system

• High capacity >1100 coins of 1 Euro

• Pay out speed 4 coins per second

• Built-in agitator to prevent coin jams

• Hopper is protected by anti-jam electronics

• Large motor reduces motor noise

• High quality materials for long trouble free operation

• Easily removable and accessible electronics

• Hopper connector can easily be changed from front to back

• Low and high level sensing

• Competitively priced

• Low cost of ownership

• 3 Different coin sizes available :

16.25-20.9mm, 19-26.4mm (Euro Hopper) 21-30mm

Part no.

Description

EV01000

Evolution hopper parallel interface (please specify)

Price 1- off

€ 135,45

50 pcs 100 pcs

€ 99,75 € 89,25

36

For more information please contact your nearest Suzo-Happ office

S A L E S @ S U Z O H A P P. N L

Cube Hopper

R

Cube Hopper MK2

The cube hopper has been designed according to the highest standards for reliability and security for the

Gaming, Vending and Amusement Industry.

Made from extremely strong, wearing resistant plastics, the

Cube Hopper is a high speed, single denomination hopper with expandable hopper capacity.

Probably the most successful hopper in all new markets today the Cube Hopper has build it’s reputation fast.

With one configuration we cover the 0.50, 1 and 2 Euro coins, and in case of conversion the disc can be replaced in seconds to convert the denomination of the hopper.

(No tools required)

The hopper is square and easy to mount by means of a standard mounting-bracket (included).

By using an unique “Sun & Planet” gearbox system, this hopper offers the possibility to contain and count

(with two extensions) over 1200 coins of ø 24mm.

The hopper is protected by an auto-reverse anti-jam system and has an indirect optical readout with a continuous monitored optic sensor control.

A low level detection is integrated in the coincup.

Available as standard parallel interface with auto reverse function built in, advanced interface option with CCtalk serial communication, intelligent or high security version.

Features:

• Standard 450 coins capacity. (ø24mm)

• Coin cup extensions available (optional) which will increas

capacity up to average 400 coins per extension (ø24mm)

(Maximum 2 extensions up to 25.6mm)

• High pay out speed: 400 coins per minute

• Coin size range 18 - 31mm. Thickness 1.5 / 3.2mm (all Euro

coins, except 1 Euro cent)

• Supplied complete with mounting bracket

• Hopper conversion into different coinage is easy and fast

• Low level cup sensing integrated into connector as standard

• Planetary gearbox system provides maximum torque with

minimal power consumption

(350 mA to 850 mA with a 2 Amp peak on 24Vdc)

• Standard operating voltages 12 or 24Vdc

• Duty cycle 2:1

• CE approved

• Hopper is protected by auto reverse anti-jam

• Integrated optical read-out sensor under platform

(Sensor cannot get dirty or be approached with any

light source)

• Hoppers are available with parallel or Cctalk communication,

or in intelligent or high security versions

• Competitively priced!

CUBE HOPPER MK2 SPECIFICATIONS

Operating Voltage

Minimal operating Voltage

Temperature min.

Temperature max.

Duty Cycle

Humidity min.

Humidity max.

Coins per second

Payout position

Max. current not loaded

Max. current loaded

Max. current

Connector

Payout signal

Coin size

Coin thickness

Min. time between coins

Min. time obstructs optics

12Vdc ±10% or 24Vdc -25% +10%

Pin 8 : 10.8Vdc - pin 7 : 18Vdc

0ºC

50ºC

2:1

20%

75%

±7

4 sides

400mA

850mA

2A (Jam)

9-way connector + pins

Type: Molex 22-01-2095 + 08-50-0032

Open collector-active low 25mA-35V

18.00mm - 31.00mm

1.50mm - 3.20mm

100mS

30mS

For more information please contact our sales department

E U . S U Z O H A P P. C O M 37

Flow Hopper

Large Cup

New and innovative through hole hopper!

• Perfect for many applications including Amusement, Vending,

Gaming, Parking and Change machines

• Constructed of extremely durable, wearresistant plastic along

with state-of-theart electronics

• Available in two interfaces – standard parallel interface or

ccTalk serial interface

• Supplied with quick-fit release plate

Intermediate Cup

Features

• Compatible with other popular hopper devices

• Payout speed of up to 7 coins per second

• Three different bowl sizes available – small, medium and large

• Reliable through hole coin disk design

• Clean design – no external wires run for level sensors

• Integrated fall tube for simple dualhopper cabinet construction

• ccTalk version is available in encrypted and non-encrypted wmodes

• Parallel interface and standard 10-pin connector

• 12-24V power supply

• Continuous opto-sensor check

• Low level sensor and anti-jam feature

38

Medium Cup

S A L E S @ S U Z O H A P P. N L

1- Off

25 Pcs

100 Pcs

Price

€ 49,00

€ 42,50

€ 37,95

Part no.

Description

18-130400-XX

Flow Hopper

Medium Cup

Flow Hopper Dimensions

Dimensions

28,9

48,7

28,9

48,7

28,9

48,7

154,0

154,0

154,0

31,0 60,0

31,0

31,0

60,0

60,0

63,0

63,0

63,0

20,4 96,2

20,4

20,4

96,2

96,2

Intermedium Cup

189,0

189,0

30P

30P

Large Cup

91,6

19,6

91,6

91,6

19,6

19,6

228,0

228,0

228,0

E U . S U Z O H A P P. C O M 39

MEI CASHFLOW

® SC Series Bill Validator

40

SC

The New Standard For Gaming Note Acceptors

Bill Acceptor/Handling

• Superior acceptance and security

• Fast, reliable bill handling

• Lower cost of ownership – less downtime and maintenance

• Traffic light LEDs provide front-line at machine diagnostics

• USB port on the front, allows convenient interface for

support tools

• Common acceptor module, regardless of the machine

manufacturer

• Lensed receivers that scan 300% more bill surface with six

wavelengths of light

• Highest ticket acceptance rates through custom bar-code

sensor output

• 14 pending patents cover 30 unique design features in the unit

Cashbox

• Industry’s first dispute resolution window

(to view last bill stacked)

• Curved surface to protect internal mechanisms, drive gears and

secure cash

• Durable, welded plastic design

• One-hand, ergonomic handle for ease of use

• No latches or levers to operate

Acceptance Rate

• 98% or greater

Bill / Barcode Coupon Insertion

• Bills – up to 50 notes, four ways, face up & down

• Barcode Coupons – two way face up

Transaction Speed

• Approximately 3 seconds to stack

Escrow

• One bill or one barcode coupon

Interfaces

• Multiple serial protocols

Power Source & Consumption

• 12V – 28VDC

• Standby: 10 Watts

• Accepting: 30 Watts

• Stacking: 70 Watts

Shipping Weight

• SC Series - 9lbs. (4kg)

• SC Cashbox - 3lbs. (1.5kg)

SC Series Cashbox Capacity

• Greater than 500 notes

S A L E S @ S U Z O H A P P. N L

MEI EASITRAX

® Soft Count Upgrade Kits

EASITRAX

®

MEI EASITRAX

Soft Count is a hardware and software solution that acts as an interface between the casino floor and the soft count allowing casinos to track assets and maximize control.

Information collected in the bill validator is now easily accessible in a database that can be networked to multiple locations and be accessed to analyze slot performance.

MEI EASITRAX

Soft Count is a faster and more efficient way to manage cash drops and evaluate data from slot machines.

RFID technology connects slot machine asset numbers to a specific cashbox.

Casino operators can streamline the cash management process through:

• Easily retrofitting all existing

MEI CASHFLOW SC

systems with easy-to-install upgrade kits

• Integrating existing counter/sorter equipment to maximize efficiencies by minimizing system components

• Tracking the scheduled drops of all cashboxes providing a fast, efficient source tovalidate revenue and ensuring

a more accurate collection process

EASITRAX Soft Count provides cost savings by:

• Eliminating the cost associated with searching for “hotboxes”

• Improving efficiencies within the drop process

• Avoiding jurisdictional fines due to out of date software

• Increasing labor efficiency in the soft count room

• Providing tools to maximize the casino layout

• Reducing the number of cashboxes because they no longer need to be dedicated

Antenne Board Reader Base

For more information please contact our sales department

E U . S U Z O H A P P. C O M

RFID Enabled Cashbox

41

Custom Reel Mechanisms

Starpoint

Dice Unit

Custom Reel Mechanisms

Custom Engineered Reel Mechanisms to Fit the Needs of Our Customers

42

Contact a Suzo-Happ Sales Representative to see how we can work with you to develop a product solution for your gaming machine.

S A L E S @ S U Z O H A P P. N L

PRISMPRO LED Light Panels for Slot Machines

Panel for Top Glass

Panel for Reel Glass

Panel for Lower Glass

Superior lighting technology now used in Gaming Industry!

Led Panels available for:

IGT S2000, IGT GAME KING & BALLY 6000

Gaming Machines

Panel for Rounded Top Glass Panel for Upper Glass Panel for Lower Glass

• No hot or cold spots

• Illuminates from the sides of the frame and creates a smooth full

light without bright spots and shadows that occur with

traditional back-lit panels

• Restore your older machines with a new, modern look

• Each model is engineered specifically for the exact application

• Low heat generation saves life of entire machine while

significantly lowering air conditioning costs to casino floor

• PrismPro LED panels offer energy savings from 60-80%

• No mercury contamination to the planet and low carbon

footprint

• Green energy efficient LED technology

• Easy to install with no electrical or mechanical modifications

to make

• Available in three shades of white: Warm White, 3500K;

Cool White, 5100K; Daylight, 6000K

• 5 year typical lifespan

E U . S U Z O H A P P. C O M 43

ECONO LEDs for IGT Slot Machines

• Energy efficient units available indaylight, warm white

and cool white

• Easy installation - mounts in existing frame in just

seconds with no modifications

• Plugs into existing harness

• Adjustable angle for best dispersion

• Diffusion film available as option

• Operates from standard 24 VDC of the machine

• Colors available: warm white (3000-3500k), cool white

(4500-5000k), daylight (6000-6500k)

• Units for other slot machines available upon reques

Please contact our sales department for pricing

H70-0080-00

H70-0062-00

H70-0170-00

H70-0074-00

H70-0098-00

Light Pro Edge-Lit LED Panel for IGT Denom Panels

• For use in IGT Game King upright and I Games

• Dramatically improves the lighting of the denom arrow

panel providing improved color dispersion without shadows

• Includes LED edge-lit panel installed on rugged plastic

housing for easy installation

• Energy efficient panel only requires +12vdc 200 mA of power

• Eliminates the use of lamps, which frequently burn out

• Low heat generation, 70% lower power consumption

• Easy to install, plugs directly into existing circuit board harness

• Size: 13-1/8” L x 3-1/8” W x 1-1/4” D

• 5-8 year life span

Graphic Panel not included

44

Part no.

H70-36588-00

Back View

S A L E S @ S U Z O H A P P. N L

Never Replace a F4 Fluorescent or Ballast Again!

• For IGT 19” slant top games

• Eliminates ballast and replaces the F4 lamp and entire

fixture assembly

• Plastic mounting tray with 36” harness and cool white LEDs

• mproved color dispersion without shadows

• 5-8 year life span

• Low heat generation, 70% lower power consumption

• Easy to install, no tools required

• 36” Power cord supplied for direct plug-in, operates on 24DC

Light Pro Slant Top Edge-Lit Reflective LED Side Panel

Graphic Panel not included

Part no.

H70-36586-00

Light Pro Edge-Lit LED Panel for IGT Bartop

Never Replace those #73 bulbs Again!

• For use in IGT Bartop games

• Dramatically improves the lighting of the game legendpanel

providing improved color dispersion without shadows

• Energy efficient led panel only requires +12vdc 100 mA

of power

• Eliminates the use of the two existing 73 bulbs

• Low heat generation, 70% lower power consumption

• Easy to install, no tools required, plugs directly into

the existing lamp connectors

• LED panel size: 4” W x 3” H

• 5-8 year life span

Please contact our sales department for pricing

Graphic Panel not included

White Plastic Tray not included

E U . S U Z O H A P P. C O M

Part no.

H70-36587-00

45

Slot Machine Analyzer

Identifies compatibility problems between slot machines and online systems!

• Specifically designed to detect and diagnose communication

problems between slot machines and online systems which use

SAS* as their communication protocol

• Allows detection of several problems coming from TITO, cashless

transactions (EFT and AFT), communication incompatibility and

data corruption or accounting discrepancies

• Conceived and designed by a slot machine manufacturer and user

• Provides an unmatched tool for casino operators and audit or

online slot machine system manufacturers

• Includes trace Viewer analysis software which allows an

understanding of the communications trace with a time, source

and destination tag and a high level analysis of the SAS* package

• Technical features:

- Bidirectional data capture at 19200 bauds with full support of

9th bit. It’s high impedance input does not affect the circuits

undergoing analysis

- Output dump options: Into a PC via USB port or into a SD memory

card of up to 2GB

- Time tag with an accuracy of 1/10 millisecond Power source

options: USB port (PC/Laptop), external power

supply unit (DC 7.5V), or 4 AA batteries with 48-hour battery life

- Auto shut down for data protection

- Optional accessories: adaptor to connect fiber optic loops or

TTL connections

* SAS is a registered trademark of IGT

SMA Trace Analyzer

Global Installation

46

Part no.

119-0007

Price

€ 2000,00

S A L E S @ S U Z O H A P P. N L

Global Installation

Technical Service and Support from Suzo-Happ Group

We have invested heavily over the years for technical support and service on site for our various technical components. We are proud to have customers across Europe who value the service they have received from our technical assistance in the field.

What can Suzo-Happ offer you ?

• Trouble shooting at operator level for bill/coin issues

• Technical training for casino staff for bill validators and/or ticket printers

• On site service of cash redemption and kiosk machines

• LCD upgrade solutions to extend the lifetime of your older performing machines

Ask our service department for all service possibilities.

[email protected] or call +31-186643333

E U . S U Z O H A P P. C O M 47

48

Copyright 2012

SUZO-HAPP GROUP

All rights reserved

No part of this catalogue may be reproduced in any form, by print, photoprint or any other means, without written permission from the publisher.

Prices, technical data, text and pictures are subject to error and modifications and are subject to further developments.

S A L E S @ S U Z O H A P P. N L

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
