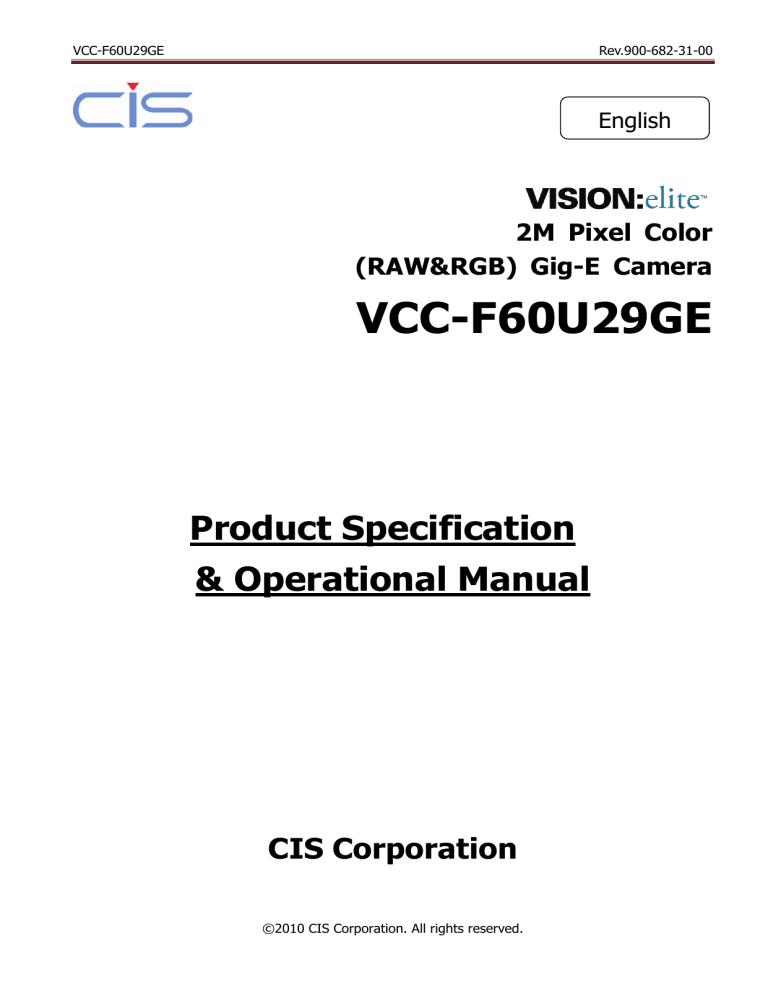

VCC-F60U29GE

VCC-F60U29GE Rev.900-682-31-00

English

2M Pixel Color

(RAW&RGB) Gig-E Camera

VCC-F60U29GE

Product Specification

& Operational Manual

CIS Corporation

©2010 CIS Corporation. All rights reserved.

VCC-F60U29GE Rev.900-682-31-00

Table of Contents

1. Scope of Application.......................................................................................................................... 3

2. Handling Precautions ........................................................................................................................ 3

3. Product Outline ................................................................................................................................. 4

4. Specification ..................................................................................................................................... 5

4.1. General Specification .................................................................................................................. 5

4.2. Camera Output Signal Specification .............................................................................................. 7

4.3. CCD Spectral Response (Representative Value) ............................................................................. 8

4.4. Image output Format (Coyote Application Setting) .......................................................................... 8

5. Function Settings .............................................................................................................................. 9

6. External Connector Pin Assignment ................................................................................................... 11

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE) .................................................................. 11

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD) ..... 12

7. Timing Chart.................................................................................................................................... 13

7.1. Horizontal Synchronous Signals Timing ........................................................................................ 13

7.2. Full Frame Scan Mode Timing ..................................................................................................... 13

7.3. Standard Trigger Mode Timing .................................................................................................... 14

7.4. Pulse Width Trigger Timing ......................................................................................................... 15

8. Partial Scan Mode Details ................................................................................................................. 16

9. Remote Interface Function ............................................................................................................... 17

10. Initial Settings ............................................................................................................................... 18

11. CCD Optical Axis Accuracy .............................................................................................................. 19

12. Dimensions .................................................................................................................................... 20

13. Cases for Indemnity (Limited Warranty) ........................................................................................... 22

14. CCD Pixel Defect ............................................................................................................................ 23

15. Product Support ............................................................................................................................. 23

©2010 CIS Corporation. All rights reserved.

2

VCC-F60U29GE Rev.900-682-31-00

1. Scope of Application

This is to describe VCC-F60U29GE, 2M pixels Gig-E Color CCD Camera. All specifications contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

 Do not use or store the camera in the following extreme conditions:

 Extremely dusty or humid places.

 Extremely hot or cold places (operating temperature –5℃ to +40℃)

 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

 Places subject to fluorescent light reflections.

 Places subject to unstable (flickering, etc.) lighting conditions.

 Places subject to strong vibration.

 Do not apply excessive force or static electricity that could damage the camera.

 Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera is not in use, put the lens cap on.

 Follow the instructions in Chapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

 Confirm the mutual ground potential carefully and then connect the camera to monitors or computers.

AC leaks from the connected devices may cause damages or destroy the camera.

 Do not apply excessive voltage.(Use only the specified voltage.) Unstable or improper power supply

voltage may cause damages or malfunction of the camera.

 The voltage ripple of camera power DC +12V±10% shall be within ±50mV. Improper power supply voltage may cause noises on the video signals.

©2010 CIS Corporation. All rights reserved.

3

VCC-F60U29GE Rev.900-682-31-00

 The rising time of camera power supply voltage shall be less than +10V, Max 60ms. Please avoide noises like chattering when rising.

9

8

7

12

11

10

10 20 30 40

Voltage Rising Time [ ms]

50 60 70

In case of abnormal operation, contact the distributor from whom you purchased the product.

3. Product Outline

VCC-F60U29GE is a Gigabit Ethernet interfaced, high-resolution industrial color video camera module utilizing a 1/1.8 type PS IT CCD. 2M pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution. At RAW mode setting, entire pixels can be read out within approx. 1/27s. At RGB mode setting, entire pixels can be read out within approx. 1/13s.

Features

High speed communication, maximum 108MB/s. (Comform to 1000BASE-T)

The maximum transmission distance is approx. 100m with cable more than CAT5e.

Camera settings can be set via LAN.

Software trigger input via LAN or hardware trigger input via 12pin connector at rear is selectable.

Shutter speed can be set from 1/27sec ~ 1/45,000sec by 1H at RAW mode, and 1/13sec ~ 1/22,000sec by 1H at RGB mode.

At partial scan mode, both capturing start position and capturing width can be set by 3H.

Bundled Items

Camera iPORT Software Development Kit 2.4.1 build 921. ※

Gig-E Camera Control Software (CamCtlSetup.exe) ※

Start up manual

Please ask for the details or download it from our web.

©2010 CIS Corporation. All rights reserved.

4

VCC-F60U29GE Rev.900-682-31-00

4. Specification

4.1. General Specification

Item Specification

Pickup device Device Type 1/1.8 type Interline Transfer color CCD, Sony ICX274AQ

Effective Pixel Number 1628 (H) x 1236 (V)

Unit Cell Size

4.40μm (H) x 4.40μm (V)

Chip Size 8.50mm (H) x 6.80mm (V)

Videooutput frequency Pixel Clock RAW Mode: 64 MHz

RGB Mode: 32 MHz

Horizontal Frequency RAW Mode: 33.333 kHz Pixel Clock: 1920CLK

RGB Mode: 16.667 kHz

Vertical Frequency Full Frame Scan Mode: Scanning lines: 1252H

RAW Mode: 26.624 Hz

RGB Mode: 13.312 Hz

Sync. system Internal Sync. System

Video output standard Gigabit Ethernet (Comform to 1000BASE-T) Trasferring speed: 108MB/s (max)

Resolution

Resolving power

1000 TV lines (Coyote Application Bayer Viewer: RGB Convert)

RAW Mode: 8bit / 10bit or RGB Mode: 24 bit is selectable

Sensitivity RAW Mode: F5.6 2000 lx (Shutter speed 1/27s(OFF), Gain 0dB)

RGB Mode: F8.0 2000lx (Shutter speed 1/13s(OFF), Gain 0dB)

Minimum illumination RAW Mode: F1.4 20lx (Shutter speed 1/27s(OFF), Gain +12dB)

RGB Mode: F1.4 10lx (Shutter speed 1/13s(OFF), Gain +12dB)

Dust or stains in No dust or stain shall be detected on the testing screen with setting the camera optical system aperture at F16.

Power requirements

DC +12V ± 10% (Max voltage not to exceed +15V)

Power consumption RAW Mode: 5.5W

RGB Mode: 5.0W

(At DC +12V IN, normal mode, and full frame scan or partial scan mode)

Dimension Refer to overall dimension drawing (Clause 12)

55mm x 55mm x 60mm (excluding projection)

Approx. 190 g Mass

Lens mount C mount (Refer to overall dimension drawing)

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 11)

Gain variable range

0~+12dB

White balance adjustment range

2800K~9000K

©2010 CIS Corporation. All rights reserved.

5

VCC-F60U29GE

Item Specification

Shutter speed

Variable range

RAW Mode: 1/27s(OFF) ~1/45000s

RGB Mode: 1/13s(OFF) ~ 1/22000s

Trigger shutter mode ・Standard Trigger Mode ・Pulse Width Trigger Mode

Safety/Quality standards

Durability

Rev.900-682-31-00

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: EN55022:2006 (Class A) for Emission

EN61000-6-2:2005 for Immunity

FCC: To be applied to FCC Class A digital Device

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

98 m/s

2

(10.0G)

20~200 Hz

Vibration

Acceleration

Frequency

Direction XYZ 3 directions

Shock

Testing time 120 min for each direction

No mulfunction shall be occurred with 980m/s

2

(100G) for ±X,

±

Y, and ±Z, 6 directions. (without package)

Temperature Performance guaranteed temperature: 0℃~+40℃

Camera operation guaranteed temeprature: -5℃~+40℃

All the specifications specified in this manual is guaranteed

Operation environment

Storage environment

Recommended System under performance guaranteed temperature.

All the camera functions operate normally under operation guaranteed temperature

RH 20~80% with no condensation

Humidity

Temperature -25℃ ~ +60℃

Humidity

RH 20~80% with no condensation

LAN Card Intel PRO/1000 series

LAN Cable MOD-YSP-A1AS-SP series (Honda Tsushin Kogyo)

MV series (CEI)

OS

Memory

Windows XP, Windows VISTA

Over 512 MB (over 1GB recommeded)

©2010 CIS Corporation. All rights reserved.

6

VCC-F60U29GE Rev.900-682-31-00

4.2. Camera Output Signal Specification

Video output data

Item Specification

At Full Frame Scan Mode

Sync. Signal

I/O

Video out

LVAL output

FVAL output

DVAL output

SP (Exposure Pulse)

1624(H) x 1224 (V)

60MHz 2Tap output

LVTTL (3.3V Output)

LVTTL (3.3V Output)

LVTTL (3.3V Output)

LVTTL (3.3V Output)

HR10-10R-12PA

Output pin assignment is set via iPort SDK. Please refer to our VCC-G60/F60

GE series startup manual, section 5.7. Trigger Mode.

Polarity

Trigger Pulse width

POSI/NEGA Selectable

Min. over 2 HD ~ Max. under 2504 HD

Trigger input

Hardware Trigger input LVTTL (5.0V Tolerant) HR10-10R-12PA

Software Trigger input RJ-45

White Clip Level Digital 8bit : FFh

Video output signal

Setup Level

Dark Shading

Digital 8bit

Digital 8bit

: 08h

: Under 08h for both horizontal and vertical

(Conditions: Gain 0dB)

5 secounds shall be waited after turning on power to get proper camera operation.

+3.3V

VCC

SN74LV125A(TI)

Vih : Vcc × 0.7(Min)

Vil : Vcc × 0.3(Max)

Voh : 2.48V(Min)

Vol : 0.44V(Max)

180Ω

180Ω

UDZS TE-17 6.2B

(ROHM)

TTL In(a)

TTL Out(b)

(a):0~3

(b):0~2

12 pins circular connector at rear GPIO interface

©2010 CIS Corporation. All rights reserved.

7

VCC-F60U29GE

4.3. CCD Spectral Response (Representative Value)

※ Lens charcteristics and luminous source charcteristics are not considered.

Rev.900-682-31-00

4.4. Image output Format (Coyote Application Setting)

(1) RAW Mode

1-Tap, Bayer RGB

Area of interest Width : 1624 Height : 1224 Offset X : 0 Offset Y : 19

Bayer Pattern GBRG

G B

R G

(2) RGB Mode

RGB Color, 24bit, Packed

Area of interest Width : 1624 Height : 1224 Offset X : 0 Offset Y : 19

©2010 CIS Corporation. All rights reserved.

8

VCC-F60U29GE Rev.900-682-31-00

5. Function Settings

Camera functions can be set with serial communications.

Function Address Data

Gain 001

0:

1:

2:

3:

0 dB: Analog Fixed Gain

+3 dB: Analog Fixed Gain

+6 dB: Analog Fixed Gain

+12 dB: Analog Gain (+6dB) + Digital Gain (+6dB)

E-Shutter

White Balance

Trigger Mode

Manual Analog Gain

Manual Shutter Control

Trigger Polarity

002

12:

13:

14:

15:

7:

8:

9:

10:

11:

2:

3:

4:

5:

6:

4:

0:

1:

Manual Gain (Refer to Address 005 and 006)

RAW Mode (Address 018:002) RGB Mode (Address 018:003)

1/27s(Off)

1/27s

1/13s(Off)

1/27s

1/60s

1/90s

1/120s

1/150s

1/200s

1/250s

1/500s

1/750s

1/1000s

1/2000s

1/5000s

1/10000s

1/15000s

1/45000s

1/60s

1/90s

1/120s

1/150s

1/200s

1/250s

1/500s

1/750s

1/1000s

1/2000s

1/5000s

1/10000s

1/15000s

1/22000s

003

16:

0:

1:

2:

3:

4:

Manual Shutter (Refer to Address 009 and 010)

THRU

3200K

Spare

Spare

Manual White Balance (Address 156, 157, 158 and 159)

004

0:

1:

2:

005&006 0~512:

Normal Mode (Trigger Mode Off)

Standard Trigger Mode (Shutter speed can be set with address 002.)

Pulse Width Trigger Mode (Shutter speed can be set with trigger pulse width.)

0: 0dB 512: over +10dB (Log Linear)

2LSB is invalid with 10bit data. Set the address 001 data to 004.

RAW Mode: 1/13s (Off)~1/45000s

RGB Mode: 1/27s (Off)~1/22000s

Set the address 002 data to 016.

009&010 0~1251: Address 009 MSB and address 010 LSB makes total 16 bit.

RAW Mode: Shutter speed = (1251-(009&010)) x 30.00μs + 20.84μs

011

0:

1:

RGB Mode: Shutter speed = (1251-(009&010)) x 60.00μs + 41.69μs

Max data = 1251

Positive Input

Negative Input

©2010 CIS Corporation. All rights reserved.

9

VCC-F60U29GE

Function

Output Data Select

Gamma Mode

Partial Scan Mode

Partial Scan Start Position

Camera Mode

Partial Scan Effective Line

Partial Scan Total Line

Manual White Balance R

(Right)

Manual White Balance B

(Right)

Data Save

Rev.900-682-31-00

Address Data

0:

013

1:

0:

014

015

018

1:

0:

1:

016&017 0~407:

0:

1:

019&020 0~407:

8bit Output Data

10bit Output Data

Gamma Off (1.0)

Gamma On (Option)

Full Frame Scan Mode

Partial Scan Mode

Set the address 015 data to 001.

Address 016 MSB and address 017 LSB makes total 16 bit.

Start Position: 3 H/step Min Data: 0 (0H)/Max Data : 407 (1221 H)

Start Position (016&017)+ Effective Line (019&020) <= 407

RAW Mode

RGB(24bit) Mode

Set the address 015 data to 001.

Address 019 MSB and address 020 LSB makes total 16 bit.

Effective Line: 3 H /step Min Data: 0 (3 H)/Max Data : 407 (1224 H)

Start Position (016&017)+ Effective Line (019&020) <= 407

021&022 0~1251:

Read Only

Total line number at Partial Scan Mode or Full Frame Scan Mode minus 1 is set

156&157

158&159

256

1023:

256

1023:

256: x1(0dB)~1023: x4(+12dB)

Set address 003 data to 004.

256: x1(0dB)~1023: x4(+12dB)

Set address 003 data to 004.

255 Input 083 or 053 to save the data in EEP-ROM.

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

©2010 CIS Corporation. All rights reserved.

10

VCC-F60U29GE Rev.900-682-31-00

6. External Connector Pin Assignment

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)

Pin

No.

1 GND

2 Power In DC +12V

3 TTL In3

(LVTTL Input 5V Tolerant)

4 TTL Out2

(LVTTL 3.3V Output)

5 GND

6 TTL In2

(LVTTL input 5V Tolerant)

7 TTL Out1

(LVTTL 3.3V Output)

8 TTL In1

(LVTTL input 5V Tolerant)

9 TTL Out0

(LVTTL 3.3V Output)

10 TTL In0

(LVTTL Input 5V Tolerant)

11 NC

12 NC

Signals which can be controlled by GigE

Camera Control Software

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

LVAL, FVAL, DVAL ,SP(Exposure) Output

Trigger Input

TTL In(a) a:0~3・・・Trigger Input etc.

TTL Out(b) b:0~2・・・LVAL, FVAL, DVAL, SP, Pulse Generator etc.

Pin assignment and functions can be set arbitrarily via iPORT software.

Please refer to iPORT.Software.Coyote.pdf in¥Program Files¥Pleora Technologies Inc¥iPORT

Software¥Documentation.

©2010 CIS Corporation. All rights reserved.

11

VCC-F60U29GE Rev.900-682-31-00

6.2. RJ-45 Gigabit Ethernet Connector MOD-YSJ88DA03C-CN+ (HONDA TSUSHIN KOGYO CO., LTD)

LINK LED:

ACT LED:

Lighting-off

Lighting-on

Blinking

Lighting-off

Lighting-on

LINK(Green LED)

・・・

・・・

・・・

・・・

・・・

ACT( Yellow LED)

Unconnected to LAN

Connected to LAN

Transmitting the data

Unconnected or connected with 10Mbps/100Mbps

Connected with 1000Mbps

©2010 CIS Corporation. All rights reserved.

12

VCC-F60U29GE Rev.900-682-31-00

7. Timing Chart

7.1. Horizontal Synchronous Signals Timing

Video Output

LVAL Output

296 CLK

DVAL Output

FVAL Output

296 CLK

1 CLK

7.2. Full Frame Scan Mode Timing

Video Output

(CCD Read Out Signal)

1224H

LVAL Output

1248 1249 1250 1251 1252 1 2 3 4

DVAL Output

1920 CLK

28H

1624 CLK

CLK

RAW Mode = 64MHz

RGB Mode = 32MHz

5 6 7 8 9 10 11 12

1224H

28 29 30 31

FVAL Output

9H 19H

Total = 1252H

©2010 CIS Corporation. All rights reserved.

13

VCC-F60U29GE Rev.900-682-31-00

7.3. Standard Trigger Mode Timing

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 1.08μs at RAW mode and 2.16μs at

RGB mode.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

Trigger input during the execution of exposure (exposure time) shall be ignored. (Refer to the “G” below.)

TTL INx

(Trigger Input)

19H 1224H

Video Output

1 9

LVAL Output

(CCD Read

Out Signal)

DVAL Output

FVAL Output

29

Standard Trigger Mode

TTL INx

(Trigger Input)

(E)

TTL INx

(Trigger Input)

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output

Delay(Fixed)

(Exposure Signal)

1243H b Exposure Time

(F)

1252

Trigger invalid

(G)

RAW Mode(CLK 64MHz) a b

1.08μ s nHD×30μ s + 20.84μ s

RGB Mode(CLK 32MHz) a

2.16μ s b nHD×60μ s + 41.69μ s

SP Output

(Exposure Signal)

Video Output

DVAL Output

Exposure Time (Register Set Value)

(E)

(F)

Exposure Time (Register Set Value)

(Exposure Time)

(B)

(B)

(F)

©2010 CIS Corporation. All rights reserved.

14

VCC-F60U29GE

7.4. Pulse Width Trigger Timing

Rev.900-682-31-00

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 1.08μs at RAW mode, and 2.16μs at

RGB mode. Delay time, from detecting the trigger edge to completion of exposure, is 21.92μs at RAW mode, and 43.84μs at RGB mode.

Trigger input can be accepted even when the camera is outputting video signals. However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, can not be worked. Please refer to the “C” below. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

TTL INx

(Trigger Input)

Video Output

LVAL Output

DVAL Output

(CCD Read

Out Signal)

1 9

19H

29

1224H

1252

FVAL Output

Pulse Width Trigger Mode

(A)

TTL INx

(Trigger Input)

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output Delay(Fixed)

(Exposure Signal)

(B)

1243H

Exposure Time

953

CLK

450

CLK b

Delay(Fixed)

Trigger invalid

(C) (D)

RAW Mode(CLK 64MHz) a

1.08μ s b

21.92μ s

RGB Mode(CLK 32MHz) a

2.16μ s b

43.84μ s

TTL INx

(Trigger Input)

SP Output

(Exposure Signal)

(Exposure Time)

Exposure Time

(Pulse Width)

(Pulse Width)

Exposure Time

(Pulse Width)

(B)

(Video Output(C)

(A) (B)

(C)

Video Output

DVAL Output

©2010 CIS Corporation. All rights reserved.

15

VCC-F60U29GE

8. Partial Scan Mode Details

Capturing start position and capturing width can be set by 3H via LAN.

1252 H

1224 H

Video Output

(Normal Scan)

19 H

LVAL Output

(Normal Scan)

9 H

Rev.900-682-31-00

VIDEO Output

(Partial Scan)

High Speed

Transmit Term

High Speed

Transmit Term

Y Offset

19H + Starting Position

(Address016&017)

Effective Line

(Address 019&020)×3+3H

LVAL Output

(Partial Scan)

9 H

Effective line register

(Address 019&020)

Total Line(Address 021&022) + 1H

Reading out position register (Address 016 & 017): 0(0H) ~ 407 (1221H) 3H/step

Effective line register (Address 019 & 020): 0(3H) ~ 407 (1224H) 3H/step

Total line register (Address 021 & 022): 435H + (Effective line register × 2) + 2 (Read Only)

Note: Reading out position and effective line shall meet the following condition.

Reading out position register + Effective line register = < 407

Otherwise, the value, 407 – reading out position register, will be set to the effective line register.

<Example 1> Conditions: Reading out position register (Address 016 & 017) = 000

Effective Lines Total Line register

+ 1H

Frame Rate

255

341

0

159

3 H

480 H

768 H

1026 H

438 H

756 H

948 H

1120 H

RAW mode

76 fps

44 fps・

35 fps

30 fps

RGB mode

38 fps

22 fps・

18 fps

15 fps

407 1224 1252 H 27 fps 13 fps

©2010 CIS Corporation. All rights reserved.

16

VCC-F60U29GE Rev.900-682-31-00

9. Remote Interface Function

Through LAN, the camera can be controlled.

(1) The settings for RS-232C

Baud rate

Data

Stop bit

Parity

XOn/XOff

: 9600bps

: 8bit

: 1bit

: None

: Not controlled

(2) Control code

The total control code is 14 bits, which conforms to ASCII code.

The control code consists of camera No. process code, remote controller address, remote controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.

1 2 3 4 5 6

Camera No.

7th Byte

Process code

8 9 10

Remote controller address

11 12 13 14

Remote controller data CR

000000: fixed “R” Read mode

“W” Write mode

“C” Camera mode

Please refer to the address table of

Section 5. Function

Settings.

000~255

0 Dh

Camera No. is fixed with 6 bite numerical strings, “000000”.

Process code

Input any one of R, W, or C to the process code.

R (read mode) is to read the data of remote controller address.

Please be noted to set any dummy data (000~255) to 11 th

~13 th

, since a command shall consists of 14 bytes.

W (write mode) is to write the data to the remote controller address.

Please be noted that the data cannot be saved into EEPROM of the camera.

(Reboot the camera, and the data is reset to the initial setting.)

To save the data into EEPROM, please refer to Section 5. Function Settings.

C is the code to send the data back from the camera.

Note: Do not set code C when sending the data from PC side.

©2010 CIS Corporation. All rights reserved.

17

VCC-F60U29GE

Remote controller address

Rev.900-682-31-00

Note: Do not write the data into the address other than specified, since it may cause

the damages or malfunction of the camera.

Remote controller data

Set the decimal number (000~255) for the remote controller data. Please be noted to set any dummy data at read control mode.

CR

Be sure to input “CR” to confirm the end of the command.

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

10. Initial Settings

Gain

E-Shutter

Function

White Balance

Trigger Mode

Trigger Polarity

Output Data Select

Partial Scan Mode

Camera Mode

Partial Scan Total Lines

Address

001

002

003

004

011

013

015

018

021 & 022 1251: Read Only

Data

0: 0dB

0: 1/13s (Off)

1: 3200K

0: Normal Mode (Trigger Mode Off)

0: Positive Input

0: 8 bit Output Data

0: Full Frame Scan Mode

1: RGB (24bit) Mode

©2010 CIS Corporation. All rights reserved.

18

VCC-F60U29GE

11. CCD Optical Axis Accuracy

Datum Plane B

55 11.1

Inclination of optical

Axis to datum plane B

90

°±

0.2

°

Inclination of optical

Axis to datum plane A

Datum Plane A

The center of effective pixels shall be within φ0.6 to the center of the lens mount.

θ

±

0.5

°

Inclination of effective pixels θ

To datum plane A shall be

θ≦

±0.5°

Datum Plane A

60

Rev.900-682-31-00

6.3

*)Dimension from datum plane A to the center of lens mount.

910-003-00-00

(Unit :mm)

©2010 CIS Corporation. All rights reserved.

19

VCC-F60U29GE

12. Dimensions

Rev.900-682-31-00

4-M3

Depth 4

55

28

±0.1

C M ou nt (

*)

0 -0

Under R1

11.1

4.5

±0.1

4-M3

Depth 4

60

2 MEGA PIXEL

52

6.3

*1) C Mount screws comply with ANSI/ASME B1.1, 1-32UN(2B).

*2) Screw length from C mount lens surface shall be under 6mm. And protruding portion shall be

lesss than 10mm.

Product Name

Label Position

GigE

999-500-00-00(1/2)

(Unit:mm)

DC IN

©2010 CIS Corporation. All rights reserved.

20

VCC-F60U29GE Rev.900-682-31-00

(31)

(51)

(23)

(19)

CCXC-12PxxN

(SONY)

2 MEGA PIXEL

MOD-YSP-A1AS-SP()+

(HONDA TSUSHIN KOGYO)

Cable Reference Drawing

999-500-00-00(2/2)

(Unit:mm)

©2010 CIS Corporation. All rights reserved.

21

VCC-F60U29GE Rev.900-682-31-00

13. Cases for Indemnity (Limited Warranty)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases.

 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

 In case indirect, additional, consequential damages (loss of business interests, suspension of business activities) are incurred as result of malfunction or non-function of the equipment, we shall be exempted from responsibility for such damages.

 In case damage or losses are caused by failure to observe the information contained in the instructions in this product specification & operation manual.

 In case damage or losses are caused by use contrary to the instructions in this product specification

& operation manual.

 In case damage or losses are caused by malfunction or other problems resulting from use of equipment or software that is not specified.

 In case damage or losses are caused by repair or modification conducted by the customer or any unauthorized third party (such as an unauthorized service representative).

 Expenses we bear on this product shall be limited to the individual price of the product.

©2010 CIS Corporation. All rights reserved.

22

VCC-F60U29GE Rev.900-682-31-00

14. CCD Pixel Defect

CIS compensates the noticeable CCD pixel defects found at the shipping inspection prior to our shipment.

On very rare occasions, however, CCD pixel defects might be noted with time of usage of the products.

Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from taking any responsibilities for them.

Should you have any questions on CCD pixel defects compensation, please contact us.

15. Product Support

When defects or malfunction of our products occur, and if you would like us to investigate on the cause and repair, please contact your distributors you purchased from to consult and coordinate.

©2010 CIS Corporation. All rights reserved.

23

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
