Philips LPL24X1 Datasheet

Philips LPL24X1 Datasheet

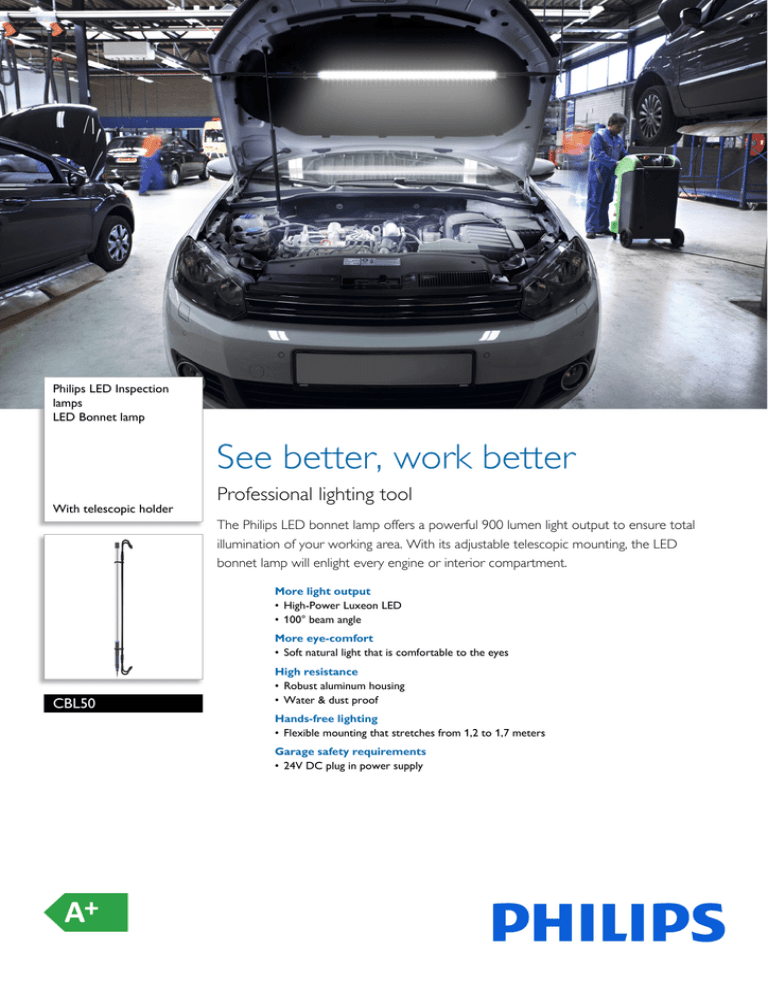

Philips LED Inspection
LED Bonnet lamp
See better, work better
With telescopic holder
Professional lighting tool
The Philips LED bonnet lamp offers a powerful 900 lumen light output to ensure total
illumination of your working area. With its adjustable telescopic mounting, the LED
bonnet lamp will enlight every engine or interior compartment.
More light output
• High-Power Luxeon LED
• 100° beam angle
More eye-comfort
• Soft natural light that is comfortable to the eyes
High resistance
• Robust aluminum housing
• Water & dust proof
Hands-free lighting
• Flexible mounting that stretches from 1,2 to 1,7 meters
Garage safety requirements
• 24V DC plug in power supply
LED Bonnet lamp
With telescopic holder
Light output: 900 lumens
Water & dust protected -IP54
The LED inspection lamp is water resistant, and
conforms to IP54.
Adjustable telescopic mounting
With 900 lumens light output ensure you are not left
in the dark when trying to spot even the smallest
Wide beam angle: up to 100°
Maximum visibility
Beam angle: 100°
Color temperature: 6500 K
Light output: 900 lumens
Light intensity: 500 lux at 0.5 m
Number of LED: 36
LED lifetime: 10000 hours
• Impact protection rating (IK): IK07
• Ingress protection rating (IP): IP54
• Resistant to: oil, grease, chemical & workshop
• Operating temperature: -10°C to 40°C
• Cable operating temperature: -25°C to 50°C
• Materials & finishing: aluminum housing
• Telescopic holder
• Included accessories: 2 clip-on magnets
Flexible mounting that stretches from 1,2 to 1,7
meters with soft cover protecting the painting of the
vehicle for easy and flexible positioning during work.
The wide beam angle of 100° will enable you to focus
on specifics part and to deliver the right amount of
light you need.
24V DC plug in power supply
Operating line voltage: 100-240V
Power consumption: 15 W
Plug type: EU
Charging cable type: 24V DC plug in power supply
Product measurement
• Lamp dimension (mm): Ø27 x 1200 length
• Cable length: 5 m
• Holder dimension: 1200 to 1700 mm
Product weight
White LED light: 6500 K
without cable: 500 g
with cable: 1000 g
without holder: 500 g
with holder: 1000 g
Outer Carton
Soft natural light that is comfortable to the eyes
during longer periods of time. Light with a colour
temperature between 6000 and 7000 K. Brighter
light might be extremely clear but is unnatural to the
eye and will lead to fatigue.
Strong impact resistance -IK07
The operating voltage of the product is 24V, making
it safe to use it in garage environments with a 24V
power plug.
The robust case is designed for a tough working
environment and conforms to IK07
Issue date 2014-03-30
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9237 957 90101
EAN: 87 27900 39066 7
Number of consumer packagings: 6
Outer carton (L x W x H): 120 x 32 x 25 cm
Gross weight: 11.9 kg
GTIN: 1 87 27900 39066 4
Country of origin
• Denmark
