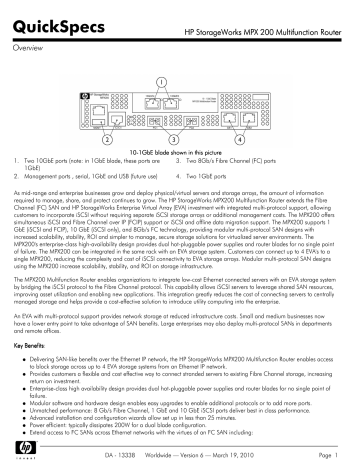

HP StorageWorks MPX 200 Multifunction Router

HP StorageWorks MPX 200 Multifunction Router

QuickSpecs

Overview

1. Two 10GbE ports (note: in 1GbE blade, these ports are

1GbE)

3. Two 8Gb/s Fibre Channel (FC) ports

2. Management ports , serial, 1GbE and USB (future use) 4. Two 1GbE ports

As mid-range and enterprise businesses grow and deploy physical/virtual servers and storage arrays, the amount of information required to manage, share, and protect continues to grow. The HP StorageWorks MPX200 Multifunction Router extends the Fibre

Channel (FC) SAN and HP StorageWorks Enterprise Virtual Array (EVA) investment with integrated multi-protocol support, allowing customers to incorporate iSCSI without requiring separate iSCSI storage arrays or additional management costs. The MPX200 offers simultaneous iSCSI and Fibre Channel over IP (FCIP) support or iSCSI and offline data migration support. The MPX200 supports 1

GbE (iSCSI and FCIP), 10 GbE (iSCSI only), and 8Gb/s FC technology, providing modular multi-protocol SAN designs with increased scalability, stability, ROI and simpler to manage, secure storage solutions for virtualized server environments. The

MPX200's enterprise-class high-availability design provides dual hot-pluggable power supplies and router blades for no single point of failure. The MPX200 can be integrated in the same rack with an EVA storage system. Customers can connect up to 4 EVA's to a single MPX200, reducing the complexity and cost of iSCSI connectivity to EVA storage arrays. Modular multi-protocol SAN designs using the MPX200 increase scalability, stability, and ROI on storage infrastructure.

The MPX200 Multifunction Router enables organizations to integrate low-cost Ethernet connected servers with an EVA storage system by bridging the iSCSI protocol to the Fibre Channel protocol. This capability allows iSCSI servers to leverage shared SAN resources, improving asset utilization and enabling new applications. This integration greatly reduces the cost of connecting servers to centrally managed storage and helps provide a cost-effective solution to introduce utility computing into the enterprise.

An EVA with multi-protocol support provides network storage at reduced infrastructure costs. Small and medium businesses now have a lower entry point to take advantage of SAN benefits. Large enterprises may also deploy multi-protocol SANs in departments and remote offices.

Delivering SAN-like benefits over the Ethernet IP network, the HP StorageWorks MPX200 Multifunction Router enables access to block storage across up to 4 EVA storage systems from an Ethernet IP network.

Provides customers a flexible and cost effective way to connect stranded servers to existing Fibre Channel storage, increasing return on investment.

Enterprise-class high availability design provides dual hot-pluggable power supplies and router blades for no single point of failure.

Modular software and hardware design enables easy upgrades to enable additional protocols or to add more ports.

Unmatched performance: 8 Gb/s Fibre Channel, 1 GbE and 10 GbE iSCSI ports deliver best in class performance.

Advanced installation and configuration wizards allow set up in less than 25 minutes.

Power efficient: typically dissipates 200W for a dual blade configuration.

Extend access to FC SANs across Ethernet networks with the virtues of an FC SAN including:

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 1

QuickSpecs

Overview

Consolidated storage

Improved disk utilization

Improved IT efficiency

FCIP for SAN over WAN: The MPX200 includes Fibre Channel over IP (FCIP) functionality enabling customers to implement low cost remote data replication over IP networks. Customers can deploy MPX200 to provide iSCSI and FCIP connectivity simultaneously.

Data Migration: The MPX200 can enable customers to migrate their data between heterogeneous storage arrays (offline) at a very high performance using a user friendly data migration GUI.

Provides four Ethernet and two Fibre Channel ports

Increases the flexibility of EVAs by adding integrated iSCSI support

Delivers the benefits of SAN storage at a significant discount to FC SAN storage

Supports Fabric Attach as well as Direct Connect support to the EVA

Concurrent FC and IP traffic is managed with high throughput enabling access for 300-600 iSCSI servers and 4096 LUNS per MPX200 chassis

Fully integrated unified EVA and MPX200 management with Command View EVA iSCSI ready for the following operating systems:

Microsoft Windows, Hyper-V

VMware

Linux Red Hat

Linux SUSE

Apple Mac OS X (via iSCSI Initiator from ATTO Technology)

Sun Solaris

Supports High Availability Multi-path Options for Linux, Microsoft Windows, Sun Solaris, and VMware

Supports FCIP for SAN over WAN remote data replication using HP StorageWorks Continuous Access EVA software

1GbE FCIP routes. Note: Only 1GbE ports can be configured for FCIP routes, also applies to 10-1GbE blade.

Up to 4 FCIP Routes per MPX200 chassis

High Performance FCIP SAN Extension

Software compression to maximize IP link utilization

Throttle bandwidth on FCIP Routes

Consolidate iSCSI and SAN extension capabilities into single chassis

Save 50% on cables, SFP's and rack space with only one piece of hardware to manage

Ability to connect to an HP StorageWorks IP Distance Gateway remotely for lower overall cost of the solution

Supports Continuous Access for EVA

CLI support only (Command View integration coming soon).

Easy to use data migration GUI with intuitive wizards to simplify use

Supports offline heterogeneous data migration at very high performance

Configure 255, 8 simultaneous priority based LUNs migrations

Application performance preservation: Array bandwidth throttling capability

CLI-based tool for powerful scripted use

Destination Arrays: All MPX200 supported EVA models

Source Arrays: All MPX200 supported EVA models, EVA3000/5000, MSA,; IBM - DS4000, DS5000 Series; EMC CX Series,

AX Series,; HDS - AMS Family, WMS Family

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 2

QuickSpecs

Models

HP StorageWorks MPX200 Multifunction Router 1 GbE Base Chassis

Includes:

(1) chassis

(1) 1 GbE blade with (4) 1 GbE Ports and (2) 8Gb/s Fibre Channel Ports rail kit accessory kit documentation

Includes redundant power supplies.

HP Storage Works MPX200 Multifunction Router 1 GbE Upgrade Blade.

Includes:

(1) 1 GbE blade with (4) 1 GbE Ports and (2) 8Gb/s Fibre Channel Ports accessory kit documentation

For multi-path (redundant blade for high availability) order both part numbers. The second hardware blade installs into the chassis that is included with AP771A or

AP773A.

a common chassis to ensure balanced performance in a redundant configuration.

HP StorageWorks MPX200 Multifunction Router 10 - 1 GbE Base Chassis

Includes:

(1) chassis

(1) 10 - 1 GbE blade with (2) 10 GbE Ports , (2) 1 GbE Ports and (2) 8Gb/s

Fibre Channel Ports rail kit accessory kit documentation

Includes redundant power supplies.

ports and (2) 1 GbE ports

HP Storage Works MPX200 Multifunction Router 10 - 1 GbE Upgrade Blade.

Includes:

(1) 10 - 1 GbE blade with (2) 10 GbE Ports , (2) 1 GbE Ports and (2) 8Gb/s

Fibre Channel Ports accessory kit documentation

For multi-path (redundant blade for high availability) order both part numbers. The second hardware blade installs into the chassis that is included with AP773A or

AP771A.

a common chassis to ensure balanced performance in a redundant configuration.

DA - 13338 Worldwide — Version 6 — March 19, 2010

AP771A

AP772A

AP773A

AP774A

Page 3

QuickSpecs

Models

HP Storage Works MPX200 Half Chassis FCIP License

Includes:

License to enable FCIP functionality in one out of two bays (slots) in a MPX200

Chassis

HP Storage Works MPX200 Full Chassis FCIP License includes:

License to enable FCIP functionality for both bays (slots) in a MPX200 Chassis

TA767A.

a second blade, a second half-chassis license is required.

HP Storage Works MPX200 1TB Full Chassis Data Migration License

Includes:

License to migrate 1 TB of data using a MPX200 Chassis

1 License Entitlement Certificate

1 License Key Request Form

Includes one year of HP software support 9x5 (software technical support and software product and documentation updates)

HP Storage Works MPX200 5TB Full Chassis Data Migration License

Includes:

License to migrate 5 TB of data using a MPX200 Chassis

1 License Entitlement Certificate

1 License Key Request Form

Includes one year of HP software support 9x5 (software technical support and software product and documentation updates)

HP Storage Works MPX200 Full Chassis 1 Array Data Migration License

Includes:

License to migrate data from or to a single array using a MPX200 Chassis

1 License Entitlement Certificate

1 License Key Request Form

Includes one year of HP software support 9x5 (software technical support and software product and documentation updates)

Using this particular license, data can be migrated from multiple arrays to a single array or from a single array to multiple arrays.

HP Storage Works MPX200 Full Chassis 3 Array Data Migration License

DA - 13338 Worldwide — Version 6 — March 19, 2010

TA766A

TA767A

TA762A

TA763A

TA764A

TA765A

Page 4

QuickSpecs

Models

Includes:

License to migrate data from or to a single array, on three unique migration jobs using a MPX200 Chassis

1 License Entitlement Certificate

1 License Key Request Form

Includes one year of HP software support 9x5 (software technical support and software product and documentation updates)

Using this particular license, data can be migrated from multiple arrays to a single array or from a single array to multiple arrays, three times. i.e. This license can enable three different migration jobs using the same MPX200 Chassis at different times.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 5

QuickSpecs

Product Highlights

Configuration Support The MPX200 Multifunction Router is fully compatible with the HP B-Series and C-Series FC switches. For complete interoperability information please check: http://www.hp.com/go/SANdesign http://www.hp.com/go/SANdesignguide

Up to 4 EVA's can be connected to the same MPX200 Router in a single blade configuration or dual blade high availability configuration.

Command View EVA

Initial support: Refer to the guidelines described in the product user guide available on the Storage

Networking product page and the HP StorageWorks SAN Design Reference Guide available at: http://www.hp.com/go/SANdesignguide

HP StorageWorks Command View EVA provides the capability to manage the EVA storage system(s) and is installed on an existing Storage Management Appliance, a management server or a NAS server. This powerful tool provides an easy mechanism to manage EVA storage systems in a SAN configuration.

Command View EVA is purchased separately from EVA XCS media kit.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 6

QuickSpecs

Service and Support, HP Care Pack and Warranty Information

(1-1-1) Hardware Warranty - One-year on-site warranty, 8x5, next business day response, installation not included.

HP Service & Warranty Support

Additional Warranty protection or Installation packages can be purchased.

provides a one-year, hardware limited warranty, fully supported by a worldwide network of resellers and service providers.

These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.

When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.

For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware and software support services that are sold separately, or combined as with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive

Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or per-event type service options - including server, storage, and network,

SAN device, and software, environment, installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP

Care Pack packaged services for Storage assures help when you need it most. And for many products, post-warranty HP Care Pack Services are available when your original warranty has expired.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 7

QuickSpecs

Service and Support, HP Care Pack and Warranty Information

3-Year HP Support Plus 24 For a higher return on your storage investment, HP Support Plus 24 provides integrated hardware and software support services designed specifically for your technology. Available 24X7, this 3-year combined reactive support option delivers onsite hardware support and over-the-phone software support around-the-clock. Leverage the full strength of HP Technology

Services - customers can trust the services professionals at HP to work collaboratively with them, putting our strategic and technical know-how across their entire infrastructure.

Improve uptime with responsive hardware and software services

Enjoy consistent service coverage across geographically dispersed sites

Update HP software at a predictable cost

Increase customer satisfaction-with no interoperability gaps http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EN.pdf

HP Enhanced

Implementation Service for

SAN's

For customers who are building a new SAN or expanding their existing one, we offer the HP Enhanced Implementation Service for SANs. This provides complete design and implementation services for Fibre Channel, FCOE,

FCIP, SAS and iSCSI SAN connectivity components. Covering all major SAN connectivity technologies including virtual as well as physical hosts, no competitor offers a more complete end to end SAN design and implementation service, ensuring comprehensive optimal SAN connectivity tailored to your specific environment.

Ensures optimal SAN connectivity tailored to your specific environment.

Allows your IT resources to stay focused on their core tasks and priorities

Reduces implementation time, impact and risk to your storage environment

Helps ensure a successful implementation for complex deployments by providing HP project management http://h20195.www2.hp.com/v2/GetPDF.aspx/5981-8527EN.pdf

3-Year HP Proactive 24 for

SANs

As an alternative to our recommended support level, for customers who want enhanced operational effectiveness and proactive problem identification.

HP Proactive 24 Service (P24) integrates hardware and software support to help you improve the stability and operational effectiveness of your IT environment. An HP Account Manager acts as your primary point of contact

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 8

QuickSpecs

Service and Support, HP Care Pack and Warranty Information

to ensure that HP meets your support needs effectively.

P24 provides the maximum value when multiple technologies in the environment (e.g. servers, storage, SAN and the network), are all covered. It provides an environment-wide view and consistent support of all of these components which affect stability of your key applications.

Choose P24 when you want to: enhance operational effectiveness with proactive problem identification and recommendations from HP partner with technical experts who help coordinate support, provide hands-on assistance, and share knowledge with your staff rapidly access support and expertise spanning your environment obtain personalized services tailored to your business environment and critical success factors anticipate necessary change - and execute it correctly the first time efficiently manage infrastructure resources to meet your performance objectives http://h20219.www2.hp.com/services/cache/11157-0-0-225-121.html

HP Assessment Service for

SANs

For customers interested in improving availability of their SAN and decreasing potential for unplanned downtime:

The HP Assessment Service for SANs offers customized technical and operational guidance to customers employing HP storage subsystems and the interconnecting storage area network (SAN) infrastructure. In a typical engagement, HP or one of our authorized business partners will perform a detailed discovery using HP's proprietary toolset to gain an understanding of the configuration of your storage devices and SAN topology.

The findings from this process will be compared to HP best practices and industry standards as defined by IT Service Management (ITSM) disciplines.

The results of the evaluation will be quickly and efficiently processed into information you can leverage. This information, in the form of a comprehensive HP SAN Assessment report, will be summarized by HP or one of our authorized business partners with recommendations that are intended to improve availability levels and ongoing management of your storage and

SAN environment.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA1-2941ENW.pdf

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 9

QuickSpecs

Service and Support, HP Care Pack and Warranty Information

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

Efficient logging and tracking of support cases

Collaboration with other business and IT professionals

Download of patches and drivers

Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution for onsite and remote management.

HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the automatic submission of hardware event notifications securely to HP support, including acknowledgment and status returns. It adds remote configuration collections to allow the delivery of assessment and proactive services for your SAN storage and HP-UX environments.

Consider education as an integral part of your strategy to get the best return on investment for your HP storage solution. HP offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online. www.hp.com/learn/storage

HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit: http://h20129.ww2.hp.com/services/cache/77318-

0-0-225-121.html

.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 10

QuickSpecs

Configuration Information

Select one:

StorageWorks MPX200

Multifunction Router

1 GbE Base Chassis

StorageWorks MPX200

Multifunction Router

1 GbE Upgrade Blade

Includes one chassis, one 1 GbE blade, redundant power and cooling modules, rail kit, accessory kit and documentation

Includes one 1 GbE blade to mount in existing chassis, accessory kit, and documentation installs into the chassis that is included with AP771A or AP773A. HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in a common chassis to ensure balanced performance in a redundant configuration.

StorageWorks MPX200

Multifunction Router

10 -1 GbE Base Chassis

StorageWorks MPX200

Multifunction Router

10 - 1 GbE Upgrade

Blade

Includes (1) chassis, (1) 10 - 1 GbE blade, redundant power and cooling modules, rail kit, accessory kit, and documentation.

Includes (1) 10 - 1 GbE blade to mount in existing chassis, accessory kit, and documentation.

installs into the chassis that is included with AP773A or AP771A. HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in a common chassis to ensure balanced performance in a redundant configuration

HP Storage Works

MPX200 Half Chassis FCIP

License

Includes (1) license to enable FCIP functionality in one out of two bays (slots) in a

MPX200 Chassis. License comes in the form of an entitlement certificate and 1 license key request form.

StorageWorks MPX200

Multifunction Router

Full Chassis FCIP License

Includes (1) license to enable FCIP functionality for both bays (slots) in a MPX200

Chassis. License comes in the form of an entitlement certificate and 1 license key request form.

license.

AP771A

AP772A

AP773A

AP774A

TA766A

TA767A

The two types of data migration licenses are capacity-based and array-based licenses.

Capacity-based licenses allow you to migrate data up to a specific limit designated by the applied license key. This type of license is available in variants of 1 TB and 5 TB capacities, which can be consumed by one or more migration jobs that you specify. Every time you configure a data migration job, the available capacity is reduced by an amount equivalent to the size of the source LUN being migrated. The MPX200 does not allow you to add migration jobs when the job size exceeds available migration licenses.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 11

QuickSpecs

Configuration Information

Array-based licenses allow you to migrate unlimited amounts of data to and from the specific array that is licensed. These licenses are available in variants of SINGLE-ARRAY and 3-ARRAY capacity.

The licensed array may be used as either a source or destination array while configuring jobs for data migration.

StorageWorks MPX200

Multifunction Router

1 TB Data Migration

License

Includes (1) license to migrate 1 TB of data using a MPX200 chassis. License comes in the form of an entitlement certificate and 1 license key request form

Includes (1) license to migrate 5 TB of data using a MPX200 chassis. License comes in the form of an entitlement certificate and 1 license key request form

StorageWorks MPX200

Multifunction Router

5 TB Data Migration

License

StorageWorks MPX200

Multifunction Router

1 Array Data Migration

License

Includes (1) license to migrate data from or to a single storage array using a MPX200 chassis. License comes in the form of an entitlement certificate and 1 license key request form

StorageWorks MPX200

Multifunction Router

3 Array Data Migration

License

Using this particular license, data can be migrated from multiple arrays to a single array or from a single array to multiple arrays.

Includes (1) license to migrate data from or to three storage array using a MPX200 chassis. License comes in the form of an entitlement certificate and 1 license key request form. Using this license, you can perform three unique migration jobs.

Supported Direct Attach

Copper 10GbE SFP+

Ethernet cables

Using this particular license, data can be migrated from multiple arrays to a single array or from a single array to multiple arrays, three times. i.e. This license can enable three different migration jobs using the same MPX200 Chassis at different times.

HP ProCurve 10-GbE SFP+ 1m Direct Attach Cable

HP ProCurve 10-GbE SFP+ 3m Direct Attach Cable

HP ProCurve 10-GbE SFP+ 7m Direct Attach Cable

HP ISS 10-GbE SFP+ 0.5m Direct Attach Cable

HP ISS 10-GbE SFP+ 1m Direct Attach Cable

HP ISS 10-GbE SFP+ 3m Direct Attach Cable

HP ISS 10-GbE SFP+ 5m Direct Attach Cable

HP ISS 10-GbE SFP+ 7m Direct Attach Cable

Cisco 10-GbE SFP+ 3m Direct Attach Cable SFP-H10GB-CU3M

Cisco 10-GbE SFP+ 5m Direct Attach Cable SFP-H10GB-CU5M

Brocade 10-GbE SFP+ 1m Direct Attach Cable XBR-TWX-0101

Brocade 10-GbE SFP+ 3m Direct Attach Cable XBR-TWX-0301

Brocade 10-GbE SFP+ 5m Direct Attach Cable XBR-TWX-0501

TA762A

TA763A

TA764A

TA765A

J9281B

J9283B

J9285B

487649-B21

487652-B21

487655-B21

537963-B21

487658-B21

AP784A

AP785A

AP818A

AP819A

AP820A

8 Gbps Short Range

4 Gbps Short Range

DA - 13338 Worldwide — Version 6 — March 19, 2010

AJ718A

A7446B

Page 12

QuickSpecs

Configuration Information

10GbE Short Range Ethernet 10GBase-SR 455883-B21

AJ706A

Distance using short-wave 10GbE at 10GbE or 8 Gbps FC optical transceivers at 2

Gbps, 4 Gbps, and 8 Gbps connection speed:

10GbE: OM3 fiber: 300m

8 Gbps FC:

4 Gbps FC:

OM2 fiber:

OM3 fiber:

OM2 fiber:

OM3 fiber:

50m

150 m

50 m

380 m

2 Gbps FC:

OM2 fiber:

OM3 fiber:

OM2 fiber:

150 m

500 m

300 m

Distance using short-wave 10GbE at 10GbE or 8 Gbps FC optical transceivers at 2

Gbps, 4 Gbps, and 8 Gbps connection speed:

4 Gbps FC: OM3 fiber: 380 m

2 Gbps FC:

OM2 fiber:

OM3 fiber:

OM2 fiber:

150 m

500 m

300 m

0.5 m LC-LC Multi-Mode Cable

1 m LC-LC Multi-Mode Cable

2 m LC-LC Multi-Mode Cable

5 m LC-LC Multi-Mode Cable

15 m LC-LC Multi-Mode Cable

30 m LC-LC Multi-Mode Cable

50 m LC-LC Multi-Mode Cable

2 m LC-LC Multi-Mode Cable

5 m LC-LC Multi-Mode Cable

15 m LC-LC Multi-Mode Cable

30 m LC-LC Multi-Mode Cable

50 m LC-LC Multi-Mode Cable

2 m LC-SC Multi-Mode Fibre Channel Cable

5 m LC-SC Multi-Mode Fibre Channel Cable

15 m LC-SC Multi-Mode Fibre Channel Cable

30 m LC-SC Multi-Mode Fibre Channel Cable

50 m LC-SC Multi-Mode Fibre Channel Cable

AJ833A

AJ834A

AJ835A

AJ836A

AJ837A

AJ838A

AJ839A

221692-B21

221692-B22

221692-B23

221692-B26

221692-B27

221691-B21

221691-B22

221691-B23

221691-B26

221691-B27

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 13

QuickSpecs

Configuration Information

CAT 5e cable, RJ45 to RJ45, M/M 1.2m (4ft)

CAT 5e cable, RJ45 to RJ45, M/M 2.1m (7ft)

CAT 5e cable, RJ45 to RJ45, M/M 4.3m (14ft)

CAT 5e cable, RJ45 to RJ45, M/M 7.6m (25ft)

CAT 5e cable, RJ45 to RJ45, M/M 15.2m (50ft)

C7533A

C7535A

C7536A

C7537A

C7542A

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 14

QuickSpecs

Technical Specifications

Arrays supported EVA 6400, EVA8400; EVA 4100, EVA6100, EVA8100, EVA 8000, EVA

6000, and EVA 4000; EVA4400

Array Connectivity Mode EVA Fabric Attach (all supported models)

Direct connect support (all supported models)

Maximum Number of

MPX200 Multifunction

Router blades

2 MPX200 Multifunction Router blades supported per EVA (recommended for redundancy).

Maximum Number of EVA storage systems

Management Software

Support

OS Support

4 EVA storage systems per MPX200

Configure FC LUNs and iSCSI LUNs through EVA Command View v9.1.x and above. Please check SPOCK for supported versions.

Microsoft Windows, Hyper-V

Linux Red Hat

Linux SUSE

Sun Solaris

VMware

Apple Mac OS X (via iSCSI Initiator from ATTO Technology)

For operating system version support, see the product user guide available on the Storage Networking product page and the HP StorageWorks SAN

Design Reference Guide available at: http://www.hp.com/go/sandesignguide .

For the latest product support information, see the Single Point of

Connectivity Knowledge (SPOCK) on the HP website: http://www.hp.com/storage/spock .

Host Platform Support Any server running supported OS

Cluster Support Yes, Microsoft MSCS, please refer to SPOCK for detailed support matrix.

Fibre Channel Interface Two optical ports - 8 Gb/s

FC Transceiver

FC Connectivity

Mode

8 or 4 Gb/s SFP supported; 8Gb/s @ 8 Gb/s, 4Gb/s, and 2Gb/s speed;

4Gb/s @ 4Gb/s and 2Gp/s speed

Fabric attached Optical, connected as an N-Port

IP Interface (4)1000BaseT copper, 1 GbE iSCSI ports per blade in1 GbE blade.

(1) 1000BaseT copper, 1GbE MGMT port and (1) RS232c MGMT port in 1

GbE blade and in 10 - 1 GbE blade.

(2) 10 GbE SFP+ optical iSCSI ports and (2) 1000BaseT copper 1 GbE iSCSI ports in 10 - 1 GbE blade.

iSCSI Initiator Support

Conforms to IPv6 and IPv4 standards

Microsoft iSCSI Initiator (32-bit and 64-bit versions)

Linux iSCSI Initiator (32-bit and 64 it versions)

ATTO Macintosh iSCSI Initiator

Sun Solaris iSCSI Initiator

VMware iSCSI Initiator

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 15

QuickSpecs

Technical Specifications

iSCSI Network Card

Support

Any HP 10 GbE or 1 GbE NIC

Apple, Sun supported 10 or 1 GbE NICs

NIC Teaming is supported for extra redundancy

TCP/IP Offload Engine

Support (TOE)

HP NC522SFP; NC524SFP; NC510x; NC512m/i; NC532m/i;

NC3xxT/m/i/F; QM4062

Qlogic QLA4052c, QLE4062c iSCSI HBA

IP Security iSCSI Boot

Multi-Path support

CHAP User name and password authentication.

Password encryption of saved configuration file.

Linux, Windows, VMware

Windows

Linux

Sun

VMware

Microsoft MPIO, HP MPIO DSM for

EVA

Device Mapper

MPxIO

Native software MPxIO

Max. Pending Commands Default value of 256

Host Interface 1 GbE ports use standard TCP/IP connection, RJ45 connector

Distance

10 GbE ports use 10GbE SFP+ LC optical cables

1 GbE Copper CAT-5e or CAT-6 twisted pair 100meter maximum

Host Platform Support iSCSI Performance

10 GbE Optical SR transceivers up to 300m with OM3 fiber cable; up to

50m with OM2 fiber cable

Any 32-bit or 64-bit servers running the supported OS half duplex (1 GbE blade) 100,000 read IOPs

92,000 write IOPs

380 MB/sec read bandwidth

340 MB/sec write bandwidth full duplex (1 GbE blade) 97,000 IOPs

415 MB/sec bandwidth half duplex (10 -1 GbE blade) full duplex (10 -1 GbE blade)

120,000 read IOPs

96,000 write IOPs

1200 MB/sec read bandwidth

450MB/sec no jumbo write bandwidth

800MB/sec jumbo write bandwidth

120,000 IOPs

1000 MB/sec bandwidth

Maximum Host

Connection Design Limits for iSCSI *

Architectural Limits:1024 connections, 1024 iSCSI sessions, 64 targets,

1024 LUNs per target maximum and 4096 total LUNs per chassis.

* Please see the product user guide available on the Storage Networking product page and the SAN Design Guide for latest tested and supported configurations located at: http://www.hp.com/go/sandesignguide .

User installable, but recommended field service install

Optional 1U rack mount kit

Non-cable-side to cable-side airflow; power from cable-side; 1U, 19-in. EIA rack-compliant

Cooling: Three variable speed fans per PCM with back-to-front airflow.

Operating

1

Non Operation

2

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 16

QuickSpecs

Technical Specifications

Humidity

Vibration

3

4

5° to 40° C

(41° to 104° F)

5 to 90%, non-condensing

3 km 15 km

IEC 68-2, 4g, 11ms, 20 repetitions IEC 68-3, 30g, 292 ips, 3 repetitions,

3 axis

IEC 68-2, 5-500Hz, random, 0.21G

rms, 10 minutes

IEC 68-2, 5-500Hz, random, 2.09G

rms, 10 minutes

[email protected] VAC; [email protected] VAC

47 to 63 Hz

50 Hz to 60 Hz

-25°C to 70° C

(-40° to 158° F)

5 to 93%, non-condensing

275W maximum (optics included)

1

Environmental specification for operating condition should be satisfied before the iSCSI Connectivity

Option subsystem is powered on. Maximum temperature of 40°C should be strictly satisfied at air inlet portion.

2

Non-operating conditions include both packing and unpacking conditions unless otherwise specified.

3

No condensation in and around the iSCSI Connectivity Option should be observed under any conditions.

4

The above specifications of vibration are applied to all three axes.

For shipping or storage conditions, this product shall be packed with factory packing.

Height

Width

Depth

Weight

1U (1.72 in/4.37 cm)

17 in (43.18 cm)

24.9 in (63.25 cm)

20 lb (9.07 kg)

© Copyright 2010 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13338 Worldwide — Version 6 — March 19, 2010 Page 17

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
