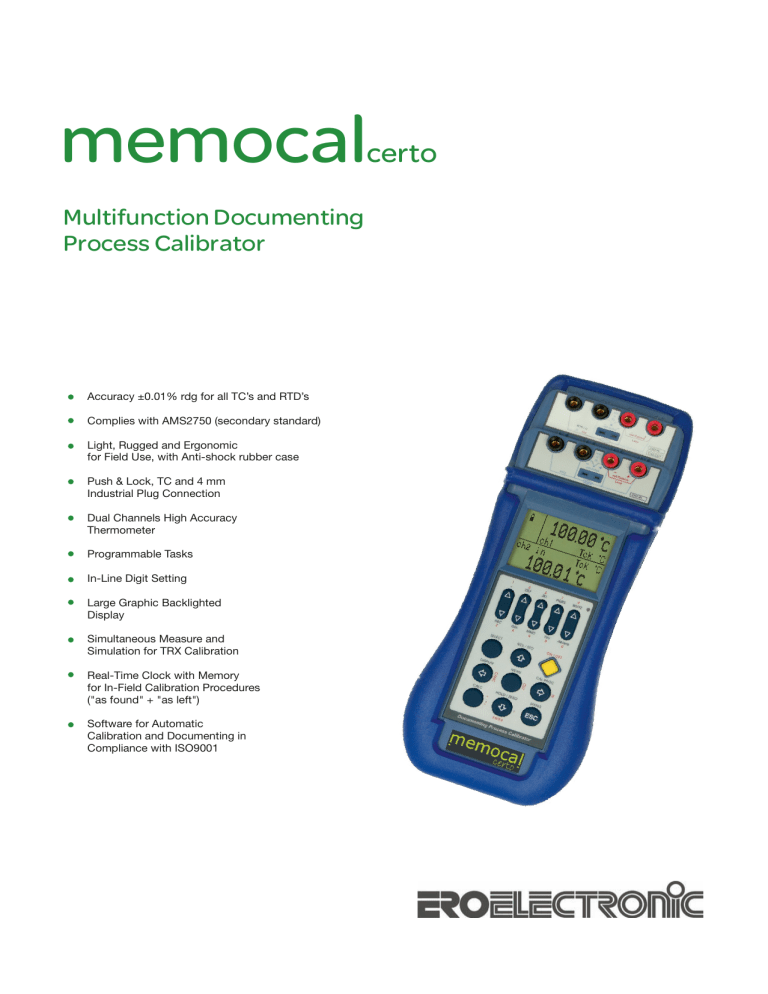

Memocal Certo Data Sheet
memocal
certo
Multifunction Documenting
Process Calibrator
Accuracy ±0.01% rdg for all TC’s and RTD’s
Complies with AMS2750 (secondary standard)
Light, Rugged and Ergonomic
for Field Use, with Anti-shock rubber case
Push & Lock, TC and 4 mm
Industrial Plug Connection
Dual Channels High Accuracy
Thermometer
Programmable Tasks
In-Line Digit Setting
Large Graphic Backlighted
Display
Simultaneous Measure and
Simulation for TRX Calibration
Real-Time Clock with Memory
for In-Field Calibration Procedures
("as found" + "as left")
Software for Automatic
Calibration and Documenting in
Compliance with ISO9001
Memocalcerto
Multifunction Calibrator
The memocal certo (Documenting Process Calibrator) is a hand tool for calibration
maintenance and trouble shooting of virtually all the control process instrumentation.
The memocal certo series features:
Transmitter simulation program
· Calibrate temperature, pressure, current dc, voltage dc, frequency
The instrument can be used as a temporary signal converter
replacement. Any input signal (electric or pressure) can be converted
into a 4-20 mA output.
The galvanic insulation between the input and output channels allow
also to use of this feature on the process.
·
·
·
·
·
·
·
·
and resistance
Dual channel display for simultaneous measure/source
Measure and source 14 type of thermocouple and 10 RTD's
24 Vdc loop power supply
Hold, zero, scale, Minimun, Maximum and Average
Automatic Ramp/Step with programmable Time, Step and Soak
Supports customized PRT's curve for enhanced temperature
measurement
Documenting capabilities using DataCal software Package
Scalable 4-20 mA measure/source into effective engineering unit
Programmable generator
Task
The memocal certo can store and recall up to 10 complete
instrument configurations. By pressing 2 keys only you can store or
recall the configuration of both the channels and the display
(including input and output values too). In this way the work on field
is simpler and quicker.
· Autoramp and Autostep capability with Start, End, and Step
programmable parameters
· Single and continuous cycle with Start, End, Rises, Soaks, and
Falls programmable parameters
· the signal value setting
uses a unique in-line
single-digit setting mode
or a direct numeric entry
· direct keypad access to
n.10 programmable
memory stored values
End
Increment
Start
Rise
Break
Fall
Built-in calculator
A special calculator function is integrated in memocal certo. You can
read the value from the input channel, operate on it, and then write
the result on the output channel. All standard math functions are
included.
Multichannel Data logging
The calibrator can be used as a multichannel datalogger for
electrical and temperature signals. The graphic mode allows you to
display the trend; the Replay function allows you to generate the
electrical signal using the data stored. The DataCal PC software
allows the data storage in the hard-disk.
Transmitter Calibration
The memocal certo can be configured to easily manage the check
and the calibration of any pressure and temperature transmitter. The
wide display lets you simultaneously display the input and output
values and to select the right units for the transmitter under test.
The current or voltage reading can be scaled/converted in % of span
or in the engenieristic unit to simplify the verification operations. The
measuring circuit is also able to power the loop for a direct
connection with the transmitter under test.
All the memocal certo capabilities let the calibrator useful for all the
checks and calibration activities.
Software
Switch Test
Temperature and signal switches can be tested using this advanced
procedure. The calibrator will hold the display reading when the
contact changes status.
Our software has been designed to be used in industries, where
there are both laboratory and maintenance on field needs. It is a
WindowsTM software designed to plan, manage and document all the
calibrations and the certifications of the process instrumentation.
memocalcerto
Modular for a Total Flexibility
2 Channels
LCD Graphic Display
Dual simultaneous IN/OUT channels.
mV, V, mA (active and passive loop), TCs, 3/4w
RTDs, Frequency, Pulse.
High accuracy, high repeatability and low drift.
Large display with text and graphic
capabilities.
The rugged LCD is protected by a
polycarbonate window from scratches
and impacts.
Keypad
19 key sealed rubber keypad,
for direct access to the main
functions of the instrument.
Three operative modes: measure, simulate and
measure/simulate
Mini-DIN
TC Connector
Direct Up/Down Keys
5 dedicated keys for directly
increase/decrease the value of the
output signal.
Isothermic binding post for
TC's with Rj compensation.
Automatic
Backlight Sensor
Powerful Documenting
Capability
The photoelectric sensor will detect
dark condition switching on backlight
when necessary. Manual operation is
also available.
Only ONE KEY to enter in Calibration
Procedure Mode.
Select the TAG and run the calibration
procedure. All procedure data are
loaded from the PC and the Calibration
report can be downloaded to the PC
with our software.
RS232 interface
Battery Charger
K ck ma_j ACPRM t q ? K Q053.
/ *2
/ *0
Capabilities
Memocal CERTO
/
mA, V, T/C's, RTDs, Hz, W
•
Measure/Source
•
. *6
. *4
Basic Accuracy (rdg)
±0.01%
. *2
Dual Channel Display
•
. *0
Loop P.S.
•
.
Documenting capability
•
+0. .
+/ . .
.
/. .
0. .
1. .
2. .
3. .
ŇŊŃÓNǾŃØǾŊÕØǾŐŒÔ ŃÕǾ
4. .
5. .
6. .
ØŃMÖÕNŁŐRØǾŁÕNŁŐN
7. .
/. . .
ĖFĨ Ī Ì Ī ĖĢ
//. .
/ 0. .
Memocal certo
Multifunction Calibrator
Specifications
Report of Calibration
Each memocal certo is factory calibrated and certified against our
Standards, which are periodically certified by an Internationally
recognised Laboratory to ensure traceability, and shipped with a
Report of Calibration stating the nominal and actual values and the
deviation errors.
Firmware
The firmware is stored on a flash memory and allows a fast and easy
upgrade of the instrument using the USB cable and the STFlash
software.
Over-Voltage protection
The unit is equipped with an advanced system including thermal
fuse (auto repair, do not need replacement), high voltage suppressor
and resistor-diode voltage limiter.
Frequency
Input impedance: >500KW
"Push & Lock" binding posts
The multi-connection
binding posts is an
exclusive project
designed to connect
the calibrator in a
simpler and faster way.
The 3 different connection system available are:
EMC Conformity
The instrument fulfils the prevision of the directive 2004/108/CEE
Electromagnetic Compatibility.
Measure or Source Voltage
Input impedance:
>10 MW for ranges up to 2000 mV f.s.
>500 kW for ranges up to 20 V f.s.
Output impedance (emf output):
less than 0.5W with a maximum current of 0.5 mA
Output noise (at 300 Hz):
<2 µVpp for ranges up to 200 mV f.s.,
<10 µVpp for ranges up to 2000 mV f.s.
<80 µVpp for ranges up to 20 V f.s.
Measure or Source Current
Input impedance: <20 W at 1 mA
Maximum load resistance:
1000W at 20 mA
Loop Supply: 24V ± 5%
Measure or Source Resistance and RTDs
Connections: 2, 3 and 4 wires
Source resistance effects: ±1 µV error for 1000W source resistance
Rtd and W simulation excitation current: from 0.100 to 4 mA without
incremental error
Rtd and W measurement excitation current: 0.2 mA
Rtd cable compensation: up to 100 mW (for each wire)
Rtd cable compensation error (Pt100): ±0.005°C/W of total wire
Maximum load resistance: 1000W at 20 mA
Measure or Source Thermocouples
Engineering unit: °C/°F/K selectable
Resolution: 0.01°C / 0.01°F
Temperature scale: ITS90 and IPTS68 selectables
Reference junction compensation:
internal automatic from -10 °C to +55 °C
external adjustable from -50 °C to +100 °C
Rj compensation drift: ± 0.002°C/°C (from -10 °C to +45 °C) - Class
A Pt100
Input impedance (Tc ranges): >10 MW
· Standard 4 mm industrial plugs
· Mini isothermic TC's connectors
· Push & Lock system for wires
Advanced Functions
Calculation functions: hold, max, min, offset, zero, average
In/Out data memory: 10 data with manual or automatic recall
Convert function: displays the electrical equivalent of the engineering
unit
Scale factor: setting with zero and span programmable within 399999 and +999999
Square root: in combination with scale factor
General Specifications
Calibration: self learning technique with automatic procedure
Channel 1-Channel 2 insulation: 250 Vdc
Common mode rejection: 140 dB at ac operation
Normal mode rejection: 60dB at 50/60Hz
Display: graphic LCD display with automatic and manual backlight
device
Measurement sampling time: 250 ms
Digital interface: full bidirectional RS232
Power supply: external charger and rechargeable Ni-MH battery
Battery life (typical):
10h on Tc and mV input/output (backlight Off)
4h with 20 mA simulation (backlight Off)
Recharging time (typical): 5h at 90% and 6h at 99% with instrument
switched off.
Battery charge indication: bar graph on the LCD display (flashing on
charge)
Line operation: 100V - 120V - 230V - 240Vac with the external
battery charger
Line transformer insulation: 2500 Vac
Operating environment temperature range: from -10°C to +55°C
Storage temperature range: from 0°C to +60°C (excluding batteries)
Humidity: max 95%RH non condensing
Case: Injection moulded policarbonate case
Sealing: IP54
Weights: nett 1.4 Kg gross 2.5 Kg
Dimensions: 290x98x57 mm
Multifunction Calibrator for Documenting the
Verification and the Certification activity
memocalcerto
Ranges and Accuracy
Measure or
Source
Tc J
Tc K
Tc T
Tc R
Tc S
Tc B
Tc C
Tc G
Tc D
Tc U
Tc L
Tc N
Tc E
Tc F
Pt100 IEC
OIML, a=.3926
Pt100
a=.3902
Pt100
JIS SAMA
Pt200
NOTES:
The relative accuracies
shown above are stated for
360 days and the operative
conditions are from 18 to
28°C.
Typical 2 year relative
accuracy can be estimated
by multiplying the "% of
reading" specifications by
1.4.
All input ranges: additional
error ±1 digit.
Stated accuracies for Tcs
only valid with wire
connections (Push & Lock)
and standard banana
connectors. Not always valid
for measures with mini DIN
Tc connectors.
Factory traceability chart and
uncertainty can be supplied
on request.
* Resolution is 0.1°C with
temperature lower than 200°C.
** 21mA max on passive
current loop
Pt500
Pt1000
IEC OIML
Cu10
Cu100
Ni100
Ni120
mV
V
mA
mA (IN CH1)
W (IN)
W (OUT)
Frequency
Pulse
Range
Resolution
Accuracy
Memocal CERTO
-210 to 1200°C
-350 to 2200°F
-270 to 1370°C
-454 to 2500°F
-270 to 400°C
-454 to 760°F
-50 to 1760°C
-60 to 3200°F
-50 to 1760°C
-60 to 3200°F
50 to 1820°C
140 to 3310°F
0 to 2300°C
32 to 4170°F
0 to 2300°C
32 to 4170°F
0 to 2300°C
32 to 4170°F
-200 to 400°C
-330 to 760°F
-200 to 760°C
-330 to 1400°F
-270 to 1300°C
-450 to 2380°F
-270 to 1000°C
-450 to 1840°F
0 to 1400°C
32 to 2560°F
-200 to 850°C
-330 to 1570°F
-200 to 650°C
-330 to 1210°F
-200 to 600°C
-330 to 1120°F
-200 to 850°C
-330 to 1570°F
-200 to 850°C
-330 to 1570°F
-200 to 850°C
-330 to 1570°F
-70 to 150°C
-100 to 310°F
-180 to 150°C
-300 to 310°F
-60 to 180°C
-80 to 360°F
0 to 150°C
32 to 310°F
-20 to 200mV
-0.2 to 2V
-2 to 20V
0 to 50mA**
-5 to 50mA
0 to 500W
0 to 5000W
0 to 500W
0 to 5000W
1 to 200 Hz
1 to 2 kHz
1 to 20 kHz
0 to 106
0.01 °C*
0.01 °F
0.01 °C*
0.01 °F
0.01°C*
0.01 °F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.01°C
0.01 °F
0.01°C
0.01 °F
0.01°C
0.01 °F
0.1°C
0.1°F
0.1°C
0.1°F
0.01°C
0.01°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
0.1°C
0.1°F
1µV
10µV
100µV
0.1µA
0.1µA
10mW
100mW
10mW
100mW
0.001Hz
0.01Hz
0.1Hz
1 count
(1) up to -100°C (-148°F) the accuracy is ± 0,02% rdg +0,1°C (+0,2°F)
(2) up to -170°C (-274°F) the accuracy is ± 0,02% rdg +0,1°C (+0,2°F)
(3) up to 0°C (+32°F) the accuracy is ± 0,02% rdg +0,2°C (+0,4°F)
±(0.01% rdg. + 0.1°C) (1)
±(0.01% rdg. + 0.2°F) (1)
±(0.01% rdg. + 0.1°C) (2)
±(0.01% rdg. + 0.2°F) (2)
±(0.01% rdg. + 0.1°C) (2)
±(0.01% rdg. + 0.2°F) (2)
±(0.01% rdg. + 0.2°C) (3)
±(0.01% rdg. + 0.4°F) (3)
±(0.01% rdg. + 0.2°C) (3)
±(0.01% rdg. + 0.4°F) (3)
±(0.01% rdg. + 0.3°C)
±(0.01% rdg. + 0.6°F)
±(0.01% rdg. + 0.2°C)
±(0.01% rdg. + 0.4°F)
±(0.01% rdg. + 0.3°C)
±(0.01% rdg. + 0.6°F)
±(0.01% rdg. + 0.3°C)
±(0.01% rdg. + 0.6°F)
±(0.01% rdg. + 0.1°C) (1)
±(0.01% rdg. + 0.2°F) (1)
±(0.01% rdg. + 0.1°C) (1)
±(0.01% rdg. + 0.2°F) (1)
±(0.01% rdg. + 0.1°C) (2)
±(0.01% rdg. + 0.2°F) (2)
±(0.01% rdg. + 0.1°C) (2)
±(0.01% rdg. + 0.2°F) (2)
±(0.01% rdg. + 0.1°C)
±(0.01% rdg. + 0.2°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 0.15°C)
±(0.01% rdg. + 0.27°F)
±(0.01% rdg. + 0.1°C)
±(0.01% rdg. + 0.2°F)
±(0.01% rdg. + 0.1°C)
±(0.01% rdg. + 0.2°F)
±(0.01% rdg. + 0.4°C)
±(0.01% rdg. + 0.7°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 0.05°C)
±(0.01% rdg. + 0.09°F)
±(0.01% rdg. + 3 µV)
±(0.01% rdg. + 10 µV)
±(0.01% rdg. + 100 µV)
±(0.01% rdg. + 0.4µA)
±(0.01% rdg. + 0.4µA)
±(0.01% rdg. + 12mW)
±(0.01% rdg. + 120mW)
±(0.01% rdg. + 20mW)
±(0.01% rdg. + 200mW)
±(0.005% rdg.+0.001Hz)
±(0.005% rdg.+0.01Hz)
±(0.005% rdg.+0.1Hz)
Memocal certo
Multifunction Calibrator
DataCal Software
The DataCal software provides a comprehensive
solution to the calibration requirements. It is easy to
use, compliant to ISO9001 requirements and generates
traceable and editable calibration documents. The four
main functional areas are:
„Instrument configuration
„Measurement burst
„Paperless calibration procedures
Virtual instrument
Instrument Configuration
The instrument can be configured using
DataCal interface:
· Input channel: quantity measured, type of
sensors, scale, scaling value, display
parameters, unit
· Output channel: quantity measured,
period, start point
· Linearization: name, type, unit, calibration
values
memocalcerto
Multifunction Calibrator for Documenting the
Verification and the Certification activity
Measurement Bursts
This function allows to download logged data from internal memory
to PC. Data can be saved on disks, showed in table and graph view,
loaded from disks, exported in Excel format file.
Calibration
Paperless calibration procedures
Create multi-parameter automatically run calibration procedures
directly with DataCal and define:
·
·
·
·
·
calibration method
channels
accuracy
measurement and simulation
advanced control of the test
point
After the instrument calibration, the report is sent back to DataCal for
processing and shaping.
Virtual Instrument
For real-time visual control use the Virtual Instrument to:
- display real-time measures
- immediately detect mistakes
Memocal certo
Multifunction Calibrator
Ordering Codes
memocal certo with portable leather bag
Calibrator with ISO Calibration Certificate
MEMCERTOKIT1
Test Leads Kit for electrical signals
IG031478
Portable Leather Bag
MEMLAT1PNT
Calibration Certificate of Accredited Laboratory
MEMCERTOSW
MemocalCerto DataCal Software
MEMCERTOUSB
MemocalCerto USB Cable with converter
© Copyright Eurotherm Limited 2015
ERO Electronic
Eurotherm by Schneider Electric, the Eurotherm logo, Chessell, EurothermSuite, Mini8, Eycon, Eyris, EPower,
EPack, nanodac, piccolo, versadac, optivis, Foxboro and Wonderware are trademarks of Schneider Electric,
its subsidiaries and affiliates.
All other brands may be trademarks of their respective owners.
Via XXIV Maggio, 2
22070 Guanzate (CO)
Italy
All rights are strictly reserved. No part of this document may be reproduced, modified, or transmitted in any
form by any means, nor may it be stored in a retrieval system other than for the purpose to act as an aid in
operating the equipment to which the document relates, without the prior written permission of Eurotherm
Limited.
T + 39 031 975 111
F + 39 031 977 512
www.eurotherm.com/worldwide
Scan for local
contacts
Documenti No. HA031633 Issue 3
MEMCERTO
Eurotherm Limited pursues a policy of continuous development and product improvement. The specifications
in This document may therefore be changed without notice. The information in this document is given in good
faith,but is intended for guidance only.
Eurotherm Limited will accept no responsibility for any losses arising from errors in this document.
ERO Electronic is a division of Eurotherm Srl
Printed in England on recycled paper 07.15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
