MSI Nightblade B85-001BEU Datasheet

MSI® recommends Windows 8.

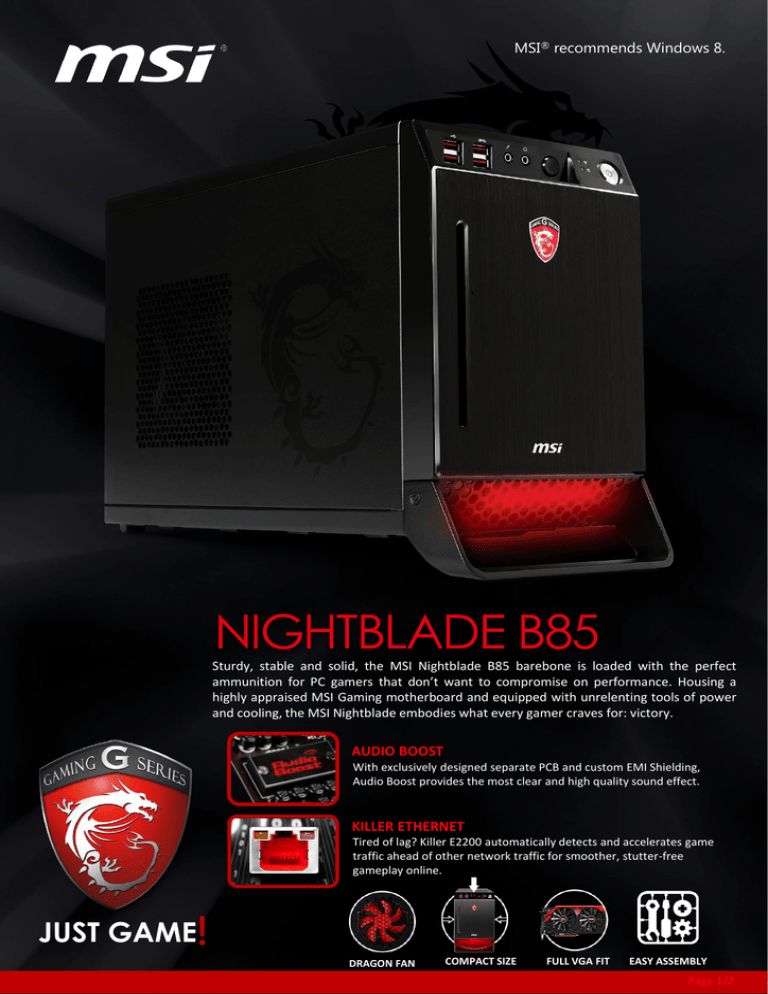

NIGHTBLADE B85
Sturdy, stable and solid, the MSI Nightblade B85 barebone is loaded with the perfect
ammunition for PC gamers that don’t want to compromise on performance. Housing a
highly appraised MSI Gaming motherboard and equipped with unrelenting tools of power
and cooling, the MSI Nightblade embodies what every gamer craves for: victory.
AUDIO BOOST
With exclusively designed separate PCB and custom EMI Shielding,
Audio Boost provides the most clear and high quality sound effect.
KILLER ETHERNET
Tired of lag? Killer E2200 automatically detects and accelerates game
traffic ahead of other network traffic for smoother, stutter-free
gameplay online.
JUST GAME!
DRAGON FAN
COMPACT SIZE
FULL VGA FIT
EASY ASSEMBLY
Page 1/2
NIGHTBLADE B85
Despite its mini-ITX form factor, this gaming barebone delivers powerful performance and even fits
ATX-size graphics cards . It also offers plenty of space for an ODD and mass storage devices. Thanks
to its convenient side panel, the Nightblade barebone is easy to assemble. On top of that, with the
handle on the front side, this rig can effortlessly be carried from one LAN-party to the next.
SPECIFICATIONS
SIZE
16 Liter
DIMENSION
345.8 x 277.3 x 175.7 mm
CPU CONFIGURATION
Support Intel 4th Gen CPU
CHIPSET
Intel® B85
MOTHERBOARD
MSI® B85I GAMING NIGHTBLADE
VGA CONTROLLER
Support Dual slot, max 290mm length
MEMORY
Support up to DDR3 1600MHz, 16GB
AUDIO
7.1 Channel HD Audio - Realtek ALC1150 Codec
LAN (RJ45)
E2200 Killer Gigabit LAN
Rear: 1 x e-SATA, 1 x HDMI, 1 x DVI, 1 x Display Port, 1 x S/PDIF, 1 x PS/2, 1 x Clear
CMOS Button, 6 x OFC Audio Jacks
Internal: 1 x ATX 24-Pin, 1 x 8-Pin ATX 12V, 5 x SATA 6GB/s, 1 x Clear CMOS
Rear: 4 x USB 2.0, 2 x USB 3.0 / Front: 2 x USB3.0, 2 x USB2.0
I/O
USB
INTERNAL
POWER
WEIGHT
game.msi.com
HDD/SSD
Support 1 x 3.5” / 2 x 2.5”
ODD
Slim Type Slot-in (optional)
System Fan
Rear: 92mm 3600RPM
Power Supply
350W
Power Efficiency Level
80 PLUS Bronze
7.6 Kg
© 2013 Micro-Star Int’l Co.Ltd. MSI is a trademark of Micro-Star Int’l Co.Ltd. All rights reserved. Intel, the Intel logo, Centrino, Centrino Inside, Intel Core and Core Inside are
trademarks of Intel Corporation in the U.S. and other countries. For more information about the Intel processor feature rating, please refer to www.intel.com/go/rating.
Page 2/2
