Philips 12256CP Datasheet

Philips 12256CP Datasheet

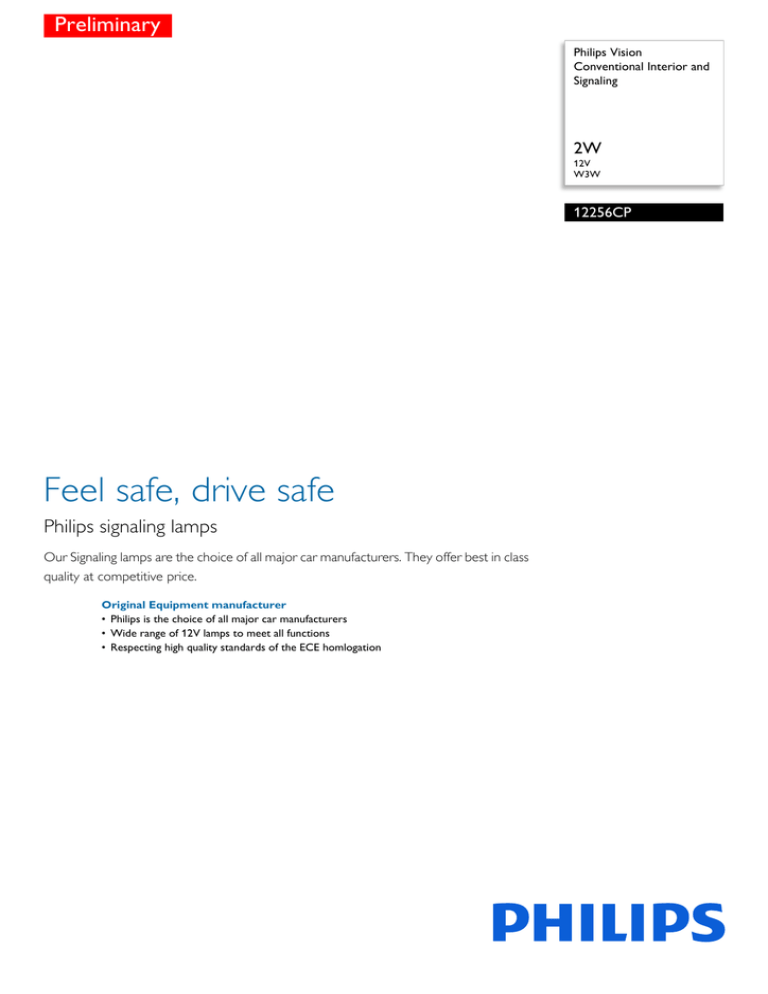

Philips Vision
Conventional Interior and
Feel safe, drive safe
Philips signaling lamps
Our Signaling lamps are the choice of all major car manufacturers. They offer best in class
quality at competitive price.
Original Equipment manufacturer
• Philips is the choice of all major car manufacturers
• Wide range of 12V lamps to meet all functions
• Respecting high quality standards of the ECE homlogation
Conventional Interior and Signaling
2W 12V, W3W
Electrical characteristics
• Life time: 2500h
Light characteristics
Outerpack information
• Voltage: 12 V
• Wattage: 3 W
• Lumens: 22 lm
Packaging Data
• Packaging type: CP
• EAN1: 8711500481443
• EAN3: 8711500481467
Base: W2,1x9,5d
Designation: W3W
Homologation ECE
Marking ECE: E1 2CD
Technology: Conventional
Type: W3W
Car manufactuer choice
Gross weight per piece: 0.4 kg
Height: 11.6 cm
Length: 16.9 cm
Width: 10.4 cm
Packed product information
• Net weight per piece: 1.13 g
Product description
• Application: Interior, License, Rear position/
parking light, Side indicator, Stop light, Boot light,
Door light, Glove compartment light, Tail light
Ordering information
• Ordering code: 48144373
For 100 years, Philips has been on the forefront of
the automotive lighting industry, introducing
technological innovations that have become standard
on modern automobiles. Today, one in two cars in
Europe and one in three worldwide is equipped with
Philips lighting
Designed for multiple usage
Which 12V lamp for which function ? Philips
Automotive offering includes all car specific
functions : high beam, Low beal, front fog , front
indicator, side indicator, rear indicator, stop light,
reversing light, rear fog light, license plate lights, rear
position/parking light, interior lights.
ECE homlogation
Philips Automotive is dedicated to producing bestin-class products and services in the Original
Equipment Manufacturer market as well as in
aftermarket. Our products are manufactured from
high-quality materials and tested to the highest
specifications to maximize the safety and driving
comfort of our customers. Our entire production is
meticulously tested, controlled and certified (ISO
9001, ISO 14001 and QSO 9000) to the highest ECE
Issue date 2014-04-24
Test leaflet, for internal use only!
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9246 432 17101
EAN: 87 11500 48144 3
