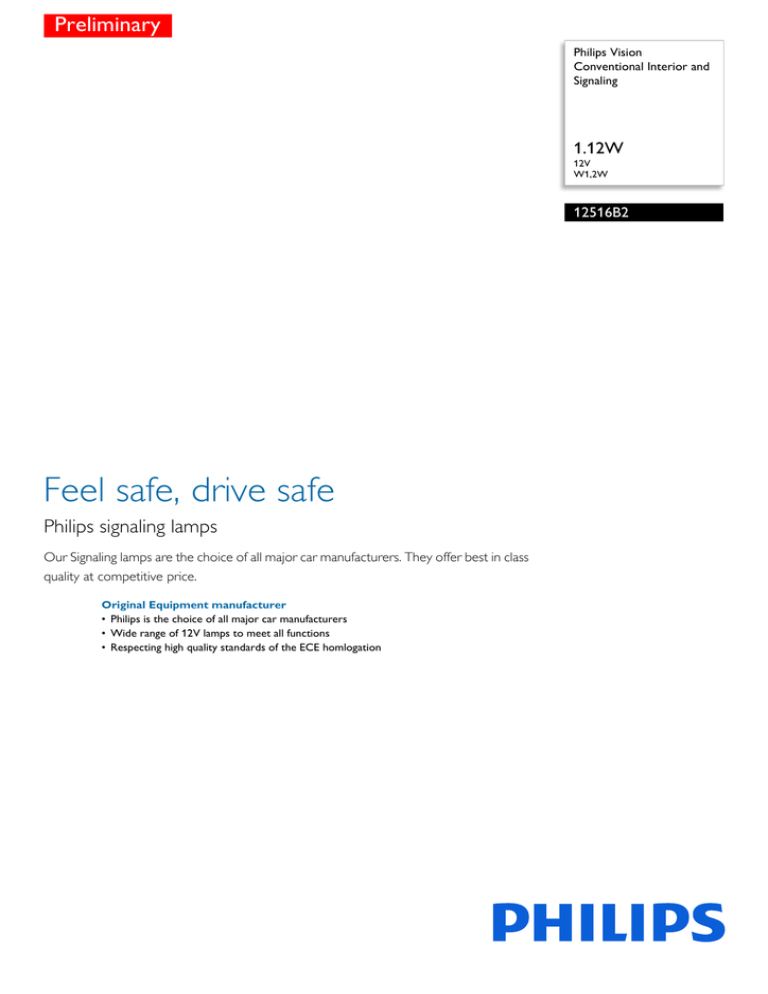

Philips Vision
Conventional Interior and
Feel safe, drive safe
Philips signaling lamps
Our Signaling lamps are the choice of all major car manufacturers. They offer best in class
quality at competitive price.
Original Equipment manufacturer
• Philips is the choice of all major car manufacturers
• Wide range of 12V lamps to meet all functions
• Respecting high quality standards of the ECE homlogation
Conventional Interior and Signaling
1.12W 12V, W1,2W
Electrical characteristics
• Voltage: 12 V
• Wattage: 1.2 W
• Range: Vision
• Technology: Conventional
• Type: W1,2W
Outerpack information
• Life time: 2500h
Light characteristics
• Lumens: 7.5 lm
Packaging Data
Packed product information
• Packaging type: B2
• EAN1: 8711500055545
• EAN3: 8711500417763
Product description
• Base: W2x4,6d
• Designation: W1,2W - W2,3W - W2W - WBT5
• Homologation ECE: NO
Car manufactuer choice
Gross weight per piece: 0.154 kg
Height: 13 cm
Length: 14.6, 15 cm
Width: 13.5 cm
Gross weight per piece: 7.7 g
Height: 3.2 cm
Length: 6.7 cm
Net weight per piece: 0.39 g
Width: 2.7 cm
Ordering information
• Ordering code: 5554530
For 100 years, Philips has been on the forefront of
the automotive lighting industry, introducing
technological innovations that have become standard
on modern automobiles. Today, one in two cars in
Europe and one in three worldwide is equipped with
Philips lighting
Designed for multiple usage
Which 12V lamp for which function ? Philips
Automotive offering includes all car specific
functions : high beam, Low beal, front fog , front
indicator, side indicator, rear indicator, stop light,
reversing light, rear fog light, license plate lights, rear
position/parking light, interior lights.
ECE homlogation
Philips Automotive is dedicated to producing bestin-class products and services in the Original
Equipment Manufacturer market as well as in
aftermarket. Our products are manufactured from
high-quality materials and tested to the highest
specifications to maximize the safety and driving
comfort of our customers. Our entire production is
meticulously tested, controlled and certified (ISO
9001, ISO 14001 and QSO 9000) to the highest ECE
Issue date 2014-04-24
Test leaflet, for internal use only!
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 9246 333 17119
EAN: 87 11500 05554 5
