Data Sheet

Cisco 10GBASE Dense Wavelength-Division

Multiplexing SFP+ Modules

Use Dense Wavelength-Division Multiplexing (DWDM) SFP+ modules to integrate

WDM transport directly into your Cisco 10 Gigabit Ethernet switches and routers.

Product Overview

The Cisco 10GBASE DWDM SFP+ Modules (Figure 1) are fiber line cards for a wide variety of Cisco switches, routers, and other equipment. They allow enterprises and service providers to provide scalable and easy-to-deploy

10-Gbps LAN, WAN, and optical transport network (OTN) services in their networks.

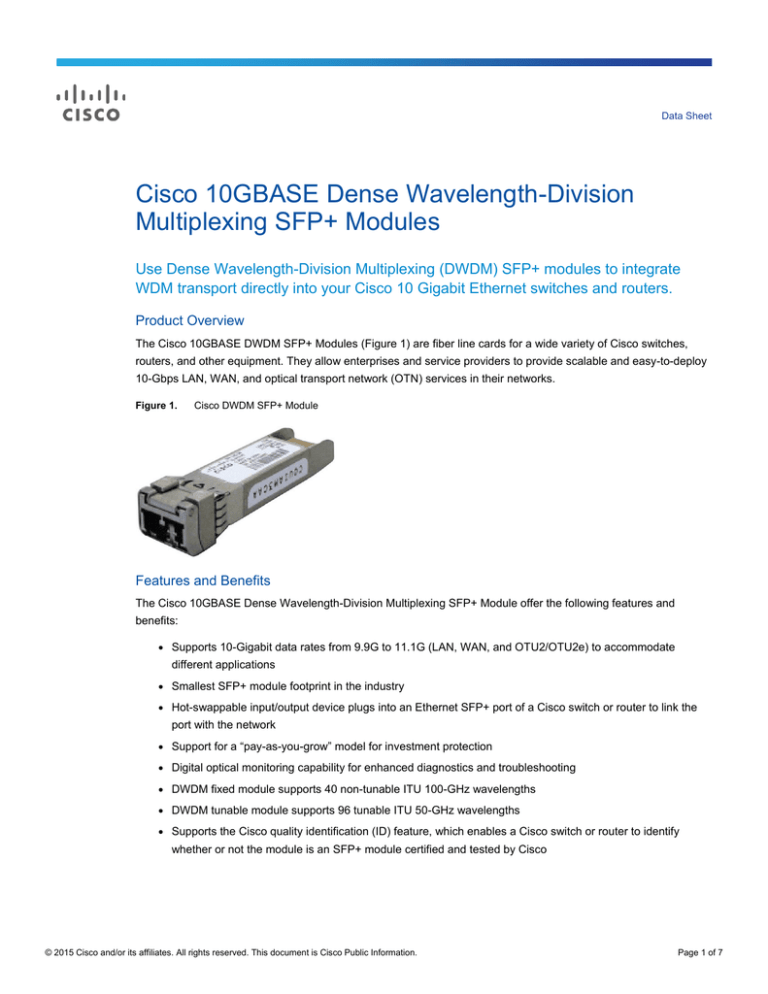

Figure 1. Cisco DWDM SFP+ Module

Features and Benefits

The Cisco 10GBASE Dense Wavelength-Division Multiplexing SFP+ Module offer the following features and benefits:

● Supports 10-Gigabit data rates from 9.9G to 11.1G (LAN, WAN, and OTU2/OTU2e) to accommodate different applications

● Smallest SFP+ module footprint in the industry

● Hot-swappable input/output device plugs into an Ethernet SFP+ port of a Cisco switch or router to link the port with the network

● Support for a “pay-as-you-grow” model for investment protection

● Digital optical monitoring capability for enhanced diagnostics and troubleshooting

● DWDM fixed module supports 40 non-tunable ITU 100-GHz wavelengths

● DWDM tunable module supports 96 tunable ITU 50-GHz wavelengths

● Supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an SFP+ module certified and tested by Cisco

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 1 of 7

Platform Support

The Cisco DWDM SFP+ modules are supported across a variety of Cisco switches, routers, and optical transport devices. For more details, refer to the Cisco 10-Gigabit transceivers compatibility matrix at http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6974.pdf

.

Connectors and Cabling

● Equipment: standard SFP+ interface

● Network: dual LC/PC connector

Note: Only connections with patch cords with PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified in the standards section.

Product Specifications

Optical Parameters

Table 1 shows the main optical characteristics for the standard non-tunable Cisco DWDM SFP+ modules.

Table 1. Optical Parameters for DWDM SFP+

Parameter

Transmitter

Spectral width

Symbol Minimum Typical Maximum Units Notes and Conditions

0.2 nm Full width, -20 dB from maximum, with resolution bandwidth

(RBW) = 0.01 nm

Refer to Table 2 for center wavelengths Transmitter center wavelength

Side-mode suppression ratio

Transmitter extinction ratio

SMSR

Pout x - 100

30

9

-1.0 Transmitter optical output power

Receiver

1530 Receiver optical input wavelength

Receiver damage threshold

Receiver overload

Receiver Power Performance

4.0

-7 x x + 100

3.0

1565

Pm dB dB dBm nm dBm dBm

Average power coupled into single-mode fiber

Units Range

Performance at 10G LAN and 10G WAN Rates (NO-FEC Applications)

Input power range

Input power range (dispersion-limited)

Input power range (dispersion- and noise-limited) dBm dBm dBm

Notes and Conditions

-7 to -23 At BER=1E-12, back-to-back, unamplified link

-7 to -20 At BER=1E-12, -500 to +1600 ps/nm chromatic dispersion

*

, unamplified link

-7 to -17 At BER=1E-12, -500 to +1600 ps/nm chromatic dispersion

*

, amplified link with min 27dB OSNR (0.1nm RBW)

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 2 of 7

Performance at OTU2/OTU2e rates (FEC applications)

Input power range dBm

Input power range (dispersion-limited) dBm

Input power range (dispersion- and noise-limited)

Input power range (dispersion- and noise-limited) dBm dBm

-7 to -27 At BER=1E-3 (pre-EFEC), back-to-back, unamplified link

-7 to -24 At BER=1E-3 (pre-EFEC), -500 to +1300 ps/nm chromatic dispersion, unamplified link

-7 to -17 At BER=1E-3 (pre-EFEC), -500 to +1100 ps/nm chromatic dispersion, amplified link with min 16dB OSNR (0.1nm RBW)

-7 to -17 At BER=1E-5 (pre-GFEC), -500 to +1100 ps/nm chromatic dispersion, amplified link with min 19dB OSNR (0.1nm RBW)

* Up to 1600ps/nm chromatic dispersion is supported for fiber links between two Cisco DWDM SFP+ modules. For connections between a Cisco DWDM SFP+ module and a Cisco DWDM XENPAK, X2 or XFP module, limit chromatic dispersion to

1300ps/nm.

Table 2 shows the main optical characteristics for the tunable Cisco DWDM SFP+ modules.

Table 2. Optical Parameters for Tunable DWDM SFP+

Parameter

Transmitter

Spectral width

Symbol Minimum Typical Maximum Units Notes and Conditions

0.2 nm Full width, -20 dB from maximum, with resolution bandwidth

(RBW) = 0.01 nm

Refer to Table 3 for center wavelengths Transmitter center wavelength

Side-mode suppression ratio

Transmitter extinction ratio

Transmitter optical output power

Receiver

SMSR

Pout

Receiver optical input wavelength

Receiver damage threshold

Receiver overload

Receiver Power Performance x - 25

30

9

-1

1525

4.0

-7.0 x x + 25

3.0

1570 pm dB dB dBm nm dBm dBm

Average power coupled into single-mode fiber

Units Range Notes and Conditions

Performance at 10G LAN and 10G WAN Rates (NO-FEC Applications)

Input power range

Input power range (dispersion-limited) dBm dBm

-7 to -23 At BER=1E-12, back-to-back, unamplified link

-7 to -20 At BER=1E-12, -500 to 1600 ps/nm chromatic dispersion, unamplified link

Input power range (dispersion- and noise-limited) dBm -7 to -18 At BER=1E-12, -500 to 1600 ps/nm chromatic dispersion, amplified link with min 26dB OSNR (0.1nm RBW)

Performance at OTU2/OTU2e Rates (FEC Applications)

Input power range dBm

Input power range (dispersion-limited) dBm

Input power range (dispersion- and noise-limited)

Input power range (dispersion- and noise-limited) dBm dBm

-7 to -27 At BER=1E-3 (pre-EFEC), back-to-back, unamplified link

-7 to -24 At BER=1E-3 (pre-EFEC), -500 to 1300 ps/nm chromatic dispersion, unamplified link

-7 to -18 At BER=1E-3 (pre-EFEC), -500 to 1100 ps/nm chromatic dispersion, amplified link with min 14.5dB OSNR (0.1nm RBW)

-7 to -18 At BER=1E-5 (pre-GFEC), -500 to 1100 ps/nm chromatic dispersion, amplified link with min 17dB OSNR (0.1nm RBW)

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 3 of 7

Note:

1. Parameters are specified over temperature and at end of life unless otherwise noted.

2. When shorter distances of single-mode fiber are used, an inline optical attenuator must be used to avoid overloading and damaging the receiver.

Table 3 shows the 96 DWDM ITU-50GHz channels to which the device can be tuned.

Table 3. ITU 50-GHz Center Wavelengths and Channel Numbering

29

30

31

26

27

28

23

24

25

20

21

22

32

33

34

35

36

17

18

19

14

15

16

8

9

10

11

12

13

6

7

4

5

Channel ID

1

2

3

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.

192.3

192.35

192.4

192.45

192.5

192.55

192.6

192.65

192.7

192.75

192.8

192.85

Frequency (THz)

191.35

191.4

191.45

191.5

191.55

191.6

191.65

191.7

191.75

191.8

191.85

191.9

191.95

192

192.05

192.1

192.15

192.2

192.25

192.9

192.95

193

193.05

193.1

1558.98

1558.58

1558.17

1557.77

1557.36

1556.96

1556.55

1556.15

1555.75

1555.34

1554.94

1554.54

Wavelength (nm)

1566.72

1566.31

1565.90

1565.50

1565.09

1564.68

1564.27

1563.86

1563.45

1563.05

1562.64

1562.23

1561.83

1561.42

1561.01

1560.61

1560.20

1559.79

1559.39

1554.13

1553.73

1553.33

1552.93

1552.52

77

78

79

74

75

76

71

72

73

68

69

70

80

81

82

83

84

65

66

67

62

63

64

56

57

58

59

60

61

52

53

54

55

Channel ID

49

50

51

194.7

194.75

194.8

194.85

194.9

194.95

195

195.05

195.1

195.15

195.2

195.25

Frequency (THz)

193.75

193.8

193.85

193.9

193.95

194

194.05

194.1

194.15

194.2

194.25

194.3

194.35

194.4

194.45

194.5

194.55

194.6

194.65

195.3

195.35

195.4

195.45

195.5

1539.77

1539.37

1538.98

1538.58

1538.19

1537.79

1537.40

1537.00

1536.61

1536.22

1535.82

1535.43

Wavelength (nm)

1547.32

1546.92

1546.52

1546.12

1545.72

1545.32

1544.92

1544.53

1544.13

1543.73

1543.33

1542.94

1542.54

1542.14

1541.75

1541.35

1540.95

1540.56

1540.16

1535.04

1534.64

1534.25

1533.86

1533.47

Page 4 of 7

44

45

46

47

48

40

41

42

43

Channel ID

37

38

39

Frequency (THz)

193.15

193.2

193.25

193.3

193.35

193.4

193.45

193.5

193.55

193.6

193.65

193.7

Wavelength (nm)

1552.12

1551.72

1551.32

1550.92

1550.52

1550.12

1549.72

1549.32

1548.91

1548.51

1548.11

1547.72

92

93

94

95

96

88

89

90

91

Channel ID

85

86

87

Frequency (THz)

195.55

195.6

195.65

195.7

195.75

195.8

195.85

195.9

195.95

196

196.05

196.1

Wavelength (nm)

1533.07

1532.68

1532.29

1531.90

1531.51

1531.12

1530.72

1530.33

1529.94

1529.55

1529.16

1528.77

Dimensions

Dimensions (H x W x D): 8.5 x 13.4 x 56.5mm. Cisco SFP+ modules typically weigh 75 grams or less.

Environmental Conditions and Power Requirements

● Commercial operational temperature range (COM): 0 to 70°C (32 to 158°F)

● Storage temperature range: -40 to 85°C (-40 to 185°F)

● The maximum power consumption per Cisco SFP+ module is 1.5W

Regulatory and Standards Compliance Standards

● GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable

● GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies

● GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors

● SFP+ MSA SFF-8431

● IEEE 802.3: 10-Gigabit Ethernet

● ITU-T G.709: Interfaces for the Optical Transport Network

● ITU-T G.975: GFEC

● ITU-T G.975.1: EFEC

● ITU-T G.694.1: DWDM frequency grid Safety

● Laser Class 1 (21CFR1040 and IEC 60825)

Warranty

● Standard warranty: 1 year

● Extended warranty (optional): Cisco SFP+ modules can be covered in a Cisco SMARTnet

®

Service support contract for the Cisco switch or router chassis

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 5 of 7

Ordering Information

Table 4 provides the ordering information for Cisco SFP+ modules and related cables.

Table 4. Cisco DWDM SFP+ Ordering Information

Product Number

DWDM-SFP10G-61.41=

DWDM-SFP10G-60.61=

DWDM-SFP10G-59.79=

DWDM-SFP10G-58.98=

DWDM-SFP10G-58.17=

DWDM-SFP10G-57.36=

DWDM-SFP10G-56.55=

DWDM-SFP10G-55.75=

DWDM-SFP10G-54.94=

DWDM-SFP10G-54.13=

DWDM-SFP10G-53.33=

DWDM-SFP10G-52.52=

DWDM-SFP10G-51.72=

DWDM-SFP10G-50.92=

DWDM-SFP10G-50.12=

DWDM-SFP10G-49.32=

DWDM-SFP10G-48.51=

DWDM-SFP10G-47.72=

DWDM-SFP10G-46.92=

DWDM-SFP10G-46.12=

DWDM-SFP10G-45.32=

DWDM-SFP10G-44.53=

DWDM-SFP10G-43.73=

DWDM-SFP10G-42.94=

DWDM-SFP10G-42.14=

DWDM-SFP10G-41.35=

DWDM-SFP10G-40.56=

DWDM-SFP10G-39.77=

DWDM-SFP10G-38.98=

DWDM-SFP10G-38.19=

DWDM-SFP10G-37.40=

DWDM-SFP10G-36.61=

DWDM-SFP10G-35.82=

DWDM-SFP10G-35.04=

DWDM-SFP10G-34.25=

DWDM-SFP10G-33.47=

Description

10GBASE-DWDM 1561.41 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1560.61 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1559.79 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1558.98 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1558.17 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1557.36 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1556.55 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1555.75 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1554.94 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1554.13 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1553.33 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1552.52 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1551.72 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1550.92 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1550.12 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1549.32 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1548.51 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1547.72 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1546.92 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1546.12 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1545.32 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1544.53 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1543.73 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1542.94 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1542.14 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1541.35 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1540.56 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1539.77 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1538.98 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1538.19 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1537.40 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1536.61 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1535.82 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1535.04 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1534.25 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1533.47 nm SFP+ (100-GHz ITU grid)

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.

53

54

55

50

51

52

47

48

49

44

45

46

41

42

43

38

39

40

31

32

33

34

27

28

29

30

35

36

37

23

24

25

26

ITU Channel

20

21

22

Page 6 of 7

Product Number

DWDM-SFP10G-32.68=

DWDM-SFP10G-31.90=

DWDM-SFP10G-31.12=

DWDM-SFP10G-30.33=

DWDM-SFP10G-C

Description

10GBASE-DWDM 1532.68 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1531.90 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1531.12 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM 1530.33 nm SFP+ (100-GHz ITU grid)

10GBASE-DWDM tunable SFP+ (50-GHz ITU grid)

Next Steps

Learn more about Cisco 10GBASE DWDM SFP+ modules by contacting your Cisco sales representative.

ITU Channel

56

57

58

59

See Table 3

Printed in USA

© 2015 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.

C78-711186-01 01/15

Page 7 of 7

advertisement

Related manuals

advertisement
