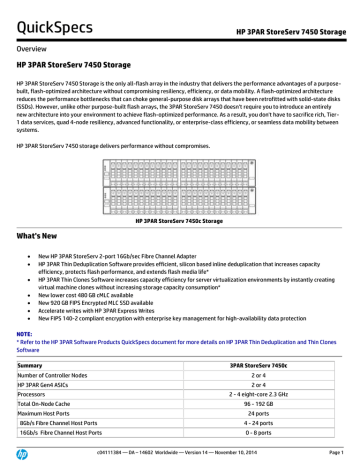

QuickSpecs
HP 3PAR StoreServ 7450 Storage
Overview
HP 3PAR StoreServ 7450 Storage
HP 3PAR StoreServ 7450 Storage is the only all-flash array in the industry that delivers the performance advantages of a purposebuilt, flash-optimized architecture without compromising resiliency, efficiency, or data mobility. A flash-optimized architecture
reduces the performance bottlenecks that can choke general-purpose disk arrays that have been retrofitted with solid-state disks
(SSDs). However, unlike other purpose-built flash arrays, the 3PAR StoreServ 7450 doesn't require you to introduce an entirely
new architecture into your environment to achieve flash-optimized performance. As a result, you don't have to sacrifice rich, Tier1 data services, quad 4-node resiliency, advanced functionality, or enterprise-class efficiency, or seamless data mobility between
systems.
HP 3PAR StoreServ 7450 storage delivers performance without compromises.
HP 3PAR StoreServ 7450c Storage
What's New







New HP 3PAR StoreServ 2-port 16Gb/sec Fibre Channel Adapter
HP 3PAR Thin Deduplication Software provides efficient, silicon based inline deduplication that increases capacity
efficiency, protects flash performance, and extends flash media life*
HP 3PAR Thin Clones Software increases capacity efficiency for server virtualization environments by instantly creating
virtual machine clones without increasing storage capacity consumption*
New lower cost 480 GB cMLC available
New 920 GB FIPS Encrypted MLC SSD available
Accelerate writes with HP 3PAR Express Writes
New FIPS 140-2 compliant encryption with enterprise key management for high-availability data protection
NOTE:
* Refer to the HP 3PAR Software Products QuickSpecs document for more details on HP 3PAR Thin Deduplication and Thin Clones
Software
Summary
3PAR StoreServ 7450c
Number of Controller Nodes
2 or 4
HP 3PAR Gen4 ASICs
2 or 4
Processors
2 - 4 eight-core 2.3 GHz
Total On-Node Cache
96 - 192 GB
Maximum Host Ports
24 ports
8Gb/s Fibre Channel Host Ports
4 - 24 ports
16Gb/s Fibre Channel Host Ports
0 - 8 ports
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 1
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Overview
10Gb/s iSCSI and FCoE Host Ports
Maximum Initiators Supported
0 - 8 ports
1024 or 2048
2U Controller Enclosure SAS Drive Capacity
24
Number of Solid State Drives
Raw Capacity (approx.)
8 – 240
1
0.8 - 460.8 TB3
2
Capacity Details
3PAR StoreServ 7450c
RAID Levels
RAID 0, 1, 5, 6
RAID 5 Data to Parity Ratios
2:1 - 8:1
RAID 6 Data to Parity Ratios
4:2, 6:2, 8:2, 10:2, 14:2
Drive Capacities (approximate GB )
(RAID levels, parity ratios, and drive capacities all mixable within
the same Storage System)
, 200GB SSD, 480GB SSD, 920GB SSD, 480GB cMLC SSD,
1.92TB cMLC SSD
Number of Add-on Drive Enclosures
(Each Drive Enclosure holds up to 24 drives in 2U for small form
factor drives and 4U for large form factor drives)
0 - 18 enclosures
3
NOTES:
The minimum drive quantity is permitted as long as the total raw capacity is at least 0.8 TB.
Maximum raw capacity currently supported with solid state drives.
3
For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.
4
SSDs are Solid State Drives.
1
2
NOTE: Specifications are subject to change without notice.
Host OS Support
Citrix® XenServer® | HP-UX® | HP OpenVMS | IBM® AIX®
Microsoft® Windows® Server, including Microsoft® Hyper-V™
Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris
Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization
SUSE® Linux Enterprise | Ubuntu | VMware vSphere™
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage
Products (SPOCK): http://www.hp.com/storage/spock
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 2
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features
Accelerated
HP 3PAR StoreServ 7450 Storage provides hundreds of thousands of IOPS to allow the highest level of
performance for any application environment. With 3PAR system wide striping, data and I/O for each
volume are striped widely across all system resources including CPUs, Ports, Cache and Drives. This
wide striping enables the system to deliver accelerated performance levels (all resources supporting
each volume) while avoiding any single point of bottleneck. Even a small volume can leverage the
performance of hundreds of flash devices and all the system's controller nodes for optimal
performance. In addition, the massively parallel architecture allows 3PAR to serve the IOPS at submillisecond latency levels, enabling high quality IOPS for each of the applications running on HP 3PAR
7450 storage system.
Quality of Service - With HP 3PAR Priority Optimization, you can consolidate multiple workloads on
high-performing HP 3PAR 7450 Storage system without compromising on performance of their key
applications. A highly automated approach allows you to quickly and easily assign a minimum goal for
I/O per second, bandwidth and latency to protect mission critical applications in enterprise
environments. Or assign performance thresholds on workloads with lower service level requirements.
This capability allow you to consolidate more applications on less infrastructure while delivering
predictable performance to meet even the most demanding service level requirements.
HP 3PAR Express Writes - HP 3PAR Express Writes is a write acceleration feature built in to HP 3PAR OS
version 3.2.1 and later to optimize CPU utilization and, depending on workload, deliver greater
throughput, up to 30 percent more IOPS, and 20 percent reduced latency 1. All currently supported HP
3PAR StoreServ Storage HBAs and hosts also support the HP 3PAR Express Writes feature, and its
benefits extend to both spinning drives and flash-based media.
1
Efficient
Based on a random, 100 percent write workload with an 8K block size.
Reduce capacity requirements and extend flash media lifespan to lower costs. Stretch your Flash
media investment for improved return on investment. 3PAR StoreServ is the only platform to
guarantee to reduce your capacity requirements by 50%. 3PAR StoreServ can also extend the life of
your Flash media by providing additional media endurance.
Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity
requirements by 50%. Purchase only what you need, as you need it so you can focus resources on
growing your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In
features an efficient, silicon-based zero-detection mechanism. This unique hardware capability gives
HP 3PAR StoreServ Storage the power to remove allocated but unused space without impacting
performance.
Data center virtualization - Increase virtualization return on investment. Double virtual machine
density on your physical servers, spend up to 90 percent less time managing your storage, and
support your virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is
built from the ground up to deliver performance that exceeds the demands of virtualized data centers
along with transformative levels of simplicity, agility, and efficiency.
Do more with less -HP 3PAR StoreServ 7450 Storage delivers hundreds of thousands of IOPS at under
1ms latency with less equipment to house, far fewer disks to power and cool, less hardware to retire
after it has reached its end of life, and a reduced carbon footprint.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 3
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features
Bulletproof
Eliminate downtime for performance-critical applications - A unique suite of persistent technologies
power HP 3PAR StoreServ 7450 Storage in delivering high availability and Tier 1 resiliency to
performance critical applications. Achieve higher service levels for more users and applications with
less infrastructure. Deliver higher performance levels, greater availability, and next-generation
functionality to multiple user groups and applications from a single storage system.
High Availability - With the Get 6-Nines Guarantee, HP ensures 99.9999% data availability with all HP
3PAR StoreServ 7450 systems giving you the peace of mind that your performance critical applications
are back with Tier-1 resiliency Intelligent data striping across all available enclosures provides HA
Cage, the ability to maintain availability even when a whole drive enclosure fails. HP 3PAR Persistent
Cache in four node configurations eliminates performance impacts that result from unplanned
component failures, making it a must-have for maintaining service levels in the virtual data center-a
feature that you can't get from any all-flash storage platform built with 2-controllers architecture.
Futureproof
Move data seamlessly across systems and sites to balance performance and cost - HP 3PAR StoreServ
platform is autonomic (or effortless), and delivers polymorphic simplicity from midrange to high end
to flash. Federated data mobility is yet another example of Polymorphic Simplicity. Simply and nondisruptively shift data between any model HP 3PAR StoreServ system without additional management
layers or appliances. This helps balance cost and performance to meet service-level requirements at
the lowest cost while increasing business agility and minimizing risk. HP 3PAR Peer Motion enables
you to move applications that require flash-performance on 7450 at the right time without impacting
its availability. This seamless application movement on and off of flash storage enables you to put
your investment into flash technology to its most optimum usage. Simply and non-disruptively shift
data between any model HP 3PAR StoreServ system without additional management layers or
appliances.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 4
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
Warranty
3 Year, On-site Warranty Service for hardware components. 7x24 4-hour remote response with next
business day on-site response
The warranty on the following HP 3PAR StoreServ 7000 SSD product numbers is five years, parts only:
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive
E7W54B
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive
E7W55B
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive
E7W24B
HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive
E7W25B
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC FIPS Encrypt Solid State Drive
E7Y52A
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) cMLC Solid State Drive
E7Y55A
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) cMLC Solid State Drive
E7Y56A
HP 3PAR StoreServ M6710 1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive
E7Y57A
HP 3PAR StoreServ M6720 1.92TB 6G SAS LFF(3.5in) cMLC Solid State Drive
E7Y58A
Warranty on other HP 3PAR StoreServ 7000 SSDs excluding the ones listed above is 3 years, parts
only.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90)
days from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
http://www.hp.com/products/storageworks/warranty
Service and Support
Technology Services for increased uptime, productivity and ROI
Trust HP storage technology experts for every level of service and support. Our integrated portfolio of
services for storage help customers reduce costs, optimize data, streamline storage management,
and improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service
partner who understands your increasingly complex environment. Team with the people who know HP
infrastructure hardware and software best-the experienced professionals at HP Services.
Protect your business beyond warranty
Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack
Services protect the business-by reducing downtime risks and providing operational consistency for
mission-critical and standard business computing.
NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance
limit. This limit is generally high enough so wear out will not occur during the expected service life of
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 5
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
an HP 3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HP 3PAR
StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that
has been used. This allows any SSD approaching the write endurance limit to be proactively replaced
before they are automatically spared out. An SSD has reached the maximum usage limit once it
exceeds its write endurance limit. Following the product warranty period, SSDs that have exceeded the
maximum usage limit will not be repaired or replaced under HP support contracts.
What HP Storage Technology Services can do for you
HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT
and infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer
care-from technology support to complex migrations to complete managed services.
Choose the right level of support, deployment and integration services
HP support recommendations are designed to help you enhance technology operations and lower riskand make it easier for you to seek the right balance between affordability and service-level
commitments. Depending on your individual support needs, choose from three levels of care that
cover the entire lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care.
If none of our support recommendations meet your needs, we can tailor a service solution for your
unique support requirements. Only HP brings together deep expertise, proactive and business critical
support and a strong partner network-together with, a full set of infrastructure services designed to
power a Converged Infrastructure
Optimized Care - delivers
best performance and
stability through
deployment and proactive
management practices
HP Critical Service - This service delivers 24x7 monitoring of your environment, making it the right
choice when uninterrupted uptime is essential. We implement improvement projects to mitigate risks
and reduce incidents to maximize uptime. If outages do occur, they will be addressed immediately
through access to our dedicated critical support escalation resources, with a six-hour call-to-repair
commitment from our mission-critical call center.
Additional Option:
10 Proactive Select credits per year per array - HP Proactive Select is a flexible way to purchase
services to fit your particular environment or situation. Working with an HP Account Support Manager,
you select a package of services in the form of services credits that include proactive services
spanning many technologies and processes, such as on-site firmware upgrades, health checks,
assessments, and education. You tailor the service delivery to improve time to production, optimize
performance, or build in continuous improvements.
Standard Care - maintains
high level of uptime, along
with expert help to cut the
cost and complexity of
implementation and
support
HP Proactive Care 24x7- for a higher return on your storage investment, Proactive Care delivers
hardware and software support services designed specifically for your technology; rapid access to
Advanced Solution Center Specialists plus, Firmware/Software management and best practice advice.
Customers can optimize the return on their IT investment and realize the advantage of running their
business critical applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per
year, select from an extensive menu of consultancy and technical services, such as onsite firmware
upgrades, health checks, assessments, and education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows
for an increased personalization of the Proactive Care support experience through the assignment of
an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 6
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
projects. The ASM will develop an annual support plan, provide four days of operational and technical
advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables
address the customer's priorities. This option is only available for Proactive Care customers and may
be purchased once per environment.
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more
operational & technical advice.
Basic Care - Minimum
recommended support
HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers
hardware and software support services designed specifically for your technology; rapid access to
Advanced Solution Center Specialists plus, Firmware/Software management and best practice advice.
Customers can optimize the return on their IT investment and realize the advantage of running their
business critical applications on virtualized infrastructure. Plus, 10 credits per year, select from an
extensive menu of consultancy and technical services, such as onsite firmware upgrades, health
checks, assessments, and education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows
for an increased personalization of the Proactive Care support experience through the assignment of
an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and
projects. The ASM will develop an annual support plan, provide four days of operational and technical
advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables
address the customer's IT priorities. This option is only available for Proactive Care customers and may
be purchased once per environment.
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more
operational & technical advice.
Implementation
Installation:
Whichever level of care you select, consider our Installation and Startup Services for a smooth
implementation.
HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service
provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation
into your storage environment and helping you realize the maximum benefit from your storage
investment.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf
Related Services
HP Storage Data Migration Service- HP expertise and tools help you migrate data across your data
center or around the globe. Take the burden of migration off your shoulders and put it in the capable
hands of expert HP storage migration consultants. Our proven approach helps orchestrate the
complete data migration and consolidation process while maintaining consistent data availability
during the transfer process.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 7
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf
HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation
services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity
components. This service includes three levels of support based on the type of environment, ranging
from simple to more complex. A trained service specialist guides the implementation of the storage
switches in the SAN environment according to HP quality standards.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf
HP Data Replication Solution Service for 3PAR Virtual Copy- HP Data Replication Solution Service for
HP 3PAR Virtual Copy Software helps create, manage and configure local replication data mirroring
and snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to
facilitate data restores, minimize downtime for backups, perform application testing, support data
mining use with decision-support tools.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf
HP Data Replication Solution Service for 3PAR Remote Copy- HP Data Replication Solution Service
for 3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR
storage systems to safeguard critical business information. Provides scalable deployment of HP
Remote Copy Software real-time data mirroring between a local and a remote 3PAR storage system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf
HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides
implementation of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes
3PAR Remote Copy, 3PAR Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get
HP 3PAR 7000 Replication Software Suite up and running quickly and to provide a demonstration of
the product's key features using sample or test data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf
HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of
the HP 3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer
Persistence up and running quickly and to provide a demonstration of the product's key features using
sample or test data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf
HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization
Policy Implementation Service provides analysis, recommendations, and implementation of HP 3PAR
Adaptive Optimization policies to enable storage tiering using data collected from the HP 3PAR
Storage system over time. With the assistance of a designated IT storage administrator, a service
specialist works with the customer to implement Adaptive Optimization policies on the HP 3PAR
Storage system to help deliver service level optimization for virtual and cloud data centers while
reducing cost, increasing agility and minimizing risk.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Storage Virtual Volume Design and Implementation Service- When redeploying an HP
StorageWorks Disk Array, the HP Virtual Volume Design and Implementation Service provides the
necessary activities required to design and implement a new virtual volume configuration.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 8
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf
HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard
to thin provisioned virtual volumes for HP 3PAR Storage. A service specialist advises the customer on
HP thin provisioning best practices, provides evaluation of potential disk capacity savings if target
virtual volumes are converted, and plans and implements thin conversion processing. The service
leverages 3PAR thin provisioning capabilities to help optimize storage capacity, reduce cost, increase
agility and maintain performance.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed
I/O analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA
P6000 Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for
HP Storage Disk Arrays provides a single engagement concerning the performance of a single HP 3PAR
StoreServ Storage disk array, HP EVA P6000 Storage disk array and HP XP P9000 Storage disk array
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf
HP 3PAR Health Check Service- The HP 3PAR Health Check service is delivered as a single
engagement, providing data collection, analysis, report creation, and a briefing session concerning the
performance of a single HP 3PAR StoreServ Storage System. This health check service is best for HP
3PAR StoreServ Storage Systems that have been installed and are in normal production mode. It can
also be used to establish a baseline for future reference to improve the effective use of your storage
system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf
HP 3PAR Storage Assessment Service- The HP 3PAR Assessment Service is delivered remotely for a
single HP 3PAR StoreServ Storage System and does not include performance analysis, testing, or
modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage
System being assessed. The assessment findings are compared to HP best practices and a summary
report is provided that includes recommendations intended to improve availability and ongoing
management of your HP 3PAR StoreServ Storage System.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-2346ENW.pdf
HP 3PAR Storage Rebalance Service- The HP 3PAR Rebalance Service helps balance data across your
HP 3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service
provides analysis, planning, and implementation of data movement and/or physical movement of
drive magazines within the array.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf
HP EVA to 3PAR Acceleration Service - The HP EVA to 3PAR Acceleration Service can help guide you or
even execute data migration activities on your behalf that can not only optimize, but provide OPEX and
CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an
alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration
specialists. With the help of migration experts, this service allows customers to execute an EVA to
3PAR data migration at their own pace and lowered cost.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-4234ENW.pdf
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 9
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information
HP 3PAR Dynamic Optimization I&S - For Dynamic Optimization, implementation by HP of tasks
required to balance the HP 3PAR storage system; the service provides the Customer with a product
overview, advice, and suggested strategies for use of Dynamic Optimization, and extended/ongoing
analysis and/or implementation of Dynamic Optimization strategies can be accommodated at
additional cost
The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service
Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf
For more information
www.hp.com/services/storage
To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized
Channel Partner
HP Care Pack Services are sold by HP and HP Authorized Service Partners:


Services for customers purchasing from HP or an enterprise reseller are quoted using HP
order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at:
www.hp.com/go/lookuptool
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 10
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Step 1 - Choose a Base configuration
HP 3PAR StoreServ 7450 configurations start with the selection of the Base. The Base includes controller nodes, bays for small
form factor drives, and PCIe slots for host adapter cards. SAN Kits are also considered base configurations. The SAN Kits simplify
ordering for SAN configurations with the array and extend the switch warranty to 3-years by including switches with an HP 3PAR
StoreServ 7450 Storage Base.
HP 3PAR StoreServ 7450 Base Configurations
Factory Integrated in HP rack
HP 3PAR StoreServ 7450c 2N Storage Base
E7X87A
HP 3PAR StoreServ 7450c 4N Storage Base
E7X62A
HP 3PAR StoreServ 7450 2-node Base
C8R35A
HP 3PAR StoreServ 7450 4-node Base
C8R37A
Factory Integrated in HP rack with Storage Centric Rack
HP 3PAR StoreServ 7450c 2N for Storage Centric Rack
E7X89A
HP 3PAR StoreServ 7450c 4N for Storage Centric Rack
E7X93A
HP 3PAR StoreServ 7450 2-node Base for Storage Centric Rack
E7W52A
HP 3PAR StoreServ 7450 4-node Base for Storage Centric Rack
E7W53A
Field Integrated
HP 3PAR StoreServ 7450c 2N Field Integrated Storage Base
E7X91A
HP 3PAR StoreServ 7450c 4N Field Integrated Storage Base
E7X95A
HP 3PAR StoreServ 7450 2-node Base
C8R35A
HP 3PAR StoreServ 7450 4-node Base
C8R37A




A minimum of one (1) configuration base must be ordered.
The HP 3PAR StoreServ 7450c 2N base configuration includes (2) controller nodes,
96 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4)
8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per
node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of rack space above
the 2-node Storage Base for a future upgrade to a 4-node configuration, (1)
mounting rail kit, and power cords.
The HP 3PAR StoreServ 7450c 4N base configuration includes (4) controller nodes,
192 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC ports,
(8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards - one slot
per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits, and power
cords.
The HP 3PAR StoreServ 7450 2-node base configuration includes (2) controller
nodes, 64 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC
ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of rack
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 11
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration



space above the 2-node Storage Base for a future upgrade to a 4-node
configuration, (1) mounting rail kit, and power cords.
The HP 3PAR StoreServ 7450 4-node base configuration includes (4) controller
nodes, 128 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC
ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits,
and power cords.
All base configurations include built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
*Storage Centric Configuration
o The Storage Centric rack versions of HP 3PAR StoreServ 7450 are for CTO
(factory Configure-To-Order) only. With a Storage Centric configuration,
the storage system gets placed in the center of the rack so that future
expansion of that storage system becomes easier.
o In Storage Centric configurations, non-3PAR components, with the
exception of certain StoreFabric Storage Networking switches, if added to
the same order, get placed in a separate rack.
The following drawings show example configurations for a HP 3PAR StoreServ 7450 4node in Storage Centric and non-Storage Centric configurations
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 12
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP 3PAR StoreServ 7450c 4N Storage Centric configuration
StoreServ 7450c 4N Storage system in a
storage centric configuration in a HP
Intelligent Series Rack
StoreServ 7450c 4N Storage system in a
non-storage centric configuration in a HP
Intelligent Series Rack
HP 3PAR StoreServ 7450c/7450 Upgrade Controller Node Pair
Use the HP 3PAR StoreServ 7450c Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7450c 2N
Storage Base into a 4-node configuration.
HP 3PAR StoreServ 7450c Upgrade Node Pair
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
E7X92A
Page 13
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration




Used to upgrade the E7X87A HP 3PAR StoreServ 7450c 2-node Storage Base to a
4-node configuration.
One (1) pair of controller nodes beyond the base configuration is supported on the
3PAR StoreServ 7450c.
The 3PAR StoreServ 7450c Upgrade Node Pair includes (2) controller nodes, 96 GB
of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb
shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per
node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power
cords
The upgrade node pair includes built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
Use the HP 3PAR StoreServ 7450 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7450 2-node
Storage Base into a 4-node configuration.
HP 3PAR StoreServ 7450 Upgrade Node Pair




C8R36A
Used to upgrade the C8R35A HP 3PAR StoreServ 7450 2-node Storage Base to a 4node configuration.
One (1) pair of controller nodes beyond the base configuration is supported on the
3PAR StoreServ 7450.
The 3PAR StoreServ 7450 Upgrade Node Pair includes (2) controller nodes, 64 GB
of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb
shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per
node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power
cords
The upgrade node pair includes built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
Step 2 - Choose Host Adapter
Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host
adapter cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for
connection to hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE
ports permit host connection in iSCSI and FCoE environments.
NOTE: Host adapters used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.
HP 3PAR StoreServ 7000 Host Adapters
HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter
QR486A
HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter
QR487A




Used in the Storage Base products (E7X87A, E7X62A, C8R35A, and C8R37A)
and the Upgrade Node Pair (E7X92A, and C8R36A).
Because the Storage Base products and the Upgrade Node Pair include builtin FC ports, the host adapter cards are optional.
QR486A and QR487A include one adapter card each. Adapters must be
purchased in pairs.
The QR486A includes (4) 8 Gb/s shortwave FC SFPs and the QR487A includes
(2) 10 Gb/s SFPs.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 14
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration

Each node in a node pair (a node pair is composed of the two controller
nodes in a single 2U enclosure) must have the same number and type of
adapters. FC and iSCSI/FCoE adapters may not be intermixed in a node pair.
The 4 ports of the FC adapter can be individually configured to connect to a
host or to a remote array in an RC configuration.
The two ports of the iSCSI/FCoE adapter can be individually configured by
the user as iSCSI or FCoE.


Permitted Adapter Configurations
Product
Nodes
A*
B*
C*
E7X87A
C8R35A
Node 0
Node 1
Empty
Empty
FC
FC
iSCSI/FCoE
iSCSI/FCoE
E7X92A
C8R36A
Node 2
Node 3
Empty
Empty
FC
FC
iSCSI/FCoE
iSCSI/FCoE
E7X62A
C8R37A
Node 0
Node 1
Node 2
Node 3
Empty
Empty
Empty
Empty
FC
FC
Empty
Empty
iSCSI/FCoE
iSCSI/FCoE
Empty
Empty
D
E
F*
G
H*
I*
Empty
Empty
FC
FC
Empty
Empty
iSCSI/FCoE
iSCSI/FCoE
FC
FC
iSCSI/FCoE
iSCSI/FCoE
iSCSI/FCoE
iSCSI/FCoE
FC
FC
FC
FC
FC
FC
iSCSI/FCoE
iSCSI/FCoE
iSCSI/FCoE
iSCSI/FCoE
* Factory default configurations for given quantities of adapters.
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity.
Step 3 - Choose Drive Enclosures
Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be
ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because
the Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not
require any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive
bays. The HP 3PAR StoreServ 7450 supports up to four (4) added drive enclosures per node pair. The two drive enclosure types
can be intermixed in a single array.
NOTE: Drive enclosures used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.
HP M6710 2.5 inch 2U SAS Drive Enclosure
HP M6720 3.5 inch 4U SAS Drive Enclosure
Drive Enclosures
HP M6710 2.5 inch 2U SAS Drive Enclosure
QR490A
HP M6720 3.5 inch 4U SAS Drive Enclosure
QR491A
HP M6710 SFF(2.5in) SAS Field Integrated Drive Enclosure
E7X64A
HP M6720 LFF(3.5in) SAS Field Integrated Drive Enclosure
E7X66A

Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 15
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration











cables, (1) mounting rail kit, and power cables.
The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a
single row.
The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four
(4) columns of six (6) slots each.
Minimum of zero (0) drive enclosures, maximum of four (4) attached to
C8R35A and E7X87A.
Minimum of zero (0) drive enclosures, maximum of (8) attached to C8R37A
and E7X62A.
Drive enclosures are connected in daisy chains from the SAS ports of the
controller nodes.
The best practice is to balance the drive enclosures across the SAS ports,
remembering that the controller node enclosures include (24) drives
attached to the SAS port labeled DP-1.
The best practice when including LFF and SFF drive enclosures in the same
array is to arrange them in the rack so that all of the 2U enclosures that
belong to one node pair are together and all of the 4U enclosures for that
node pair are together. When connecting the backend SAS cables, intermix
the M6710 and M6720 enclosures on each SAS port.
With a four node configuration, the best practice is to attach the same
number of drive enclosures to each node pair.
To achieve highest availability in multi-enclosure configurations, configure
a minimum of two (2) enclosures per node pair for RAID 1, a minimum of
four (4) enclosures per node pair if RAID 5 is included, and a minimum of
three (3) enclosures per node pair if RAID 6 is included. Include enclosures
containing node pairs in the count with the M6710 enclosures.
Drive bays that are not filled with a drive must be covered with a drive blank
to preserve proper air flow.
If future capacity upgrades are expected, include enough Drive Enclosures
so that there are some empty bays in each enclosure after all drives are
added.
Step 4 (a) - Choose Encryption (if needed)
At the time of initial system purchase, it must be decided if that system is supposed to be an encrypted system. Encryption
functionality, once turned ON, cannot be turned OFF on a given StoreServ system. If an encrypted system is desired, only
encrypted drives shall be included on the order along with the encryption LTU.
The HP 3PAR StoreServ Data Encryption enables the encryption for all the data that is stored on the internal drives of the 3PAR
StoreServ Storage. The 3PAR Encryption solution encrypts the data so that data cannot be read off a drive that is removed from
the 3PAR Storage. In the event of a failure of the drive or the theft of a drive, the proper authentication key is required to be
entered to gain access to the data stored within the drive. This method of encryption allows the user the comfort knowing all data
contained on the drive is protected against internal and external risks. Organizations within the healthcare industry, financial
services and public sectors are increasingly required to protect their sensitive information (patient records, personal identifying
information, and intellectual property) from threats like unauthorized insider access, accidental disclosure, or theft.
NOTE: Encryption Drives used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 16
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP 3PAR StoreServ Data Encryption
HP 3PAR StoreServ 7450 Data at Rest Encryption LTU
HP 3PAR StoreServ 7450 Data at Rest Encryption E-LTU
BC985A
BC985AAE
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) FIPS Encrypted MLC Solid State
Drive








E7Y52A
All drives within a 3PAR StoreServ encrypted array must be self-encrypted devices. There cannot be a mixture of
encrypted drives and non-encrypted drives within the same encrypted array.
Customers have option to turn on encryption, non-disruptively, at any time; even after data has been written to the
system.
* FIPS 140-2 Validated Self-Encrypting Drives (SEDs) have been certified by the U.S. National Institute of Standards and
Technology (NIST) and Canadian Communications Security Establishment (CSE) as meeting the Level 2 security
requirements for cryptographic modules as defined in the Federal Information Processing Standards (FIPS) 140-2
Publication
Strengthen the DAR solution with an optional FIPS 140-2 Level 2 validated external key manager. Supports KMIP 1.1 for
key management. communications.
Supports HP Enterprise Secure Key Manager 4.0 and SafeNet KeySecure k460 and k150 centralized key management.
A data encryption license (LTU) is required to enable encryption on the array. One encryption license is required for each
encrypted array.
Once encryption is enabled on the HP 3PAR StoreServ Storage, it cannot be disabled.
The local key manager is included in the HP 3PAR OS. There is not a separately orderable part number for the local key
manager.
NOTE: The HP 3PAR 7450 Data at Rest Encryption LTU are valid for both the HP 3PAR StoreServ 7450 and HP 3PAR StoreServ
7450c Storage systems.
Step 4 (b) - Choose Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike
other HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as
single drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.
NOTE: SSD Drives used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.
HP 3PAR StoreServ 7450 SAS SSD Drives
HP M6710 200GB 6G SAS SFF (2.5-inch) SLC Solid State Drive
QR503A
HP M6720 200GB 6G SAS LFF (3.5-inch) SLC Solid State Drive
QR507A
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive
E7W54B
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive
E7W55B
HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) cMLC Solid State Drive
E7Y55A
HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) cMLC Solid State Drive
E7Y56A
HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive
E7W24B
HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive
E7W25B
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 17
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP 3PAR StoreServ M6710 1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive
E7Y57A
HP 3PAR StoreServ M6720 1.92TB 6G SAS LFF(3.5in) cMLC Solid State Drive
E7Y58A










The minimum recommended initial quantity is eight (8) drives* per node
pair
Minimum upgrade quantity is 4 drives per node pair or 2 drives per
enclosure, whichever is larger. Best practice is to run Autonomic Rebalance
(also known as tunesys) after adding the drives.
All node enclosures must contain either zero (0) or an even number of
drives. All drive enclosures must contain an even number of drives, with a
minimum of two.
Minimum raw capacity is 0.8TB per node pair.
Best practice is to add equal numbers of drives to all enclosures compatible
with the drive type being added.
With a four node configuration, the best practice is to attach the same
number and type of drives to each node pair.
Small Form Factor (SFF)-specific configuration practices
o SFF drives may be loaded into the Storage Base enclosures, the
Upgrade Node Pair enclosure and the M6710 drive enclosure.
o SFF drives must be loaded in pairs of identical drives, beginning
with the leftmost slot, slot 0, and filling to the right, leaving no
empty slots between drives.
Large Form Factor (LFF)-specific configuration practices
o LFF drives may be loaded into the M6720 drive enclosure.
o LFF drives must be loaded in pairs of identical drives starting at the
bottom of a column, leaving no empty slots between drives in the
column. It is permitted to have empty columns between columns
containing drives. Different columns do not have to contain the
same number of drives.
o An all LFF drive configuration is permitted, leaving the Storage
Base Enclosure empty.
SSD specific configuration practices
o SSD-only configurations are permitted.
o Maximum of 120 SSDs per node pair.
o The SFF and LFF SSDs allow the user to create SSD volumes that
stripe across SFF and LFF enclosures.
* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.
Step 5 - Choose Service Processor Implementation
The HP 3PAR Service Processor monitors the HP 3PAR StoreServ 7450 and enables remote monitoring and remote servicing of the
array. The key capabilities of the Service Processor is to:


Enable rapid, proactive response to issues
Provide a secure communication channel between the customer's data center and HP 3PAR Central for:
o Remote Online Software Upgrade; upgrade software with no application disruption
o Remote Diagnostics; key diagnostic information maintained centrally on a historical basis
o Remote Serviceability; provides fast predictive response and remediation
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 18
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Each HP 3PAR StoreServ 7000 requires its own Service Processor. The Service Processor functions as the communication interface
between a customer's IP network and HP 3PAR Central by managing all service-related communications. The Service Processor
leverages the industry-standard HTTP over Secure Sockets Layer (HTTPS) protocol to secure and encrypt data communication.
Virtual Service Processor
The Service Processor can be deployed either as a Virtual Service processor or a Physical Service Processor. A Virtual Service
Processor (VSP) is included free with the 3PAR Base Operating System. The Virtual Service Processor can be installed on a that is
provided by the customer before installation that, meet the following specifications:


Virtualization operating system
o VMware vSphere ESXi 4.1, 5.0, 5.1, 5.5
o Microsoft Hyper-V Server 2008 R2, 2012, 2012 R2
Server features
o 2 GB RAM (minimum for the VSP Virtual Machine)
o 256 GB free disk space (minimum for the VSP Virtual Machine)
NOTE: VSP storage must not reside on the array it is managing.
o DVD ROM or DVD RW
o 1 Gb Ethernet port
o For VSP on VMware, the server must be listed in the VMware Compatibility Guide
o For VSP on Hyper-V, the server must be listed on the Windows Server Catalog
The customer must provide any hardware required to host the remote support software when deploying a Virtual Service
Processor. For scheduled service calls, the customer shall make the Virtual Service Processor available to HP for remedial activities
at the agreed-upon time. The customer is responsible for maintaining the appropriate HP 3PAR Remote Support Technology with a
secure connection to HP and any passwords required to access the local network and Virtual Service Processor. The customer is
responsible for providing all necessary resources in accordance with the HP 3PAR Service Processor Release Notes in order to
enable the delivery of the service and options. Please contact a local HP representative for further details on requirements,
specifications, and exclusions.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 19
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
The physical Service Processor is a dedicated storage appliance located within the storage rack providing close proximity to the
HP 3PAR StoreServ 7000 Storage. The physical Service Processor is fully supported and maintained by HP Services. The physical
Service Processor has serial port connectivity that provides maintenance access for trouble shooting capabilities. If a VMware
server is not available to run the virtual Service Processor, the physical Service Processor is the alternative choice for remote
monitoring and remote service.
HP 3PAR Policy Server
HP 3PAR Policy Server works to implement customer-configurable remote service access policies. Installed on a customerprovided host, Policy Server provides the customer with ultimate flexibility and control to allow or deny outbound communication
or remote service connections to and from an HP 3PAR StoreServ Storage system. Policy Server also serves as the centralized
point for collecting and storing audit logs of all diagnostic data transfers and authorized remote service connections to and from
all configured HP 3PAR Storage systems. HP 3PAR Policy Server provides the





The customer has complete control over policy administration.
A centralized policy administration for all HP 3PAR Storage systems is provided.
A centralized audit log to facilitate security audits is provided.
Up to 100 3PAR systems can be managed with a single 3PAR Policy Server license
Policy Server 6.1.5 can be run on a Virtual Machine. For the latest information on supported hypervisors, refer to Single
Point of Connectivity Knowledge for HP Storage Products (SPOCK): http://www.hp.com/storage/spock
HP 3PAR Policy Manager Software LTU
TE400B
Step 6 - Choose Cables for host connection and remote copy connection
The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote Copy
connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.
Cables
FC and 10GbE
1GbE
HP 3PAR 4m 50/125 (LC-LC) Fiber Cable
QL281B
HP 3PAR 6m 50/125 (LC-LC) Fiber Cable
QR631A
HP 3PAR 10m 50/125 (LC-LC) Fiber Cable
QL266B
HP 3PAR 25m 50/125 (LC-LC) Fiber Cable
QR593A
HP 3PAR 50m 50/125 (LC-LC) Fiber Cable
QL267B
HP 3PAR 100m 50/125 (LC-LC) Fiber Cable
QL268B
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK732A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK733A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK734A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK735A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK736A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
QK737A
HP 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable
C7536A
HP 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable
C7537A
HP 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable
C7542A
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 20
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Direct Attach Copper Cables* HP 3COM
HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable
JD095C
HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable
JD096C
HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JD097C
HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable
JC784C
HP ProCurve
HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9281B
HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
J9283B
HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable
J9285B
HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable
J9286B
HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable
J9287B
Brocade
HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable
AP818A
HP B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable
AP819A
HP B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable
AP820A
Cisco
HP C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable
QK701A
NOTE: *The Direct Attach Support is available only for iSCSI protocol and is
available only with HP 3PAR OS version 3.1.3 and later
Step 7 - Choose Racking Options
The HP 3PAR StoreServ 7450 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes,
including the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7450 can be factory configured
and shipped in a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is
the HP Intelligent Series Rack.
HP Rack and Rack Options
Factory Integration Select a rack to house your HP 3PAR StoreServ 7450.
NOTE: The HP Intelligent Series Rack is the only series supported for factory configuration.
Primary
Configuration
Rules
The HP 3PAR StoreServ 7450 will be configured into an HP Intelligent Series Rack with the
appropriate power distribution units (PDUs). If other products such as servers or back-up
products are included in the cab, a different PDU will be added (if required) or can be chosen
from a list of appropriate offerings shown in the configuration tool. The HP Intelligent Series
Rack must be purchased for factory configuration. Additional 3PAR StoreServ 7450 controller
node enclosures and drive enclosures may be ordered for multiple subsystem integration at
the factory.
The 3PAR StoreServ 7450 is also supported in HP 10000 G2 Series racks for field installation.
When calculating available U-space, assume that no space will be placed between the
mounted components. For redundancy, order PDUs in quantities of two. Refer to the
Configuration and User Guide in the Information Library at the Rack Solutions webpage.
HP Intelligent
Series Racks
NOTE: The number of components that will fit in a rack varies and is determined by the
interior U-space of the rack.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 21
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP 647 1075mm Shock Intelligent Series Rack
BW912A
HP 47U 1075mm Side Panel Kit
BW915A
HP 642 1075mm Shock Intelligent Series Rack
BW904A
HP 42U 1075mm Side Panel Kit
BW906A
HP 636 1075mm Shock Intelligent Series Rack
BW896A
HP 36U 1075mm Side Panel Kit
BW898A
HP 622 1075mm Pallet Intelligent Series Rack (22U) (available in a later release)
BW893A
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html.
For more information on rack options, see: http://www.hp.com/products/rackoptions.
For more information on PDUs, see:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html.
HP PDU Pivot Kit
HP EVA PDU Pivot Kit
AG730A
Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ 7000
configurations. This kit allows the PDUs to be placed in the back of the rack without requiring
any rack U space.
NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option when
orders are configured, as it will save 2U of valuable rack space.
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate.
Performance
Optimized Data
Centers
HP 3PAR StoreServ 7450 Storage is qualified for use in HP Performance Optimized Data
Centers. Go to www.hp.com/go/POD for more information.
Non-HP rack and
power
requirements
The Storage Bases, the Upgrade Node Pair, and the Drive Enclosures include mounting rails
that are compatible with industry standard 4-post EIA 19 inch racks with square mounting
holes. For detailed information on determining compatibility of a non-HP rack, please review
the information included in the HP 3PAR StoreServ 7450 User Guide.
Expansion Options
HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7450. Note that the Storage Base products,
the Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable
kit.
SAS expansion
cable kit
HP 6 Meter Expansion Cable Kit
AP879A
If an HP 3PAR StoreServ 7450 needs to be expanded into an adjacent rack, one 6 meter SAS
expansion cable kit is required for every node pair that must access drive enclosures in the
expansion rack. Each 6 meter SAS expansion cable kit contains four 6 meter SAS cables.
HP 2 Meter Expansion Cable Kit
AW566A
f an HP 3PAR StoreServ 7450 needs to be expanded within the same rack, but the new drive
enclosure must be located some distance from the nearest existing drive enclosure within the
same rack, one or two 2 meter SAS expansion cable kits is needed, depending on
configuration. Each 2 meter SAS expansion cable kit contains two 2 meter SAS cables.
HP 1 Meter SAS Expansion Cable Kit
QR514A
The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is
required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 22
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS cables
each and the 4-node Storage Base comes with eight 2 meter SAS cables. The Drive Enclosures
come with two 1 meter SAS cables each.
Step 8 - Choose Software
HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR
StoreServ 10000 Storage system are also available on the HP 3PAR StoreServ 7450 Storage system, the result of a common
architecture that spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR
StoreServ 7450 provides the features in Suites.
Two types of software licensing methods are employed with the HP 3PAR StoreServ 7450. Some software titles are licensed per
system; other titles are licensed by drive. With system-based licensing one license covers the whole array, independent of
configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based
licensing includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that
licenses the use of one drive. For each software title, purchase one Base LTU per title per array, and one Drive LTU, for every drive,
that is installed in the array, independent of drive type. For the HP 3PAR StoreServ 7450 there is no Drive LTUs cap. For the HP
3PAR StoreServ 7450c the Drive LTUs cap at 168. After reaching the cap, you do not need to purchase any more Drive LTUs for
that title.
NOTE: All the HP 3PAR 7450 Software LTU are valid for both the HP 3PAR StoreServ 7450 and HP 3PAR StoreServ 7450c Storage
systems.
For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html.
HP 3PAR 7450 Operating System Software Suite (Required)
HP 3PAR OS SW
Suite - 3PAR
Operating System,
System Setup, and
Management
Software
HP 3PAR 7450 Operating System Software Suite is the foundation software of HP 3PAR
StoreServ 7450 Storage, combining advanced virtualization capabilities with simple storage
management, high efficiency, and world class performance. The included comprehensive thin
provisioning capabilities allow your storage to start thin, get thin and stay thin. System Tuner
and Autonomic Rebalance help maintain high performance over time. Migrating your existing
data from HP EVA, EMC CX4 or EMC VNX Storage and 3PAR systems to HP 3PAR StoreServ
7450 is easy with the included 180 day Online Import license. HP 3PAR SmartStart Software,
included in the suite, guides you through the configuration of the service processor, HP 3PAR
StoreServ Storage and the application hosts - making storage setup quick and easy. HP 3PAR
7450 Operating System Software Suite is a required purchase. It uses drive-based licensing.
For more information see www.hp.com/go/3PAR.
HP 3PAR 7450 Operating System Software Suite Base LTU
HP 3PAR 7450 Operating System Software Suite Base E-LTU
HP 3PAR 7450 Operating System Software Suite Drive LTU
HP 3PAR 7450 Operating System Software Suite Drive E-LTU
BC890B
BC890BAE
BC891A
BC891AAE
HP 3PAR 7450 Replication Software Suite
HP 3PAR 7000
Replication
Software Suite Local Replication,
The HP 3PAR Replication Software Suite offers automatic replication, transparent failover
and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical data. These
features provide an agile, efficient and simple solution to protect against the unpredictable.
This suite is ideal for virtualized data centers demanding data availability and business
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 23
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Remote Replication continuity 24x7. HP 3PAR 7450 Replication Software Suite consists of HP 3PAR Remote Copy
and Transparent
Software, HP 3PAR Peer Persistence Software and HP 3PAR Virtual Copy Software, which are
Failover
also available separately. Replication Software Suite uses drive-based licensing. For more
information see
NOTE: The Peer Persistence feature provides transparent failover in VMware cluster
environments and requires the Remote Copy feature as a prerequisite.
HP 3PAR 7450 Replication Software Suite Base LTU
HP 3PAR 7450 Replication Software Suite Base E-LTU
HP 3PAR 7450 Replication Software Suite Drive LTU
HP 3PAR 7450 Replication Software Suite Drive E-LTU
BC892A
BC892AAE
BC893A
BC893AAE
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity
HP 3PAR 7450 Security Software Suite
HP 3PAR 7000
Security Software
Suite
HP 3PAR 7450 Security Software Suite provides secure administrative segregation of users
and hosts, allowing individual user groups and applications to confidently share a 3PAR
StoreServ 7450 system. It also allows you to secure volumes and copies so they cannot be
deleted, even by a 3PAR StoreServ 7450 user with the highest level privileges. When coupled
with reservationless, non-duplicative, read-only virtual copies (snapshots), the Virtual Lock
feature enables you to retain frozen, point-in-time copies of your data to assist internal data
retention and simplify compliance with internal governance procedures. HP 3PAR 7450
Security Software Suite consists of HP 3PAR Virtual Domains Software and HP 3PAR Virtual
Lock Software, which are also available separately. Security Software Suite uses drive-based
licensing.
HP 3PAR 7450 Security Software Suite Base LTU
HP 3PAR 7450 Security Software Suite Base E-LTU
HP 3PAR 7450 Security Software Suite Drive LTU
HP 3PAR 7450 Security Software Suite Drive E-LTU
BC908A
BC908AAE
BC909A
BC909AAE
HP 3PAR 7450 Data Optimization Software Suite
HP 3PAR 7450 Data
Optimization
Software Suite Rebalance,
Redistribute, and
Refresh
The HP 3PAR 7450 Data Optimization Software Suite makes sure that data is on the right
storage asset at the right time. This suite rebalances, redistributes and refreshes storage
non-disruptively with features that provide autonomic storage tiering and dynamic data
mobility, reducing cost and increasing agility. HP 3PAR 7450 Data Optimization Software
Suite consists of HP 3PAR Priority Optimization , HP 3PAR Dynamic Optimization, HP 3PAR
Adaptive Optimization and HP 3PAR Peer Motion (providing federation capability for data
mobility), which are also available separately. Data Optimization Software Suite uses drivebased licensing. For more information see
NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as a
prerequisite.
HP 3PAR 7450 Data Optimization Software Suite V2 Base LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Base E-LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Drive LTU
HP 3PAR 7450 Data Optimization Software Suite V2 Drive E-LTU
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
BD272A
BD272AAE
BD273A
BD273AAE
Page 24
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP 3PAR 7450 Reporting Software Suite
HP 3PAR Reporting
Software Suite Historical
Performance and
Capacity
Management Tool
The HP 3PAR 7450 Reporting Software Suite includes System Reporter, a historical
performance and capacity management tool for storage reporting, monitoring, and
troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view HP
3PAR StoreServ Storage configuration information. Reporting Software Suite uses systembased licensing. For more information see
HP 3PAR 7450 Reporting Suite LTU
HP 3PAR 7450 Reporting Suite E-LTU
BC914B
BC914BAE
HP 3PAR Application Software Suite for Oracle
HP 3PAR
Application
Software Suite for
Oracle - Application
Protection
The HP 3PAR Application Software Suite for Oracle provides everything you need for
protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space
Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual Copy
that intelligently creates, manages, and presents time-consistent snapshot images of
Oracle® databases for rapid application recovery, near-continuous data protection, data
sharing, and non-disruptive backup. Application Software Suite for Oracle uses system-based
licensing. For more information see.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP
3PAR Replication Software Suite.
HP 3PAR 7450 Application Suite for Oracle LTU
HP 3PAR 7450 Application Suite for Oracle E-LTU
BC918B
BC918BAE
HP 3PAR Application Software Suite for SQL
HP 3PAR
Application
Software Suite for
SQL - Application
Protection
The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases with
Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR Recovery
Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that eases costs and
administration by providing rapid, affordable online recovery of Microsoft® SQL Server
databases from multiple, highly granular point-in-time snapshots. Quickly recover a
database to a known point in time, speeding up a variety of operations including rapid
recovery of the production SQL server. Application Software Suite for SQL uses system-based
licensing. For more information see
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP
3PAR Replication Software Suite.
HP 3PAR 7450 Application Suite for Microsoft SQL LTU
HP 3PAR 7450 Application Suite for Microsoft SQL E-LTU
BC917B
BC917BAE
HP 3PAR Application Software Suite for Exchange
HP 3PAR
Application
Software Suite for
Exchange Application
Protection
The HP 3PAR Application Software Suite for Exchange provides you the essentials for
protecting your Microsoft Exchange data, including Recovery Manager for Exchange and the
VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR Virtual Copy
that intelligently creates and manages snapshots that can be used to quickly restore
Exchange instances or databases (or non-disruptively back them up to tape) for nearcontinuous data protection. Application Software Suite for Exchange uses system-based
licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 25
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
3PAR Replication Software Suite.
HP 3PAR 7450 Application Suite for Microsoft Exchange LTU
HP 3PAR 7450 Application Suite for Microsoft Exchange E-LTU
BC916B
BC916BAE
HP 3PAR Application Software Suite for VMware
HP 3PAR
Application
Software Suite for
VMware Application
Protection
The HP 3PAR Application Software Suite for VMware provides everything you need to make
your VMware environment more agile and efficient-including Recovery Manager for VMware,
Host Explorer for VMware, VASA support, and three essential plug-ins: the VMware Site
Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR management plugin for VMware View. Application Software Suite for VMware uses system-based licensing. For
more information see.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP
3PAR Replication Software Suite.
HP 3PAR 7450 Application Suite for VMware LTU
HP 3PAR 7450 Application Suite for VMware E-LTU
BC915B
BC915BAE
HP 3PAR Application Software Suite for Microsoft Hyper-V
HP 3PAR
Application
Software Suite for
Hyper-V Application
Protection
The HP 3PAR Application Software Suite for Hyper-V provides you the essentials for
protecting your Microsoft Hyper-V environment, including Recovery Manager for Hyper-V and
the VSS Provider software. Recovery Manager for Hyper-V is an extension to 3PAR Virtual
Copy that intelligently creates and manages snapshots that can be used to quickly restore
Hyper-V VMs (or non-disruptively back them up to tape) for near-continuous data protection.
Application Software Suite for Hyper-V uses system-based licensing.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP
3PAR Replication Software Suite.
HP 3PAR 7450 Application Suite for Microsoft Hyper-V LTU
HP 3PAR 7450 Application Suite for Microsoft Hyper-V E-LTU
BD190B
BD190BAE
HP Cluster Extension Software
HP Cluster
Extension
Software- High
Availability
HP Cluster Extension Software (CLX) offers protection against application downtime from
fault, failure, or site disaster by extending a local cluster between data centers over
metropolitan distance. CLX reinstates critical applications at a remote site within minutes or
seconds after an adverse event. CLX integrates with the OS clustering software (such as MS
Cluster Service in Windows) and the remote mirroring software on storage (such as HP 3PAR
Remote Copy Software on HP 3PAR systems) to automate failover and failback between
sites. This dual integration enables the cluster service to verify the status of the storage as
well as the server cluster; thus allowing the correct failover and failback decisions to be made
which minimize downtime, and accelerates recovery without human intervention. Thus the
Cluster Extension Software can help customers achieve 'zero' RPO and RTO in minutes or
seconds. For more information, including how Cluster Extension Software is licensed, see
http://h18006.www1.hp.com/storage/software/ces/index.html.
Step 9 - Choose Options for Storage Networking
HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of
storage networking needs from small and midsized businesses to the largest corporate enterprises. HP StoreFabric storage
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 26
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
networking SAN Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.
For additional details on SAN infrastructure components and options and storage compatibility information, please visit:
http://hp.com/go/san or select from the part numbers below.
Fibre Channel
Host Bus Adapters
Brocade Fibre Channel HBAs
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
QLogic Fibre Channel HBAs
Fibre Channel Switches
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ764A
HP B-series
8 Gb Fibre Channel Switches
HP 8/8 Base (0) e-port SAN Switch
AM866B
HP 8/8 (8) Full Fabric Ports Enabled SAN Switch
AM867B
HP 8/24 Base (16) Full Fabric Ports Enabled SAN Switch
AM868B
16 Gb Fibre Channel Switches
HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch
QW937A
HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch
QW938A
HP SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch
QK753B
HP SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch
QR480B
HP SN6000B 16Gb 48-port/24-port Active Power Pack+ Fibre Channel Switch
QK754B
HP SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch
QR481B
FCoE, Extension and Embedded Switches
HP 1606 FCIP 4-pt Enabled 8Gb FC 2-pt Enabled 1GbE Base Switch
AP862B
HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Full Switch
AP863B
HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Power Pack+ Switch
AP864B
Brocade 8/12c SAN Switch for BladeSystem c-Class
AJ820B
Brocade 8/24c SAN Switch for BladeSystem c-Class
AJ821B
Brocade 8/24c Power Pack+ SAN Switch for BladeSystem c-Class
AJ822B
HP H-series
HP 8/20q Fibre Channel 8-ports Active Switch
NOTE: 8 device ports active, upgradeable to 20 device ports active
AQ233B
HP 8Gb Simple SAN Connection Kit
NOTE: 8 device ports active, upgradeable to 20 device ports active
AK241B
HP 8/20q Fibre Channel Switch
NOTE: 16 switch ports active, upgradeable to 20 device ports active
AK242B
HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
AW575B
HP SN6000 Stackable 8Gb 24-port Dual Power Fibre Channel Switch
AW576B
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 27
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
NOTE: 20 device ports active/4 stacking (ISL) ports active
HP SN6000 Stackable 12-port Single Power FC Switch
NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device
ports active
BK780B
HP C-series
HP SN8000C 13-Slot Supervisor 2A Fabric 3 Director Switch
HP SN8000C 6-Slot Supervisor 2A Director Switch
QW927A
AE388C
HP SN6000C 8Gb 16-port Fibre Channel Switch
AW585A
HP SN6000C 8Gb 32-port Fibre Channel Switch
AW586A
Cisco MDS 8/12c Fabric Switch for HP BladeSystem c-Class
AW563A
Cisco MDS 8/24c Fabric Switch for HP BladeSystem c-Class
AW564A
Cisco MDS 9124 8-ports Active Fabric Switch
AG646A
Cisco MDS 9124 16-ports Active Fabric Switch
AG647A
Cisco MDS 9222i Multiservice with 0 SFP Transceiver Modular Fabric Switch
AG851B
HP Intelligent Infrastructure
Analyzer Software (IIAS)
HP Intelligent Infrastructure Analyzer Software LTU
TC400A
HP Intelligent Infrastructure
Analyzer Software (IIAS)
HP Intelligent Infrastructure Analyzer Software E-LTU
HP Virtual Connect
HP 3PAR StoreServ 7000 Storage supports direct attach with HP Virtual Connect
FlexFabric. Please refer to SPOCK for HP Virtual Connect information.
http://h20272.www2.hp.com/index.aspx
TC400AAE
An online monitoring and diagnostic solution intended to manage the physical
layer of a Storage Area Network (SAN) consisting of HP B-series and/or H-series
Fibre Channel switches and directors. It uses industry-standard protocols (such
as SNMP, SMI-S, Telnet) to monitor the physical layer across the SAN and to
diagnose changes/events in Small Form-factor Pluggable (SFP) transceiver
states/characteristics. It also presents the SAN topology, inventory and
diagnostic information to the user in real-time.
PremierFlexOM4 cable options HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
QK732A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
QK733A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable
QK734A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
QK735A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
QK736A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
QK737A
HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
AJ833A
HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
AJ834A
HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
AJ835A
HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
AJ836A
HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
AJ837A
HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
AJ838A
HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AJ839A
OM3 FC LC-LC cables options
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 28
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Step 10 - Federation / Data Migration
HP provides several ways to migrate your data from older arrays. Peer Motion provides federation with other 3PAR arrays, which
includes the ability to migrate data to HP 3PAR StoreServ 7450 Storage.
(Peer Motion is part of the HP 3PAR 7450 Data Optimization Software Suite). Peer Motion Software is also available as a
standalone license
HP 3PAR Peer Motion
Software
HP 3PAR 7450 Peer Motion Software Base LTU
BC906A
HP 3PAR 7450 Peer Motion Software Drive LTU
BC907A
* Insert AE at the end of a part number for an electronic LTU (XXXXXAAE). E-Delivery should be ordered with any Standalone or
Upgrade software order.
Online Import allows you to easily migrate data from HP EVA, EMC CX4 or EMC VNX Storage arrays to the HP 3PAR StoreServ 7450,
a 180-day Online Import license is built into the HP 3PAR 7450 Operating System Software Suite. Additional licenses are available
to order.
HP 3PAR Online Import
Software
HP 3PAR 7450 Online Import Software 180 day LTU
BD195A
* Insert AE at the end of a part number for an electronic LTU (XXXXXBAE). E-Delivery should be ordered with any Standalone or
Upgrade software order.
In addition HP supports the MPX200.
HP MPX200 Multi-protocol and Heterogeneous Data Migration
The HP MPX200 Multiprotocol Router provides support for HP 3PAR StoreServ 7000 and 10000 as well as 3PAR F/T, including
1GbE iSCSI and 10GbE iSCSI and FCoE target support. MPX200 iSCSI provides an alternative option for HP 3PAR storage systems if
you don't want to dedicate native iSCSI ports on your array. The MPX200 also facilitates the sharing of iSCSI/FCoE connectivity
simultaneously for HP 3PAR storage systems from the same MPX200. For Data Migration the MPX200 provides high performance
migration from P6000/EVA to HP 3PAR storage systems and simplifies Data Migration from third party storage such as IBM and
EMC to HP 3PAR.The MPX200 is an ideal solution enabler for HP 3PAR customers. http://www.hp.com/go/mpx200
MPX200 Multifunction
Router
FCIP Software
HP MPX200 1GbE Base Multifunction Router
AP771B
HP MPX200 Multifunction Router 1GbE Upgrade Blade
AP772B
HP MPX200 10-1GbE Base Multifunction Router
AP773B
HP MPX200 Multifunction Router 10-1GbE Upgrade Blade
AP774B
HP MPX200 Half Chassis FCIP License
TA766A
HP MPX200 Full Chassis FCIP License
TA767A
Data Migration Software HP MPX200 1TB Full Chassis Data Migration License
TA762A
HP MPX200 5TB Full Chassis Data Migration License
TA763A
HP MPX200 Full Chassis 1 Array Data Migration License
TA764A
Step 11- Adding a File Controller
If file services are needed to on HP 3PAR StoreServ 7450 storage system, a file controller can be added. These models come with
factory-installed drives and the Microsoft Windows Storage Server 2012 Standard Edition or Windows Storage Server 2012 R2
Standard Edition operating system pre-installed
Choose a Pre-configured Model
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 29
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Part Number
HP 3PAR StoreServ File Controller
Specifications
E7X02A
Operating
System
Microsoft Windows Storage Server 2012 R2, Standard
Processor
Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor
Memory
16 GB (4 x 4GB)
Storage
Controller
Smart Array P420i with 1 GB FBWC Controller with internal SAS port
for O/S drives)
Internal
Storage
2 x 300GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs (O/S mirror)
Expansion Slots 3 x PCIe (6 with option PCIe Riser)
Network Ports 4 x 1GbE
Form Factor
2U Rack
Part Number
HP 3PAR StoreServ File Controller
Specifications
C8S69A
Operating
System
Microsoft Windows Storage Server 2012, Standard
Processor
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor
Memory
16 GB (4 x 4GB)
Storage
Controller
Smart Array P420i with 1 GB FBWC Controller with internal SAS port
for O/S drives)
Internal
Storage
2 x 450GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs (O/S mirror)
Expansion Slots 3 x PCIe (6 with option PCIe Riser)
Network Ports 4 x 1GbE
Form Factor
2U Rack
Add a second processor
Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit
NOTE: For E7X02A only
715222-B21
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit
NOTE: For C8S69A only
662252-B21
Add More Memory
NOTE: HP recommends that you add the same type memory to the product that is shipped standard with the
product.
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in
Gen8 Servers.
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
713981-B21
Page 30
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Voltage Memory Kit
NOTE: For E7X02A only
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
NOTE: For C8S69A only
647893-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.
See the HP ProLiant Gen 8 QuickSpecs for information on memory configurations.
http://h18004.www1.hp.com/products/quickspecs/14212_div/14212_div.html
Add 3PAR StoreServ File Controller v2 Performance Kit
HP 3PAR StoreServ File Controller 1Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional
16GB (4 x 4GB) of Memory, and a 1GbE 4 port NC365T Adapter to the 3PAR File
Controller v2
E7X04A
HP 3PAR StoreServ File Controller 10Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional
16GB (4 x 4GB) of Memory, and a 10GbE 2 port 560SFP+ Adapter to the 3PAR File
Controller v2
E7X05A
Add additional options
NOTE: Multifunction Server Adapters support the installed Microsoft Windows Server Scalable Networking Pack, which enables
TCP Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.
HP Networking
Gigabit Ethernet adapters
HP NC112T PCI Express Gigabit Server Adapter
503746-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP Ethernet 1Gb 4-port 331T Adapter
647594-B21
HP Ethernet 1Gb 2-port 361T Adapter
652497-B21
HP Ethernet 1Gb 2-port 332T Adapter
615732-B21
10 Gigabit Ethernet Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.
HP Infiniband
HP NC523SFP 10Gb 2-port Server Adapter
593717-B21
HP Ethernet 10Gb 2-port 530SFP Adapter
652503-B21
HP Ethernet 10Gb 2-port 530T Adapter
656596-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter
665249-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
614203-B21
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA
583211-B21
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA
592520-B21
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 31
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
NOTE: For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to
the server, which is selected in Step 2 for the "Configuration Information - Factory
Integrated Models" section. These two options are for upgrade or change from
original configuration.
NOTE: FLR Indicates new HP FlexibleLOM Adapter series.
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter
649282-B21
HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter
649283-B21
HP InfiniBand FDR 2-port 545QSFP Adapter
702211-B21
NOTE: 10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html
HP Optical Drives
HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive
652232-B21
HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive
652235-B21
HP I/O Expansion
Options
HP DL380p/385p/560 Gen8 3 Slot PCI-E Riser Kit
NOTE: When populating the second optional riser slot, the second processor must be
installed.
653206-B21
HP Security
HP Trusted Platform Module Option
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure
that a server running Windows Server 2008 has not been tampered with while the
system was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM.
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
488069-B21
HP 3PAR StoreServ File Controller is designed and optimized for connection to 3PAR StoreServ Storage and uses HBAs, rather than
additional Storage Controllers.
NOTE: HBAs are not included standard. HBA selection is left as your choice based on existing SAN infrastructure.
HP Fibre Channel
Storage Fibre Channel HBA
NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows
2000, Windows Server 2003 and Linux, please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter
QR559A
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
C8R39A
QLogic Fibre Channel HBAs
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
AJ764A
QW972A
Page 32
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
Converged Network Adapter
HP CN1100E Dual Port Converged Network Adapter
BK835A
HP CN1000Q Dual Port Converged Network Adapter
BS668A
HP StoreFabric CN1100R Dual Port Converged Network Adapter
WSS2012 R2 Upgrade
QW990A
WSS2012 R2 Standard Edition Upgrade Kit
HP 3PAR StoreServ File Controller products with the Microsoft Windows Storage
Server 2012, Standard Edition Operating System are eligible for a Software-Only Pay
-for-Upgrade to the Microsoft Windows Storage Server 2012 R2.
* A minimum of two OS drives that are the same type and capacity (146GB minimum)
must be present in the system before installation.
NOTE: Some expansion cards, including HBAs and NICs, may not be supported by
Windows Storage Server 2012 R2. Check Windows Server 2012 R2 driver availability
before purchase and installation. All original components that were standard on the
3PAR StoreServ File Controller are supported.
NOTE: Check for HP and 3rd-party software qualification with the Windows Storage
Server 2012 R2 operating system before purchase and installation.
HP StoreEasy WSS2012 R2 Standard Edition Upgrade Kit
D4T73A
Add a Power Cord
The HP 3Par StoreServ File Controller comes standard with at least one rack (IEC-IEC) PDU power cord. If you wish to use wall
outlet power instead, you can choose a country- or region-specific power cord.
3Par StoreServ File
Controller
HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord
AF556A
HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord
AF557A
HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord
AF558A
HP C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord
AF559A
HP C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord
AF560A
HP C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord
AF561A
HP C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord
AF562A
HP C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord
AF569A
HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord
AF565A
HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord
AF566A
HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord
AF568A
HP C13 - SI-32 IL 250V 10Amp 1.83m Power Cord
AF564A
HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord
AF571A
HP C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord
AF572A
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 33
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Configuration
HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord
AF570A
HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord
AF567A
HP C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord
AF591A
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 34
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features and Benefits
HP 3PAR StoreServ 7450 Product Dimensions, and Weight
Physical Dimensions
Height in/mm/U
Width in/mm
Depth in/mm
Max Weight lb/kg
42U Intelligent Series Rack
79.0/2006.6
23.5/597.8
42.7/1125.2
243/110 (empty)
HP 3PAR StoreServ 7450c
2-node Storage Base (no
host adapters, no drives)
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
HP 3PAR StoreServ 7450c
2-node Storage Base (with
two host adapters, no
drives)
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
HP 3PAR StoreServ 7450c
4-node Storage Base (no
host adapters, no drives)
6.925/175.9/4
19/483
26.6/676.1*
97.8/44.4
HP 3PAR StoreServ 7450c
4-node Storage Base (with
four host adapters, no
drives)
6.925/175.9/4
19/483
26.6/676.1*
99.8/45.3
HP M6710 2.5 inch 2U SAS
Drive Enclosures (without
drives)
3.46/87.95/2
19/483
24.8/630.7
33.5/15.2
HP M6720 3.5 inch 4U SAS
Drive Enclosures (without
drives)
6.89/175/4
19/483
24.9/631.4
42.9/19.5
SFF SAS drive with carrier
3.42/86.85**
0.78/19.9**
896/227.7
0.7/0.32
(varies by type)
LFF SAS drive with carrier
1.18/30.0**
4.36/110.84**
8.67/220.26
1.9/0.86
(varies by type)
* includes length of ejector handles
** includes RFI clips
Power Requirements
Input Voltage (VAC)
100 - 240 VAC
Frequency (Hz)
50 - 60
Component
Idle
(watts / BTU/hr)
Transactional
(watts / BTU/hr)
Node Pair (7450/7450c), no drives, no
add-on host adapters
344 / 1173
363 / 1238
4-port 8Gb/sec Fibre Channel Adapter
24 / 81.7
32.6 / 111
2-port 10Gb/sec iSCSI/FCoE Adapter
34 / 115.8
40 / 136.4
HP M6710 2.5 inch 2U SAS Drive Enclosure, 150 / 512 (average)
no drives
150 / 512 (average)
HP M6720 3.5 inch 4U SAS Drive Enclosure, 164 / 559 (average)
164 / 559 (average)
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 35
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features and Benefits
no drives
200GB SLC SSD
1.4 / 4.8
2.1 / 7.2
480GB cMLC SSD
3.2/11
7.1/24.4
1920GB cMLC SSD
3.5/11.9
8.9/30.5
Environmental Specifications
Operating Temperature
41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft
altitude (1.8° C/1,000 m)
Shipping Temperature
32° to 140° F (0° to 60° C)
Altitude (ft/m) max.
10,000 ft / 3,048 m
Shipping Altitude (ft/m) max.
40,000ft/ 12,192 m
Humidity
10% to 90% non condensing
Shipping Humidity
10% to 90% non condensing
Operating Vibration
0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz
Non-operating Vibration
0.5 G, 5 - 500 Hz, Sine
Operating Shock
2 G, 11ms, half-sine
Non-operating Shock
10 G, 11ms, half-sine
Maximum Air Flow
Storage Base and Upgrade Node Pair - 109 CFM per enclosure
M6710 Drive Enclosure - 105 CFM
M6720 Drive Enclosure - 109 CFM
Electromagnetic Compatibility
CISPR 22:2008/ EN55022:2010 Class A
CISPR 24:2010/ EN 55024:2010
IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009
IEC/ EN 61000-3-3:2008
AS/NZS CIPSR 22: 2009 Class A
CNS 13438:2006 Class A
47 CFR Part 15 Subpart b Class A
ICES-003 Issue 4 Class A
V-3/2012.04 Class A
RRA Notice No. 2011-24 (2011.12.23) Class A
RRA Notice No. 2011-25 (2011.12.23)
Acoustics
Fan Speed
Sound pressure level measured per ISO 7779
(RPM)
specifications during normal operating fan conditions,
from a minimum of 4,000 RPM to a maximum of 10,000 Typical
RPM
Maximum
7450c 2N
7450c 4N
M6710 2.5" M6720 3.5"
Storage Base Storage Base 2U SAS Drive 4U SAS Drive
Enclosure
Enclosure
72
74
66
67
93
97
85
88
Typical operations assume 20 degrees centigrade ambient with a fan
speed of 4000 RPM.
Safety
IEC 60950-1:2005 (2nd Edition)
EN 60950-1:2006 +A11:2009
EN 62479:2010
CNS 14336-1 2nd Edition
UL 60950-1 2nd Ed.
CAN/CSA C22.2 No. 60950-1
Certifications / Markings
cTUVus Mark
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 36
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features and Benefits
TUV T-mark (EN 60950)
CE Mark
FCC Class A
IC Class A
VCCI Class A
BSMI Class A
KCC
GOST-R
C-Tick
WEEE
China RoHS
EU RoHS
NOTE: Specifications are subject to change without notice. Acoustics and power consumption for the node pair has been
measured with Gold efficiency PCM.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 37
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Overview - StoreServ File Controller
HP 3PAR StoreServ File Controller v2
HP 3PAR StoreServ File Controller v2 is a new converged storage capability on the HP 3PAR StoreServ Storage platform. It adds
support for file services to the 3PAR StoreServ. The HP 3PAR StoreServ File Controllerv2 is designed to deliver efficient, secure,
and highly available file capability that supports hundreds to thousands of concurrent users.
What's New

New 3PAR StoreServe File Controller v2
HP 3Par StoreServ File Controller v2
The HP 3PAR StoreServ File Controller v2 sets the standard for performance and expandability for file services for the 3PAR
StoreServ platform. It leverages the 3PAR StoreServ Storage data services and extends the benefits to file workloads. Please refer
to the respective sections for details on the data services.
Models
HP 3PAR StoreServ File Controller v2 Storage
HP 3PAR StoreServ File Controller 1Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and
a 1GbE 4 port NC365T Adapter to the 3PAR File Controller v2
HP 3PAR StoreServ File Controller 10Gb Performance Kit
NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and
a 10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2
HP 3PAR StoreServ File Controller
Front View:
Rear View:
1.
2.
3.
1.
2.
3.
4.
Quick removal access panel
Second Intel Processor
First Intel Processor
24 DIMM slots: DDR3 Registered (RDIMM), Load Reduced
(LRDIMM), or Unbuffered (UDIMM) memory
4.
E7X02A
E7X04A
E7X05A
C8S69A
PCIe 3.0 Slots 1, 2, 3-PCIe 2.0 top to bottom
N/A
Power supply 1
Power supply 1 Power LED
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 38
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Overview - StoreServ File Controller
5.
Air Baffle
5.
6.
Hot-plug fans, full N+1 redundancy
6.
7.
8.
9.
10.
11.
12.
13.
Health LED
Power On /Standby button and system power LED button
USB connector
Unit ID LED
Systems Insight Display
Asset Tag
USB connector
7.
8.
9.
10.
11.
12.
13.
14.
Drive Bays
14.
15.
16.
Power supply 1 Power connection (with Intelligent PDU
communication)
Power supply 2 Power connection (with Intelligent PDU
communication)
Power supply 2 Power LED
Power supply 2
Unit ID LED/Button
USB connectors (4)
Video connector
iLO connector
Serial connector
FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2
ports 10Gb each)
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical
Drive)
Video connector
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 39
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Features and Benefits - StoreServ File Controller
Efficient: Save money
and time
The HP 3PAR StoreServ File Controller v2 supports thousands users concurrently accessing their files.
Non-intrusive variable chunk de-duplication delivers an average 50-60% space savings, and included
evaluation tool facilitates capacity planning.
Consolidate multiple diverse file protocols (NFS: v2, v3, v4.1 | SMB: 2.0, 2.1, 3.0 | WebDAV | FTP/FTPS |
HTTP/HTTPS) as well as IT services (e.g. print, DNS, DHCP) in a single platform.
Hosted BranchCache reduces your branch office WAN usage by automatically caching frequently
accessed headquarter datacenter files.
Straightforward and consistent management experience that provides storage management for both
file and block based workloads.
Bulletproof: Protect your Built in file system encryption and optional BitLocker Drive Encryption secures data at rest while SMB
data and organization
Encryption protects data in flight.
always
File Classification Infrastructure facilitates sophisticated access controls and support for Active
Directory Rights Management Services protects files no matter where they go.
Online snapshots enable users to directly recover files and prior file versions.
Broad support for onboard endpoint protection (antivirus) software eliminates the need to purchase
additional external infrastructure.
Broad support for agent-based data protection enhances the ability to meet backup and recovery
SLAs.
Effortless: Simple to
Manage and Monitor
Turnkey clustered controller configurations with transparent failover for SMB and NFS provide
continuous availability.
Cluster aware updates enable online maintenance.
File system online self-healing, online verification, and precise and rapid repair massively reduce
downtime from file corruption.
HP Active Health System, mirrored OS disks, RAID for data disks, redundant fans and power, and
advanced memory protection maximize uptime.
Three year onsite parts and labor warranty for the system, and one year of software telephone
support.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 40
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Standard Features - StoreServ File Controller
Operating System
Microsoft Windows Storage Server 2012 R2, Standard Edition











Windows Storage Server 2012 R2 (WSS2012 R2) includes a robust range of file serving and
storage capabilities. It addresses heterogeneous file workload environments and enables
more efficient storage utilization. It allows for a flexible mix of configurations and includes
advanced data management tools. WSS2012 leverages your Windows Server management
skill sets and tools including Active Directory, PowerShell and System Center.
SMB 3.0: Leverage high performance continually available file shares to deliver feature-rich
storage for continuously available file services, business-critical applications and virtual
servers using advanced new functionality.
New VHDX Standard: Deploy larger capacity virtual storage that can grow to 16 terabytes, is
more resilient against corruption, and provides more efficient usage of new 4 KB sector hard
disks with the new VHDX virtual storage standard.
Live Storage Migration: Maintain maximized service-level availability even while moving
virtual machine storage between host servers independent of the actual virtual machine.
SMB Multi-channel: Enable aggregation of network bandwidth and network fault tolerance
when multiple paths are available between SMB clients and file servers.
NFS v4.1: For Windows Storage Server 2012 R2, Server for NFS has been updated to support
continuous availability. These improvements make it possible to reliably store and run
VMware ESX on a virtual machine that is running Windows Server 2012 by using the NFS
protocol to share files. Additional improvements in failover clustering take advantage of
better resilience to hardware and software outages that may afflict individual cluster nodes.
At the same time, failover clustering isolates VMware ESX hypervisor hosts from intermittent
glitches during failovers.
Data Deduplication: Data deduplication enables Windows Storage Server 2012 R2 to store
more data in less physical space and achieve storage efficiency that is significantly higher
than was possible in previous releases of Windows Storage Server that used Single Instance
Storage (SIS) or NTFS file system compression. Data deduplication uses variable size chunking
and compression, which deliver optimization ratios of 2:1 for general file servers and up to
20:1 for virtualization data. Evaluate your savings with the Deduplication Evaluation Tool.
Volume Shadow Copy Service: Creates point-in-time copies (snapshots) of files and folders at
predetermined time intervals that can then be accessed from client computers.
VSS for Remote SMB File Shares: Leverage proven Volume Shadow Copy Service (VSS) to
offload snapshot and backup operations to remote storage from VSS hardware providers
within Hyper-V virtual machines.
Hosted Branch Cache: Using client/server architecture, Windows 7 and above client computers
can cache content on the local network via the Hosted Cache running on the 3PAR StoreServ
File Controller. Other clients who need the same content retrieve it directly from the Hosted
Cache.
DFS Namespaces: Enables you to group shared folders that are located on different servers
into one or more logically structured namespaces. Each namespace appears to users as a
single shared folder with a series of subfolders. However, the underlying structure of the
namespace can consist of numerous file shares that are located on different servers and in
multiple sites.
Distributed File System Replication (DFS-R): Enables you to efficiently replicate folders
(including those referred to by a DFS namespace path) across multiple servers and sites. DFS
Replication uses a compression algorithm known as remote differential compression (RDC).
RDC detects changes to the data in a file, and it enables DFS Replication to replicate only the
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 41
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Standard Features - StoreServ File Controller






changed file blocks instead of the entire file.
Work Folders: With Work Folders users can store and access work files on personal computers
and devices, often referred to as bring-your-own device (BYOD), in addition to corporate PCs.
Users gain a convenient location to store work files, and they can access them from
anywhere. Organizations maintain control over corporate data by storing the files on centrally
managed file servers, and optionally specifying user device policies such as encryption and
lock-screen passwords. Work Folders can be deployed with existing deployments of Folder
Redirection, Offline Files, and home folders. Work Folders stores user files in a folder on the
server called a sync share. You can specify a folder that already contains user data, which
enables you to adopt Work Folders without migrating servers and data or immediately
phasing out your existing solution.
File Server Resource Manager (FSRM): File Server Resource Manager is a set of features that
allow you to manage and classify data that is stored on file servers. File Server Resource
Manager includes the following features:
o Storage reports: Storage reports are used to help you identify trends in disk usage
and how your data is classified. You can also monitor a selected group of users for
attempts to save unauthorized files.
o File Classification Infrastructure: File Classification Infrastructure provides insight
into your data by automating classification processes so that you can manage your
data more effectively. You can classify files and apply policies based on this
classification. Example policies include dynamic access control for restricting access
to files, file encryption, and file expiration. Files can be classified automatically by
using file classification rules or manually by modifying the properties of a selected
file or folder.
o File Management Tasks: File Management Tasks enables you to apply a conditional
policy or action to files based on their classification. The conditions of a file
management task include the file location, the classification properties, the date the
file was created, the last modified date of the file, or the last time the file was
accessed. The actions that a file management task can take include the ability to
expire files, encrypt files, or run a custom command.
o Quota management: Quotas allow you to limit the space that is allowed for a volume
or folder, and they can be automatically applied to new folders that are created on a
volume. You can also define quota templates that can be applied to new volumes or
folders.
o File screening management: File screens help you control the types of files that user
can store on a file server. You can limit the extension that can be stored on your
shared files. For example, you can create a file screen that does not allow files with
an MP3 extension to be stored in personal shared folders on a file server.
Initial Configuration Tasks Wizard: Simplifies and accelerates new device deployment by
presenting basic system settings on your first boot.
Server Manager
Print Management Console: Manage multiple printers (license for unlimited printer support)
from a single console, whether locally or over the WAN
Unlimited Client Access Licenses (CALs) included
NOTE: Windows Storage Server 2012 R2 and Windows Server 2012 R2 are built on the same code base.
Applications certified for Windows Server are expected to have the same application compatibility
profile on Windows Storage Server. Windows Storage Server 2012 R2 and Windows Server 2012 R2
have the same application frameworks, services and plumbing to support running the full breadth of
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 42
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Standard Features - StoreServ File Controller
Window-compatible applications. Applications that rely upon certain roles that are removed from
Windows Storage Server 2012 R2, such as fax server, active directory domain controller or terminal
services will not be able to leverage those roles. Independent Software Vendors (ISVs) ultimately
decide what versions and editions of Windows are supported by their products and users should
review ISV compatibility and support information before purchasing. HP StoreEasy customers should
review the End User License Agreement (EULA) to see the types of applications that are permitted for
installation. All versions of Windows Storage Server can join Active Directory domains, but cannot be a
domain controller.
More information on Windows Storage Server 2012 R2, Standard Edition can be found here:
http://www.microsoft.com/en-us/server-cloud/windows-storage-server/default.aspx
http://technet.microsoft.com/en-us/library/jj643303
Processor / Cache
Memory
Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller v2)
Memory
Type
DDR3 Registered (RDIMM) standard
Standard
16GB (4 x 4GB)
DIMM Sockets
24
NIC Ports
4
Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller)
Network Controller
HP 3PAR StoreServ File Controller v2
Expansion Slots
Primary
Riser
(Standard)
Expansion
Slots #
Technology
Bus
Width**
Connector
Width
Bus Number*
Form Factor
Notes
1
PCIe 3.0
X16
X16
7
Full Length,
Full Height
Slot
Proc 1
2
PCIe 3.0
X8
X8
10
Half Length,
Full Height
Slot
Proc 1
3
PCIe 2.0
X4
X8
13
Half Length,
Full Height
Slot
Chipset
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN 669777-B21).
See Option Section below for offering.
PCIe Riser
(Optional 3slot)
Expansion
Slots #
Technology
Bus
Width**
Connector
Width
Bus Number*
Form Factor
Notes
4
PCIe 3.0
X16
X16
16
Full Length,
Full Height
Slot
Proc 2
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 43
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Standard Features - StoreServ File Controller
5
PCIe 3.0
X8
X8
20
Half Length,
Full Height
Slot
Proc 2
6
PCIe 3.0
X4
X8
23
Half Length,
Full Height
Slot
Proc 2
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (669777-B21). See
Option Section below for offering
Storage Controller
Storage
NOTE: HP 3PAR StoreServ File Controller includes a storage controller designed for internal drives
housing the O/S mirror only; an HBA is required to address connectivity to the 3PAR StoreServ Storage
array.
Controller(s)
HP Smart Array P420i/1GB with FBWC
RAID
Needed for internal drive mirror only
Hard Drives
Internal
Eight 2.5" (Small Form Factor) hot-plug bays


External
2 x 300GB 6G SAS 10K SFF HDDs for OS
mirror (3PAR File Controller v2)
2 x 450GB 6G SAS 10K SFF HDDs for OS
mirror (3PAR File Controller)
3PAR StoreServ Storage using Fibre Channel
Power Supply
2 x 750 Watts Platinum
Power Cords
NOTE: The HP 3PAR StoreServ File Controller is primarily connected to PDU's in data center racks so
they now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes
to power a system using a110V receptacle see Power Cord option section for more options.
System Fans
(4) (N+1 redundancy standard)
Form Factor
2U Rack form factor
Host Bus Adapter (HBA)
Support
HP 3PAR StoreServ File Controller is designed to be connected to a HP 3PAR StoreServ Storage array
by adding a recommended Fibre Channel HBA.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 44
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller
Warranty
3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.
Services Included with the
Product
One year of HP Software Support, standard 9x5 business hours (software advisory and remedial
software telephone support, new version license rights, and media and documentation
distribution service).
For increased uptime, productivity and ROI-HP Care Pack packaged services for Storage
These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products
and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of
deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as:
flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire
environment, bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for
Storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the
technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences
that come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of
downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce
downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply
put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned
downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive
hardware and software support services that are sold separately, or combined as with our Foundation Care 24x7 services. The
portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In
addition, with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the
specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of
technical or per-event type service options - including server, storage, and network, SAN device, and software, environment,
installation and education services. Services that you can mix and match depending on your specific requirements, from
preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of
ongoing support. Our HP Care Pack packaged services for Storage assures help when you need it most. And for many products,
post-warranty HP Care Pack Services are available when your original warranty has expired.
HP Storage Services: Offering reliability, flexibility and value-just like your storage
HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete
completely managed services. HP Factory Express provides customization, integration and deployment services for turnkey
solutions. HP Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage
software to help your IT staff get the most out of your investments. And HP Financial solutions extend innovative financing and
asset management programs to cost-effective buy, manage and eventually retire your older equipment.
HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology
works, business works. http://www.hp.com/hps/storage
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 45
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners


Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at:
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
Recommended Support
HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on
resolving issues - hardware onsite response within four hours and software call back within two hours
after opening your case. Three years' coverage recommended with HP Care Pack Service.
HP Installation and Startup Service for 3PAR StoreServ File Controller
For smooth startup, HP Installation and Startup Service provides for deployment of your HP 3PAR
StoreServ File Controller while helping you establish readily available access to and management of
your critical data and applications. Leverage the full strength of HP Technology Services - customers
can trust the services professionals at HP to work collaboratively with them, putting our strategic and
technical know-how to work across their entire infrastructure.





System installation and setup by a HP technical specialist
Reduced implementation time and cost
Verification prior to installation that all service prerequisites are met
Availability of an HP service specialist to answer basic questions related to this service during
the orientation session
Potential expansion of the number of shares and hosts
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-6112ENL.pdf
HP Proactive Select Service
HP Proactive Select Service improves your IT performance and manageability through the use of cost
effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your
technology investment. Selectable proactive services span a wide range of technology and process
services - a flexible way to purchase proactive services that fit your particular environment and
situation.
HP Proactive Select Service is technology agnostic and purchased in addition to your choice of
underlying reactive support.





Access to a list of flexible and customizable proactive service activities
Enhance customers' in-house IT team with complementary assistance from HP
Improved time to solution
Reduce business risk and project costs by accessing HP specialists
Simplify IT operational procedures by leveraging HP best practices
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 46
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller
Optional HP Care Pack Services that will enhance your HP product experience.
Optional Services
HP Data Migration Service for Windows
For customers who need to safely migrate Windows data within their TCP/IP networks with minimal
impact to their operations:
You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a
need to migrate storage for your Windows servers. Or both. And you need to accomplish these
migrations efficiently while minimizing risk at the same time.
HP Data Migration Service for Windows offers you a cost competitive and convenient way to
accommodate data migration triggered by a need to refresh or consolidate storage, or to create
different storage tiers. This service offers a migration cost in line with the costs of storage products in
small and medium-sized storage environments. The service is delivered via a skilled HP service
specialist with special consideration for data availability, integrity, and ongoing operational
performance during the transfer process.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:






Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the
support portal, visit: http://www.hp.com/support
Customer Technical
Training
Consider education as an integral part of your strategy to get the best return on investment for your
HP storage solution. HP offers a variety of training courses on storage software, networking, archiving
and disk storage systems. Our classes are available in many delivery modalities from traditional
instructor-led courses at one of our 80 training centers worldwide to on-site training customized to
your needs or online. www.hp.com/learn/storage
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our
services team's dedications, technical expertise, professionalism and uncompromising commitment to
customer satisfaction. For a list of all our awards, please visit:
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 47
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller
Additional Services
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storageIf you have specific questions, contact your local HP representative.
Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 48
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Storage - StoreServ File Controller
1-8
Eight 3.5" (LFF) hot plug hard drive bays (File
Controller ships with only two SAS drives for OS)
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 49
Quick Specs
HP 3PAR StoreServ 7450 Storage
Technical Specifications - StoreServ File Controller
3PAR StoreServ File Controller
System Unit
Dimensions (H x W x D)
(with bezel)
SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm)
Weight (approximate)
Maximum
(all hard drives, power
supply, and processor
installed)
61.00 lb (27.66 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
41.0 lb (18.59 kg)
Rated Line Voltage
100 to 120 VAC
200 to 240 VAC
Rated Input Current
For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)
BTU Rating
Maximum
For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)
Power Supply Output
(per power supply)
Rated Steady-State Power For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
Input Requirements
(per power supply)
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 50
Quick Specs
HP 3PAR StoreServ 7450 Storage
Technical Specifications - StoreServ File Controller
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
System Inlet
Temperature
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
Maximum Peak Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3048 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10% to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature, noncondensing.
Non-operating
10% to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature, noncondensing.
Operating
3048 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500
ft/min).
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and
declared in accordance with ISO 9296 (ECMA 109). The listed sound levels
apply to standard shipping configurations. Additional options may result in
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 51
Quick Specs
HP 3PAR StoreServ 7450 Storage
Technical Specifications - StoreServ File Controller
increased sound levels.
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Idle
LWAd
4.1 B
LpAm
25 dBA
LWAd
4.3 B
LpAm
27 dBA
Operating
Emissions Classification FCC Rating
(EMC)
Normative Standards
Class A
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt
15; ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
HP iLO 4 On System
Management
Architecture
PCI Express based health and remote management ASIC
Processor
Embedded ARM processor core operating at 400MHz
Upgradeability
Firmware upgradeable via Flash ROM
Video Support
1920 x 1200 (16 bpp) DVR max resolution
Interfaces
HP iLO Dedicated* Network connection (10/100/1000 Mbps) on ML, DL and
SL systems
*Optional Module on some servers
HP iLO Shared Network connection (10/100/1000 Mbps) on ML, DL and SL
systems
HP iLO Network connection (10/100 Mbps) to Onboard Administrator
(with 10/100/1000 Mbps uplink) to BladeSystem link is 1Gbps
Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
Operating System
Support
For information on HP's Certified and Supported ProLiant Servers for OS
and Virtualization Software and latest listing of software drivers available
for your server including how to purchase from HP, please visit our OS
Support Site at: http://www.hp.com/go/ossupport
Client System Support
For information on Client System Support, please visit the HP iLO Feature
Comparison Site at: www.hp.com/go/compareilo
Client Browser Support
Microsoft Internet Explorer 9
NOTE: For customers using Protected Mode, please use the Java based
version of Integrated Remote Console.
Microsoft Internet Explorer 8
NOTE: For customers using Protected Mode, please use the Java based
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 52
Quick Specs
HP 3PAR StoreServ 7450 Storage
Technical Specifications - StoreServ File Controller
version of Integrated Remote Console.
Microsoft Internet Explorer 7
Firefox Extended Support Release (ESR) 10 (on supported Windows and
Linux systems
Firefox 3.6 (on supported Windows and Linux systems)
Command Line Support
Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
HP Smart Array P420i
Controller
Directory Support
Services
Active Directory v1.0 (Windows 2003)
Driver Support
HP ProLiant iLO 4 Management Controller Driver Package
Management protocols
supported
SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML
Dimensions
Embedded
Disk Drive and Enclosure 6Gb/s SAS (Serial Attached SCSI)
Interface - Transfer rate 3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
512MB FBWC - DDR3-1333MHz with 40-bit wide bus, 1GB or 2GB FBWC
DDR3-1333MHz with 72-bit wide bus
Server Interface
x8 PCIe 3.0 provides 8GB/s maximum bandwidth
SAS Speed
(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory
Zero Memory RAID has no cache memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported Zero Memory, Up to 2 logical volumes (8SFF or 4LFF physical drives)
Up to 64 logical drives with cache
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
HP Ethernet 1Gb 4-port
331FLR Adapter
HP Flexible Network
Technology
HP Flexible Network Technology consists of replaceable network solutions
to meet the customers require now or in the future.
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 53
Quick Specs
HP 3PAR StoreServ 7450 Storage
Technical Specifications - StoreServ File Controller
Data Transfer Method
PCI Express, four lanes (x4)
Controller
BCM5719
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and
Full-Duplex)
Environment-friendly
Products and Approach
2000 Mb/s
Connector
Two RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 or higher UTP;
up to 328 ft (100 m)
End-of-life Management Hewlett-Packard offers end-of-life HP product return, trade-in, and
and Recycling
recycling programs in many geographic areas. For trade-in information,
please go to: http://www.hp.com/go/green. To recycle your product,
please go to: http://www.hp.com/go/green or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard web site at: http://www.hp.com/go/green. These
instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 54
Quick Specs
HP 3PAR StoreServ 7450 Storage
Appendix
This Appendix includes the technical specification of the HP 3PAR StoreServ 7450 Storage.
Summary
3PAR StoreServ 7450
Number of Controller Nodes
2 or 4
HP 3PAR Gen4 ASICs
2 or 4
Processors
2 - 4 eight-core 2.3 GHz
Total On-Node Cache
64 - 128 GB
Maximum Host Ports
24 ports
Fibre Channel Host Ports
4 - 24 ports
10Gb/s iSCSI and FCoE Host Ports
0 - 8 ports
Maximum Initiators Supported
1024 or 2048
2U Controller Enclosure SAS Drive Capacity
24
Number of Solid State Drives
Raw Capacity (approx.)
8 – 240
1
0.8 - 460.8 TB3
2
Capacity Details
3PAR StoreServ 7450
RAID Levels
RAID 0, 1, 5, 6
RAID 5 Data to Parity Ratios
2:1 - 8:1
RAID 6 Data to Parity Ratios
4:2, 6:2, 8:2, 10:2, 14:2
Drive Capacities (approximate GB )
(RAID levels, parity ratios, and drive capacities all mixable within
the same Storage System)
100GB SSD4, 200GB SSD, 400GB SSD, 480GB SSD, 920GB SSD,
480GB cMLC SSD, 1.92TB cMLC SSD
Number of Add-on Drive Enclosures
(Each Drive Enclosure holds up to 24 drives in 2U for small form
factor drives and 4U for large form factor drives)
0 - 8 enclosures
3
NOTES:
The minimum drive quantity is permitted as long as the total raw capacity is at least 0.8 TB.
Maximum raw capacity currently supported with solid state drives.
3
For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.
4
SSDs are Solid State Drives.
1
2
NOTE: Specifications are subject to change without notice.
HP 3PAR StoreServ 7450 Product Dimensions, and Weight
Physical Dimensions
Height in/mm/U
Width in/mm
Depth in/mm
Max Weight lb/kg
HP 3PAR StoreServ 7450 2node Storage Base (no host
adapters, no drives)
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
HP 3PAR StoreServ 7450 2node Storage Base (with
two host adapters, no
drives)
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 55
Quick Specs
HP 3PAR StoreServ 7450 Storage
Appendix
HP 3PAR StoreServ 7450 4node Storage Base (no host
adapters, no drives)
6.925/175.9/4
19/483
26.6/676.1*
97.8/44.4
HP 3PAR StoreServ 7450 4node Storage Base (with
four host adapters, no
drives)
6.925/175.9/4
19/483
26.6/676.1*
99.8/45.3
* includes length of ejector handles
** includes RFI clips
Environmental Specifications
Operating Temperature
41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude
(1.8° C/1,000 m)
Shipping Temperature
32° to 140° F (0° to 60° C)
Altitude (ft/m) max.
10,000 ft / 3,048 m
Shipping Altitude (ft/m) max.
40,000ft/ 12,192 m
Humidity
10% to 90% non condensing
Shipping Humidity
10% to 90% non condensing
Operating Vibration
0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz
Non-operating Vibration
0.5 G, 5 - 500 Hz, Sine
Operating Shock
2 G, 11ms, half-sine
Non-operating Shock
10 G, 11ms, half-sine
Maximum Air Flow
Storage Base and Upgrade Node Pair - 109 CFM per enclosure
M6710 Drive Enclosure - 105 CFM
M6720 Drive Enclosure - 109 CFM
Electromagnetic Compatibility
CISPR 22:2008/ EN55022:2010 Class A
CISPR 24:2010/ EN 55024:2010
IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009
IEC/ EN 61000-3-3:2008
AS/NZS CIPSR 22: 2009 Class A
CNS 13438:2006 Class A
47 CFR Part 15 Subpart b Class A
ICES-003 Issue 4 Class A
V-3/2012.04 Class A
RRA Notice No. 2011-24 (2011.12.23) Class A
RRA Notice No. 2011-25 (2011.12.23)
Acoustics
Fan Speed
Sound pressure level measured per ISO 7779
(RPM)
specifications during normal operating fan conditions,
from a minimum of 4,000 RPM to a maximum of 10,000 Typical
RPM
Maximum
7450 2N
7450 4N
M6710 2.5" M6720 3.5"
Storage Base Storage Base 2U SAS Drive 4U SAS Drive
Enclosure
Enclosure
72
74
66
67
93
97
85
88
Typical operations assume 20 degrees centigrade ambient with a fan
speed of 4000 RPM.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 56
Quick Specs
HP 3PAR StoreServ 7450 Storage
Appendix
Safety
IEC 60950-1:2005 (2nd Edition)
EN 60950-1:2006 +A11:2009
EN 62479:2010
CNS 14336-1 2nd Edition
UL 60950-1 2nd Ed.
CAN/CSA C22.2 No. 60950-1
Certifications / Markings
cTUVus Mark
TUV T-mark (EN 60950)
CE Mark
FCC Class A
IC Class A
VCCI Class A
BSMI Class A
KCC
GOST-R
C-Tick
WEEE
China RoHS
EU RoHS
NOTE: Specifications are subject to change without notice. Acoustics and power consumption for the node pair has been measured
with Gold efficiency PCM.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 57
QuickSpecs
HP 3PAR StoreServ 7450 Storage
Summary of Changes
Date
10-Nov-2014
29-Aug-2014
22-Aug-2014
Version History
From Version 13 to 14
From Version 12 to 13
From Version 11 to 12
Action
Changed
Changed
Changed
18-Aug-2014
From Version 10 to 11
Changed
18-Jul-2014
From Version 9 to 10
Added
03-Jul-2014
27-Jun-2014
10-jun-2014
From Version 8 to 9
From Version 7 to 8
From Version 6 to 7
Changed
Changed
Changed
11-apr-2014
31-mar-2014
09-dec-2013
From Version 5 to 6
From Version 4 to 5
From Version 3 to 4
Changed
Changed
Added
28-jun-2013
From Version 2 to 3
Changed
18-jun-2013
From Version 1 to 2
Changed
Description of Change:
Changes were made throughout the QuickSpec.
Changes were made throughout the QuickSpec
Removed this entire bullet: “Encrypted and nonencrypted drives can be mixed in a non-encrypted array”
Changes were made throughout the Overview and
Configuration section. Sku´s descriptions were updated
Configuration section – WSS2012 R2 Upgrade section
added (D4T73A); Standard Features – Power Supply
changed from 2x 460 W to 2 x 750 W;
Changes were made throughout the QuickSpec
Changes were made throughout the QuickSpec
Overview & What´s new section; Features; Carepack
information
The QuickSpec was reconfigured.
Warranty and Hard Drives were revised.
HP 3PAR StoreServ 7450 2-node and 4-node Base for
Storage Centric Racks were added to Step 1 in
Configuration
HP 3PAR StoreServ M6710 and M6720 480GB 6G SAS SFF
and LFF MLC Solid State Drives and HP 3PAR StoreServ
M6710 and M6720 920 GB 6G SAS SFF ad LFF MLC Solid
State Drives were added to Step 4b in Configuration
Changes were made throughout the Configuration
section.
Host OS Support was revised.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less.
c04111384 — DA – 14602 Worldwide — Version 14 — November 10, 2014
Page 58
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
