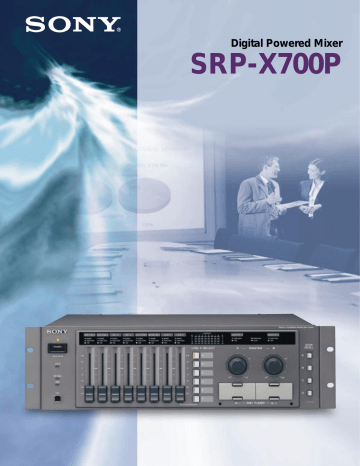

SRP-X700P
Digital Powered Mixer
SRP-X700P
The SRP-X700P Digital Powered Mixer has been
RGB SWITCHER
designed for the modern presentation system that
is required to process material from a wide range
New Powered Mixer
VIDEO SWITCHER
ALL IN ONE
of sources including microphones, video, audio,
WIRELESS TUNER BASE UNIT
DVD and PC graphics. The unit provides the
functionality of up to seven tradition presentation
devices in a compact 3U and rack-mounting
AUDIO MIXER
POWER AMPLIFIER
Digital
chassis. By utilizes digital processing and control
technology, the SRP-X700P combines an
impressive set of features with high quality
processing and simple operation.
Six into one, multi-media switcher for modern presentation material
The SRP-X700P has a ‘six into one’ switcher that allows a wide range of audio, video
and PC graphics material to be routed to the presentation system. The SRP-X700P is
able to handle modern presentation signal sources such as PC graphics, wireless/
wired microphones, DVD playback and surround sound audio.
• Six picture inputs: 3-RGB/Components, 3-Composite/S Video
• Six audio inputs: 4 stereo and 2 surround sound (5.1 format)
• High resolution Component signal processing, including 480p or 1080i
• High-performance switching, with a 150MHz frequency response for RGB
signals (1280 x 1024 pixels, SXGA)
Improved system efficiency
The SRP-X700P is supplied with two PC applications (SRP-X700P Manager and User
Control Panel). The X700P Manager is a ‘set and forget’ application, supplied to allow
the unit to be fully configured during installation and provides a complete set of control
GUIs. The User Control X700P Manager Example BLOCK Screen
Panel provides a simple
control GUI for real time
presenter control.
Additionally, the unit’s
20 internal Scene
memories, four of which
can be recalled from front
panel buttons and the
User Control panel, allow
an instant reset all of the
internal processing, so
minimizing downtime
between operating
modes.
6-mono and 2-stereo channels audio mixing with extensive
processing to maximize sound quality
The SRP-X700P can mix and process 6-mono (4 mic, 2 mic/line) and 2-stereo (a stereo
line and the 5.1/stereo line input of the switcher) inputs signals to 10 outputs (8 general
purpose outputs and a stereo record output). Comprehensive audio processing, such
as EQ, dynamics, routing and delay, allows the quality of the audio signals to be
maximized and provides tools for correcting for room acoustics.
• High quality audio A/D and D/A conversion (24-bit, 48 kHz sampling frequency)
FEADBACK REDUCER
EQ
Current System
Advanced audio processing functions - ‘Feedback Reducer’ and
‘Automixer’.
Two special audio processing tools are included to allow ‘professional quality audio’
processing to be setup at the touch of a button. The ‘Feedback Reducer’ works by
analyzing and ‘nulling out’ potential howl round frequencies. The ‘Automix’ function
allows the SRP-X700P to analyze, in real time, the incoming signals and make
adjustments to maintain the quality of the output.
Multiple operating modes with
10 outputs and the on board stereo power amplifier
A routing function allows the SRP-X700P to offer many different operating modes to
support surround sound matrix switching or ‘Zoned’ speaker configurations. In addition
there is an on board 150W stereo power amplifier can be switched between high and
low impedance modes.
• Power rating 200 W + 200 W (4Ω), 150 W + 150 W (8Ω), Max 150 W (70V Line)
Integrated Machine control and automation control interfacing
The SRP-X700P has extensive machine control capabilities with four CRTL-S control
ports (allowing a wired machine control interface to Sony CD, MD and VTRs).
Additionally, parallel and serial RS-232C control ports provide extensive control from
professional presentation controllers.
• RS-232C port allows for remote control of Sony projector and PDP.
• USB, RS-232C and parallel input ports for remote control from an external PC
(or other control systems).
• Control-S ports on the unit allow for remote operation of Sony VCRs, DVD players, CD
players, MD recorders and projectors.*1
• A parallel output port for remote control of such devices as a video screen (up/down),
window curtains (open/close), projector (up/down), lighting (on/off), etc.*2
*1 In case of control of projector with the Control-S port, it is unable to switch between RGB and
Component Video.
*2 Requires Interface Box between SRP-X700P and the devices
Integrated wireless tuner unit slots
Up to two Sony WRU-806 wireless tuner units (option) can be directly installed into the
SRP-X700P. Making it
simple to integrate a high
quality Sony wireless
microphone system into
the presentation system.
User Control Panel
Lecture room
Training room/Presentation
System Example
Install
RGB
Component Video
Composite Video
Audio
RS-232C Remote
Control-S(IR)Remote
Parallel Remote
USB
RF
Touch Panel
& Controller
Mobile
PC
Desktop PC
Control Panel
IR
Transmitter
Mobile PC
Light
DVD Player
or
or
M
Screen
VCR
M
POWER
MIC1/WL1
MIC2/WL2
SIGNAL
OVER GAIN
SIGNAL
OVER GAIN
MIC3
SIGNAL
OVER GAIN
MIC4
SIGNAL
OVER GAIN
MIC5/LINE1
SIGNAL
OVER GAIN
MIC6/LINE2
SIGNAL
OVER GAIN
LINE3
LINE4
SIGNAL
OVER GAIN
SIGNAL
OVER GAIN
VU 1
+3
0
-5
-10
-20
2
3
OUTPUT
4
5
6
LINE 4 SELECT
7
8 VU
+3
0
-5
-10
-20
MASTER A
OVER GAIN
A
Window
Curtain
MASTER B
PROTECTION
CLIP
MASTER
OVER GAIN
SCENE
RECALL
B
1
ON
OFF
LOCK
RS232C
A
B
2
C
3
USB
D
E
4
F
WL1
MIC TUNER
WL2
I/F BOX
Digital
Powered Mixer
SRP-X700P
Document Camera
Conference room
Board room/Presentation
CD Player
MD Recorder
Wireless Tuner
WRU-806
Microphone
Wireless Microphone
Rear Panel
Projector
Antenna
AN-820A
Speaker
Specifications
ELECTRICAL CHARACTERISTICS
Composite Video/S Video
Color system
Frequency response
Level
Component Video
Color system
Frequency response
Level
Y
R-Y
B-Y
RGB
Frequency response
Resolusion
Level
AUDIO INPUTS/OUTPUTS
Input
MIC/WL 1, 2
MIC 3, 4
NTSC/PAL/SECAM
50 Hz - 10 MHz
1 Vp-p (75 Ω)
NTSC/PAL/SECAM
50 Hz - 150 MHz
1 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
G
B
R
SYNC/HD, VD
Audio (analog)
Frequency response Line in - Line out
T.H.D
Line in - Line out
S/N ratio
Line in - Line out
Crosstalk
Line in - Line out
Others
ANTENNA IN a-b
Microphone power supply
50 Hz - 150 MHz
1280 x 1024 pixels
60 Hz (SXGA)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
1-5 V (47 kΩ)
sync positeve/negative
Channel
Mono
Mono
MIC 5, 6 (LINE 1, 2)
XLR-3-31type
Balanced
Mono
LINE 3
LINE 4 (A, B, C, F)
LINE 4 (D, E)
Output
LINE 1, 2
LINE 3, 4, 5, 6, 7, 8
REC 1, 2
Phono x 2
Phono x 2
Phono x 6
Connector
XLR-3-32type
Phono x 1
Phono x 1
Unbalanced
Unbalanced
Unbalanced
Circuit
Balanced
Unbalanced
Unbalanced
Stereo
Stereo
Stereo/ Surround
Channel
Mono
Mono
Mono
Input
LINE 4 (A, B, C)
20 Hz - 20 kHz
Less than 0.01 % (1 kHz)
More than 104 dB (IHF A)
Less than -90 dB (1 kHz)
LINE 4 (D, E, F)
Output
R/R-Y G/Y B/B-Y SYNC/HD VD
S VIDEO
VIDEO
Impedance
more than 2.2 kΩ
more than 2.2 kΩ
more than 2.2 kΩ
more than 10 kΩ
more than 10 kΩ
more than 10 kΩ
more than 10 kΩ
Load impedance
more than 600 Ω
more than 10 kΩ
more than 10 kΩ
SPEAKERS OUTPUTS
Connector
Phono x 1
4-pin Mini Din
D-sub 15-pin
Connector
BNC x 5
4-pin Mini Din
BNC x 1
Signal Type
Composite
S Video
Component/RGB
Signal Type
Component/RGB
S Video
Composite
Output
Connector
Impedance
CH1
Screw type binding
terminal x 4
CH2
70V LINE
Rated Power
4 Ω-16 Ω
150 W (8 Ω) 200 W (4 Ω)
4 Ω-16 Ω
32 Ω-10 kΩ
150 W (8 Ω) 200 W (4 Ω)
Max 150 W
* Can switch inputs of Sony’s applicable Projectoer automatically by using RS-232C control
function when the switcher of SRP-X700P is operated.
RS-232C ports
PROJECTOR CONTROL
(RS-232C)
Connector
D-sub 9-pin x 1, male,
inch standard
D-sub 9-pin x 1, male,
inch standard
Connector
Series B connector x 2
Connector
RS-232C
USB ports
USB (Front/Rear)
Parallel I/O ports
PARALLEL IN (12-pin)
PARALLEL OUT (10-pin)
Function
Input Selection, Power On/Standby
(applicable Projectors/PDP: Sony’s VPL-FX50, VPL-PX21/31/32, PFM-42B1)*1*2
Fully controlled Audio and Switch functions
Function
Fully controlled Audio and Switch functions
Function
Type
AV Selection(LINE 4), Power On/Off, Scene Recall, Volume, Volume Up/Down,
Make-Contact
Muting, Remote control of connected products with Control-S
CMOS level, active low
Output status of Pallalel Input Function
Open collector
(expect for status of Controlled products with Control-S)
Function
Play, Stop, Pause, FF, REC, PREV, NEXT
(applicableAV Products: Sony’s VHS/ 8mmVTR/BatamaxVTR/DV/CD/CDR/MD equiped with Control-S
terminal, DVD by using supplied IR Transmitter)
For the connection of Projector remote commander
Input Selection, Power On/Standby (applicable Projectors: Sony’s VPL-PX15/10, PS10, CX11/10)*1*2
D-sub 25-pin x 1,
female, milli standard
Control-S ports
OUTPUT 1-4
Connector
Mini Jack x 4
PROJECTOR IN
PROJECTOR OUT
Mini Jack x 1
Mini Jack x 1
* Requires Micrsoft Windows 98SE/ME/
2000/XP
Optional Accessories
Reference/Peak Level
-60 to -45 dBu/-37 to -22 dBu
-60 to -45 dBu/-37 to -22 dBu
-60 to -45 dBu/-37 to -22 dBu
-10 to +4 dBu/-+10 to +24 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
-10 to 0 dBu/+10 dBu to +20 dBu
Reference/Peak Level
+4 dBu/+24 dBu
-5 dBu/+15 dBu
-5 dBu/+15 dBu
REMOTE CONTROL TERMINAL
BNC x 2, DC 9 V OUT
DC 48 V, MIC1-6 Inputs
120/220/230 V AC 50/60 Hz
150 W
0°C to +40°C (+32°F to +104°F)
-20°C to +60°C (-4°F to +140°F)
482 (W) x 132 (H) x 350 (D) mm, 3U
(19 x 5 1/4 x 13 7/8 inches)
Approx. 13 kg (28 lb 11 oz)
AC Power cord (1), Operating manual (1),
IR Transmitter (1), Foot (4),
Control software disk (1)
Mass
Supplied Accessories
Circuit
Balanced
Balanced
VIDEO/RGB INPUTS/OUTPUTS
GENERAL
Power requirement
Power Consumption
Operating temperature
Storage temperature
Dimensions
Connector
XLR-3-31type
XLR-3-31type
WRU-806 UHF Synthesized Tuner Unit
AN-820A UHF Antenna
*1 These applicable models are as of April 2002 and will increase in future. When using a external System Controller to control Projector,
there is no restriction on the type of projector that can be used in the system.
*2 When both RGB and Component Video are used, it is necessary to connect RS-232C port of X700P to Projector/PDP.
Because Control-S control function is unable to switch between RGB and Component Video.
Dimensions
Block Diagram
30
+48V
TRIM
MIC 1,2
WL 1,2
A/D
LCF
FR
TUNER
SLOT
ANT a,b
350
A/D
FR
3BAND
PEQ
MUTING FADER
A/D
LINE 3
LCF
FR
3BAND
PEQ
D/A
LEVEL
METER
OUTPUT
METER
11BAND
PEQ
DELAY
4BAND
PEQ
DELAY
D/A
LINE
OUT 1,2
D/A
LINE
OUT3-8
D/A
REC OUT
+4/0/-5/-10
MUTING FADER
TRIM
TRIM
OVER
GAIN
COMP
SIGNAL
LINE
132
LCF
SP OUT
1,2
POWER
AMP
ATT
SELECTOR
TRIM
482
MODE
COMP
SIGNAL
+48V
4
MUTING
MUTING FADER
MIC 3,4
MIC 5/LINE 1
MIC 6/LINE 2
3BAND
PEQ
CLIP
PROTECTION
70V LINE
OVER
GAIN
SIGNAL
COMP
14IN 10OUT
MUTING FADER AUTOMATIC
SIGNAL
MIXER
0/-5/-10
MUTING FADER
2BAND
PEQ
A/D
MUTING FADER
SIGNAL
TRIM
0/-5/-10
LINE 4 A
4F
3
INPUT
SELECT
LINE 4 D,E
RL/RR/C/W
A/D
REMOTE
USB
RS-232C for external
system controller
RS-232C
430
PARALLEL
REMOTE
MUTING FADER
(Unit: mm)
LINE 4
COMPOSITE
VIDEO IN
A
B
C
LINE 4
S VIDEO IN
A
B
C
A
LINE 4
COMPONENT B
/RGB IN
C
Distributed by
RS-232C for
projector control
2BAND
PEQ
COMPOSITE
VIDEO OUT
LOCK
PROJECTOR
CTRL-S IN
MAIN CPU
S VIDEO
OUT
+
COMPONENT
/RGB OUT
PROJECTOR
CTRL-S OUT
CTRL-S OUT
1,2,3,4
USB(FRONT)
USB(BACK)
© 2002 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is proibited.
Features and specifications are subject to chenge without notice.
All non-metric mass and measures are approximate.
Sony is a registered trademark of Sony Corporation.
All other trademarks are property of their respective owners.
A-1090-A
MK7797V1OHB02MAR
Printed in Japan on recycled paper
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
