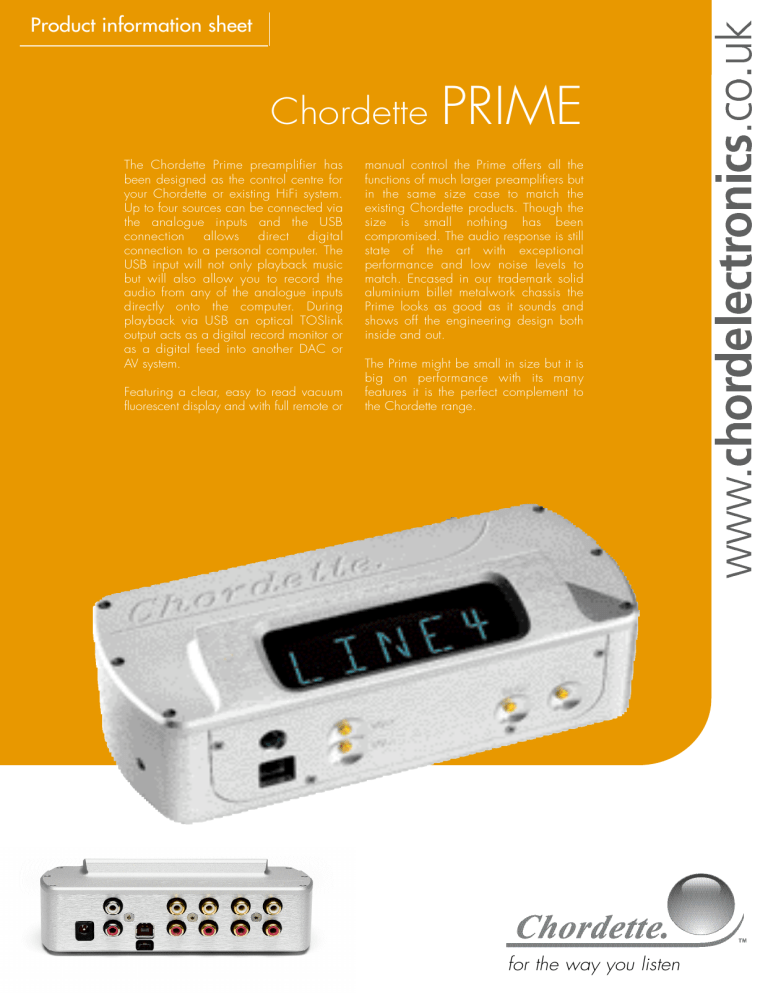

Prime
Product information sheet
Chordette
The Chordette Prime preamplifier has
been designed as the control centre for
your Chordette or existing HiFi system.
Up to four sources can be connected via
the analogue inputs and the USB
connection allows direct digital
connection to a personal computer. The
USB input will not only playback music
but will also allow you to record the
audio from any of the analogue inputs
directly onto the computer. During
playback via USB an optical TOSlink
output acts as a digital record monitor or
as a digital feed into another DAC or
AV system.
Featuring a clear, easy to read vacuum
fluorescent display and with full remote or
PRIME
manual control the Prime offers all the
functions of much larger preamplifiers but
in the same size case to match the
existing Chordette products. Though the
size is small nothing has been
compromised. The audio response is still
state of the art with exceptional
performance and low noise levels to
match. Encased in our trademark solid
aluminium billet metalwork chassis the
Prime looks as good as it sounds and
shows off the engineering design both
inside and out.
The Prime might be small in size but it is
big on performance with its many
features it is the perfect complement to
the Chordette range.
for the way you listen
Technical specifications
for the way you listen
UNBALANCED INPUTS:
4 x pairs gold-plated RCA Phono style
USB INPUT:
0.006%THD; 44/48KHz, USB 2.0 Compliant
OUTPUTS:
1 x pair of gold-plated RCA Phono
1 x Chordette Control signal
1x TOSLink Digital output record monitor
INTERMODULATION
DISTORTION:
-100dB all inputs
SIGNAL TO NOISE RATIO:
-93dB all inputs
FREQUENCY RESPONSE:
2.5Hz – 200kHz (-3dB)
THD:
0.002% 20Hz – 20KHz
CHANNEL SEPARATION:
10 Hz 90dB, 1kHz 90dB, 10kHz 90dB, 20kHz 85dB
CHANNEL BALANCE:
0.01dB
INPUT IMPEDANCE:
47kOhms
OUTPUT IMPEDANCE:
100 Ohms short circuit protected
OUTPUT OFFSET:
0mV both channels
MAX INPUT VOLTAGE:
5V rms
MAX OUTPUT VOLTAGE:
7.5V rms
POTENTIOMETER
PERFORMANCE:
0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB
(13 secs for full travel )
POWER SUPPLY:
12V 3A 2.1mm connector. Centre Pin Positive
100V – 240V 50/60Hz 1A wall adapter supplied
DIMENSIONS:
160 x 70 x 40mm (Width x Height x Depth)
WEIGHT:
0.4Kg
for more information: 01622 721444 • [email protected] • www.chordelectronics.co.uk
