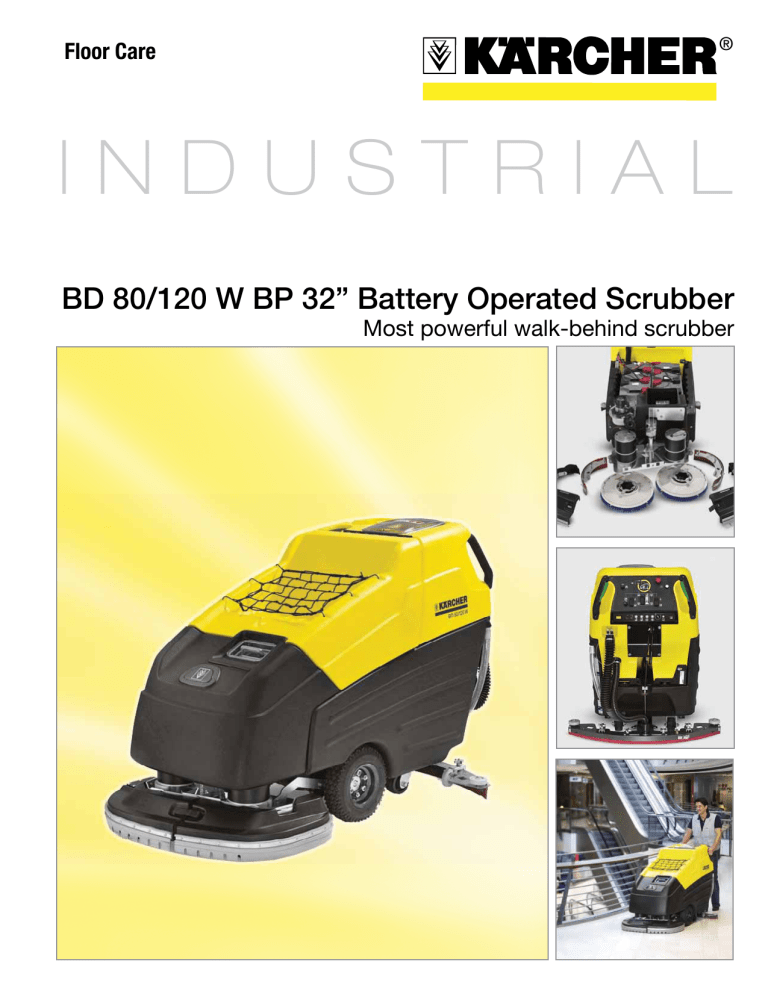

BD 80/120 W BP 32” Battery Operated Scrubber
Most powerful walk-behind scrubber
®
Scrubbers
Kärcher’s most powerful walk-behind scrubber.
The BD 80/120 W is Kärcher’s largest walk behind scrubber/drier with a heavy duty design including pneumatic tires,
heavy-duty squeegee, 23-gallon solution and 25-gallon recovery tanks to support continuous, heavy-duty cleaning of up
to 3-hours. The BD 80/120 W features no-tool, easy access to brushes and batteries. Featuring Kärcher’s patented AquaMizer™ System, the BD 80/120W uses less water and detergent than competitive models for more economical cleaning
of surfaces.
Sleek, Functional Design:
Improves sight lines for safer operation.
Long Run Times:
Aqua-Mizer extends times between refills by using the
cleaning solution more efficiently.
Easy To Use:
Intuitive control panel reduces operator training.
Quick Maintenance:
Uncomplicated access to brushes and batteries without
tools. Recovery tank is easily cleaned.
Convenient Utility Area:
For carrying cleaning accessories.
Rugged Design:
Extremely durable for industrial applications.
Intuitive
control
panel!
Easy access to
brushes and batteries
- no tools needed!
TECHNICAL DATA:
Part Numbers
1.005-284.0 - BR 80/120 W machine with squeegee only
9.840-734.0 - BR 80/120 W machine with 305 ah batteries
9.840-735.0 - BR 80/120 W machine with 335 ah batteries
9.840-736.0 - BR 80/120 W machine with 312 ah AGM batteries
Cleaning Path
32”
Squeegee Width
40”
Tank, Solution/Recovery
23/25 gallons
Max. Area Performance
28,800 sq. ft. per hour
Brush Rotation Speed
200 rpm
Brush Contact Pressure
0-150
Battery
36 V
Weight
375 lbs
Dimensions (L x W x H)
62” x 24” x 45”
YOUR AUTHORIZED KÄRCHER DEALER:
Kärcher Industrial Floor Care
www.KarcherFloorcare.com
[email protected]
888-805-9852 • Fax 800-248-8409
P/N 9.800-419.0 • 8/09
